1. Oracle Upgrade 11.2.0.3 to 11.2.0.4
Pre Upgrade Tasks
No
.
Task Procedure Comments
1.1 Checking the
Original
Version of
Database
1. Check OraclePatch Set
Logon DB Server ' reuxgbuz338 ' as oracxl
oracxl>sqlplus -version
oracxl>sqlplus/ as sysdba
SQL> select version from v$instance;
SQL> exit
2. Check SBP
oracxl>more $ORACLE_HOME/sapbundle/version.txt
oracxl>sqlplus/ as sysdba
SQL> select VERSION, COMMENTS from DBA_REGISTRY_HISTORY;
reuxeuuz1097:orapml> sqlplus -version
SQL*Plus: Release 11.2.0.2.0 Production
reuxeuuz1097:orapml> sqlplus / as sysdba
SQL*Plus: Release 11.2.0.2.0 Production on Thu Jul
3 13:07:56 2014
Copyright (c) 1982, 2010,Oracle. All rights reserved.
Connected to:
OracleDatabase11gEnterprise Edition Release
11.2.0.2.0 - 64bitProduction
With the Partitioning,OLAP, Data Miningand Real
Application Testingoptions
SQL> select version from v$instance;
VERSION
-----------------
11.2.0.2.0
SQL> exit
reuxeuuz1097:orapml> sqlplus / as sysdba
SQL*Plus: Release 11.2.0.2.0 Production on Thu Jul
3 13:09:12 2014

2. Copyright (c) 1982, 2010,Oracle. All rights reserved.
Connected to:
OracleDatabase11gEnterprise Edition Release
11.2.0.2.0 - 64bitProduction
With the Partitioning,OLAP, Data Miningand Real
Application Testingoptions
SQL> select VERSION, COMMENTS from
DBA_REGISTRY_HISTORY;
VERSION
------------------------------
COMMENTS
---------------------------------------------------------------------
-----------
view invalidation
11.2.0.2.0
Upgraded from 10.2.0.4.0
11.2.0.2
PSU 11.2.0.2.3

3. 1.2 Space Check Logon DB Server ' reuxgbuz338 ' as orawyl
1. At least10-15 GB for the OracleHome directory
reuxgbuz338:oracxl>cd $ORACLE_HOME/
dbsreuxgbuz338:oracxl>df -hk $ORACLE_HOME/
dbsFilesystemsize used avail capacity Mounted on
/oracle/CXL 25G 20G 4.2G 84% /oracle/CXL
2. About 1024 MB free spacein the /tmp directory
reuxgbuz338:oracxl>cd /tmp
reuxgbuz338:oracxl>df -h .
Filesystem size used avail capacity Mounted on
swap 2.0G 88K 2.0G 1% /tmp
3. At least1024 MB of physical RAM
reuxgbuz338:oracxl>/usr/sbin/ prtconf | grep Memory
prtconf: devinfo facility notavailableMemory size: 98304 Megabytes
4. Swap spaceabout 1.5 times the availablememory for memory up to 2
GB.
reuxgbuz338:oracxl>/usr/sbin/swap –s
reuxgbuz338:oracxl>swap -s
total: 53893072k bytes allocated + 6924788k reserved = 60817860k
used, 83885628k available
1.3 Check
Authorizatio
ns
1. Check write authorization for the /oracledirectory
reuxgbuz338:oracxl>touch /oracle/write_test
reuxgbuz338:oracxl>rm /oracle/write_test
rm: remove /oracle/write_test (yes/no)? Yes
2. Test GUI Launch
reuxgbuz338:oracxl>/usr/openwin/bin/xclock
3. Set umask
reuxgbuz338:orawyl> umask 022
4. Ensure "root" permission to run root.sh after DB Software Install.
If no write authorization,performbelow as root.
chgrp dba /oracle
chmod 775 /oracle
1.4 Copy Oracle
11.2.0.4
software
orawyl>cd /oracle/stage
orawyl>mkdir /oracle/stage/11204
orapm> chmod 775 11204
orawyl>cp -rp /sapnas1/SAPCD/oracle_11204_x86/*/oracle/stage/11204

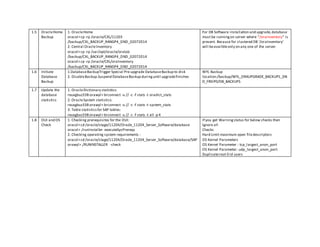

4. 1.5 OracleHome
Backup
1. OracleHome
oracxl>cp -rp /oracle/CXL/11203
/backup/CXL_BACKUP_RANGP4_DND_02072014
2. Central OracleInventory
oracxl>cp -rp /var/opt/oracle/oratab
/backup/CXL_BACKUP_RANGP4_DND_02072014
oracxl>cp -rp /oracle/CXL/oraInventory
/backup/CXL_BACKUP_RANGP4_DND_02072014
For DB Software installation and upgrade,database
must be runningon server where "/oraInventory" is
present. Because for clustered DB '/oraInventory'
will beavailbleonly on any one of the server.
1.6 Initiate
Database
Backup
1.DatabaseBackupTrigger Special Pre-upgrade DatabaseBackup to disk
2. DisableBackup.Suspend DatabaseBackup duringuntil upgradefinishes
WYL Backup
location:/backup/WYL_ORAUPGRADE_BACKUPS_DN
D_FREIP0/DB_BACKUPS
1.7 Update the
database
statistics
1. OracleDictionary statistics:
reuxgbuz338:orawyl> brconnect -u // -c -f stats -t oradict_stats
2. OracleSystem statistics:
reuxgbuz338:orawyl> brconnect -u // -c -f stats -t system_stats
3. Table statisticsfor SAP tables:
reuxgbuz338:orawyl> brconnect -u // -c -f stats -t all -p 4
1.8 OUI and OS
Check
1. Checking prerequisites for the OUI:
oracxl>cd /oracle/stage/11204/Oracle_11204_Server_Software/database
oracxl>./runInstaller -executeSysPrereqs
2. Checking operating system requirements :
oracxl>cd /oracle/stage/11204/Oracle_11204_Server_Software/database/SAP
orawyl>./RUNINSTALLER -check
If you get Warningstatus for below checks then
Ignore all
Checks
Hard Limit maximum open filedescriptors
OS Kernel Parameters
OS Kernel Parameter : tcp_largest_anon_port
OS Kernel Parameter: udp_largest_anon_port
Duplicateroot 0 id users

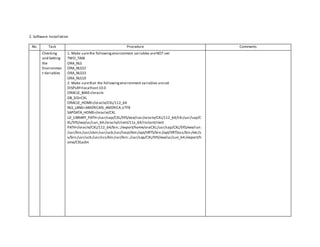

5. 2. Software Installation
No. Task Procedure Comments
Checking
and Setting
the
Environmen
t Variables
1. Make surethe followingenvironment variables areNOT set:
TWO_TASK
ORA_NLS
ORA_NLS32
ORA_NLS33
ORA_NLS10
2. Make surethat the followingenvironment variables areset
DISPLAY=localhost:10.0
ORACLE_BASE=/oracle
DB_SID=CXL
ORACLE_HOME=/oracle/CXL/112_64
NLS_LANG=AMERICAN_AMERICA.UTF8
SAPDATA_HOME=/oracle/CXL
LD_LIBRARY_PATH=/usr/sap/CXL/SYS/exe/run:/oracle/CXL/112_64/lib:/usr/sap/C
XL/SYS/exe/uc/sun_64:/oracle/client/11x_64/instantclient
PATH=/oracle/CXL/112_64/bin:.:/export/home/oraCXL:/usr/sap/CXL/SYS/exe/run:
/usr/bin:/usr/sbin:/usr/ucb:/usr/local/bin:/opt/VRTS/bin:/opt/VRTSvcs/bin:/etc/v
x/bin:/usr/ucb:/usr/ccs/bin:/usr/bin:.:/usr/sap/CXL/SYS/exe/uc/sun_64:/export/h
ome/CXLadm

6. 2.2 Initiate
Software
Installation
orawyl>cd /oracle/stage/11204/Oracle_11204_Server_Software/database/SAP
oractl>./RUNINSTALLER
2.3 Parameter
Input and
Installation
1. Configure Security updates
Leave default selection -> Next Select ‘Yes’ in Pop-up confirmation
2. Download Software updates
Select Skip Software Updates
3. Installation Option
Select Install databasesoftwareonly
4. Grid Installation Options
Select Singleinstancedatabaseinstallation
5. Product Languages
Select English
6. DatabaseEdition
Select EnterpriseEdition
7. Installation location
OracleBase->/oracleSoftware Location -> /oracle/CXL/11204
8. OperatingSystem Groups
DBA Administrator -> dbaDBA Operator -> oper
9. Prerequisitechecks Perform below only for warnings as per screenshot
Select Ignore all ->NextSelect ‘Yes’ in Pop-up confirmation
10. Summary Check settings are correct -> Install
11. Execute Configuration scripts
Select OK
12. Finish
Select Close
Oracleinstall error atthe end of install as unable
to write to oracleinventory as itwas set under
/oracle/WSC/11203/oraInventory with orawsc as
owner and no permissions for orawsc.In order
to fix did followingsteps:
1. Changed /var/opt/oracle/oraInst.locto
refelect -
inventory_loc=/oracle/WYL/11204/oraInventory
2. Ran cmd to re-create inventory from
/oracle/WYL/11204/oui/bin:./runInstaller -silent
-attachHome -invPtrLoc
/var/opt/oracle/oraInst.loc
ORACLE_HOME="/oracle/WYL/11204"
ORACLE_HOME_NAME="OraDb11g_home2"

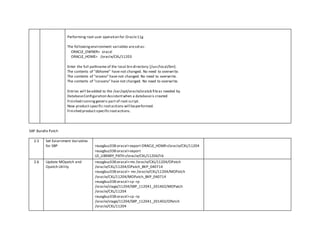

2.4 Run Root.sh vesnvl@reuxgbuz338[Dev/Test]$ sudo /oracle/CXL/112_64/root.sh
Enter AD Password:

7. Performing root user operation for Oracle11g
The followingenvironment variables aresetas:
ORACLE_OWNER= oracxl
ORACLE_HOME= /oracle/CXL/11203
Enter the full pathname of the local bin directory:[/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.
Entries will beadded to the /var/opt/oracle/oratab fileas needed by
DatabaseConfiguration Assistantwhen a databaseis created
Finished runninggeneric part of root script.
Now product-specific rootactions will beperformed.
Finished product-specificrootactions.
SAP Bundle Patch
2.5 Set Eviornment Variables
for SBP reuxgbuz338:oracxl>export ORACLE_HOME=/oracle/CXL/11204
reuxgbuz338:oracxl>export
LD_LIBRARY_PATH=/oracle/CXL/11204/lib
2.6 Update MOpatch and
Opatch Utility
reuxgbuz338:oracxl>mv /oracle/CXL/11204/OPatch
/oracle/CXL/11204/OPatch_BKP_040714
reuxgbuz338:oracxl> mv /oracle/CXL/11204/MOPatch
/oracle/CXL/11204/MOPatch_BKP_040714
reuxgbuz338:oracxl>cp -rp
/oracle/stage/11204/SBP_112041_201402/MOPatch
/oracle/CXL/11204
reuxgbuz338:oracxl>cp -rp
/oracle/stage/11204/SBP_112041_201402/OPatch
/oracle/CXL/11204

8. 2.7 Apply SAP Bundle Patch reuxgbuz338:oracxl>/bin/sh
$ORACLE_HOME/MOPatch/mopatch.sh -v -s
/oracle/stage/11204/SAP11204P_1402-20010806.ZIP
Pleaseperform task 4.3 Run 'catsbp.sql' Script
after DB Upgrade to complete the SBP
2.8 Create Oraflash restore
point
In reuxgbuz400:
1. Check area and configuration
$ sqlplus/ as sysdba
SQL> show parameter db_recovery_file_dest
SQL> SELECT * FROM V$RECOVERY_FILE_DEST;
SQL> SELECT * FROM V$FLASH_RECOVERY_AREA_USAGE;
2. Create restore point
$ cd /oracle/CXL/11204/sap/ora_upgrade/pre_upgrade
$ sqlplus/ as sysdba @grp_create_restore_point.sql
3. List restore
$ sqlplus/ as sysdba @grp_list_restore_point.sql

9. 3. DatabaseUpgrade
No. Task Procedure Comments
3.1 Stop SAP Application annd
Listener
Shutdown CI and Listener
1. Login to CI host reuxeuuz1102 as sidadmand stop SAP.
reuxeuuz1102:pmladm> stopsap
2. Login to DB Host with orasid and stop the listener
reuxgbuz338:oracxl>lsnrctl stop
3.2 Set Environment Variables
for Upgrade pre-check
reuxgbuz338:oracxl>export ORACLE_HOME=/oracle/CXL/112_64
reuxgbuz338:oracxl>export LD_LIBRARY_PATH=/oracle/PMl/112_64/lib
3.3 Run Pre-Upgrade Scripts Run 'Status' and 'Task' scripts
reuxgbuz338:oracxl>cd /oracle/CXL/11204/sap/ora_upgrade/pre_upgrade
reuxgbuz338:oracxl>sqlplus"/as sysdba"
SQL> @pre_upgrade_status.sql;
reuxgbuz338:oracxl>sqlplus"/as sysdba"
SQL> spool PRE_UPGRADE_TASKS.log
SQL> @pre_upgrade_tasks.sql;
SQL> spool off;
SQL> exit
Check again for any invalid objects by runningthe status preupgrade script
reuxgbuz338:oracxl>cd /oracle/CXL/11204/sap/ora_upgrade/pre_upgrade
reuxgbuz338:oracxl>sqlplus"/as sysdba"
SQL> @pre_upgrade_status.sql;
3.4 Set Environment Variables
for Upgrade
reuxgbuz338:oracxl>export ORACLE_HOME=/oracle/CXL/11204
reuxgbuz338:oracxl>export LD_LIBRARY_PATH=/oracle/CXL/11204/lib
reuxgbuz338:oracxl>export ORACLE_HOME_SRC=/oracle/CXL/112_64
reuxgbuz338:oracxl>export ORACLE_HOME_TGT=/oracle/CXL/11204
3.5 Check Oratab entry: reuxgbuz338:oracxl>vi /var/opt/oracle/oratab
CXL:/oracle/CXL/11203:N

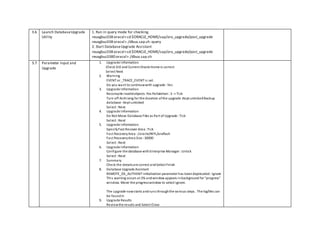

10. 3.6 Launch DatabaseUpgrade
Utility
1. Run in query mode for checking.
reuxgbuz338:oracxl>cd $ORACLE_HOME/sap/ora_upgrade/post_upgrade
reuxgbuz338:oracxl>./dbua.sap.sh -query
2. Start DatabaseUpgrade Assistant
reuxgbuz338:oracxl>cd $ORACLE_HOME/sap/ora_upgrade/post_upgrade
reuxgbuz3380:oracxl>./dbua.sap.sh
3.7 Parameter Input and
Upgrade
1. Upgrade Information
Check SID and Current Oracle Home is correct
Select Next
2. Warning
EVENT or _TRACE_EVENT is set.
Do you want to continuwwith upgrade :Yes
3. Upgrade Information
Recompile invalidobjects :Yes Pallalelism :3 -> Tick
Turn off Archiving for the duration ofthe upgrade :Kept untickedBackup
database :Kept unticked
Select :Next
4. Upgrade Information
Do Not Move Database Files as Part of Upgrade :Tick
Select :Next
5. Upgrade Information
SpecifyFast Recover Area :Tick
Fast RecoveryArea :/oracle/WYL/oraflash
Fast RecoveryArea Size :30000
Select :Next
6. Upgrade Information
Configure the database withEnterprise Manager :Untick
Select :Next
7. Summary
Check the detailsare correct andSelect Finish
8. Database Upgrade Assistant
REMOTE_OS_AUTHENT initialization parameter has beendeprecated:Ignore
This warning occurs at 2% andwindow appears inbackground for "progress"
window. Move the progresswindow to select ignore.
The upgrade nowstarts andruns throughthe various steps. The logfiles can
be foundin
9. Upgrade Results
Reviewthe results and Select Close

11. 4. Post-Work
No. Task Procedure Comments
4.1 Startup Database 1. Rename old Oraclelogfile
reuxgbuz338:oracxl>/oracle/CXL/saptrace/diag/rdbms/cxl/CXL/trace
reuxgbuz338:oracxl>mv alert_CXL.log alert_CXL_13Aug2014
2. Re-create OracleHome softlink
reuxgbuz338:oracxl>cd /oracle/CXL
reuxgbuz338:oracxl>rm -rf 112_64
reuxgbuz338:oracxl>ln -s /oracle/CXL/11204 112_64
3. Start up Database
reuxgbuz338:oracxl>sqlplus"/as sysdba"
SQL> startup
4.2 Run Post Upgrade Scripts reuxgbuz338:oracxl>cd /oracle/CXL/11204/sap/ora_upgrade/post_upgrade
reuxgbuz338:oracxl>sqlplus"/as sysdba"
SQL> @post_upgrade_status.sql;
4.3 Run 'catsbp.sql' Script 1. Run SBP post-installation script.
reuxgbuz338:oracxl>cd /oracle/CXL/11204/sapbundle/SBP_112041_201402
reuxgbuz338:oracxl>sqlplus"/as sysdba"
SQL> @catsbp.sql;
2.Conifm SBP Level
SQL> select VERSION, COMMENTS from DBA_REGISTRY_HISTORY;
As per below update in Note
1431793,CATSBP.sql scripthas
to be run after DB upgrade
2013-May-15
4.4 Restart Database 1. Stop Database
reuxgbuz400:orawyl> sqlplus"/as sysdba"
SQL> shutdown immediate;
SQL> exit
Ensure all oracleprocesses areended with ps -ef . If still there kill them to avoid
mount in exclusivemode error.
2. Start up Database
reuxgbuz400:orawyl> sqlplus"/as sysdba"
SQL> startup;

12. 5. Troubleshoot
No. Issue Resolution Comments
5.2 Error in ST04N/DBA Cockpit:
Synonyms missing:Pleaserun
initialization scriptas per SAP-note
706927
reuxgbuz338:oracxl>cd /oracle/stage/11204/SBP_112041_201402/note_706927
1. Script-1
reuxgbuz338:oracxl>sqlplus"/ as sysdba"@create_11_2.sql
If you would liketo continuepress <enter> elsetype no: <enter>
Enter valuefor sap_schema: SAPDAT
Password for user SAPDAT: <password>
2. Script-2
reuxgbuz338:oracxl>sqlplus"/ as sysdba"@CreateCompressTablesUnicode.sql
If you would liketo continuepress <enter> elsetype no: <enter>
Enter valuefor sap_schema: SAPDAT
Password for user SAPDAT: <password>
3. Script-3
reuxgbuz338:oracxl>sqlplus"/ as sysdba"@CreateSAPDollarViews_11_2.sql
Refer SAP Note 706927

13. Overview / Timings
Sl.No Tasks Start Date End Date Time Status
1. Pre-Work ( 11 Hours )
1.1 Checking theOriginalVersion of Database 5 min Completed
1.2 Space Check 5 min Completed
1.3 Check Authorizations 5 min Completed
1.4 Downloadand Copy Oracle 11.2.0.3softwares 8hr Completed
1.5 Oracle Home Backup 15 min Completed
1.6 Initiate Database Backup 2hr Completed
1.7 Update DatabaseStatistics 30 min Completed
1.8 OUI and OS Check 5 min Completed
2. Oracle Software Installation ( 6.5 Hours )
2.1 Checking and Setting the Environment Variables 5 min Completed
2.2 Initiate Software Installation 5 min Completed
2.3 InstallationParameter Inputand runInstallation 5 hr Completed
2.4 Run Root.sh 5 min Completed
2.5 Set EnvironmentVariables for SBP 5 min Completed
2.6 Update MOpatch and Opatch Utility 10 min Completed
2.7 Apply SAP BundlePatch 1 hr Completed
3. Database Upgrade ( 2 Hours )
3.1 Stop SAP Applicationand Listener 15 min Completed
3.2 Set EnvironmentVariables for Upgradepre-check 5 min Completed
3.3 Run Pre-UpgradeScripts 15 min Completed
3.4 Set EnvironmentVariables for Upgrade 5 min Completed
3.5 Check Oratab entry 5 min Completed
3.6 Launch DatabaseUpgrade Utility 5 min Completed
3.7 Upgrade Parameter Input and runUpgrade 1 hr Completed
4. Post-Work ( 8 Hours )
4.1 Startup Database 15 min Completed
4.2 Adjust _fix_controland event Parameters 15 min Completed
4.3 Run Post UpgradeScript 10 min Completed
4.4 Upgrade Oracle Client 30 min Completed
4.5 Run 'catsbp.sql' Script & RestartDatabase 30 min Completed

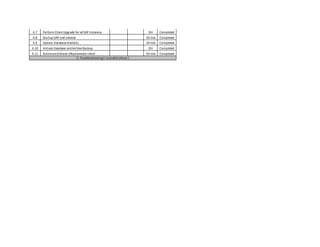

14. 4.7 Perform ClientUpgrade for allSAP Instances 3hr Completed
4.8 Startup SAP and Listener 30 min Completed
4.9 Update DatabaseStatistics 30 min Completed
4.10 Initiate Database andArchive Backup 2hr Completed
4.11 AutomatedOracle DBparameter check 20 min Completed
5. Troubleshooting ( Included above )
