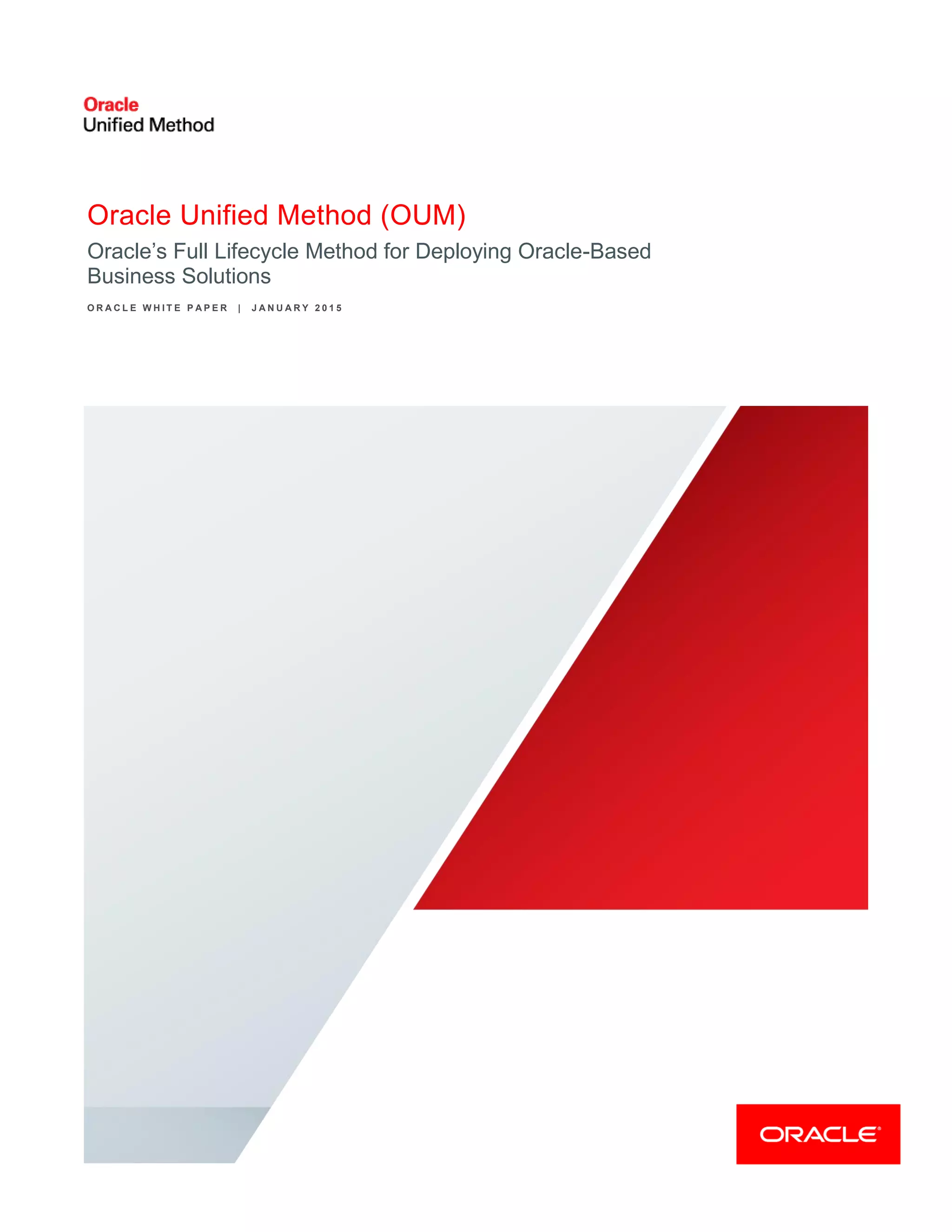

Oracle Unified Method (OUM)

Oracle Unified Method (OUM)
Oracle’s Full Lifecycle Method for Deploying Oracle-Based
Business Solutions
O R A C L E W H I T E P A P E R | J A N U A R Y 2 0 1 5

ORACLE UNIFIED METHOD WHITE PAPER

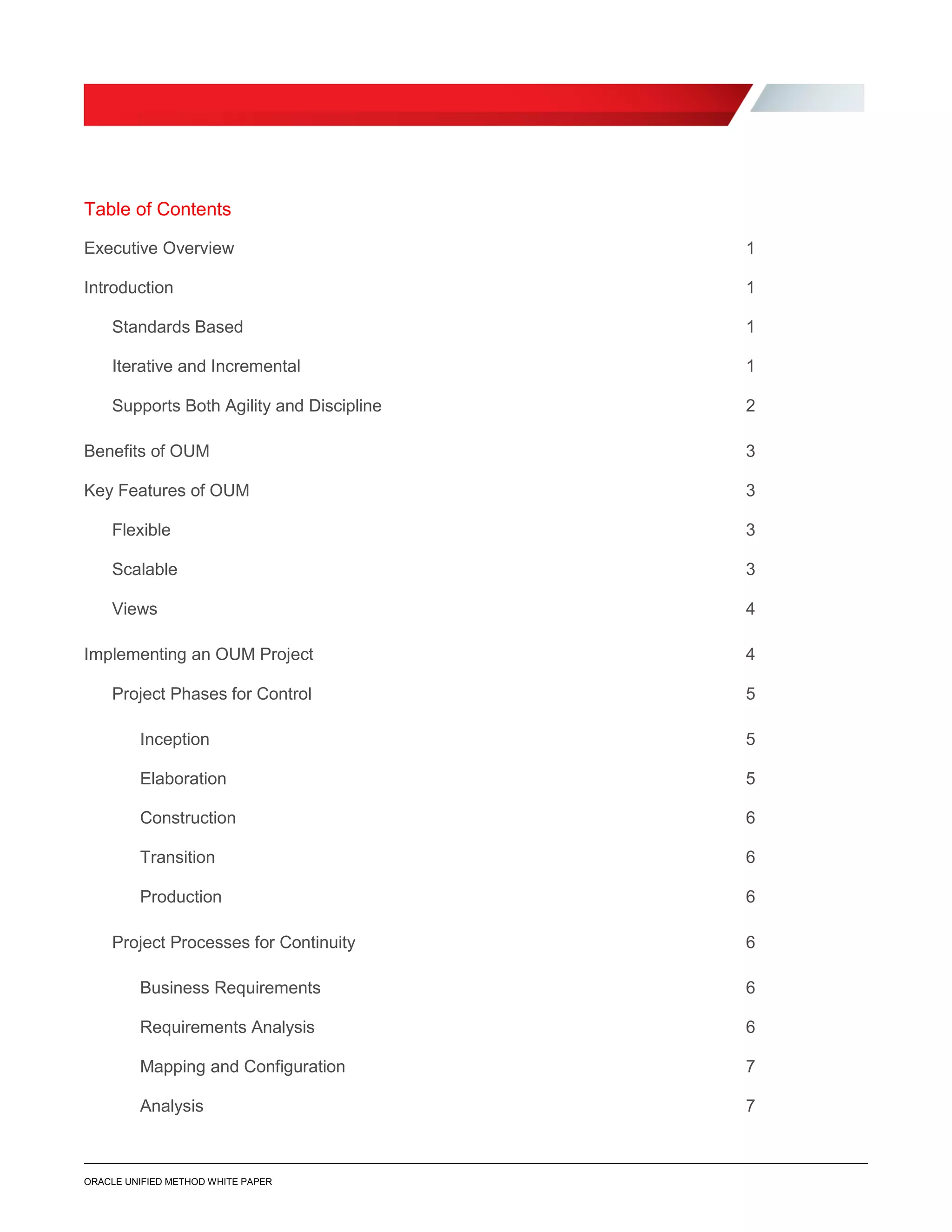

Table of Contents
Executive Overview 1
Introduction 1
Standards Based 1
Iterative and Incremental 1
Supports Both Agility and Discipline 2
Benefits of OUM 3
Key Features of OUM 3
Flexible 3
Scalable 3
Views 4
Implementing an OUM Project 4
Project Phases for Control 5
Inception 5
Elaboration 5
Construction 6
Transition 6
Production 6
Project Processes for Continuity 6
Business Requirements 6
Requirements Analysis 6
Mapping and Configuration 7
Analysis 7

ORACLE UNIFIED METHOD WHITE PAPER
Design 7
Implementation 7
Testing 8
Performance Management 8
Technical Architecture 8
Data Acquisition and Conversion 8
Documentation 8
Organizational Change Management 8
Training 9
Transition 9
Operations and Support 9
Project Activities Represent the Engagement Lifecycle 9
Managing an OUM Project 9
Developing and Maintaining Enterprise Architecture Activities 11
Components of OUM 12
Hardware and Software Requirements 12
Conclusion 12
.

1 | ORACLE UNIFIED METHOD WHITE PAPER
Executive Overview
The Oracle Unified Method (OUM) is Oracle’s standards-based method that enables the entire
Enterprise Information Technology (IT) lifecycle. OUM provides an implementation approach that is
rapid, broadly adaptive, and business-focused. OUM includes a comprehensive project management
framework and materials to support Oracle’s growing focus on enterprise-level IT strategy,
architecture, and governance.
Oracle’s Global Methods team has packaged OUM to accelerate your IT projects. OUM presents an
organized, yet flexible, approach. Its defined, operational framework helps anticipate critical project
needs and dependencies. With OUM, you can move efficiently through the IT lifecycle to quickly
realize measurable business results.
Introduction
Standards Based
OUM leverages one of the de facto industry standards, Unified Software Development Process (UP).
UP is an iterative and incremental approach to developing and implementing software systems.
Project managers use OUM to make sure they and their stakeholders develop a shared understanding
of what is needed, choose an appropriate architecture, and transfer the ownership of the end-product
to the stakeholders. OUM extends the Unified Process to support the full scope of Oracle-related
projects by incorporating field experience and intellectual capital contributed by Oracle practitioners.
1 Ivar Jackobson, Grady Booch, and James Rumbaugh, The Unified Software Development Process, 1999
2 M. Fowler and K. Scott, UML Distilled, 2003
Iterative and Incremental
OUM recognizes the advantages of an iterative and incremental approach to development and
deployment of information systems. Any of the tasks within OUM may be iterated. Whether or not to
iterate, as well as the number of iterations, varies. Tasks may be iterated to increase quality of the
outputs to a desired level, to add sufficient level of detail, or to refine and expand the outputs on the
basis of user feedback.

Supports Both Agility and Discipline
OUM is designed to support a broad range of project types. As such, it must be flexible and scalable.
The appropriate point of balance for a given project will vary based on a number of project risk and
scale factors. The method has been developed with the intent that the approach for a given project be
“built up” from a core set of activities to implement an appropriate level of discipline, rather than
“tailored down”.
3 Barry Boehm and Richard Turner, Balancing Agility and Discipline: A Guide for the Perplexed, 2004
4 The Agile Manifesto, agilemanifesto.org

Benefits of OUM
» More Focused Effort – OUM enables projects to clearly define business scope as well as the need to create
architectural models of the enterprise. This planning results in tighter scope control, more accurate business
understanding, and a firm foundation to align with client expectations.
» Built-in Flexibility – By combining activities and tasks in different ways, OUM can be applied to many types of
information technology software development and implementation projects.
» Saves Time – Seasoned information technology practitioners representing years of experience have contributed
their knowledge to OUM. Project teams to take advantage of this experience by leveraging these leading
practices along with industry standards.
» Higher Quality – OUM subscribes to an iterative approach that incorporates testing and validation throughout the
lifecycle, rather than testing for quality only at the end of the project.
» More Cost Effective – OUM facilitates improved control of project expenses by using a flexible work breakdown
structure that allows you to perform only necessary tasks.
» Reduced Project Risk – Implementing an iterative, broadly applicable method mitigates requirements mismatch.
A key focus of each iteration in OUM is to identify and reduce the most significant project risks. This allows for the
most critical risks to be addressed as early as possible in the project lifecycle, which results in a measurable
reduction of schedule and budget risks.
Key Features of OUM
OUM was developed with the following key features:
» Flexible
» Scalable
» Views
Flexible
OUM is flexible because it allows your organization to select the strategy, techniques, and tasks appropriate for your
project. OUM provides specific guidelines for tailoring your project plan to fit your situation - from the most basic
development to changes in the underlying technical architecture. By combining activities and tasks in different
ways, OUM can be applied to many types of information technology software development and implementation
projects.
Scalable
OUM was designed with scalability in mind. From the largest, multi-national, multi-site, multi-entity projects, through
to the smallest, limited size, constrained scope projects—OUM provides the scalability required by each unique
project. Guidelines aid in determining which tasks to include in the project plan. This greatly reduces the complexity
for the project management team in planning the work effort required.

Views
The method material is organized into views. Views provide an initial tailoring of the workplan. Each view page
provides access to guidance and a tailored work breakdown structure.
OUM 6.3 provides the following views:
» Manage Views
» Manage Focus Area
» Scrum
» Implement Views
» Application Implementation (Cloud, Solution-Driven, and Requirements-Driven)
» Business Intelligence
» Enterprise Security
» Software Upgrade
» Technology Full Lifecycle
» WebCenter
» Implement Focus Area
» Implement Core Workflow
» Implement – Example Work Products
» Envision Views
» Cloud Roadmap
» Enterprise Optimization Roadmap
» Insight
» Oracle Architecture Development Process (OADP)
» Strategy
» The Open Group Architecture Framework (TOGAF)
» Envision Focus Area
» Envision – Example Artifacts
» Other Views
» Full Method
» Full Method Activities and Tasks
» Business Process Management (BPM) including: Project Engineering, Roadmap
» Service-Oriented Architecture (SOA) including: Application Integration Architecture (AIA) Project Delivery,
Core Workflow, Governance Planning, Engineering Planning, Modeling Planning, Project Delivery,
Reference Architecture Planning, Roadmap, Tactical Project Delivery
Implementing an OUM Project
The Implement focus area provides a framework to develop and implement Oracle-based business solutions. OUM
uses project phases and processes to include quality and control checkpoints and allow coordination of project
activities throughout the project. During a project phase, the project team executes tasks in several processes.

Figure 1.OUM Implement Focus Area
Project Phases for Control
Projects are delivered by phase, chronological grouping of tasks in an approach, in order to reduce risk. Each
phase allows a checkpoint against project goals and measurement against quality criteria.
OUM includes the following phases.
Inception
The overriding goal of the Inception phase is to have concurrence among all stakeholders on the lifecycle objectives
for the project. Therefore, the Inception phase is critical for all projects because the scope of the effort, high-level
requirements, and significant risks must be understood before the project can proceed.
Elaboration
The goal of the Elaboration phase is to move development of the solution from the scoping and high-level
requirements done during the Inception phase to developing the detailed requirements, partitioning the solution,
creating any necessary prototypes, and baselining the architecture of the system to provide a stable basis for the
design and implementation effort in the Construction phase.

Construction
The goal of the Construction phase is to take the solution from detailed requirements models, through configuration
of standard packaged software functionality, development and testing of custom components, and integration to a
system that is ready for a first release that goes into production, often a limited release and often called a beta
release. In short, complete the development of the application system, validate that all components fit together, and
prepare the system for the acceptance test and deployment.
Transition
The goal of the Transition phase is to take the completed solution from installation onto the production system
through the acceptance test to launch of the live application, open, and ready for business. Validate that the system
is tested systematically and is available for end users. During this phase, the new system is accepted by the client
organization, the organization is made ready for the new system, and the system is put into production and, if the
new system replaces an old one, a smooth cutover to the new application is provided.
Production
The goal of the Production phase is to operate the newly developed system, assess the success of the system, and
monitor and address system issues. This includes monitoring the system and acting appropriately to maintain
continued operation; measuring system performance; operating and maintaining supporting systems; responding to
help requests, error reports and feature requests by users; and managing the applicable change control process so
that defects and new features may be prioritized and assigned to future releases and put into a plan for future
enhancements to the application system, as well as determining, developing, and implementing required updates.
Project Processes for Continuity
All OUM tasks are also organized into processes that group related tasks together. Project team members are
assigned to these groupings according to their specialization and background. OUM includes the following
processes.
Business Requirements
In the Business Requirements process, you define the business needs of the application system. The business
requirements for the proposed system or new enhancements are identified, refined, and prioritized by a tightly
integrated team of empowered ambassador users and experienced analysts. The process often begins from an
existing high-level requirements document and a scope document, such as the Project Management Plan.
However, it is possible to begin from an agreed on scope and objectives before requirements have been defined.
The Business Requirements process delivers a set of requirements models and a prioritized list of requirements as
a basis for system development. Both the models and requirements list are dynamic and may change as the
understanding of the team develops with the system. The main outputs of this process are the business objectives
and goals, the list of functional requirements, and the supplemental requirements.
Requirements Analysis
In the Requirements Analysis process, the functional and supplemental requirements identified and prioritized during
the Business Requirements process are analyzed further into a Use Case Model that is further refined by adding
use case details in order to establish a more precise understanding of the requirements. The Use Case Model is
used as the basis for the solution development. This process helps provide structure and shape to the entire
solution. The Use Case Model is used to document in detail the requirements of the system in a format that both the
client and the developers of the system can easily understand. The main outputs of this process are the Use Case
Model, a prototype of the user interface, and a high-level description of the software architecture.

Mapping and Configuration
In the Mapping and Configuration process, the key business data structures and associated values are defined and
established within a prototype environment. The business requirements are assessed and mapped to the standard
application and system features. A prototype environment is updated with detailed setup parameters and an
iterative series of workshops are conducted in order to validate that the prototype aligns with the business
requirements. Resolutions to any gaps between the business requirements and the standard application features
and functions are defined, along with the documentation of detailed setup parameters. The main outputs of this
process are the Application Setups and the Validated Configuration.
Analysis
During the Analysis process, the captured requirements are analyzed and mapped onto the chosen commercial-off-
the-shelf (COTS) product set, if any, to ascertain which requirements can be met directly by configuring the
product’s capabilities and which requirements will require extending the product capabilities through the
development of custom application software or custom extensions. Beyond product mapping, the purpose of
Analysis is to refine and structure the requirements via a conceptual object model, called the Analysis Model. Most
simply put, the Analysis Model is the collection of all of the analysis related artifacts, just as the Use Case Model
documents the system’s functional requirements. The Analysis Model provides a more precise understanding of the
requirements and provides details on the internals of the system. The Analysis Model is described using the
language of the developers as opposed to the requirements obtained in the Business Requirements and
Requirements Analysis processes where the emphasis is on the functionality of the system expressed in the
language of the client. Thus, it contributes to a sound and stable architecture and facilitates an in-depth
understanding of the requirements. Many of the outputs produced during the Analysis process describe the
dynamics of the system as opposed to the static structure. The Analysis Model is also considered the first cut of the
Design Model, since it contains the analysis classes that will be further detailed during the Design process. The
main output of the Analysis process is the Reviewed Analysis Model that includes a set of analysis classes (class
diagrams) that realize the use cases. In addition, new software architecture views are added to the architecture
description initially developed in the Business Requirements process and further enhanced in the Requirements
Analysis process.
Design
In the Design process, the system is shaped and formed to align with all functional and supplemental requirements.
This form is based on the architecture created and stabilized during the Analysis process. Design is the focus
during the end of the Elaboration phase and the beginning of Construction iterations. The major outputs created in
this process ultimately combine to form the Design Model that is used during the Implementation process. The
Design Model can be used to visualize the implementation of the system. The main output of this process is the
Reviewed Design Model that includes an object model that describes the design realization of the use cases and
design classes that detail the analysis classes outlined in the Analysis Model.
Implementation
Through a number of steps, mostly iterative, the final application is developed within the Implementation process.
The results from the Design process are used to implement the system in terms of source code for components,
scripts, executables, etc. During this process, developers also implement and perform testing on software
components. Implementation is the main focus of the Construction phase, but it starts early in the Inception phase
in order to implement the architecture baseline (trial architecture and prototype). During Transition, it occurs in order
to handle any defects or bugs discovered while testing and releasing the system. The main output of this process is
the final iteration build that is ready to be tested.

Testing
The Testing process is an integrated approach to testing the quality and conformance of all elements of the new
system. Therefore, it is closely related to the review tasks in the Quality Management process of OUM’s Manage
focus area and to the definition and refinement of requirements in the Business Requirements process. It addresses
mainly functional testing; however, it also includes systems integration testing for projects with requirements for
interfaces to external systems.
Testing activities are a shared responsibility of developers, quality assurance engineers, and ambassador users,
working together as an integrated project team. The Testing process presupposes that there is a highly visible user
interface from which system events can be driven and results validated. The higher proportion of artifacts that are
visible to the ambassador users (for example, user interfaces and reports) the more they will be able to participate in
the Testing process.
Performance Management
The objective of the Performance Management process is to proactively define, construct, and execute an effective
approach to managing performance throughout the project implementation lifecycle in order to validate that the
performance of the system or system components is aligned with the user's requirements and expectations when
the system is implemented. Performance Management is not limited to conducting a performance test or an isolated
tuning exercise, although both those activities may be part of the overall Performance Management strategy. The
requirements that drive Performance Management also impact Technical Architecture and the two processes are
closely related.
Technical Architecture
The goal of the Technical Architecture process is to design an information systems architecture to support and
realize the business vision. The tasks in the Technical Architecture process identify and document the requirements
related to the establishment and maintenance of the application and technical infrastructure environment for the
project. Processes and procedures required to implement, monitor and maintain the various environments are
established and tested.
Data Acquisition and Conversion
The objective of the Data Acquisition and Conversion process is to create the components necessary to extract,
transform, transport and load the legacy source data to accommodate the information needs of the new system.
The data that will be converted is explicitly defined, along with its sources. This data may be needed for system
testing, training, and acceptance testing as well as for production. In some cases, it is beneficial to convert (some)
data at earlier stages to provide as realistic as possible reviews of the components during the development
iterations.
Documentation
Quality documentation is a key factor in supporting the transition to production, gaining user acceptance, and
maintaining the ongoing business process. The requirements and strategy for this process vary based on project
scope, technology, and requirements. For projects that include Oracle Application products, the Oracle Application
manuals are the foundation of implementation documentation. The Documentation process includes development
of documentation to augment the standard Oracle Application products manuals with specific information about the
organization's custom software extensions and specific business procedures.
Organizational Change Management
The Organizational Change Management process starts at the strategic level with executives and then identifies the
particular human and organizational challenges of the technology implementation in order to design a systematic,
time-sensitive, and cost-effective approach to lowering risk that is tailored to each organization’s specific needs. In

addition to increasing user adoption rates, carefully planning for and managing change in this way allows
organizations to maintain productivity through often-difficult technological transitions. This in turn enables the
organization to more easily meet deadlines, realize business objectives, and maximize return on investment.
Training
The objectives of the Training process are to make sure that the project team is adequately trained to begin the
tasks necessary to start the project and the users are adequately trained to take on the tasks of running the new
application system.
Transition
The goal of the Transition process is to install the solution, which includes providing installation procedures, and
then take it into production. This process begins early in the project by defining the specific requirements for cutover
to the new application system. It then includes tasks to carry out the elements of that strategy such as developing
an installation plan, preparing the production environment, performing the cutover, and decommissioning any legacy
systems.
Operations and Support
The goals of the Operations and Support process are to monitor and respond to system problems; upgrade the
application to fix errors and performance problems; evaluate the system in production; and plan enhancements for
increased functionality, improved performance, and tighter security. The development project does not come to an
abrupt end when the team installs the application system into production. In fact, the months following that
milestone can determine the real success or failure of the project. Internal auditors have not yet produced the
system evaluation, and users most likely still have a few problems to uncover. There are certain to be requirements
with lower priorities that have not been implemented. The ‘could have’ requirements and any remaining ‘should
have’ can now be re-prioritized into an enhancement plan, from which upgrades can be defined.
Project Activities Represent the Engagement Lifecycle
An activity is the next level of organization below a phase. Tasks in OUM are grouped into activities to better
represent the engagement lifecycle. For example, Gather Solution Requirements is one of the activities within the
Inception phase. This activity consists of tasks related to collecting requirements for the solution.
Activities allow the project manager to streamline creation and management of the Work Breakdown Structure
(WBS) for an engagement. Because all tasks fall within an activity, project managers (and other practitioners) are
able to manage to the activity-level rather than the task-level.
Managing an OUM Project
The Manage focus area provides a framework in which all types of projects can be planned, estimated, controlled,
and completed in a consistent manner. Consistency is required in today’s business environment, where projects
often implement packages, develop application extensions, and create a data warehouse in order to address a
business need.
Project management enables the project manager to manage delivery of an agreed upon level of solution quality
while planning for and controlling the scope, cost, and schedule.
The Manage focus area has three phases:
» Project Start Up Phase
» Project Execution and Control Phase
» Project Closure Phase

Integration of the Manage focus area phases with the Implement focus area phases is illustrated below:
Figure 2.OUM Manage Focus Area
The Project Start Up phase precedes the Inception phase. As implied by its name, the Project Start Up phase
targets the beginning of the project. The goal of this phase is to conduct the necessary project start up. The project
manager defines the project with respect to scope, quality, time, and cost. The overall Project Management Plan
and the plans for each Manage process are developed. The Project Start Up phase also includes establishing the
project infrastructure and securing project resources.
The Project Control and Execution phase is directly associated with the project lifecycle phases in OUM Implement
(or another execution method). The purpose of this phase is to manage the execution of the project. That includes
using the policies, standards, and procedures delineated in the Project Start Up phase, and performing the
necessary reviews and measurements to confirm that the project is being executed according to the published plan.
It is also involves the process of comparing actual performance with planned performance, analyzing variances,
evaluating possible alternatives, and taking appropriate corrective action as needed. Corrective actions are
changes made to bring expected future performance of the project into line with the plan. The Project Execution and
Control phase tasks are repeated for each execution method lifecycle phase (for example, Inception, Elaboration,
etc.).

The Project Closure phase occurs after the Production phase. During this phase, the project is "closed" from an
administrative and contractual standpoint. This includes validating the project outputs are complete and aligned with
the organization’s expectations; gaining final confirmation; and securing all documents for reuse, collection, and
retention.
The Manage focus area is organized into 13 processes:
» Bid Transition
» Scope Management
» Financial Management
» Work Management
» Risk Management
» Issue and Problem Management
» Staff Management
» Communication Management
» Quality Management
» Configuration Management
» Infrastructure Management
» Procurement Management
» Organizational Change Management
Collectively, these processes form a comprehensive set of tasks required to manage Oracle-based development
and implementation projects. Every project includes most, if not all, of these processes, whether they are the
responsibility of a consulting organization, a client organization, or a third party.
Developing and Maintaining Enterprise Architecture Activities
The Envision focus area provides a framework for development and maintenance of enterprise level IT strategy,
architecture, and governance. The Envision guidance helps project team’s transition from enterprise-level planning
and strategy activities to the identification and initiation of specific projects.
The Envision focus area consists of two phases:
» Initiate
» Maintain and Evolve
The Initiate phase is used to perform a set of foundational tasks. These tasks have a broad range of objectives and
applicability. At one end, the Initiate phase can establish the vision for one or more projects intended to accomplish
a focused set of business objectives. On the other end, the Initiate phase can result in establishment of a broad set
of enterprise level IT processes that are continued in the Maintain and Evolve phase.
The Maintain and Evolve phase forms the foundation for governing and managing enterprise level business
processes and strategies. Envision is not intended to be a broad treatise on corporate strategic planning. It is
focused on information technology related business architecture and practices.

The Envision focus area is organized into six processes:
» Envision Roadmap
» Enterprise Business Analysis
» Organizational Change Management
» Enterprise Architecture
» IT Portfolio Management
» Governance
The Envision focus area extends OUM’s capabilities beyond implementation and management of IT projects into the
realm of vision and strategy. It is not likely that all of Envision’s processes and tasks will be executed within any
single enterprise, nor is it likely that Envision will ever contain an exhaustive set of enterprise level processes.
Rather, Envision should serve as a framework that can be scaled to suit the needs of a particular enterprise.
Components of OUM
With OUM, you receive the following:
» Overview Materials – Provides an overview of OUM’s approach to IT projects, including the industry standards
upon which OUM is based.
» Guidelines – Phase, process, task, role, and output guidelines that cover every aspect of an Oracle-based
business solution.
» Templates – Templates enable fast and easy creation of high quality outputs.
» Tailored Work Breakdown Structure – These standards enable an easy start in managing your project.
Hardware and Software Requirements
The following hardware and software are required to run OUM:
» Minimum of 1 gigahertz (GHz) processor speed
» 250 megabyte (MB) of disk space
» 520 megabyte (MB) RAM minimum
» Microsoft Windows 7, 2000, XP, NT 4.0
» Microsoft Office 2000 or later
» Microsoft Project 98 or later
» Microsoft Visio 5.0 or later (Optional)
» Adobe Acrobat Reader 6.0 or later
» Microsoft Internet Explorer 6.0 or later, Netscape 7.0 or later, or Mozilla Firefox 2.0.0.16 or later
Conclusion
With OUM, Oracle’s full lifecycle method for deploying Oracle-based business solutions, you can move efficiently
through the IT lifecycle to quickly realize measurable business results.
For more information about OUM, contact ominfo_us@oracle.com, visit blogs.oracle.com/oum, join Oracle Unified
Method group on LinkedIn.com, or follow oum_info on Twitter.com.
For more information about the OUM Customer Program, contact your Oracle Sales Representative.
For more information about Oracle Consulting, contact your local Oracle Consulting representative or visit
oracle.com/consulting.

Oracle Corporation, World Headquarters
500 Oracle Parkway
Redwood Shores, CA 94065, USA
Worldwide Inquiries
Phone: +1.650.506.7000
Fax: +1.650.506.7200
Copyright © 2014, Oracle and/or its affiliates. All rights reserved. This document is provided for information purposes only, and the
contents hereof are subject to change without notice. This document is not warranted to be error-free, nor subject to any other
warranties or conditions, whether expressed orally or implied in law, including implied warranties and conditions of merchantability or
fitness for a particular purpose. We specifically disclaim any liability with respect to this document, and no contractual obligations are
formed either directly or indirectly by this document. This document may not be reproduced or transmitted in any form or by any
means, electronic or mechanical, for any purpose, without our prior written permission.
Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners.
Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation. All SPARC trademarks are used under license and
are trademarks or registered trademarks of SPARC International, Inc. AMD, Opteron, the AMD logo, and the AMD Opteron logo are
trademarks or registered trademarks of Advanced Micro Devices. UNIX is a registered trademark of The Open Group. 0115
Oracle Unified Method (OUM) White Paper
January 2015
C O N N E C T W I T H U S
blogs.oracle.com/oum
twitter/oum_info
oracle.com/consulting

Oracle Unified Method (OUM)

More Related Content

What's hot

Viewers also liked

Similar to Oracle Unified Method (OUM)

More from UBC Corporation

Recently uploaded

Oracle Unified Method (OUM)
