Data Guard 12c: Far Sync Instance, Real-Time Cascade Standby and other goodies
Ludovico Caldara
Oracle ACE, Senior Consultant
Trivadis SA
02.10.2014
Oracle Active Data Guard 12c
1

2. 2014 © Trivadis
About Ludovico Caldara
2
■14 Years DBA (started with 7.3.4)
▪I do it everywhere (also on Windows)
■RAC ATTACK Ninja & co-writer
■RAC SIG Board member
■OCP (11g, 12c, MySQL) & OCE
■Italian Living in Switzerland
■http://www.ludovicocaldara.net
■@ludodba
■ludovicocaldara

3. 2014 © Trivadis
Trivadis is a market leader in IT consulting, system integration, solution engineering and the provision of IT services focusing on and technologies in Switzerland, Germany and Austria.
We offer our services in the following strategic business fields: Trivadis Services takes over the interacting operation of your IT systems.
O P E R A T I O N
About

4. 2014 © Trivadis
4
11 Trivadis branches and more than 600 employees 200 Service Level Agreements Over 4,000 training participants Research and development budget: CHF 5.0 / EUR 4 million Financially self-supporting and sustainably profitable Experience from more than 1,900 projects per year at over 800 customers
Hamburg
Düsseldorf
Frankfurt
Freiburg
Munich
Vienna
Basel
Zurich
Bern
Lausanne
4
Stuttgart
Over 600 specialists and IT experts in the DACH region

5. 2014 © Trivadis

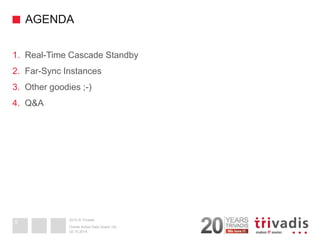

AGENDA
1.Real-Time Cascade Standby
2.Far-Sync Instances
3.Other goodies ;-)
4.Q&A
02.10.2014
Oracle Active Data Guard 12c
5

6. 2014 © Trivadis
02.10.2014
Oracle Active Data Guard 12c
Real-Time Cascade Standby
6

7. 2014 © Trivadis
Cascade Standby
7
PRIMARY
CASCADING
CASCADED

8. 2014 © Trivadis

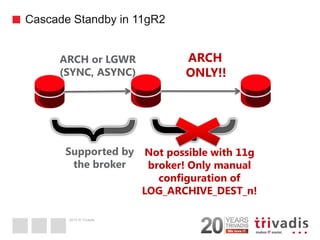

Cascade Standby in 11gR2
8
ARCH or LGWR (SYNC, ASYNC)
ARCH
ONLY!!
Supported by
the broker
Not possible with 11g broker! Only manual configuration of LOG_ARCHIVE_DEST_n!

9. 2014 © Trivadis

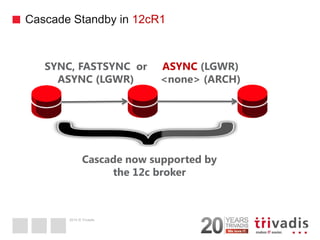

Cascade Standby in 12cR1
9
SYNC, FASTSYNC or
ASYNC (LGWR)
ASYNC (LGWR)
<none> (ARCH)
Cascade now supported by
the 12c broker

10. 2014 © Trivadis
Cascade Standby in 12cR1
10
SYNC, FASTSYNC or ASYNC (LGWR)
ASYNC (LGWR) <none> (ARCH)
Cascade now supported by
the 12c broker

11. 2014 © Trivadis

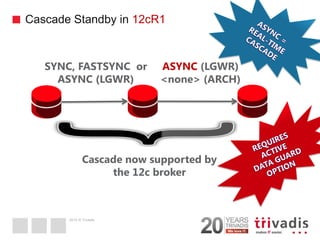

Cascade Standby in 12cR1
11
SYNC, FASTSYNC or
ASYNC (LGWR)
ASYNC (LGWR) <none> (ARCH)
Cascade now supported by the 12c broker

12. 2014 © Trivadis
Cascade Standby Without Broker
12
PROD
DR
REP

13. 2014 © Trivadis
Cascade Standby Without Broker
13
PROD
LOG_ARCHIVE_DEST_2=‘SERVICE=DR, SYNC AFFIRM
VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE)’
DR
REP

14. 2014 © Trivadis
Cascade Standby Without Broker
14
PROD
LOG_ARCHIVE_DEST_2=‘SERVICE=DR, SYNC AFFIRM
VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE)’
DR
REP
LOG_ARCHIVE_DEST_2=‘SERVICE=REP, ASYNC NOAFFIRM VALID_FOR=(STANDBY_LOGFILES, STANDBY_ROLE)’

15. 2014 © Trivadis

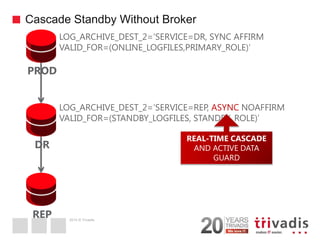

Cascade Standby Without Broker
15
PROD
LOG_ARCHIVE_DEST_2=‘SERVICE=DR, SYNC AFFIRM
VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE)’
DR
REP
LOG_ARCHIVE_DEST_2=‘SERVICE=REP, ASYNC NOAFFIRM VALID_FOR=(STANDBY_LOGFILES, STANDBY_ROLE)’
REAL-TIME CASCADE AND ACTIVE DATA GUARD

16. 2014 © Trivadis

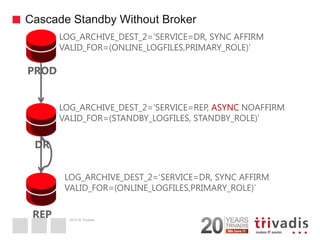

Cascade Standby Without Broker
16
PROD
LOG_ARCHIVE_DEST_2=‘SERVICE=DR, SYNC AFFIRM
VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE)’
DR
REP
LOG_ARCHIVE_DEST_2=‘SERVICE=DR, SYNC AFFIRM
VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE)’
LOG_ARCHIVE_DEST_2=‘SERVICE=REP, ASYNC NOAFFIRM VALID_FOR=(STANDBY_LOGFILES, STANDBY_ROLE)’

17. 2014 © Trivadis

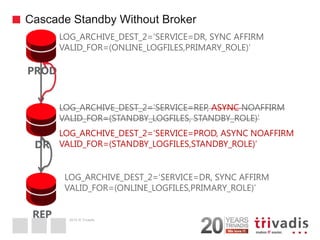

Cascade Standby Without Broker
17
PROD
LOG_ARCHIVE_DEST_2=‘SERVICE=DR, SYNC AFFIRM
VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE)’
DR
REP
LOG_ARCHIVE_DEST_2=‘SERVICE=DR, SYNC AFFIRM
VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE)’
LOG_ARCHIVE_DEST_2=‘SERVICE=PROD, ASYNC NOAFFIRM
VALID_FOR=(STANDBY_LOGFILES,STANDBY_ROLE)’
LOG_ARCHIVE_DEST_2=‘SERVICE=REP, ASYNC NOAFFIRM VALID_FOR=(STANDBY_LOGFILES, STANDBY_ROLE)’

18. 2014 © Trivadis
Cascade Standby with 12cR1 Broker
18
PROD
DR
REP
RedoRoutes=‘(LOCAL : DR)’
RedoRoutes=‘ (PROD : REP ASYNC) (REP : PROD ASYNC) (LOCAL : REP , PROD)’
RedoRoutes=‘(LOCAL:DR)’

19. 2014 © Trivadis

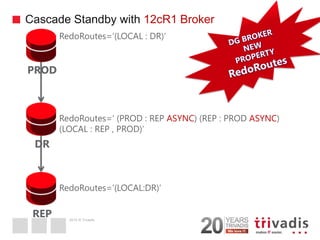

Cascade Standby with 12cR1 Broker
19
PROD
DR
REP
RedoRoutes=‘(LOCAL : DR)’
RedoRoutes=‘ (PROD : REP ASYNC) (REP : PROD ASYNC) (LOCAL : REP , PROD)’
RedoRoutes=‘(LOCAL:DR)’

20. 2014 © Trivadis

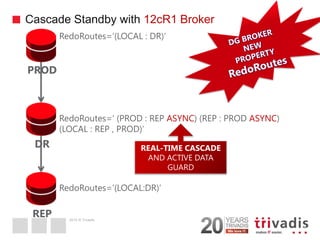

Cascade Standby with 12cR1 Broker
20
PROD
DR
REP
RedoRoutes=‘(LOCAL : DR)’
RedoRoutes=‘ (PROD : REP ASYNC) (REP : PROD ASYNC) (LOCAL : REP , PROD)’
RedoRoutes=‘(LOCAL:DR)’
REAL-TIME CASCADE AND ACTIVE DATA GUARD

21. 2014 © Trivadis

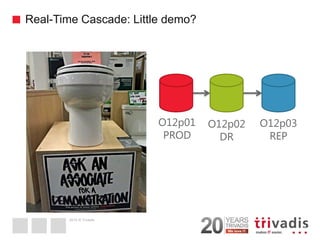

Real-Time Cascade: Little demo?
21
O12p01
PROD
O12p02
DR
O12p03
REP

22. 2014 © Trivadis
02.10.2014
Oracle Active Data Guard 12c
Far-Sync Instances
22

23. 2014 © Trivadis
High distances = High latencies
23
Too far to support SYNC
redo-transport
ASYNC ONLY!!

24. 2014 © Trivadis

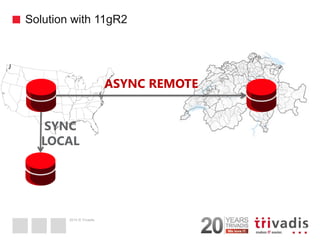

Solution with 11gR2
24
ASYNC REMOTE
SYNC
LOCAL

25. 2014 © Trivadis

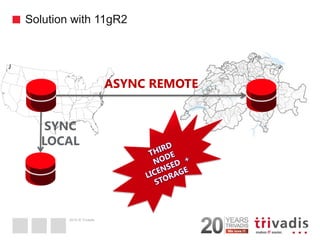

Solution with 11gR2
25
ASYNC REMOTE
SYNC
LOCAL

26. 2014 © Trivadis

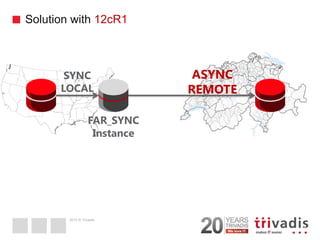

Solution with 12cR1
26
FAR_SYNC
Instance
SYNC
LOCAL
ASYNC
REMOTE

27. 2014 © Trivadis

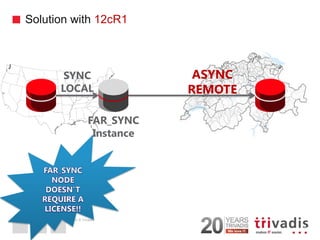

Solution with 12cR1
27
FAR_SYNC
Instance
SYNC
LOCAL
ASYNC
REMOTE

28. 2014 © Trivadis

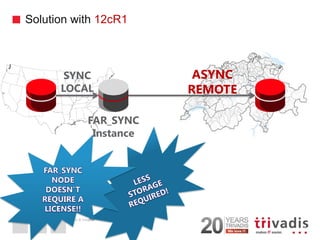

Solution with 12cR1
28
FAR_SYNC
Instance
SYNC
LOCAL
ASYNC
REMOTE

29. 2014 © Trivadis

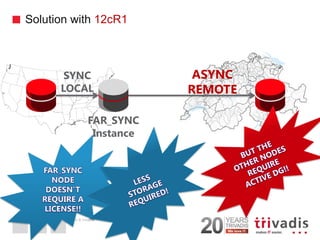

Solution with 12cR1
29
FAR_SYNC
Instance
SYNC
LOCAL
ASYNC
REMOTE

30. 2014 © Trivadis

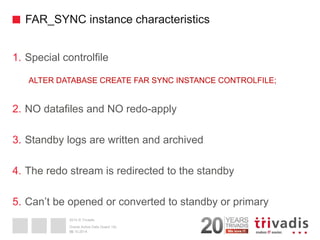

FAR_SYNC instance characteristics
1.Special controlfile
ALTER DATABASE CREATE FAR SYNC INSTANCE CONTROLFILE;
2.NO datafiles and NO redo-apply
3.Standby logs are written and archived
4.The redo stream is redirected to the standby
5.Can’t be opened or converted to standby or primary
30
02.10.2014
Oracle Active Data Guard 12c

31. 2014 © Trivadis

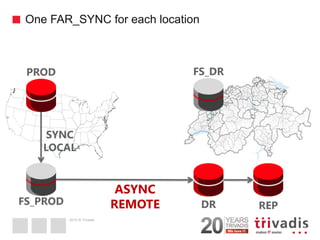

One FAR_SYNC for each location
31
SYNC
LOCAL
ASYNC REMOTE
FS_PROD
FS_DR
PROD
DR
REP

32. 2014 © Trivadis

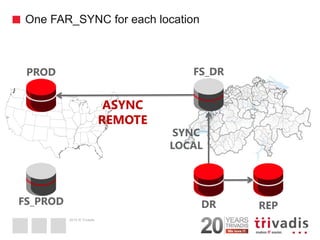

One FAR_SYNC for each location
32
SYNC
LOCAL
ASYNC
REMOTE
FS_PROD
FS_DR
PROD
DR
REP

33. 2014 © Trivadis
FAR_SYNC instances: Little demo?
33
O12p01
PROD
O12p02
DR
O12p03
REP
O12f01
PRODFS
O12f02
DRFS

34. 2014 © Trivadis
02.10.2014
Oracle Active Data Guard 12c
Other goodies ;-)
34

35. 2014 © Trivadis
FASTSYNC Log Transport Mode
1.table
2.No need to acknowledge the write on remote Standby Logs
3.Can be used with Maximum Availability
4.The commit overhead is due by the network only and not by the remote disk latencies
LogXptMode
Transport
Acknowledge
SYNC
SYNC
AFFIRM
ASYNC
ASYNC
NOAFFIRM
FASTSYNC
SYNC
NOAFFIRM
02.10.2014
Oracle Active Data Guard 12c

36. 2014 © Trivadis

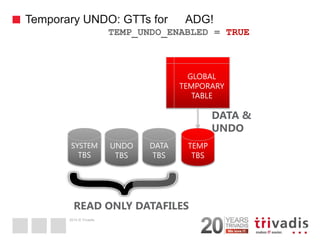

Temporary UNDO: GTTs for ADG!
36
UNDO
TBS
TEMP
TBS
TEMP_UNDO_ENABLED = TRUE
GLOBAL
TEMPORARY
TABLE
DATA
TBS
SYSTEM
TBS
DATA &
UNDO
READ ONLY DATAFILES

37. 2014 © Trivadis
Temporary UNDO: GTTs for ADG!
37
UNDO
TBS
TEMP
TBS
TEMP_UNDO_ENABLED = TRUE
GLOBAL
TEMPORARY
TABLE
DATA
TBS
SYSTEM
TBS
DATA &
UNDO
READ ONLY DATAFILES

38. 2014 © Trivadis

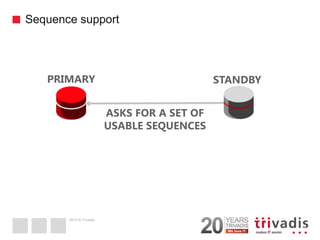

Sequence support
38
ASKS FOR A SET OF USABLE SEQUENCES
PRIMARY
STANDBY

39. 2014 © Trivadis

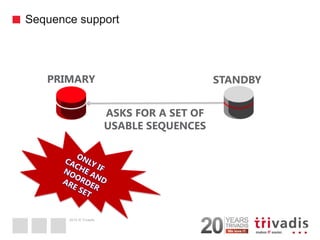

Sequence support
39
ASKS FOR A SET OF USABLE SEQUENCES
PRIMARY
STANDBY

40. 2014 © Trivadis

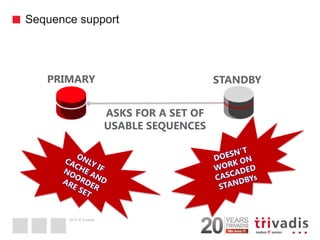

Sequence support
40
ASKS FOR A SET OF USABLE SEQUENCES
PRIMARY
STANDBY

41. 2014 © Trivadis

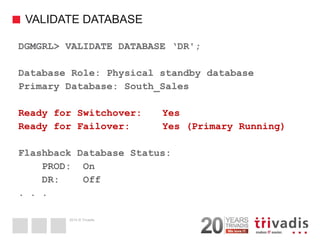

VALIDATE DATABASE
41
DGMGRL> VALIDATE DATABASE ‘DR';
Database Role: Physical standby database
Primary Database: South_Sales
Ready for Switchover: Yes
Ready for Failover: Yes (Primary Running)
Flashback Database Status:
PROD: On
DR: Off
. . .

42. 2014 © Trivadis

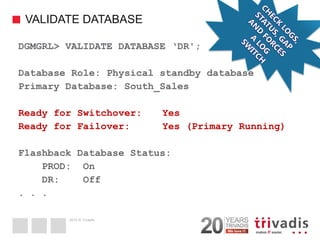

VALIDATE DATABASE
42
DGMGRL> VALIDATE DATABASE ‘DR';
Database Role: Physical standby database
Primary Database: South_Sales
Ready for Switchover: Yes
Ready for Failover: Yes (Primary Running)
Flashback Database Status:
PROD: On
DR: Off
. . .

43. 2014 © Trivadis

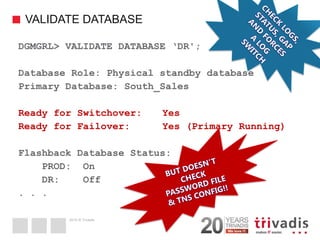

VALIDATE DATABASE
43
DGMGRL> VALIDATE DATABASE ‘DR';
Database Role: Physical standby database
Primary Database: South_Sales
Ready for Switchover: Yes
Ready for Failover: Yes (Primary Running)
Flashback Database Status:
PROD: On
DR: Off
. . .

44. 2014 © Trivadis

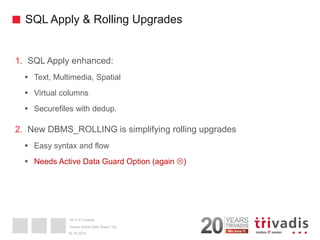

SQL Apply & Rolling Upgrades
1.SQL Apply enhanced:
Text, Multimedia, Spatial
Virtual columns
Securefiles with dedup.
2.New DBMS_ROLLING is simplifying rolling upgrades
Easy syntax and flow
Needs Active Data Guard Option (again )
02.10.2014
Oracle Active Data Guard 12c

45. 2014 © Trivadis

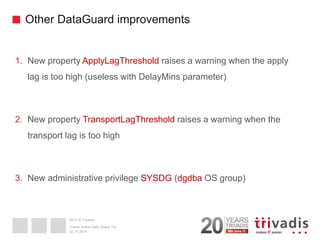

Other DataGuard improvements
1.New property ApplyLagThreshold raises a warning when the apply lag is too high (useless with DelayMins parameter)
2.New property TransportLagThreshold raises a warning when the transport lag is too high
3.New administrative privilege SYSDG (dgdba OS group)
02.10.2014
Oracle Active Data Guard 12c

46. 2014 © Trivadis

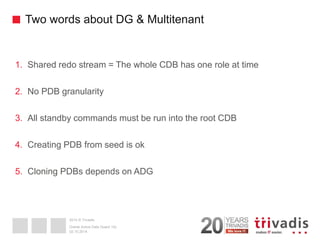

Two words about DG & Multitenant
1.Shared redo stream = The whole CDB has one role at time
2.No PDB granularity
3.All standby commands must be run into the root CDB
4.Creating PDB from seed is ok
5.Cloning PDBs depends on ADG
02.10.2014
Oracle Active Data Guard 12c

47. 2014 © Trivadis

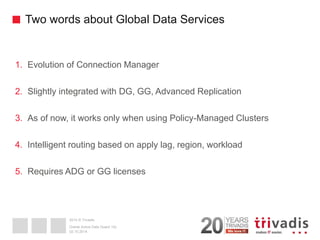

Two words about Global Data Services
1.Evolution of Connection Manager
2.Slightly integrated with DG, GG, Advanced Replication
3.As of now, it works only when using Policy-Managed Clusters
4.Intelligent routing based on apply lag, region, workload
5.Requires ADG or GG licenses
02.10.2014
Oracle Active Data Guard 12c

48. 2014 © Trivadis
Questions and answers ...
