Effective Oracle Home Management - UKOUG_Tech18

The document discusses effective Oracle home management within the context of CERN's IT practices, emphasizing the importance of a streamlined release model and automation to mitigate the challenges associated with frequent updates and patches. It presents common pitfalls in maintaining Oracle homes and offers solutions such as using golden images and automated processes for patching and deployment. The document also highlights the complexity of the technology stack at CERN and the need for proper lifecycle management in Oracle home management.

Embed presentation

Download as PDF, PPTX
Effective Oracle Home Management with the New Release Model Ludovico Caldara Computing Engineer IT Department, CERN ludovico.caldara@cern.ch @ludodba 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 2
About Ludovico Caldara ■ 18+ Years DBA (Not Only Oracle) ■ ITOUG co-founder ■ OCP (11g, 12c, MySQL) & OCE ■ Italian living in Switzerland ■ http://www.ludovicocaldara.net ■ @ludodba ■ ludovicocaldara 05.12.2018 3 Effective Oracle Home Management #UKOUG_Tech18

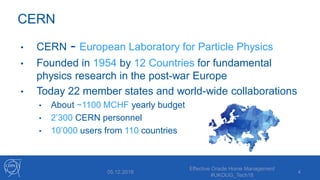

CERN • CERN - European Laboratory for Particle Physics • Founded in 1954 by 12 Countries for fundamental physics research in the post-war Europe • Today 22 member states and world-wide collaborations • About ~1100 MCHF yearly budget • 2’300 CERN personnel • 10’000 users from 110 countries 405.12.2018 Effective Oracle Home Management #UKOUG_Tech18

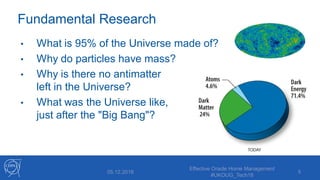

Fundamental Research • What is 95% of the Universe made of? • Why do particles have mass? • Why is there no antimatter left in the Universe? • What was the Universe like, just after the "Big Bang"? 505.12.2018 Effective Oracle Home Management #UKOUG_Tech18

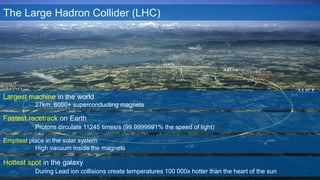

Effective Oracle Home Management #UKOUG_Tech18 6 The Large Hadron Collider (LHC) Largest machine in the world 27km, 6000+ superconducting magnets Emptiest place in the solar system High vacuum inside the magnets Hottest spot in the galaxy During Lead ion collisions create temperatures 100 000x hotter than the heart of the sun Fastest racetrack on Earth Protons circulate 11245 times/s (99.9999991% the speed of light)

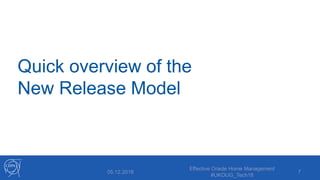

Quick overview of the New Release Model 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 7

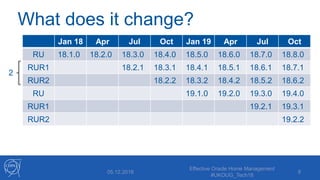

What does it change? Jan 18 Apr Jul Oct Jan 19 Apr Jul Oct RU 18.1.0 18.2.0 18.3.0 18.4.0 18.5.0 18.6.0 18.7.0 18.8.0 RUR1 18.2.1 18.3.1 18.4.1 18.5.1 18.6.1 18.7.1 RUR2 18.2.2 18.3.2 18.4.2 18.5.2 18.6.2 RU 19.1.0 19.2.0 19.3.0 19.4.0 RUR1 19.2.1 19.3.1 RUR2 19.2.2 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 8 2

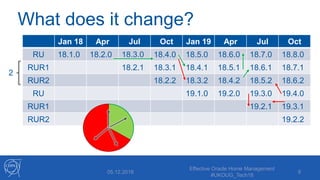

What does it change? Jan 18 Apr Jul Oct Jan 19 Apr Jul Oct RU 18.1.0 18.2.0 18.3.0 18.4.0 18.5.0 18.6.0 18.7.0 18.8.0 RUR1 18.2.1 18.3.1 18.4.1 18.5.1 18.6.1 18.7.1 RUR2 18.2.2 18.3.2 18.4.2 18.5.2 18.6.2 RU 19.1.0 19.2.0 19.3.0 19.4.0 RUR1 19.2.1 19.3.1 RUR2 19.2.2 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 9 2

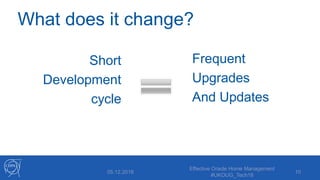

What does it change? 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 10 Short Development cycle Frequent Upgrades And Updates

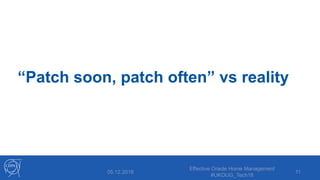

“Patch soon, patch often” vs reality 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 11

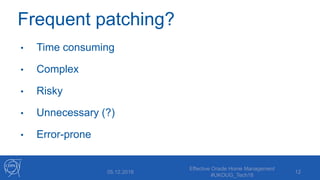

Frequent patching? • Time consuming • Complex • Risky • Unnecessary (?) • Error-prone 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 12

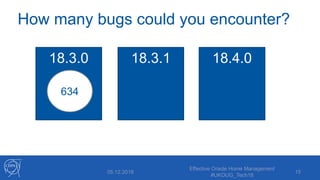

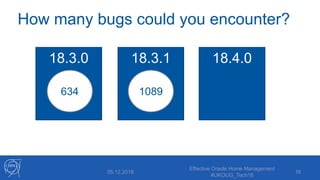

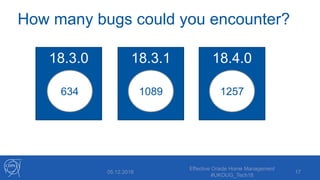

How many bugs could you encounter? 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 13
How many bugs could you encounter? 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 14 18.3.0 18.3.1 18.4.0
How many bugs could you encounter? 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 15 18.3.0 18.3.1 18.4.0 634
How many bugs could you encounter? 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 16 18.3.0 18.3.1 18.4.0 634 1089
How many bugs could you encounter? 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 17 18.3.0 18.3.1 18.4.0 634 1089 1257
Which patches should I apply? 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 18

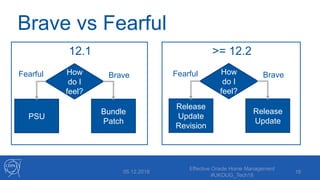

Brave vs Fearful 12.1 >= 12.2 Effective Oracle Home Management #UKOUG_Tech18 19 How do I feel? PSU Bundle Patch BraveFearful How do I feel? Release Update Revision Release Update BraveFearful • 05.12.2018
Brave vs Fearful 12.1 >= 12.2 Effective Oracle Home Management #UKOUG_Tech18 20 How do I feel? PSU Bundle Patch BraveFearful How do I feel? Release Update Revision Release Update BraveFearful Ludovico(*) Ludovico(*) (*) yes, it’s Comic Sans https://mikedietrichde.com/2017/10/24/differences-psu-bp-ru-rur/ • 05.12.2018

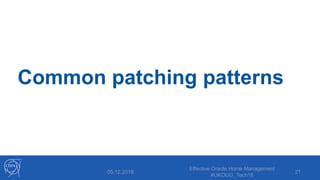

Common patching patterns 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 21
Common worst practices in maintaining homes • Installing software by hand • Different patch levels for Oracle Homes with the same path • Not tracking the installed patches • Oracle Home paths hard-coded in the operational scripts • Not minding about naming conventions 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 22

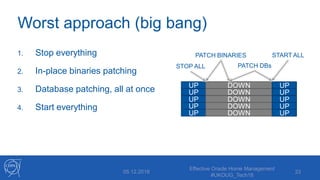

Worst approach (big bang) 1. Stop everything 2. In-place binaries patching 3. Database patching, all at once 4. Start everything Effective Oracle Home Management #UKOUG_Tech18 23 UP UP UP UP DOWN DOWN DOWN DOWN UP UP UP UP UP DOWN UP STOP ALL START ALLPATCH BINARIES PATCH DBs • 05.12.2018
Worst approach (big bang) 1. Stop everything 2. In-place binaries patching 3. Database patching, all at once 4. Start everything Effective Oracle Home Management #UKOUG_Tech18 2405.12.2018 UP UP UP UP DOWN DOWN DOWN DOWN UP UP UP UP UP DOWN UP STOP ALL START ALLPATCH BINARIES PATCH DBs No easy rollback Long downtime Complex planning

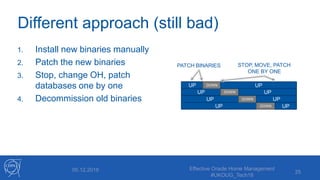

Different approach (still bad) 1. Install new binaries manually 2. Patch the new binaries 3. Stop, change OH, patch databases one by one 4. Decommission old binaries Effective Oracle Home Management #UKOUG_Tech18 2505.12.2018 UP UP UP UP DOWN DOWN DOWN DOWN UP UP UP UP PATCH BINARIES STOP, MOVE, PATCH ONE BY ONE

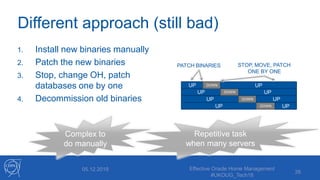

Different approach (still bad) 1. Install new binaries manually 2. Patch the new binaries 3. Stop, change OH, patch databases one by one 4. Decommission old binaries Effective Oracle Home Management #UKOUG_Tech18 2605.12.2018 UP UP UP UP DOWN DOWN DOWN DOWN UP UP UP UP PATCH BINARIES STOP, MOVE, PATCH ONE BY ONE Complex to do manually Repetitive task when many servers

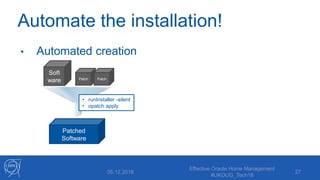

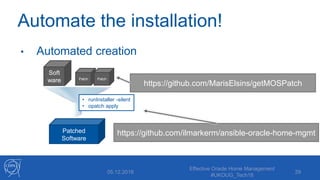

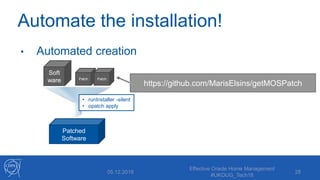

Automate the installation! • Automated creation 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 27 Soft ware Patch Patch Patched Software • runInstaller -silent • opatch apply
Automate the installation! • Automated creation 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 28 Soft ware Patch Patch Patched Software • runInstaller -silent • opatch apply https://github.com/MarisElsins/getMOSPatch
Automate the installation! • Automated creation 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 29 Soft ware Patch Patch Patched Software • runInstaller -silent • opatch apply https://github.com/MarisElsins/getMOSPatch https://github.com/ilmarkerm/ansible-oracle-home-mgmt

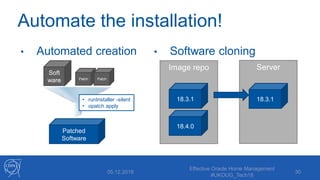

Image repo Automate the installation! • Automated creation • Software cloning 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 30 Soft ware Patch Patch Patched Software • runInstaller -silent • opatch apply 18.3.1 18.4.0 Server 18.3.1
Image repo Automate the installation! • Automated creation • Software cloning 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 31 Soft ware Patch Patch Patched Software • runInstaller -silent • opatch apply 18.3.1 18.4.0 Server 18.3.1 RUNDECK ANSIBLE RHP OTHER

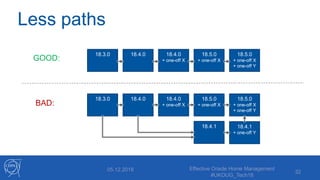

Less paths Effective Oracle Home Management #UKOUG_Tech18 3205.12.2018 18.3.0 18.4.0 18.4.0 + one-off X 18.5.0 + one-off X 18.5.0 + one-off X + one-off Y 18.3.0 18.4.0 18.4.0 + one-off X 18.5.0 + one-off X 18.5.0 + one-off X + one-off Y 18.4.1 18.4.1 + one-off Y GOOD: BAD:

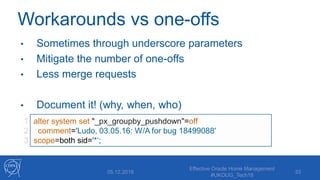

Workarounds vs one-offs • Sometimes through underscore parameters • Mitigate the number of one-offs • Less merge requests • Document it! (why, when, who) 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 33 1 2 3 alter system set "_px_groupby_pushdown"=off comment='Ludo, 03.05.16: W/A for bug 18499088' scope=both sid='*‘;

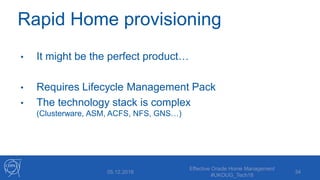

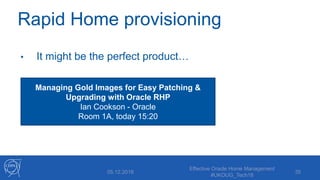

Rapid Home provisioning • It might be the perfect product… • Requires Lifecycle Management Pack • The technology stack is complex (Clusterware, ASM, ACFS, NFS, GNS…) 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 34
Rapid Home provisioning • It might be the perfect product… • Requires Lifecycle Management Pack • The technology stack is complex (Clusterware, ASM, ACFS, NFS, GNS…) 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 35 Managing Gold Images for Easy Patching & Upgrading with Oracle RHP Ian Cookson - Oracle Room 1A, today 15:20

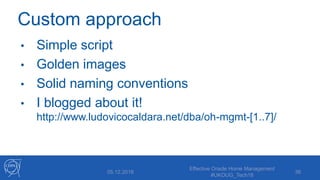

Custom approach • Simple script • Golden images • Solid naming conventions • I blogged about it! http://www.ludovicocaldara.net/dba/oh-mgmt-[1..7]/ 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 36

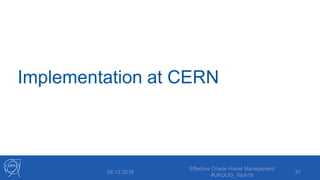

Implementation at CERN 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 37

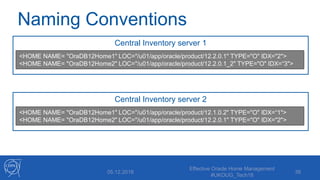

Naming Conventions 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 38 Central Inventory server 1 <HOME NAME= "OraDB12Home1" LOC="/u01/app/oracle/product/12.2.0.1" TYPE="O" IDX="2"> <HOME NAME= "OraDB12Home2" LOC="/u01/app/oracle/product/12.2.0.1_2" TYPE="O" IDX=“3"> Central Inventory server 2 <HOME NAME= "OraDB12Home1" LOC="/u01/app/oracle/product/12.1.0.2" TYPE="O" IDX=“1"> <HOME NAME= "OraDB12Home2" LOC="/u01/app/oracle/product/12.2.0.1" TYPE="O" IDX="2">

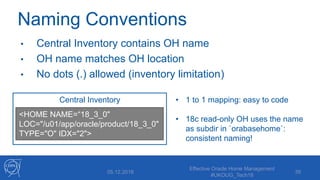

Naming Conventions • Central Inventory contains OH name • OH name matches OH location • No dots (.) allowed (inventory limitation) 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 39 Central Inventory <HOME NAME=“18_3_0" LOC="/u01/app/oracle/product/18_3_0" TYPE="O" IDX="2"> • 1 to 1 mapping: easy to code • 18c read-only OH uses the name as subdir in `orabasehome`: consistent naming!

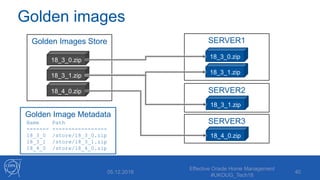

Golden images 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 40 Golden Images Store 18_3_0.zip 18_4_0.zip 18_3_1.zip SERVER1 18_3_0.zip 18_3_1.zip SERVER2 18_3_1.zip SERVER3 18_4_0.zip Golden Image Metadata Name Path ------- ----------------- 18_3_0 /store/18_3_0.zip 18_3_1 /store/18_3_1.zip 18_4_0 /store/18_4_0.zip

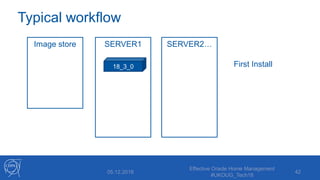

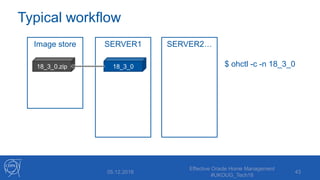

Image store Typical workflow 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 42 SERVER1 18_3_0 SERVER2… First Install
Image store Typical workflow 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 43 18_3_0.zip SERVER1 18_3_0 SERVER2… $ ohctl -c -n 18_3_0
Image store Typical workflow 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 44 18_3_0.zip SERVER1 18_3_0 SERVER2… $ ohctl -i 18_3_018_3_0
Image store Typical workflow 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 45 18_3_0.zip SERVER1 18_3_0 SERVER2… $ ohctl -i 18_3_0 -n 18_4_0 18_3_0 18_4_0
Image store Typical workflow 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 46 18_3_0.zip SERVER1 18_3_0 SERVER2… Manual patching 18_3_0 18_4_0
Image store Typical workflow 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 47 18_3_0.zip SERVER1 18_3_0 SERVER2… $ ohctl -c 18_3_0 18_4_0 18_4_0.zip
Image store Typical workflow 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 48 18_3_0.zip SERVER1 18_3_0 SERVER2… $ ohctl -i 18_4_0 18_3_0 18_4_0 18_4_0.zip 18_4_0

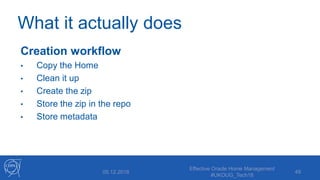

What it actually does Creation workflow • Copy the Home • Clean it up • Create the zip • Store the zip in the repo • Store metadata Effective Oracle Home Management #UKOUG_Tech18 4905.12.2018
What it actually does Creation workflow • Copy the Home • Clean it up • Create the zip • Store the zip in the repo • Store metadata Installation workflow • Security checks • Create new path • Unzip from the store • Attach home • Relink (opt. with RAC) • Run setasmgid • Other stuff (e.g. TNS) Effective Oracle Home Management #UKOUG_Tech18 5005.12.2018
Effective Oracle Home Management #UKOUG_Tech18 5105.12.2018 DEMO
Further development at CERN 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 52

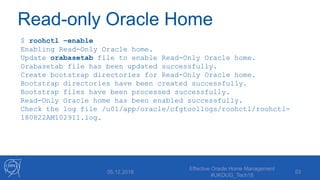

Read-only Oracle Home $ roohctl –enable Enabling Read-Only Oracle home. Update orabasetab file to enable Read-Only Oracle home. Orabasetab file has been updated successfully. Create bootstrap directories for Read-Only Oracle home. Bootstrap directories have been created successfully. Bootstrap files have been processed successfully. Read-Only Oracle home has been enabled successfully. Check the log file /u01/app/oracle/cfgtoollogs/roohctl/roohctl- 180822AM102911.log. 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 53

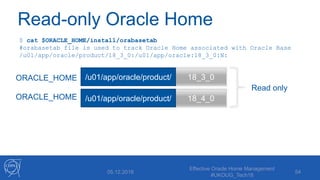

Read-only Oracle Home 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 54 18_3_0 18_4_0 /u01/app/oracle/product/ /u01/app/oracle/product/ $ cat $ORACLE_HOME/install/orabasetab #orabasetab file is used to track Oracle Home associated with Oracle Base /u01/app/oracle/product/18_3_0:/u01/app/oracle:18_3_0:N: ORACLE_HOME ORACLE_HOME Read only
Read-only Oracle Home 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 55 18_3_0 18_4_0 /u01/app/oracle/product/ /u01/app/oracle/product/ /u01/app/oracle/homes/ $ cat $ORACLE_HOME/install/orabasetab #orabasetab file is used to track Oracle Home associated with Oracle Base /u01/app/oracle/product/18_3_0:/u01/app/oracle:18_3_0:N: ORACLE_HOME /u01/app/oracle/homes/ ORACLE_HOME orabasehome orabasehome 18_3_0 18_4_0 Read only TNS, init, etc.
AGILE INFRASTRUCTURE SERVER Insertion in the Agile Infrastructure 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 56 Image Store Scripts REST client Oracle Home

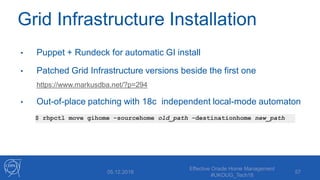

Grid Infrastructure Installation • Puppet + Rundeck for automatic GI install • Patched Grid Infrastructure versions beside the first one https://www.markusdba.net/?p=294 • Out-of-place patching with 18c independent local-mode automaton 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 57 $ rhpctl move gihome –sourcehome old_path -destinationhome new_path
Independent Local-mode Automaton (18c) 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 58 # $GI_HOME/srvctl enable volume -volume GHCHKPT -diskgroup mgmt # $GI_HOME/srvctl enable filesystem -volume GHCHKPT -diskgroup mgmt # $GI_HOME/srvctl start filesystem -volume GHCHKPT -diskgroup mgmt $ $GI_HOME/srvctl start rhpserver Local Resources --------------------------------------------------------------- ora.MGMT.GHCHKPT.advm ora.mgmt.ghchkpt.acfs ora.helper Cluster Resources --------------------------------------------------------------- ora.rhpserver
$ opatch lspatches 27908644;UPDATE 18.3 DATABASE CLIENT JDK IN ORACLE HOME TO JDK8U171 27923415;OJVM RELEASE UPDATE: 18.3.0.0.180717 (27923415) 28256701;TOMCAT RELEASE UPDATE 18.3.0.0.0 (28256701) 28090564;DBWLM RELEASE UPDATE 18.3.0.0.0 (28090564) 28090557;ACFS RELEASE UPDATE 18.3.0.0.0 (28090557) 28090553;OCW RELEASE UPDATE 18.3.0.0.0 (28090553) 28090523;Database Release Update : 18.3.0.0.180717 (28090523) OPatch succeeded. 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 59

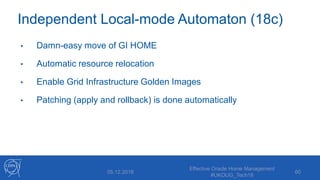

Independent Local-mode Automaton (18c) • Damn-easy move of GI HOME • Automatic resource relocation • Enable Grid Infrastructure Golden Images • Patching (apply and rollback) is done automatically 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 60

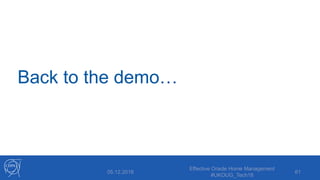

Back to the demo… 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 61
Questions? 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 62
Thank you! Ludovico Caldara Computing Engineer IT Department, CERN ludovico.caldara@cern.ch @ludodba 05.12.2018 Effective Oracle Home Management #UKOUG_Tech18 63
