Oracle Active Data Guard
Standby on Steroids – DR Included
Joe Meeks, Director, Product Management, Oracle
Shawn Ormond, Database Administrator, Intermap Technologies Inc
Yucheng Liu, Senior Database Administrator, Real Networks
Krishna Kakatur, Senior. Database Administrator, Real Networks



                                                                  1
Today’s Objectives

                Deep Dive

                     Shine the Light




                                       2

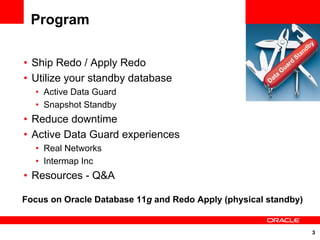

Program
                                                                                   y
                                                                                 db
                                                                               an
                                                                          St
• Ship Redo / Apply Redo                                          uar
                                                                      d
                                                                 G
• Utilize your standby database                       Da
                                                         t   a

  • Active Data Guard

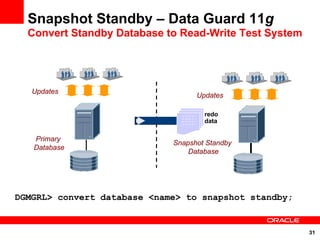

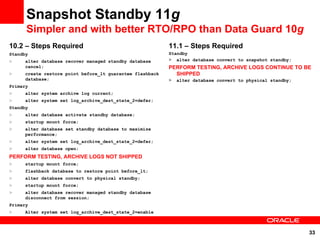

  • Snapshot Standby
• Reduce downtime
• Active Data Guard experiences
  • Real Networks
  • Intermap Inc
• Resources - Q&A

Focus on Oracle Database 11g and Redo Apply (physical standby)


                                                                                   3
Oracle Data Guard
    Best Protection at Lowest Cost




                     Automatic Failover     Active
                                           Standby
Production
                                          Databases
 Database
                       SYNC or ASYNC
                        Redo Shipping


                      Data Guard




                                                      4

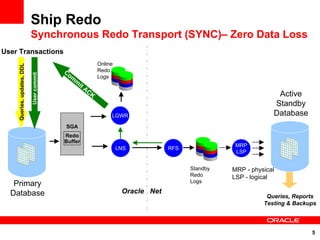

Ship Redo
                             Synchronous Redo Transport (SYNC)– Zero Data Loss
User Transactions
                                                                           Online
     Queries, updates, DDL

                             Queries, updates, DDL




                                                     Co                    Redo
                                   User commit




                                                        m                  Logs
                                                            m
                                                             it
                                                                  AC
                                                                       K                                                        Active
                                                                                                                               Standby
                                                                                LGWR                                           Database
                                                     SGA
                                                     Redo
                                                     Buffer
                                                                                                                   MRP
                                                                                    LNS           RFS
                                                                                                                   LSP


                                                                                                        Standby   MRP - physical
                                                                                                        Redo      LSP - logical
                                                                                                        Logs
   Primary
  Database                                                                           Oracle Net
                                                                                                                             Queries, Reports
                                                                                                                            Testing & Backups




                                                                                                                                           5

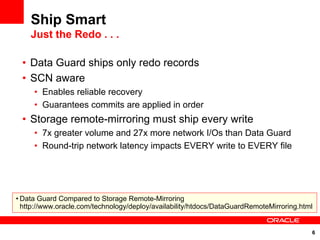

Ship Smart
    Just the Redo . . .

 • Data Guard ships only redo records
 • SCN aware
     • Enables reliable recovery
     • Guarantees commits are applied in order
 • Storage remote-mirroring must ship every write
     • 7x greater volume and 27x more network I/Os than Data Guard
     • Round-trip network latency impacts EVERY write to EVERY file




• Data Guard Compared to Storage Remote-Mirroring
  http://www.oracle.com/technology/deploy/availability/htdocs/DataGuardRemoteMirroring.html


                                                                                          6

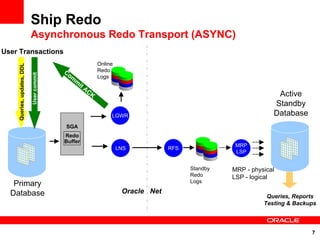

Ship Redo
                             Asynchronous Redo Transport (ASYNC)
User Transactions
                                                                           Online
     Queries, updates, DDL

                             Queries, updates, DDL




                                                     Co                    Redo
                                   User commit




                                                        m                  Logs
                                                            m
                                                             it
                                                                  AC
                                                                       K                                                        Active
                                                                                                                               Standby
                                                                                LGWR                                           Database
                                                     SGA
                                                     Redo
                                                     Buffer
                                                                                                                   MRP
                                                                                    LNS           RFS
                                                                                                                   LSP


                                                                                                        Standby   MRP - physical
                                                                                                        Redo      LSP - logical
                                                                                                        Logs
   Primary
  Database                                                                           Oracle Net
                                                                                                                             Queries, Reports
                                                                                                                            Testing & Backups




                                                                                                                                           7
Ship Redo
                             ASYNC – If Network Can’t Keep Pace
User Transactions
     Queries, updates, DDL

                             Queries, updates, DDL




                                                                           Online
                                                     Co                    Redo
                                   User commit




                                                        m                  Logs
                                                            m
                                                             it
                                                                  AC
                                                                       K                                                       Active
                                                                                                                              Standby
                                                                             LGWR                                             Database
                                                     SGA
                                                     Redo
                                                     Buffer
                                                                                                                  MRP
                                                                                    LNS          RFS
                                                                                                                  LSP


                                                                                                       Standby   MRP - physical
                                                                                                       Redo      LSP - logical
                                                                                                       Logs
   Primary
  Database                                                                          Oracle Net
                                                                                                                            Queries, Reports
                                                                                                                           Testing & Backups




                                                                                                                                          8

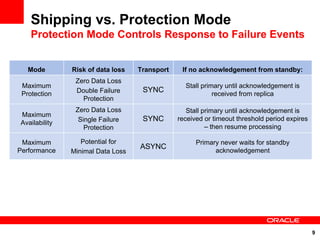

Shipping vs. Protection Mode
    Protection Mode Controls Response to Failure Events


   Mode        Risk of data loss   Transport    If no acknowledgement from standby:
                Zero Data Loss
 Maximum                                         Stall primary until acknowledgement is
 Protection     Double Failure      SYNC                   received from replica
                  Protection
                Zero Data Loss                    Stall primary until acknowledgement is
Maximum
Availability     Single Failure     SYNC       received or timeout threshold period expires
                   Protection                            – then resume processing

 Maximum          Potential for                      Primary never waits for standby
Performance
                                   ASYNC                   acknowledgement
               Minimal Data Loss




                                                                                              9

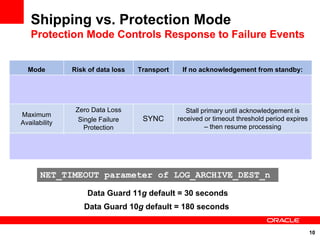

Shipping vs. Protection Mode
    Protection Mode Controls Response to Failure Events


   Mode        Risk of data loss   Transport    If no acknowledgement from standby:
                Zero Data Loss
 Maximum                                         Stall primary until acknowledgement is
 Protection     Double Failure      SYNC                   received from replica
                  Protection
                Zero Data Loss                    Stall primary until acknowledgement is
Maximum
Availability     Single Failure     SYNC       received or timeout threshold period expires
                   Protection                            – then resume processing

 Maximum          Potential for                      Primary never waits for standby
Performance
                                   ASYNC                   acknowledgement
               Minimal Data Loss


       NET_TIMEOUT parameter of LOG_ARCHIVE_DEST_n

                    Data Guard 11g default = 30 seconds
                   Data Guard 10g default = 180 seconds


                                                                                              10

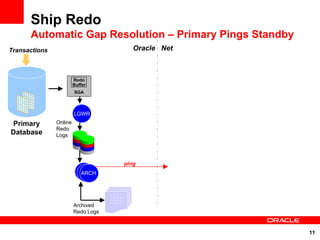

Ship Redo
      Automatic Gap Resolution – Primary Pings Standby
Transactions                           Oracle Net



                        Redo
                        Buffer
                        SGA



                        LGWR
Primary        Online
               Redo
Database       Logs




                                    ping
                           ARCH




                        Archived
                        Redo Logs


                                                         11

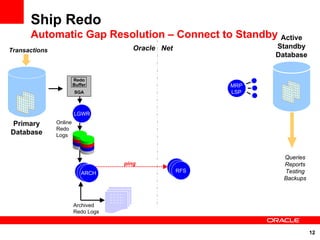

Ship Redo
      Automatic Gap Resolution – Connect to Standby Active
                                       Oracle Net               Standby
Transactions
                                                                Database


                        Redo
                        Buffer                            MRP
                        SGA                               LSP



                        LGWR
Primary        Online
               Redo
Database       Logs



                                                                  Queries
                                    ping                          Reports
                           ARCH                     RFS           Testing
                                                                  Backups



                        Archived
                        Redo Logs


                                                                            12

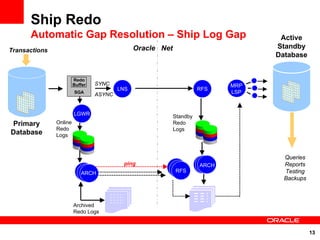

Ship Redo
      Automatic Gap Resolution – Ship Log Gap                                       Active
                                               Oracle Net                          Standby
Transactions
                                                                                   Database


                        Redo
                        Buffer   SYNC                                        MRP
                                         LNS                          RFS
                        SGA
                                 ASYNC                                       LSP



                        LGWR                                Standby
Primary        Online                                       Redo
               Redo                                         Logs
Database       Logs



                                                                                     Queries
                                          ping                        ARCH           Reports
                           ARCH                             RFS                      Testing
                                                                                     Backups



                        Archived
                        Redo Logs


                                                                                               13
Ship Redo
      Automatic Gap Resolution – Gap Resolved                                       Active
                                               Oracle Net                          Standby
Transactions
                                                                                   Database


                        Redo
                        Buffer   SYNC                                        MRP
                                         LNS                          RFS
                        SGA
                                 ASYNC                                       LSP



                        LGWR                                Standby
Primary        Online                                       Redo
               Redo                                         Logs
Database       Logs



                                                                                     Queries
                                          ping                        ARCH           Reports
                           ARCH                             RFS                      Testing
                                                                                     Backups



                        Archived
                        Redo Logs


                                                                                               14

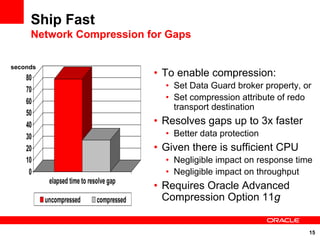

Ship Fast
     Network Compression for Gaps

seconds
    80                                     • To enable compression:
    70                                       • Set Data Guard broker property, or
    60                                       • Set compression attribute of redo
                                               transport destination
    50
    40                                     • Resolves gaps up to 3x faster
    30                                       • Better data protection
    20                                     • Given there is sufficient CPU
    10                                       • Negligible impact on response time
     0                                       • Negligible impact on throughput
           elapsed time to resolve gap
                                           • Requires Oracle Advanced
          uncompressed        compressed     Compression Option 11g


                                                                                15
Ship Fast
Enable Compression for ASYNC Transport

 _REDO_TRANSPORT_COMPRESS_ALL=TRUE

• Useful when network volume exceeds bandwidth
• Test case:
  • Network Bandwidth: 100Mbps network (12.5MB/s)
  • Redo Rate: 22MB/s
• Results
  • Without compression, transport lag increased linearly over time
  • With compression enabled, transport lag ranged from 4-10 seconds
  • Compression ratio: 60%
• Implementation details - see MetaLink Note 729551.1



                                                                  16

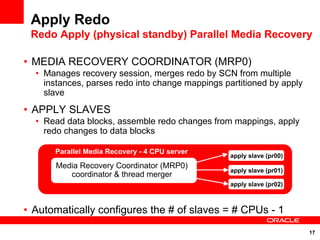

Apply Redo
 Redo Apply (physical standby) Parallel Media Recovery

• MEDIA RECOVERY COORDINATOR (MRP0)
  • Manages recovery session, merges redo by SCN from multiple
    instances, parses redo into change mappings partitioned by apply
    slave
• APPLY SLAVES
  • Read data blocks, assemble redo changes from mappings, apply
    redo changes to data blocks

      Parallel Media Recovery - 4 CPU server
                                                  apply slave (pr00)
       Media Recovery Coordinator (MRP0)
                                                  apply slave (pr01)
          coordinator & thread merger
                                                  apply slave (pr02)



• Automatically configures the # of slaves = # CPUs - 1
                                                                       17
Apply Fast
     100% Faster than Oracle Database 10g

      120                                       • Increased parallelism
      100                             112       • Less synchronization
       80                                       • Better utilization of I/O
                                                  and CPU resources
MB/sec 60
                                                • Optimizations for
       40          47            48               direct-path loads
       20
            24                                  • Self-configuring*
        0
                 OLTP        Direct Path Load
                                                              *for ASYNC I/O

                   10gR2 11gR1

                                                                               18

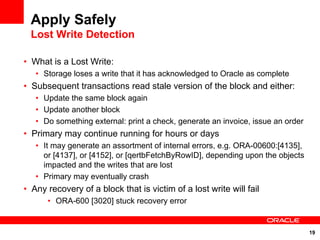

Apply Safely
  Lost Write Detection

• What is a Lost Write:
   • Storage loses a write that it has acknowledged to Oracle as complete
• Subsequent transactions read stale version of the block and either:
   • Update the same block again
   • Update another block
   • Do something external: print a check, generate an invoice, issue an order
• Primary may continue running for hours or days
   • It may generate an assortment of internal errors, e.g. ORA-00600:[4135],
     or [4137], or [4152], or [qertbFetchByRowID], depending upon the objects
     impacted and the writes that are lost
   • Primary may eventually crash
• Any recovery of a block that is victim of a lost write will fail
      • ORA-600 [3020] stuck recovery error


                                                                                 19
Lost Write Happens
 As Reported in SR - Oracle Database 10g Release 2

Lengthy outage impacting a multi-terabyte database

• Problems first surface on their standby database
 ORA-00600: internal error code, arguments: [3020] , [648], [1182463], [2719091455], []
 ORA-10567 : Redo is inconsistent with data block (file# 648, block# 1182463)
 Recovery interrupted!


• Many hours later – production is down
 Noticed odd query results on production
 Noticed ORA-600 errors on production this morning for which SGA Heapdump was uploaded.
 New info : I was rebuilding an index. After a few minutes, the database took an unexpected crash.
 ***please help. it's very urgent, production is down.***


• Problems traced to lost writes caused by faulty hardware


                                                                                                     20

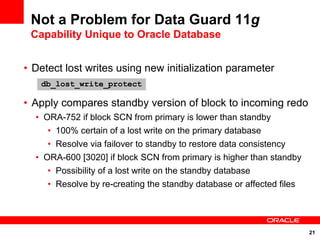

Not a Problem for Data Guard 11g
 Capability Unique to Oracle Database


• Detect lost writes using new initialization parameter
   db_lost_write_protect

• Apply compares standby version of block to incoming redo
  • ORA-752 if block SCN from primary is lower than standby
     • 100% certain of a lost write on the primary database
     • Resolve via failover to standby to restore data consistency
  • ORA-600 [3020] if block SCN from primary is higher than standby
     • Possibility of a lost write on the standby database
     • Resolve by re-creating the standby database or affected files




                                                                       21

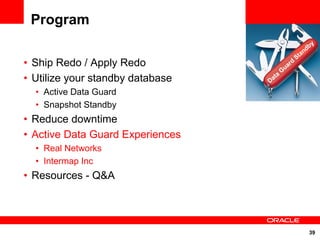

Program
                                                               y
                                                             db
                                                           an
                                                      St
• Ship Redo / Apply Redo                      uar
                                                  d
                                             G
• Utilize your standby database   Da
                                     t   a

  • Active Data Guard
  • Snapshot Standby
• Reduce downtime
• Active Data Guard experiences
  • Real Networks
  • Intermap Inc
• Resources - Q&A




                                                              22

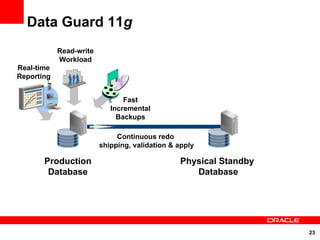

Data Guard 11g
            Read-write
            Workload
Real-time                                               Real-time
Reporting                                                Queries


                                Fast
                            Incremental
                              Backups

                              Continuous redo
                         shipping, validation & apply

       Production                               Physical Standby
        Database                                   Database




                                                                    23

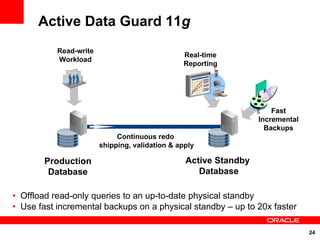

Active Data Guard 11g
             Read-write
                                                  Real-time
             Workload
                                                  Reporting
 Real-time                                               Real-time
 Reporting                                                Queries


                                 Fast
                             Incremental                                 Fast
                               Backups                               Incremental
                                                                       Backups
                               Continuous redo
                          shipping, validation & apply

        Production                                Active Standby
                                                 Physical Standby
         Database                                    Database

• Offload read-only queries to an up-to-date physical standby
• Use fast incremental backups on a physical standby – up to 20x faster

                                                                                   24

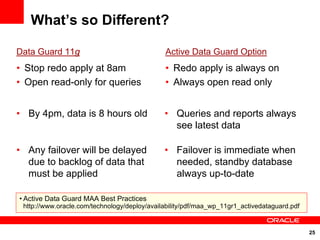

What’s so Different?

Data Guard 11g                                Active Data Guard Option
• Stop redo apply at 8am                      • Redo apply is always on
• Open read-only for queries                  • Always open read only


• By 4pm, data is 8 hours old                 • Queries and reports always
                                                see latest data

• Any failover will be delayed                • Failover is immediate when
  due to backlog of data that                   needed, standby database
  must be applied                               always up-to-date

• Active Data Guard MAA Best Practices
 http://www.oracle.com/technology/deploy/availability/pdf/maa_wp_11gr1_activedataguard.pdf


                                                                                             25

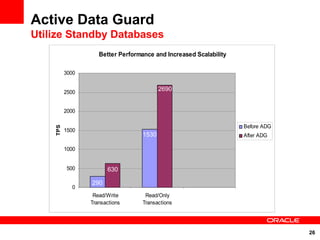

Active Data Guard
Utilize Standby Databases
                    Better Performance and Increased Scalability

          3000


          2500
                                          2690


          2000

                                                                   Before ADG
    TPS




          1500
                                   1530                            After ADG

          1000


          500          630

                 290
            0
                  Read/Write        Read/Only
                 Transactions      Transactions




                                                                                26

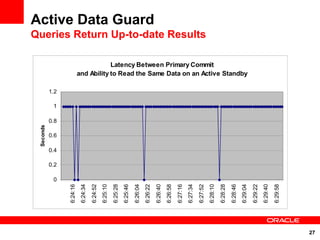

Active Data Guard
Queries Return Up-to-date Results

                                             Latency Between Primary Commit
                                 and Ability to Read the Same Data on an Active Standby

           1.2

            1

           0.8
 Seconds




           0.6

           0.4

           0.2

            0
                       6:24:16
                                 6:24:34
                                           6:24:52
                                                     6:25:10
                                                               6:25:28
                                                                         6:25:46
                                                                                   6:26:04
                                                                                             6:26:22
                                                                                                       6:26:40
                                                                                                                 6:26:58
                                                                                                                           6:27:16
                                                                                                                                     6:27:34
                                                                                                                                               6:27:52
                                                                                                                                                         6:28:10
                                                                                                                                                                   6:28:28
                                                                                                                                                                             6:28:46
                                                                                                                                                                                       6:29:04
                                                                                                                                                                                                 6:29:22
                                                                                                                                                                                                           6:29:40
                                                                                                                                                                                                                     6:29:58
                 dw4




                                                                                                                                                                                                                               27

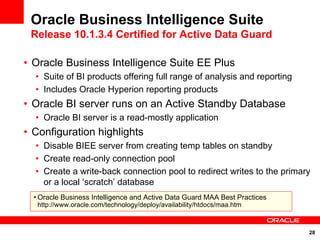

Oracle Business Intelligence Suite
 Release 10.1.3.4 Certified for Active Data Guard

• Oracle Business Intelligence Suite EE Plus
  • Suite of BI products offering full range of analysis and reporting
  • Includes Oracle Hyperion reporting products
• Oracle BI server runs on an Active Standby Database
  • Oracle BI server is a read-mostly application
• Configuration highlights
  • Disable BIEE server from creating temp tables on standby
  • Create read-only connection pool
  • Create a write-back connection pool to redirect writes to the primary
    or a local ‘scratch’ database
  • Oracle Business Intelligence and Active Data Guard MAA Best Practices
   http://www.oracle.com/technology/deploy/availability/htdocs/maa.htm



                                                                            28

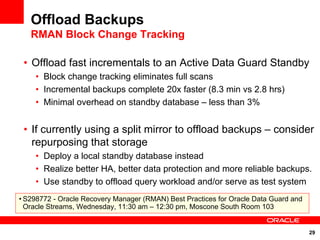

Offload Backups
   RMAN Block Change Tracking

 • Offload fast incrementals to an Active Data Guard Standby
    • Block change tracking eliminates full scans
    • Incremental backups complete 20x faster (8.3 min vs 2.8 hrs)
    • Minimal overhead on standby database – less than 3%


 • If currently using a split mirror to offload backups – consider
   repurposing that storage
    • Deploy a local standby database instead
    • Realize better HA, better data protection and more reliable backups.
    • Use standby to offload query workload and/or serve as test system
• S298772 - Oracle Recovery Manager (RMAN) Best Practices for Oracle Data Guard and
  Oracle Streams, Wednesday, 11:30 am – 12:30 pm, Moscone South Room 103


                                                                                      29

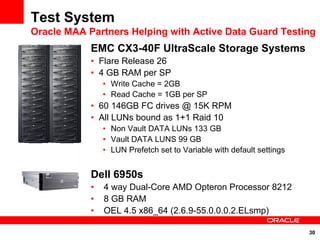

Test System
Oracle MAA Partners Helping with Active Data Guard Testing
            EMC CX3-40F UltraScale Storage Systems
            • Flare Release 26
            • 4 GB RAM per SP
                • Write Cache = 2GB
                • Read Cache = 1GB per SP
            • 60 146GB FC drives @ 15K RPM
            • All LUNs bound as 1+1 Raid 10
                • Non Vault DATA LUNs 133 GB
                • Vault DATA LUNS 99 GB
                • LUN Prefetch set to Variable with default settings


            Dell 6950s
            •   4 way Dual-Core AMD Opteron Processor 8212
            •   8 GB RAM
            •   OEL 4.5 x86_64 (2.6.9-55.0.0.0.2.ELsmp)

                                                                       30
Snapshot Standby – Data Guard 11g
  Convert Standby Database to Read-Write Test System




   Updates                          Queries
                                   Updates

                                     redo
                                     data

   Primary                    Physical Standby
                             Snapshot Standby
   Database                       Database
                                 Database




DGMGRL> convert database <name> to snapshot standby;


                                                       31

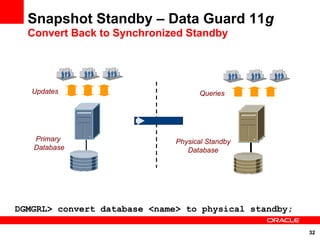

Snapshot Standby – Data Guard 11g
  Convert Back to Synchronized Standby




   Updates                           Queries
                                    Updates

                                      redo
                                      data

   Primary
                             Snapshot Standby
                              Physical Standby
                               Physical Standby
   Database                      Database
                                  Database




DGMGRL> convert database <name> to physical standby;

                                                       32
Snapshot Standby 11g
      Simpler and with better RTO/RPO than Data Guard 10g
10.2 – Steps Required                                     11.1 – Steps Required
Standby                                                   Standby
>    alter database recover managed standby database      > alter database convert to snapshot standby;
     cancel;                                              PERFORM TESTING, ARCHIVE LOGS CONTINUE TO BE
>    create restore point before_lt guarantee flashback     SHIPPED
     database;                                            >   alter database convert to physical standby;
Primary
>    alter system archive log current;
>    alter system set log_archive_dest_state_2=defer;
Standby
>    alter database activate standby database;
>    startup mount force;
>    alter database set standby database to maximize
     performance;
>    alter system set log_archive_dest_state_2=defer;
>    alter database open;
PERFORM TESTING, ARCHIVE LOGS NOT SHIPPED
>    startup mount force;
>    flashback database to restore point before_lt;
>    alter database convert to physical standby;
>    startup mount force;
>    alter database recover managed standby database
     disconnect from session;
Primary
>    Alter system set log_archive_dest_state_2=enable



                                                                                                            33
Program
                                                               y
                                                             db
                                                           an
                                                      St
• Ship Redo / Apply Redo                      uar
                                                  d
                                             G
• Utilize your standby database   Da
                                     t   a

  • Active Data Guard
  • Snapshot Standby
• Reduce downtime
• Active Data Guard experiences
  • Real Networks
  • Intermap Inc
• Resources - Q&A




                                                              34

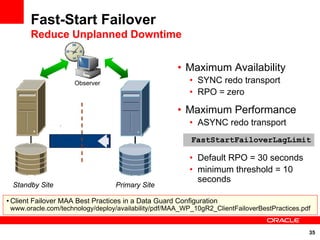

Fast-Start Failover
       Reduce Unplanned Downtime


                                                     • Maximum Availability
                     Observer                            • SYNC redo transport
                                                         • RPO = zero

                                                     • Maximum Performance
                                                         • ASYNC redo transport
                                                         FastStartFailoverLagLimit

                                                         • Default RPO = 30 seconds
                                                         • minimum threshold = 10
                                                           seconds
 Primary Site
 Standby Site                    Standby Site
                                 Primary Site

• Client Failover MAA Best Practices in a Data Guard Configuration
 www.oracle.com/technology/deploy/availability/pdf/MAA_WP_10gR2_ClientFailoverBestPractices.pdf


                                                                                              35

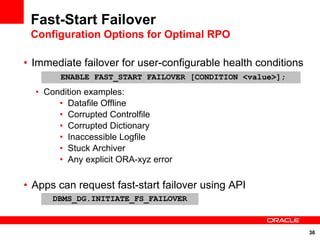

Fast-Start Failover
 Configuration Options for Optimal RPO

• Immediate failover for user-configurable health conditions
        ENABLE FAST_START FAILOVER [CONDITION <value>];
  • Condition examples:
       • Datafile Offline
       • Corrupted Controlfile
       • Corrupted Dictionary
       • Inaccessible Logfile
       • Stuck Archiver
       • Any explicit ORA-xyz error

• Apps can request fast-start failover using API
      DBMS_DG.INITIATE_FS_FAILOVER



                                                               36

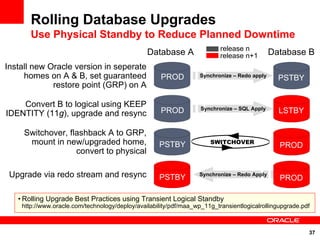

Rolling Database Upgrades
       Use Physical Standby to Reduce Planned Downtime
                                                                          release n
                                                Database A                release n+1         Database B
Install new Oracle version in seperate
     homes on A & B, set guaranteed                  PROD          Synchronize – Redo apply
                                                                                                PSTBY
             restore point (GRP) on A

    Convert B to logical using KEEP
IDENTITY (11g), upgrade and resync                   PROD          Synchronize – SQL Apply
                                                                                                LSTBY
                                                    LSTBY
     Switchover, flashback A to GRP,
      mount in new/upgraded home,                   PSTBY             SWITCHOVER
                                                                                                PROD
                   convert to physical

 Upgrade via redo stream and resync                 PSTBY         Synchronize – Redo Apply
                                                                                                PROD

   • Rolling Upgrade Best Practices using Transient Logical Standby
    http://www.oracle.com/technology/deploy/availability/pdf/maa_wp_11g_transientlogicalrollingupgrade.pdf



                                                                                                         37

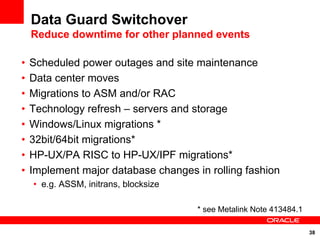

Data Guard Switchover
    Reduce downtime for other planned events

•   Scheduled power outages and site maintenance
•   Data center moves
•   Migrations to ASM and/or RAC
•   Technology refresh – servers and storage
•   Windows/Linux migrations *
•   32bit/64bit migrations*
•   HP-UX/PA RISC to HP-UX/IPF migrations*
•   Implement major database changes in rolling fashion
    • e.g. ASSM, initrans, blocksize

                                       * see Metalink Note 413484.1

                                                                      38
Program
                                                               y
                                                             db
                                                           an
                                                      St
• Ship Redo / Apply Redo                      uar
                                                  d
                                             G
• Utilize your standby database   Da
                                     t   a

  • Active Data Guard
  • Snapshot Standby
• Reduce downtime
• Active Data Guard Experiences
  • Real Networks
  • Intermap Inc
• Resources - Q&A




                                                              39
11g Active Data Guard
Yucheng Liu    – Sr. Oracle DBA, RealNetworks    yliu@real.com
Krishna Kakatur – Sr. Oracle DBA, RealNetworks kkakatur@real.com
What is so Cool About Real Networks

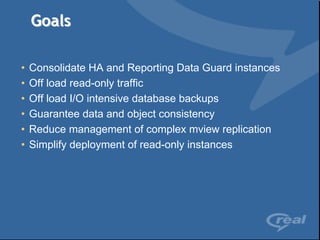

Goals

•   Consolidate HA and Reporting Data Guard instances
•   Off load read-only traffic
•   Off load I/O intensive database backups
•   Guarantee data and object consistency
•   Reduce management of complex mview replication
•   Simplify deployment of read-only instances

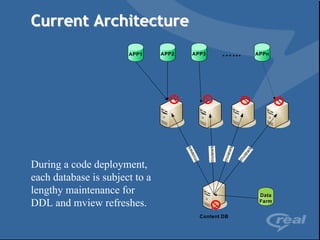

Current Architecture
                       APP1     APP2      APP3                …...           APPn




                                                     mviews
                                             ws




                                                               ews


                                                                        ws
                                         vie




                                                                     vie
                                                              mvi
                                       m




                                                                     m
During a code deployment,
each database is subject to a
lengthy maintenance for                                                       Data
DDL and mview refreshes.                                                      Farm


                                                  Content DB

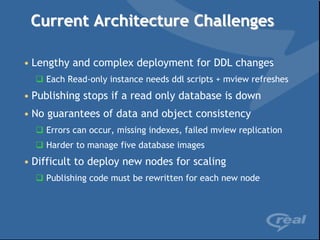

Current Architecture Challenges

• Lengthy and complex deployment for DDL changes
    Each Read-only instance needs ddl scripts + mview refreshes
• Publishing stops if a read only database is down
• No guarantees of data and object consistency
    Errors can occur, missing indexes, failed mview replication
    Harder to manage five database images
• Difficult to deploy new nodes for scaling
    Publishing code must be rewritten for each new node

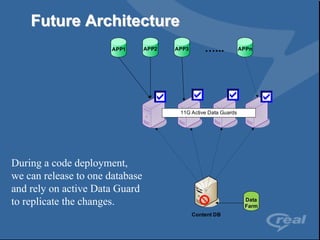

Future Architecture
                       APP1      APP2   APP3       …...           APPn




                                         11G Active Data Guards




During a code deployment,
we can release to one database
and rely on active Data Guard
to replicate the changes.                                          Data
                                                                   Farm
                                               Content DB

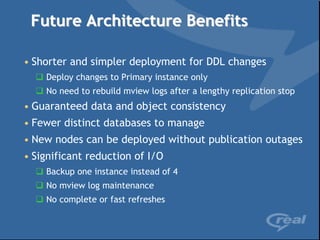

Future Architecture Benefits

• Shorter and simpler deployment for DDL changes
    Deploy changes to Primary instance only
    No need to rebuild mview logs after a lengthy replication stop
• Guaranteed data and object consistency
• Fewer distinct databases to manage
• New nodes can be deployed without publication outages
• Significant reduction of I/O
    Backup one instance instead of 4
    No mview log maintenance
    No complete or fast refreshes

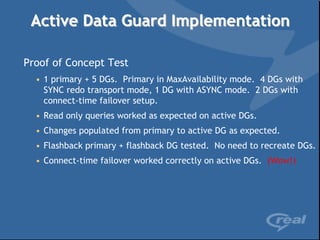

Active Data Guard Implementation

Proof of Concept Test
  • 1 primary + 5 DGs. Primary in MaxAvailability mode. 4 DGs with
    SYNC redo transport mode, 1 DG with ASYNC mode. 2 DGs with
    connect-time failover setup.
  • Read only queries worked as expected on active DGs.
  • Changes populated from primary to active DG as expected.
  • Flashback primary + flashback DG tested. No need to recreate DGs.
  • Connect-time failover worked correctly on active DGs. (Wow!)
Lessons Learned

Notes
  • No downtime on primary. Manual flashback on needed on DG.
  • Weapons you need: spfile, service management, Data Guard
    Broker, Flashback, Grid Control, RMAN
  • Switchover bug (#7032374): dbms_service.stop_service does not
    stop services on standby
  • Grid bug (#6379706): Grid does not use RMAN catalog for standby
    backups
  • Export dump (expdp) error: ORA-16000: database open for read-
    only access
Oracle 11g Active Data Guard

High Availability, Disaster Recovery & Resource Offloading

Presented By: Shawn Ormond, Database Administrator
Who is Intermap Technologies Inc.?


    Intermap is a digital mapping company that is proactively remapping entire
    countries across the world and building uniform high-resolution 3D digital national
    data sets which we call NEXTMap®.
    Intermap uses proprietary airborne Interferometric Synthetic Aperture Radar
    (IFSAR) to collect raw elevation data.
    Intermap produces elevation data models and geometric images of
    unprecedented accuracy from the IFSAR data.
    These NEXTMap® data sets are used in various commercial and government
    spatial applications within a many industries:
              Automotive Safety & Fuel Efficiency
              Insurance Flood Modeling
              Global Positioning Systems (GPS)‫‏‬
              Environmental Planning
              Wind Power Planning
              Wireless Communication Planning
              Other 3D Visualization Applications
© 2008 Intermap Technologies. All rights reserved.
Using Oracle 11g & Active Data Guard




© 2008 Intermap Technologies. All rights reserved.

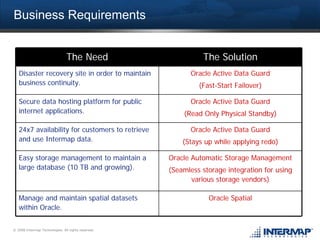

Business Requirements


                                The Need                       The Solution
   Disaster recovery site in order to maintain             Oracle Active Data Guard
   business continuity.                                       (Fast-Start Failover)

   Secure data hosting platform for public                 Oracle Active Data Guard
   internet applications.                                (Read Only Physical Standby)

   24x7 availability for customers to retrieve             Oracle Active Data Guard
   and use Intermap data.                                (Stays up while applying redo)

   Easy storage management to maintain a             Oracle Automatic Storage Management
   large database (10 TB and growing).               (Seamless storage integration for using
                                                           various storage vendors)

   Manage and maintain spatial datasets                          Oracle Spatial
   within Oracle.


© 2008 Intermap Technologies. All rights reserved.

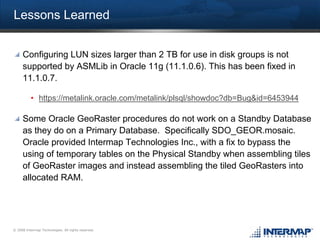

Lessons Learned


     Configuring LUN sizes larger than 2 TB for use in disk groups is not
     supported by ASMLib in Oracle 11g (11.1.0.6). This has been fixed in
     11.1.0.7.

          • https://metalink.oracle.com/metalink/plsql/showdoc?db=Bug&id=6453944

     Some Oracle GeoRaster procedures do not work on a Standby Database
     as they do on a Primary Database. Specifically SDO_GEOR.mosaic.
     Oracle provided Intermap Technologies Inc., with a fix to bypass the
     using of temporary tables on the Physical Standby when assembling tiles
     of GeoRaster images and instead assembling the tiled GeoRasters into
     allocated RAM.




© 2008 Intermap Technologies. All rights reserved.

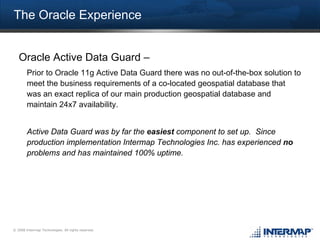

The Oracle Experience


   Oracle Active Data Guard –
        Prior to Oracle 11g Active Data Guard there was no out-of-the-box solution to
        meet the business requirements of a co-located geospatial database that
        was an exact replica of our main production geospatial database and
        maintain 24x7 availability.


        Active Data Guard was by far the easiest component to set up. Since
        production implementation Intermap Technologies Inc. has experienced no
        problems and has maintained 100% uptime.




© 2008 Intermap Technologies. All rights reserved.

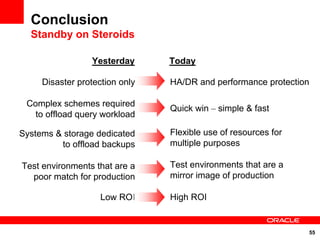

Conclusion
  Standby on Steroids

                 Yesterday      Today

     Disaster protection only   HA/DR and performance protection

 Complex schemes required
                                Quick win – simple & fast
   to offload query workload

Systems & storage dedicated     Flexible use of resources for
         to offload backups     multiple purposes

Test environments that are a    Test environments that are a
  poor match for production     mirror image of production

                    Low ROI     High ROI


                                                                55
Conclusion




          by
 9i Stand



                Active
               Standby
               Database




                          56
Resources

• Oracle Data Guard on OTN
  http://www.oracle.com/technology/deploy/availability/htdocs/DataGuardOverview.html


• Oracle HA Portal on OTN
  http://www.oracle.com/technology/deploy/availability/

• Maximum Availability Architecture (MAA) white papers and demonstrations
  http://www.oracle.com/technology/deploy/availability/htdocs/maa.htm

• Oracle HA Customer Success Stories on OTN:
  http://www.oracle.com/technology/deploy/availability/htdocs/HA_CaseStudies.html


• Taneja Group - New Approaches to Data Protection and DR
  http://www.oracle.com/technology/deploy/availability/htdocs/analysts/tanejagroupdatabasestorage.pdf

• Enterprise Strategy Group – Data Protection and Disaster Recovery
  http://www.oracle.com/technology/deploy/availability/htdocs/analysts/enterprisestrategygroupdataguard.pdf




                                                                                                              57

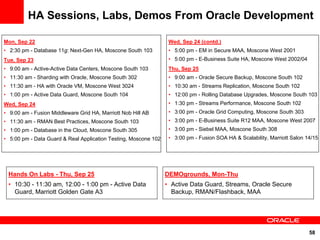

HA Sessions, Labs, Demos From Oracle Development

Mon, Sep 22                                                       Wed, Sep 24 (contd.)
• 2:30 pm - Database 11g: Next-Gen HA, Moscone South 103          • 5:00 pm - EM in Secure MAA, Moscone West 2001
Tue, Sep 23                                                       • 5:00 pm - E-Business Suite HA, Moscone West 2002/04
• 9:00 am - Active-Active Data Centers, Moscone South 103         Thu, Sep 25
• 11:30 am - Sharding with Oracle, Moscone South 302              • 9:00 am - Oracle Secure Backup, Moscone South 102
• 11:30 am - HA with Oracle VM, Moscone West 3024                 • 10:30 am - Streams Replication, Moscone South 102
• 1:00 pm - Active Data Guard, Moscone South 104                  • 12:00 pm - Rolling Database Upgrades, Moscone South 103
Wed, Sep 24                                                       • 1:30 pm - Streams Performance, Moscone South 102
• 9:00 am - Fusion Middleware Grid HA, Marriott Nob Hill AB       • 3:00 pm - Oracle Grid Computing, Moscone South 303
• 11:30 am - RMAN Best Practices, Moscone South 103               • 3:00 pm - E-Business Suite R12 MAA, Moscone West 2007
• 1:00 pm - Database in the Cloud, Moscone South 305              • 3:00 pm - Siebel MAA, Moscone South 308
• 5:00 pm - Data Guard & Real Application Testing, Moscone 102    • 3:00 pm - Fusion SOA HA & Scalability, Marriott Salon 14/15




 Hands On Labs - Thu, Sep 25                                     DEMOgrounds, Mon-Thu
 • 10:30 - 11:30 am, 12:00 - 1:00 pm - Active Data               • Active Data Guard, Streams, Oracle Secure
   Guard, Marriott Golden Gate A3                                  Backup, RMAN/Flashback, MAA




                                                                                                                           58

More Related Content

What's hot

Oracle_Multitenant_19c_-_All_About_Pluggable_D.pdf
Oracle_Multitenant_19c_-_All_About_Pluggable_D.pdfOracle_Multitenant_19c_-_All_About_Pluggable_D.pdf
Oracle_Multitenant_19c_-_All_About_Pluggable_D.pdf
SrirakshaSrinivasan2

Oracle Real Application Clusters (RAC) 12c Rel. 2 - Operational Best Practices
Oracle Real Application Clusters (RAC) 12c Rel. 2 - Operational Best PracticesOracle Real Application Clusters (RAC) 12c Rel. 2 - Operational Best Practices
Oracle Real Application Clusters (RAC) 12c Rel. 2 - Operational Best Practices
Markus Michalewicz

MySQL InnoDB Cluster - Advanced Configuration & Operations
MySQL InnoDB Cluster - Advanced Configuration & OperationsMySQL InnoDB Cluster - Advanced Configuration & Operations
MySQL InnoDB Cluster - Advanced Configuration & Operations
Frederic Descamps

Reduce planned database down time with Oracle technology
Reduce planned database down time with Oracle technologyReduce planned database down time with Oracle technology
Reduce planned database down time with Oracle technology
Kirill Loifman

Troubleshooting Complex Performance issues - Oracle SEG$ contention
Troubleshooting Complex Performance issues - Oracle SEG$ contentionTroubleshooting Complex Performance issues - Oracle SEG$ contention
Troubleshooting Complex Performance issues - Oracle SEG$ contention
Tanel Poder

Oracle GoldenGate 21c New Features and Best Practices
Oracle GoldenGate 21c New Features and Best PracticesOracle GoldenGate 21c New Features and Best Practices
Oracle GoldenGate 21c New Features and Best Practices
Bobby Curtis

Oracle RAC features on Exadata
Oracle RAC features on ExadataOracle RAC features on Exadata
Oracle RAC features on Exadata
Anil Nair

What’s New in Oracle Database 19c - Part 1
What’s New in Oracle Database 19c - Part 1What’s New in Oracle Database 19c - Part 1
What’s New in Oracle Database 19c - Part 1
Satishbabu Gunukula

Step by Step Restore rman to different host
Step by Step Restore rman to different hostStep by Step Restore rman to different host
Step by Step Restore rman to different host
Osama Mustafa

Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]
Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]
Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]
Markus Michalewicz

Anil nair rac_internals_sangam_2016
Anil nair rac_internals_sangam_2016Anil nair rac_internals_sangam_2016
Anil nair rac_internals_sangam_2016
Anil Nair

Oracle data guard for beginners
Oracle data guard for beginnersOracle data guard for beginners
Oracle data guard for beginners
Pini Dibask

Wars of MySQL Cluster ( InnoDB Cluster VS Galera )
Wars of MySQL Cluster ( InnoDB Cluster VS Galera ) Wars of MySQL Cluster ( InnoDB Cluster VS Galera )
Wars of MySQL Cluster ( InnoDB Cluster VS Galera )
Mydbops

Oracle GoldenGate
Oracle GoldenGate Oracle GoldenGate
Oracle GoldenGate
oracleonthebrain

Oracle Database 12c : Multitenant
Oracle Database 12c : MultitenantOracle Database 12c : Multitenant
Oracle Database 12c : Multitenant
Digicomp Academy Suisse Romande SA

Oracle 表格介紹
Oracle 表格介紹Oracle 表格介紹
Oracle 表格介紹
Chien Chung Shen

My Experience Using Oracle SQL Plan Baselines 11g/12c
My Experience Using Oracle SQL Plan Baselines 11g/12cMy Experience Using Oracle SQL Plan Baselines 11g/12c
My Experience Using Oracle SQL Plan Baselines 11g/12c
Nelson Calero

Oracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Oracle Database Performance Tuning Advanced Features and Best Practices for DBAsOracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Oracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Zohar Elkayam

Understanding oracle rac internals part 1 - slides
Understanding oracle rac internals   part 1 - slidesUnderstanding oracle rac internals   part 1 - slides
Understanding oracle rac internals part 1 - slides
Mohamed Farouk

MAA Best Practices for Oracle Database 19c
MAA Best Practices for Oracle Database 19cMAA Best Practices for Oracle Database 19c
MAA Best Practices for Oracle Database 19c
Markus Michalewicz


What's hot (20)

Oracle_Multitenant_19c_-_All_About_Pluggable_D.pdf
Oracle_Multitenant_19c_-_All_About_Pluggable_D.pdfOracle_Multitenant_19c_-_All_About_Pluggable_D.pdf
Oracle_Multitenant_19c_-_All_About_Pluggable_D.pdf

Oracle Real Application Clusters (RAC) 12c Rel. 2 - Operational Best Practices
Oracle Real Application Clusters (RAC) 12c Rel. 2 - Operational Best PracticesOracle Real Application Clusters (RAC) 12c Rel. 2 - Operational Best Practices
Oracle Real Application Clusters (RAC) 12c Rel. 2 - Operational Best Practices

MySQL InnoDB Cluster - Advanced Configuration & Operations
MySQL InnoDB Cluster - Advanced Configuration & OperationsMySQL InnoDB Cluster - Advanced Configuration & Operations
MySQL InnoDB Cluster - Advanced Configuration & Operations

Reduce planned database down time with Oracle technology
Reduce planned database down time with Oracle technologyReduce planned database down time with Oracle technology
Reduce planned database down time with Oracle technology

Troubleshooting Complex Performance issues - Oracle SEG$ contention
Troubleshooting Complex Performance issues - Oracle SEG$ contentionTroubleshooting Complex Performance issues - Oracle SEG$ contention
Troubleshooting Complex Performance issues - Oracle SEG$ contention

Oracle GoldenGate 21c New Features and Best Practices
Oracle GoldenGate 21c New Features and Best PracticesOracle GoldenGate 21c New Features and Best Practices
Oracle GoldenGate 21c New Features and Best Practices

Oracle RAC features on Exadata
Oracle RAC features on ExadataOracle RAC features on Exadata
Oracle RAC features on Exadata

What’s New in Oracle Database 19c - Part 1
What’s New in Oracle Database 19c - Part 1What’s New in Oracle Database 19c - Part 1
What’s New in Oracle Database 19c - Part 1

Step by Step Restore rman to different host
Step by Step Restore rman to different hostStep by Step Restore rman to different host
Step by Step Restore rman to different host

Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]
Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]
Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]

Anil nair rac_internals_sangam_2016
Anil nair rac_internals_sangam_2016Anil nair rac_internals_sangam_2016
Anil nair rac_internals_sangam_2016

Oracle data guard for beginners
Oracle data guard for beginnersOracle data guard for beginners
Oracle data guard for beginners

Wars of MySQL Cluster ( InnoDB Cluster VS Galera )
Wars of MySQL Cluster ( InnoDB Cluster VS Galera ) Wars of MySQL Cluster ( InnoDB Cluster VS Galera )
Wars of MySQL Cluster ( InnoDB Cluster VS Galera )

Oracle GoldenGate
Oracle GoldenGate Oracle GoldenGate
Oracle GoldenGate

Oracle Database 12c : Multitenant
Oracle Database 12c : MultitenantOracle Database 12c : Multitenant
Oracle Database 12c : Multitenant

Oracle 表格介紹
Oracle 表格介紹Oracle 表格介紹
Oracle 表格介紹

My Experience Using Oracle SQL Plan Baselines 11g/12c
My Experience Using Oracle SQL Plan Baselines 11g/12cMy Experience Using Oracle SQL Plan Baselines 11g/12c
My Experience Using Oracle SQL Plan Baselines 11g/12c

Oracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Oracle Database Performance Tuning Advanced Features and Best Practices for DBAsOracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Oracle Database Performance Tuning Advanced Features and Best Practices for DBAs

Understanding oracle rac internals part 1 - slides
Understanding oracle rac internals   part 1 - slidesUnderstanding oracle rac internals   part 1 - slides
Understanding oracle rac internals part 1 - slides

MAA Best Practices for Oracle Database 19c
MAA Best Practices for Oracle Database 19cMAA Best Practices for Oracle Database 19c
MAA Best Practices for Oracle Database 19c


Viewers also liked

Oracle dataguard overview
Oracle dataguard overviewOracle dataguard overview
Oracle dataguard overview
aguswahyudi09

Dataguard presentation
Dataguard presentationDataguard presentation
Dataguard presentation
Vimlendu Kumar

High Availability And Oracle Data Guard 11g R2
High Availability And Oracle Data Guard 11g R2High Availability And Oracle Data Guard 11g R2
High Availability And Oracle Data Guard 11g R2
Mario Redón Luz

Oracle Data Guard
Oracle Data GuardOracle Data Guard
Oracle Data Guard
Martin Meyer

Oracle Data Guard A to Z
Oracle Data Guard A to ZOracle Data Guard A to Z
Oracle Data Guard A to Z
Zohar Elkayam

Data Guard25 August
Data Guard25 AugustData Guard25 August
Data Guard25 August
Guenadi JILEVSKI

Les01
Les01Les01
Data guard oracle
Data guard oracleData guard oracle
Data guard oracle
Antony James Vijay

D17316 gc20 l05_phys_sql
D17316 gc20 l05_phys_sqlD17316 gc20 l05_phys_sql
D17316 gc20 l05_phys_sql
Moeen_uddin

D17316 gc20 l03_broker_em
D17316 gc20 l03_broker_emD17316 gc20 l03_broker_em
D17316 gc20 l03_broker_em
Moeen_uddin

D17316 gc20 l04_phys_em
D17316 gc20 l04_phys_emD17316 gc20 l04_phys_em
D17316 gc20 l04_phys_em
Moeen_uddin

D17316 gc20 l02_architecture
D17316 gc20 l02_architectureD17316 gc20 l02_architecture
D17316 gc20 l02_architecture
Moeen_uddin

D17316 gc20 l01_overview
D17316 gc20 l01_overviewD17316 gc20 l01_overview
D17316 gc20 l01_overview
Moeen_uddin

Manual de instalacion_oracle_11g_r2
Manual de instalacion_oracle_11g_r2Manual de instalacion_oracle_11g_r2
Manual de instalacion_oracle_11g_r2
Daniel Moo Moo

Oracle 11g concept
Oracle 11g conceptOracle 11g concept
Oracle 11g concept
Battlecruiser Vodanh

D17316 gc20 l06_dataprot_logtrans
D17316 gc20 l06_dataprot_logtransD17316 gc20 l06_dataprot_logtrans
D17316 gc20 l06_dataprot_logtrans
Moeen_uddin

10 Problems with your RMAN backup script - whitepaper
10 Problems with your RMAN backup script - whitepaper10 Problems with your RMAN backup script - whitepaper
10 Problems with your RMAN backup script - whitepaper
Yury Velikanov

Introduction to Oracle Data Guard Broker
Introduction to Oracle Data Guard BrokerIntroduction to Oracle Data Guard Broker
Introduction to Oracle Data Guard Broker
Zohar Elkayam

Upgrading To 11g
Upgrading To 11gUpgrading To 11g
Upgrading To 11g
oracleonthebrain

Oracle Active Data Guard 12c: Far Sync Instance, Real-Time Cascade and Other ...
Oracle Active Data Guard 12c: Far Sync Instance, Real-Time Cascade and Other ...Oracle Active Data Guard 12c: Far Sync Instance, Real-Time Cascade and Other ...
Oracle Active Data Guard 12c: Far Sync Instance, Real-Time Cascade and Other ...
Ludovico Caldara


Viewers also liked (20)

Oracle dataguard overview
Oracle dataguard overviewOracle dataguard overview
Oracle dataguard overview

Dataguard presentation
Dataguard presentationDataguard presentation
Dataguard presentation

High Availability And Oracle Data Guard 11g R2
High Availability And Oracle Data Guard 11g R2High Availability And Oracle Data Guard 11g R2
High Availability And Oracle Data Guard 11g R2

Oracle Data Guard
Oracle Data GuardOracle Data Guard
Oracle Data Guard

Oracle Data Guard A to Z
Oracle Data Guard A to ZOracle Data Guard A to Z
Oracle Data Guard A to Z

Data Guard25 August
Data Guard25 AugustData Guard25 August
Data Guard25 August

Les01
Les01Les01
Les01

Data guard oracle
Data guard oracleData guard oracle
Data guard oracle

D17316 gc20 l05_phys_sql
D17316 gc20 l05_phys_sqlD17316 gc20 l05_phys_sql
D17316 gc20 l05_phys_sql

D17316 gc20 l03_broker_em
D17316 gc20 l03_broker_emD17316 gc20 l03_broker_em
D17316 gc20 l03_broker_em

D17316 gc20 l04_phys_em
D17316 gc20 l04_phys_emD17316 gc20 l04_phys_em
D17316 gc20 l04_phys_em

D17316 gc20 l02_architecture
D17316 gc20 l02_architectureD17316 gc20 l02_architecture
D17316 gc20 l02_architecture

D17316 gc20 l01_overview
D17316 gc20 l01_overviewD17316 gc20 l01_overview
D17316 gc20 l01_overview

Manual de instalacion_oracle_11g_r2
Manual de instalacion_oracle_11g_r2Manual de instalacion_oracle_11g_r2
Manual de instalacion_oracle_11g_r2

Oracle 11g concept
Oracle 11g conceptOracle 11g concept
Oracle 11g concept

D17316 gc20 l06_dataprot_logtrans
D17316 gc20 l06_dataprot_logtransD17316 gc20 l06_dataprot_logtrans
D17316 gc20 l06_dataprot_logtrans

10 Problems with your RMAN backup script - whitepaper
10 Problems with your RMAN backup script - whitepaper10 Problems with your RMAN backup script - whitepaper
10 Problems with your RMAN backup script - whitepaper

Introduction to Oracle Data Guard Broker
Introduction to Oracle Data Guard BrokerIntroduction to Oracle Data Guard Broker
Introduction to Oracle Data Guard Broker

Upgrading To 11g
Upgrading To 11gUpgrading To 11g
Upgrading To 11g

Oracle Active Data Guard 12c: Far Sync Instance, Real-Time Cascade and Other ...
Oracle Active Data Guard 12c: Far Sync Instance, Real-Time Cascade and Other ...Oracle Active Data Guard 12c: Far Sync Instance, Real-Time Cascade and Other ...
Oracle Active Data Guard 12c: Far Sync Instance, Real-Time Cascade and Other ...


Similar to Active dataguard

DataGuard_architecture
DataGuard_architectureDataGuard_architecture
DataGuard_architecture
Moeen_uddin

Introduction to Databus
Introduction to DatabusIntroduction to Databus
Introduction to Databus
Amy W. Tang

Virtualizing Latency Sensitive Workloads and vFabric GemFire
Virtualizing Latency Sensitive Workloads and vFabric GemFireVirtualizing Latency Sensitive Workloads and vFabric GemFire
Virtualizing Latency Sensitive Workloads and vFabric GemFire
Carter Shanklin

Ogce Workflow Suite Tg09
Ogce Workflow Suite Tg09Ogce Workflow Suite Tg09
Ogce Workflow Suite Tg09
smarru

AWS Summit 2011: High Availability Database Architectures in AWS Cloud
AWS Summit 2011: High Availability Database Architectures in AWS CloudAWS Summit 2011: High Availability Database Architectures in AWS Cloud
AWS Summit 2011: High Availability Database Architectures in AWS Cloud
Amazon Web Services

Less14 br concepts
Less14 br conceptsLess14 br concepts
Less14 br concepts
Amit Bhalla

All Aboard the Databus
All Aboard the DatabusAll Aboard the Databus
All Aboard the Databus
Amy W. Tang

Introduction to Hadoop
Introduction to HadoopIntroduction to Hadoop
Introduction to Hadoop
Ovidiu Dimulescu

Oracle Database Backups and Disaster Recovery @ Autodesk
Oracle Database Backups and Disaster Recovery @ AutodeskOracle Database Backups and Disaster Recovery @ Autodesk
Oracle Database Backups and Disaster Recovery @ Autodesk
Alan Williams

Less01 architecture
Less01 architectureLess01 architecture
Less01 architecture
Amit Bhalla

Vizuri exadata virtual
Vizuri exadata virtualVizuri exadata virtual
Vizuri exadata virtual
Zack Belcher

Introduction to Amazon Redshift
Introduction to Amazon RedshiftIntroduction to Amazon Redshift
Introduction to Amazon Redshift
Amazon Web Services

Shared personalization service. How to scale to 15 k rps (Patrice Pelland)
Shared personalization service. How to scale to 15 k rps (Patrice Pelland)Shared personalization service. How to scale to 15 k rps (Patrice Pelland)
Shared personalization service. How to scale to 15 k rps (Patrice Pelland)
Ontico

Ultimate SharePoint Infrastructure Best Practices Session - Live360 Orlando 2012
Ultimate SharePoint Infrastructure Best Practices Session - Live360 Orlando 2012Ultimate SharePoint Infrastructure Best Practices Session - Live360 Orlando 2012
Ultimate SharePoint Infrastructure Best Practices Session - Live360 Orlando 2012
Michael Noel

Accel Partners New Data Workshop 7-14-10
Accel Partners New Data Workshop 7-14-10Accel Partners New Data Workshop 7-14-10
Accel Partners New Data Workshop 7-14-10
keirdo1

Presentation
PresentationPresentation
Presentation
kiarash1361

Presentation
PresentationPresentation
Presentation
kiarash1361

Always On - Wydajność i bezpieczeństwo naszych danych - High Availability SQL...
Always On - Wydajność i bezpieczeństwo naszych danych - High Availability SQL...Always On - Wydajność i bezpieczeństwo naszych danych - High Availability SQL...
Always On - Wydajność i bezpieczeństwo naszych danych - High Availability SQL...
SQLExpert.pl

Databus: LinkedIn's Change Data Capture Pipeline SOCC 2012
Databus: LinkedIn's Change Data Capture Pipeline SOCC 2012Databus: LinkedIn's Change Data Capture Pipeline SOCC 2012
Databus: LinkedIn's Change Data Capture Pipeline SOCC 2012
Shirshanka Das

#lspe: Dynamic Scaling
#lspe: Dynamic Scaling #lspe: Dynamic Scaling
#lspe: Dynamic Scaling
steveshah


Similar to Active dataguard (20)

DataGuard_architecture
DataGuard_architectureDataGuard_architecture
DataGuard_architecture

Introduction to Databus
Introduction to DatabusIntroduction to Databus
Introduction to Databus

Virtualizing Latency Sensitive Workloads and vFabric GemFire
Virtualizing Latency Sensitive Workloads and vFabric GemFireVirtualizing Latency Sensitive Workloads and vFabric GemFire
Virtualizing Latency Sensitive Workloads and vFabric GemFire

Ogce Workflow Suite Tg09
Ogce Workflow Suite Tg09Ogce Workflow Suite Tg09
Ogce Workflow Suite Tg09

AWS Summit 2011: High Availability Database Architectures in AWS Cloud
AWS Summit 2011: High Availability Database Architectures in AWS CloudAWS Summit 2011: High Availability Database Architectures in AWS Cloud
AWS Summit 2011: High Availability Database Architectures in AWS Cloud

Less14 br concepts
Less14 br conceptsLess14 br concepts
Less14 br concepts

All Aboard the Databus
All Aboard the DatabusAll Aboard the Databus
All Aboard the Databus

Introduction to Hadoop
Introduction to HadoopIntroduction to Hadoop
Introduction to Hadoop

Oracle Database Backups and Disaster Recovery @ Autodesk
Oracle Database Backups and Disaster Recovery @ AutodeskOracle Database Backups and Disaster Recovery @ Autodesk
Oracle Database Backups and Disaster Recovery @ Autodesk

Less01 architecture
Less01 architectureLess01 architecture
Less01 architecture

Vizuri exadata virtual
Vizuri exadata virtualVizuri exadata virtual
Vizuri exadata virtual

Introduction to Amazon Redshift
Introduction to Amazon RedshiftIntroduction to Amazon Redshift
Introduction to Amazon Redshift

Shared personalization service. How to scale to 15 k rps (Patrice Pelland)
Shared personalization service. How to scale to 15 k rps (Patrice Pelland)Shared personalization service. How to scale to 15 k rps (Patrice Pelland)
Shared personalization service. How to scale to 15 k rps (Patrice Pelland)

Ultimate SharePoint Infrastructure Best Practices Session - Live360 Orlando 2012
Ultimate SharePoint Infrastructure Best Practices Session - Live360 Orlando 2012Ultimate SharePoint Infrastructure Best Practices Session - Live360 Orlando 2012
Ultimate SharePoint Infrastructure Best Practices Session - Live360 Orlando 2012

Accel Partners New Data Workshop 7-14-10
Accel Partners New Data Workshop 7-14-10Accel Partners New Data Workshop 7-14-10
Accel Partners New Data Workshop 7-14-10

Presentation
PresentationPresentation
Presentation

Presentation
PresentationPresentation
Presentation

Always On - Wydajność i bezpieczeństwo naszych danych - High Availability SQL...
Always On - Wydajność i bezpieczeństwo naszych danych - High Availability SQL...Always On - Wydajność i bezpieczeństwo naszych danych - High Availability SQL...
Always On - Wydajność i bezpieczeństwo naszych danych - High Availability SQL...

Databus: LinkedIn's Change Data Capture Pipeline SOCC 2012
Databus: LinkedIn's Change Data Capture Pipeline SOCC 2012Databus: LinkedIn's Change Data Capture Pipeline SOCC 2012
Databus: LinkedIn's Change Data Capture Pipeline SOCC 2012

#lspe: Dynamic Scaling
#lspe: Dynamic Scaling #lspe: Dynamic Scaling
#lspe: Dynamic Scaling


Recently uploaded

UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching AptitudeUGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
S. Raj Kumar

Main Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docxMain Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docx
adhitya5119

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
haiqairshad

How to Create a More Engaging and Human Online Learning Experience
How to Create a More Engaging and Human Online Learning Experience How to Create a More Engaging and Human Online Learning Experience
How to Create a More Engaging and Human Online Learning Experience
Wahiba Chair Training & Consulting

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT
Jyoti Chand

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation
TechSoup

คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
สมใจ จันสุกสี

South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)
Academy of Science of South Africa

BBR 2024 Summer Sessions Interview Training
BBR  2024 Summer Sessions Interview TrainingBBR  2024 Summer Sessions Interview Training
BBR 2024 Summer Sessions Interview Training
Katrina Pritchard

Cognitive Development Adolescence Psychology
Cognitive Development Adolescence PsychologyCognitive Development Adolescence Psychology
Cognitive Development Adolescence Psychology
paigestewart1632

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory
Celine George

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf
WaniBasim

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
siemaillard

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
RAHUL

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
mulvey2

ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdfANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
Priyankaranawat4

The basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptxThe basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptx
heathfieldcps1

Your Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective UpskillingYour Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective Upskilling
Excellence Foundation for South Sudan

Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxBeyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
EduSkills OECD

RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem studentsRHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
Himanshu Rai


Recently uploaded (20)

UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching AptitudeUGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching Aptitude

Main Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docxMain Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docx

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills

How to Create a More Engaging and Human Online Learning Experience
How to Create a More Engaging and Human Online Learning Experience How to Create a More Engaging and Human Online Learning Experience
How to Create a More Engaging and Human Online Learning Experience

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation

คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1

South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)

BBR 2024 Summer Sessions Interview Training
BBR  2024 Summer Sessions Interview TrainingBBR  2024 Summer Sessions Interview Training
BBR 2024 Summer Sessions Interview Training

Cognitive Development Adolescence Psychology
Cognitive Development Adolescence PsychologyCognitive Development Adolescence Psychology
Cognitive Development Adolescence Psychology

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx

ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdfANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf

The basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptxThe basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptx

Your Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective UpskillingYour Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective Upskilling

Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxBeyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx

RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem studentsRHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students


Active dataguard

  • 1. Oracle Active Data Guard Standby on Steroids – DR Included Joe Meeks, Director, Product Management, Oracle Shawn Ormond, Database Administrator, Intermap Technologies Inc Yucheng Liu, Senior Database Administrator, Real Networks Krishna Kakatur, Senior. Database Administrator, Real Networks 1
  • 2. Today’s Objectives Deep Dive Shine the Light 2
  • 3. Program y db an St • Ship Redo / Apply Redo uar d G • Utilize your standby database Da t a • Active Data Guard • Snapshot Standby • Reduce downtime • Active Data Guard experiences • Real Networks • Intermap Inc • Resources - Q&A Focus on Oracle Database 11g and Redo Apply (physical standby) 3
  • 4. Oracle Data Guard Best Protection at Lowest Cost Automatic Failover Active Standby Production Databases Database SYNC or ASYNC Redo Shipping Data Guard 4
  • 5. Ship Redo Synchronous Redo Transport (SYNC)– Zero Data Loss User Transactions Online Queries, updates, DDL Queries, updates, DDL Co Redo User commit m Logs m it AC K Active Standby LGWR Database SGA Redo Buffer MRP LNS RFS LSP Standby MRP - physical Redo LSP - logical Logs Primary Database Oracle Net Queries, Reports Testing & Backups 5
  • 6. Ship Smart Just the Redo . . . • Data Guard ships only redo records • SCN aware • Enables reliable recovery • Guarantees commits are applied in order • Storage remote-mirroring must ship every write • 7x greater volume and 27x more network I/Os than Data Guard • Round-trip network latency impacts EVERY write to EVERY file • Data Guard Compared to Storage Remote-Mirroring http://www.oracle.com/technology/deploy/availability/htdocs/DataGuardRemoteMirroring.html 6
  • 7. Ship Redo Asynchronous Redo Transport (ASYNC) User Transactions Online Queries, updates, DDL Queries, updates, DDL Co Redo User commit m Logs m it AC K Active Standby LGWR Database SGA Redo Buffer MRP LNS RFS LSP Standby MRP - physical Redo LSP - logical Logs Primary Database Oracle Net Queries, Reports Testing & Backups 7
  • 8. Ship Redo ASYNC – If Network Can’t Keep Pace User Transactions Queries, updates, DDL Queries, updates, DDL Online Co Redo User commit m Logs m it AC K Active Standby LGWR Database SGA Redo Buffer MRP LNS RFS LSP Standby MRP - physical Redo LSP - logical Logs Primary Database Oracle Net Queries, Reports Testing & Backups 8
  • 9. Shipping vs. Protection Mode Protection Mode Controls Response to Failure Events Mode Risk of data loss Transport If no acknowledgement from standby: Zero Data Loss Maximum Stall primary until acknowledgement is Protection Double Failure SYNC received from replica Protection Zero Data Loss Stall primary until acknowledgement is Maximum Availability Single Failure SYNC received or timeout threshold period expires Protection – then resume processing Maximum Potential for Primary never waits for standby Performance ASYNC acknowledgement Minimal Data Loss 9
  • 10. Shipping vs. Protection Mode Protection Mode Controls Response to Failure Events Mode Risk of data loss Transport If no acknowledgement from standby: Zero Data Loss Maximum Stall primary until acknowledgement is Protection Double Failure SYNC received from replica Protection Zero Data Loss Stall primary until acknowledgement is Maximum Availability Single Failure SYNC received or timeout threshold period expires Protection – then resume processing Maximum Potential for Primary never waits for standby Performance ASYNC acknowledgement Minimal Data Loss NET_TIMEOUT parameter of LOG_ARCHIVE_DEST_n Data Guard 11g default = 30 seconds Data Guard 10g default = 180 seconds 10
  • 11. Ship Redo Automatic Gap Resolution – Primary Pings Standby Transactions Oracle Net Redo Buffer SGA LGWR Primary Online Redo Database Logs ping ARCH Archived Redo Logs 11
  • 12. Ship Redo Automatic Gap Resolution – Connect to Standby Active Oracle Net Standby Transactions Database Redo Buffer MRP SGA LSP LGWR Primary Online Redo Database Logs Queries ping Reports ARCH RFS Testing Backups Archived Redo Logs 12
  • 13. Ship Redo Automatic Gap Resolution – Ship Log Gap Active Oracle Net Standby Transactions Database Redo Buffer SYNC MRP LNS RFS SGA ASYNC LSP LGWR Standby Primary Online Redo Redo Logs Database Logs Queries ping ARCH Reports ARCH RFS Testing Backups Archived Redo Logs 13
  • 14. Ship Redo Automatic Gap Resolution – Gap Resolved Active Oracle Net Standby Transactions Database Redo Buffer SYNC MRP LNS RFS SGA ASYNC LSP LGWR Standby Primary Online Redo Redo Logs Database Logs Queries ping ARCH Reports ARCH RFS Testing Backups Archived Redo Logs 14
  • 15. Ship Fast Network Compression for Gaps seconds 80 • To enable compression: 70 • Set Data Guard broker property, or 60 • Set compression attribute of redo transport destination 50 40 • Resolves gaps up to 3x faster 30 • Better data protection 20 • Given there is sufficient CPU 10 • Negligible impact on response time 0 • Negligible impact on throughput elapsed time to resolve gap • Requires Oracle Advanced uncompressed compressed Compression Option 11g 15
  • 16. Ship Fast Enable Compression for ASYNC Transport _REDO_TRANSPORT_COMPRESS_ALL=TRUE • Useful when network volume exceeds bandwidth • Test case: • Network Bandwidth: 100Mbps network (12.5MB/s) • Redo Rate: 22MB/s • Results • Without compression, transport lag increased linearly over time • With compression enabled, transport lag ranged from 4-10 seconds • Compression ratio: 60% • Implementation details - see MetaLink Note 729551.1 16
  • 17. Apply Redo Redo Apply (physical standby) Parallel Media Recovery • MEDIA RECOVERY COORDINATOR (MRP0) • Manages recovery session, merges redo by SCN from multiple instances, parses redo into change mappings partitioned by apply slave • APPLY SLAVES • Read data blocks, assemble redo changes from mappings, apply redo changes to data blocks Parallel Media Recovery - 4 CPU server apply slave (pr00) Media Recovery Coordinator (MRP0) apply slave (pr01) coordinator & thread merger apply slave (pr02) • Automatically configures the # of slaves = # CPUs - 1 17
  • 18. Apply Fast 100% Faster than Oracle Database 10g 120 • Increased parallelism 100 112 • Less synchronization 80 • Better utilization of I/O and CPU resources MB/sec 60 • Optimizations for 40 47 48 direct-path loads 20 24 • Self-configuring* 0 OLTP Direct Path Load *for ASYNC I/O 10gR2 11gR1 18
  • 19. Apply Safely Lost Write Detection • What is a Lost Write: • Storage loses a write that it has acknowledged to Oracle as complete • Subsequent transactions read stale version of the block and either: • Update the same block again • Update another block • Do something external: print a check, generate an invoice, issue an order • Primary may continue running for hours or days • It may generate an assortment of internal errors, e.g. ORA-00600:[4135], or [4137], or [4152], or [qertbFetchByRowID], depending upon the objects impacted and the writes that are lost • Primary may eventually crash • Any recovery of a block that is victim of a lost write will fail • ORA-600 [3020] stuck recovery error 19
  • 20. Lost Write Happens As Reported in SR - Oracle Database 10g Release 2 Lengthy outage impacting a multi-terabyte database • Problems first surface on their standby database ORA-00600: internal error code, arguments: [3020] , [648], [1182463], [2719091455], [] ORA-10567 : Redo is inconsistent with data block (file# 648, block# 1182463) Recovery interrupted! • Many hours later – production is down Noticed odd query results on production Noticed ORA-600 errors on production this morning for which SGA Heapdump was uploaded. New info : I was rebuilding an index. After a few minutes, the database took an unexpected crash. ***please help. it's very urgent, production is down.*** • Problems traced to lost writes caused by faulty hardware 20
  • 21. Not a Problem for Data Guard 11g Capability Unique to Oracle Database • Detect lost writes using new initialization parameter db_lost_write_protect • Apply compares standby version of block to incoming redo • ORA-752 if block SCN from primary is lower than standby • 100% certain of a lost write on the primary database • Resolve via failover to standby to restore data consistency • ORA-600 [3020] if block SCN from primary is higher than standby • Possibility of a lost write on the standby database • Resolve by re-creating the standby database or affected files 21
  • 22. Program y db an St • Ship Redo / Apply Redo uar d G • Utilize your standby database Da t a • Active Data Guard • Snapshot Standby • Reduce downtime • Active Data Guard experiences • Real Networks • Intermap Inc • Resources - Q&A 22
  • 23. Data Guard 11g Read-write Workload Real-time Real-time Reporting Queries Fast Incremental Backups Continuous redo shipping, validation & apply Production Physical Standby Database Database 23
  • 24. Active Data Guard 11g Read-write Real-time Workload Reporting Real-time Real-time Reporting Queries Fast Incremental Fast Backups Incremental Backups Continuous redo shipping, validation & apply Production Active Standby Physical Standby Database Database • Offload read-only queries to an up-to-date physical standby • Use fast incremental backups on a physical standby – up to 20x faster 24
  • 25. What’s so Different? Data Guard 11g Active Data Guard Option • Stop redo apply at 8am • Redo apply is always on • Open read-only for queries • Always open read only • By 4pm, data is 8 hours old • Queries and reports always see latest data • Any failover will be delayed • Failover is immediate when due to backlog of data that needed, standby database must be applied always up-to-date • Active Data Guard MAA Best Practices http://www.oracle.com/technology/deploy/availability/pdf/maa_wp_11gr1_activedataguard.pdf 25
  • 26. Active Data Guard Utilize Standby Databases Better Performance and Increased Scalability 3000 2500 2690 2000 Before ADG TPS 1500 1530 After ADG 1000 500 630 290 0 Read/Write Read/Only Transactions Transactions 26
  • 27. Active Data Guard Queries Return Up-to-date Results Latency Between Primary Commit and Ability to Read the Same Data on an Active Standby 1.2 1 0.8 Seconds 0.6 0.4 0.2 0 6:24:16 6:24:34 6:24:52 6:25:10 6:25:28 6:25:46 6:26:04 6:26:22 6:26:40 6:26:58 6:27:16 6:27:34 6:27:52 6:28:10 6:28:28 6:28:46 6:29:04 6:29:22 6:29:40 6:29:58 dw4 27
  • 28. Oracle Business Intelligence Suite Release 10.1.3.4 Certified for Active Data Guard • Oracle Business Intelligence Suite EE Plus • Suite of BI products offering full range of analysis and reporting • Includes Oracle Hyperion reporting products • Oracle BI server runs on an Active Standby Database • Oracle BI server is a read-mostly application • Configuration highlights • Disable BIEE server from creating temp tables on standby • Create read-only connection pool • Create a write-back connection pool to redirect writes to the primary or a local ‘scratch’ database • Oracle Business Intelligence and Active Data Guard MAA Best Practices http://www.oracle.com/technology/deploy/availability/htdocs/maa.htm 28
  • 29. Offload Backups RMAN Block Change Tracking • Offload fast incrementals to an Active Data Guard Standby • Block change tracking eliminates full scans • Incremental backups complete 20x faster (8.3 min vs 2.8 hrs) • Minimal overhead on standby database – less than 3% • If currently using a split mirror to offload backups – consider repurposing that storage • Deploy a local standby database instead • Realize better HA, better data protection and more reliable backups. • Use standby to offload query workload and/or serve as test system • S298772 - Oracle Recovery Manager (RMAN) Best Practices for Oracle Data Guard and Oracle Streams, Wednesday, 11:30 am – 12:30 pm, Moscone South Room 103 29
  • 30. Test System Oracle MAA Partners Helping with Active Data Guard Testing EMC CX3-40F UltraScale Storage Systems • Flare Release 26 • 4 GB RAM per SP • Write Cache = 2GB • Read Cache = 1GB per SP • 60 146GB FC drives @ 15K RPM • All LUNs bound as 1+1 Raid 10 • Non Vault DATA LUNs 133 GB • Vault DATA LUNS 99 GB • LUN Prefetch set to Variable with default settings Dell 6950s • 4 way Dual-Core AMD Opteron Processor 8212 • 8 GB RAM • OEL 4.5 x86_64 (2.6.9-55.0.0.0.2.ELsmp) 30
  • 31. Snapshot Standby – Data Guard 11g Convert Standby Database to Read-Write Test System Updates Queries Updates redo data Primary Physical Standby Snapshot Standby Database Database Database DGMGRL> convert database <name> to snapshot standby; 31
  • 32. Snapshot Standby – Data Guard 11g Convert Back to Synchronized Standby Updates Queries Updates redo data Primary Snapshot Standby Physical Standby Physical Standby Database Database Database DGMGRL> convert database <name> to physical standby; 32
  • 33. Snapshot Standby 11g Simpler and with better RTO/RPO than Data Guard 10g 10.2 – Steps Required 11.1 – Steps Required Standby Standby > alter database recover managed standby database > alter database convert to snapshot standby; cancel; PERFORM TESTING, ARCHIVE LOGS CONTINUE TO BE > create restore point before_lt guarantee flashback SHIPPED database; > alter database convert to physical standby; Primary > alter system archive log current; > alter system set log_archive_dest_state_2=defer; Standby > alter database activate standby database; > startup mount force; > alter database set standby database to maximize performance; > alter system set log_archive_dest_state_2=defer; > alter database open; PERFORM TESTING, ARCHIVE LOGS NOT SHIPPED > startup mount force; > flashback database to restore point before_lt; > alter database convert to physical standby; > startup mount force; > alter database recover managed standby database disconnect from session; Primary > Alter system set log_archive_dest_state_2=enable 33
  • 34. Program y db an St • Ship Redo / Apply Redo uar d G • Utilize your standby database Da t a • Active Data Guard • Snapshot Standby • Reduce downtime • Active Data Guard experiences • Real Networks • Intermap Inc • Resources - Q&A 34
  • 35. Fast-Start Failover Reduce Unplanned Downtime • Maximum Availability Observer • SYNC redo transport • RPO = zero • Maximum Performance • ASYNC redo transport FastStartFailoverLagLimit • Default RPO = 30 seconds • minimum threshold = 10 seconds Primary Site Standby Site Standby Site Primary Site • Client Failover MAA Best Practices in a Data Guard Configuration www.oracle.com/technology/deploy/availability/pdf/MAA_WP_10gR2_ClientFailoverBestPractices.pdf 35
  • 36. Fast-Start Failover Configuration Options for Optimal RPO • Immediate failover for user-configurable health conditions ENABLE FAST_START FAILOVER [CONDITION <value>]; • Condition examples: • Datafile Offline • Corrupted Controlfile • Corrupted Dictionary • Inaccessible Logfile • Stuck Archiver • Any explicit ORA-xyz error • Apps can request fast-start failover using API DBMS_DG.INITIATE_FS_FAILOVER 36
  • 37. Rolling Database Upgrades Use Physical Standby to Reduce Planned Downtime release n Database A release n+1 Database B Install new Oracle version in seperate homes on A & B, set guaranteed PROD Synchronize – Redo apply PSTBY restore point (GRP) on A Convert B to logical using KEEP IDENTITY (11g), upgrade and resync PROD Synchronize – SQL Apply LSTBY LSTBY Switchover, flashback A to GRP, mount in new/upgraded home, PSTBY SWITCHOVER PROD convert to physical Upgrade via redo stream and resync PSTBY Synchronize – Redo Apply PROD • Rolling Upgrade Best Practices using Transient Logical Standby http://www.oracle.com/technology/deploy/availability/pdf/maa_wp_11g_transientlogicalrollingupgrade.pdf 37
  • 38. Data Guard Switchover Reduce downtime for other planned events • Scheduled power outages and site maintenance • Data center moves • Migrations to ASM and/or RAC • Technology refresh – servers and storage • Windows/Linux migrations * • 32bit/64bit migrations* • HP-UX/PA RISC to HP-UX/IPF migrations* • Implement major database changes in rolling fashion • e.g. ASSM, initrans, blocksize * see Metalink Note 413484.1 38
  • 39. Program y db an St • Ship Redo / Apply Redo uar d G • Utilize your standby database Da t a • Active Data Guard • Snapshot Standby • Reduce downtime • Active Data Guard Experiences • Real Networks • Intermap Inc • Resources - Q&A 39
  • 40. 11g Active Data Guard Yucheng Liu – Sr. Oracle DBA, RealNetworks yliu@real.com Krishna Kakatur – Sr. Oracle DBA, RealNetworks kkakatur@real.com
  • 41. What is so Cool About Real Networks
  • 42. Goals • Consolidate HA and Reporting Data Guard instances • Off load read-only traffic • Off load I/O intensive database backups • Guarantee data and object consistency • Reduce management of complex mview replication • Simplify deployment of read-only instances
  • 43. Current Architecture APP1 APP2 APP3 …... APPn mviews ws ews ws vie vie mvi m m During a code deployment, each database is subject to a lengthy maintenance for Data DDL and mview refreshes. Farm Content DB
  • 44. Current Architecture Challenges • Lengthy and complex deployment for DDL changes Each Read-only instance needs ddl scripts + mview refreshes • Publishing stops if a read only database is down • No guarantees of data and object consistency Errors can occur, missing indexes, failed mview replication Harder to manage five database images • Difficult to deploy new nodes for scaling Publishing code must be rewritten for each new node
  • 45. Future Architecture APP1 APP2 APP3 …... APPn 11G Active Data Guards During a code deployment, we can release to one database and rely on active Data Guard to replicate the changes. Data Farm Content DB
  • 46. Future Architecture Benefits • Shorter and simpler deployment for DDL changes Deploy changes to Primary instance only No need to rebuild mview logs after a lengthy replication stop • Guaranteed data and object consistency • Fewer distinct databases to manage • New nodes can be deployed without publication outages • Significant reduction of I/O Backup one instance instead of 4 No mview log maintenance No complete or fast refreshes
  • 47. Active Data Guard Implementation Proof of Concept Test • 1 primary + 5 DGs. Primary in MaxAvailability mode. 4 DGs with SYNC redo transport mode, 1 DG with ASYNC mode. 2 DGs with connect-time failover setup. • Read only queries worked as expected on active DGs. • Changes populated from primary to active DG as expected. • Flashback primary + flashback DG tested. No need to recreate DGs. • Connect-time failover worked correctly on active DGs. (Wow!)
  • 48. Lessons Learned Notes • No downtime on primary. Manual flashback on needed on DG. • Weapons you need: spfile, service management, Data Guard Broker, Flashback, Grid Control, RMAN • Switchover bug (#7032374): dbms_service.stop_service does not stop services on standby • Grid bug (#6379706): Grid does not use RMAN catalog for standby backups • Export dump (expdp) error: ORA-16000: database open for read- only access
  • 49. Oracle 11g Active Data Guard High Availability, Disaster Recovery & Resource Offloading Presented By: Shawn Ormond, Database Administrator
  • 50. Who is Intermap Technologies Inc.? Intermap is a digital mapping company that is proactively remapping entire countries across the world and building uniform high-resolution 3D digital national data sets which we call NEXTMap®. Intermap uses proprietary airborne Interferometric Synthetic Aperture Radar (IFSAR) to collect raw elevation data. Intermap produces elevation data models and geometric images of unprecedented accuracy from the IFSAR data. These NEXTMap® data sets are used in various commercial and government spatial applications within a many industries: Automotive Safety & Fuel Efficiency Insurance Flood Modeling Global Positioning Systems (GPS)‫‏‬ Environmental Planning Wind Power Planning Wireless Communication Planning Other 3D Visualization Applications © 2008 Intermap Technologies. All rights reserved.
  • 51. Using Oracle 11g & Active Data Guard © 2008 Intermap Technologies. All rights reserved.
  • 52. Business Requirements The Need The Solution Disaster recovery site in order to maintain Oracle Active Data Guard business continuity. (Fast-Start Failover) Secure data hosting platform for public Oracle Active Data Guard internet applications. (Read Only Physical Standby) 24x7 availability for customers to retrieve Oracle Active Data Guard and use Intermap data. (Stays up while applying redo) Easy storage management to maintain a Oracle Automatic Storage Management large database (10 TB and growing). (Seamless storage integration for using various storage vendors) Manage and maintain spatial datasets Oracle Spatial within Oracle. © 2008 Intermap Technologies. All rights reserved.
  • 53. Lessons Learned Configuring LUN sizes larger than 2 TB for use in disk groups is not supported by ASMLib in Oracle 11g (11.1.0.6). This has been fixed in 11.1.0.7. • https://metalink.oracle.com/metalink/plsql/showdoc?db=Bug&id=6453944 Some Oracle GeoRaster procedures do not work on a Standby Database as they do on a Primary Database. Specifically SDO_GEOR.mosaic. Oracle provided Intermap Technologies Inc., with a fix to bypass the using of temporary tables on the Physical Standby when assembling tiles of GeoRaster images and instead assembling the tiled GeoRasters into allocated RAM. © 2008 Intermap Technologies. All rights reserved.
  • 54. The Oracle Experience Oracle Active Data Guard – Prior to Oracle 11g Active Data Guard there was no out-of-the-box solution to meet the business requirements of a co-located geospatial database that was an exact replica of our main production geospatial database and maintain 24x7 availability. Active Data Guard was by far the easiest component to set up. Since production implementation Intermap Technologies Inc. has experienced no problems and has maintained 100% uptime. © 2008 Intermap Technologies. All rights reserved.
  • 55. Conclusion Standby on Steroids Yesterday Today Disaster protection only HA/DR and performance protection Complex schemes required Quick win – simple & fast to offload query workload Systems & storage dedicated Flexible use of resources for to offload backups multiple purposes Test environments that are a Test environments that are a poor match for production mirror image of production Low ROI High ROI 55
  • 56. Conclusion by 9i Stand Active Standby Database 56
  • 57. Resources • Oracle Data Guard on OTN http://www.oracle.com/technology/deploy/availability/htdocs/DataGuardOverview.html • Oracle HA Portal on OTN http://www.oracle.com/technology/deploy/availability/ • Maximum Availability Architecture (MAA) white papers and demonstrations http://www.oracle.com/technology/deploy/availability/htdocs/maa.htm • Oracle HA Customer Success Stories on OTN: http://www.oracle.com/technology/deploy/availability/htdocs/HA_CaseStudies.html • Taneja Group - New Approaches to Data Protection and DR http://www.oracle.com/technology/deploy/availability/htdocs/analysts/tanejagroupdatabasestorage.pdf • Enterprise Strategy Group – Data Protection and Disaster Recovery http://www.oracle.com/technology/deploy/availability/htdocs/analysts/enterprisestrategygroupdataguard.pdf 57
  • 58. HA Sessions, Labs, Demos From Oracle Development Mon, Sep 22 Wed, Sep 24 (contd.) • 2:30 pm - Database 11g: Next-Gen HA, Moscone South 103 • 5:00 pm - EM in Secure MAA, Moscone West 2001 Tue, Sep 23 • 5:00 pm - E-Business Suite HA, Moscone West 2002/04 • 9:00 am - Active-Active Data Centers, Moscone South 103 Thu, Sep 25 • 11:30 am - Sharding with Oracle, Moscone South 302 • 9:00 am - Oracle Secure Backup, Moscone South 102 • 11:30 am - HA with Oracle VM, Moscone West 3024 • 10:30 am - Streams Replication, Moscone South 102 • 1:00 pm - Active Data Guard, Moscone South 104 • 12:00 pm - Rolling Database Upgrades, Moscone South 103 Wed, Sep 24 • 1:30 pm - Streams Performance, Moscone South 102 • 9:00 am - Fusion Middleware Grid HA, Marriott Nob Hill AB • 3:00 pm - Oracle Grid Computing, Moscone South 303 • 11:30 am - RMAN Best Practices, Moscone South 103 • 3:00 pm - E-Business Suite R12 MAA, Moscone West 2007 • 1:00 pm - Database in the Cloud, Moscone South 305 • 3:00 pm - Siebel MAA, Moscone South 308 • 5:00 pm - Data Guard & Real Application Testing, Moscone 102 • 3:00 pm - Fusion SOA HA & Scalability, Marriott Salon 14/15 Hands On Labs - Thu, Sep 25 DEMOgrounds, Mon-Thu • 10:30 - 11:30 am, 12:00 - 1:00 pm - Active Data • Active Data Guard, Streams, Oracle Secure Guard, Marriott Golden Gate A3 Backup, RMAN/Flashback, MAA 58
