Effective collaboration among data scientists results in high- quality and efficient machine learning (ML) workloads. In a collaborative environment, such as Kaggle or Google Co-laboratory, users typically re-execute or modify published scripts to recreate or improve the result. This introduces many redundant data processing and model training operations. Reusing the data generated by the redundant operations leads to the more efficient execution of future workloads. However, existing collaborative environments lack a data management component for storing and reusing the result of previously executed operations. In this paper, we present a system to optimize the execution of ML workloads in collaborative environments by reusing previously performed operations and their results. We utilize a so-called Experiment Graph (EG) to store the artifacts, i.e., raw and intermediate data or ML models, as vertices and operations of ML workloads as edges. In theory, the size of EG can become unnecessarily large, while the storage budget might be limited. At the same time, for some artifacts, the overall storage and retrieval cost might outweigh the recomputation cost. To address this issue, we propose two algorithms for materializing artifacts based on their likelihood of future reuse. Given the materialized artifacts inside EG, we devise a linear-time reuse algorithm to find the optimal execution plan for incoming ML workloads. Our reuse algorithm only incurs a negligible overhead and scales for the high number of incoming ML workloads in collaborative environments. Our experiments show that we improve the run-time by one order of magnitude for repeated execution of the workloads and 50% for the execution of modified workloads in collaborative environments. Link to the paper: https://dl.acm.org/doi/abs/10.1145/3318464.3389715

1. Optimizing Machine Learning Workloads in
Collaborative Environments
Behrouz Derakhshan, Alireza Rezaei Mahdiraji, Ziawasch Abedjan, Tilmann Rabl, and Volker Markl
1

2. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments

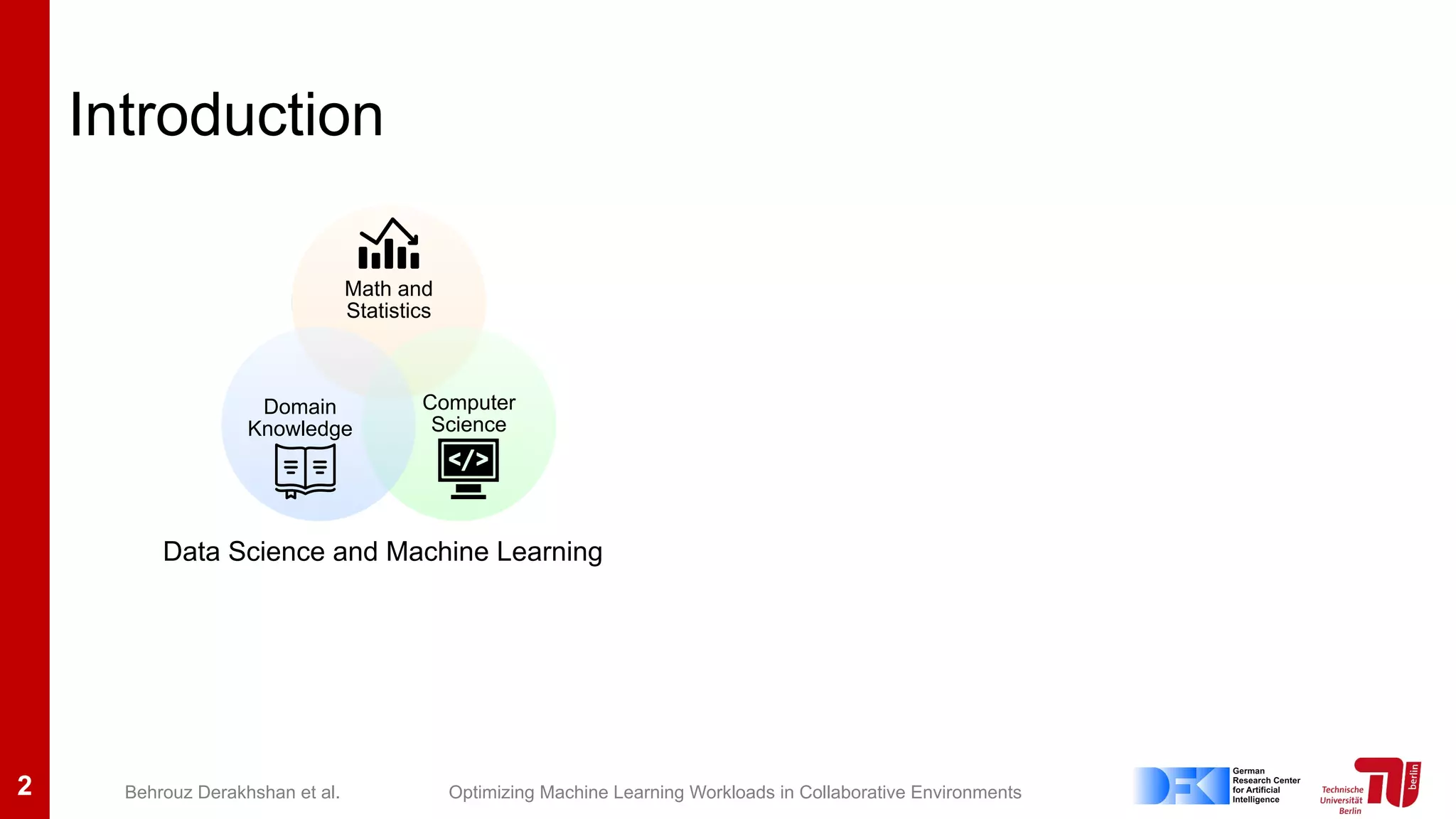

Introduction
2
Math and
Statistics
Computer
Science
Domain
Knowledge
Data Science and Machine Learning

3. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Introduction
2
Math and
Statistics
Computer
Science
Domain
Knowledge
Data Science and Machine Learning Data Science and ML Toolkit

4. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Introduction
2
Math and
Statistics
Computer
Science
Domain
Knowledge
Data Science and Machine Learning Data Science and ML Toolkit
High-quality DS and ML applications require effective collaboration

5. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Collaborative DS and ML
3

6. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Collaborative DS and ML
3
• Jupyter Notebooks enable sharing code and results

7. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Collaborative DS and ML
3
• Containerized environments enable execution
and deployment of the notebooks
• Jupyter Notebooks enable sharing code and results
[1]
1. https://www.docker.com/

8. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Collaborative DS and ML
3
• Containerized environments enable execution
and deployment of the notebooks
• Platforms, such as Google Colab and Kaggle,
enable effective collaboration among data
scientists
• Jupyter Notebooks enable sharing code and results
[1]
[2]
1. https://www.docker.com/
[3]
2. https://colab.research.google.com/
3. https://www.kaggle.com/

9. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Problems
4
Lack of generated data artifacts management

10. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Problems
4
Lack of generated data artifacts management
Re-execution of existing notebooks

11. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Problems
4
Top 3 notebooks of Home Credit Default Risk Kaggle Competition1 generate
100s GBs of intermediate data artifact and are copied 10,000 times
1. https://www.kaggle.com/c/home-credit-default-risk
Lack of generated data artifacts management
Re-execution of existing notebooks

12. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Problems
4
Top 3 notebooks of Home Credit Default Risk Kaggle Competition1 generate
100s GBs of intermediate data artifact and are copied 10,000 times
1. https://www.kaggle.com/c/home-credit-default-risk
Lack of data management in existing collaborative environment leads to
1000s of hours of redundant data processing and model training
Lack of generated data artifacts management
Re-execution of existing notebooks

13. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Collaborative ML Workload Optimizer
5
Parser
ML Workload
Optimizer Materializer
Executor
Experiment Graph
ClientServer
Workload DAG
Optimized DAG
Annotated DAG
1
2
5
1

14. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Collaborative ML Workload Optimizer
5
Experiment Graph
○ Union of all the Workload DAGs
○ Vertices: data artifacts
○ Edges: operations
Materializer
○ Store data artifacts with high-
likelihood of future reuse
Optimizer
○ Linear-time reuse algorithm
○ Finds optimal execution DAG
Parser
ML Workload
Optimizer Materializer
Executor
Experiment Graph
ClientServer
Workload DAG
Optimized DAG
A
Annotated DAG
1
2
5
1
C B
A
B
C

15. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Materialization Problem
6
Given a storage budget, materialize a subset of the artifacts in order to minimize
the execution cost

16. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Materialization Problem
6
Given a storage budget, materialize a subset of the artifacts in order to minimize
the execution cost
Challenges:
1. Future workloads are unknown
2. Even if future workloads are known a priori, the problem is NP-Hard (Bhattacherjee, 2015)
3. Accommodating large graphs and fast number of incoming workloads

17. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Materialization Algorithm
7
run-time
For every artifact compute a utility value: size frequency
potential

18. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Materialization Algorithm
7
Materializer Experiment Graph
Materialized artifact
Un-materialized artifact
50,91
40,0.9 5,0.91 5,0.91
10,0.9 3,0.91
23,0.9
2,0.9
1.5,0.91
0.5,0.0
5 2
0.1
0.1 0.1
0.1 0.1
4
4
0.05
3
3
Client Server
run-time
For every artifact compute a utility value: size frequency
potential

19. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Storage-aware Materialization
● Many duplicated columns in intermediate data artifacts
8

20. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Storage-aware Materialization
● Many duplicated columns in intermediate data artifacts
○ Feature selection operations
○ Feature generation operations
8
Feature
Selection
Input Artifact Output Artifact

21. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Storage-aware Materialization
● Many duplicated columns in intermediate data artifacts
○ Feature selection operations
○ Feature generation operations
● Apply column deduplication strategy
8
while budget is not exhausted:
1. run materialization algorithm
2. deduplicate the materialized artifacts
3. update the size of unmaterialized
artifact
Storage-aware Materialization
Feature
Selection
Input Artifact Output Artifact

22. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Storage-aware Materialization
● Many duplicated columns in intermediate data artifacts
○ Feature selection operations
○ Feature generation operations
● Apply column deduplication strategy
8
while budget is not exhausted:
1. run materialization algorithm
2. deduplicate the materialized artifacts
3. update the size of unmaterialized
artifact
Storage-aware Materialization
Improves Storage utilization and Run-time
Feature
Selection
Input Artifact Output Artifact

23. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Reuse Problem
9
Given EG and a new workload, find the set of workload artifacts to reuse from
EG and the set of artifact to compute

24. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Reuse Problem
9
Given EG and a new workload, find the set of workload artifacts to reuse from
EG and the set of artifact to compute
Challenges:
1. Exponential time complexity of exhaustive search
2. Accommodating large graphs and fast number of incoming workloads, state-of-the-art
has polynomial time complexity 𝓞(|𝒱|.|𝘌|2) (Helix, 2018)

25. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Reuse Algorithm
10
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
A linear-time algorithm to compute optimal execution plan with a forward and
backward pass on the workload DAG
Materialized artifact
Un-materialized or do not exist in EG

26. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Reuse Algorithm
10
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
A linear-time algorithm to compute optimal execution plan with a forward and
backward pass on the workload DAG
Materialized artifact
Un-materialized or do not exist in EG
ForwardPass
• Accumulate run-times
• For every vertex
• Load or compute

27. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Reuse Algorithm
10
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
A linear-time algorithm to compute optimal execution plan with a forward and
backward pass on the workload DAG
Materialized artifact
Un-materialized or do not exist in EG
ForwardPass
• Accumulate run-times
• For every vertex
• Load or compute
BackwardPass
• Prune unnecessary
loaded vertices

28. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Reuse Algorithm
10
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
A linear-time algorithm to compute optimal execution plan with a forward and
backward pass on the workload DAG
Materialized artifact
Un-materialized or do not exist in EG
ForwardPass
• Accumulate run-times
• For every vertex
• Load or compute
BackwardPass
• Prune unnecessary
loaded vertices
Prune

29. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Evaluation
11
● Kaggle
○ Kaggle Home Credit Default Risk1
Competition
○ 9 source datasets
○ 5 real and 3 generated workloads
○ Total of 130 GB artifact sizes
● Helix
○ State-of-the-art iterative ML framework
○ Materialization Algorithm:
■ Only execution-time is considered
■ Nodes are not prioritized
○ Reuse Algorithm
■ Utilizes Edmonds-Karp Max-Flow
algorithm, which runs in 𝓞(|𝒱|.|𝘌|2)
● Naïve
○ No Optimization
1. https://www.kaggle.com/c/home-credit-default-risk
Workload Baseline

30. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
End-to-end Run-time
12
Repeated executions of Kaggle workloads (materialization budget = 16 GB)

31. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
End-to-end Run-time
12
Repeated executions of Kaggle workloads (materialization budget = 16 GB)
Execution of Kaggle workloads in sequence (materialization budget = 16 GB)

32. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
End-to-end Run-time
12
Optimizing ML Workloads improves run-time up to 1 order of magnitude for repeated
executions and 50% for different workloads
Repeated executions of Kaggle workloads (materialization budget = 16 GB)
Execution of Kaggle workloads in sequence (materialization budget = 16 GB)

33. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Materialization Impact
13
Total run-time of the Kaggle workloads with different materialization strategies and budgets

34. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Materialization Impact
13
Total run-time of the Kaggle workloads with different materialization strategies and budgets
Exploiting the artifacts characteristics, such as utility and duplication rate, improves the
materialization process and improves the run-time by 50%

35. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Reuse Overhead
14
Overhead of different reuse algorithms for 10,000 synthetically generated workloads
100
101
102
103
104
Number of Workloads
0
1k
2k
3k
Cumulative
Overhead(s)
Colab-reuse Helix

36. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Reuse Overhead
14
Overhead of different reuse algorithms for 10,000 synthetically generated workloads
Our linear-time reuse algorithm generates a negligible overhead in real collaborative
environments where 1000s of workloads are executed
100
101
102
103
104
Number of Workloads
0
1k
2k
3k
Cumulative
Overhead(s)
Colab-reuse Helix

37. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Summary
15
Parser
ML Workload
Optimizer Materializer
Executor
Experiment Graph ClientServer
Workload DAG
Optimized DAG
Annotated DAG
1
2
5
1
● Optimization of ML workloads in collaborative
environment through Materialization and
Reuse, while incurring negligible overhead
● Things not covered in the talk:
○ API and DAG Construction
○ Quality-based Materialization
○ Model Warmstarting

38. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
References
● Bhattacherjee, Souvik, et al. "Principles of dataset versioning: Exploring the recreation/storage tradeoff." Proceedings of the VLDB
Endowment. International Conference on Very Large Data Bases. Vol. 8. No. 12. NIH Public Access, 2015.
● Xin, Doris, et al. "Helix: Holistic optimization for accelerating iterative machine learning." Proceedings of the VLDB Endowment 12.4
(2018): 446-460.
● Jack Edmonds and Richard M. Karp. 1972. Theoretical Improvements in Algorithmic Efficiency for Network Flow Problems. J. ACM 19, 2
(April 1972), 248–264. https://doi.org/10.1145/321694.321699
● Thomas Kluyver, Benjamin Ragan-Kelley, Fernando Pérez, Brian Granger, Matthias Bussonnier, et al. 2016. Jupyter Notebooks – a
publishing format for reproducible computational workflows. In Posi- tioning and Power in Academic Publishing: Players, Agents and
Agendas, F. Loizides and B. Schmidt (Eds.). IOS Press, 87 – 90.
● Burns, B., Grant, B., Oppenheimer, D., Brewer, E., & Wilkes, J. (2016). Borg, omega, and kubernetes. Queue, 14(1), 70-93.
16

39. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Evaluation (2)
17
● Openml
○ Classification Task 312
○ 2000 scikit-learn pipelines
○ 1.5 GB of artifact sizes
Workload

40. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
DAG Construction
train = pd.read_csv('train.csv') # [ad_desc,ts,u_id,price,y]
ad_desc = train['ad_desc']
vectorizer = CountVectorizer()
count_vectorized = vectorizer.fit_transform(ad_desc)
print count_vectorized.head()
selector = SelectKBest(k=2)
t_subset = train[['ts','u_id','price']]
y = train['y']
top_features = selector.fit_transform(t_subset, y)
model_1 = svm.SVC().fit(top_features, y)
print model_1 # terminal vertex
X = pd.concat([count_vectorized,top_features], axis = 1)
model_2 = svm.SVC().fit(X, y)
print model_2 # terminal vertex
train
ad_desc t_subset y
cnt_vect top_feats
X
model_2
18
model_1
cnt_head

41. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
DAG Construction
train = pd.read_csv('train.csv') # [ad_desc,ts,u_id,price,y]
ad_desc = train['ad_desc']
vectorizer = CountVectorizer()
count_vectorized = vectorizer.fit_transform(ad_desc)
print count_vectorized.head()
selector = SelectKBest(k=2)
t_subset = train[['ts','u_id','price']]
y = train['y']
top_features = selector.fit_transform(t_subset, y)
model_1 = svm.SVC().fit(top_features, y)
print model_1 # terminal vertex
X = pd.concat([count_vectorized,top_features], axis = 1)
model_2 = svm.SVC().fit(X, y)
print model_2 # terminal vertex
train
ad_desc t_subset y
cnt_vect top_feats
X
model_2
Artifact
Operation
18
model_1
cnt_head

42. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
DAG Construction
train = pd.read_csv('train.csv') # [ad_desc,ts,u_id,price,y]
ad_desc = train['ad_desc']
vectorizer = CountVectorizer()
count_vectorized = vectorizer.fit_transform(ad_desc)
print count_vectorized.head()
selector = SelectKBest(k=2)
t_subset = train[['ts','u_id','price']]
y = train['y']
top_features = selector.fit_transform(t_subset, y)
model_1 = svm.SVC().fit(top_features, y)
print model_1 # terminal vertex
X = pd.concat([count_vectorized,top_features], axis = 1)
model_2 = svm.SVC().fit(X, y)
print model_2 # terminal vertex
train
ad_desc t_subset y
cnt_vect top_feats
X
model_2
Artifact
Operation
18
model_1
cnt_head
40 MB

43. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
DAG Construction
train = pd.read_csv('train.csv') # [ad_desc,ts,u_id,price,y]
ad_desc = train['ad_desc']
vectorizer = CountVectorizer()
count_vectorized = vectorizer.fit_transform(ad_desc)
print count_vectorized.head()
selector = SelectKBest(k=2)
t_subset = train[['ts','u_id','price']]
y = train['y']
top_features = selector.fit_transform(t_subset, y)
model_1 = svm.SVC().fit(top_features, y)
print model_1 # terminal vertex
X = pd.concat([count_vectorized,top_features], axis = 1)
model_2 = svm.SVC().fit(X, y)
print model_2 # terminal vertex
train
ad_desc t_subset y
cnt_vect top_feats
X
model_2
Artifact
Operation
18
model_1
cnt_head
5 s
40 MB

44. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
DAG Construction
train = pd.read_csv('train.csv') # [ad_desc,ts,u_id,price,y]
ad_desc = train['ad_desc']
vectorizer = CountVectorizer()
count_vectorized = vectorizer.fit_transform(ad_desc)
print count_vectorized.head()
selector = SelectKBest(k=2)
t_subset = train[['ts','u_id','price']]
y = train['y']
top_features = selector.fit_transform(t_subset, y)
model_1 = svm.SVC().fit(top_features, y)
print model_1 # terminal vertex
X = pd.concat([count_vectorized,top_features], axis = 1)
model_2 = svm.SVC().fit(X, y)
print model_2 # terminal vertex
train
ad_desc t_subset y
cnt_vect top_feats
X
model_2
Artifact
Operation
18
model_1
cnt_head
5 s
Accuracy
=0.91
40 MB

45. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
DAG Construction
train = pd.read_csv('train.csv') # [ad_desc,ts,u_id,price,y]
ad_desc = train['ad_desc']
vectorizer = CountVectorizer()
count_vectorized = vectorizer.fit_transform(ad_desc)
print count_vectorized.head()
selector = SelectKBest(k=2)
t_subset = train[['ts','u_id','price']]
y = train['y']
top_features = selector.fit_transform(t_subset, y)
model_1 = svm.SVC().fit(top_features, y)
print model_1 # terminal vertex
X = pd.concat([count_vectorized,top_features], axis = 1)
model_2 = svm.SVC().fit(X, y)
print model_2 # terminal vertex
train
ad_desc t_subset y
cnt_vect top_feats
X
model_2
19
model_1
cnt_head
40 MB

46. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
DAG Construction
train = pd.read_csv('train.csv') # [ad_desc,ts,u_id,price,y]
ad_desc = train['ad_desc']
vectorizer = CountVectorizer()
count_vectorized = vectorizer.fit_transform(ad_desc)
print count_vectorized.head()
selector = SelectKBest(k=2)
t_subset = train[['ts','u_id','price']]
y = train['y']
top_features = selector.fit_transform(t_subset, y)
model_1 = svm.SVC().fit(top_features, y)
print model_1 # terminal vertex
X = pd.concat([count_vectorized,top_features], axis = 1)
model_2 = svm.SVC().fit(X, y)
print model_2 # terminal vertex
train
ad_desc t_subset y
cnt_vect top_feats
X
model_2
Source vertex
19
model_1
cnt_head
40 MB

47. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
DAG Construction
train = pd.read_csv('train.csv') # [ad_desc,ts,u_id,price,y]
ad_desc = train['ad_desc']
vectorizer = CountVectorizer()
count_vectorized = vectorizer.fit_transform(ad_desc)
print count_vectorized.head()
selector = SelectKBest(k=2)
t_subset = train[['ts','u_id','price']]
y = train['y']
top_features = selector.fit_transform(t_subset, y)
model_1 = svm.SVC().fit(top_features, y)
print model_1 # terminal vertex
X = pd.concat([count_vectorized,top_features], axis = 1)
model_2 = svm.SVC().fit(X, y)
print model_2 # terminal vertex
train
ad_desc t_subset y
cnt_vect top_feats
X
model_2
Source vertex
Terminal
vertex
19
model_1
cnt_head
Terminal
vertex
40 MB

48. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
DAG Construction
train = pd.read_csv('train.csv') # [ad_desc,ts,u_id,price,y]
ad_desc = train['ad_desc']
vectorizer = CountVectorizer()
count_vectorized = vectorizer.fit_transform(ad_desc)
print count_vectorized.head()
selector = SelectKBest(k=2)
t_subset = train[['ts','u_id','price']]
y = train['y']
top_features = selector.fit_transform(t_subset, y)
model_1 = svm.SVC().fit(top_features, y)
print model_1 # terminal vertex
X = pd.concat([count_vectorized,top_features], axis = 1)
model_2 = svm.SVC().fit(X, y)
print model_2 # terminal vertex
train
ad_desc t_subset y
cnt_vect top_feats
X
model_2
Source vertex
Operation
Terminal
vertex
19
model_1
cnt_head
Terminal
vertex
40 MB

49. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
DAG Annotation
20
train
ad_desc t_subset y
cnt_vect top_feats
X
model_2
model_1
cnt_head

50. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
DAG Annotation
20
● Edge run-time
train
ad_desc t_subset y
cnt_vect top_feats
X
model_2
model_1
cnt_head
5 s 2 s
0.1 s
0.05 s 0.1 s
0.1 s 0.1 s
4 s
4 s
0.05 s
3 s
3 s

51. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
DAG Annotation
20
● Edge run-time
● Vertex size
train
ad_desc t_subset y
cnt_vect top_feats
X
model_2
model_1
cnt_head
5 s 2 s
0.1 s
0.05 s 0.1 s
0.1 s 0.1 s
4 s
4 s
50 MB
40 MB
5 MB
5 MB
10 MB
3 MB
23 MB
0.5 MB
0.05 s
3 s
3 s
2 MB
1.5 MB

52. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
DAG Annotation
20
● Edge run-time
● Vertex size
● Vertex potential
○ Quality of the best reachable model
train
ad_desc t_subset y
cnt_vect top_feats
X
model_2
model_1
cnt_head
5 s 2 s
0.1 s
0.05 s 0.1 s
0.1 s 0.1 s
4 s
4 s
50 MB
40 MB
5 MB
5 MB
10 MB
3 MB
23 MB
0.5 MB
0.05 s
3 s
3 s
2 MB
1.5 MB
ModelQuality
Model
Quality
Model
Quality
Model
Quality
Accuracy=0.
9
Accuracy=0.9
1
0.0
0.9
0.9
0.91
0.9
0.91
0.91
0.91
0.9
0.91

53. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Model Materialization and Warmstarting
21
Run-time of model benchmarking scenario

54. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Impact of Model Warmstarting on Accuracy
22

55. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Reuse Algorithm
23
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
A linear-time algorithm to compute optimal execution plan with a forward and
backward pass on the workload DAG
Materialized artifact
Un-materialized or do not exist in EG

56. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
Reuse Algorithm (Forward-pass)
24
1.Traverse from the source
2.Accumulate run-times
3.For every materialized node
compare the accumulated run-
time with the load-time
Forward-pass
Artifacts to execute
Artifacts to load
Materialized artifact
Un-materialized or do not exist in EG

57. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
Acc = 0.1
Acc = 0.05
Acc = 2.1
train_2
top_feats_2
merged_feats
model_3
Reuse Algorithm (Forward-pass)
24
1.Traverse from the source
2.Accumulate run-times
3.For every materialized node
compare the accumulated run-
time with the load-time
Forward-pass
Artifacts to execute
Artifacts to load
train
Materialized artifact
Un-materialized or do not exist in EG

58. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
Acc = 0.1
Acc = 0.05
Acc = 2.1
load cost = 0.06
Load > Acc
train_2
top_feats_2
merged_feats
model_3
Reuse Algorithm (Forward-pass)
24
1.Traverse from the source
2.Accumulate run-times
3.For every materialized node
compare the accumulated run-
time with the load-time
Forward-pass
Artifacts to execute
Artifacts to load
train
Materialized artifact
Un-materialized or do not exist in EG

59. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
Acc = 0.1
Acc = 0.05
Acc = 2.1
load cost = 0.06
Load > Acc
train_2
top_feats_2
merged_feats
model_3
Reuse Algorithm (Forward-pass)
24
1.Traverse from the source
2.Accumulate run-times
3.For every materialized node
compare the accumulated run-
time with the load-time
Forward-pass
Artifacts to execute
Artifacts to load
train
t_subset
Materialized artifact
Un-materialized or do not exist in EG

60. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
Acc = 0.1
Acc = 0.05
Acc = 2.1
load cost = 0.06
Load < Acc
load = 1.5
Load < Acc
train_2
top_feats_2
merged_feats
model_3
Reuse Algorithm (Forward-pass)
24
1.Traverse from the source
2.Accumulate run-times
3.For every materialized node
compare the accumulated run-
time with the load-time
Forward-pass
Artifacts to execute
Artifacts to load
train
t_subset
Materialized artifact
Un-materialized or do not exist in EG

61. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
Acc = 0.1
Acc = 0.05
Acc = 2.1
load cost = 0.06
Load < Acc
load = 1.5
Load < Acc
train_2
top_feats_2
merged_feats
model_3
Reuse Algorithm (Forward-pass)
24
1.Traverse from the source
2.Accumulate run-times
3.For every materialized node
compare the accumulated run-
time with the load-time
Forward-pass
Artifacts to execute
Artifacts to load
train
t_subset y
top_feats
Materialized artifact
Un-materialized or do not exist in EG

62. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
train_2
top_feats_2
merged_feats
model_3
Reuse Algorithm (Forward-pass)
24
1.Traverse from the source
2.Accumulate run-times
3.For every materialized node
compare the accumulated run-
time with the load-time
Forward-pass
Artifacts to execute
Artifacts to load
train
t_subset y
top_feats
Materialized artifact
Un-materialized or do not exist in EG

63. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
train_2
top_feats_2
merged_feats
model_3
Reuse Algorithm (Backward-pass)
25
1.Traverse backward from the
terminal
2.For every loaded artifact,
stop the traversal of its
parents
3.Prune artifacts that are not
visited
Backward-pass
y
top_feats
train
t_subset
Artifacts to execute
Artifacts to load
Artifacts to prune

64. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
train_2
top_feats_2
merged_feats
model_3
Reuse Algorithm (Backward-pass)
25
1.Traverse backward from the
terminal
2.For every loaded artifact,
stop the traversal of its
parents
3.Prune artifacts that are not
visited
Backward-pass
y
top_feats
Stop Traversal
X
X
X
train
t_subset
Artifacts to execute
Artifacts to load
Artifacts to prune

65. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
train_2
top_feats_2
merged_feats
model_3
Reuse Algorithm (Backward-pass)
25
1.Traverse backward from the
terminal
2.For every loaded artifact,
stop the traversal of its
parents
3.Prune artifacts that are not
visited
Backward-pass
y
top_feats
Stop Traversal
X
X
X
Artifacts to execute
Artifacts to load
Artifacts to prune

66. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
train
t_subset y
top_feats
train_2
top_feats_2
merged_feats
model_3
train_2
top_feats_2
merged_feats
model_3
Reuse Algorithm (Backward-pass)
25
1.Traverse backward from the
terminal
2.For every loaded artifact,
stop the traversal of its
parents
3.Prune artifacts that are not
visited
Backward-pass
y
top_feats
Artifacts to execute
Artifacts to load
Artifacts to prune

67. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Storage-aware Materialization
● Many duplicated columns in intermediate data artifacts
● Apply column deduplication strategy
26
train
ad_desc t_subset y
train = pd.read_csv('train.csv') #
[ad_desc,ts,u_id,price,y]
ad_desc = train['ad_desc‘]
t_subset = train[['ts','u_id','price‘]]
y = train['y']

68. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Storage-aware Materialization
● Many duplicated columns in intermediate data artifacts
● Apply column deduplication strategy
26
train
ad_desc t_subset y
train = pd.read_csv('train.csv') #
[ad_desc,ts,u_id,price,y]
ad_desc = train['ad_desc‘]
t_subset = train[['ts','u_id','price‘]]
y = train['y']
while budget is not exhausted:
1. run materialization algorithm
2. deduplicate the materialized artifacts
3. update the size of unmaterialized
artifact
Storage-aware Materialization

69. Behrouz Derakhshan et al. Optimizing Machine Learning Workloads in Collaborative Environments
Storage-aware Materialization
● Many duplicated columns in intermediate data artifacts
● Apply column deduplication strategy
26
train
ad_desc t_subset y
train = pd.read_csv('train.csv') #
[ad_desc,ts,u_id,price,y]
ad_desc = train['ad_desc‘]
t_subset = train[['ts','u_id','price‘]]
y = train['y']
while budget is not exhausted:
1. run materialization algorithm
2. deduplicate the materialized artifacts
3. update the size of unmaterialized
artifact
Storage-aware Materialization
Improves Storage utilization and Run-time
