This document discusses using OpenShift and CloudBees Jenkins Platform together for DevOps. OpenShift is a PaaS built on Docker and Kubernetes that allows deploying applications and services. Jenkins can be easily started and integrated with OpenShift to use it as an elastic runtime or deployment target. Jenkins Pipeline allows defining CI/CD pipelines as code. A live demo shows using OpenShift from a Jenkins Pipeline to build and deploy an application. Additional resources are provided to learn more about the OpenShift and CloudBees integration.

2. Ultimate DevOps:
OpenShift & CloudBees Jenkins Platform
Andy Pemberton
@apemberton

3. About Andy
Author of DZone Refcard on Jenkins Pipeline
Hands-on Delivery experience on CloudBees Jenkins and Pipelines
Lead CloudBees Solution Architecture and Consulting Teams
@apemberton

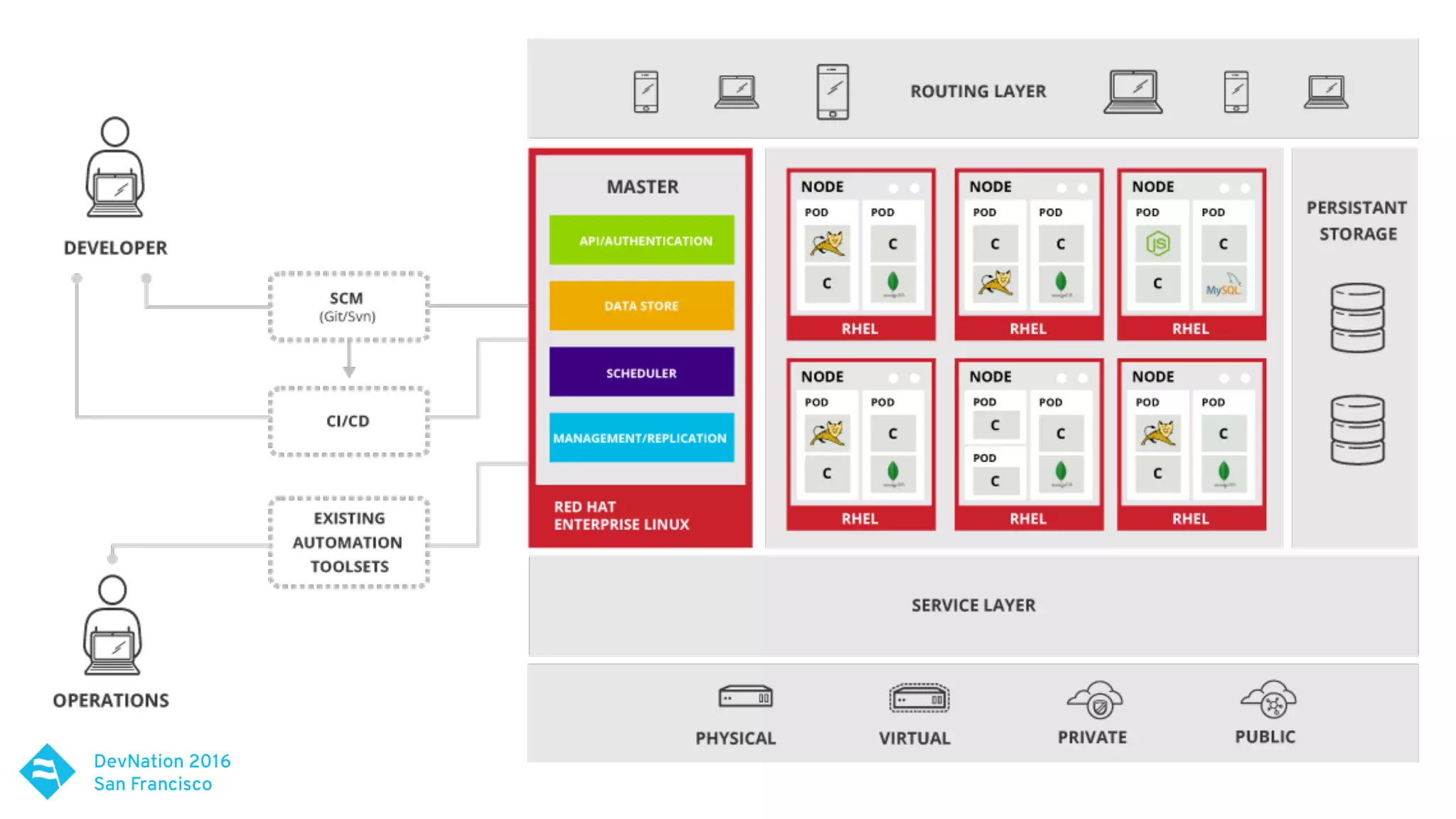

4. OpenShift:
PaaS by Red Hat, Built on Docker and Kubernetes

6. projects
templates
applications
services
routes
pods
imagestreams
deployment

7. $ oc login --token=$foobar --server=https://api.foo.openshift.com
$ oc new-project mobile-development
$ oc project mobile-development
$ oc new-app https://github.com/cloudbees/openshift-example.git
$ oc scale mobile-deposit-ui-1 --replicas=4
Examples

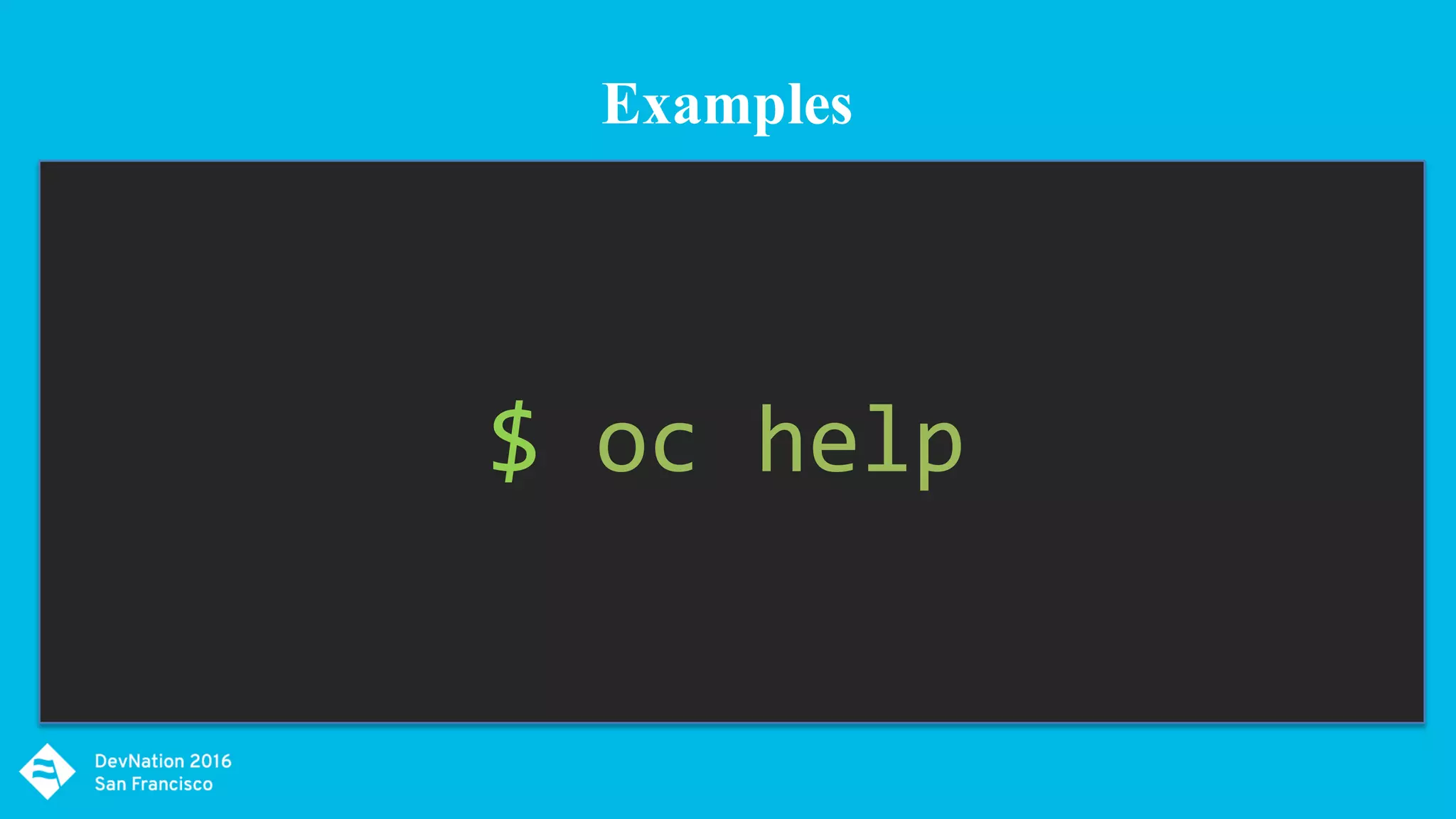

8. $ oc help
Examples

9. OpenShift Web Console

10. Jenkins

11. Easy to Start
java -jar jenkins.war

12. Easy to Start
java -jar jenkins.war

13. Easy to Start
java -jar jenkins.war

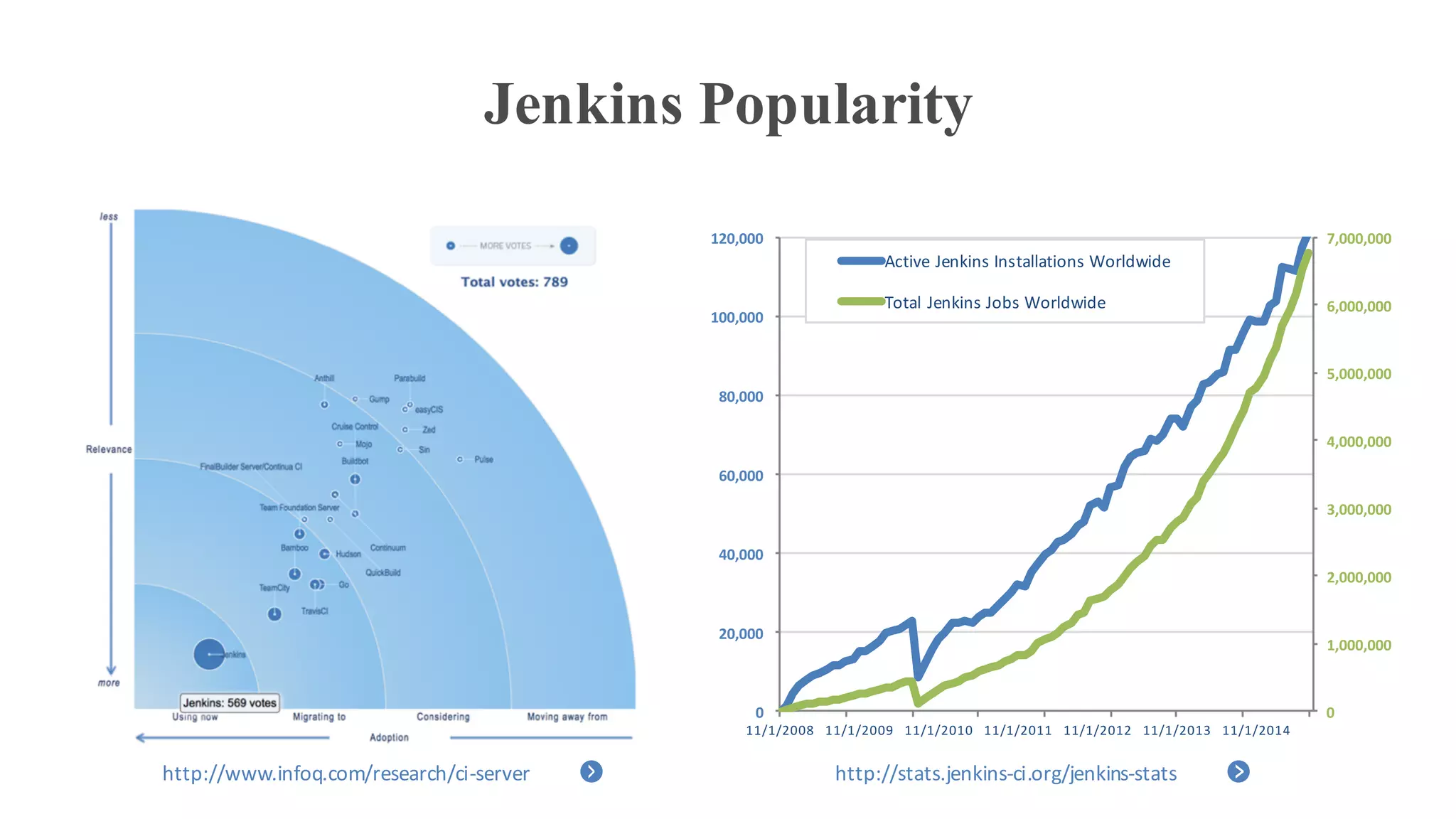

14. Jenkins Popularity
0
1,000,000
2,000,000
3,000,000
4,000,000
5,000,000
6,000,000
7,000,000
0
20,000
40,000
60,000
80,000
100,000
120,000
11/1/2008 11/1/2009 11/1/2010 11/1/2011 11/1/2012 11/1/2013 11/1/2014
Active Jenkins Installations Worldwide
Total Jenkins Jobs Worldwide
http://www.infoq.com/research/ci-server http://stats.jenkins-ci.org/jenkins-stats

15. CloudBees Jenkins Enterprise
… part of CloudBees Jenkins Platform
Jenkins for the EnterpriseCommunity Innovation

16. Jenkins + OpenShift: better together
+

17. Jenkins + OpenShift: better together
MASTER
AGENT
AGENT
AGENT
AGENT
AGENT
AGENT
Use case #1: OpenShift as an Elastic Runtime for Jenkins

18. Jenkins + OpenShift: better together
MASTER
Use case #2: OpenShift as deployment target from Jenkins

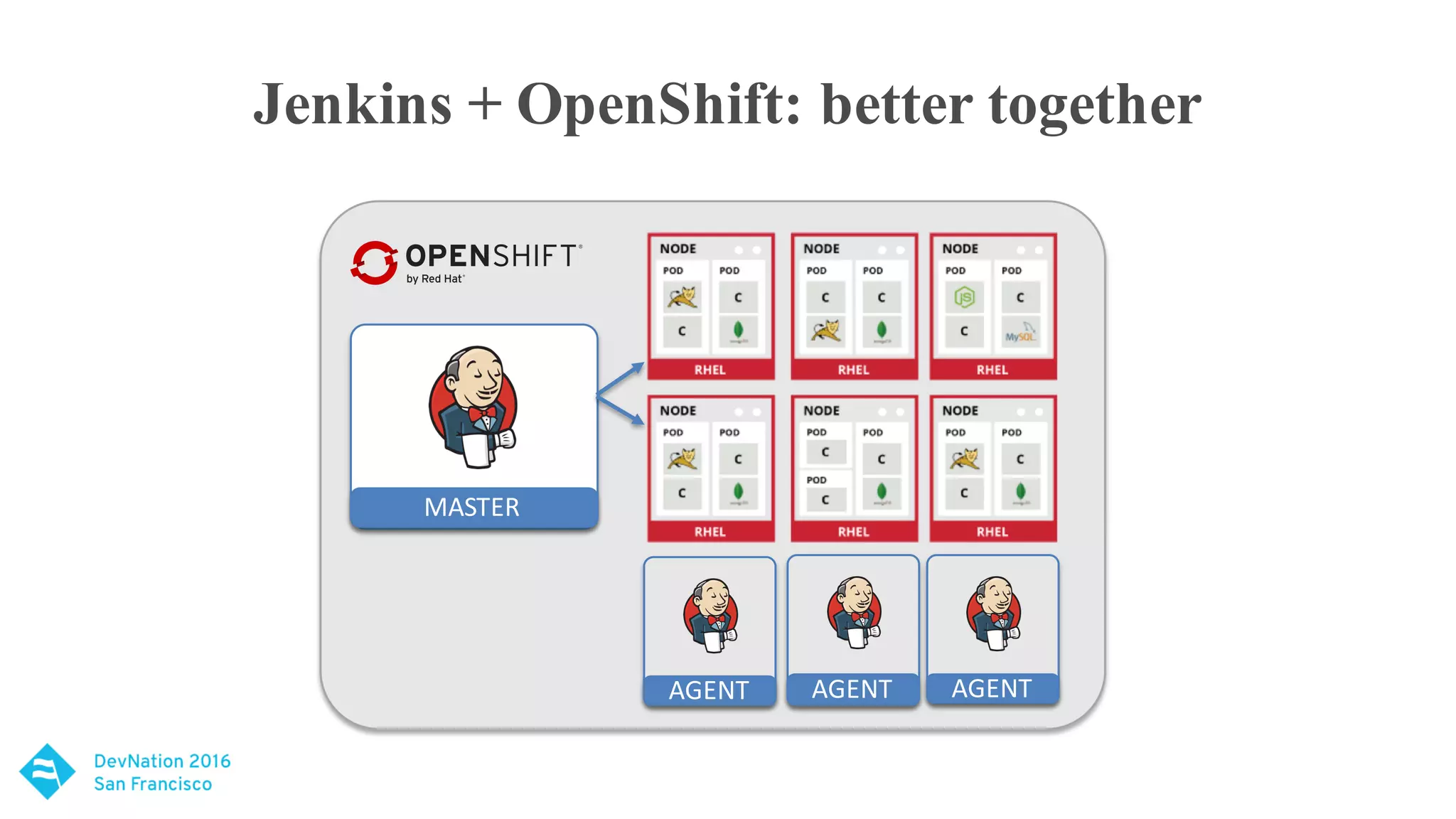

19. Jenkins + OpenShift: better together
MASTER
AGENT AGENT AGENT

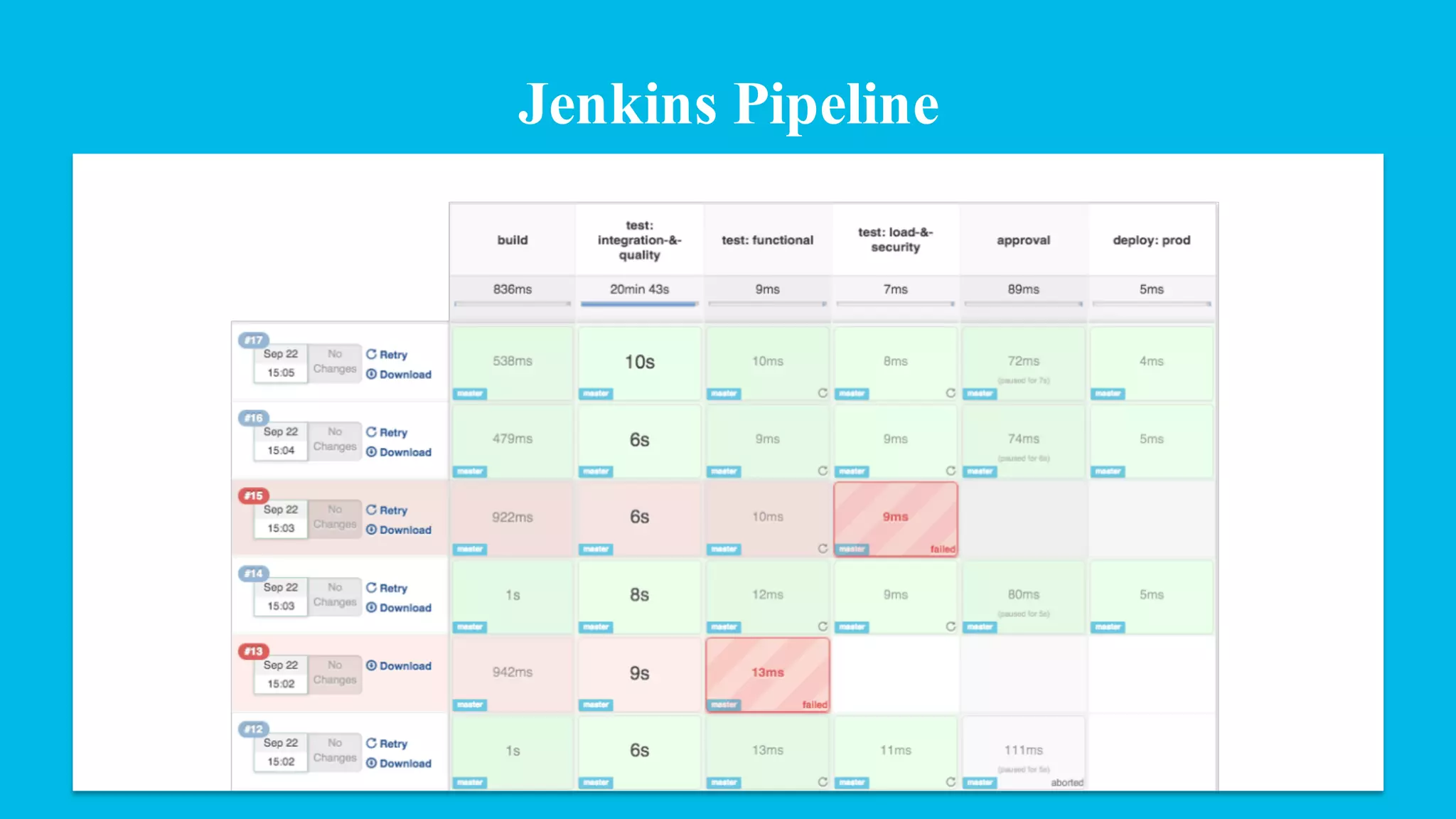

20. Jenkins Pipeline

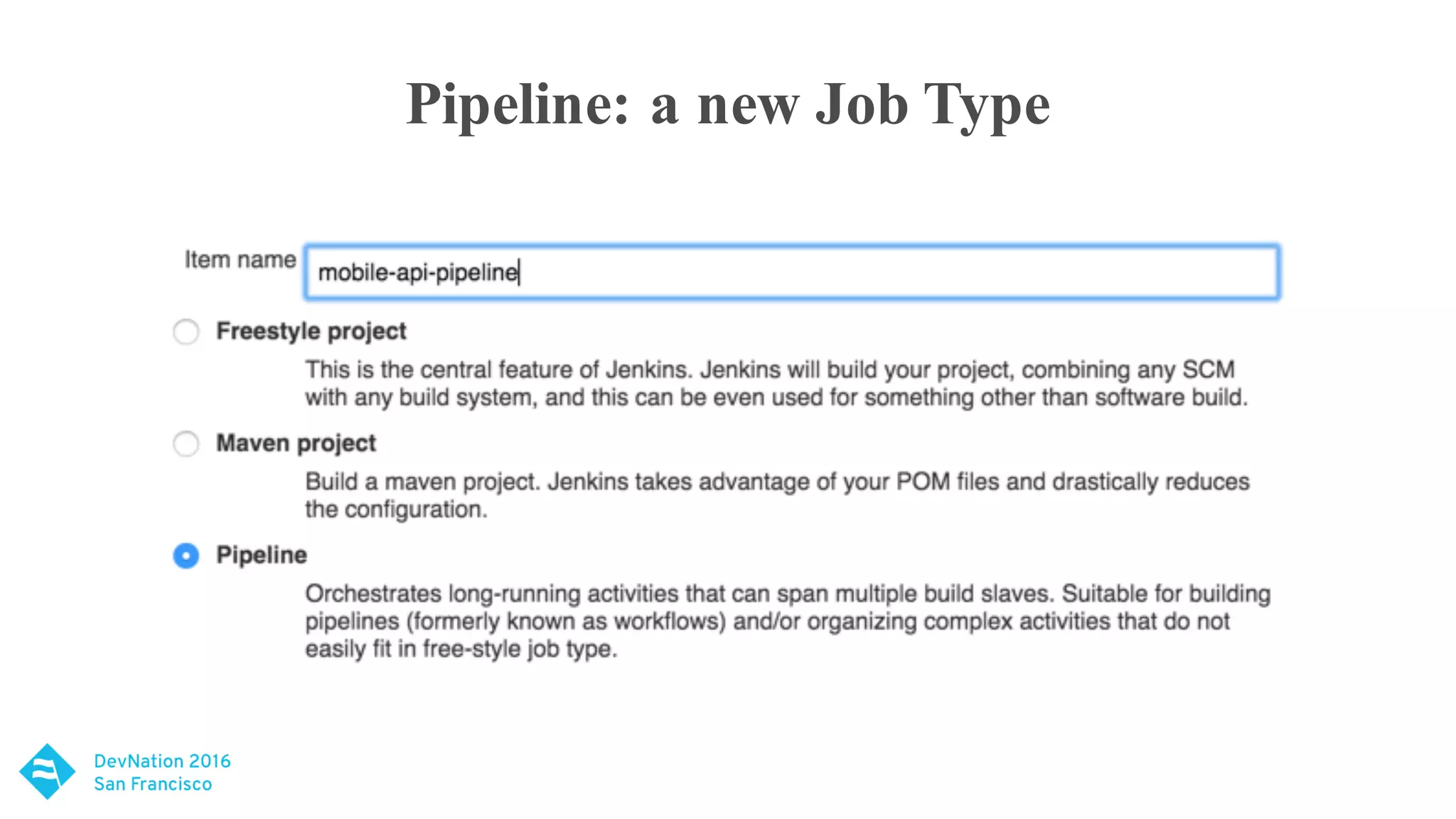

21. Pipeline: a new Job Type

22. Pipeline: a new Job Type
Concise
Long-running
Durable
Flexible
Extensible
22

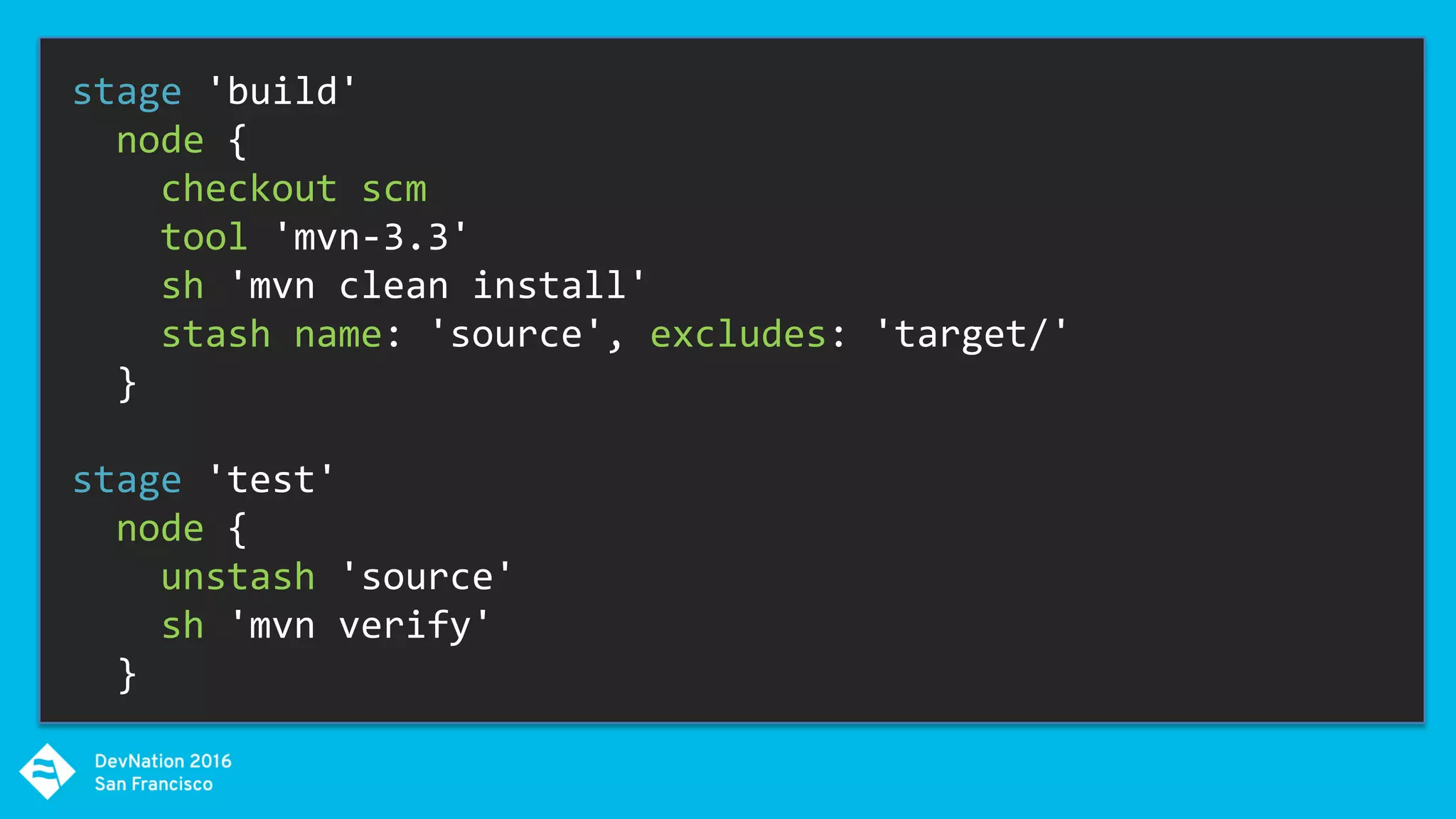

23. stage 'build'
node {
checkout scm
tool 'mvn-3.3'
sh 'mvn clean install'
stash name: 'source', excludes: 'target/'
}
stage 'test'
node {
unstash 'source'
sh 'mvn verify'
}

25. Pipeline-as-Code

26. PIPELINE

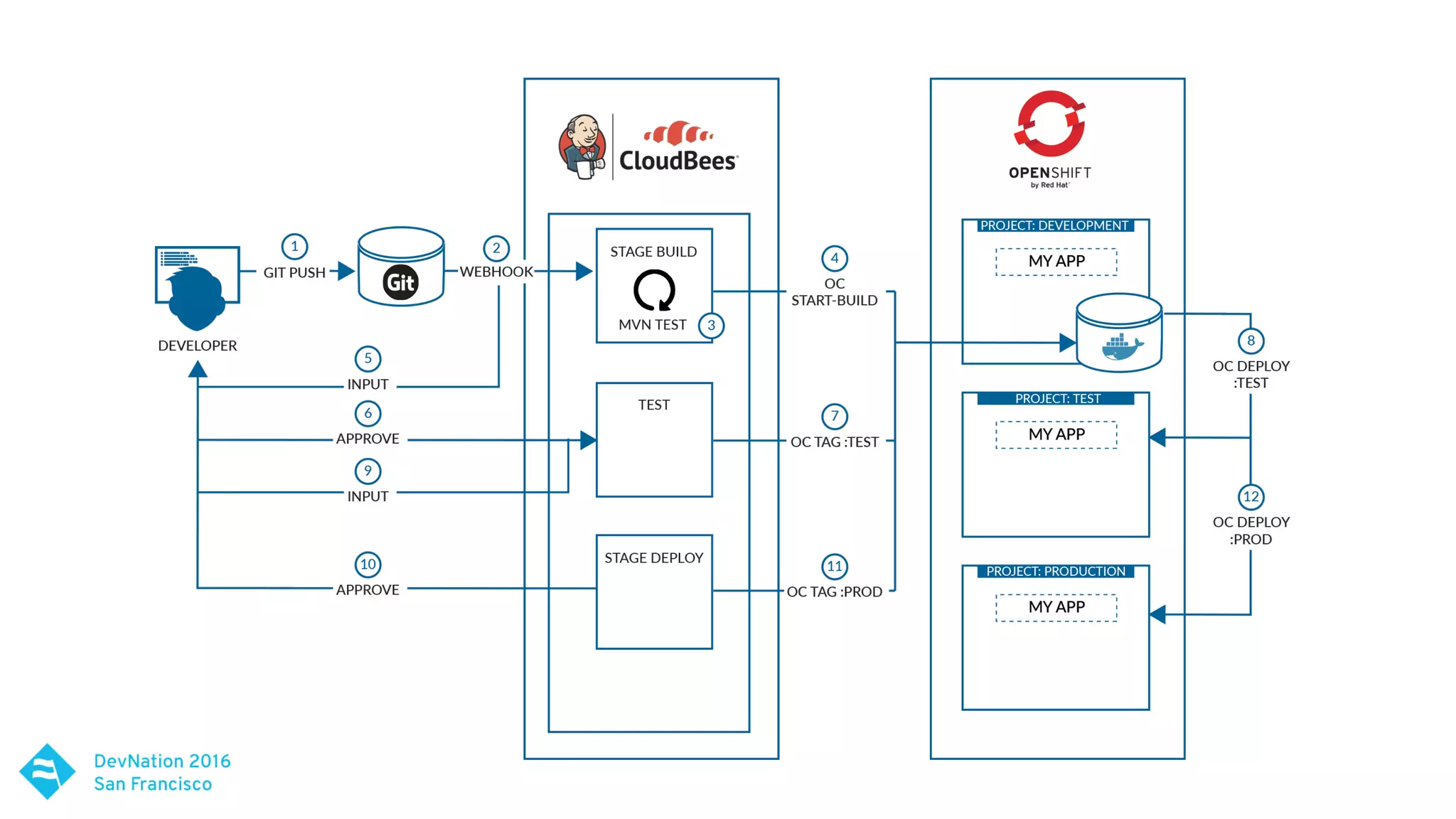

27. Jenkins Pipeline + OpenShift

29. Live Demo.
What could go wrong?

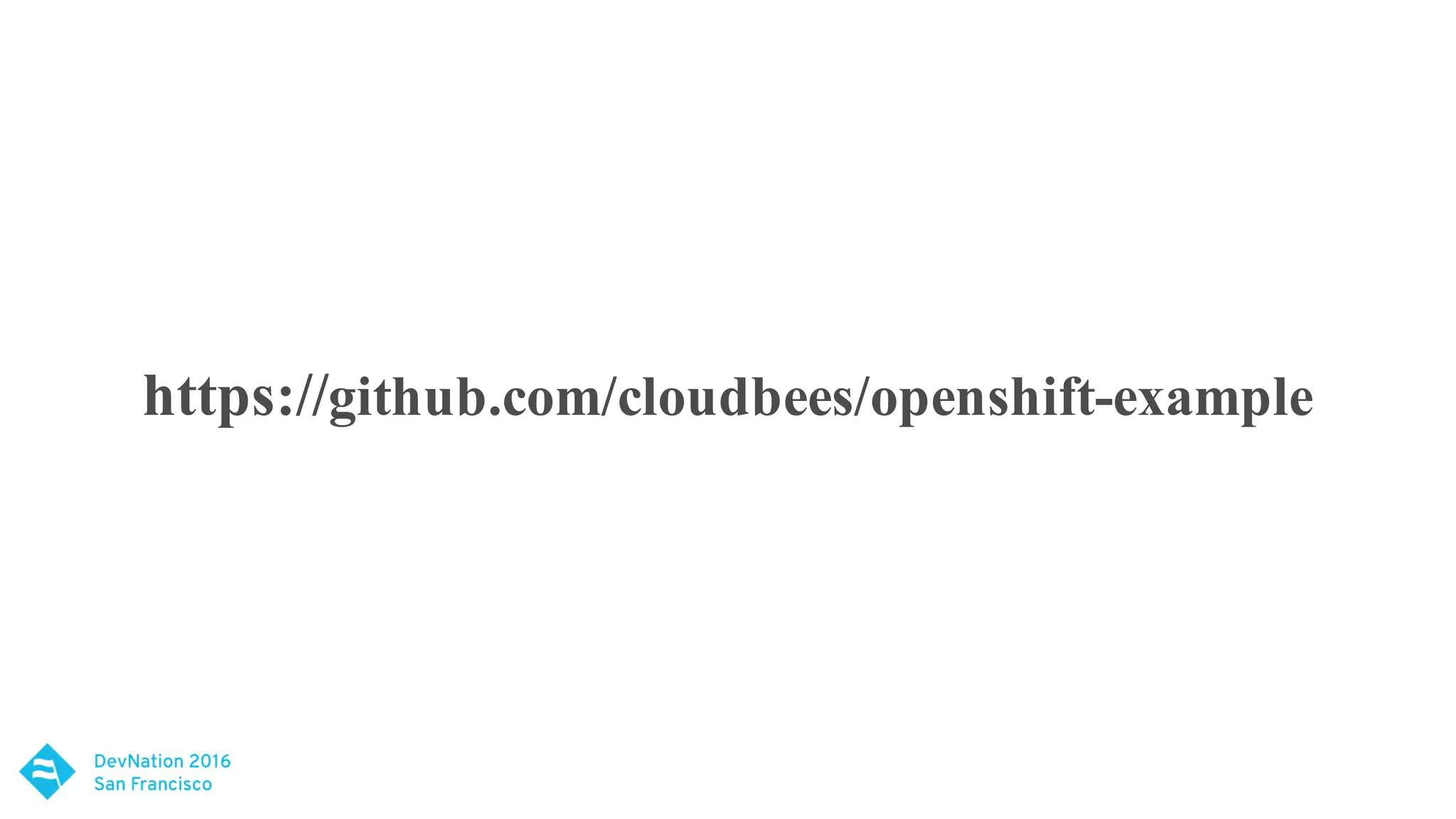

30. https://github.com/cloudbees/openshift-example

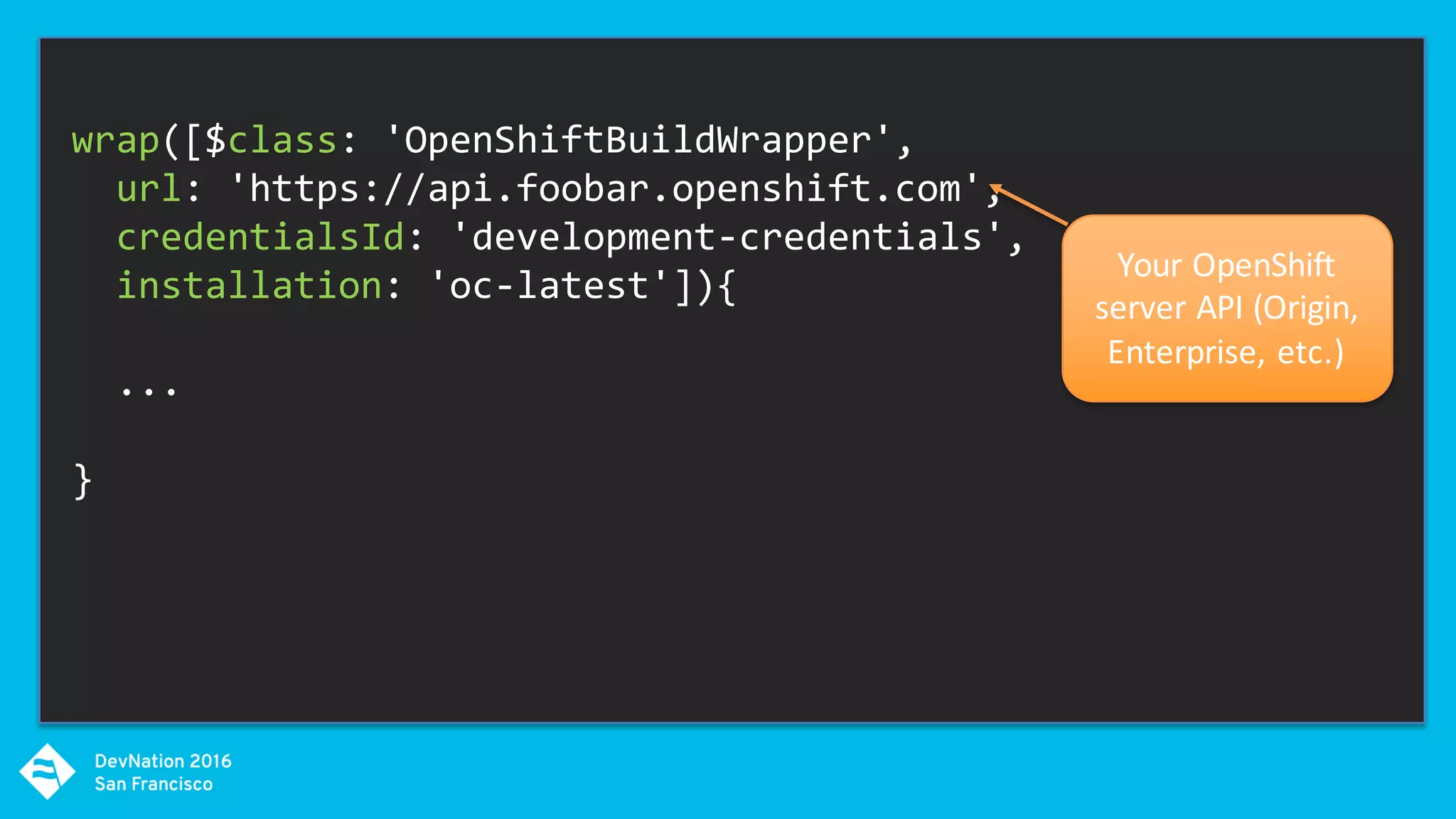

31. wrap([$class: 'OpenShiftBuildWrapper',
url: 'https://api.foobar.openshift.com',
credentialsId: 'development-credentials',
installation: 'oc-latest']){
...
}
Your OpenShift
server API (Origin,
Enterprise, etc.)

32. wrap([$class: 'OpenShiftBuildWrapper',
url: 'https://api.foobar.openshift.com',
credentialsId: 'development-credentials',
installation: 'oc-latest']){
...
}
Credentials for
your OpenShift
account (probably
a serviceaccount)

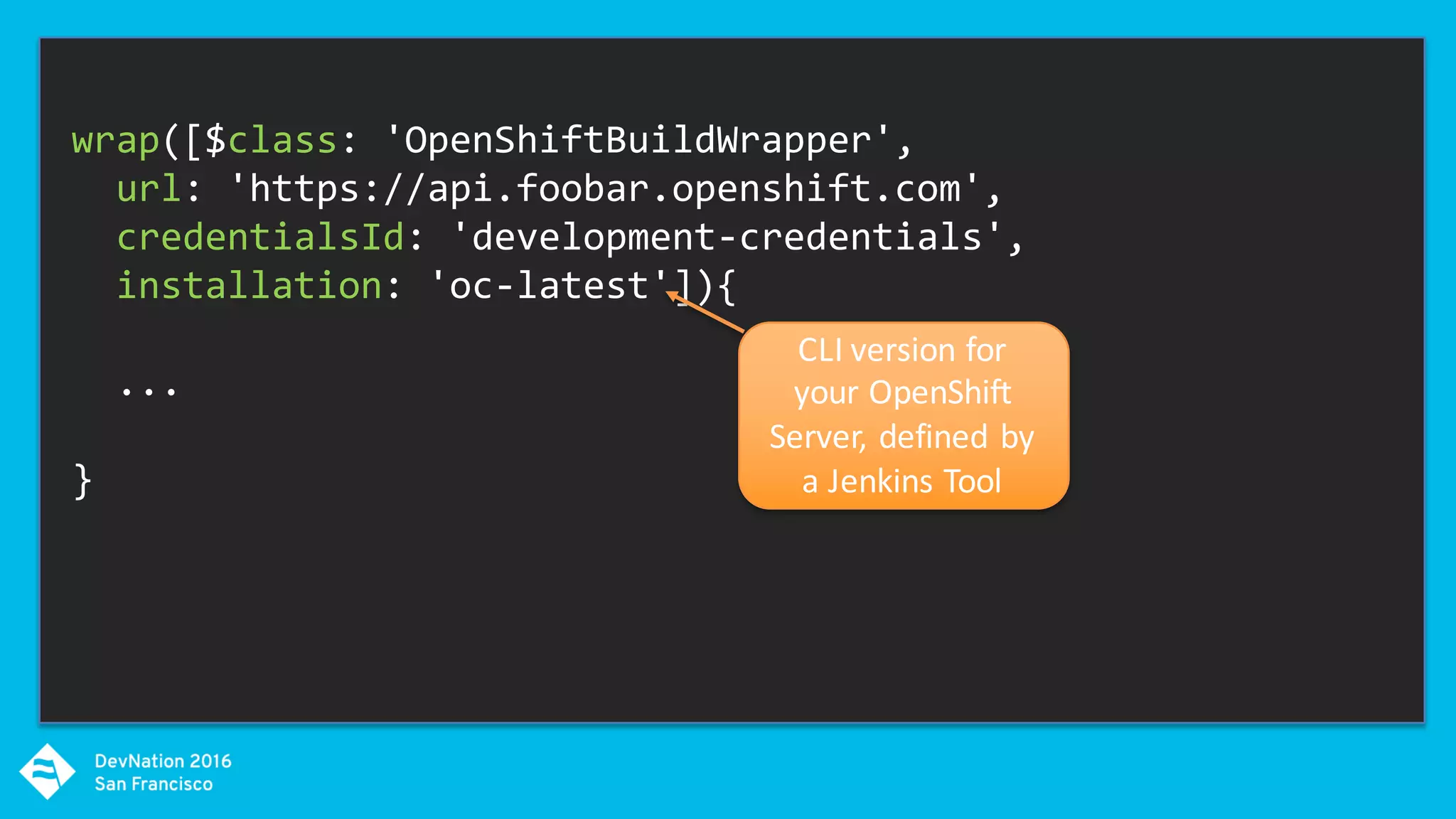

33. wrap([$class: 'OpenShiftBuildWrapper',
url: 'https://api.foobar.openshift.com',
credentialsId: 'development-credentials',
installation: 'oc-latest']){
...
}
CLI version for
your OpenShift
Server, defined by
a Jenkins Tool

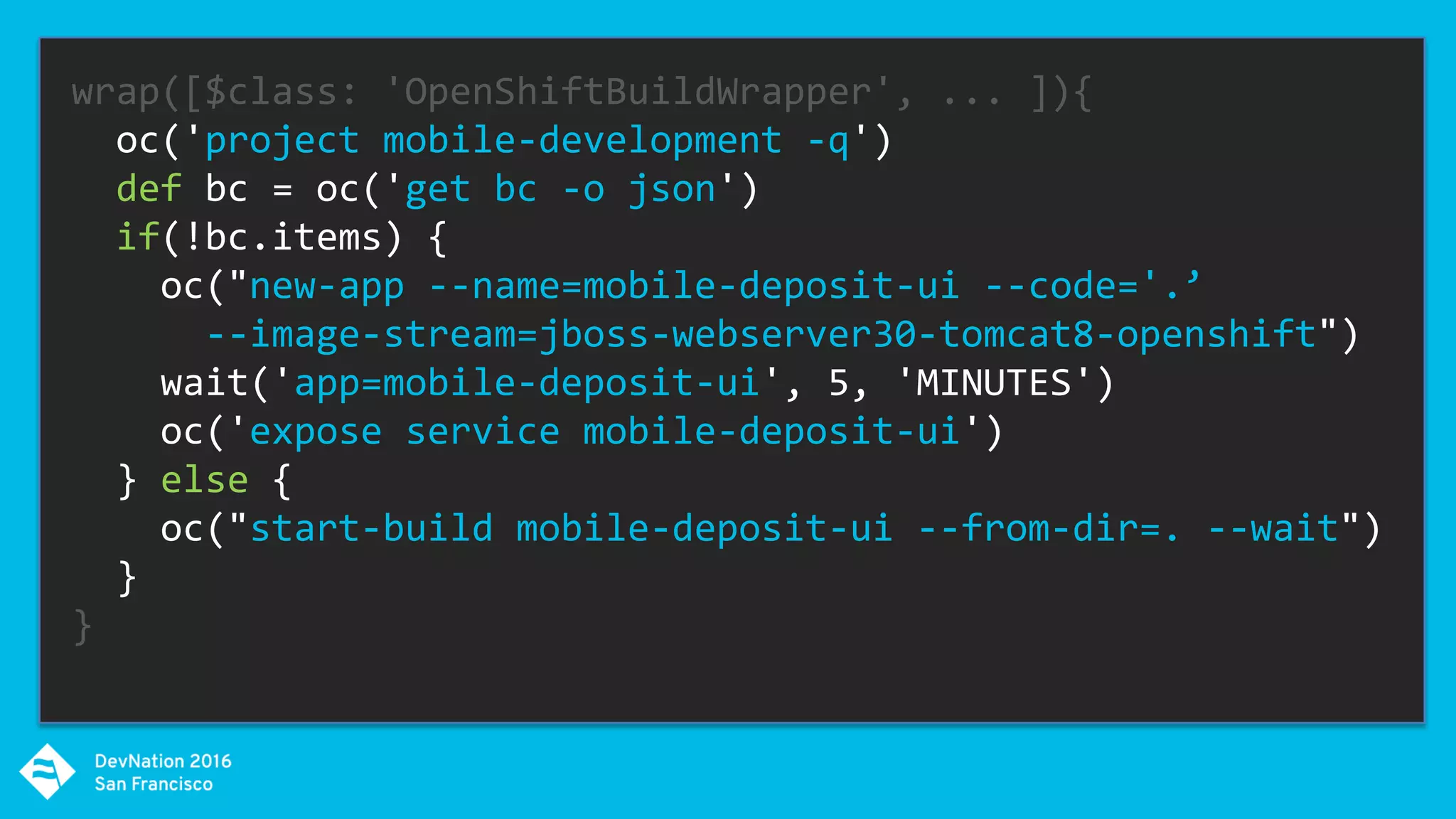

34. wrap([$class: 'OpenShiftBuildWrapper', ... ]){
oc('project mobile-development -q')
def bc = oc('get bc -o json')
if(!bc.items) {
oc("new-app --name=mobile-deposit-ui --code='.’
--image-stream=jboss-webserver30-tomcat8-openshift")
wait('app=mobile-deposit-ui', 5, 'MINUTES')
oc('expose service mobile-deposit-ui')
} else {
oc("start-build mobile-deposit-ui --from-dir=. --wait")
}
}

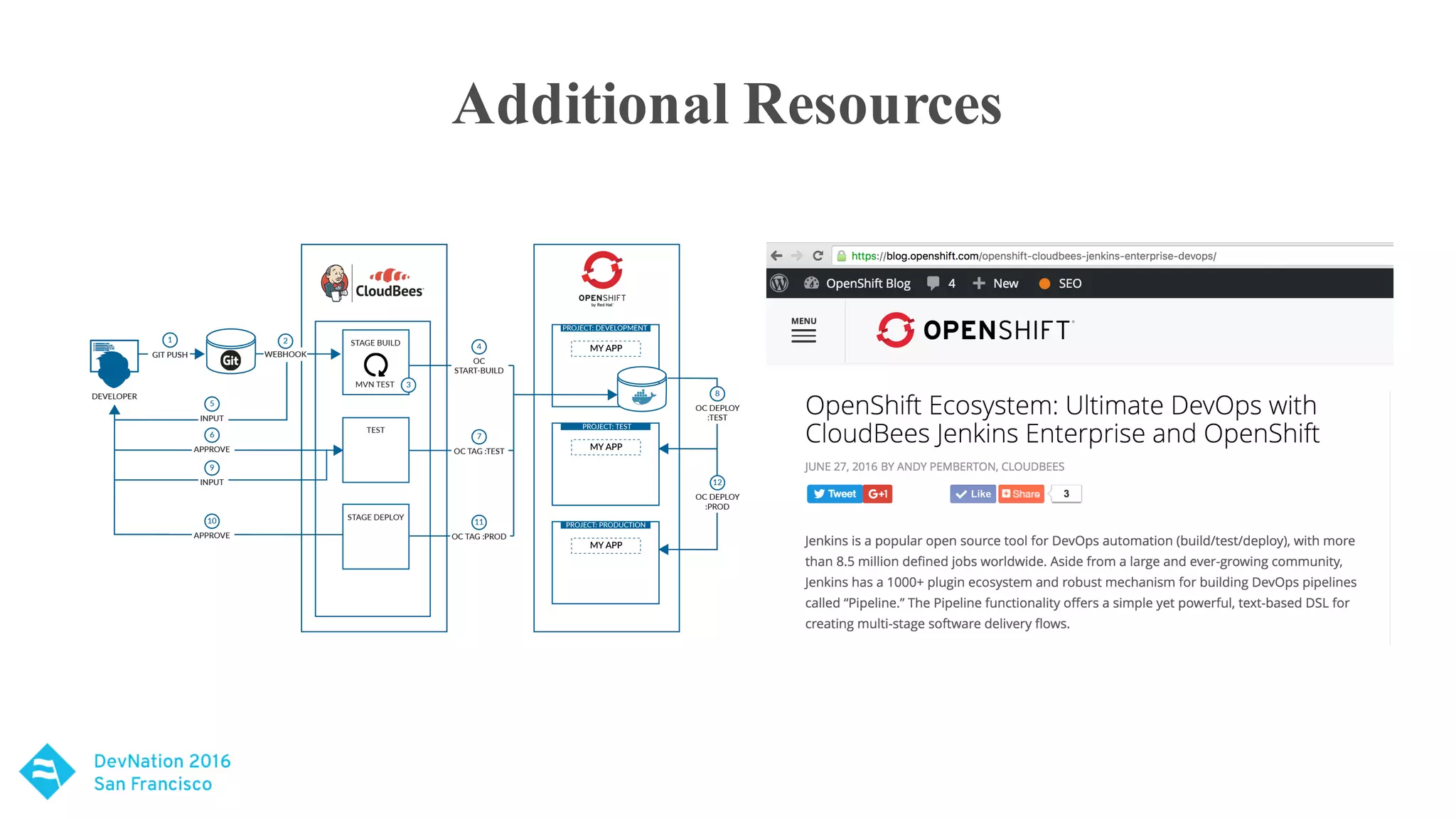

36. Additional Resources

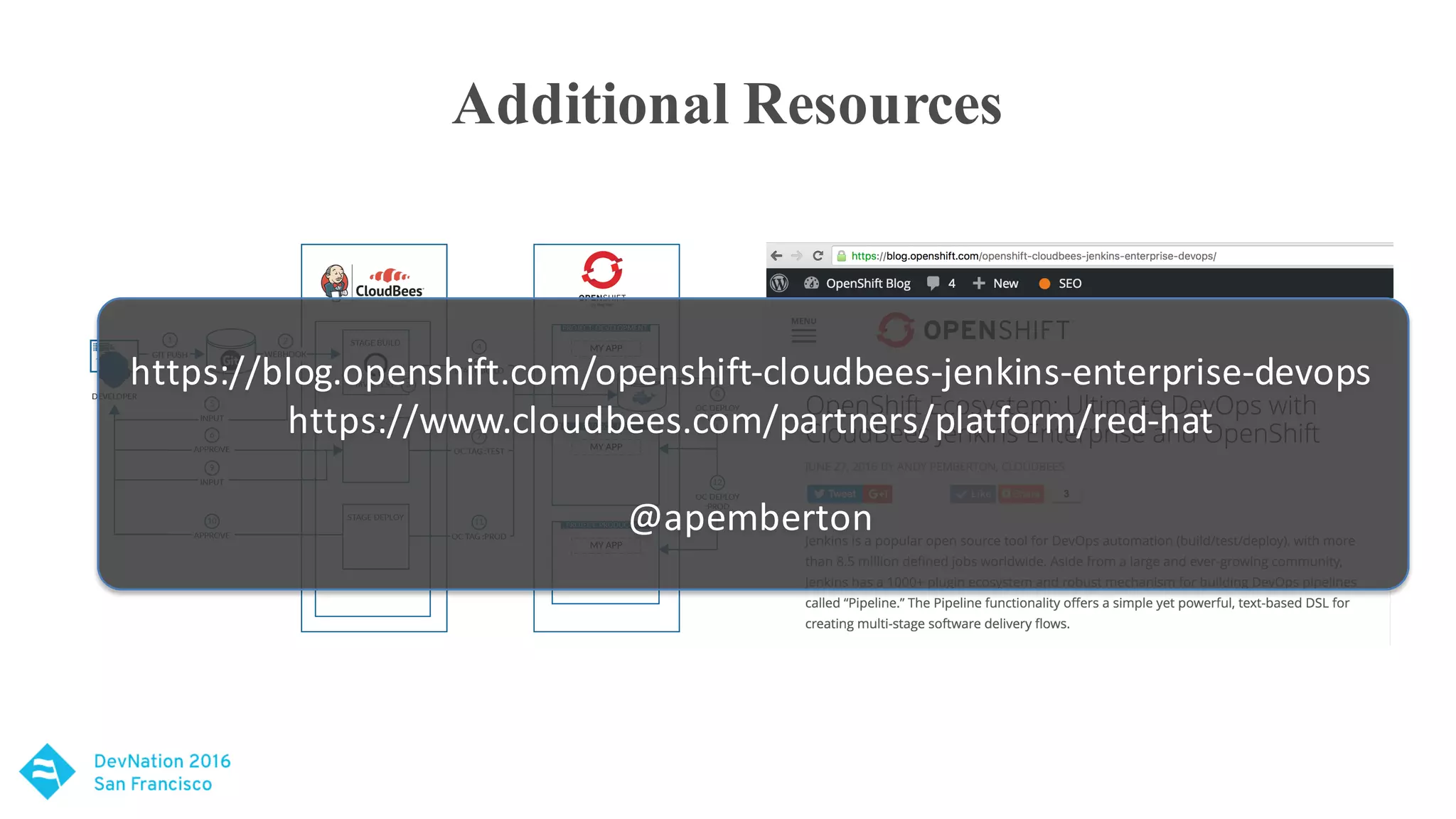

37. Additional Resources
https://blog.openshift.com/openshift-cloudbees-jenkins-enterprise-devops
https://www.cloudbees.com/partners/platform/red-hat
@apemberton

38. www.cloudbees.com/get-started

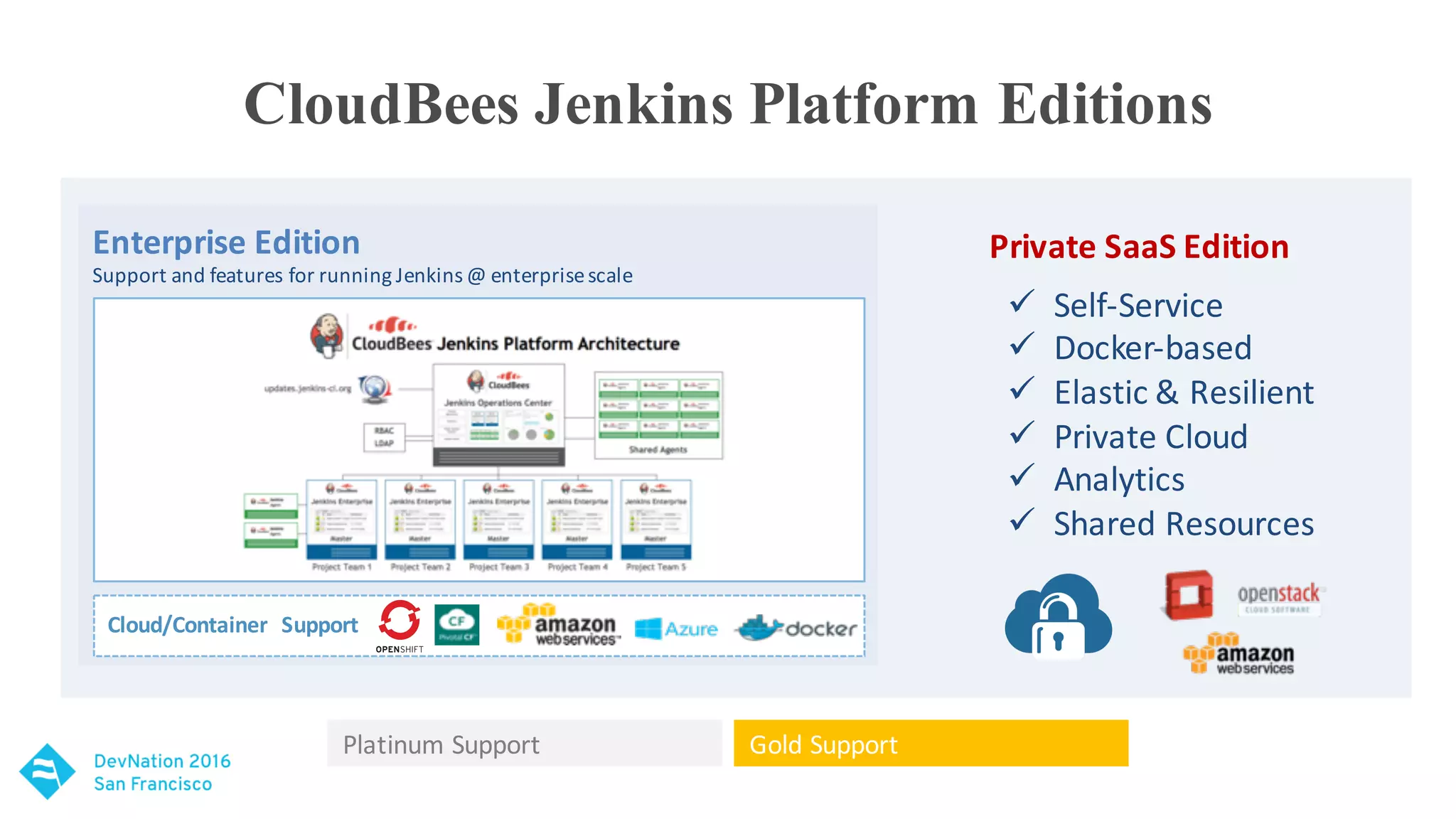

39. CloudBees Jenkins Platform Editions
Platinum Support Gold Support
Enterprise Edition
Cloud/Container Support
Private SaaS Edition
ü Self-Service
ü Docker-based
ü Elastic & Resilient
ü Private Cloud
ü Analytics
ü Shared Resources
