1. Ceph and Storage Management
with openATTIC
SUSE Monthly Open Source Talks
2016-07-06
Lenz Grimmer <lenz@openattic.org>

2. 2

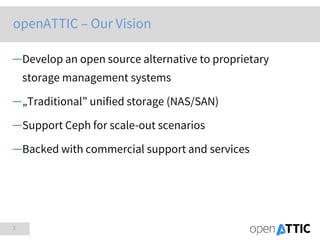

openATTIC – Our Vision
─Develop an open source alternative to proprietary
storage management systems
─„Traditional” unified storage (NAS/SAN)
─Support Ceph for scale-out scenarios
─Backed with commercial support and services

3. 3

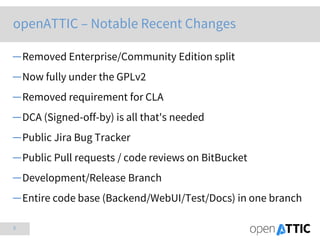

openATTIC – Notable Recent Changes
─Removed Enterprise/Community Edition split
─Now fully under the GPLv2
─Removed requirement for CLA
─DCA (Signed-off-by) is all that's needed
─Public Jira Bug Tracker
─Public Pull requests / code reviews on BitBucket
─Development/Release Branch
─Entire code base (Backend/WebUI/Test/Docs) in one branch

4. 4

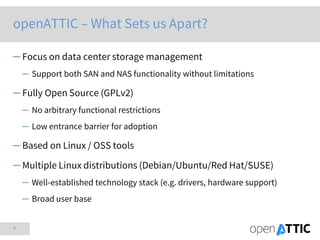

openATTIC – What Sets us Apart?
─ Focus on data center storage management
─ Support both SAN and NAS functionality without limitations
─ Fully Open Source (GPLv2)
─ No arbitrary functional restrictions
─ Low entrance barrier for adoption
─ Based on Linux / OSS tools
─ Multiple Linux distributions (Debian/Ubuntu/Red Hat/SUSE)
─ Well-established technology stack (e.g. drivers, hardware support)
─ Broad user base

5. 5

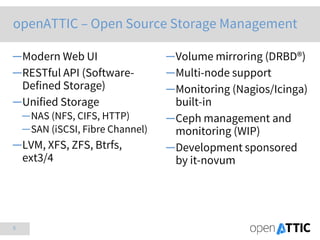

─Modern Web UI
─RESTful API (Software-
Defined Storage)
─Unified Storage
─NAS (NFS, CIFS, HTTP)
─SAN (iSCSI, Fibre Channel)
─LVM, XFS, ZFS, Btrfs,
ext3/4
─Volume mirroring (DRBD®)
─Multi-node support
─Monitoring (Nagios/Icinga)
built-in
─Ceph management and
monitoring (WIP)
─Development sponsored
by it-novum
openATTIC – Open Source Storage Management

6. 6

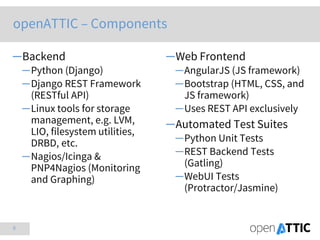

─Backend
─Python (Django)
─Django REST Framework
(RESTful API)
─Linux tools for storage
management, e.g. LVM,
LIO, filesystem utilities,
DRBD, etc.
─Nagios/Icinga &
PNP4Nagios (Monitoring
and Graphing)
─Web Frontend
─AngularJS (JS framework)
─Bootstrap (HTML, CSS, and
JS framework)
─Uses REST API exclusively
─Automated Test Suites
─Python Unit Tests
─REST Backend Tests
(Gatling)
─WebUI Tests
(Protractor/Jasmine)
openATTIC – Components

7. 7

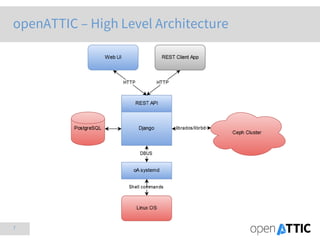

openATTIC – High Level Architecture

8. 8

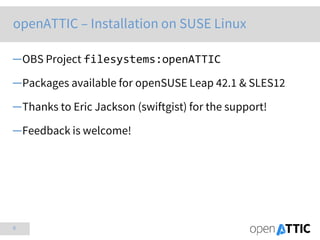

openATTIC – Installation on SUSE Linux
─OBS Project filesystems:openATTIC
─Packages available for openSUSE Leap 42.1 & SLES12
─Thanks to Eric Jackson (swiftgist) for the support!
─Feedback is welcome!

9. 9
openATTIC – Storage Development Roadmap
─ Add Disk and Storage Pool Management to the API & WebUI
─ Creating/Modifying LVM Volume Groups / MD RAID setups
─ Creating/Modifying Btrfs/ZFS Pools (incl. RAID setups)
─ Automatic discovery of disks/pools (via udev)
─ Monitoring Disk health (SMART)
─ Manage HW RAID controllers
─ Add volume mirroring support to the WebUI
─ Extend SAN functionality (more iSCSI/FC features)
─ Public Roadmap on the openATTIC Jira/Wiki to solicit
community feedback

10. 10

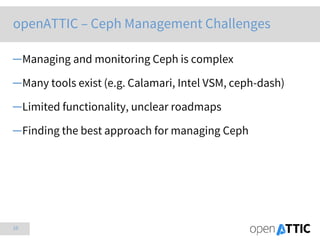

openATTIC – Ceph Management Challenges
─Managing and monitoring Ceph is complex
─Many tools exist (e.g. Calamari, Intel VSM, ceph-dash)
─Limited functionality, unclear roadmaps
─Finding the best approach for managing Ceph

11. 11
openATTIC – Ceph Management Goals
─Create a management & monitoring GUI tool
─A tool that administrators actually want to use
─That scales without becoming overwhelming
─Still should allow changes to be made elsewhere, without
becoming inconsistent

12. 12

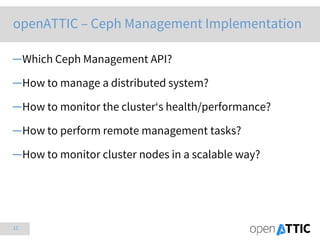

openATTIC – Ceph Management Implementation
─Which Ceph Management API?
─How to manage a distributed system?
─How to monitor the cluster‘s health/performance?
─How to perform remote management tasks?
─How to monitor cluster nodes in a scalable way?

13. 13

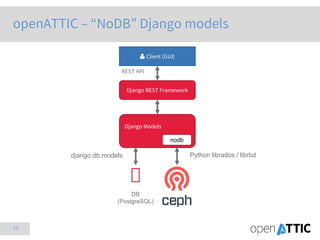

Django REST Framework
Django Models
Client (GUI)
REST API
DB
(PostgreSQL)
nodb
Python librados / librbddjango.db.models
openATTIC – “NoDB” Django models

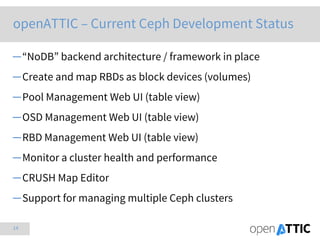

14. 14
openATTIC – Current Ceph Development Status
─“NoDB” backend architecture / framework in place
─Create and map RBDs as block devices (volumes)
─Pool Management Web UI (table view)
─OSD Management Web UI (table view)
─RBD Management Web UI (table view)
─Monitor a cluster health and performance
─CRUSH Map Editor
─Support for managing multiple Ceph clusters

15. 15

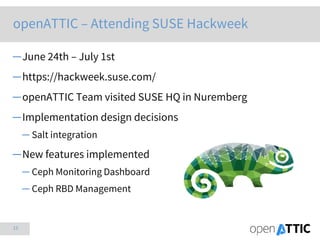

openATTIC – Attending SUSE Hackweek
─June 24th – July 1st
─https://hackweek.suse.com/
─openATTIC Team visited SUSE HQ in Nuremberg
─Implementation design decisions
─ Salt integration
─New features implemented
─ Ceph Monitoring Dashboard
─ Ceph RBD Management

16. 16

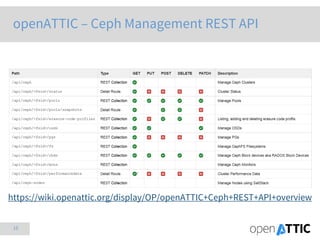

openATTIC – Ceph Management REST API
https://wiki.openattic.org/display/OP/openATTIC+Ceph+REST+API+overview

17. 17

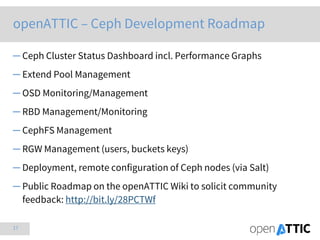

openATTIC – Ceph Development Roadmap
─ Ceph Cluster Status Dashboard incl. Performance Graphs
─ Extend Pool Management
─ OSD Monitoring/Management
─ RBD Management/Monitoring
─ CephFS Management
─ RGW Management (users, buckets keys)
─ Deployment, remote configuration of Ceph nodes (via Salt)
─ Public Roadmap on the openATTIC Wiki to solicit community
feedback: http://bit.ly/28PCTWf

18. 18

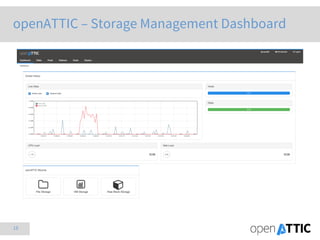

openATTIC – Storage Management Dashboard

19. 19

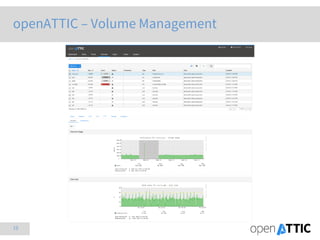

openATTIC – Volume Management

20. 20

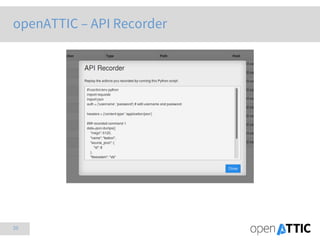

openATTIC – API Recorder

21. 21

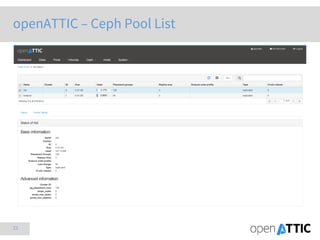

openATTIC – Ceph Pool List

22. 22

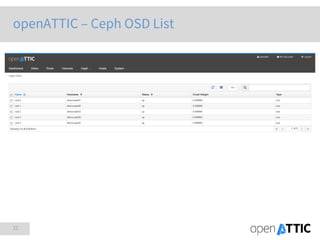

openATTIC – Ceph OSD List

23. 23

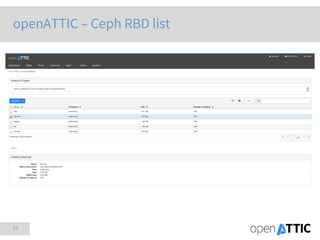

openATTIC – Ceph RBD list

24. 24
openATTIC – Create Ceph RBD

25. 25

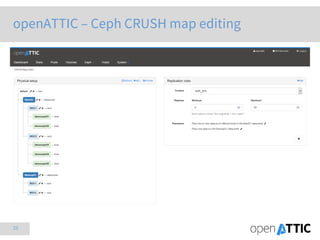

openATTIC – Ceph CRUSH map editing

26. 26
─ www.openattic.org
─ demo.openattic.org
─ blog.openattic.org
─ docs.openattic.org
─bitbucket.org/openattic
─tracker.openattic.org
─@openATTIC
─openATTIC
openATTIC – Resources

27. SUSE CERTIFIED LINUX PROFESSIONAL ACADEMY
Technical Training for SUSE Linux Enterprise Server 12
No Cost Flexible 12-Week Online Training
This popular training model is for technical sales/engineering employees of
SUSE partners interested in learning to install and manage SUSE Linux
Enterprise Server 12 (SLES 12). Participation in our SUSE Academy also
offers no-cost exam vouchers for participants seeking SUSE certification.
Learn through self-study of the SLES 12 curriculum and weekly webinar
reviews with our field-experienced instructor.
Each Academy participant will need 5-7 hours per week to self-study the
SLES 12 course assignments, plus 1 hour each week to attend a webinar
review of the key concepts studied. Certification is not required to participate.
Contact your company’s Partner Executive to ask to be sponsored in our
next Academy.

28. 28
Questions / Discussion

29. 29
Thank you!
