1. Ceph and Storage Management
with openATTIC
solutions.hamburg 2016, Hamburg, Germany
2016-09-09
Lenz Grimmer <lenz@openattic.org>

2. 2

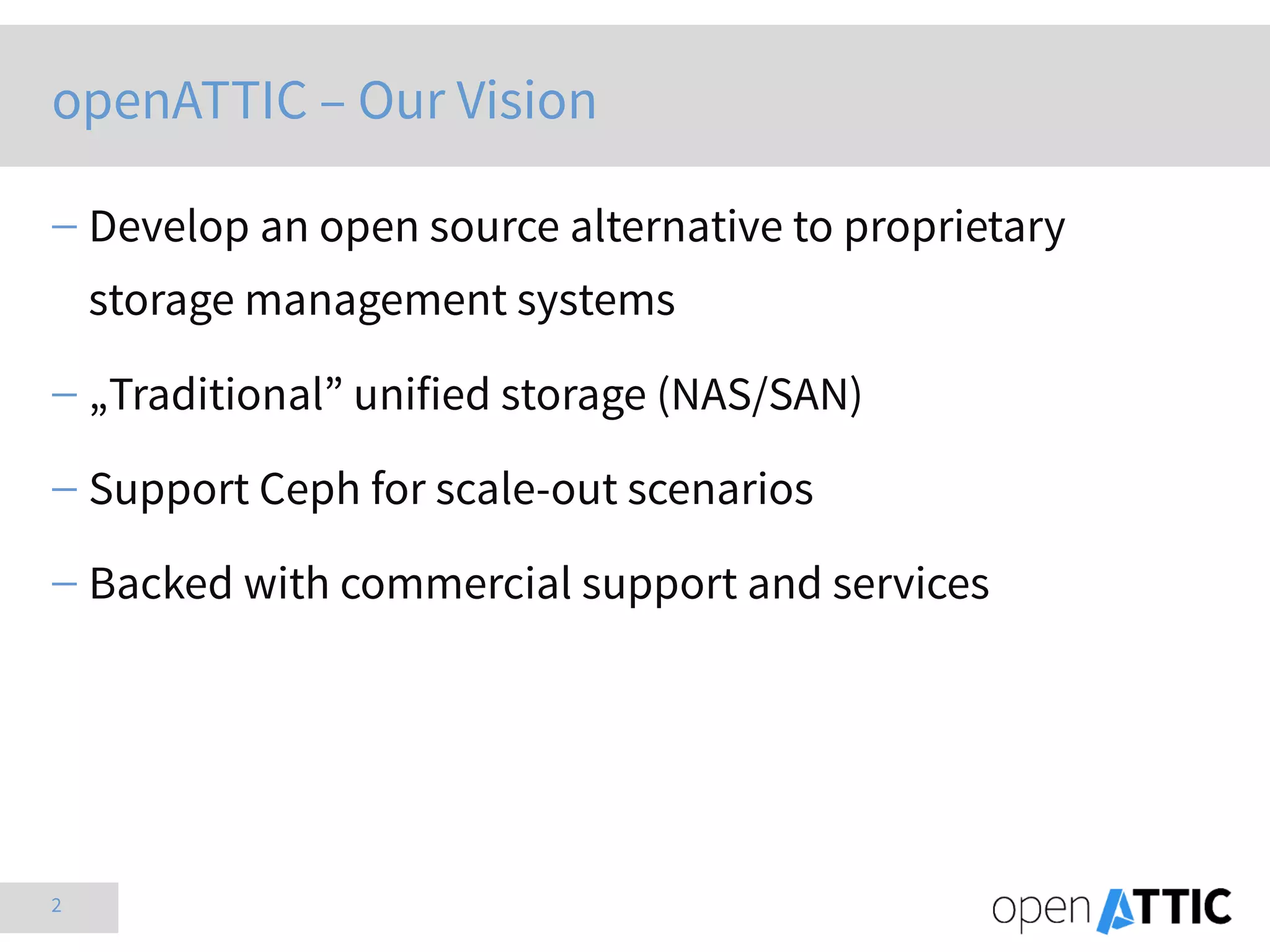

openATTIC – Our Vision
 Develop an open source alternative to proprietary
storage management systems
 „Traditional” unified storage (NAS/SAN)
 Support Ceph for scale-out scenarios
 Backed with commercial support and services

3. 3

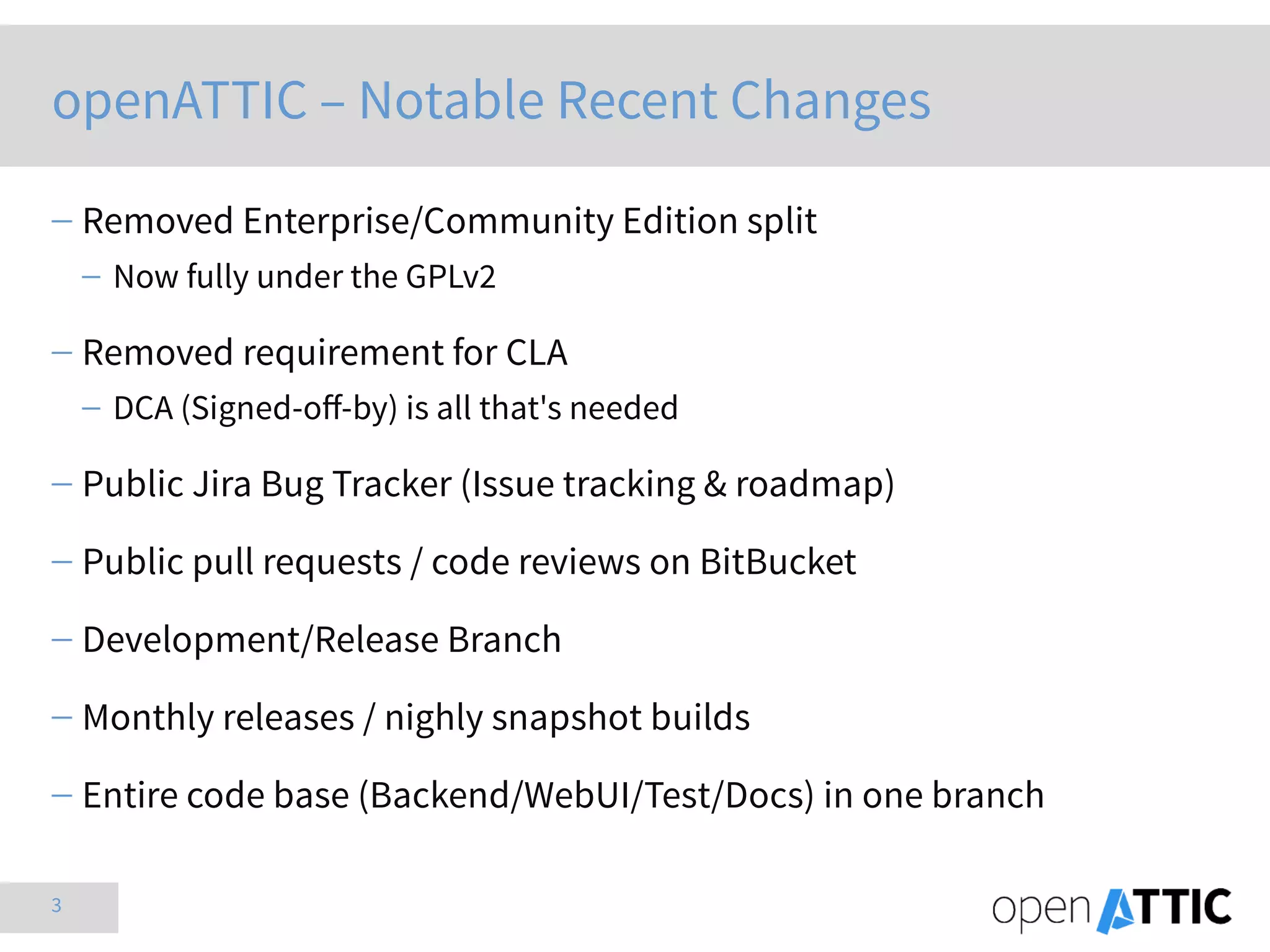

openATTIC – Notable Recent Changes
 Removed Enterprise/Community Edition split
 Now fully under the GPLv2
 Removed requirement for CLA
 DCA (Signed-off-by) is all that's needed
 Public Jira Bug Tracker (Issue tracking & roadmap)
 Public pull requests / code reviews on BitBucket
 Development/Release Branch
 Monthly releases / nighly snapshot builds
 Entire code base (Backend/WebUI/Test/Docs) in one branch

4. 4

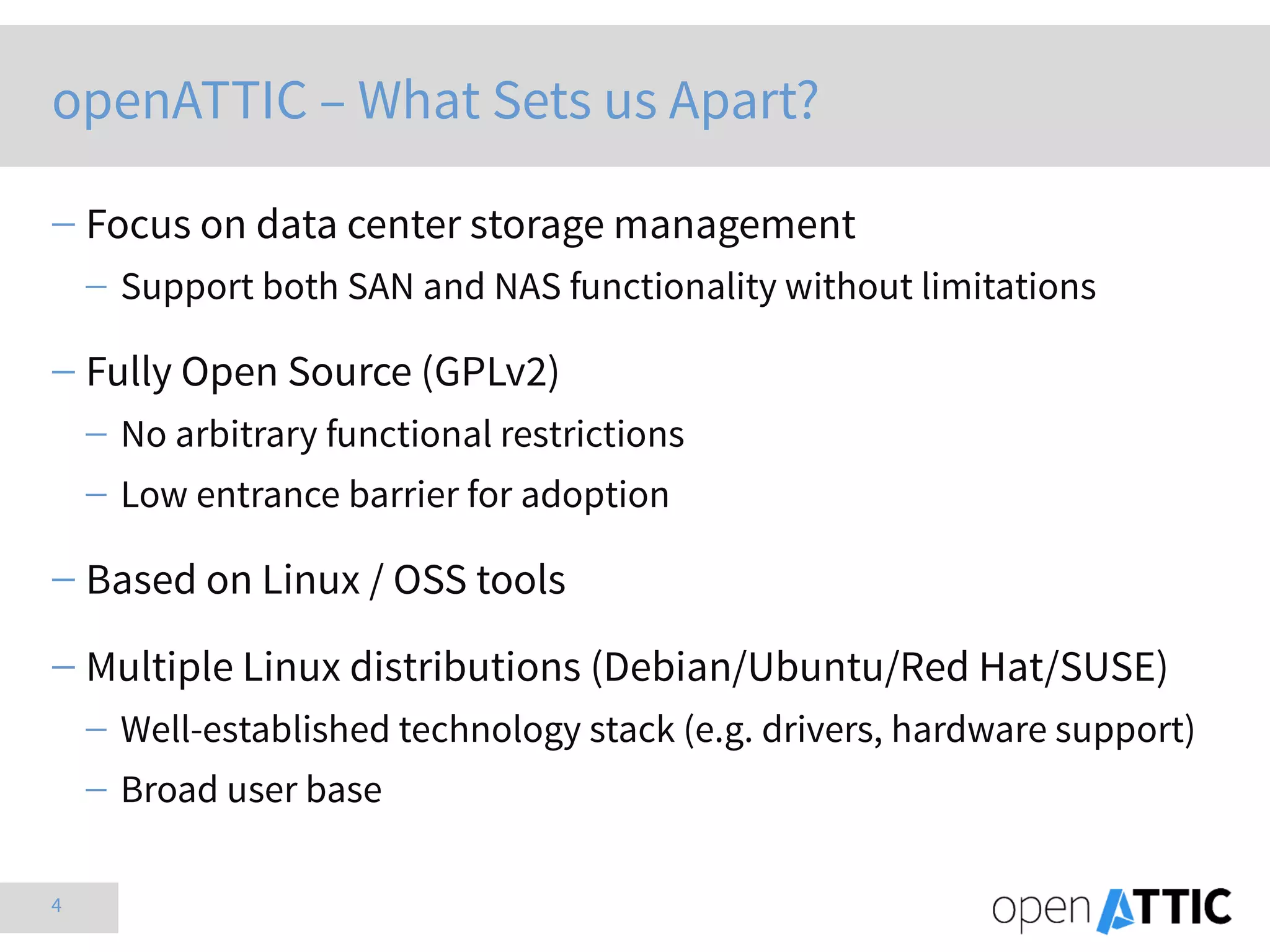

openATTIC – What Sets us Apart?
 Focus on data center storage management
 Support both SAN and NAS functionality without limitations
 Fully Open Source (GPLv2)
 No arbitrary functional restrictions
 Low entrance barrier for adoption
 Based on Linux / OSS tools
 Multiple Linux distributions (Debian/Ubuntu/Red Hat/SUSE)
 Well-established technology stack (e.g. drivers, hardware support)
 Broad user base

5. 5

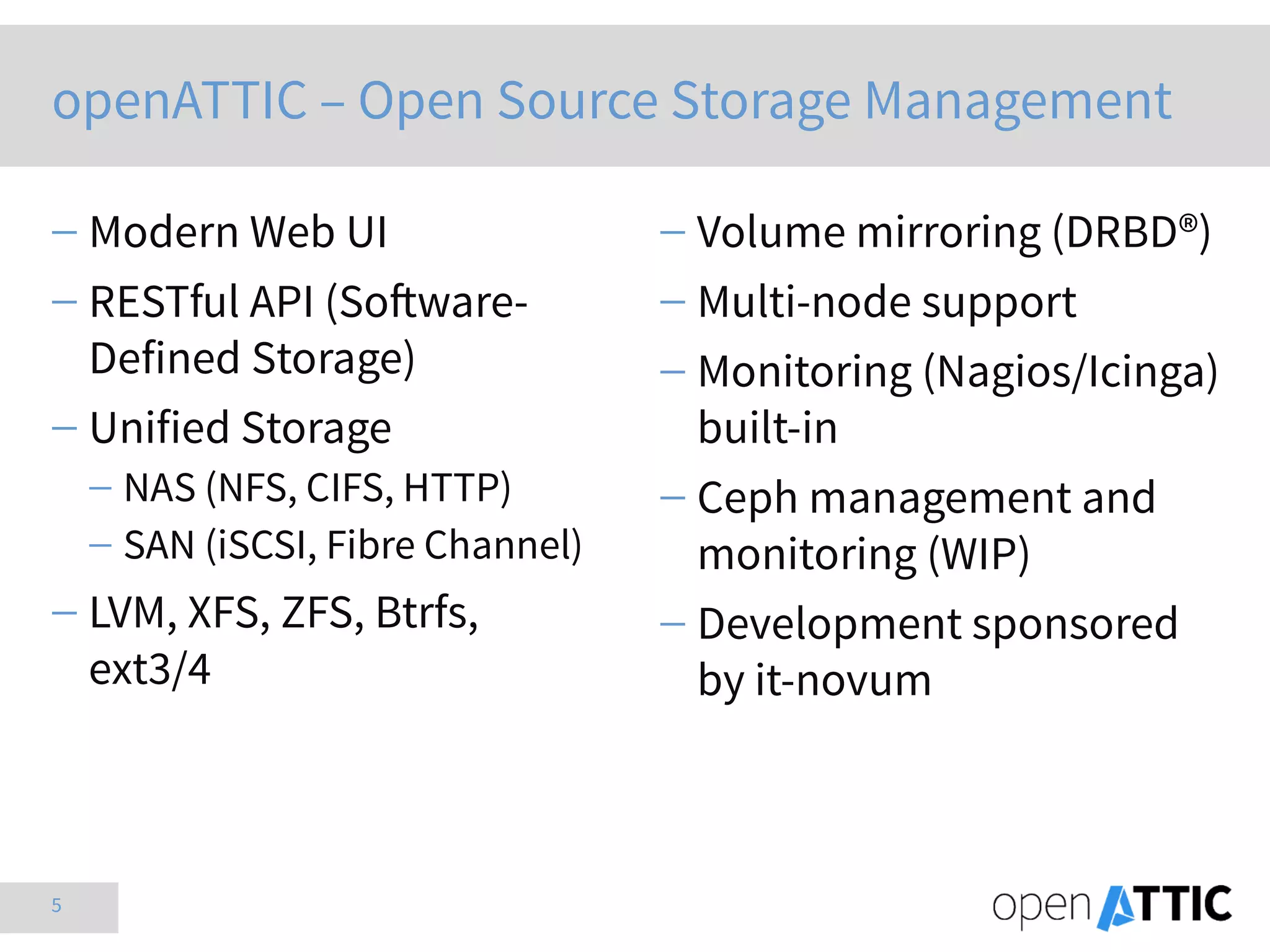

 Modern Web UI
 RESTful API (Software-
Defined Storage)
 Unified Storage
 NAS (NFS, CIFS, HTTP)
 SAN (iSCSI, Fibre Channel)
 LVM, XFS, ZFS, Btrfs,
ext3/4
 Volume mirroring (DRBD®)
 Multi-node support
 Monitoring (Nagios/Icinga)
built-in
 Ceph management and
monitoring (WIP)
 Development sponsored
by it-novum
openATTIC – Open Source Storage Management

6. 6

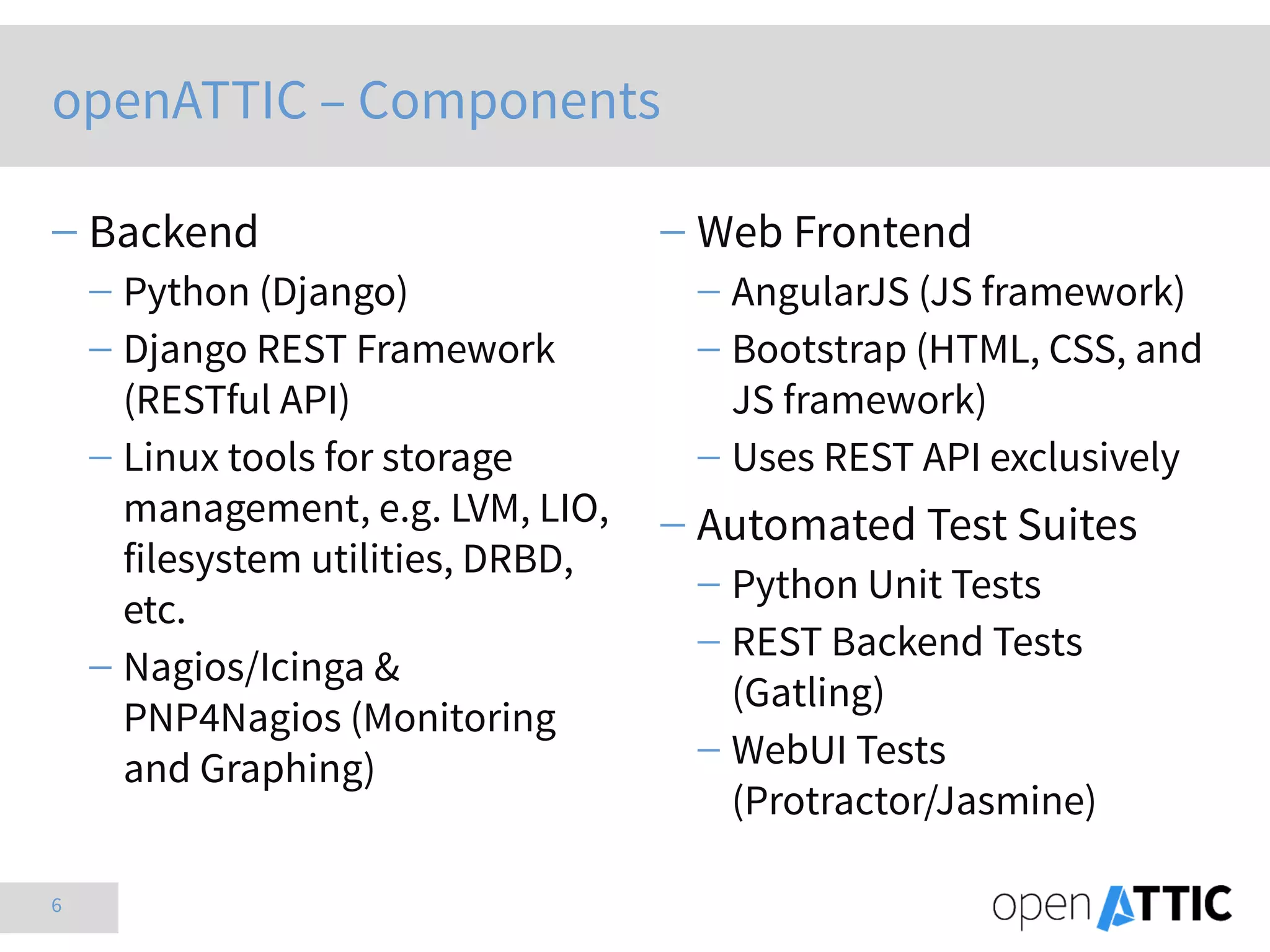

 Backend
 Python (Django)
 Django REST Framework
(RESTful API)
 Linux tools for storage
management, e.g. LVM, LIO,
filesystem utilities, DRBD,
etc.
 Nagios/Icinga &
PNP4Nagios (Monitoring
and Graphing)
 Web Frontend
 AngularJS (JS framework)
 Bootstrap (HTML, CSS, and
JS framework)
 Uses REST API exclusively
 Automated Test Suites
 Python Unit Tests
 REST Backend Tests
(Gatling)
 WebUI Tests
(Protractor/Jasmine)
openATTIC – Components

7. 7

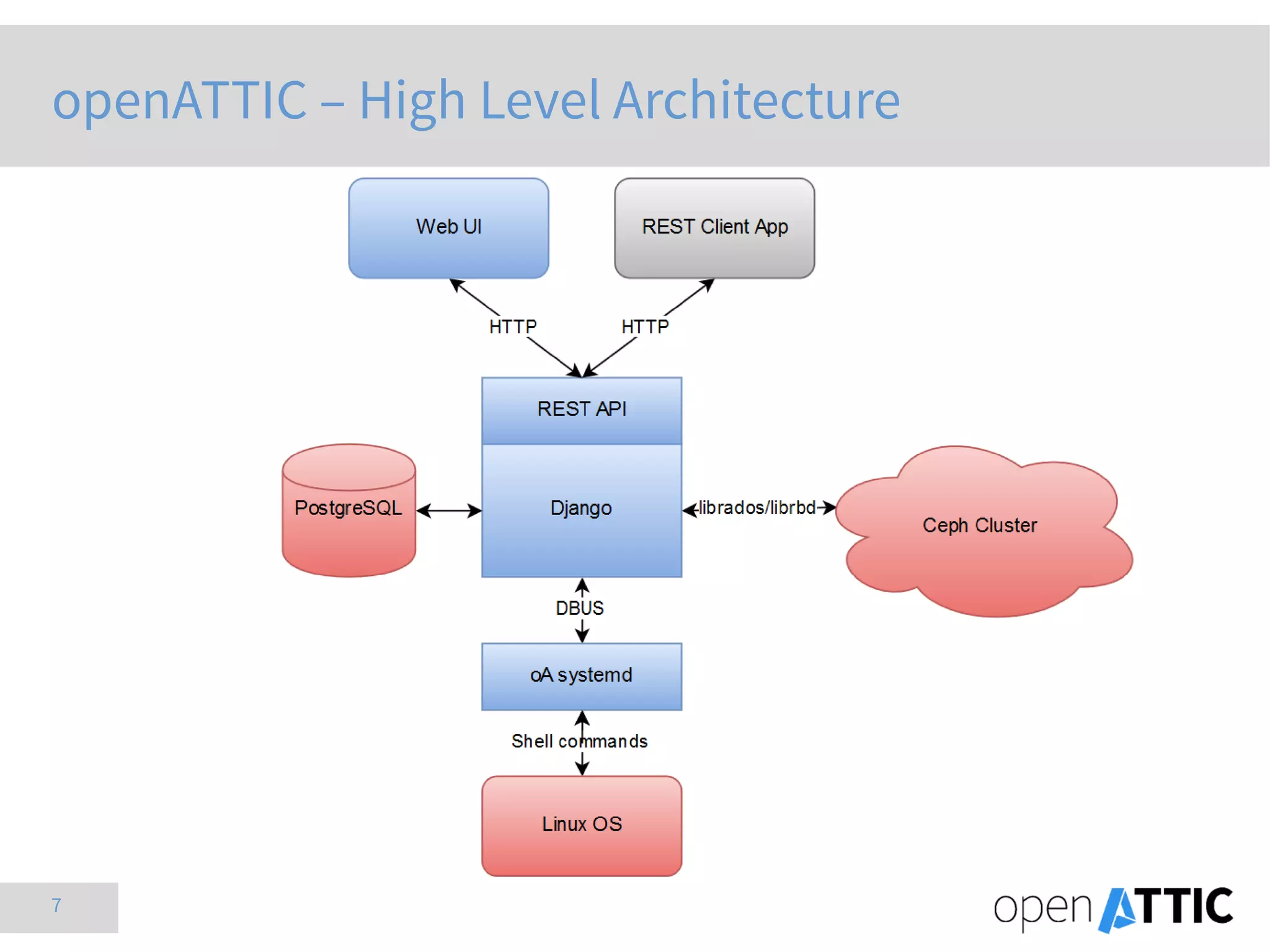

openATTIC – High Level Architecture

8. 8

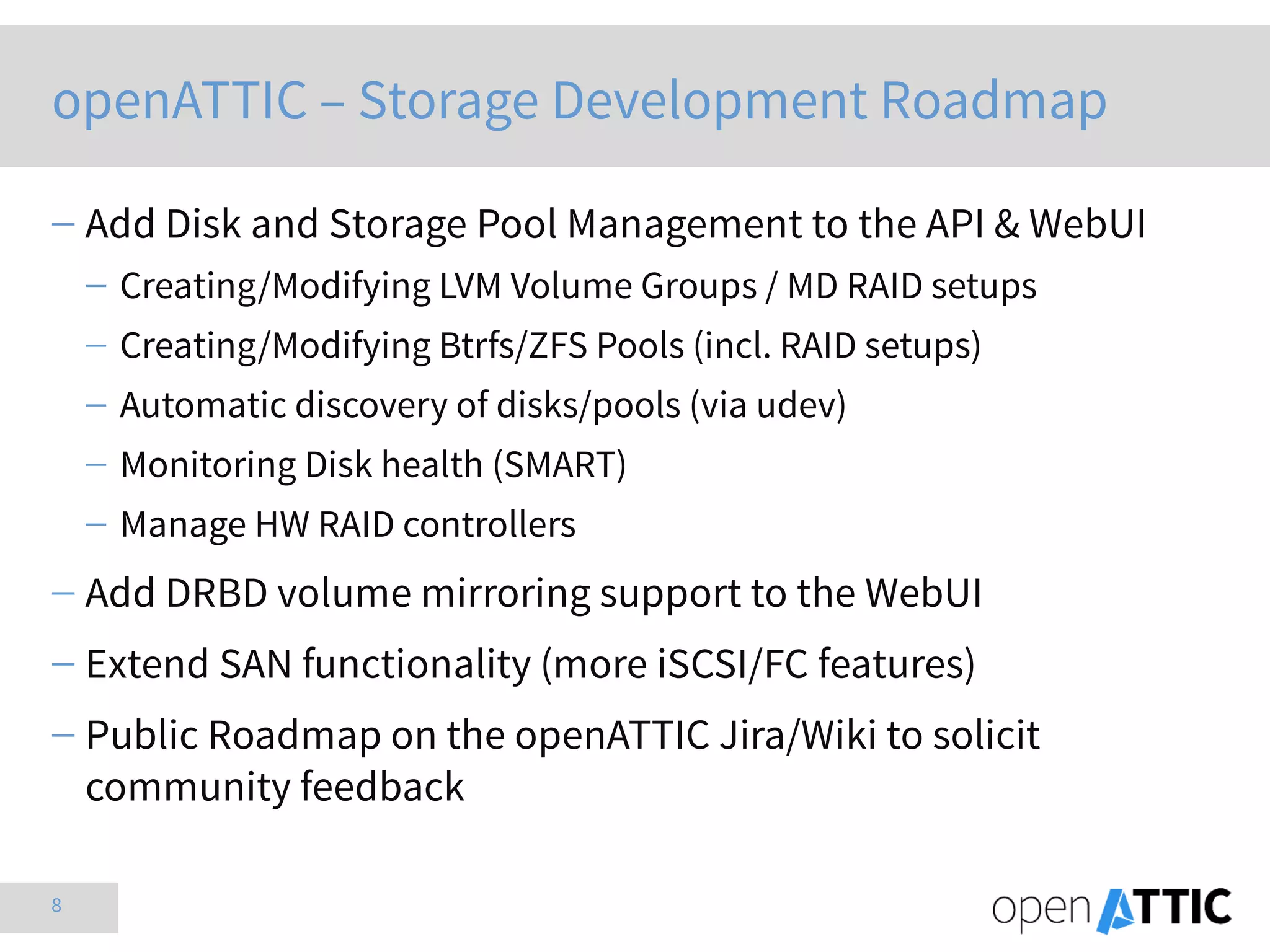

openATTIC – Storage Development Roadmap
 Add Disk and Storage Pool Management to the API & WebUI
 Creating/Modifying LVM Volume Groups / MD RAID setups
 Creating/Modifying Btrfs/ZFS Pools (incl. RAID setups)
 Automatic discovery of disks/pools (via udev)
 Monitoring Disk health (SMART)
 Manage HW RAID controllers
 Add DRBD volume mirroring support to the WebUI
 Extend SAN functionality (more iSCSI/FC features)
 Public Roadmap on the openATTIC Jira/Wiki to solicit
community feedback

9. 9

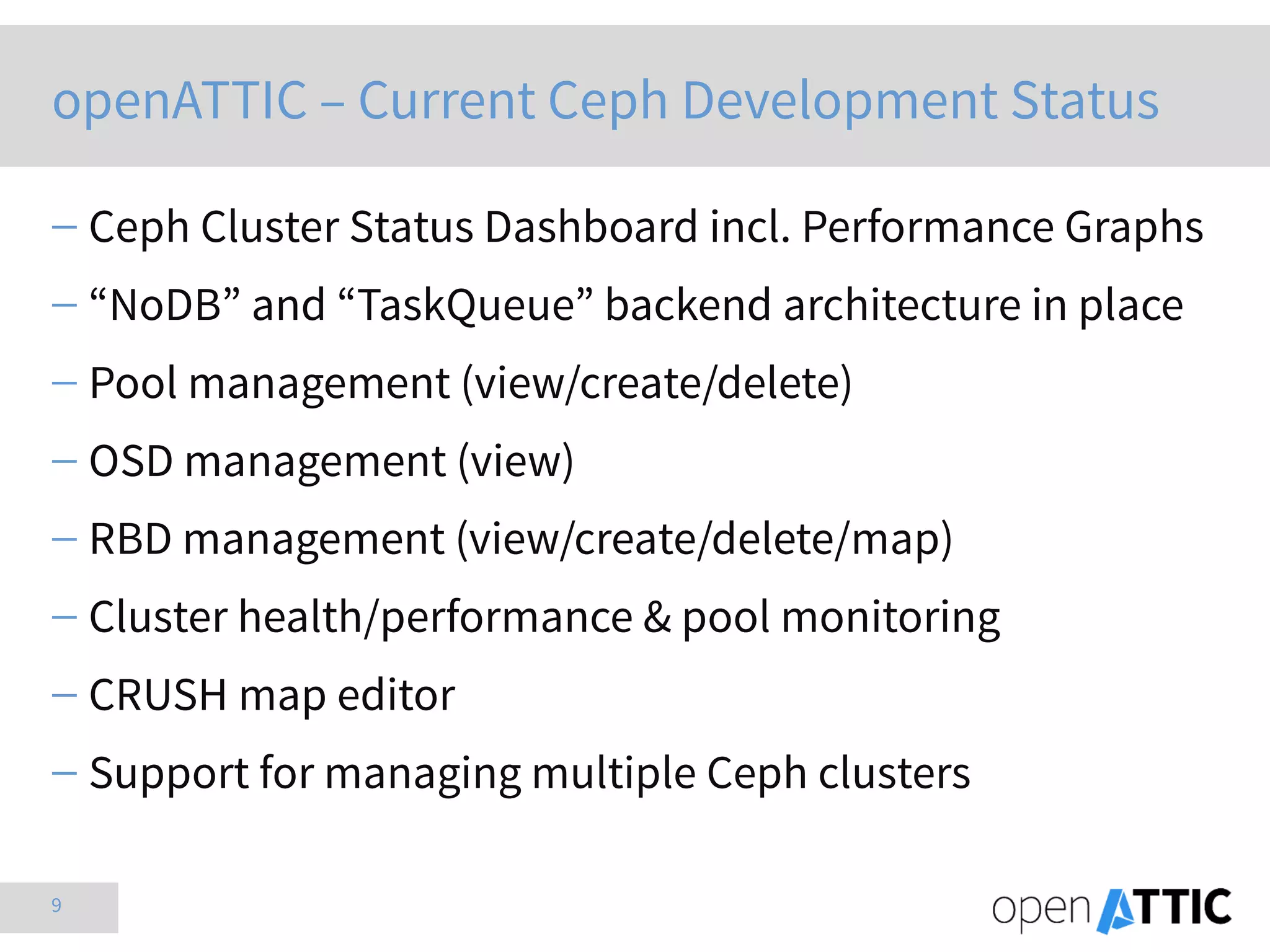

openATTIC – Current Ceph Development Status
 Ceph Cluster Status Dashboard incl. Performance Graphs
 “NoDB” and “TaskQueue” backend architecture in place
 Pool management (view/create/delete)
 OSD management (view)
 RBD management (view/create/delete/map)
 Cluster health/performance & pool monitoring
 CRUSH map editor
 Support for managing multiple Ceph clusters

10. 10

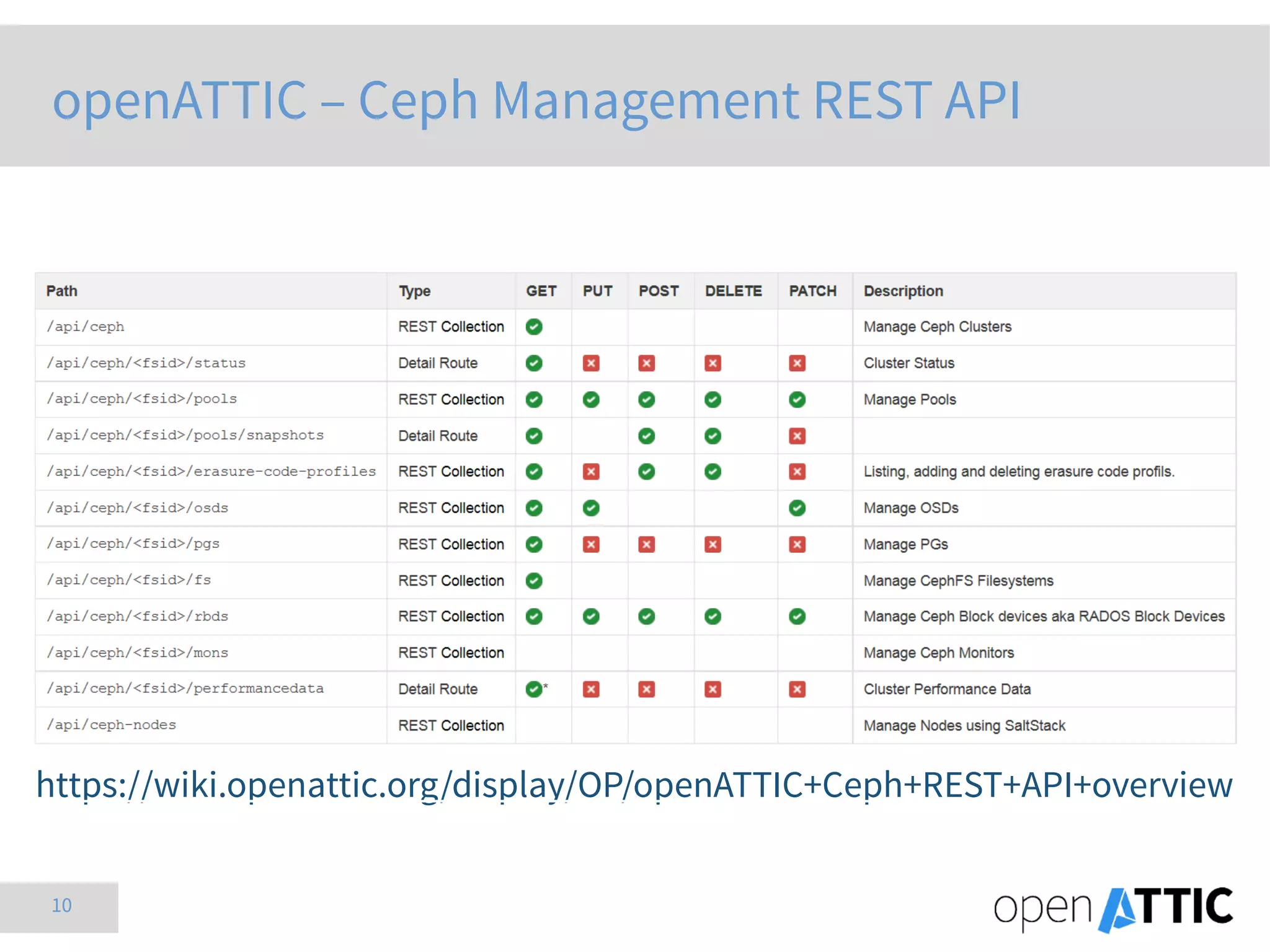

https://wiki.openattic.org/display/OP/openATTIC+Ceph+REST+API+overview
openATTIC – Ceph Management REST API

11. 11

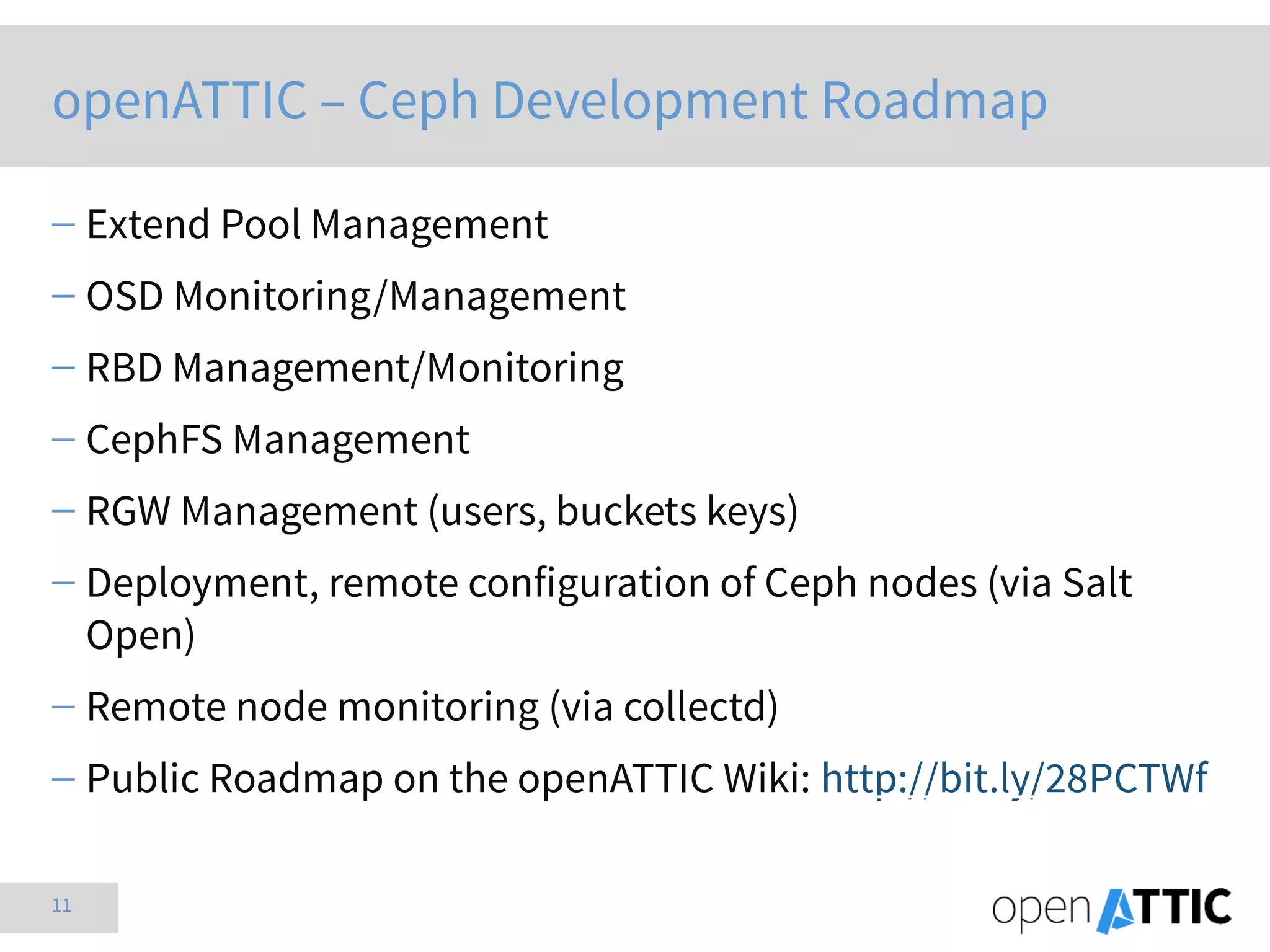

openATTIC – Ceph Development Roadmap
 Extend Pool Management
 OSD Monitoring/Management
 RBD Management/Monitoring
 CephFS Management
 RGW Management (users, buckets keys)
 Deployment, remote configuration of Ceph nodes (via Salt
Open)
 Remote node monitoring (via collectd)
 Public Roadmap on the openATTIC Wiki: http://bit.ly/28PCTWf

12. 12

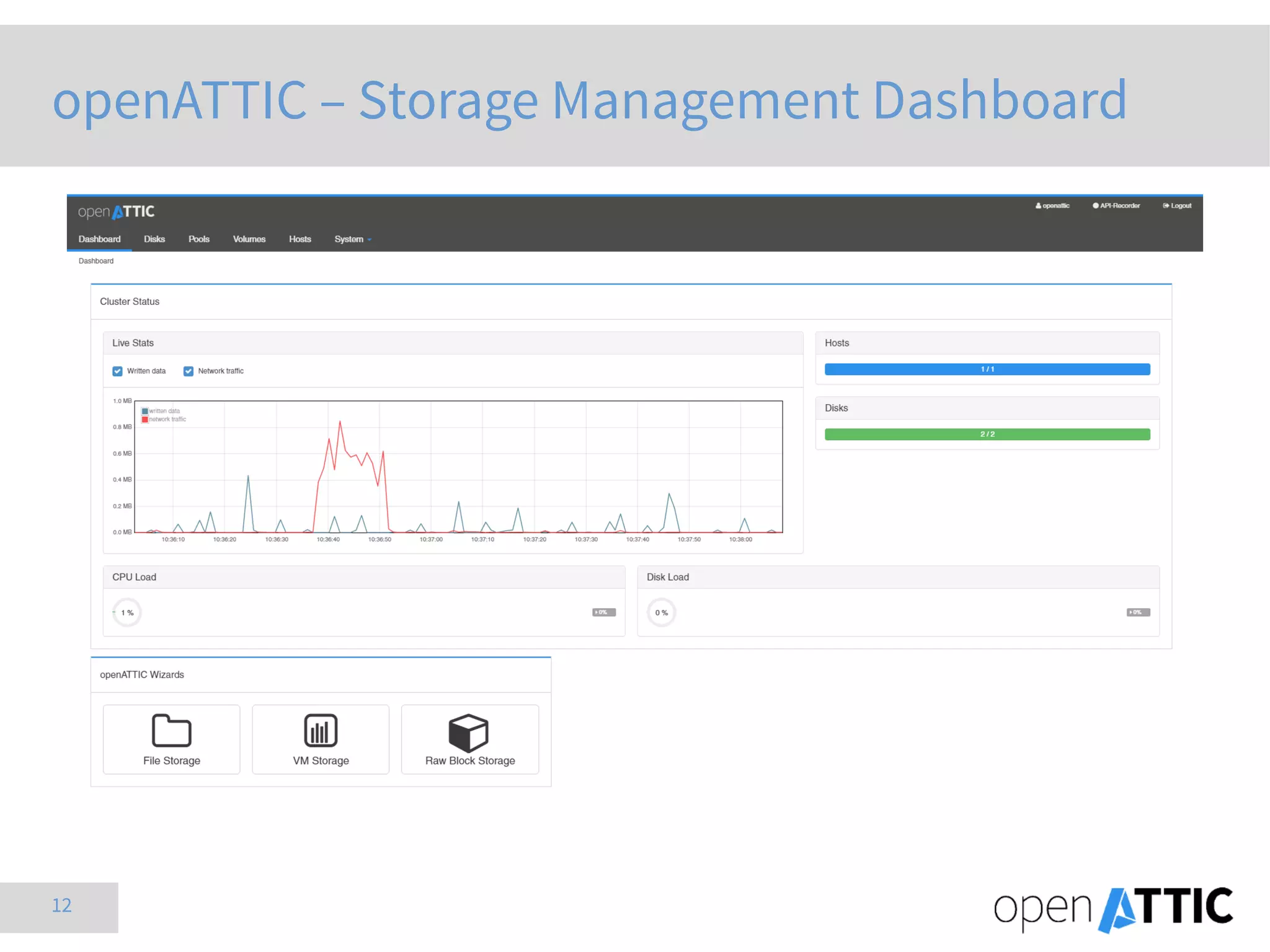

openATTIC – Storage Management Dashboard

13. 13

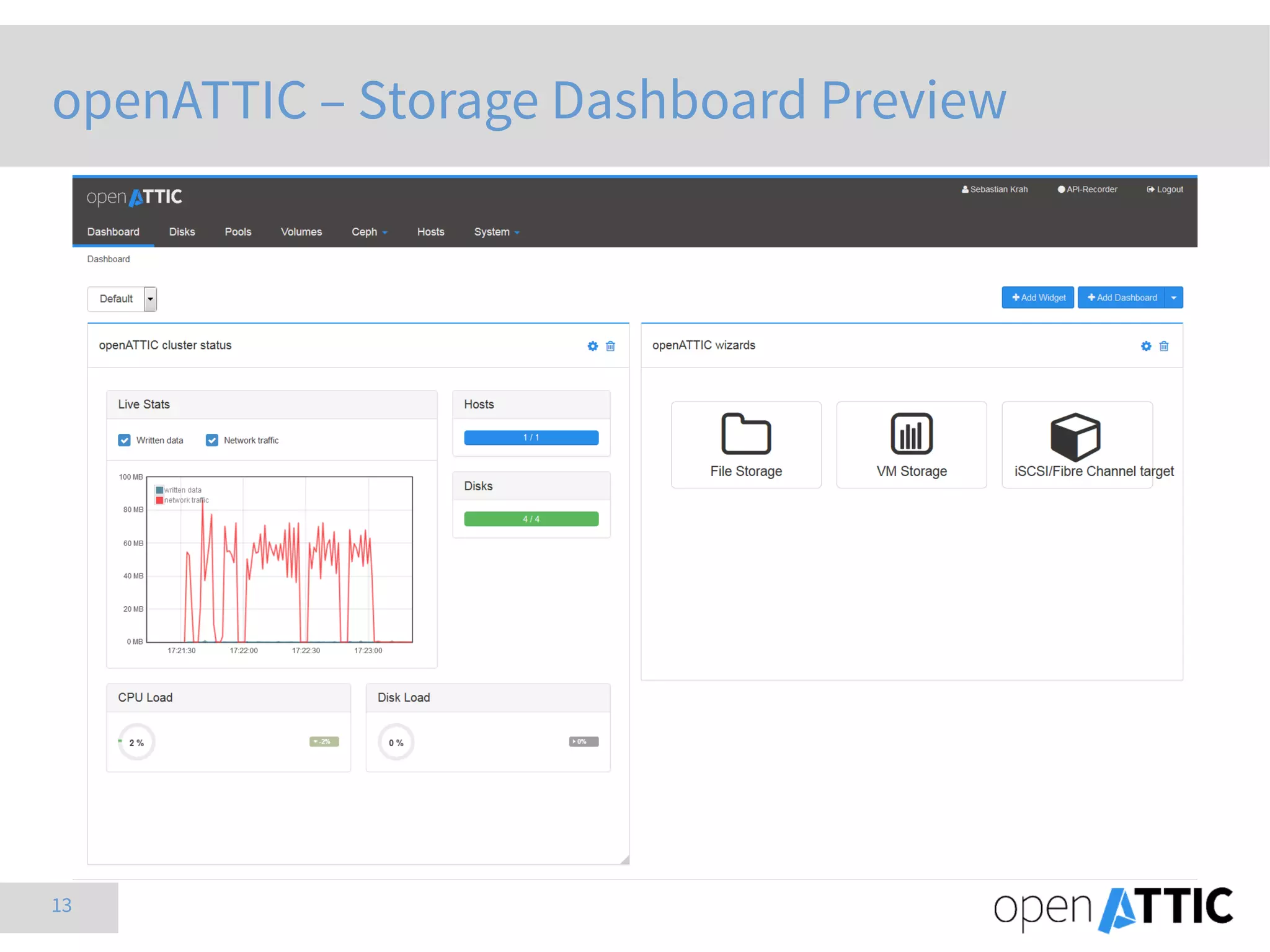

openATTIC – Storage Dashboard Preview

14. 14

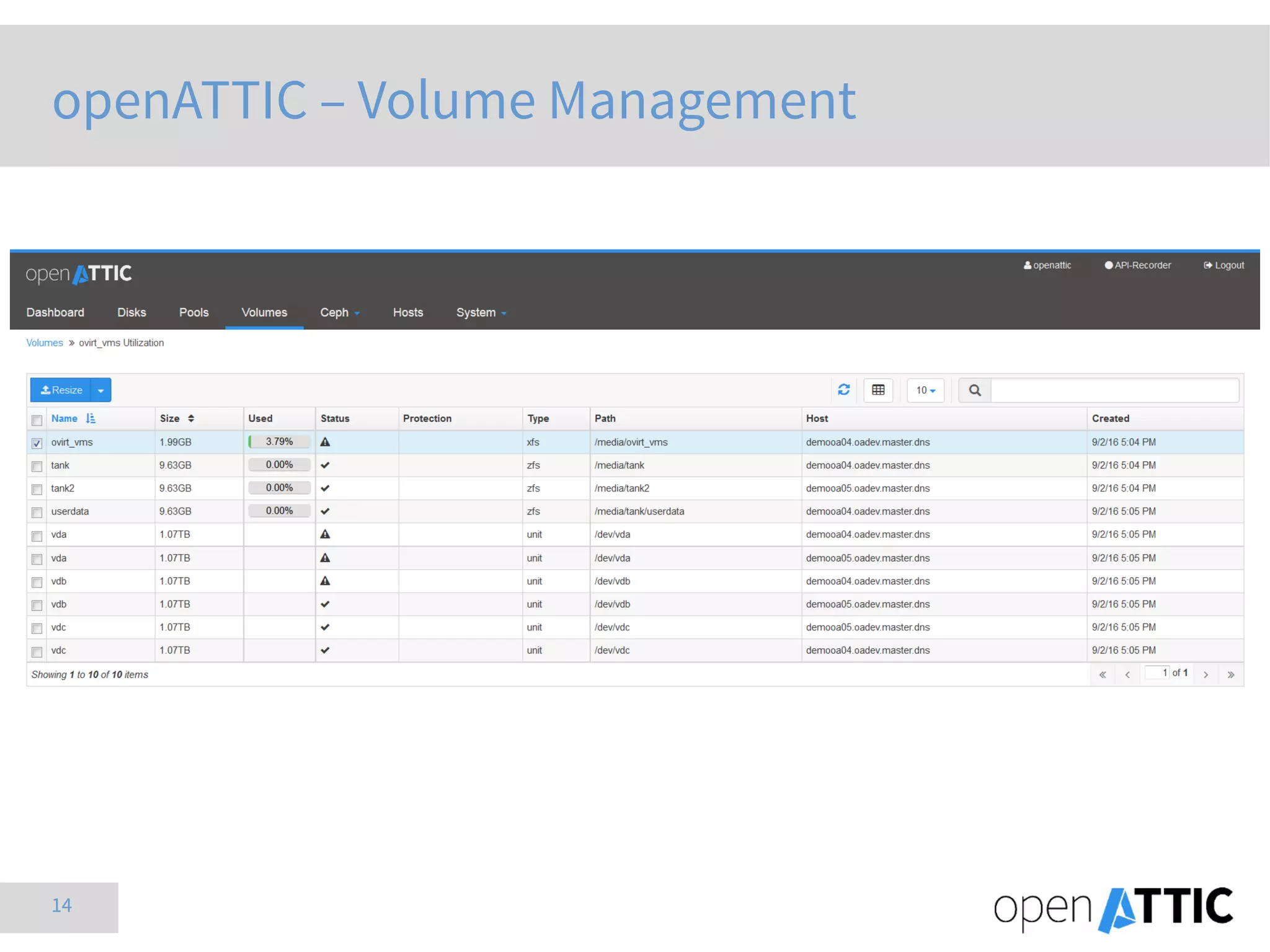

openATTIC – Volume Management

15. 15

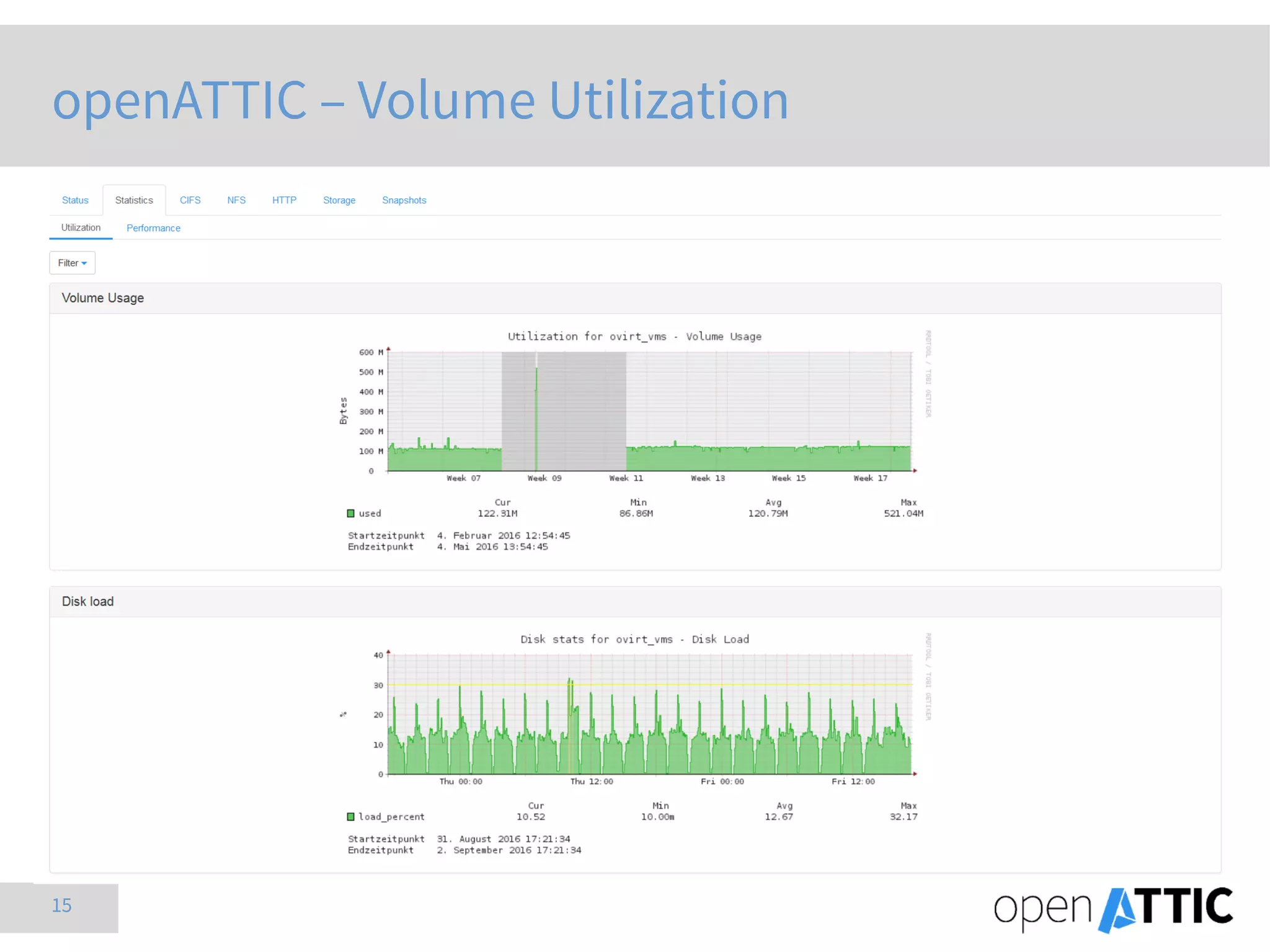

openATTIC – Volume Utilization

16. 16

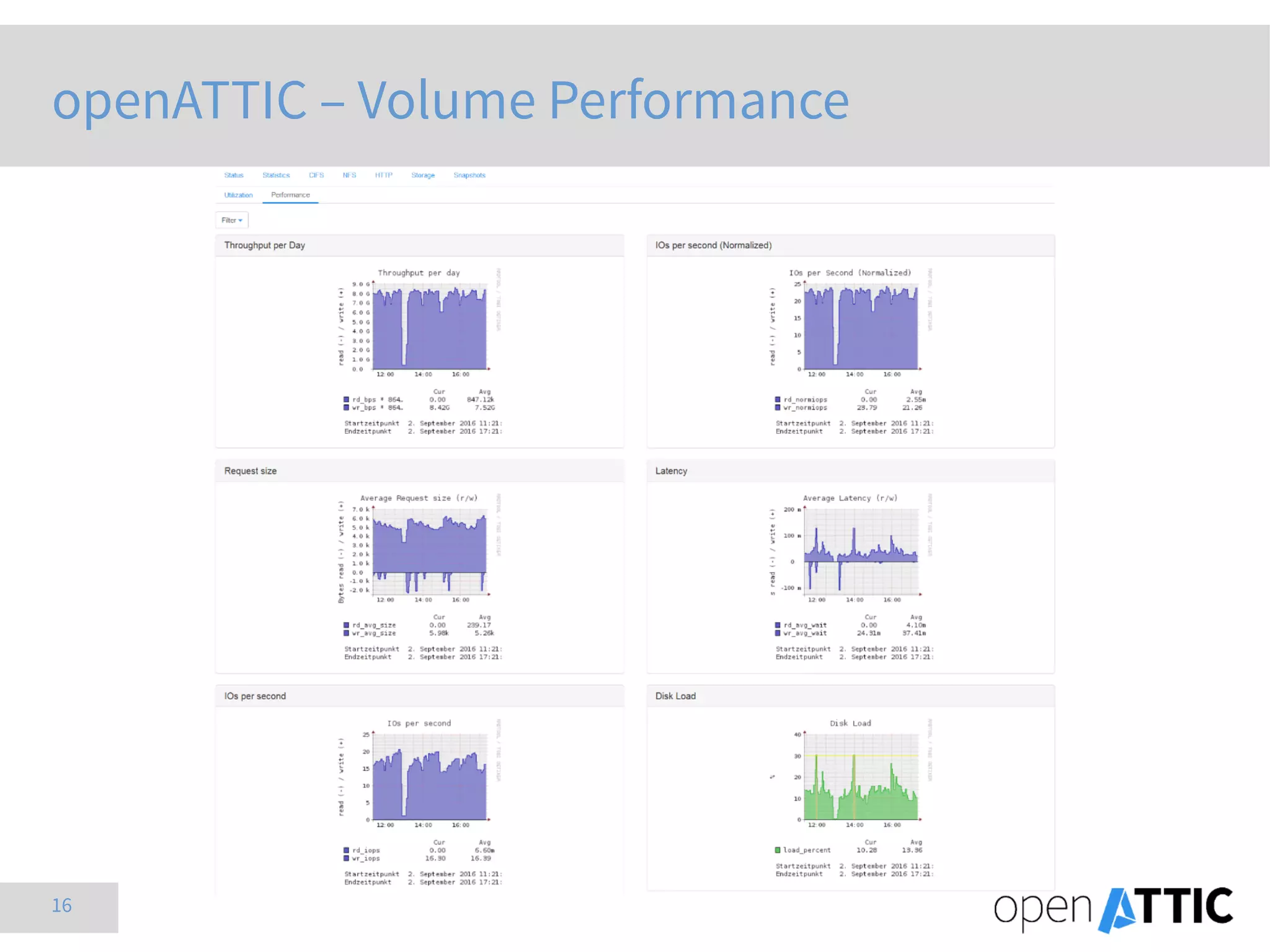

openATTIC – Volume Performance

17. 17

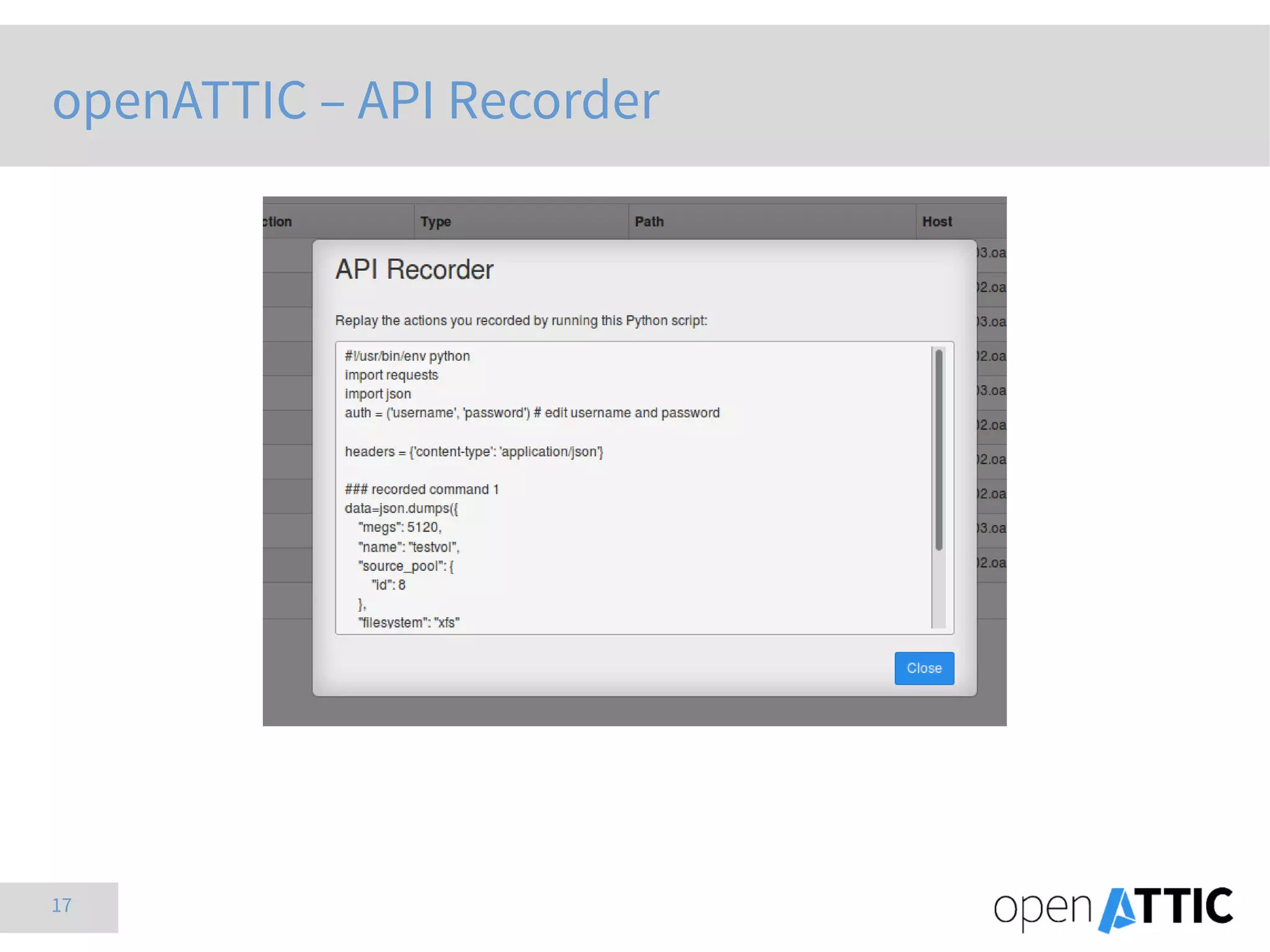

openATTIC – API Recorder

18. 18

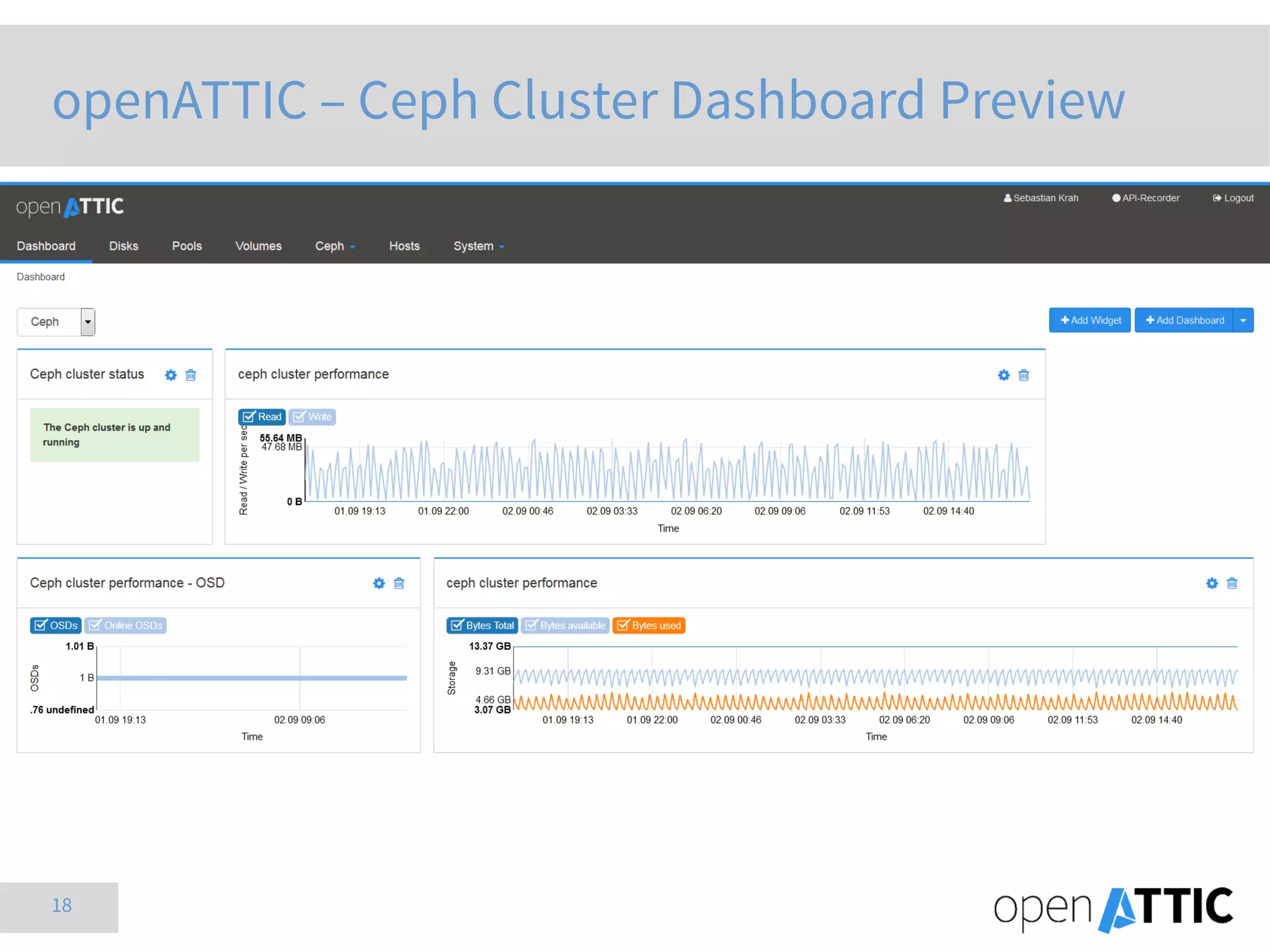

openATTIC – Ceph Cluster Dashboard Preview

19. 19

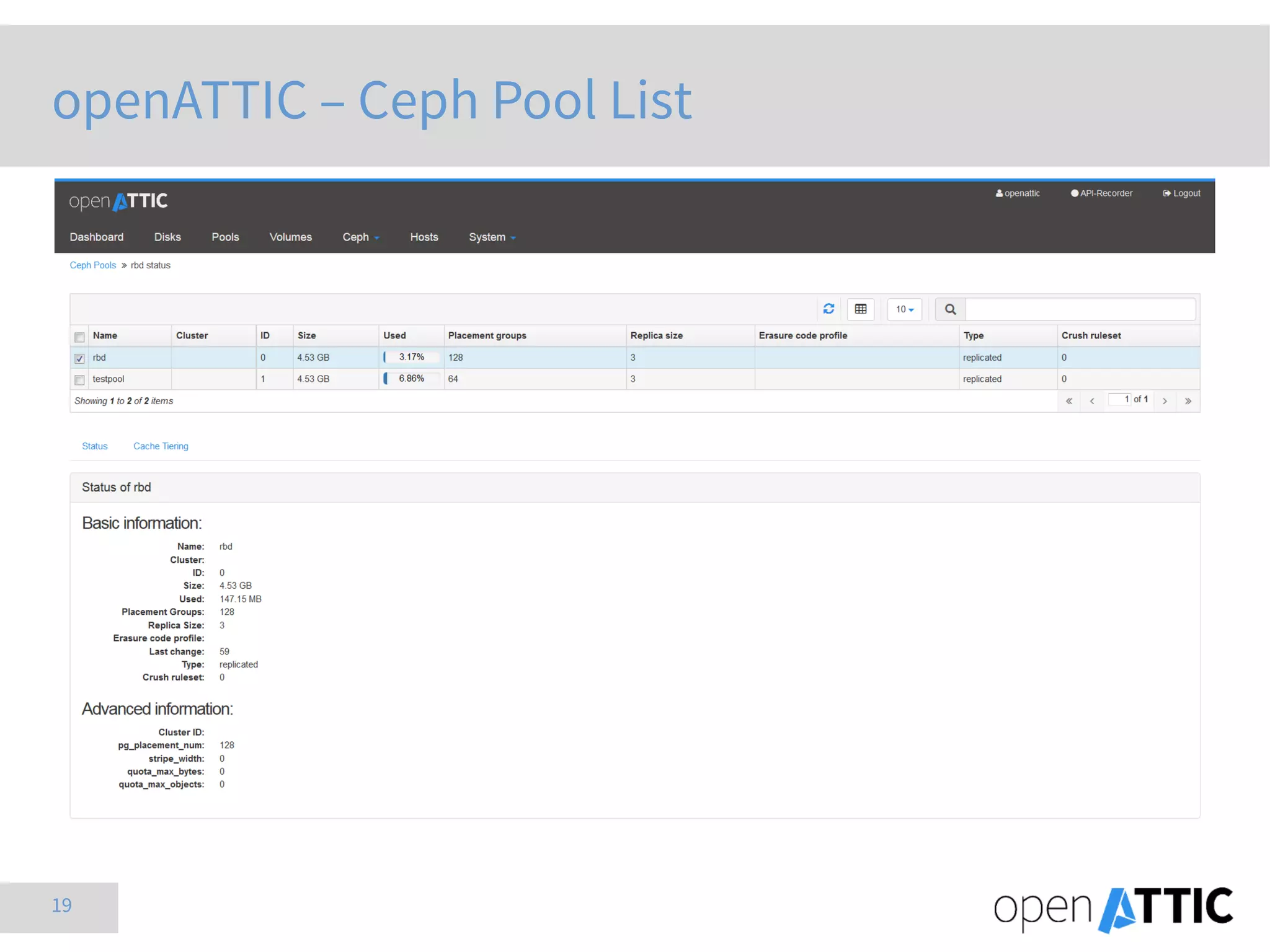

openATTIC – Ceph Pool List

20. 20

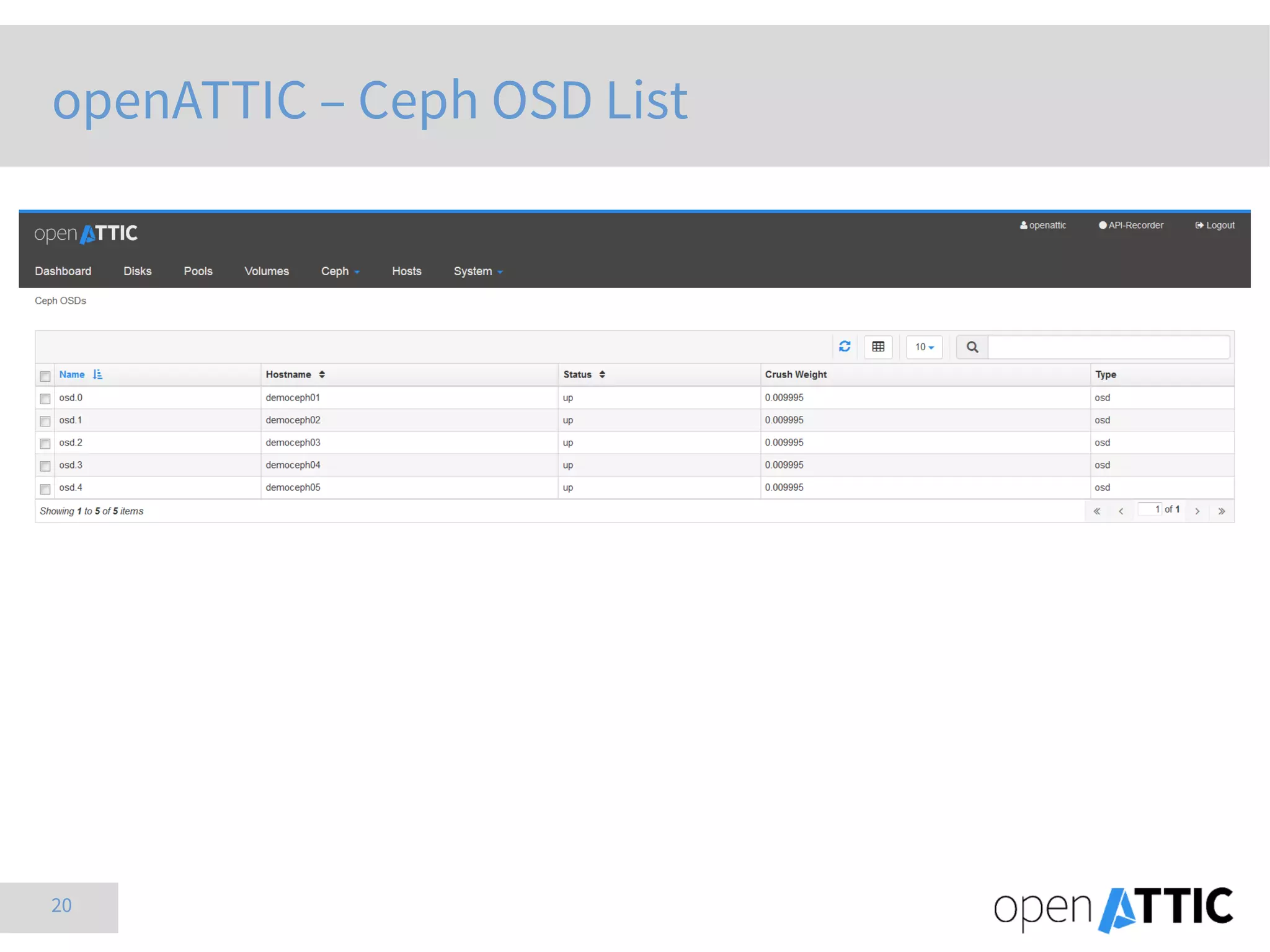

openATTIC – Ceph OSD List

21. 21

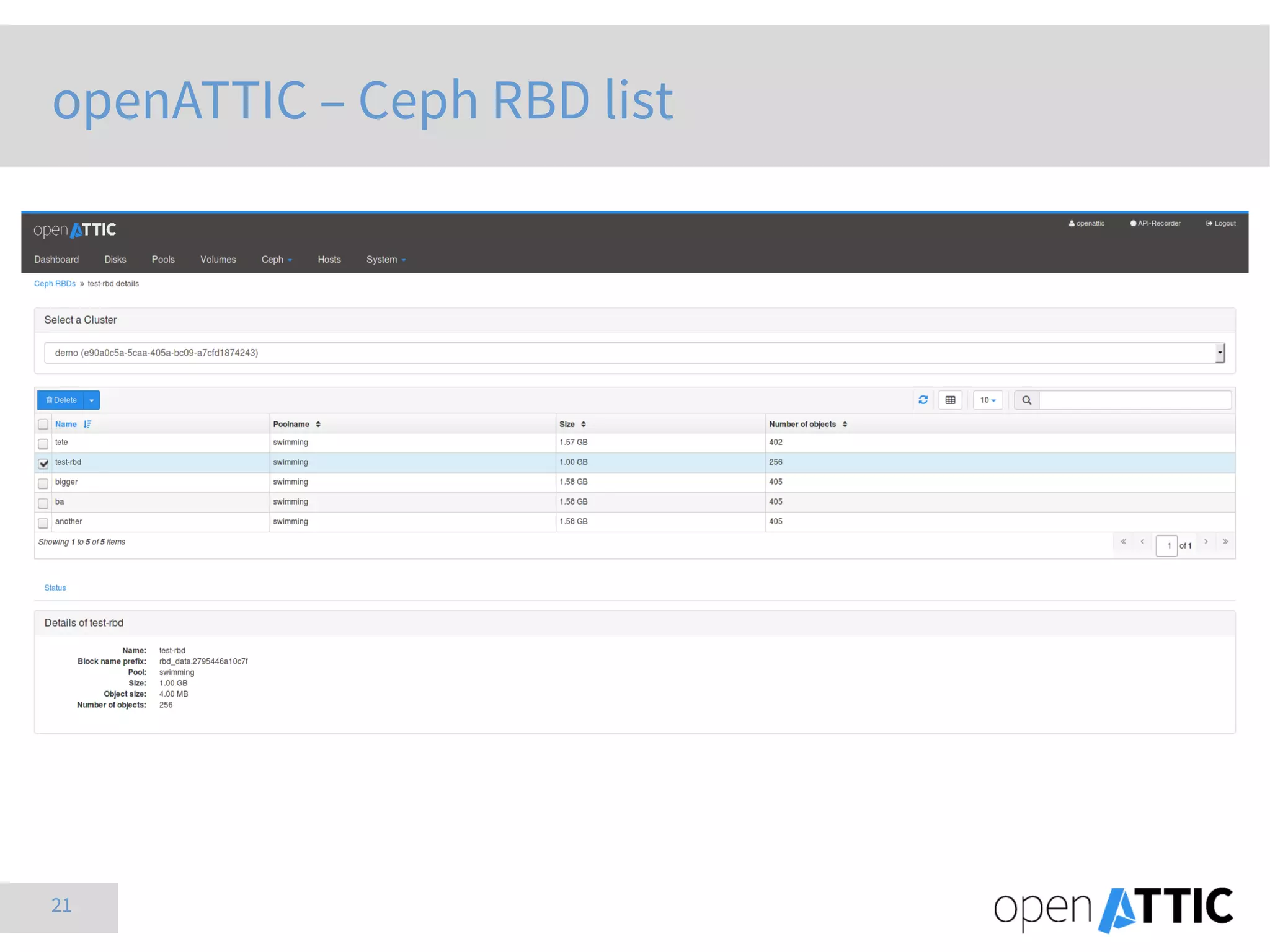

openATTIC – Ceph RBD list

22. 22

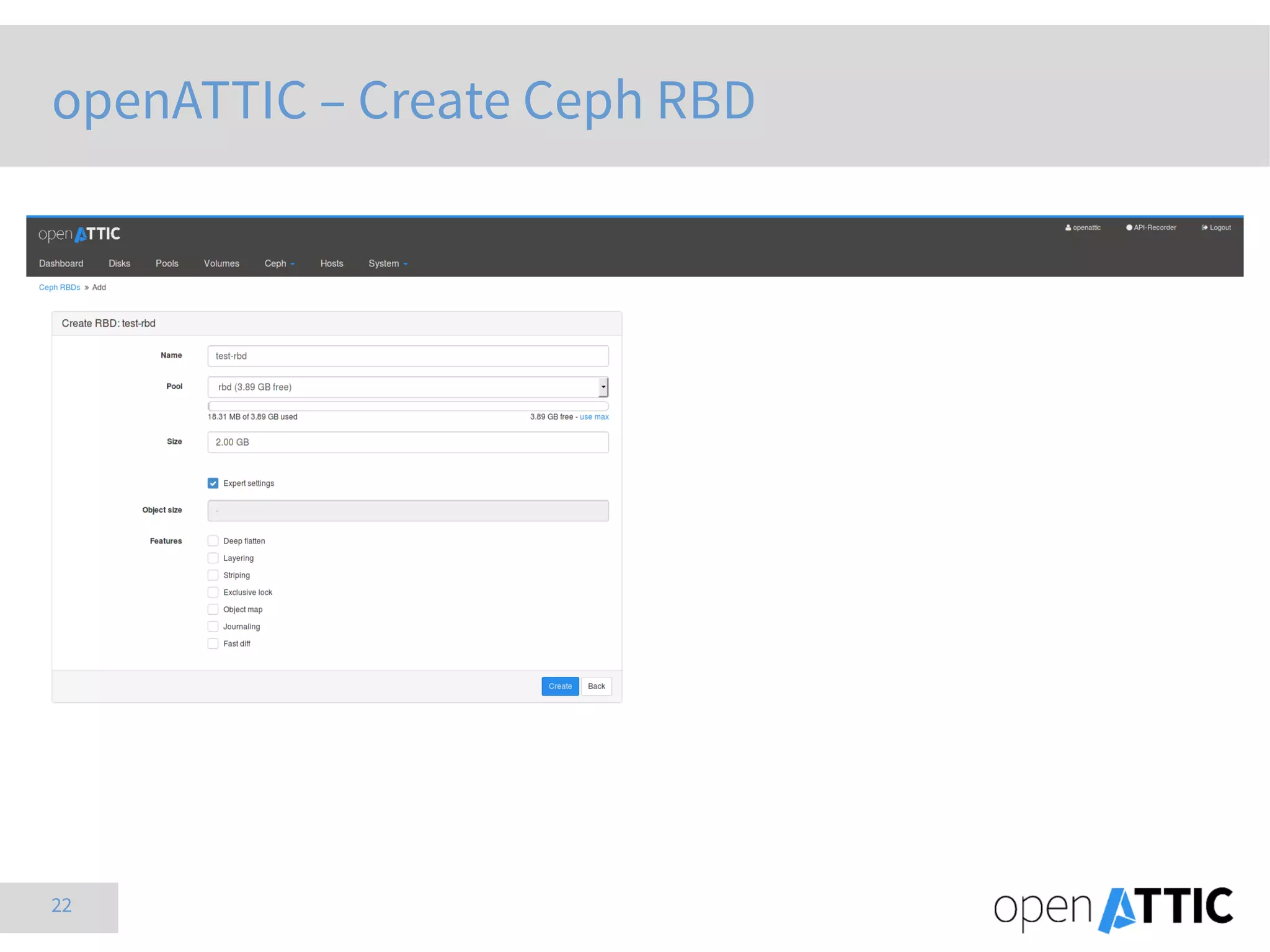

openATTIC – Create Ceph RBD

23. 23

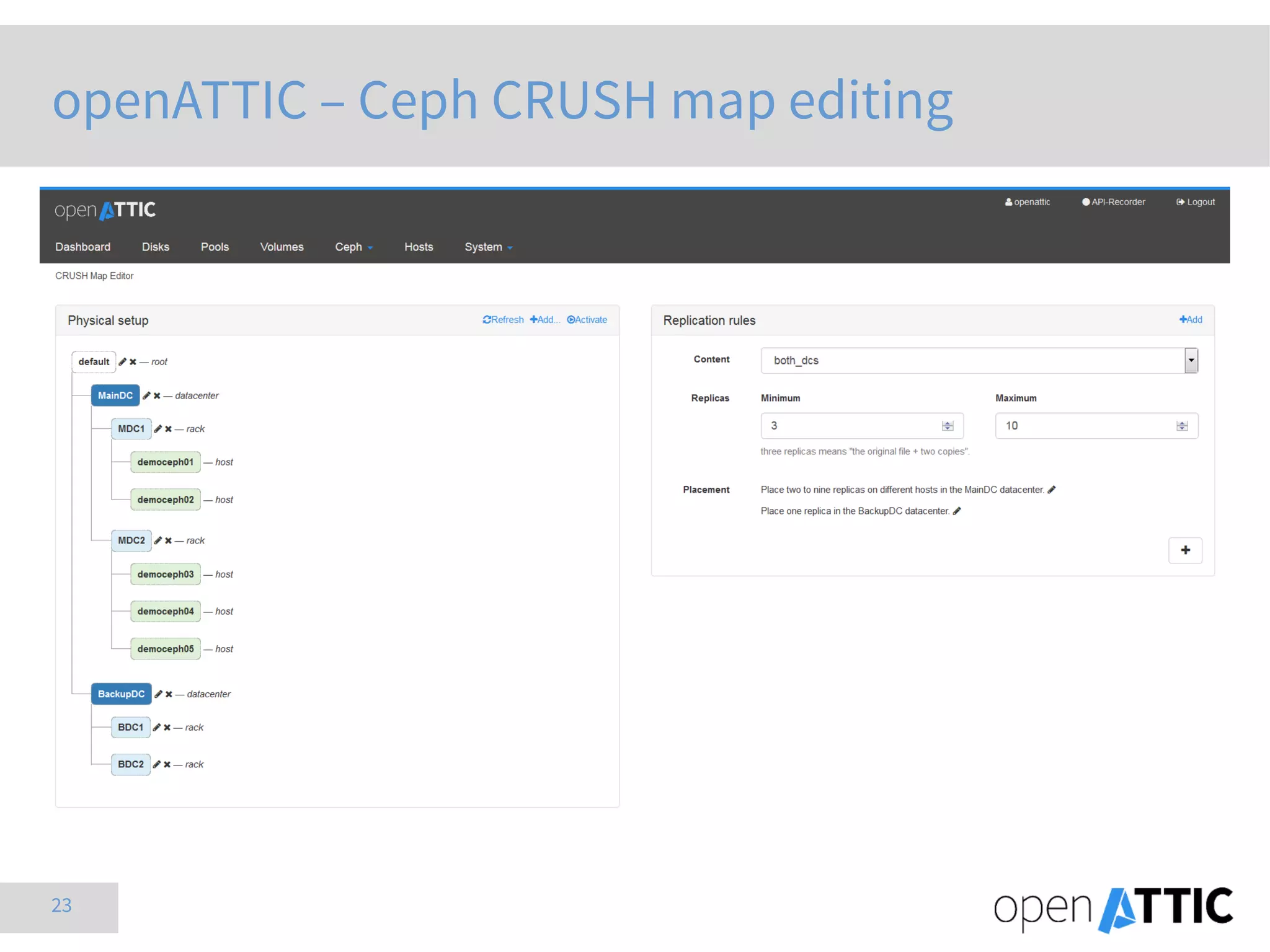

openATTIC – Ceph CRUSH map editing

24. 24

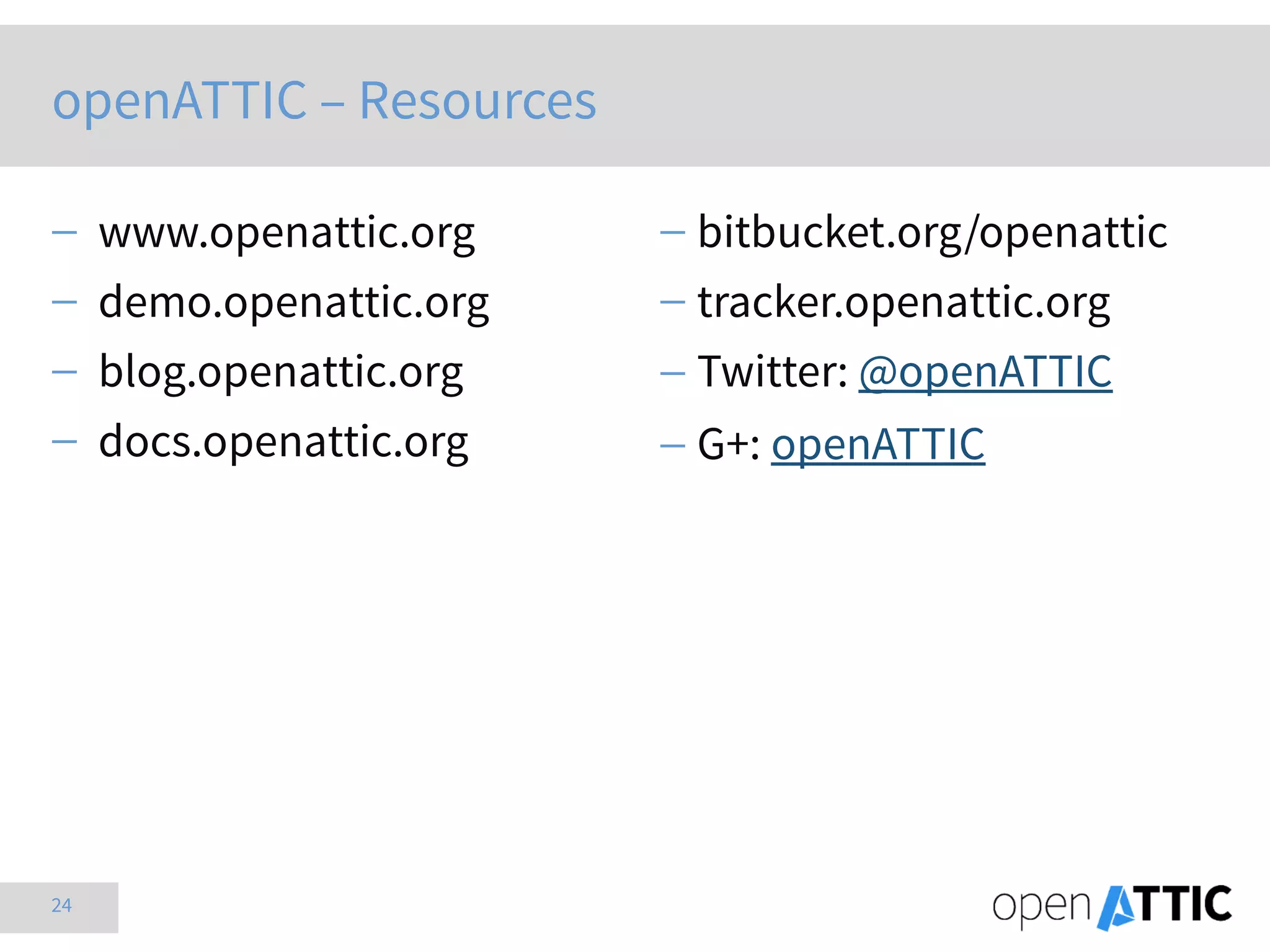

 www.openattic.org
 demo.openattic.org
 blog.openattic.org
 docs.openattic.org
 bitbucket.org/openattic
 tracker.openattic.org
 Twitter: @openATTIC
 G+: openATTIC
openATTIC – Resources

25. powered by it-novum
Questions / Discussion

26. powered by it-novum
Thank you!
