LAB INSTRUCTION
SUSE LINUX ENTERPRISE SERVER 11
 LAN VPN Server
 Network Address: 192.168.102.0/24
 192.168.1.1 Router/Default Gateway
 192.168.1.1 DNS Server
 WAN
 Network address: 203.100.10.0/24
 203.100.10.1 Router/Default Gateway
 192.168.1.10 DNS Server
 172.16.120.3 – 172.16.120.254 Address pool/scope
 172.16.120.10 – 172.16.120.20 Address Exclusive

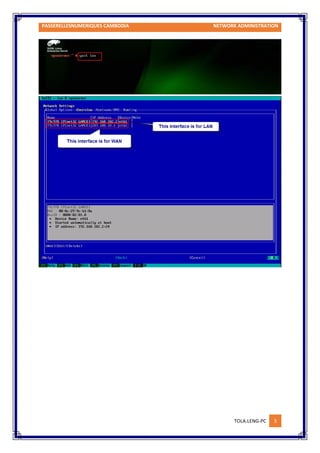

 Make sure the you have configure the hostname and ip address
of different LAN and WAN

4. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 3

5. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 4
1. Install Service OpenVPN

6. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 5
2. Configure VPN Server
a. Copy “ëasy-rsa” from /usr/share/openvpn/easy-rsa to “/etc/openvpn”
b. Generate the server key by go to /etc/openvpn and generate

7. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 6
c. Edit and change the certificate attribute by go to /etc/openvpn/easy-rsa/vars

8. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 7
d. Define keys directory

9. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 8
e. Generation of the key (by cryptography method Diffie-Hellman with dh1024
bit)
f. Generation of key and certificate to authority of certification
- Create new user for vpn and client for generate the email address

10. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 9
g. Generation of key and certificate to the server //information mixed with key
to create certificate then store in Server
h. Edit /etc/openvpn/easy-rsa/server.conf by changing

11. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 10
- Ca ca.crt -> ca /etc/openvpn/easy-rsa/keys/ca.crt
- Cert server.crt -> cert /etc/openvpn/easy-rsa/keys/vpnserver.crt
- key server.key -> server.key /etc/openvpn/easy-rsa/keys/vpnserver.key
- dh dh1024.perm -> dh /etc/openvpn/easy-rsa/keys/dh1024.pem
- ;cipher DES-EDE3-CBC -> cipher DES-EDE3-CBC(encryption method)

12. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 11

13. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 12
i. Generation of the keys and certificate to the client (for tola.leng user)

14. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 13

15. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 14
3. Install/Configure OpenVPN Client

16. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 15

17. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 16
-copy file ca.crt, tola.leng.crt, tola.leng.key to input into the configuration file and input the
certificate into C:Program FilesOpenVPNbin..........
-copy file client.ovpn to the folder config
-change configuration file client.ovpn

18. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 17

19. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 18
-Finally save the file after we edit the information there are:
remote 203.100.10.1 1194
;remote 203.100.10.1 1194
ca "C:Program FilesOpenVPNbinca.crt"
cert "C:Program FilesOpenVPNbintolaleng.crt"
key "C:Program FilesOpenVPNbintolaleng.key"
cipher DES-EDE3-CBC

20. PASSERELLESNUMERIQUES CAMBODIA NETWORK ADMINISTRATION
TOLA.LENG-PC 19
4. Testing OpenVPN remotes
5. Testing to access File Server
6. Set only one user can remote in the same time.
The End!
