1. The document provides instructions for installing CentOS and setting up a DNS server on the installed CentOS system. 2. It describes downloading and burning the CentOS ISO, installing it on a computer, and configuring the network interfaces and other installation options. 3. It also explains how to generate an rndc key for bind, edit the rndc.conf and named.conf files, and enable DNS services on the new CentOS server.

1. Instalasi CentOS
Bagi teman-teman yang senang ngutak-ngatik server, atau yang senang dengan OS yg
berbasiskan linux. Saya punya pengalaman tersendiri dalam menyiapkan sebuah server,
dalam waktu yang tidak sampai satu rokok jie sam su habis, server ini sudah kelar digunakan.
Tentu saja supaya server ini berguna hingga bisa mengudara, anda harus punya
jaringan internet sekaligus dengan IP Public (Static) yang disediakan oleh ISP anda. Paling
tidak anda harus sudah menyediakan dua IP address. IP local dan IP Public.
IP local untuk memudahkan anda masuk melalui jaringan local dan lebih cepat,
hampir tanpa kendala. Sedang kalau menggunakan IP Public pun sebetulnya juga tidak
masalah. Kelebihannya, kalau dengan IP Public anda bisa mengaksess server anda dari
manasaja dan di manasaja anda berada. Kekurangannya, IP Public itu bukan milik kita murni.
Jadi jika pada kondisi tertentu (katakanlah diblokir oleh ISP anda karena satu dan lain hal),
maka anda tidak bisa masuk lagi melalui IP ini.
Kita mulai saja:
Pertama, anda harus menyediakan software CentOS Server ini dengan cara
download. TIdak terlalu besar sih ukurannya, sekitar 600 Mb, tepatnya 580Mb. Yah« 1 CD
saja:
Anda bisa memilih cara download dan jenis filenya; ada dua:
1. Jika anda menggunakan OS windows anda bisa langsung download ke alamat ini :
http://vault.centos.org/4.4/isos/i386/CentOS-4.4.ServerCD-i386.iso
2. Jika sudah selesai downloadnya, anda tinggal memburning pake nero atau ashampo atau
software burning lainnya kesukaan anda. Sediakan satu blank cd untuk diburning di media
ini.
3. Jika sudah selesai, maka anda telah memiliki satu master cd CentOS Server versi 4.
Kedua, sediakan satu mesin computer yang akan dijadikan server oleh anda. Semakin
besar spesifikasinya semakin baik. Kalaupun pakai Pentium III pun sebetulnya sudah bisa
dengan kapasitas Hardisk 30 G dan RAM minimal 512 kb atau 1024 kb. Ini adalah ukuran
minimalis untuk server web yang tidak terlalu besar muatannya. Tapi jika anda mempunyai
spesifikasi server yang handal (seperti XEON dari HP mutakhir, misalnya) itu sangat
dianjurkan.

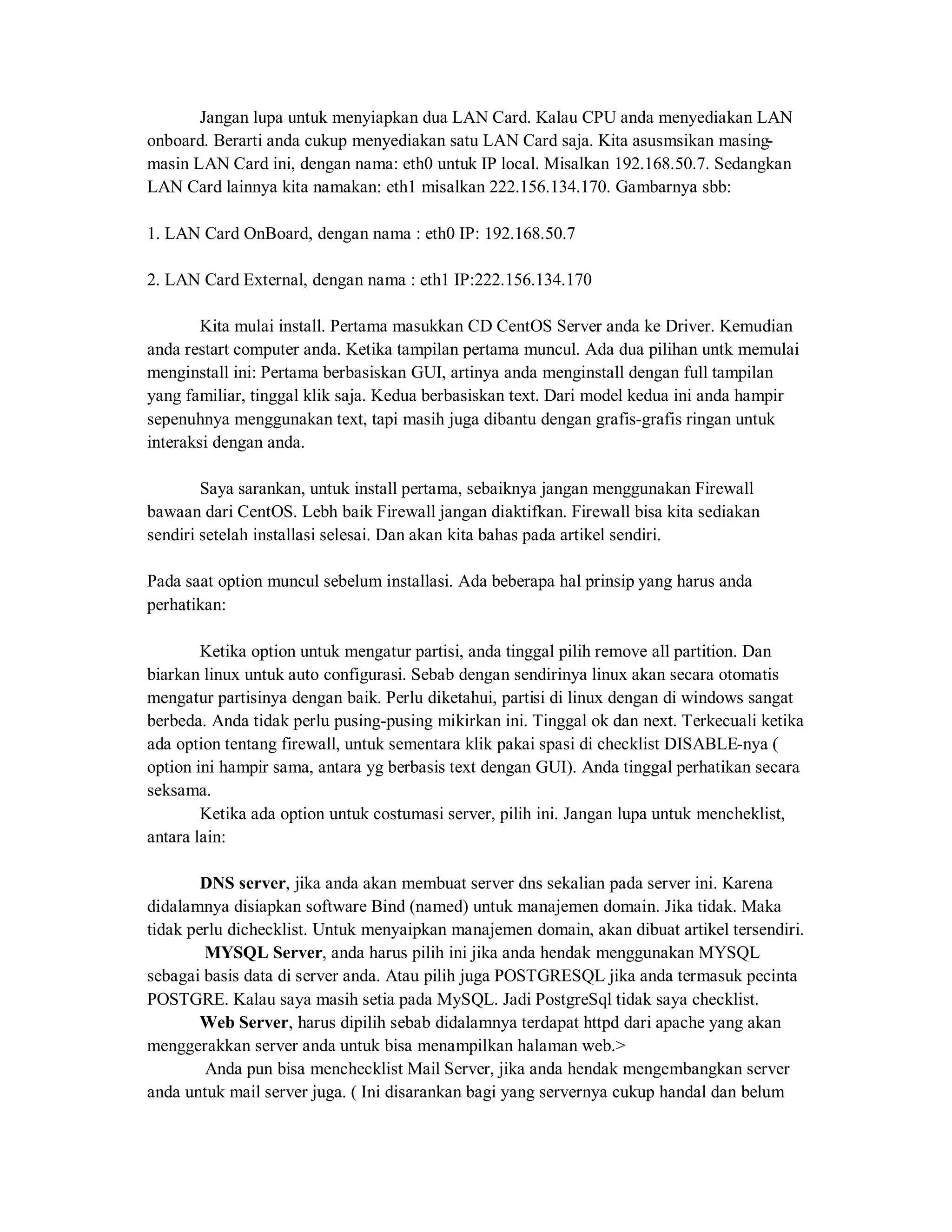

2. Jangan lupa untuk menyiapkan dua LAN Card. Kalau CPU anda menyediakan LAN
onboard. Berarti anda cukup menyediakan satu LAN Card saja. Kita asusmsikan masing-
masin LAN Card ini, dengan nama: eth0 untuk IP local. Misalkan 192.168.50.7. Sedangkan
LAN Card lainnya kita namakan: eth1 misalkan 222.156.134.170. Gambarnya sbb:
1. LAN Card OnBoard, dengan nama : eth0 IP: 192.168.50.7
2. LAN Card External, dengan nama : eth1 IP:222.156.134.170
Kita mulai install. Pertama masukkan CD CentOS Server anda ke Driver. Kemudian
anda restart computer anda. Ketika tampilan pertama muncul. Ada dua pilihan untk memulai
menginstall ini: Pertama berbasiskan GUI, artinya anda menginstall dengan full tampilan
yang familiar, tinggal klik saja. Kedua berbasiskan text. Dari model kedua ini anda hampir
sepenuhnya menggunakan text, tapi masih juga dibantu dengan grafis-grafis ringan untuk
interaksi dengan anda.
Saya sarankan, untuk install pertama, sebaiknya jangan menggunakan Firewall
bawaan dari CentOS. Lebh baik Firewall jangan diaktifkan. Firewall bisa kita sediakan
sendiri setelah installasi selesai. Dan akan kita bahas pada artikel sendiri.
Pada saat option muncul sebelum installasi. Ada beberapa hal prinsip yang harus anda
perhatikan:
Ketika option untuk mengatur partisi, anda tinggal pilih remove all partition. Dan
biarkan linux untuk auto configurasi. Sebab dengan sendirinya linux akan secara otomatis
mengatur partisinya dengan baik. Perlu diketahui, partisi di linux dengan di windows sangat
berbeda. Anda tidak perlu pusing-pusing mikirkan ini. Tinggal ok dan next. Terkecuali ketika
ada option tentang firewall, untuk sementara klik pakai spasi di checklist DISABLE-nya (
option ini hampir sama, antara yg berbasis text dengan GUI). Anda tinggal perhatikan secara
seksama.
Ketika ada option untuk costumasi server, pilih ini. Jangan lupa untuk mencheklist,
antara lain:
DNS server, jika anda akan membuat server dns sekalian pada server ini. Karena
didalamnya disiapkan software Bind (named) untuk manajemen domain. Jika tidak. Maka
tidak perlu dichecklist. Untuk menyaipkan manajemen domain, akan dibuat artikel tersendiri.
MYSQL Server, anda harus pilih ini jika anda hendak menggunakan MYSQL
sebagai basis data di server anda. Atau pilih juga POSTGRESQL jika anda termasuk pecinta
POSTGRE. Kalau saya masih setia pada MySQL. Jadi PostgreSql tidak saya checklist.
Web Server, harus dipilih sebab didalamnya terdapat httpd dari apache yang akan
menggerakkan server anda untuk bisa menampilkan halaman web.>
Anda pun bisa menchecklist Mail Server, jika anda hendak mengembangkan server
anda untuk mail server juga. ( Ini disarankan bagi yang servernya cukup handal dan belum

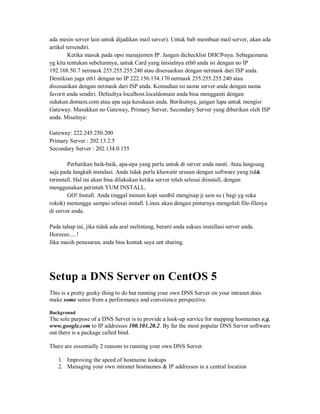

3. ada mesin server lain untuk dijadikan mail server). Untuk bab membuat mail server, akan ada
artikel tersendiri.
Ketika masuk pada opsi manajemen IP. Jangan dichecklist DHCP-nya. Sebagaimana
yg kita tentukan sebelumnya, untuk Card yang inisialnya eth0 anda isi dengan no IP
192.168.50.7 netmask 255.255.255.240 atau disesuaikan dengan netmask dari ISP anda.
Demikian juga eth1 dengan no IP 222.156.134.170 netmask 255.255.255.240 atau
disesuaikan dengan netmask dari ISP anda. Kemudian isi nama server anda dengan nama
favorit anda sendiri. Defaultya localhost.localdomain anda bisa mengganti dengan
sidukun.domain.com atau apa saja kesukaan anda. Berikutnya, jangan lupa untuk mengisi
Gateway. Masukkan no Gateway, Primary Server, Secondary Server yang diberikan oleh ISP
anda. Misalnya:
Gateway: 222.245.250.200
Primary Server : 202.13.2.5
Secondary Server : 202.134.0.155
Perhatikan baik-baik, apa-apa yang perlu untuk di server anda nanti. Atau langsung
saja pada langkah instalasi. Anda tidak perlu khawatir urusan dengan software yang tidak
terinstall. Hal ini akan bisa dilakukan ketika server telah selesai diinstall, dengan
menggunakan perintah YUM INSTALL.
GO! Install. Anda tinggal minum kopi sambil mengisap ji sam su ( bagi yg suka
rokok) menunggu sampai selesai install. Linux akan dengan pintarnya mengolah file-filenya
di server anda.
Pada tahap ini, jika tidak ada aral melintang, berarti anda sukses installasi server anda.
Horeeee.....!
Jika masih penasaran, anda bisa kontak saya unt sharing.
Setup a DNS Server on CentOS 5
This is a pretty geeky thing to do but running your own DNS Server on your intranet does
make some sense from a performance and conveience perspective.
Background
The sole purpose of a DNS Server is to provide a look-up service for mapping hostnames e.g.
www.google.com to IP addresses 100.101.20.2. By far the most popular DNS Server software
out there is a package called bind.
There are essentially 2 reasons to running your own DNS Server.
1. Improving the speed of hostname lookups
2. Managing your own intranet hostnames & IP addresses in a central location

4. The first reason is what is commonly called a Caching Name Server. In essence by having
one machine provide all hostname look-ups in your intranet, you¶re cutting down on every
machine in your intranet having to independently look-up names. Additionally once a name is
looked up your DNS Server will cache the results for a set period of time so that subsequent
queries can come out of your DNS Server¶s cache and not have to go and do the look-up on
your ISPs DNS Server.
The second reason is actually the cooler one. Since you control the DNS Server you can
create your own local domain (called zones in bind lingo) and name all the systems within
your intranet. In so doing this it¶s much easier to connect to systems using names rather than
IP addresses. Plus it¶s fun to name all the systems!
Taking this a step further you can create generic hostnames such as imap, mail, smtp, ntp,
pop, etc. and manage these in one stop rather than having to manage them throughout your
intranet.
Getting started
First things first, install the necessary bind software.
1 yum install bind bind-utils bind -libs
Generating a rndc key
NOTE: All the config files we¶re going to work on are located in /var/named/chroot
Next you¶ll need to create/modify a rndc.conf and/or rndc.key file. This file contains a key
which is required in order to manage the bind service once it¶s up and running. With this key
you can theoretically manage bind either on the host where it¶s running or you can manage it
on any system that is allowed to do so and knows this key!
1 # command to generate a new 512 byte key
2 rndc-confgen -b 512
This command will return the following output which you¶ll want to either redirect to a file or
copy and paste into a file. The file should be rndc.conf but I like to use this name instead,
/var/named/chroot/etc/rndc.key. It just makes more sense to me.
1
# Start of rndc.conf
2
key "rndckey" {
3
algorithm hmac -md5;
4
secret
5
"nHFS3WOpdap75IvsYSXVNYWusnAQPT6z5XC8V5YPWXnZ8RN8tdfSFuClZ8nNouWyGhvHB8mE
6
TJgwsrvhiYhIhA==" ;
7
};
8
9
options {
1
default-key "rndckey" ;
0
default-server 127.0.0.1;
1
default-port 953;
1
};
1
# End of rndc.conf
2

5. The rndc-confgen command also returns some additional output below. This goes into the
file /var/named/chroot/etc/named.conf. Make sure to remove the comments at the
beginning of each line to turn them on.
# Use with the following in named.conf, adjusting the allow list as
1
needed:
2
key "rndckey" {
3
algorithm hmac -md5;
4
secret
5
"nHFS3WOpdap75IvsYSXVNYWusnAQPT6z5XC8V5YPWXnZ8RN8tdfSFuClZ8nNouWyGhvHB8mE
6
TJgwsrvhiYhIhA==" ;
7
};
8
#
9
controls {
1
inet 127.0.0.1 port 953
0
allow { 127.0.0.1; } keys { "rndckey" ; };
1
};
1
# End of named.conf
named.conf file
Now let¶s flesh out that named.conf file a little bit more.
1 acl lan {
2 192.168.1.0 /24;
3 127.0.0.1;
4 };
5
6 controls {
7 inet 127.0.0.1 port 953
8 allow { lan; } keys { "rndckey"; };
9 };
10
11 logging {
12 category default { default_syslog; };
13 category lame -servers { null; };
14 };
15
16 options {
17 pid-file "/var/run/named/named.pid" ;
18 directory "/var/named" ;
19 dump-file "named_dump.db" ;
20 forward only;
21 forwarders {
22 # the following IP addresses are my ISPs DNS Servers. These will
23 be used for looking up
24 # hostnames that I don't locally manage, i .e. the REST OF THE
25 INTERNET!
26 24.92.226.40; # my ISPs DNS Server #1
27 24.92.226.41; # my ISPs DNS Server #2
28 };
29 /*
30 * If there is a firewall between you and nameservers you want
31 * to talk to, you might need to uncomment the query -source
32 * directive below. Previous versions of BIND always asked
33 * questions using port 53, but BIND 8.1 uses an unprivileged
34 * port by default.
35 */

6. 36 query-source address * port 53;
37 allow-query { lan; };
38 allow-recursion { lan; };
39 allow-transfer { lan; };
40 };
41
42 zone "bubba.net" {
43 type master;
44 file "data/db.bubba.net" ;
45 };
46 zone "0.0.127.in -addr.arpa" {
47 type master;
48 file "data/db.127.0.0" ;
49 };
50 zone "1.168.192.in -addr.arpa" {
51 type master;
52 file "data/db.192.168.1" ;
53 };
54 zone "." {
55 type hint;
file "root.hints" ;
};
Here is a quick rundown of what¶s going on here. The acl lan creates an access control list
that includes 192.168.1.0/24 and 127.0.0.1 so that only hosts within these IP address ranges
can remotely manage and use this bind instance. 192.168.1.0/24 means IP addresses in the
range 192.168.1.1 ± 192.168.1.255.
The zones, ³bubba.net´, ³0.0.127.in-addr.arpa´, ³1.168.192.in-addr.arpa´, and ³.´ are all
essentially files containing either hostname ĺ IP address mappings or IP address ĺ
hostname mappings that this bind server will be responsible for.
Bulding zone files
The first zone: ³bubba.net´ includes all the hostnames and the IP addresses they point to. So
these would be my systems:
y scully.bubba.net
y mulder.bubba.net
y doggett.bubba.net
The second and third zones: ³0.0.127.in-addr.arpa´ and ³1.168.192.in-addr.arpa´ are
special zones that provide ³reverse´ name look-ups. These are when you look up a IP address
and want to know what name(s) are associated with it. For example:
y 192.168.1.100
y 192.168.1.101
The fourth zone: ³.´ is a special zone that makes this bind server act as a caching name
server, for any hostnames and IP addresses that fall outside of the first 3 zones. These
hostname and IP address look-ups will be forwarded to my ISPs DNS Server, and the results
cached here for subsequent quereies.
Here is what the zone ³bubba.net´ looks like.

7. $TTL 604800
1
;
2
; Zone file for bubba.net
3
;
4
; Mandatory minimum for a working domain
5
;
6
@ IN SOA ns.bubba.net. hostmaster.bubba.net. (
7
2000072802 ; serial
8
28800 ; refresh
9
7200 ; retry
10
3600000 ; expire
11
86400 ; default_ttl
12
)
13
@ IN NS ns.bubba.net.
14
@ IN MX 10 mail.bubba.net.
15
@ IN MX 20 mail.bubba.net.
16
;
17
; Provide familiar names to services but
18
; acutally all are coming from XXXXX
19
; These need to be bound to the address directly, no CNAME 's.
20
; -----------------------------------------------------------
21
bubba.net. IN A 192.168.1.1
22
;
23
hostmaster.bubba.net. IN A 192.168.1.101
24
ns.bubba.net. IN A 192.168.1.101
25
...
26
...
27
; Subnet 192.168.1 machines
28
; -------------------------
29
mulder.bubba.net. IN A 192.168.1.1
30
mulder.bubba.net. IN HINFO "AMD Athlon(tm) Dual Core
31
Processor 4850e 2.2GHz" "LINUX"
32
mulder.bubba.net. IN MX 10 mail.bubba.net.
33
mulder.bubba.net. IN TXT ""
34
scully.bubba.net. IN A 192.168.1.2
35
scully.bubba.net. IN HINFO "Celeron 450" "Windows 2000 "
36
scully.bubba.net. IN MX 10 mail.bubba.net.
37
scully.bubba.net. IN TXT ""
38
...
39
...
The first 16 lines are pretty standard. These setup a TTL or Time To Live which means how
long any of this data should be cache. Line 14 denotes which machine is the SOA, Start of
Authority, ns.bubba.net is the master of this domain is what it¶s saying 8-). Lines 15 & 16
state which machine is the mail exchange for this domain. I only have one mail exchange so I
just list it twice.
The most important section in this file starts with the declaration of hostnames. Each
hostname gets 4 lines. A ³IN A´ line which tells you the IP address for this hostname. The
³IN HINFO³ which is just a description of the host itself. The ³IN MX´ states who the mail
exchange is for this host. And finally the ³IN TXT³ line which I¶m not going to get into
today but it is important later on when you¶re setting up you mail server.
Here is what the zone ³db.192.168.1Ǝ looks like.
1 $TTL 604800
2 @ IN SOA ns.bubba.net. hostmaster.bubba.net. (

8. 3 2000072801 ; serial
4 28800 ; refresh
5 7200 ; retry
6 604800 ; expire
7 86400 ; default -ttl
8 )
9 @ IN NS ns.bubba.net.
10 ;
11 101 IN PTR mulder.bubba.net.
12 102 IN PTR scully.bubba.net.
13 103 IN PTR doggett.bubba.net.
14 ...
15 ...
The first 9 lines are essentially stating how long any Caching DNS Name Server should
cache this data before getting a fresh copy. The SOA ns.bubba.net is saying which machine
is the authority for this domain. The hostmaster.bubba.net is actually an email address that is
responsible for this domain, hostmaster@bubba.net.
Finally the zone ³db.127.0.0Ǝ which really serves no purpose other than as a backup in case
a host didn¶t configure itself correctly with the loopback address. Here is what my zone file
looks like:
1 $TTL 604800
2 @ IN SOA ns.bubba.net. hostmaster.bubba.net. (
3 2000031801 ; serial
4 28800 ; refresh
5 7200 ; retry
6 604800 ; expire
7 86400 ; default_ttl
8 )
9 @ IN NS ns.bubba.net.
10 ;
11 1 IN PTR localhost.bubba.net.
The zone ³.´ uses a file called root.hints. Here is an example of what this file looks like.
1 ; <<>> DiG 9.3.4 -P1 <<>> @e.root-servers.net . ns
2 ; (1 server found )
3 ;; global options: printcmd
4 ;; Got answer:
5 ;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 21247
6 ;; flags: qr aa rd; QUERY: 1, ANSWER: 13, AUTHORITY: 0, ADDITIONAL: 14
7
8 ;; QUESTION SECTION:
9 ;. IN NS
10
11 ;; ANSWER SECTION:
12 . 518400 IN NS D.ROOT -SERVERS.NET.
13 . 518400 IN NS C.ROOT -SERVERS.NET.
14 . 518400 IN NS G.ROOT -SERVERS.NET.
15 . 518400 IN NS L.ROOT -SERVERS.NET.
16 . 518400 IN NS F.ROOT -SERVERS.NET.
17 . 518400 IN NS I.ROOT -SERVERS.NET.
18 . 518400 IN NS B.ROOT -SERVERS.NET.
19 . 518400 IN NS J.ROOT -SERVERS.NET.
20 . 518400 IN NS M.ROOT -SERVERS.NET.

9. 21 . 518400 IN NS K.ROOT -SERVERS.NET.
22 . 518400 IN NS H.ROOT -SERVERS.NET.
23 . 518400 IN NS A.ROOT -SERVERS.NET.
24 . 518400 IN NS E.ROOT -SERVERS.NET.
25
26 ;; ADDITIONAL SECTION:
27 A.ROOT-SERVERS.NET. 3600000 IN A 198.41.0.4
28 A.ROOT-SERVERS.NET. 3600000 IN AAAA 2001:503:ba3e::2:30
29 B.ROOT-SERVERS.NET. 3600000 IN A 192.228.79.201
30 C.ROOT-SERVERS.NET. 3600000 IN A 192.33.4.12
31 D.ROOT-SERVERS.NET. 3600000 IN A 128.8.10.90
32 E.ROOT-SERVERS.NET. 3600000 IN A 192.203.230.10
33 F.ROOT-SERVERS.NET. 3600000 IN A 192.5.5.241
34 F.ROOT-SERVERS.NET. 3600000 IN AAAA 2001:500:2f::f
35 G.ROOT-SERVERS.NET. 3600000 IN A 192.112.36.4
36 H.ROOT-SERVERS.NET. 3600000 IN A 128.6 3.2.53
37 H.ROOT-SERVERS.NET. 3600000 IN AAAA 2001:500:1::803f:235
38 I.ROOT-SERVERS.NET. 3600000 IN A 192.36.148.17
39 J.ROOT-SERVERS.NET. 3600000 IN A 192.58.128.30
40 J.ROOT-SERVERS.NET. 3600000 IN AAAA 2001:503 :c27::2:30
41
42 ;; Query time: 109 msec
43 ;; SERVER: 192.203.230.10 #53(192.203.230.10)
44 ;; WHEN: Fri Feb 20 03:49:01 2009
45 ;; MSG SIZE rcvd: 500
Starting bind up
Once you have all this in place you can start up bind with this command.
1 /etc/init.d/named start
Configuring a host to use your DNS server
One final step is to configure your host to use your newly setup DNS Server as it¶s name
server. You can accomplish this by changing 2 files. /etc/resolv.conf and /etc/nsswitch.conf.
The /etc/resolv.conf should look like this:
1 search bubba.net
2 nameserver 192.168.1.101
The /etc/nsswitch.conf should have an entry like this in it:
1 ...
2 ...
3 hosts: files dns
4 ...
5 ...
Taking it out for a test drive
You can see if it¶s working by poking the name server using host, dig, or nslookup. Here are
a couple of example quereies.

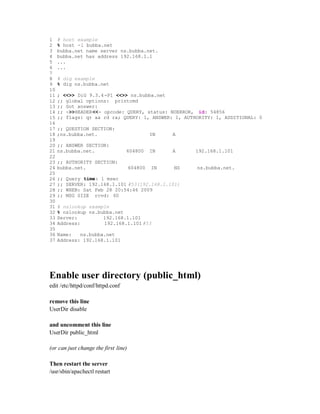

10. 1 # host example
2 % host -l bubba.net
3 bubba.net name server ns.bubba.net.
4 bubba.net has address 192.168.1.1
5 ...
6 ...
7
8 # dig example
9 % dig ns.bubba.net
10
11 ; <<>> DiG 9.3.4 -P1 <<>> ns.bubba.net
12 ;; global options: printcmd
13 ;; Got answer:
14 ;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 54856
15 ;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 1, ADDITIONAL: 0
16
17 ;; QUESTION SECTION:
18 ;ns.bubba.net. IN A
19
20 ;; ANSWER SECTION:
21 ns.bubba.net. 604800 IN A 192.168.1.101
22
23 ;; AUTHORITY SECTION:
24 bubba.net. 604800 IN NS ns.bubba.net.
25
26 ;; Query time: 1 msec
27 ;; SERVER: 192.168.1.101 #53(192.168.1.101)
28 ;; WHEN: Sat Feb 28 20:54:46 2009
29 ;; MSG SIZE rcvd: 60
30
31 # nslookup example
32 % nslookup ns.bubba.net
33 Server: 192.168.1.101
34 Address: 192.168.1.101 #53
35
36 Name: ns.bubba.net
37 Address: 192.168.1.101
Enable user directory (public_html)
edit /etc/httpd/conf/httpd.conf
remove this line
UserDir disable
and uncomment this line
UserDir public_html
(or can just change the first line)
Then restart the server
/usr/sbin/apachectl restart

11. If SELinux is enabled (I did), you must also need to run these
/usr/sbin/setsebool -P httpd_enable_homedirs true
chcon -R -t httpd_sys_content_t /home/user-abc/public_html
(do not forget to change the path on the second line)
Cara Install CPanel di CentOS
Submitted by admin on Mon, 04/26/2010 - 01:12
y Tips & Tricks
y cpanel
Cara install CPanel di CentOS sangat mudah, karena CentOS adalah salah satu OS yang
direkomendasikan oleh CPanel. Caranya sbb:
1. cd /home ² Opens the directory /home .
2. wget -N http:/
/layer1.cpanel.net/latest ² Fetches the latest installation file from the cPanel
servers.
3. sh latest ² Opens and runs the installation files.
4.
/usr/local/cpanel/cpkeyclt ² Activates your license after installation.
Maka otomatis CPanel akan terinstall di CentOS!
Konfigurasi Virtual Host di CentOS
Apa itu Virtual Host?
Virtual host berguna untuk pengaturan website atau URL dalam satu mesin atau satu IP,
contoh kita punya dua domain yaitu domainsatu.com dan domaindua.com tetapi kita hanya
punya satu mesin dengan IP 192.200.200.1 kemudian kita ingin semua domain tadi
mempunyai website yg berbeda-beda. Dengan konfigurasi pada virtual host kita dapat
menyelesaikan masalah ini.
1. check package apache
[root@rhesanu ~]# rpm -qa http*
httpd-2.0.52-41.ent.centos4
httpd-suexec-2.0.52-41.ent.centos4

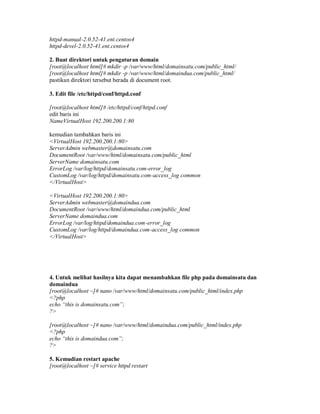

12. httpd-manual-2.0.52-41.ent.centos4
httpd-devel-2.0.52-41.ent.centos4
2. Buat direktori untuk pengaturan domain
[root@localhost html]# mkdir -p /var/www/html/domainsatu.com/public_html/
[root@localhost html]# mkdir -p /var/www/html/domaindua.com/public_html/
pastikan direktori tersebut berada di document root.
3. Edit file /etc/httpd/conf/httpd.conf
[root@localhost html]# /etc/httpd/conf/httpd.conf
edit baris ini
NameVirtualHost 192.200.200.1:80
kemudian tambahkan baris ini
<VirtualHost 192.200.200.1:80>
ServerAdmin webmaster@domainsatu.com
DocumentRoot /var/www/html/domainsatu.com/public_html
ServerName domainsatu.com
ErrorLog /var/log/httpd/domainsatu.com-error_log
CustomLog /var/log/httpd/domainsatu.com-access_log common
</VirtualHost>
<VirtualHost 192.200.200.1:80>
ServerAdmin webmaster@domaindua.com
DocumentRoot /var/www/html/domaindua.com/public_html
ServerName domaindua.com
ErrorLog /var/log/httpd/domaindua.com-error_log
CustomLog /var/log/httpd/domaindua.com-access_log common
</VirtualHost>
4. Untuk melihat hasilnya kita dapat menambahkan file php pada domainsatu dan
domaindua
[root@localhost ~]# nano /var/www/html/domainsatu.com/public_html/index.php
<?php
echo ³this is domainsatu.com´;
?>
[root@localhost ~]# nano /var/www/html/domaindua.com/public_html/index.php
<?php
echo ³this is domaindua.com´;
?>
5. Kemudian restart apache
[root@localhost ~]# service httpd restart

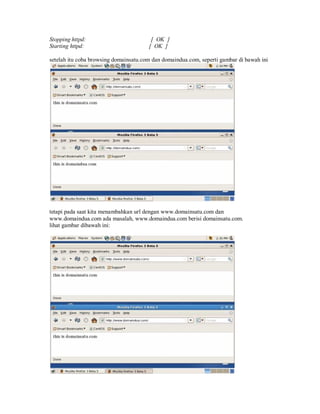

13. Stopping httpd: [ OK ]
Starting httpd: [ OK ]
setelah itu coba browsing domainsatu.com dan domaindua.com, seperti gambar di bawah ini
tetapi pada saat kita menambahkan url dengan www.domainsatu.com dan
www.domaindua.com ada masalah, www.domaindua.com berisi domainsatu.com.
lihat gambar dibawah ini:

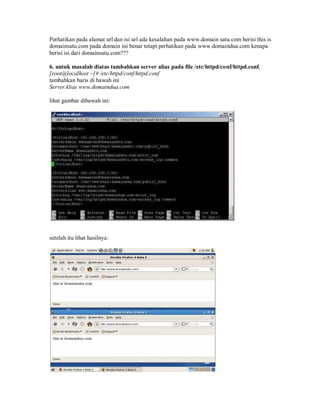

14. Perhatikan pada alamat url dan isi url ada kesalahan pada www.domain satu.com berisi this is
domainsatu.com pada domain ini benar tetapi perhatikan pada www.domaindua.com kenapa
berisi isi dari domainsatu.com???
6. untuk masalah diatas tambahkan server alias pada file /etc/httpd/conf/httpd.conf.
[root@localhost ~]# /etc/httpd/conf/httpd.conf
tambahkan baris di bawah ini
ServerAlias www.domaindua.com
lihat gambar dibawah ini:
setelah itu lihat hasilnya:

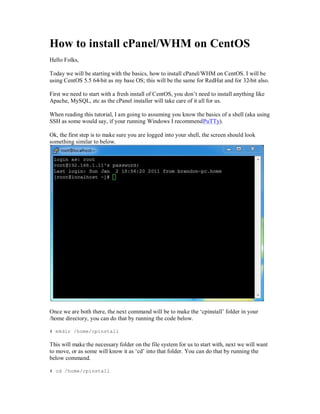

15. How to i tall cPanel/ HM on CentOS
Hell l
e will be st ti wit t e basi s, how to i stall cPanel/ HM on Cent I will be
using Cent 5.5 64-bit as my base OS; this will be the same for RedHat and for 32-bit also.
First we need to start with a fresh install of CentOS, you don¶t need to install anything li e
Apache, MySQL, etc as the cPanel installer will take care of it all for us.
When reading this tutorial, I am going to assuming you know the basics of a shell (aka using
SSH as some would say, if your running Windows I recommend PuTTy).
Ok, the first step is to make sure you are logged into your shell, the screen should look
something similar to below.
Once we are both there, the next command will be to make the µcpinstall¶ folder in your
/home directory, you can do that by running the code below.
# mkdir /home/cpinstall
This will make the necessary folder on the file system for us to start with, next we will want
to move, or as some will know it as µcd¶ into that folder. You can do that by running the
below command.
# cd /home/cpinstall

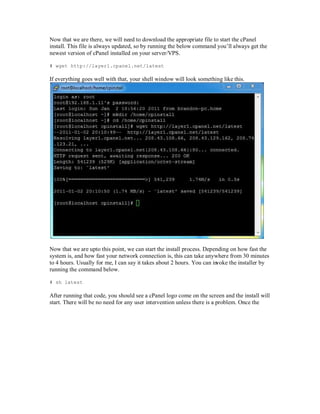

16. Now that we are there, we will need to download the appropriate file to start the cPanel
install. This file is always updated, so by running the below command you¶ll always get the
newest version of cPanel installed on your server/ PS.
# wget http://layer1.cpanel.net/latest
If everything goes well with that, your shell window will look something like this.
Now that we are upto this point, we can start the install process. Depending on how fast the
system is, and how fast your network connection is, this can take anywhere from 30 minutes
to 4 hours. Usually for me, I can say it takes about 2 hours. You can invoke the installer by
running the command below.
# sh latest
After running that code, you should see a cPanel logo come on the screen and the install will
start. There will be no need for any user intervention unless there is a problem. Once the

17. screen looks like below you are safe to walk away.
Once the install is complete your SSH screen will look something like this:

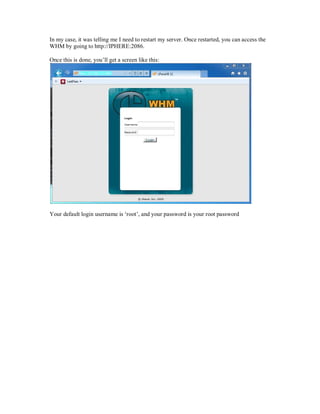

18. In my case, it was telling me I need to restart my server. Once restarted, you can access the
WHM by going to http://IPHERE:2086.
Once this is done, you¶ll get a screen like this:
Your default login username is µroot¶, and your password is your root password
