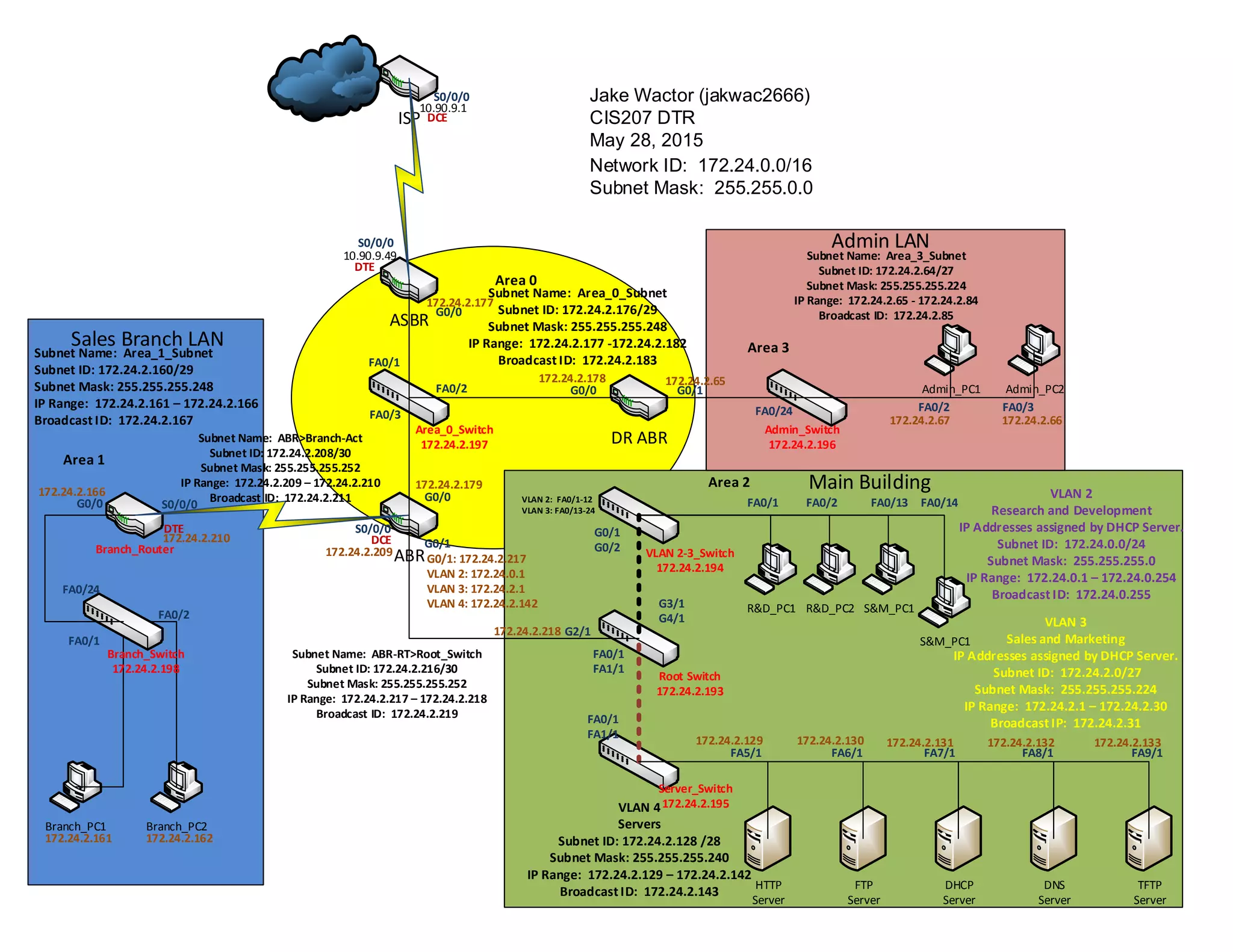

This document describes the network topology and IP addressing scheme for a company network. The network consists of multiple VLANs for different departments connected by switches and routers. It provides details of the subnet IDs, IP ranges, and subnet masks configured for each VLAN and network segment.

1. ISP
ASBR
DR ABR
ABR
HTTP
Server
FTP
Server
DHCP
Server
DNS
Server
TFTP
Server
Admin_PC2
Branch_PC1
R&D_PC2 S&M_PC1
S&M_PC1
10.90.9.49
10.90.9.1
Area 0
Area 3
Area 1
Area 2 Main Building
Sales Branch LAN
Admin LAN
R&D_PC1
Admin_PC1
Branch_PC2
Jake Wactor (jakwac2666)
CIS207 DTR
May 28, 2015
Network ID: 172.24.0.0/16
Subnet Mask: 255.255.0.0
DCE
DCE
DTE
DTE S0/0/0
S0/0/0
S0/0/0
S0/0/0
G0/0
G0/0
FA0/1
G0/0 G0/1
G0/1
FA0/24
G2/1
FA0/2 FA0/3
G3/1
G4/1
FA0/1
FA1/1
G0/1
G0/2
FA0/1 FA0/2 FA0/13 FA0/14
FA5/1 FA6/1 FA7/1 FA8/1 FA9/1
FA0/1
FA0/2
FA0/3
FA0/2
172.24.2.209
172.24.2.210
172.24.2.161 172.24.2.162
172.24.2.177
172.24.2.179
172.24.2.178 172.24.2.65
172.24.2.67 172.24.2.66
VLAN 2
Research and Development
IP Addresses assigned by DHCP Server.
Subnet ID: 172.24.0.0/24
Subnet Mask: 255.255.255.0
IP Range: 172.24.0.1 – 172.24.0.254
Broadcast ID: 172.24.0.255
VLAN 3
Sales and Marketing
IP Addresses assigned by DHCP Server.
Subnet ID: 172.24.2.0/27
Subnet Mask: 255.255.255.224
IP Range: 172.24.2.1 – 172.24.2.30
Broadcast IP: 172.24.2.31
VLAN 4
Servers
Subnet ID: 172.24.2.128 /28
Subnet Mask: 255.255.255.240
IP Range: 172.24.2.129 – 172.24.2.142
Broadcast ID: 172.24.2.143
172.24.2.129 172.24.2.130 172.24.2.131 172.24.2.132 172.24.2.133
Subnet Name: Area_0_Subnet
Subnet ID: 172.24.2.176/29
Subnet Mask: 255.255.255.248
IP Range: 172.24.2.177 -172.24.2.182
Broadcast ID: 172.24.2.183
Subnet Name: Area_1_Subnet
Subnet ID: 172.24.2.160/29
Subnet Mask: 255.255.255.248
IP Range: 172.24.2.161 – 172.24.2.166
Broadcast ID: 172.24.2.167
Subnet Name: Area_3_Subnet
Subnet ID: 172.24.2.64/27
Subnet Mask: 255.255.255.224
IP Range: 172.24.2.65 - 172.24.2.84
Broadcast ID: 172.24.2.85
G0/1: 172.24.2.217
VLAN 2: 172.24.0.1
VLAN 3: 172.24.2.1
VLAN 4: 172.24.2.142
Subnet Name: ABR>Branch-Act
Subnet ID: 172.24.2.208/30
Subnet Mask: 255.255.255.252
IP Range: 172.24.2.209 – 172.24.2.210
Broadcast ID: 172.24.2.211
VLAN 2-3_Switch
172.24.2.194
Server_Switch
172.24.2.195
Admin_Switch
172.24.2.196
Area_0_Switch
172.24.2.197
Branch_Router
G0/0
172.24.2.166
Branch_Switch
172.24.2.198
FA0/24
FA0/1
FA1/1
VLAN 2: FA0/1-12
VLAN 3: FA0/13-24
Root Switch
172.24.2.193
Subnet Name: ABR-RT>Root_Switch
Subnet ID: 172.24.2.216/30
Subnet Mask: 255.255.255.252
IP Range: 172.24.2.217 – 172.24.2.218
Broadcast ID: 172.24.2.219
172.24.2.218
