Open Source Malware Lab
- 1. 1@ThreatConnect Open Source Malware Lab © 2016 ThreatConnect, Inc. All Rights Reserved
- 2. 2@ThreatConnect Director of Research Innovation Research Team ThreatConnect, Inc. © 2016 ThreatConnect, Inc. All Rights Reserved

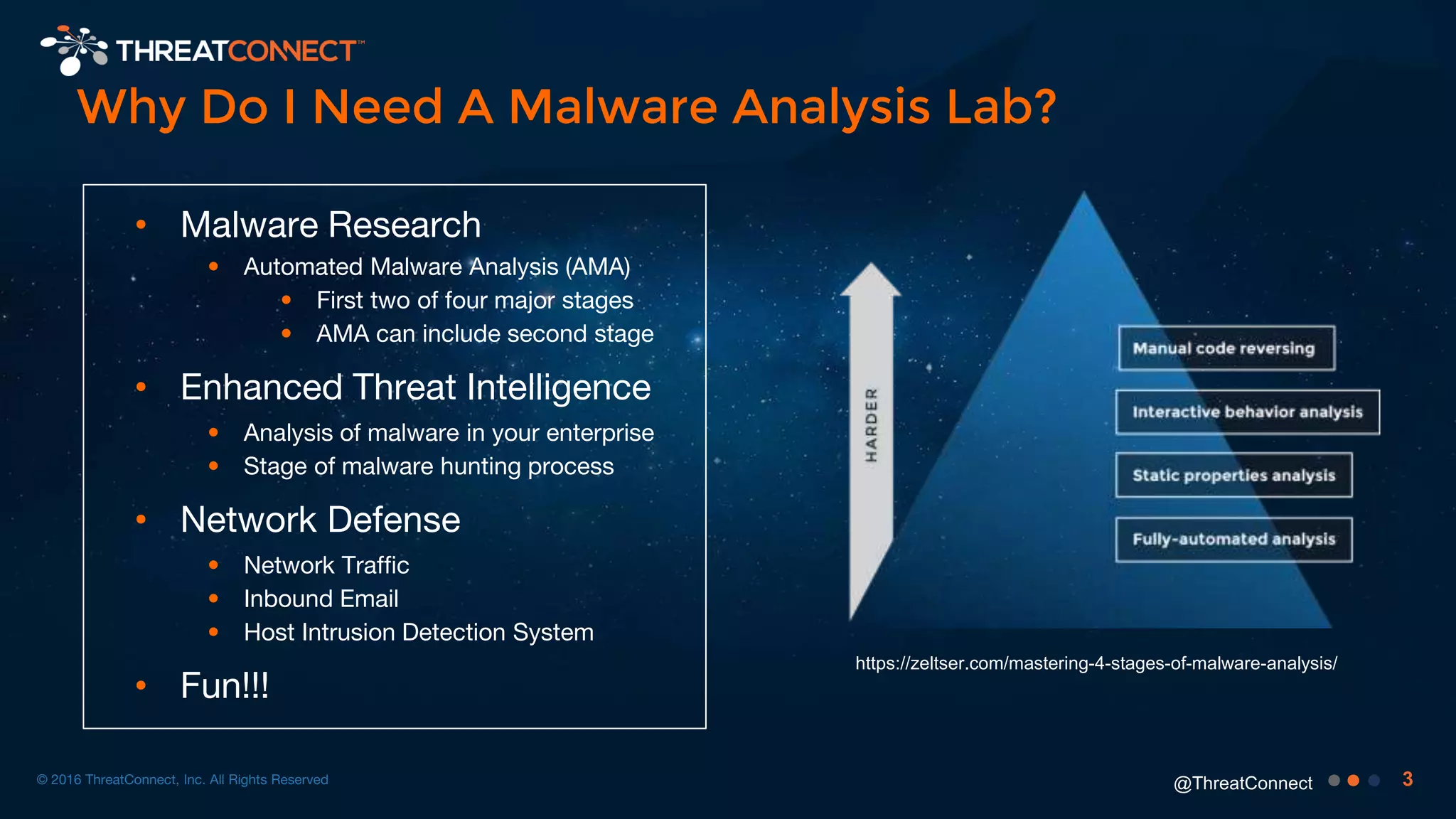

- 3. 3@ThreatConnect Why Do I Need A Malware Analysis Lab? • Malware Research • Automated Malware Analysis (AMA) • First two of four major stages • AMA can include second stage • Enhanced Threat Intelligence • Analysis of malware in your enterprise • Stage of malware hunting process • Network Defense • Network Traffic • Inbound Email • Host Intrusion Detection System • Fun!!! https://zeltser.com/mastering-4-stages-of-malware-analysis/ © 2016 ThreatConnect, Inc. All Rights Reserved

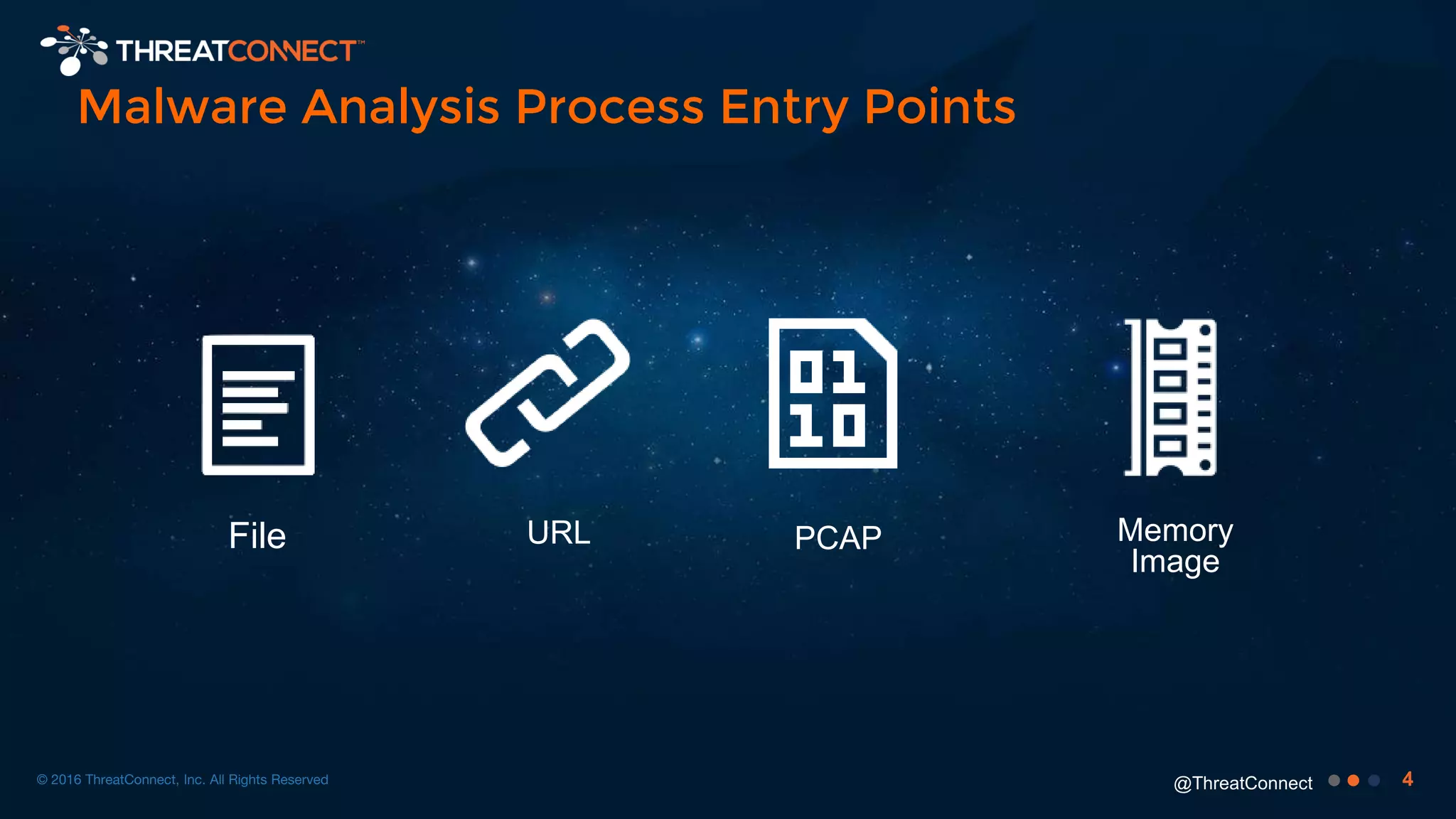

- 4. 4@ThreatConnect Malware Analysis Process Entry Points File URL PCAP Memory Image © 2016 ThreatConnect, Inc. All Rights Reserved
- 5. 5@ThreatConnect Cuckoo Sandbox Thug Bro Volatility Open Source Malware Analysis Tools © 2016 ThreatConnect, Inc. All Rights Reserved
- 6. 6@ThreatConnect Cuckoo Sandbox Static and Dynamic File Analysis © 2016 ThreatConnect, Inc. All Rights Reserved

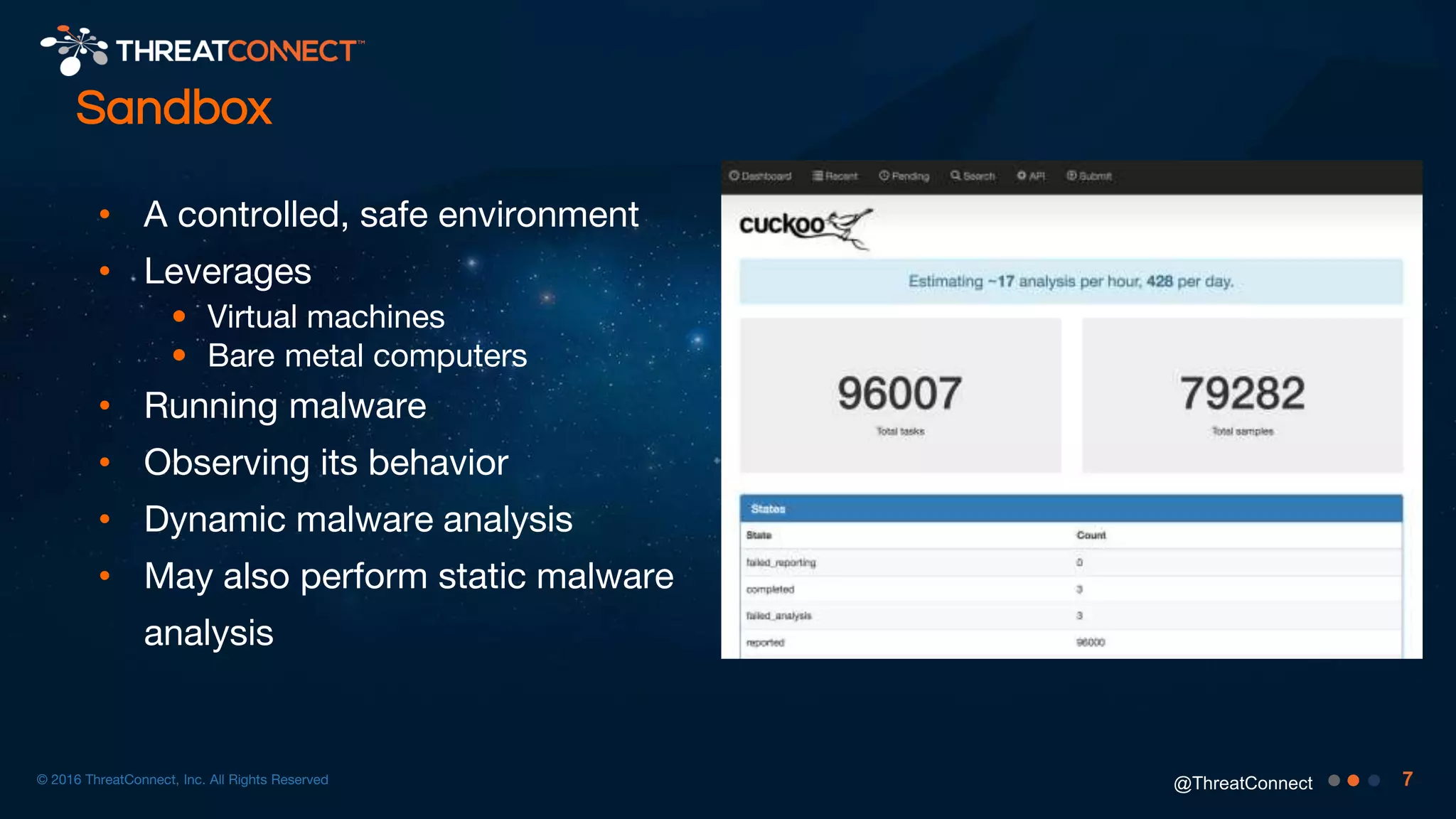

- 7. 7@ThreatConnect Sandbox • A controlled, safe environment • Leverages • Virtual machines • Bare metal computers • Running malware • Observing its behavior • Dynamic malware analysis • May also perform static malware analysis © 2016 ThreatConnect, Inc. All Rights Reserved

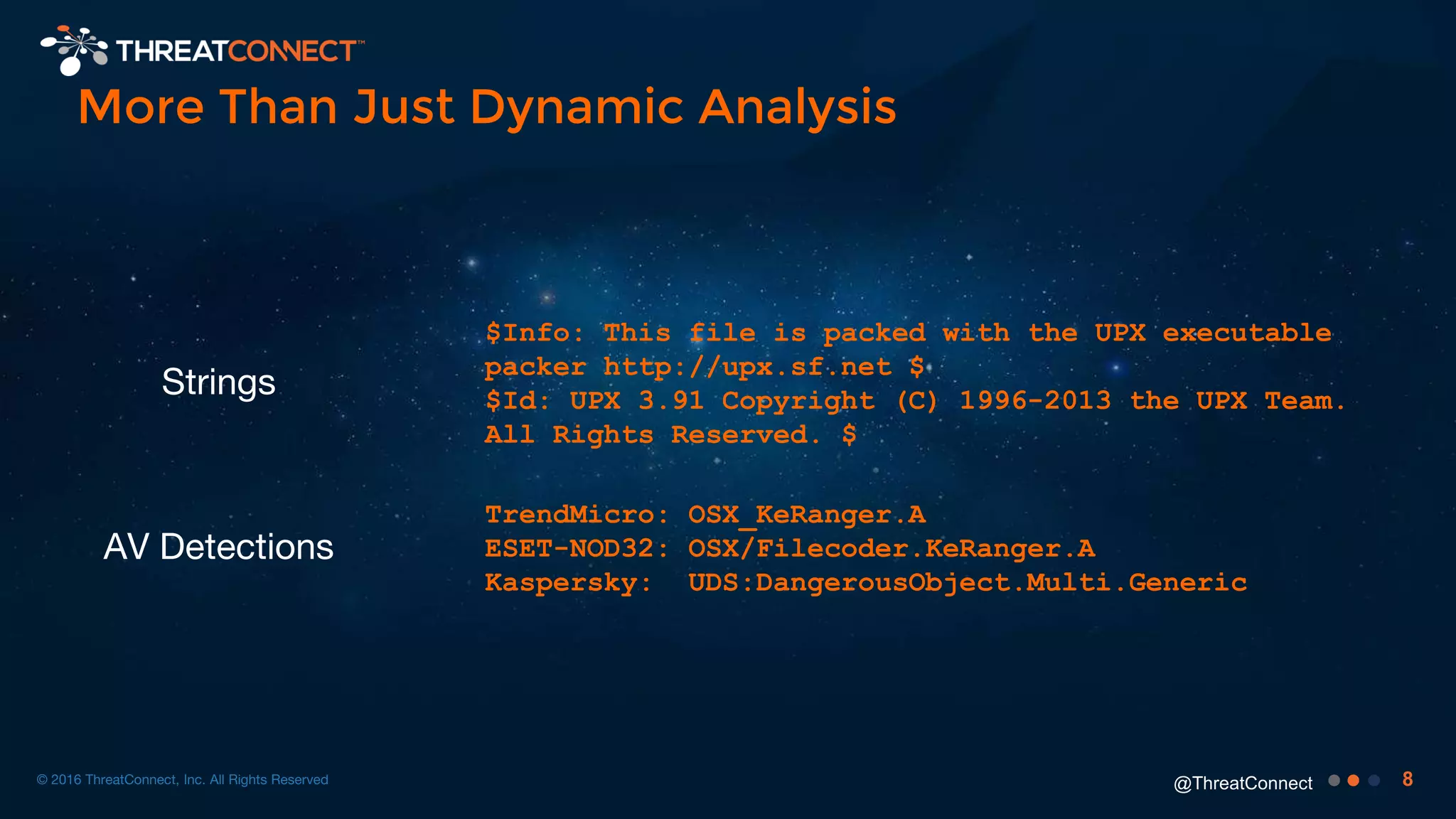

- 8. 8@ThreatConnect More Than Just Dynamic Analysis © 2016 ThreatConnect, Inc. All Rights Reserved TrendMicro: OSX_KeRanger.A ESET-NOD32: OSX/Filecoder.KeRanger.A Kaspersky: UDS:DangerousObject.Multi.Generic $Info: This file is packed with the UPX executable packer http://upx.sf.net $ $Id: UPX 3.91 Copyright (C) 1996-2013 the UPX Team. All Rights Reserved. $ Strings AV Detections

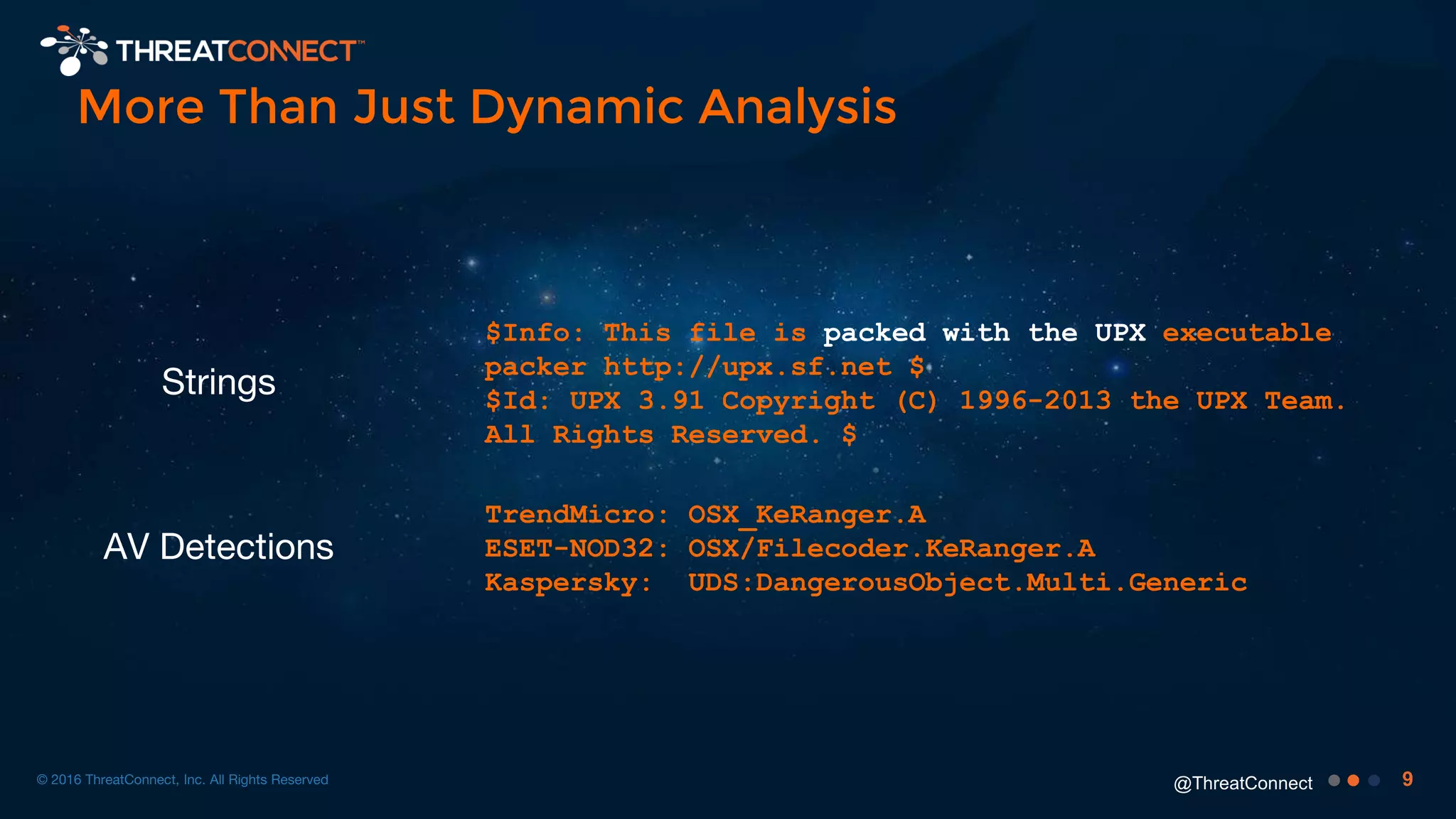

- 9. 9@ThreatConnect More Than Just Dynamic Analysis © 2016 ThreatConnect, Inc. All Rights Reserved TrendMicro: OSX_KeRanger.A ESET-NOD32: OSX/Filecoder.KeRanger.A Kaspersky: UDS:DangerousObject.Multi.Generic $Info: This file is packed with the UPX executable packer http://upx.sf.net $ $Id: UPX 3.91 Copyright (C) 1996-2013 the UPX Team. All Rights Reserved. $ Strings AV Detections

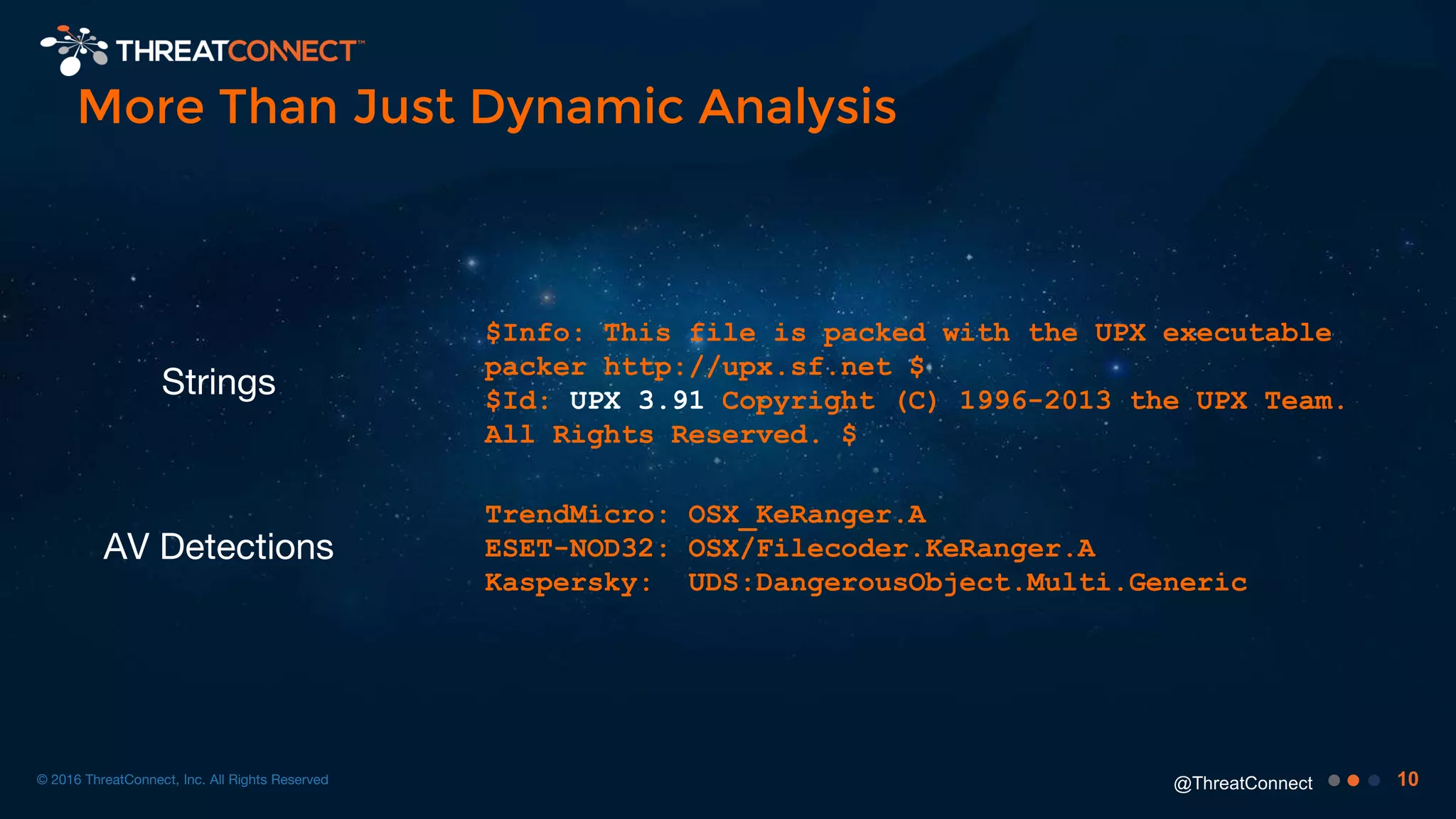

- 10. 10@ThreatConnect More Than Just Dynamic Analysis © 2016 ThreatConnect, Inc. All Rights Reserved TrendMicro: OSX_KeRanger.A ESET-NOD32: OSX/Filecoder.KeRanger.A Kaspersky: UDS:DangerousObject.Multi.Generic $Info: This file is packed with the UPX executable packer http://upx.sf.net $ $Id: UPX 3.91 Copyright (C) 1996-2013 the UPX Team. All Rights Reserved. $ Strings AV Detections

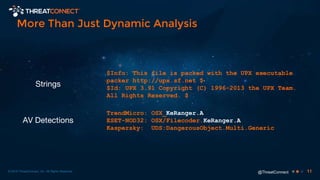

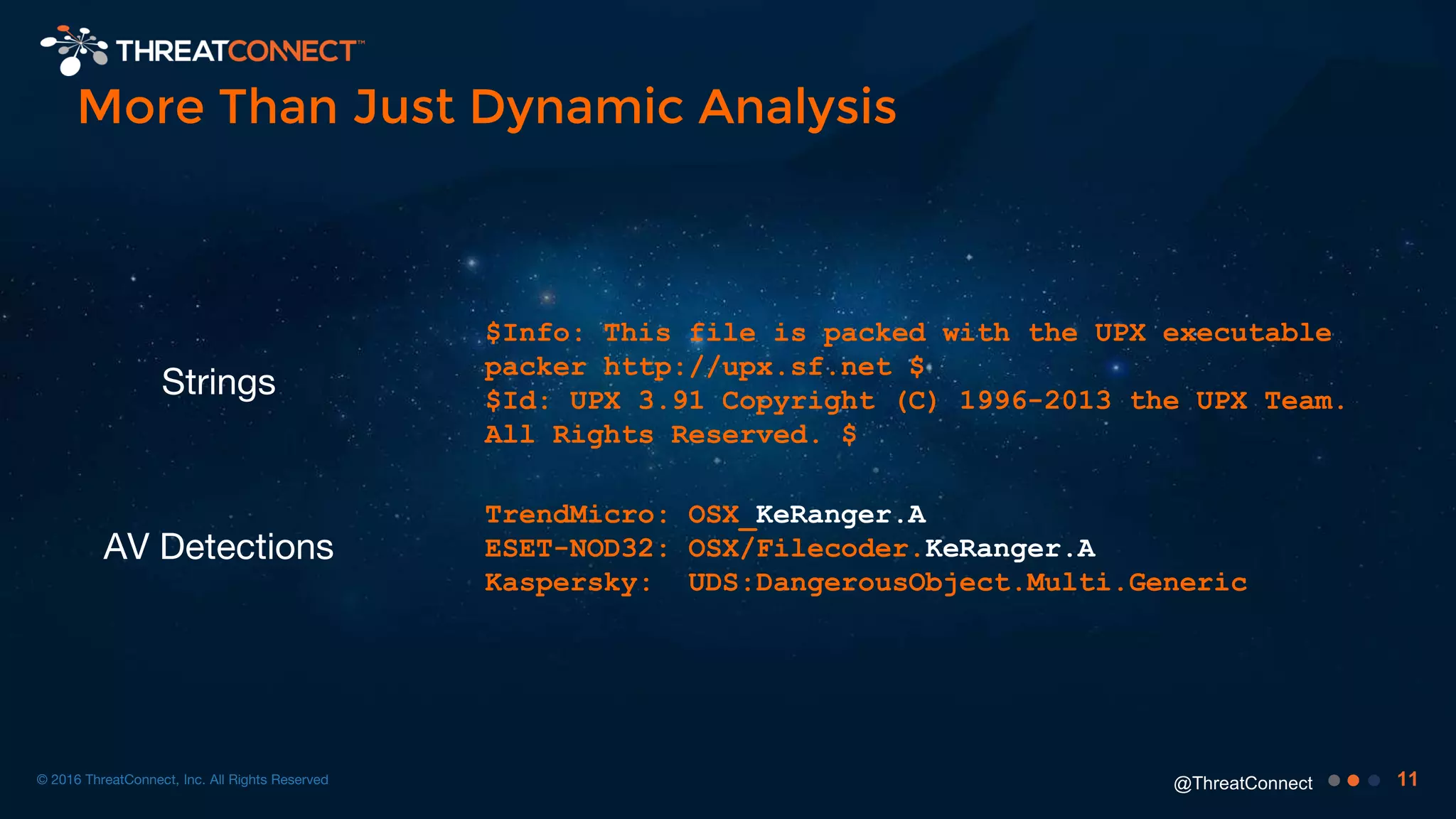

- 11. 11@ThreatConnect More Than Just Dynamic Analysis © 2016 ThreatConnect, Inc. All Rights Reserved TrendMicro: OSX_KeRanger.A ESET-NOD32: OSX/Filecoder.KeRanger.A Kaspersky: UDS:DangerousObject.Multi.Generic $Info: This file is packed with the UPX executable packer http://upx.sf.net $ $Id: UPX 3.91 Copyright (C) 1996-2013 the UPX Team. All Rights Reserved. $ Strings AV Detections
- 12. 12@ThreatConnect More Than Just Dynamic Analysis © 2016 ThreatConnect, Inc. All Rights Reserved data RT_VERSION 3519388073965d5b6bae77135c36786f6f8e6882099a88504fba d3ed9b9c9687 99 files found Name Addr Ent MD5 .rsrc 532480 3.59 7ce8cbef10f26dfee328a35f2c724cd5 52 files found Sections Resources Timestamp: 2016-03-07 09:41:34 First Seen: 2016-03-07 09:42:47 95c231bb, web, RU File Metadata

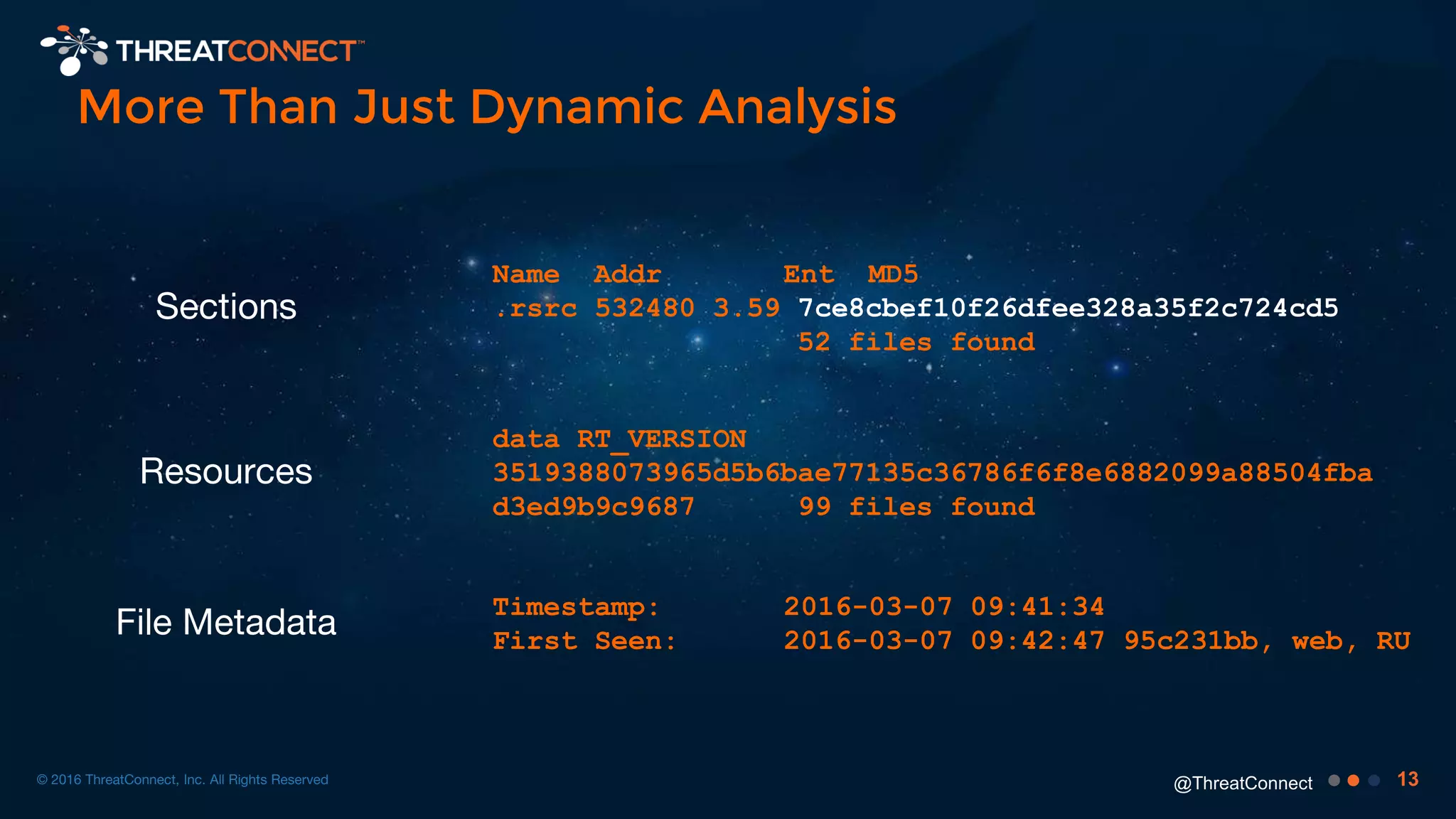

- 13. 13@ThreatConnect More Than Just Dynamic Analysis © 2016 ThreatConnect, Inc. All Rights Reserved data RT_VERSION 3519388073965d5b6bae77135c36786f6f8e6882099a88504fba d3ed9b9c9687 99 files found Name Addr Ent MD5 .rsrc 532480 3.59 7ce8cbef10f26dfee328a35f2c724cd5 52 files found Sections Resources Timestamp: 2016-03-07 09:41:34 First Seen: 2016-03-07 09:42:47 95c231bb, web, RU File Metadata

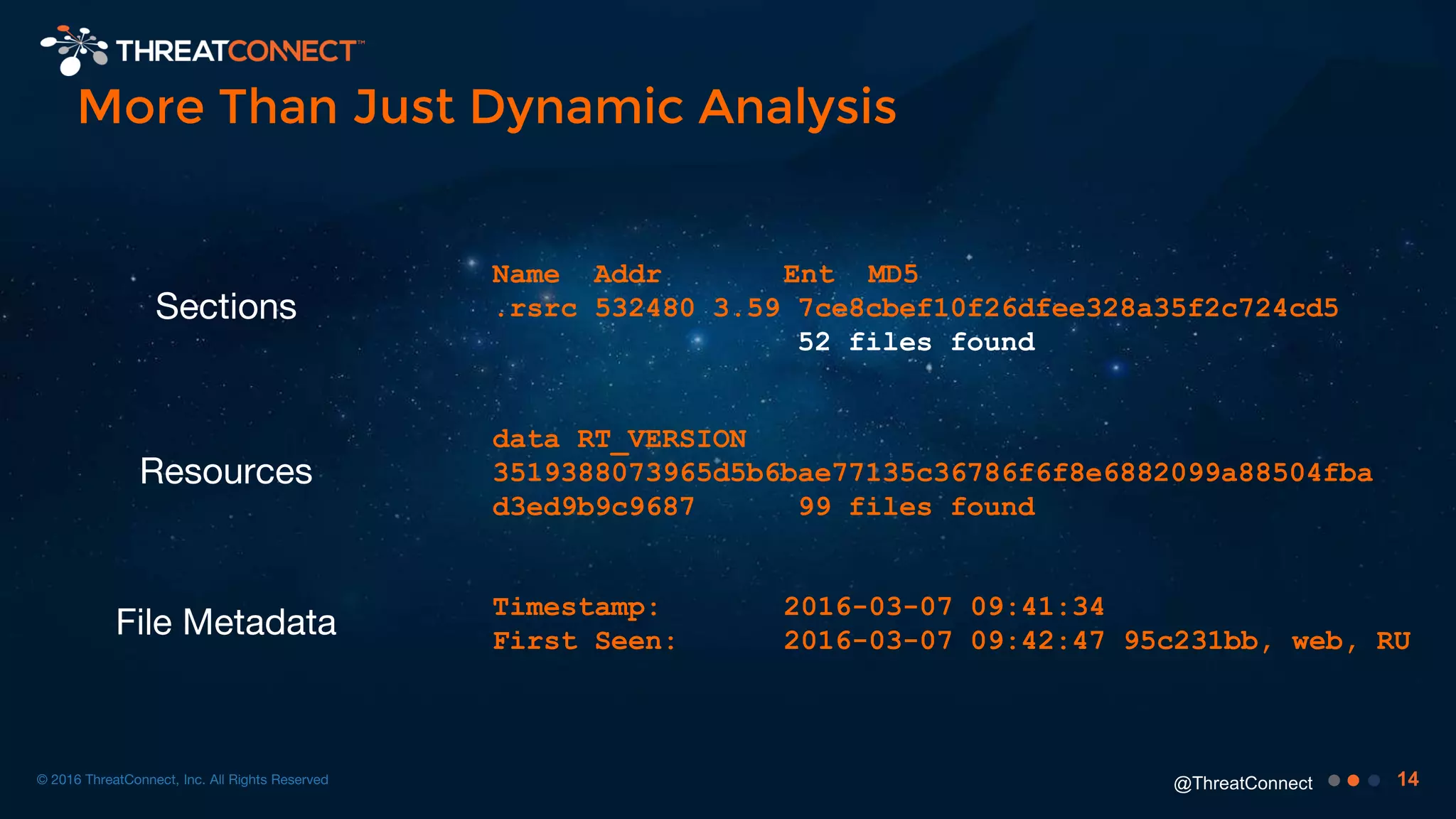

- 14. 14@ThreatConnect More Than Just Dynamic Analysis © 2016 ThreatConnect, Inc. All Rights Reserved data RT_VERSION 3519388073965d5b6bae77135c36786f6f8e6882099a88504fba d3ed9b9c9687 99 files found Name Addr Ent MD5 .rsrc 532480 3.59 7ce8cbef10f26dfee328a35f2c724cd5 52 files found Sections Resources Timestamp: 2016-03-07 09:41:34 First Seen: 2016-03-07 09:42:47 95c231bb, web, RU File Metadata

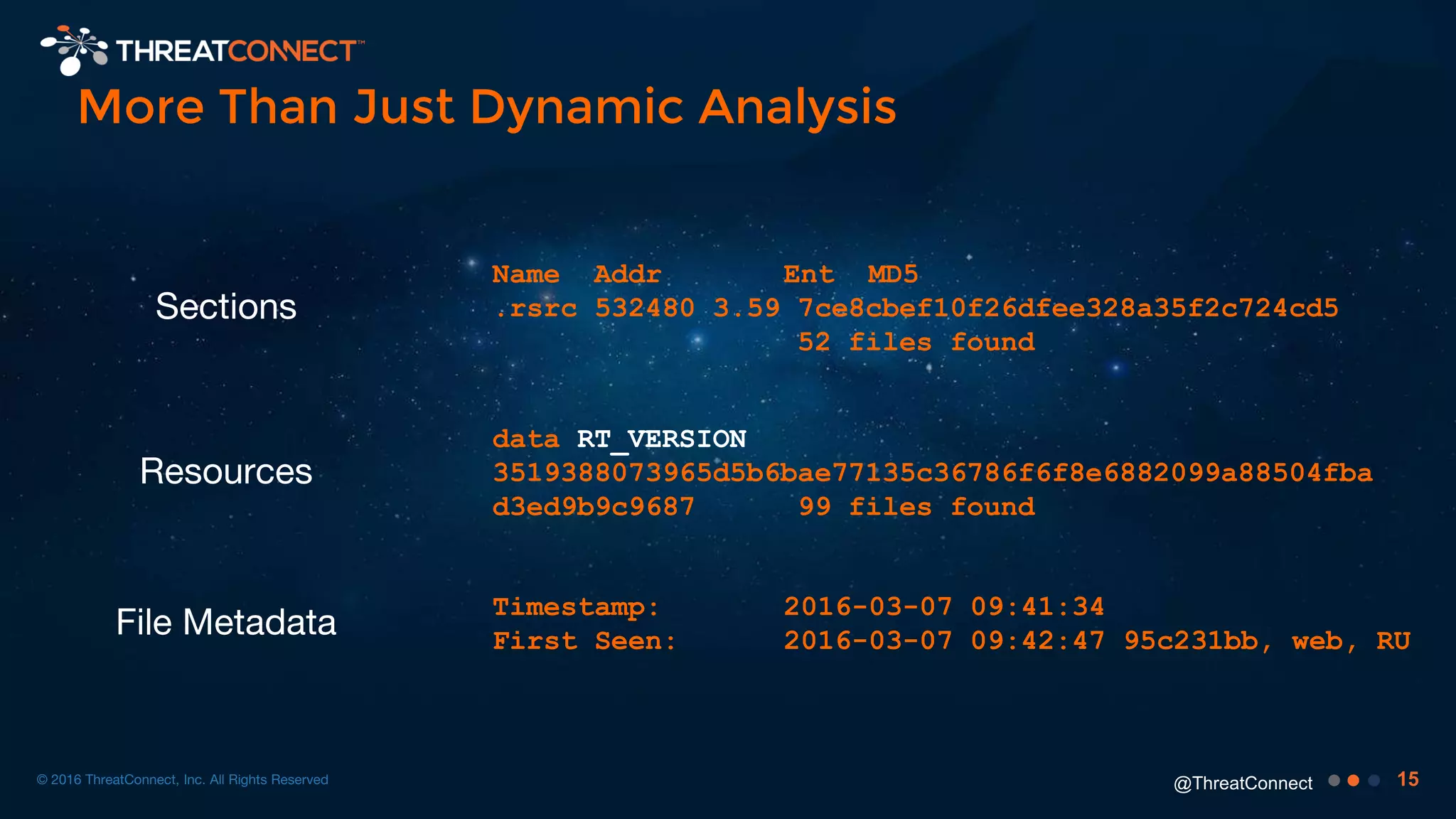

- 15. 15@ThreatConnect More Than Just Dynamic Analysis © 2016 ThreatConnect, Inc. All Rights Reserved data RT_VERSION 3519388073965d5b6bae77135c36786f6f8e6882099a88504fba d3ed9b9c9687 99 files found Name Addr Ent MD5 .rsrc 532480 3.59 7ce8cbef10f26dfee328a35f2c724cd5 52 files found Sections Resources Timestamp: 2016-03-07 09:41:34 First Seen: 2016-03-07 09:42:47 95c231bb, web, RU File Metadata

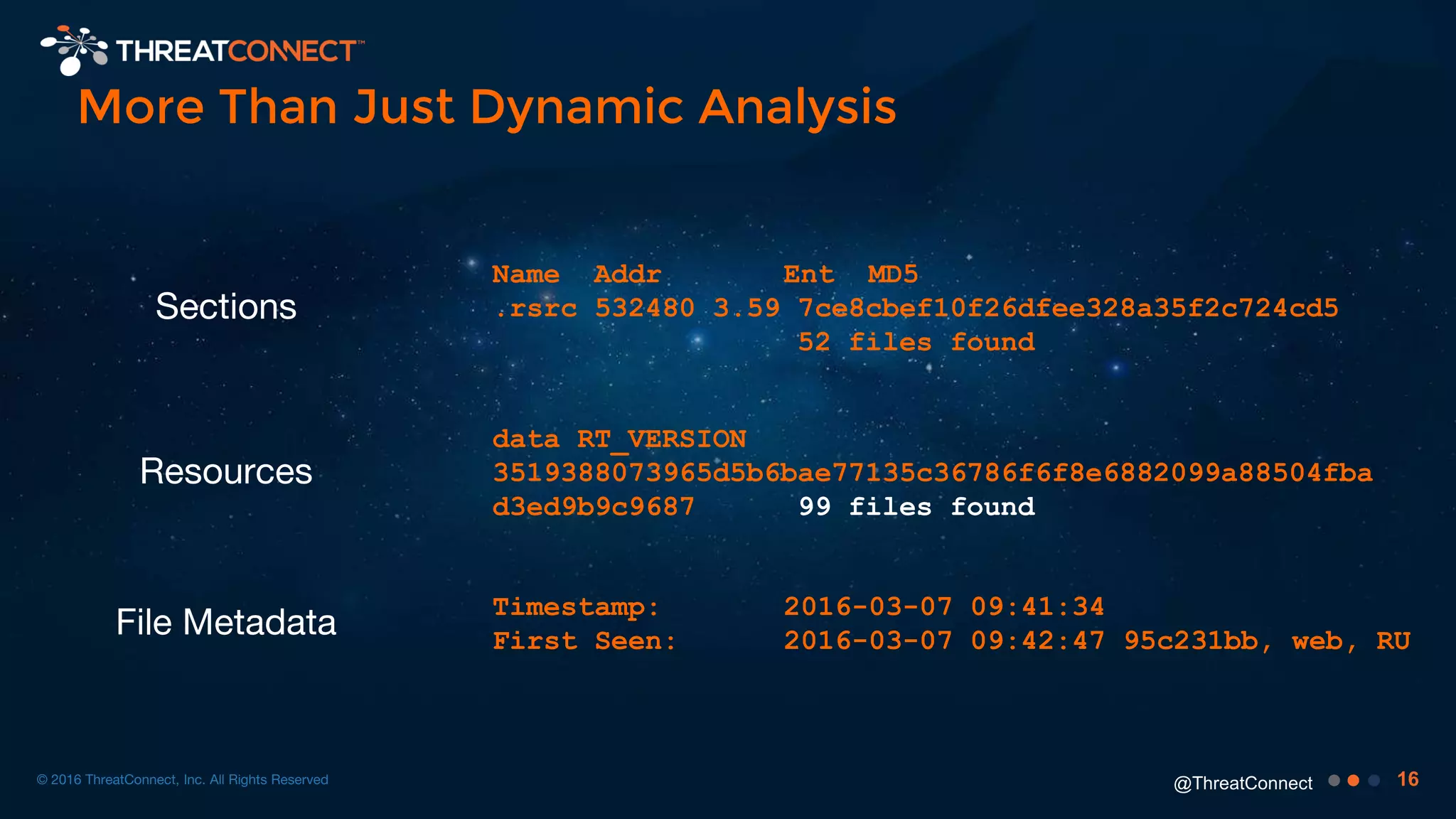

- 16. 16@ThreatConnect More Than Just Dynamic Analysis © 2016 ThreatConnect, Inc. All Rights Reserved data RT_VERSION 3519388073965d5b6bae77135c36786f6f8e6882099a88504fba d3ed9b9c9687 99 files found Name Addr Ent MD5 .rsrc 532480 3.59 7ce8cbef10f26dfee328a35f2c724cd5 52 files found Sections Resources Timestamp: 2016-03-07 09:41:34 First Seen: 2016-03-07 09:42:47 95c231bb, web, RU File Metadata
- 17. 17@ThreatConnect More Than Just Dynamic Analysis © 2016 ThreatConnect, Inc. All Rights Reserved data RT_VERSION 3519388073965d5b6bae77135c36786f6f8e6882099a88504fba d3ed9b9c9687 99 files found Name Addr Ent MD5 .rsrc 532480 3.59 7ce8cbef10f26dfee328a35f2c724cd5 52 files found Sections Resources Timestamp: 2016-03-07 09:41:34 First Seen: 2016-03-07 09:42:47 95c231bb, web, RU File Metadata

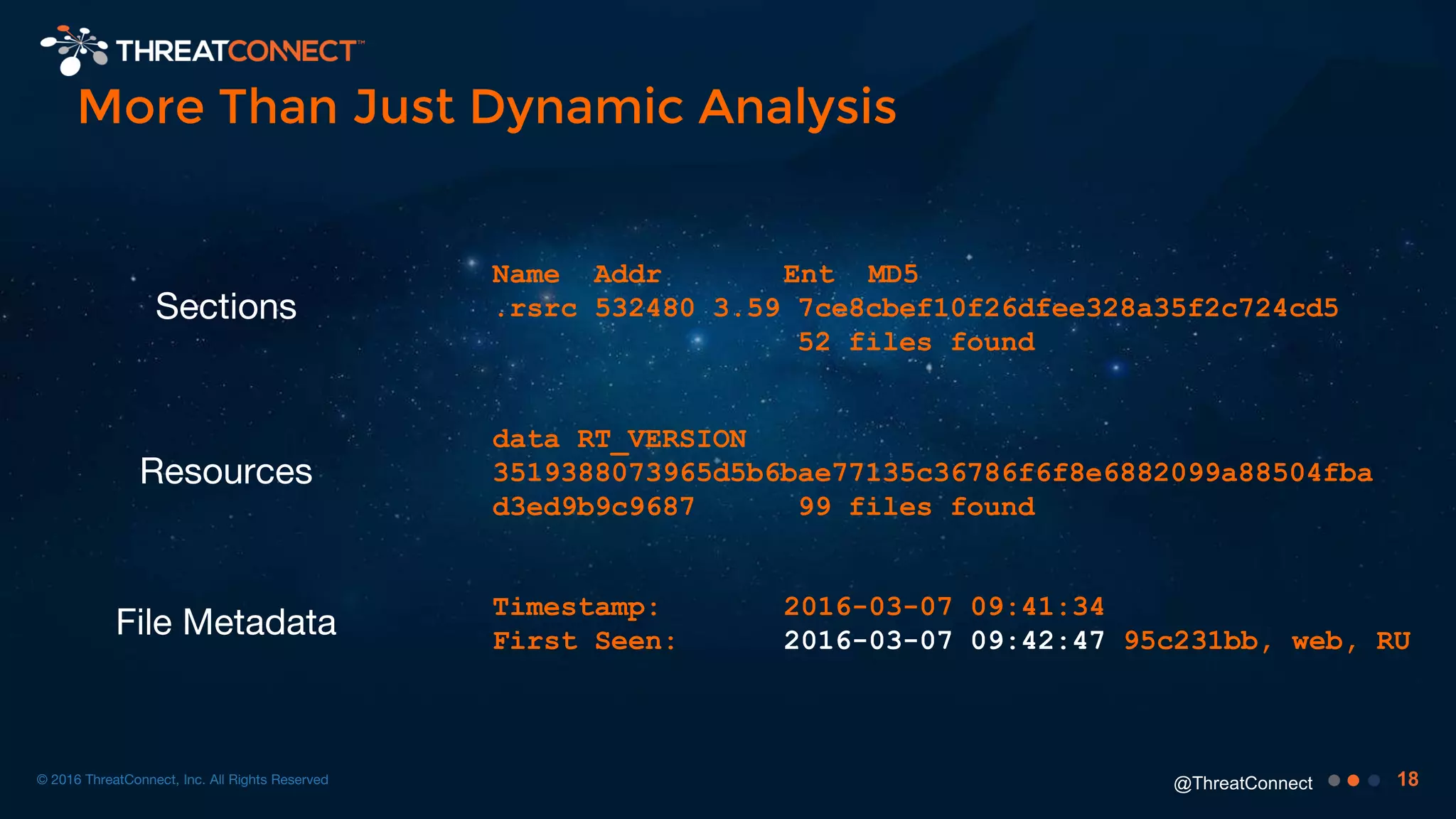

- 18. 18@ThreatConnect More Than Just Dynamic Analysis © 2016 ThreatConnect, Inc. All Rights Reserved data RT_VERSION 3519388073965d5b6bae77135c36786f6f8e6882099a88504fba d3ed9b9c9687 99 files found Name Addr Ent MD5 .rsrc 532480 3.59 7ce8cbef10f26dfee328a35f2c724cd5 52 files found Sections Resources Timestamp: 2016-03-07 09:41:34 First Seen: 2016-03-07 09:42:47 95c231bb, web, RU File Metadata

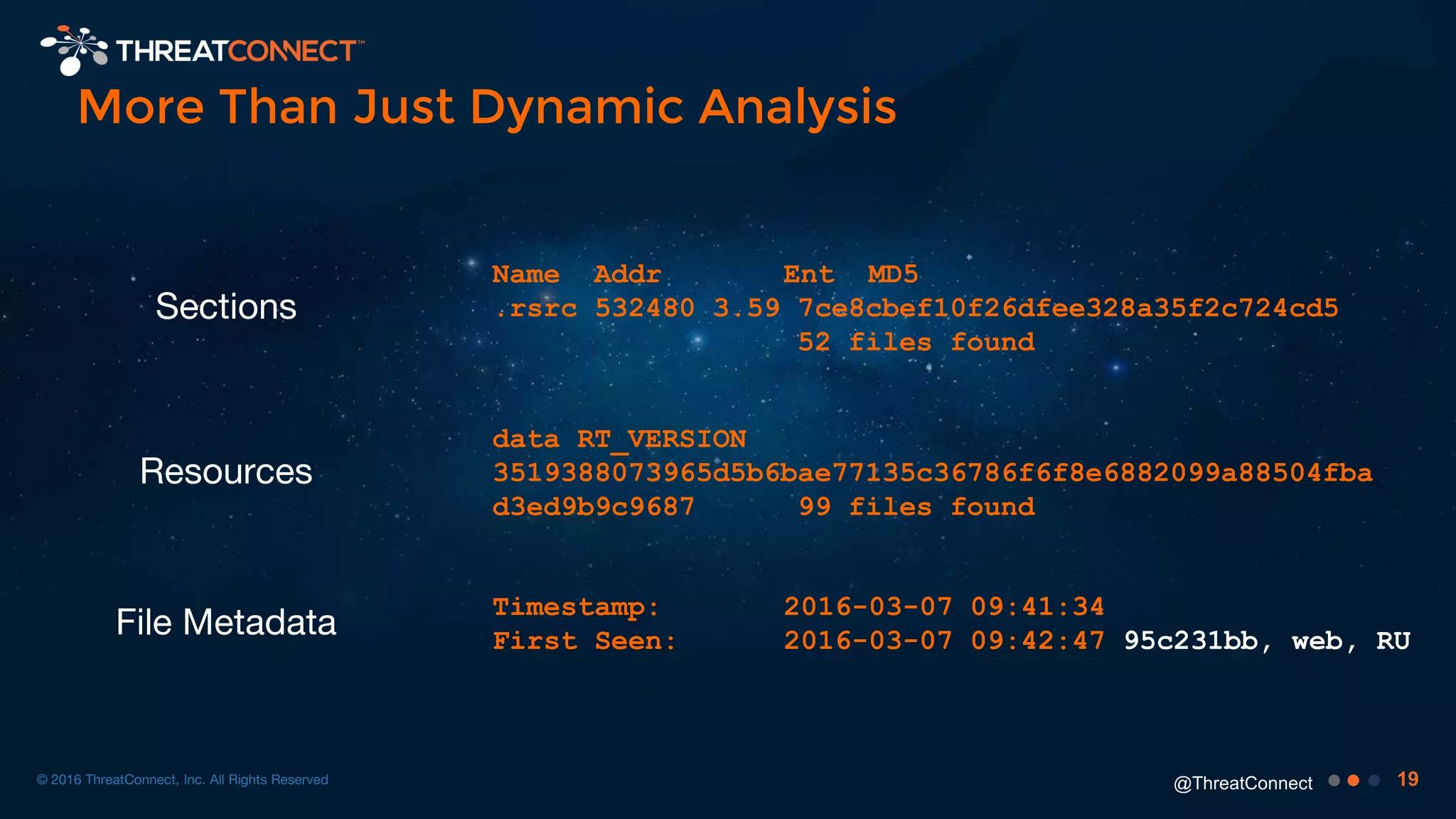

- 19. 19@ThreatConnect More Than Just Dynamic Analysis © 2016 ThreatConnect, Inc. All Rights Reserved data RT_VERSION 3519388073965d5b6bae77135c36786f6f8e6882099a88504fba d3ed9b9c9687 99 files found Name Addr Ent MD5 .rsrc 532480 3.59 7ce8cbef10f26dfee328a35f2c724cd5 52 files found Sections Resources Timestamp: 2016-03-07 09:41:34 First Seen: 2016-03-07 09:42:47 95c231bb, web, RU File Metadata

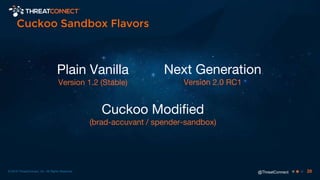

- 20. 20@ThreatConnect Cuckoo Sandbox Flavors © 2016 ThreatConnect, Inc. All Rights Reserved Plain Vanilla Version 1.2 (Stable) Cuckoo Modified (brad-accuvant / spender-sandbox) Next Generation Version 2.0 RC1

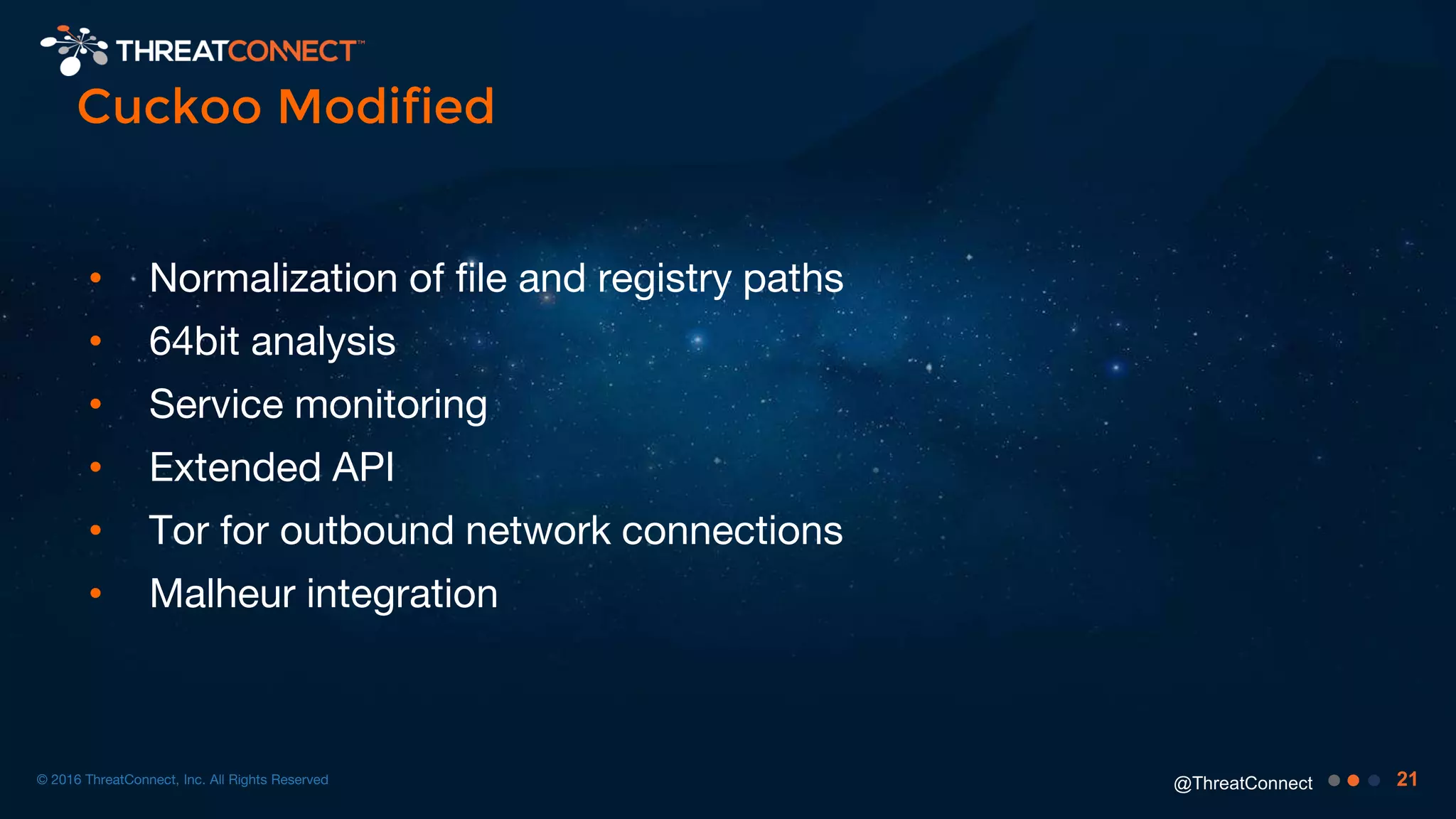

- 21. 21@ThreatConnect Cuckoo Modified • Normalization of file and registry paths • 64bit analysis • Service monitoring • Extended API • Tor for outbound network connections • Malheur integration © 2016 ThreatConnect, Inc. All Rights Reserved

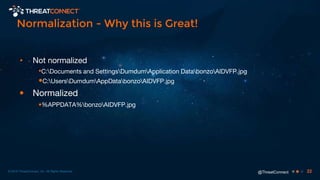

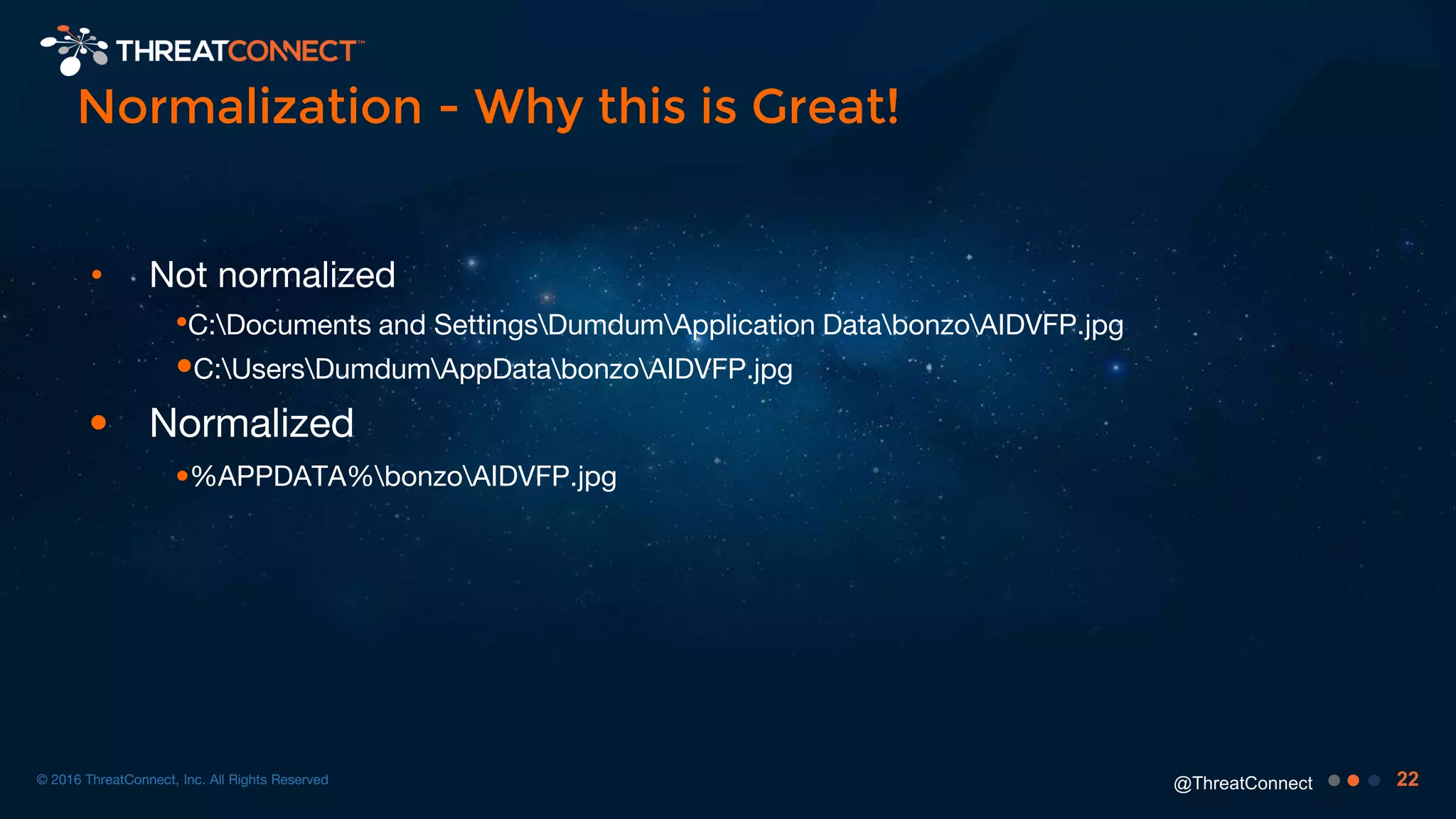

- 22. 22@ThreatConnect Normalization - Why this is Great! • Not normalized •C:Documents and SettingsDumdumApplication DatabonzoAIDVFP.jpg •C:UsersDumdumAppDatabonzoAIDVFP.jpg • Normalized •%APPDATA%bonzoAIDVFP.jpg © 2016 ThreatConnect, Inc. All Rights Reserved

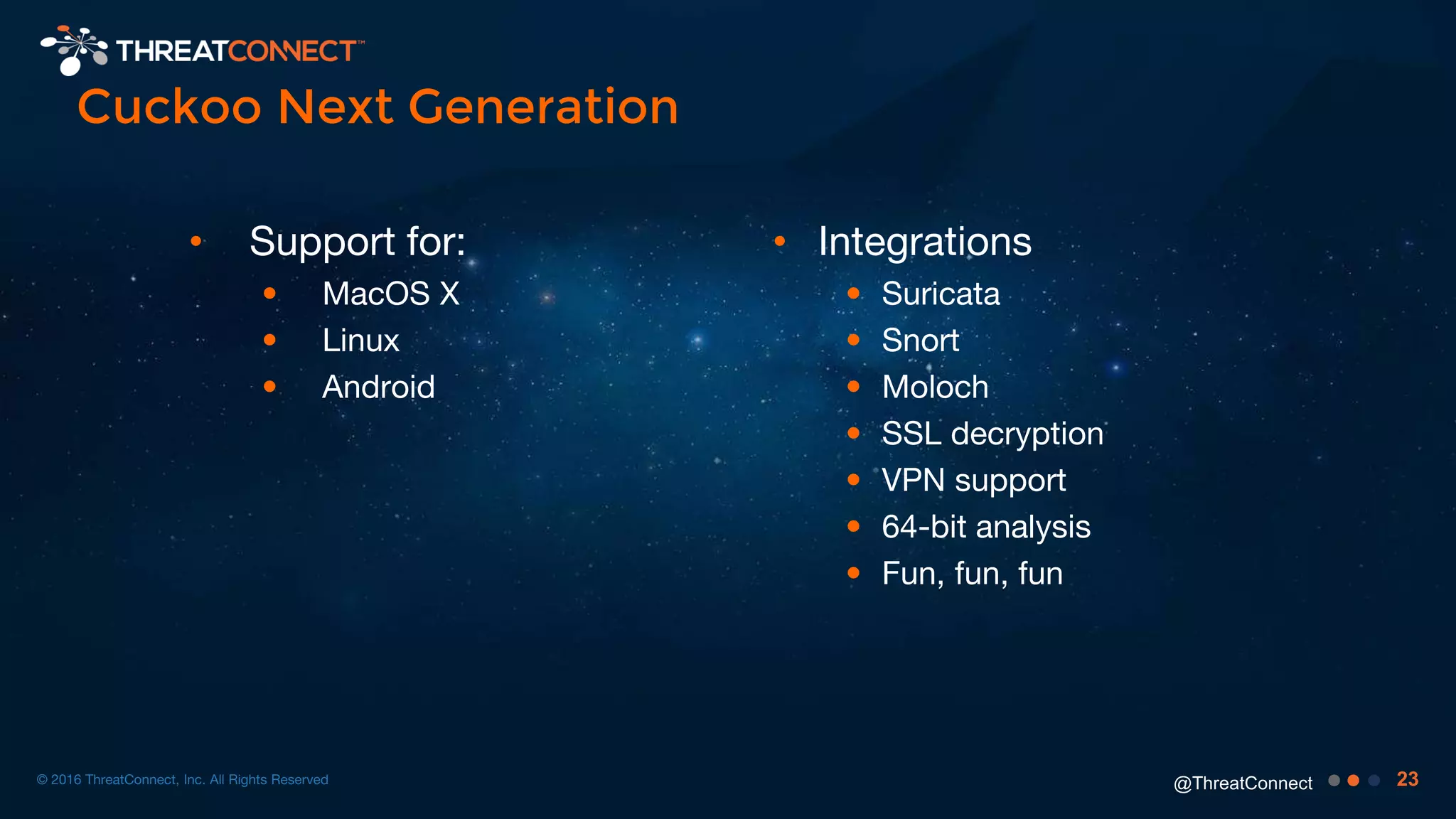

- 23. 23@ThreatConnect Cuckoo Next Generation • Support for: • MacOS X • Linux • Android © 2016 ThreatConnect, Inc. All Rights Reserved • Integrations • Suricata • Snort • Moloch • SSL decryption • VPN support • 64-bit analysis • Fun, fun, fun

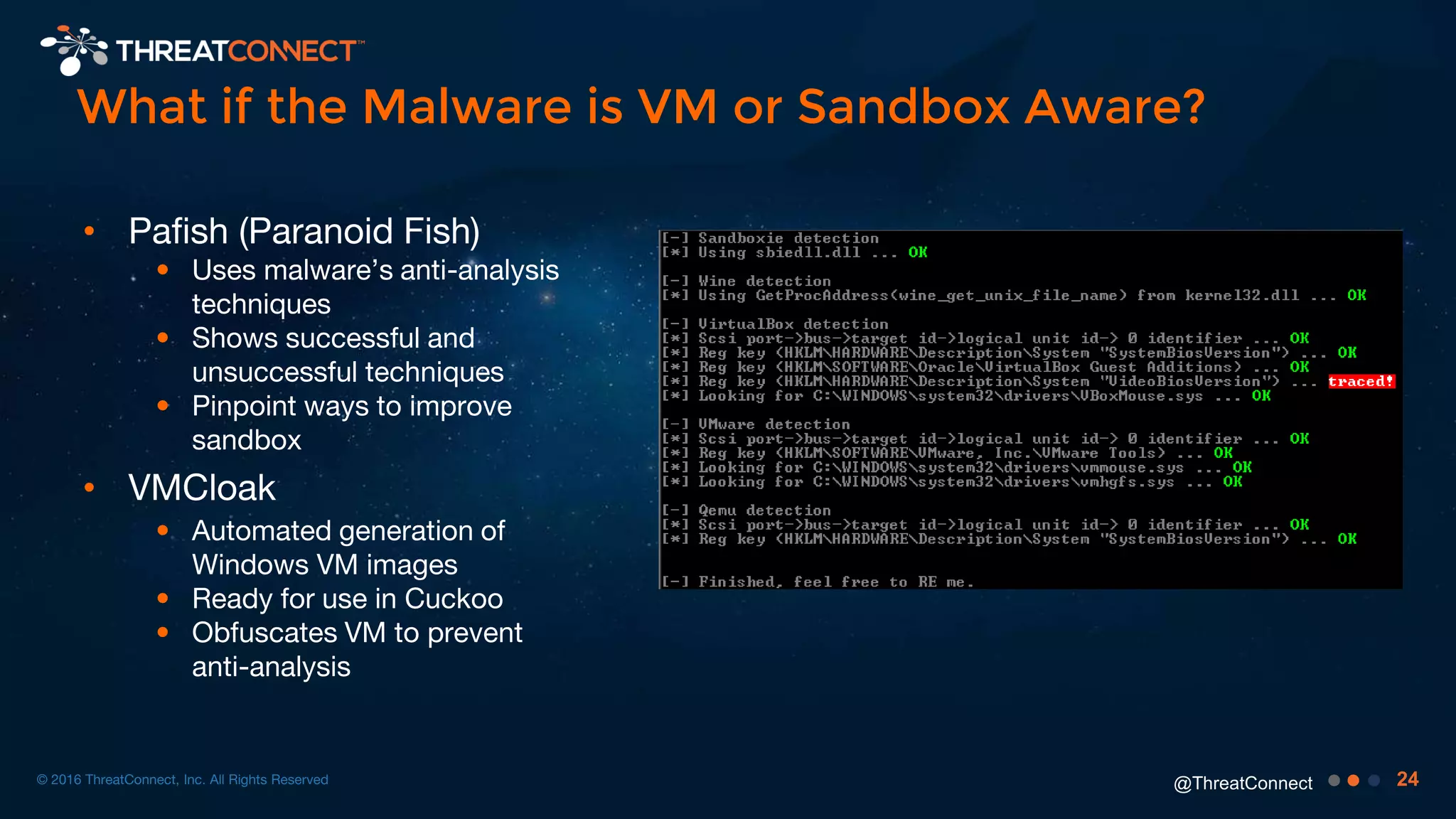

- 24. 24@ThreatConnect What if the Malware is VM or Sandbox Aware? • Pafish (Paranoid Fish) • Uses malware’s anti-analysis techniques • Shows successful and unsuccessful techniques • Pinpoint ways to improve sandbox • VMCloak • Automated generation of Windows VM images • Ready for use in Cuckoo • Obfuscates VM to prevent anti-analysis © 2016 ThreatConnect, Inc. All Rights Reserved

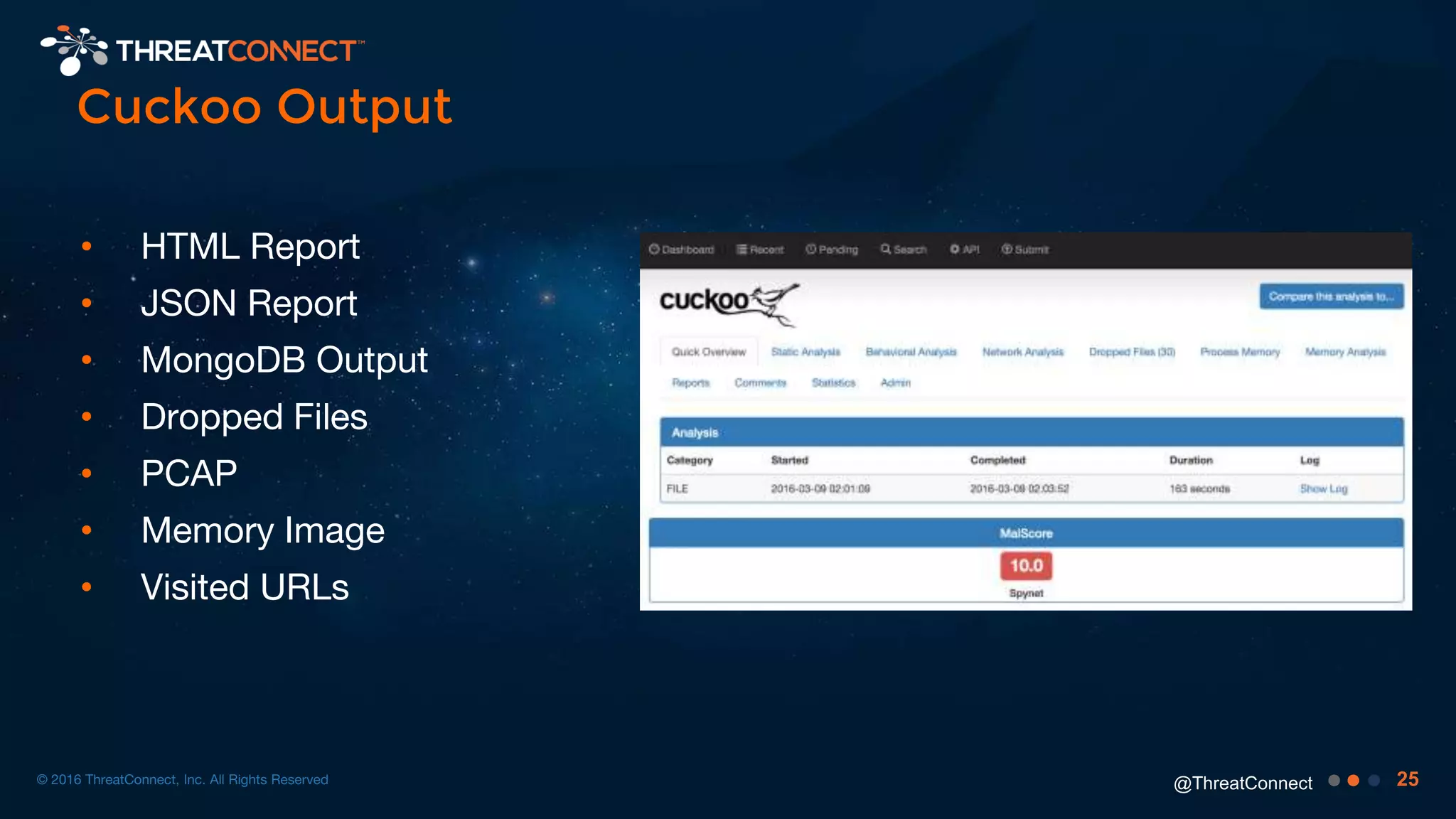

- 25. 25@ThreatConnect Cuckoo Output • HTML Report • JSON Report • MongoDB Output • Dropped Files • PCAP • Memory Image • Visited URLs © 2016 ThreatConnect, Inc. All Rights Reserved
- 26. 26@ThreatConnect Thug Low-Interaction Honeyclient © 2016 ThreatConnect, Inc. All Rights Reserved
- 27. 27@ThreatConnect What is a Low-Interaction Honeyclient? • Pretends to be a browser • Trigger a drive-by download • Capture its payload © 2016 ThreatConnect, Inc. All Rights Reserved

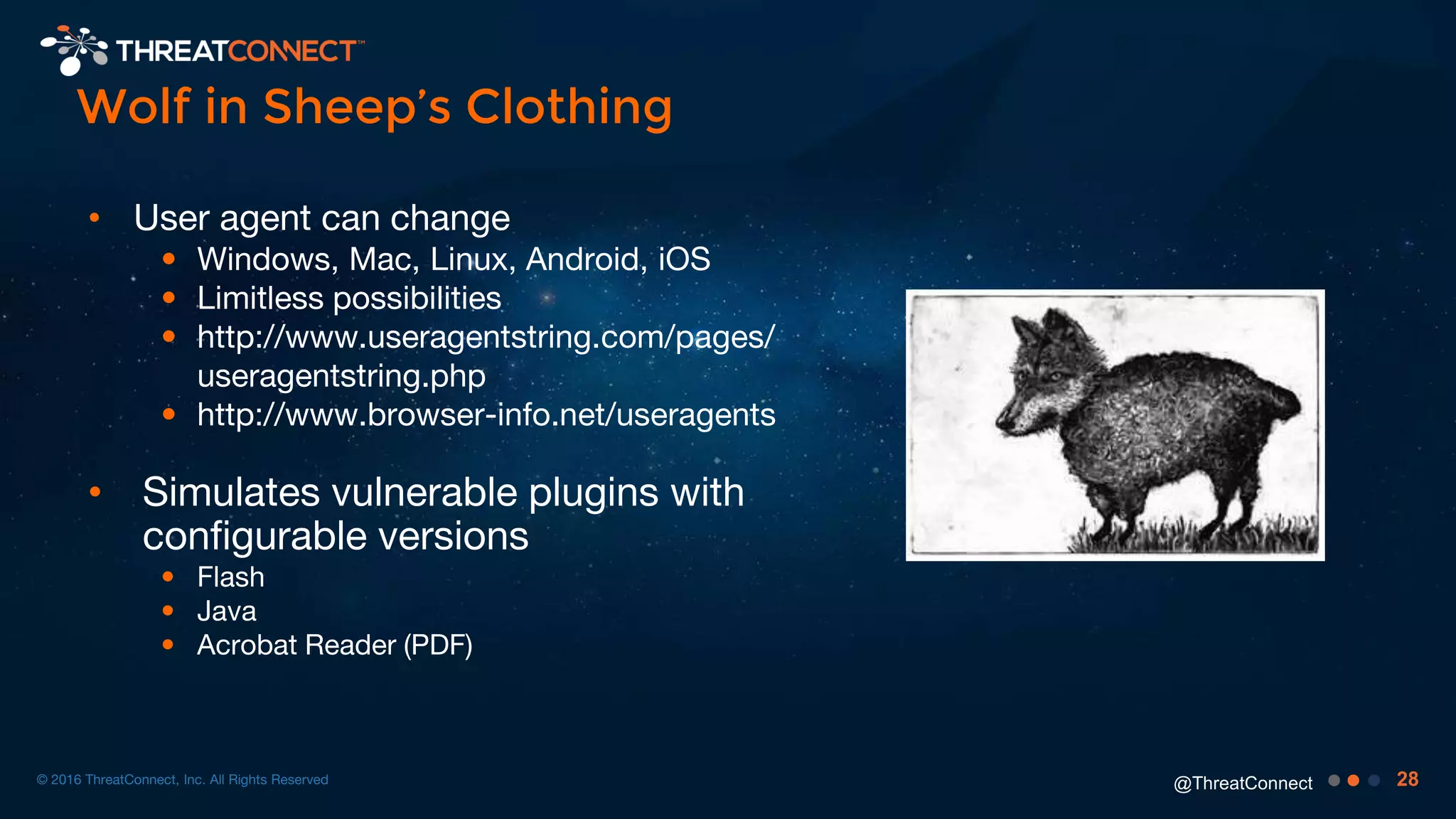

- 28. 28@ThreatConnect Wolf in Sheep’s Clothing • User agent can change • Windows, Mac, Linux, Android, iOS • Limitless possibilities • http://www.useragentstring.com/pages/ useragentstring.php • http://www.browser-info.net/useragents • Simulates vulnerable plugins with configurable versions • Flash • Java • Acrobat Reader (PDF) © 2016 ThreatConnect, Inc. All Rights Reserved

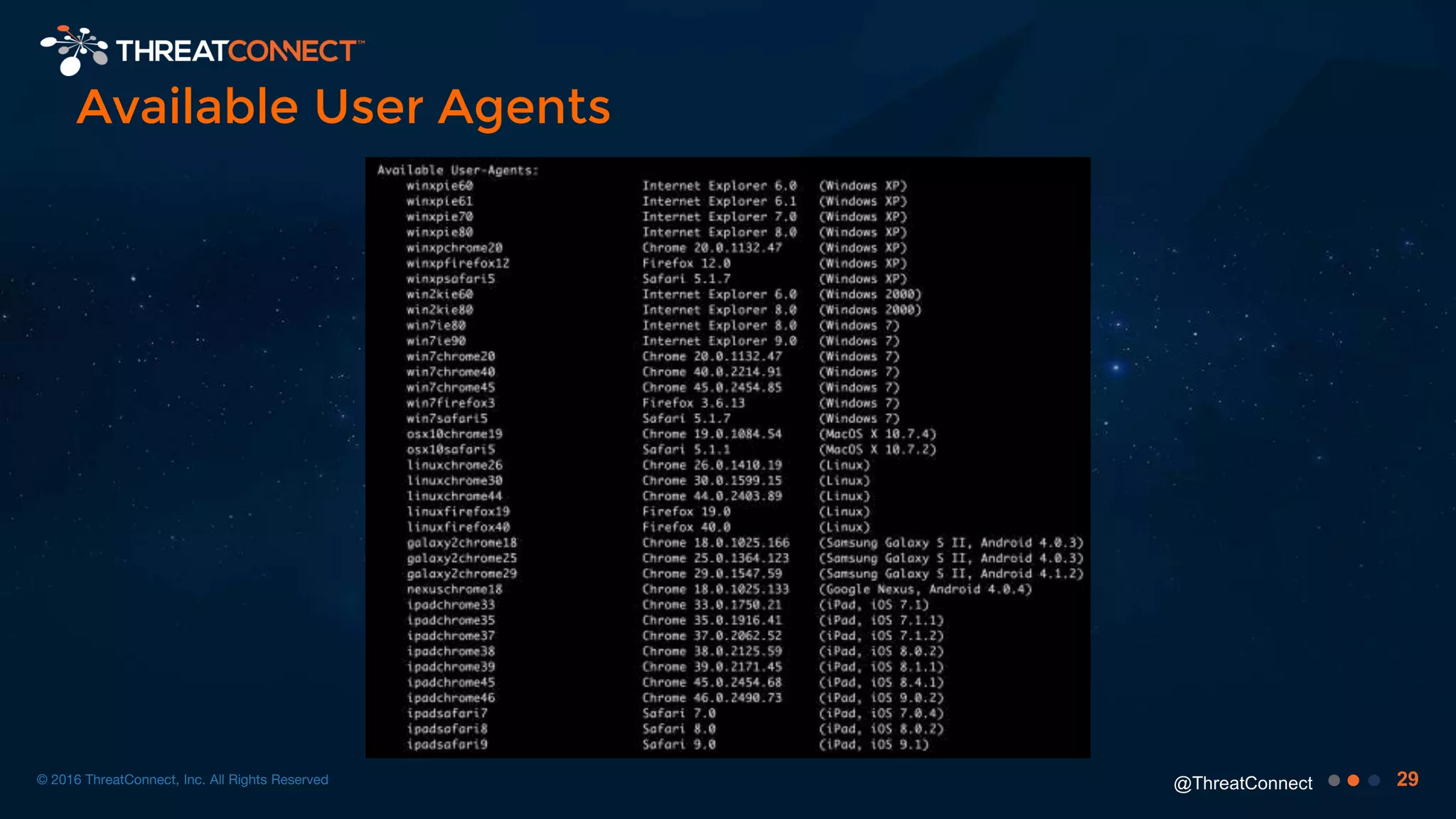

- 29. 29@ThreatConnect Available User Agents © 2016 ThreatConnect, Inc. All Rights Reserved

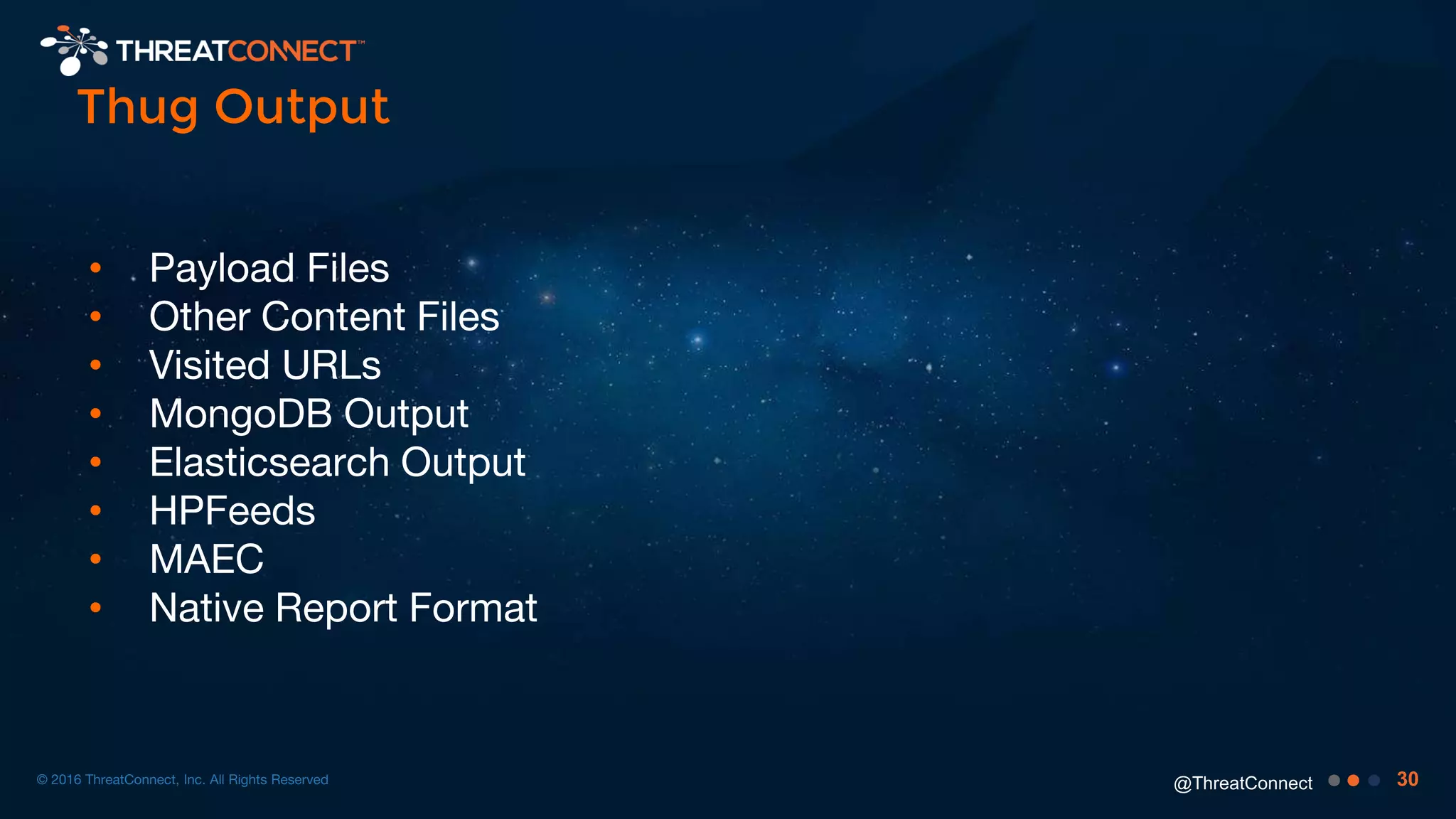

- 30. 30@ThreatConnect Thug Output • Payload Files • Other Content Files • Visited URLs • MongoDB Output • Elasticsearch Output • HPFeeds • MAEC • Native Report Format © 2016 ThreatConnect, Inc. All Rights Reserved
- 31. 31@ThreatConnect Bro Network Analysis Framework © 2016 ThreatConnect, Inc. All Rights Reserved

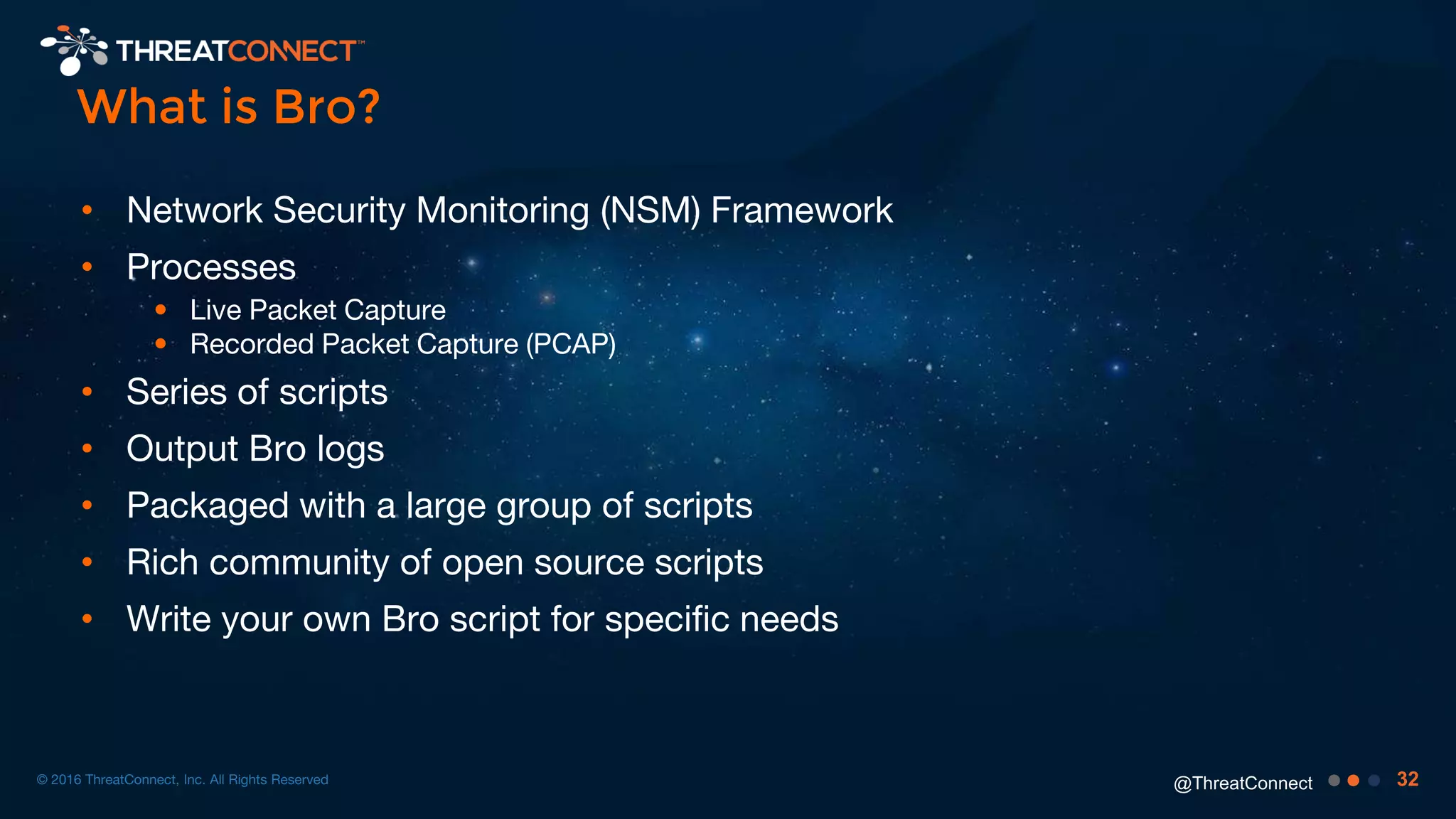

- 32. 32@ThreatConnect What is Bro? • Network Security Monitoring (NSM) Framework • Processes • Live Packet Capture • Recorded Packet Capture (PCAP) • Series of scripts • Output Bro logs • Packaged with a large group of scripts • Rich community of open source scripts • Write your own Bro script for specific needs © 2016 ThreatConnect, Inc. All Rights Reserved

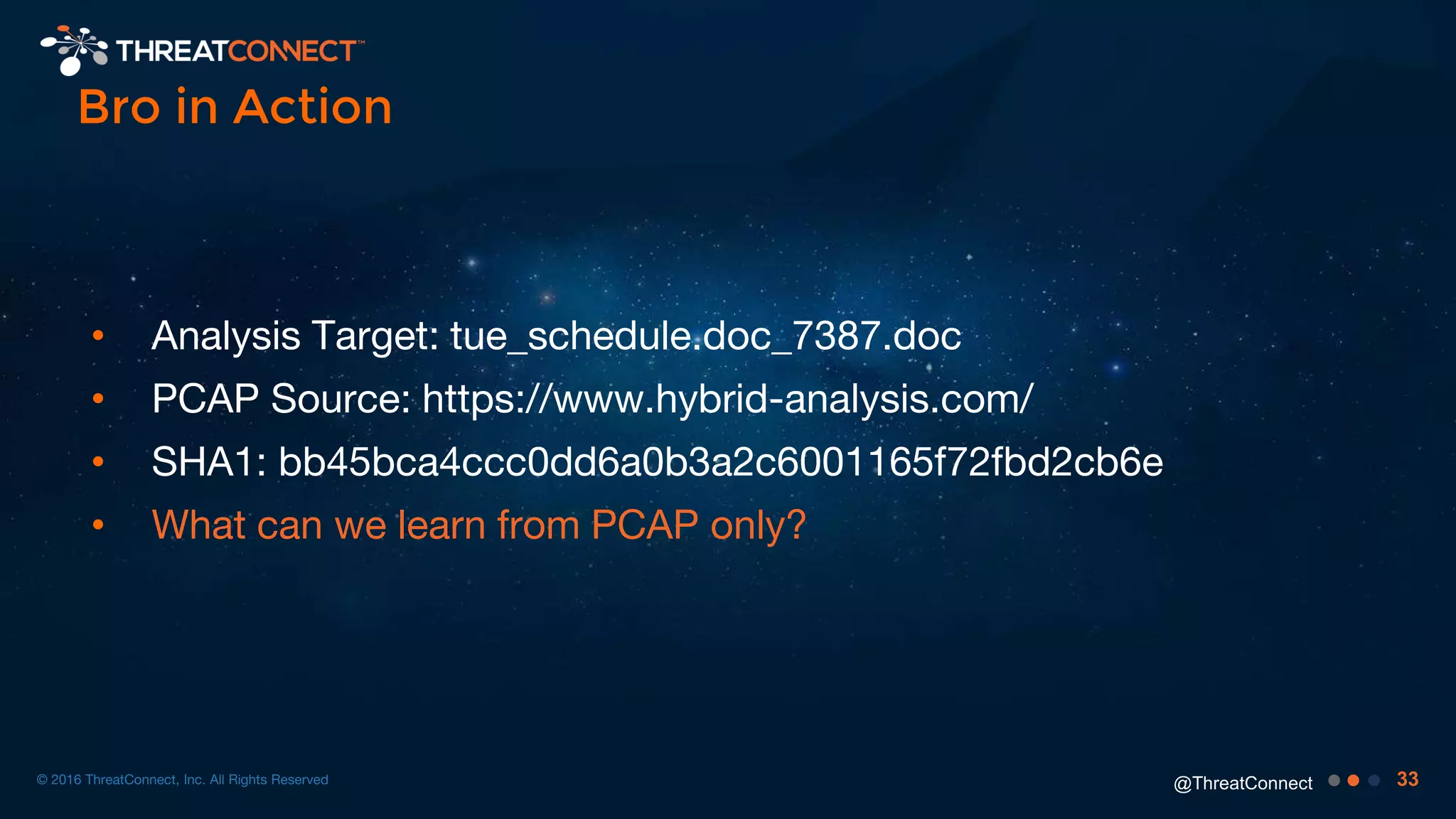

- 33. 33@ThreatConnect Bro in Action © 2016 ThreatConnect, Inc. All Rights Reserved • Analysis Target: tue_schedule.doc_7387.doc • PCAP Source: https://www.hybrid-analysis.com/ • SHA1: bb45bca4ccc0dd6a0b3a2c6001165f72fbd2cb6e • What can we learn from PCAP only?

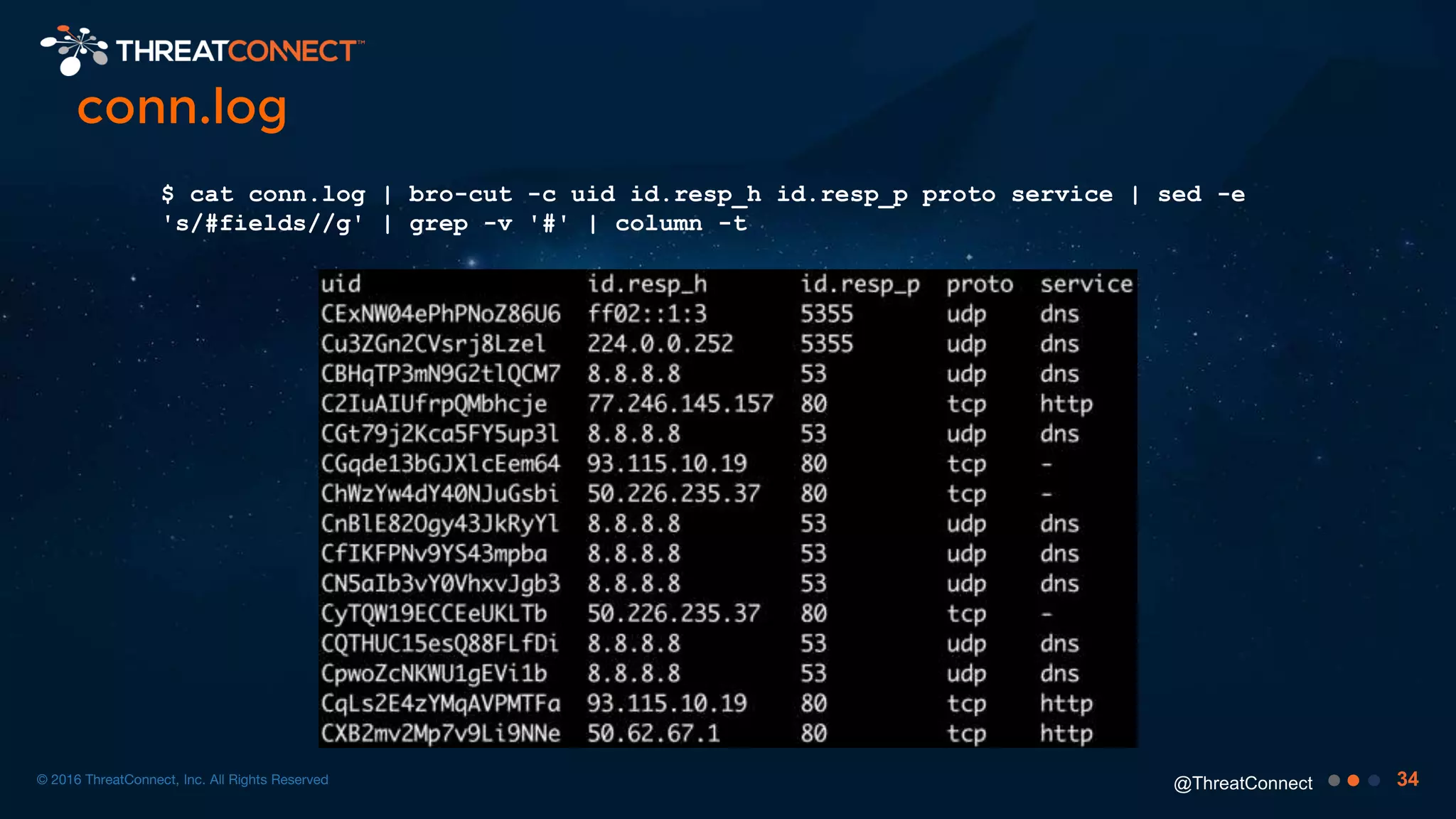

- 34. 34@ThreatConnect conn.log $ cat conn.log | bro-cut -c uid id.resp_h id.resp_p proto service | sed -e 's/#fields//g' | grep -v '#' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved
- 35. 35@ThreatConnect conn.log $ cat conn.log | bro-cut -c uid id.resp_h id.resp_p proto service | sed -e 's/#fields//g' | grep -v '#' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved

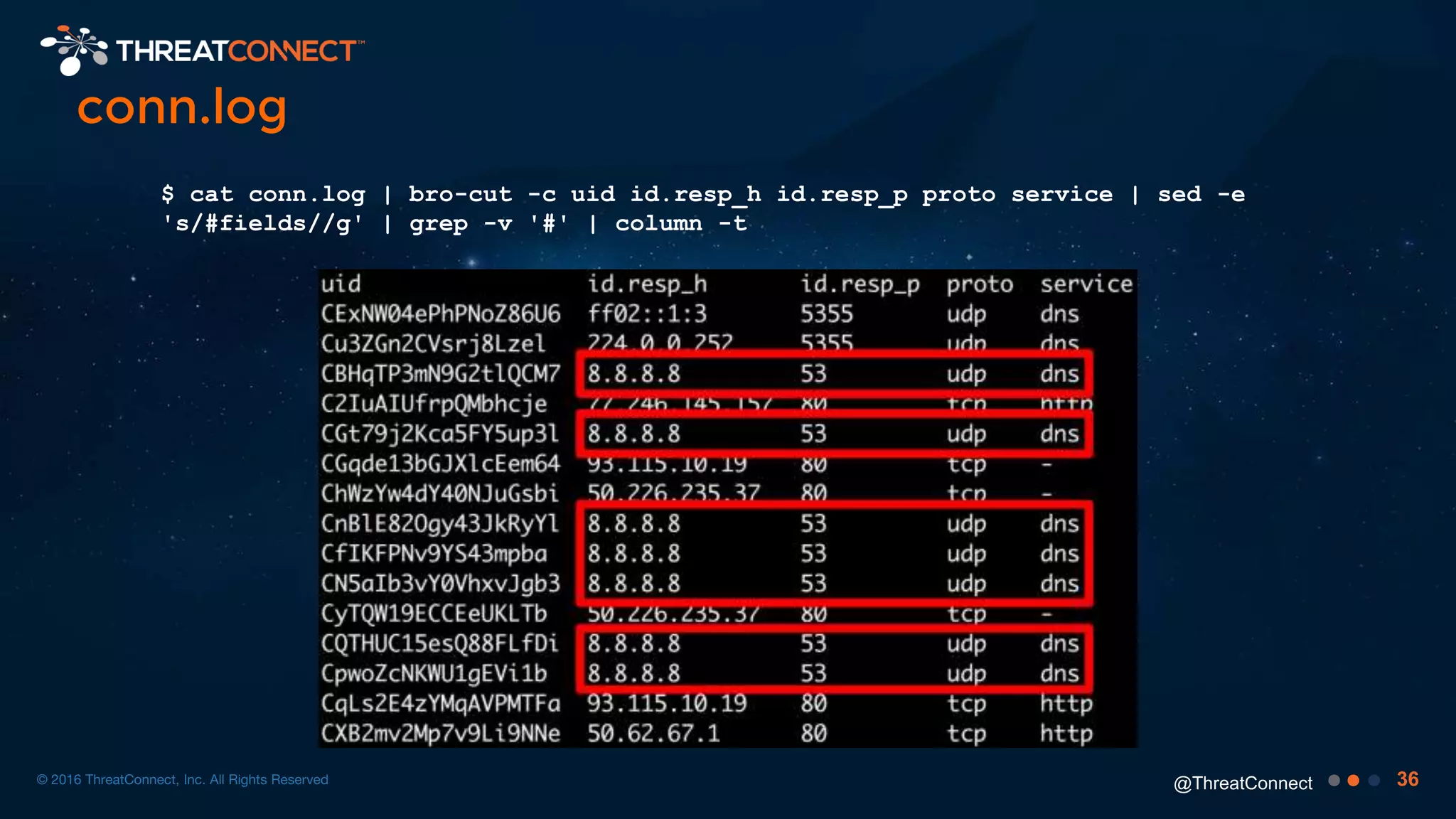

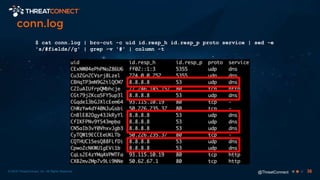

- 36. 36@ThreatConnect conn.log $ cat conn.log | bro-cut -c uid id.resp_h id.resp_p proto service | sed -e 's/#fields//g' | grep -v '#' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved

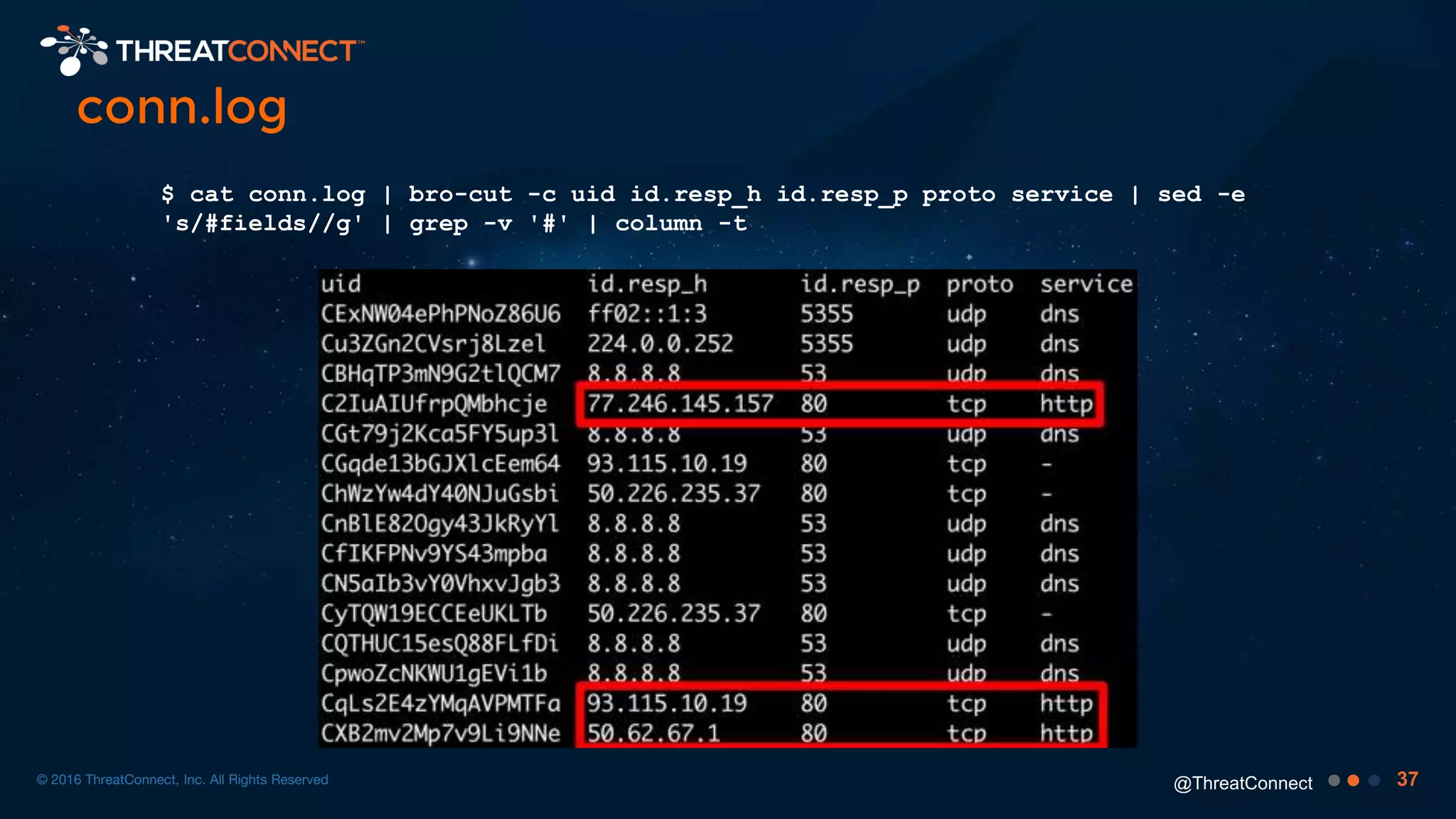

- 37. 37@ThreatConnect conn.log $ cat conn.log | bro-cut -c uid id.resp_h id.resp_p proto service | sed -e 's/#fields//g' | grep -v '#' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved

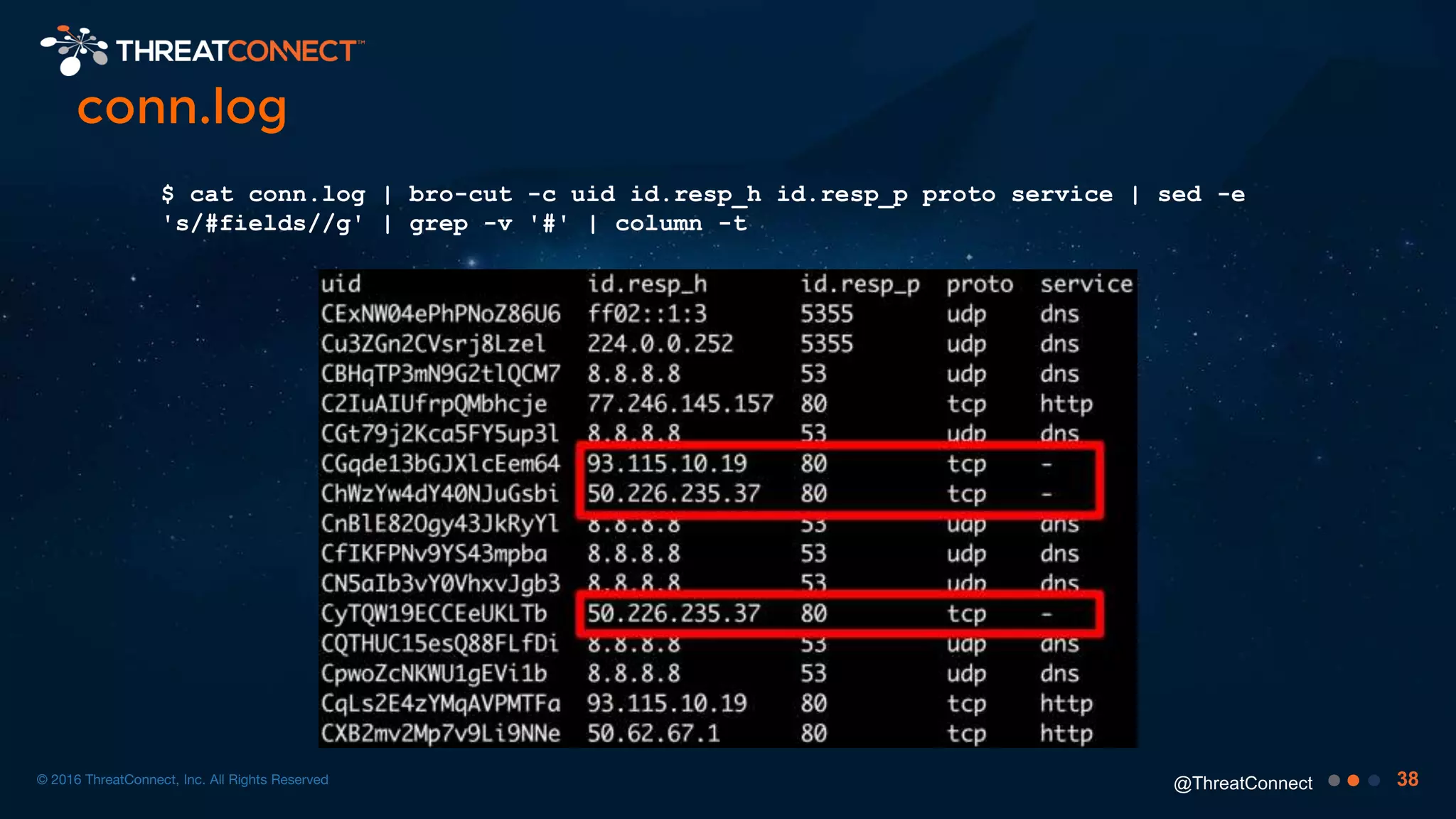

- 38. 38@ThreatConnect conn.log $ cat conn.log | bro-cut -c uid id.resp_h id.resp_p proto service | sed -e 's/#fields//g' | grep -v '#' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved

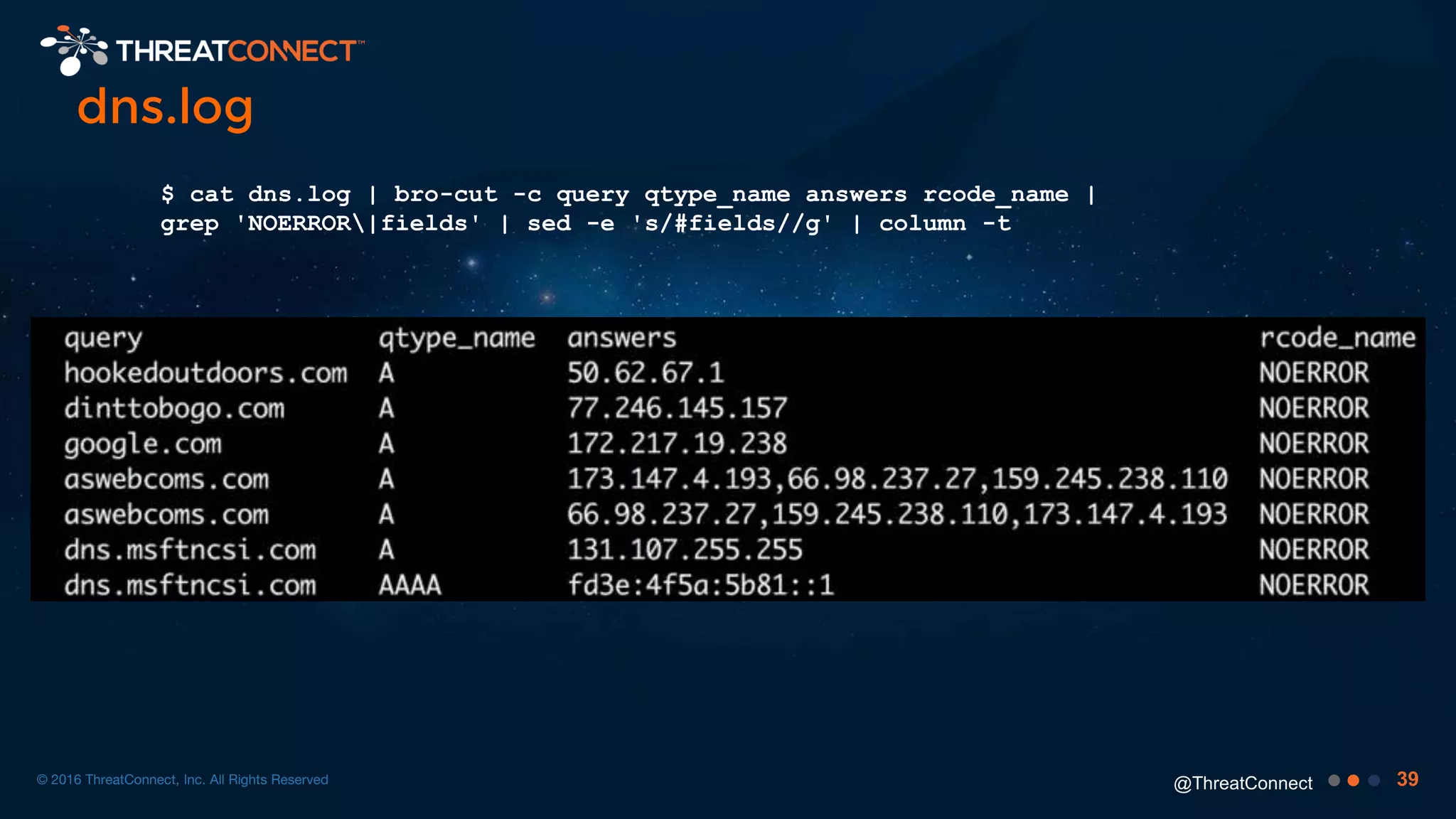

- 39. 39@ThreatConnect dns.log $ cat dns.log | bro-cut -c query qtype_name answers rcode_name | grep 'NOERROR|fields' | sed -e 's/#fields//g' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved

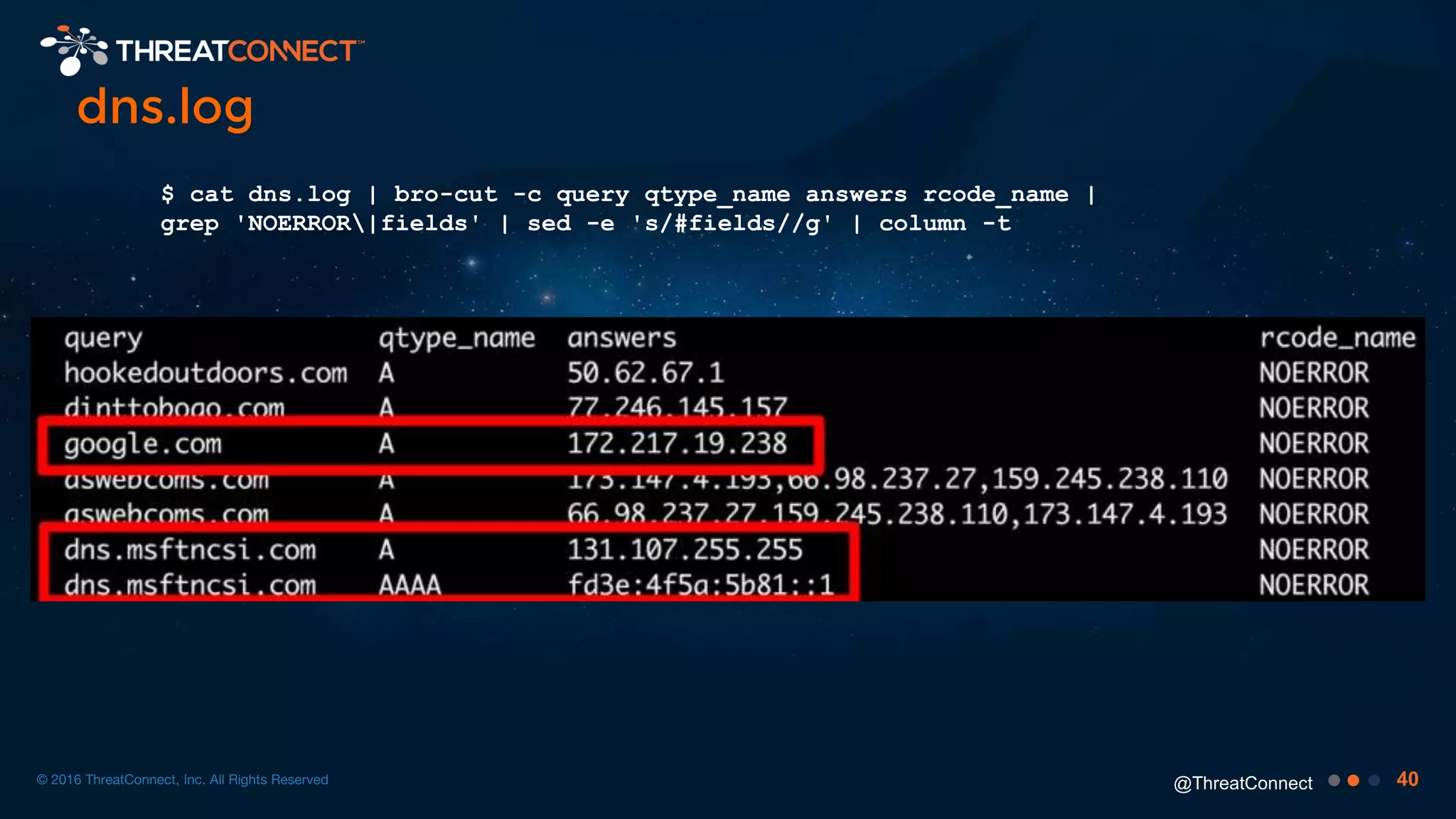

- 40. 40@ThreatConnect dns.log $ cat dns.log | bro-cut -c query qtype_name answers rcode_name | grep 'NOERROR|fields' | sed -e 's/#fields//g' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved
- 41. 41@ThreatConnect dns.log $ cat dns.log | bro-cut -c query qtype_name answers rcode_name | grep 'NOERROR|fields' | sed -e 's/#fields//g' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved

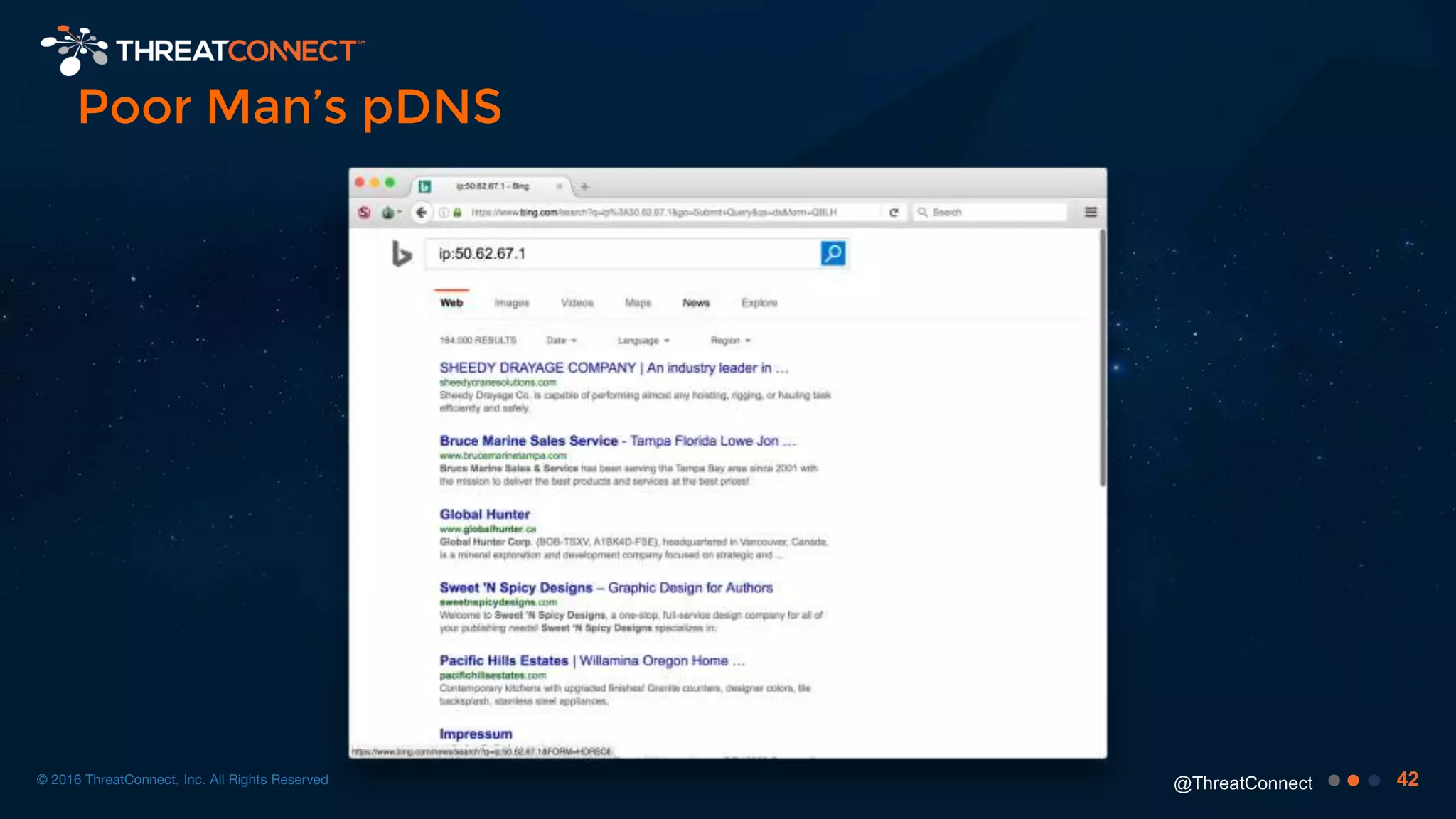

- 42. 42@ThreatConnect Poor Man’s pDNS © 2016 ThreatConnect, Inc. All Rights Reserved

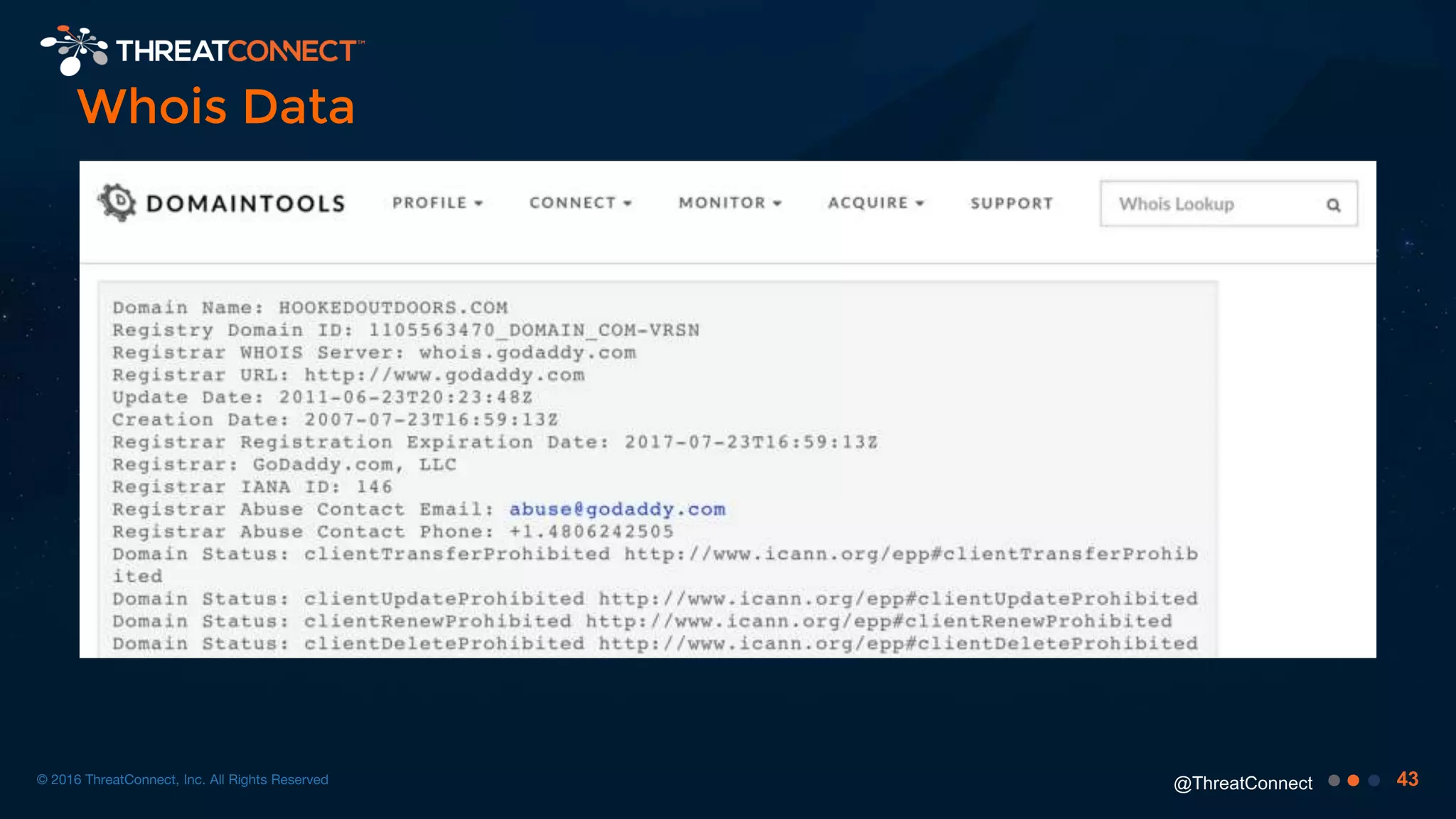

- 43. 43@ThreatConnect Whois Data © 2016 ThreatConnect, Inc. All Rights Reserved

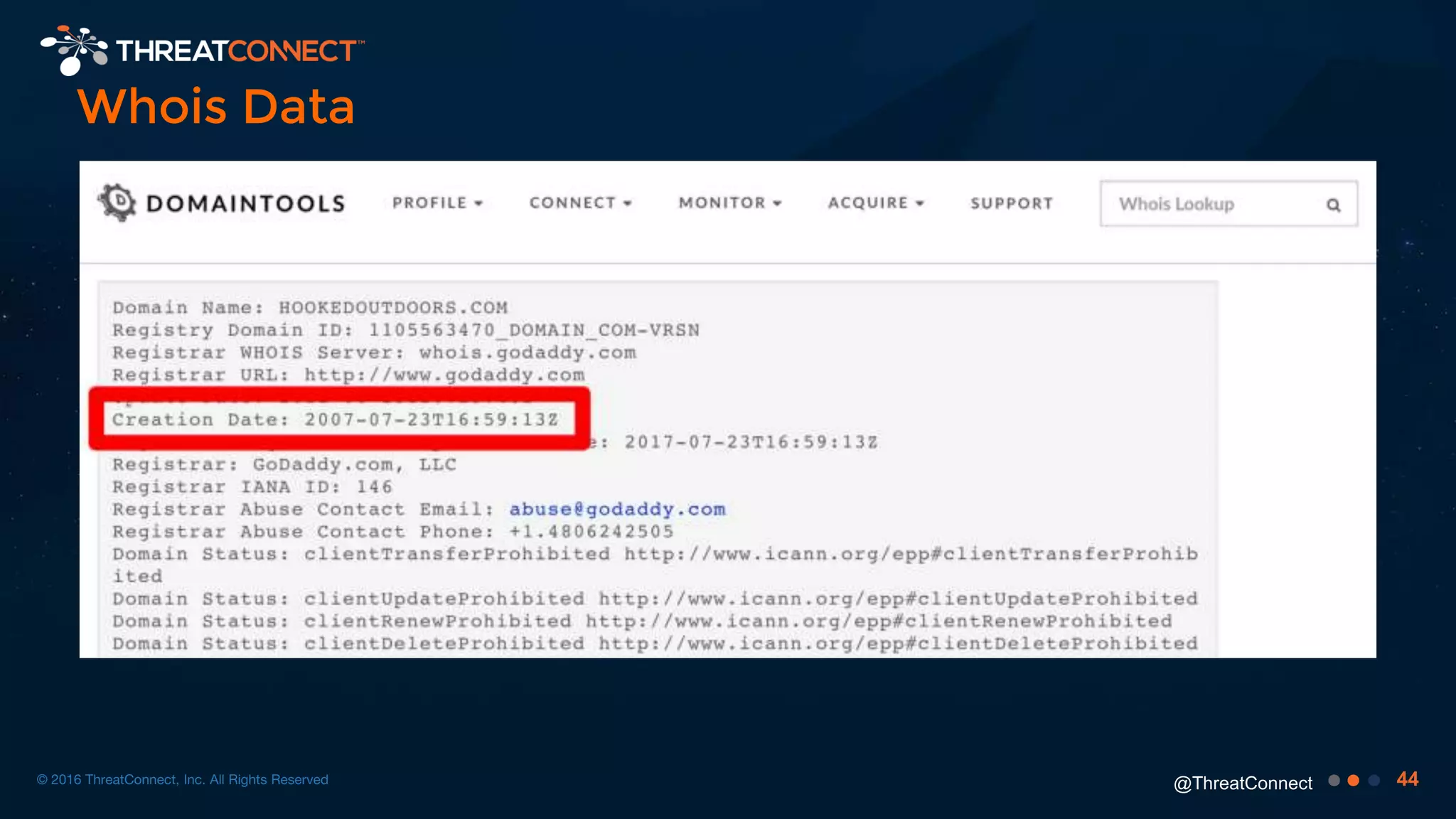

- 44. 44@ThreatConnect Whois Data © 2016 ThreatConnect, Inc. All Rights Reserved

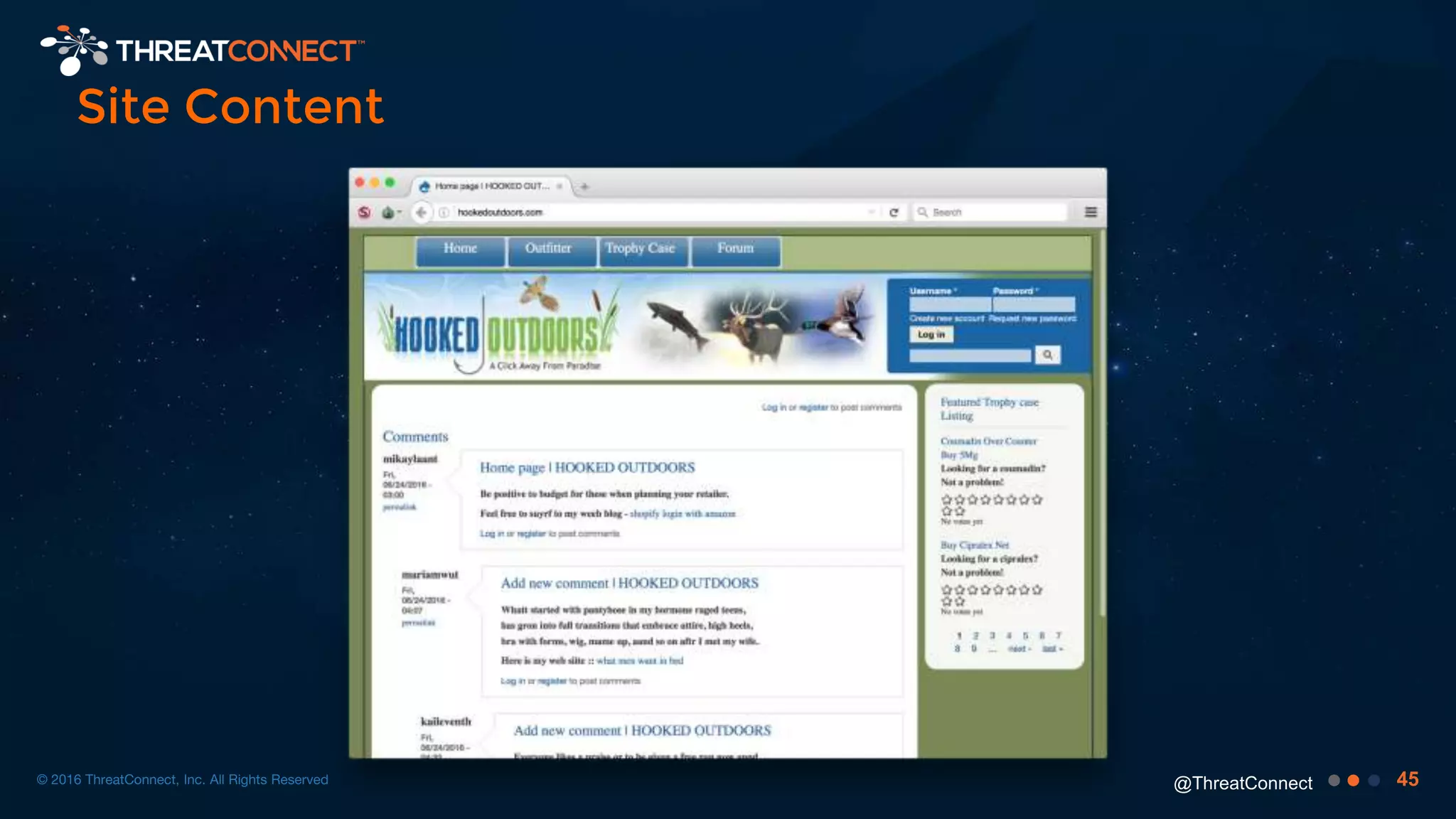

- 45. 45@ThreatConnect Site Content © 2016 ThreatConnect, Inc. All Rights Reserved

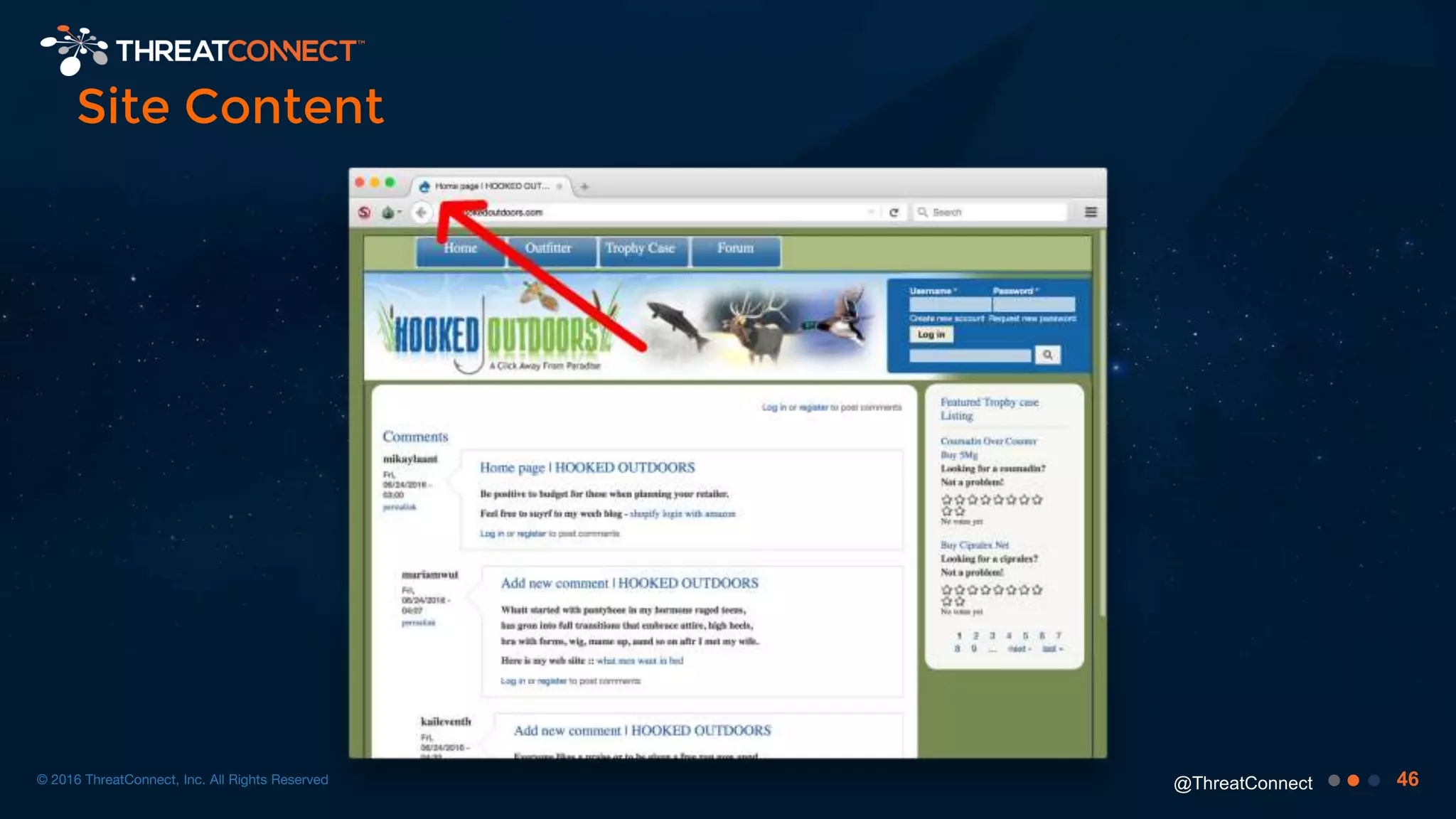

- 46. 46@ThreatConnect Site Content © 2016 ThreatConnect, Inc. All Rights Reserved

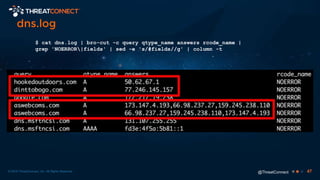

- 47. 47@ThreatConnect dns.log $ cat dns.log | bro-cut -c query qtype_name answers rcode_name | grep 'NOERROR|fields' | sed -e 's/#fields//g' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved

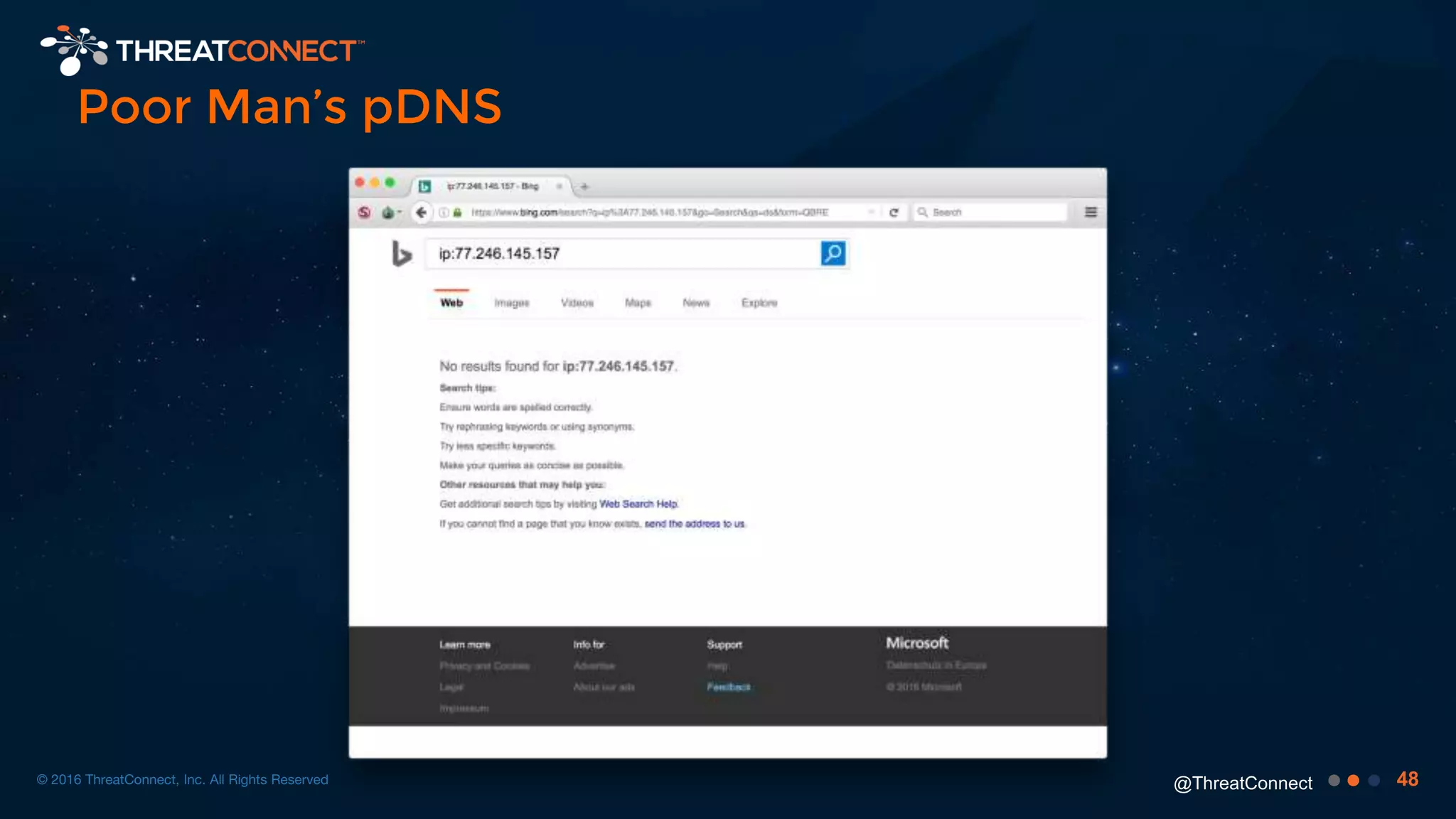

- 48. 48@ThreatConnect Poor Man’s pDNS © 2016 ThreatConnect, Inc. All Rights Reserved

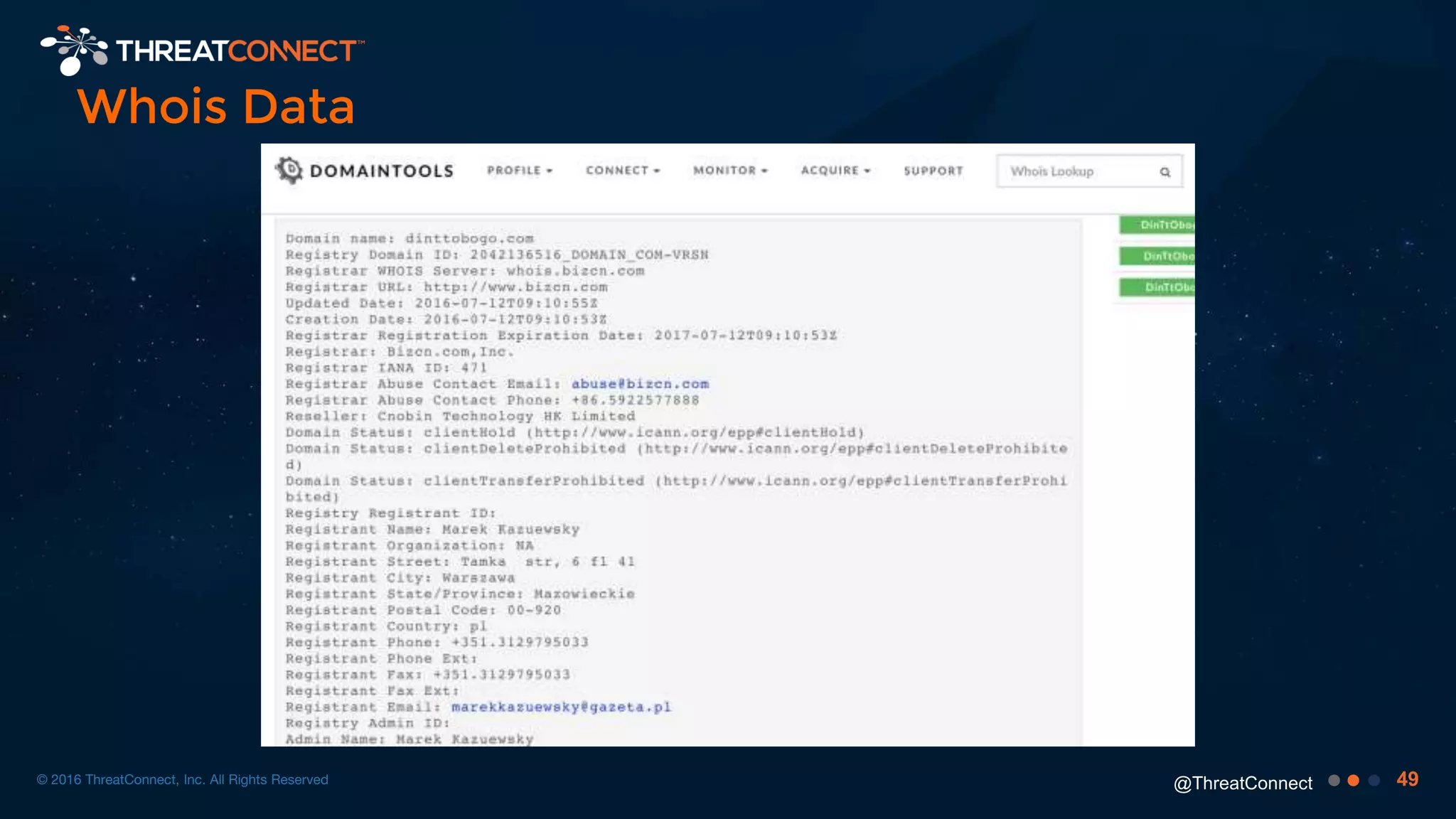

- 49. 49@ThreatConnect Whois Data © 2016 ThreatConnect, Inc. All Rights Reserved

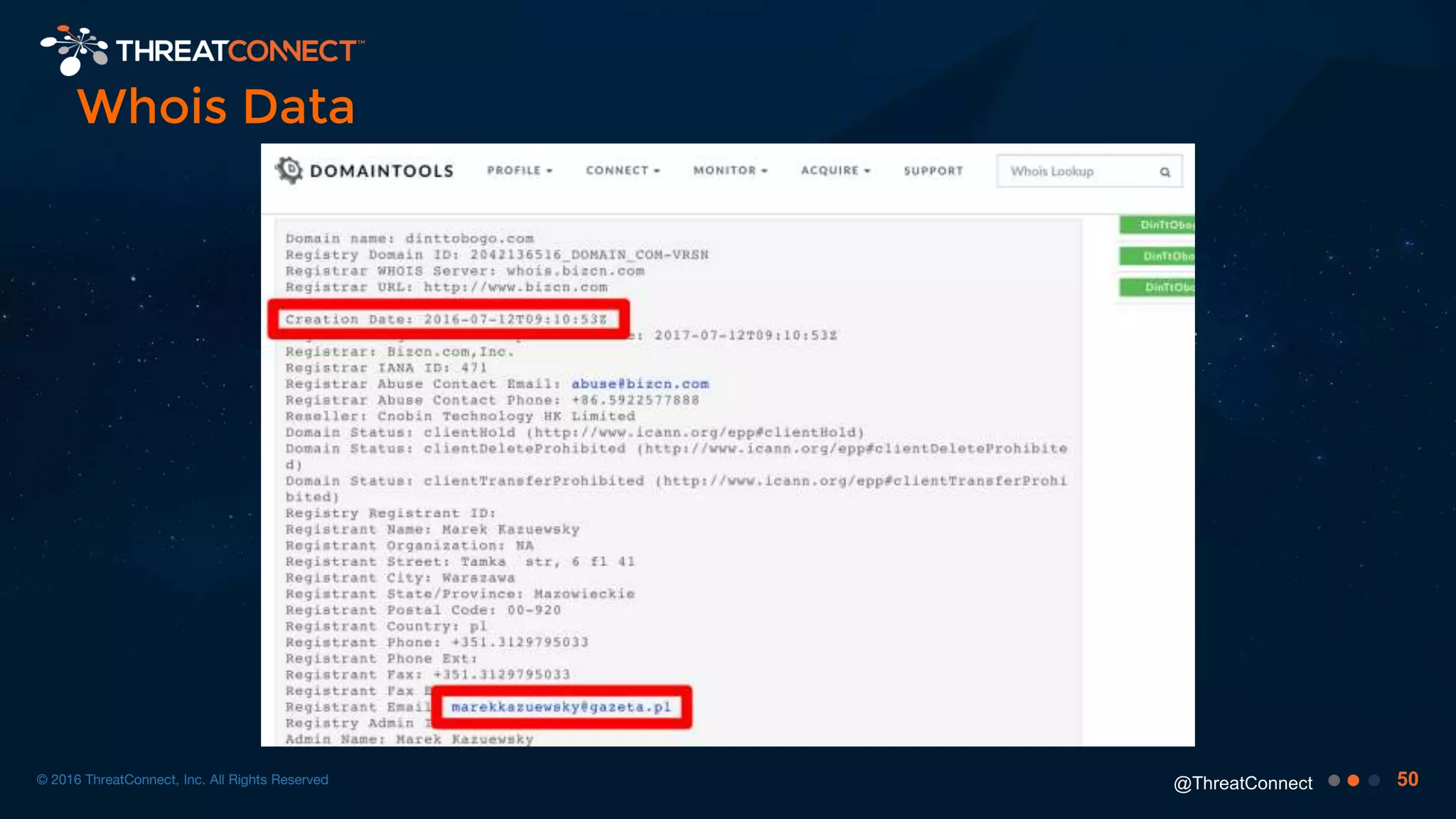

- 50. 50@ThreatConnect Whois Data © 2016 ThreatConnect, Inc. All Rights Reserved

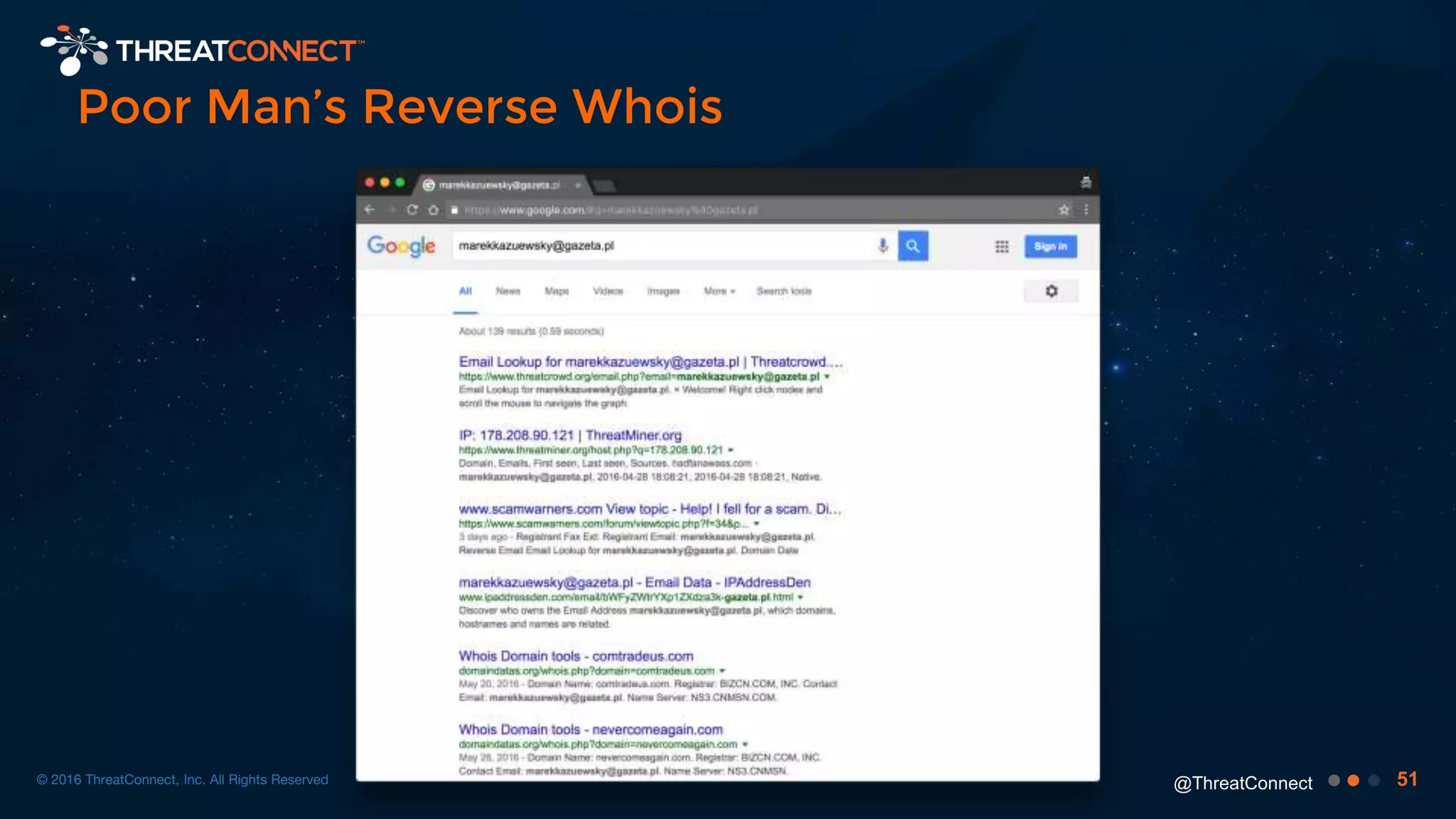

- 51. 51@ThreatConnect Poor Man’s Reverse Whois © 2016 ThreatConnect, Inc. All Rights Reserved

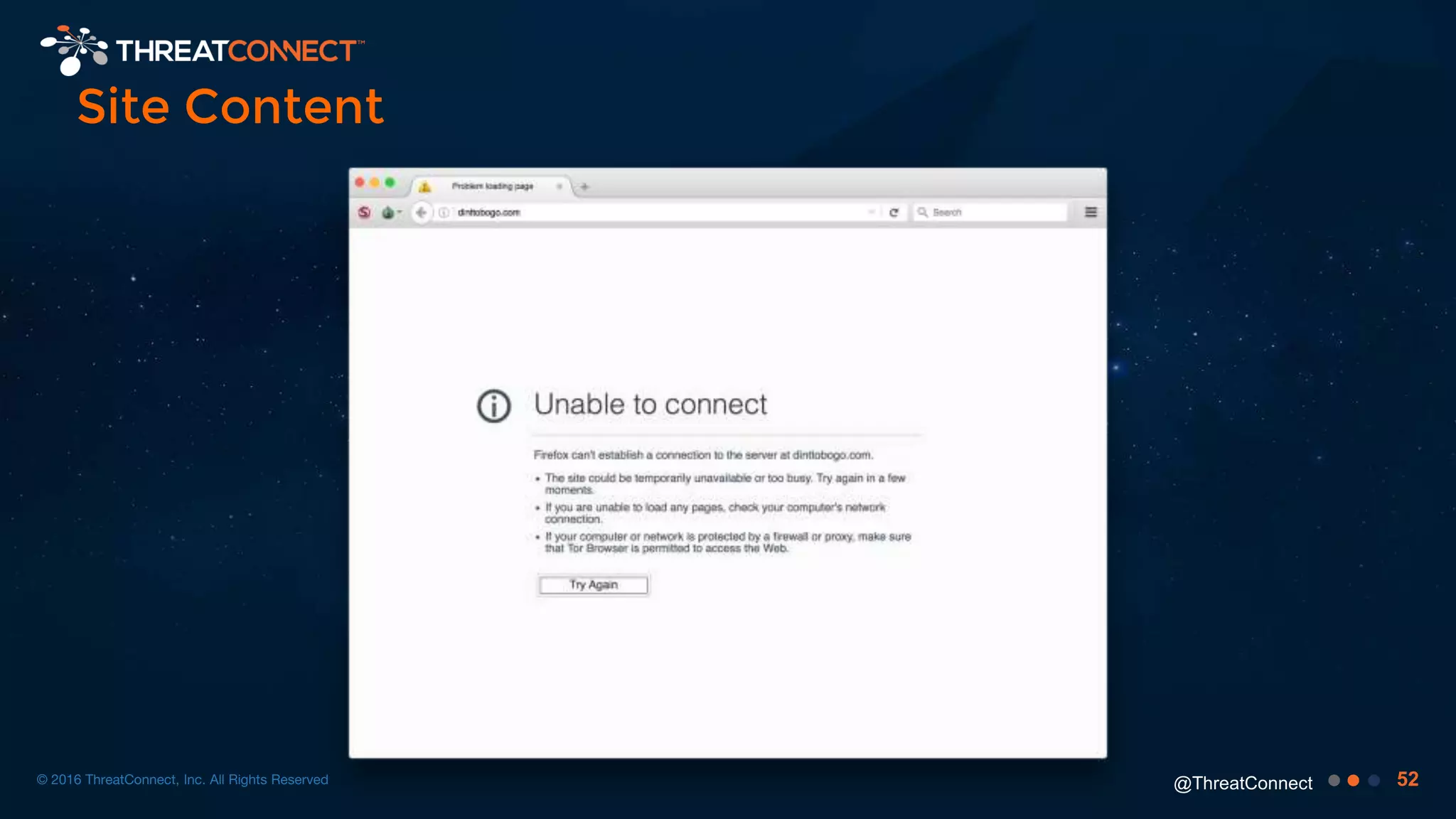

- 52. 52@ThreatConnect Site Content © 2016 ThreatConnect, Inc. All Rights Reserved

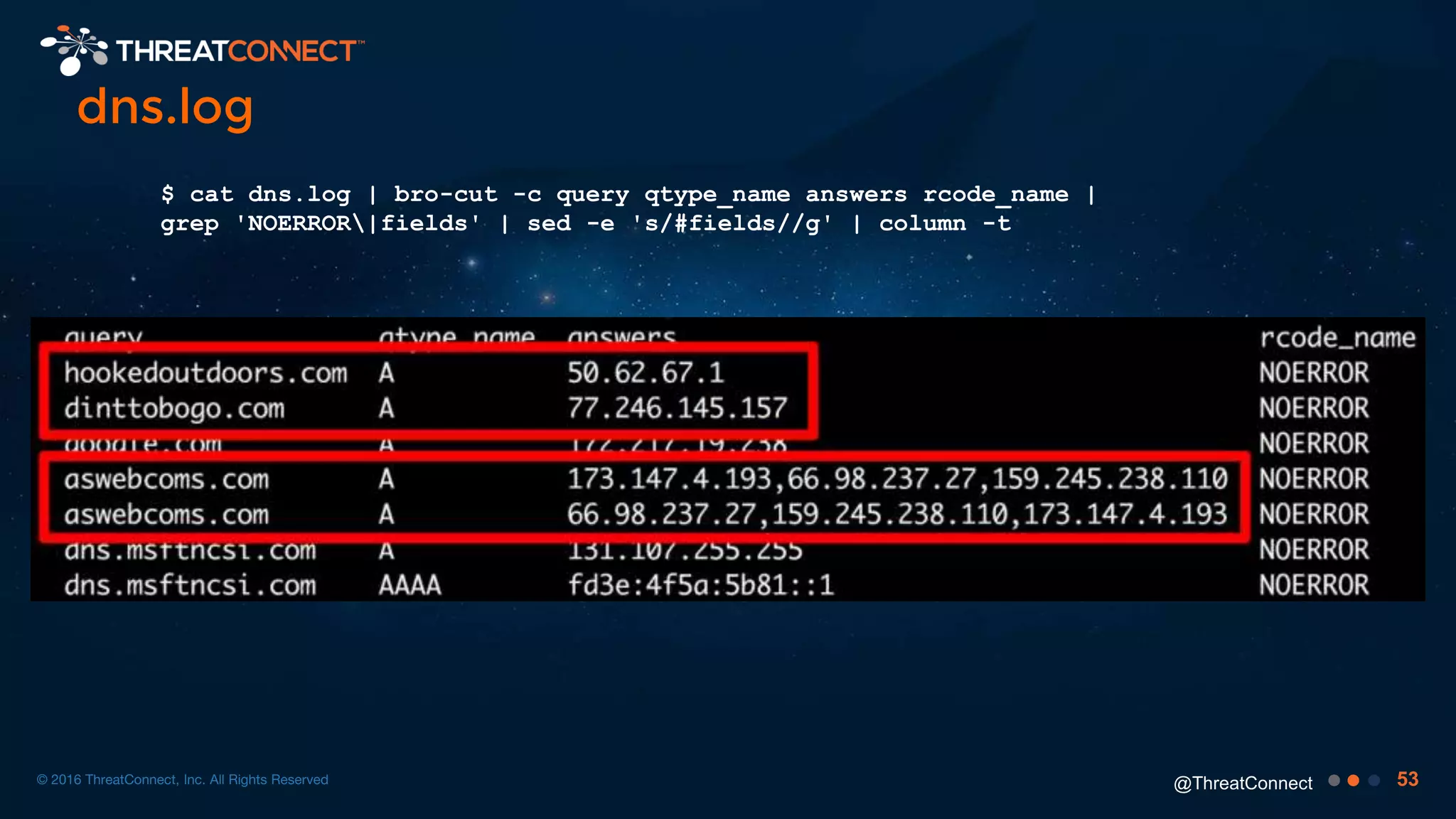

- 53. 53@ThreatConnect dns.log $ cat dns.log | bro-cut -c query qtype_name answers rcode_name | grep 'NOERROR|fields' | sed -e 's/#fields//g' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved

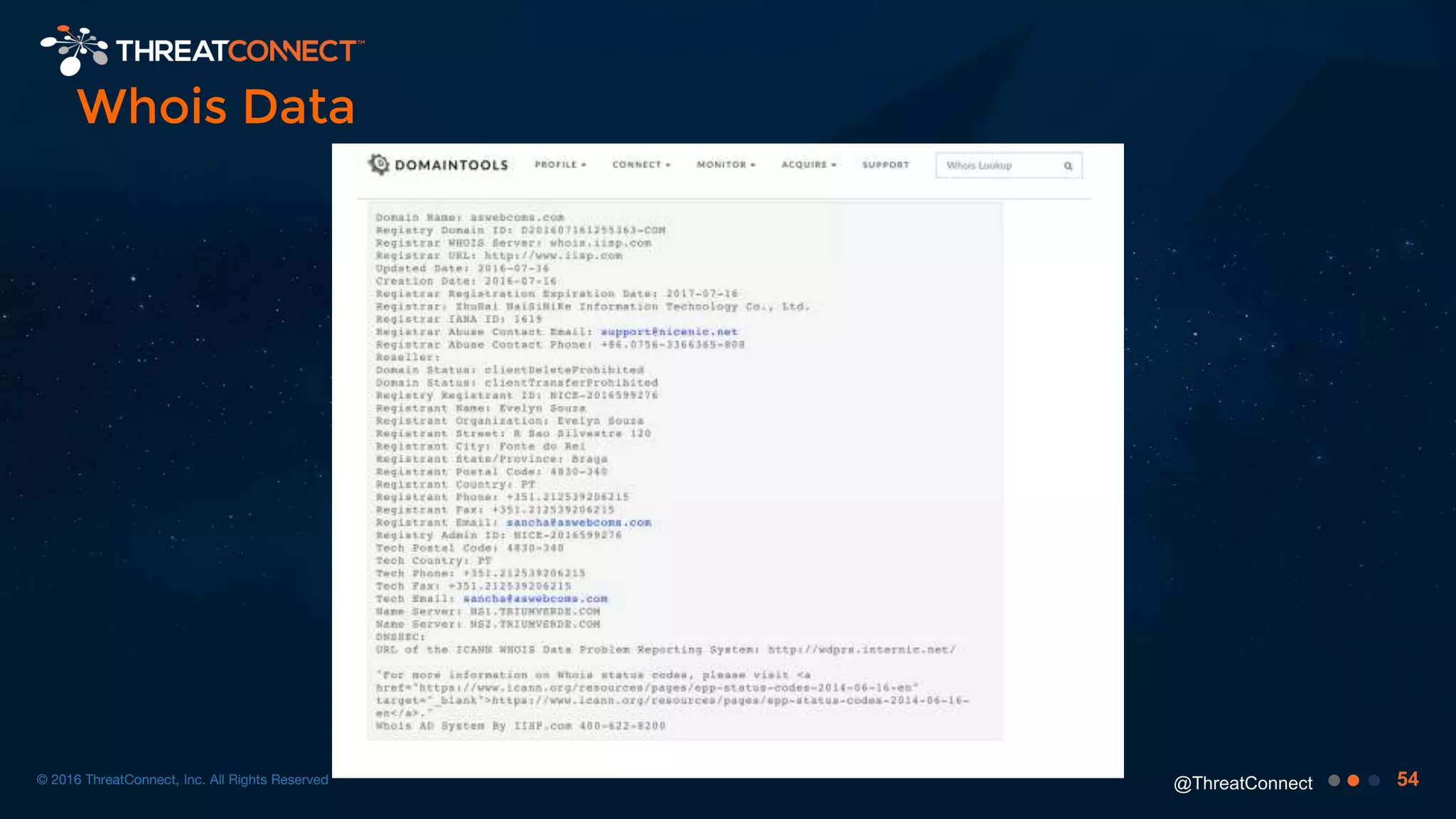

- 54. 54@ThreatConnect Whois Data © 2016 ThreatConnect, Inc. All Rights Reserved

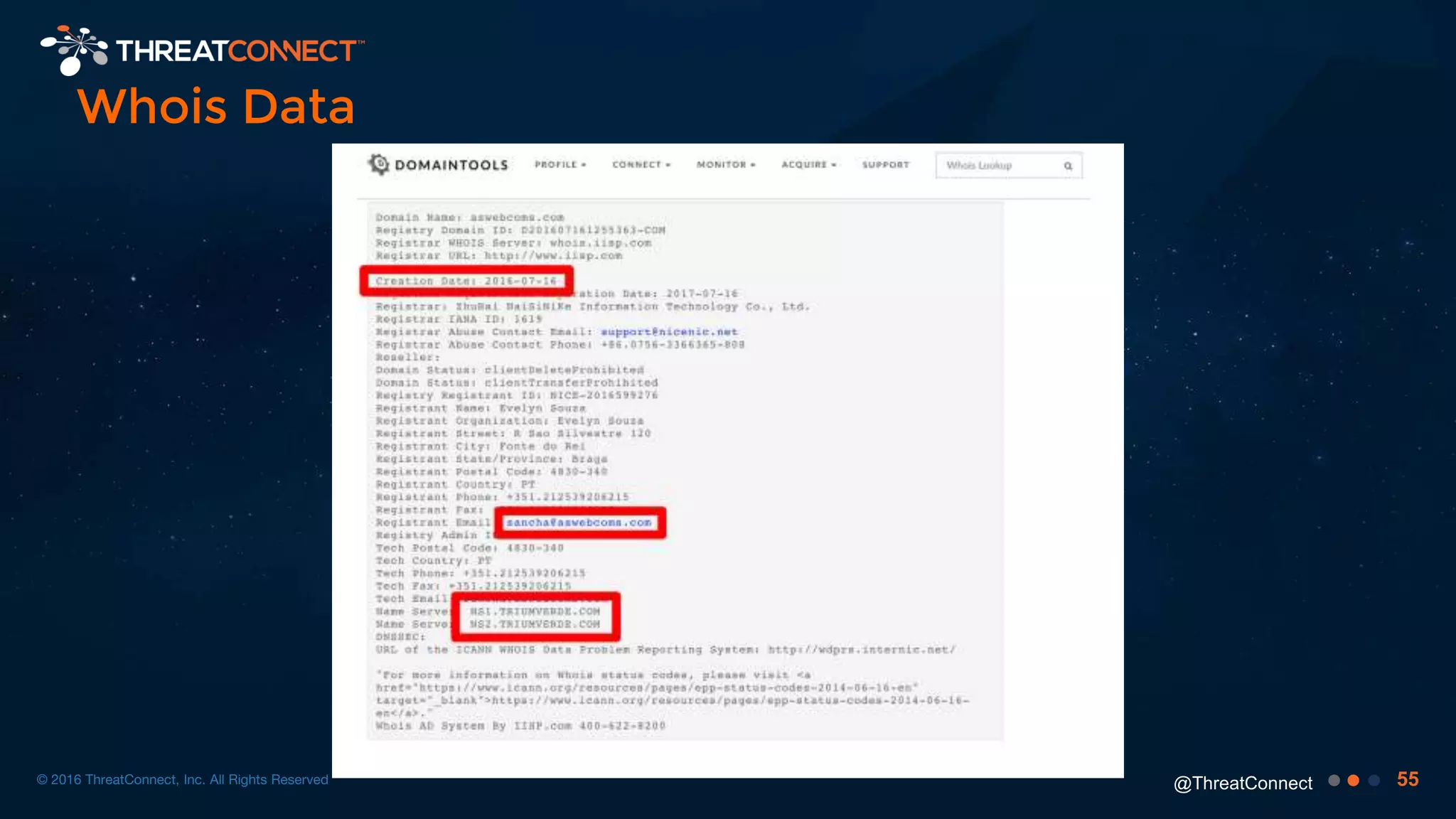

- 55. 55@ThreatConnect Whois Data © 2016 ThreatConnect, Inc. All Rights Reserved

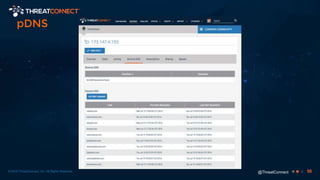

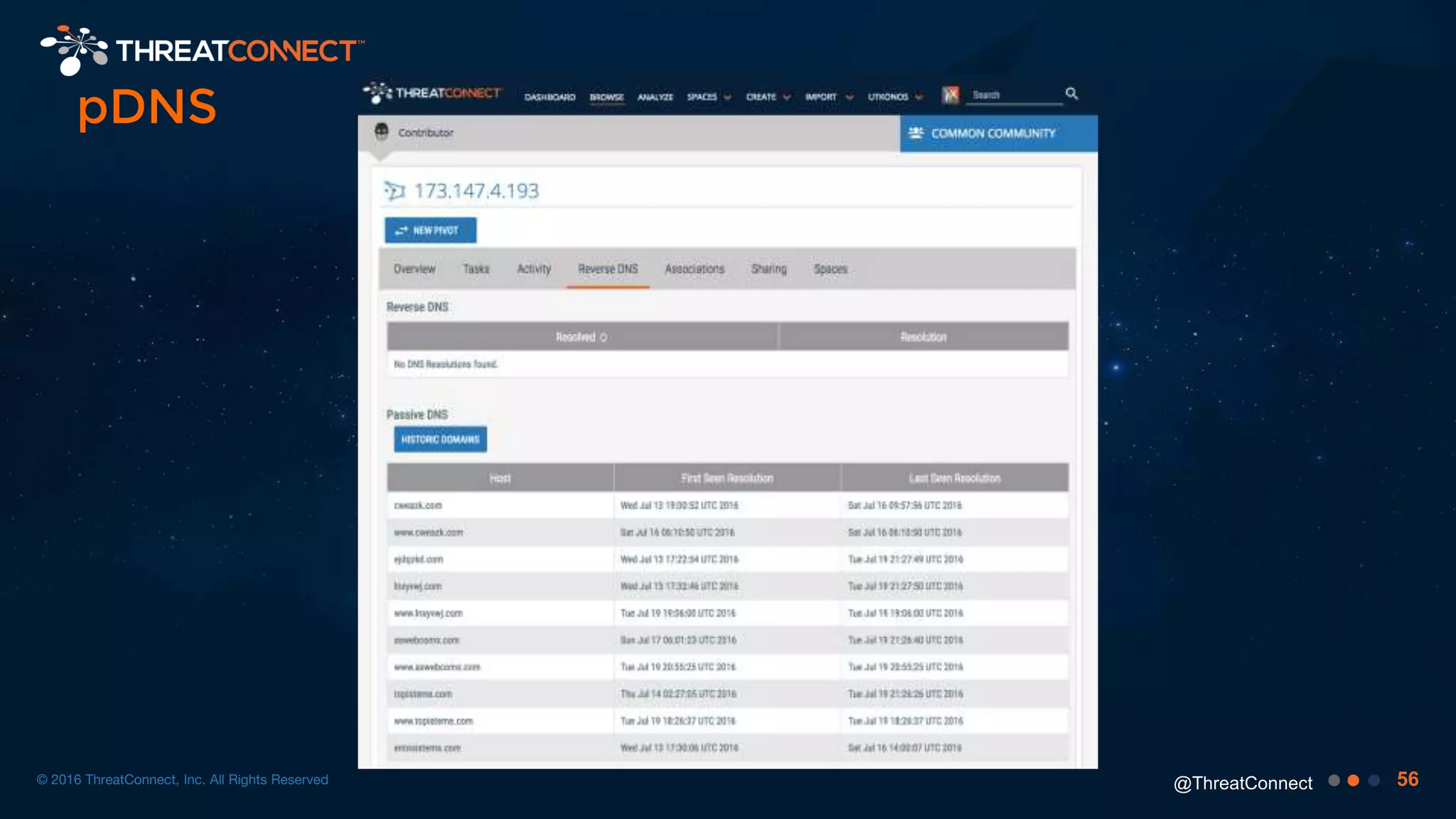

- 56. 56@ThreatConnect pDNS © 2016 ThreatConnect, Inc. All Rights Reserved

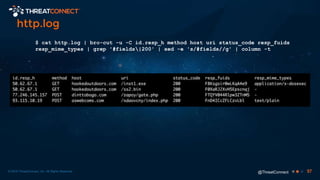

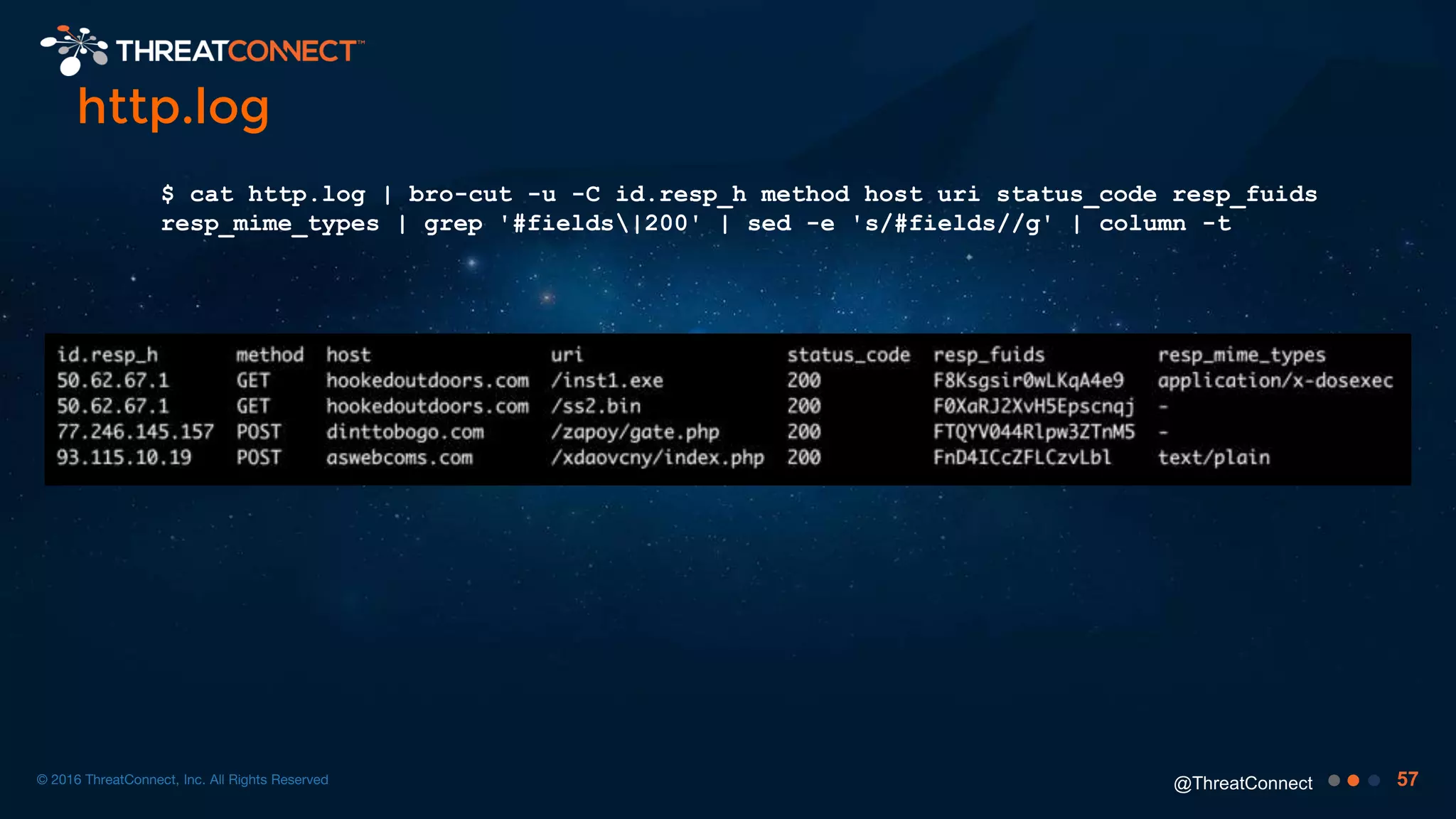

- 57. 57@ThreatConnect http.log $ cat http.log | bro-cut -u -C id.resp_h method host uri status_code resp_fuids resp_mime_types | grep '#fields|200' | sed -e 's/#fields//g' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved

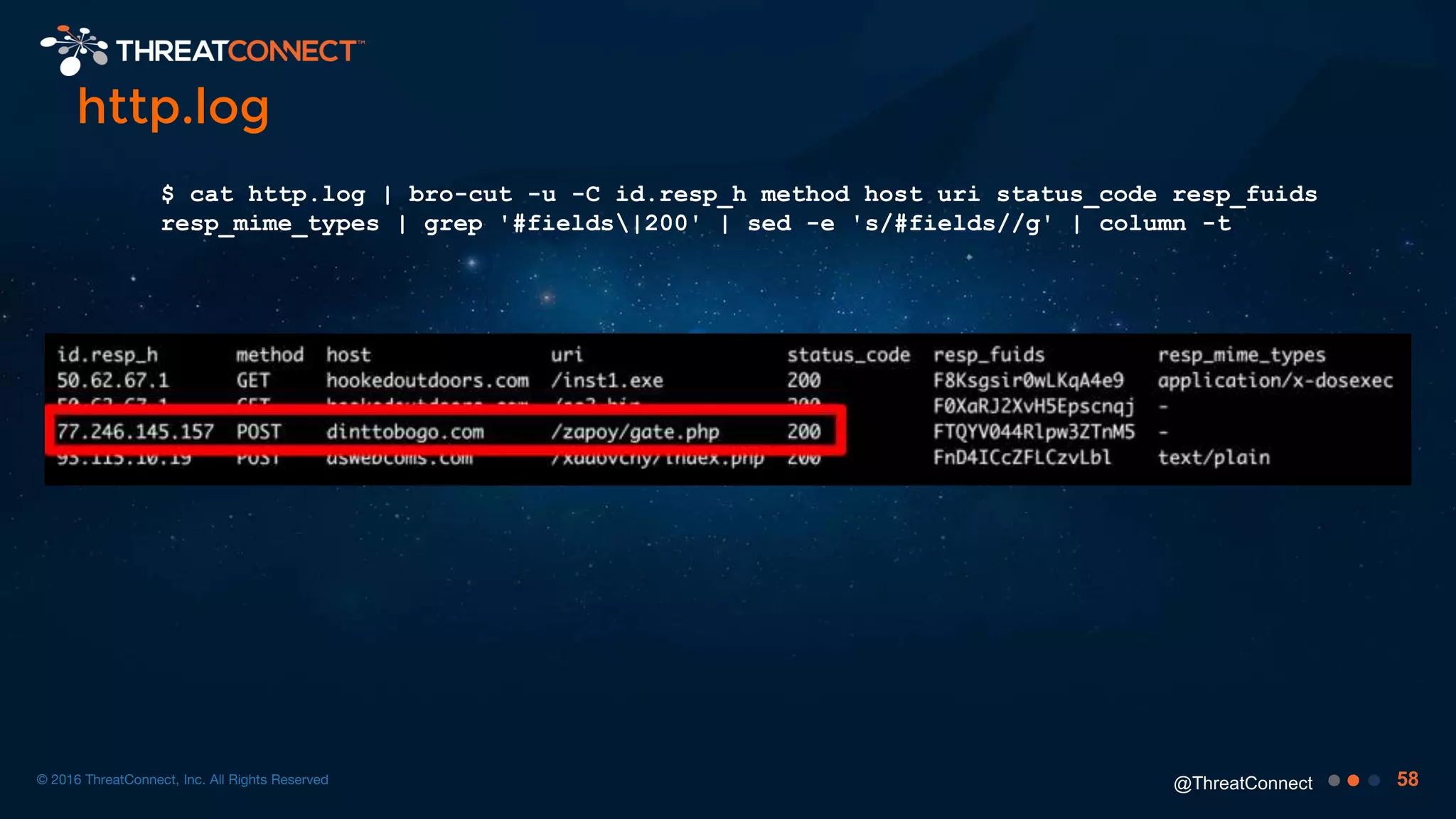

- 58. 58@ThreatConnect http.log $ cat http.log | bro-cut -u -C id.resp_h method host uri status_code resp_fuids resp_mime_types | grep '#fields|200' | sed -e 's/#fields//g' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved
- 59. 59@ThreatConnect© 2016 ThreatConnect, Inc. All Rights Reserved Zapoi (Russian: запой) A term used in Russia and other post-Soviet states to describe alcohol abuse behavior resulting in two or more days of continuous drunkenness. https://en.wikipedia.org/wiki/Zapoy
- 60. 60@ThreatConnect /zapoy/gate.php = Pony © 2016 ThreatConnect, Inc. All Rights Reserved

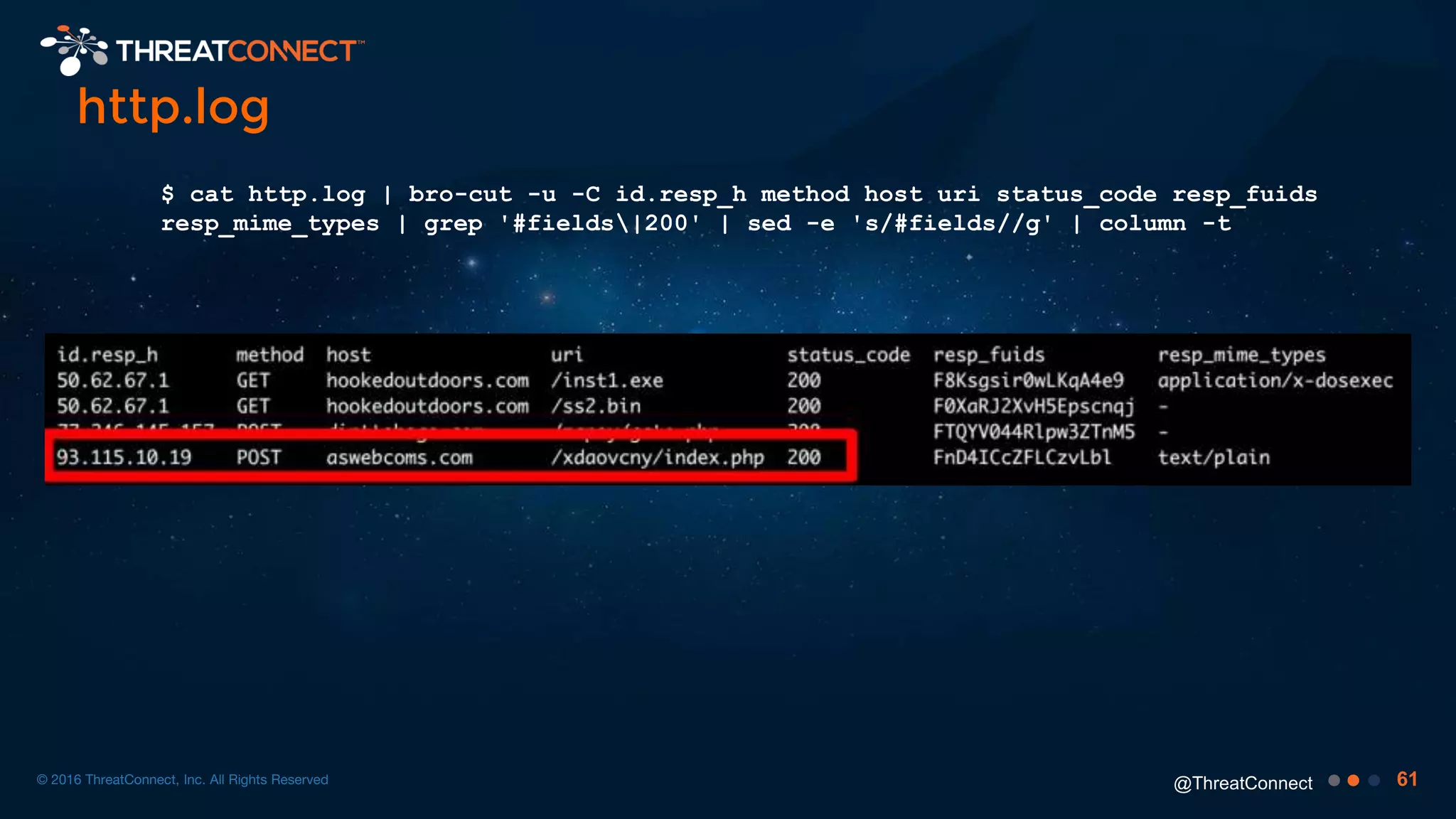

- 61. 61@ThreatConnect http.log $ cat http.log | bro-cut -u -C id.resp_h method host uri status_code resp_fuids resp_mime_types | grep '#fields|200' | sed -e 's/#fields//g' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved

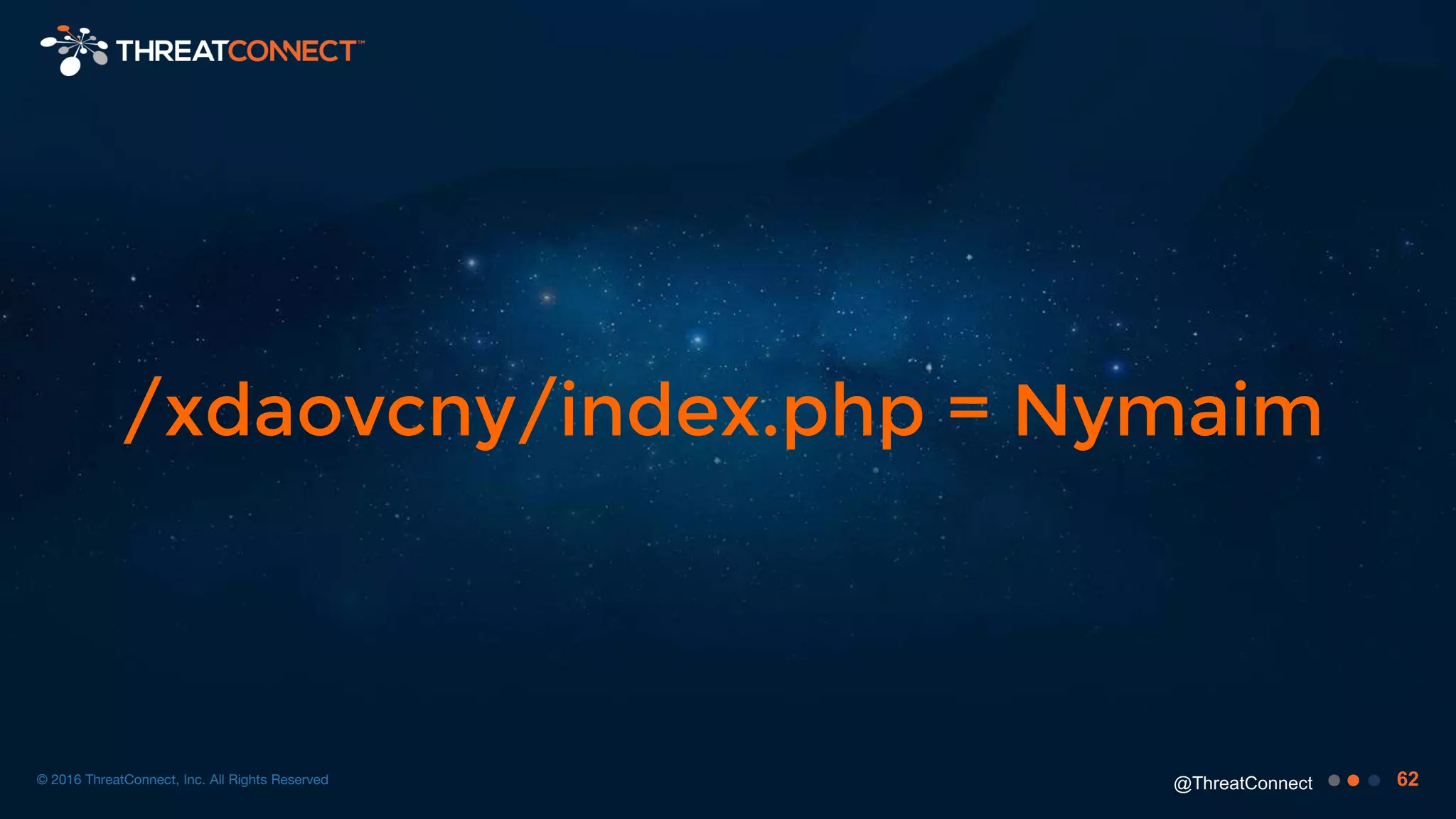

- 62. 62@ThreatConnect /xdaovcny/index.php = Nymaim © 2016 ThreatConnect, Inc. All Rights Reserved

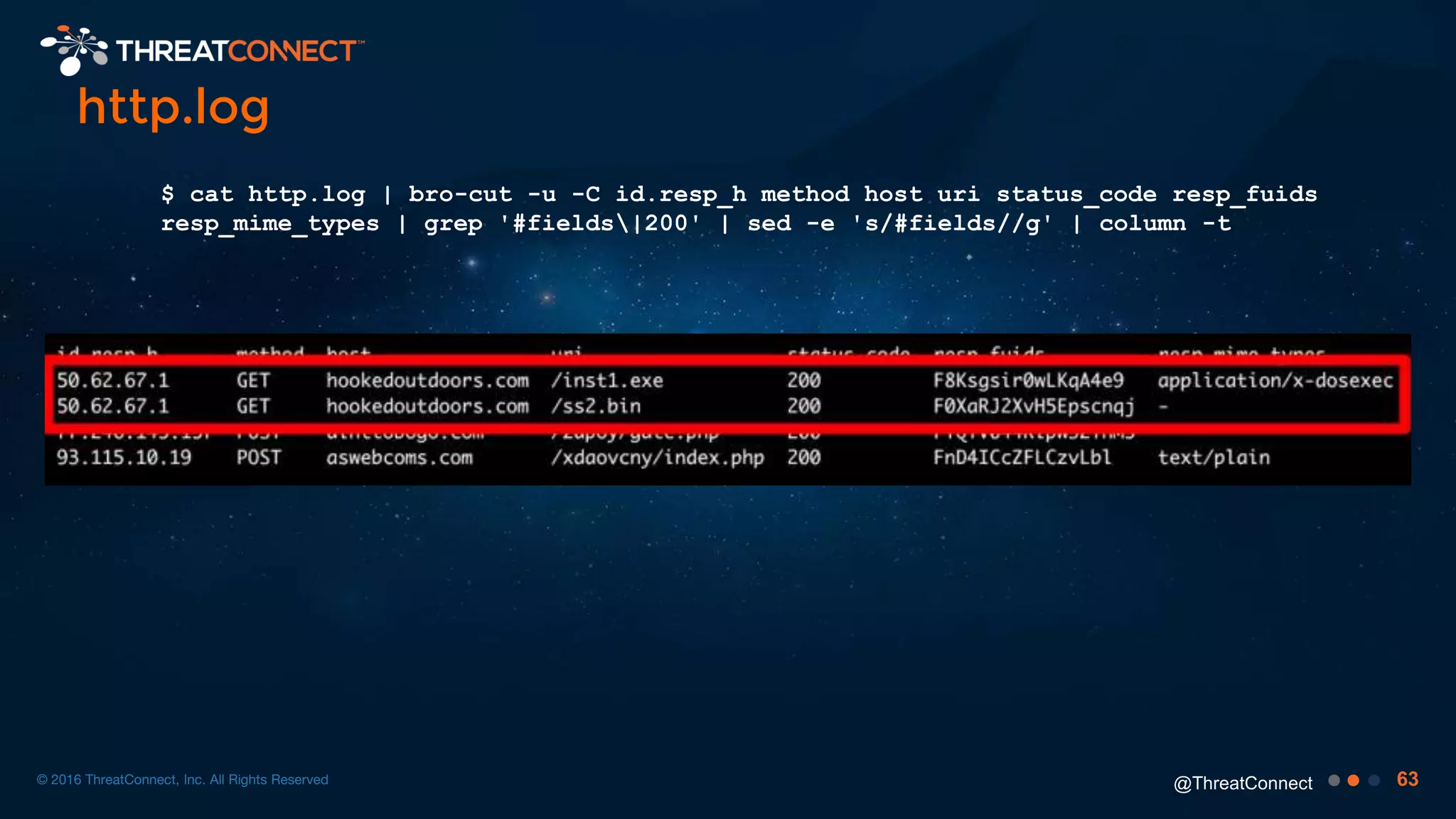

- 63. 63@ThreatConnect http.log $ cat http.log | bro-cut -u -C id.resp_h method host uri status_code resp_fuids resp_mime_types | grep '#fields|200' | sed -e 's/#fields//g' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved

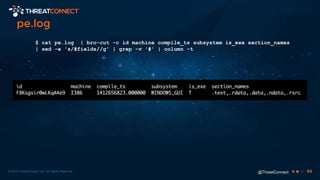

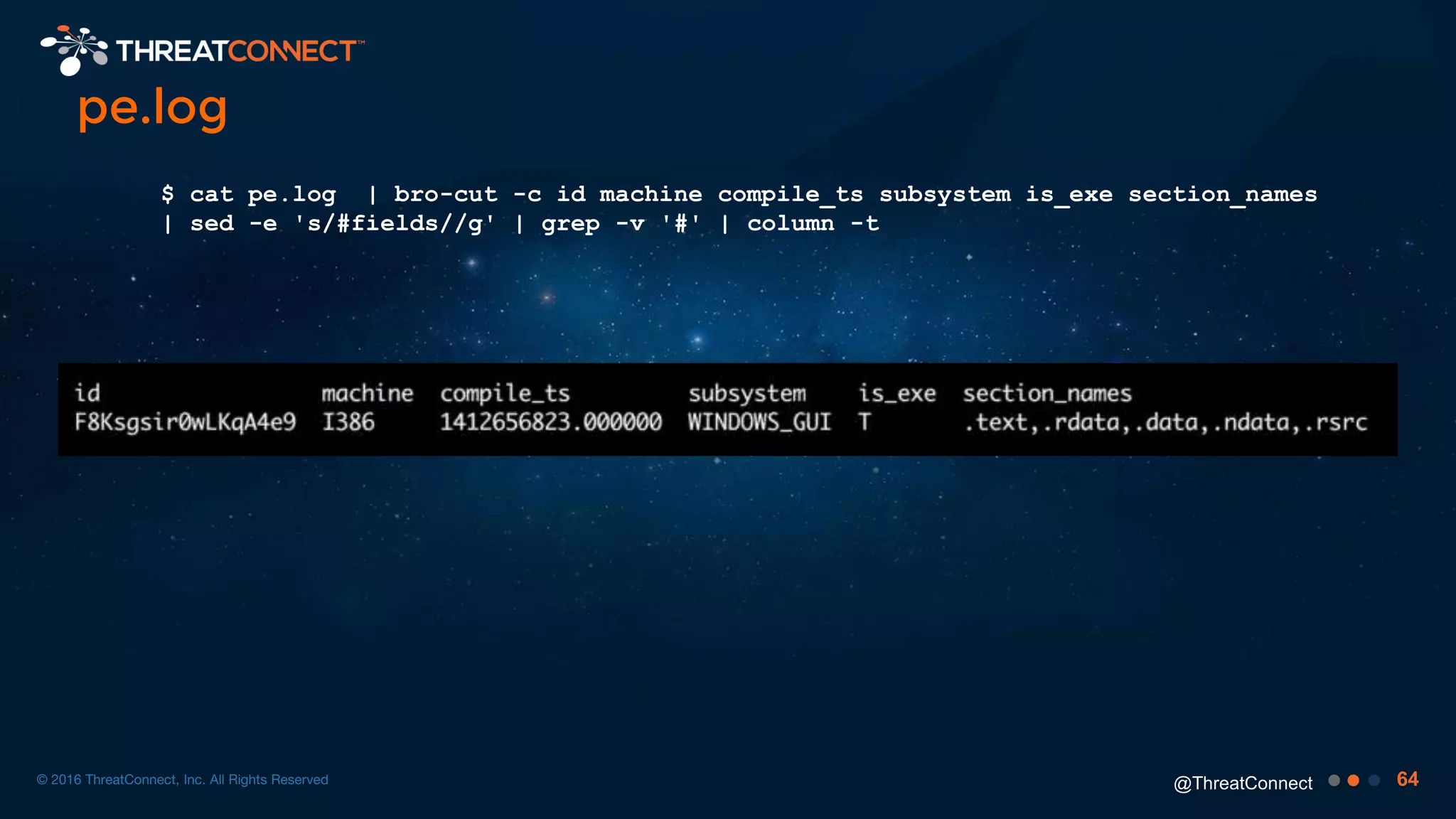

- 64. 64@ThreatConnect pe.log $ cat pe.log | bro-cut -c id machine compile_ts subsystem is_exe section_names | sed -e 's/#fields//g' | grep -v '#' | column -t © 2016 ThreatConnect, Inc. All Rights Reserved

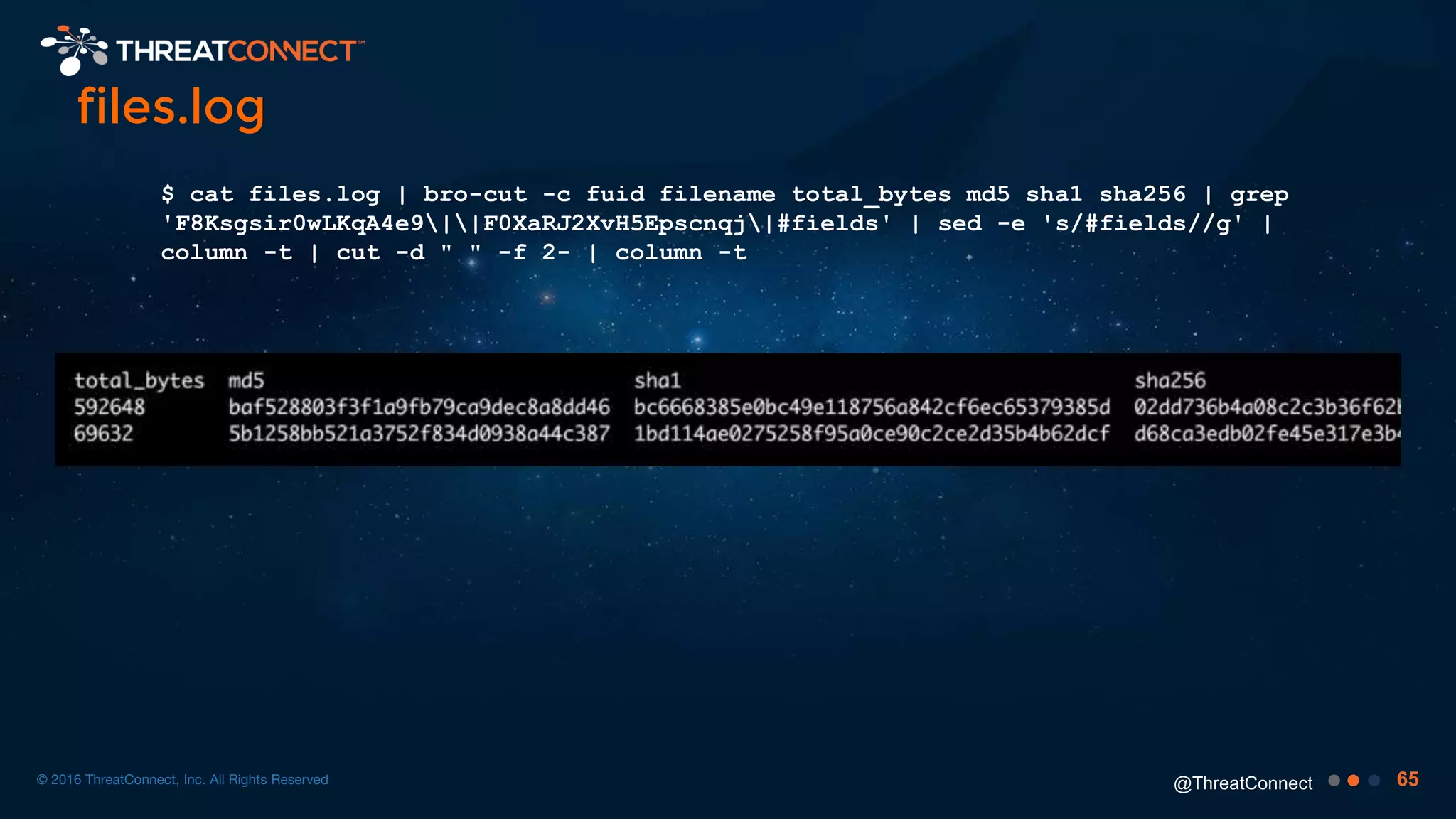

- 65. 65@ThreatConnect files.log $ cat files.log | bro-cut -c fuid filename total_bytes md5 sha1 sha256 | grep 'F8Ksgsir0wLKqA4e9||F0XaRJ2XvH5Epscnqj|#fields' | sed -e 's/#fields//g' | column -t | cut -d " " -f 2- | column -t © 2016 ThreatConnect, Inc. All Rights Reserved

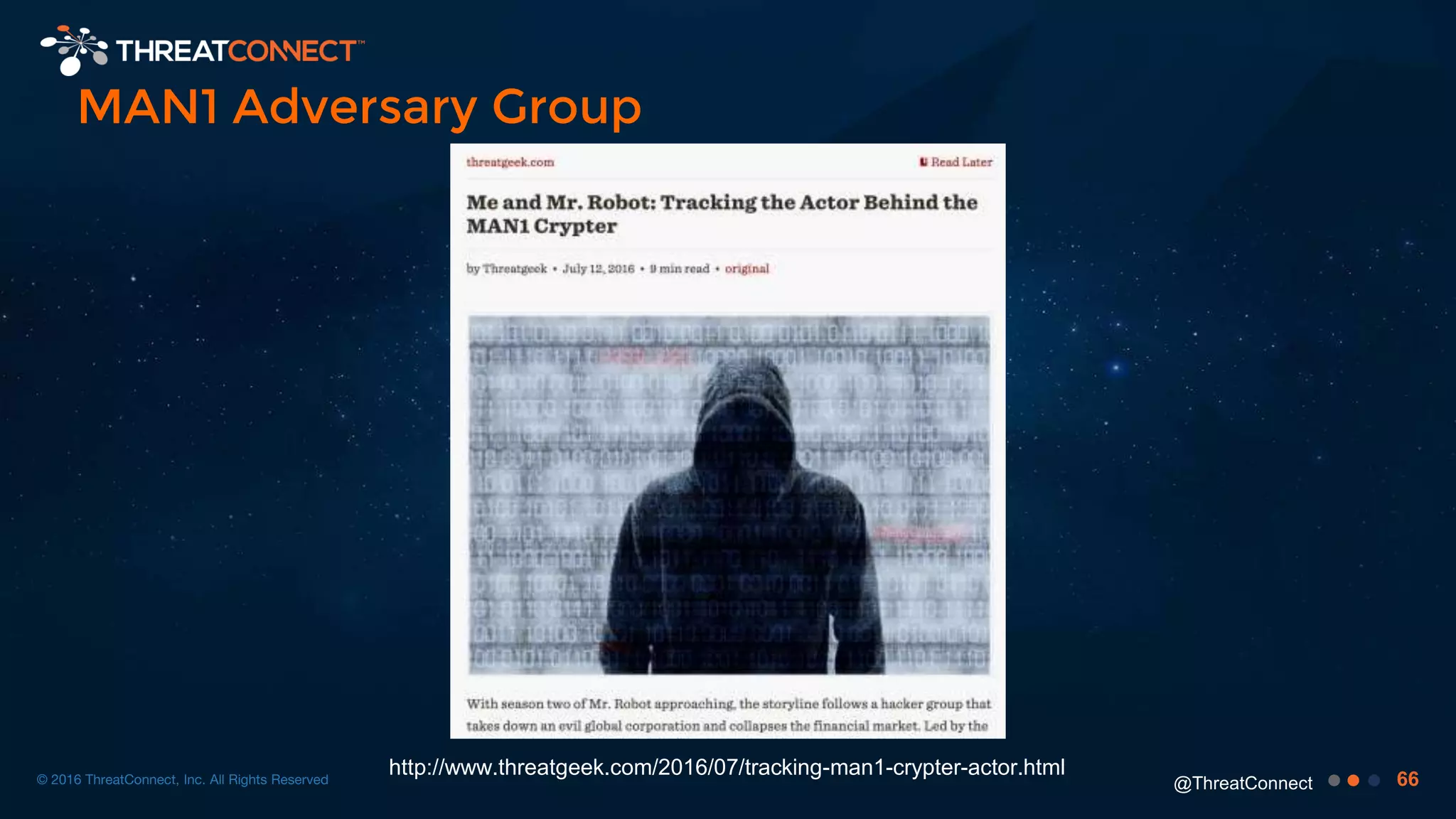

- 66. 66@ThreatConnect MAN1 Adversary Group © 2016 ThreatConnect, Inc. All Rights Reserved http://www.threatgeek.com/2016/07/tracking-man1-crypter-actor.html

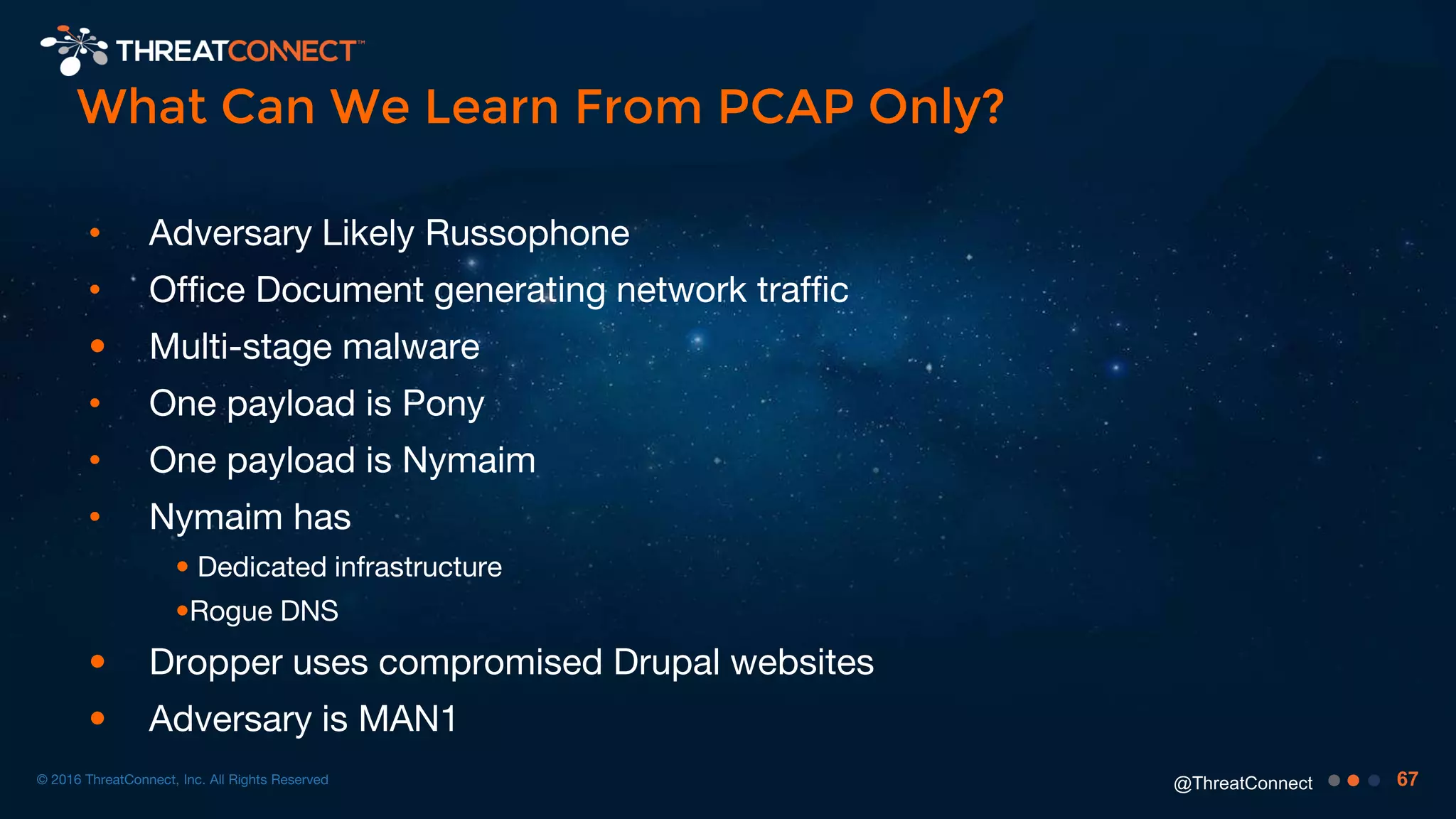

- 67. 67@ThreatConnect What Can We Learn From PCAP Only? • Adversary Likely Russophone • Office Document generating network traffic • Multi-stage malware • One payload is Pony • One payload is Nymaim • Nymaim has • Dedicated infrastructure •Rogue DNS • Dropper uses compromised Drupal websites • Adversary is MAN1 © 2016 ThreatConnect, Inc. All Rights Reserved

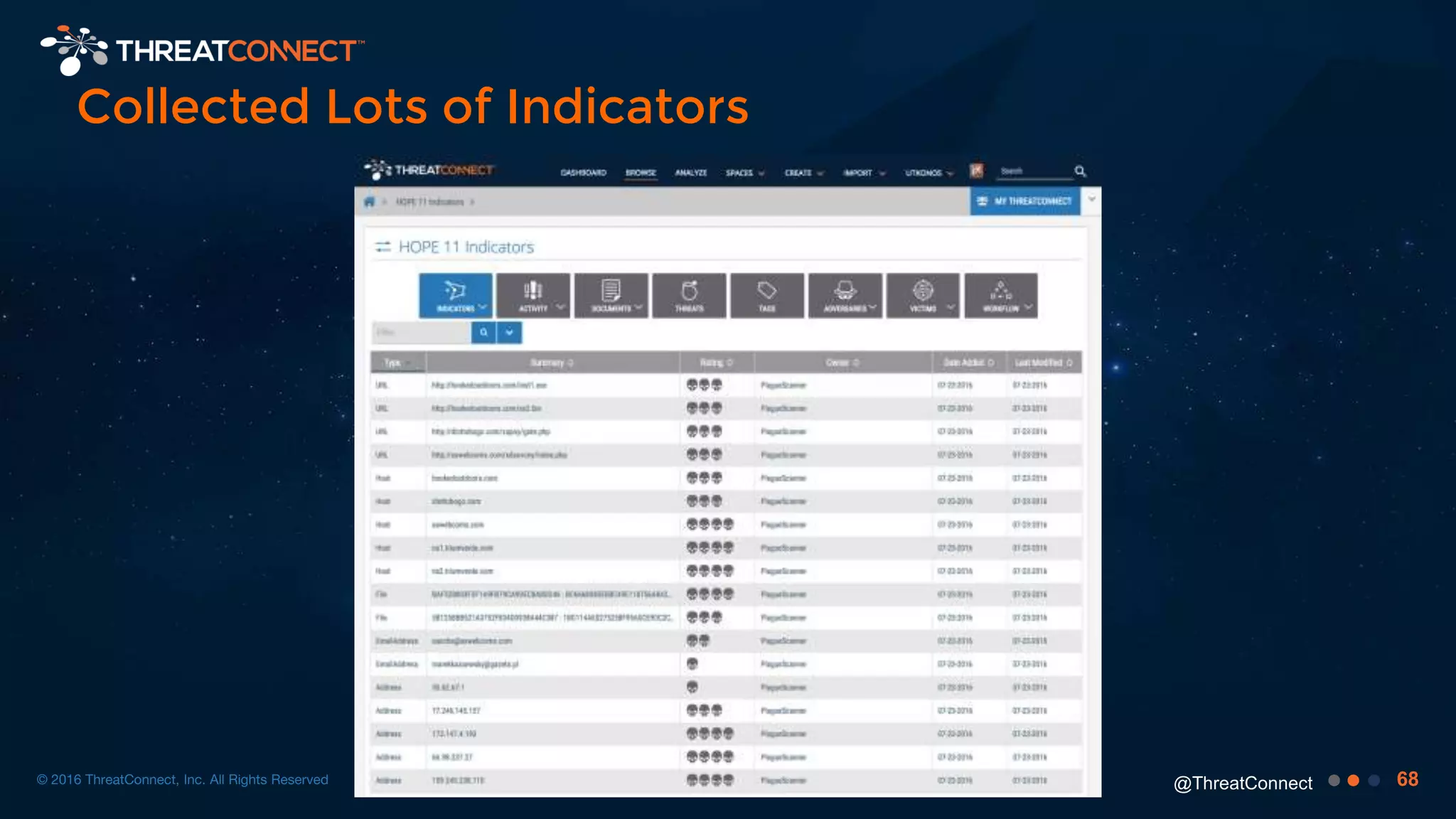

- 68. 68@ThreatConnect Collected Lots of Indicators © 2016 ThreatConnect, Inc. All Rights Reserved

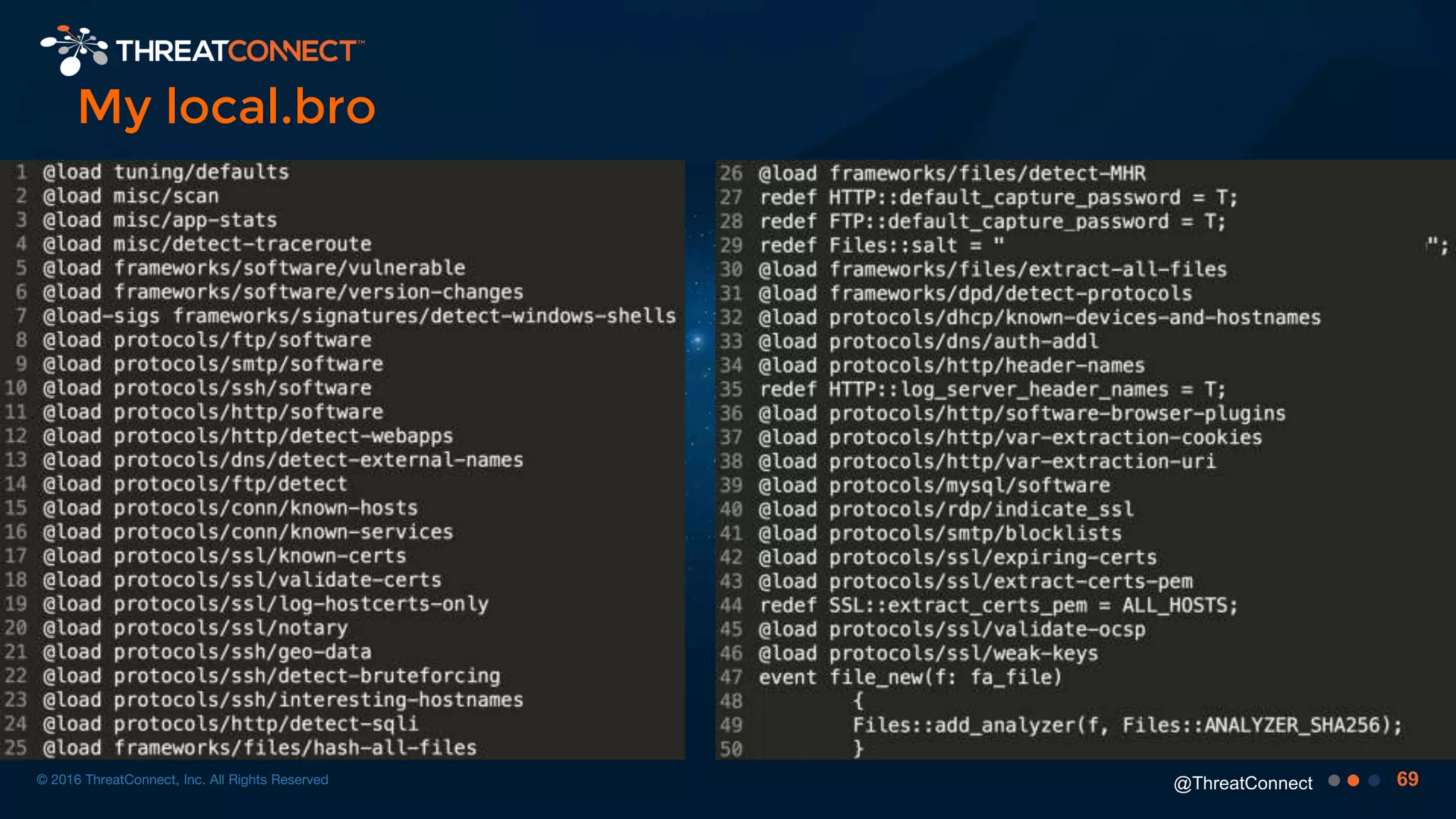

- 69. 69@ThreatConnect My local.bro © 2016 ThreatConnect, Inc. All Rights Reserved

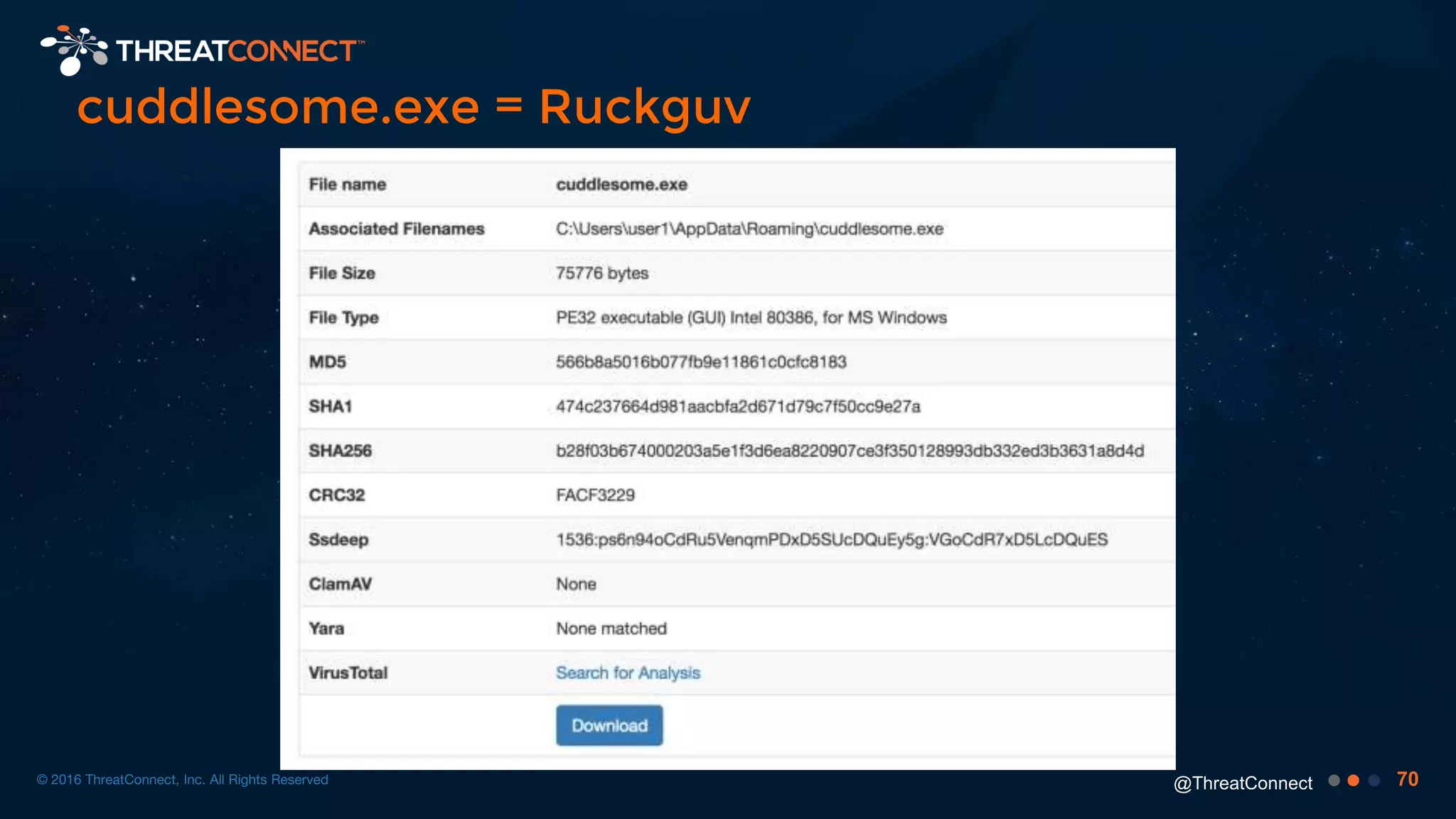

- 70. 70@ThreatConnect cuddlesome.exe = Ruckguv © 2016 ThreatConnect, Inc. All Rights Reserved

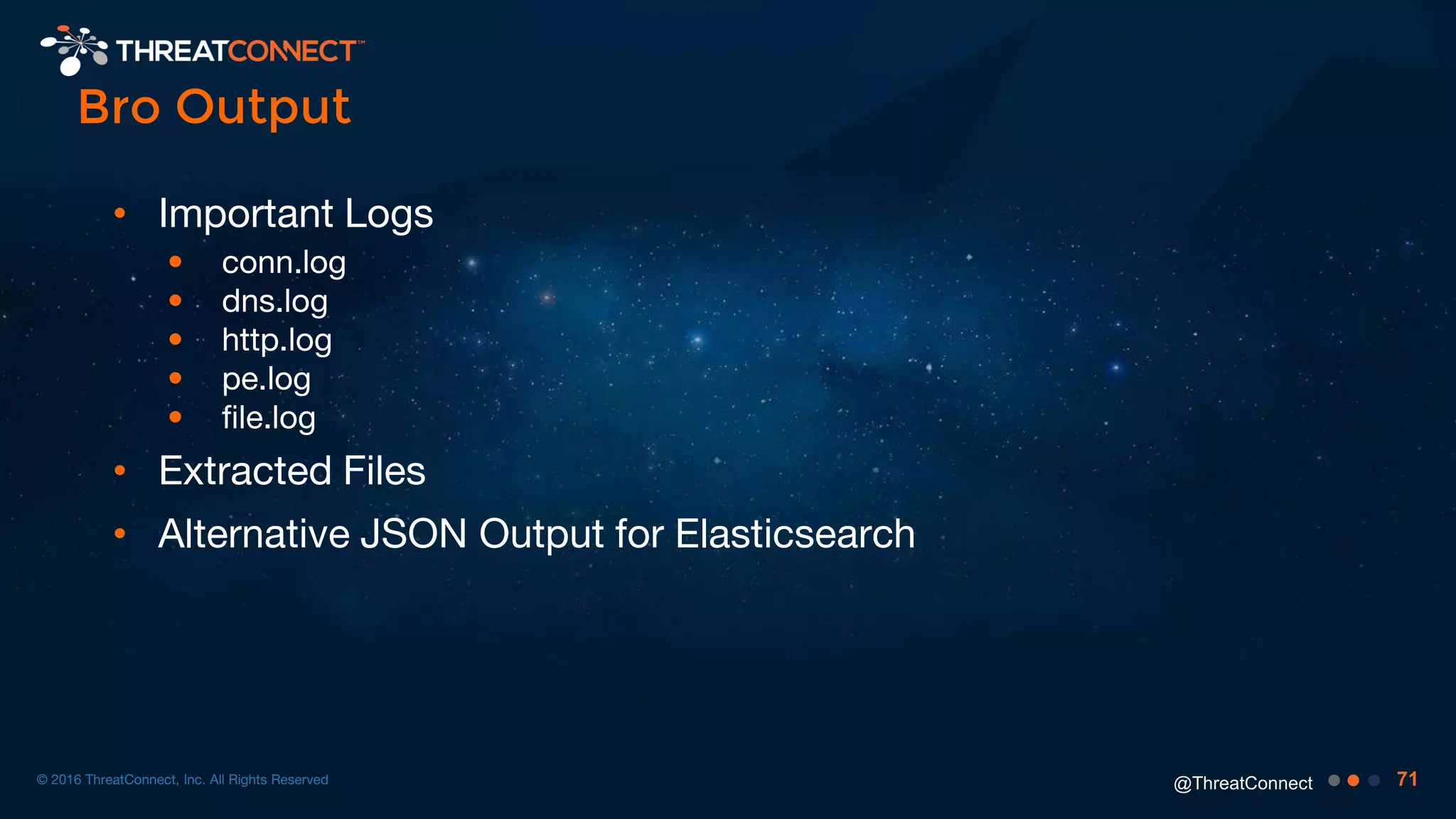

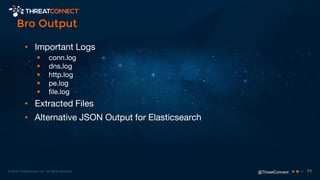

- 71. 71@ThreatConnect Bro Output • Important Logs • conn.log • dns.log • http.log • pe.log • file.log • Extracted Files • Alternative JSON Output for Elasticsearch © 2016 ThreatConnect, Inc. All Rights Reserved
- 72. 72@ThreatConnect Volatility Memory Analysis Framework © 2016 ThreatConnect, Inc. All Rights Reserved

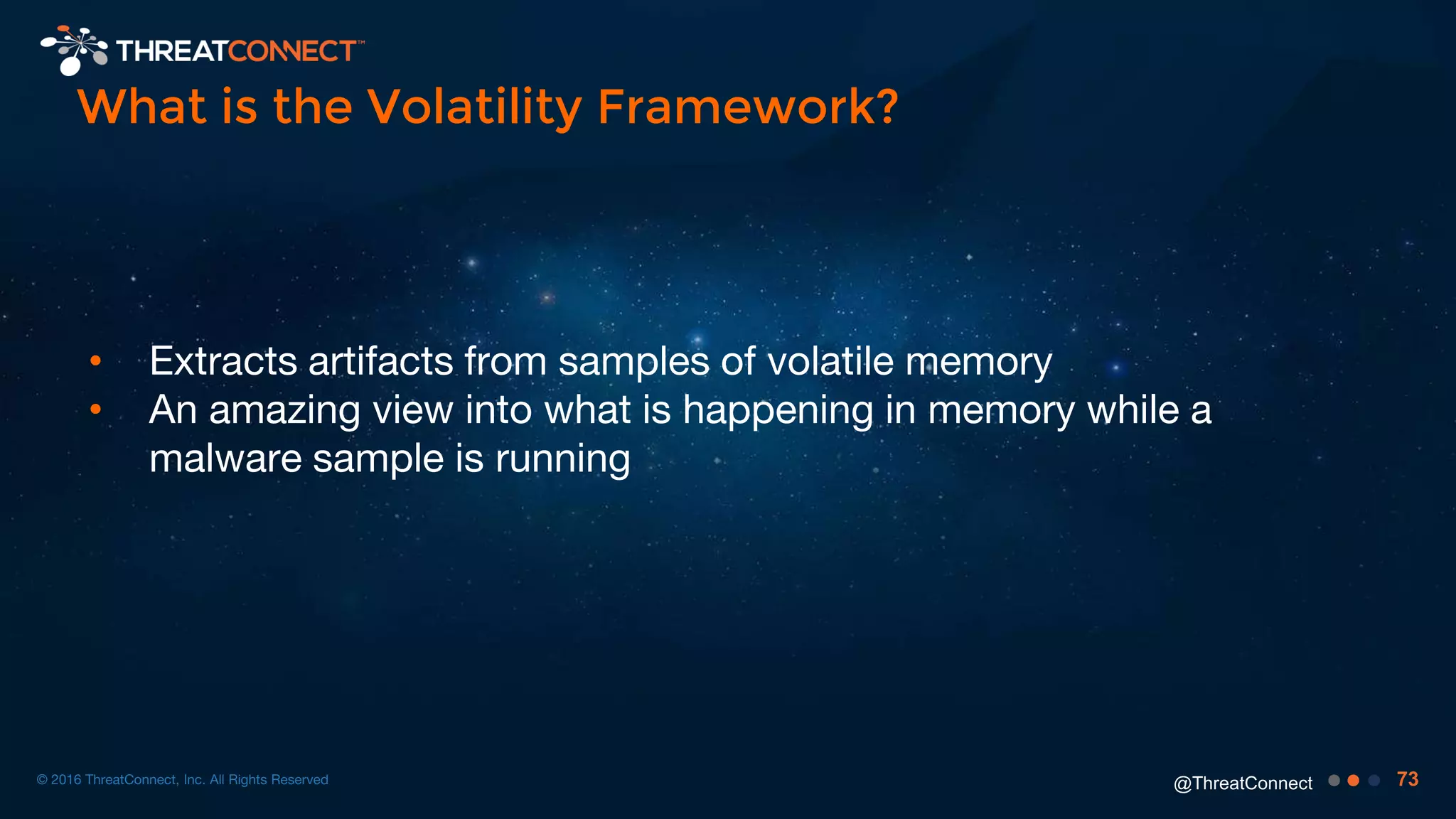

- 73. 73@ThreatConnect What is the Volatility Framework? • Extracts artifacts from samples of volatile memory • An amazing view into what is happening in memory while a malware sample is running © 2016 ThreatConnect, Inc. All Rights Reserved
- 74. 74@ThreatConnect Operating System Support © 2016 ThreatConnect, Inc. All Rights Reserved

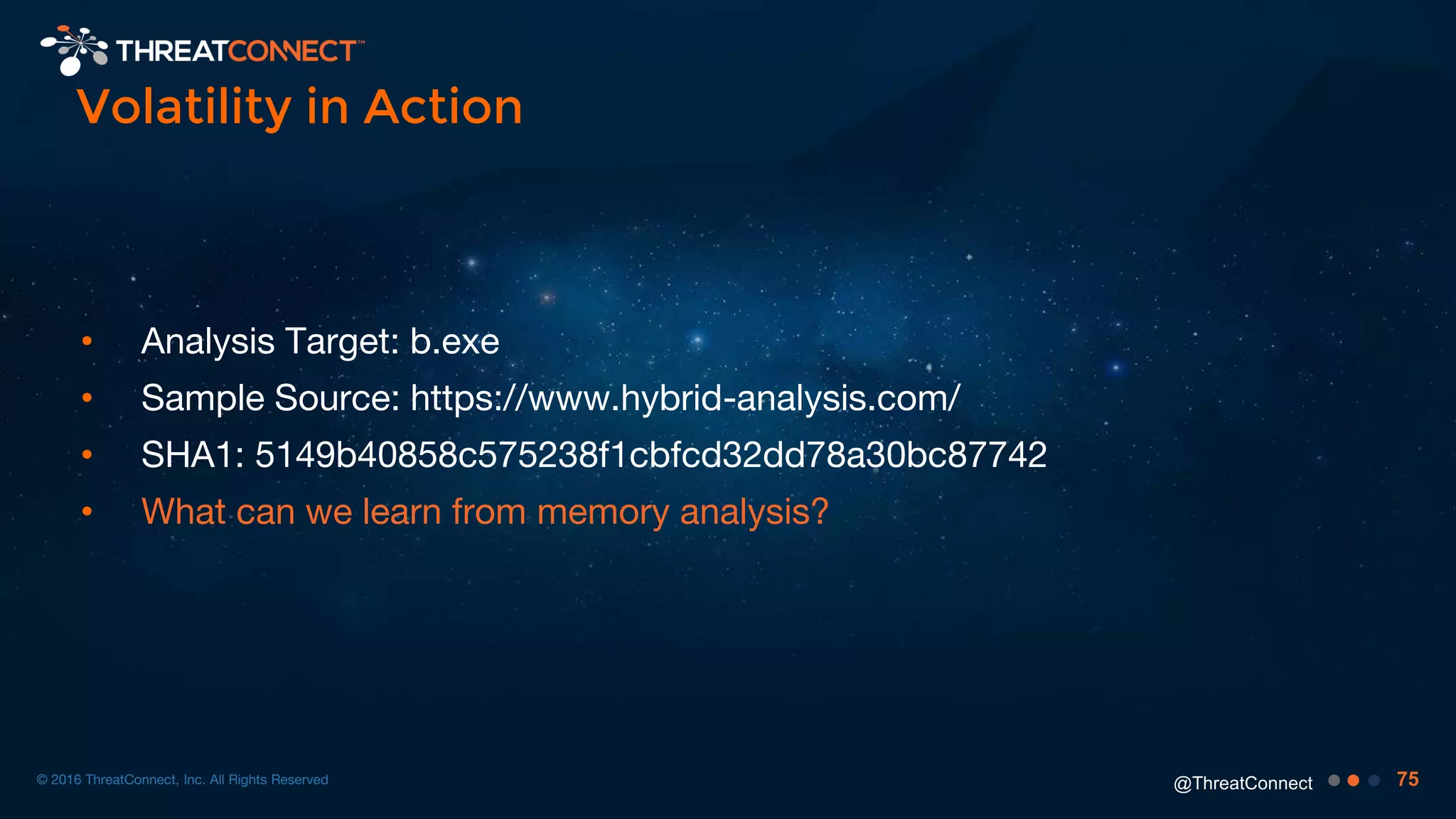

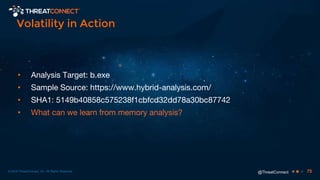

- 75. 75@ThreatConnect Volatility in Action • Analysis Target: b.exe • Sample Source: https://www.hybrid-analysis.com/ • SHA1: 5149b40858c575238f1cbfcd32dd78a30bc87742 • What can we learn from memory analysis? © 2016 ThreatConnect, Inc. All Rights Reserved

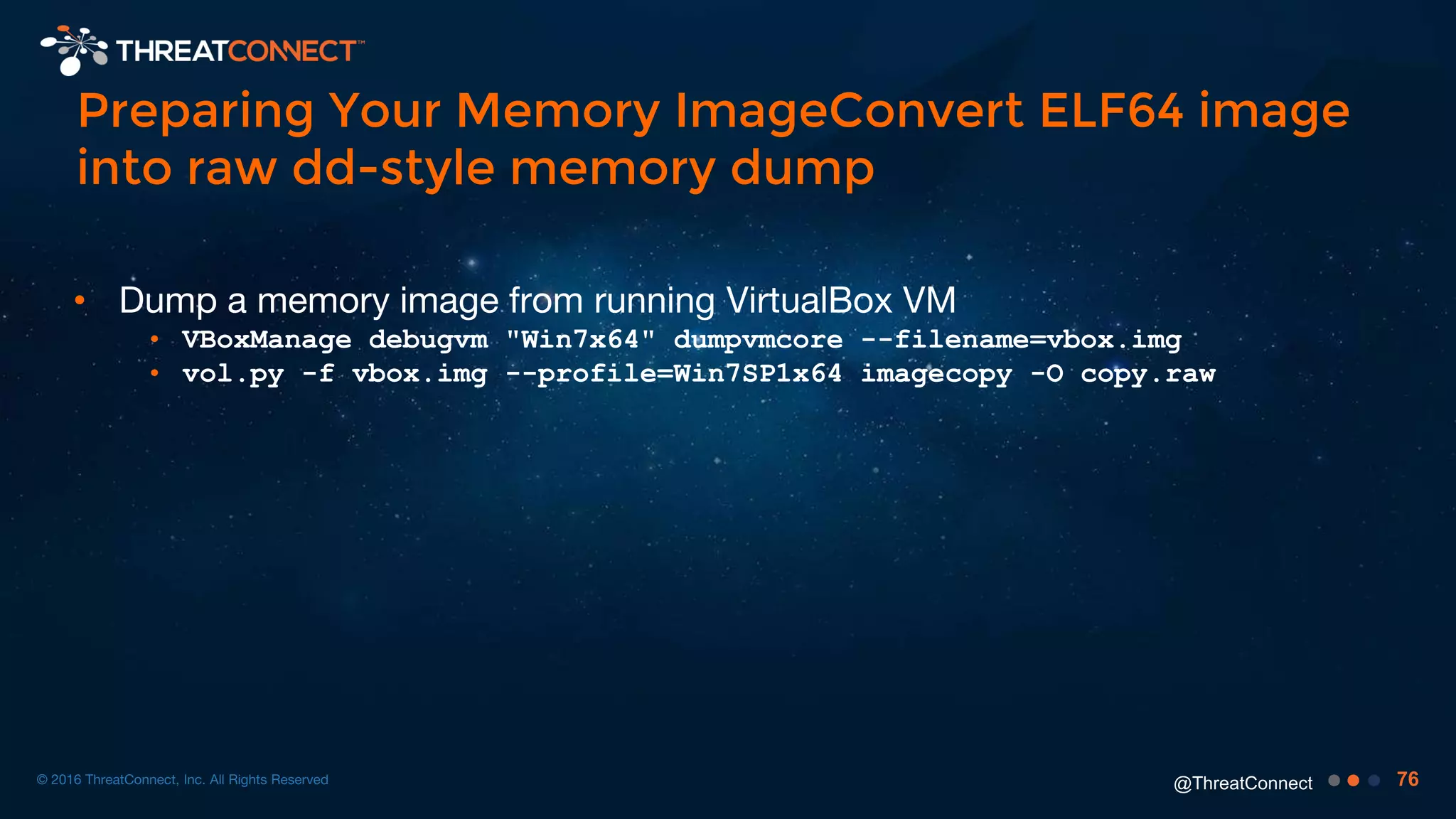

- 76. 76@ThreatConnect Preparing Your Memory ImageConvert ELF64 image into raw dd-style memory dump • Dump a memory image from running VirtualBox VM • VBoxManage debugvm "Win7x64" dumpvmcore --filename=vbox.img • vol.py -f vbox.img --profile=Win7SP1x64 imagecopy -O copy.raw © 2016 ThreatConnect, Inc. All Rights Reserved

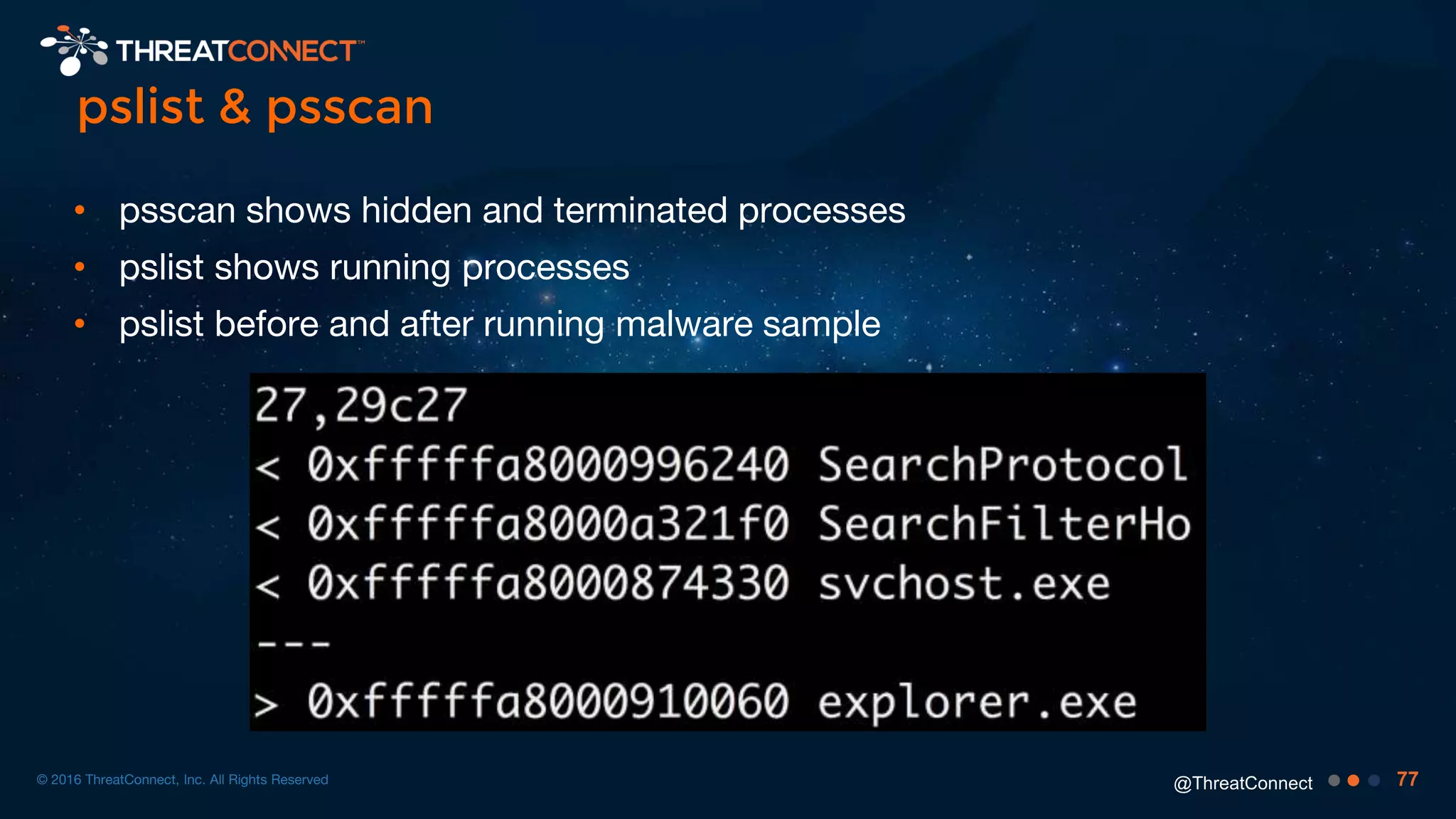

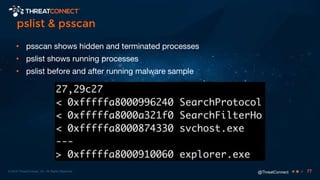

- 77. 77@ThreatConnect pslist & psscan © 2016 ThreatConnect, Inc. All Rights Reserved • psscan shows hidden and terminated processes • pslist shows running processes • pslist before and after running malware sample

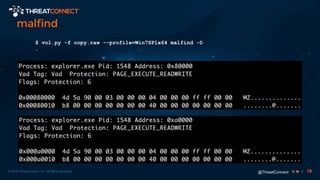

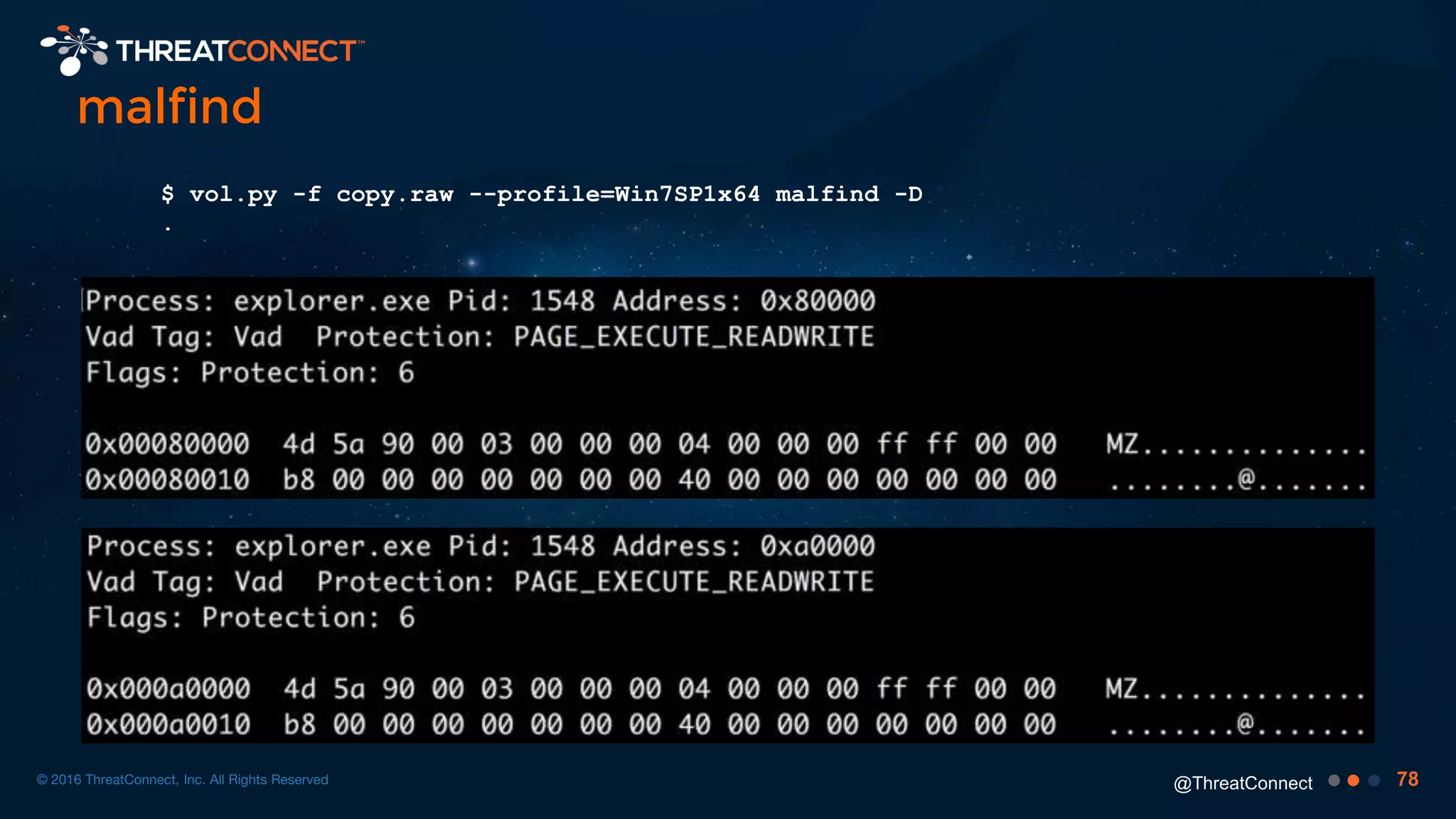

- 78. 78@ThreatConnect malfind $ vol.py -f copy.raw --profile=Win7SP1x64 malfind -D . © 2016 ThreatConnect, Inc. All Rights Reserved

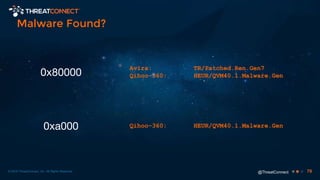

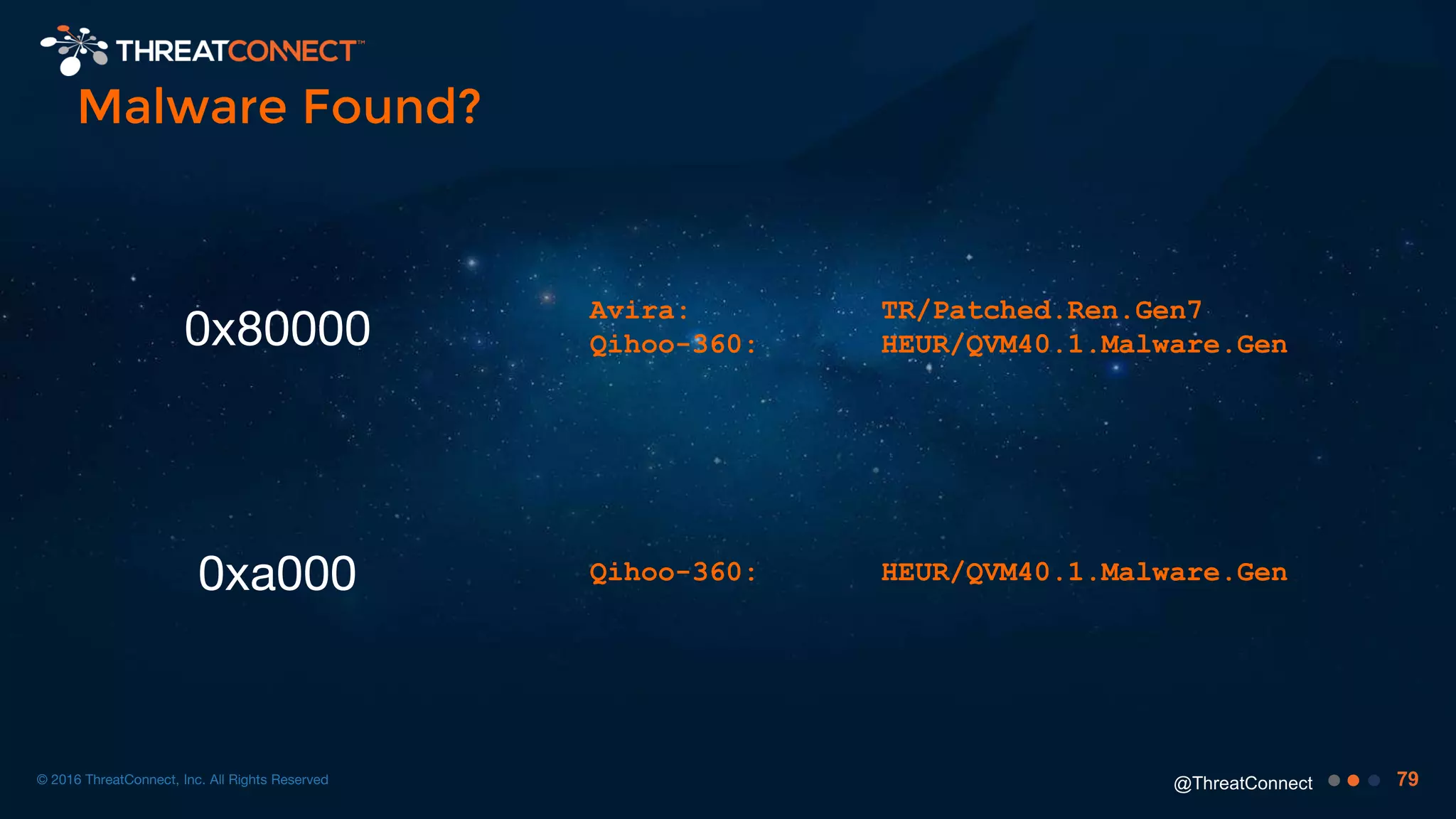

- 79. 79@ThreatConnect Malware Found? Avira: TR/Patched.Ren.Gen7 Qihoo-360: HEUR/QVM40.1.Malware.Gen Qihoo-360: HEUR/QVM40.1.Malware.Gen 0x80000 0xa000 © 2016 ThreatConnect, Inc. All Rights Reserved

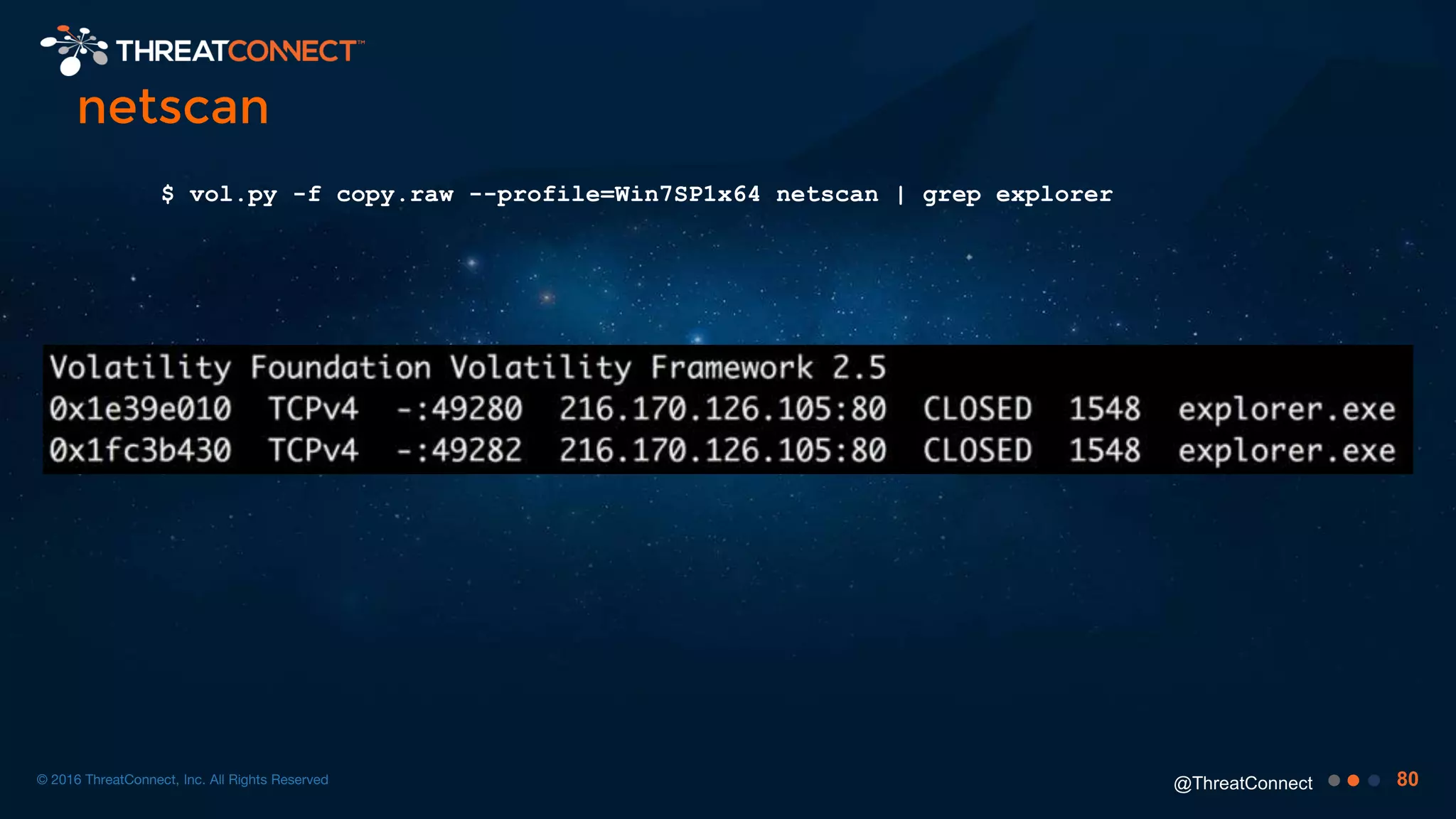

- 80. 80@ThreatConnect netscan $ vol.py -f copy.raw --profile=Win7SP1x64 netscan | grep explorer © 2016 ThreatConnect, Inc. All Rights Reserved

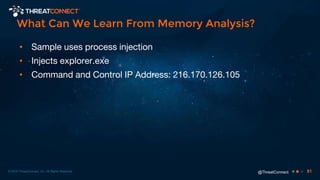

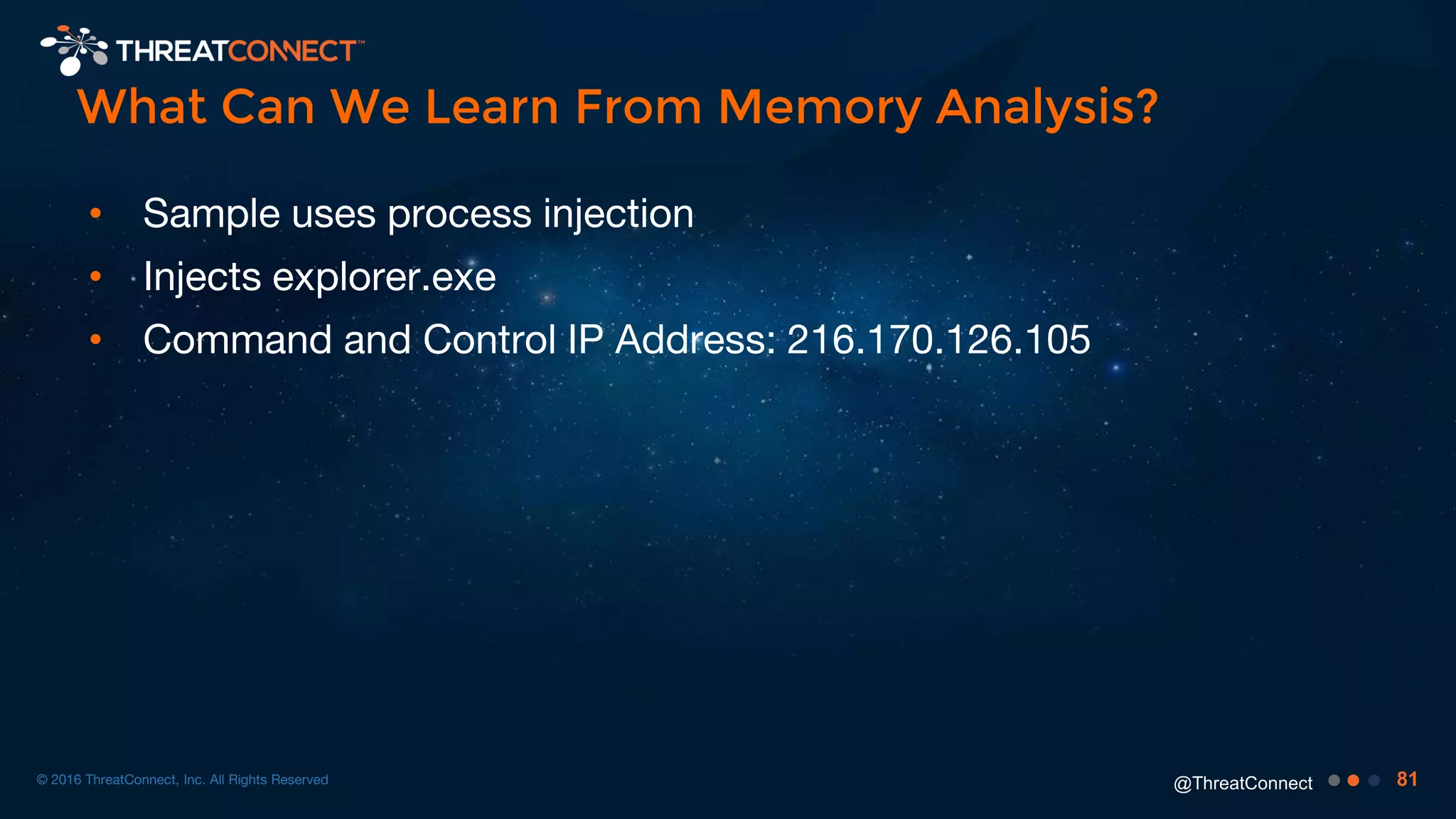

- 81. 81@ThreatConnect What Can We Learn From Memory Analysis? • Sample uses process injection • Injects explorer.exe • Command and Control IP Address: 216.170.126.105 © 2016 ThreatConnect, Inc. All Rights Reserved

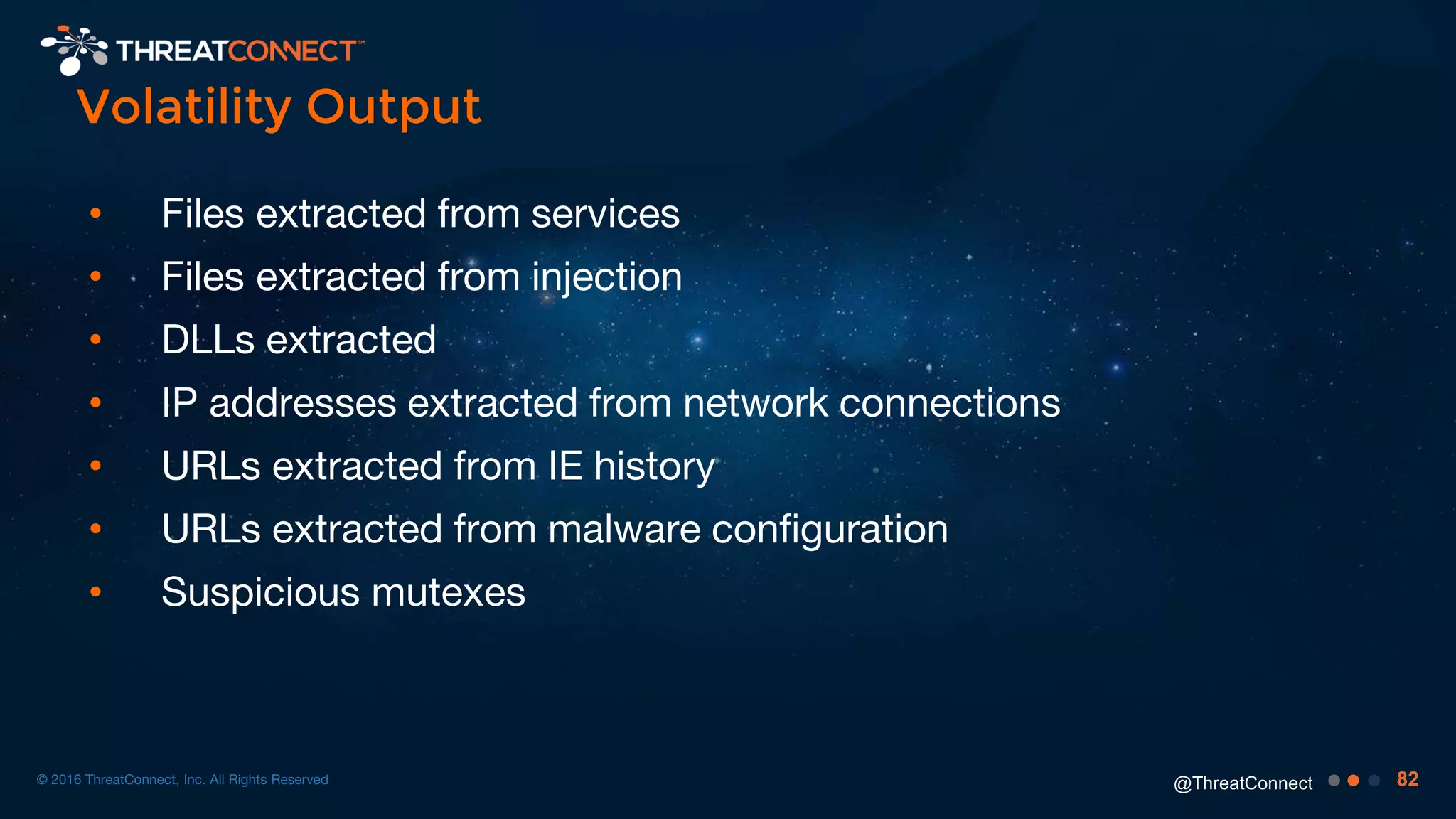

- 82. 82@ThreatConnect Volatility Output • Files extracted from services • Files extracted from injection • DLLs extracted • IP addresses extracted from network connections • URLs extracted from IE history • URLs extracted from malware configuration • Suspicious mutexes © 2016 ThreatConnect, Inc. All Rights Reserved
- 83. 83@ThreatConnect Tying It All Together Conclusion © 2016 ThreatConnect, Inc. All Rights Reserved

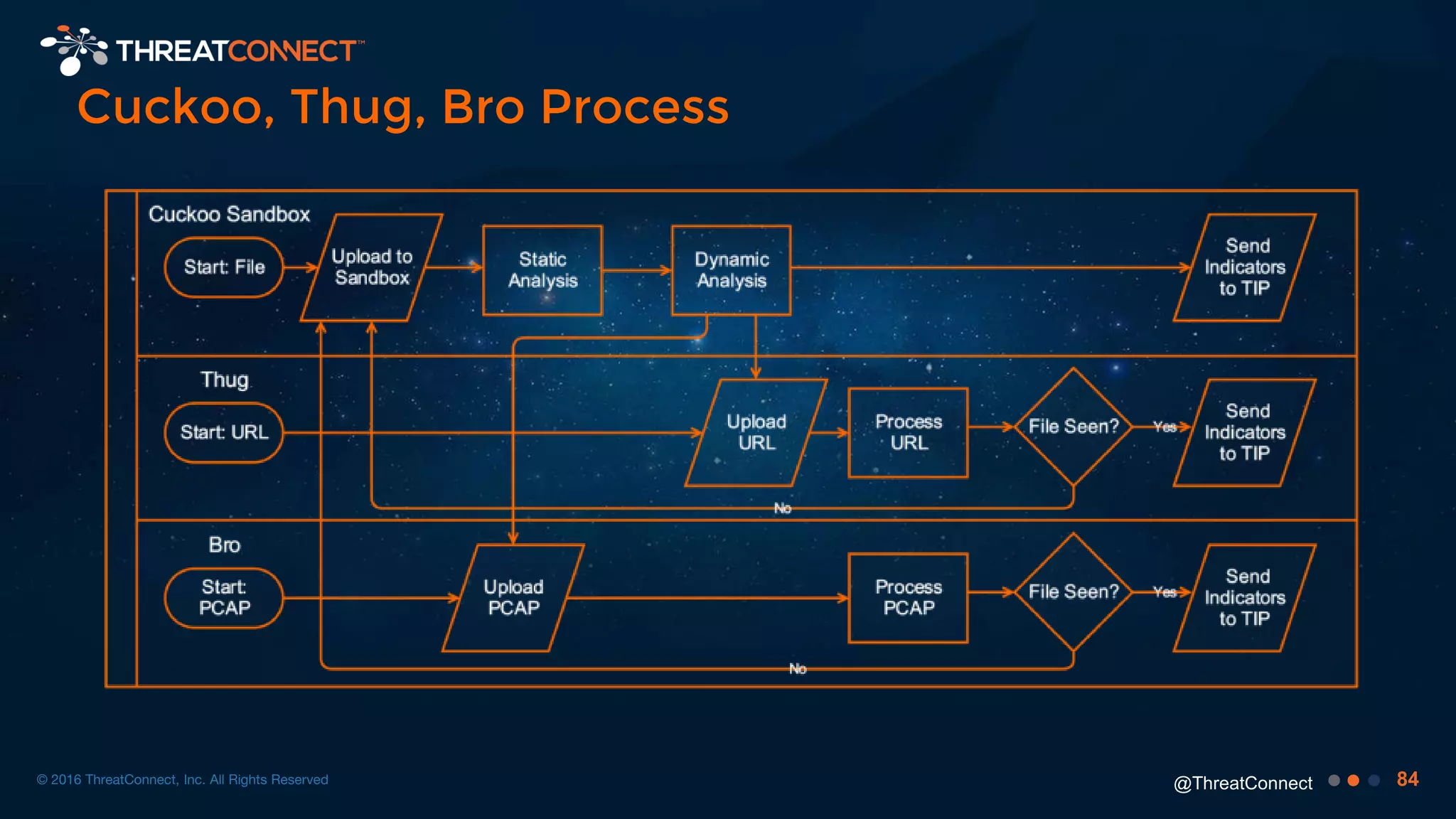

- 84. 84@ThreatConnect Cuckoo, Thug, Bro Process © 2016 ThreatConnect, Inc. All Rights Reserved

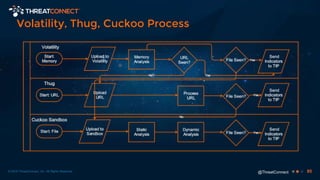

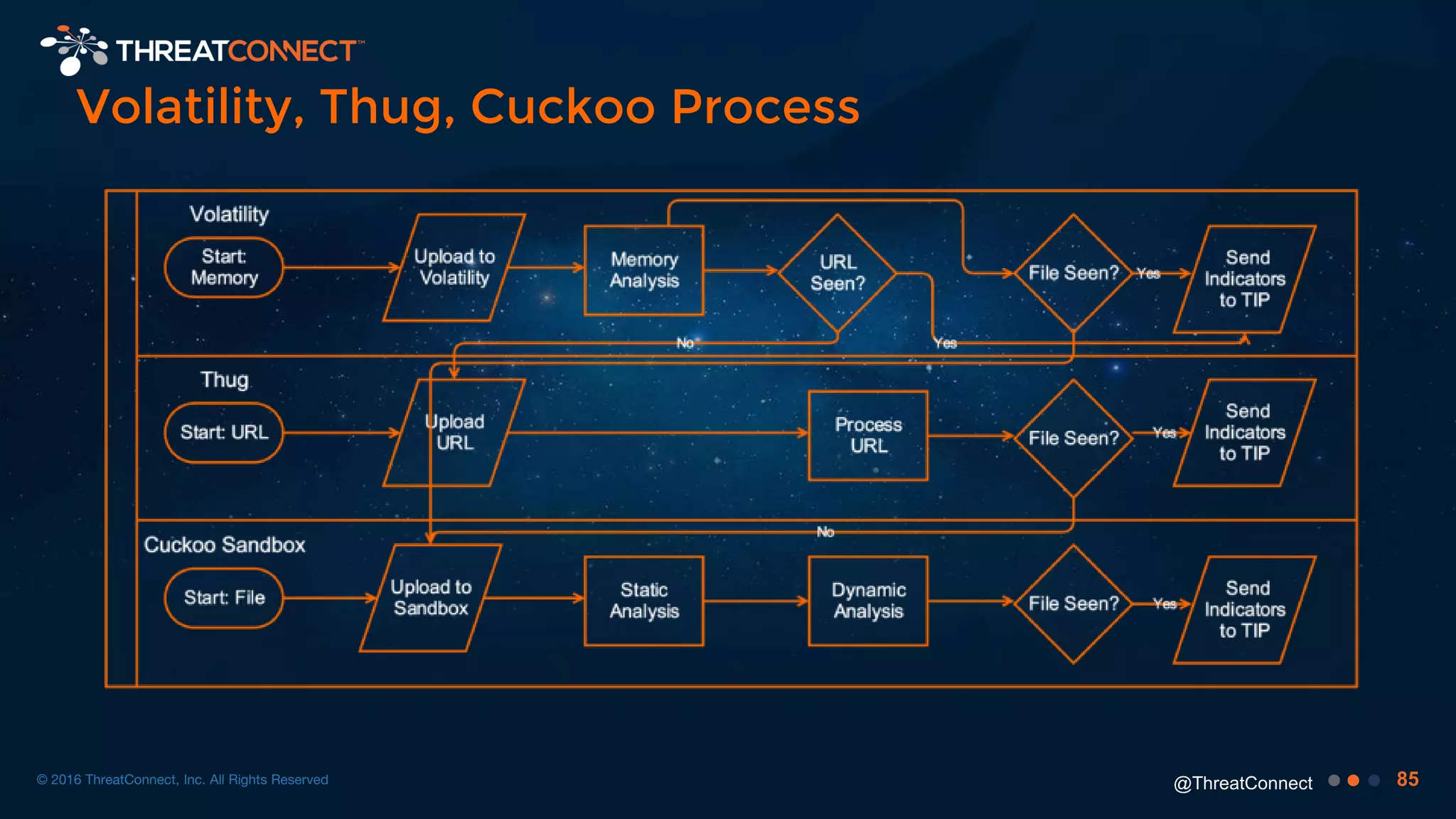

- 85. 85@ThreatConnect Volatility, Thug, Cuckoo Process © 2016 ThreatConnect, Inc. All Rights Reserved

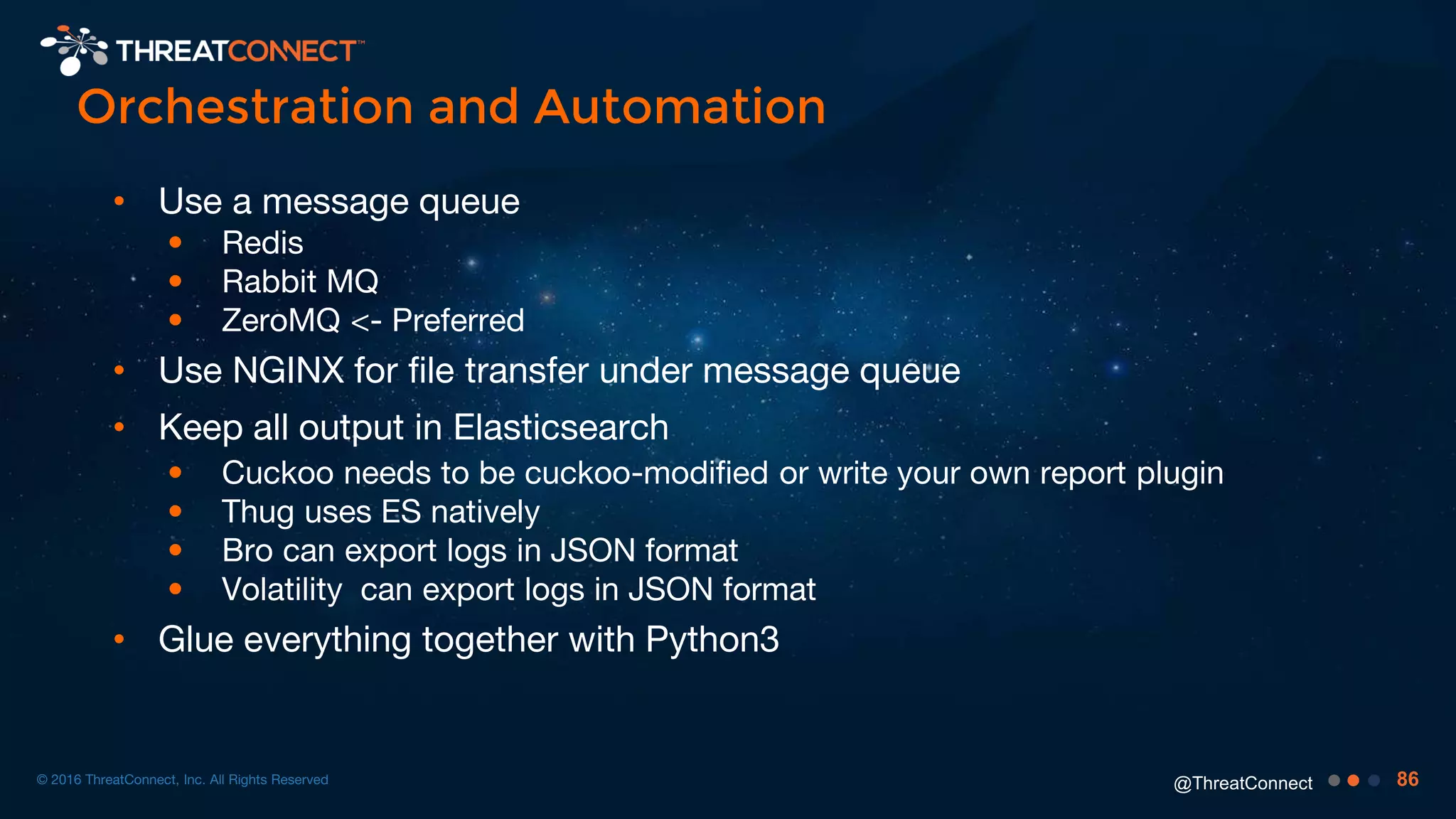

- 86. 86@ThreatConnect Orchestration and Automation • Use a message queue • Redis • Rabbit MQ • ZeroMQ <- Preferred • Use NGINX for file transfer under message queue • Keep all output in Elasticsearch • Cuckoo needs to be cuckoo-modified or write your own report plugin • Thug uses ES natively • Bro can export logs in JSON format • Volatility can export logs in JSON format • Glue everything together with Python3 © 2016 ThreatConnect, Inc. All Rights Reserved
- 87. 87@ThreatConnect Questions? © 2016 ThreatConnect, Inc. All Rights Reserved www.ThreatConnect.com/blog @MalwareUtkonos @ThreatConnect
