Open Data and News Analytics Demo

Open Data and News Analytics Demo
4th Open Data & Linked Data meetup, Sofia, Bulgaria, 29 Mar 2016

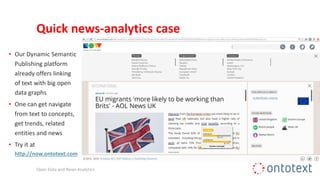

Quick news-analytics case
Open Data and News Analytics
• Our Dynamic Semantic
Publishing platform
already offers linking
of text with big open
data graphs
• One can get navigate
from text to concepts,
get trends, related
entities and news
• Try it at
http://now.ontotext.com

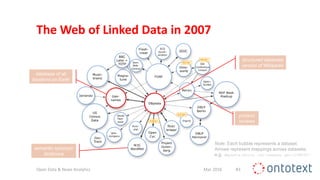

The Web of Linked Data in 2007
Mar 2016Open Data & News Analytics #3
structured database
version of Wikipedia
database of all
locations on Earth
product
reviews
semantic synonym
dictionary
Note: Each bubble represents a dataset.
Arrows represent mappings across datasets;
e.g. dbpedia:Paris owl:sameAs geo:2988507

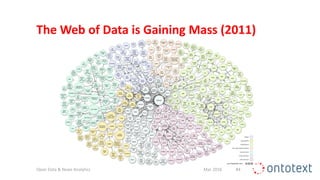

The Web of Data is Gaining Mass (2011)

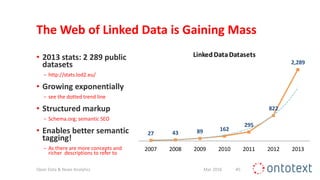

The Web of Linked Data is Gaining Mass
• 2013 stats: 2 289 public
datasets
− http://stats.lod2.eu/
• Growing exponentially
− see the dotted trend line
• Structured markup
− Schema.org; semantic SEO
• Enables better semantic
tagging!
− As there are more concepts and
richer descriptions to refer to
27 43 89 162
295
822
2,289
2007 2008 2009 2010 2011 2012 2013
LinkedDataDatasets

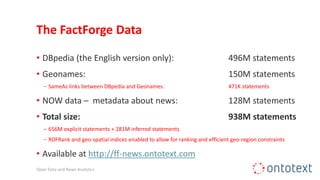

The FactForge Data
• DBpedia (the English version only): 496M statements
• Geonames: 150M statements
− SameAs links between DBpedia and Geonames: 471K statements
• NOW data – metadata about news: 128M statements
• Total size: 938М statements
− 656M explicit statements + 281M inferred statements
− RDFRank and geo-spatial indices enabled to allow for ranking and efficient geo-region constraints
• Available at http://ff-news.ontotext.com

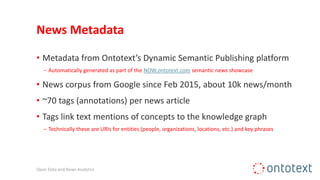

News Metadata
• Metadata from Ontotext’s Dynamic Semantic Publishing platform
− Automatically generated as part of the NOW.ontotext.com semantic news showcase
• News corpus from Google since Feb 2015, about 10k news/month
• ~70 tags (annotations) per news article
• Tags link text mentions of concepts to the knowledge graph
− Technically these are URIs for entities (people, organizations, locations, etc.) and key phrases

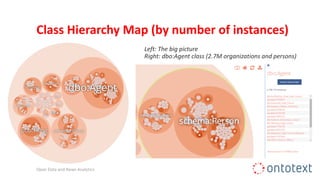

Class Hierarchy Map (by number of instances)
Left: The big picture
Right: dbo:Agent class (2.7M organizations and persons)

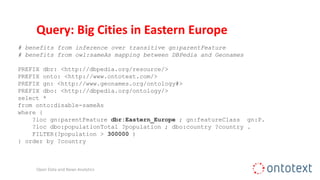

Query: Big Cities in Eastern Europe
# benefits from inference over transitive gn:parentFeature
# benefits from owl:sameAs mapping between DBPedia and Geonames
PREFIX dbr: <http://dbpedia.org/resource/>
PREFIX onto: <http://www.ontotext.com/>
PREFIX gn: <http://www.geonames.org/ontology#>
PREFIX dbo: <http://dbpedia.org/ontology/>
select *
from onto:disable-sameAs
where {
?loc gn:parentFeature dbr:Eastern_Europe ; gn:featureClass gn:P.
?loc dbo:populationTotal ?population ; dbo:country ?country .
FILTER(?population > 300000 )
} order by ?country

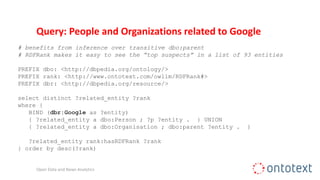

Query: People and Organizations related to Google
# benefits from inference over transitive dbo:parent
# RDFRank makes it easy to see the “top suspects” in a list of 93 entities
PREFIX rank: <http://www.ontotext.com/owlim/RDFRank#>
select distinct ?related_entity ?rank
where {
BIND (dbr:Google as ?entity)
{ ?related_entity a dbo:Person ; ?p ?entity . } UNION
{ ?related_entity a dbo:Organisation ; dbo:parent ?entity . }
?related_entity rank:hasRDFRank ?rank
} order by desc(?rank)

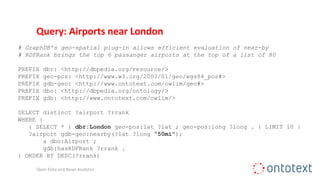

Query: Airports near London
# GraphDB’s geo-spatial plug-in allows efficient evaluation of near-by
# RDFRank brings the top 6 passanger airports at the top of a list of 80
PREFIX geo-pos: <http://www.w3.org/2003/01/geo/wgs84_pos#>
PREFIX gdb-geo: <http://www.ontotext.com/owlim/geo#>
PREFIX gdb: <http://www.ontotext.com/owlim/>
SELECT distinct ?airport ?rrank
WHERE {
{ SELECT * { dbr:London geo-pos:lat ?lat ; geo-pos:long ?long . } LIMIT 10 }
?airport gdb-geo:nearby(?lat ?long "50mi");
a dbo:Airport ;
gdb:hasRDFRank ?rrank .
} ORDER BY DESC(?rrank)

Semantic Press-Clipping
• We can trace references to a specific company in the news
− This is pretty much standard, however we can deal with syntactic variations in the names, because state
of the art Named Entity Recognition technology is used
− What’s more important, we distinguish correctly in which mention “Paris” refers to which of the
following: Paris (the capital of France), Paris in Texas, Paris Hilton or to Paris (the Greek hero)
• We can trace and consolidate references to daughter companies
• We have comprehensive industry classification
− The one from DBPedia, but refined to accommodate identifier variations and specialization (e.g.
company classified as dbr:Bank will also be considered classified as dbr:FinancialServices)
MarFF-NEWS short demo

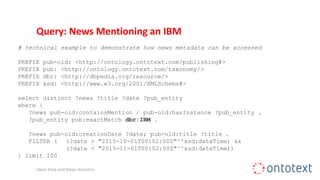

Query: News Mentioning an IBM
# technical example to demonstrate how news metadata can be accessed
PREFIX pub-old: <http://ontology.ontotext.com/publishing#>
PREFIX pub: <http://ontology.ontotext.com/taxonomy/>
PREFIX xsd: <http://www.w3.org/2001/XMLSchema#>
select distinct ?news ?title ?date ?pub_entity
where {
?news pub-old:containsMention / pub-old:hasInstance ?pub_entity .
?pub_entity pub:exactMatch dbr:IBM .
?news pub-old:creationDate ?date; pub-old:title ?title .
FILTER ( (?date > "2015-10-01T00:02:00Z"^^xsd:dateTime) &&
(?date < "2015-11-01T00:02:00Z"^^xsd:dateTime))
} limit 100

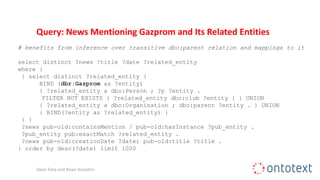

Query: News Mentioning Gazprom and Its Related Entities
# benefits from inference over transitive dbo:parent relation and mappings to it
select distinct ?news ?title ?date ?related_entity
where {
{ select distinct ?related_entity {
BIND (dbr:Gazprom as ?entity)
{ ?related_entity a dbo:Person ; ?p ?entity .
FILTER NOT EXISTS { ?related_entity dbo:club ?entity } } UNION
{ ?related_entity a dbo:Organisation ; dbo:parent ?entity . } UNION
{ BIND(?entity as ?related_entity) }
} }
?pub_entity pub:exactMatch ?related_entity .
?news pub-old:creationDate ?date; pub-old:title ?title .
} order by desc(?date) limit 1000

Query: Most Popular in the News, including children
# benefits from mapping and consolidation of industry classifications
select distinct ?parent (count(?news) as ?news_count)
where {
{ select distinct ?parent ?entity {
BIND(dbr:Automotive as ?industry)
?industry ff-map:industryVariant ?industryVar .
?parent dbo:industry ?industryVar .
?parent a dbo:Company .
FILTER NOT EXISTS { ?parent dbo:parent / dbo:industry / ff-map:industryVariant ?industry }
{ ?entity dbo:parent ?parent . } UNION
{ BIND(?parent as ?entity) }
} }
?pub_entity pub:exactMatch ?entity .
?news pub-old:creationDate ?date .
} group by ?parent order by desc(?news_count)

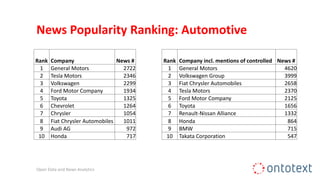

News Popularity Ranking: Automotive
Rank Company News # Rank Company incl. mentions of controlled News #
1 General Motors 2722 1 General Motors 4620
2 Tesla Motors 2346 2 Volkswagen Group 3999
3 Volkswagen 2299 3 Fiat Chrysler Automobiles 2658
4 Ford Motor Company 1934 4 Tesla Motors 2370
5 Toyota 1325 5 Ford Motor Company 2125
6 Chevrolet 1264 6 Toyota 1656
7 Chrysler 1054 7 Renault-Nissan Alliance 1332
8 Fiat Chrysler Automobiles 1011 8 Honda 864
9 Audi AG 972 9 BMW 715
10 Honda 717 10 Takata Corporation 547

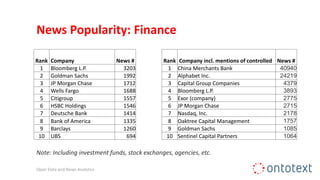

News Popularity: Finance
1 Bloomberg L.P. 3203 1 China Merchants Bank 40940
2 Goldman Sachs 1992 2 Alphabet Inc. 24219
3 JP Morgan Chase 1712 3 Capital Group Companies 4379
4 Wells Fargo 1688 4 Bloomberg L.P. 3893
5 Citigroup 1557 5 Exor (company) 2775
6 HSBC Holdings 1546 6 JP Morgan Chase 2715
7 Deutsche Bank 1414 7 Nasdaq, Inc. 2178
8 Bank of America 1335 8 Oaktree Capital Management 1757
9 Barclays 1260 9 Goldman Sachs 1085
10 UBS 694 10 Sentinel Capital Partners 1064
Note: Including investment funds, stock exchanges, agencies, etc.

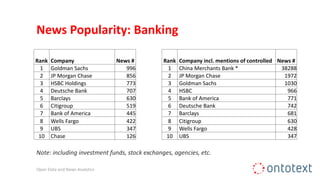

News Popularity: Banking
1 Goldman Sachs 996 1 China Merchants Bank * 38288
2 JP Morgan Chase 856 2 JP Morgan Chase 1972
3 HSBC Holdings 773 3 Goldman Sachs 1030
4 Deutsche Bank 707 4 HSBC 966
5 Barclays 630 5 Bank of America 771
6 Citigroup 519 6 Deutsche Bank 742
7 Bank of America 445 7 Barclays 681
8 Wells Fargo 422 8 Citigroup 630
9 UBS 347 9 Wells Fargo 428
10 Chase 126 10 UBS 347
Note: including investment funds, stock exchanges, agencies, etc.

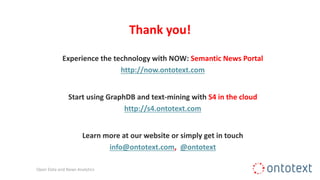

Thank you!
Experience the technology with NOW: Semantic News Portal
http://now.ontotext.com
Start using GraphDB and text-mining with S4 in the cloud
http://s4.ontotext.com
Learn more at our website or simply get in touch
info@ontotext.com, @ontotext
