The document discusses the concept of open networking and software-defined networking (SDN), emphasizing the need for network operators to manage their infrastructures flexibly and efficiently through open interfaces. It highlights the importance of avoiding vendor lock-in and fostering innovation through published and accessible interfaces and APIs. Additionally, an announcement for a new educational open-source tool called ONF SampleTap, aimed at helping users experiment with OpenFlow app development, is made.

3. © 2014 Open Networking Foundation© 2014 Open Networking Foundation

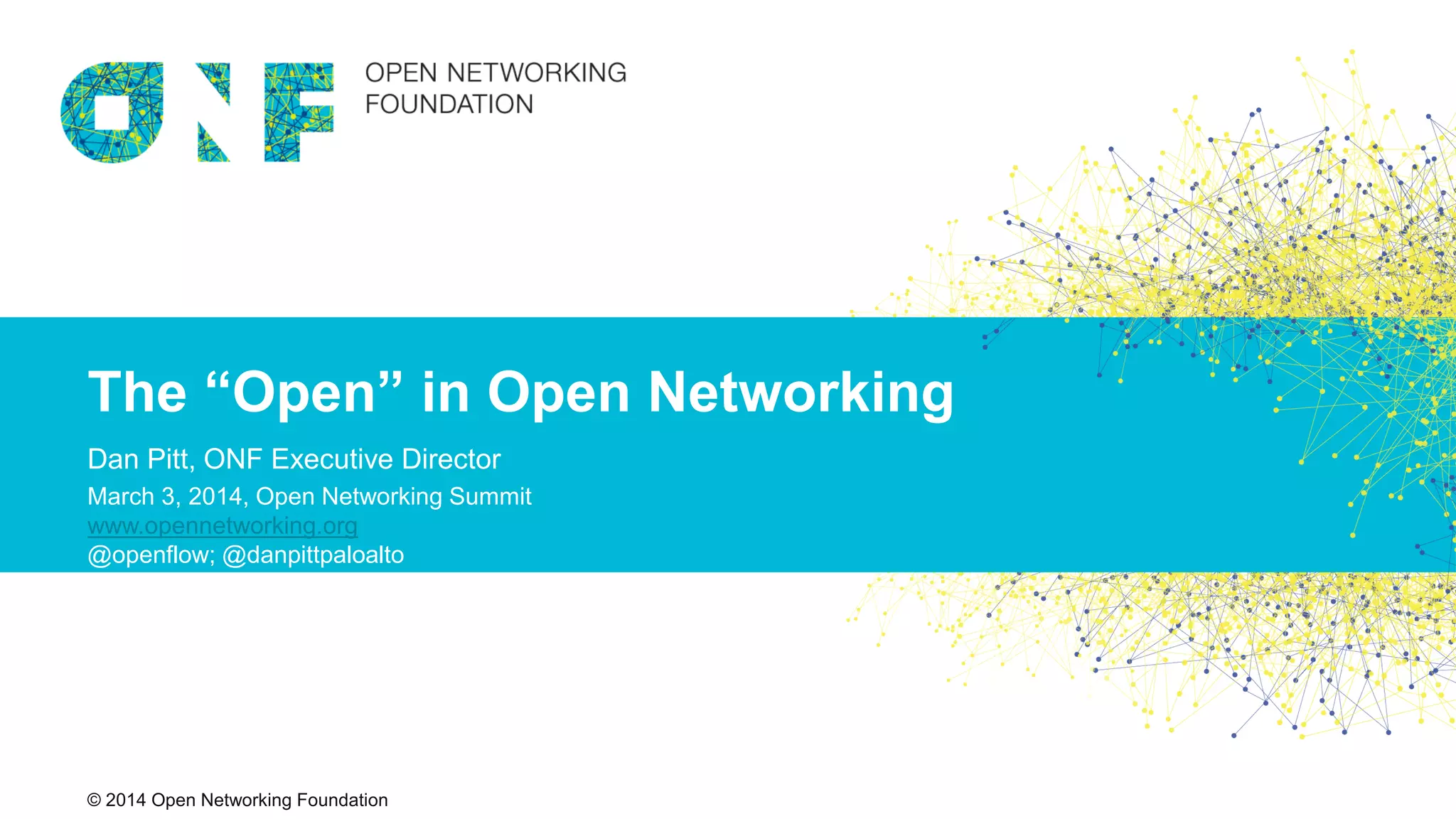

The “Open” in Open Networking
Dan Pitt, ONF Executive Director
March 3, 2014, Open Networking Summit
www.opennetworking.org
@openflow; @danpittpaloalto

4. © 2014 Open Networking Foundation

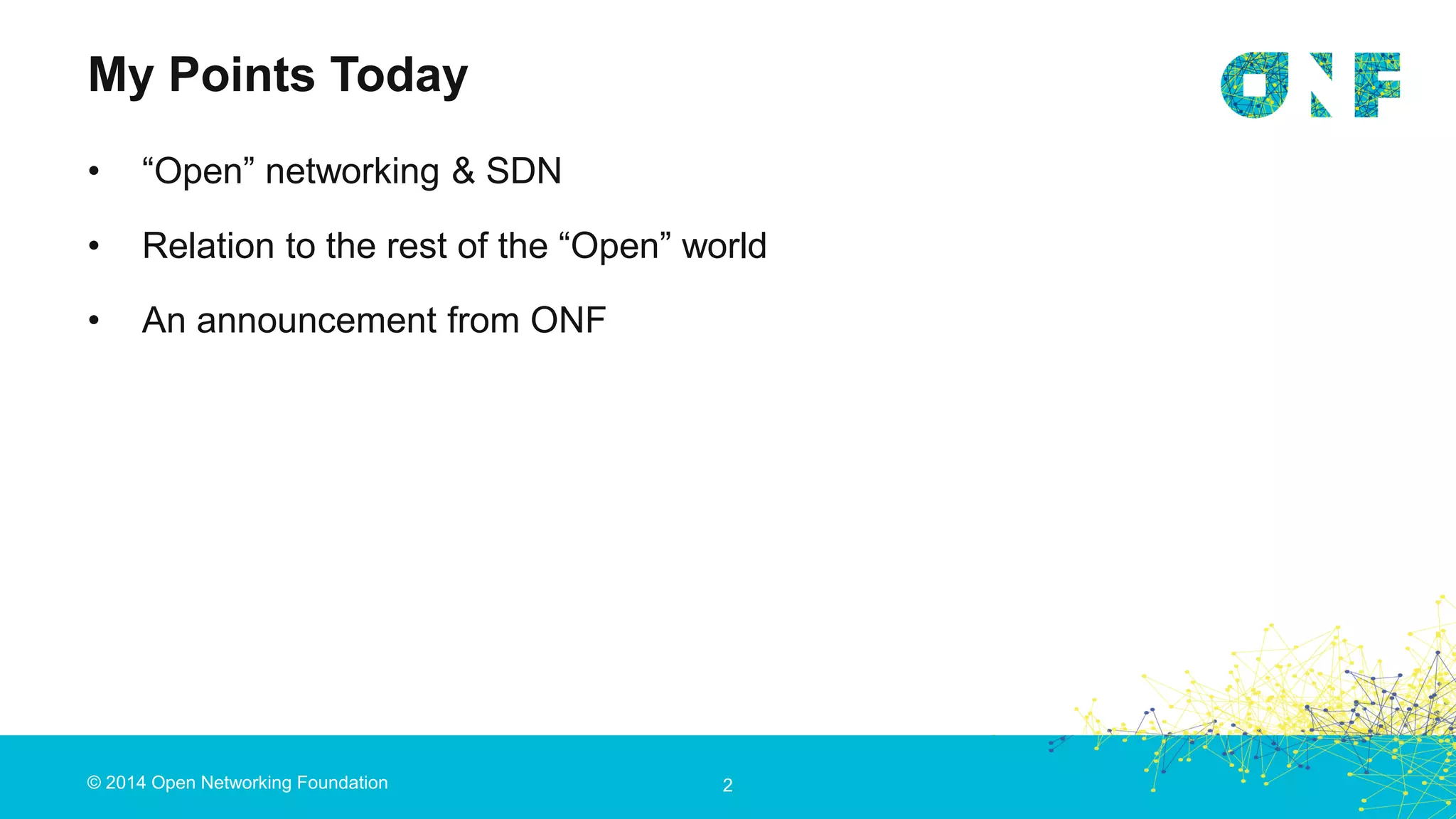

My Points Today
2
• “Open” networking & SDN
• Relation to the rest of the “Open” world
• An announcement from ONF

5. © 2014 Open Networking Foundation

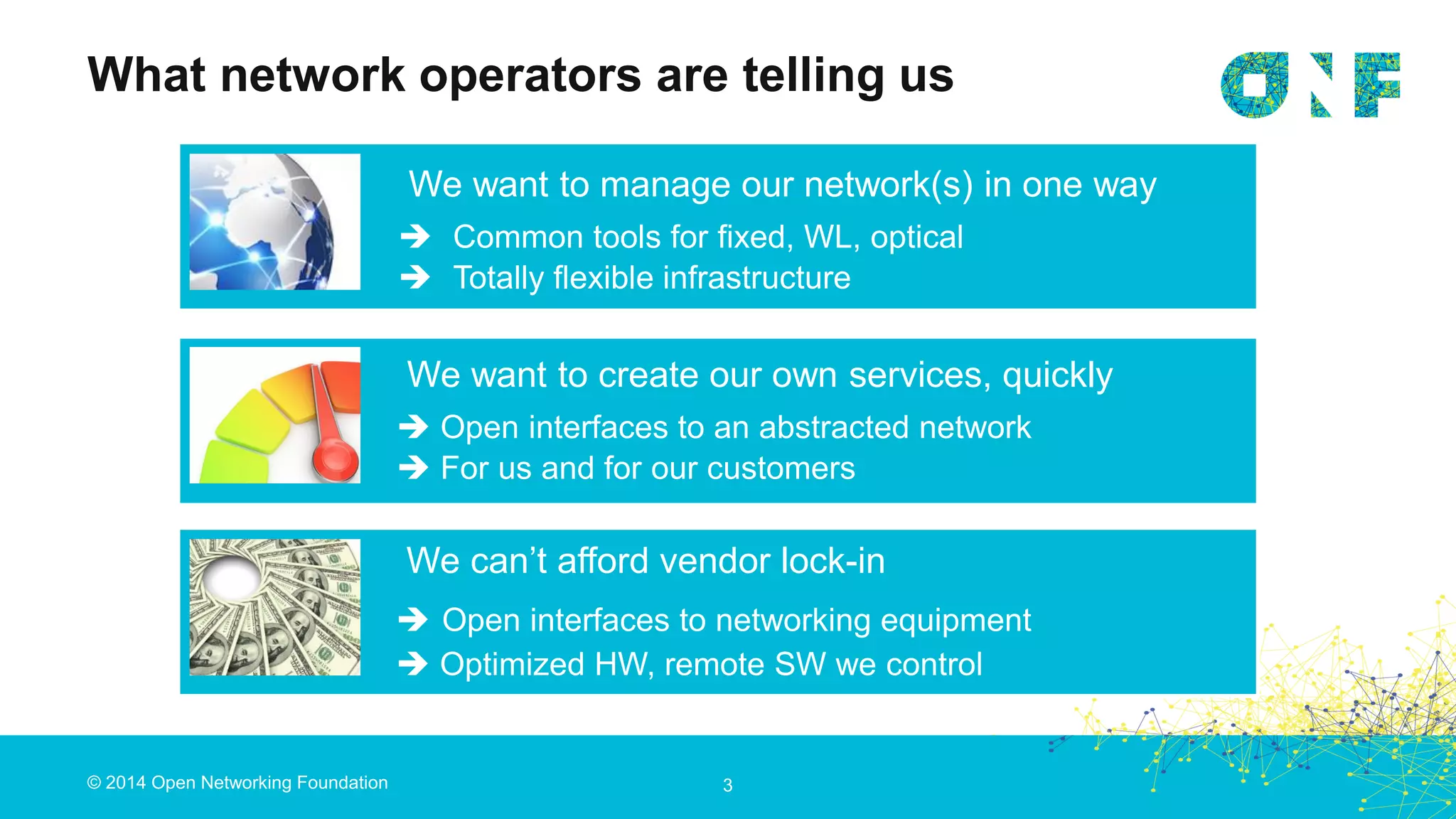

What network operators are telling us
3
We want to manage our network(s) in one way
 Common tools for fixed, WL, optical
 Totally flexible infrastructure
We want to create our own services, quickly
 Open interfaces to an abstracted network
 For us and for our customers
We can’t afford vendor lock-in
 Open interfaces to networking equipment
 Optimized HW, remote SW we control

6. © 2014 Open Networking Foundation

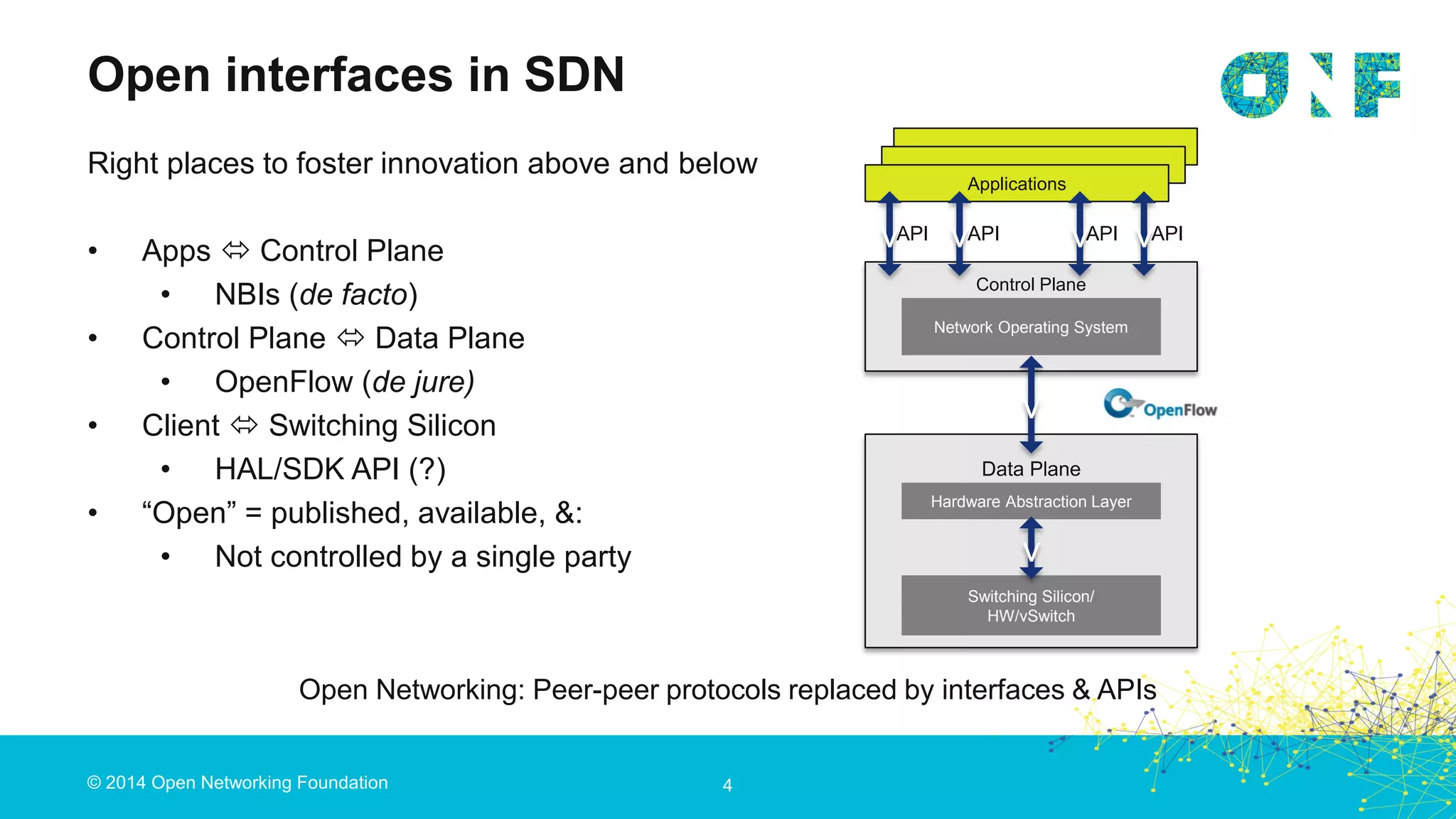

Open interfaces in SDN
4
Right places to foster innovation above and below
• Apps  Control Plane
• NBIs (de facto)
• Control Plane  Data Plane
• OpenFlow (de jure)
• Client  Switching Silicon
• HAL/SDK API (?)
• “Open” = published, available, &:
• Not controlled by a single party
Open Networking: Peer-peer protocols replaced by interfaces & APIs
Data Plane
Hardware Abstraction Layer
Switching Silicon/
HW/vSwitch
Control Plane
e
Network Operating System
Applications
API API API API
v
v
v v v v

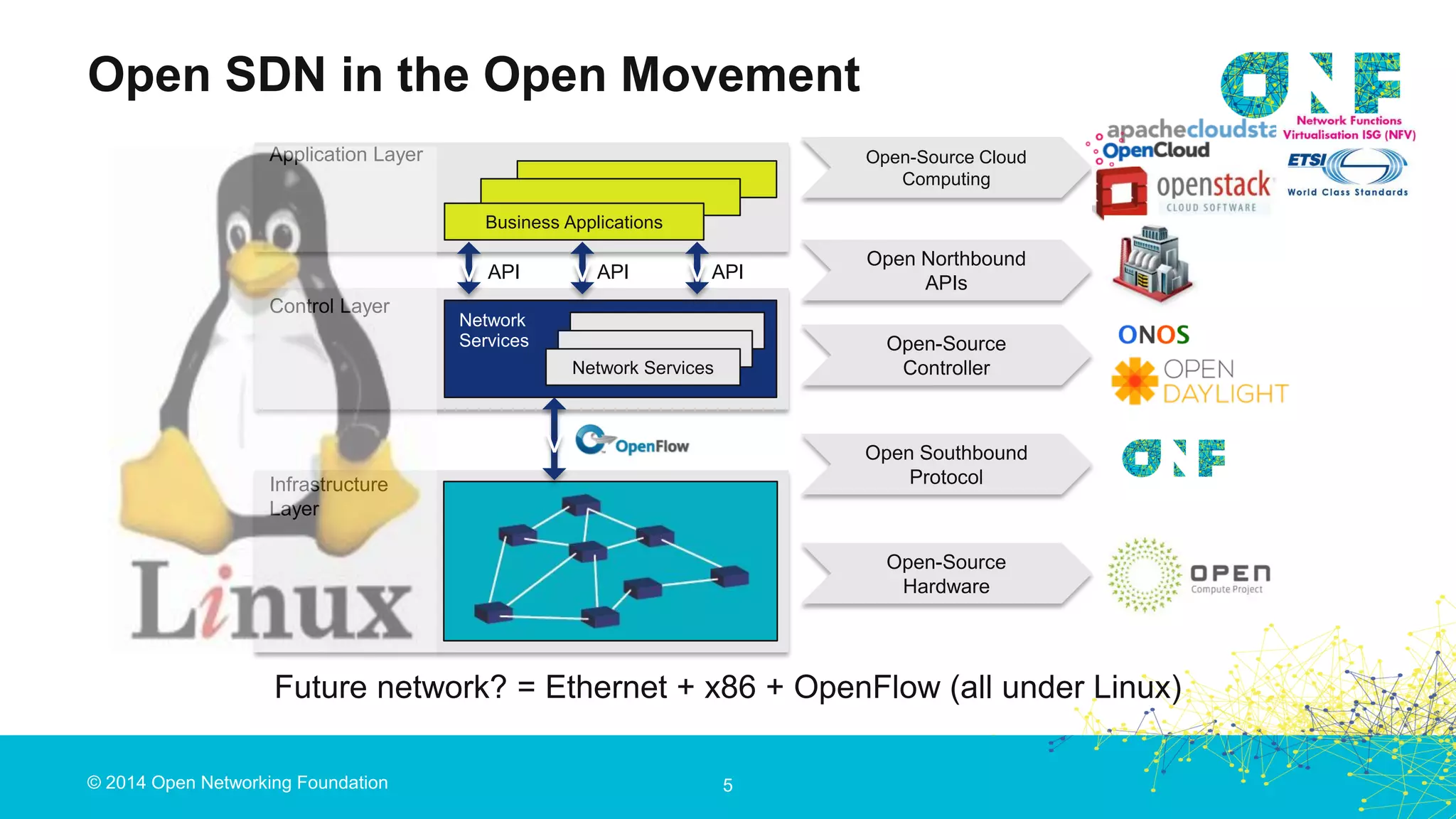

7. © 2014 Open Networking Foundation
Open-Source Cloud
Computing
Open Northbound
APIs
Open-Source
Controller
Open-Source
Hardware
Open Southbound
Protocol
Open SDN in the Open Movement
5
Future network? = Ethernet + x86 + OpenFlow (all under Linux)
Infrastructure
Layer
Application Layer
Business Applications
Control Layer
Network
Services
Network Services
API API API
v
v v v

8. © 2014 Open Networking Foundation 6
What
• Educational tool, open-source, OpenFlow 1.0 app
• Written on OpenDaylight
• Apache 2.0 license on ONF GitHub

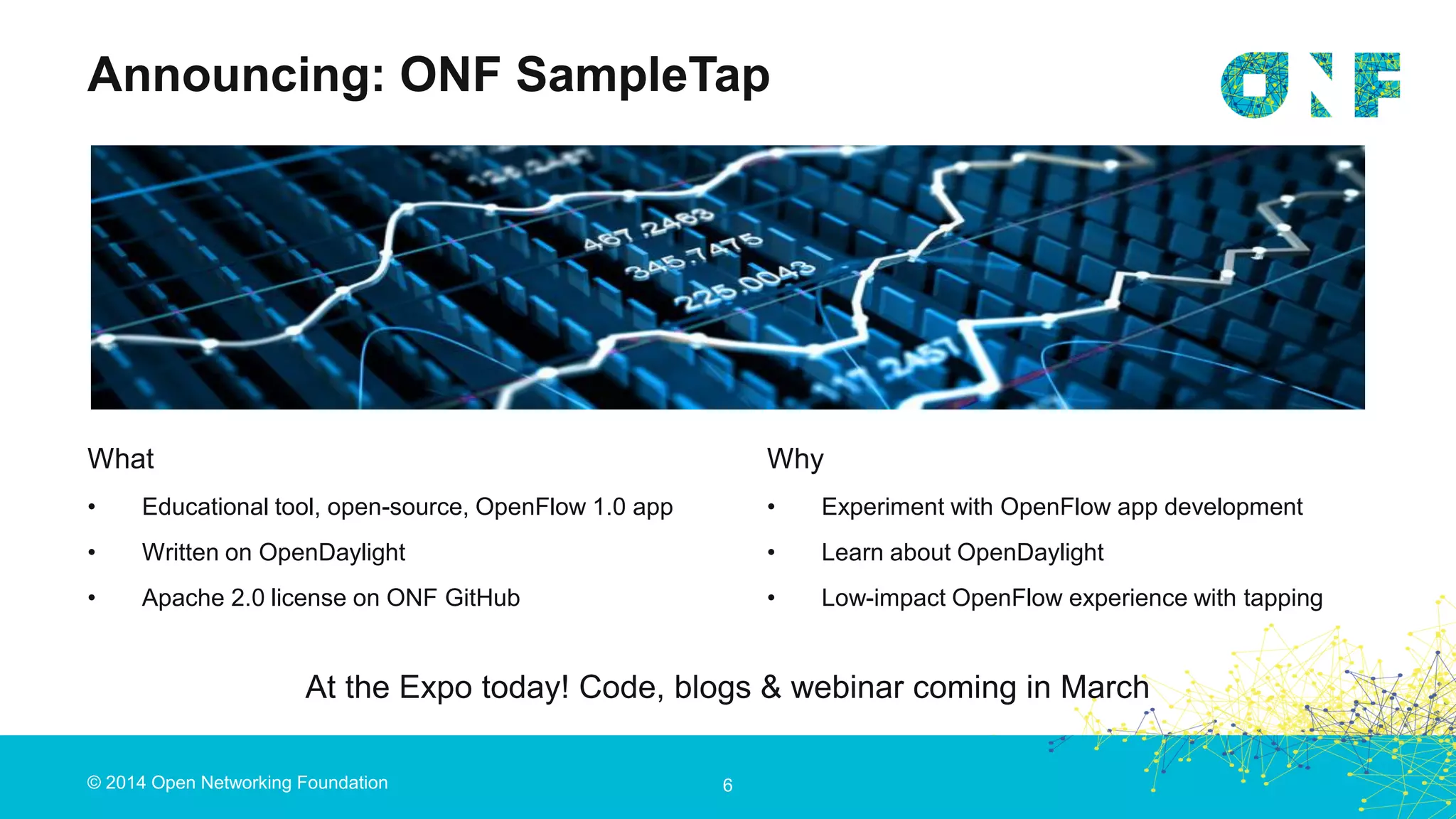

Announcing: ONF SampleTap
Why
• Experiment with OpenFlow app development
• Learn about OpenDaylight
• Low-impact OpenFlow experience with tapping
At the Expo today! Code, blogs & webinar coming in March

9. © 2014 Open Networking Foundation 7
• Big Switch Networks
• Cisco Systems
• Gigamon
• HP

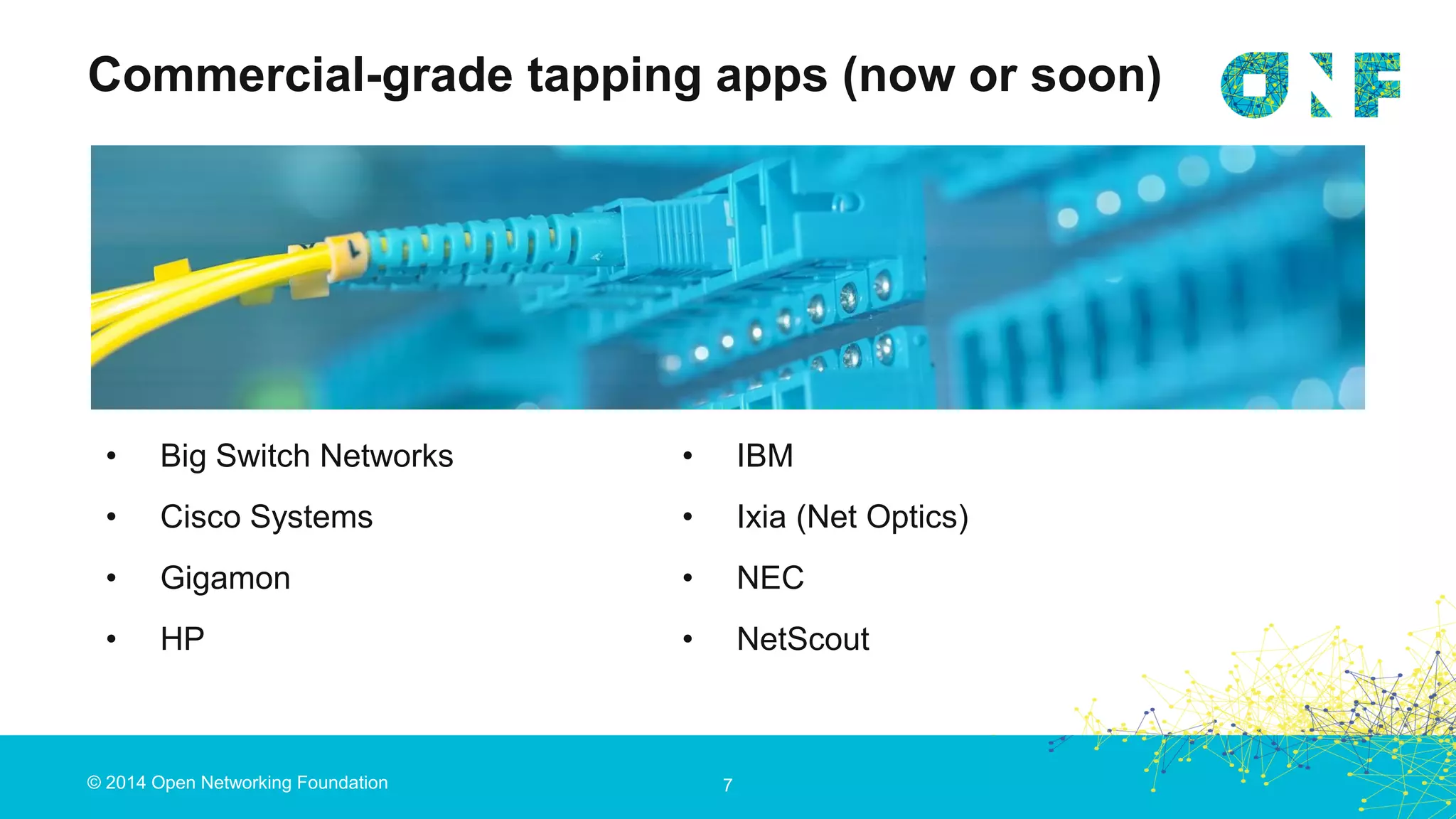

Commercial-grade tapping apps (now or soon)
• IBM
• Ixia (Net Optics)
• NEC
• NetScout

10. © 2014 Open Networking Foundation

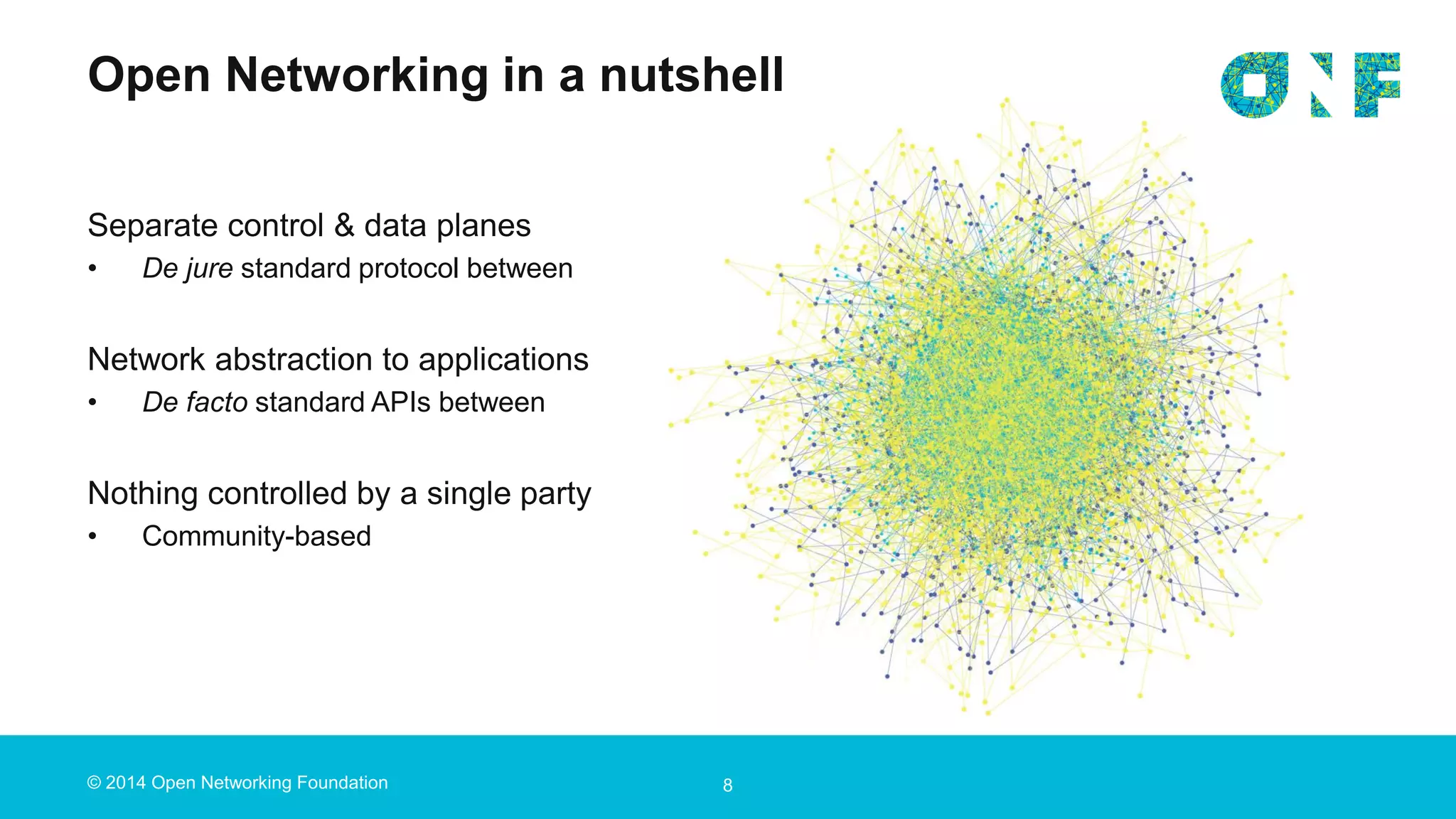

Open Networking in a nutshell
8
Separate control & data planes
• De jure standard protocol between
Network abstraction to applications
• De facto standard APIs between
Nothing controlled by a single party
• Community-based
