ONOS - multiple instance setting(Distributed SDN Controller)

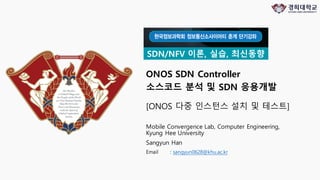

1. ONOS SDN Controller
소스코드 분석 및 SDN 응용개발
Mobile Convergence Lab, Computer Engineering,
Kyung Hee University
Sangyun Han
Email : sangyun0628@khu.ac.kr
SDN/NFV 이론, 실습, 최신동향
[ONOS 다중 인스턴스 설치 및 테스트]

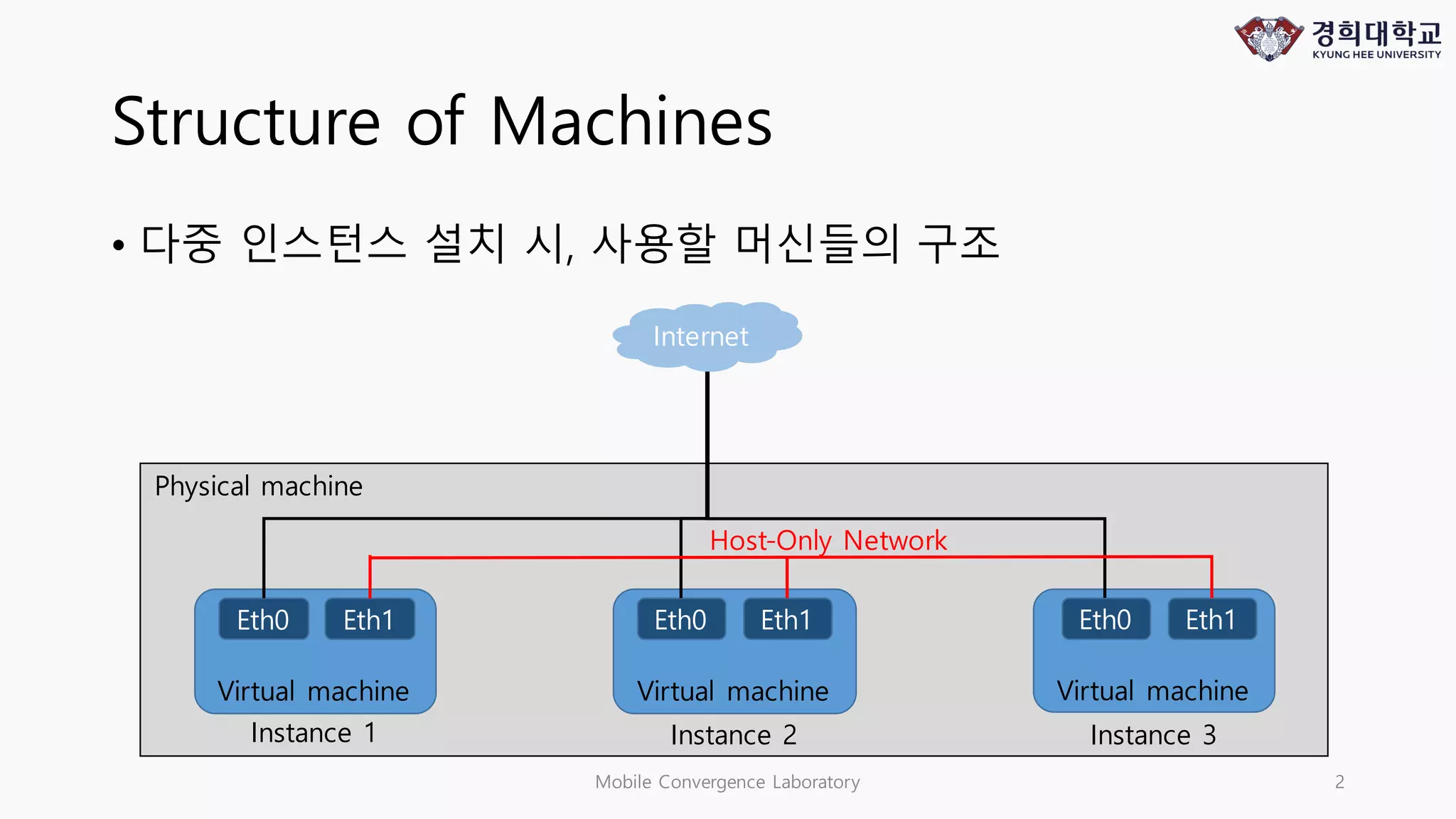

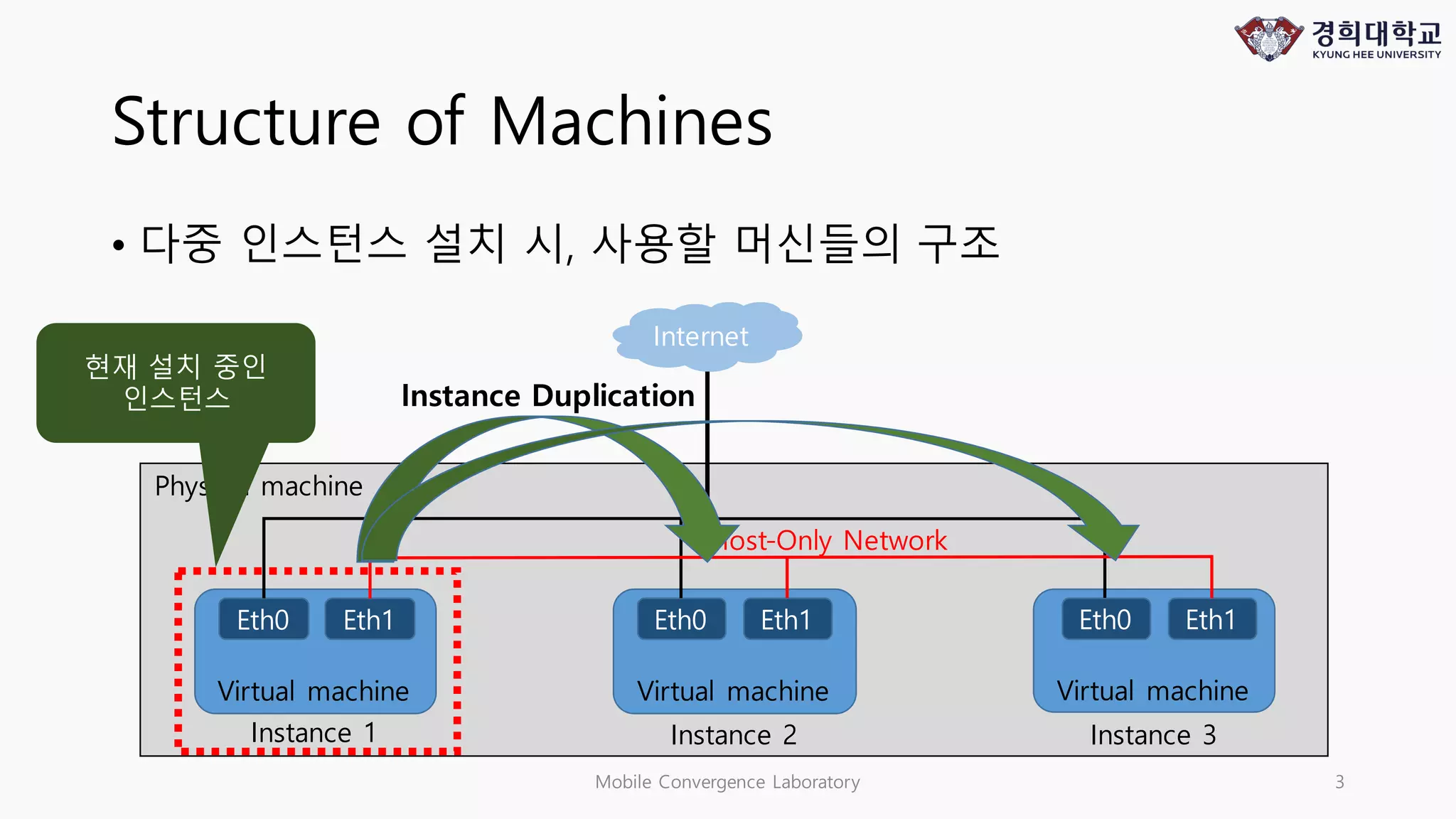

2. Structure of Machines
• 다중 인스턴스 설치 시, 사용할 머신들의 구조
Mobile Convergence Laboratory 2
Internet
Physical machine
Virtual machine Virtual machine Virtual machine
Instance 1 Instance 2 Instance 3
Eth0 Eth1 Eth0 Eth1 Eth0 Eth1
Host-Only Network
3. Structure of Machines
• 다중 인스턴스 설치 시, 사용할 머신들의 구조
Mobile Convergence Laboratory 3
Internet
Physical machine
Virtual machine Virtual machine Virtual machine
Instance 1 Instance 2 Instance 3
Eth0 Eth1 Eth0 Eth1 Eth0 Eth1
Host-Only Network
현재 설치 중인
인스턴스 Instance Duplication

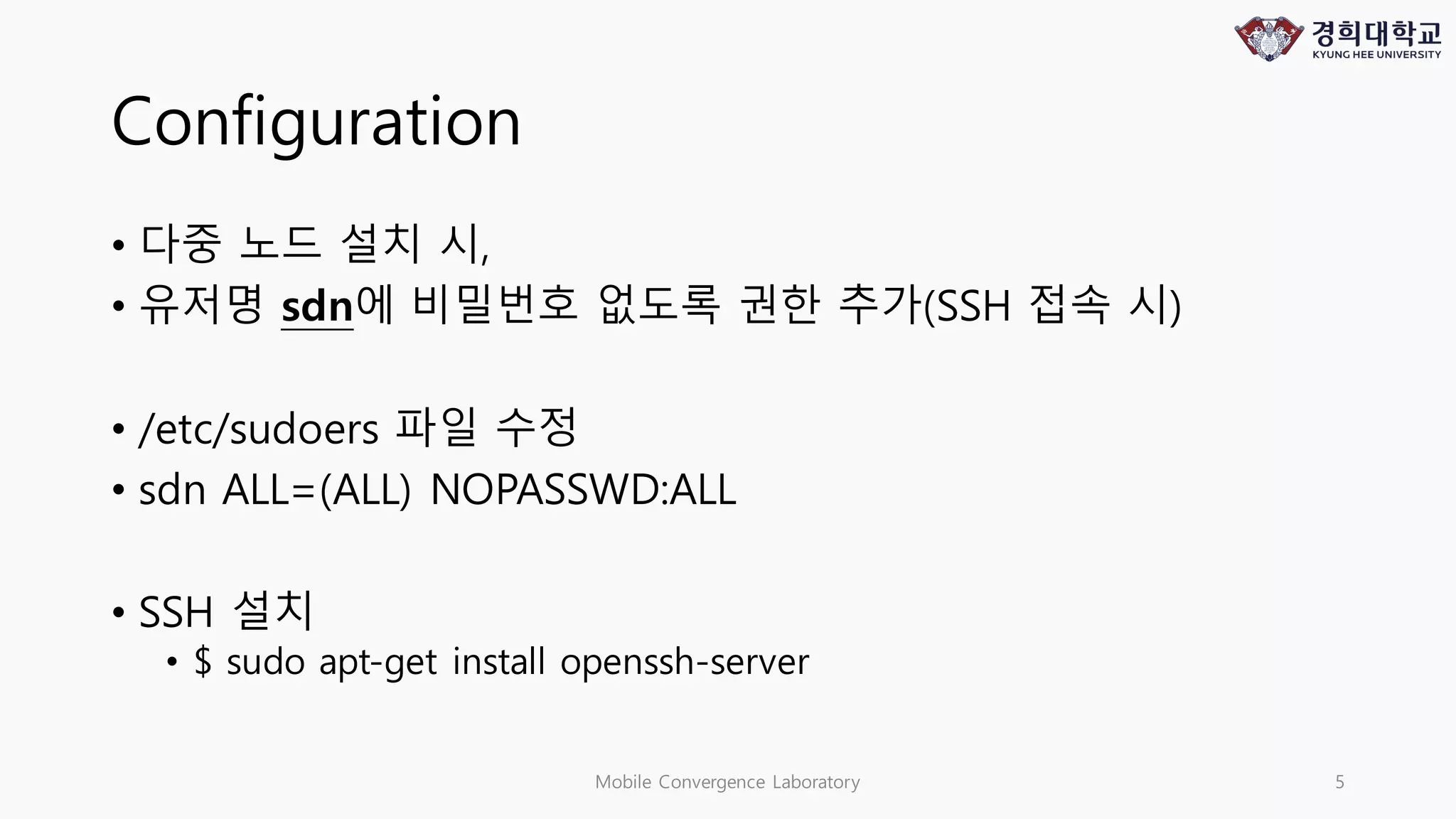

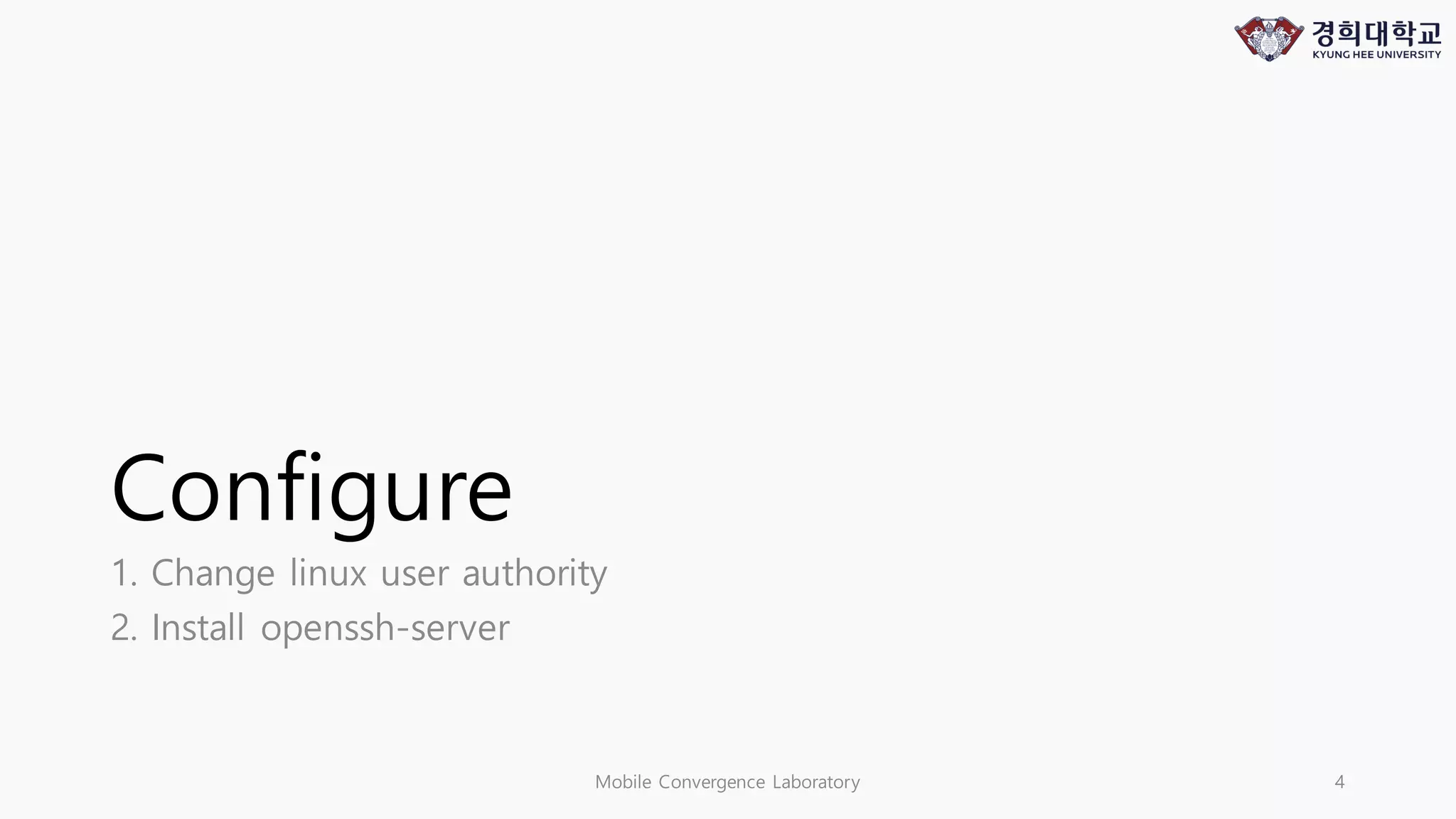

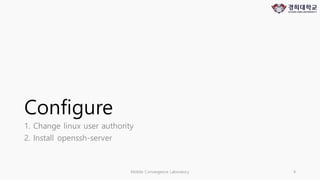

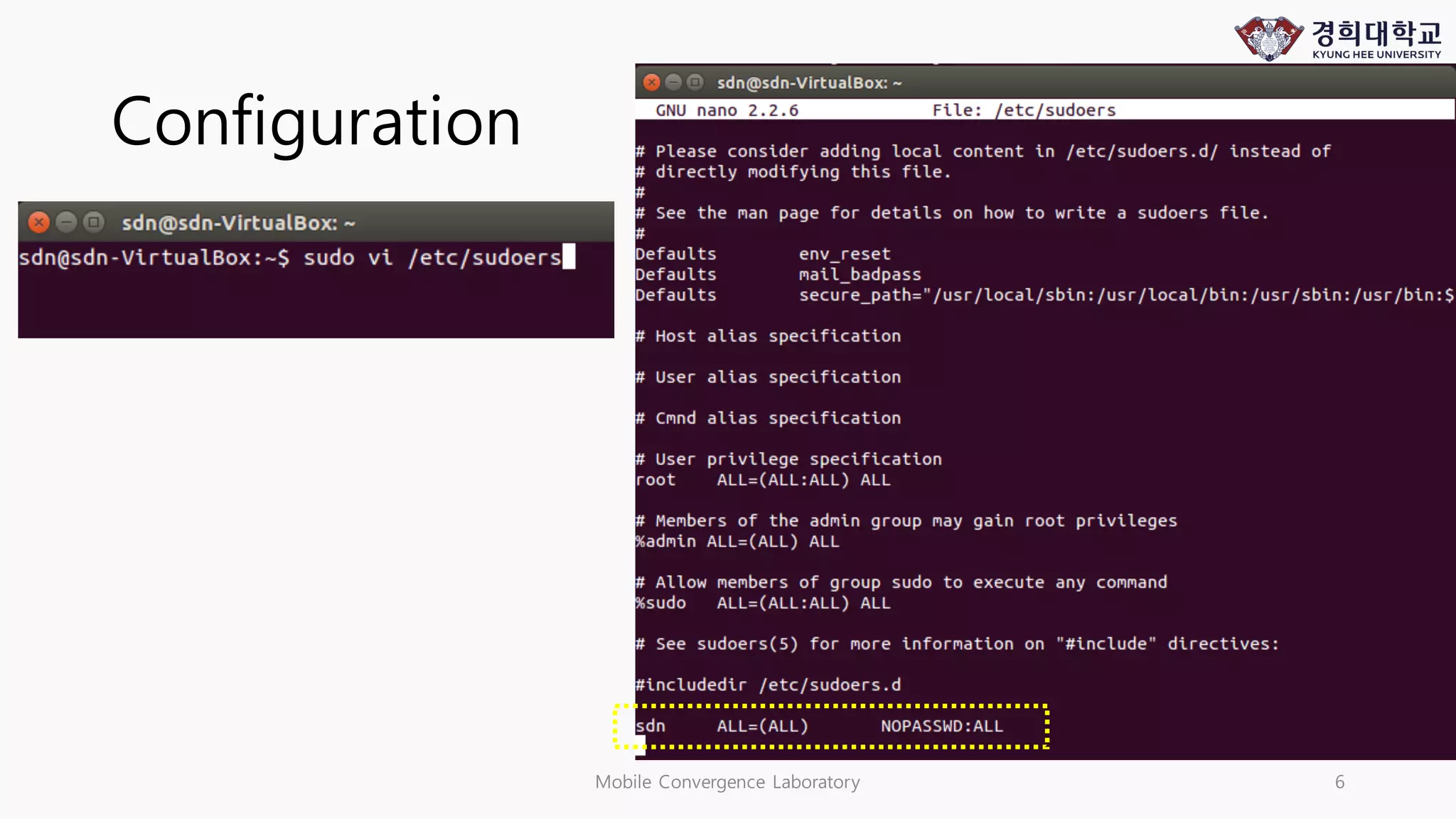

5. Configuration
• 다중 노드 설치 시,
• 유저명 sdn에 비밀번호 없도록 권한 추가(SSH 접속 시)
• /etc/sudoers 파일 수정
• sdn ALL=(ALL) NOPASSWD:ALL
• SSH 설치
• $ sudo apt-get install openssh-server
Mobile Convergence Laboratory 5

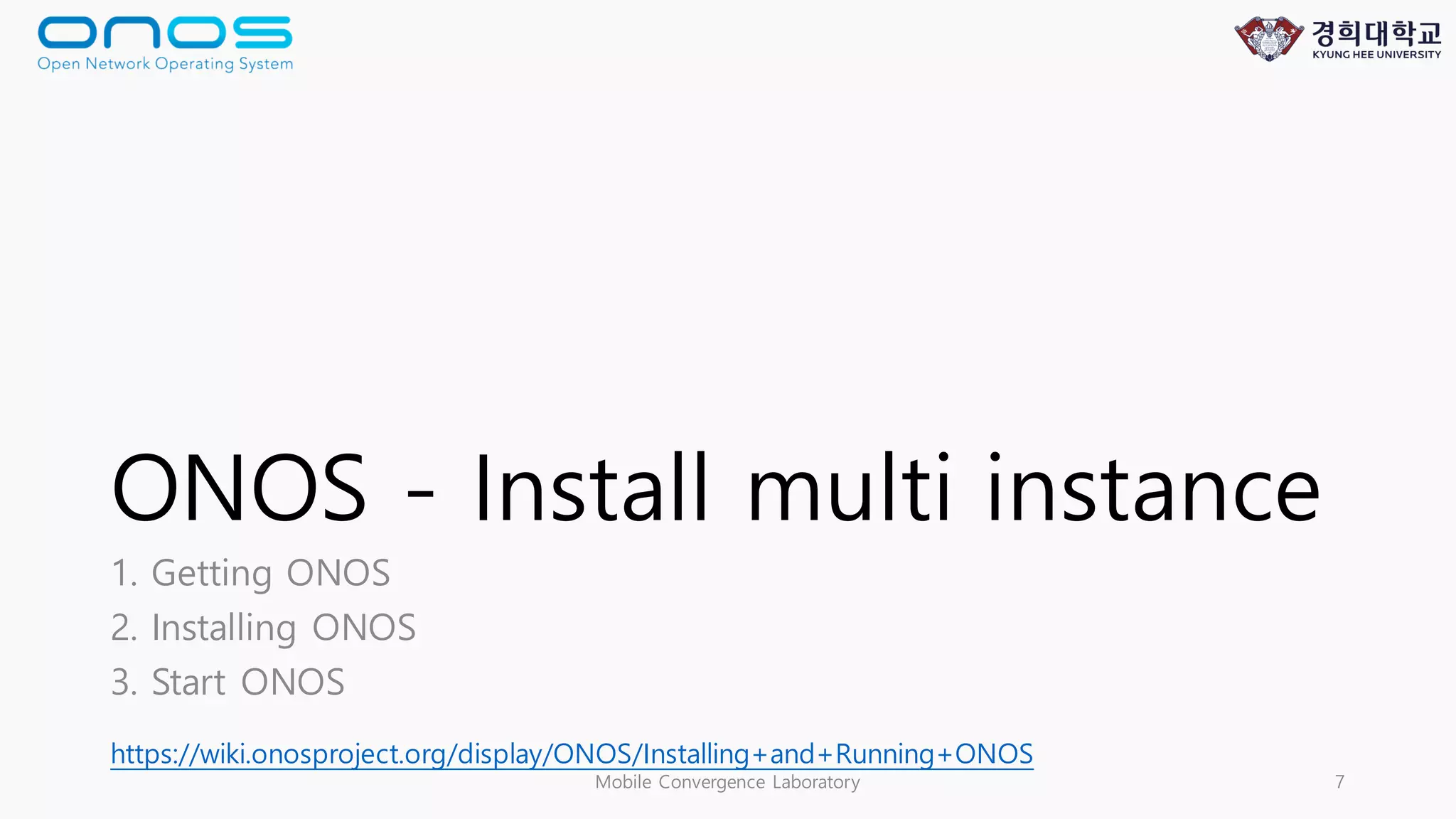

7. ONOS - Install multi instance
1. Getting ONOS
2. Installing ONOS
3. Start ONOS
Mobile Convergence Laboratory 7
https://wiki.onosproject.org/display/ONOS/Installing+and+Running+ONOS

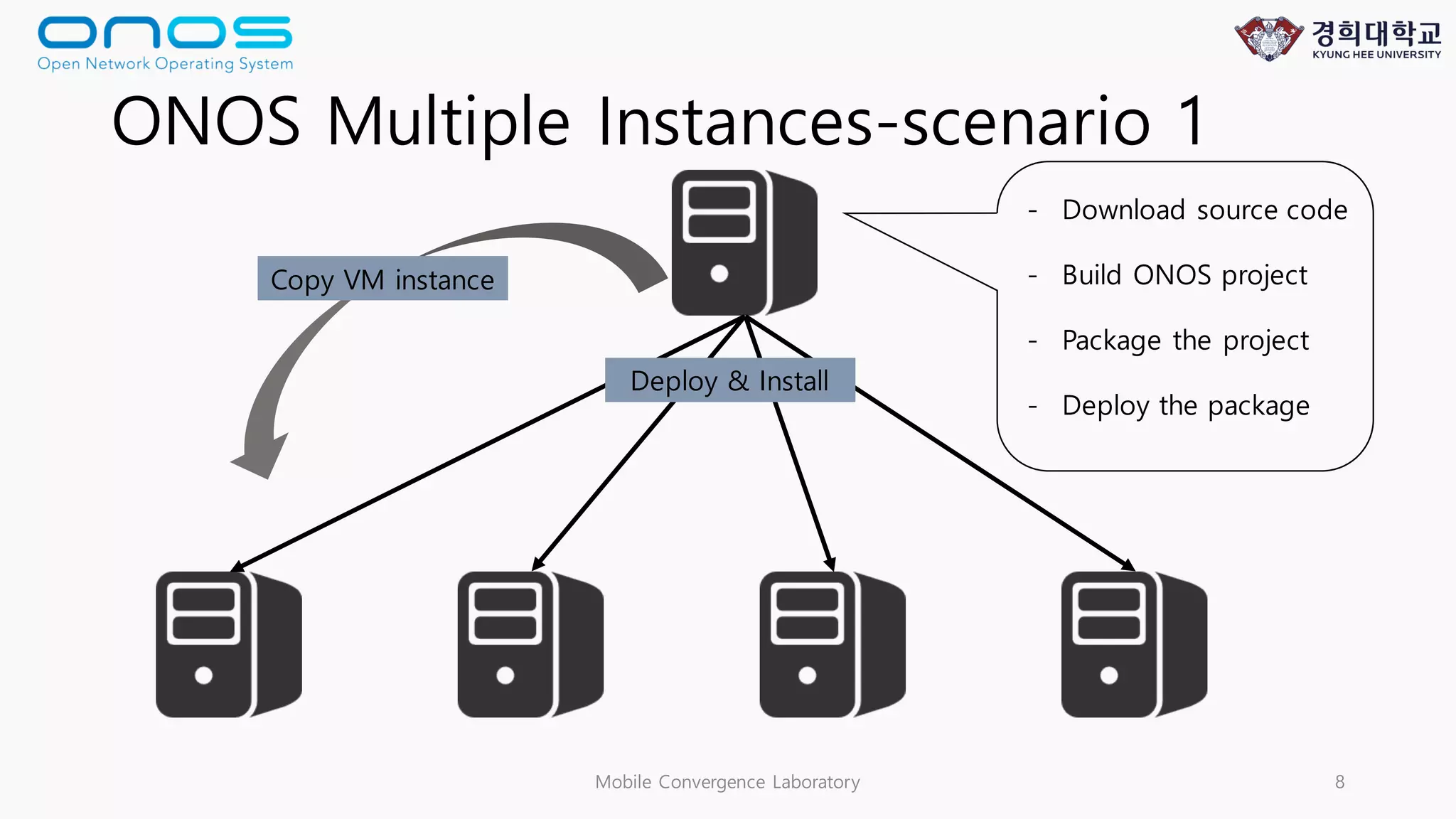

8. ONOS Multiple Instances-scenario 1
Mobile Convergence Laboratory 8
- Download source code
- Build ONOS project
- Package the project
- Deploy the package
Deploy & Install
Copy VM instance

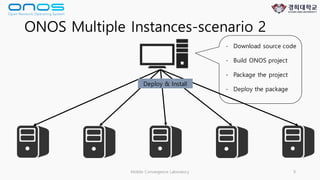

9. ONOS Multiple Instances-scenario 2
Mobile Convergence Laboratory 9
- Download source code
- Build ONOS project
- Package the project
- Deploy the package
Deploy & Install

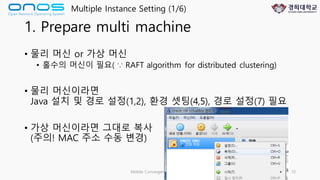

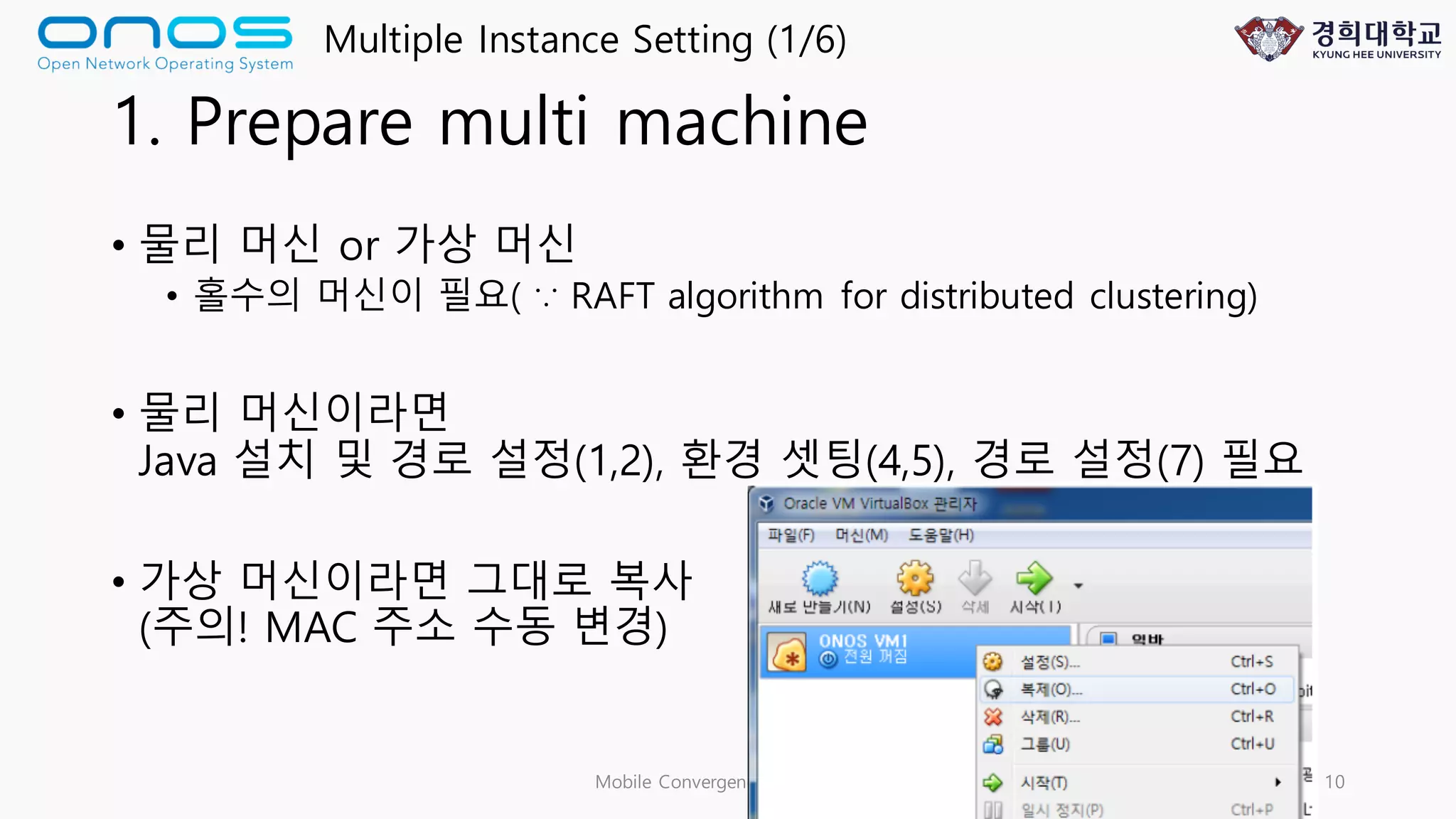

10. 1. Prepare multi machine
• 물리 머신 or 가상 머신
• 홀수의 머신이 필요( ∵ RAFT algorithm for distributed clustering)
• 물리 머신이라면
Java 설치 및 경로 설정(1,2), 환경 셋팅(4,5), 경로 설정(7) 필요
• 가상 머신이라면 그대로 복사
(주의! MAC 주소 수동 변경)
Mobile Convergence Laboratory 10
Multiple Instance Setting (1/6)

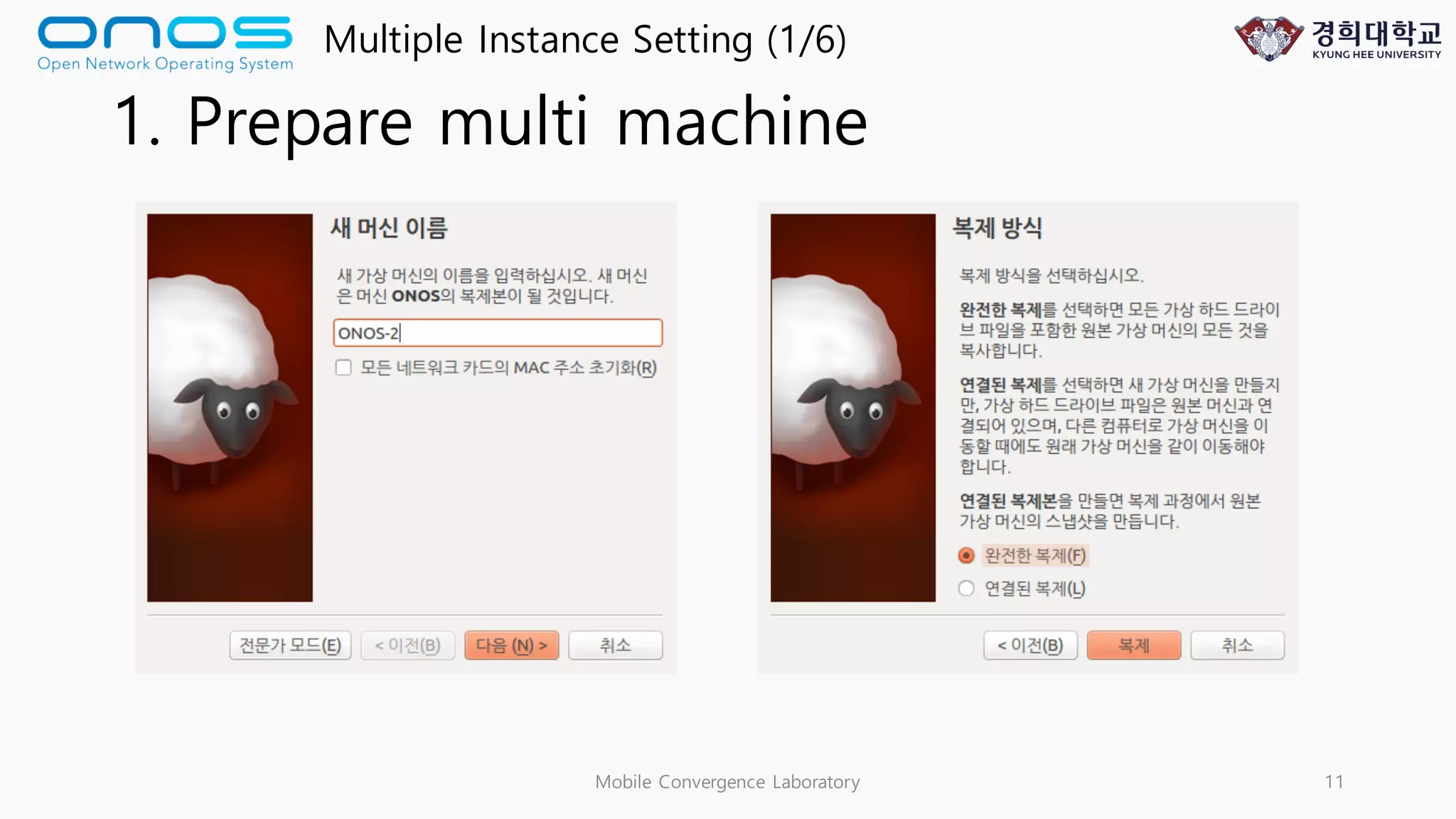

11. 1. Prepare multi machine
Mobile Convergence Laboratory 11
Multiple Instance Setting (1/6)

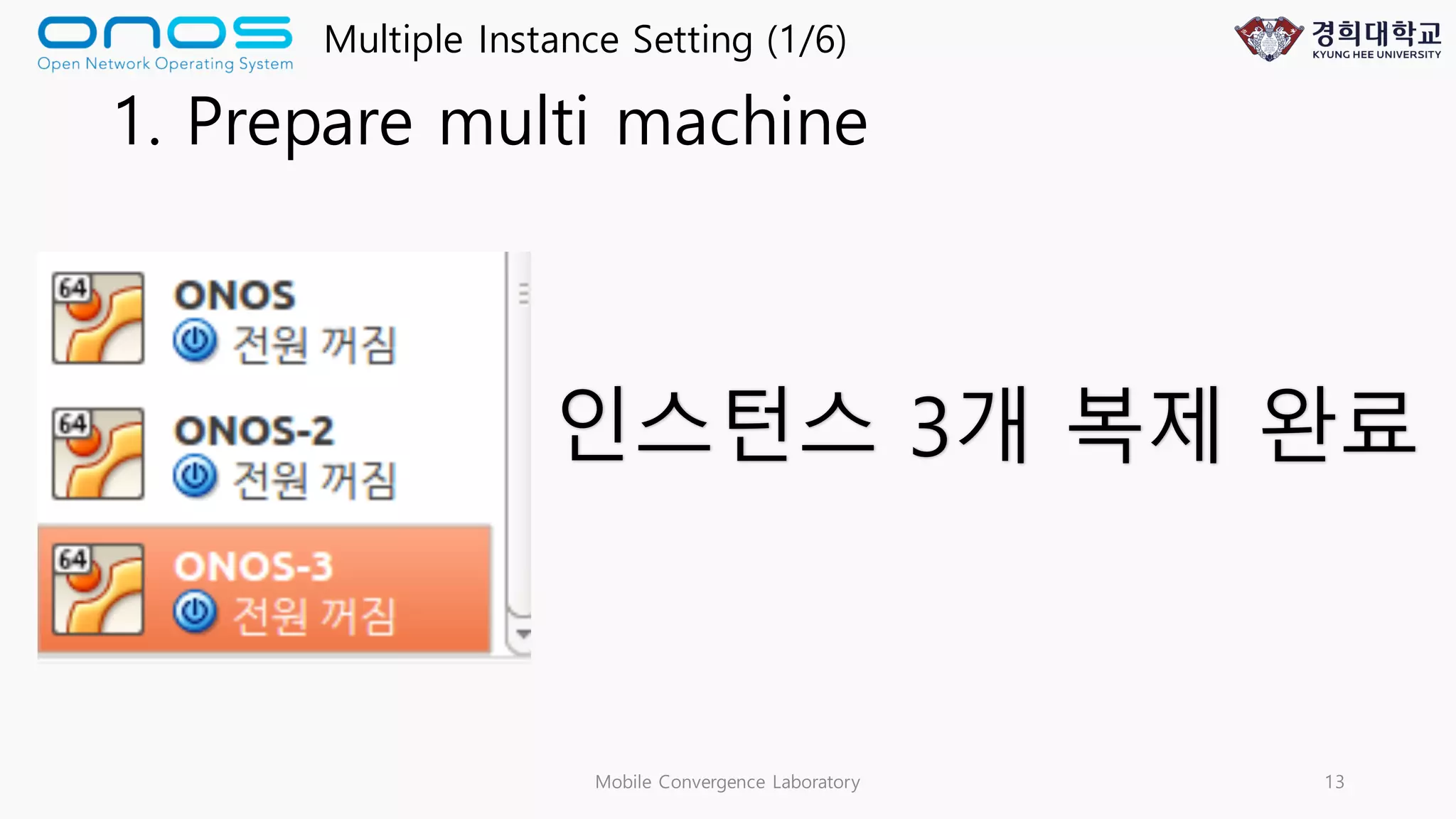

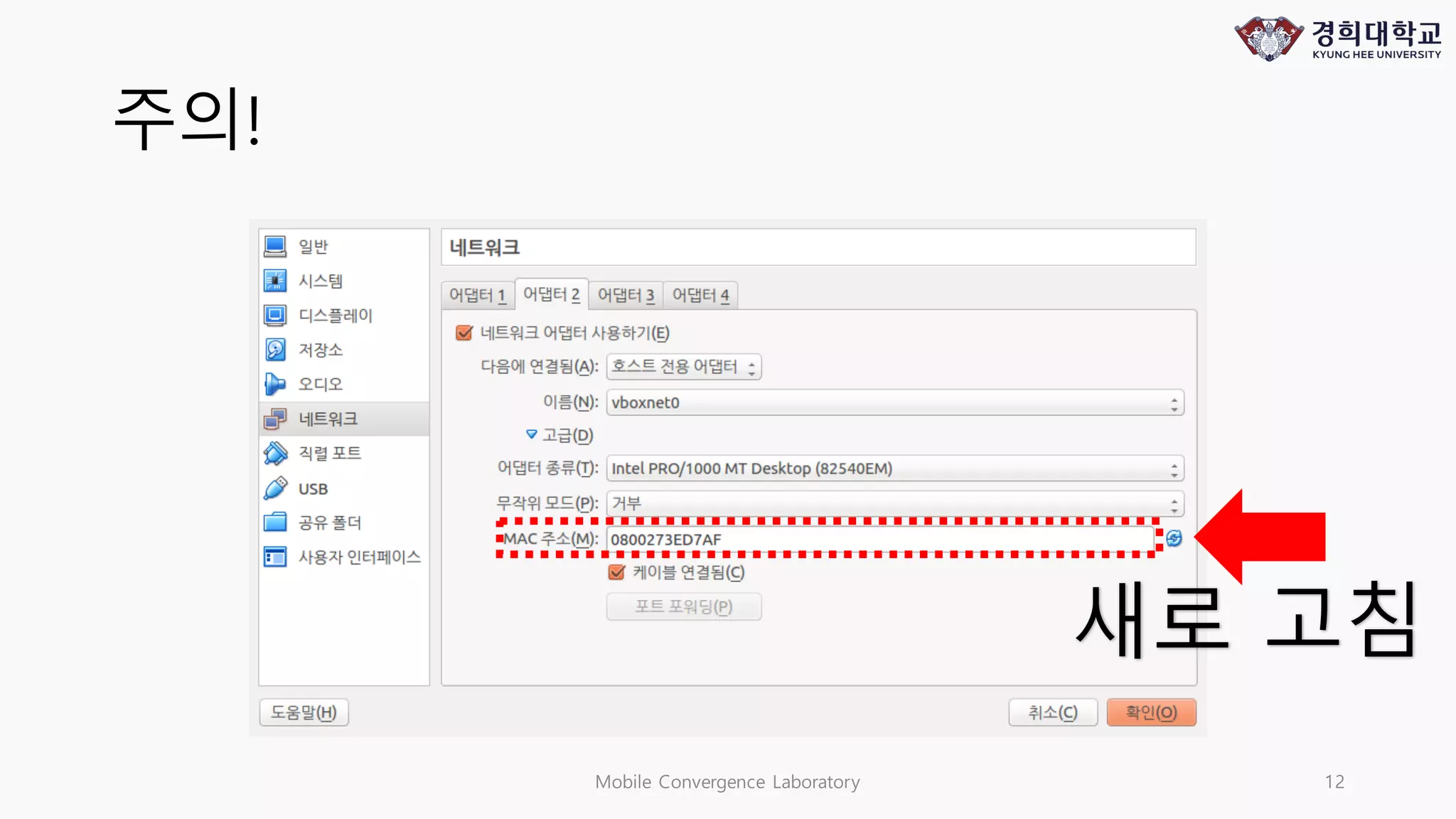

13. 1. Prepare multi machine
Mobile Convergence Laboratory 13
Multiple Instance Setting (1/6)

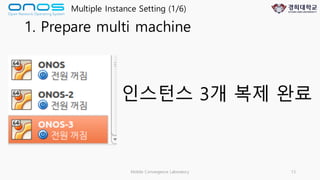

인스턴스 3개 복제 완료

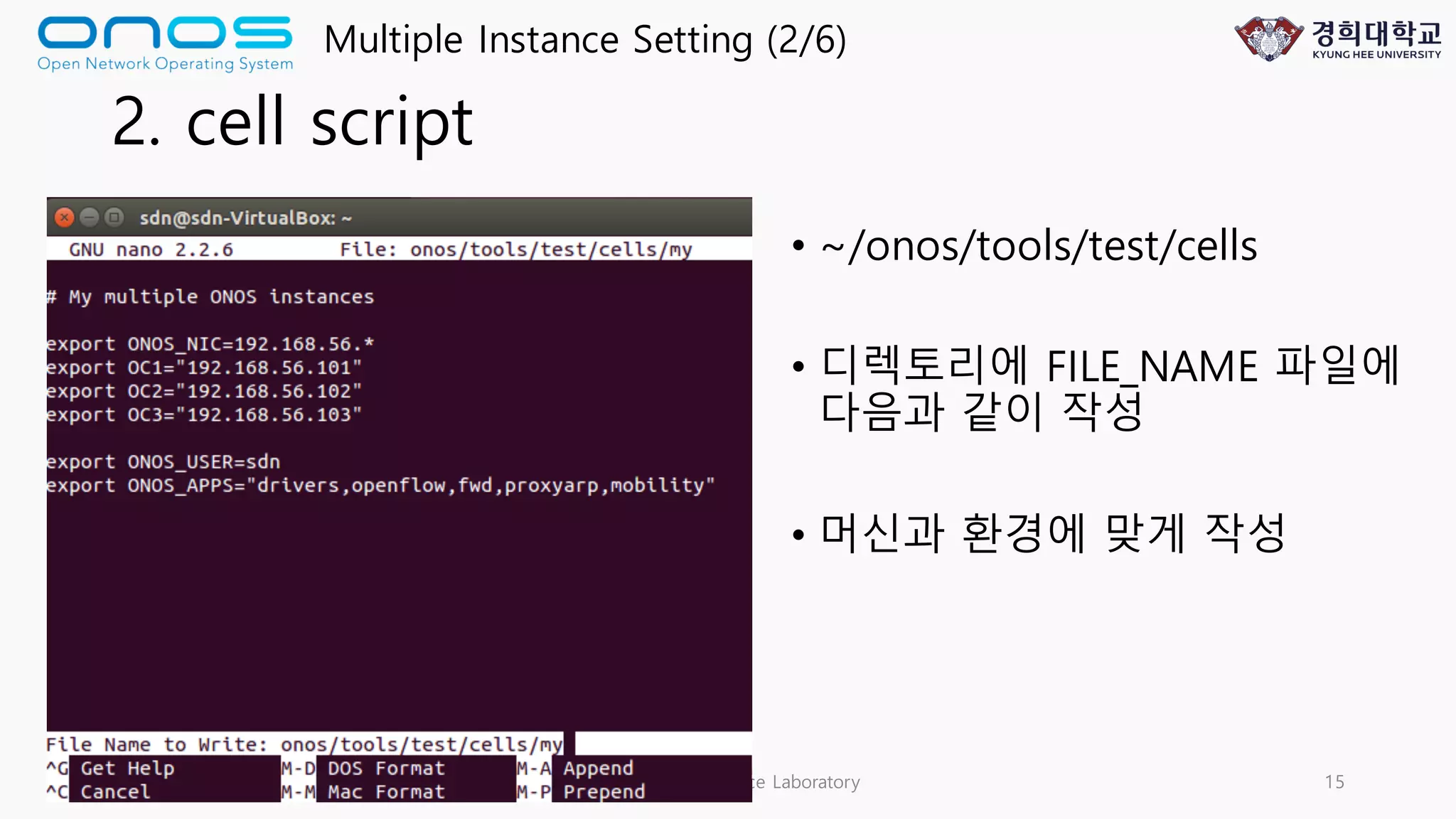

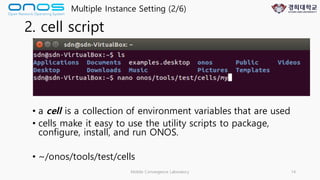

14. 2. cell script
Mobile Convergence Laboratory 14
Multiple Instance Setting (2/6)
• a cell is a collection of environment variables that are used
• cells make it easy to use the utility scripts to package,
configure, install, and run ONOS.
• ~/onos/tools/test/cells
15. 2. cell script
Mobile Convergence Laboratory 15
Multiple Instance Setting (2/6)
• ~/onos/tools/test/cells
• 디렉토리에 FILE_NAME 파일에
다음과 같이 작성
• 머신과 환경에 맞게 작성

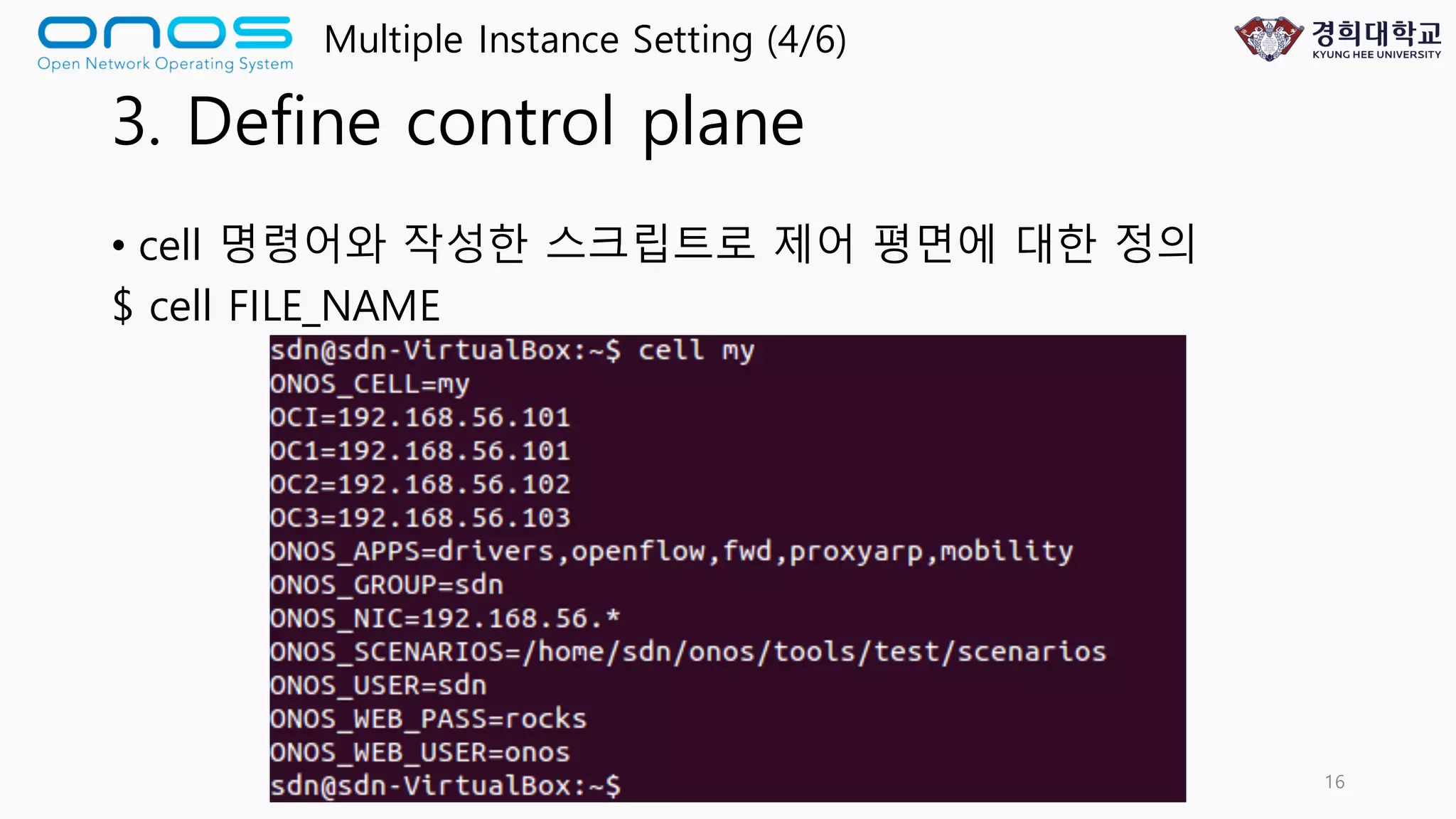

16. 3. Define control plane
• cell 명령어와 작성한 스크립트로 제어 평면에 대한 정의
$ cell FILE_NAME
Mobile Convergence Laboratory 16
Multiple Instance Setting (4/6)

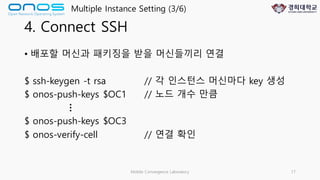

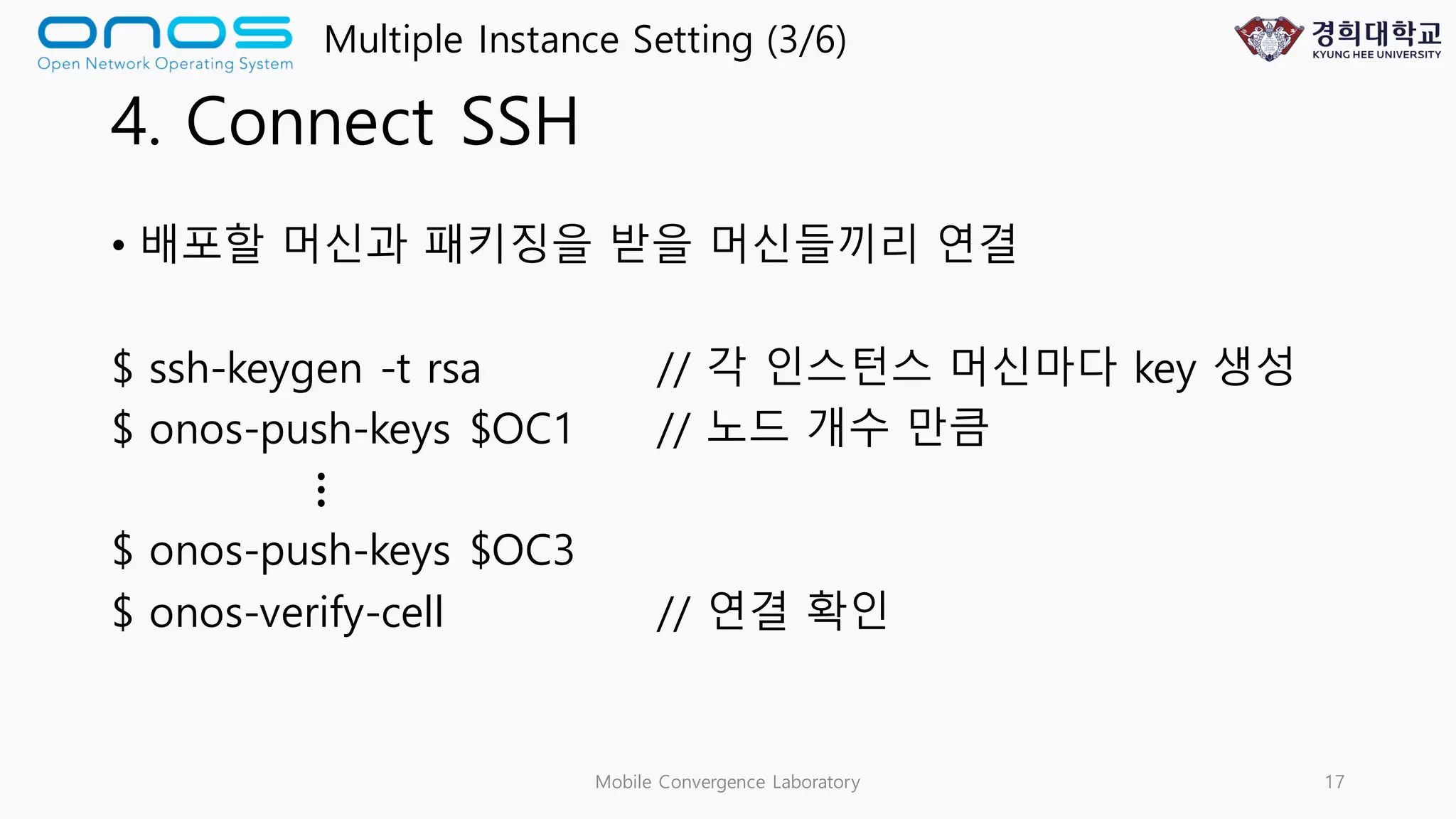

17. 4. Connect SSH
• 배포할 머신과 패키징을 받을 머신들끼리 연결
$ ssh-keygen -t rsa // 각 인스턴스 머신마다 key 생성
$ onos-push-keys $OC1 // 노드 개수 만큼
$ onos-push-keys $OC3
$ onos-verify-cell // 연결 확인
Mobile Convergence Laboratory 17
Multiple Instance Setting (3/6)
…

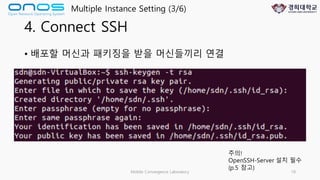

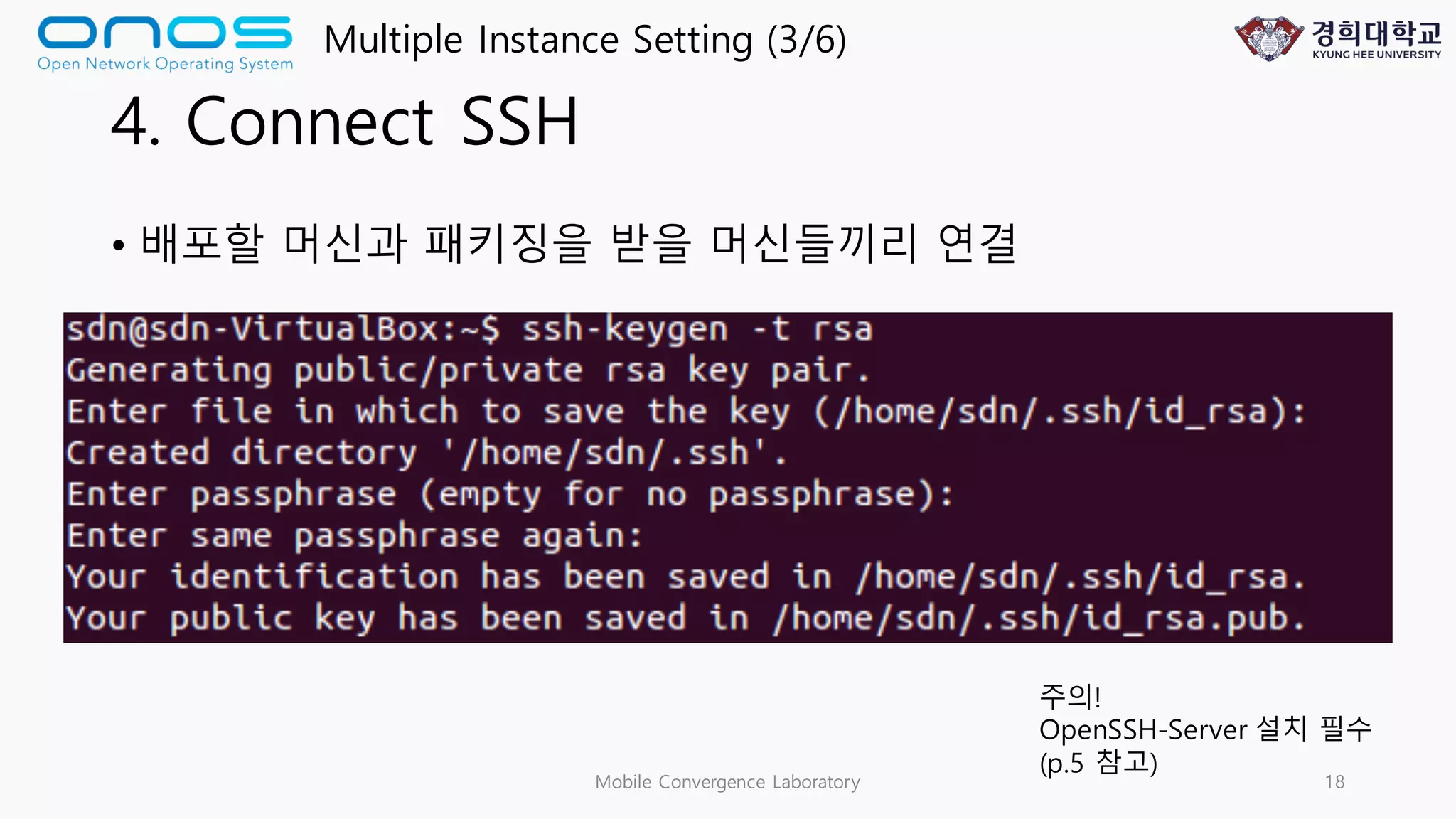

18. 4. Connect SSH
• 배포할 머신과 패키징을 받을 머신들끼리 연결
Mobile Convergence Laboratory 18
Multiple Instance Setting (3/6)
주의!
OpenSSH-Server 설치 필수
(p.5 참고)

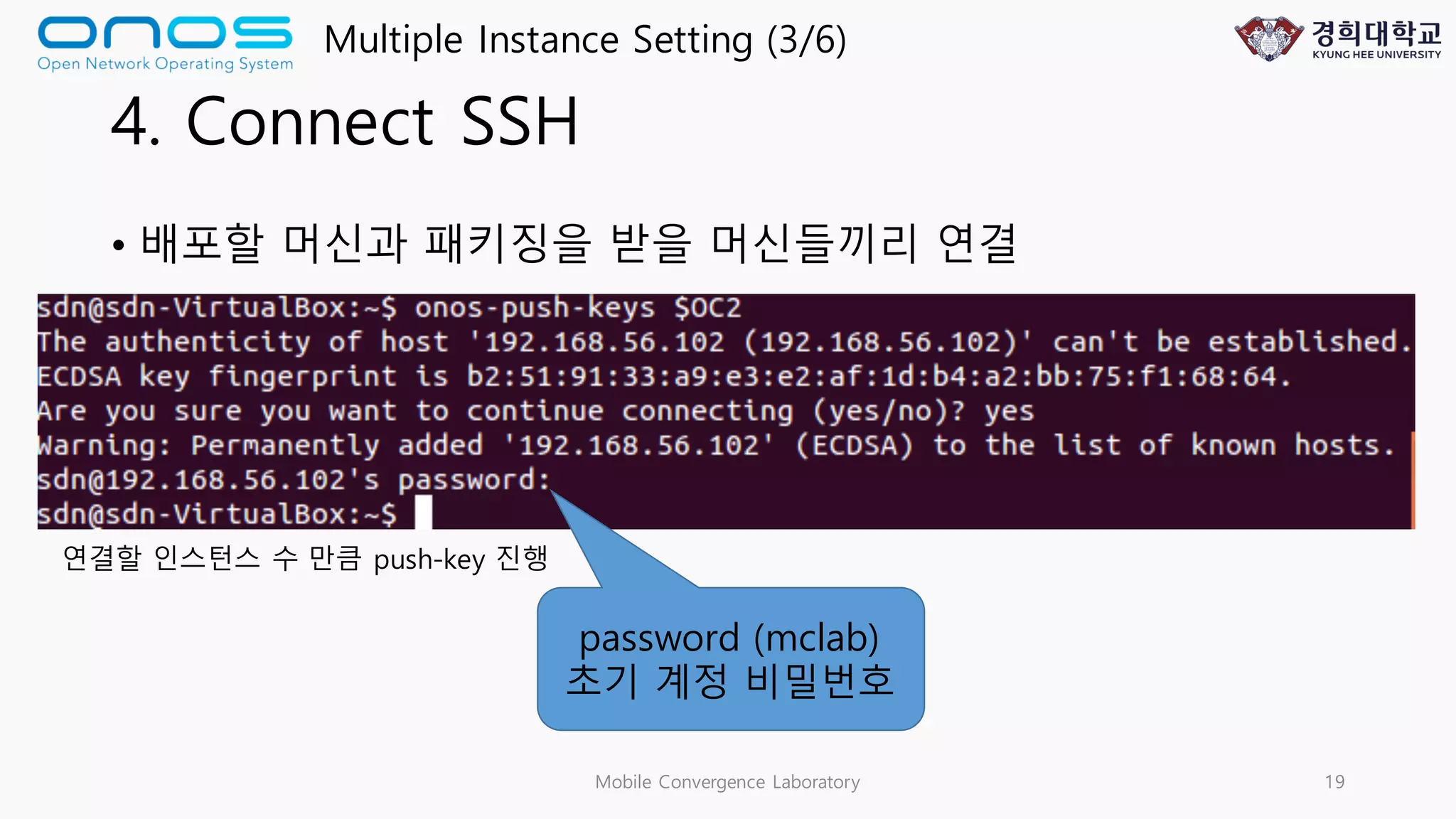

19. 4. Connect SSH
• 배포할 머신과 패키징을 받을 머신들끼리 연결
Mobile Convergence Laboratory 19
Multiple Instance Setting (3/6)
연결할 인스턴스 수 만큼 push-key 진행
password (mclab)
초기 계정 비밀번호

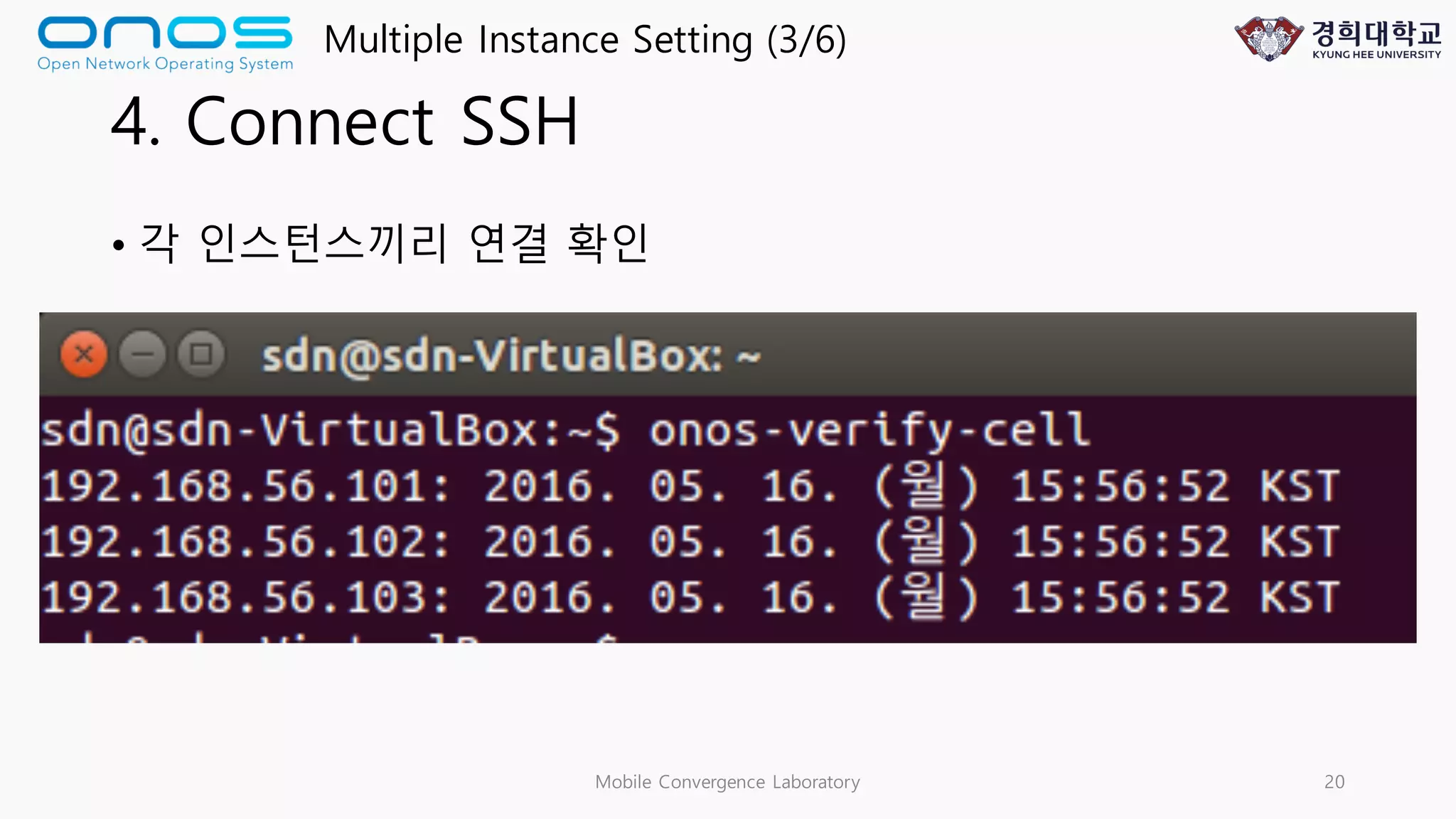

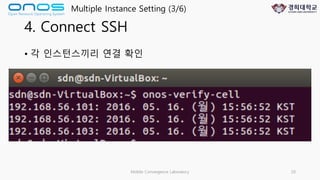

20. 4. Connect SSH
• 각 인스턴스끼리 연결 확인
Mobile Convergence Laboratory 20
Multiple Instance Setting (3/6)

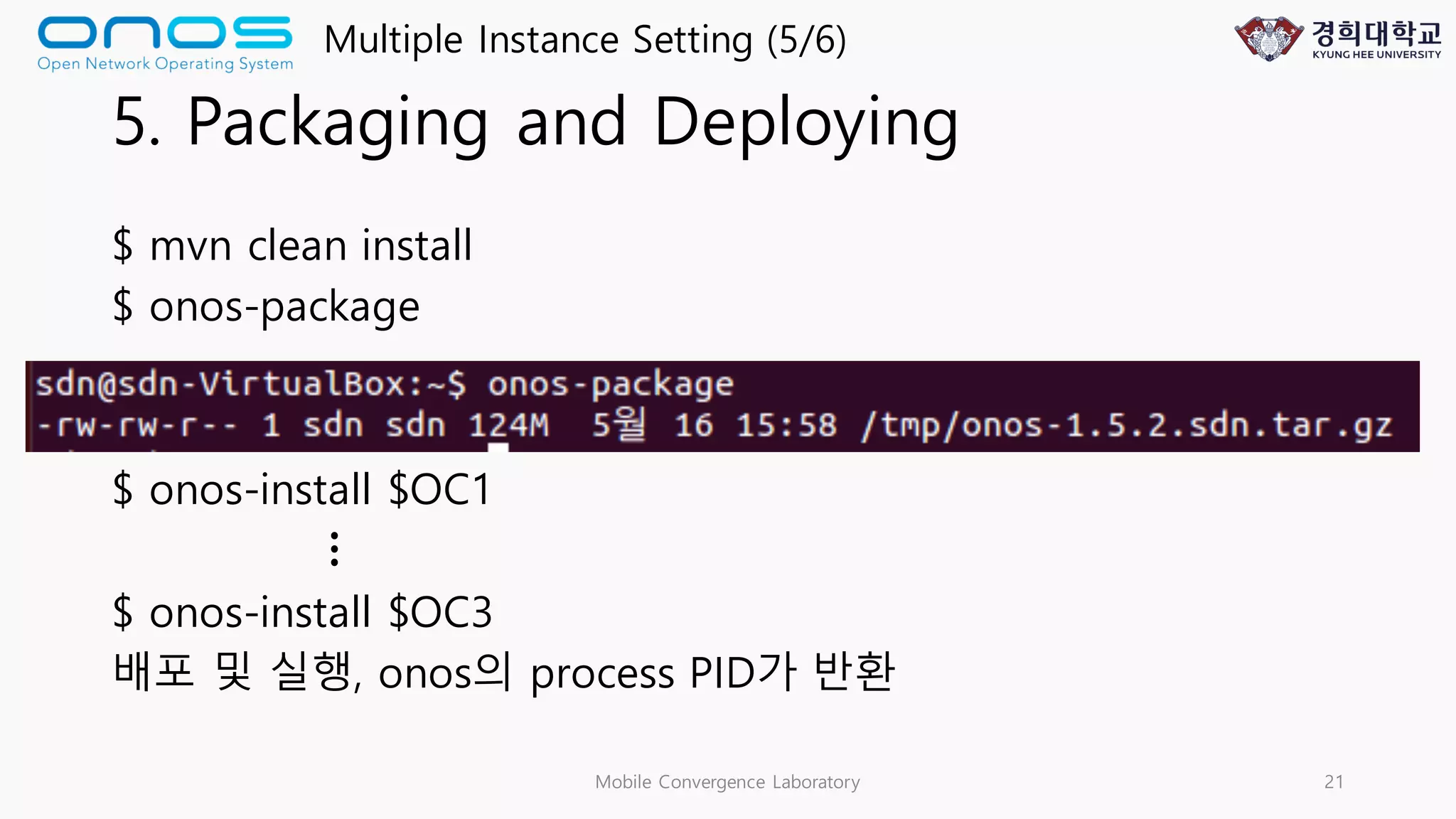

21. 5. Packaging and Deploying
$ mvn clean install
$ onos-package
$ onos-install $OC1
$ onos-install $OC3
배포 및 실행, onos의 process PID가 반환
Mobile Convergence Laboratory 21
Multiple Instance Setting (5/6)
…

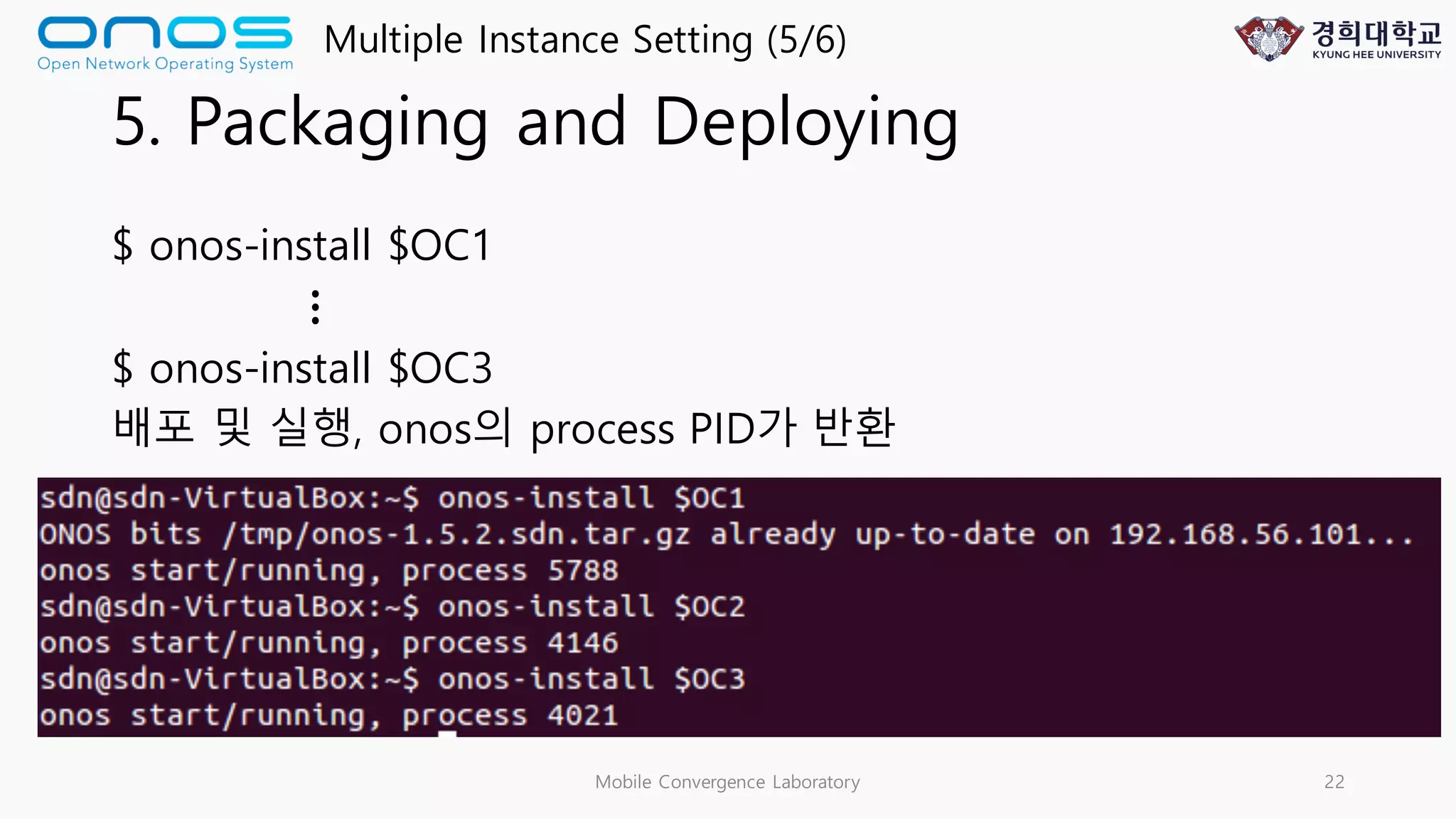

22. 5. Packaging and Deploying
$ onos-install $OC1
$ onos-install $OC3
배포 및 실행, onos의 process PID가 반환
Mobile Convergence Laboratory 22
Multiple Instance Setting (5/6)
…

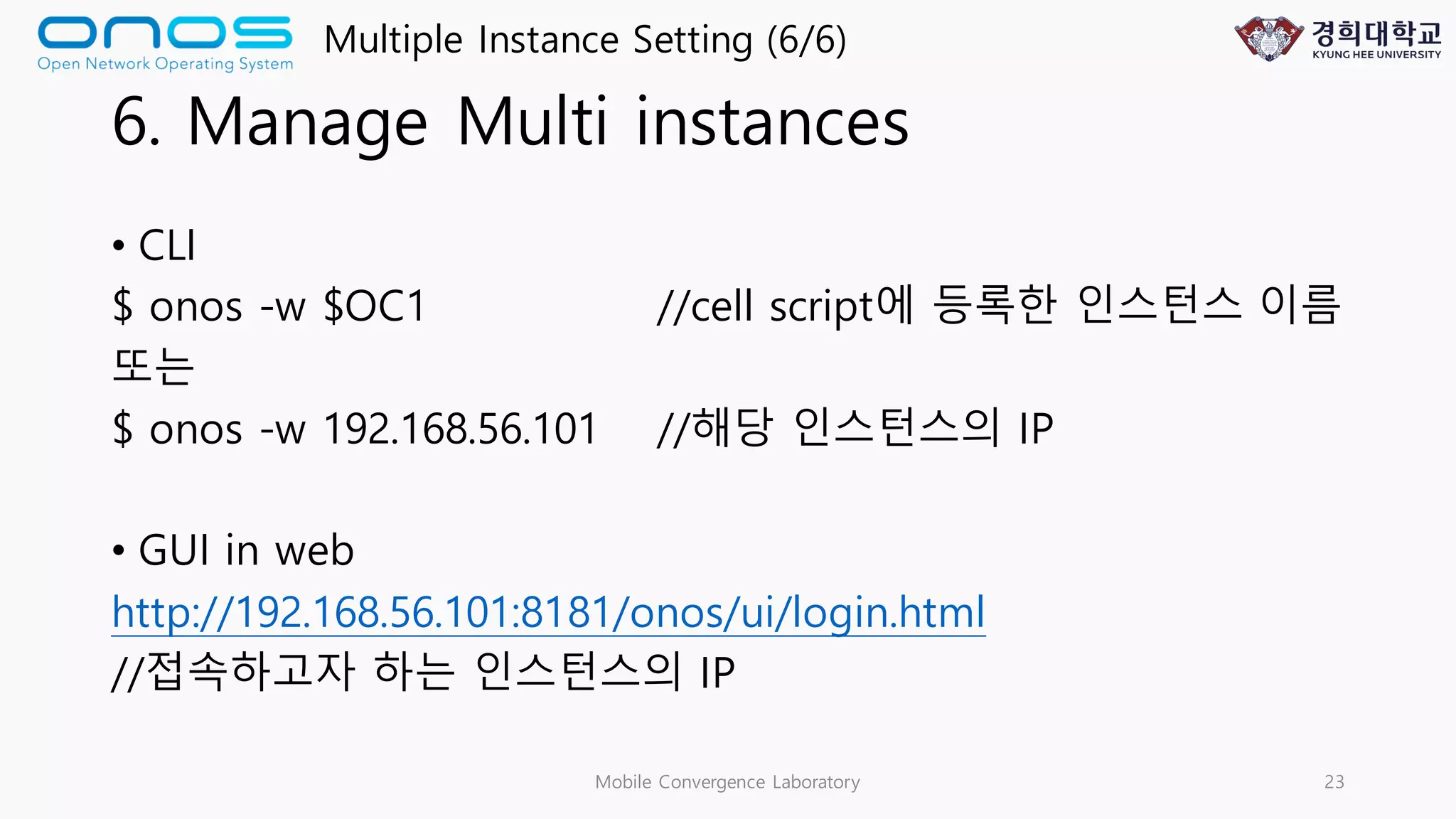

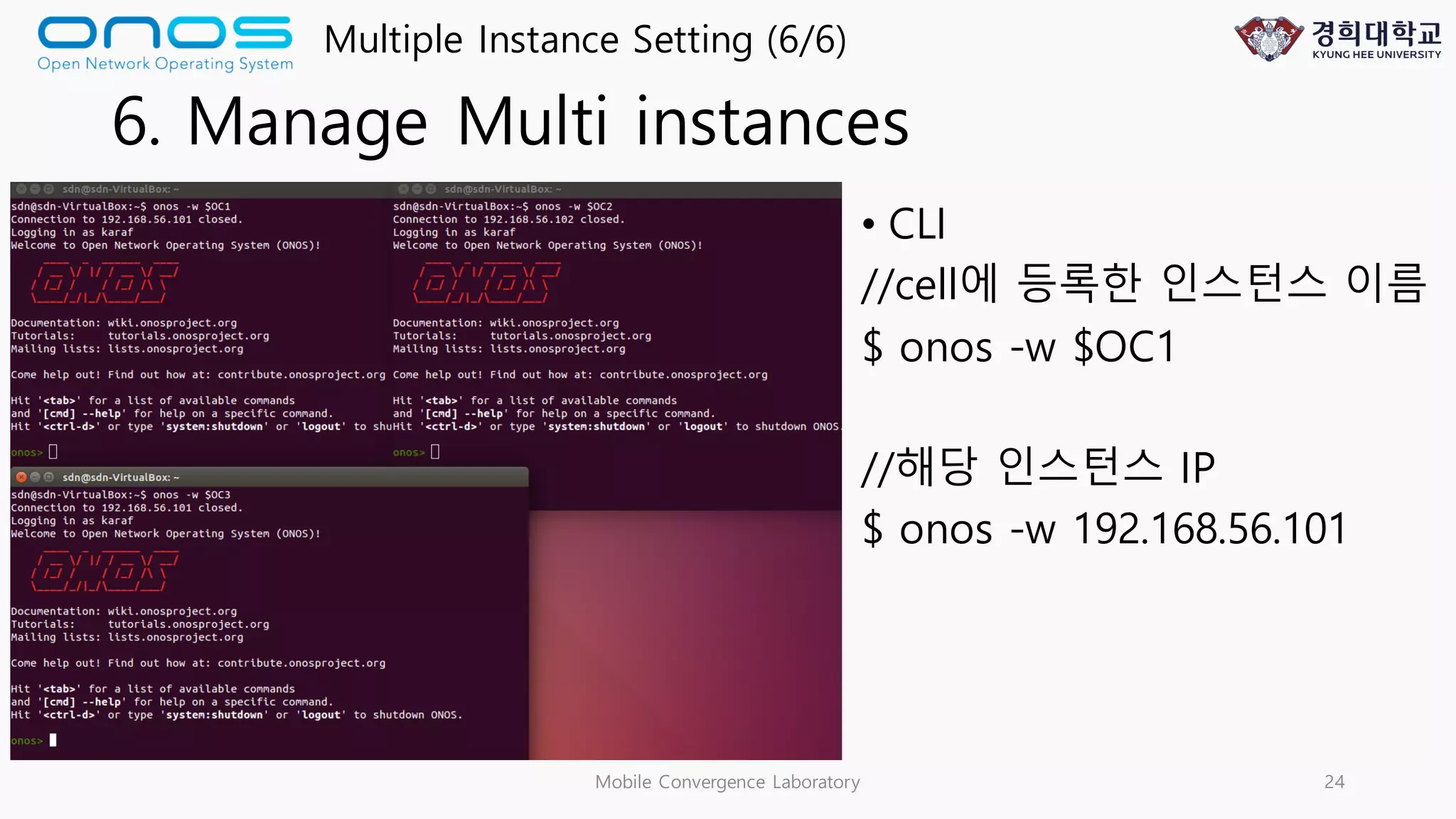

23. 6. Manage Multi instances
• CLI
$ onos -w $OC1 //cell script에 등록한 인스턴스 이름
또는
$ onos -w 192.168.56.101 //해당 인스턴스의 IP
• GUI in web
http://192.168.56.101:8181/onos/ui/login.html
//접속하고자 하는 인스턴스의 IP
Mobile Convergence Laboratory 23
Multiple Instance Setting (6/6)
24. 6. Manage Multi instances
• CLI
//cell에 등록한 인스턴스 이름
$ onos -w $OC1
//해당 인스턴스 IP
$ onos -w 192.168.56.101
Mobile Convergence Laboratory 24
Multiple Instance Setting (6/6)

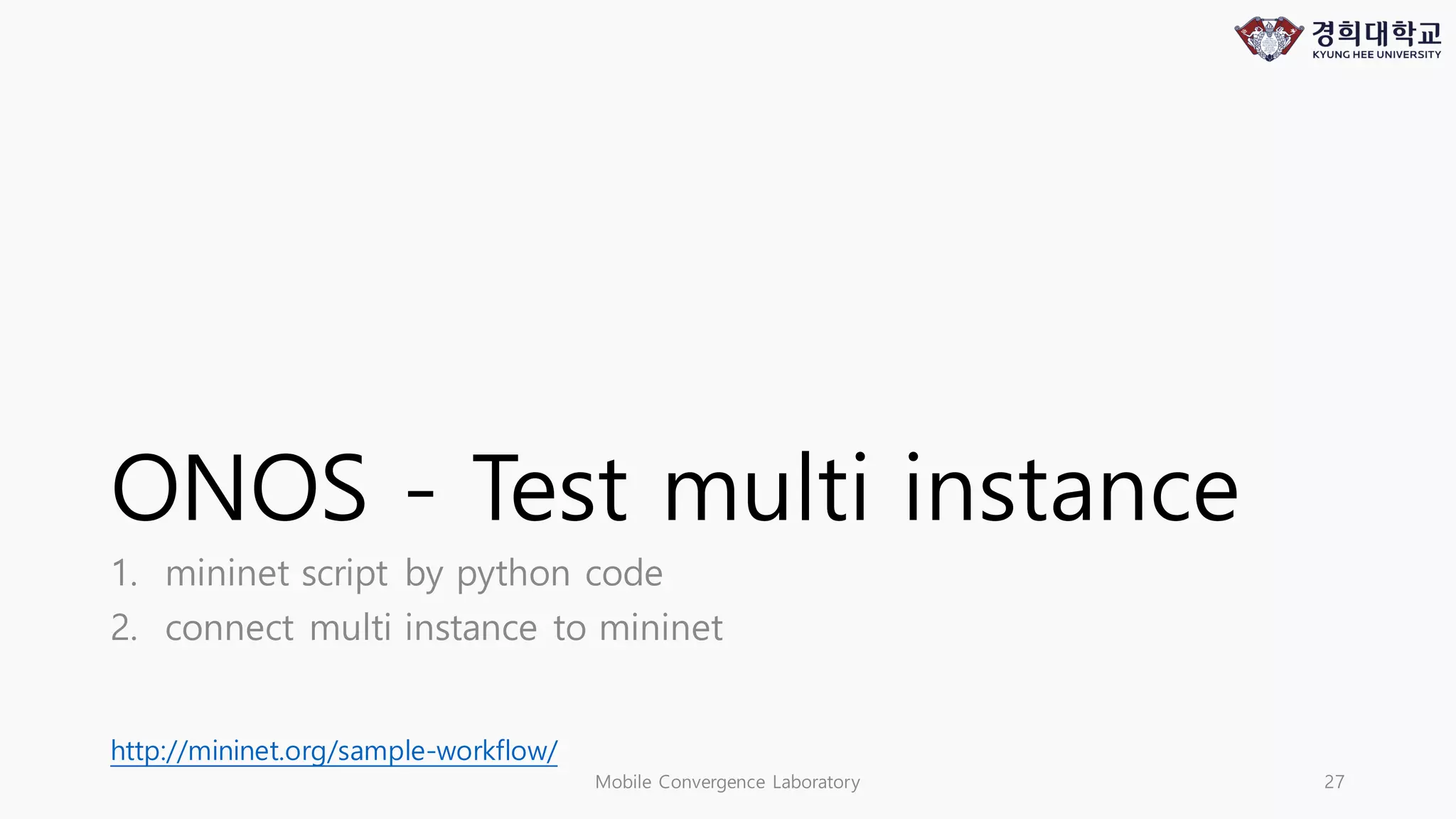

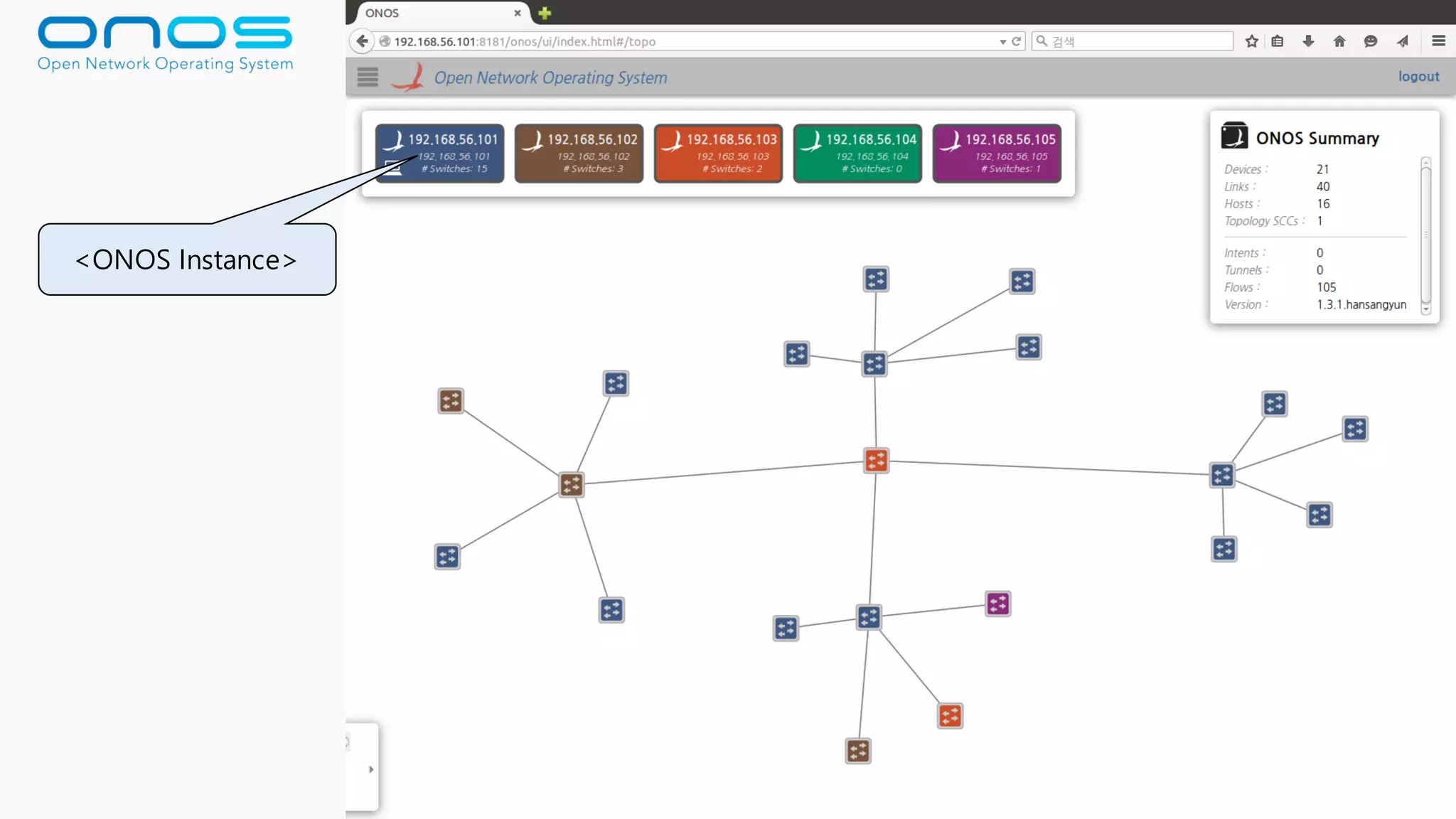

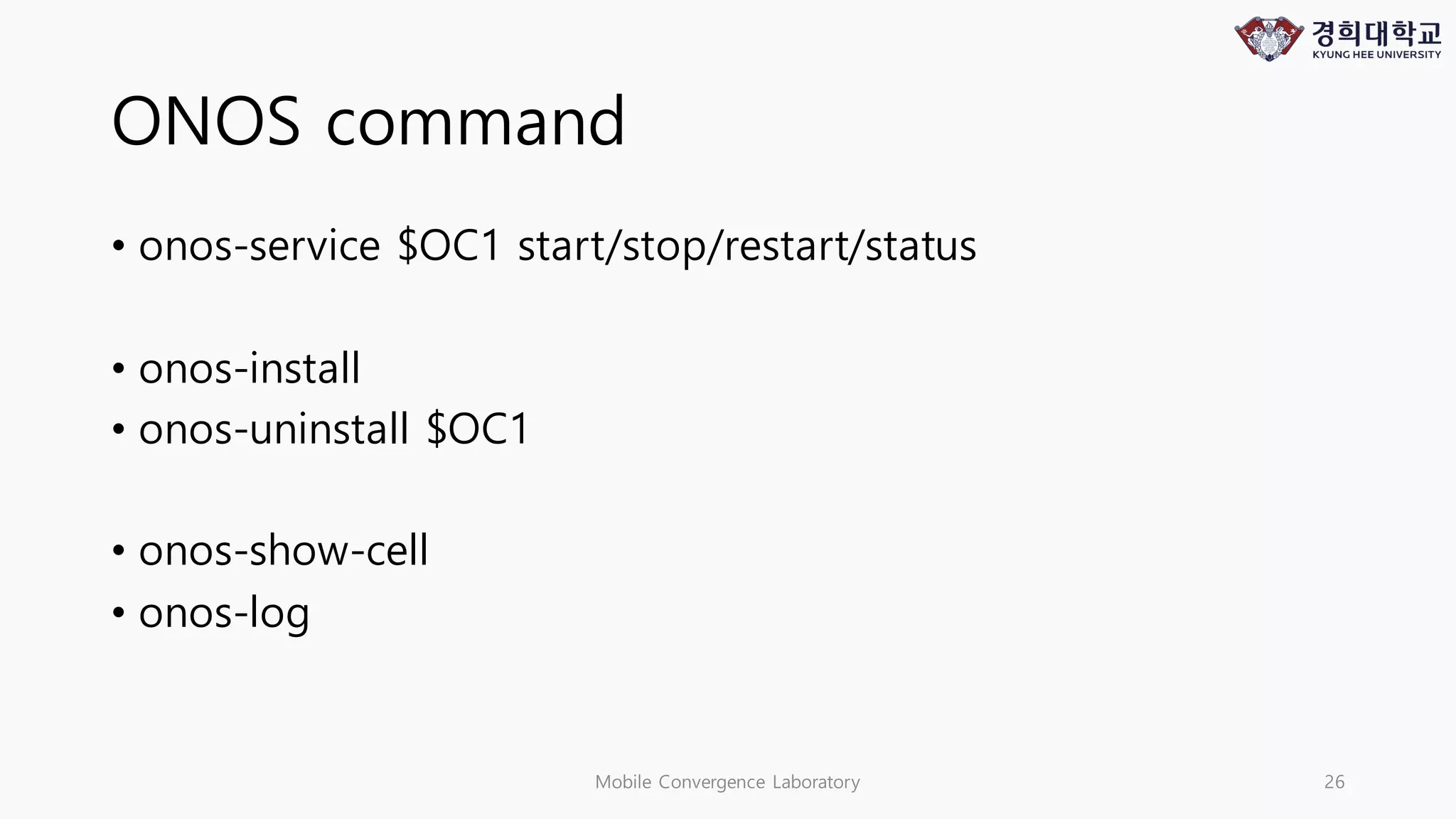

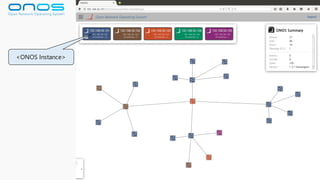

27. ONOS - Test multi instance

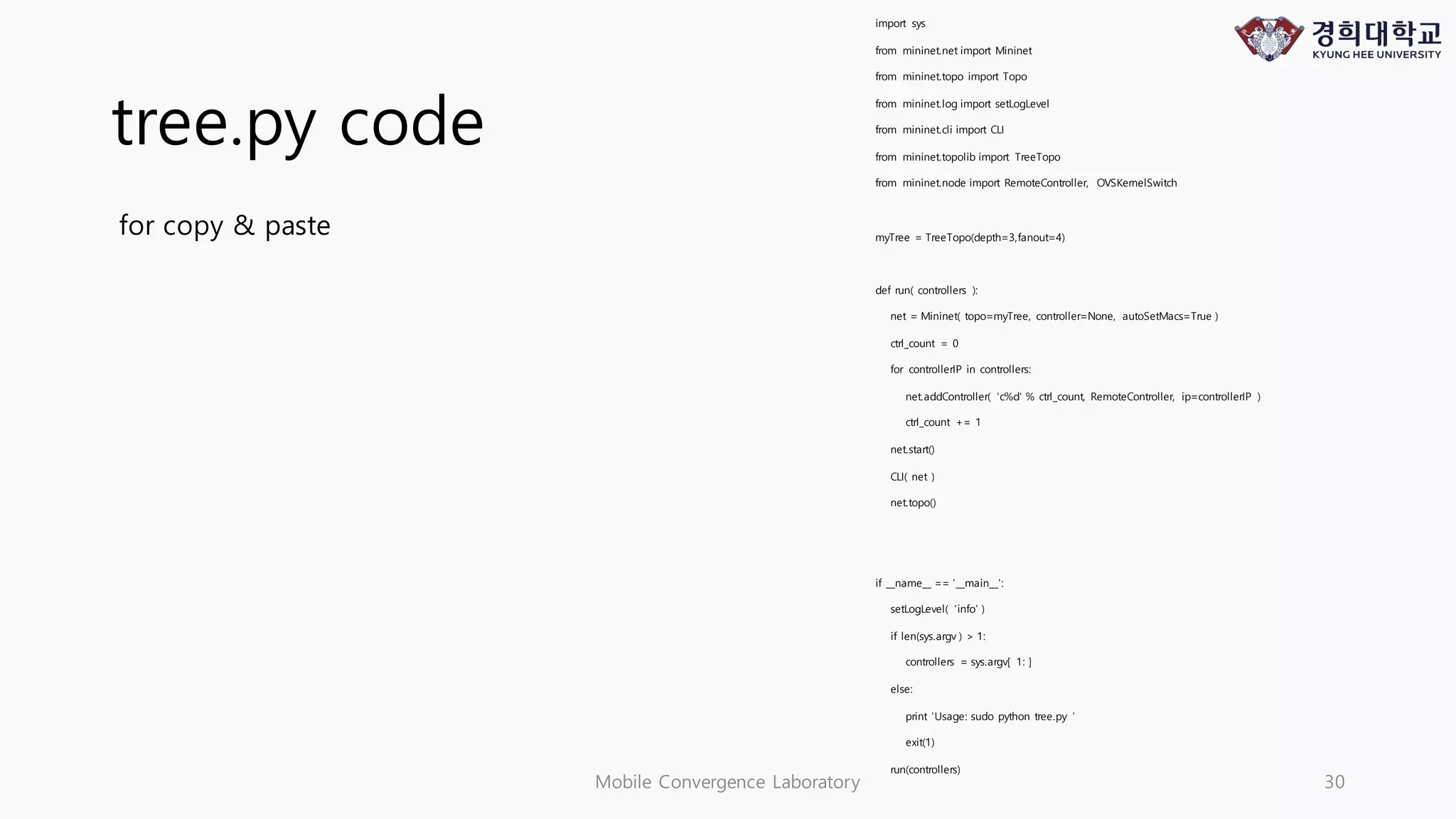

1. mininet script by python code
2. connect multi instance to mininet
Mobile Convergence Laboratory 27
http://mininet.org/sample-workflow/

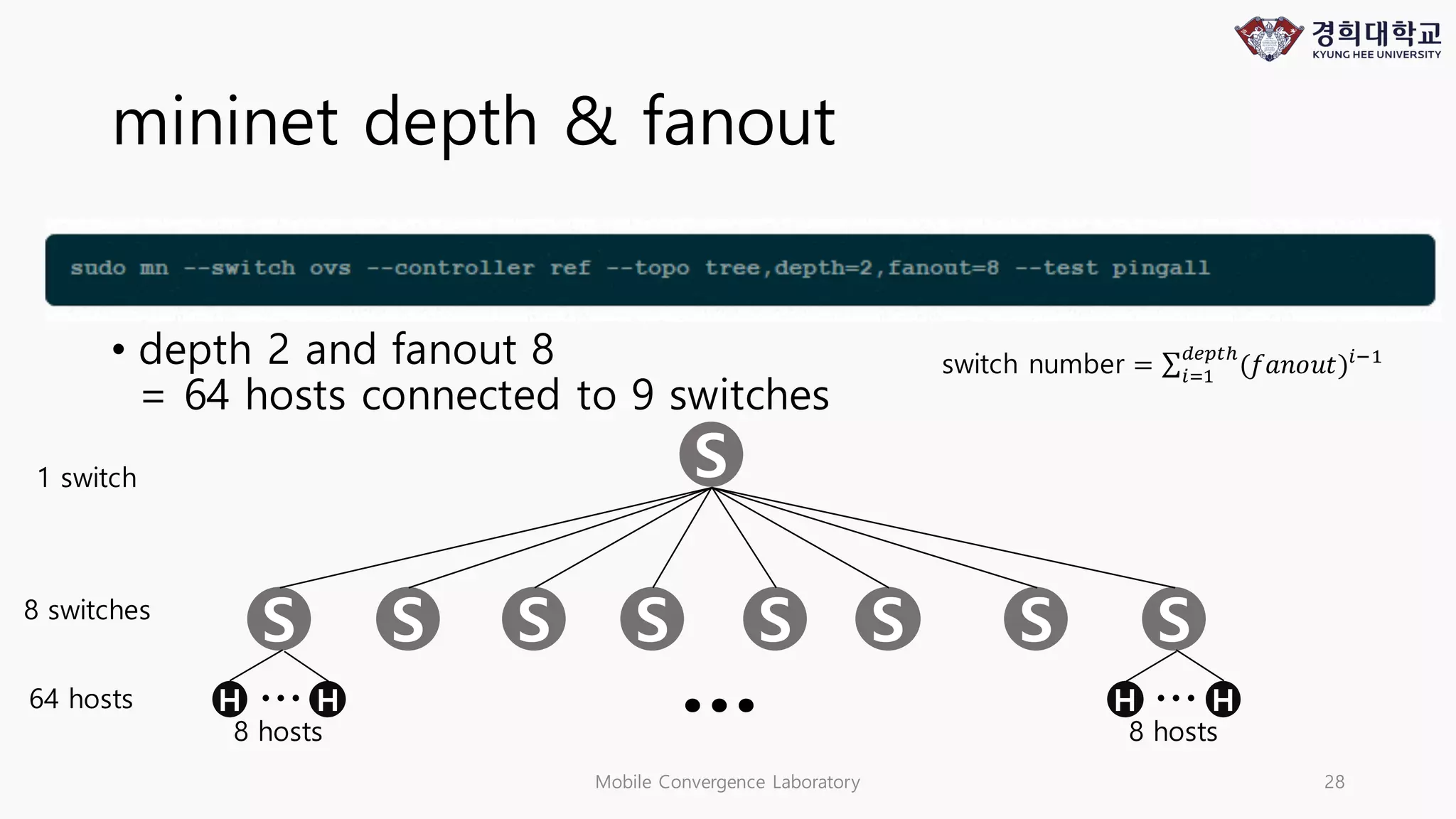

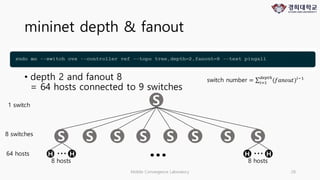

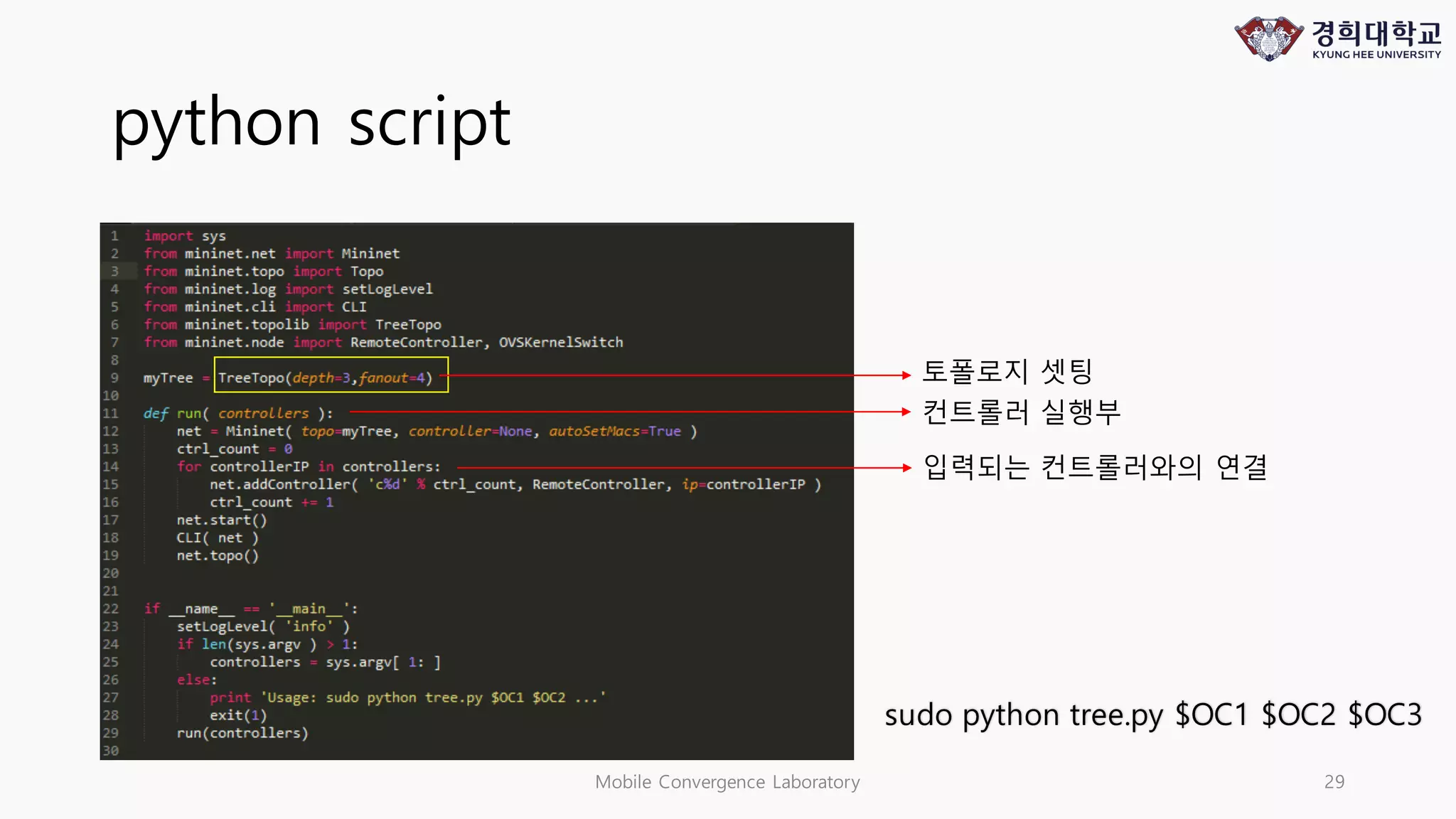

28. mininet depth & fanout
• depth 2 and fanout 8
= 64 hosts connected to 9 switches
Mobile Convergence Laboratory 28
S
S SS S SS SS
H H…
8 hosts
H H…
8 hosts
…64 hosts
8 switches
1 switch
switch number = ∑ (𝑓𝑎𝑛𝑜𝑢𝑡)+,-./012
+3-
