Introduction of ONOS and core technology
This document provides an overview of ONOS (Open Network Operating System) including: - ONOS is an open-source SDN controller created by ON.LAB to provide carriers with an SDN/NFV solution. - It aims to be carrier-grade with high availability, scalability, and performance through a distributed architecture. - ONOS uses southbound protocols like OpenFlow and Netconf to configure network elements while providing northbound APIs and applications.
More Related Content
Similar to Introduction of ONOS and core technology
![[SoftCon]SDN/IoT 그리고 Testbed](https://cdn.slidesharecdn.com/ss_thumbnails/softcon-151119130927-lva1-app6892-thumbnail.jpg?width=640&height=640&fit=bounds)
Introduction of ONOS and core technology
- 1. ONOS SDN Controller 소스코드분석 및 SDN 응용개발 Mobile Convergence Lab, Computer Engineering, Kyung Hee University Sangyun Han Email : sangyun0628@khu.ac.kr SDN/NFV 이론, 실습, 최신동향 [ONOS 소개 및 최신동향]

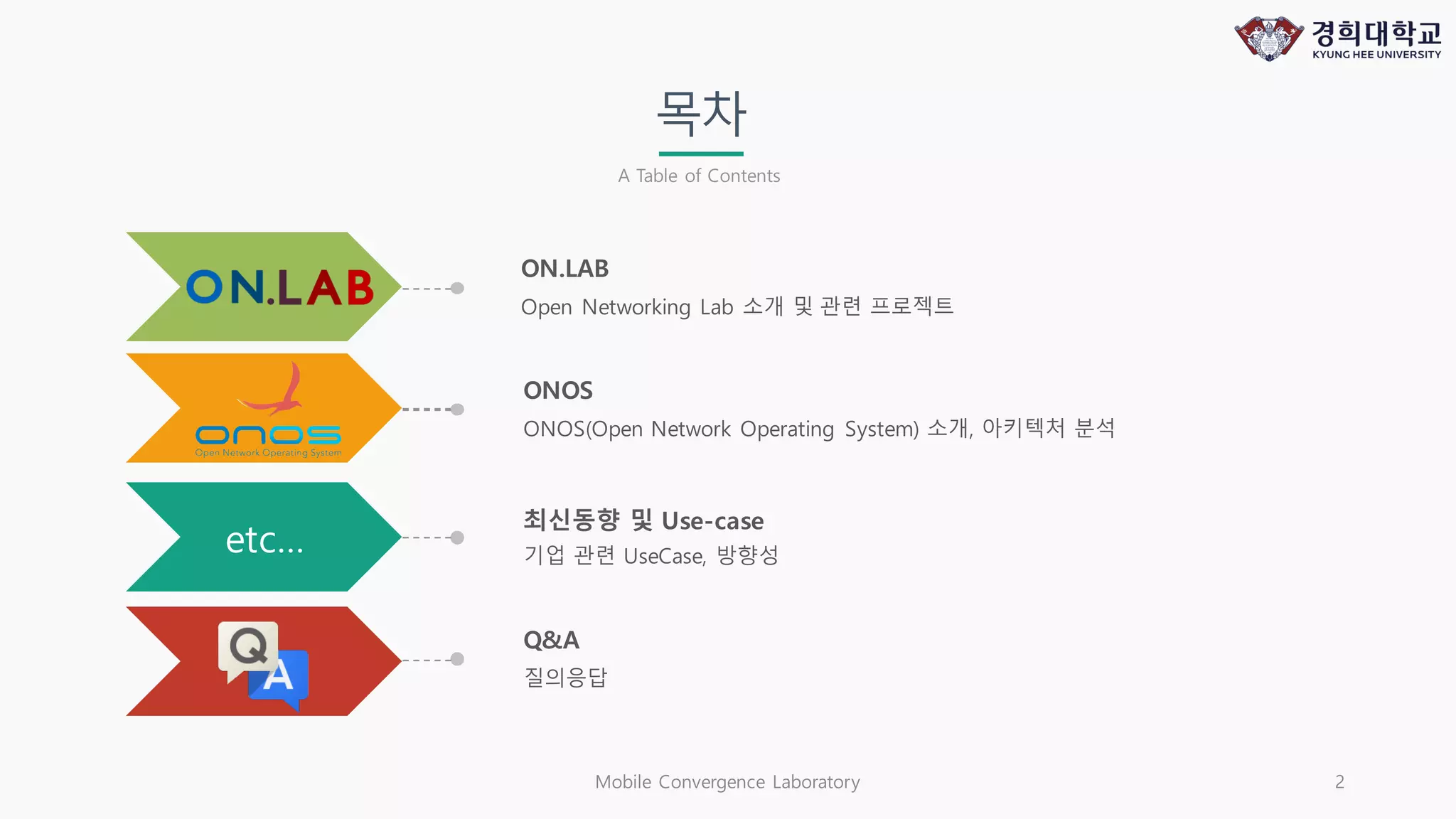

- 2. Mobile Convergence Laboratory2 목차 A Table of Contents etc… ON.LAB Open Networking Lab 소개 및 관련 프로젝트 ONOS ONOS(Open Network Operating System) 소개, 아키텍처 분석 최신동향 및 Use-case 기업 관련 UseCase, 방향성 Q&A 질의응답
- 3. Mobile Convergence Laboratory3 Non-profit Tools/Platforms for SDN community

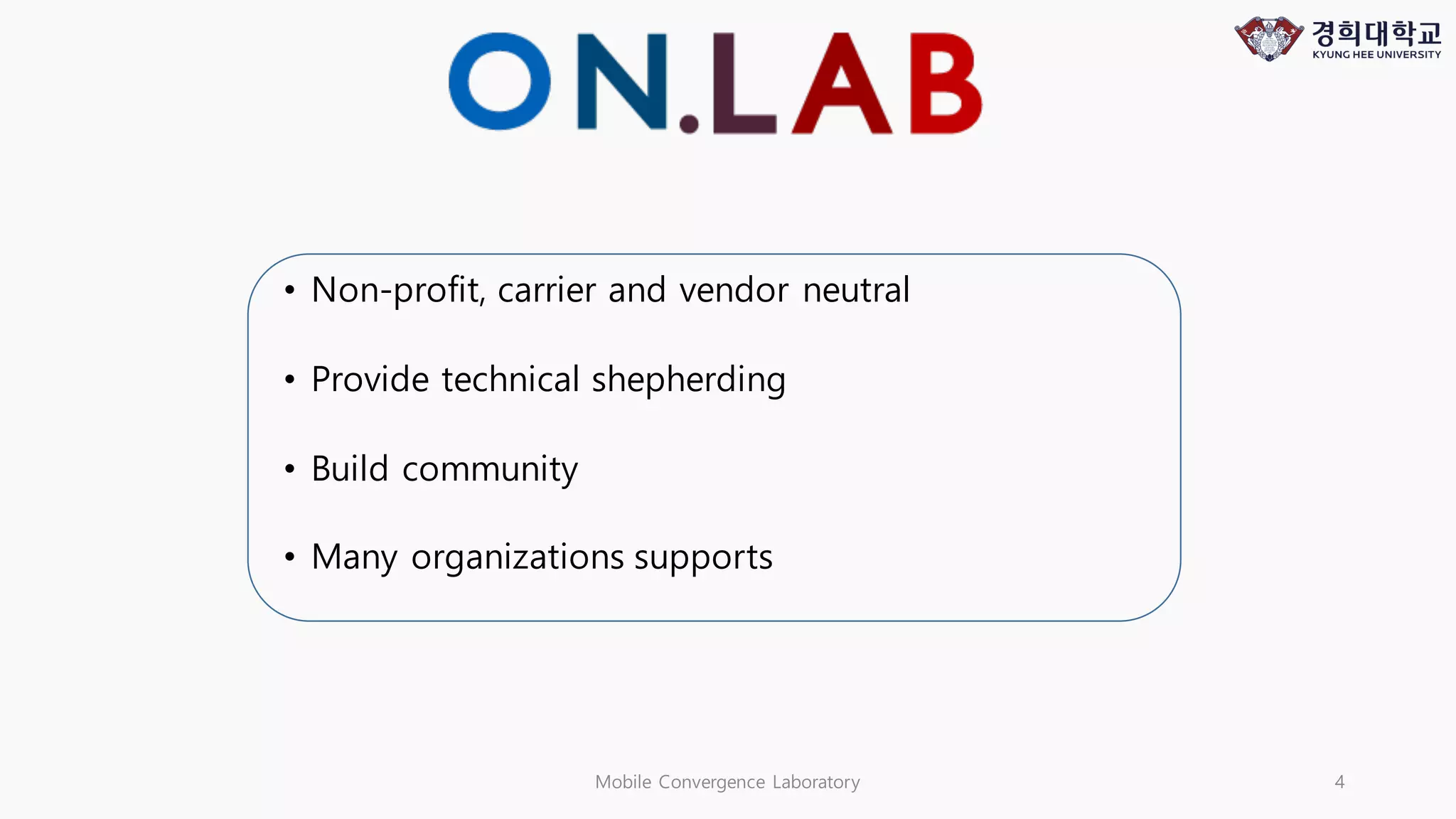

- 4. Mobile Convergence Laboratory4 • Non-profit, carrier and vendor neutral • Provide technical shepherding • Build community • Many organizations supports
- 5.
- 6.
- 7.
- 8. Mobile Convergence Laboratory8 Supporting members

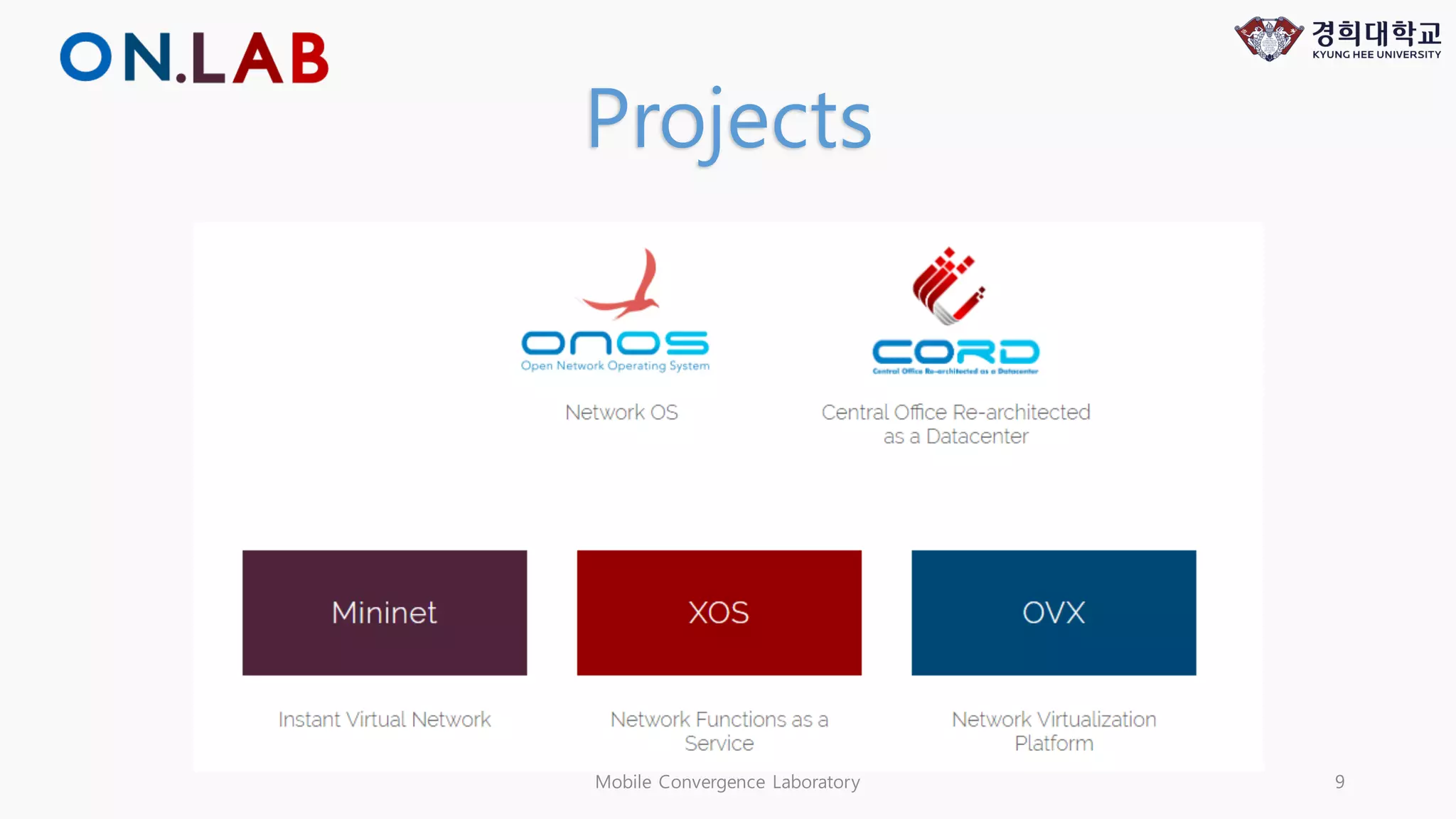

- 9. Mobile Convergence Laboratory9 Projects
- 10. SDN Network OperatingSystem & SDN Control Platform Mobile Convergence Laboratory 10

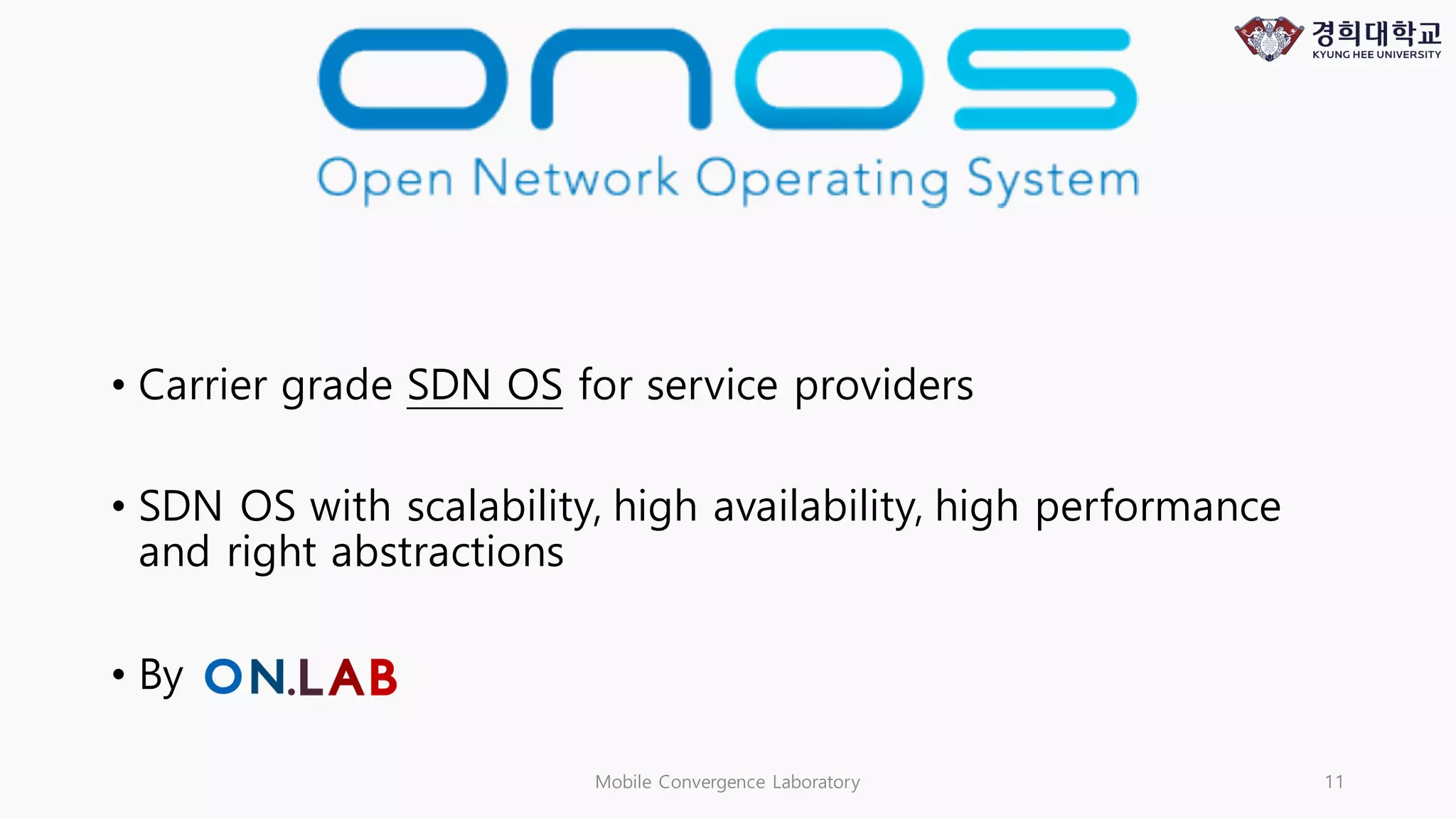

- 11. • Carrier gradeSDN OS for service providers • SDN OS with scalability, high availability, high performance and right abstractions • By Mobile Convergence Laboratory 11
- 12. Mobile Convergence Laboratory12 Their mission is to enable Service Providers to build real SDN/NFV solutions.
- 13. Mobile Convergence Laboratory13 ONOS community

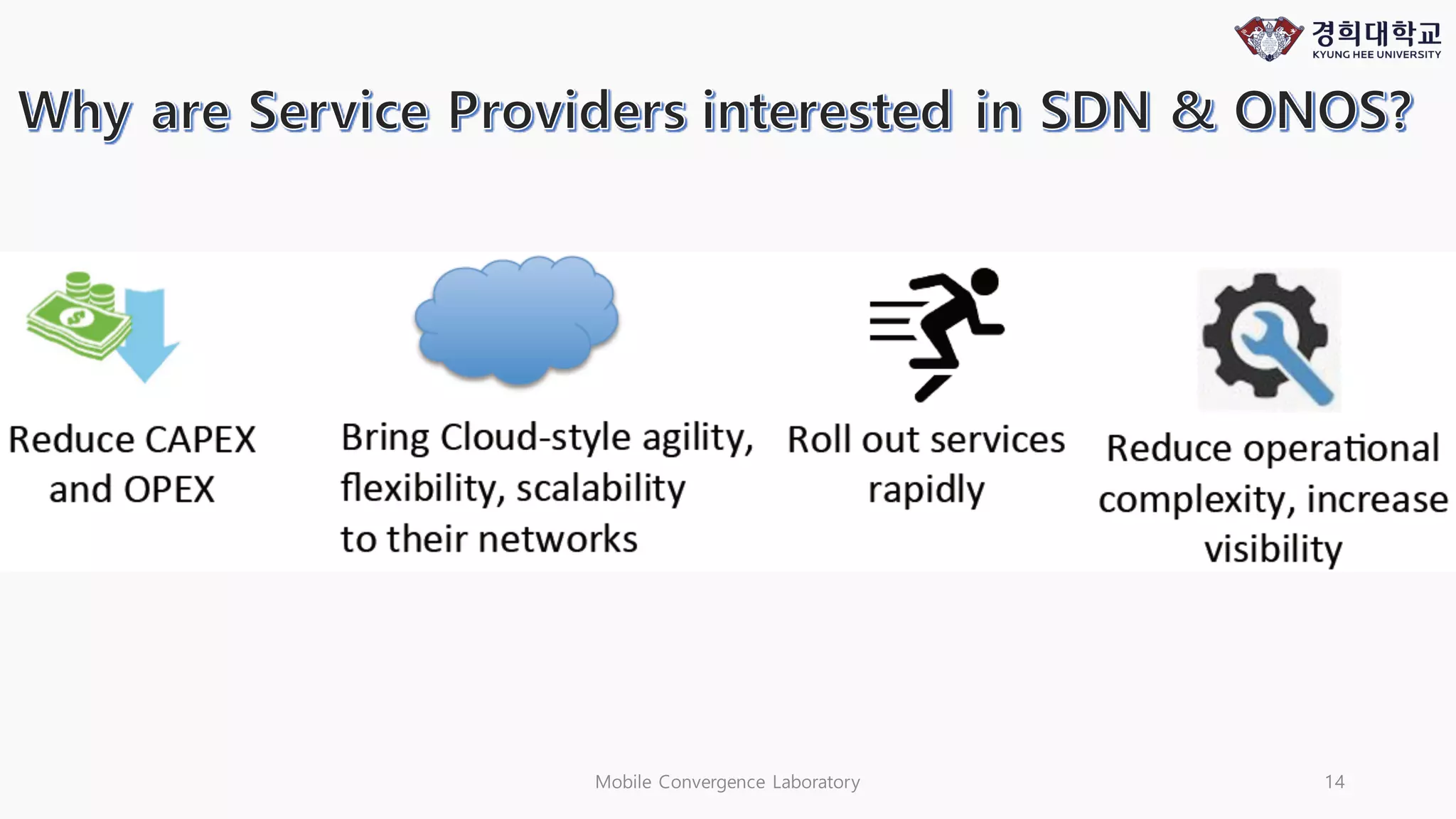

- 14.
- 15. 15Mobile Convergence Laboratory ONOS의목표는 뭘까? 기존의 수많은 SDN controller
- 16. Mobile Convergence Laboratory16 C++/Python C/C++ Python Java
- 17.
- 18. Mobile Convergence Laboratory18 commercial products
- 19. Mobile Convergence Laboratory19 commercial products

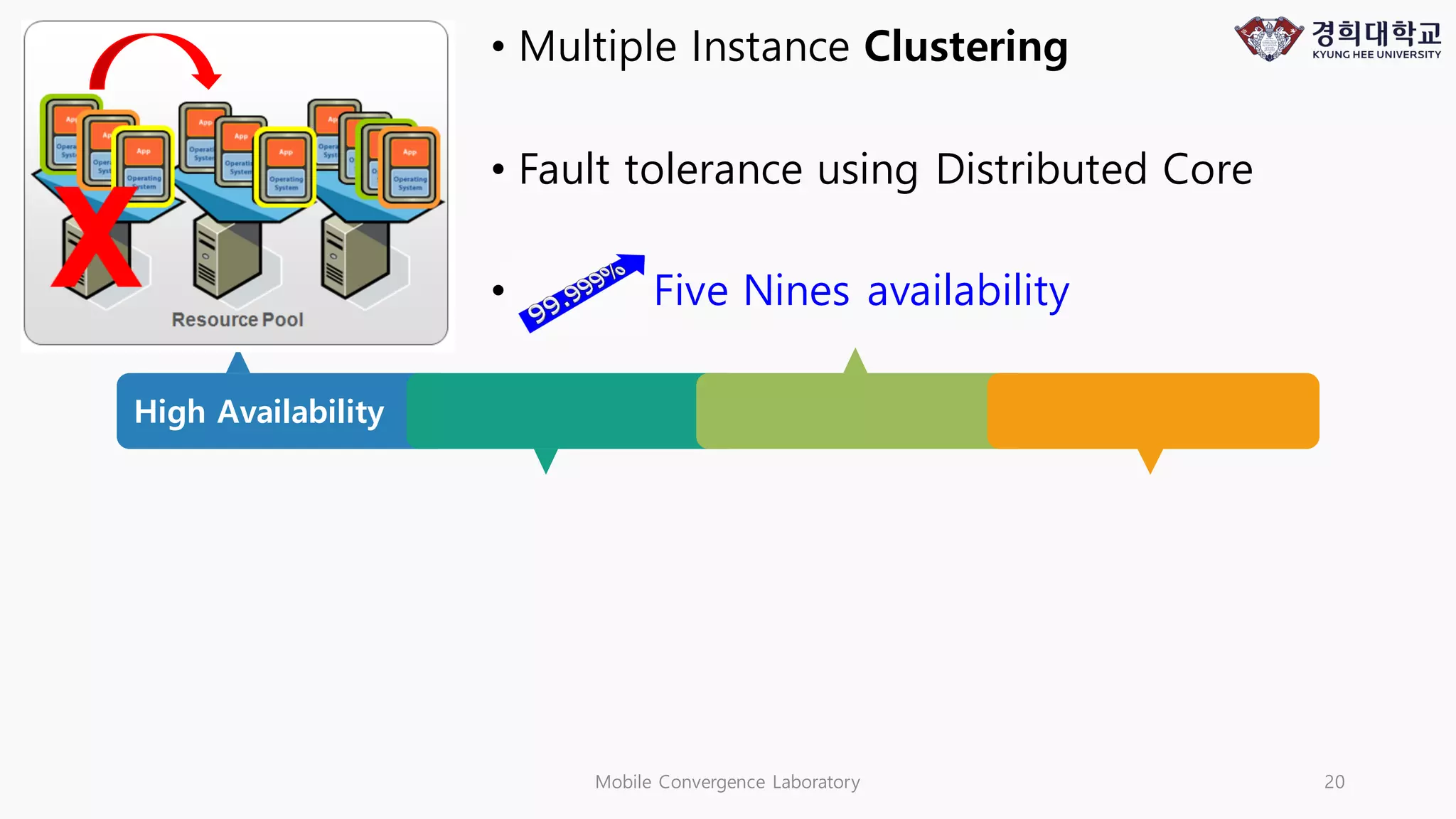

- 20. Mobile Convergence Laboratory20 High Availability • Multiple Instance Clustering • Fault tolerance using Distributed Core • Five Nines availability

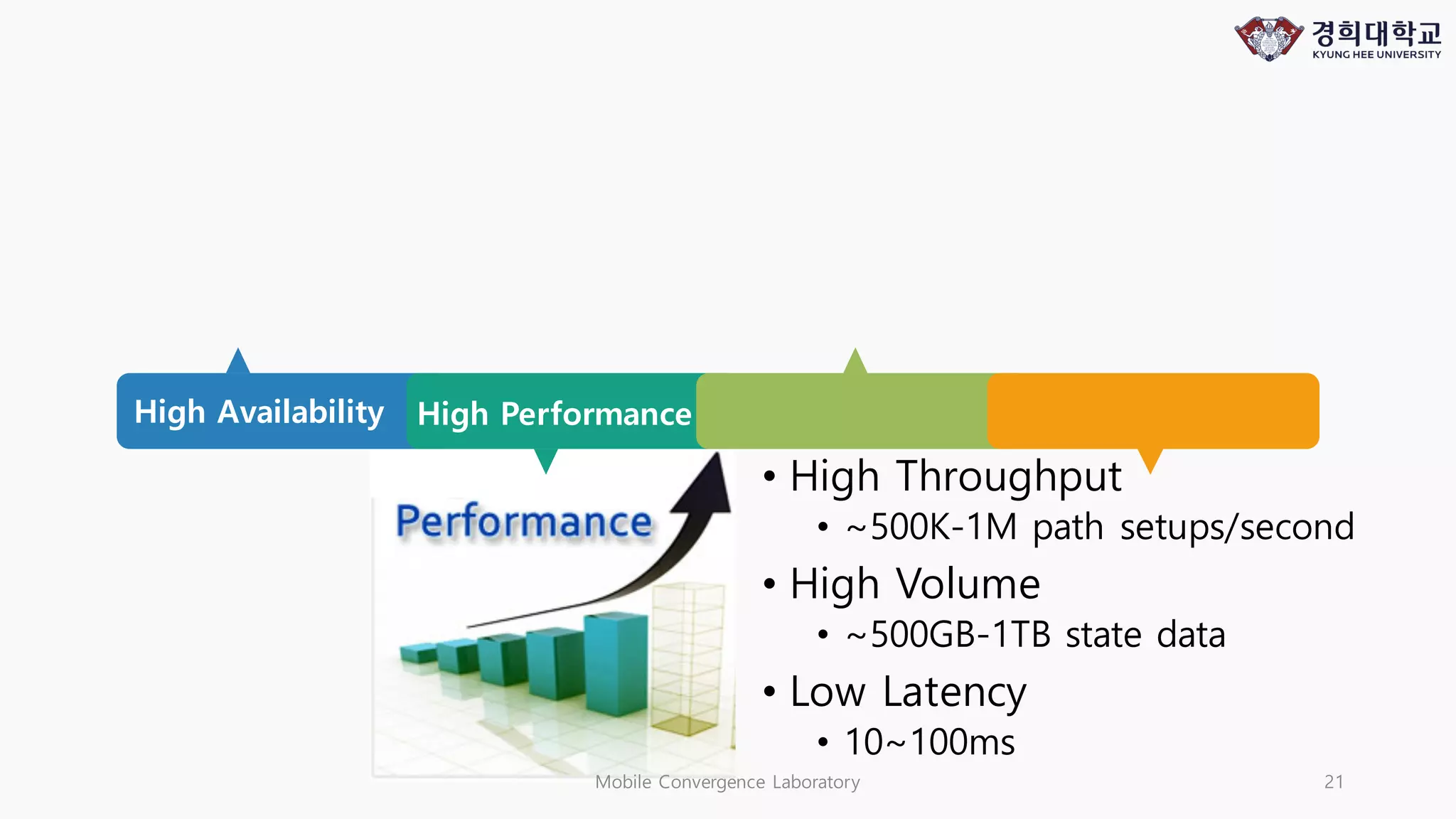

- 21. Mobile Convergence Laboratory21 High Availability High Performance • High Throughput • ~500K-1M path setups/second • High Volume • ~500GB-1TB state data • Low Latency • 10~100ms

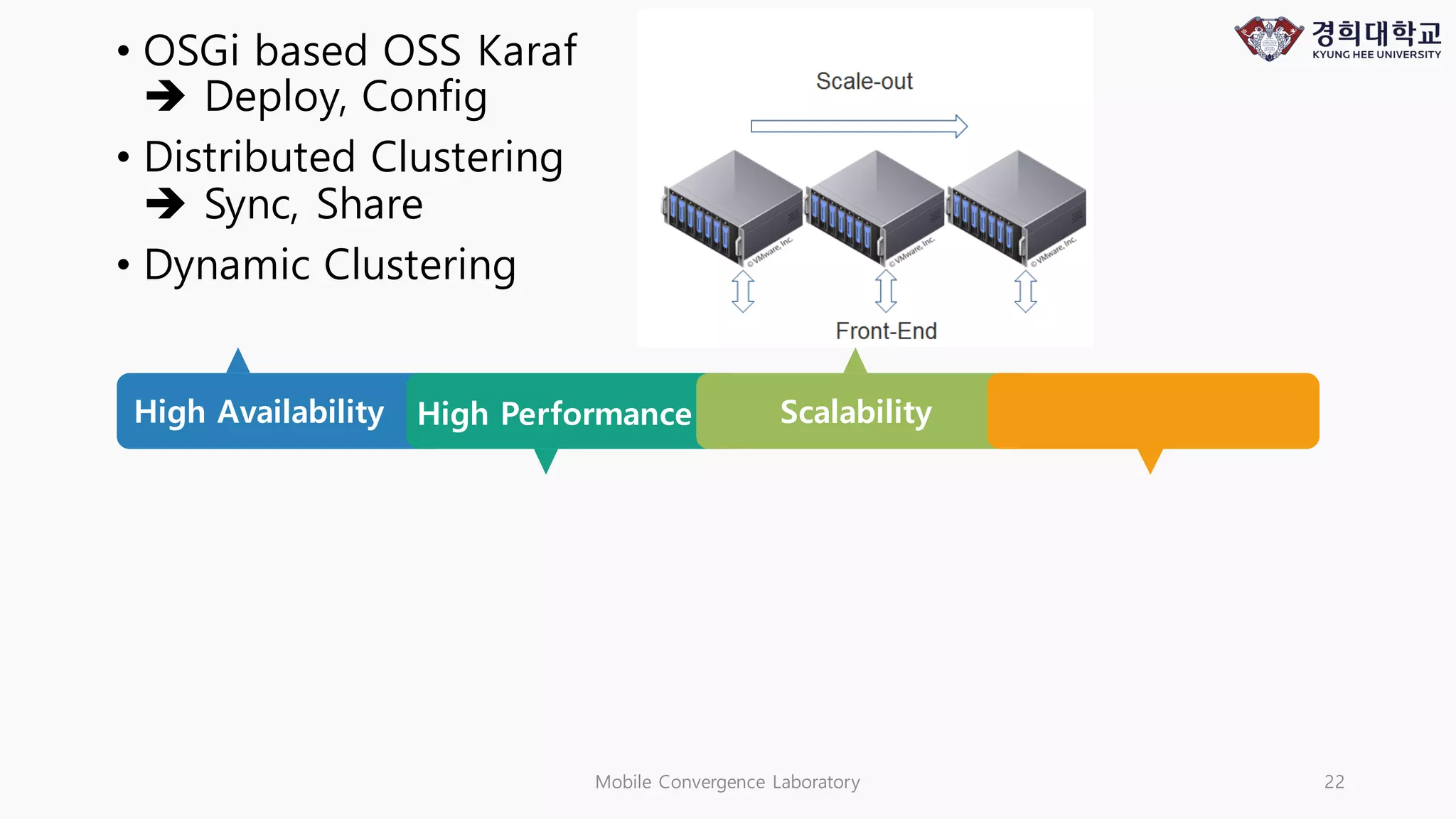

- 22. Mobile Convergence Laboratory22 High Availability High Performance Scalability • OSGi based OSS Karaf è Deploy, Config • Distributed Clustering è Sync, Share • Dynamic Clustering

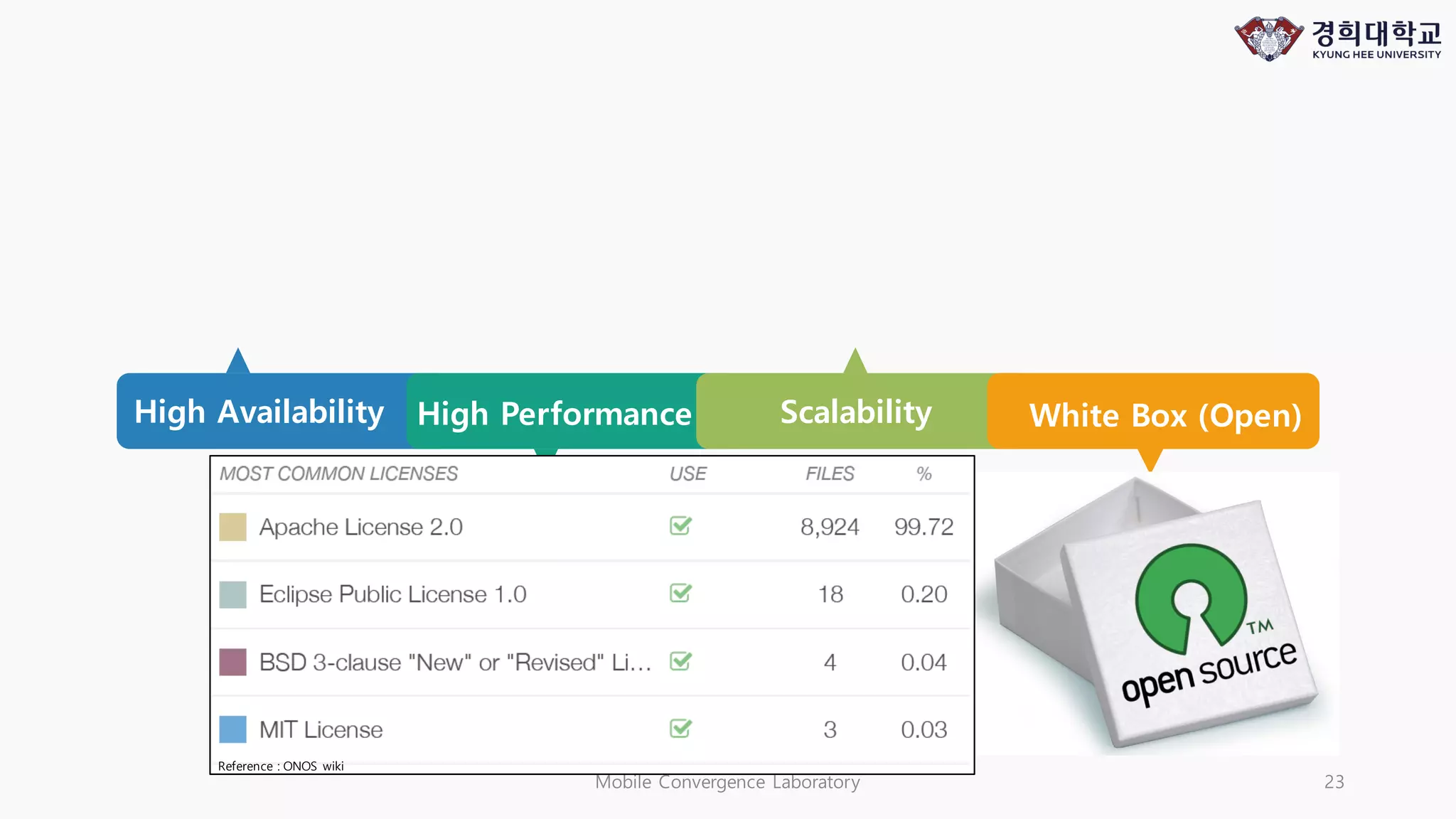

- 23. Mobile Convergence Laboratory23 High Availability High Performance Scalability White Box (Open) Reference : ONOS wiki

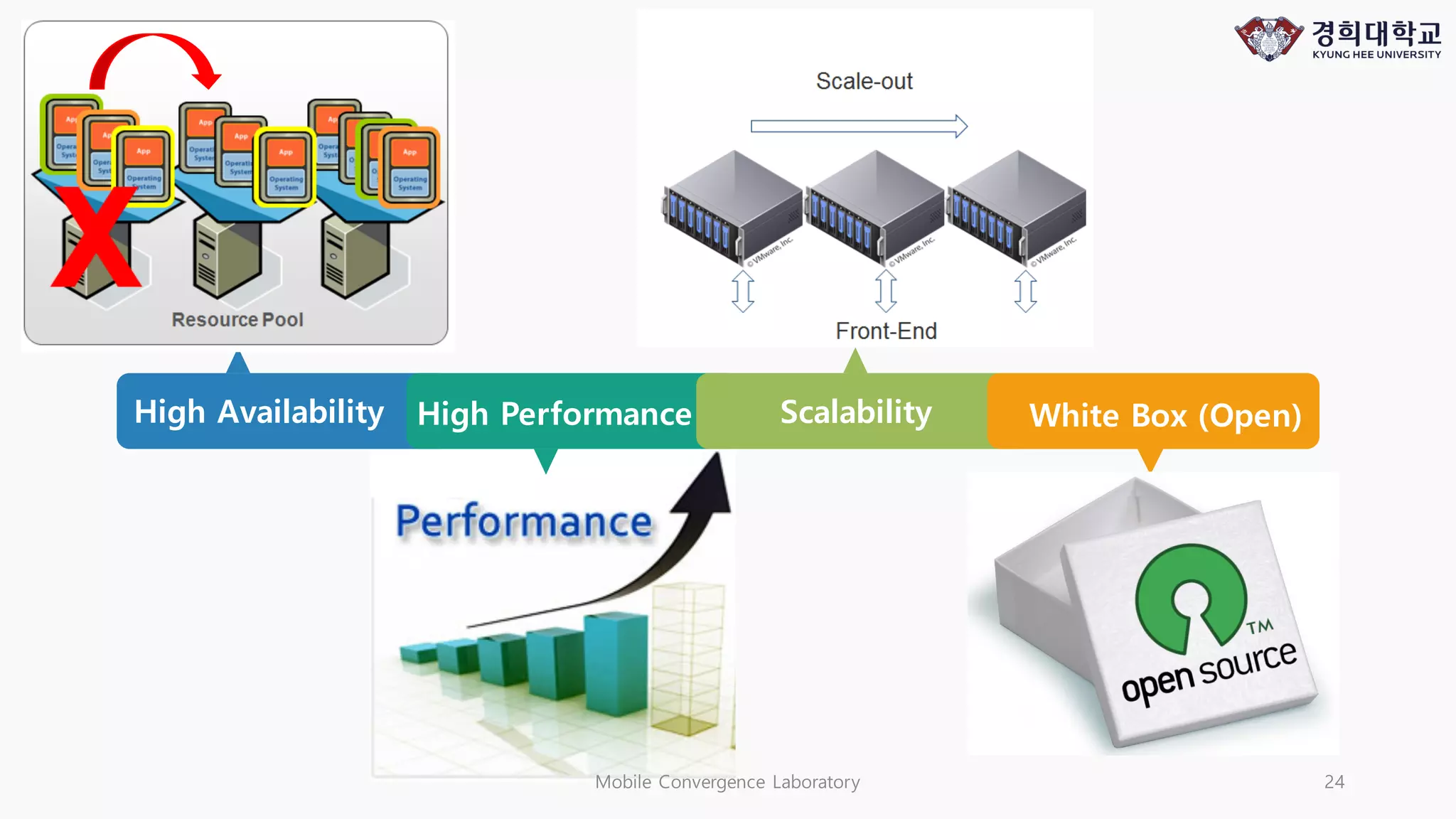

- 24. Mobile Convergence Laboratory24 High Availability High Performance Scalability White Box (Open)

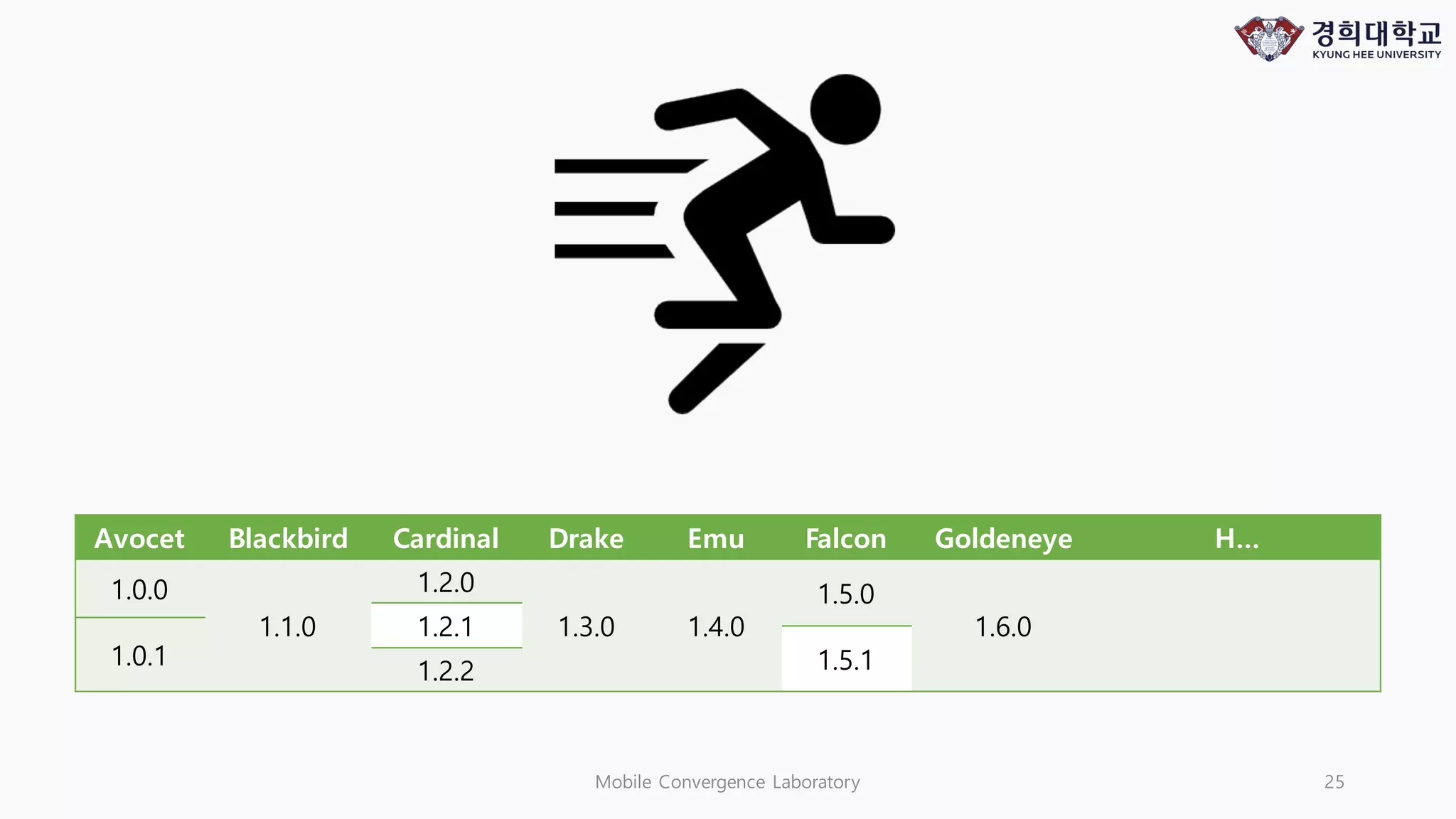

- 25. Mobile Convergence Laboratory25 Avocet Blackbird Cardinal Drake Emu Falcon Goldeneye H… 1.0.0 1.1.0 1.2.0 1.3.0 1.4.0 1.5.0 1.6.01.2.1 1.0.1 1.5.11.2.2
- 26. ONOS Architecture The changinghistory of architecture Overall architecture Subsystem Structure Mobile Convergence Laboratory 26

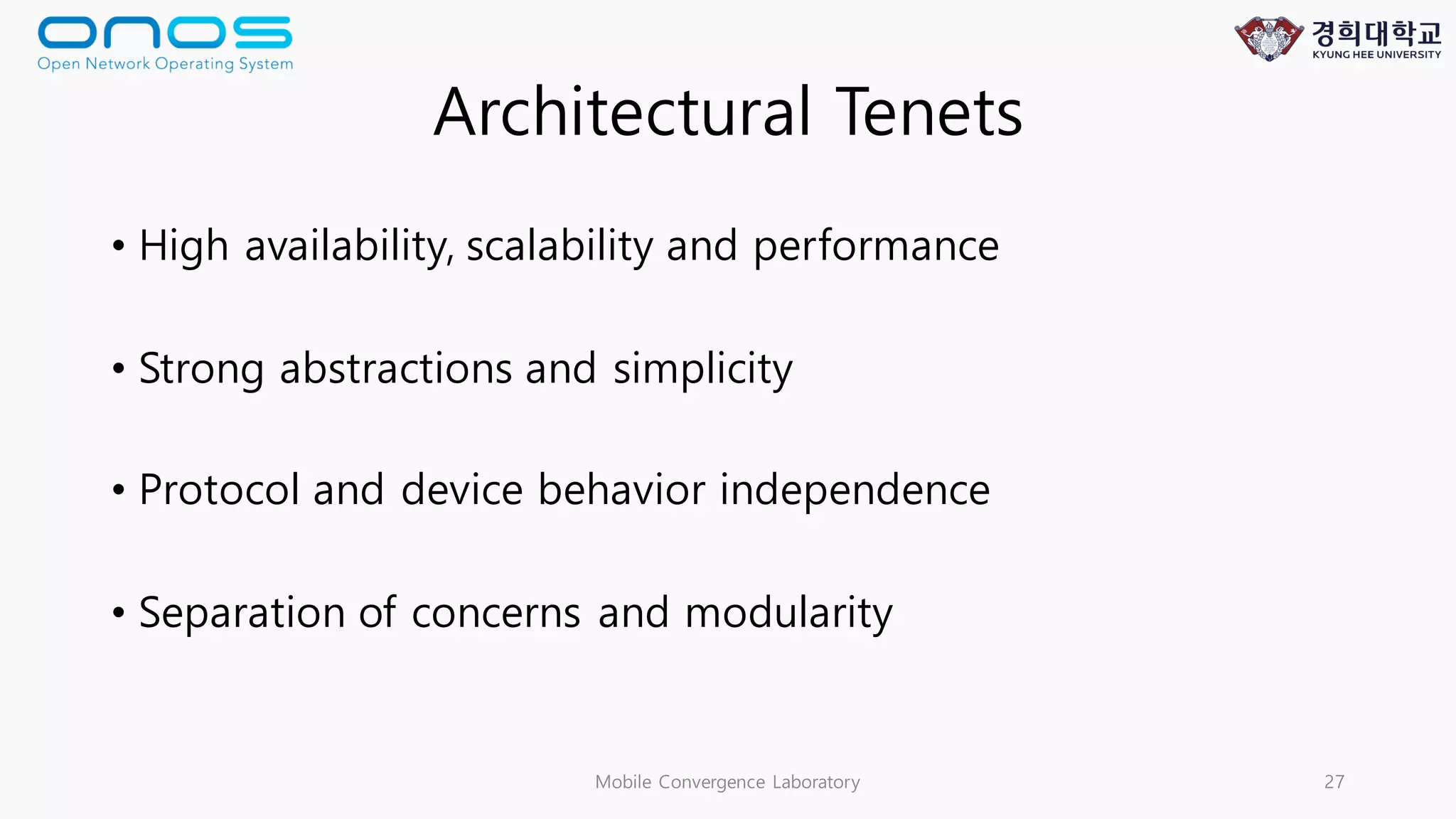

- 27. Architectural Tenets Mobile ConvergenceLaboratory 27 • High availability, scalability and performance • Strong abstractions and simplicity • Protocol and device behavior independence • Separation of concerns and modularity

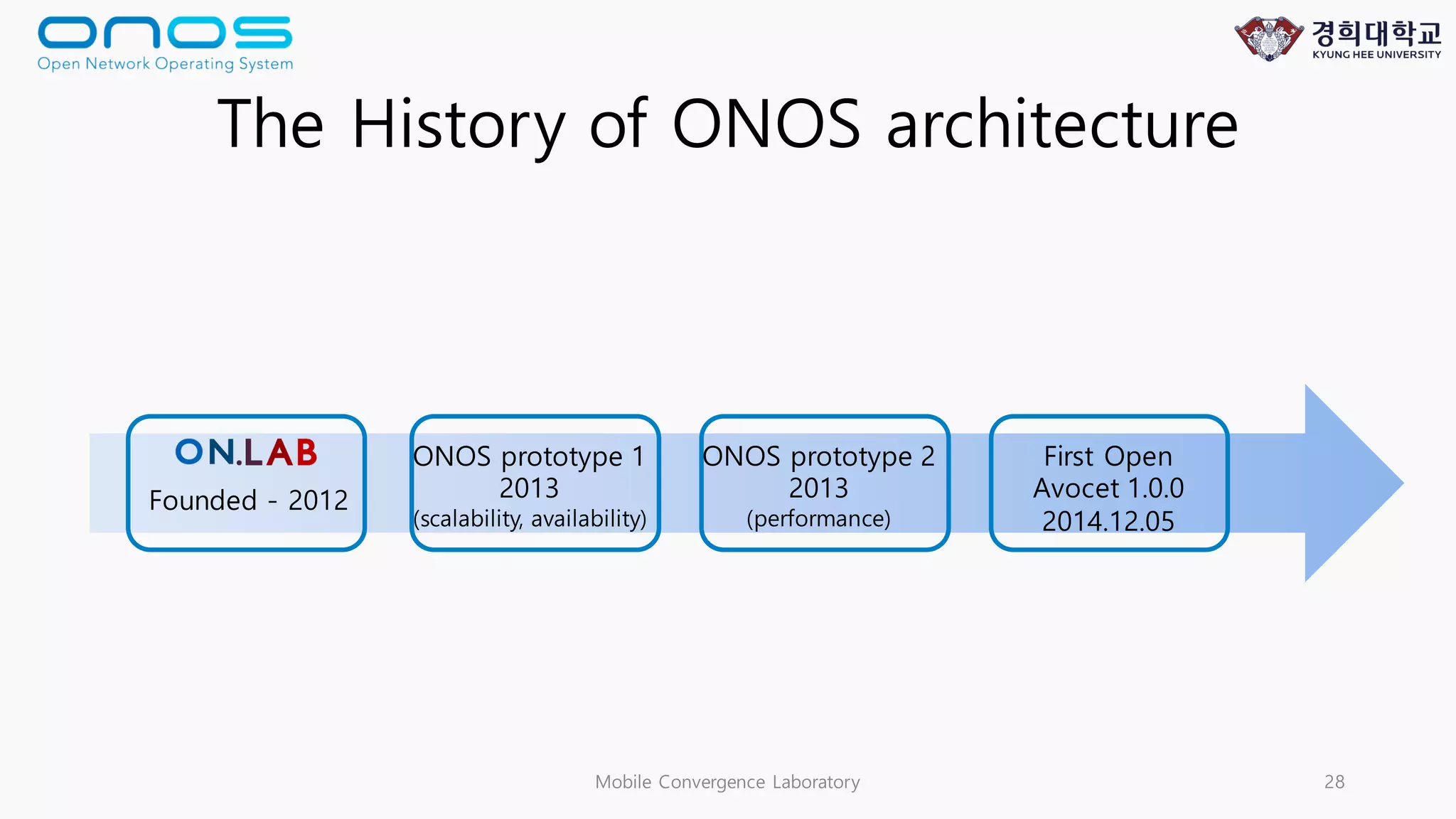

- 28. Mobile Convergence Laboratory28 The History of ONOS architecture Founded - 2012 ONOS prototype 1 2013 (scalability, availability) ONOS prototype 2 2013 (performance) First Open Avocet 1.0.0 2014.12.05

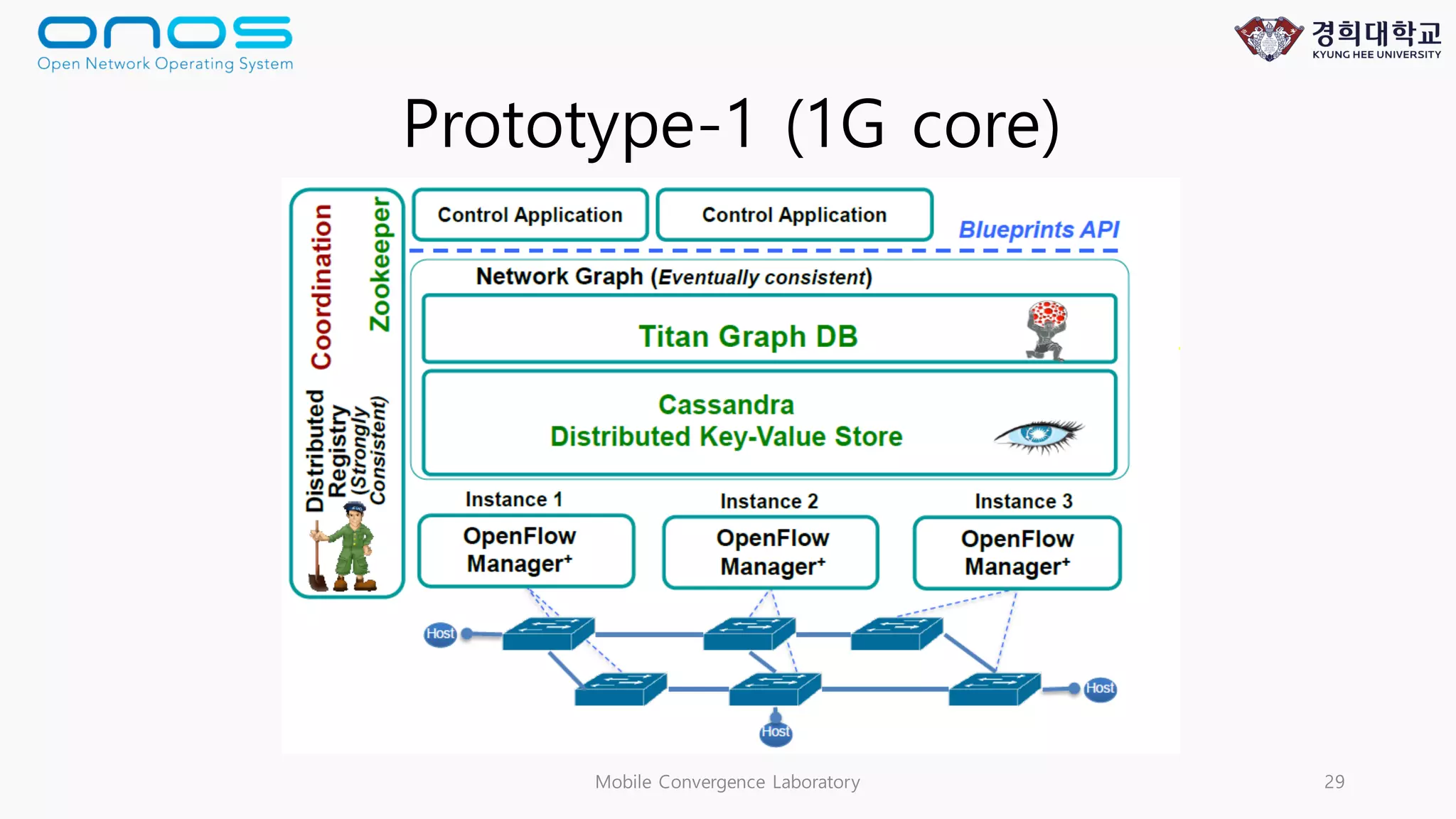

- 29. Mobile Convergence Laboratory29 Prototype-1 (1G core)

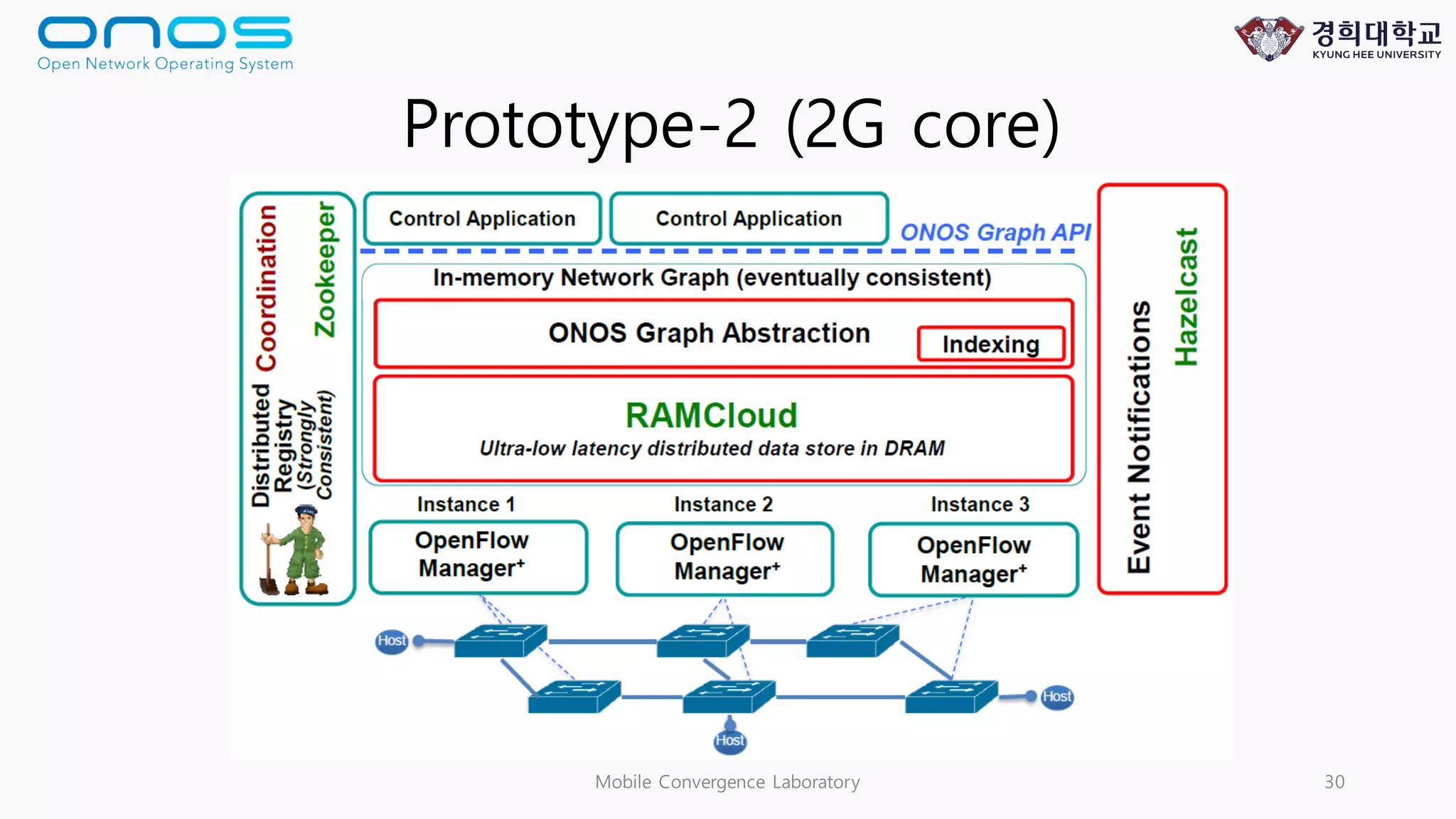

- 30. Mobile Convergence Laboratory30 Prototype-2 (2G core)

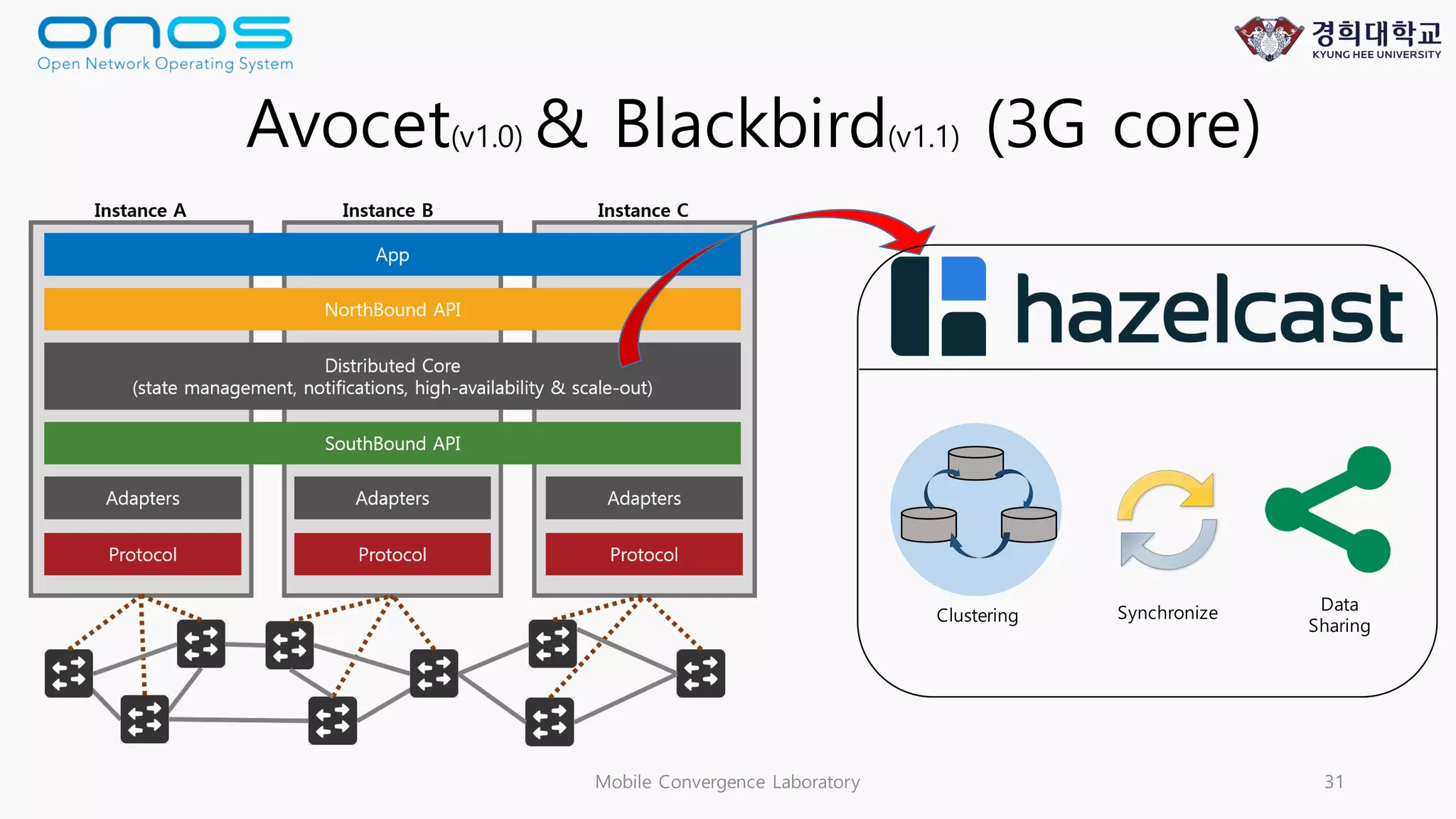

- 31. Mobile Convergence Laboratory31 Clustering Synchronize Data Sharing Avocet(v1.0) & Blackbird(v1.1) (3G core)

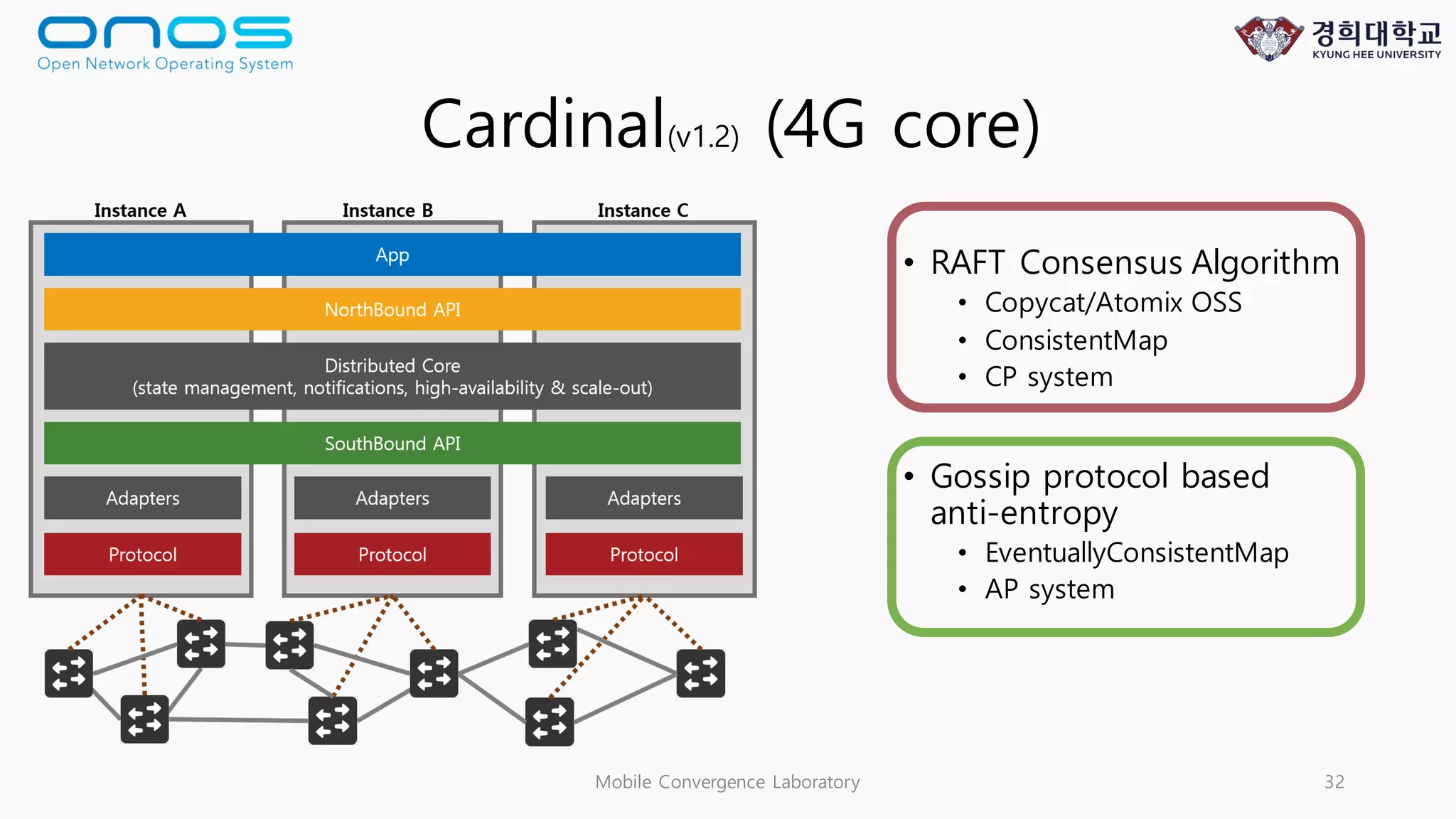

- 32. Mobile Convergence Laboratory32 Cardinal(v1.2) (4G core) • RAFT Consensus Algorithm • Copycat/Atomix OSS • ConsistentMap • CP system • Gossip protocol based anti-entropy • EventuallyConsistentMap • AP system

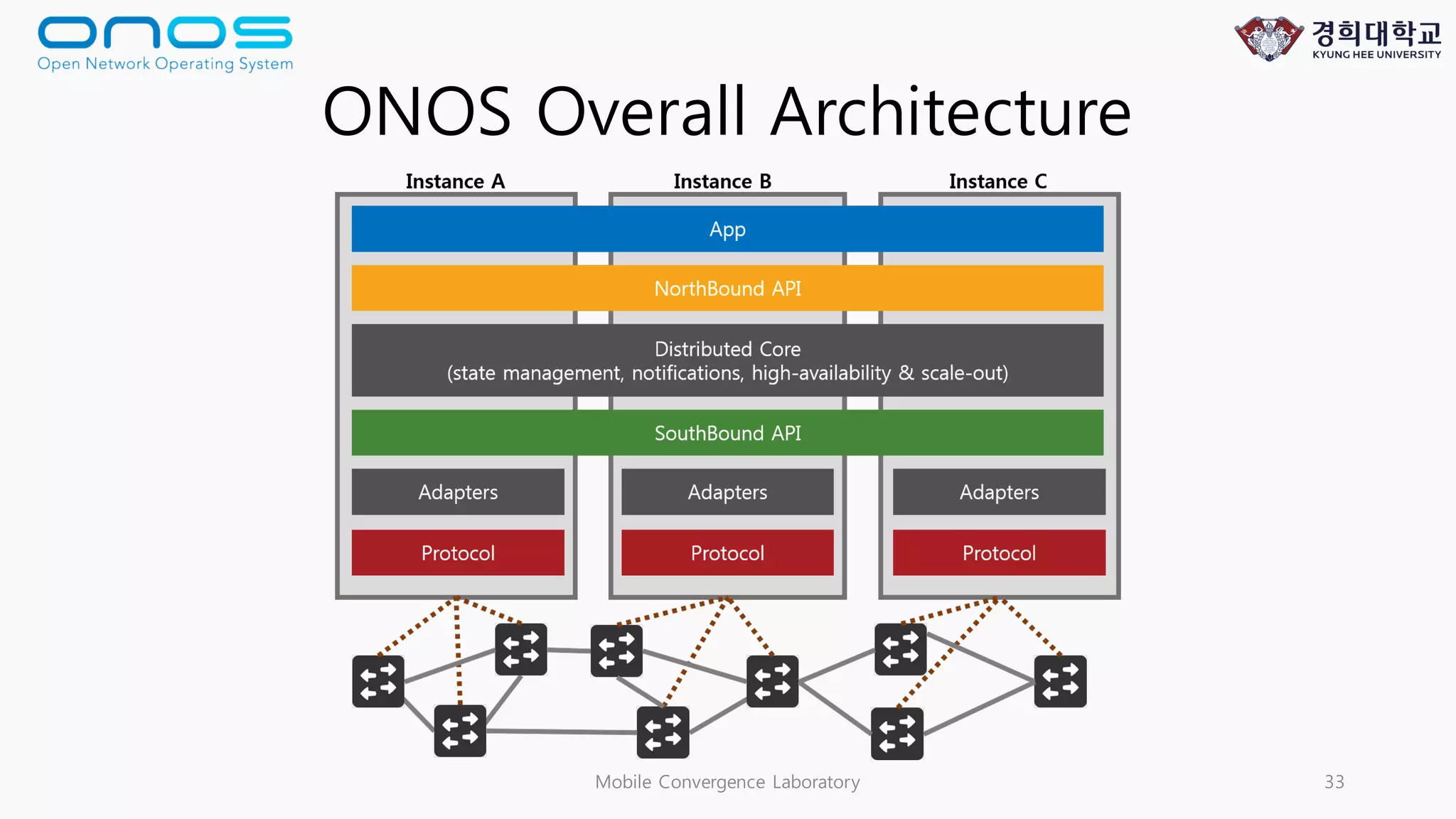

- 33. ONOS Overall Architecture MobileConvergence Laboratory 33

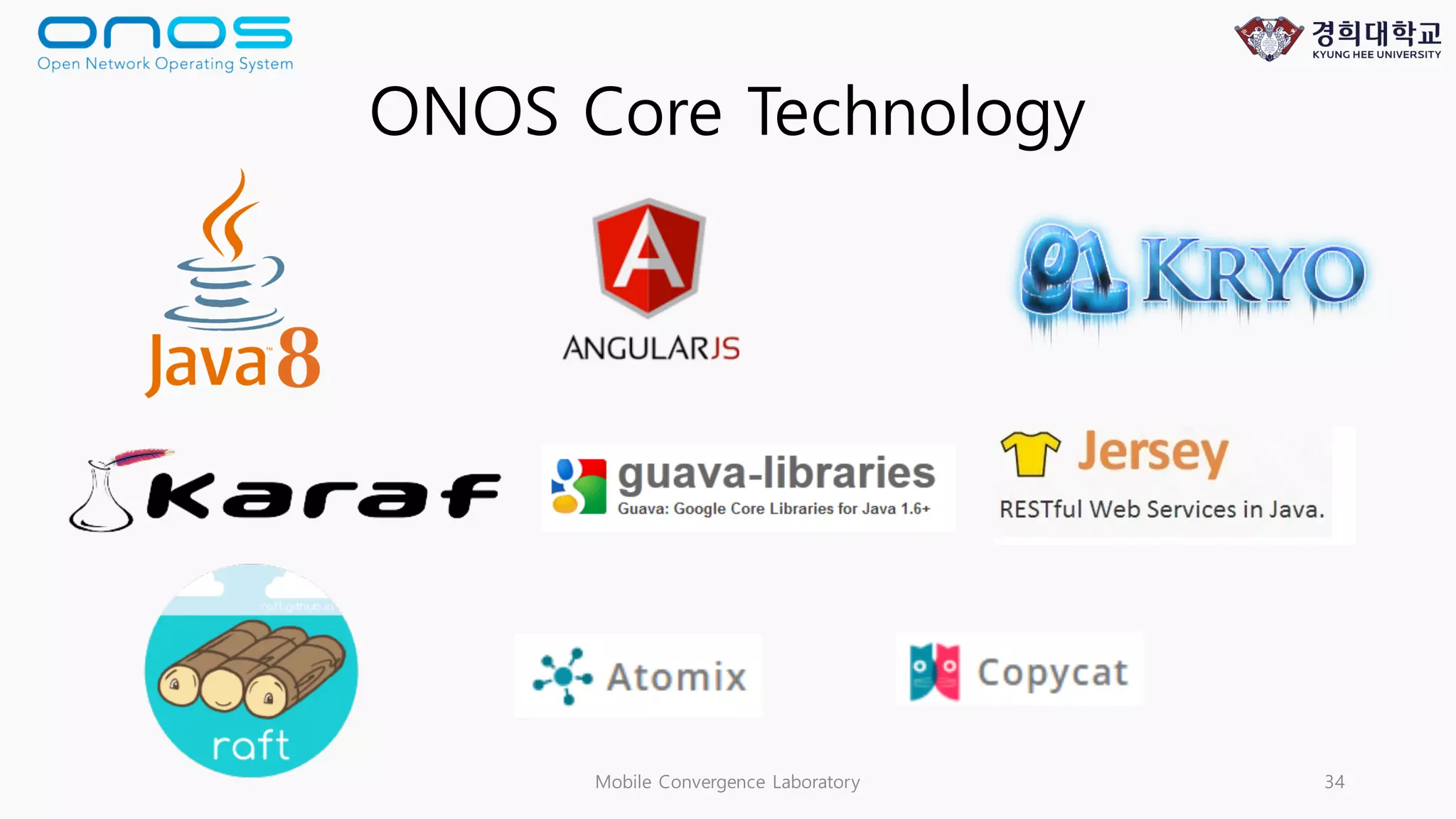

- 34. ONOS Core Technology MobileConvergence Laboratory 34

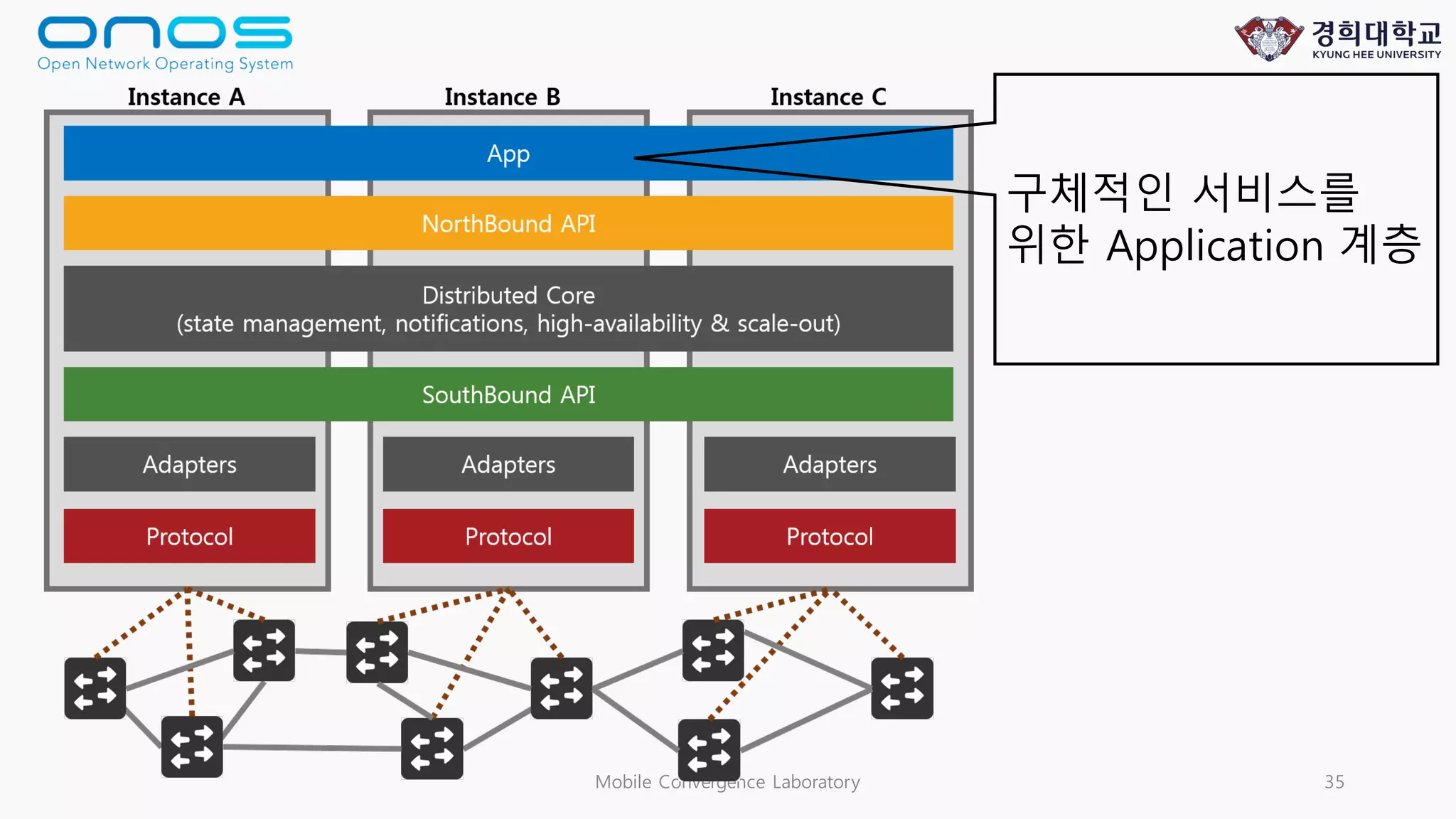

- 35. Mobile Convergence Laboratory35 구체적인 서비스를 위한 Application 계층

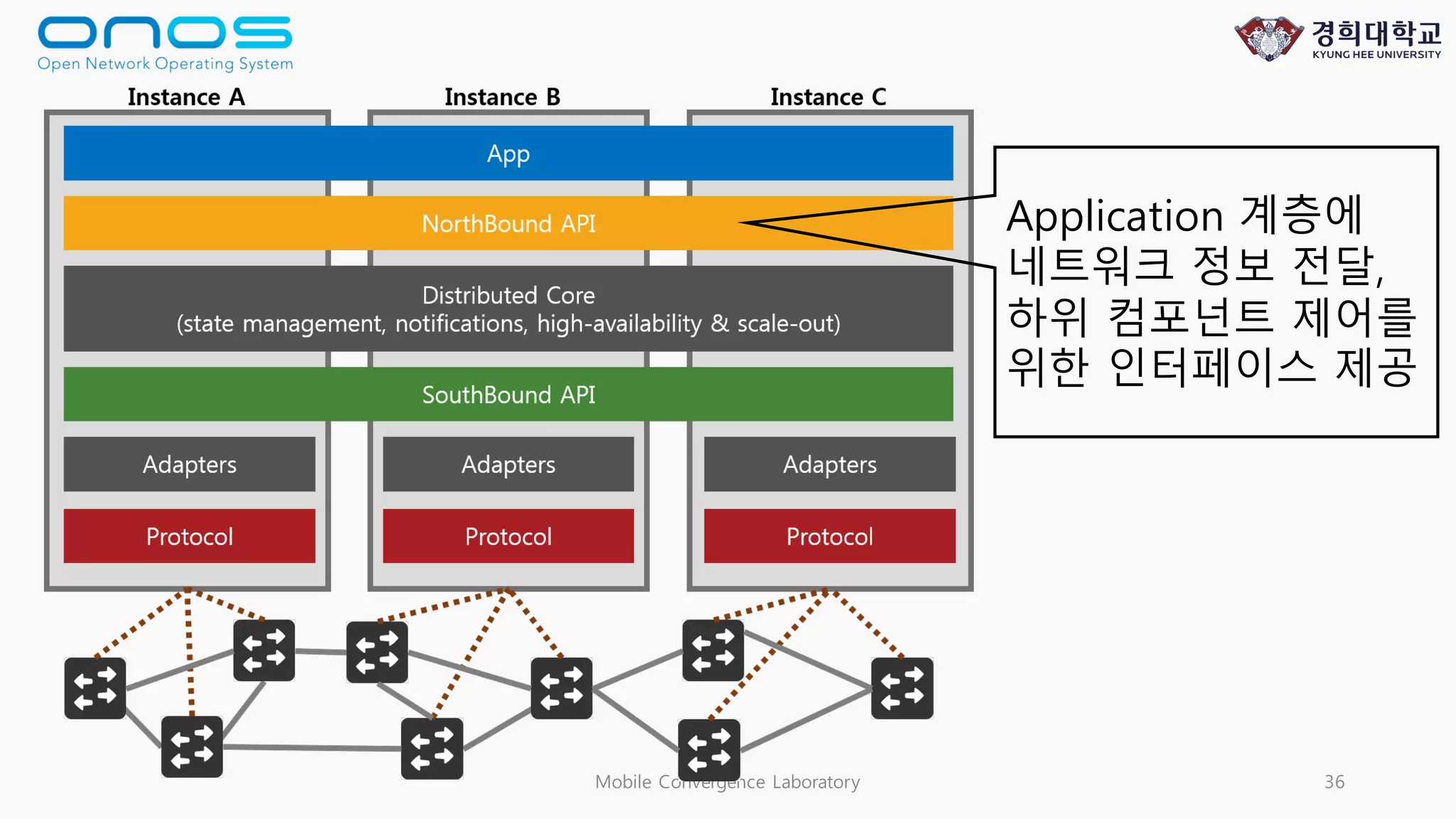

- 36. Mobile Convergence Laboratory36 Application 계층에 네트워크 정보 전달, 하위 컴포넌트 제어를 위한 인터페이스 제공

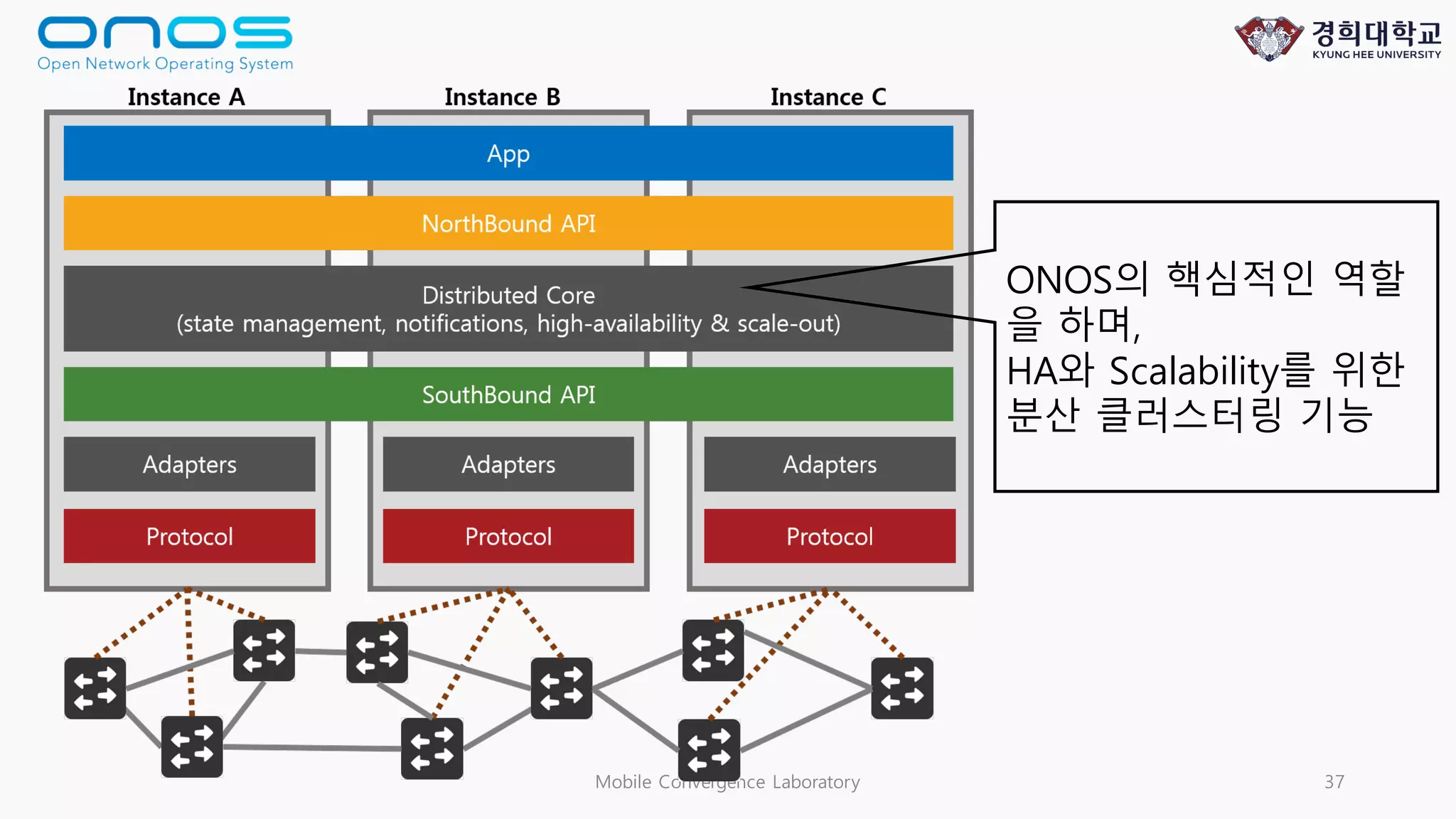

- 37. Mobile Convergence Laboratory37 ONOS의 핵심적인 역할 을 하며, HA와 Scalability를 위한 분산 클러스터링 기능

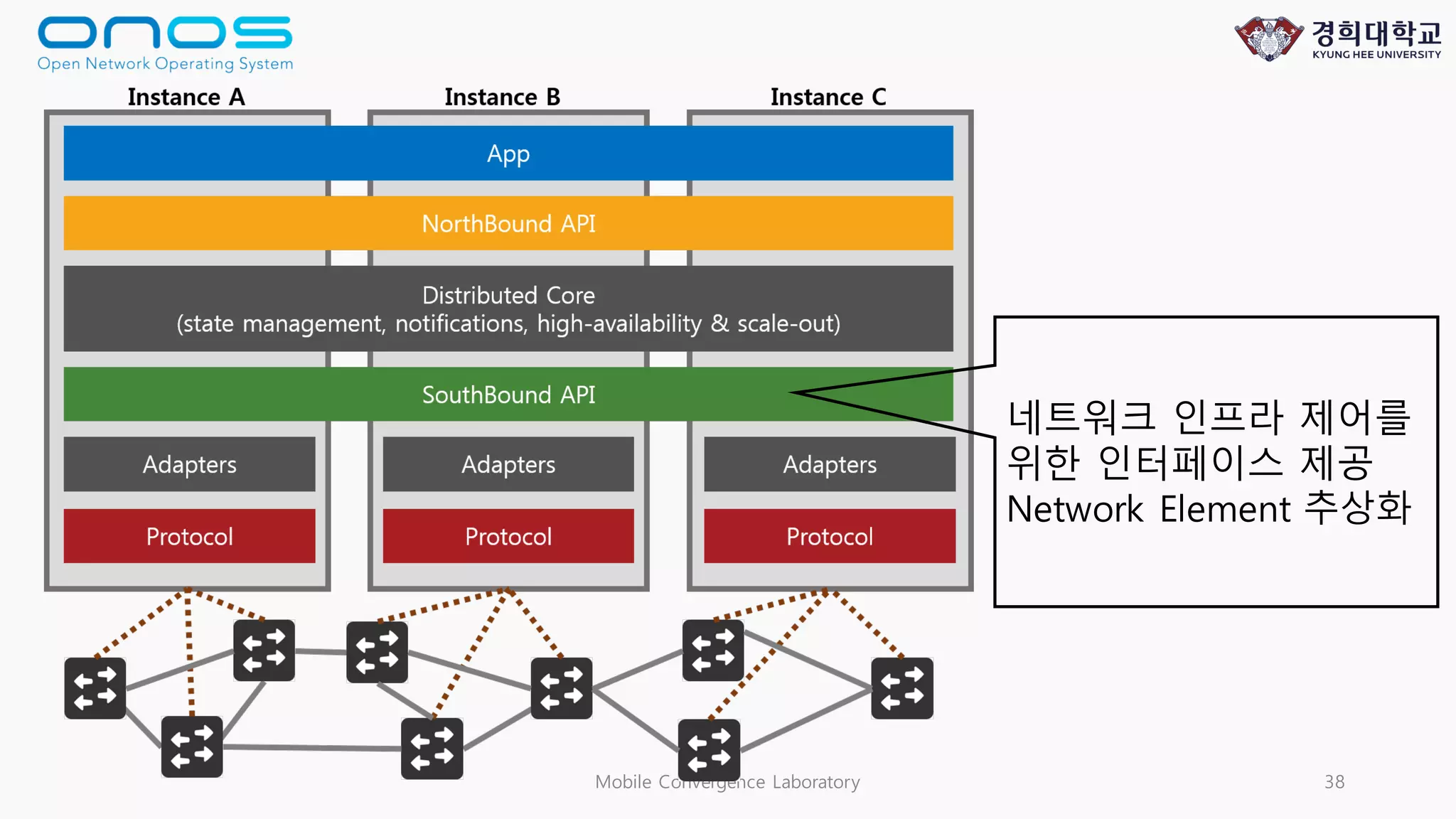

- 38. Mobile Convergence Laboratory38 네트워크 인프라 제어를 위한 인터페이스 제공 Network Element 추상화

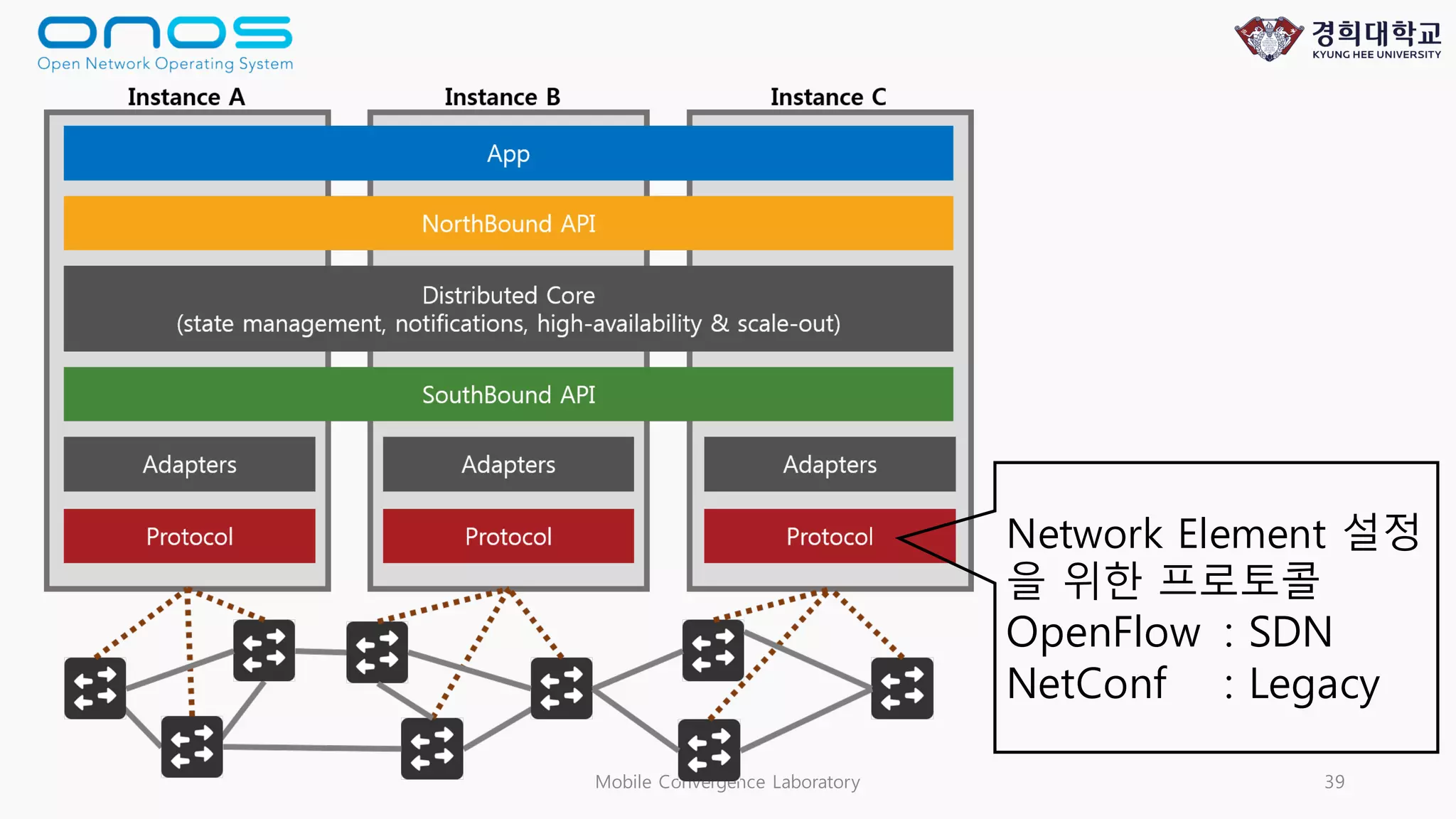

- 39. Mobile Convergence Laboratory39 Network Element 설정 을 위한 프로토콜 OpenFlow : SDN NetConf : Legacy

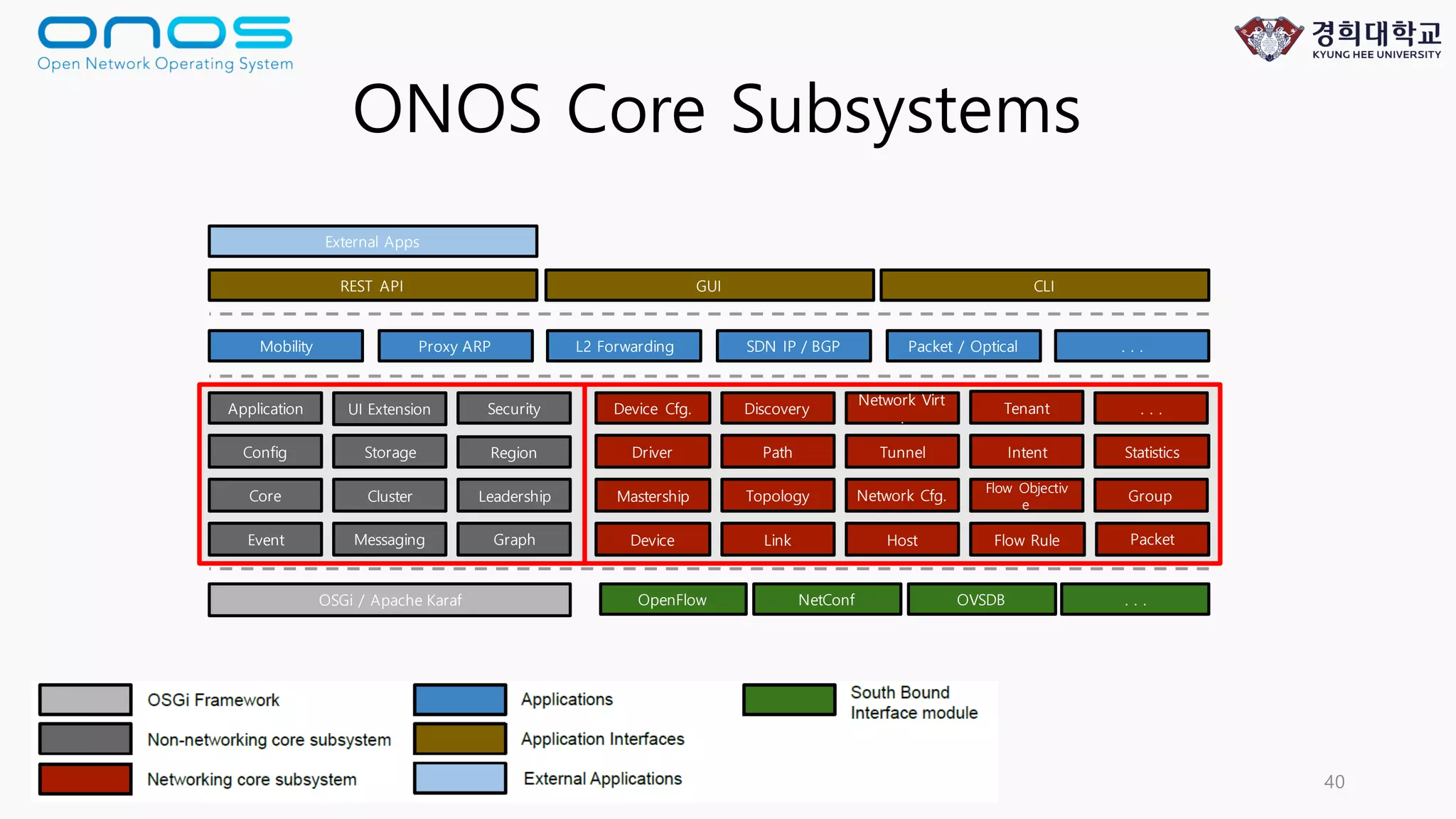

- 40. Mobile Convergence Laboratory40 ONOS Core Subsystems Device Link Host Topology Flow Rule Path Packet StatisticsIntent Application Leadership Messaging Storage Region Mastership Driver Group Security Flow Objectiv e Event OpenFlow NetConf OVSDB Core Cluster . . . Proxy ARPMobility L2 Forwarding REST API GUI CLI Network Cfg. SDN IP / BGP Packet / Optical Tunnel . . . OSGi / Apache Karaf Network Virt . Device Cfg. Config UI Extension External Apps Graph Discovery Tenant . . .

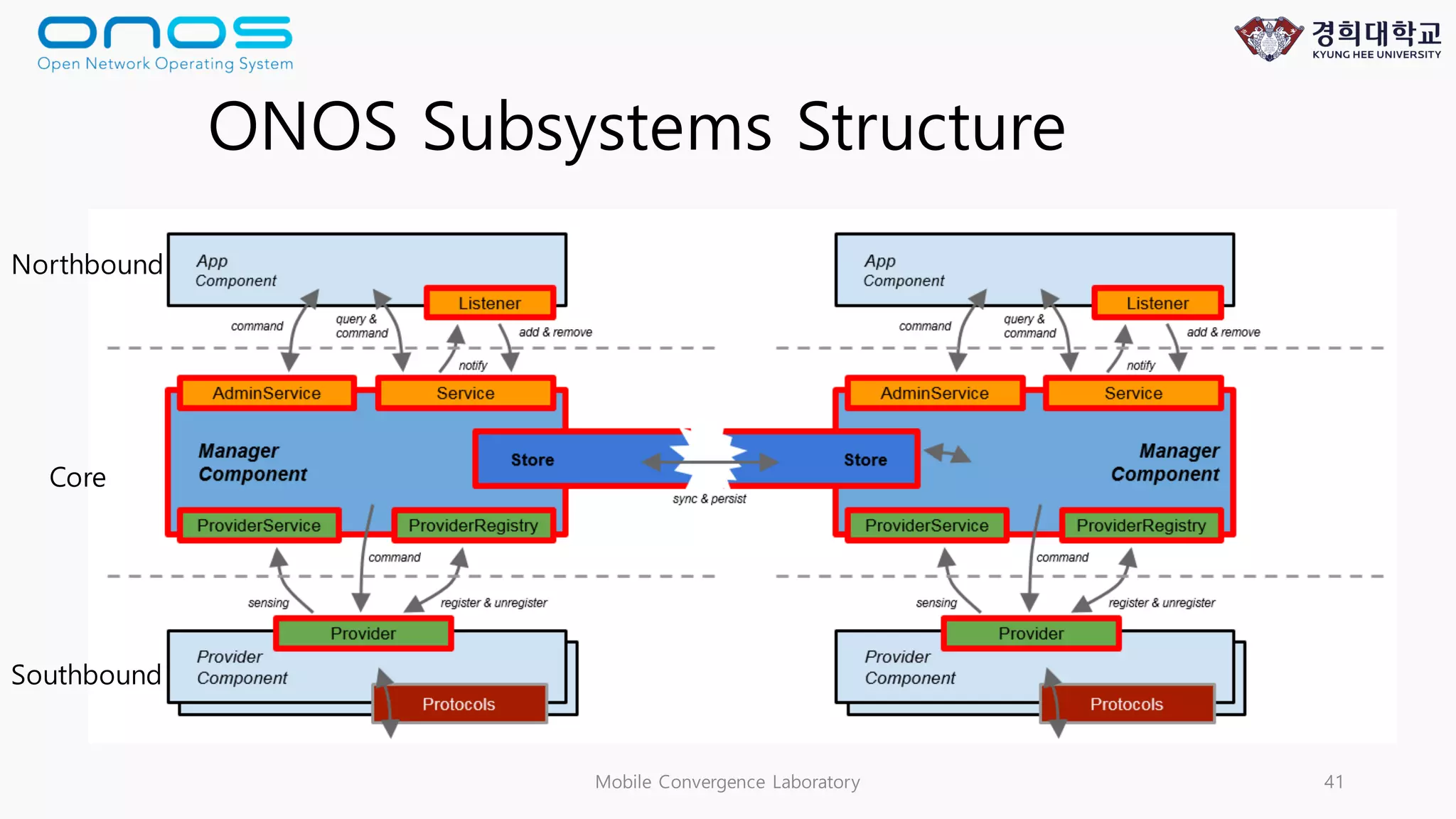

- 41. Mobile Convergence Laboratory41 ONOS Subsystems Structure Northbound Core Southbound

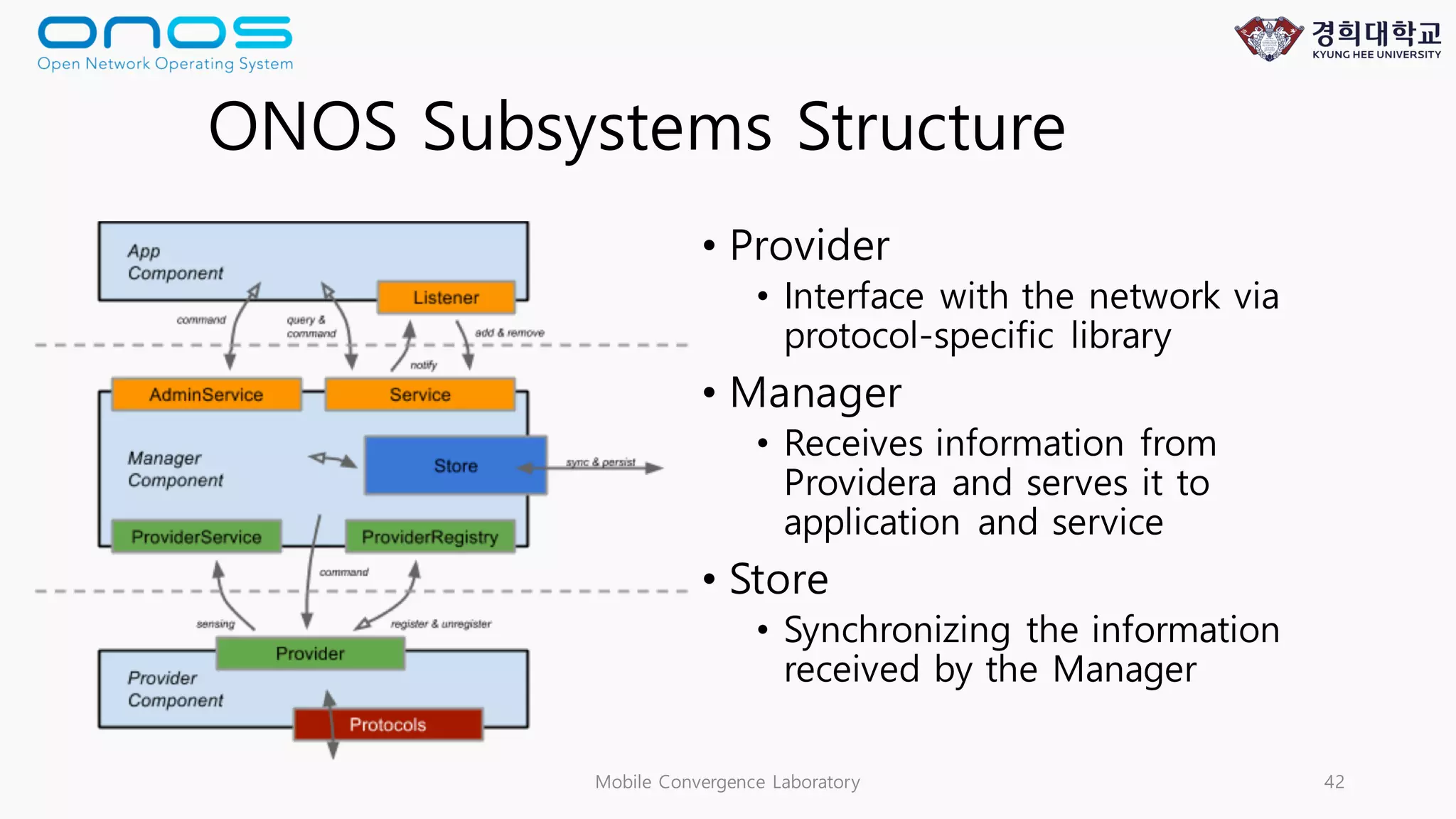

- 42. Mobile Convergence Laboratory42 ONOS Subsystems Structure • Provider • Interface with the network via protocol-specific library • Manager • Receives information from Providera and serves it to application and service • Store • Synchronizing the information received by the Manager

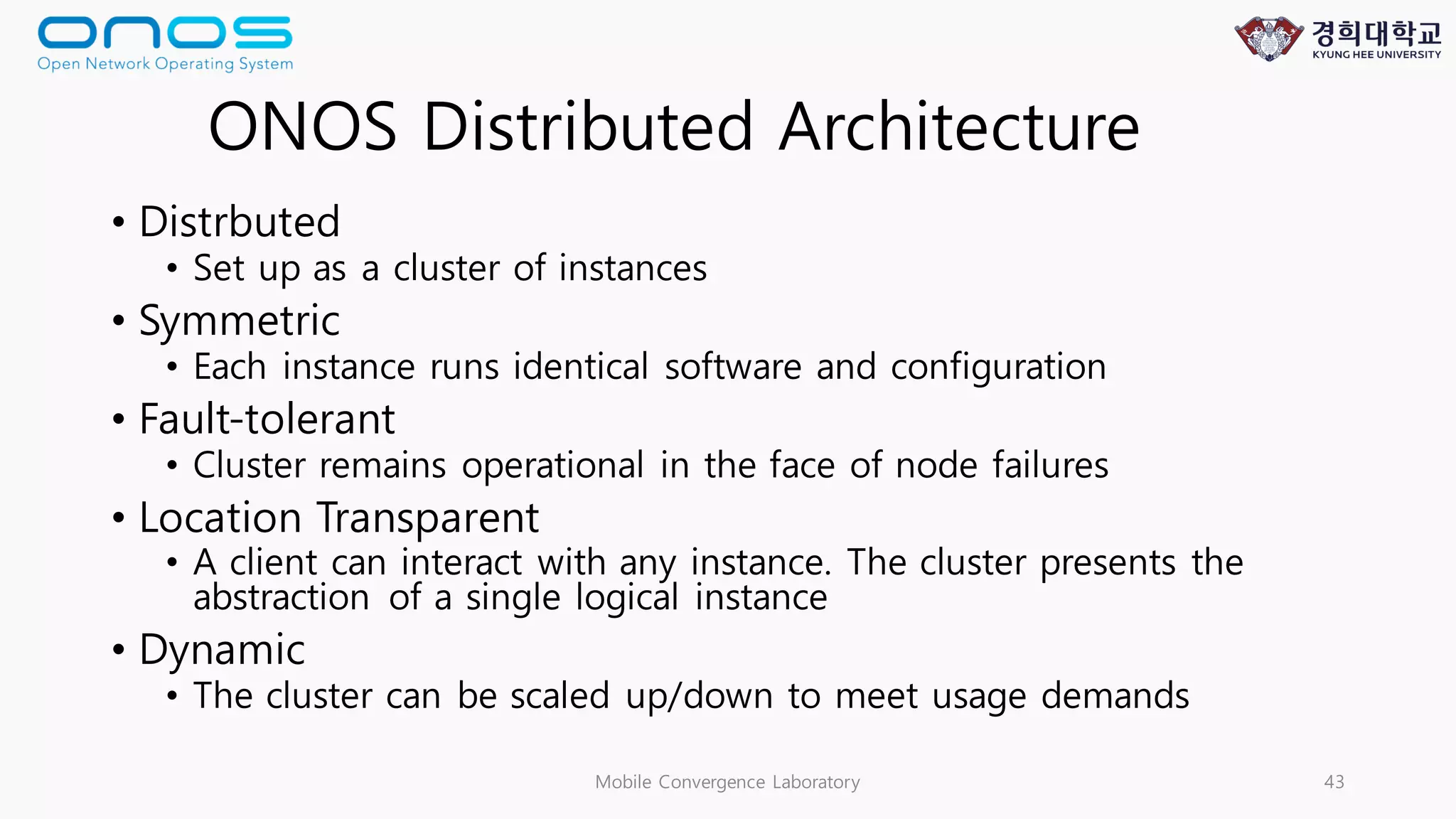

- 43. • Distrbuted • Setup as a cluster of instances • Symmetric • Each instance runs identical software and configuration • Fault-tolerant • Cluster remains operational in the face of node failures • Location Transparent • A client can interact with any instance. The cluster presents the abstraction of a single logical instance • Dynamic • The cluster can be scaled up/down to meet usage demands Mobile Convergence Laboratory 43 ONOS Distributed Architecture

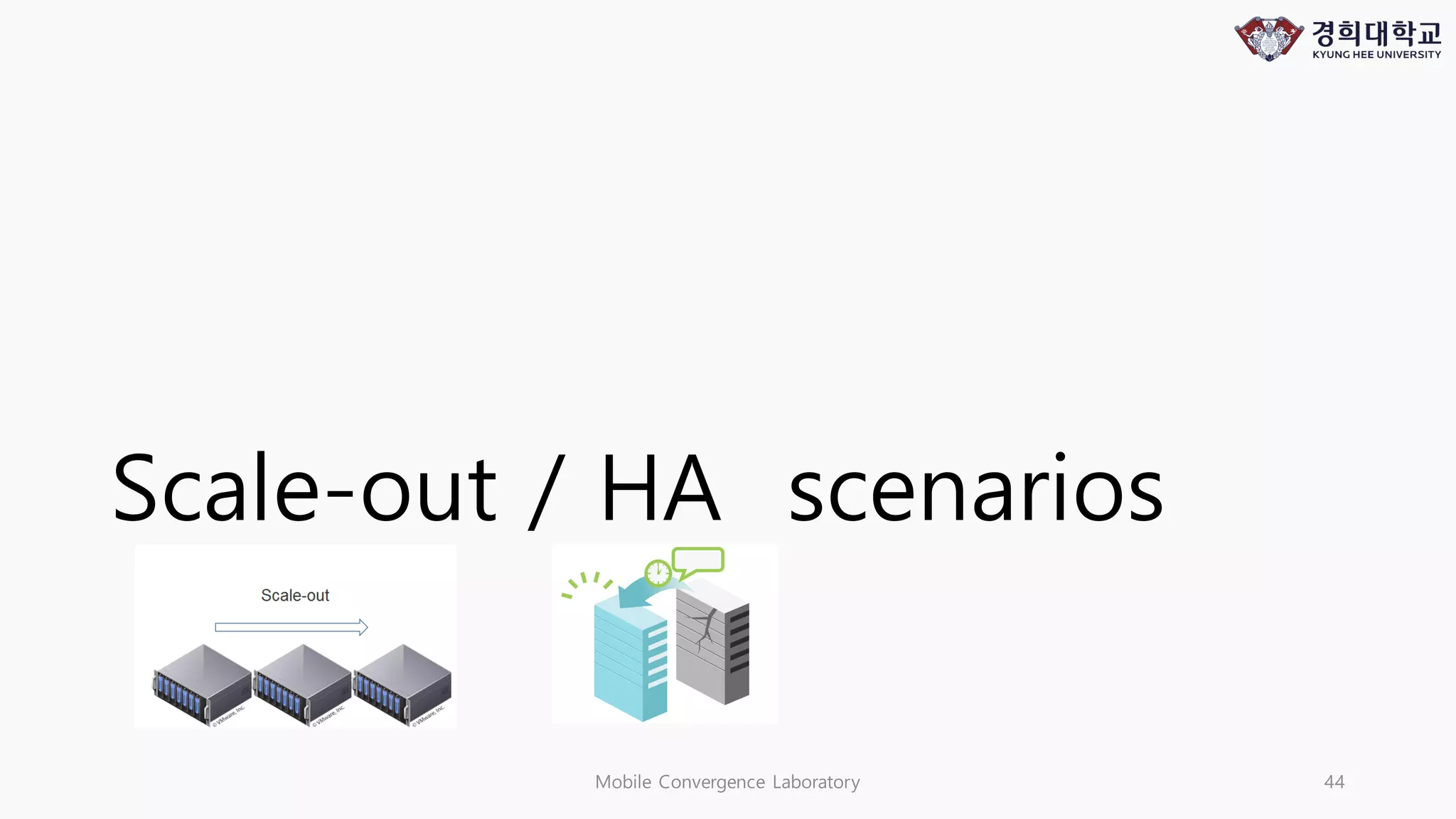

- 44. Scale-out / HAscenarios Mobile Convergence Laboratory 44

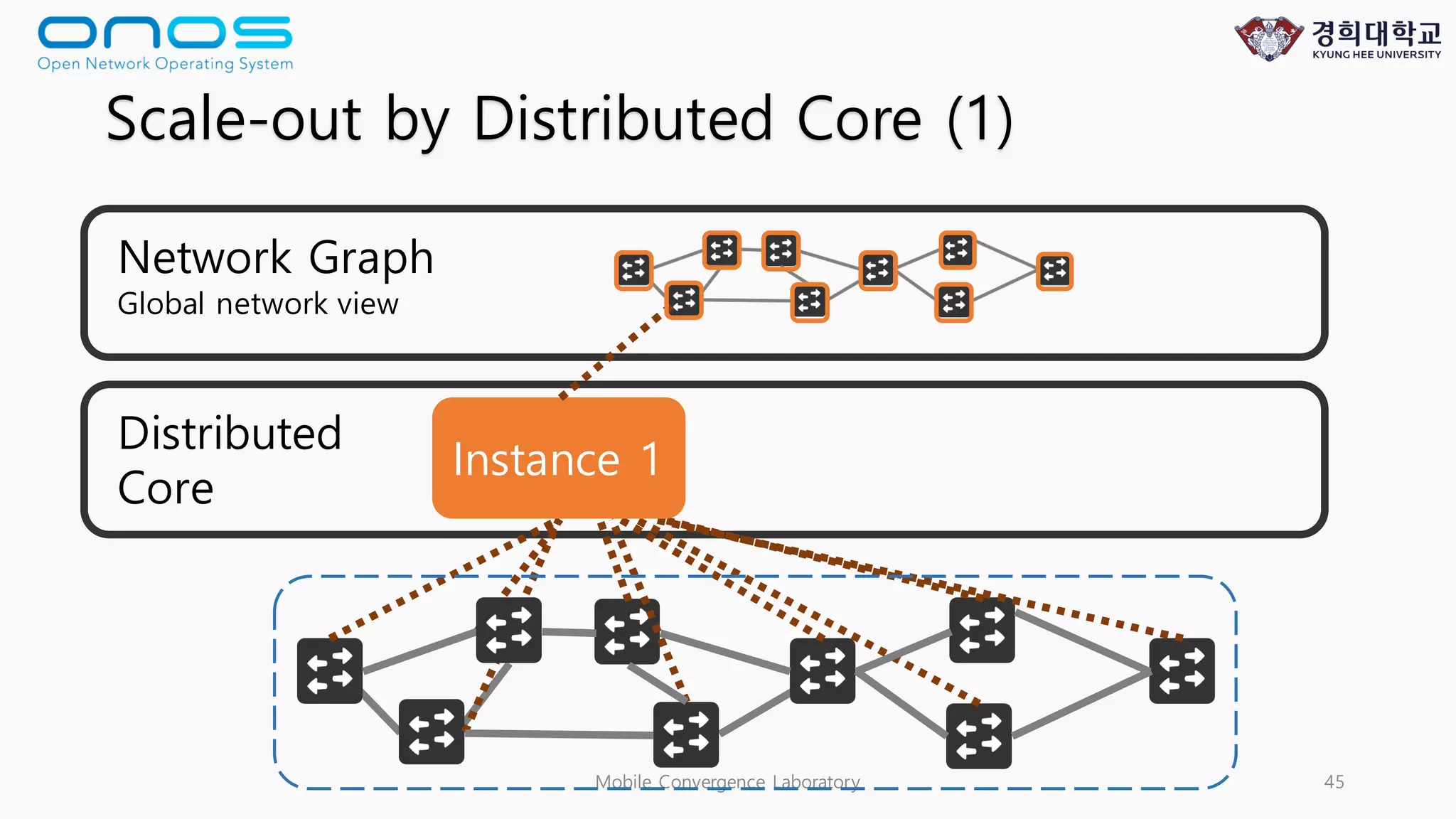

- 45. Mobile Convergence Laboratory45 Distributed Core Instance 1 Scale-out by Distributed Core (1) Network Graph Global network view

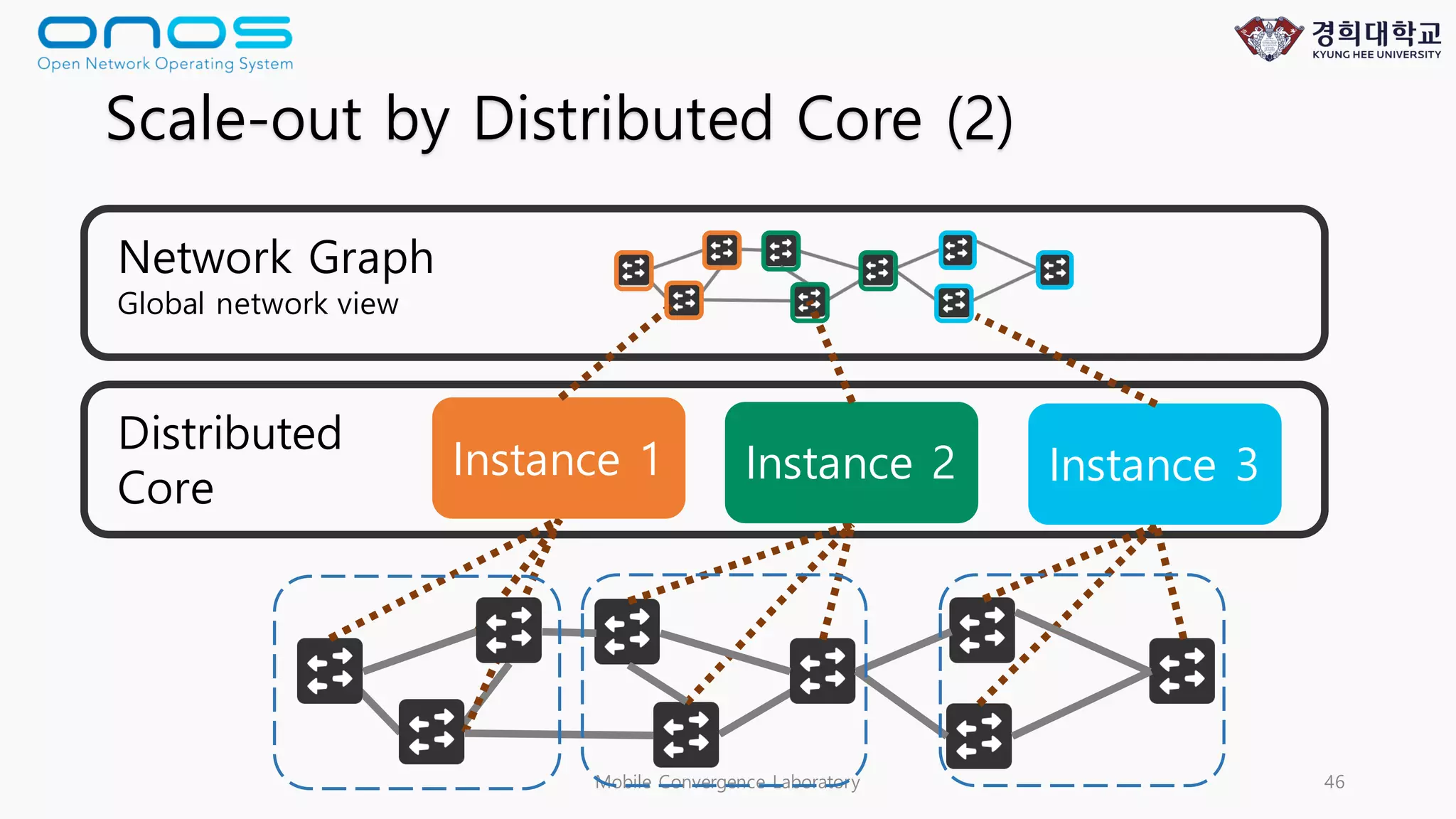

- 46. Mobile Convergence Laboratory46 Distributed Core Instance 1 Instance 2 Instance 3 Scale-out by Distributed Core (2) Network Graph Global network view

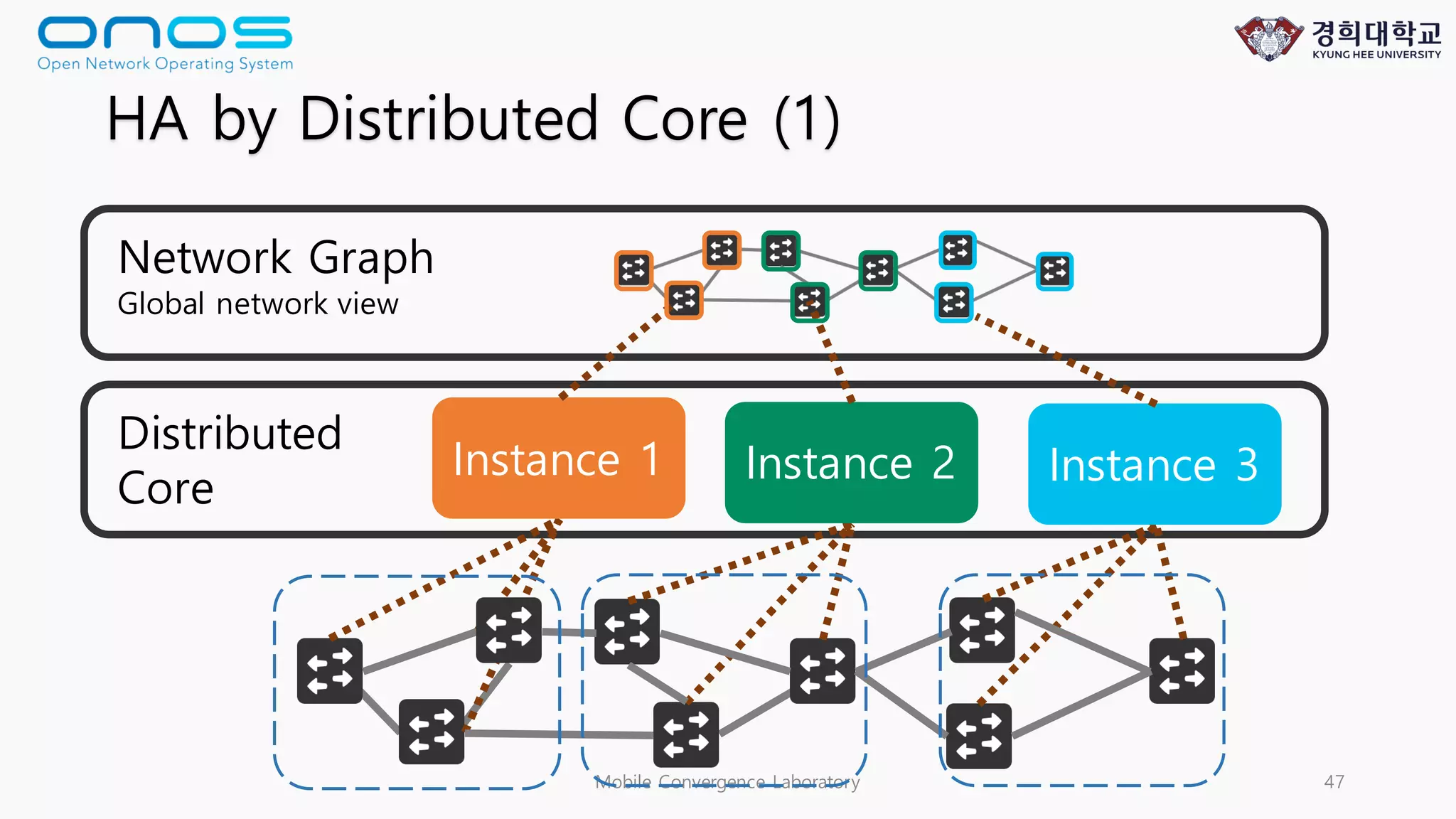

- 47. Mobile Convergence Laboratory47 Distributed Core Instance 1 Instance 2 Instance 3 HA by Distributed Core (1) Network Graph Global network view
- 48. Mobile Convergence Laboratory48 Distributed Core Instance 1 Instance 2 Instance 3 HA by Distributed Core (2) Network Graph Global network view

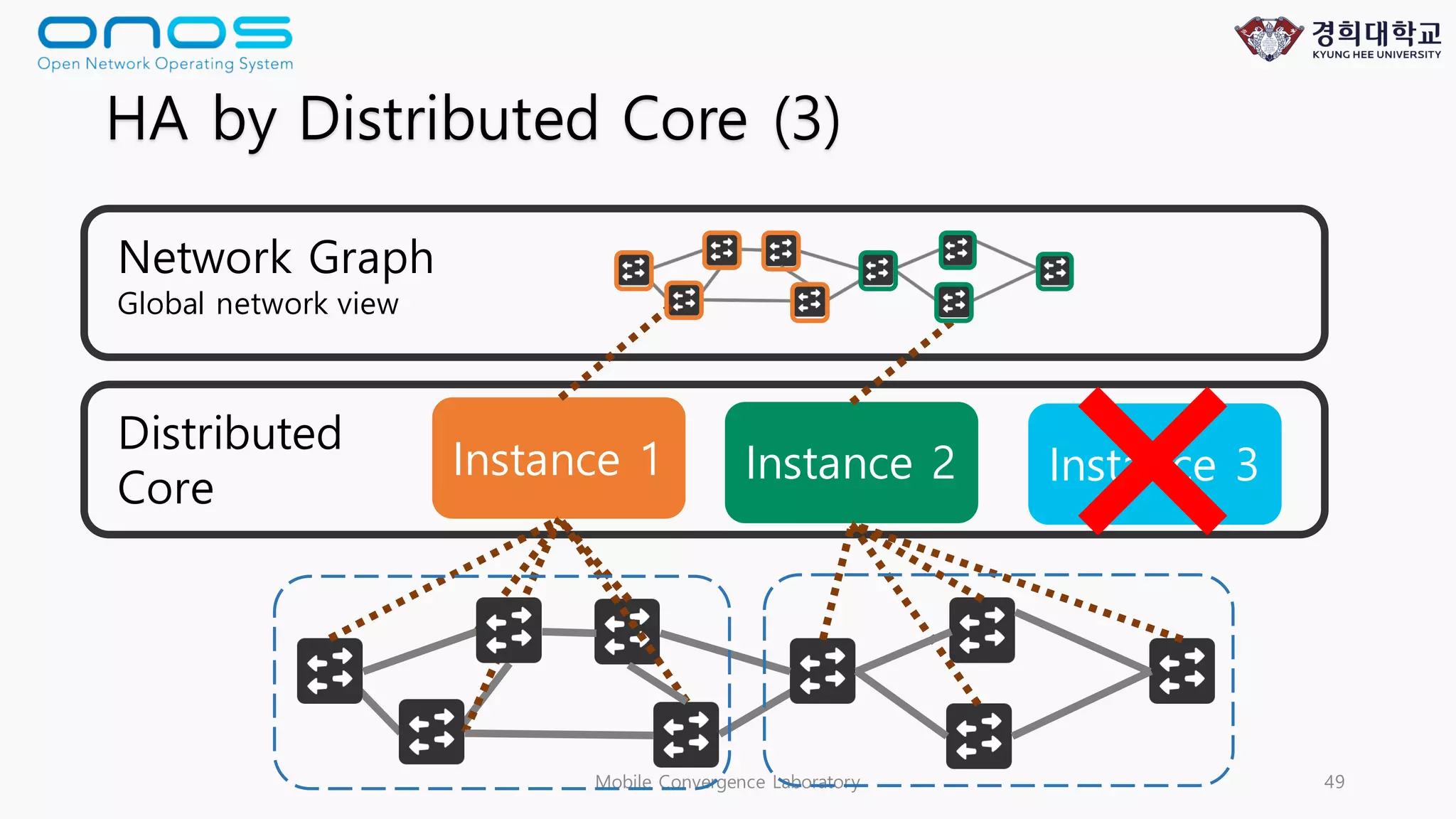

- 49. Mobile Convergence Laboratory49 Distributed Core Instance 1 Instance 2 Instance 3 HA by Distributed Core (3) Network Graph Global network view

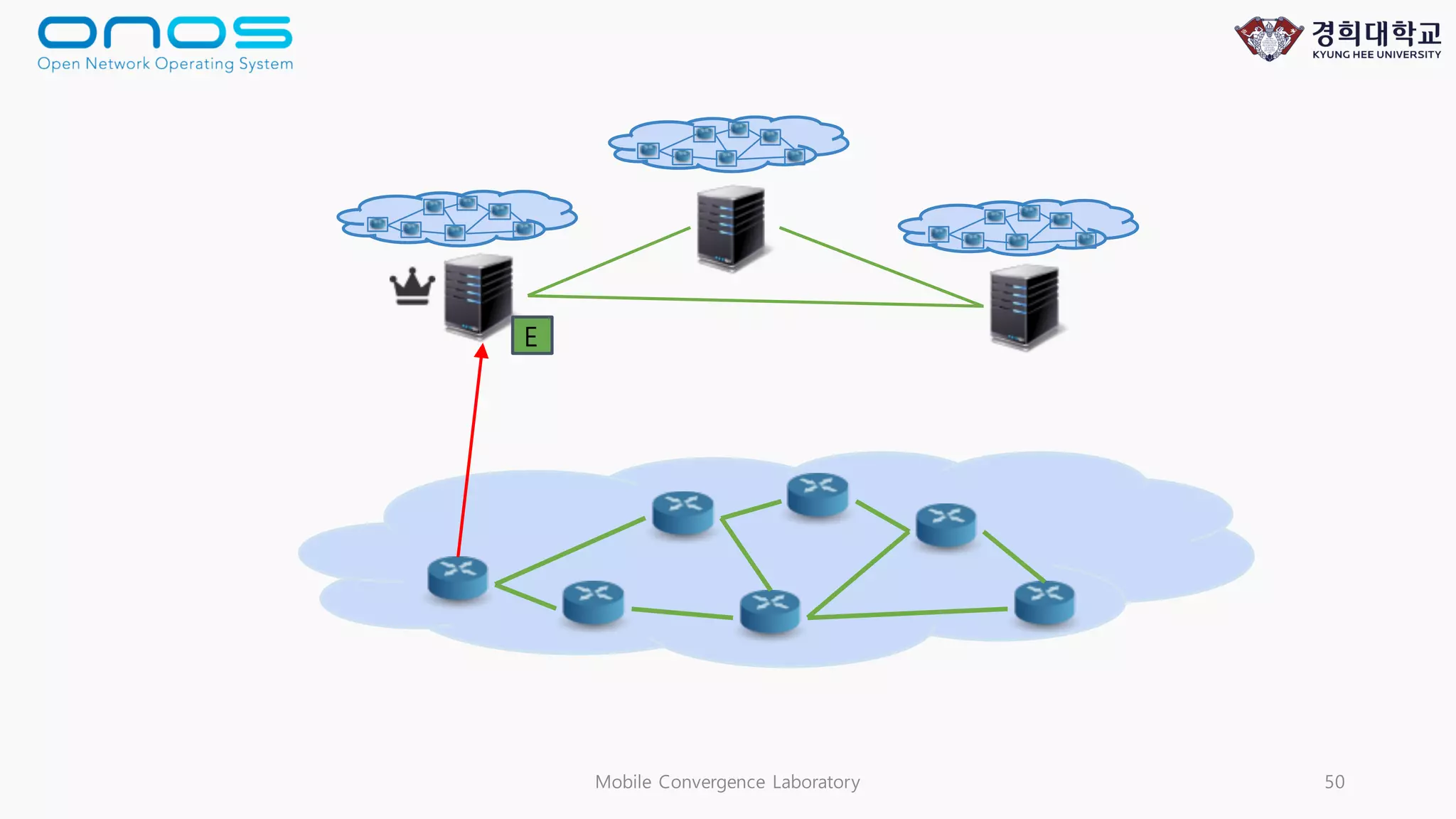

- 50.

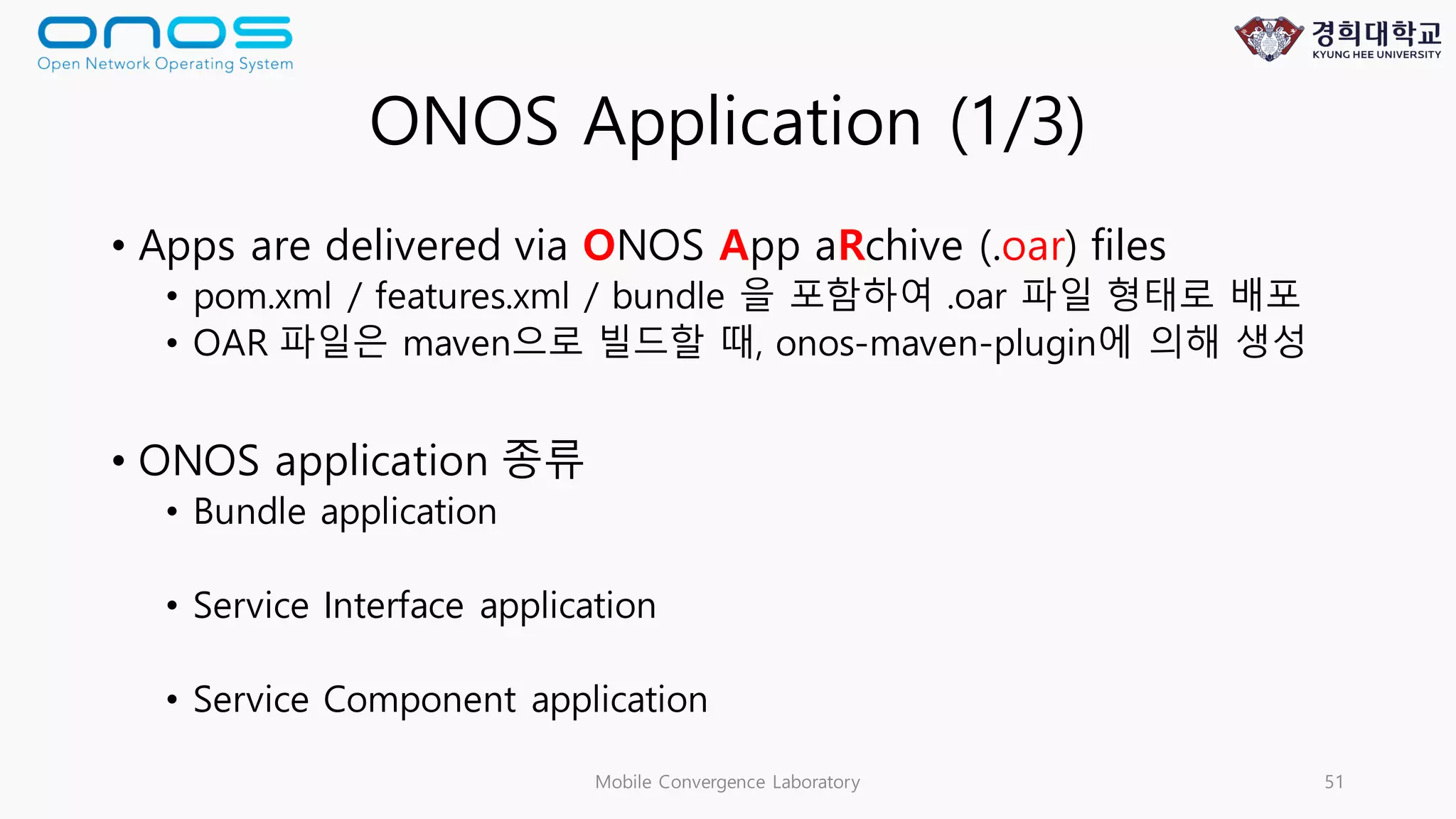

- 51. ONOS Application (1/3) •Apps are delivered via ONOS App aRchive (.oar) files • pom.xml / features.xml / bundle 을 포함하여 .oar 파일 형태로 배포 • OAR 파일은 maven으로 빌드할 때, onos-maven-plugin에 의해 생성 • ONOS application 종류 • Bundle application • Service Interface application • Service Component application Mobile Convergence Laboratory 51

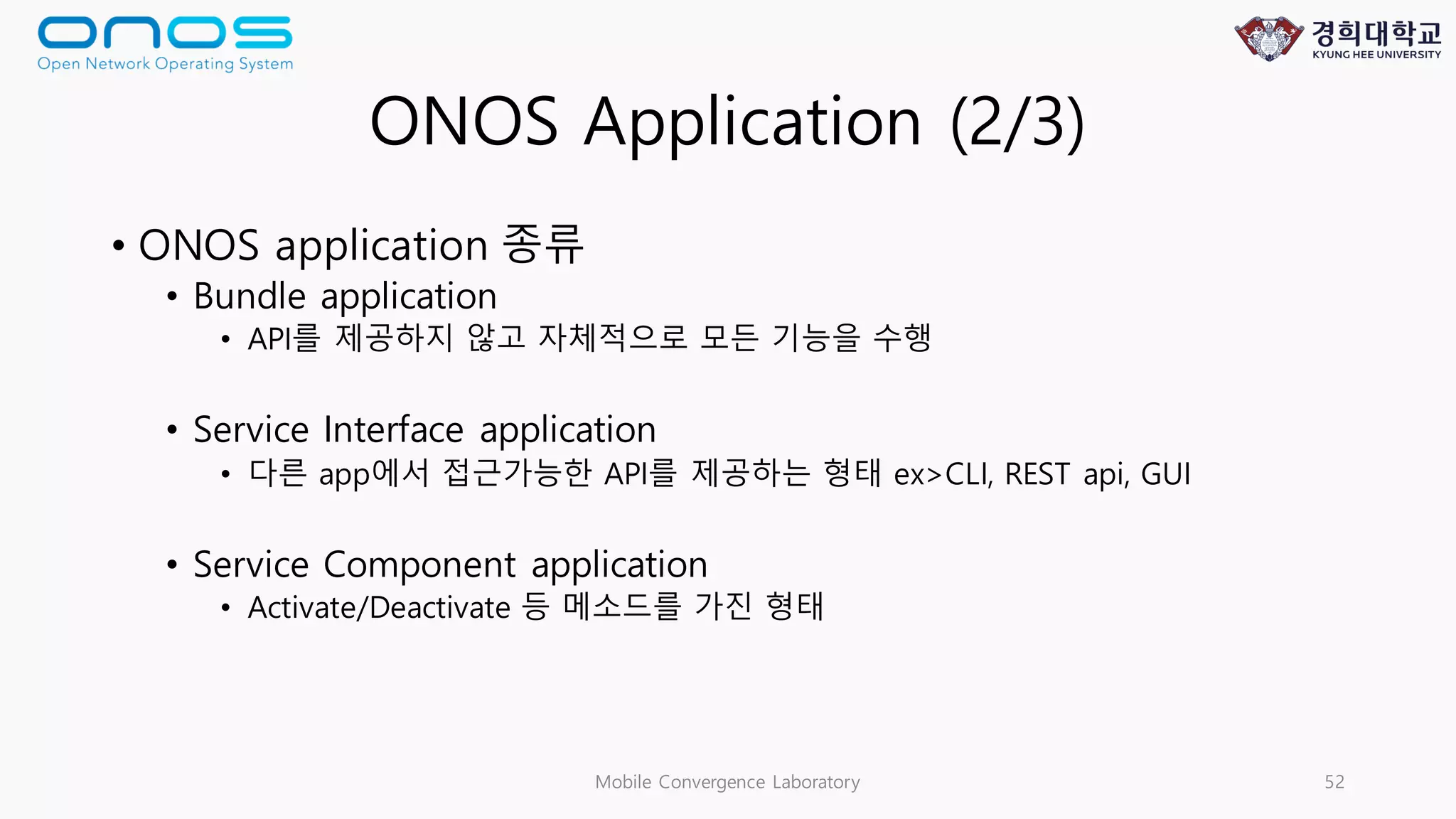

- 52. ONOS Application (2/3) •ONOS application 종류 • Bundle application • API를 제공하지 않고 자체적으로 모든 기능을 수행 • Service Interface application • 다른 app에서 접근가능한 API를 제공하는 형태 ex>CLI, REST api, GUI • Service Component application • Activate/Deactivate 등 메소드를 가진 형태 Mobile Convergence Laboratory 52

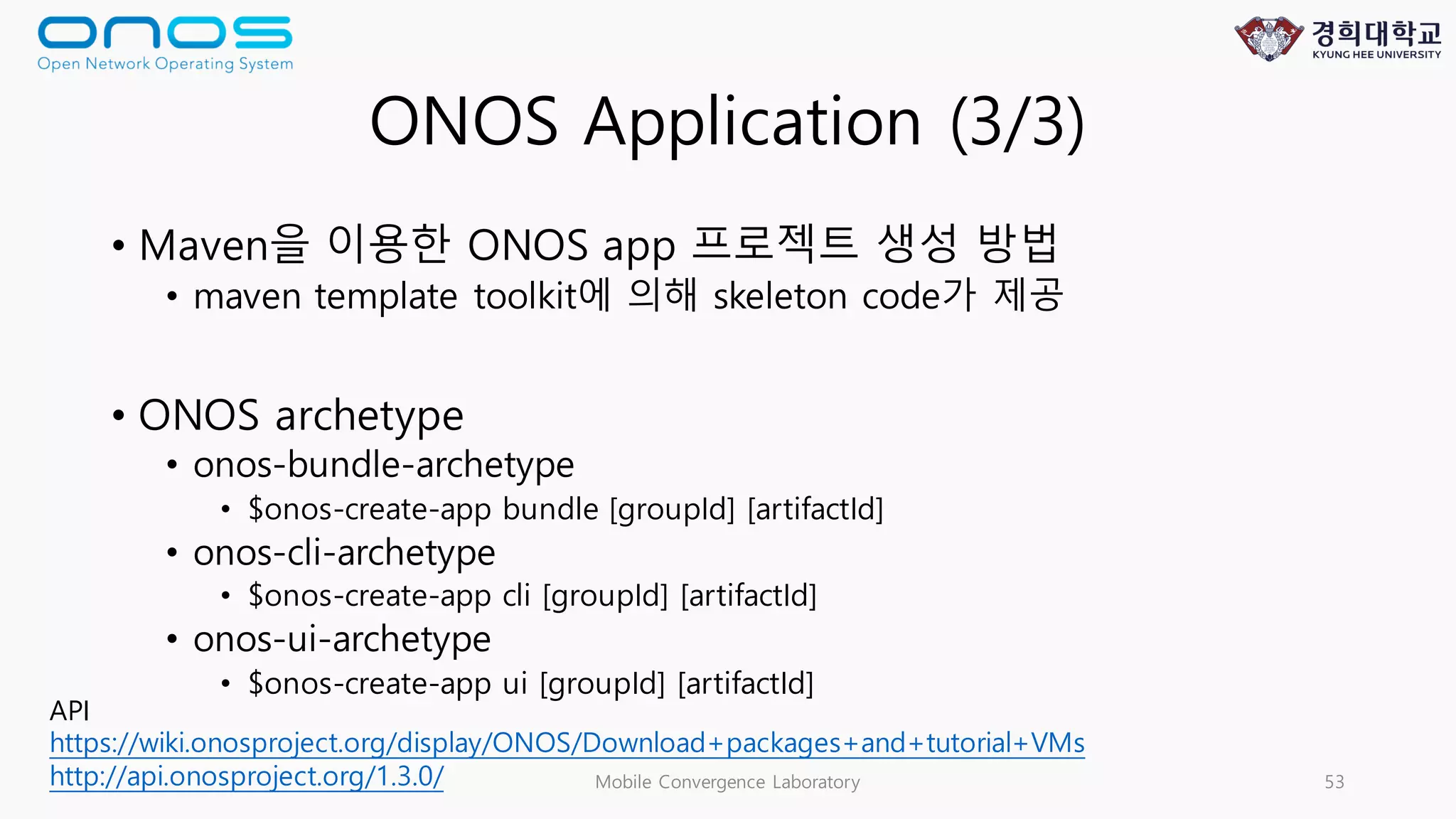

- 53. ONOS Application (3/3) •Maven을 이용한 ONOS app 프로젝트 생성 방법 • maven template toolkit에 의해 skeleton code가 제공 • ONOS archetype • onos-bundle-archetype • $onos-create-app bundle [groupId] [artifactId] • onos-cli-archetype • $onos-create-app cli [groupId] [artifactId] • onos-ui-archetype • $onos-create-app ui [groupId] [artifactId] Mobile Convergence Laboratory 53 API https://wiki.onosproject.org/display/ONOS/Download+packages+and+tutorial+VMs http://api.onosproject.org/1.3.0/

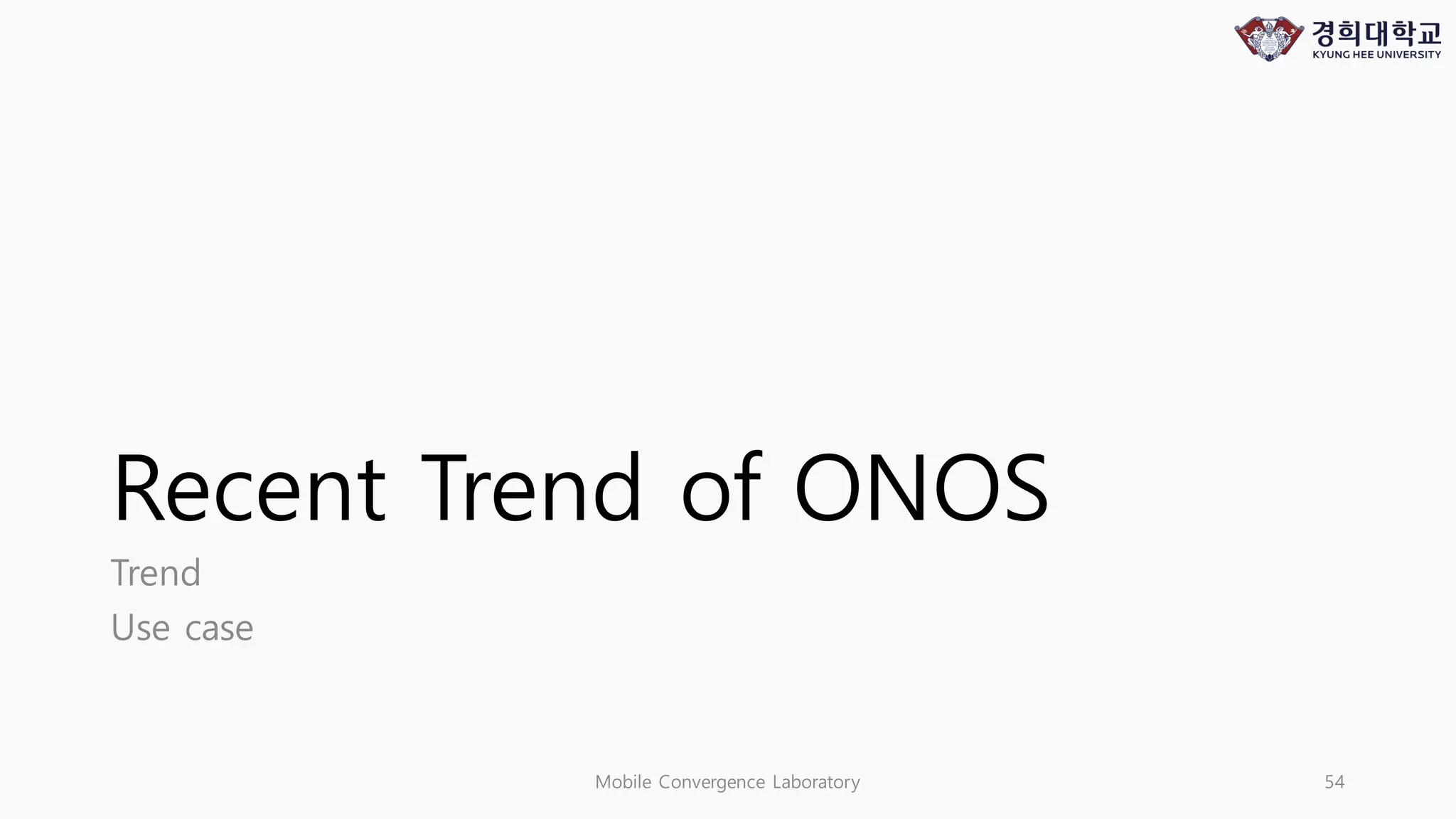

- 54. Recent Trend ofONOS Trend Use case Mobile Convergence Laboratory 54
- 55. Mobile Convergence Laboratory55 The center of SDN/NFV
- 56. Mobile Convergence Laboratory56 ONOS Framework(ONOSFW)

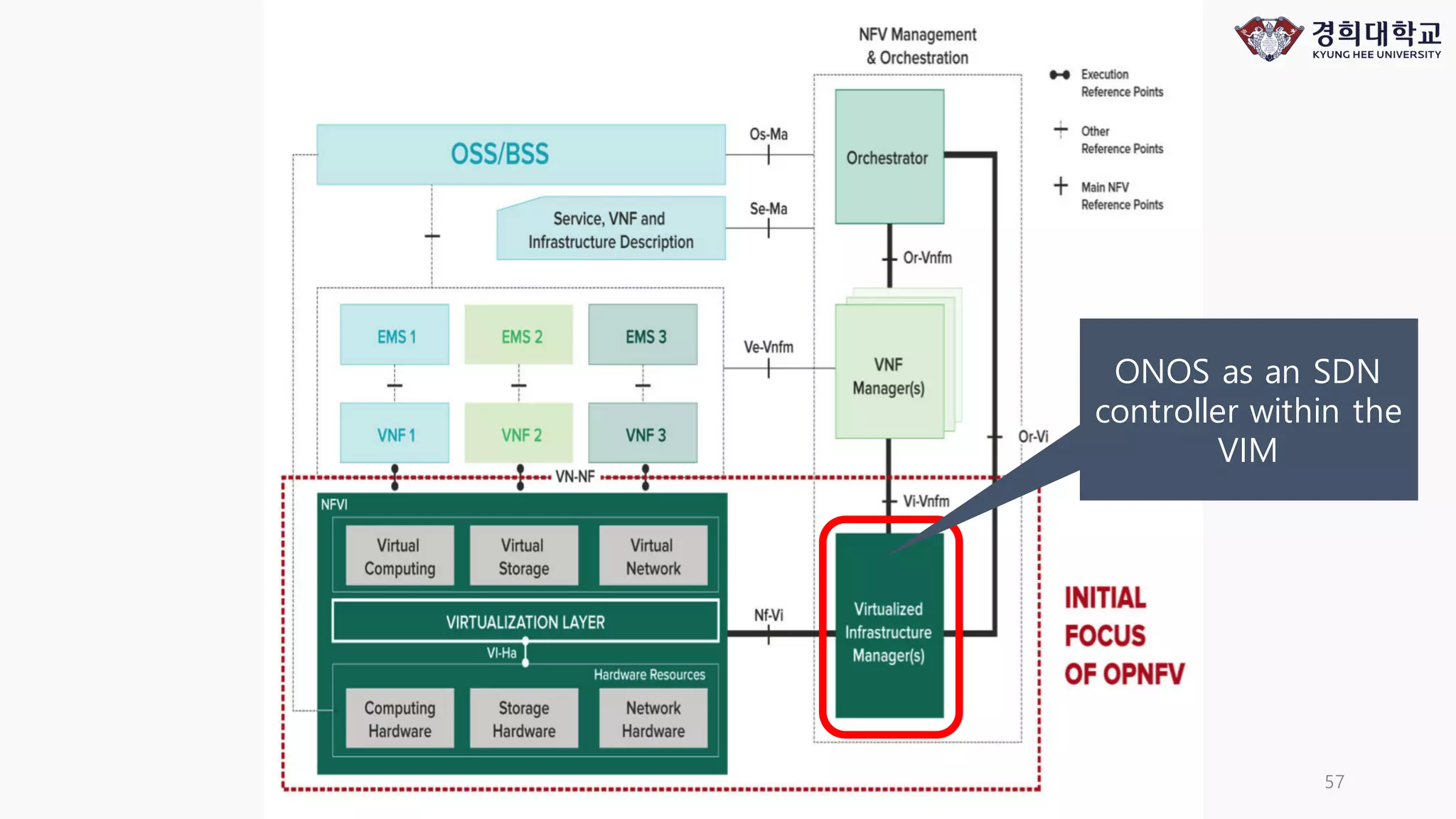

- 57. Mobile Convergence Laboratory57 ONOS as an SDN controller within the VIM
- 58. Mobile Convergence Laboratory58 ONOS with Linux Foundation
- 59. Mobile Convergence Laboratory59http://opencord.org/ Central Office Re-architected as a Datacenter

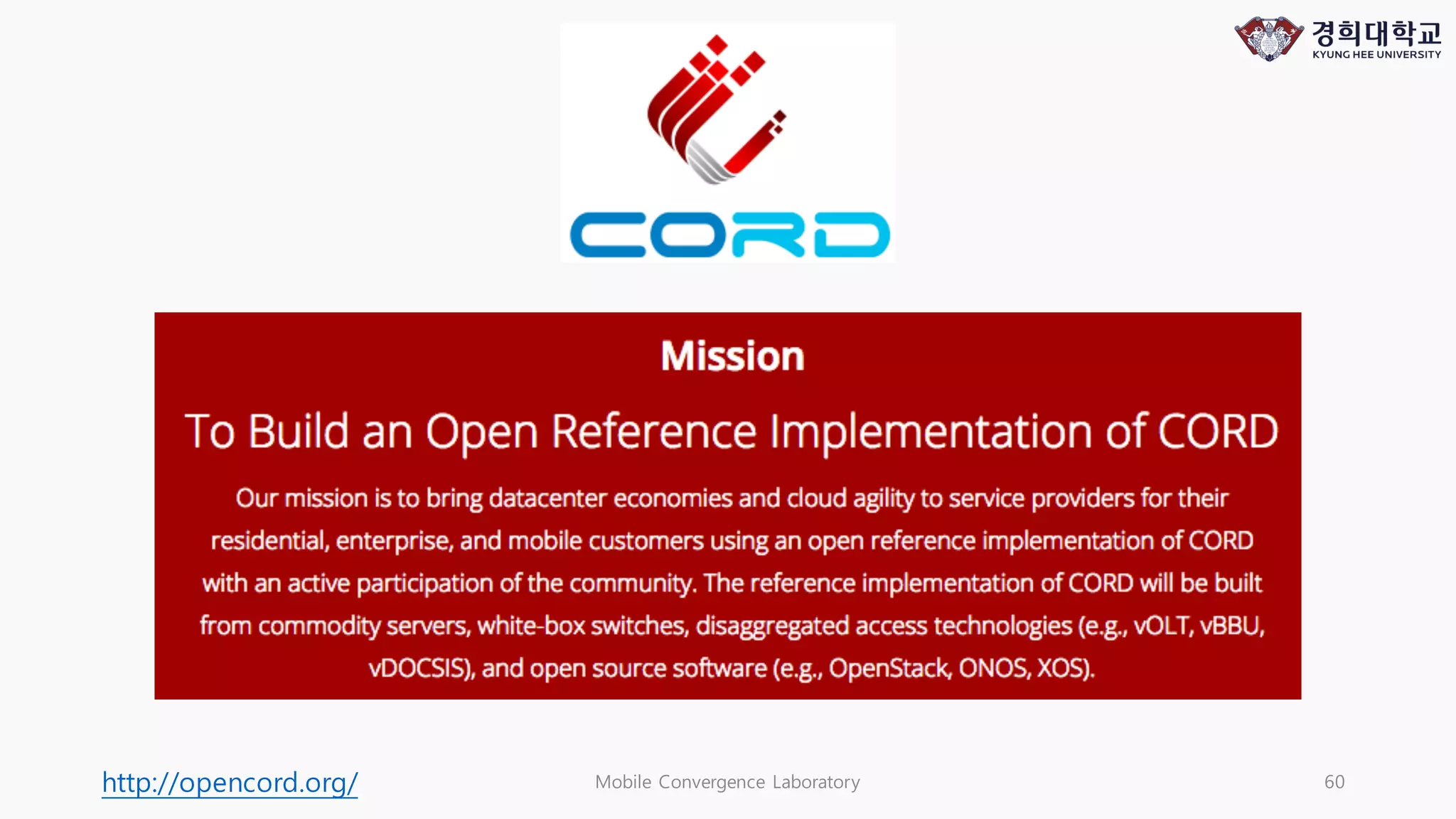

- 60. Mobile Convergence Laboratory60http://opencord.org/

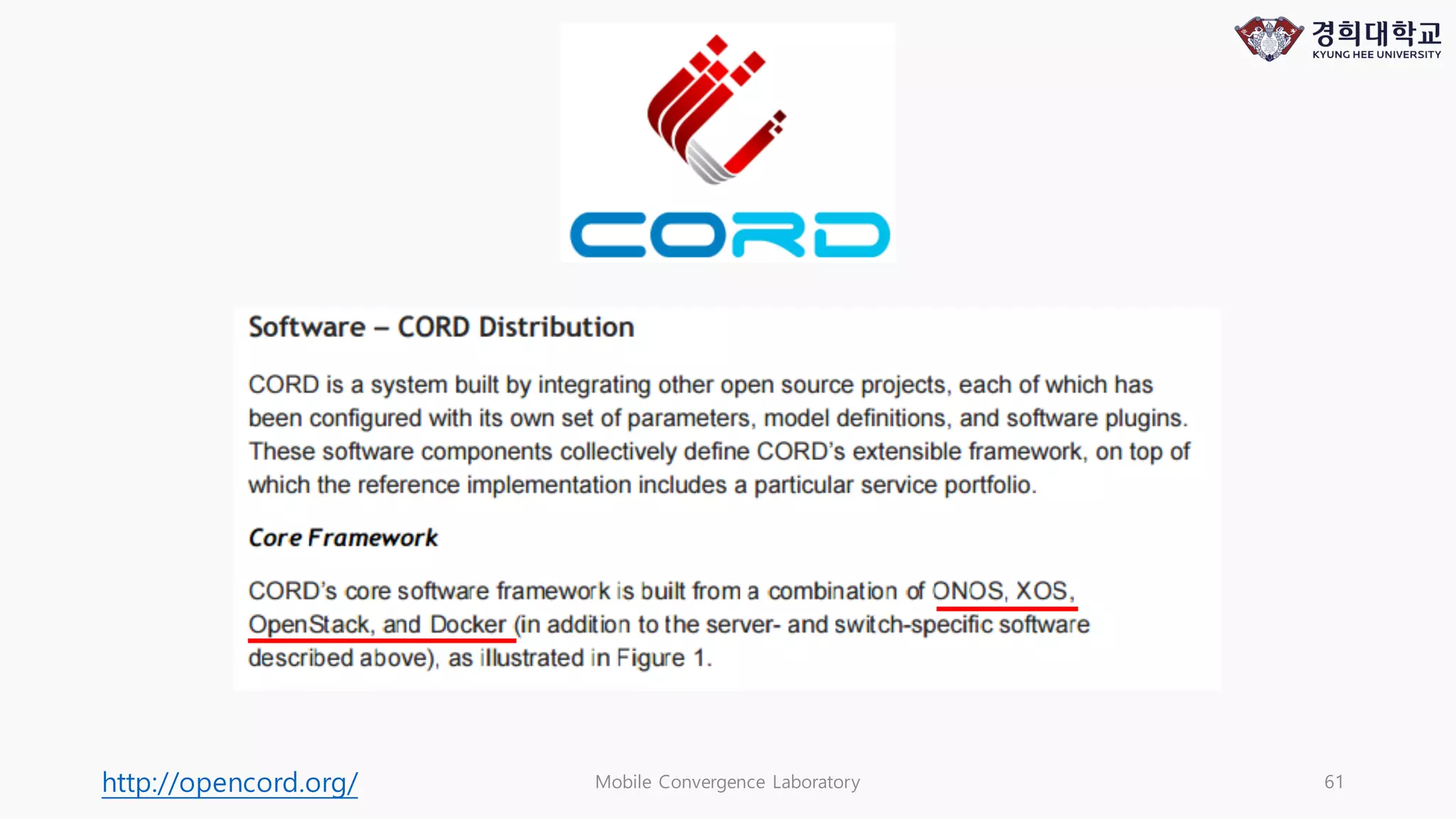

- 61. Mobile Convergence Laboratory61http://opencord.org/

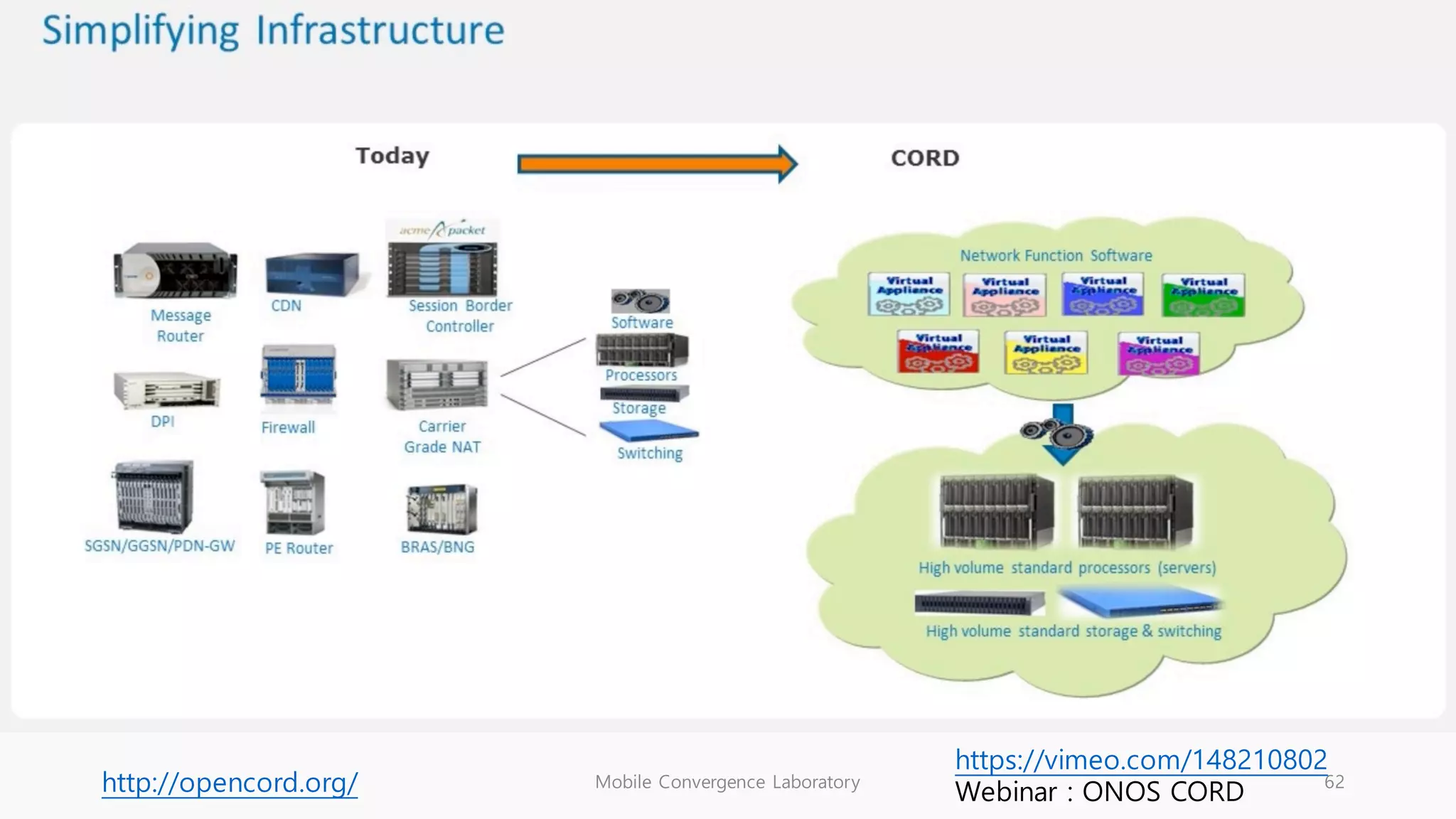

- 62. Mobile Convergence Laboratory62http://opencord.org/ https://vimeo.com/148210802 Webinar : ONOS CORD

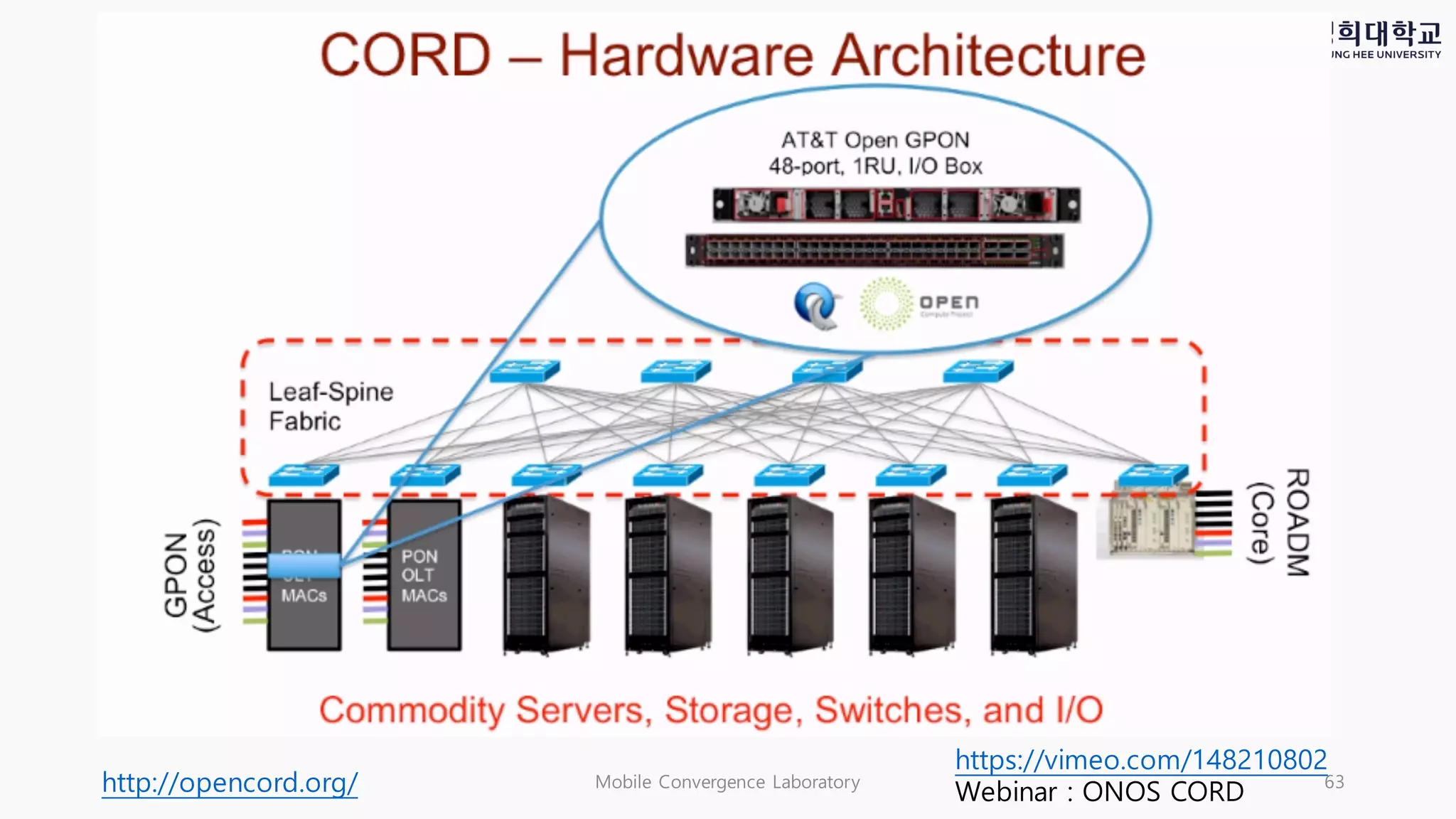

- 63. Mobile Convergence Laboratory63http://opencord.org/ https://vimeo.com/148210802 Webinar : ONOS CORD

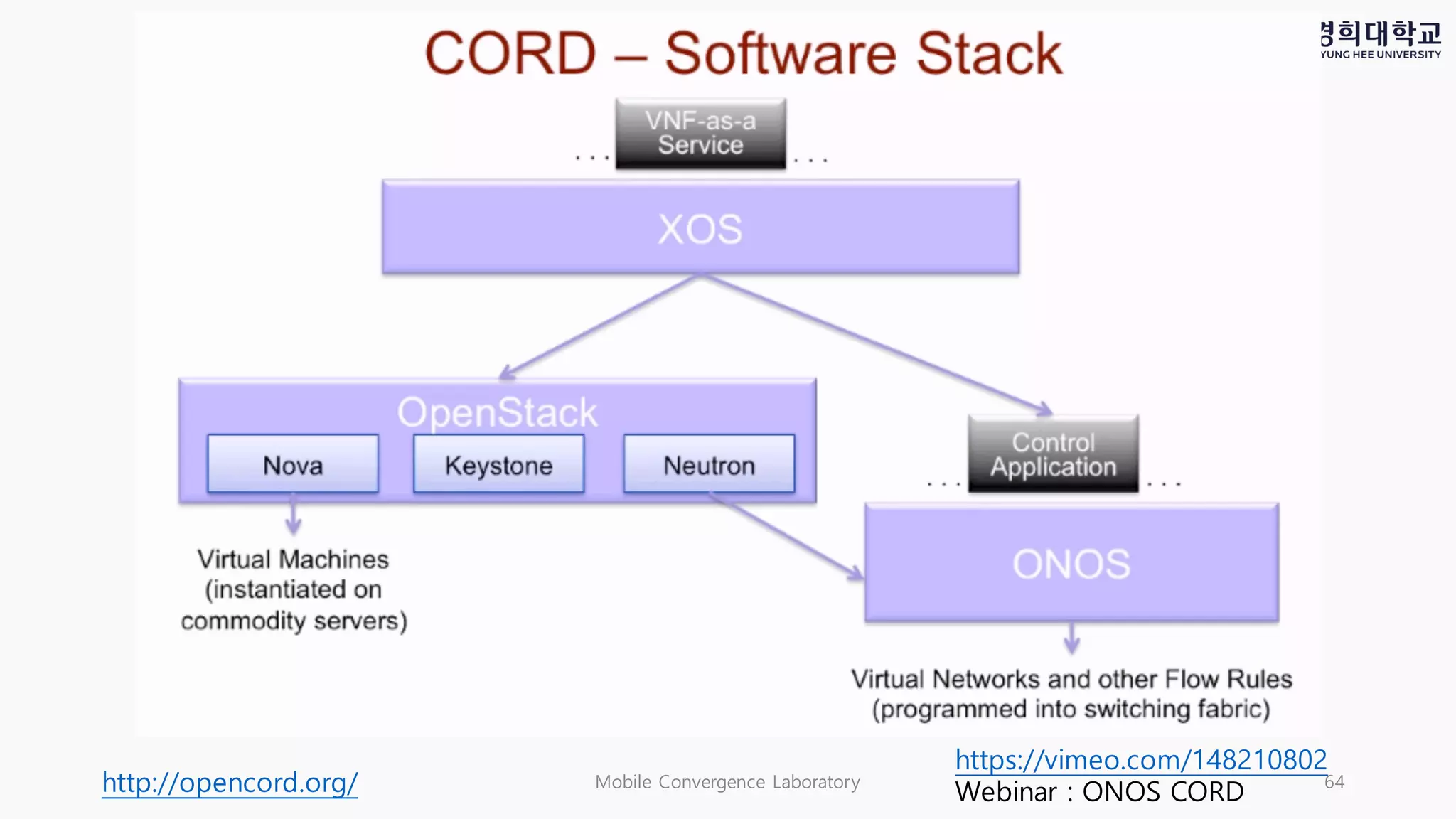

- 64. Mobile Convergence Laboratory64http://opencord.org/ https://vimeo.com/148210802 Webinar : ONOS CORD
- 65. Mobile Convergence Laboratory65http://opencord.org/ M-CORD E-CORDR-CORD

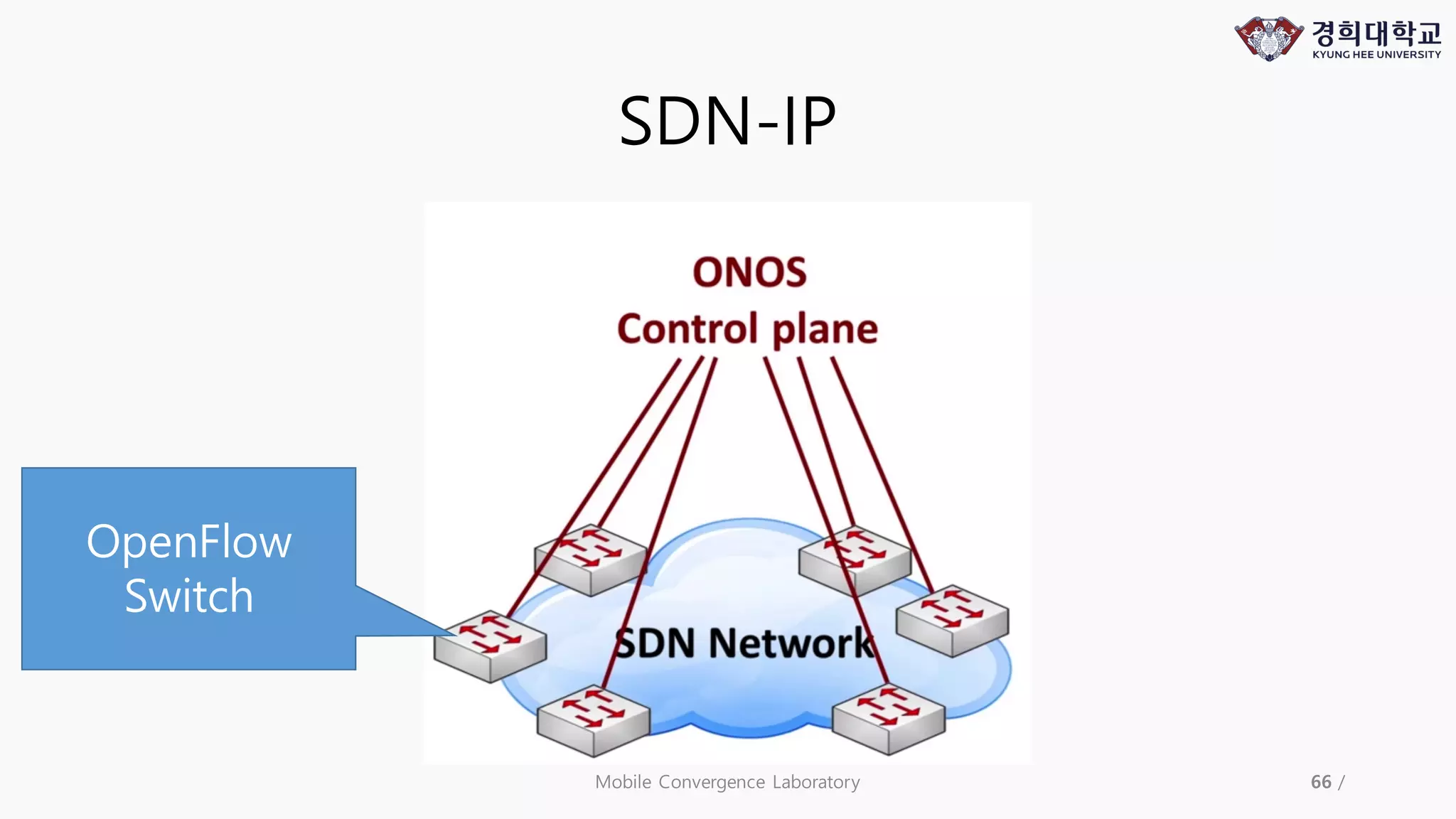

- 66. Mobile Convergence Laboratory66 / OpenFlow Switch SDN-IP

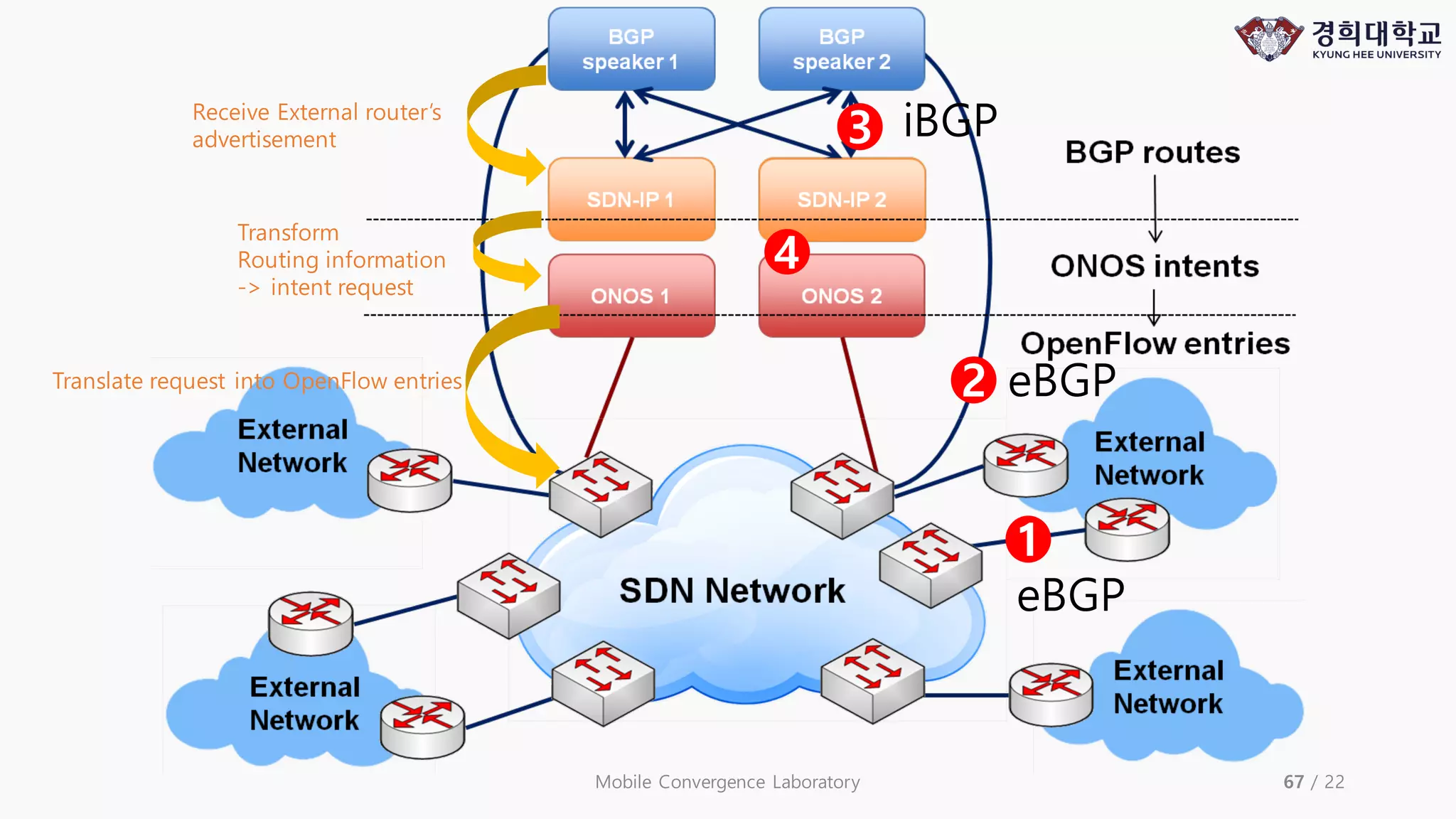

- 67. Mobile Convergence Laboratory67 / 22 1 2 3 4 eBGP eBGP Receive External router’s advertisement iBGP Transform Routing information -> intent request Translate request into OpenFlow entries
- 68. Mobile Convergence Laboratory68 Pi only SDN (1/3) Raspberry Pi

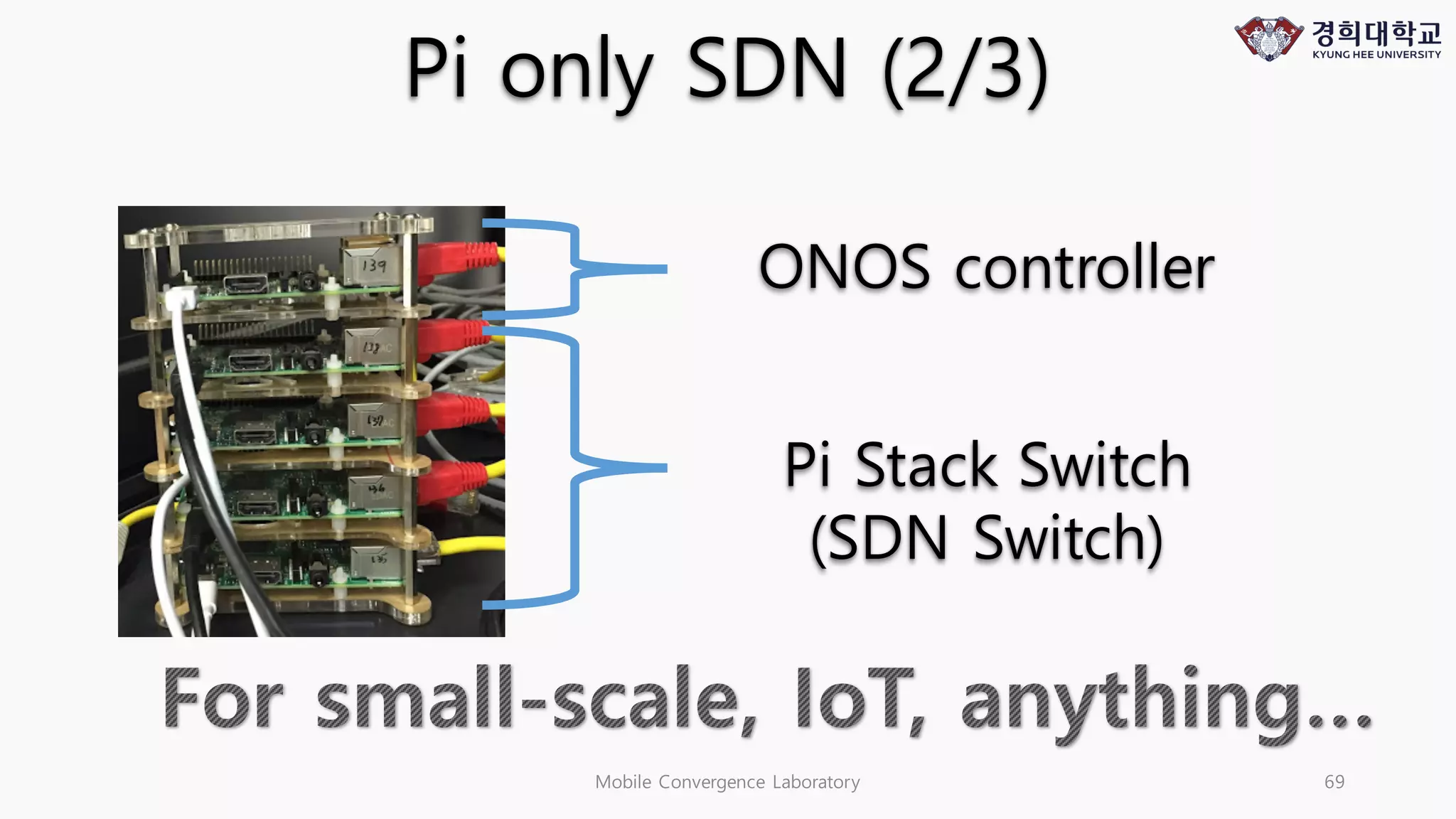

- 69. Mobile Convergence Laboratory69 Pi only SDN (2/3) ONOS controller Pi Stack Switch (SDN Switch)

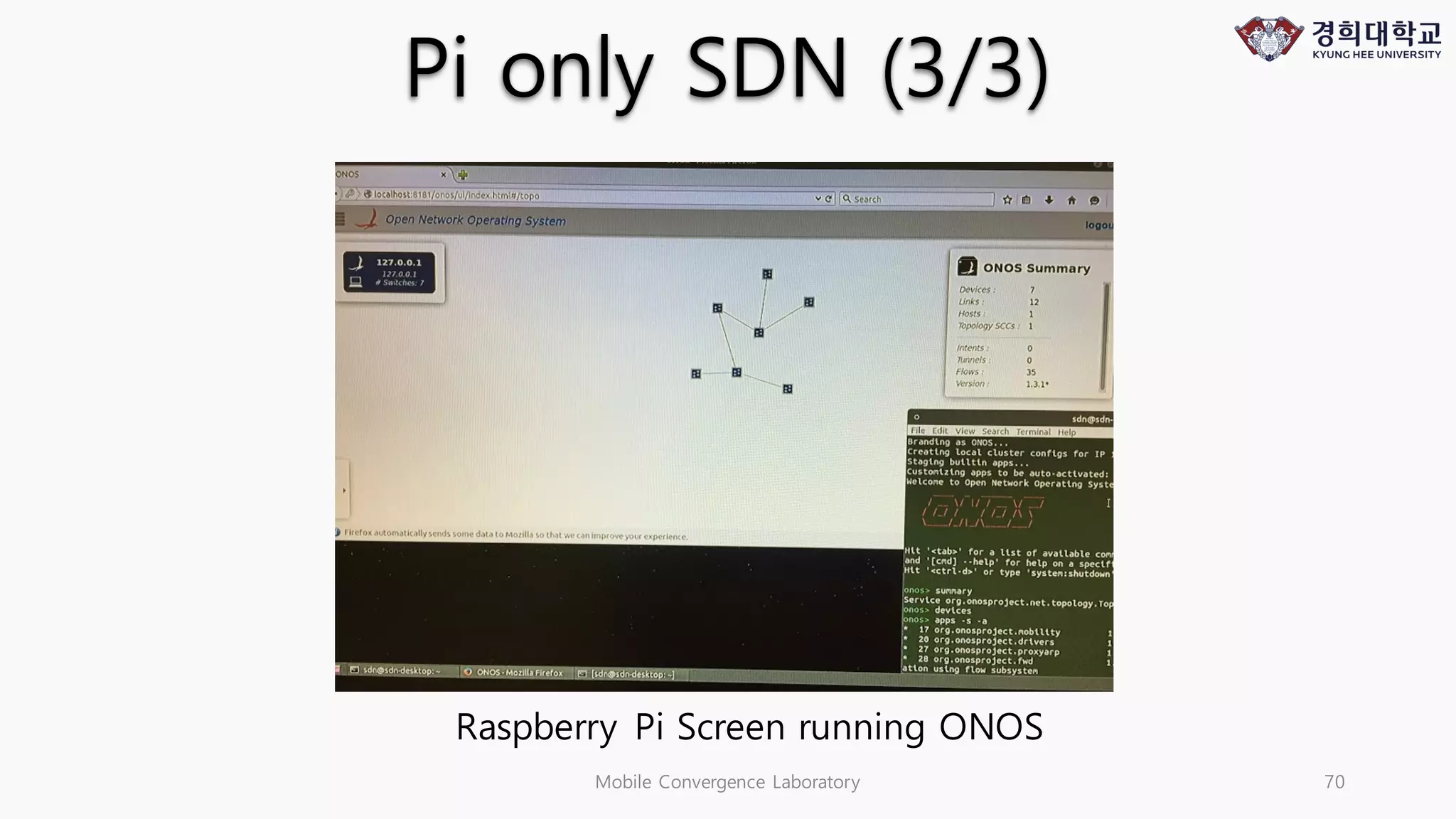

- 70. Mobile Convergence Laboratory70 Pi only SDN (3/3) Raspberry Pi Screen running ONOS

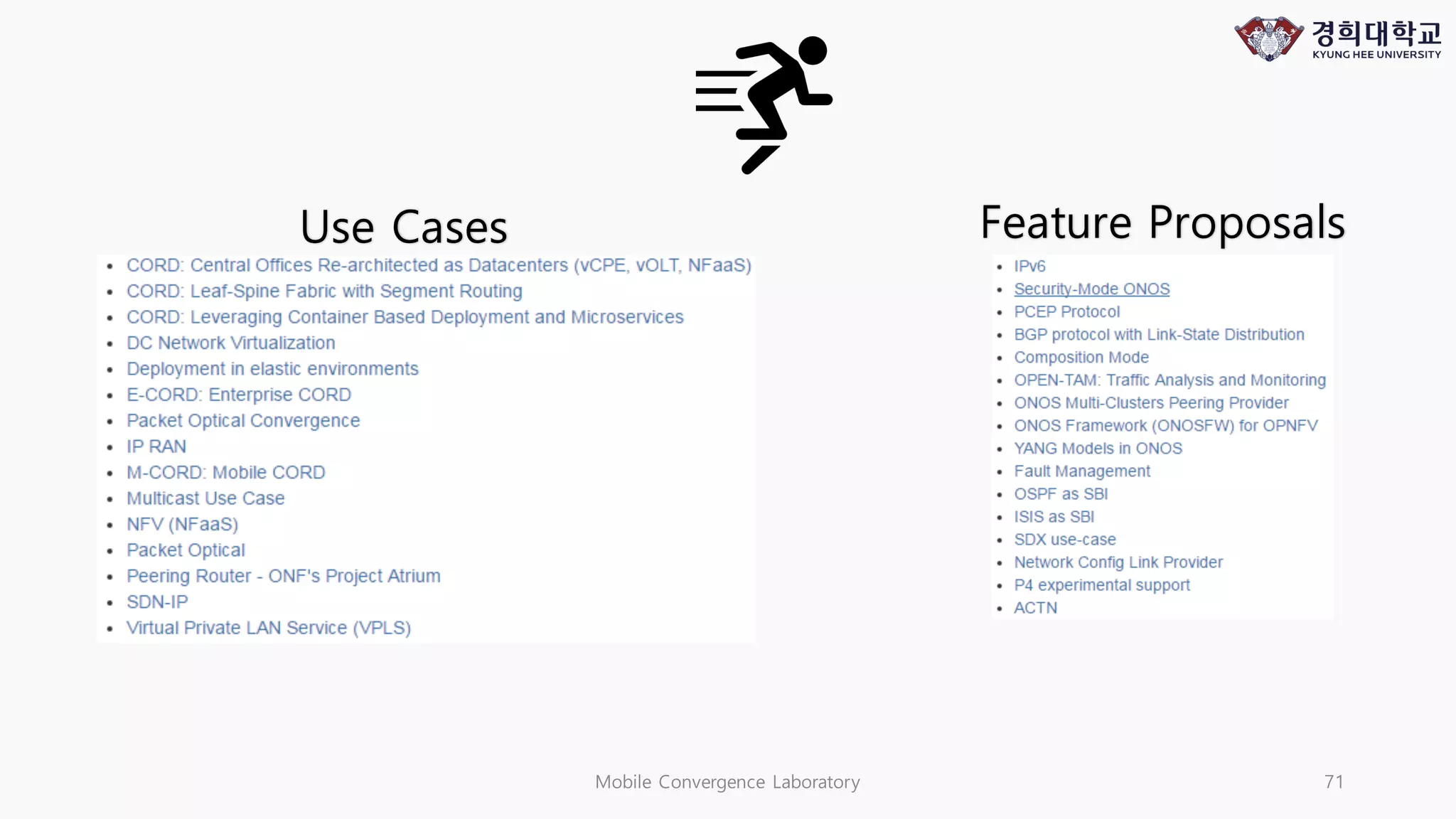

- 71. Mobile Convergence Laboratory71 Use Cases Feature Proposals
