1. GoDataDriven
PROUDLY PART OF THE XEBIA GROUP
@fzk
frisovanvollenhoven@godatadriven.com
Online Machine Learning
with Divolte Collector
Friso van Vollenhoven
CTO

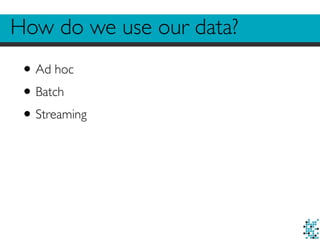

2. How do we use our data?
•Ad hoc
•Batch
•Streaming

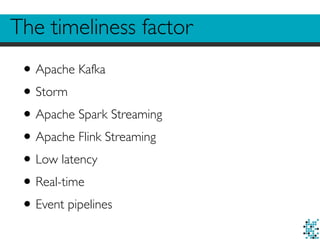

3. The timeliness factor
•Apache Kafka
•Storm
•Apache Spark Streaming
•Apache Flink Streaming
•Low latency
•Real-time
•Event pipelines

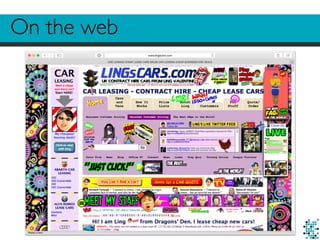

4. On the web

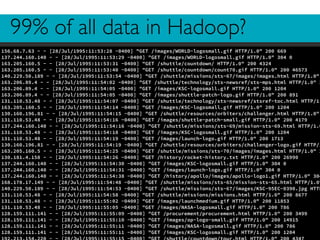

5. 99% of all data in Hadoop?
156.68.7.63 - - [28/Jul/1995:11:53:28 -0400] "GET /images/WORLD-logosmall.gif HTTP/1.0" 200 669
137.244.160.140 - - [28/Jul/1995:11:53:29 -0400] "GET /images/WORLD-logosmall.gif HTTP/1.0" 304 0
163.205.160.5 - - [28/Jul/1995:11:53:31 -0400] "GET /shuttle/countdown/ HTTP/1.0" 200 4324
163.205.160.5 - - [28/Jul/1995:11:53:40 -0400] "GET /shuttle/countdown/count70.gif HTTP/1.0" 200 46573
140.229.50.189 - - [28/Jul/1995:11:53:54 -0400] "GET /shuttle/missions/sts-67/images/images.html HTTP/1.0"
163.206.89.4 - - [28/Jul/1995:11:54:02 -0400] "GET /shuttle/technology/sts-newsref/sts-mps.html HTTP/1.0" 2
163.206.89.4 - - [28/Jul/1995:11:54:05 -0400] "GET /images/KSC-logosmall.gif HTTP/1.0" 200 1204
163.206.89.4 - - [28/Jul/1995:11:54:05 -0400] "GET /images/shuttle-patch-logo.gif HTTP/1.0" 200 891
131.110.53.48 - - [28/Jul/1995:11:54:07 -0400] "GET /shuttle/technology/sts-newsref/stsref-toc.html HTTP/1.
163.205.160.5 - - [28/Jul/1995:11:54:14 -0400] "GET /images/KSC-logosmall.gif HTTP/1.0" 200 1204
130.160.196.81 - - [28/Jul/1995:11:54:15 -0400] "GET /shuttle/resources/orbiters/challenger.html HTTP/1.0"
131.110.53.48 - - [28/Jul/1995:11:54:16 -0400] "GET /images/shuttle-patch-small.gif HTTP/1.0" 200 4179
137.244.160.140 - - [28/Jul/1995:11:54:16 -0400] "GET /shuttle/missions/sts-69/mission-sts-69.html HTTP/1.0
131.110.53.48 - - [28/Jul/1995:11:54:18 -0400] "GET /images/KSC-logosmall.gif HTTP/1.0" 200 1204
131.110.53.48 - - [28/Jul/1995:11:54:19 -0400] "GET /images/launch-logo.gif HTTP/1.0" 200 1713
130.160.196.81 - - [28/Jul/1995:11:54:19 -0400] "GET /shuttle/resources/orbiters/challenger-logo.gif HTTP/1
163.205.160.5 - - [28/Jul/1995:11:54:25 -0400] "GET /shuttle/missions/sts-70/images/images.html HTTP/1.0" 2
130.181.4.158 - - [28/Jul/1995:11:54:26 -0400] "GET /history/rocket-history.txt HTTP/1.0" 200 26990
137.244.160.140 - - [28/Jul/1995:11:54:30 -0400] "GET /images/KSC-logosmall.gif HTTP/1.0" 304 0
137.244.160.140 - - [28/Jul/1995:11:54:31 -0400] "GET /images/launch-logo.gif HTTP/1.0" 304 0
137.244.160.140 - - [28/Jul/1995:11:54:38 -0400] "GET /history/apollo/images/apollo-logo1.gif HTTP/1.0" 304
168.178.17.149 - - [28/Jul/1995:11:54:48 -0400] "GET /shuttle/missions/sts-65/mission-sts-65.html HTTP/1.0"
140.229.50.189 - - [28/Jul/1995:11:54:53 -0400] "GET /shuttle/missions/sts-67/images/KSC-95EC-0390.jpg HTTP
131.110.53.48 - - [28/Jul/1995:11:54:58 -0400] "GET /shuttle/missions/missions.html HTTP/1.0" 200 8677
131.110.53.48 - - [28/Jul/1995:11:55:02 -0400] "GET /images/launchmedium.gif HTTP/1.0" 200 11853
131.110.53.48 - - [28/Jul/1995:11:55:05 -0400] "GET /images/NASA-logosmall.gif HTTP/1.0" 200 786
128.159.111.141 - - [28/Jul/1995:11:55:09 -0400] "GET /procurement/procurement.html HTTP/1.0" 200 3499
128.159.111.141 - - [28/Jul/1995:11:55:10 -0400] "GET /images/op-logo-small.gif HTTP/1.0" 200 14915
128.159.111.141 - - [28/Jul/1995:11:55:11 -0400] "GET /images/NASA-logosmall.gif HTTP/1.0" 200 786
128.159.111.141 - - [28/Jul/1995:11:55:11 -0400] "GET /images/KSC-logosmall.gif HTTP/1.0" 200 1204

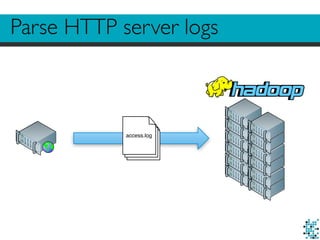

6. Parse HTTP server logs
access.log

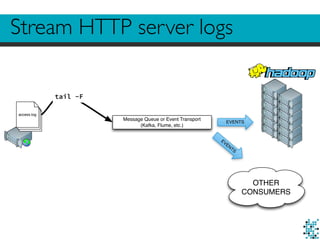

7. Stream HTTP server logs
access.log
Message Queue or Event Transport
(Kafka, Flume, etc.)
EVENTS
tail -F
EVENTS
OTHER
CONSUMERS

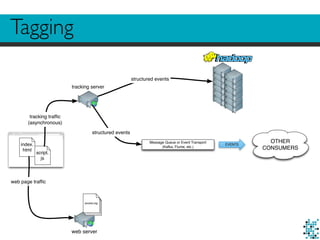

8. Tagging
index.
html
script.
js
web server
access.log
tracking server
Message Queue or Event Transport
(Kafka, Flume, etc.)
EVENTS
OTHER
CONSUMERS
web page traffic
tracking traffic
(asynchronous)
structured events
structured events

9. Tagging
•Not a new idea (Google Analytics, Omniture,
etc.)
•Less garbage traffic, because a browser is
required to evaluate the tag
•Event logging is asynchronous
•Easier to do inflight processing (apply a schema,
add enrichments, etc.)
•Allows for custom events (other than page view)

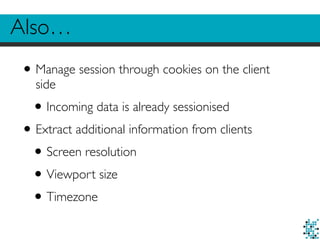

10. Also…
•Manage session through cookies on the client
side
•Incoming data is already sessionised
•Extract additional information from clients
•Screen resolution
•Viewport size
•Timezone

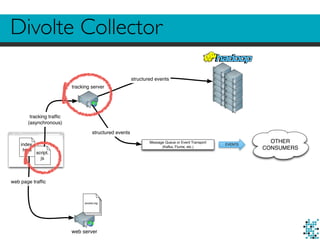

11. Divolte Collector
index.
html
script.
js
web server
access.log
tracking server
Message Queue or Event Transport
(Kafka, Flume, etc.)
EVENTS
OTHER
CONSUMERS
web page traffic
tracking traffic
(asynchronous)
structured events
structured events

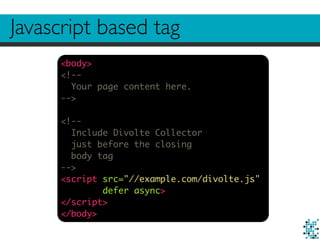

12. Javascript based tag
<body>
<!--
Your page content here.
-->
<!--
Include Divolte Collector
just before the closing
body tag
-->
<script src="//example.com/divolte.js"
defer async>
</script>
</body>

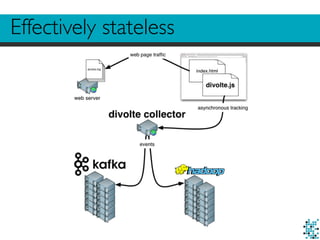

13. Effectively stateless

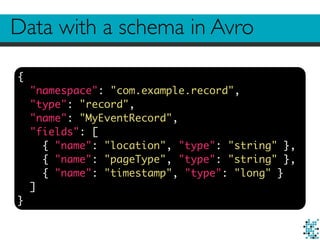

14. Data with a schema in Avro
{
"namespace": "com.example.record",
"type": "record",
"name": "MyEventRecord",
"fields": [
{ "name": "location", "type": "string" },
{ "name": "pageType", "type": "string" },
{ "name": "timestamp", "type": "long" }
]
}

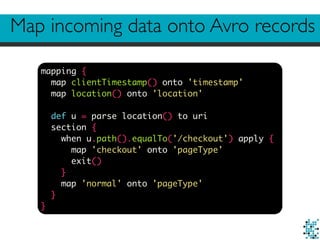

15. Map incoming data onto Avro records
mapping {
map clientTimestamp() onto 'timestamp'
map location() onto 'location'
def u = parse location() to uri
section {
when u.path().equalTo('/checkout') apply {
map 'checkout' onto 'pageType'
exit()
}
map 'normal' onto 'pageType'
}
}

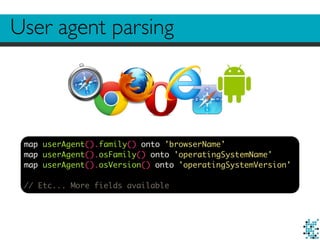

16. User agent parsing
map userAgent().family() onto 'browserName'
map userAgent().osFamily() onto 'operatingSystemName'
map userAgent().osVersion() onto 'operatingSystemVersion'
// Etc... More fields available

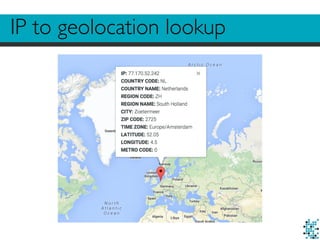

17. IP to geolocation lookup

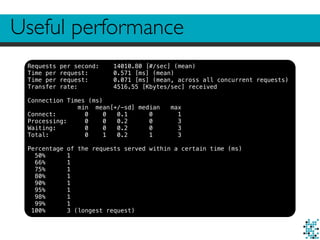

18. Useful performance
Requests per second: 14010.80 [#/sec] (mean)
Time per request: 0.571 [ms] (mean)
Time per request: 0.071 [ms] (mean, across all concurrent requests)
Transfer rate: 4516.55 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 0 0.1 0 1
Processing: 0 0 0.2 0 3
Waiting: 0 0 0.2 0 3
Total: 0 1 0.2 1 3
Percentage of the requests served within a certain time (ms)
50% 1
66% 1
75% 1
80% 1
90% 1
95% 1
98% 1
99% 1
100% 3 (longest request)

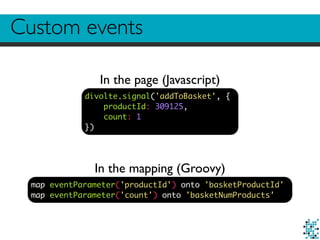

19. Custom events
divolte.signal('addToBasket', {
productId: 309125,
count: 1
})
In the page (Javascript)
map eventParameter('productId') onto 'basketProductId'
map eventParameter('count') onto 'basketNumProducts'
In the mapping (Groovy)

20. Avro data, use any tool

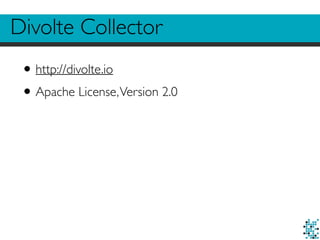

21. Divolte Collector
•http://divolte.io
•Apache License,Version 2.0

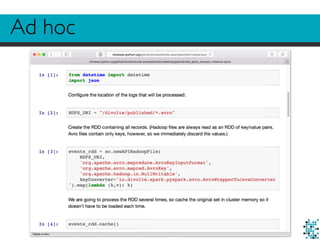

22. Ad hoc

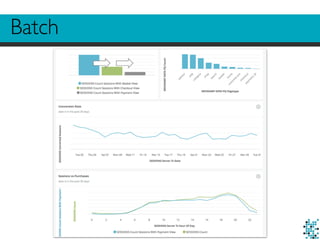

23. Batch

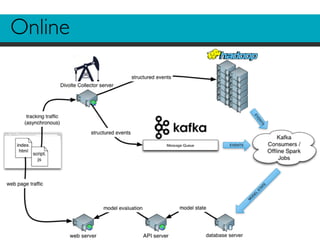

24. Online

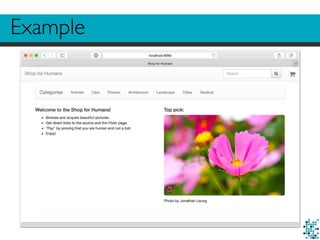

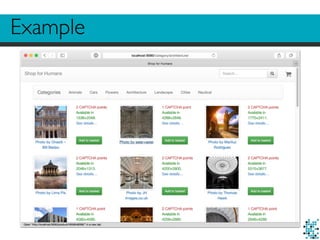

25. Example

26. Example

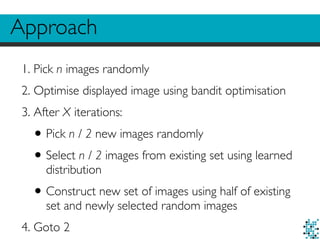

27. Approach
1. Pick n images randomly
2. Optimise displayed image using bandit optimisation
3. After X iterations:
•Pick n / 2 new images randomly
•Select n / 2 images from existing set using learned
distribution
•Construct new set of images using half of existing
set and newly selected random images
4. Goto 2

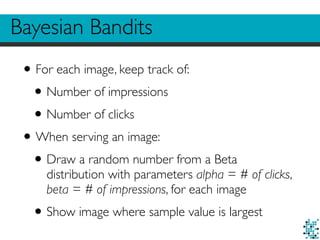

28. Bayesian Bandits
•For each image, keep track of:
•Number of impressions
•Number of clicks
•When serving an image:
•Draw a random number from a Beta
distribution with parameters alpha = # of clicks,
beta = # of impressions, for each image
•Show image where sample value is largest

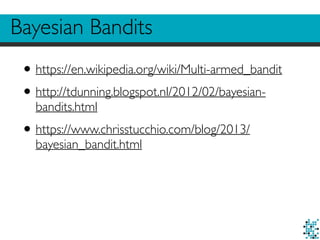

29. Bayesian Bandits
•https://en.wikipedia.org/wiki/Multi-armed_bandit
•http://tdunning.blogspot.nl/2012/02/bayesian-
bandits.html
•https://www.chrisstucchio.com/blog/2013/
bayesian_bandit.html

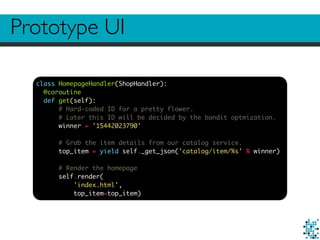

30. Prototype UI
class HomepageHandler(ShopHandler):
@coroutine
def get(self):
# Hard-coded ID for a pretty flower.
# Later this ID will be decided by the bandit optmization.
winner = '15442023790'
# Grab the item details from our catalog service.
top_item = yield self._get_json('catalog/item/%s' % winner)
# Render the homepage
self.render(
'index.html',
top_item=top_item)

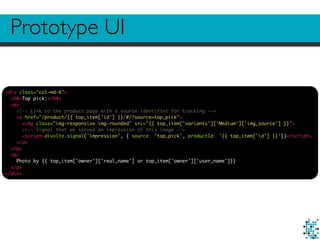

31. Prototype UI
<div class="col-md-6">
<h4>Top pick:</h4>
<p>
<!-- Link to the product page with a source identifier for tracking -->
<a href="/product/{{ top_item['id'] }}/#/?source=top_pick">
<img class="img-responsive img-rounded" src="{{ top_item['variants']['Medium']['img_source'] }}">
<!-- Signal that we served an impression of this image -->
<script>divolte.signal('impression', { source: 'top_pick', productId: '{{ top_item['id'] }}'})</script>
</a>
</p>
<p>
Photo by {{ top_item['owner']['real_name'] or top_item['owner']['user_name']}}
</p>
</div>

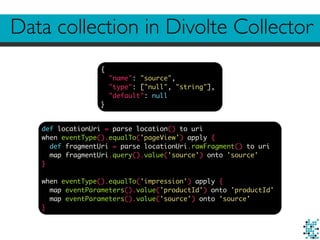

32. Data collection in Divolte Collector
{
"name": "source",
"type": ["null", "string"],
"default": null
}
def locationUri = parse location() to uri
when eventType().equalTo('pageView') apply {
def fragmentUri = parse locationUri.rawFragment() to uri
map fragmentUri.query().value('source') onto 'source'
}
when eventType().equalTo('impression') apply {
map eventParameters().value('productId') onto 'productId'
map eventParameters().value('source') onto 'source'
}

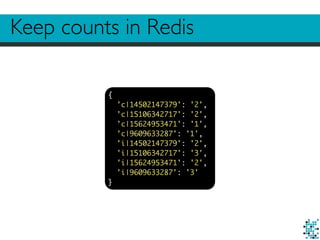

33. Keep counts in Redis
{
'c|14502147379': '2',
'c|15106342717': '2',
'c|15624953471': '1',
'c|9609633287': '1',
'i|14502147379': '2',
'i|15106342717': '3',
'i|15624953471': '2',
'i|9609633287': '3'
}

34. Consuming Kafka in Python
def start_consumer(args):
# Load the Avro schema used for serialization.
schema = avro.schema.Parse(open(args.schema).read())
# Create a Kafka consumer and Avro reader. Note that
# it is trivially possible to create a multi process
# consumer.
consumer = KafkaConsumer(args.topic,
client_id=args.client,
group_id=args.group,
metadata_broker_list=args.brokers)
reader = avro.io.DatumReader(schema)
# Consume messages.
for message in consumer:
handle_event(message, reader)

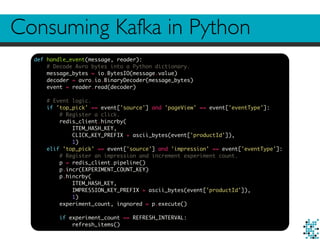

35. Consuming Kafka in Python
def handle_event(message, reader):
# Decode Avro bytes into a Python dictionary.
message_bytes = io.BytesIO(message.value)
decoder = avro.io.BinaryDecoder(message_bytes)
event = reader.read(decoder)
# Event logic.
if 'top_pick' == event['source'] and 'pageView' == event['eventType']:
# Register a click.
redis_client.hincrby(
ITEM_HASH_KEY,
CLICK_KEY_PREFIX + ascii_bytes(event['productId']),
1)
elif 'top_pick' == event['source'] and 'impression' == event['eventType']:
# Register an impression and increment experiment count.
p = redis_client.pipeline()
p.incr(EXPERIMENT_COUNT_KEY)
p.hincrby(
ITEM_HASH_KEY,
IMPRESSION_KEY_PREFIX + ascii_bytes(event['productId']),
1)
experiment_count, ingnored = p.execute()
if experiment_count == REFRESH_INTERVAL:
refresh_items()

36. def refresh_items():
# Fetch current model state. We convert everything to str.
current_item_dict = redis_client.hgetall(ITEM_HASH_KEY)
current_items = numpy.unique([k[2:] for k in current_item_dict.keys()])
# Fetch random items from ElasticSearch. Note we fetch more than we need,
# but we filter out items already present in the current set and truncate
# the list to the desired size afterwards.
random_items = [
ascii_bytes(item)
for item in random_item_set(NUM_ITEMS + NUM_ITEMS - len(current_items) // 2)
if not item in current_items][:NUM_ITEMS - len(current_items) // 2]
# Draw random samples.
samples = [
numpy.random.beta(
int(current_item_dict[CLICK_KEY_PREFIX + item]),
int(current_item_dict[IMPRESSION_KEY_PREFIX + item]))
for item in current_items]
# Select top half by sample values. current_items is conveniently
# a Numpy array here.
survivors = current_items[numpy.argsort(samples)[len(current_items) // 2:]]
# New item set is survivors plus the random ones.
new_items = numpy.concatenate([survivors, random_items])
# Update model state to reflect new item set. This operation is atomic
# in Redis.
p = redis_client.pipeline(transaction=True)
p.set(EXPERIMENT_COUNT_KEY, 1)
p.delete(ITEM_HASH_KEY)
for item in new_items:
p.hincrby(ITEM_HASH_KEY, CLICK_KEY_PREFIX + item, 1)
p.hincrby(ITEM_HASH_KEY, IMPRESSION_KEY_PREFIX + item, 1)
p.execute()

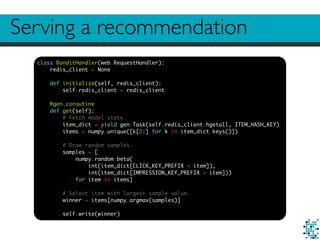

37. Serving a recommendation
class BanditHandler(web.RequestHandler):
redis_client = None
def initialize(self, redis_client):
self.redis_client = redis_client
@gen.coroutine
def get(self):
# Fetch model state.
item_dict = yield gen.Task(self.redis_client.hgetall, ITEM_HASH_KEY)
items = numpy.unique([k[2:] for k in item_dict.keys()])
# Draw random samples.
samples = [
numpy.random.beta(
int(item_dict[CLICK_KEY_PREFIX + item]),
int(item_dict[IMPRESSION_KEY_PREFIX + item]))
for item in items]
# Select item with largest sample value.
winner = items[numpy.argmax(samples)]
self.write(winner)

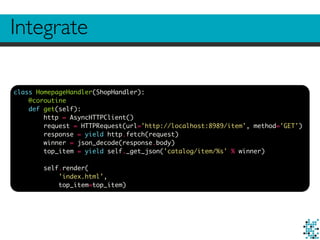

38. Integrate
class HomepageHandler(ShopHandler):
@coroutine
def get(self):
http = AsyncHTTPClient()
request = HTTPRequest(url='http://localhost:8989/item', method='GET')
response = yield http.fetch(request)
winner = json_decode(response.body)
top_item = yield self._get_json('catalog/item/%s' % winner)
self.render(
'index.html',
top_item=top_item)

39. References
•http://blog.godatadriven.com/rapid-prototyping-
online-machine-learning-divolte-collector.html
•http://divolte.io
•https://github.com/divolte/divolte-collector
•https://github.com/divolte/divolte-examples

40. GoDataDriven
We’re hiring / Questions? / Thank you!
@fzk
frisovanvollenhoven@godatadriven.com
Friso van Vollenhoven
CTO
