Cristiano Rocha and Bart Buter
Building a scalable &
open source ML
platform
• Introduction to MLOps
• Use case: ING ML batch platform
• Exploration to production
• Considerations
Agenda
Sander van Donkelaar
Machine Learning Engineer
Xebia Data
About us…
Cristiano Rocha
Principal AI & Data engineer
Xebia Data
Bart Buter
Batch Execution Platform P.O. &
Analytics Platform Adoption Lead
ING

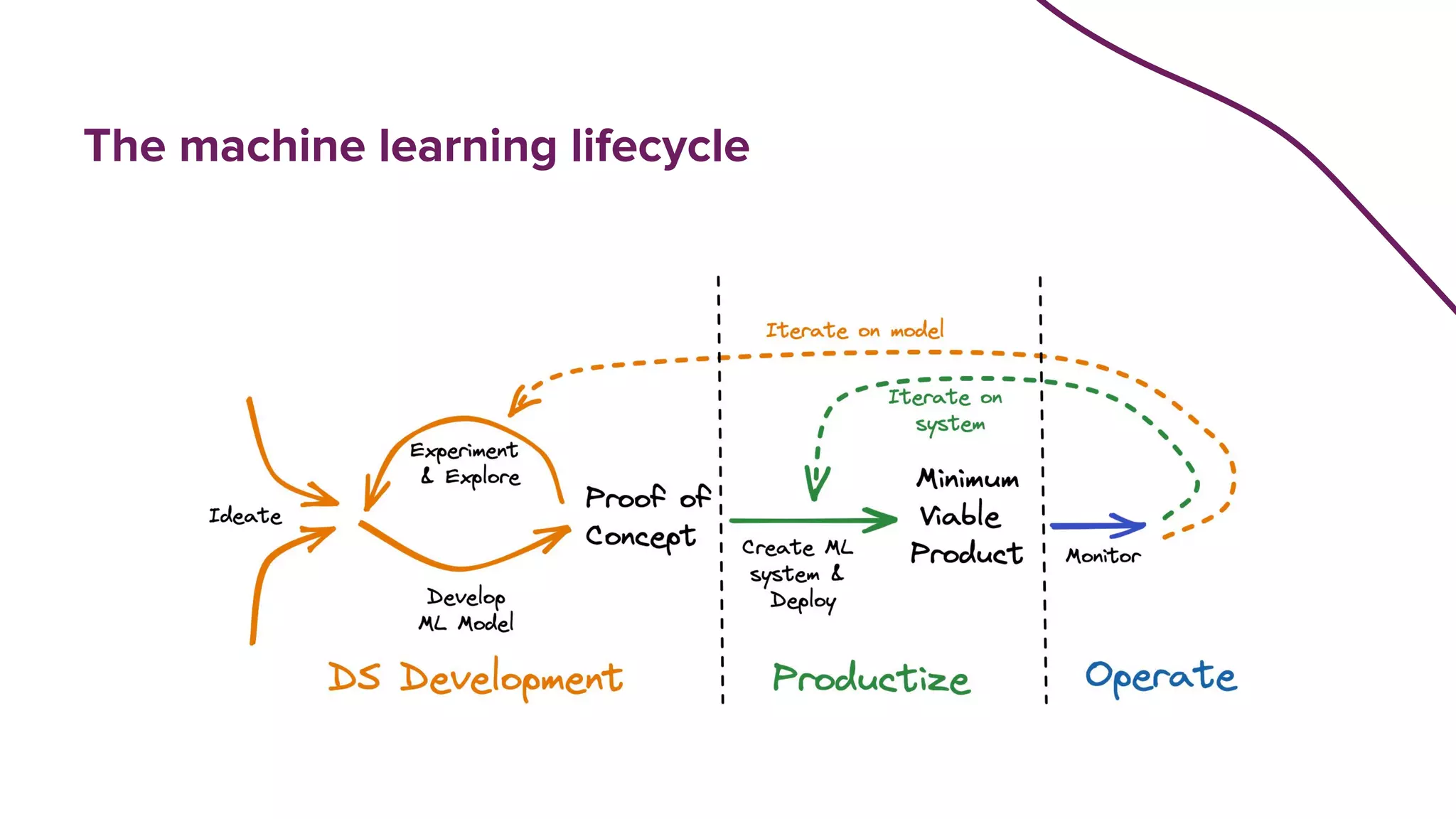

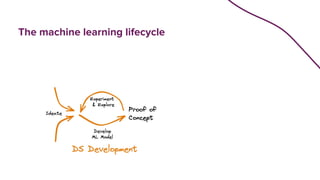

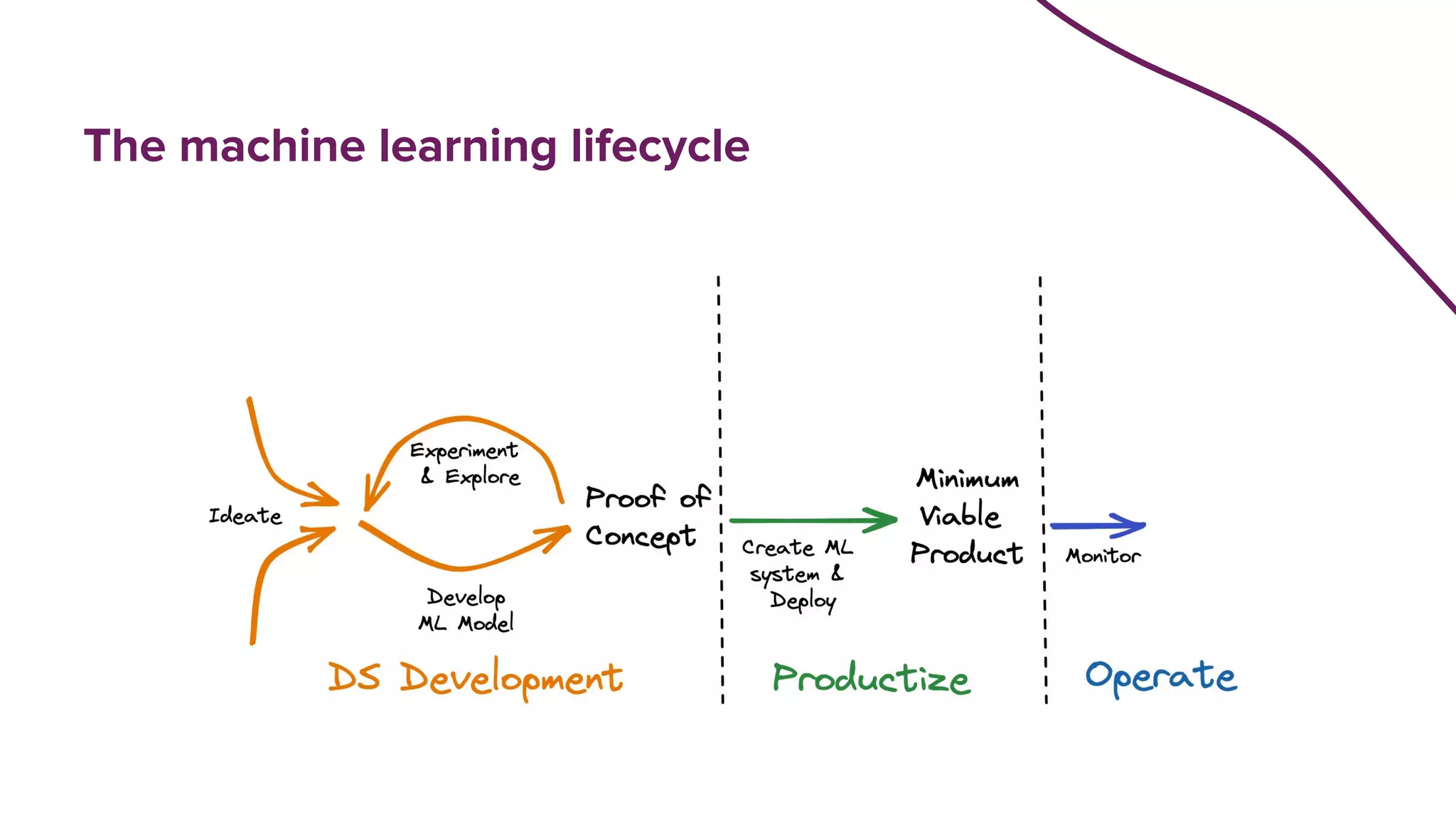

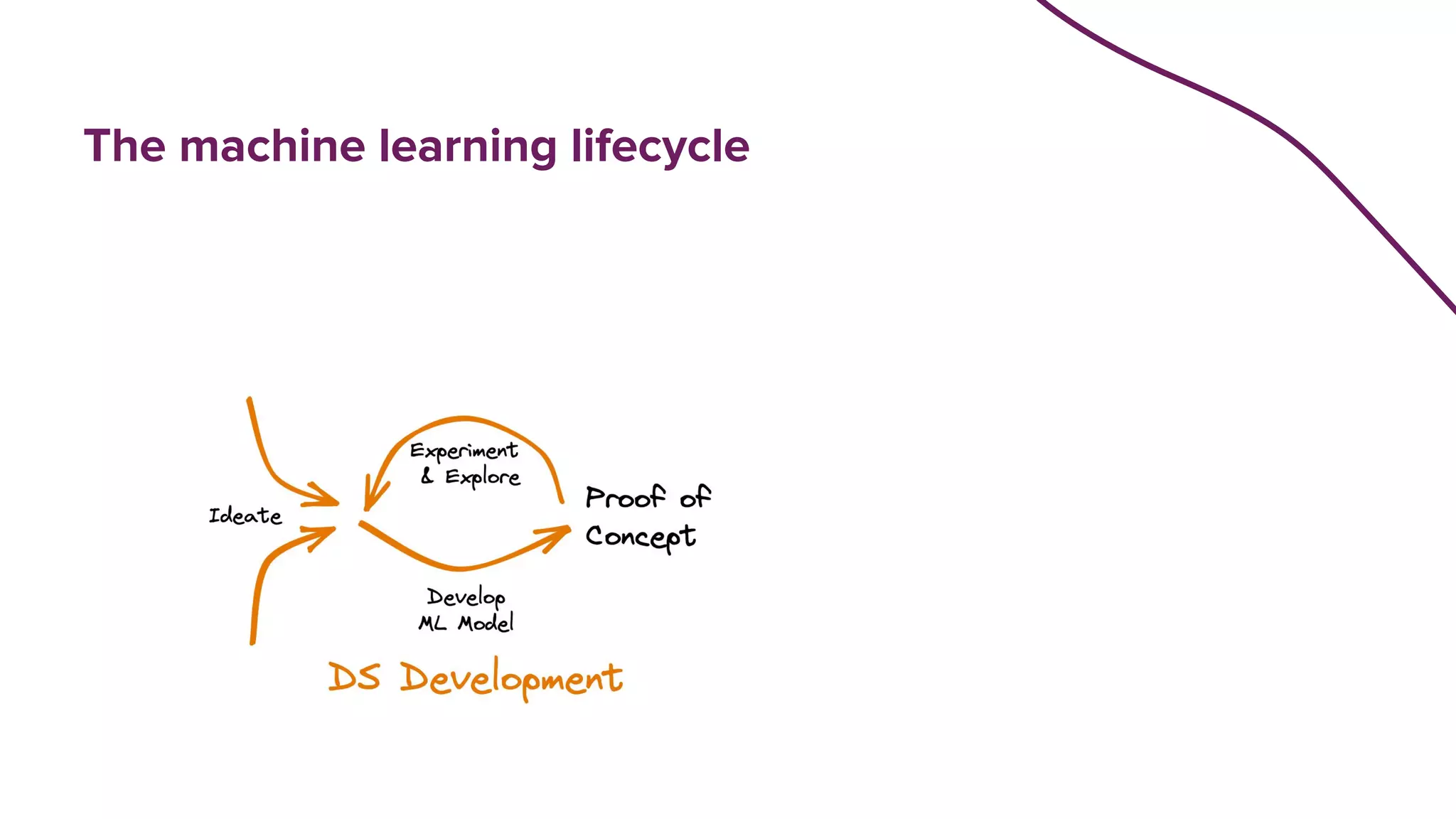

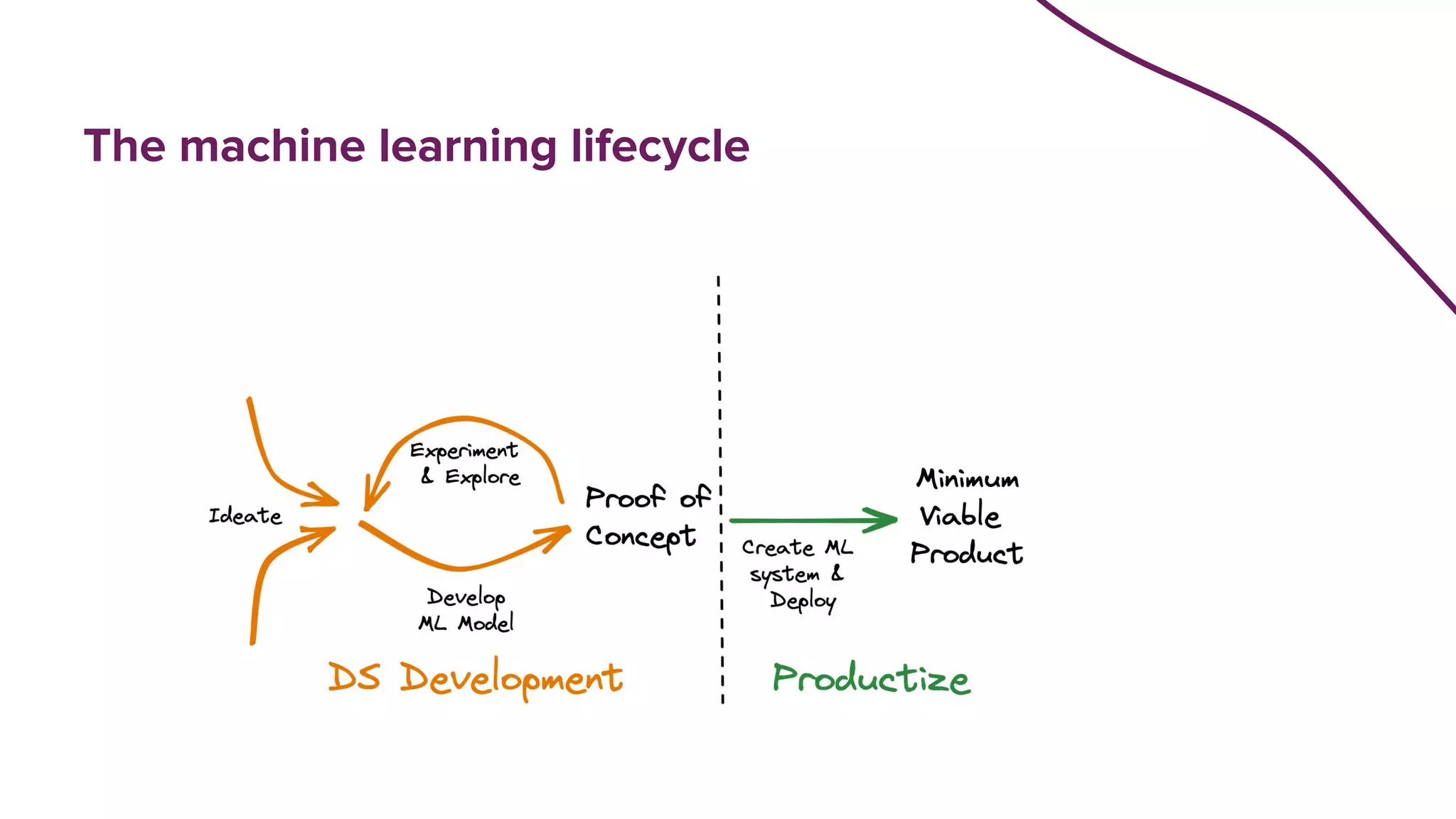

The machine learning lifecycle
The machine learning lifecycle
The machine learning lifecycle
The machine learning lifecycle
But machine learning in production is hard…
• Deploying a model requires
significant efforts in the IT
infrastructure.
• Difficult for other applications to
leverage produced insights.
• Data scientist != MLOps Engineer
• Deploying a model requires a different
skillset than building it.
• No CI/CD
• Lack of collaboration
• Lack of best-practices
• No standardization
Productionalizing ML: market observations
People
Technology
Processes
• Flexible
• Scalable
• Innovative
• Cross-functional
• Self-reliant
• Collaboration
• Standardized
• Automated
• Self-service
• Repeatable

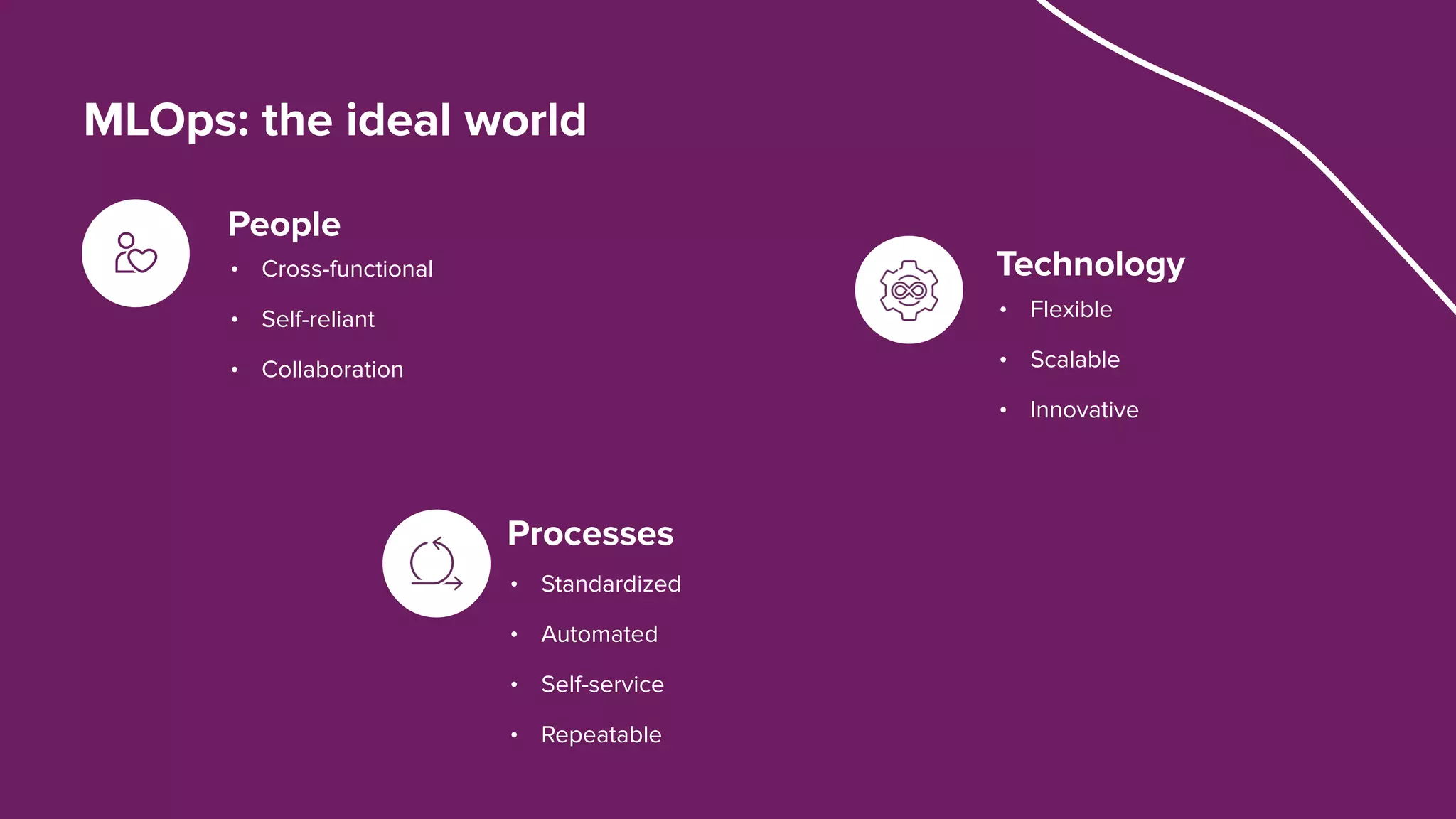

MLOps: the ideal world
People
Technology
Processes

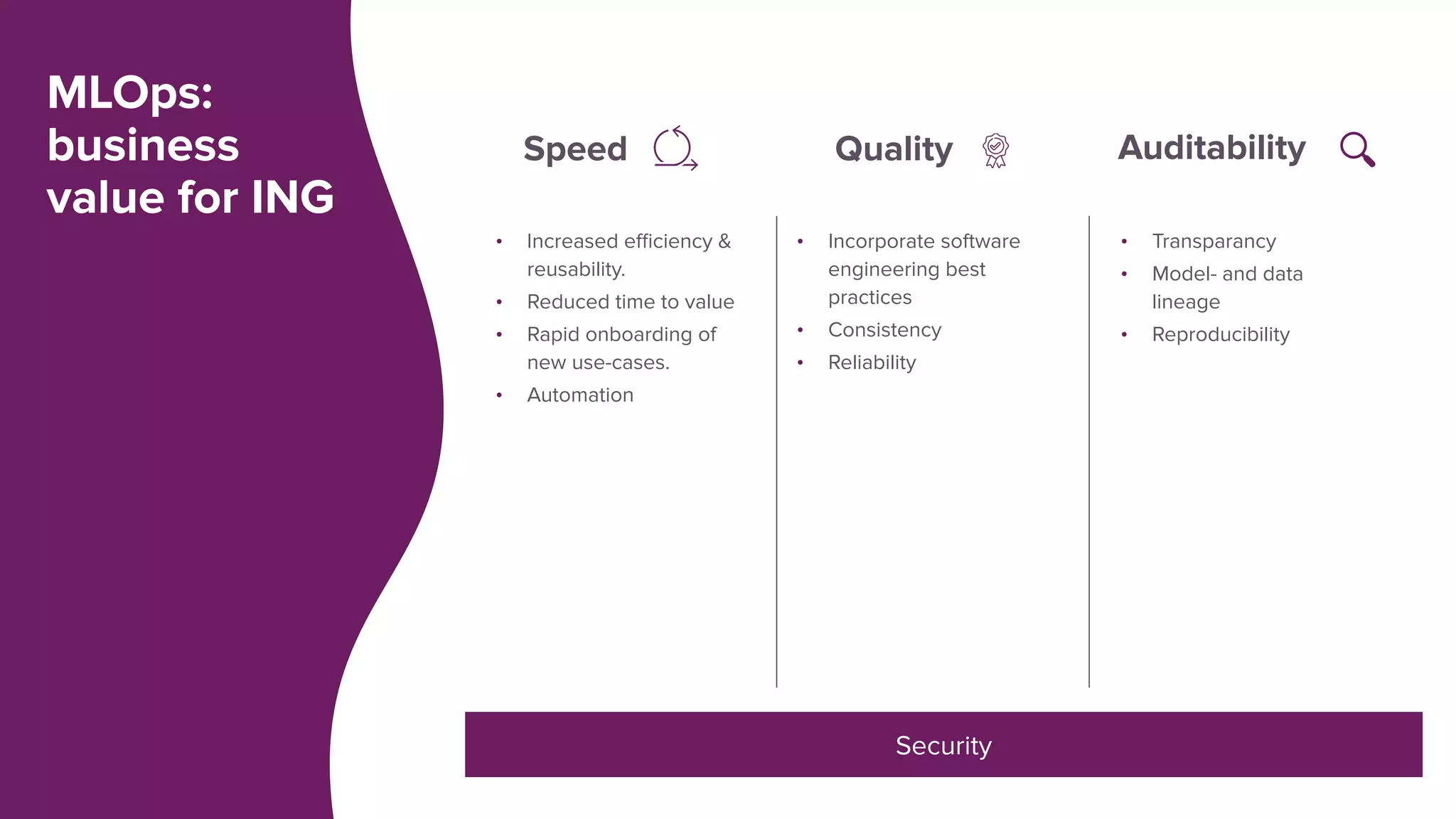

MLOps:
business
value for ING
Auditability
• Increased efficiency &
reusability.
• Reduced time to value
• Rapid onboarding of
new use-cases.
• Automation
Speed Quality
• Incorporate software
engineering best
practices
• Consistency
• Reliability
• Transparancy
• Model- and data
lineage
• Reproducibility
Security

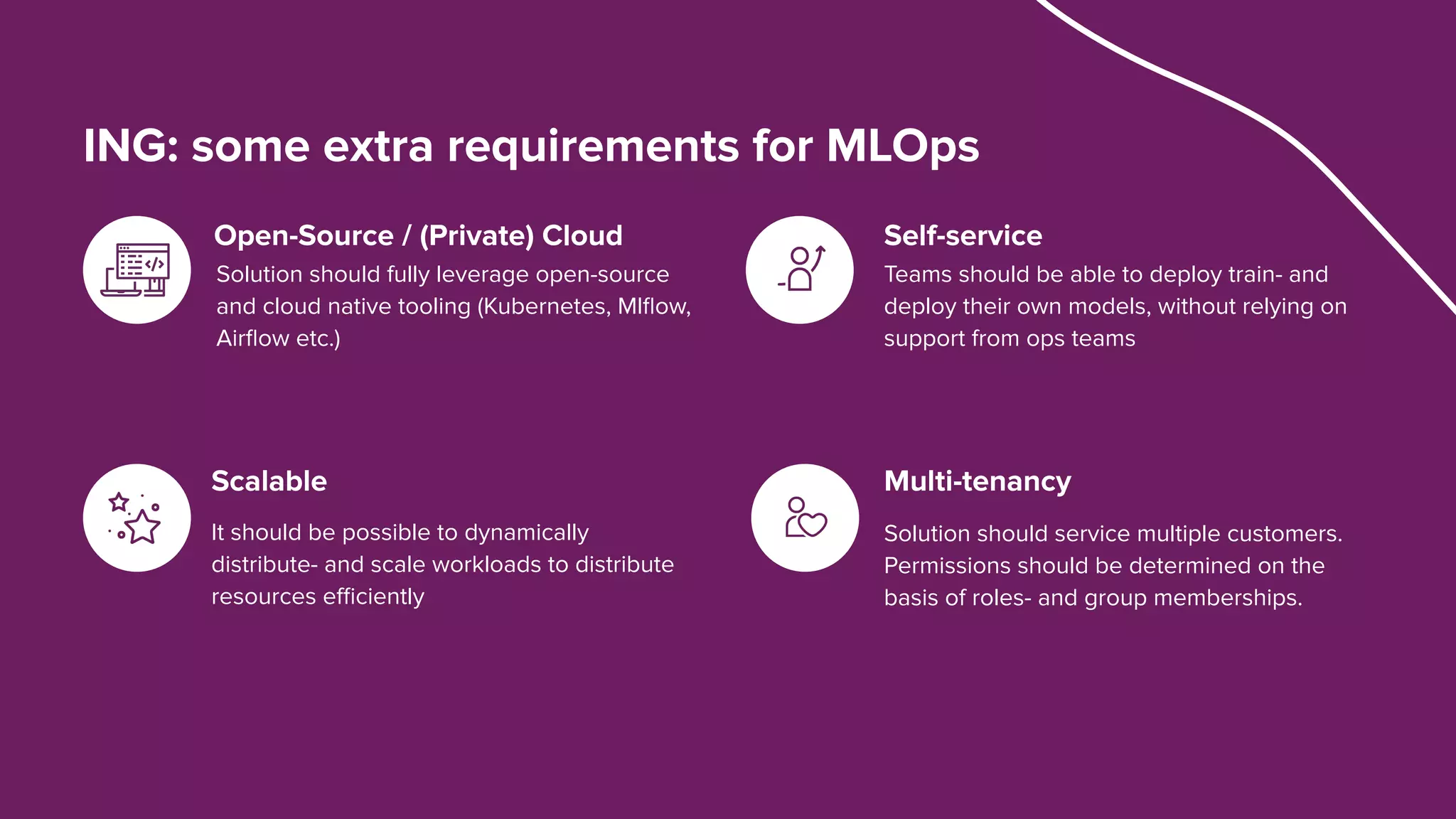

Teams should be able to deploy train- and
deploy their own models, without relying on
support from ops teams
Solution should fully leverage open-source
and cloud native tooling (Kubernetes, Mlflow,
Airflow etc.)
It should be possible to dynamically
distribute- and scale workloads to distribute
resources efficiently
ING: some extra requirements for MLOps
Open-Source / (Private) Cloud Self-service
Scalable
Solution should service multiple customers.
Permissions should be determined on the
basis of roles- and group memberships.
Multi-tenancy

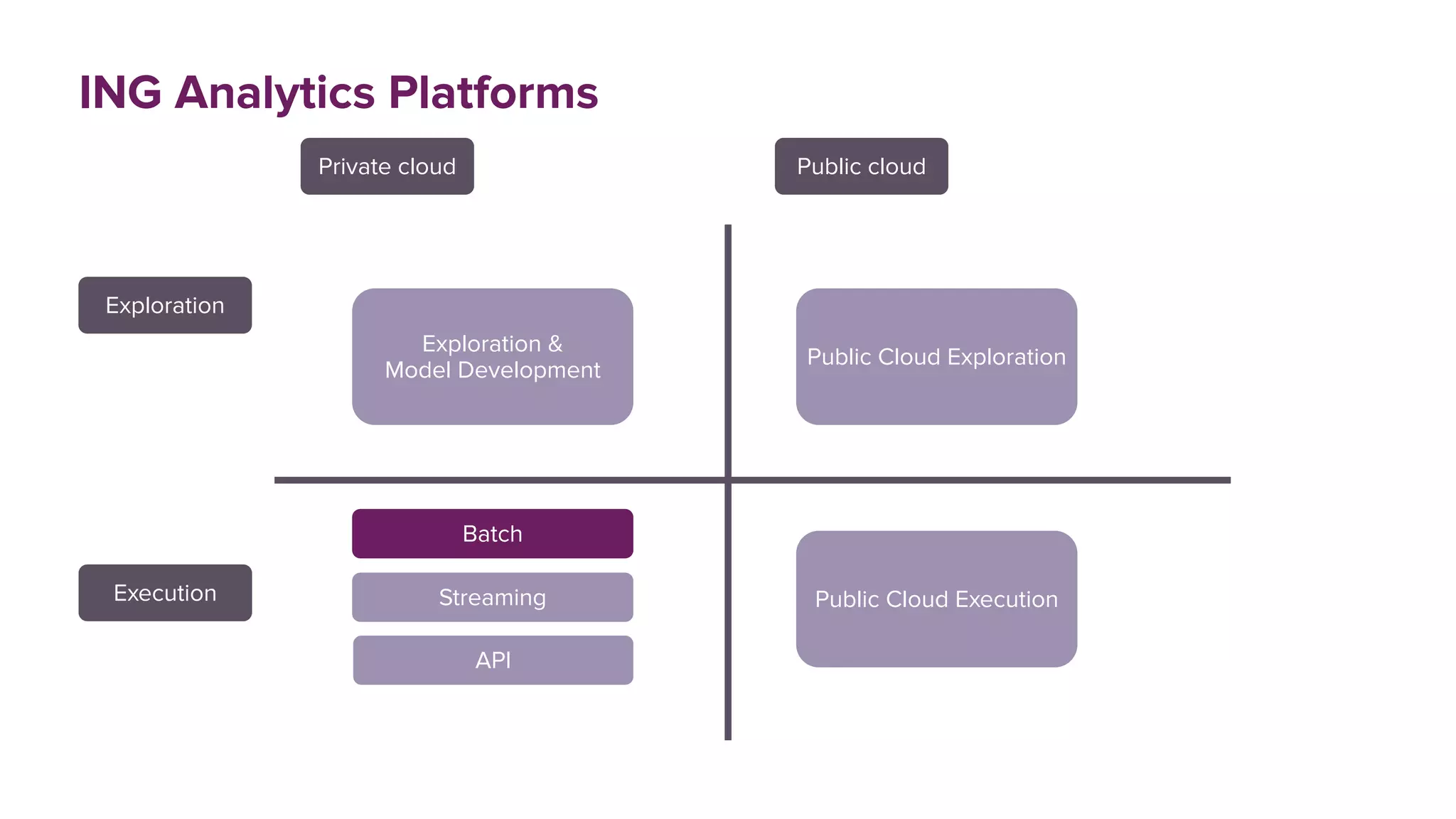

ING Analytics Platforms
Exploration
Execution
Private cloud Public cloud
API
Streaming
Exploration &
Model Development
Batch
Public Cloud Exploration
Public Cloud Execution
Platform
Maturity
Time
Sandbox
environment
Standardize
deployment
and
onboarding
processeses
Implement quality
checks, introduce
data- and model
lineage. Introduce
automatic retraining.
Self-service ML
Standardize- and centralize
monitoring of ML models.
Automated ML solution
onboarding
Experiment
Consistent
Reliable
Scalable &
Optimized

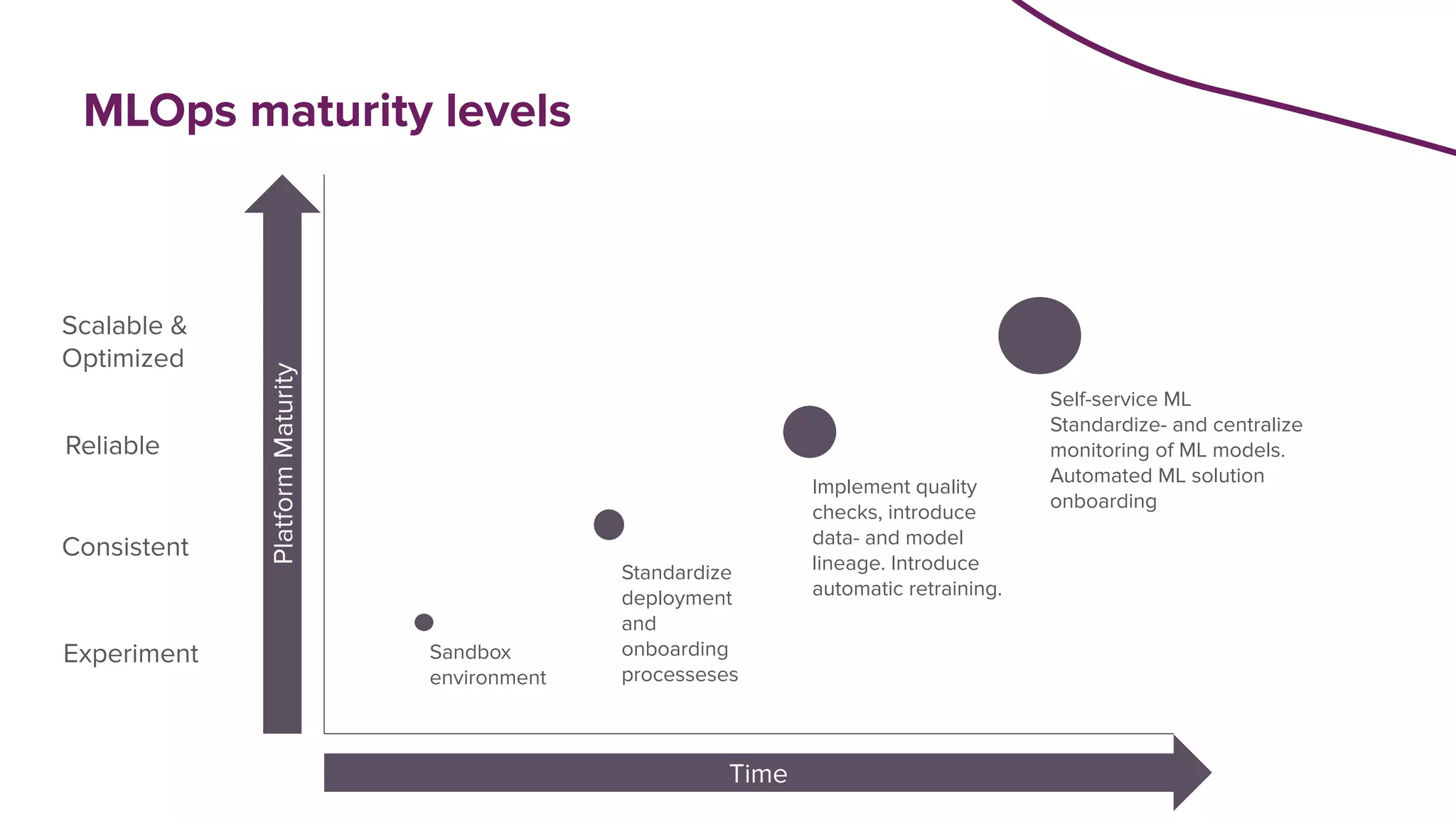

MLOps maturity levels

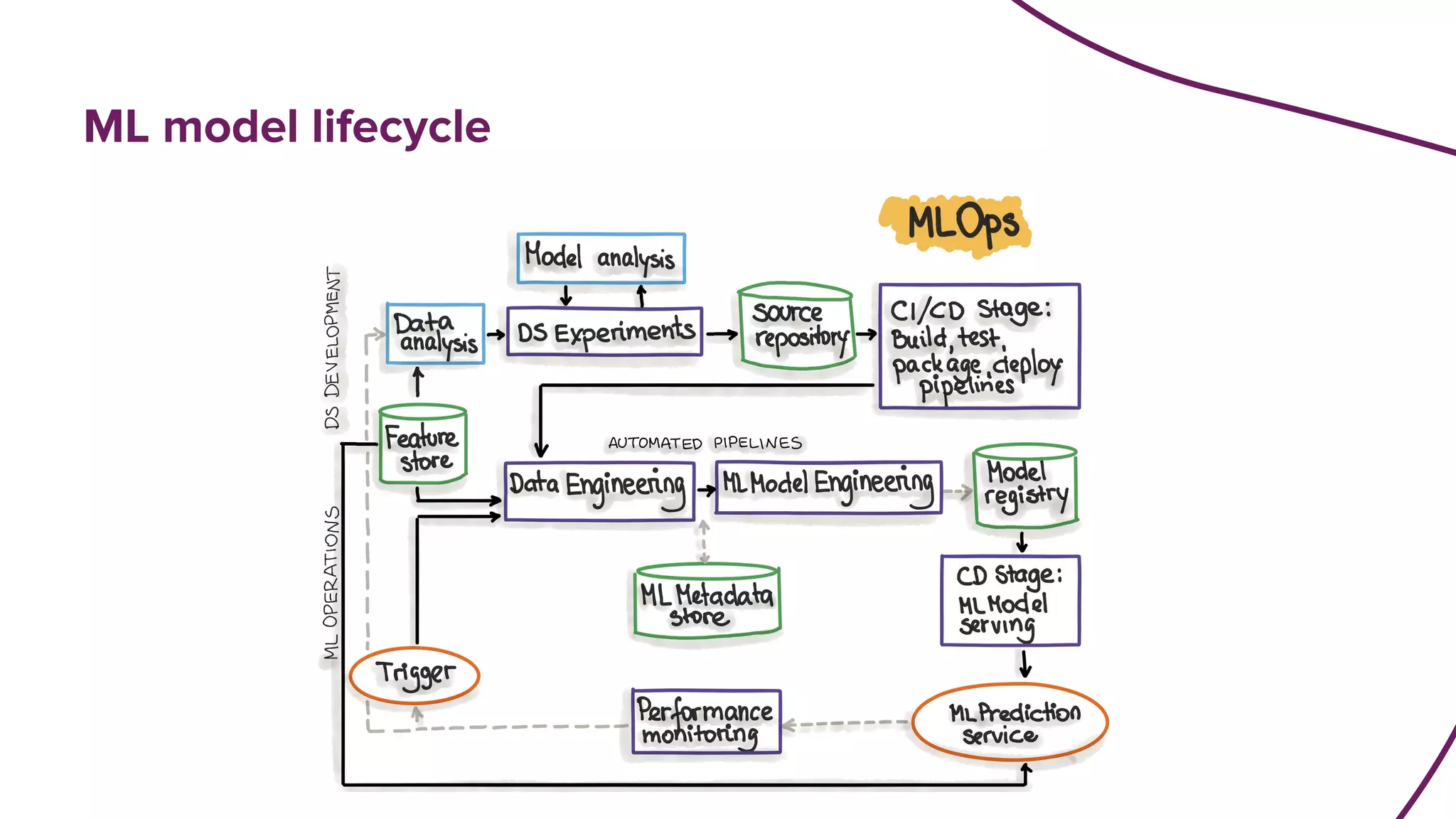

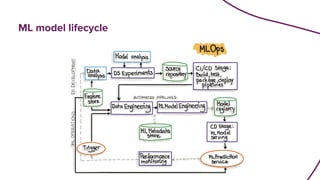

ML model lifecycle

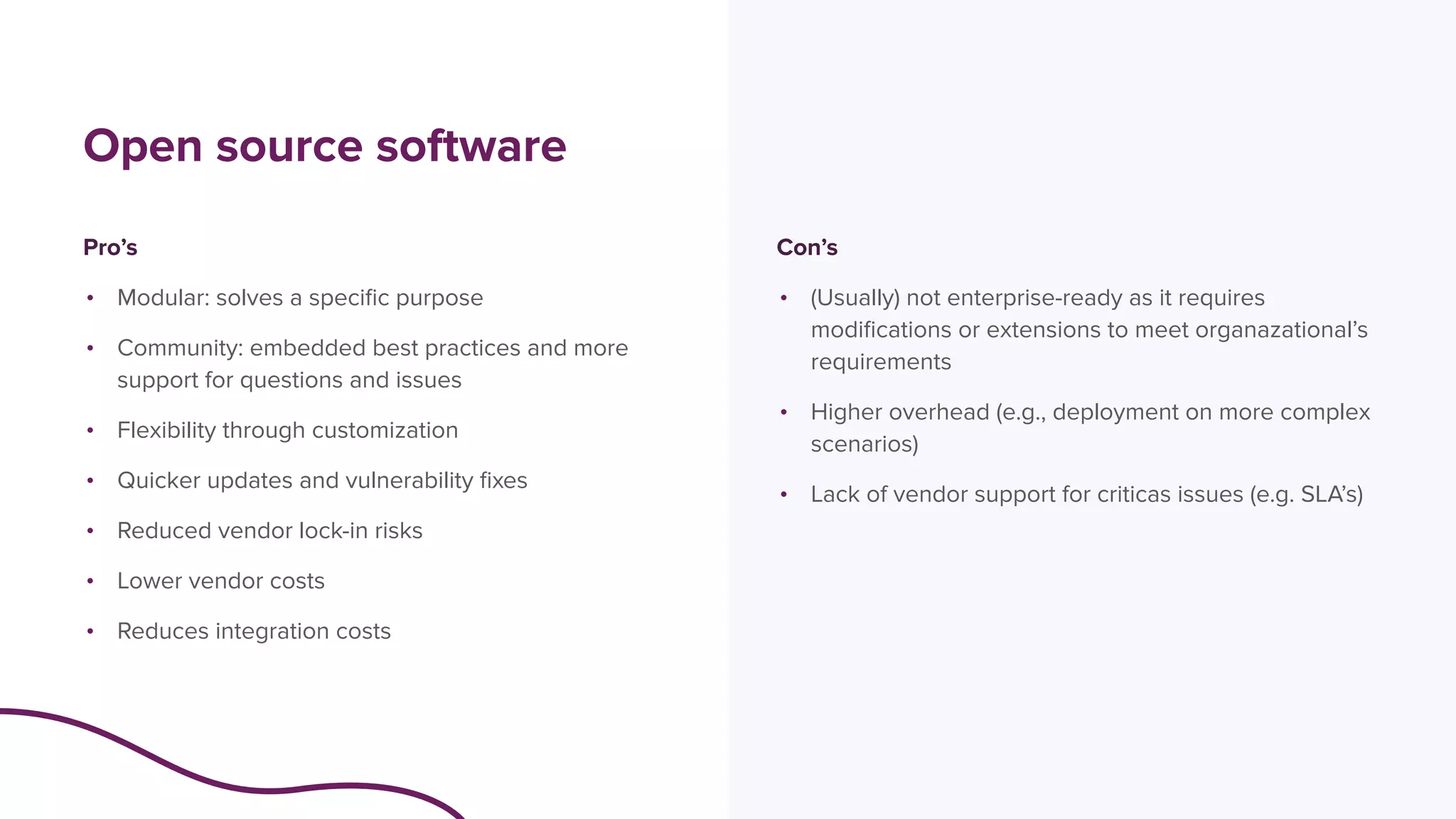

Open source software
Con’s
• (Usually) not enterprise-ready as it requires
modifications or extensions to meet organazational’s
requirements
• Higher overhead (e.g., deployment on more complex
scenarios)
• Lack of vendor support for criticas issues (e.g. SLA’s)
Pro’s
• Modular: solves a specific purpose
• Community: embedded best practices and more
support for questions and issues
• Flexibility through customization
• Quicker updates and vulnerability fixes
• Reduced vendor lock-in risks
• Lower vendor costs
• Reduces integration costs

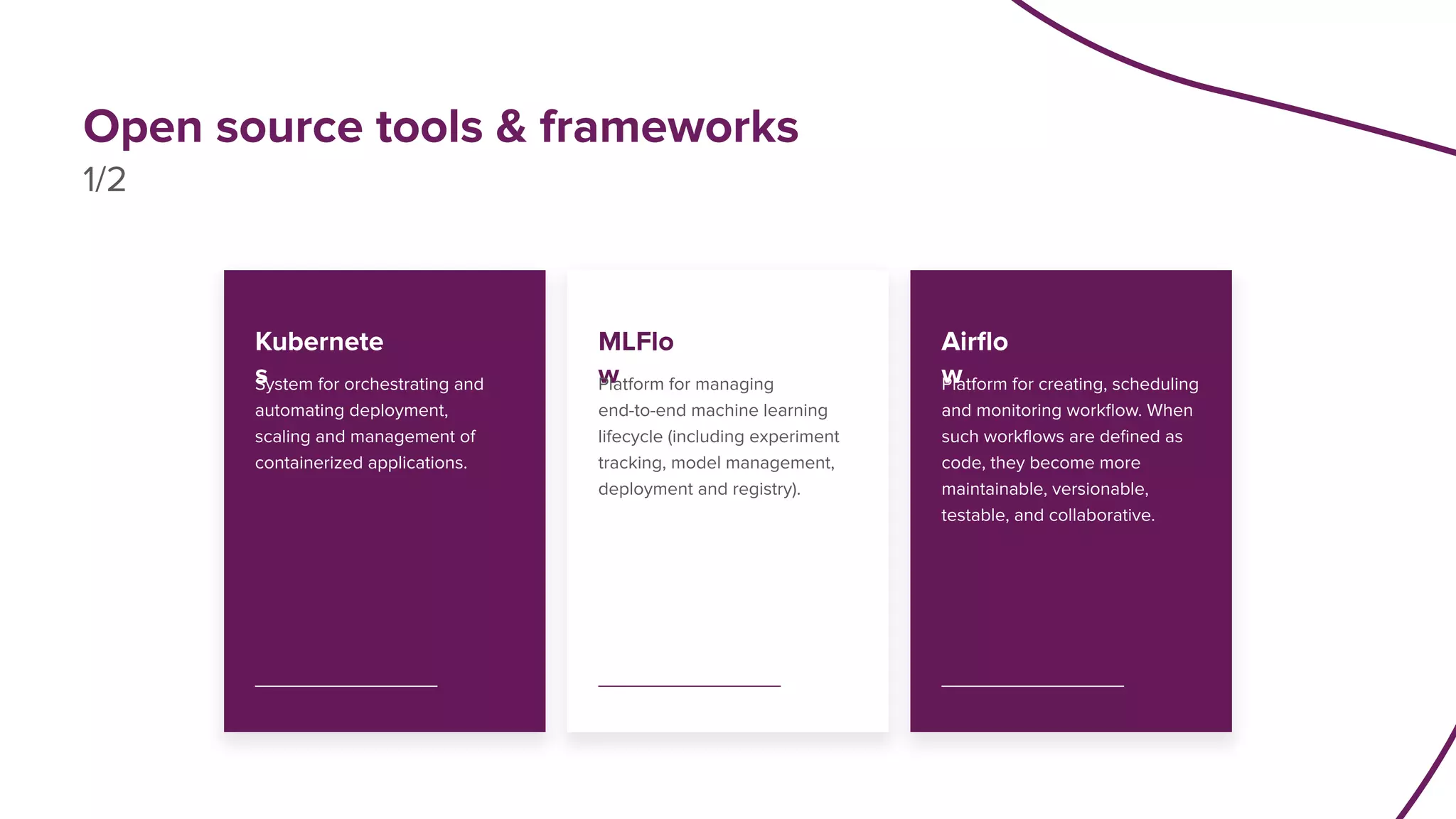

Open source tools & frameworks
1/2
Kubernete
s
System for orchestrating and
automating deployment,
scaling and management of
containerized applications.
MLFlo
w
Platform for managing
end-to-end machine learning
lifecycle (including experiment
tracking, model management,
deployment and registry).
Airflo
w
Platform for creating, scheduling
and monitoring workflow. When
such workflows are defined as
code, they become more
maintainable, versionable,
testable, and collaborative.

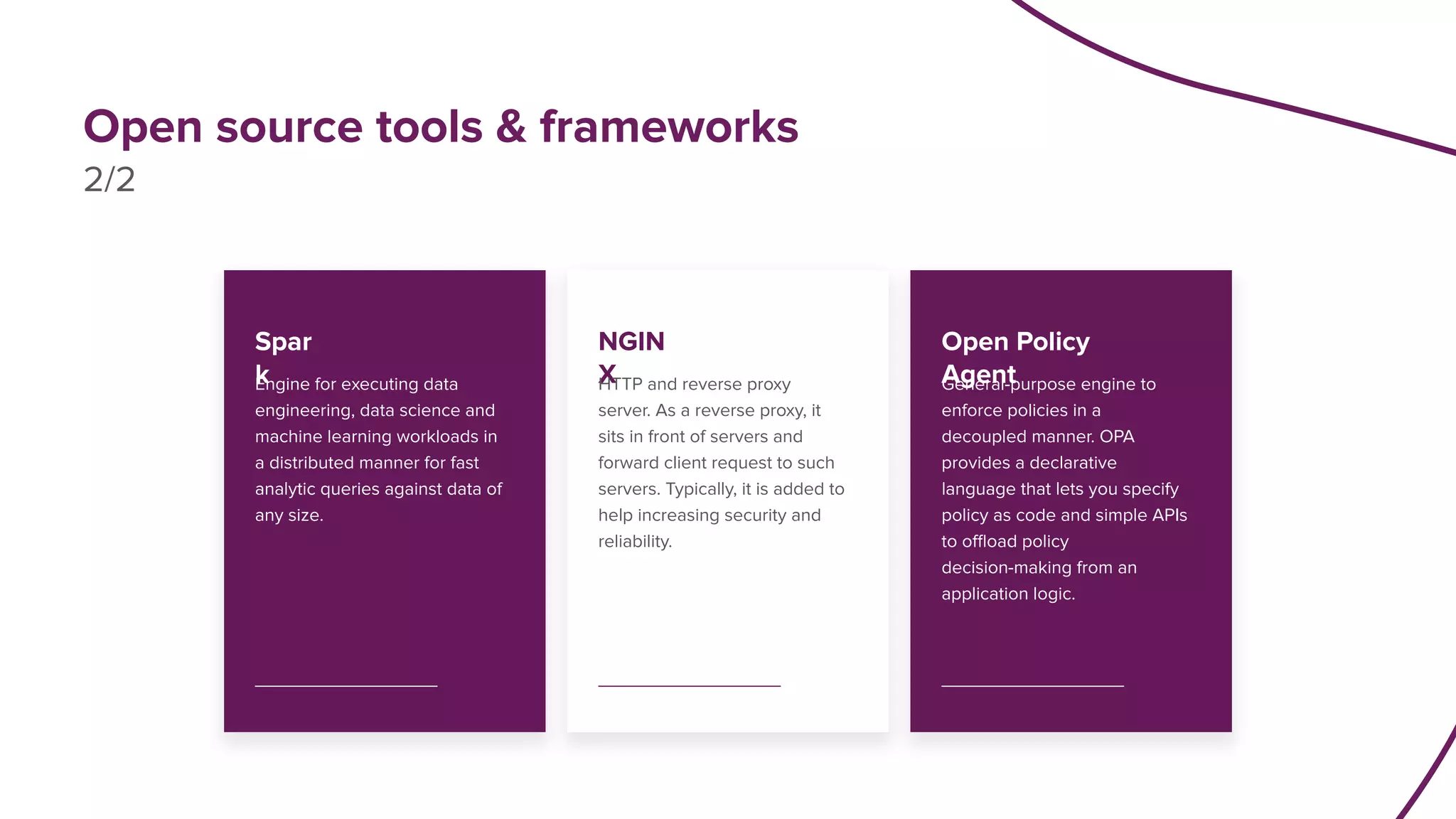

Open source tools & frameworks
2/2
Spar
k
Engine for executing data
engineering, data science and
machine learning workloads in
a distributed manner for fast
analytic queries against data of
any size.
NGIN
X
HTTP and reverse proxy
server. As a reverse proxy, it
sits in front of servers and
forward client request to such
servers. Typically, it is added to
help increasing security and
reliability.
Open Policy
Agent
General-purpose engine to
enforce policies in a
decoupled manner. OPA
provides a declarative
language that lets you specify
policy as code and simple APIs
to offload policy
decision-making from an
application logic.

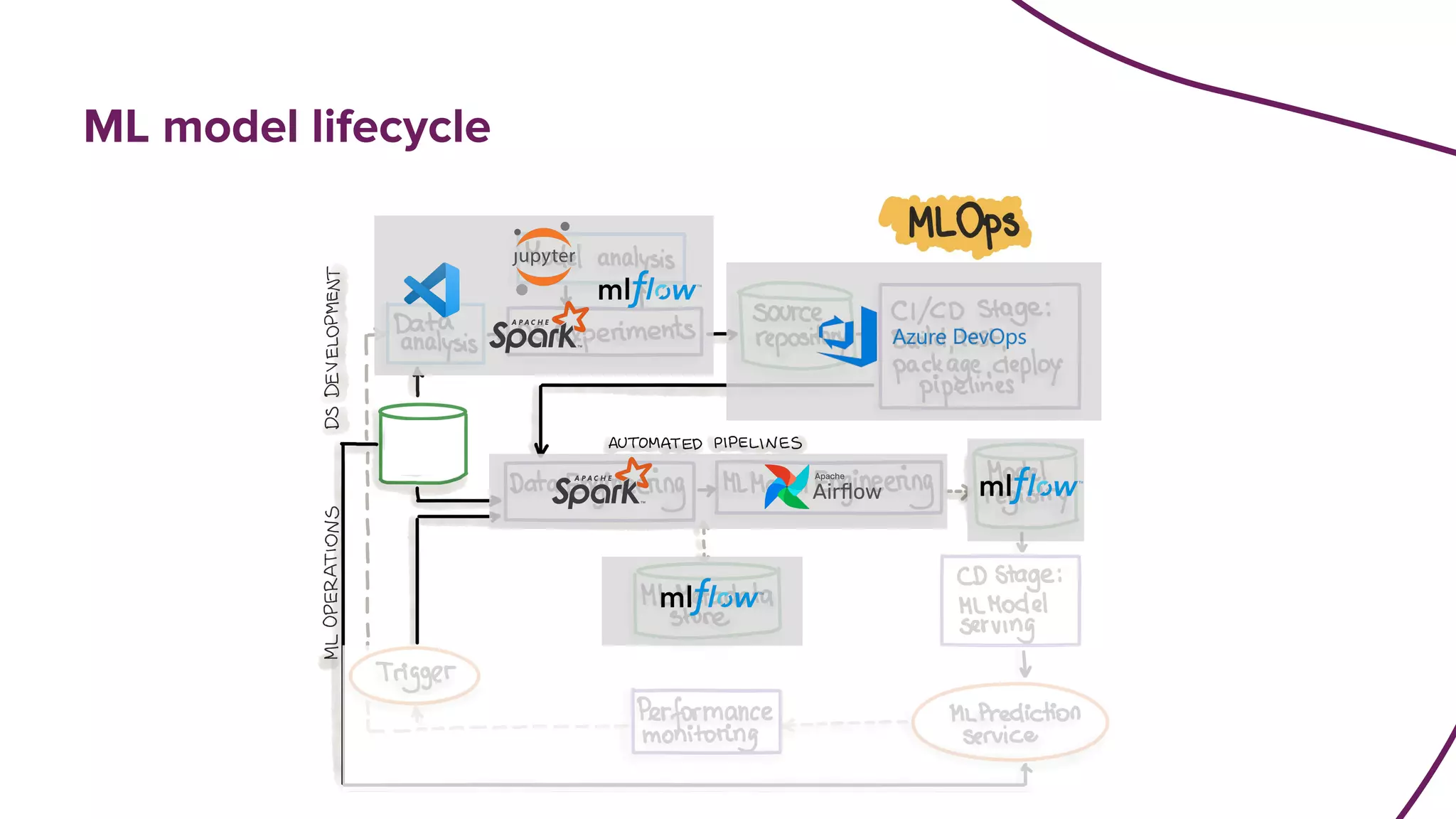

ML model lifecycle

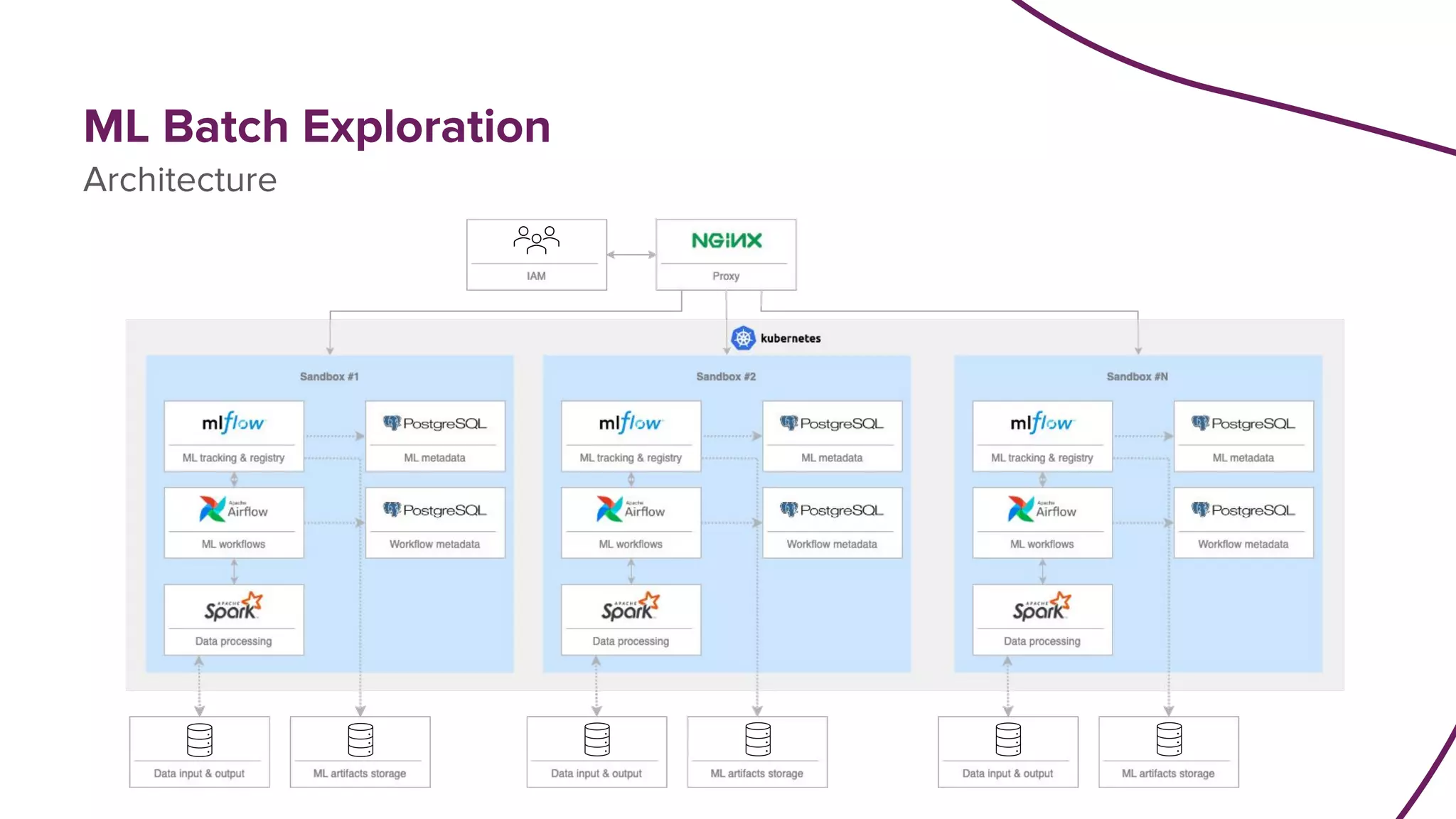

ML Batch Exploration
Architecture

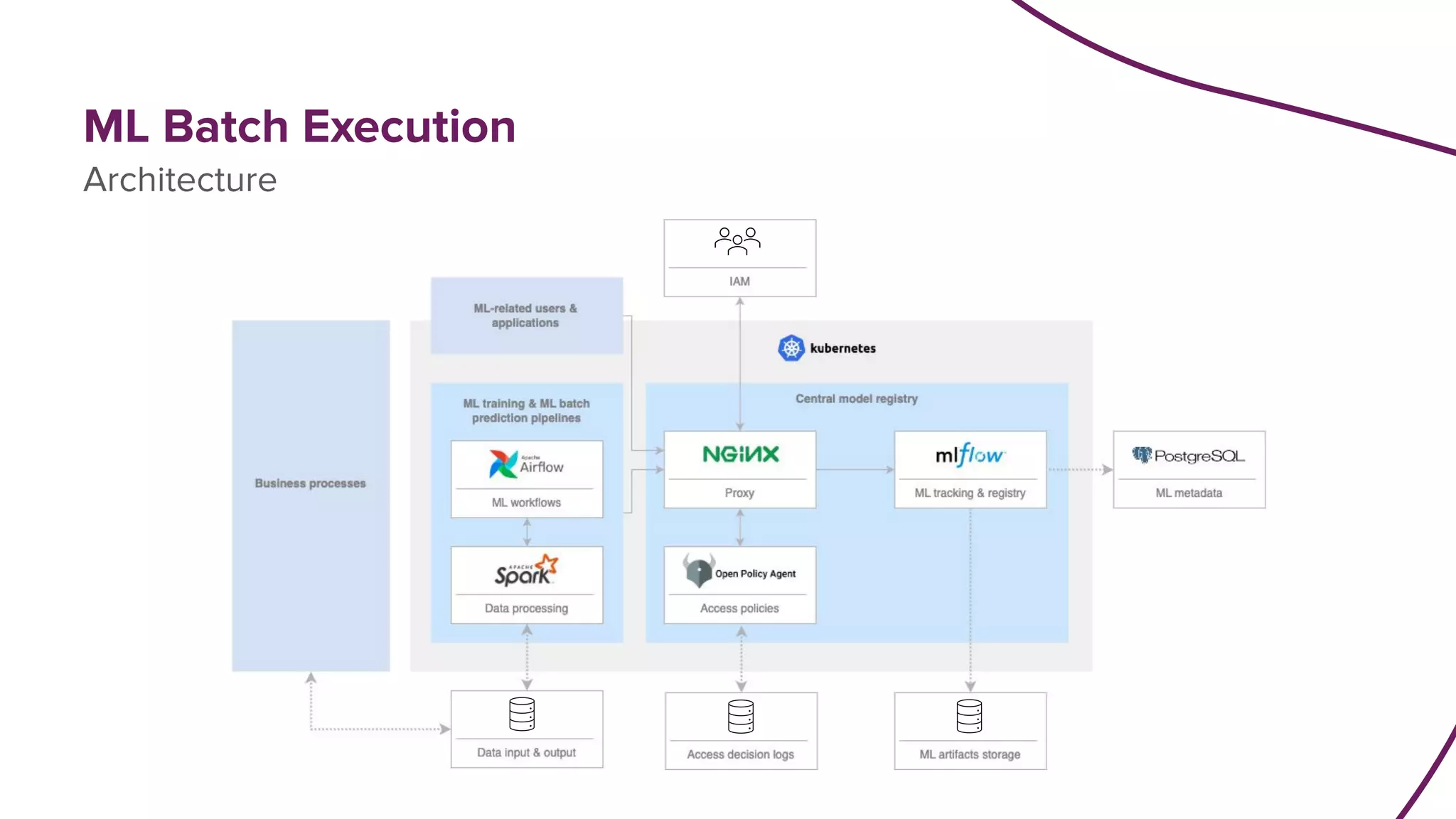

ML Batch Execution
Architecture

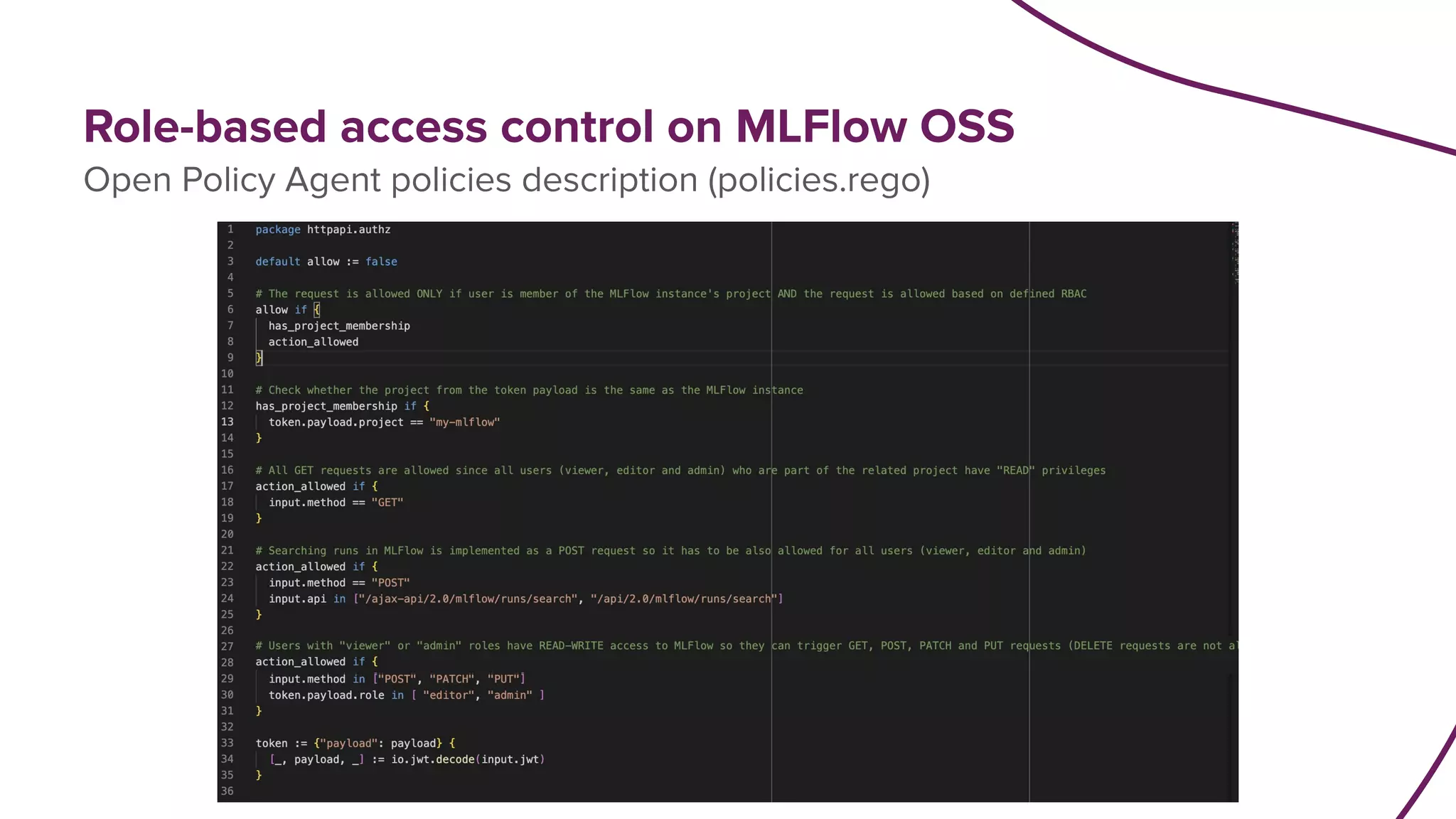

Role-based access control on MLFlow OSS
Open Policy Agent policies description (policies.rego)

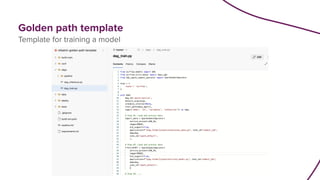

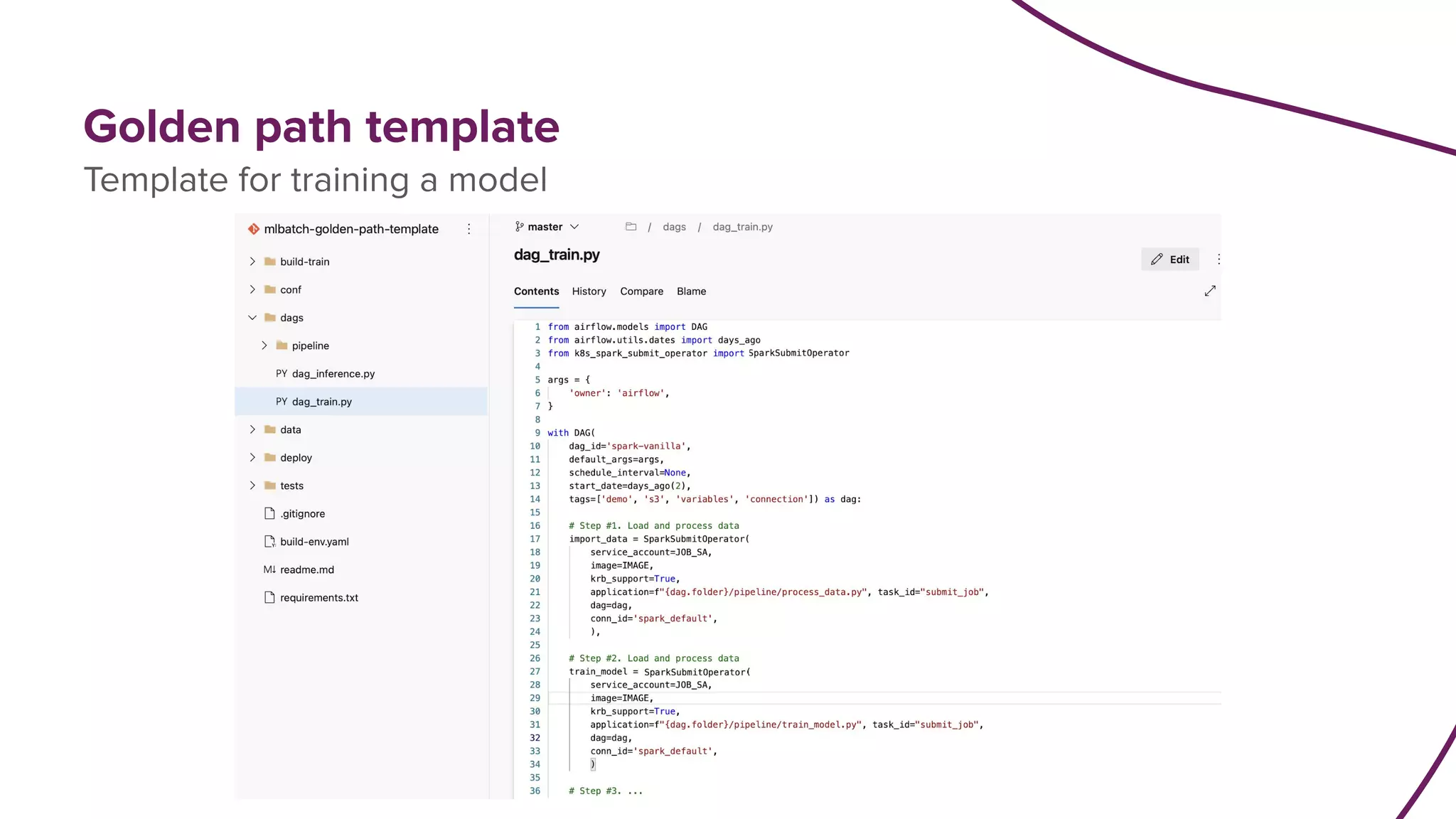

Golden path template
Template for training a model

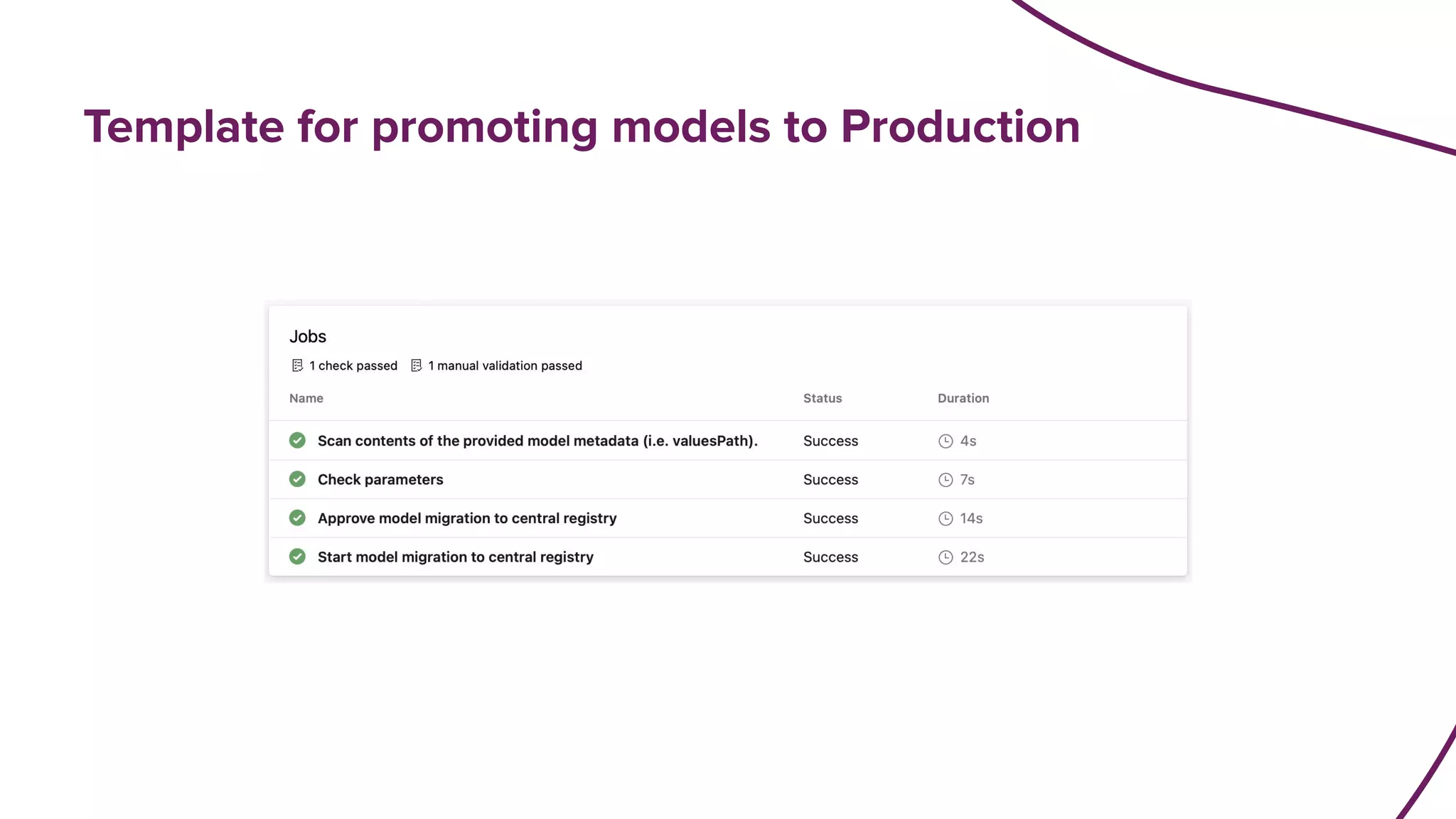

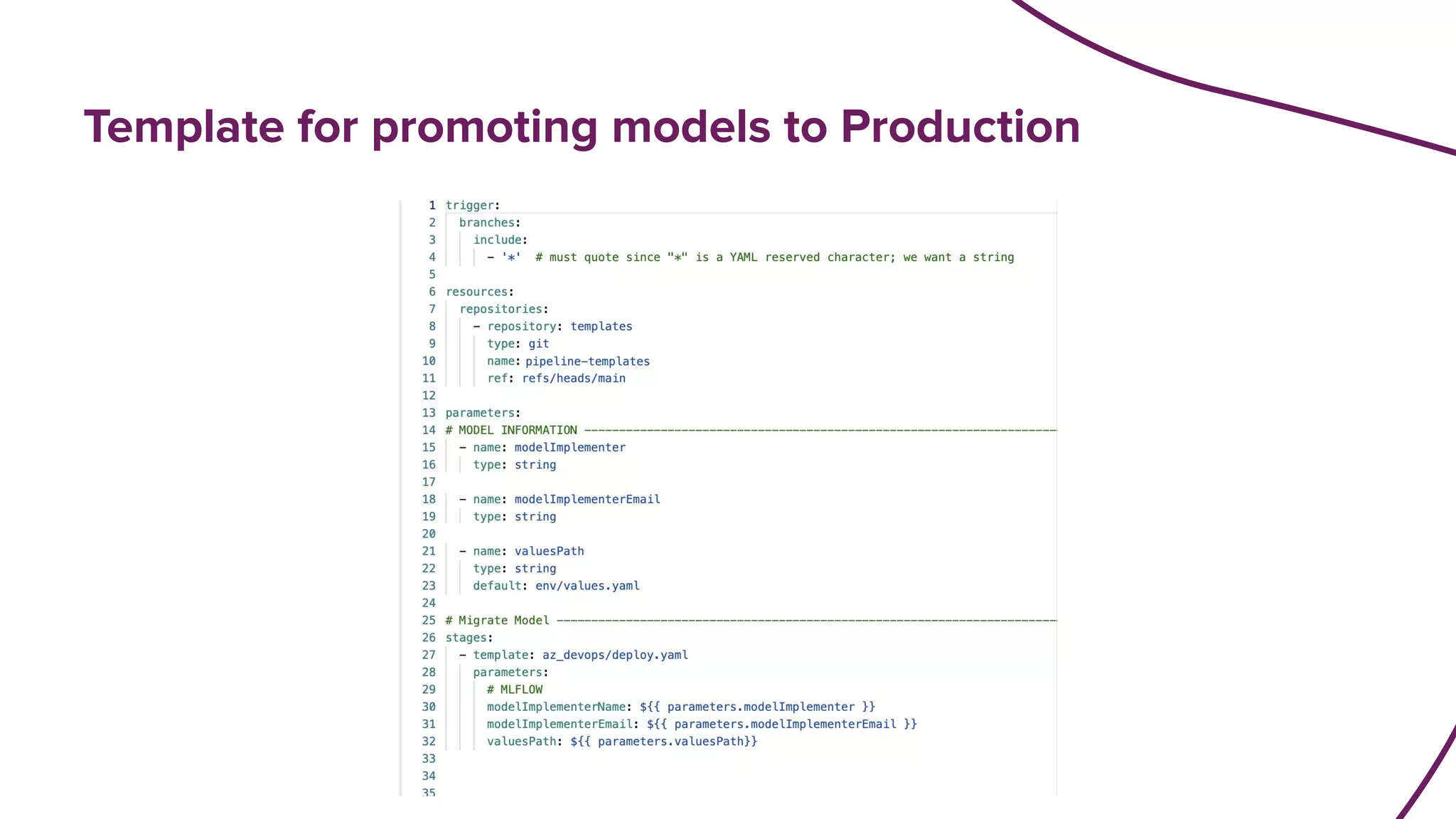

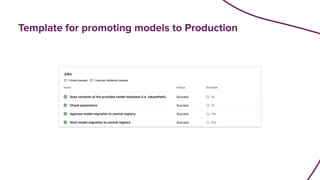

Template for promoting models to Production
Template for promoting models to Production

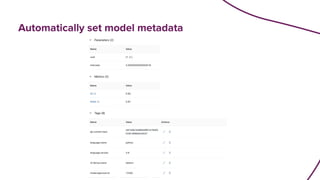

Automatically set model metadata

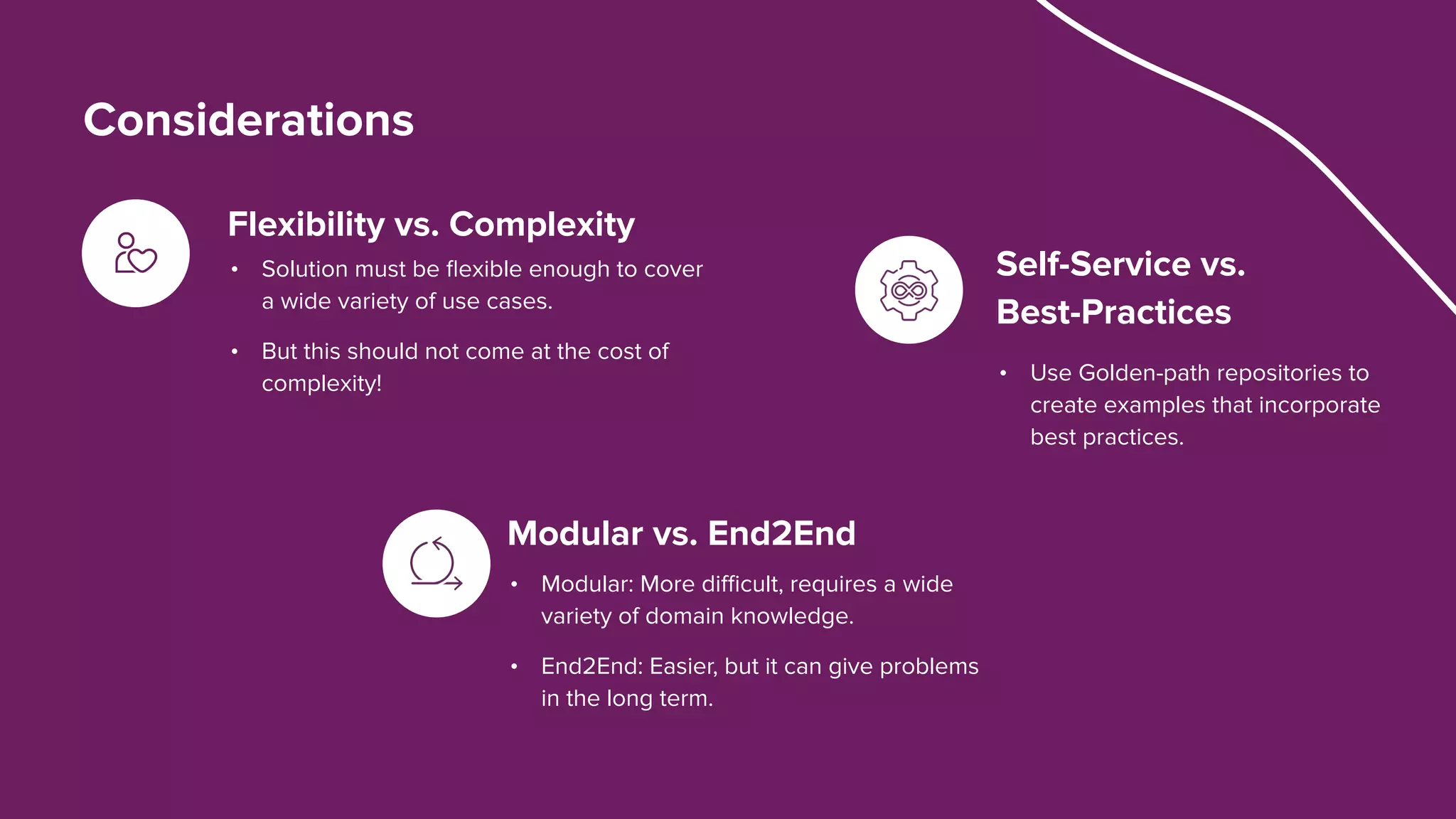

• Use Golden-path repositories to
create examples that incorporate
best practices.
• Solution must be flexible enough to cover
a wide variety of use cases.
• But this should not come at the cost of
complexity!
• Modular: More difficult, requires a wide
variety of domain knowledge.
• End2End: Easier, but it can give problems
in the long term.
Considerations
Flexibility vs. Complexity
Self-Service vs.
Best-Practices
Modular vs. End2End
