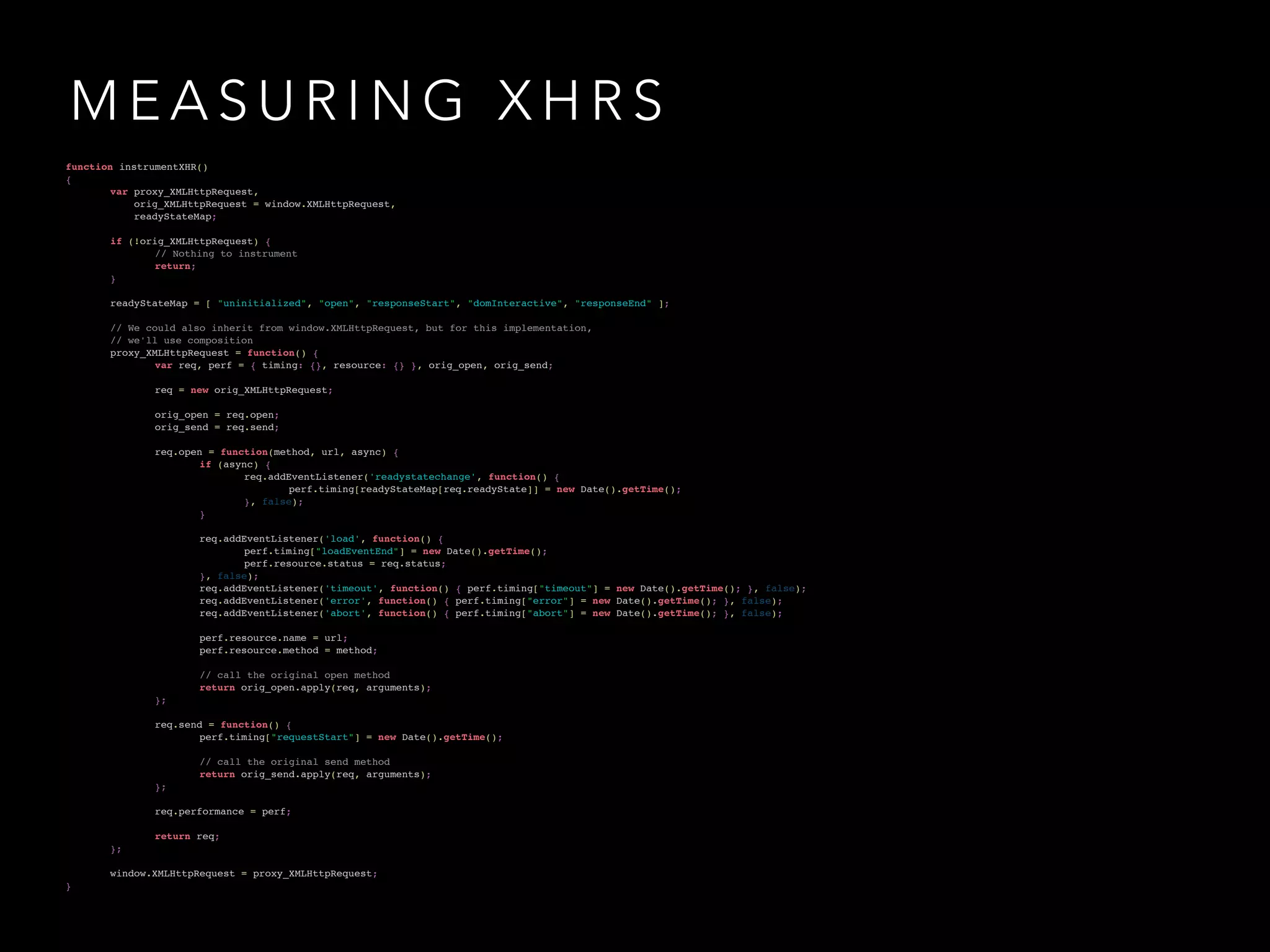

![MEASURING XHRS
!!
function instrumentXHR()!
{!
! var proxy_XMLHttpRequest,!
! orig_XMLHttpRequest = window.XMLHttpRequest,!
! readyStateMap;! if (!orig_XMLHttpRequest) {!
! ! // Nothing to instrument!
! ! return;!
!! }!
! readyStateMap = [ "uninitialized", "open", "responseStart", "domInteractive", "responseEnd" ];! !!
// We could also inherit from window.XMLHttpRequest, but for this implementation,!
! // we'll use composition!
! proxy_XMLHttpRequest = function() {!
!! ! var req, perf = { timing: {}, resource: {} }, orig_open, orig_send;!
!! ! req = new orig_XMLHttpRequest;!
! ! orig_open = req.open;!
!! ! orig_send = req.send;!
! ! req.open = function(method, url, async) {!
! ! ! if (async) {!
! ! ! ! req.addEventListener('readystatechange', function() {!
! ! ! ! ! perf.timing[readyStateMap[req.readyState]] = new Date().getTime();!
! ! ! ! }, false);!
!! ! ! }!
! ! ! req.addEventListener('load', function() {!
! ! ! ! perf.timing["loadEventEnd"] = new Date().getTime();!
! ! ! ! perf.resource.status = req.status;!
! ! ! }, false);!
! ! ! req.addEventListener('timeout', function() { perf.timing["timeout"] = new Date().getTime(); }, false);!
! ! ! req.addEventListener('error', function() { perf.timing["error"] = new Date().getTime(); }, false);!
!! ! ! req.addEventListener('abort', function() { perf.timing["abort"] = new Date().getTime(); }, false);!
! ! ! perf.resource.name = url;!
!! ! ! perf.resource.method = method;!
! ! ! // call the original open method!
! ! ! return orig_open.apply(req, arguments);!
!! ! };!
! ! req.send = function() {!
!! ! ! perf.timing["requestStart"] = new Date().getTime();!
! ! ! // call the original send method!
! ! ! return orig_send.apply(req, arguments);!
!! ! };!
!! ! req.performance = perf;!
! ! return req;!
!! };!
! window.XMLHttpRequest = proxy_XMLHttpRequest;!
}](https://image.slidesharecdn.com/beyond-page-level-metrics-140917143152-phpapp01/75/Beyond-Page-Level-Metrics-24-2048.jpg)

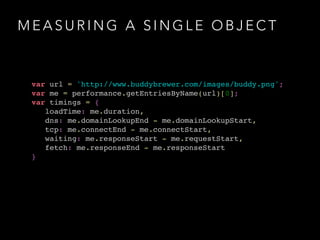

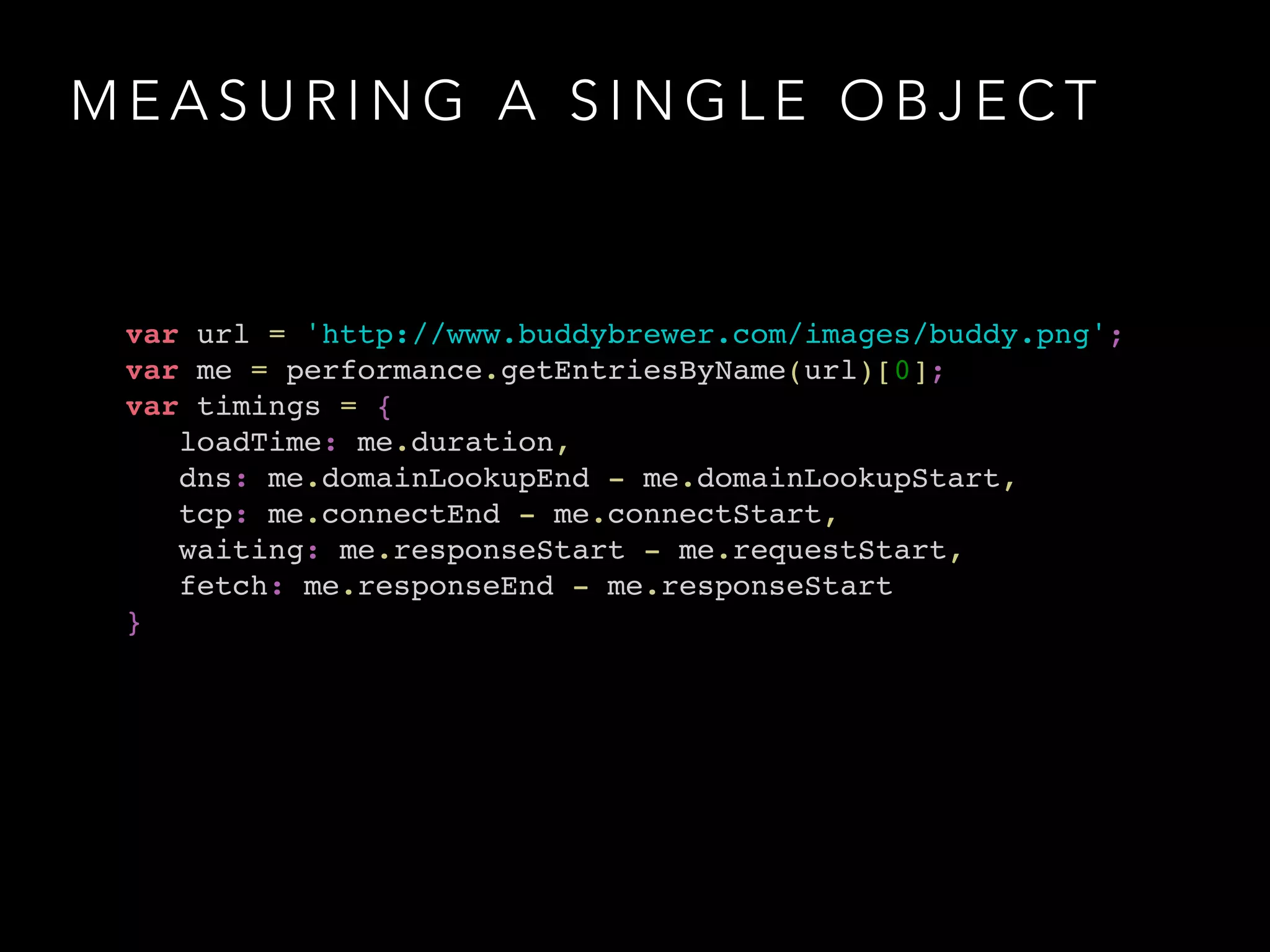

![MEASURING A SINGLE OBJECT
var url = 'http://www.buddybrewer.com/images/buddy.png';!
var me = performance.getEntriesByName(url)[0];!
var timings = { !
loadTime: me.duration, !
dns: me.domainLookupEnd - me.domainLookupStart, !
tcp: me.connectEnd - me.connectStart, !
waiting: me.responseStart - me.requestStart, !
fetch: me.responseEnd - me.responseStart!
}](https://image.slidesharecdn.com/beyond-page-level-metrics-140917143152-phpapp01/75/Beyond-Page-Level-Metrics-26-2048.jpg)

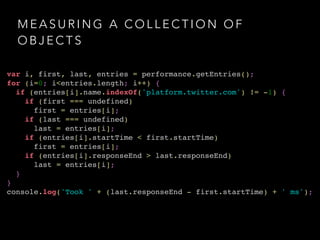

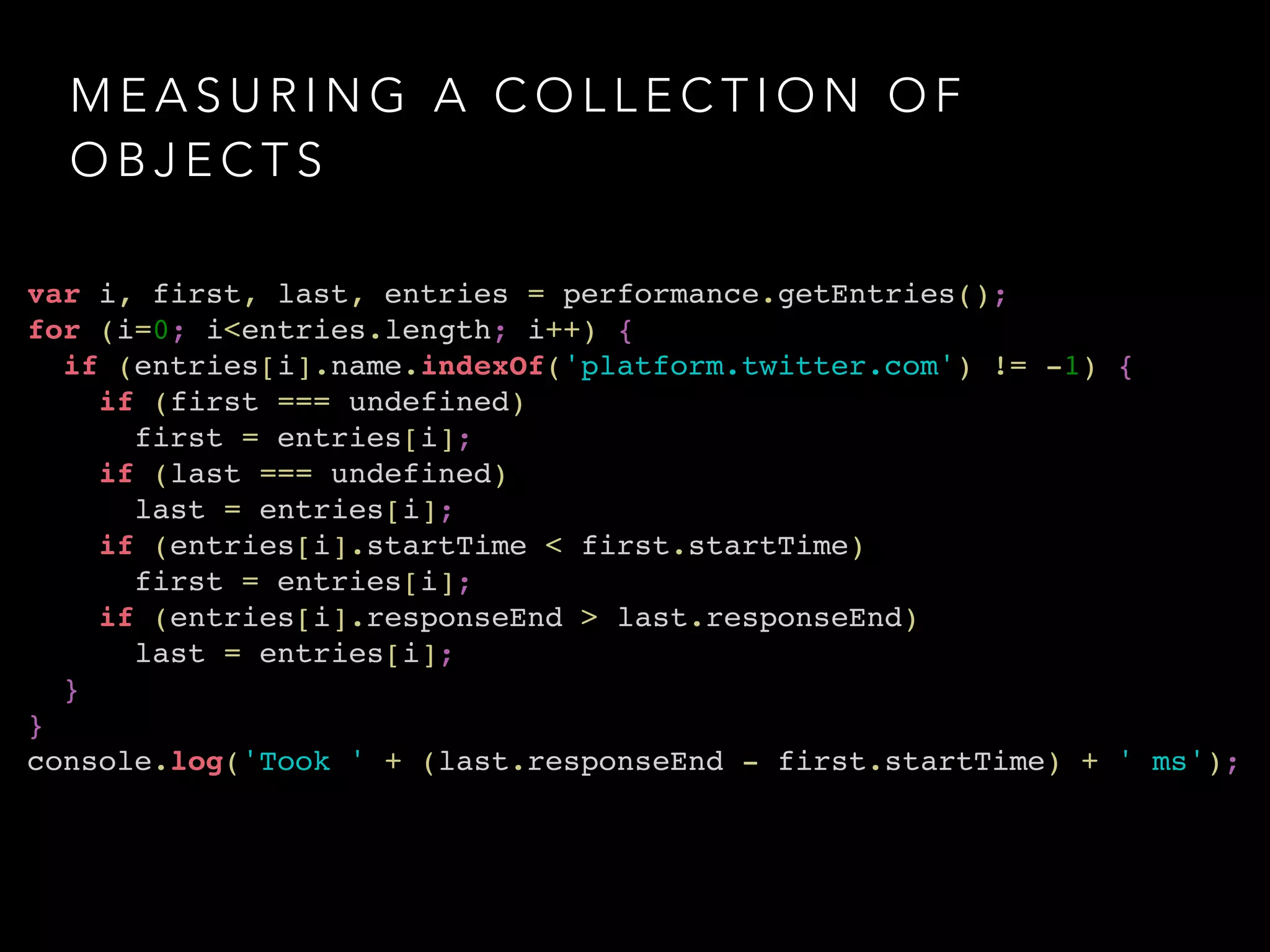

![MEASURING A COLLECTION OF
OBJECTS
var i, first, last, entries = performance.getEntries();!
for (i=0; i<entries.length; i++) {!
if (entries[i].name.indexOf('platform.twitter.com') != -1) {!
if (first === undefined) !
first = entries[i];!
if (last === undefined) !
last = entries[i];!
if (entries[i].startTime < first.startTime) !
first = entries[i];!
if (entries[i].responseEnd > last.responseEnd) !
last = entries[i];!
}!
}!
console.log('Took ' + (last.responseEnd - first.startTime) + ' ms');](https://image.slidesharecdn.com/beyond-page-level-metrics-140917143152-phpapp01/75/Beyond-Page-Level-Metrics-27-2048.jpg)

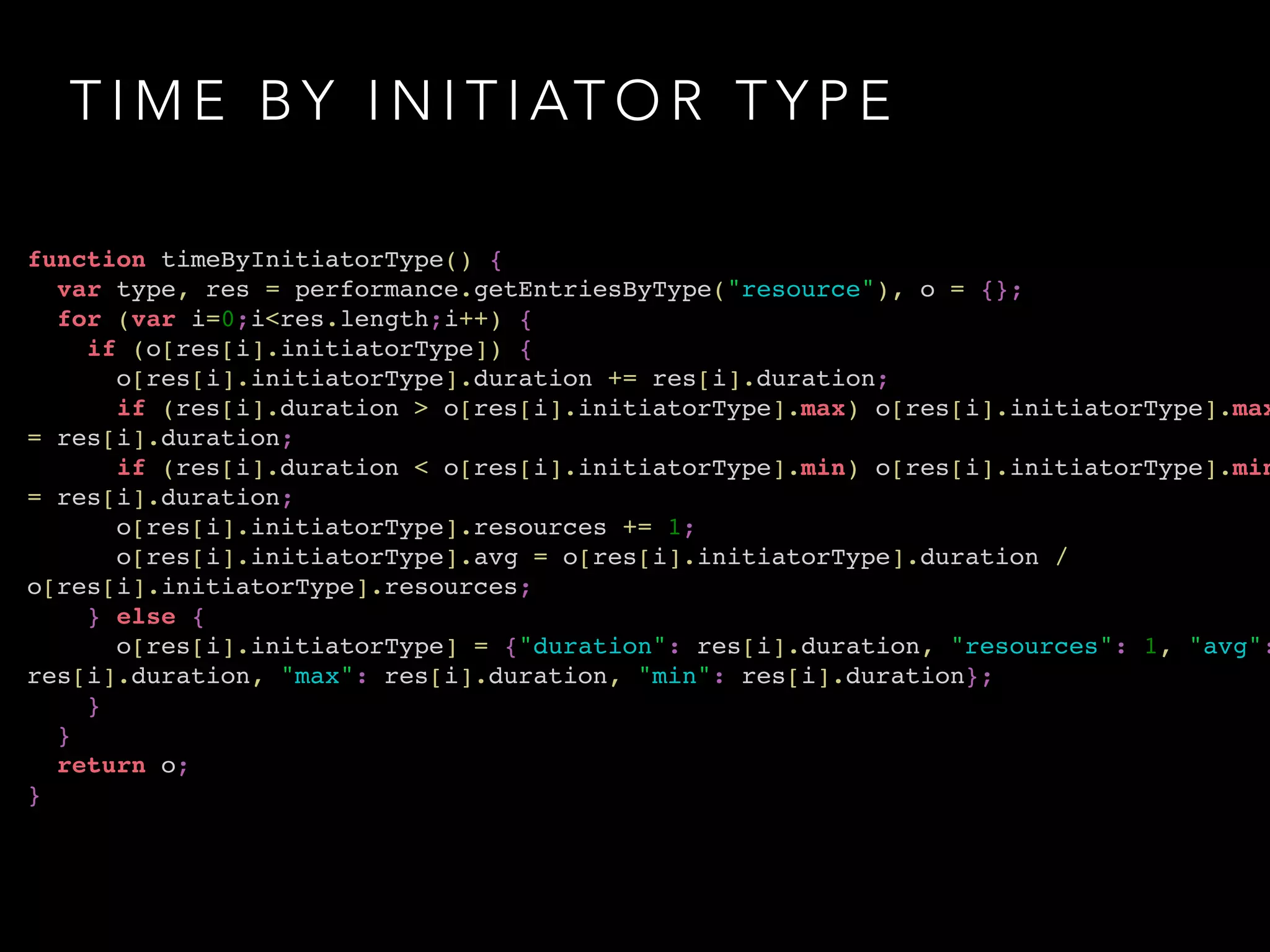

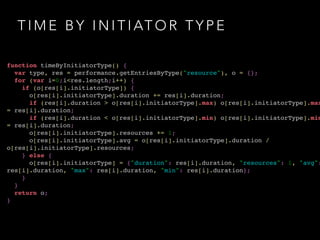

![TIME BY INITIATOR TYPE
function timeByInitiatorType() {!
var type, res = performance.getEntriesByType("resource"), o = {};!
for (var i=0;i<res.length;i++) {!
if (o[res[i].initiatorType]) {!
o[res[i].initiatorType].duration += res[i].duration;!
if (res[i].duration > o[res[i].initiatorType].max) o[res[i].initiatorType].max
= res[i].duration;!
if (res[i].duration < o[res[i].initiatorType].min) o[res[i].initiatorType].min
= res[i].duration;!
o[res[i].initiatorType].resources += 1;!
o[res[i].initiatorType].avg = o[res[i].initiatorType].duration /
o[res[i].initiatorType].resources;!
} else {!
o[res[i].initiatorType] = {"duration": res[i].duration, "resources": 1, "avg":
res[i].duration, "max": res[i].duration, "min": res[i].duration};!
}!
}!
return o;!
}](https://image.slidesharecdn.com/beyond-page-level-metrics-140917143152-phpapp01/75/Beyond-Page-Level-Metrics-28-2048.jpg)

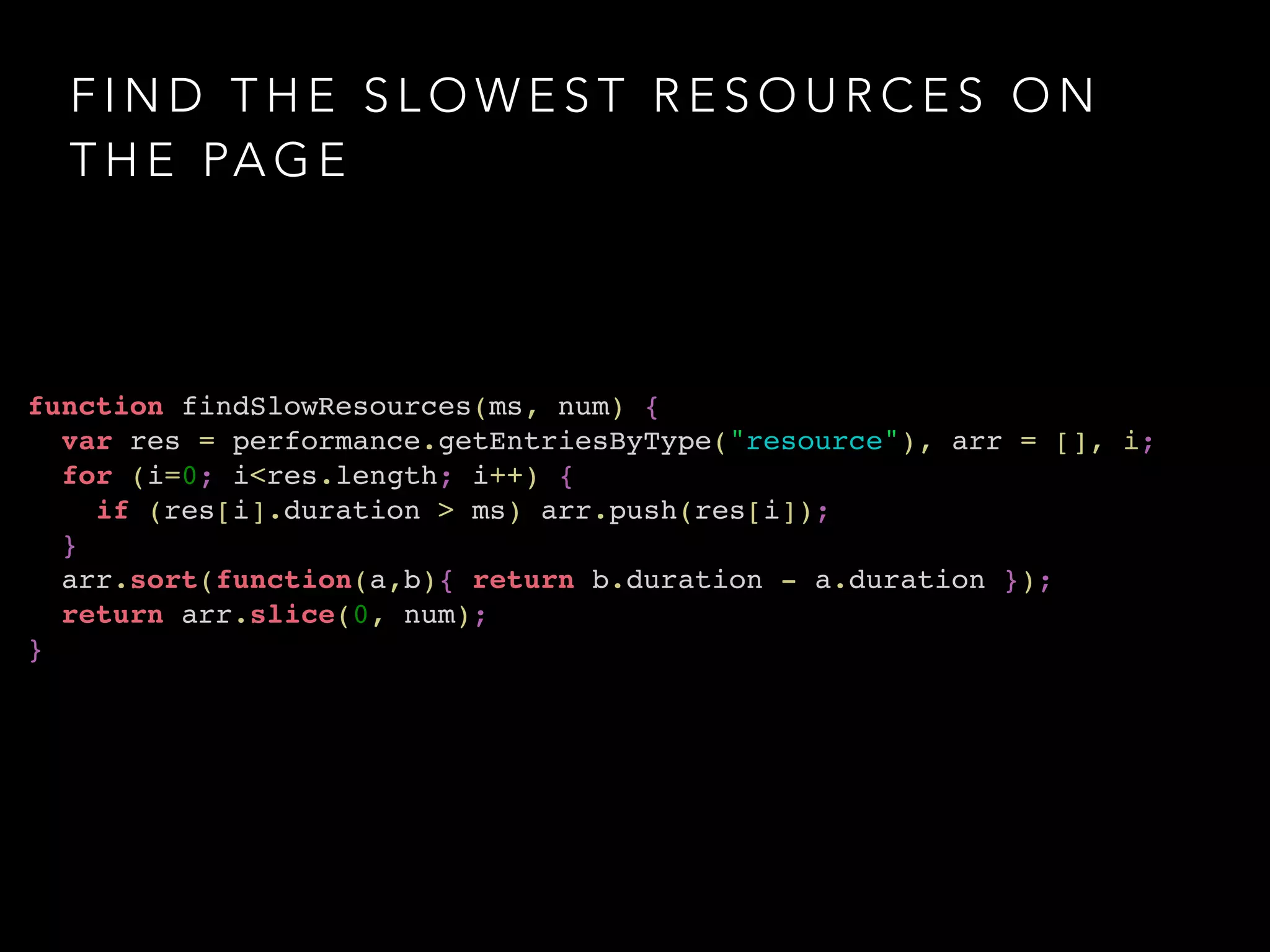

![FIND THE SLOWEST RESOURCES ON
THE PAGE
function findSlowResources(ms, num) {!
var res = performance.getEntriesByType("resource"), arr = [], i;!
for (i=0; i<res.length; i++) {!
if (res[i].duration > ms) arr.push(res[i]);!
}!
arr.sort(function(a,b){ return b.duration - a.duration });!
return arr.slice(0, num);!
}](https://image.slidesharecdn.com/beyond-page-level-metrics-140917143152-phpapp01/75/Beyond-Page-Level-Metrics-29-2048.jpg)

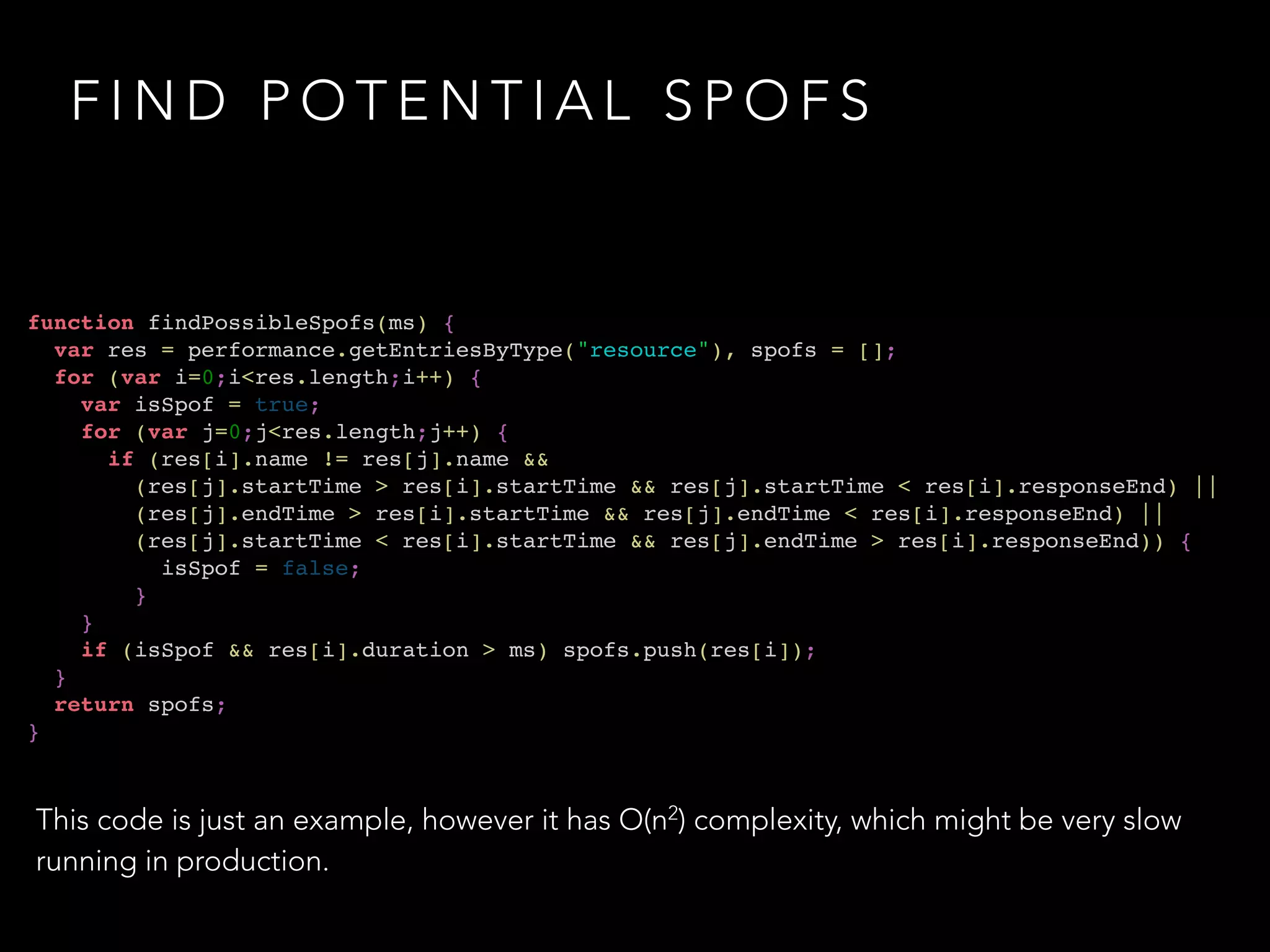

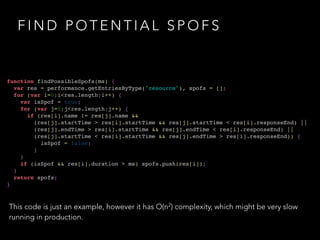

![FIND POTENTIAL SPOFS
function findPossibleSpofs(ms) {!
var res = performance.getEntriesByType("resource"), spofs = [];!
for (var i=0;i<res.length;i++) {!
var isSpof = true;!
for (var j=0;j<res.length;j++) {!
if (res[i].name != res[j].name && !
(res[j].startTime > res[i].startTime && res[j].startTime < res[i].responseEnd) ||!
(res[j].endTime > res[i].startTime && res[j].endTime < res[i].responseEnd) ||!
(res[j].startTime < res[i].startTime && res[j].endTime > res[i].responseEnd)) {!
isSpof = false;!
}!
}!
if (isSpof && res[i].duration > ms) spofs.push(res[i]);!
}!
return spofs;!
}
This code is just an example, however it has O(n2) complexity, which might be very slow
running in production.](https://image.slidesharecdn.com/beyond-page-level-metrics-140917143152-phpapp01/75/Beyond-Page-Level-Metrics-30-2048.jpg)

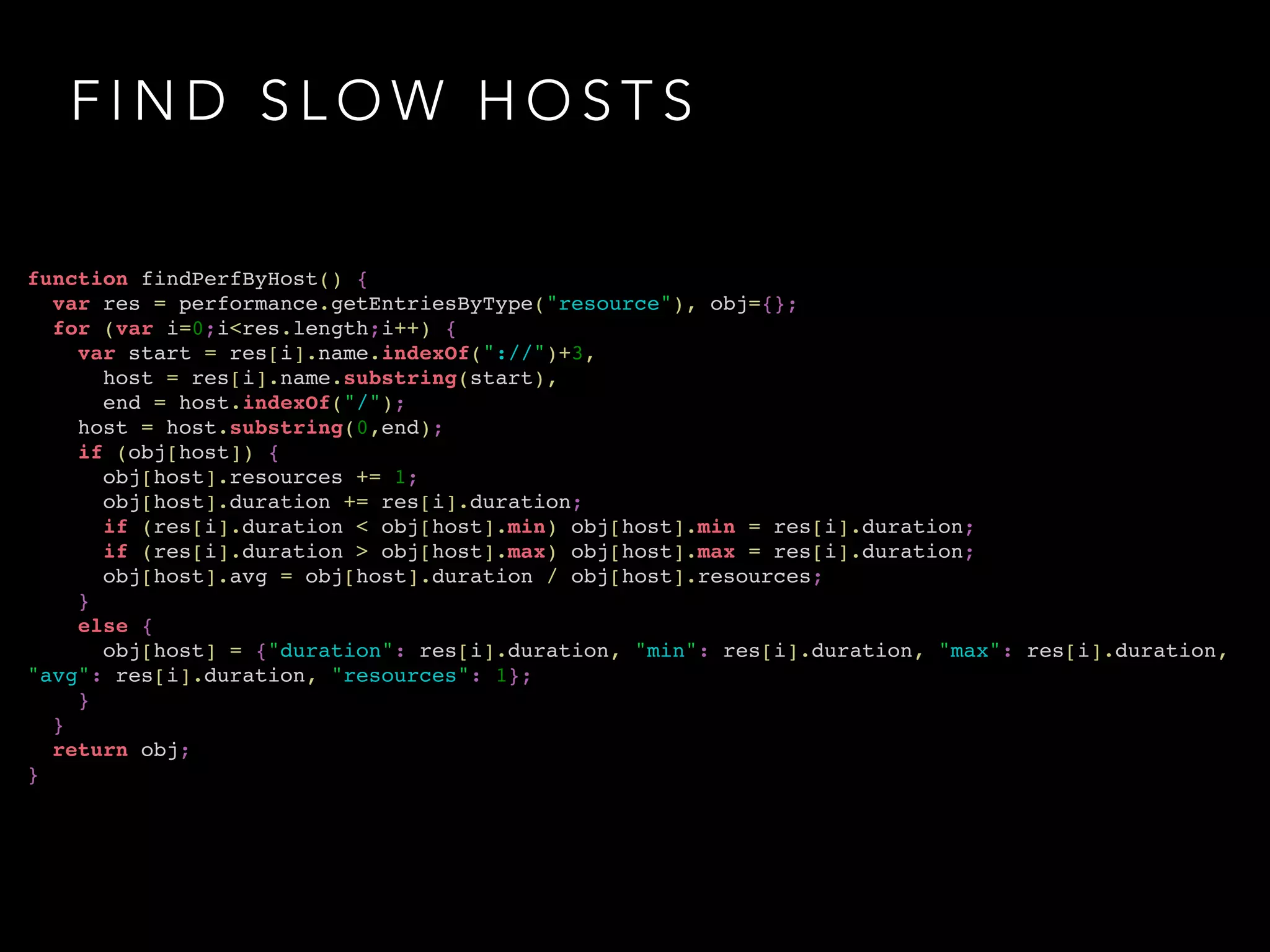

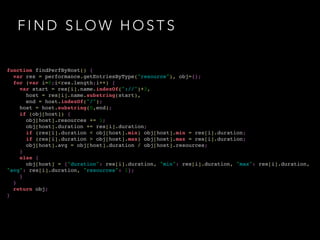

![FIND SLOW HOSTS
function findPerfByHost() {!
var res = performance.getEntriesByType("resource"), obj={};!
for (var i=0;i<res.length;i++) {!
var start = res[i].name.indexOf("://")+3,!
host = res[i].name.substring(start),!
end = host.indexOf("/");!
host = host.substring(0,end);!
if (obj[host]) {!
obj[host].resources += 1;!
obj[host].duration += res[i].duration;!
if (res[i].duration < obj[host].min) obj[host].min = res[i].duration;!
if (res[i].duration > obj[host].max) obj[host].max = res[i].duration;!
obj[host].avg = obj[host].duration / obj[host].resources;!
}!
else {!
obj[host] = {"duration": res[i].duration, "min": res[i].duration, "max": res[i].duration,
"avg": res[i].duration, "resources": 1};!
}!
}!
return obj;!
}](https://image.slidesharecdn.com/beyond-page-level-metrics-140917143152-phpapp01/75/Beyond-Page-Level-Metrics-31-2048.jpg)

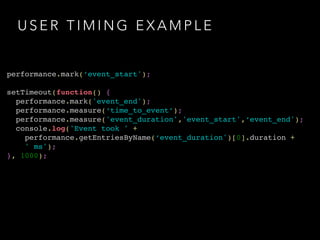

![USER TIMING EXAMPLE
performance.mark(‘event_start');!
!
setTimeout(function() {!
performance.mark('event_end');!
performance.measure(‘time_to_event’);!
performance.measure('event_duration','event_start',‘event_end');!
console.log('Event took ' + !
performance.getEntriesByName(‘event_duration')[0].duration + !
' ms');!
}, 1000);](https://image.slidesharecdn.com/beyond-page-level-metrics-140917143152-phpapp01/75/Beyond-Page-Level-Metrics-34-2048.jpg)
Uploaded byPhilip Tellis
Beyond Page Level Metrics
The document discusses various metrics and methodologies for measuring webpage performance, focusing on metrics such as navigation timing, resource timing, and user timing. It explores the significance of understanding perceived latency and conversion rates based on page load speeds, providing examples of performance measurement in JavaScript. Additionally, it emphasizes the relationship between page speed and business outcomes, presenting potential improvements in conversion rates through optimization of load times.
More Related Content
![Selenide alternative in Python - Introducing Selene [SeleniumCamp 2016]](https://cdn.slidesharecdn.com/ss_thumbnails/seleniumcamp2016-selenidealternativeinpython-introducingselene-160226140611-thumbnail.jpg?width=640&height=640&fit=bounds)
![[1C1]Service Workers](https://cdn.slidesharecdn.com/ss_thumbnails/1c1serviceworkers-140927225946-phpapp02-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Beyond Page Level Metrics
Beyond Page Level Metrics
- 1. BEYOND PAGE LEVELMETRICS
- 2. Buddy Brewer @bbrewer Philip Tellis @bluesmoon

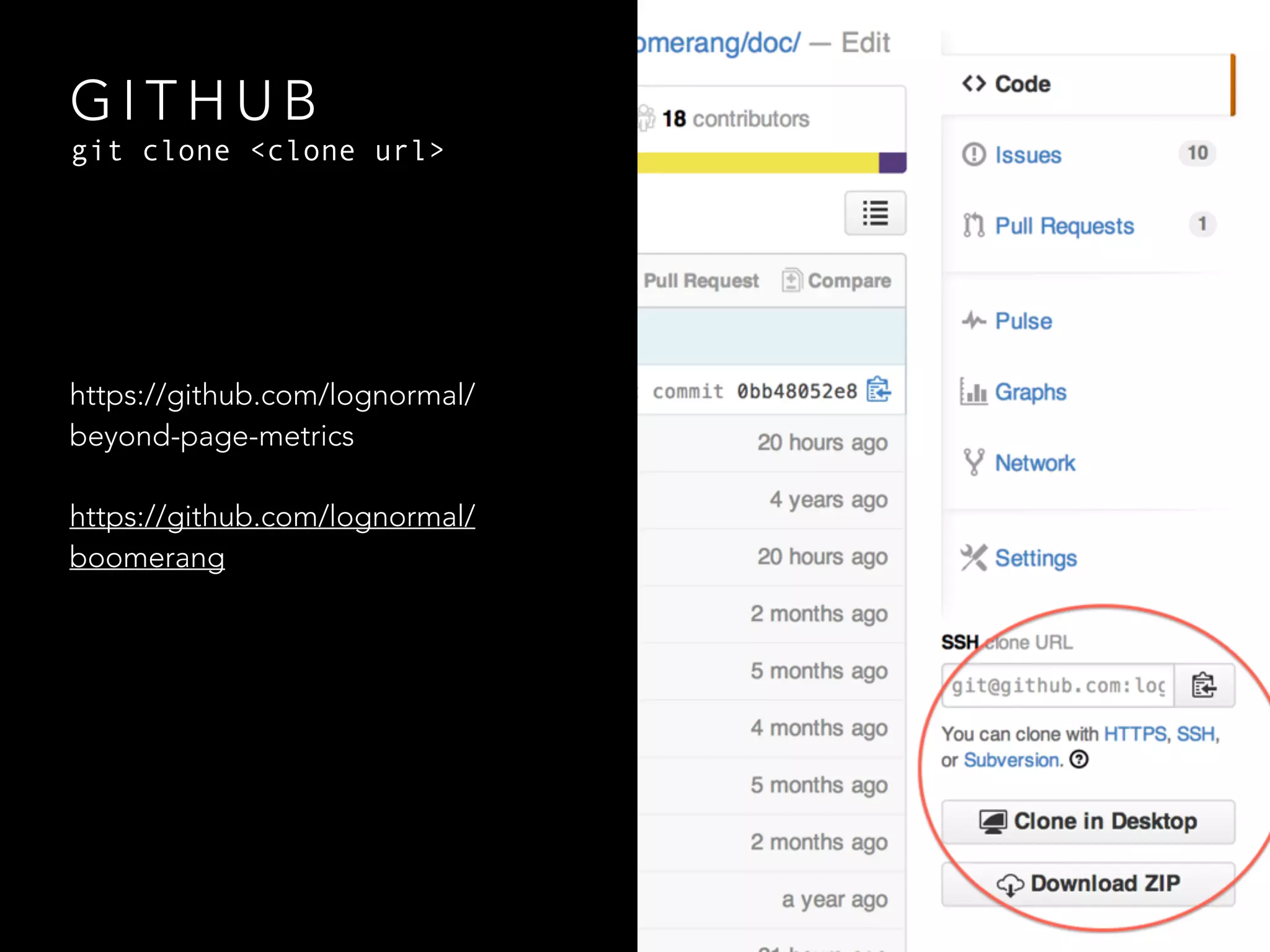

- 3. GITHUB git clone<clone url> https://github.com/lognormal/ beyond-page-metrics https://github.com/lognormal/ boomerang

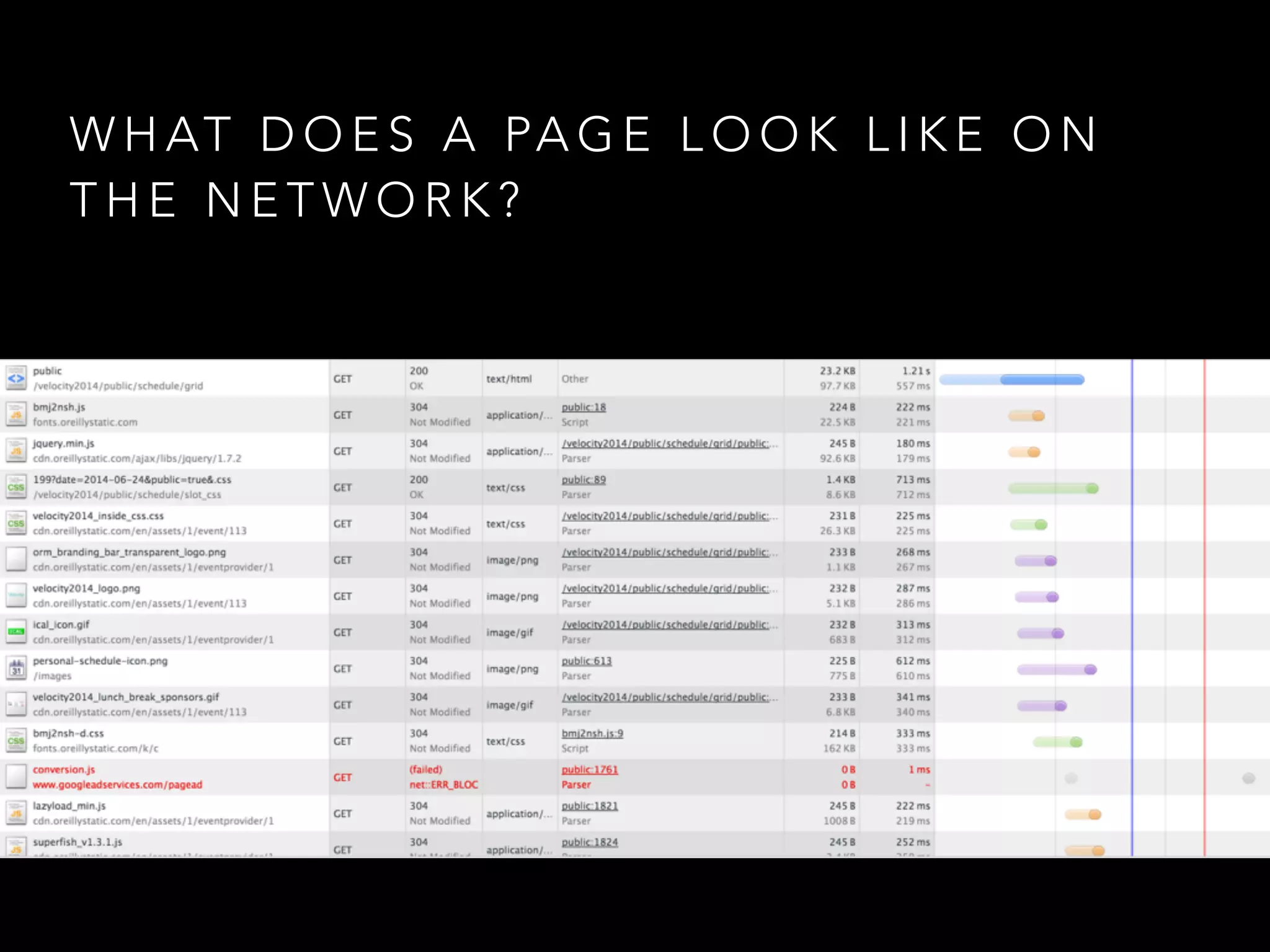

- 4. WHAT DOES APAGE LOOK LIKE ON THE NETWORK?

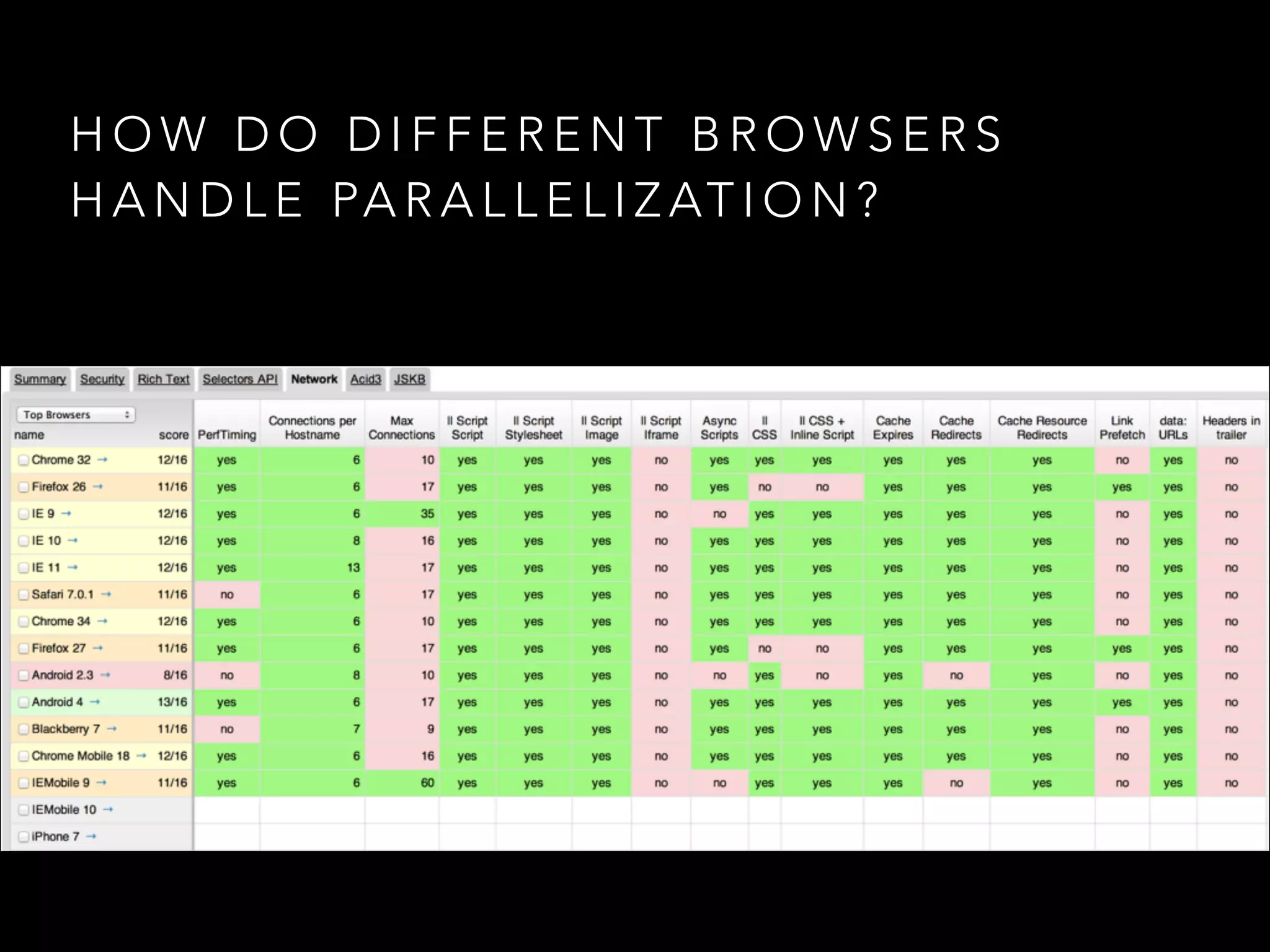

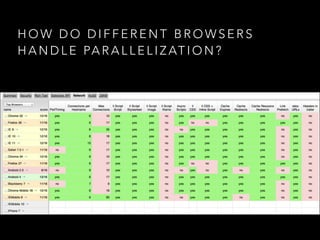

- 5. HOW DO DIFFERENTBROWSERS HANDLE PARALLELIZATION?

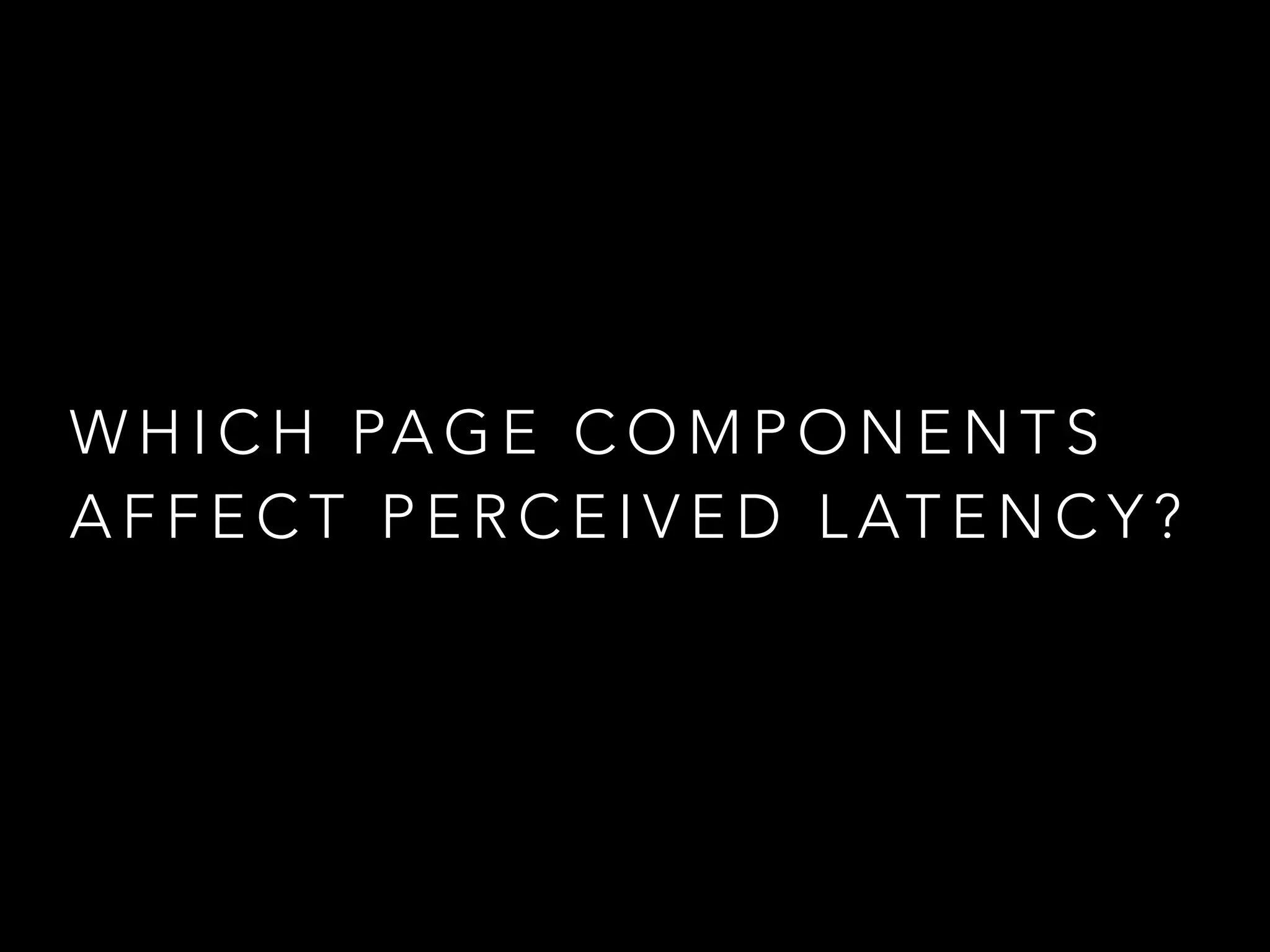

- 6. WHICH PAGE COMPONENTS AFFECT PERCEIVED LATENCY?

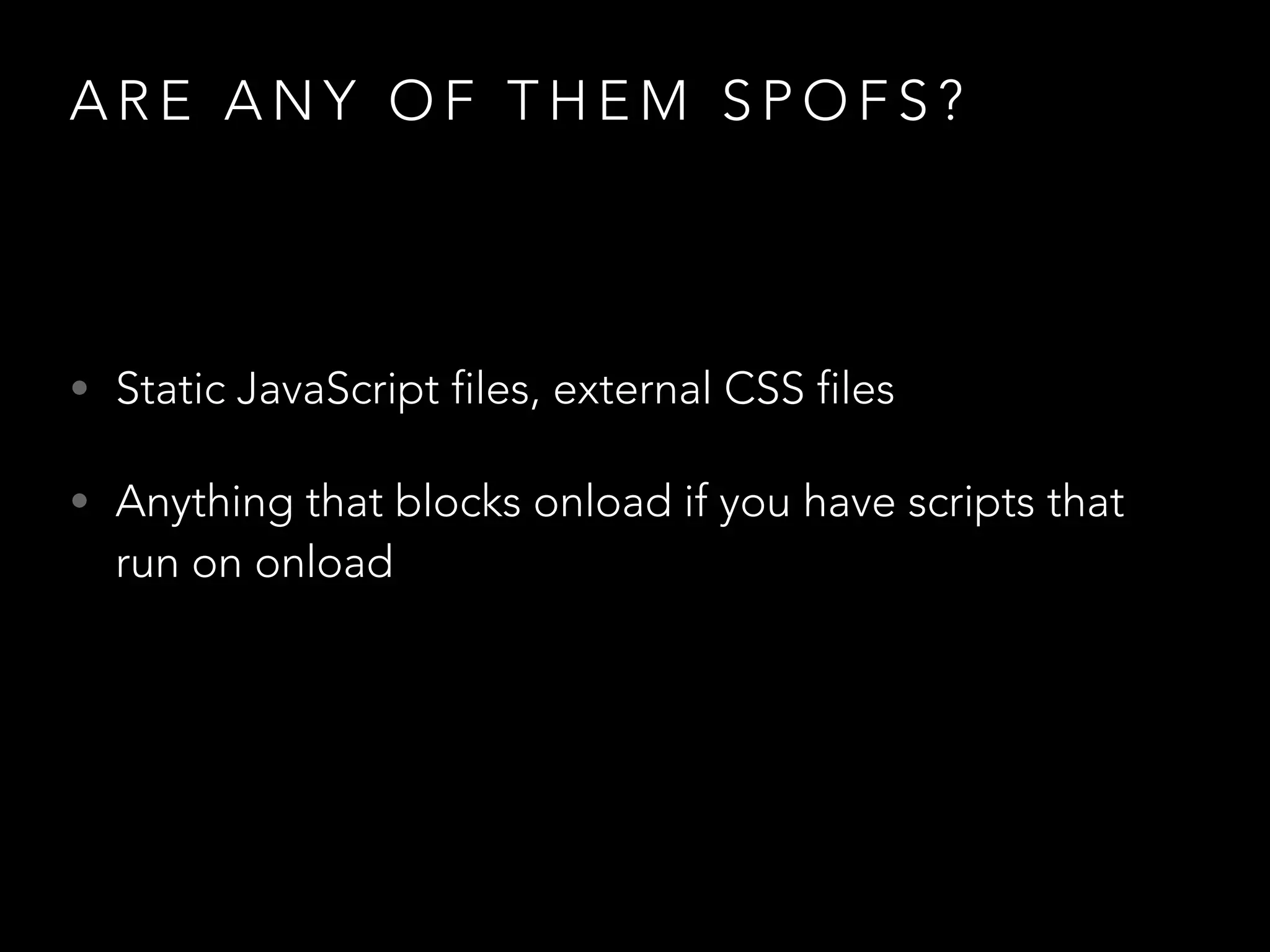

- 7. ARE ANY OFTHEM SPOFS? • Static JavaScript files, external CSS files • Anything that blocks onload if you have scripts that run on onload
- 8. CAN’T WE GETTHIS ALREADY? WHY DO WE NEED RUM?
- 9. San Francisco London Paris Gilroy Tellisford Eze
- 10. Fast Connections Slow Connections
- 11. Common Browsers UncommonBrowsers
- 12.
- 13.

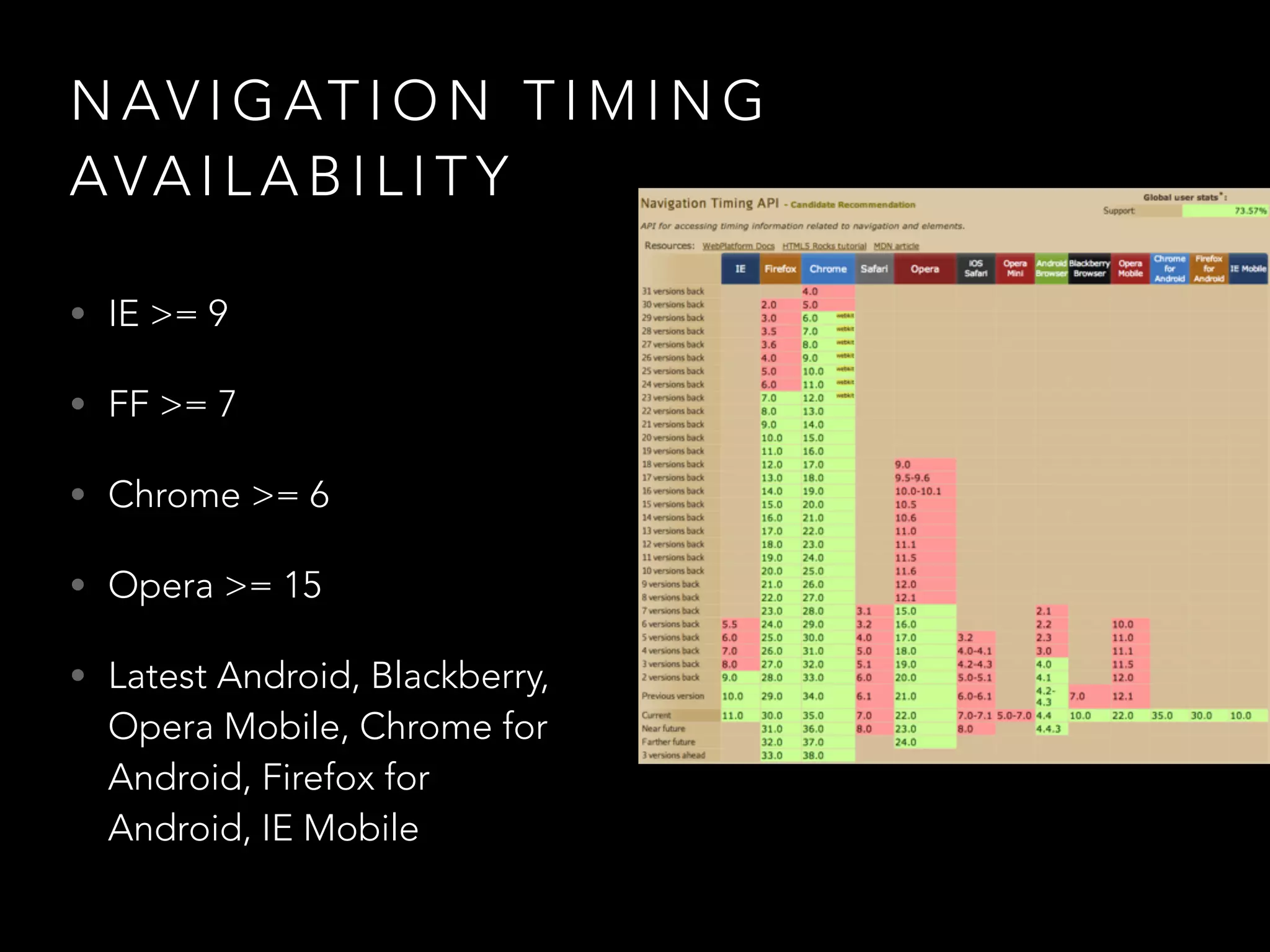

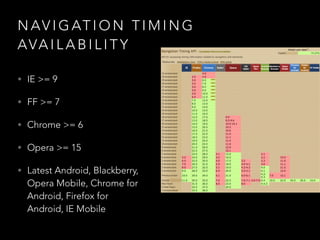

- 14. NAVIGATION TIMING AVAILABI L ITY • IE >= 9 • FF >= 7 • Chrome >= 6 • Opera >= 15 • Latest Android, Blackberry, Opera Mobile, Chrome for Android, Firefox for Android, IE Mobile

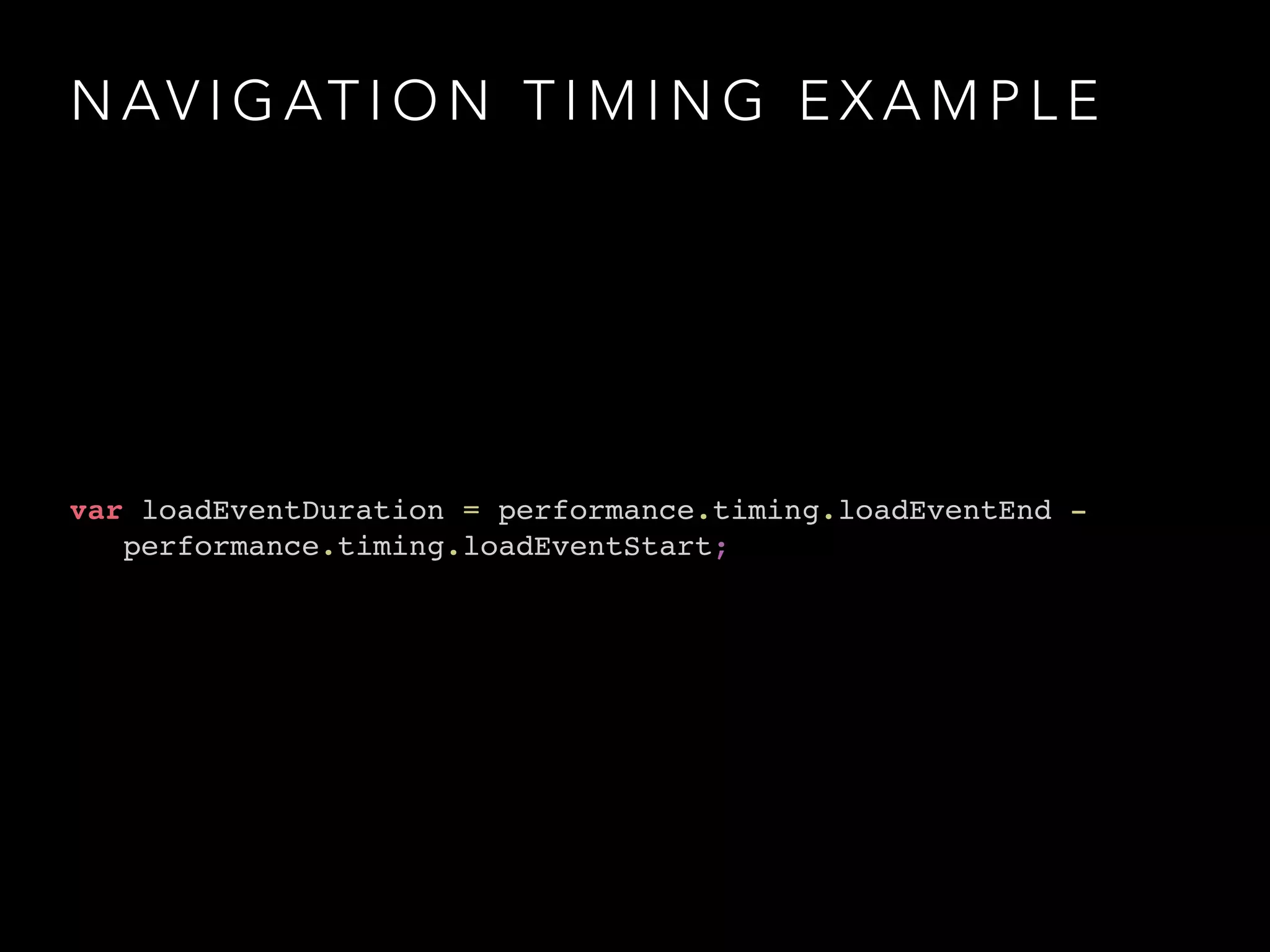

- 15. NAVIGATION TIMING EXAMPLE var loadEventDuration = performance.timing.loadEventEnd - ! performance.timing.loadEventStart;
- 16.

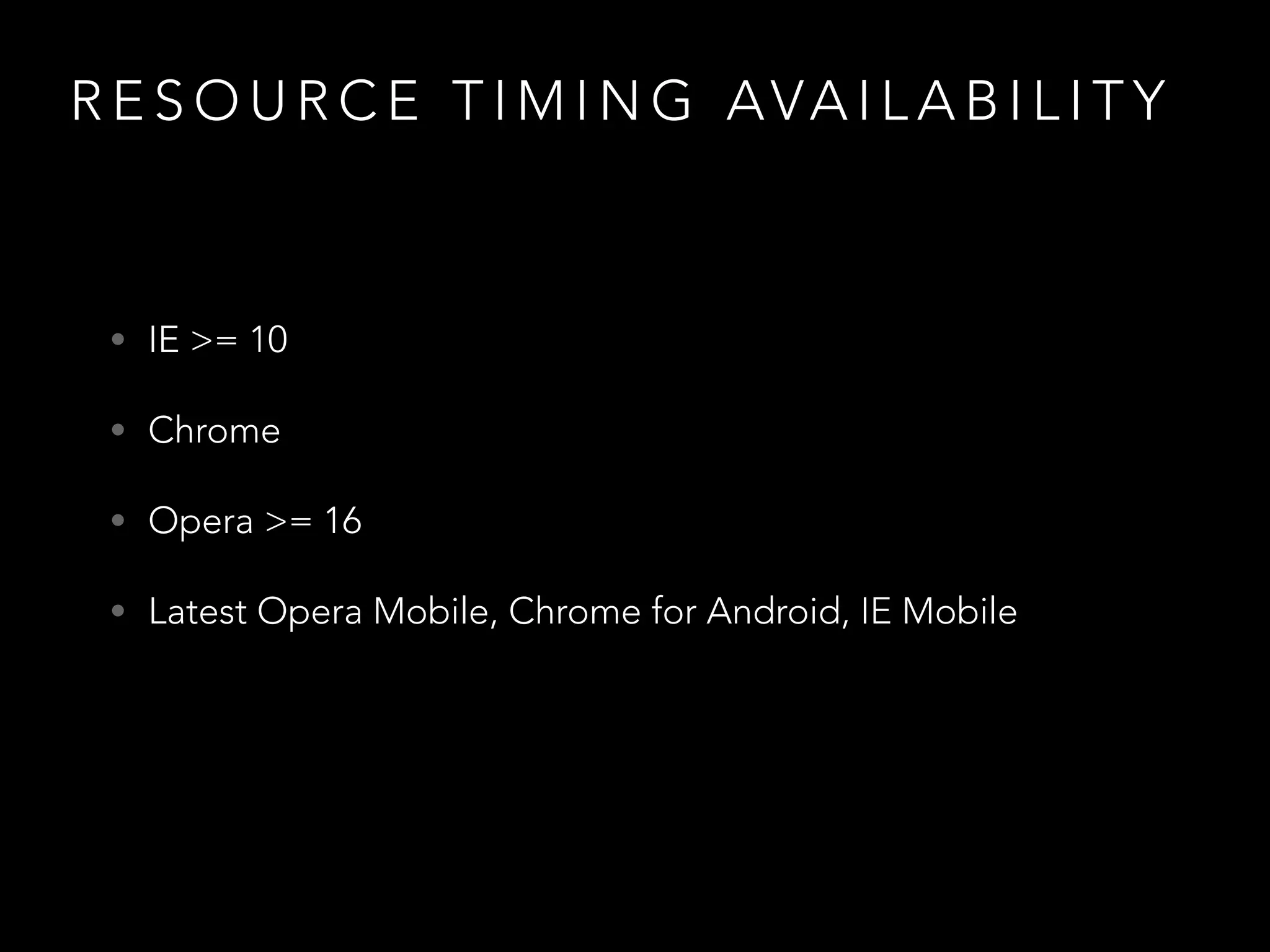

- 17. RESOURCE TIMING AVAILABILITY • IE >= 10 • Chrome • Opera >= 16 • Latest Opera Mobile, Chrome for Android, IE Mobile

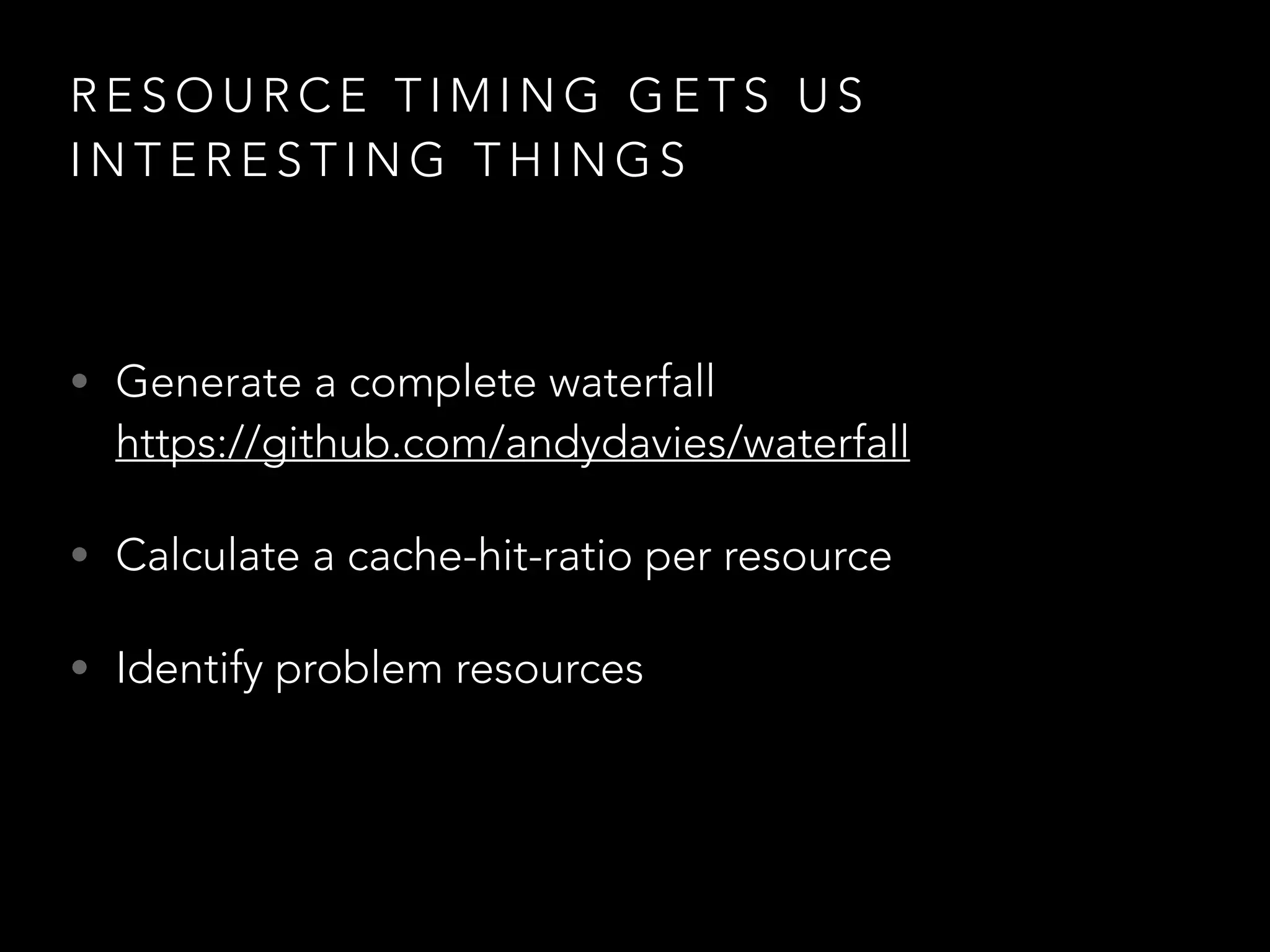

- 18. RESOURCE TIMING GETSUS INTERESTING THINGS • Generate a complete waterfall https://github.com/andydavies/waterfall • Calculate a cache-hit-ratio per resource • Identify problem resources

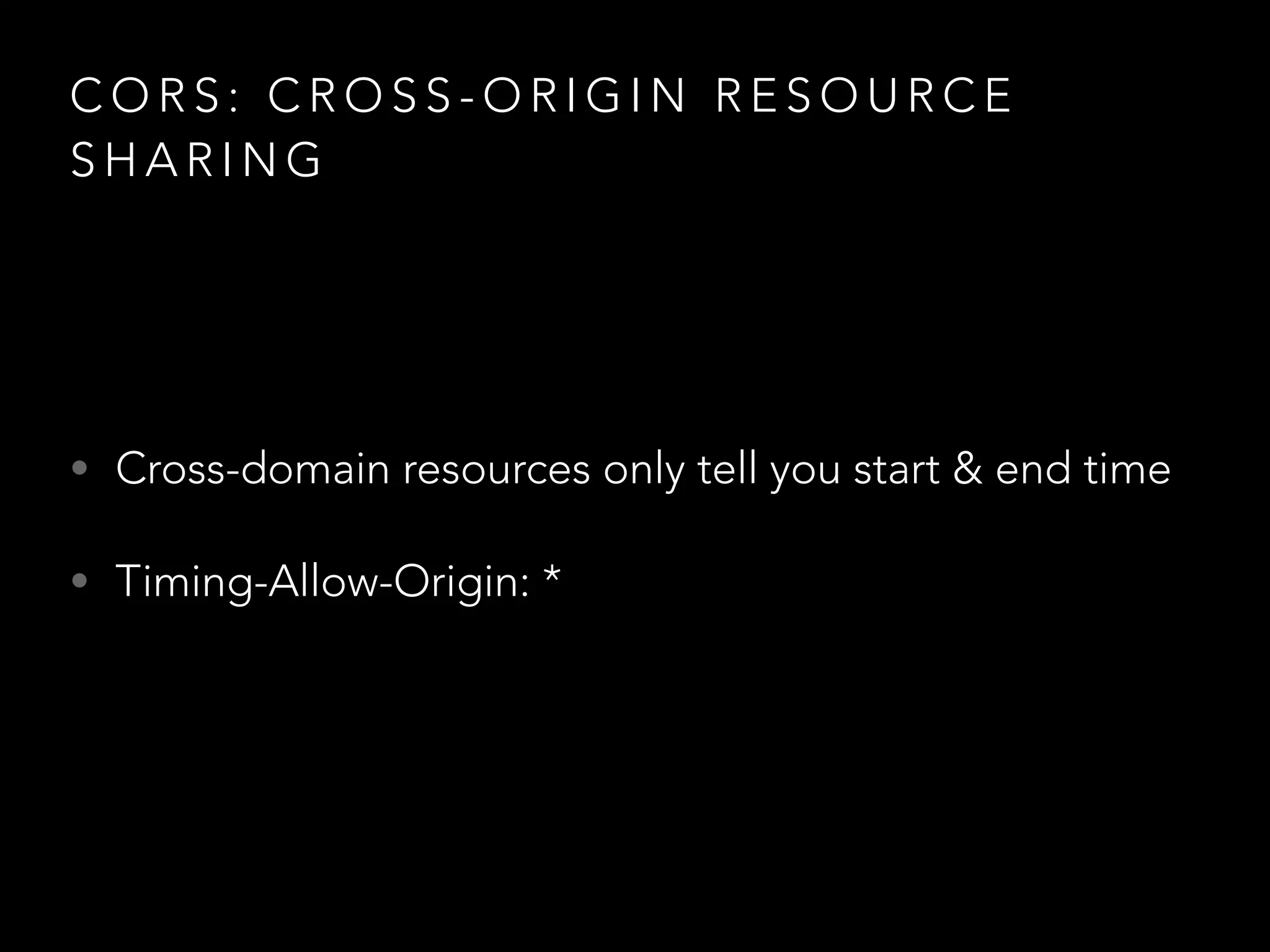

- 19. CORS: CROSS-ORIGIN RESOURCE SHARING • Cross-domain resources only tell you start & end time • Timing-Allow-Origin: *

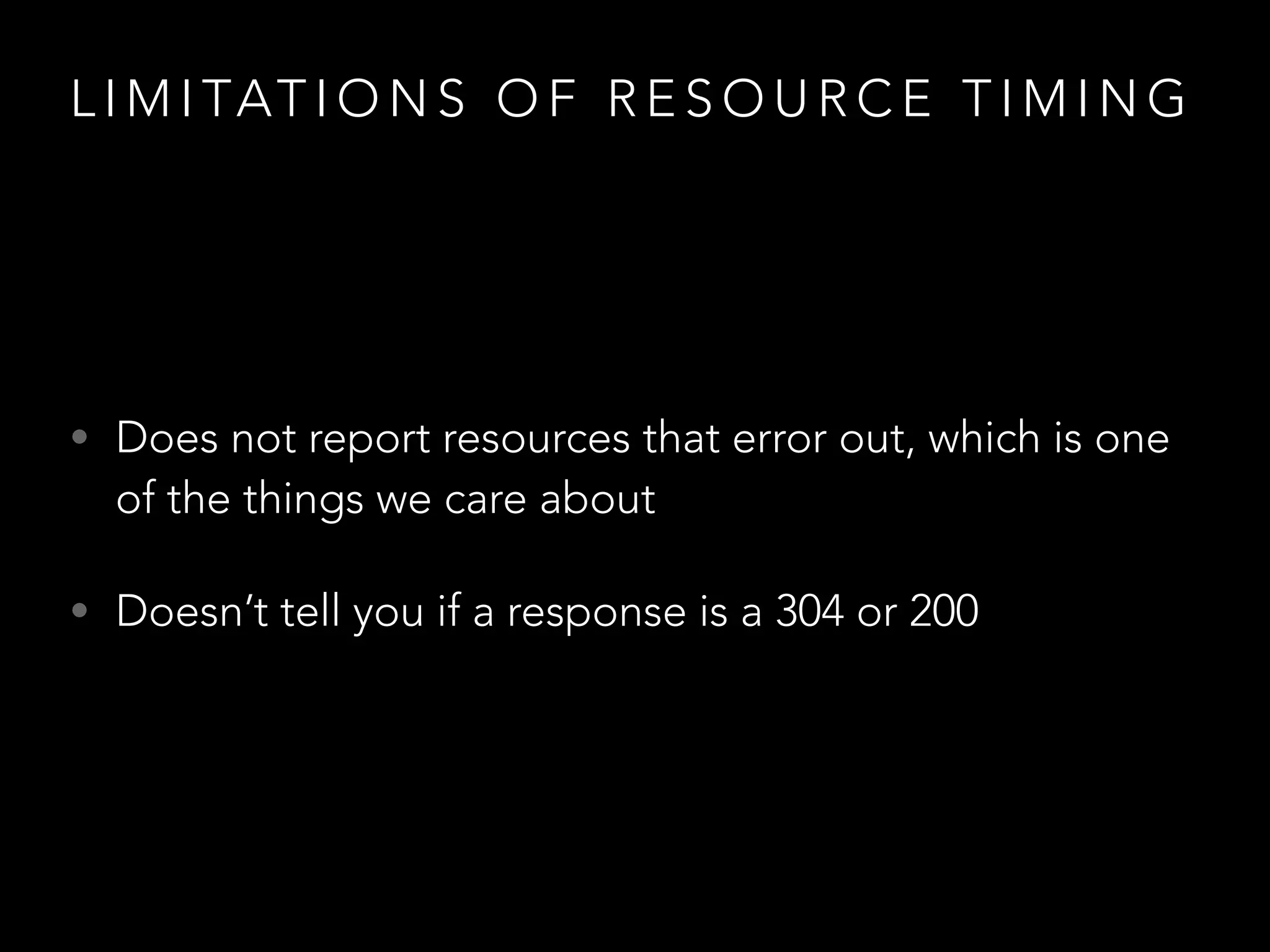

- 20. LIMITATIONS OF RESOURCETIMING • Does not report resources that error out, which is one of the things we care about • Doesn’t tell you if a response is a 304 or 200

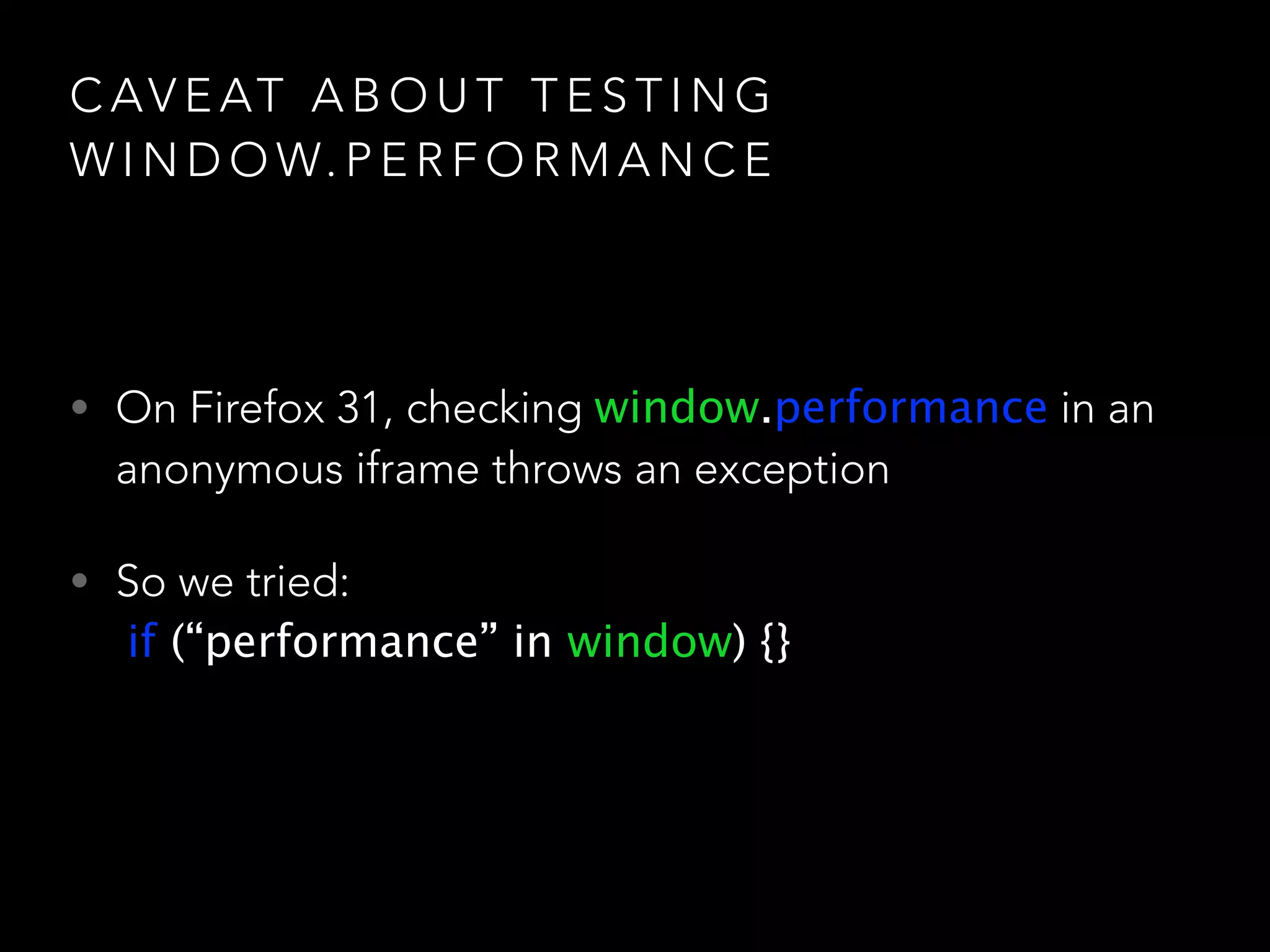

- 21. CAVEAT ABOUT TESTING WINDOW.PERFORMANCE • On Firefox 31, checking window.performance in an anonymous iframe throws an exception • So we tried: if (“performance” in window) {}

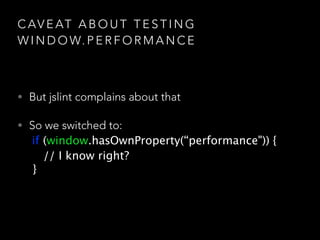

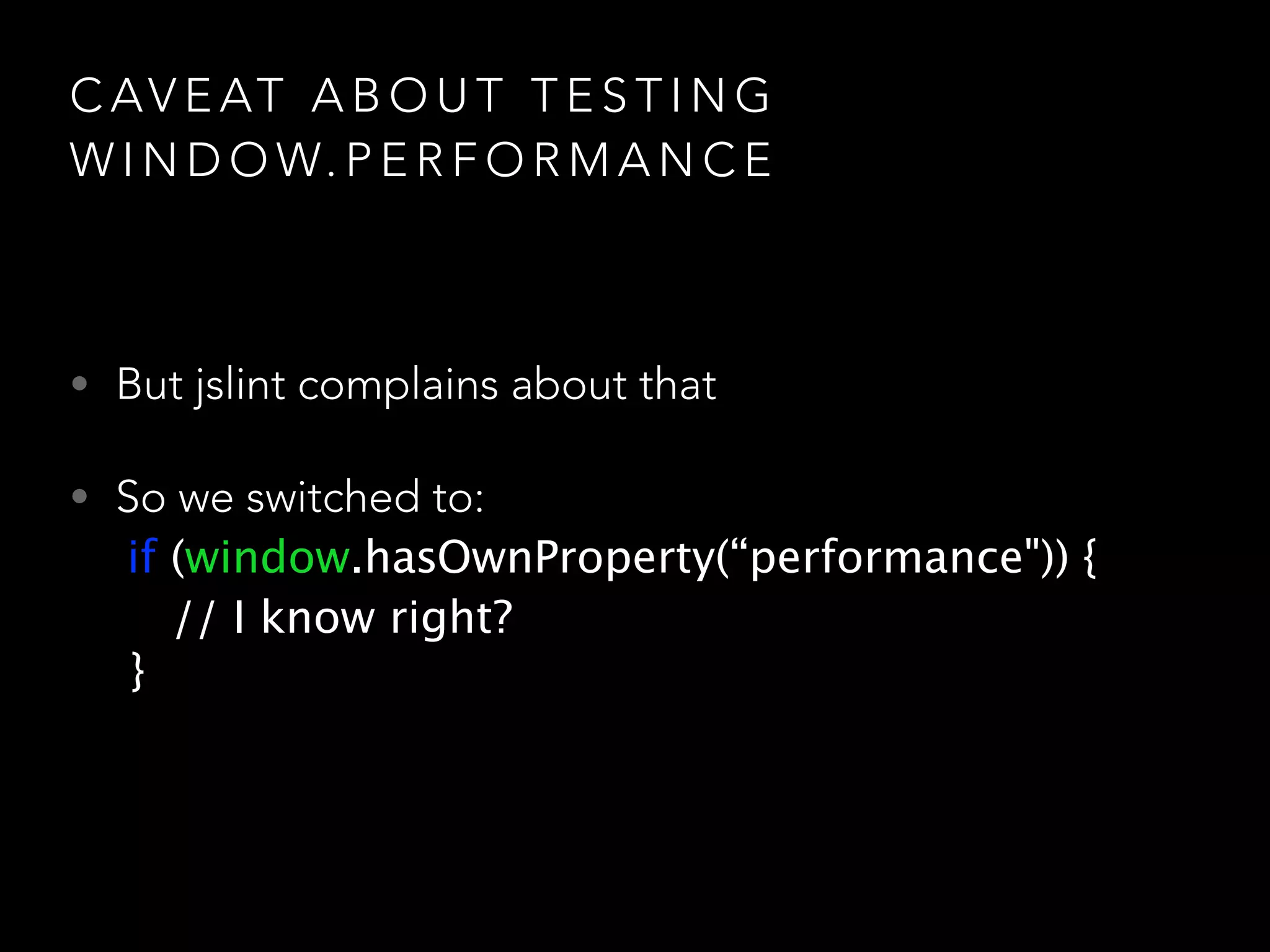

- 22. CAVEAT ABOUT TESTING WINDOW.PERFORMANCE • But jslint complains about that • So we switched to: if (window.hasOwnProperty(“performance")) { // I know right? }

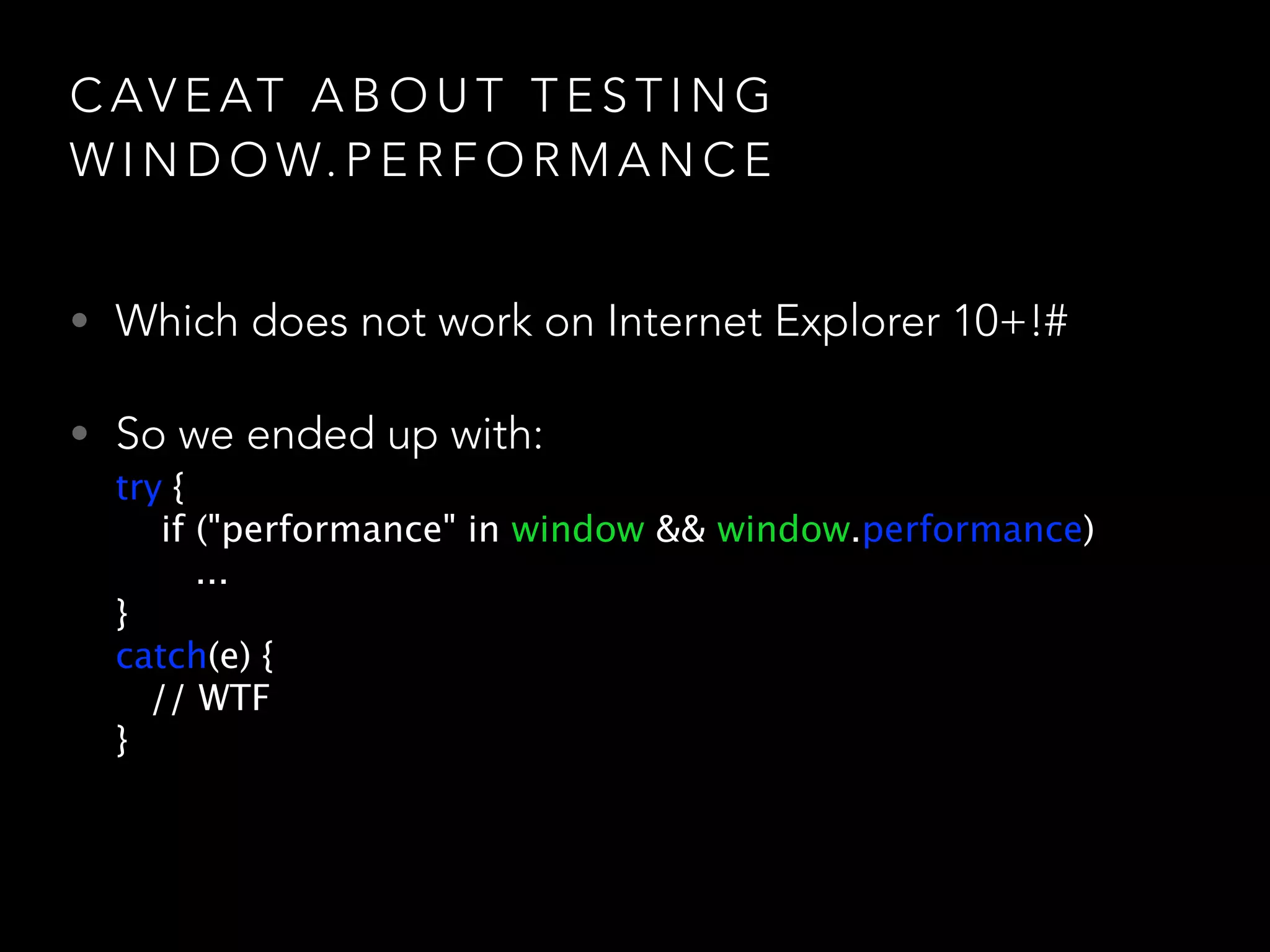

- 23. CAVEAT ABOUT TESTING WINDOW.PERFORMANCE • Which does not work on Internet Explorer 10+!# • So we ended up with: try { if ("performance" in window && window.performance) ... } catch(e) { // WTF }
- 24. MEASURING XHRS !! function instrumentXHR()! {! ! var proxy_XMLHttpRequest,! ! orig_XMLHttpRequest = window.XMLHttpRequest,! ! readyStateMap;! if (!orig_XMLHttpRequest) {! ! ! // Nothing to instrument! ! ! return;! !! }! ! readyStateMap = [ "uninitialized", "open", "responseStart", "domInteractive", "responseEnd" ];! !! // We could also inherit from window.XMLHttpRequest, but for this implementation,! ! // we'll use composition! ! proxy_XMLHttpRequest = function() {! !! ! var req, perf = { timing: {}, resource: {} }, orig_open, orig_send;! !! ! req = new orig_XMLHttpRequest;! ! ! orig_open = req.open;! !! ! orig_send = req.send;! ! ! req.open = function(method, url, async) {! ! ! ! if (async) {! ! ! ! ! req.addEventListener('readystatechange', function() {! ! ! ! ! ! perf.timing[readyStateMap[req.readyState]] = new Date().getTime();! ! ! ! ! }, false);! !! ! ! }! ! ! ! req.addEventListener('load', function() {! ! ! ! ! perf.timing["loadEventEnd"] = new Date().getTime();! ! ! ! ! perf.resource.status = req.status;! ! ! ! }, false);! ! ! ! req.addEventListener('timeout', function() { perf.timing["timeout"] = new Date().getTime(); }, false);! ! ! ! req.addEventListener('error', function() { perf.timing["error"] = new Date().getTime(); }, false);! !! ! ! req.addEventListener('abort', function() { perf.timing["abort"] = new Date().getTime(); }, false);! ! ! ! perf.resource.name = url;! !! ! ! perf.resource.method = method;! ! ! ! // call the original open method! ! ! ! return orig_open.apply(req, arguments);! !! ! };! ! ! req.send = function() {! !! ! ! perf.timing["requestStart"] = new Date().getTime();! ! ! ! // call the original send method! ! ! ! return orig_send.apply(req, arguments);! !! ! };! !! ! req.performance = perf;! ! ! return req;! !! };! ! window.XMLHttpRequest = proxy_XMLHttpRequest;! }

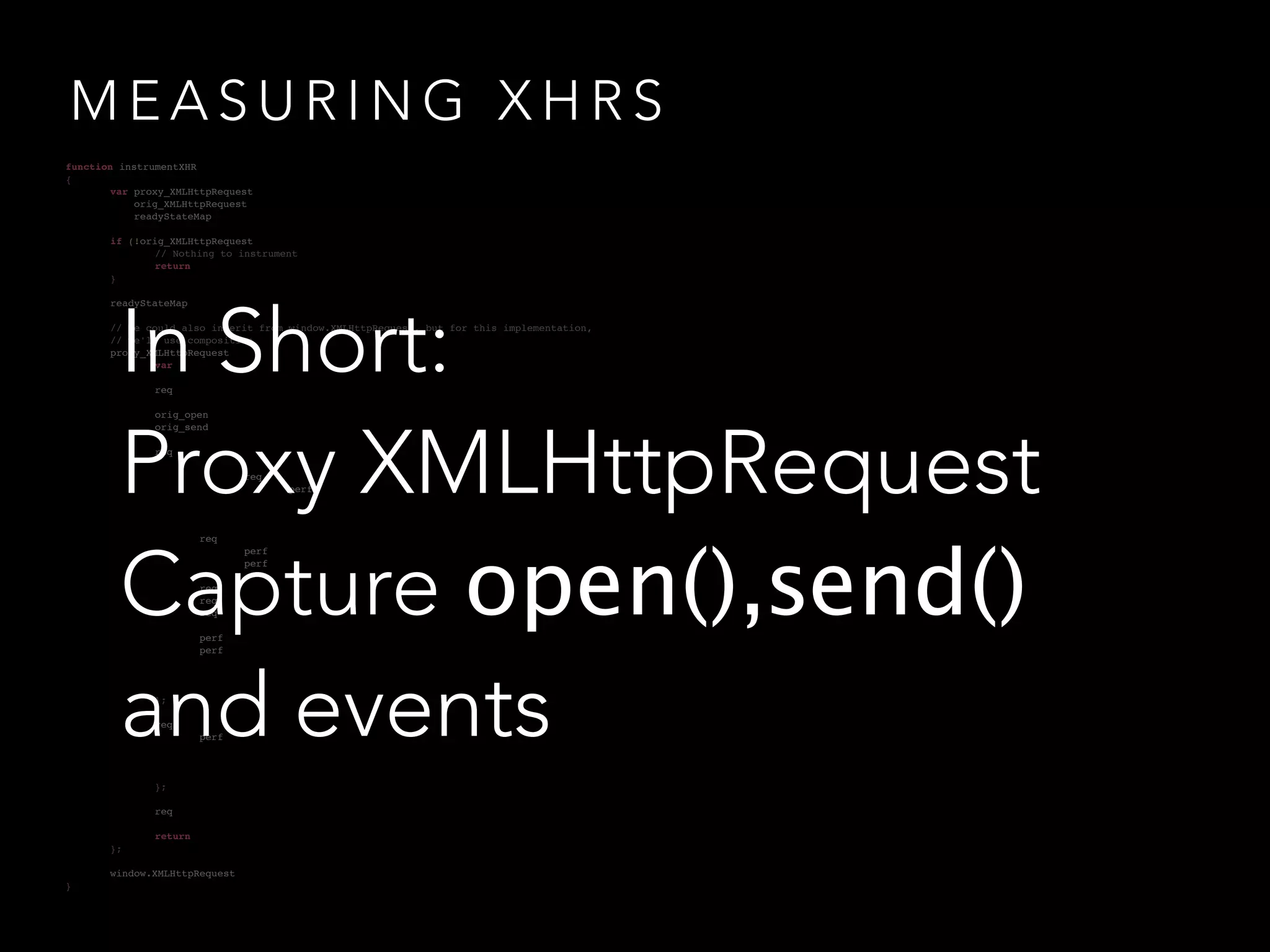

- 25. MEASURING XHRS !! function instrumentXHR {! ! var proxy_XMLHttpRequest ! orig_XMLHttpRequest ! readyStateMap if (!orig_XMLHttpRequest ! ! // Nothing to instrument ! ! return !! }! ! readyStateMap !! // We could also inherit from window.XMLHttpRequest, but for this implementation, ! // we'll use composition ! proxy_XMLHttpRequest In Short: Proxy XMLHttpRequest Capture open(),send() and events ! var ! !! ! req ! ! orig_open !! ! orig_send ! ! req ! ! ! ! ! ! ! req ! ! ! ! ! perf ! ! ! ! !! ! ! ! ! ! req ! ! ! ! perf ! ! ! ! perf ! ! ! ! ! ! req ! ! ! req !! ! ! req ! ! ! perf !! ! ! perf ! ! ! ! ! ! !! ! }; ! ! req !! ! ! perf ! ! ! ! ! ! !! ! }; !! ! req ! ! return !! };! ! window.XMLHttpRequest }
- 26. MEASURING A SINGLEOBJECT var url = 'http://www.buddybrewer.com/images/buddy.png';! var me = performance.getEntriesByName(url)[0];! var timings = { ! loadTime: me.duration, ! dns: me.domainLookupEnd - me.domainLookupStart, ! tcp: me.connectEnd - me.connectStart, ! waiting: me.responseStart - me.requestStart, ! fetch: me.responseEnd - me.responseStart! }
- 27. MEASURING A COLLECTIONOF OBJECTS var i, first, last, entries = performance.getEntries();! for (i=0; i<entries.length; i++) {! if (entries[i].name.indexOf('platform.twitter.com') != -1) {! if (first === undefined) ! first = entries[i];! if (last === undefined) ! last = entries[i];! if (entries[i].startTime < first.startTime) ! first = entries[i];! if (entries[i].responseEnd > last.responseEnd) ! last = entries[i];! }! }! console.log('Took ' + (last.responseEnd - first.startTime) + ' ms');
- 28. TIME BY INITIATORTYPE function timeByInitiatorType() {! var type, res = performance.getEntriesByType("resource"), o = {};! for (var i=0;i<res.length;i++) {! if (o[res[i].initiatorType]) {! o[res[i].initiatorType].duration += res[i].duration;! if (res[i].duration > o[res[i].initiatorType].max) o[res[i].initiatorType].max = res[i].duration;! if (res[i].duration < o[res[i].initiatorType].min) o[res[i].initiatorType].min = res[i].duration;! o[res[i].initiatorType].resources += 1;! o[res[i].initiatorType].avg = o[res[i].initiatorType].duration / o[res[i].initiatorType].resources;! } else {! o[res[i].initiatorType] = {"duration": res[i].duration, "resources": 1, "avg": res[i].duration, "max": res[i].duration, "min": res[i].duration};! }! }! return o;! }
- 29. FIND THE SLOWESTRESOURCES ON THE PAGE function findSlowResources(ms, num) {! var res = performance.getEntriesByType("resource"), arr = [], i;! for (i=0; i<res.length; i++) {! if (res[i].duration > ms) arr.push(res[i]);! }! arr.sort(function(a,b){ return b.duration - a.duration });! return arr.slice(0, num);! }
- 30. FIND POTENTIAL SPOFS function findPossibleSpofs(ms) {! var res = performance.getEntriesByType("resource"), spofs = [];! for (var i=0;i<res.length;i++) {! var isSpof = true;! for (var j=0;j<res.length;j++) {! if (res[i].name != res[j].name && ! (res[j].startTime > res[i].startTime && res[j].startTime < res[i].responseEnd) ||! (res[j].endTime > res[i].startTime && res[j].endTime < res[i].responseEnd) ||! (res[j].startTime < res[i].startTime && res[j].endTime > res[i].responseEnd)) {! isSpof = false;! }! }! if (isSpof && res[i].duration > ms) spofs.push(res[i]);! }! return spofs;! } This code is just an example, however it has O(n2) complexity, which might be very slow running in production.
- 31. FIND SLOW HOSTS function findPerfByHost() {! var res = performance.getEntriesByType("resource"), obj={};! for (var i=0;i<res.length;i++) {! var start = res[i].name.indexOf("://")+3,! host = res[i].name.substring(start),! end = host.indexOf("/");! host = host.substring(0,end);! if (obj[host]) {! obj[host].resources += 1;! obj[host].duration += res[i].duration;! if (res[i].duration < obj[host].min) obj[host].min = res[i].duration;! if (res[i].duration > obj[host].max) obj[host].max = res[i].duration;! obj[host].avg = obj[host].duration / obj[host].resources;! }! else {! obj[host] = {"duration": res[i].duration, "min": res[i].duration, "max": res[i].duration, "avg": res[i].duration, "resources": 1};! }! }! return obj;! }

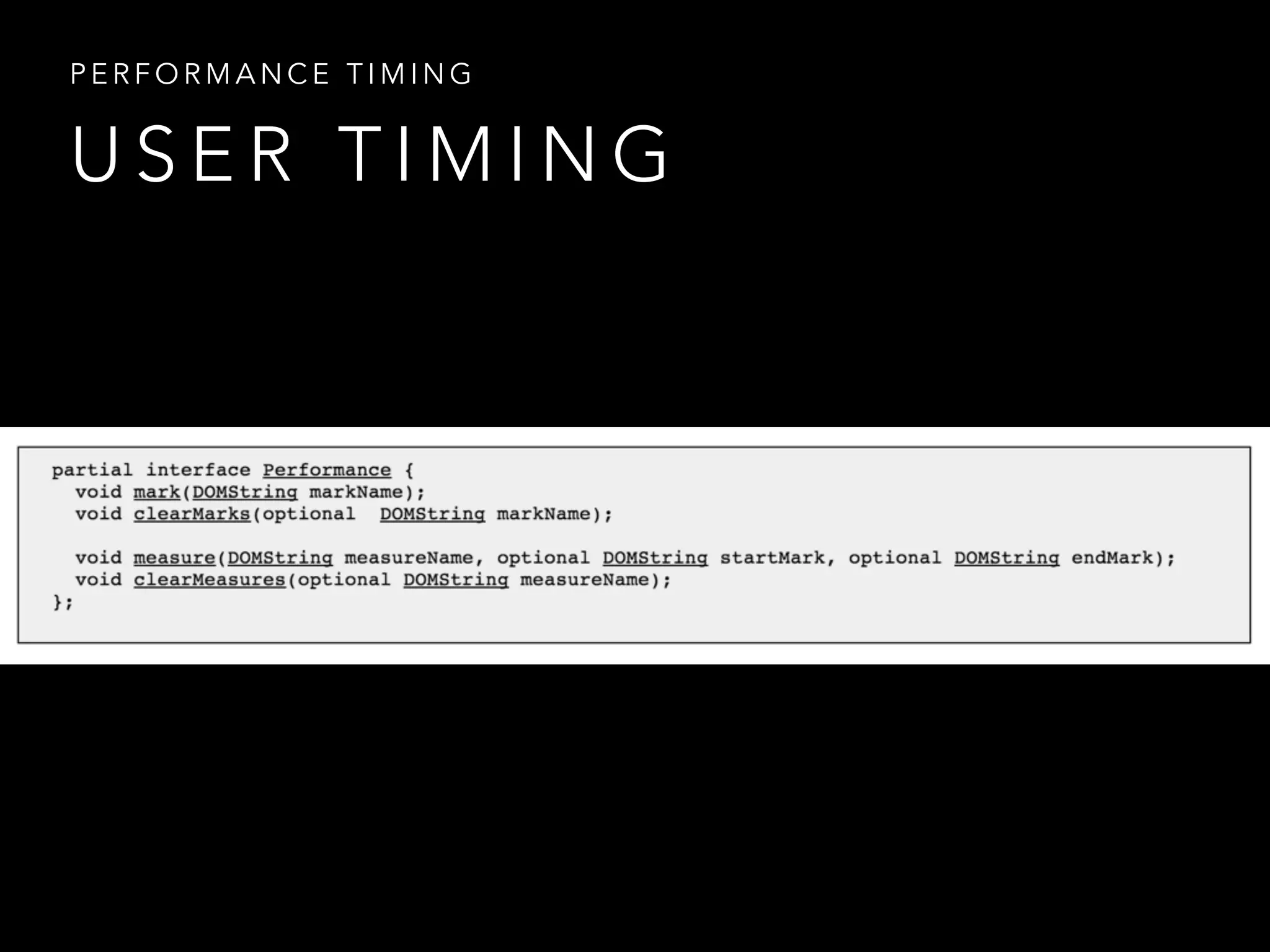

- 32. PERFORMANCE TIMING USERTIMING

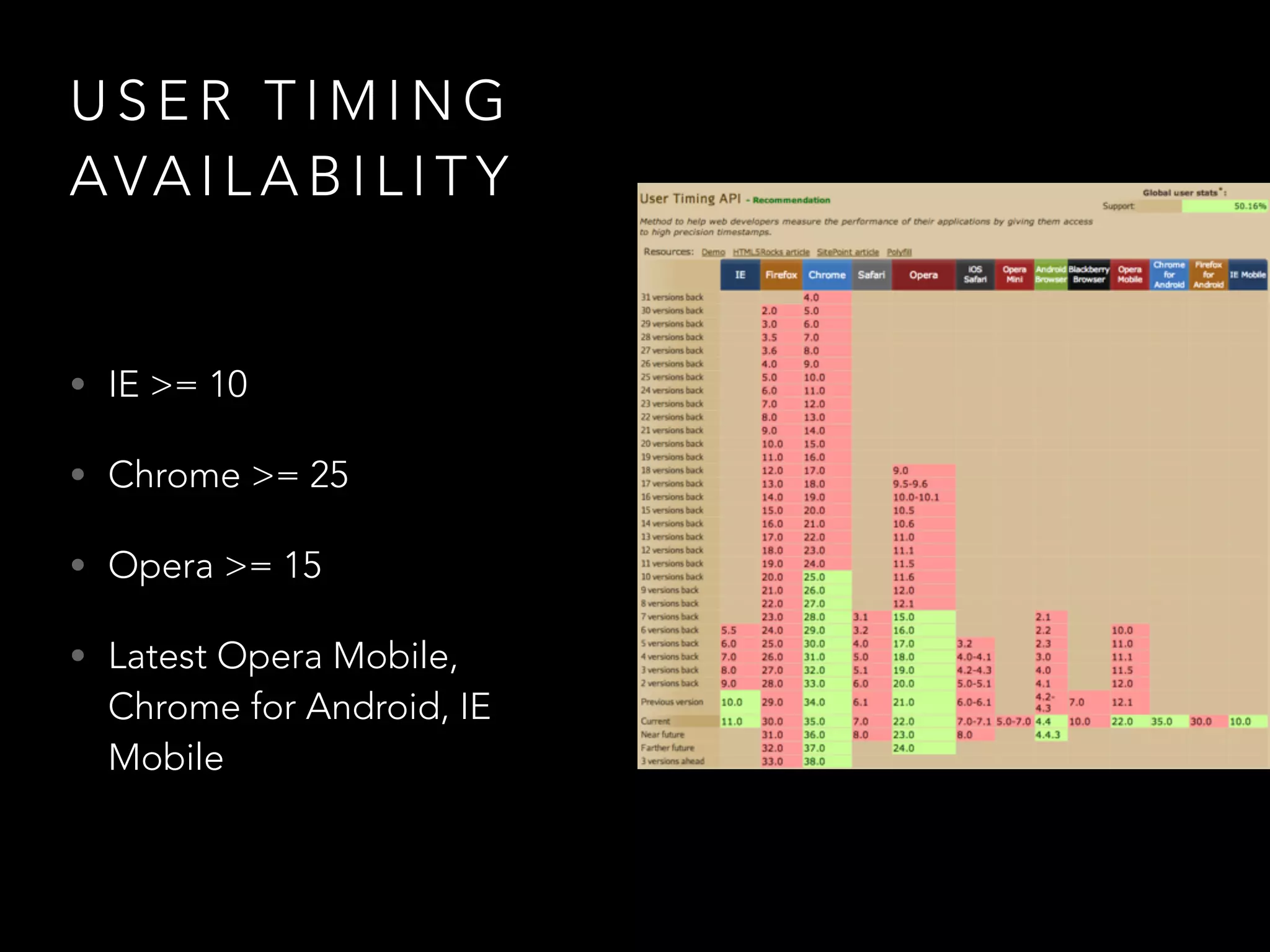

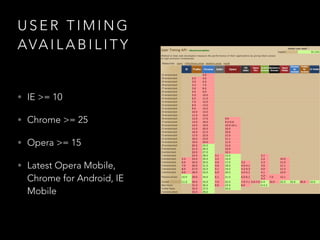

- 33. USER TIMING AVAILABI L ITY • IE >= 10 • Chrome >= 25 • Opera >= 15 • Latest Opera Mobile, Chrome for Android, IE Mobile
- 34. USER TIMING EXAMPLE performance.mark(‘event_start');! ! setTimeout(function() {! performance.mark('event_end');! performance.measure(‘time_to_event’);! performance.measure('event_duration','event_start',‘event_end');! console.log('Event took ' + ! performance.getEntriesByName(‘event_duration')[0].duration + ! ' ms');! }, 1000);
- 35. PERFORMANCE MANAGEMENT IN THREE STEPS How Fast Am I? How Fast Should I Be? How Do I Get There?
- 36. HOW FAST SHOULDI BE?

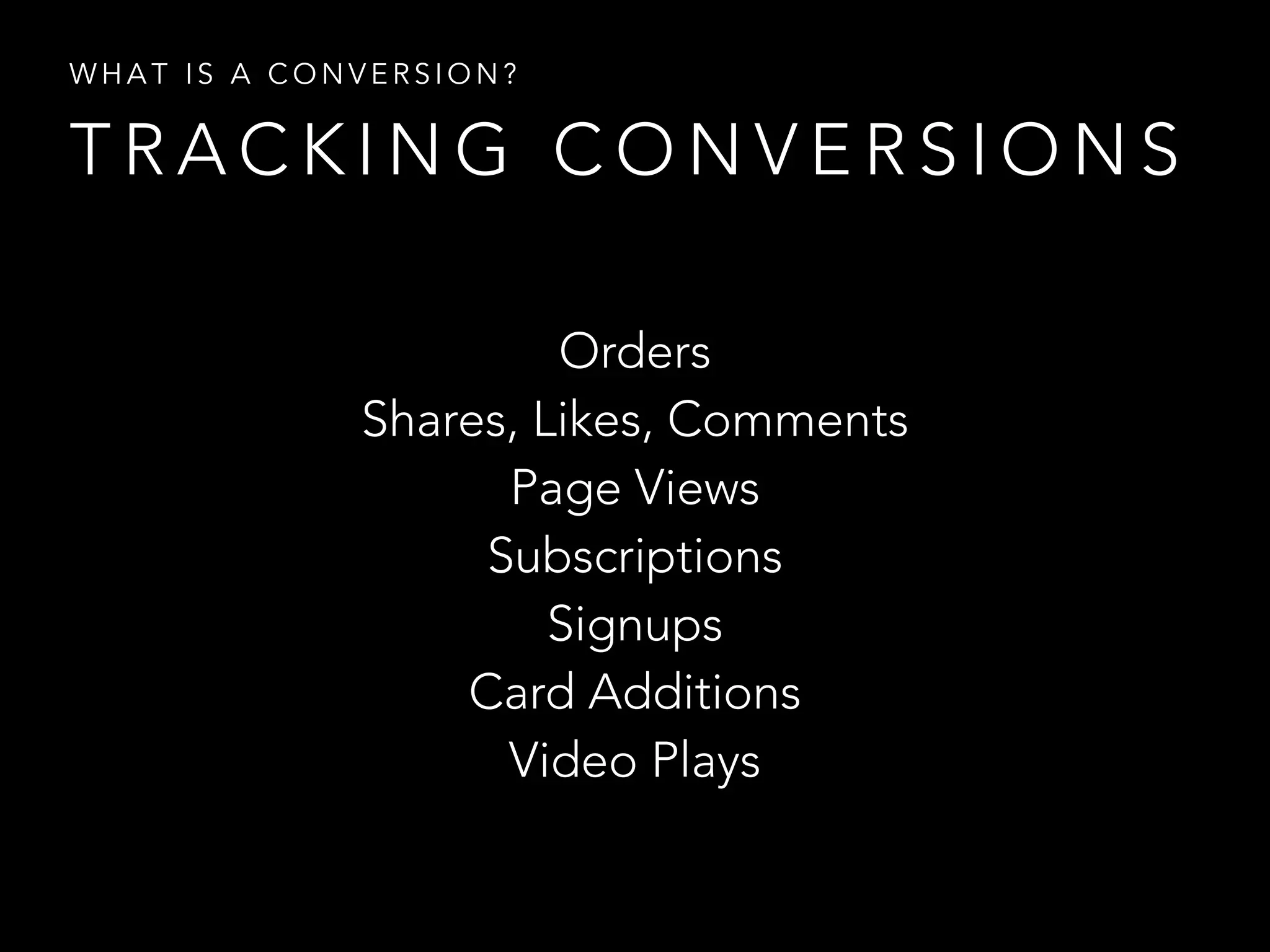

- 37. WHAT IS ACONVERSION? TRACKING CONVERSIONS Orders Shares, Likes, Comments Page Views Subscriptions Signups Card Additions Video Plays

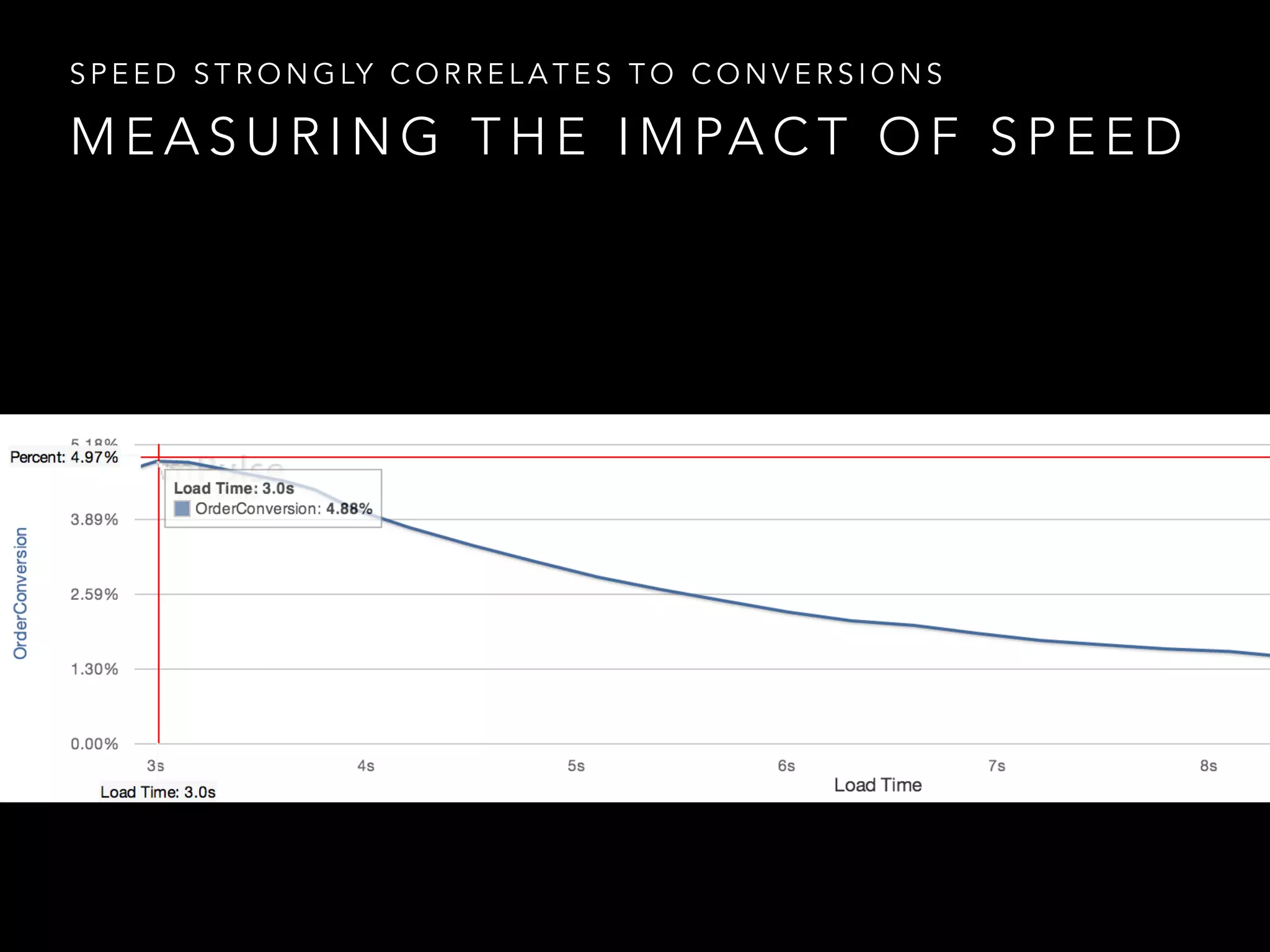

- 38. SPEED STRONGLY CORRELATESTO CONVERSIONS MEASURING THE IMPACT OF SPEED
- 39. THIS MEANS WE CAN MEASURE PATIENCE

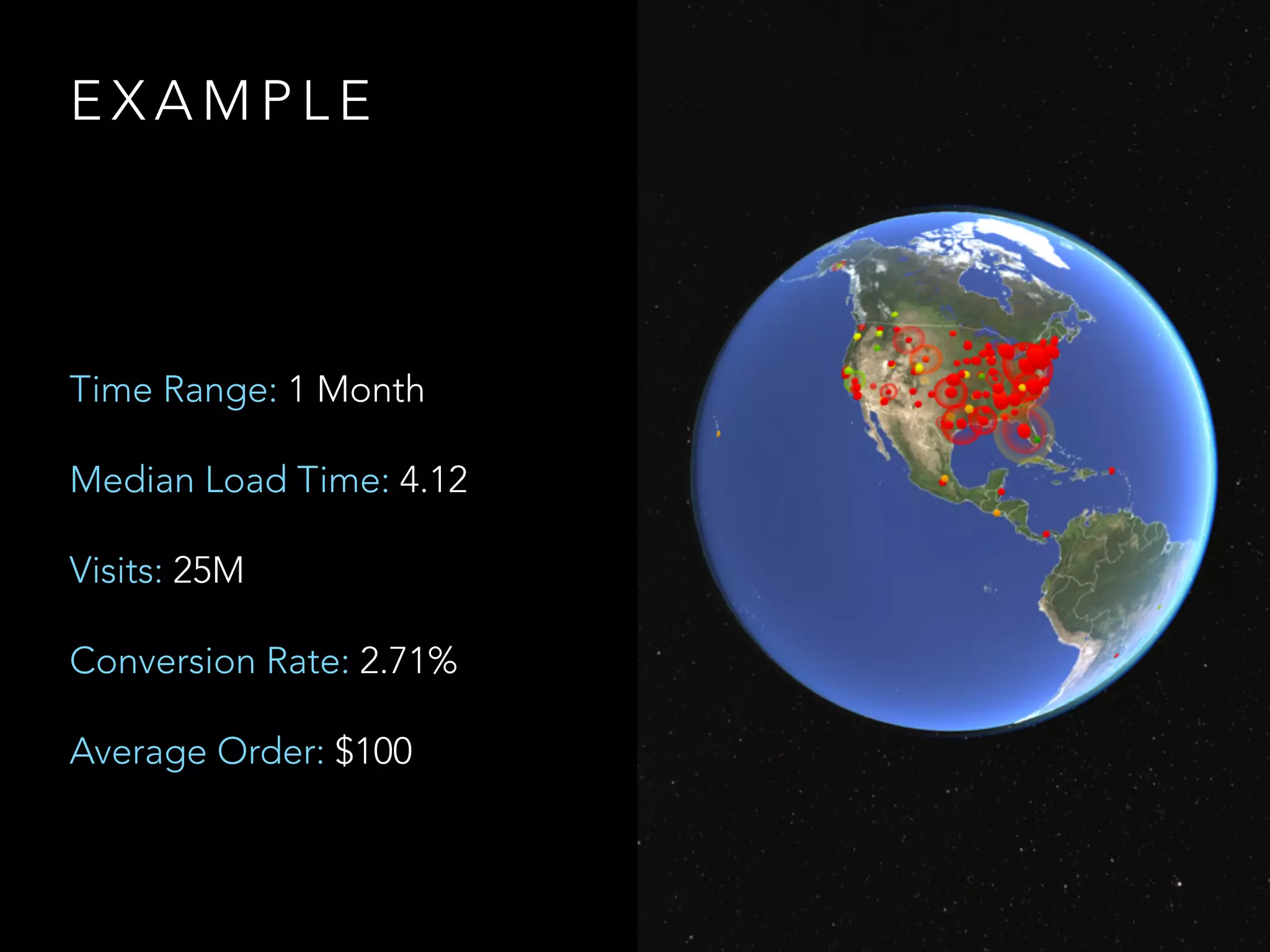

- 40. EXAMPLE Time Range:1 Month Median Load Time: 4.12 Visits: 25M Conversion Rate: 2.71% Average Order: $100

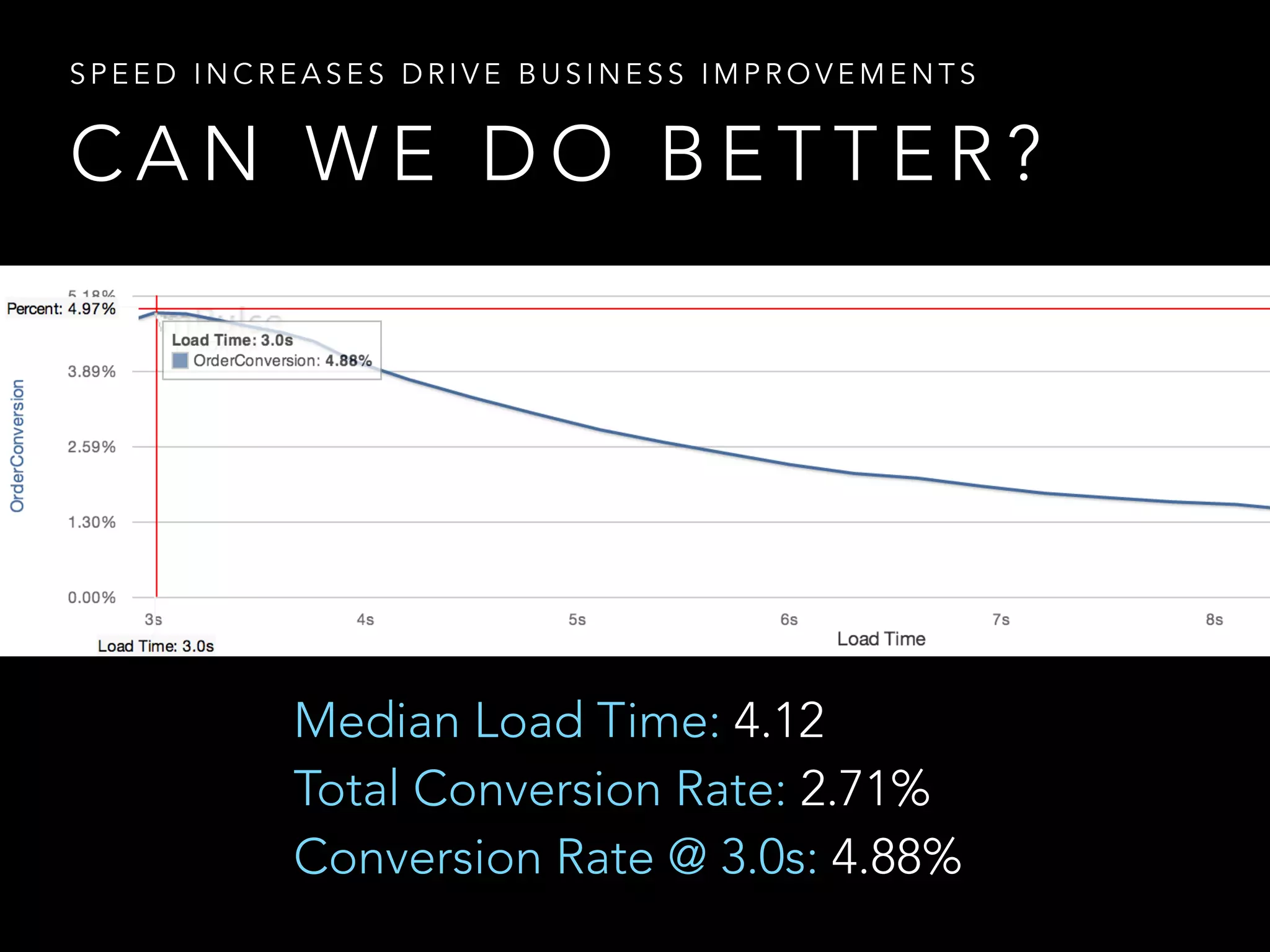

- 41. SPEED INCREASES DRIVEBUSINESS IMPROVEMENTS CAN WE DO BETTER? Median Load Time: 4.12 Total Conversion Rate: 2.71% Conversion Rate @ 3.0s: 4.88%

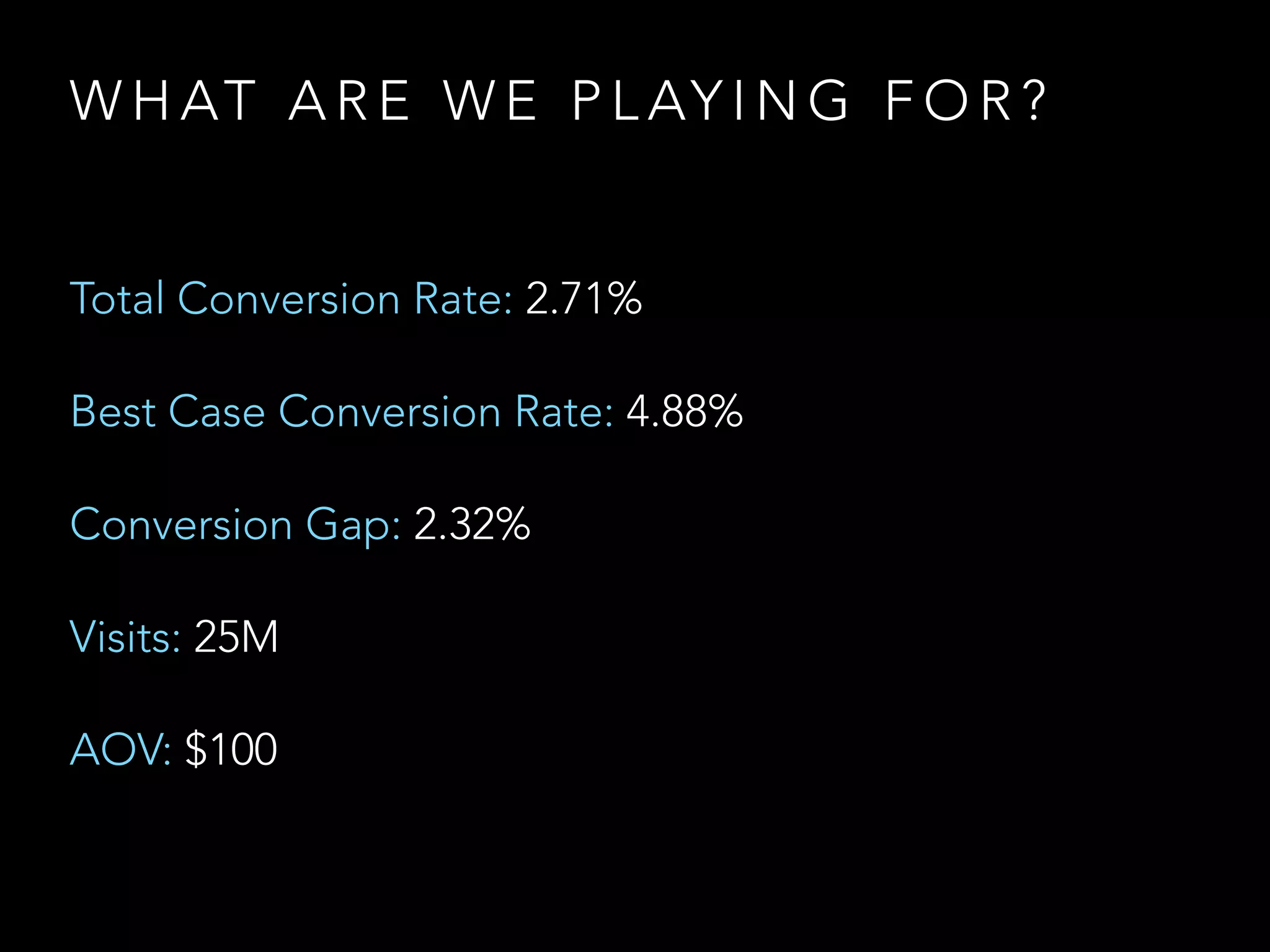

- 42. WHAT ARE WEPLAYING FOR? Total Conversion Rate: 2.71% Best Case Conversion Rate: 4.88% Conversion Gap: 2.32% Visits: 25M AOV: $100
- 43. (4.88% - 2.71%)* 25M * $100 = $54.25M

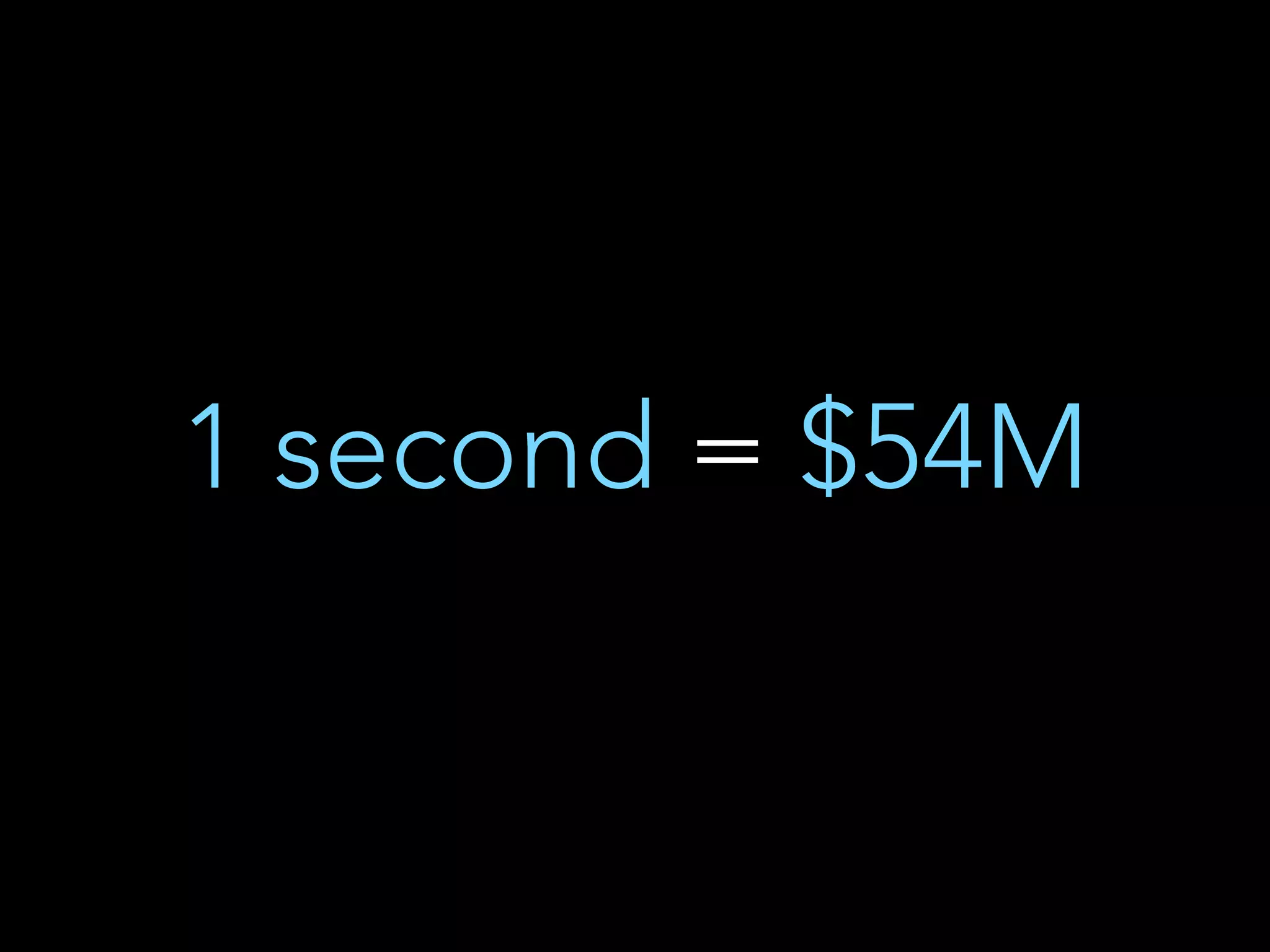

- 44. 1 second =$54M
- 45.

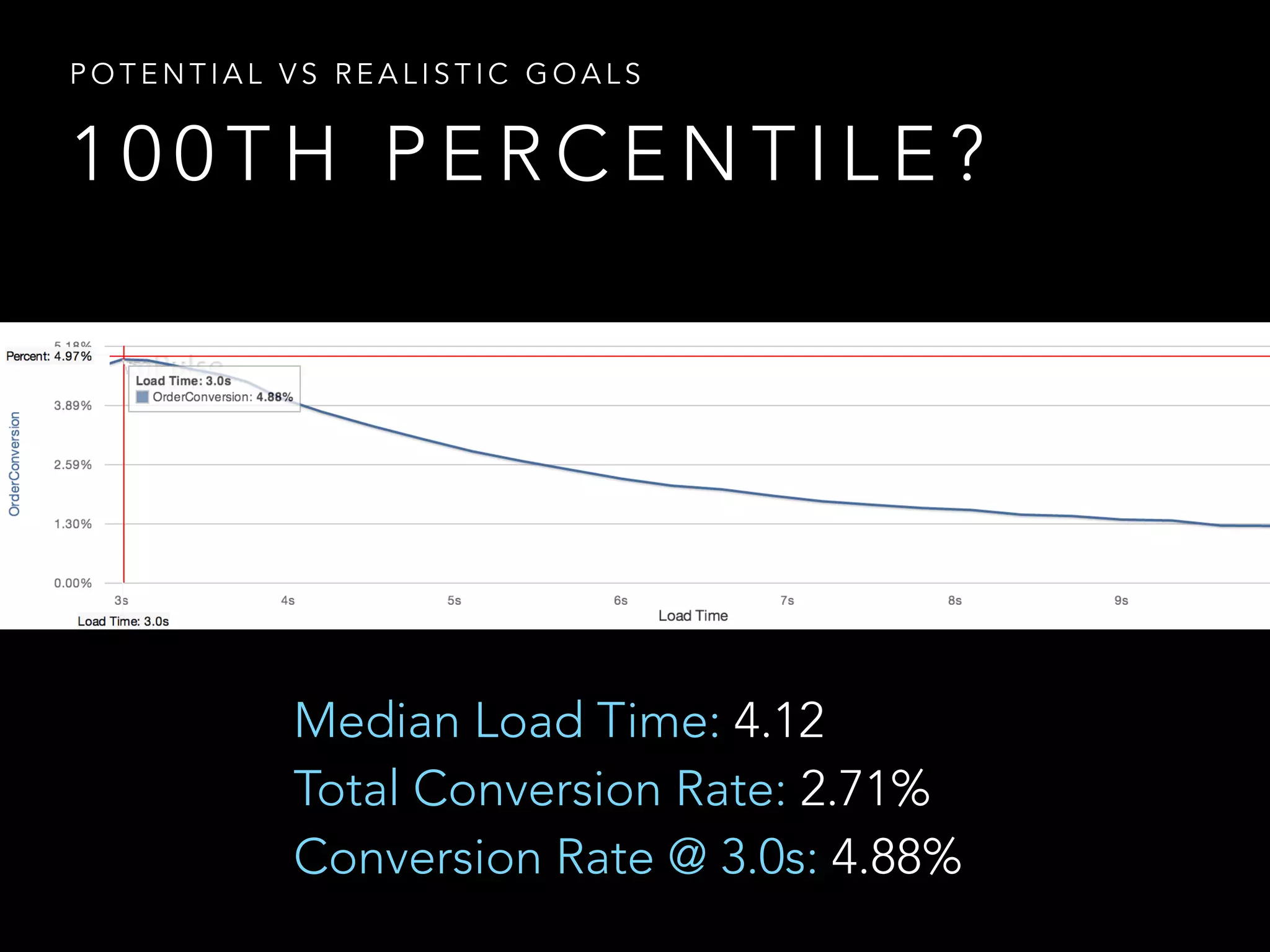

- 46. POTENTIAL VS REALISTICGOALS 100TH PERCENTILE? Median Load Time: 4.12 Total Conversion Rate: 2.71% Conversion Rate @ 3.0s: 4.88%

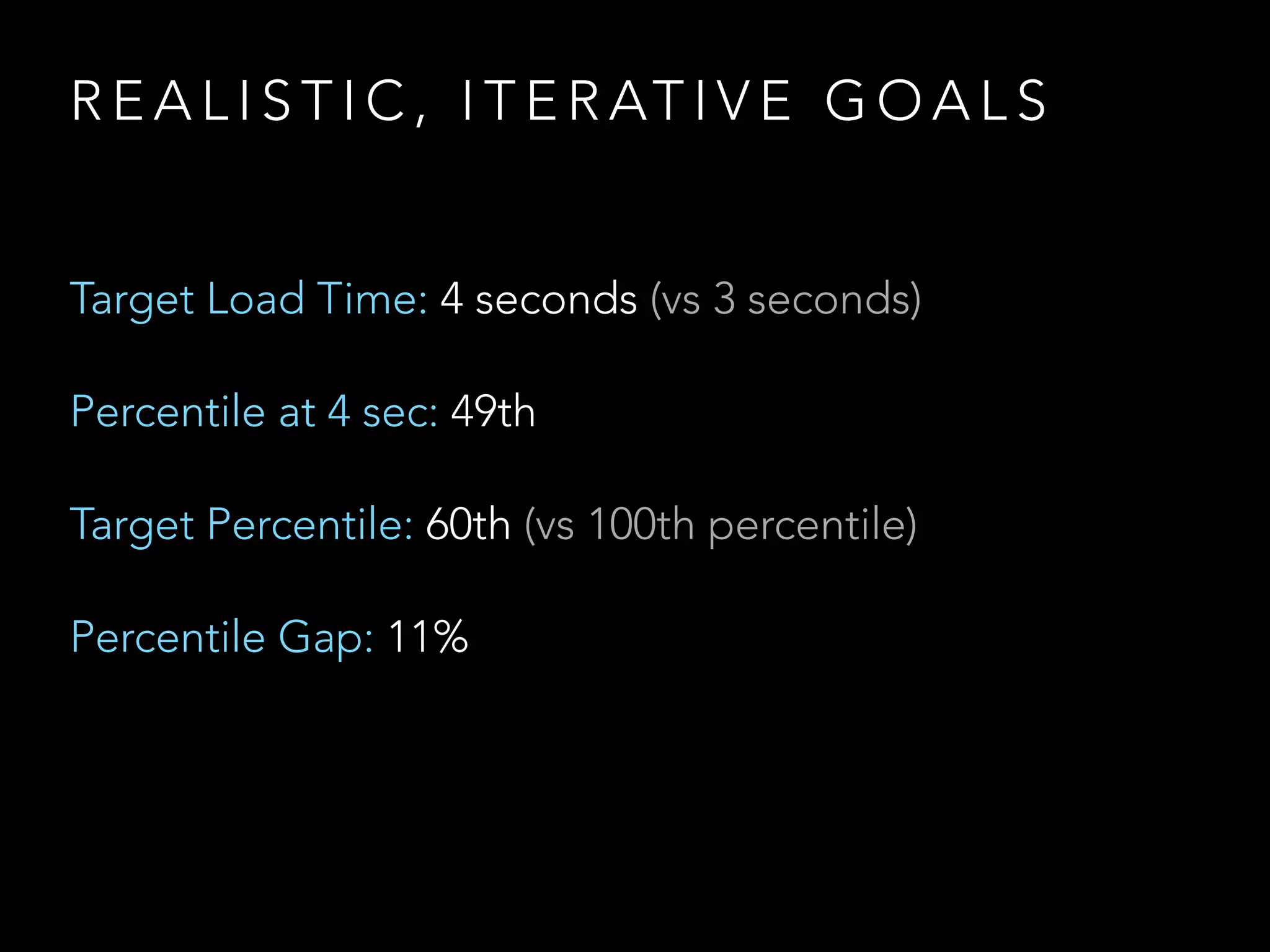

- 47. REALISTIC, ITERATIVE GOALS Target Load Time: 4 seconds (vs 3 seconds) Percentile at 4 sec: 49th Target Percentile: 60th (vs 100th percentile) Percentile Gap: 11%

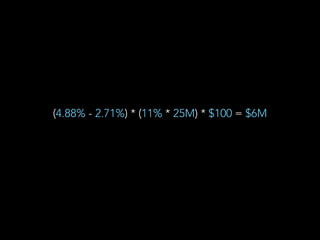

- 48. (4.88% - 2.71%)* (11% * 25M) * $100 = $6M

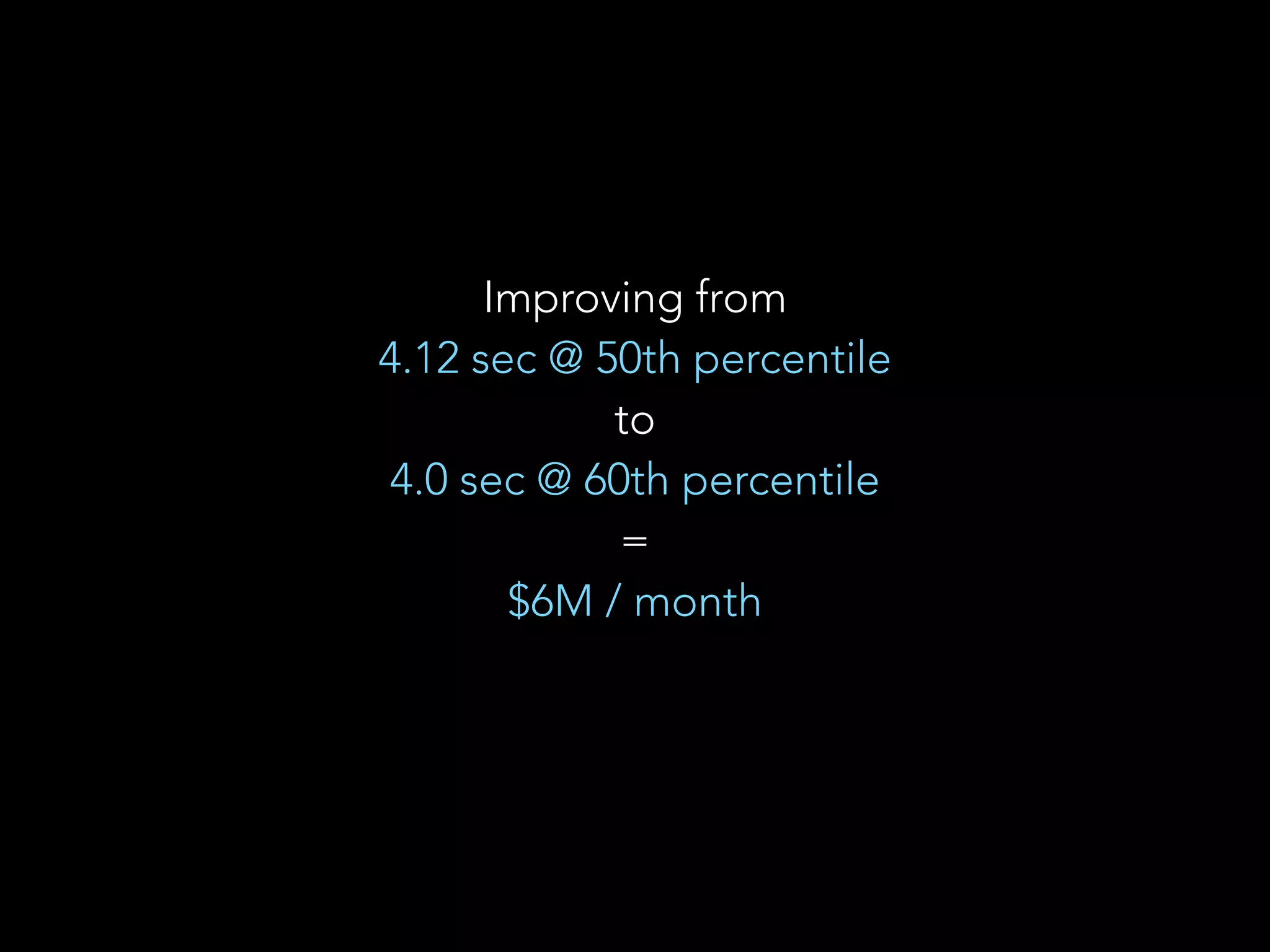

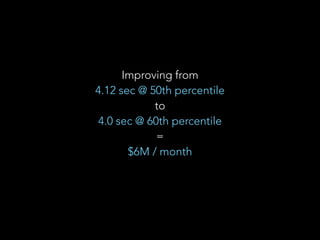

- 49. Improving from 4.12sec @ 50th percentile to 4.0 sec @ 60th percentile = $6M / month
- 51.

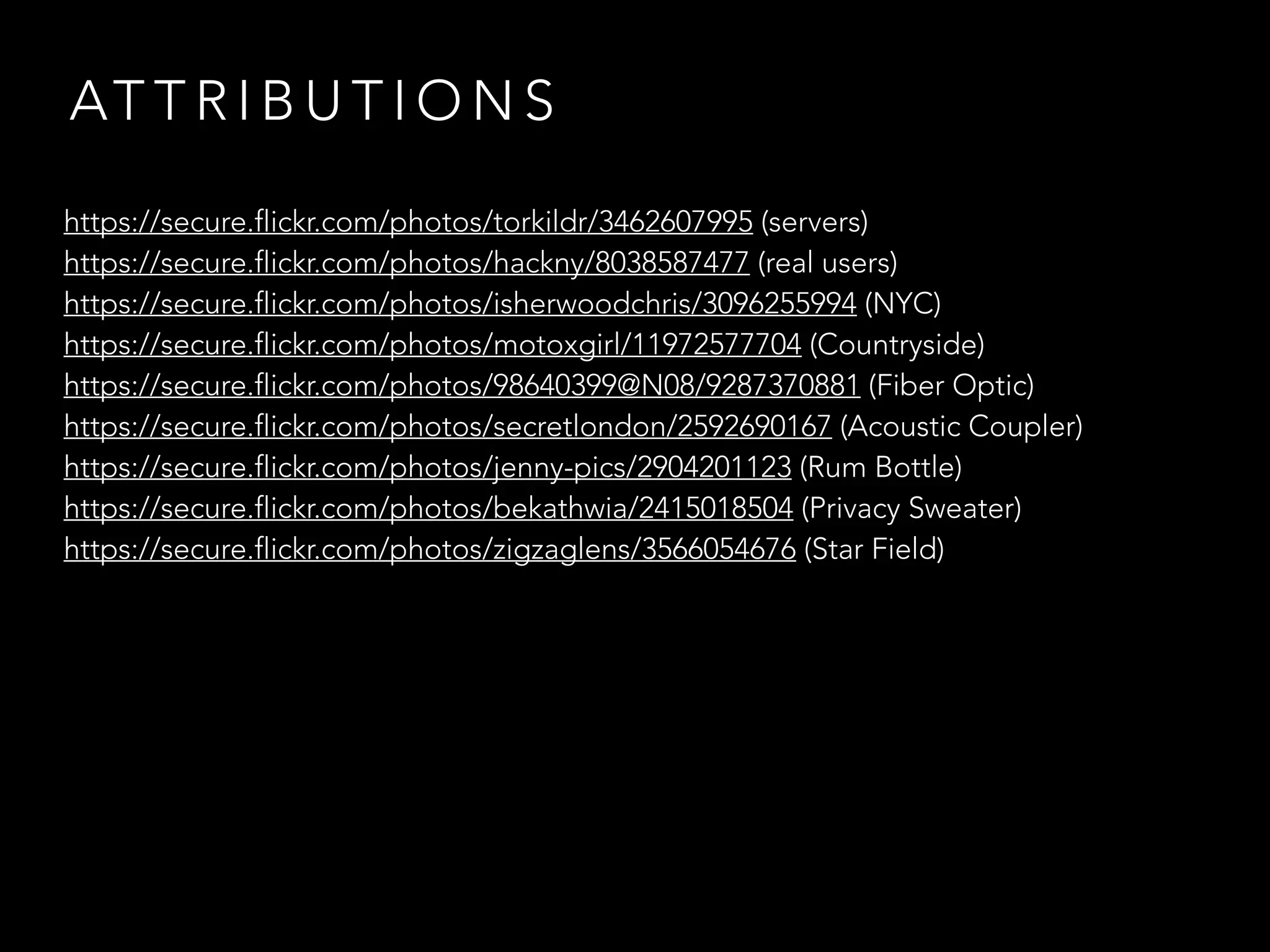

- 52. ATTRIBUTIONS https://secure.flickr.com/photos/torkildr/3462607995 (servers) https://secure.flickr.com/photos/hackny/8038587477 (real users) https://secure.flickr.com/photos/isherwoodchris/3096255994 (NYC) https://secure.flickr.com/photos/motoxgirl/11972577704 (Countryside) https://secure.flickr.com/photos/98640399@N08/9287370881 (Fiber Optic) https://secure.flickr.com/photos/secretlondon/2592690167 (Acoustic Coupler) https://secure.flickr.com/photos/jenny-pics/2904201123 (Rum Bottle) https://secure.flickr.com/photos/bekathwia/2415018504 (Privacy Sweater) https://secure.flickr.com/photos/zigzaglens/3566054676 (Star Field)
