An introduction to workflow-based programming with Node-RED

Raspberry Pi Birthday Weekend & CamJam! Workshop: Node-RED

- 1 -

http://nodered.org

An
introduction
to
flow-based

programming
using
Node-RED

! Node-RED
is
a
visual
tool
for
wiring
the
Internet
of
Things
(IoT).
Node-‐RED
is

platform-‐independent,
but
has
been
developed
with
small
computers
such
as
the

Raspberry
Pi
in
mind.

! Traditional
IoT
development
can
be
very
technical:
Access
to
the
GPIO
and
other

hardware
requires
skills
in
C
or
assembler,
output
of
data
to
web
services
or
sending

tweets
and
emails
requires
the
use
of
complex
APIs.
Node-RED
takes
care
of
the

technicalities
and
lets
you
concentrate
on
the
logic
of
your
workflow

! While
most
programming
in
Node-‐RED
is
done
visually
using
pre-‐defined
functions

(“nodes”),
any
additional
functionality
can
be
added
in
JavaScript.

! Node-RED
is
a
multi-purpose
jackknife
–
use
it
for
any
prototyping!

WORKSHOP
CONTENT:
In
this
workshop,
we’re
going
to
use
Node-‐RED
to
build
a
basic
web

server.
We
are
going
to
build
a
web
site
that
provides
the
functionality
of
an
online
chat

application,
i.e.
you
are
going
to
learn
about
communication
between
a
web
browser
and
the

underlying
service.


- 2 -
Technical
background:
For
this
workshop,
you
will
find
a
Raspberry
Pi
with
Node-‐RED
already
installed.
While
the
installation
of
Node-‐RED

software
is
relatively
easy,
it
would
be
difficult
to
include
this
step
within
the
time
constraints
of
the
exercise.
For
completeness,
this
is

what’s
happened
to
a
fresh
and
up-‐to-‐date
Raspian
installation
on
your
SD
card:

1. Install
node.js
and
npm
as
per:
http://nodered.org/docs/hardware/raspberrypi.html

2. Clone
Node-‐RED
from
Github
and
install
as
described
here:
http://nodered.org/docs/getting-started/installation.html

Note:
To
leverage
the
power
of
Node-‐RED,
consider
installing
nodes
for
email
or
raw
GPIO
access
as
well.
The
latter
is
described
here:

http://nodered.org/docs/hardware/raspberrypi.html

1)
Exercise:
Starting
Node-RED
as
Raspberry
Pi
user

Node-‐RED
can
be
installed
as
a
service
on
the
Raspberry
Pi,
i.e.
as
a
program
that’s
always

executed
when
your
Pi
is
running.
However,
this
is
only
useful
if
you
want
to
commit
your
Pi

for
this
particular
use
as
it
can
consume
considerable
resources.
For
everyone
else,
it’s

recommended
to
start
Node-‐RED
only
when
needed:

1. Open
the
LXTerminal

to
see
a
console
that
allows
you
to
enter
Linux
commands.

2. Change
into
the
Node-‐RED
directory
by
issuing
“cd
node-‐red”.

3. Start
Node-‐RED
by
typing
“node
red.js”.

You
should
now
see
Node-‐RED
starting
up
–
that
may
take
a
few
seconds:

Congratulations.
You’re
now
ready
for
the
exercises.

Node-‐RED
represents
a
server
on
the
basis
of
node.js
and
interacts
with
the
user
through
a

graphical
user
interface.
It
can
be
reached
on
port
1880.
To
use
Node-RED,
open
a
web

browser
and
direct
it
to
http://localhost:1880

It’s
useful
to
remember
that
Node-‐RED
acts
as
a
server
in
your
entire
network.
That
is,
if
your
Raspberry
Pi’s
internal
IP
address
is
something

like
192.x.x.x,
every
computer
in
your
network
can
open
the
Node-‐RED
GUI
through
http://192.x.x.x:1880.
You
can
make
your
system
more

restricted/secure
by
following
the
configuration
advice
on
http://nodered.org/docs/configuration.html.


- 3 -
2)
Exercise:
Your
first
flow
–
this
is
a
recap
for
those
who
attended
the
last
course

The
best
way
to
explain
“a
flow”
is
by
creating
one.
In
this
mini
flow,
we’re
going
to
inject
a

value
into
our
debug
window
(refer
to
page
1
for
what
the
GUI
elements
are
called).

1. Open
the
Epiphany
Web
Browser.
(It
supports
JavaScript
better
than
Midori).

2. In
the
address
line,
enter
localhost:1880.
You
will
then
see
the
Node-‐RED
GUI.

3. Drag
and
drop
an
“inject”
node
from
the
nodes
library
into
the
flow
editor
(once

you’ve
chosen
the
inject
node,
you
should
see
some
general
explanation
about
its

functionality
in
the
info
pane
–
no
need
to
read
that
now).

4. Drag
and
drop
a
“debug”
node
from
the
nodes
library
into
the
flow
editor.

5. Create
a
pipe
between
the
inject
and
debug
nodes
by
drawing
a
connection
between

their
small
grey
rounded
rectangles.

6. Change
from
the
info
pane
to
the
debug
pane
(upper
right).

7. Deploy
(=start)
your
flow.

8. Once
deployed,
press
the
left
blue
rectangle
that’s
attached
to
the
inject
node.
Check

what’s
happening
in
the
debug
pane.

3)
Exercise:
Setting
up
a
static
website

It
is
very
easy
to
set
up
a
very
basic
web
server
in
Node-‐RED.

1. From
the
input
panel,
chose
a
“http”
node.

2. Change
the
properties
of
your
http
node
so
that
it

will
respond
to
GET
requests
to
/mypage
from
a

browser.

3. Add
a
“template”
node
(from
the
function
panel),

and
a
“http
response”
node
from
the
output
panel.

4. Wire
your
flow
together
as
shown
below:

5. Deploy
your
flow.

6. Once
deployed,
open
a
separate
browser
window
and
enter
localhost:1880/mypage.

A
note
on
addresses
and
ports:
Web
servers
have
their
own
numerical
addresses,
e.g.
a
special
table
(called
DNS)
resolves
the
BBC
website
to

212.58.246.103.
Each
address
can
have
thousands
of
communication
channels
(called
ports).
A
standard
webpage
call
uses
port
80
by

default.
Your
own
machine
is
always
called
“localhost”
and
resolves
to
127.0.0.1.
A
default
Node-‐RED
server
can
be
opened
on
port
1880.

Does
the
address
http://localhost:1880/mypage
make
more
sense
to
you
now?


- 4 -

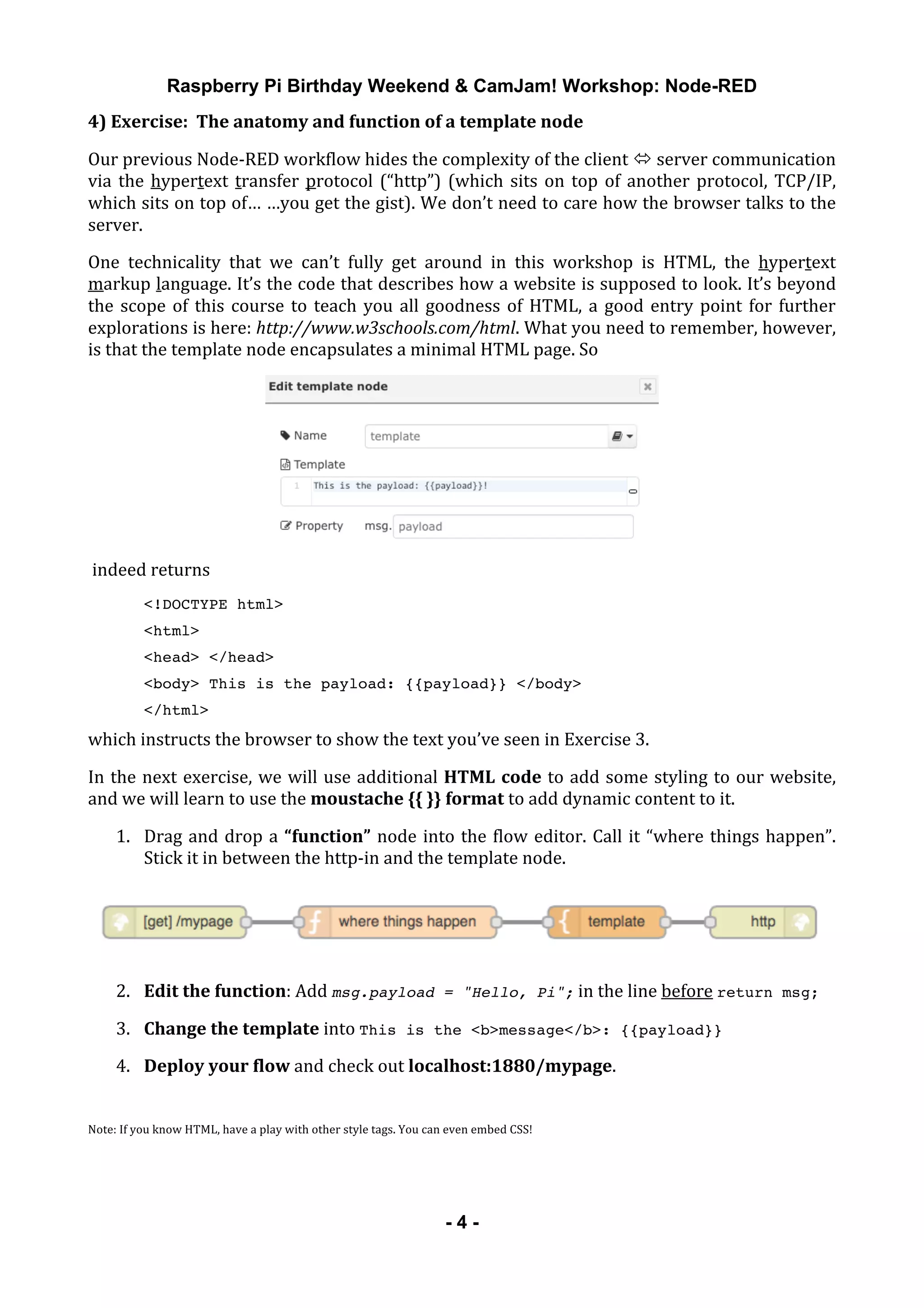

4)
Exercise:

The
anatomy
and
function
of
a
template
node

Our
previous
Node-‐RED
workflow
hides
the
complexity
of
the
client
"
server
communication

via
the
hypertext
transfer
protocol
(“http”)
(which
sits
on
top
of
another
protocol,
TCP/IP,

which
sits
on
top
of…
…you
get
the
gist).
We
don’t
need
to
care
how
the
browser
talks
to
the

server.

One
technicality
that
we
can’t
fully
get
around
in
this
workshop
is
HTML,
the
hypertext

markup
language.
It’s
the
code
that
describes
how
a
website
is
supposed
to
look.
It’s
beyond

the
scope
of
this
course
to
teach
you
all
goodness
of
HTML,
a
good
entry
point
for
further

explorations
is
here:
http://www.w3schools.com/html.
What
you
need
to
remember,
however,

is
that
the
template
node
encapsulates
a
minimal
HTML
page.
So

indeed
returns

<!DOCTYPE html>
<html>
<head> </head>
<body> This is the payload: {{payload}} </body>
</html>
which
instructs
the
browser
to
show
the
text
you’ve
seen
in
Exercise
3.

In
the
next
exercise,
we
will
use
additional
HTML
code
to
add
some
styling
to
our
website,

and
we
will
learn
to
use
the
moustache
{{
}}
format
to
add
dynamic
content
to
it.

1. Drag
and
drop
a
“function”
node
into
the
flow
editor.
Call
it
“where
things
happen”.

Stick
it
in
between
the
http-‐in
and
the
template
node.

2. Edit
the
function:
Add
msg.payload = "Hello, Pi";
in
the
line
before
return msg;

3. Change
the
template
into
This is the <b>message</b>: {{payload}}

4. Deploy
your
flow
and
check
out

Note:
If
you
know
HTML,
have
a
play
with
other
style
tags.
You
can
even
embed
CSS!


- 5 -
5)
Exercise:
Retain
state

So
far
our
Node-‐RED
flow
is
strictly
linear:
Once
the
/mypage
is
requested,
the
function

populates
the
variable
payload
with
“Hello,
Pi”,
the
template
node
embeds
this
payload
into

the
HTML
that’s
returned
to
the
server.

How
can
we
put
other
things
into
the
payload?

1. Wire
your
inject
node
from
Exercise
1
to
the
function
node.
Modify
the
inject
node
to

send
the
string
“Have
a
nice
day”
as
payload,
with
“new
message”
as
topic.

2. Edit
the
function
node
to
contain
the
following
JavaScript:

3. Deploy
the
flow.

4. Look
at
localhost:1880/mypage
in
your
web
browser.
Note
what
you
see.

5. Click
on
the
rounded
rectangle
on
the
left
of
your
inject
node.

6. Reload
Note
what
you
see.
Can
you
make
sense
of
your

observation
in
the
light
of
your
JavaScript
code
from
step
2?

A
bit
of
background:

By
default,
most
wires
between
nodes
are
topic/payload
pairs,
a
bit
like
emails
have
subject

and
body.
However,
the
default
msg
variable
can
always
be
extended,
and
in
the
case
of
the

http
nodes
contain
an
entire
http
response
object.

The
context
variable
is
available
in
the
function
node
to
retain
information
between
different

executions
of
the
node.
In
our
example,
if
the
input
message
msg
arrives
from
the
injection

node
(having
the
topic
“new
message”),
we
populate
context.value
with
the
payload
“Have
a

nice
day”
and
leave
the
node.
If
the
input
arrives
from
the
/mypage
http
node,
we
evaluate

whether
something
is
present
in
the
context
variable.
If
not,
we
deliver
the
payload
“never
got

anything”
for
rendering
in
the
template
node,
otherwise
we
take
it
from
the
context.

The
special
case
context.global
is
a
variable
that
persist
between
executions
of
a
node
and
are

globally
available
to
all
other
function
nodes.
More
about
messages
and
context
variables
can

be
found
here:
http://nodered.org/docs/writing-functions.html


- 6 -
6)

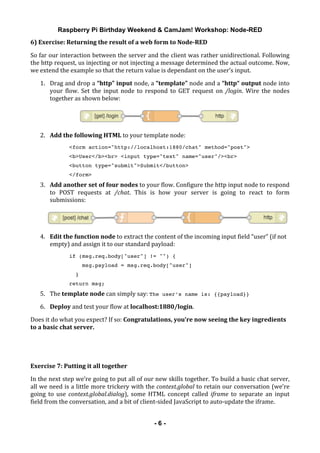

Exercise:
Returning
the
result
of
a
web
form
to
Node-RED

So
far
our
interaction
between
the
server
and
the
client
was
rather
unidirectional.
Following

the
http
request,
us
injecting
or
not
injecting
a
message
determined
the
actual
outcome.
Now,

we
extend
the
example
so
that
the
return
value
is
dependant
on
the
user’s
input.

1. Drag
and
drop
a
“http”
input
node,
a
“template”
node
and
a
“http“
output
node
into

your
flow.
Set
the
input
node
to
respond
to
GET
request
on
/login.
Wire
the
nodes

together
as
shown
below:

2. Add
the
following
HTML
to
your
template
node:

<form action="http://localhost:1880/chat" method="post">
<b>User</b><br> <input type="text" name="user"/><br>
<button type="submit">Submit</button>
</form>
3. Add
another
set
of
four
nodes
to
your
flow.
Configure
the
http
input
node
to
respond

to
POST
requests
at
/chat.
This
is
how
your
server
is
going
to
react
to
form

submissions:

4. Edit
the
function
node
to
extract
the
content
of
the
incoming
input
field
“user”
(if
not

empty)
and
assign
it
to
our
standard
payload:

if (msg.req.body["user"] != "") {
msg.payload = msg.req.body["user"]
}
return msg;
5. The
template
node
can
simply
say:
The user’s name is: {{payload}}

6. Deploy
and
test
your
flow
at
localhost:1880/login.

Does
it
do
what
you
expect?
If
so:
Congratulations,
you’re
now
seeing
the
key
ingredients

to
a
basic
chat
server.

Exercise
7:
Putting
it
all
together

In
the
next
step
we’re
going
to
put
all
of
our
new
skills
together.
To
build
a
basic
chat
server,

all
we
need
is
a
little
more
trickery
with
the
context.global
to
retain
our
conversation
(we’re

going
to
use
context.global.dialog),
some
HTML
concept
called
iframe
to
separate
an
input

field
from
the
conversation,
and
a
bit
of
client-‐sided
JavaScript
to
auto-‐update
the
iframe.


- 7 -
1. Rewrite
the
function
node
following
the
/chat
http
input
like
this:

if (msg.req.body["user"] != "") {
msg.payload = msg.req.body["user"]
}
if (msg.req.body["message"] != undefined) {
context.global.dialog +=
msg.req.body["user"]+':'+msg.req.body["message"]+"<BR>";
}
context.global.dialog = context.global.dialog || "";
return msg;
2. The
template
node
hides
most
of
the
trickery:

<iframe src="http://localhost:1880/dialog" name="iframe_a" width="90%"
height="70%"></iframe>
<form name="frm" action="http://localhost:1880/chat" method="post">
<b>Message from {{payload}}</b><br>
<input type="text" name="message" size="90%"/>
<input type="hidden" name="user" value="{{payload}}"><br>
<button type="submit">Submit</button>
</form>
<SCRIPT language="JavaScript">
window.setInterval("reloadIFrame();", 1000);
function reloadIFrame() { window.frames["iframe_a"].location.reload(); }
</SCRIPT>
3. We
need
another
set
of
http
input,
function,
template
and
http
out
nodes.
These
will

represent
the
/dialog
page
that’s
shown
in
the
iframe.
The
code
is
fairly
simple.

4. Add
to
function
node
node
following
the
/dialog
http
input
msg.payload =
context.global.dialog;
before
return msg;

5. The
template
node
just
says:
{{payload}}

6. Deploy
your
web
server.

Open
localhost:1880/login
from
two
different
browser
windows
and
login
with
different

identities.
Both
windows
will
update
their
iframe
once
a
second,
showing
/dialog
as
it

continues
to
grow
on
the
server
with
lines
that
are
sent
via
the
form
field
“message”
from

either
client.


- 8 -

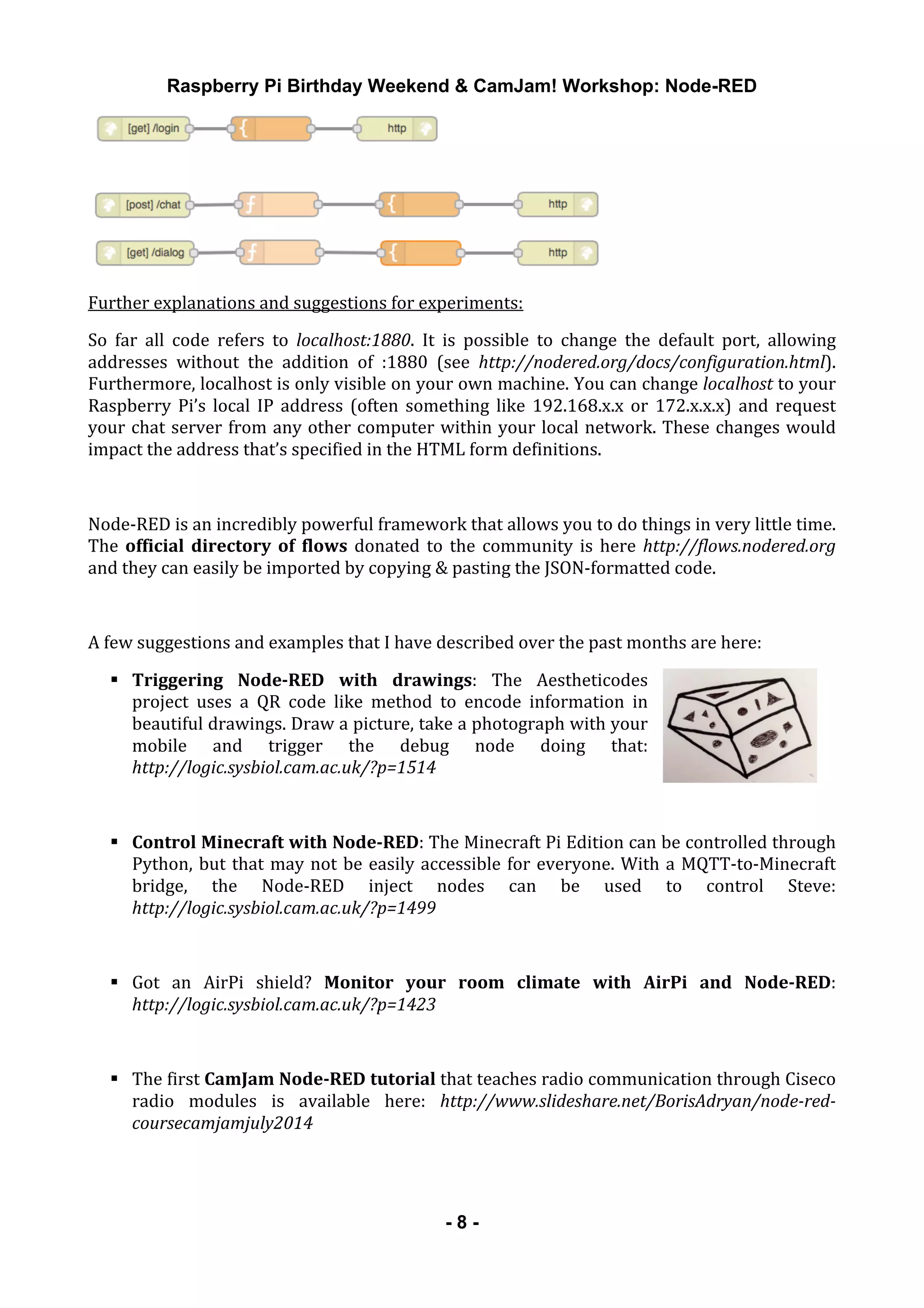

Further
explanations
and
suggestions
for
experiments:

So
far
all
code
refers
to
localhost:1880.
It
is
possible
to
change
the
default
port,
allowing

addresses
without
the
addition
of
:1880
(see
http://nodered.org/docs/configuration.html).

Furthermore,
localhost
is
only
visible
on
your
own
machine.
You
can
change
localhost
to
your

Raspberry
Pi’s
local
IP
address
(often
something
like
192.168.x.x
or
172.x.x.x)
and
request

your
chat
server
from
any
other
computer
within
your
local
network.
These
changes
would

impact
the
address
that’s
specified
in
the
HTML
form
definitions.

Node-‐RED
is
an
incredibly
powerful
framework
that
allows
you
to
do
things
in
very
little
time.

The
official
directory
of
flows
donated
to
the
community
is
here
http://flows.nodered.org

and
they
can
easily
be
imported
by
copying
&
pasting
the
JSON-‐formatted
code.

A
few
suggestions
and
examples
that
I
have
described
over
the
past
months
are
here:

! Triggering
Node-RED
with
drawings:
The
Aestheticodes

project
uses
a
QR
code
like
method
to
encode
information
in

beautiful
drawings.
Draw
a
picture,
take
a
photograph
with
your

mobile
and
trigger
the
debug
node
doing
that:

http://logic.sysbiol.cam.ac.uk/?p=1514

! Control
Minecraft
with
Node-RED:
The
Minecraft
Pi
Edition
can
be
controlled
through

Python,
but
that
may
not
be
easily
accessible
for
everyone.
With
a
MQTT-‐to-‐Minecraft

bridge,
the
Node-‐RED
inject
nodes
can
be
used
to
control
Steve:


! Got
an
AirPi
shield?
Monitor
your
room
climate
with
AirPi
and
Node-RED:


! The
first
CamJam
Node-RED
tutorial
that
teaches
radio
communication
through
Ciseco

radio
modules
is
available
here:
http://www.slideshare.net/BorisAdryan/node-red-
coursecamjamjuly2014
