Eclipse IoT - Day 0 of thingmonk 2016
Dr. Boris Adryan discusses the distinctions between data models, information models, and ontologies, emphasizing their relevance in the IoT context and to Eclipse IoT. He outlines how data models are more technical, while information models provide semantic descriptions of object capabilities. The presentation highlights the need for formalized device descriptions and introduces the Vorto platform, which aims to streamline IoT application development by providing compatible information models.
More Related Content
![Olive_JbCV[9mar_2k16]](https://cdn.slidesharecdn.com/ss_thumbnails/855422a4-b5bb-47d1-88f5-37825b3b754d-160317220706-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Eclipse IoT - Day 0 of thingmonk 2016
Eclipse IoT - Day 0 of thingmonk 2016
- 1. Information Models & Ontologies Dr.Boris Adryan @BorisAdryan

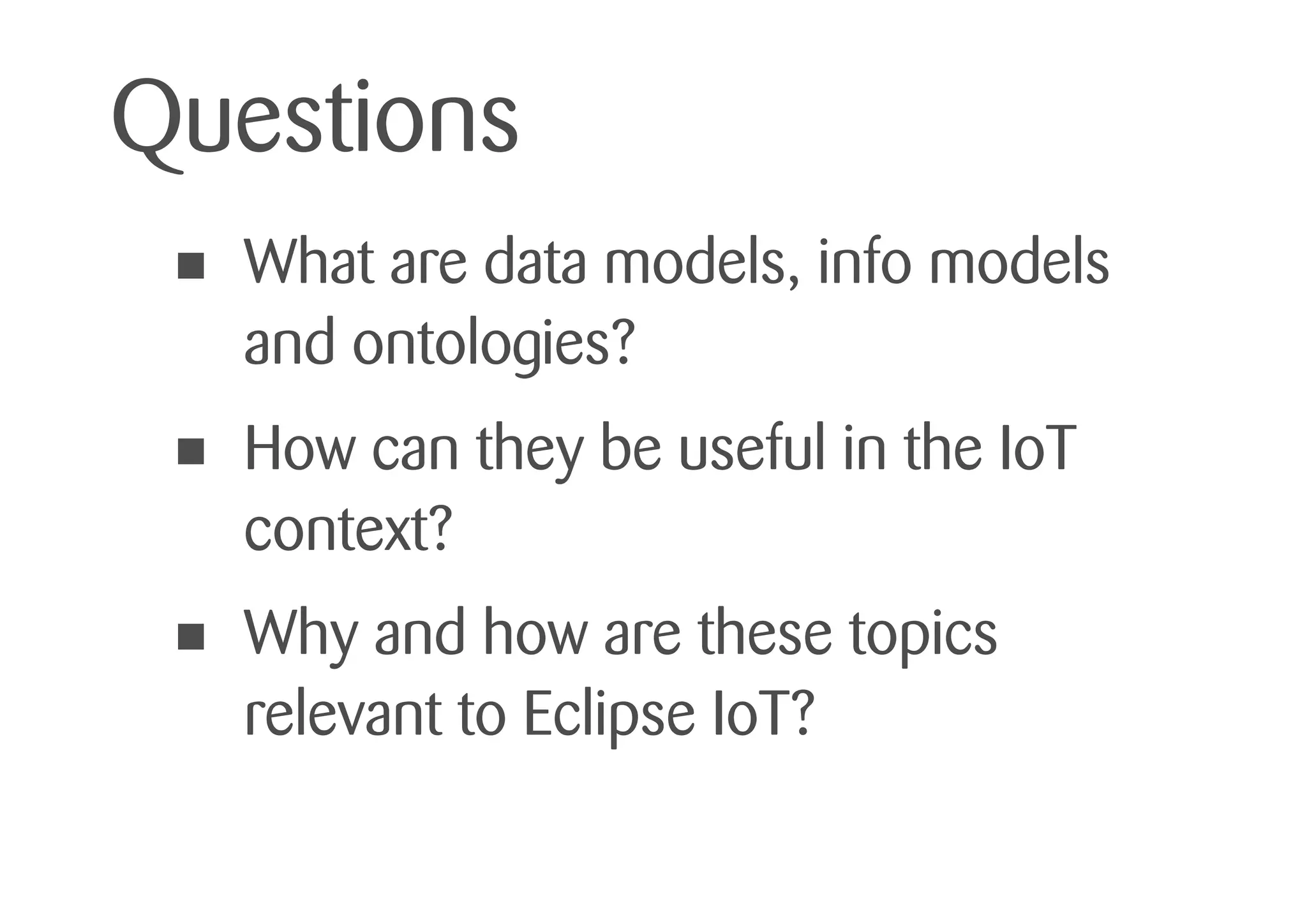

- 2. • What aredata models, info models and ontologies? • How can they be useful in the IoT context? • Why and how are these topics relevant to Eclipse IoT? Questions

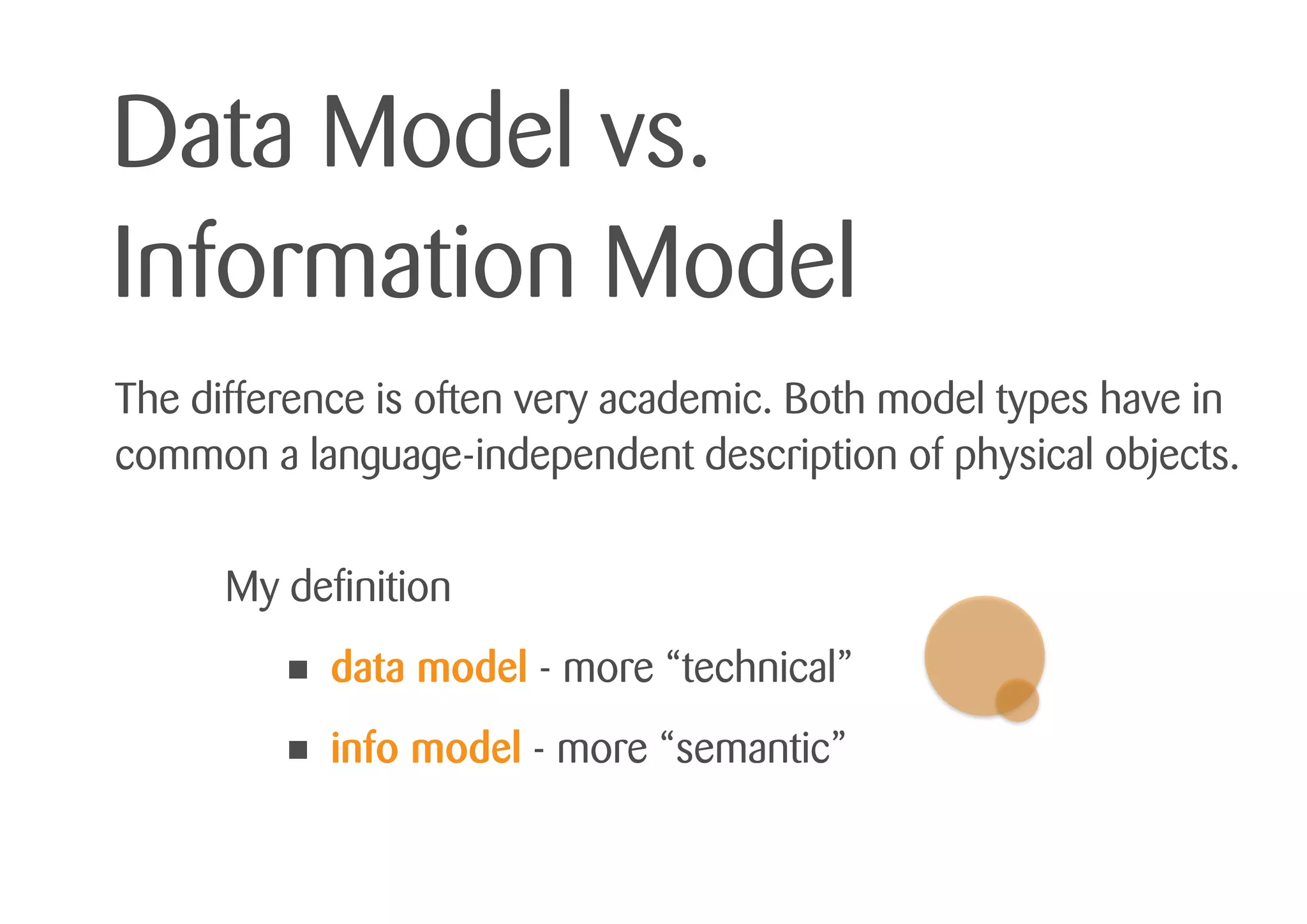

- 3. Data Model vs. InformationModel The difference is often very academic. Both model types have in common a language-independent description of physical objects. My definition • data model - more “technical” • info model - more “semantic”

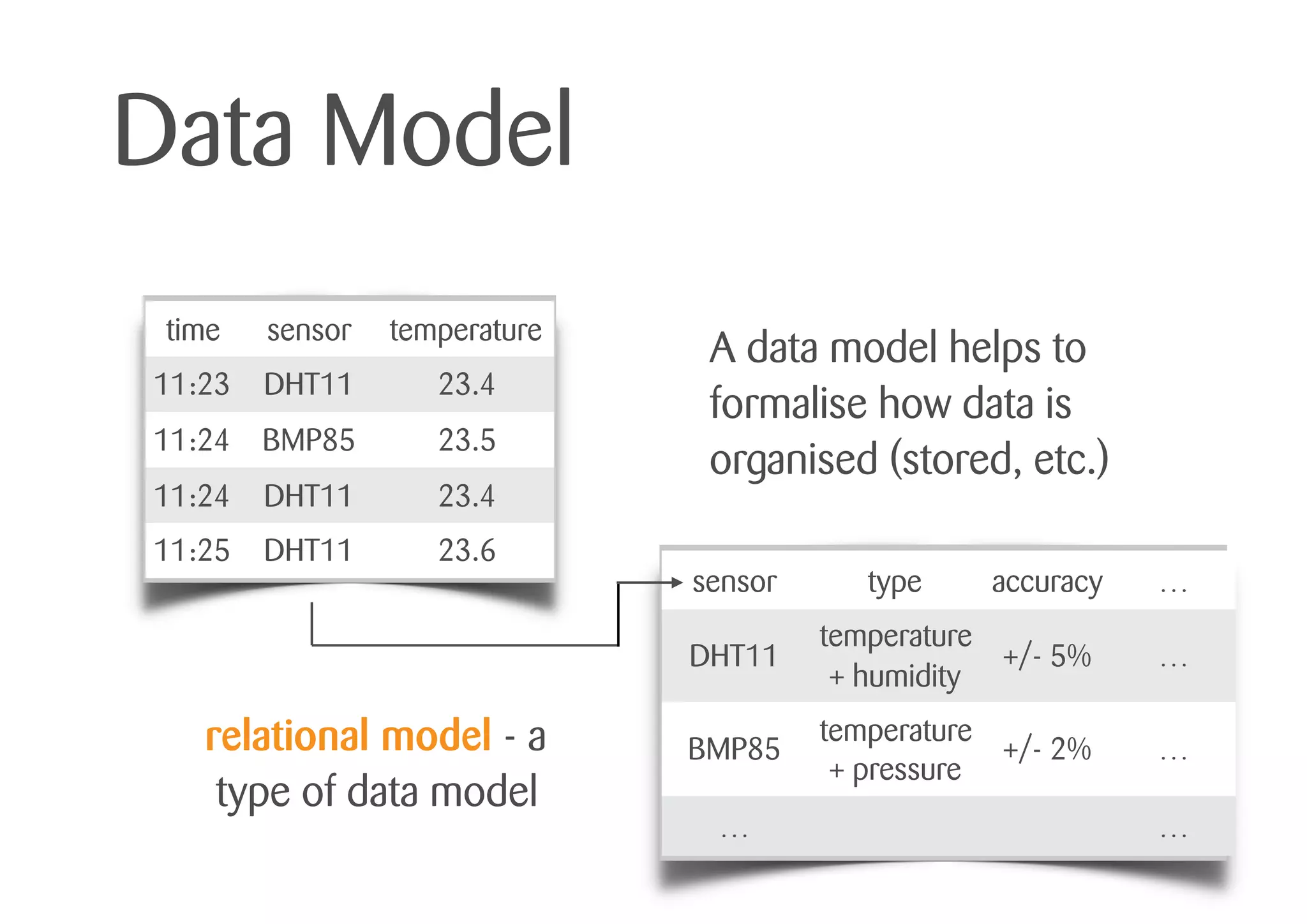

- 4. Data Model A datamodel helps to formalise how data is organised (stored, etc.) time sensor temperature 11:23 DHT11 23.4 11:24 BMP85 23.5 11:24 DHT11 23.4 11:25 DHT11 23.6 sensor type accuracy … DHT11 temperature + humidity +/- 5% … BMP85 temperature + pressure +/- 2% … … … relational model - a type of data model

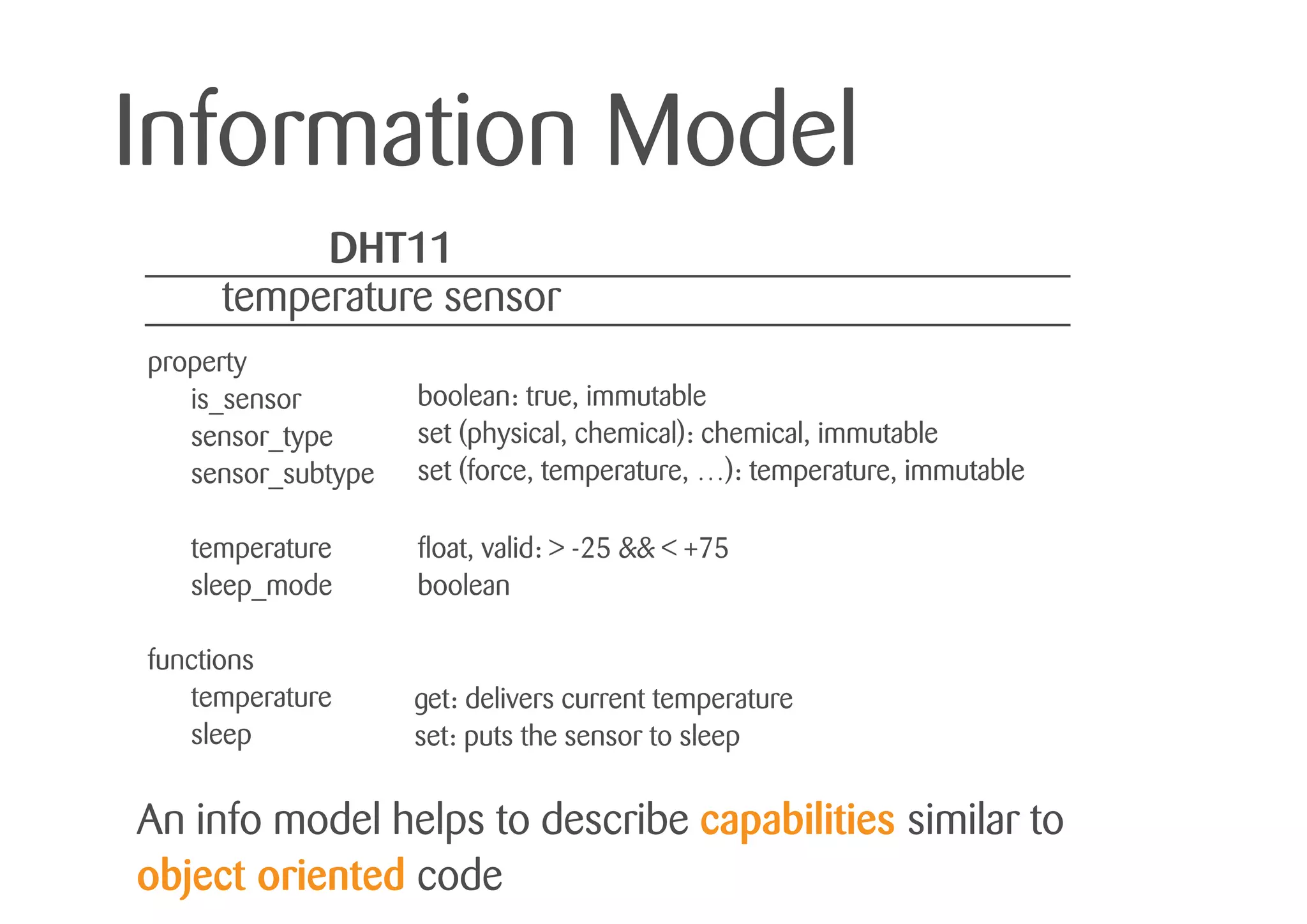

- 5. Information Model An infomodel helps to describe capabilities similar to object oriented code DHT11 temperature sensor property is_sensor sensor_type sensor_subtype temperature sleep_mode functions temperature sleep boolean: true, immutable set (physical, chemical): chemical, immutable set (force, temperature, …): temperature, immutable float, valid: > -25 && < +75 boolean get: delivers current temperature set: puts the sensor to sleep

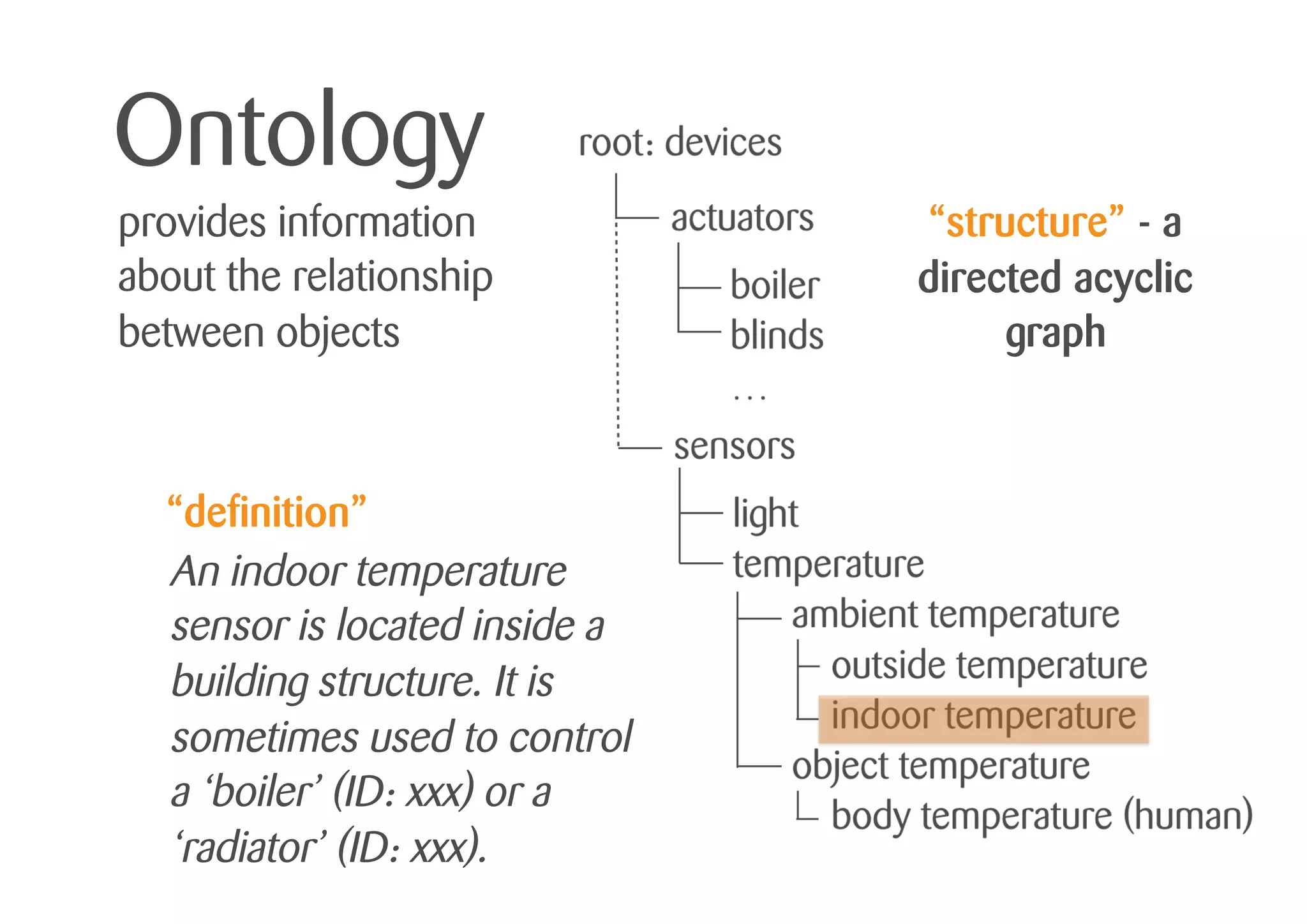

- 6. Ontology “structure” - a directedacyclic graph “definition” An indoor temperature sensor is located inside a building structure. It is sometimes used to control a ‘boiler’ (ID: xxx) or a ‘radiator’ (ID: xxx). provides information about the relationship between objects

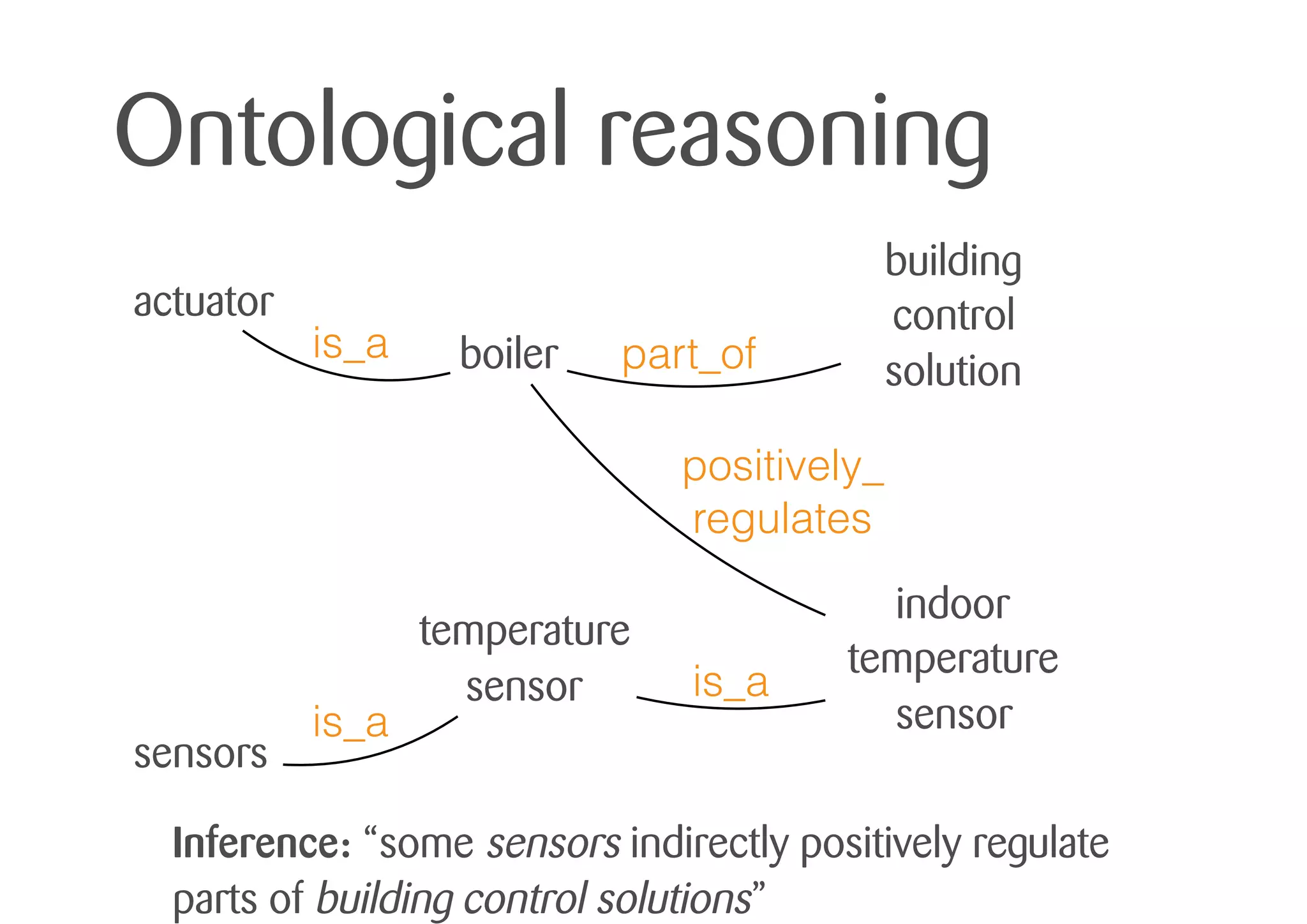

- 7. Ontological reasoning indoor temperature sensor boiler actuator sensors temperature sensor is_a is_a building control solutionpart_ofis_a positively_ regulates Inference: “somesensors indirectly positively regulate parts of building control solutions”
- 8. Ontologies recap My thingmonktalk (2014) on SlideShare My O’Reilly Webcast (video) My blog post about IoT ontologies http://www.slideshare.net/BorisAdryan/ http://iot.ghost.io/four-branches-for-an-iot-ontology/ http://www.oreilly.com/pub/e/3365

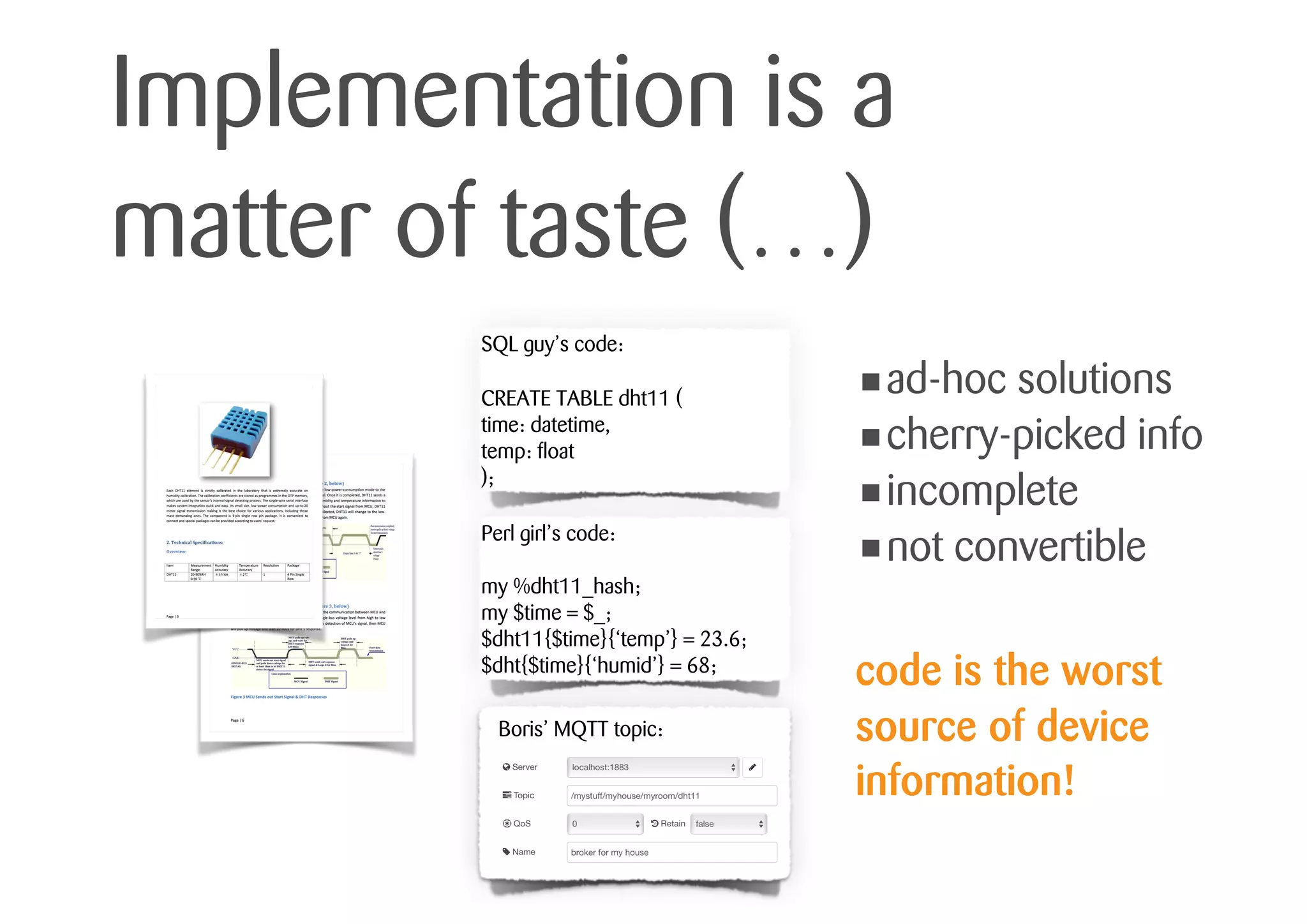

- 9. Implementation is a matterof taste (…) SQL guy’s code: CREATE TABLE dht11 ( time: datetime, temp: float ); Perl girl’s code: my %dht11_hash; my $time = $_; $dht11{$time}{‘temp’} = 23.6; $dht{$time}{‘humid’} = 68; Boris’ MQTT topic: •ad-hoc solutions •cherry-picked info •incomplete •not convertible code is the worst source of device information!

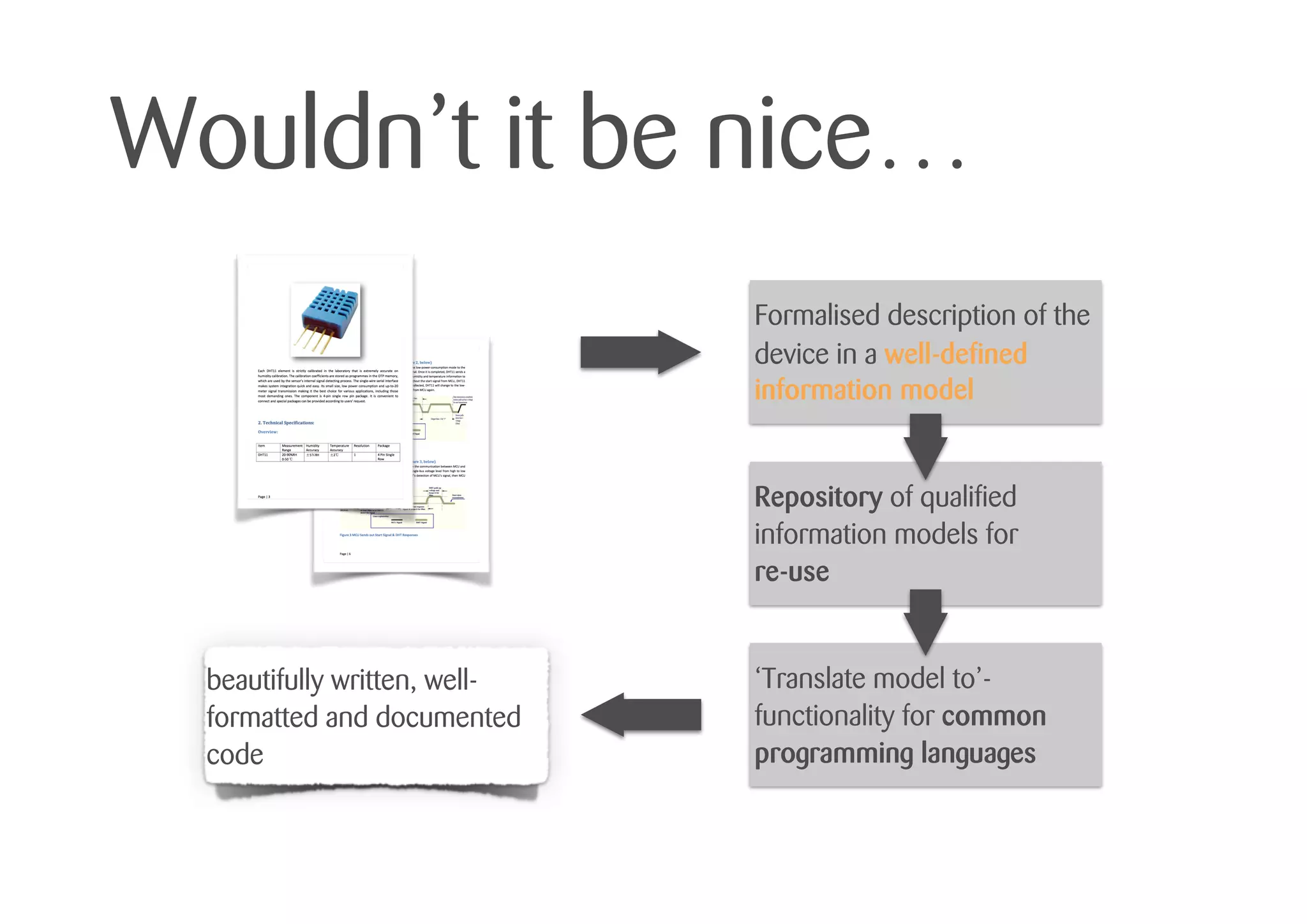

- 10. Wouldn’t it benice… Formalised description of the device in a well-defined information model Repository of qualified information models for re-use ‘Translate model to’- functionality for common programming languages beautifully written, well- formatted and documented code

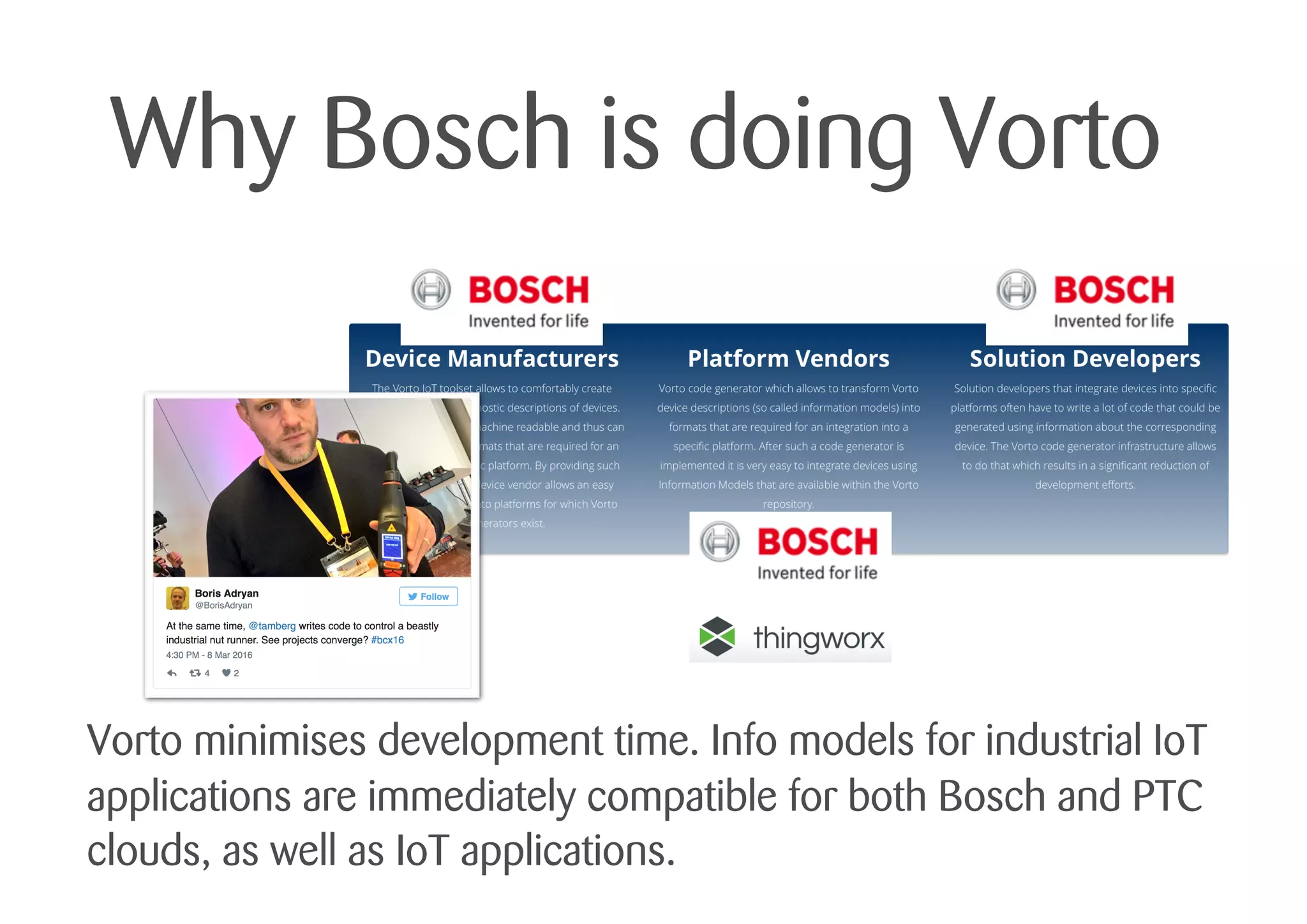

- 12. Why Bosch isdoing Vorto Vorto minimises development time. Info models for industrial IoT applications are immediately compatible for both Bosch and PTC clouds, as well as IoT applications.

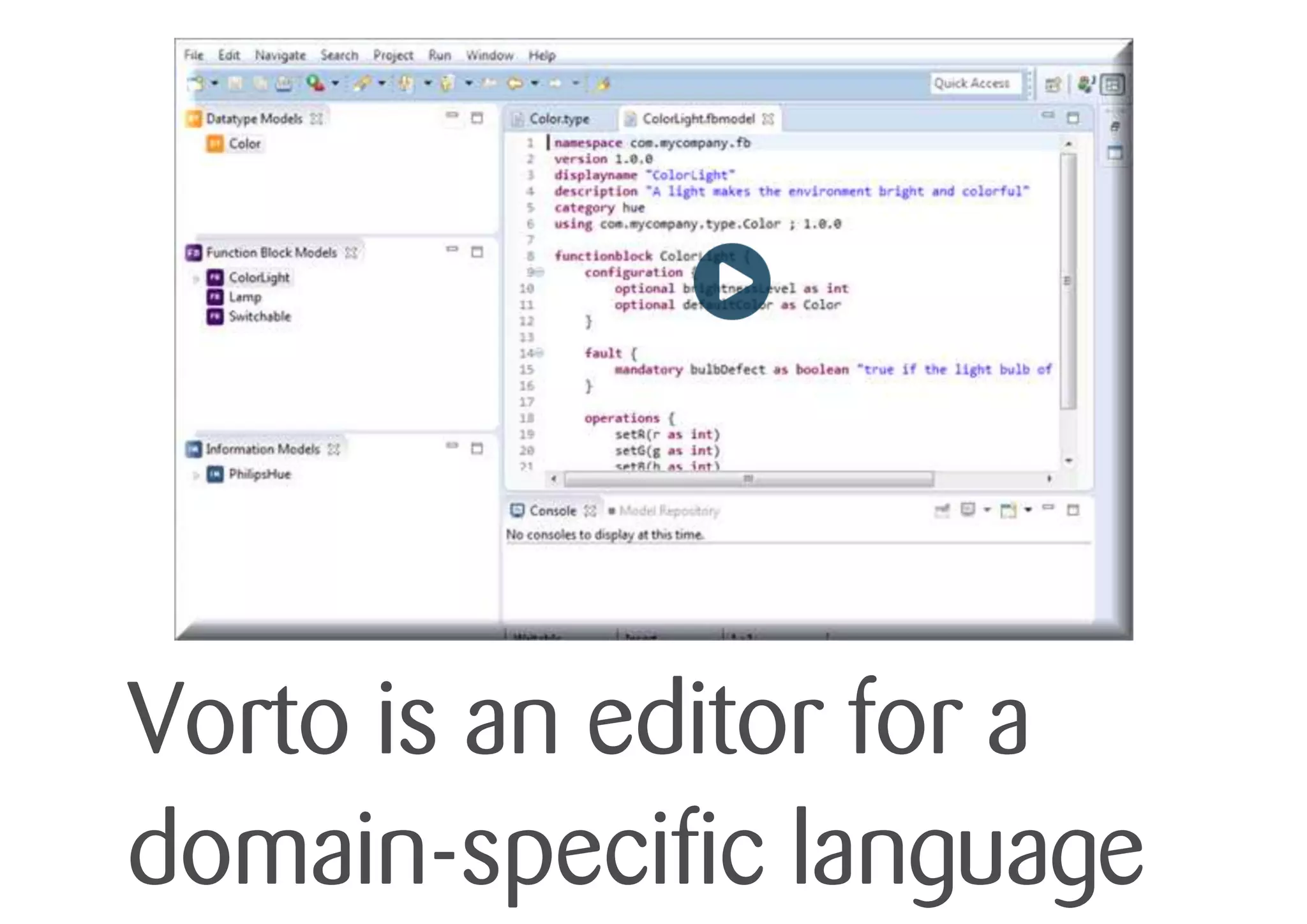

- 13. Vorto is aneditor for a domain-specific language

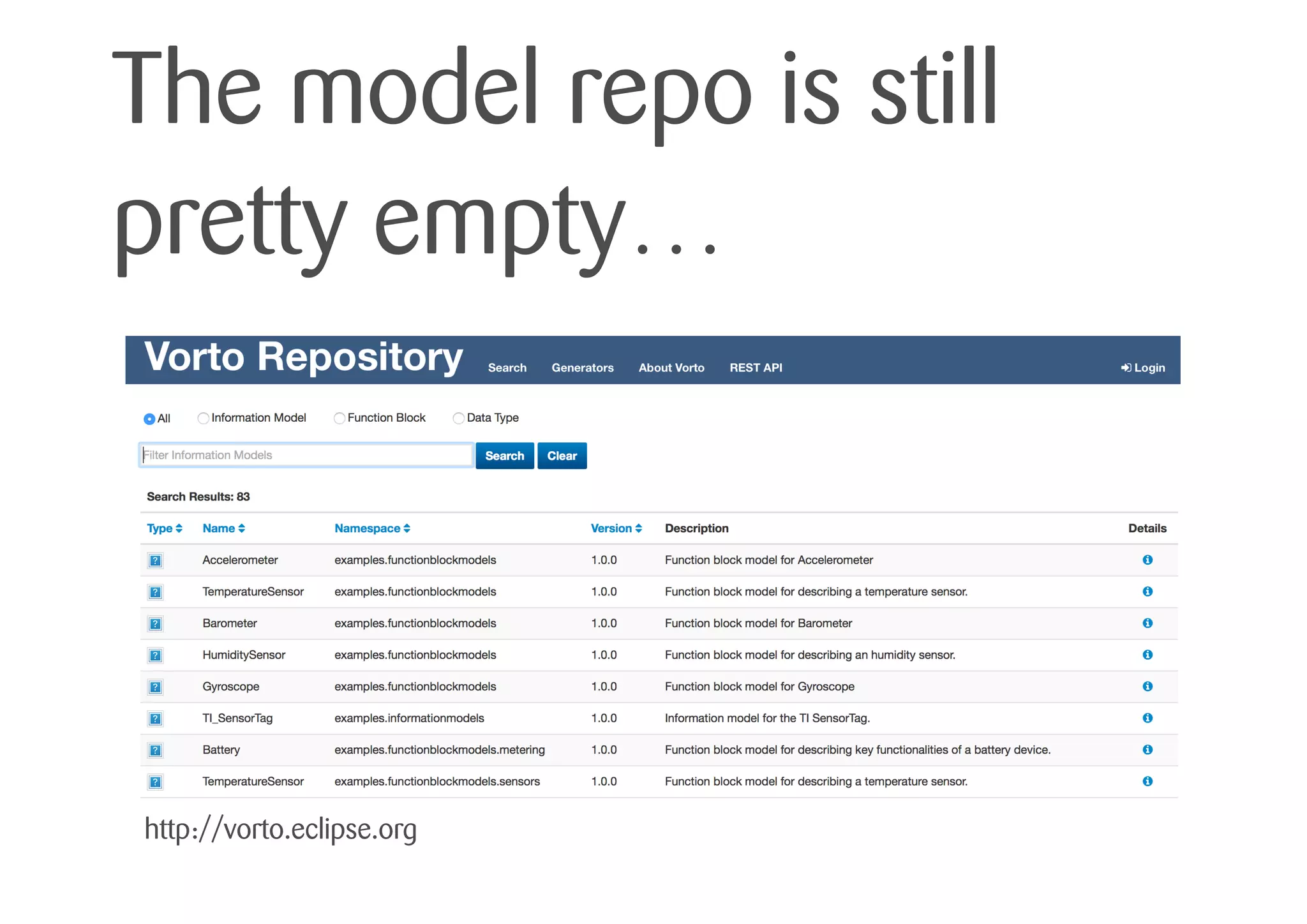

- 15. The model repois still pretty empty… http://vorto.eclipse.org

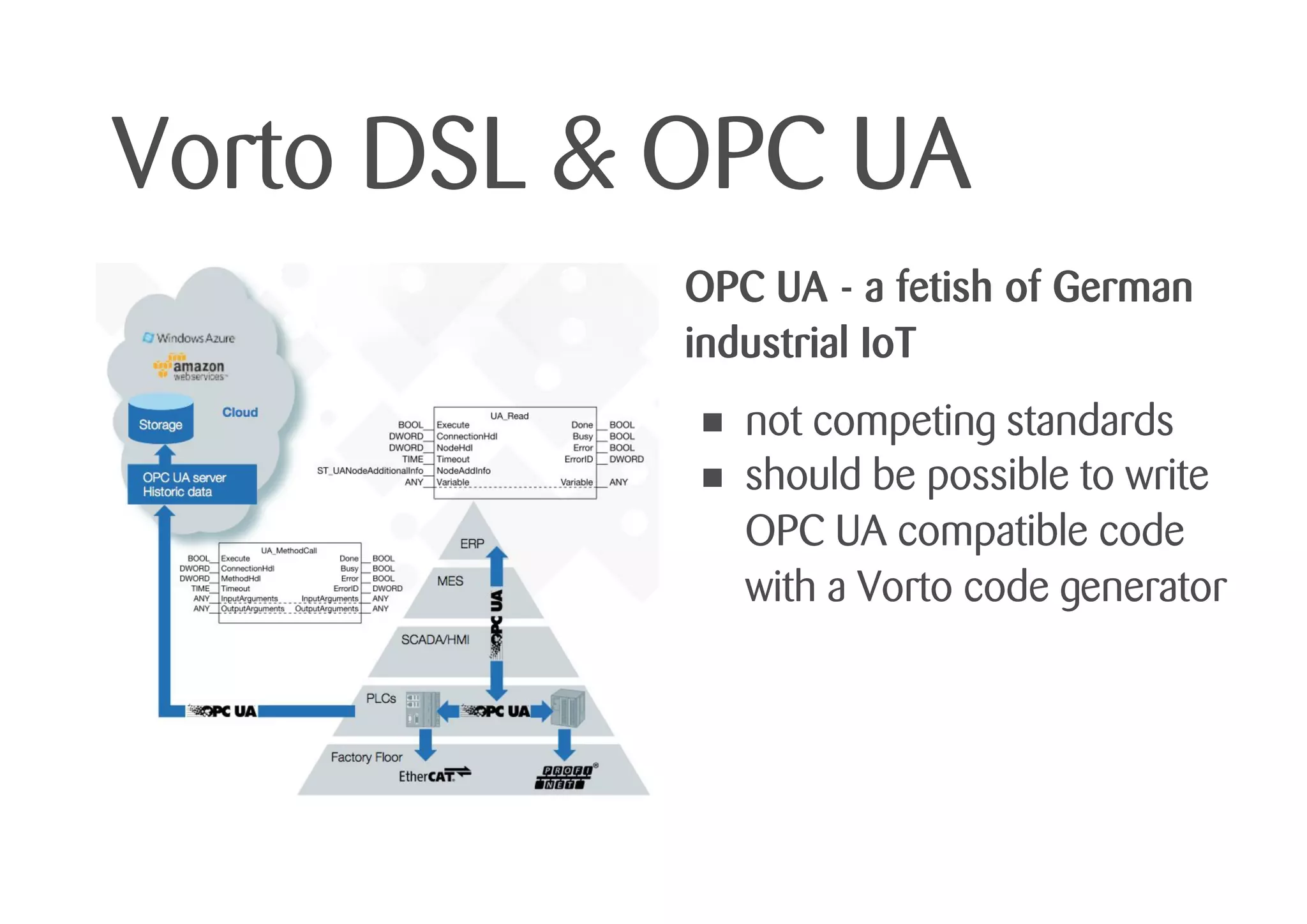

- 16. Vorto DSL &OPC UA OPC UA - a fetish of German industrial IoT • not competing standards • should be possible to write OPC UA compatible code with a Vorto code generator
- 17.
- 18.

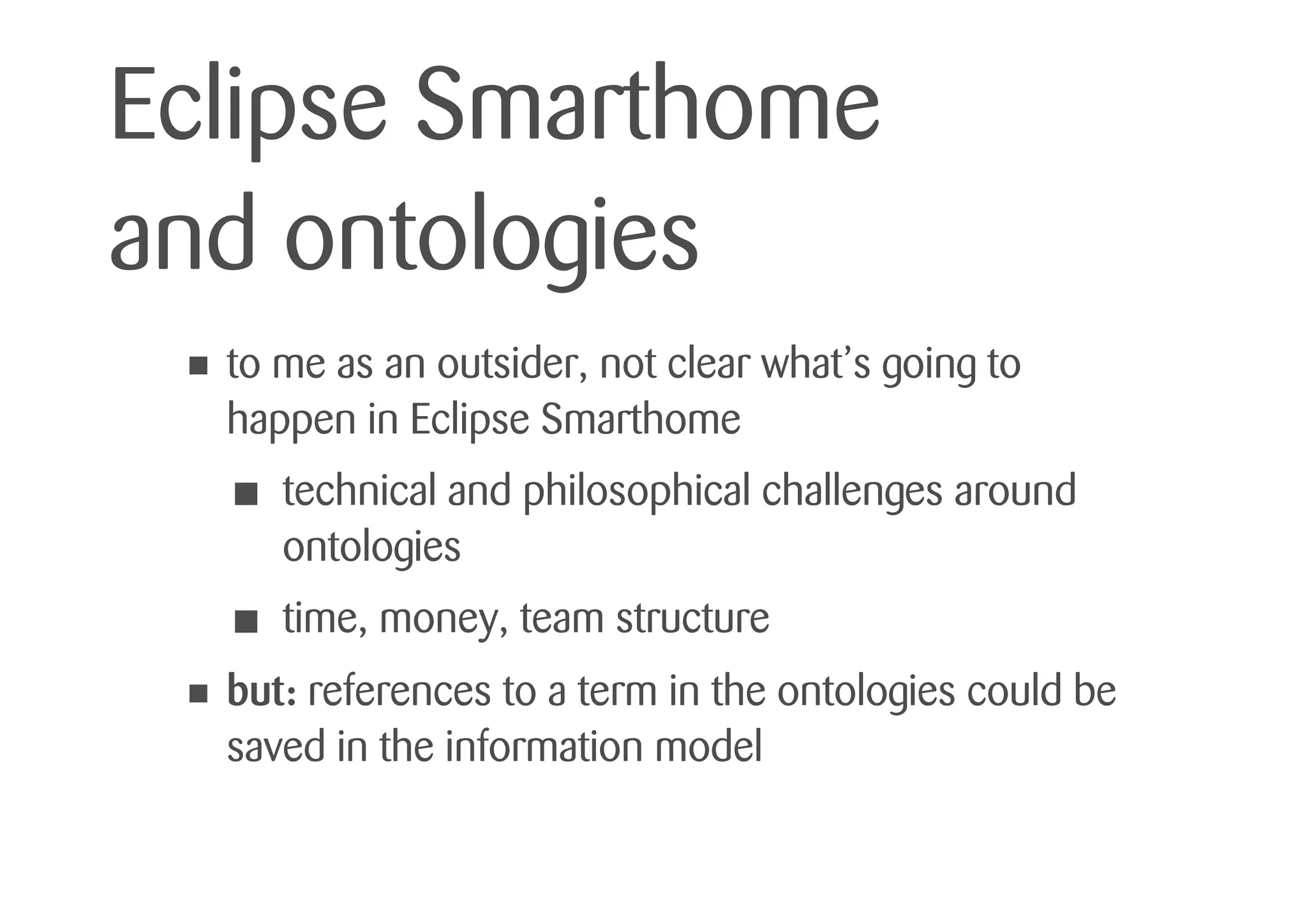

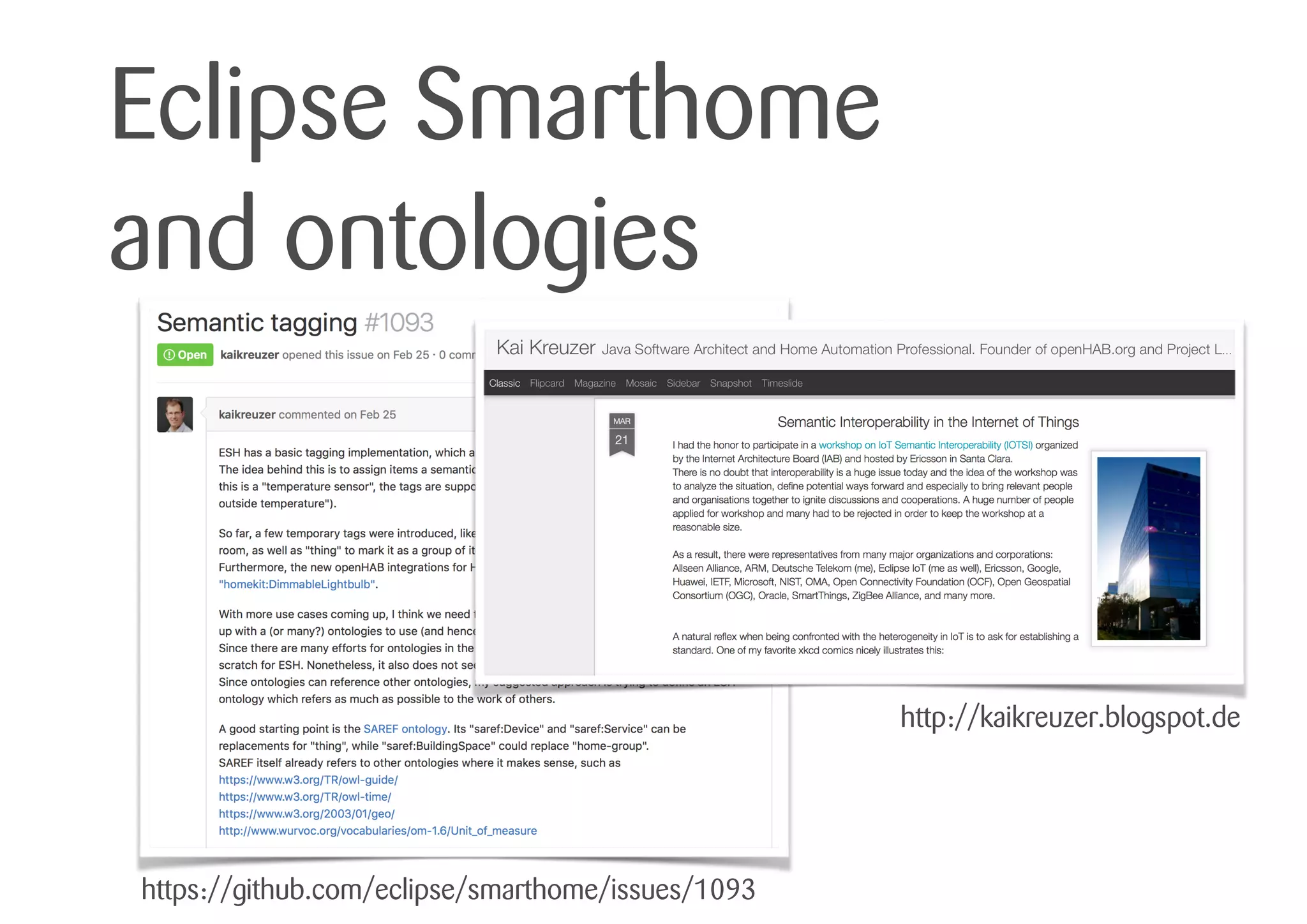

- 19. Eclipse Smarthome and ontologies •to me as an outsider, not clear what’s going to happen in Eclipse Smarthome • technical and philosophical challenges around ontologies • time, money, team structure • but: references to a term in the ontologies could be saved in the information model

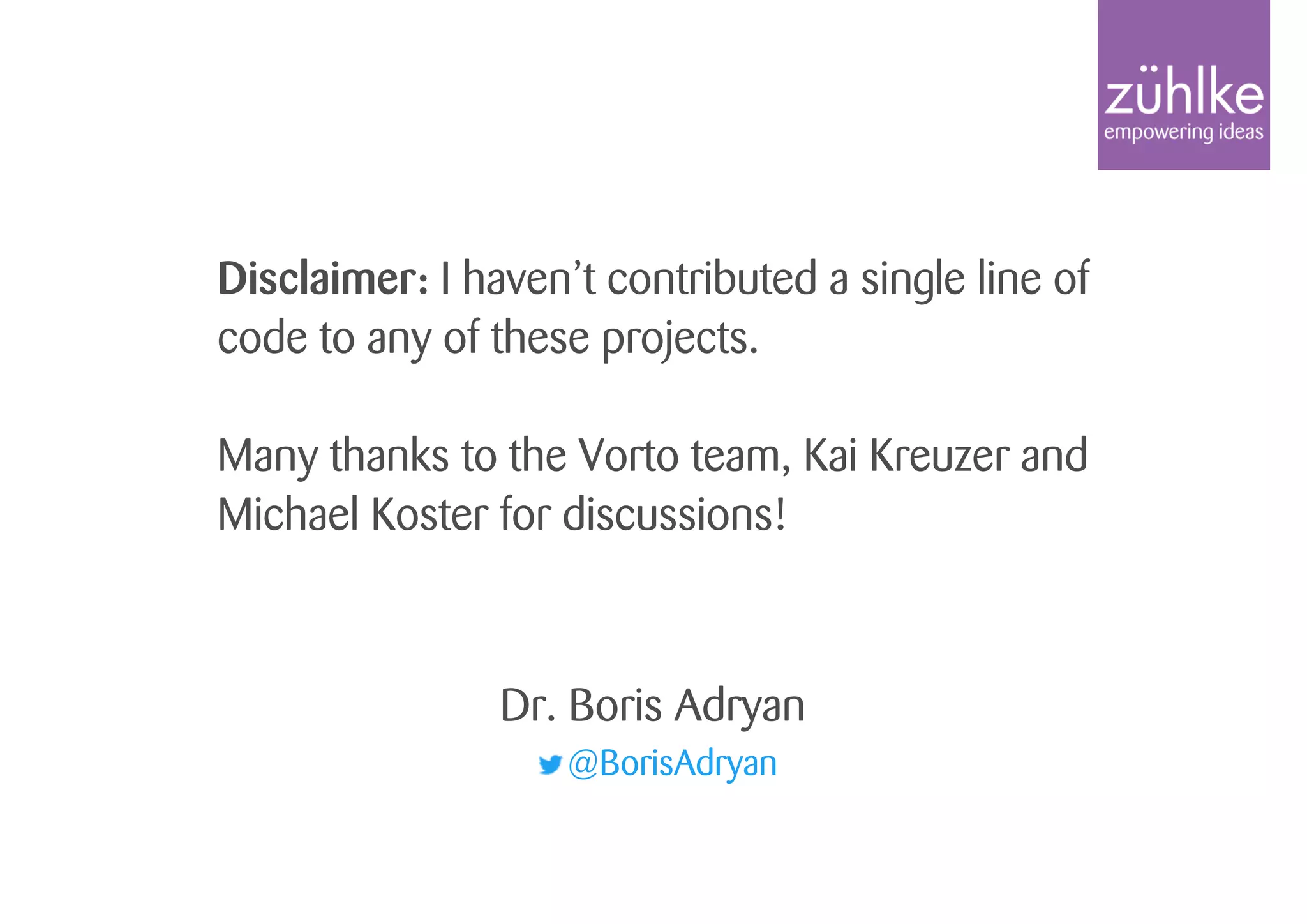

- 20. Dr. Boris Adryan @BorisAdryan Disclaimer:I haven’t contributed a single line of code to any of these projects. Many thanks to the Vorto team, Kai Kreuzer and Michael Koster for discussions!
