1. DIFFERENT ‘NON INVASIVE’
BRAIN STIMULATION
PROCEDURES
Presented by-
Moitrayee Majumder
M.Phil Neuroscience 1st year

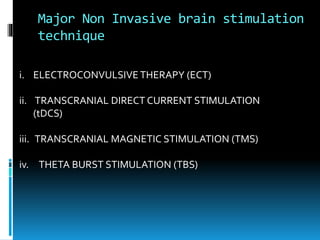

2. Major Non Invasive brain stimulation
technique
i. ELECTROCONVULSIVE THERAPY (ECT)
ii. TRANSCRANIAL DIRECT CURRENT STIMULATION
(tDCS)
iii. TRANSCRANIAL MAGNETIC STIMULATION (TMS)
iv. THETA BURST STIMULATION (TBS)

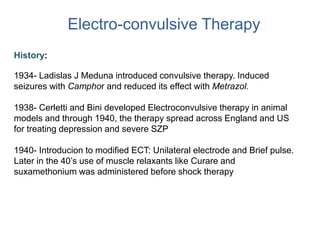

3. Electro-convulsive Therapy
History:
1934- Ladislas J Meduna introduced convulsive therapy. Induced
seizures with Camphor and reduced its effect with Metrazol.
1938- Cerletti and Bini developed Electroconvulsive therapy in animal
models and through 1940, the therapy spread across England and US
for treating depression and severe SZP
1940- Introducion to modified ECT: Unilateral electrode and Brief pulse.
Later in the 40’s use of muscle relaxants like Curare and
suxamethonium was administered before shock therapy

4. Technique
• ECT is administered by a constant current, brief pulse ECT machines are able
to deliver a wide range of electrical dose i.e 25-50mC to 750-1000mC.
• BILATERAL ECT: One electrode is applied to each side of the head and thus is
named bi-temporal or bi-frontotemporal ECT.
• UNILATERAL ECT: Referred to as Temporoparital or d’Elia position. One
electrode is placed in the temporal surface similar to traditional bilateral ECT and
the second is placed over the parietal surface.
The placement of electrodes is effective over non-dominant
hemisphere.

5. Dosing Strategy
• Stimulus dosing: The selection of electrical dose for an individual
patient is contingent upon the patient’s seizure threshold.
• Empirical measurement is the best available means of establishing, the
initial seizure threshold. Developing experience for the initial dose by
assessing the severity of the patient’s condition.
• During management of life threatening events, available schedules like
the Clinic’s dosing strategy is to be followed.
• In Unilateral ECT: The empirical techniques may not be crucial for
electrical doses intended to be only two or three times the seizure
threshold whereas it is practiced when yet higher dose is to be
implemented.
NICE guidelines

6. Mechanism of action
• ECT might have its effects on many systems in the brain but focused on
neurotransmitter release and regulation system.
• Modulating monoamine systems viz Serotonergic and nor-adrenergic pathways in
the CNS.
• Enhancing activity of dopaminergic systems which explains its effectiveness in
Depressive as well as Parkinsonism. Studies in animal model showed
expression of neuroprotective protein BDNF which antagonises neurotoxic effects
of stress on brain, on stimulations with ECT.
• Anticonvulsant in treatment and prophylaxis of Bipolar Disorder.
• Effectiveness on excitatory amino acid systems in treating psychosis in Mania
and Schizophrenia.
• Animal models treated with ECT showed potent effects in strengthening neuronal
survival and promotes the production of new neural processes.
• Chronic depression is associated with atrophy of brain structures like fronto-
temporal lobes and ECT was found to reverse it effectively

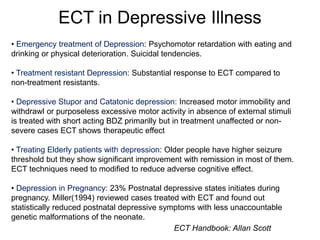

7. ECT in Depressive Illness
• Emergency treatment of Depression: Psychomotor retardation with eating and
drinking or physical deterioration. Suicidal tendencies.
• Treatment resistant Depression: Substantial response to ECT compared to
non-treatment resistants.
• Depressive Stupor and Catatonic depression: Increased motor immobility and
withdrawl or purposeless excessive motor activity in absence of external stimuli
is treated with short acting BDZ primarilly but in treatment unaffected or non-
severe cases ECT shows therapeutic effect
• Treating Elderly patients with depression: Older people have higher seizure
threshold but they show significant improvement with remission in most of them.
ECT techniques need to modified to reduce adverse cognitive effect.
• Depression in Pregnancy: 23% Postnatal depressive states initiates during
pregnancy. Miller(1994) reviewed cases treated with ECT and found out
statistically reduced postnatal depressive symptoms with less unaccountable
genetic malformations of the neonate.
ECT Handbook: Allan Scott

8. Adverse Effects of ECT
Cognitive adverse effects: Weiner summarised about retrograde amnesia that
can occur with ECT and noted that:
• It produces deficits in both autobiographical and impersonal memory domains.
• The severity and persistance of retrograde amnesia is greater with bilateral
electrode placement and with sine-wave stimuli than brief-pulse.
• Objective memory impairment may be persisting pre and post therapy session.
•Post therapy, some patients experience variable periods of disorientation
associated with impaired attention, memory and praxis. These effects are short
lived.
• Acute confusional states between treatment in patients with history of taking
psychotropic drugs or those with pre existing neurological conditions. In case of
which treatment modifications are recommended.
• Rarely patients develop postictal delerium manifesting as restlessness,
aggression or agitation which responds to treatment with BDZ.
• Headaches, muscular aches, drowsiness, weakness, nausea and anorexia.

9. Transcranial Direct Current Stimulations
HISTORY:
19th Century- rudimentary experiments of current on animals and human by Luigi
Galvani and Alessandro Volta.
1801- Giovanni Aldini used and studied application of DC to stabilize mood of
melancholy patients
1960- D J Albert showed DC induced cortical excitability.
Bindman et al performed experiments that resulted in long-lasting
polarization effects following electric stimulation of the exposed motor cortex of
animals.
Current View- With illustrated understanding
of basic brain functioning and therapeutic
applications, reliable tDC stimulation
technique supported with research using
brain imaging techniques such as fMRI,
tDCS is being more frequently used as a
method of non invasive psychiatric
treatment with proper safety protocols.
PC: JAMA Neurology

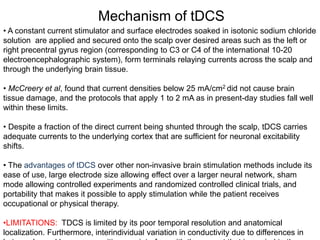

10. Mechanism of tDCS
• A constant current stimulator and surface electrodes soaked in isotonic sodium chloride
solution are applied and secured onto the scalp over desired areas such as the left or
right precentral gyrus region (corresponding to C3 or C4 of the international 10-20
electroencephalographic system), form terminals relaying currents across the scalp and
through the underlying brain tissue.
• McCreery et al, found that current densities below 25 mA/cm2 did not cause brain
tissue damage, and the protocols that apply 1 to 2 mA as in present-day studies fall well
within these limits.
• Despite a fraction of the direct current being shunted through the scalp, tDCS carries
adequate currents to the underlying cortex that are sufficient for neuronal excitability
shifts.
• The advantages of tDCS over other non-invasive brain stimulation methods include its
ease of use, large electrode size allowing effect over a larger neural network, sham
mode allowing controlled experiments and randomized controlled clinical trials, and
portability that makes it possible to apply stimulation while the patient receives
occupational or physical therapy.
•LIMITATIONS: TDCS is limited by its poor temporal resolution and anatomical
localization. Furthermore, interindividual variation in conductivity due to differences in

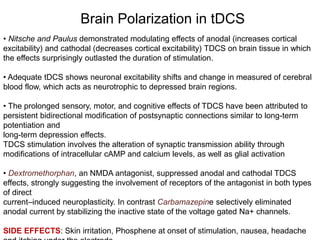

11. Brain Polarization in tDCS
• Nitsche and Paulus demonstrated modulating effects of anodal (increases cortical
excitability) and cathodal (decreases cortical excitability) TDCS on brain tissue in which
the effects surprisingly outlasted the duration of stimulation.
• Adequate tDCS shows neuronal excitability shifts and change in measured of cerebral
blood flow, which acts as neurotrophic to depressed brain regions.
• The prolonged sensory, motor, and cognitive effects of TDCS have been attributed to
persistent bidirectional modification of postsynaptic connections similar to long-term
potentiation and
long-term depression effects.
TDCS stimulation involves the alteration of synaptic transmission ability through
modifications of intracellular cAMP and calcium levels, as well as glial activation
• Dextromethorphan, an NMDA antagonist, suppressed anodal and cathodal TDCS
effects, strongly suggesting the involvement of receptors of the antagonist in both types
of direct
current–induced neuroplasticity. In contrast Carbamazepine selectively eliminated
anodal current by stabilizing the inactive state of the voltage gated Na+ channels.
SIDE EFFECTS: Skin irritation, Phosphene at onset of stimulation, nausea, headache

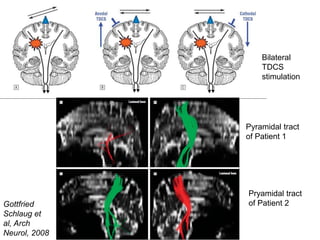

12. Pryamidal tract
of Patient 2
Pyramidal tract
of Patient 1
Bilateral
TDCS
stimulation
Gottfried
Schlaug et
al, Arch
Neurol, 2008

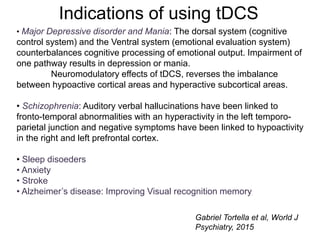

13. Indications of using tDCS
• Major Depressive disorder and Mania: The dorsal system (cognitive
control system) and the Ventral system (emotional evaluation system)
counterbalances cognitive processing of emotional output. Impairment of
one pathway results in depression or mania.
Neuromodulatory effects of tDCS, reverses the imbalance
between hypoactive cortical areas and hyperactive subcortical areas.
• Schizophrenia: Auditory verbal hallucinations have been linked to
fronto-temporal abnormalities with an hyperactivity in the left temporo-
parietal junction and negative symptoms have been linked to hypoactivity
in the right and left prefrontal cortex.
• Sleep disoeders
• Anxiety
• Stroke
• Alzheimer’s disease: Improving Visual recognition memory
Gabriel Tortella et al, World J
Psychiatry, 2015

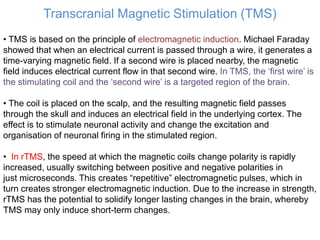

14. Transcranial Magnetic Stimulation (TMS)
• TMS is based on the principle of electromagnetic induction. Michael Faraday
showed that when an electrical current is passed through a wire, it generates a
time-varying magnetic field. If a second wire is placed nearby, the magnetic
field induces electrical current flow in that second wire. In TMS, the ‘first wire’ is
the stimulating coil and the ‘second wire’ is a targeted region of the brain.
• The coil is placed on the scalp, and the resulting magnetic field passes
through the skull and induces an electrical field in the underlying cortex. The
effect is to stimulate neuronal activity and change the excitation and
organisation of neuronal firing in the stimulated region.
• In rTMS, the speed at which the magnetic coils change polarity is rapidly
increased, usually switching between positive and negative polarities in
just microseconds. This creates “repetitive” electromagnetic pulses, which in
turn creates stronger electromagnetic induction. Due to the increase in strength,
rTMS has the potential to solidify longer lasting changes in the brain, whereby
TMS may only induce short-term changes.

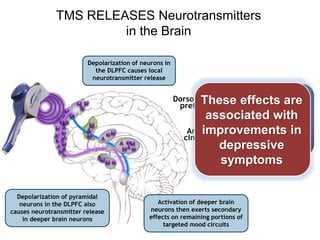

15. TMS RELEASES Neurotransmitters
in the Brain
Depolarization of neurons in
the DLPFC causes local
neurotransmitter release
Depolarization of pyramidal
neurons in the DLPFC also
causes neurotransmitter release
in deeper brain neurons
Activation of deeper brain
neurons then exerts secondary
effects on remaining portions of
targeted mood circuits
Dorsolateral
prefrontal
cortex
Anterior
cingulate
cortex
Kito (2008) J Neuropsychiatry Clin Neurosci
These effects are
associated with
improvements in
depressive
symptoms

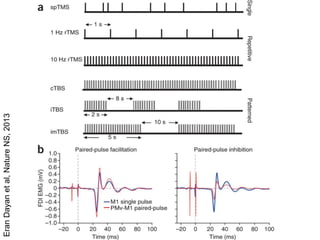

16. TMS Protocols
• Single pulse TMS: Initial appliation of TMS on motor system enabled functional
representation in Primary Motor Cortex (M1) with spTMS and response in particular
muscle with Motor Evoked Potential (MEP). Suprathreshold spTMS over Primary visual
cortex (V1) induced Phosphenes and Transient Scotomas whereas over V5 induced
motion perception.
• Paired Pulse TMS: ppTMS was used to study two anatomically
or functionally connected brain areas and providing a
Subthreshold Conditioning stimuli prceeding a Suprathreshold
test stimuli, the inter-stimuli latency determines facilitatory or
inhibitory effects on cortico-spinal output as MEPs.
• Repetative TMS: rTMS is applied over a site of interest for
several minutes. The induced effects outlast the period of
stimulation, giving insight into the role of the specific
stimulated brain regions in plasticity and behavior.
Eg: Low frequency (1 Hz) inhibits cortical stimulation which can be
pharmacologically reversed and High Frequency (5-20 Hz) facilitates cortical excitability.
This model has been used to understand sequence motor learning at different time
points involving different cortical areas.
Eran Dayan et al, Nature NS, 2013

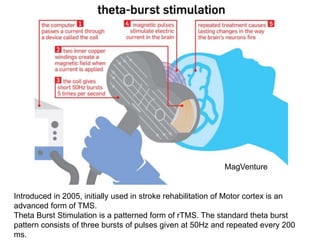

17. Introduced in 2005, initially used in stroke rehabilitation of Motor cortex is an
advanced form of TMS.
Theta Burst Stimulation is a patterned form of rTMS. The standard theta burst
pattern consists of three bursts of pulses given at 50Hz and repeated every 200
ms.
MagVenture

18. EranDayanetal,NatureNS,2013

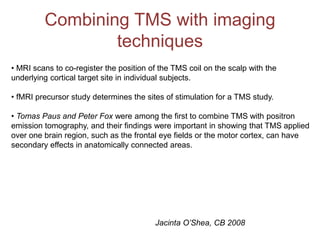

19. Combining TMS with imaging
techniques
• MRI scans to co-register the position of the TMS coil on the scalp with the
underlying cortical target site in individual subjects.
• fMRI precursor study determines the sites of stimulation for a TMS study.
• Tomas Paus and Peter Fox were among the first to combine TMS with positron
emission tomography, and their findings were important in showing that TMS applied
over one brain region, such as the frontal eye fields or the motor cortex, can have
secondary effects in anatomically connected areas.
Jacinta O’Shea, CB 2008

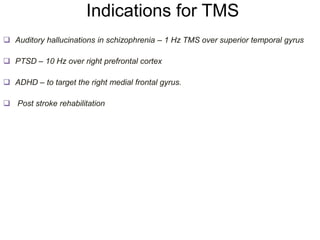

20. Indications for TMS
 Auditory hallucinations in schizophrenia – 1 Hz TMS over superior temporal gyrus
 PTSD – 10 Hz over right prefrontal cortex
 ADHD – to target the right medial frontal gyrus.
 Post stroke rehabilitation

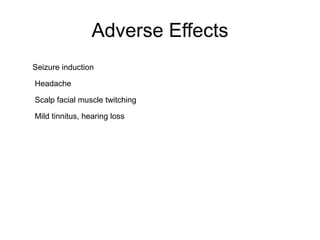

21. Adverse Effects
Seizure induction
Headache
Scalp facial muscle twitching
Mild tinnitus, hearing loss

22. THANKYOU
The presentation had been very peripheral as it requires decades to go
through 2051 documented material.
