- 1. CN D&T Group NGNOverview V1.0

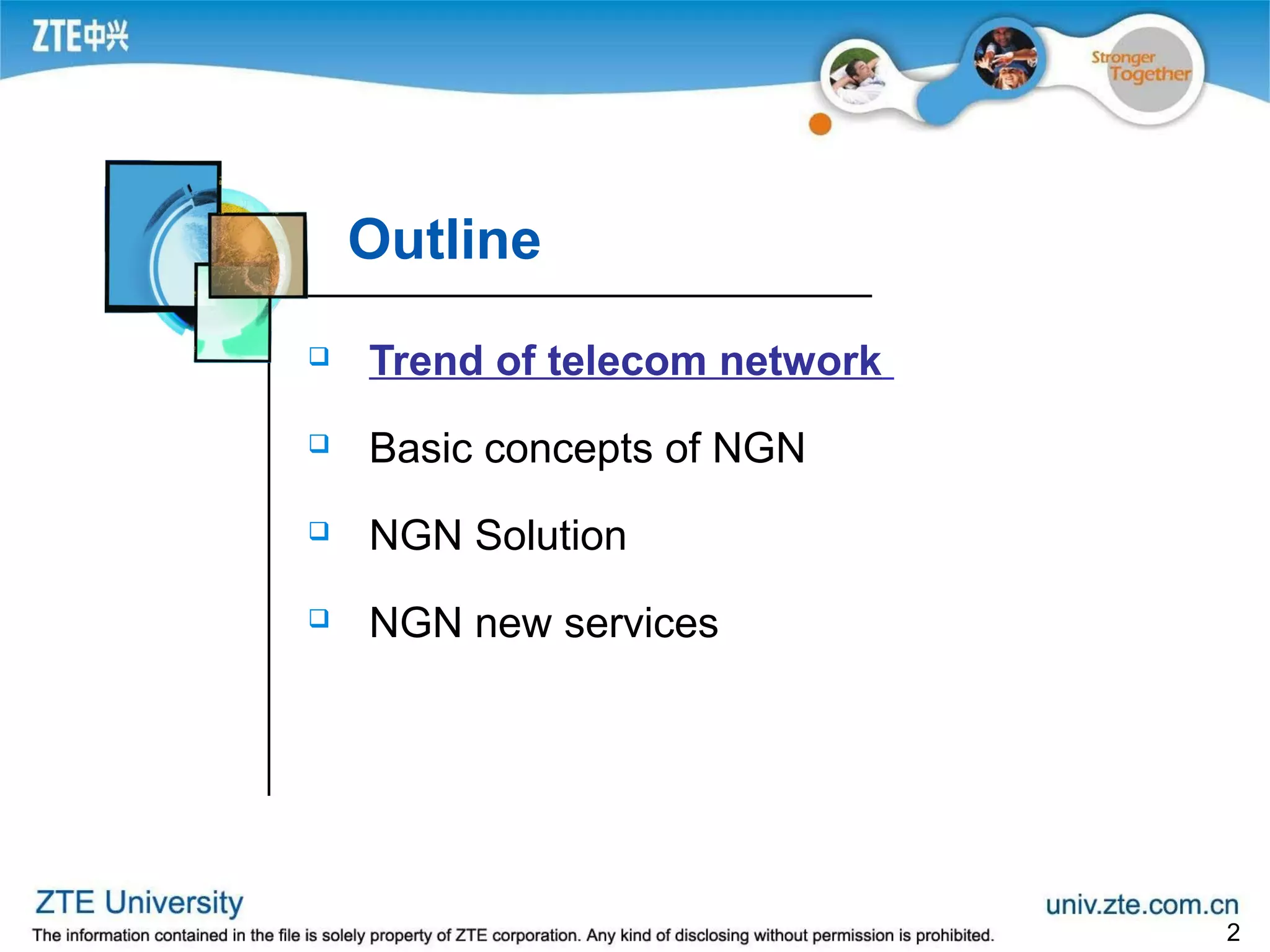

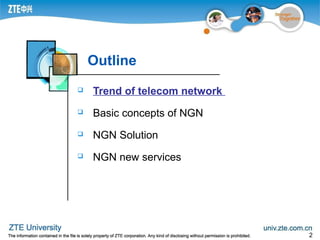

- 2. 2 Outline Trend oftelecom network Basic concepts of NGN NGN Solution NGN new services

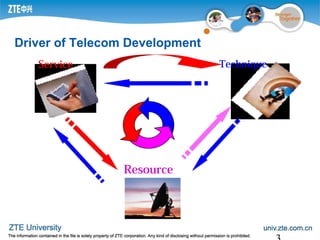

- 3. Driver of TelecomDevelopment Resource Service Technique

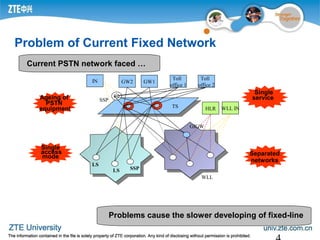

- 4. Problem of CurrentFixed Network Toll office 1 Toll office 2 GW1GW2 TS WLL IN WLL IN SSPLS LS HLR SSP GIGW Ageing of PSTN equipment Single access mode Single service Separated networks Current PSTN network faced … Problems cause the slower developing of fixed-line

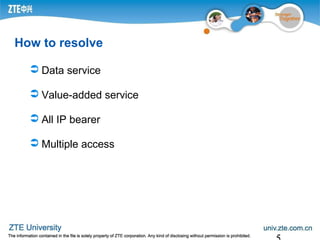

- 5. How to resolve Data service Value-added service All IP bearer Multiple access

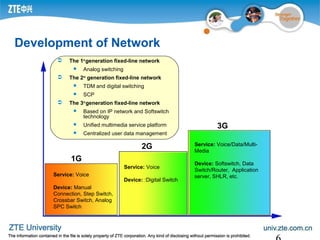

- 6. Development of Network The 1st generation fixed-line network Analog switching The 2nd generation fixed-line network TDM and digital switching SCP The 3rd generation fixed-line network Based on IP network and Softswitch technology Unified multimedia service platform Centralized user data management 1G 2G 3G Service: Voice Device: Manual Connection, Step Switch, Crossbar Switch, Analog SPC Switch Service: Voice Device: :Digital Switch Service: Voice/Data/Multi- Media Device: Softswitch, Data Switch/Router, Application server, SHLR, etc.

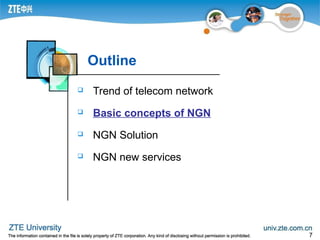

- 7. 7 Outline Trend oftelecom network Basic concepts of NGN NGN Solution NGN new services

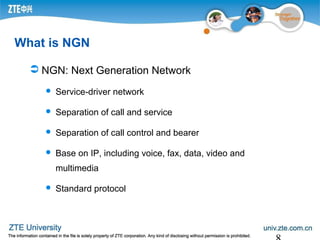

- 8. What is NGN NGN: Next Generation Network Service-driver network Separation of call and service Separation of call control and bearer Base on IP, including voice, fax, data, video and multimedia Standard protocol

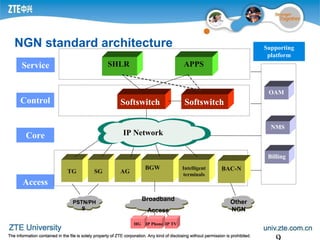

- 9. NGN standard architecture ServiceAPPS Control Softswitch Core Access TG AG BGW Intelligent terminals OAM Supporting platform SG NMS Billing Softswitch IP Network PSTN/PH S Broadband Access Other NGN HG IP Phone IP TV SHLR BAC-N

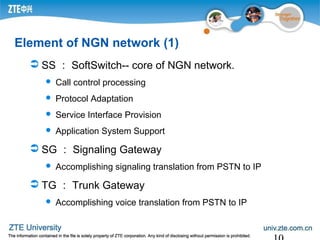

- 10. Element of NGNnetwork (1) SS ： SoftSwitch-- core of NGN network. Call control processing Protocol Adaptation Service Interface Provision Application System Support SG ： Signaling Gateway Accomplishing signaling translation from PSTN to IP TG ： Trunk Gateway Accomplishing voice translation from PSTN to IP
- 11. Element of NGNnetwork (2) MSAG ： Multi-Service Access Gateway Accessing subscribers IAD ： Integrated Access Device Accessing subscribers BGW ： Broadband Gateway Interconnecting public network and private network SHLR: Smart Home Location Register Storing subscribers data Application Server Providing API (Application Programming Interface) for different service
- 12. IP Core Signaling Module Trunk ModuleUser Access Module SoftSwitch CPU Switching Array Intelligent Server SS7 Signaling Gateway Trunk Gateway Unified Service Platform Access Gateway Compare with PSTN
- 13. ZTE NGN Architecture Access ZXSS10 IADseries Broadband Access Core Control Service ZXMSG 5200 ZXMSG9000ZXMSG9000 ZXSS10 SS1 ZXSS10 SS1 ZXUP10 APPZXSS10 NMS Core Packet NetworkCore Packet Network PSTN /ISDNSS7 Network PBX Private Network ZXSS10 BGW Soft- Phone SHLR Video phone
- 14. Softswitch Control DeviceZXSS10 SS1 Multi-Service Gateway ZXMSG 9000 Multi-Service Gateway ZXMSG 5200 Broadband Gateway ZXSS10 B100/B200 Unified Service Platform ZXUP10 Integrated Access Device and IP Phone ZXSS10 I500/P800 Integrated Network Management System ZXSS10 NMS ZTE Softswitch system elements

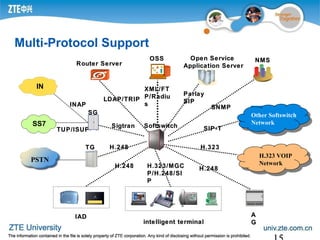

- 15. OSSOSS H.248H.248 Open ServiceOpen Service ApplicationServerApplication Server NMSNMS SoftswitchSoftswitch Router ServerRouter Server intelligent terminalintelligent terminal AA GG IADIAD TGTG SGSG INAPINAP LDAP/TRIPLDAP/TRIP XML/FTXML/FT P/RadiuP/Radiu ss ParlayParlay SIPSIP SNMPSNMP SIP-TSIP-T H.323H.323 H.323/MGCH.323/MGC P/H.248/SIP/H.248/SI PP SigtranSigtran H.248H.248 TUP/ISUPTUP/ISUP SS7 IN PSTN Other Hl323 NetworkH.323 VOIP Network Other Hl323 NetworkOther Softswitch Network H.248H.248 Multi-Protocol Support

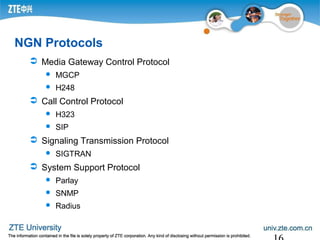

- 16. NGN Protocols MediaGateway Control Protocol MGCP H248 Call Control Protocol H323 SIP Signaling Transmission Protocol SIGTRAN System Support Protocol Parlay SNMP Radius

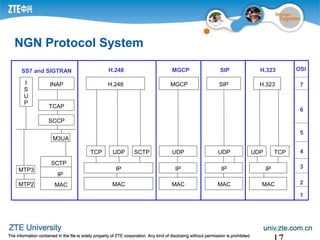

- 17. NGN Protocol System MTP2 IP TCP H.248MGCP SIP MAC SS7 and SIGTRAN H.248 MGCP SIP MTP3 I S U P SCTP IP MAC SCTPUDP IP MAC UDP IP MAC UDP 1 2 3 4 5 6 7 OSI IP H.323 MAC H.323 TCPUDP M3UA SCCP TCAP INAP
- 18. MGCP and H.248 MGCP: Media Gateway Control Protocol Provide signaling and call control for Media Gateways and Voice over IP (VoIP) terminal devices A master/slave equipment control protocol H.248/Megaco is a successor to MGCP and will finally replace it SoftSwitch acts as a MGC TG, IAD: MG

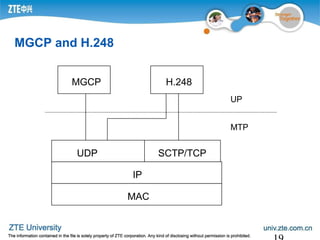

- 19.

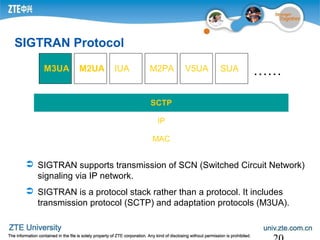

- 20. SIGTRAN Protocol SCTP IP MAC M3UA M2UAIUA M2PA V5UA SUA …… SIGTRAN supports transmission of SCN (Switched Circuit Network) signaling via IP network. SIGTRAN is a protocol stack rather than a protocol. It includes transmission protocol (SCTP) and adaptation protocols (M3UA).

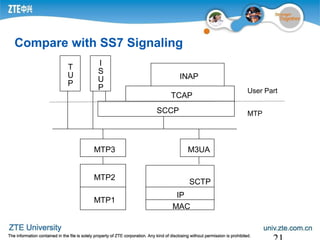

- 21. Compare with SS7Signaling MAC MTP1 MTP2 MTP3 SCCP TCAP T U P I S U P M3UA IP INAP User Part MTP SCTP

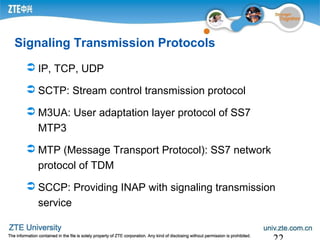

- 22. Signaling Transmission Protocols IP, TCP, UDP SCTP: Stream control transmission protocol M3UA: User adaptation layer protocol of SS7 MTP3 MTP (Message Transport Protocol): SS7 network protocol of TDM SCCP: Providing INAP with signaling transmission service

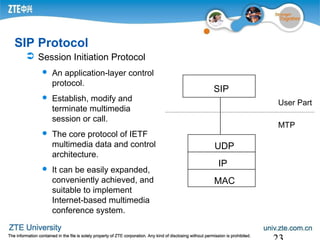

- 23. SIP Protocol SessionInitiation Protocol An application-layer control protocol. Establish, modify and terminate multimedia session or call. The core protocol of IETF multimedia data and control architecture. It can be easily expanded, conveniently achieved, and suitable to implement Internet-based multimedia conference system. MAC IP UDP SIP User Part MTP

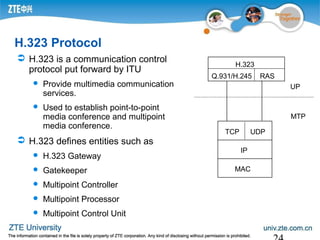

- 24. H.323 Protocol H.323is a communication control protocol put forward by ITU Provide multimedia communication services. Used to establish point-to-point media conference and multipoint media conference. H.323 defines entities such as H.323 Gateway Gatekeeper Multipoint Controller Multipoint Processor Multipoint Control Unit MAC IP H.323 UP MTP TCP UDP Q.931/H.245 RAS
- 25. 25 Outline Trend oftelecom network Basic concepts of NGN NGN solution ZTE NGN new services

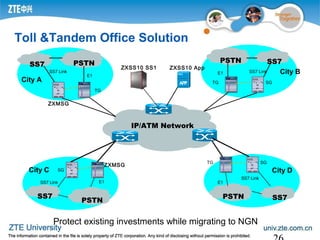

- 26. PSTN SS7 E1 SS7 Link CityD PSTN SS7 E1SS7 Link City C PSTNSS7 E1 SS7 Link City A PSTN SS7 E1 SS7 Link City B IP/ATM Network TG SG SGTG SGTG ZXSS10 AppZXSS10 SS1 ZXMSG ZXMSG Protect existing investments while migrating to NGN Toll &Tandem Office Solution

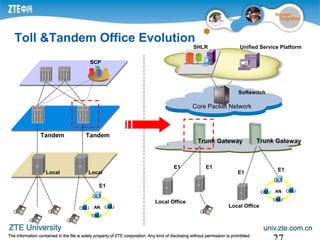

- 27. Local Office Tandem Tandem LocalLocal OLT ONU ONU ONUAN SCP E1 E1E1 E1 Core Packet Network Softswitch Trunk GatewayTrunk Gateway OLT ONU ONU ONUAN Local Office E1 Unified Service PlatformSHLR Toll &Tandem Office Evolution

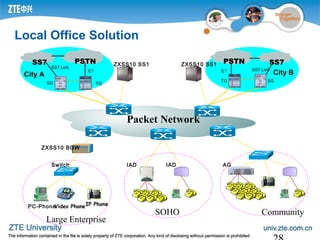

- 28. PSTNSS7 E1 SS7 Link City A PSTNSS7 E1 SS7 Link City B SG TG SGTG Large Enterprise PC-PhoneVideo Phone SOHO IAD IP Phone IAD Community AGSwitch ZXSS10 BGW ZXSS10 SS1 ZXSS10 SS1 Packet Network Local Office Solution

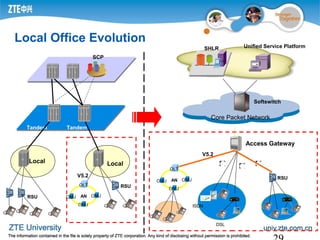

- 29. ISDN DSL Softswitch Tandem SCP Local Local Access Gateway V5.2 RSU RSU OLT ONU ONU ONUAN Tandem OLT ONU ONU ONUAN V5.2 RSU CorePacket Network Unified Service PlatformSHLR Local Office Evolution
- 30. Access Solution: Multi-access SCPNMS IAD LAN Access IP Phone MTA CMTS IAD EMTA IAD HFC Access HFC ZXSS10 SS1b Wireless Access IAD Core Packet Network Copper Line Access MSAG ADSL MODEM SHLR ZXUP10 APP

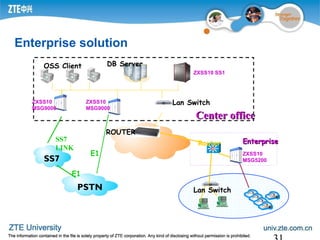

- 31. Enterprise solution PSTN ROUTER E1 E1 SS7 SS7 LINK DB Server CenterofficeCenter office Lan Switch OSS Client SiSi Router EnterpriseEnterprise Lan Switch ZXSS10 SS1 ZXSS10 MSG9000 ZXSS10 MSG9000 ZXSS10 MSG5200
- 32. Inter-connect with H323network ZXSS10 SS1 ZXSS10 BGW ZXSS10 BGW NGNNGN GK H323 GW H323 GW H323 GW H323 GW RTP RTP RAS H.248 H.248 H323 GW IAD AG Area AArea A TG SIP Phone RTP H.248 IAD AG Area BArea B TG SIP Phone RTP Q.931/H.245
- 33. Core network TGSG Softswitch APPNMS PLMN AP Wlan SoftPhone MultiPhone PCS AG IAD 3.5G PHS GSM/CDMA handset SG TG Intelligent Terminal Wireless Access Solution

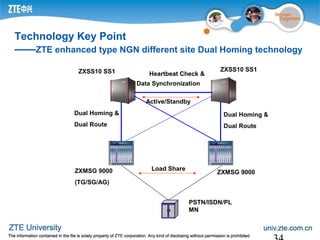

- 34. Technology Key Point ——ZTEenhanced type NGN different site Dual Homing technology Heartbeat Check & Data Synchronization ZXSS10 SS1 ZXSS10 SS1 ZXMSG 9000 (TG/SG/AG) Load Share Active/Standby Dual Homing & Dual Route PSTN/ISDN/PL MN ZXMSG 9000 Dual Homing & Dual Route

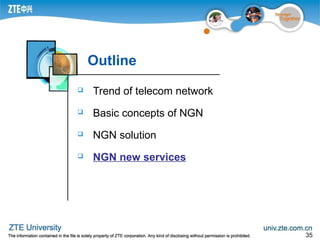

- 35. 35 Outline Trend oftelecom network Basic concepts of NGN NGN solution NGN new services

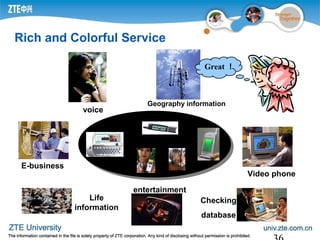

- 36. voice Geography information Video phone Life information entertainment E-business Checking database Great！ Rich and Colorful Service

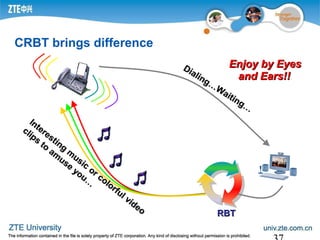

- 37. CRBT brings difference Dialing… W aiting… Dialing… W aiting… Interesting m usic orcolorful video Interesting m usic or colorful video clips to am use you… clips to am use you… RBTRBT Enjoy by EyesEnjoy by Eyes and Ears!!and Ears!!
- 38. Colorful New TelecomWorld – Colorful Ring Back Tone For fixed network New value-added service, it can be bound together with calling number display. If 100,000 users apply CRBT and the rent fee for each user is 3 Yuan, then the total income of a year is 3.6 million Yuan. Publicizing of enterprise’s impression to the outside and fully taking advantage of the character of fixed network. Joke Greeting message music song Enterprise ring back tone Welcome message
- 39. Application 1: IndividualCRBT The subscriber is allowed to customize ring back tones through WEB. Different ring back tones for different callers and time periods Girlfriend （ known each other for two years ） NGN Value-added PSTN ! customer （ after noon ） friend （ birthda y ） How romantic ！ I am willing to marry him Great! It seems special voice for me. Ah! My birthday is still in his mind. HTTP Voice: Xiao Li, in the special day,… Music:Happybirthday toyou… Voice: Good afternoon, Mr.Zhang,… Internet

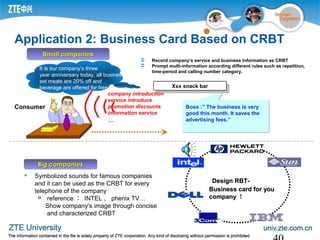

- 40. Record company’sservice and business information as CRBT Prompt multi-information according different rules such as repetition, time-period and calling number category. company introduction service introduce promotion discounts information service … Xxx snack bar Xxx snack bar Big companiesBig companiesBig companiesBig companies Consumer Boss :” The business is very good this month. It saves the advertising fees.” Boss :” The business is very good this month. It saves the advertising fees.” Application 2: Business Card Based on CRBT Symbolized sounds for famous companies and it can be used as the CRBT for every telephone of the company reference ： INTEL 、 phenix TV… Show company’s image through concise and characterized CRBT Small companiesSmall companiesSmall companiesSmall companies It is our company’s three year anniversary today, all business set meals are 20% off and beverage are offered for free Design RBT-Design RBT- Business card for youBusiness card for you companycompany ！！

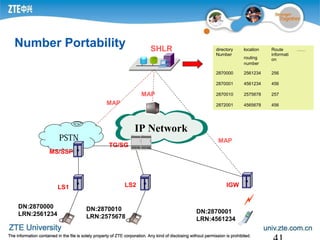

- 41. SHLR directory Number location routing number Route informati on …… 2870000 2561234256 2870001 4561234 456 2870010 2575678 257 2872001 4565678 456 MAP DN:2870000 LRN:2561234 MAP PSTN LS1 LS2 IGW TG/SG IP Network MAP DN:2870010 LRN:2575678 DN:2870001 LRN:4561234 MS/SSP Number Portability

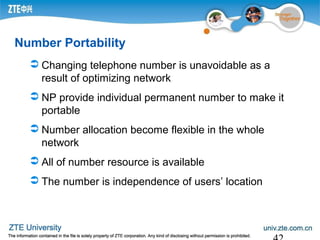

- 42. Number Portability Changingtelephone number is unavoidable as a result of optimizing network NP provide individual permanent number to make it portable Number allocation become flexible in the whole network All of number resource is available The number is independence of users’ location
- 43. Other value-added service UMS （ Unified Messaging Service) Personal Communication Assistant Web service subscriber Voice Mail Pre-paid card Web Conference CTD （ Click To Dial) Web800 IP Call Center
- 44.
Editor's Notes
- #4 业务驱动： 话音业务为主 --- 〉话音，数据，多媒体业务 资源利用驱动 低成本地高效利用资源来提供业务 技术： 技术更新加快，以 VOIP 的建网成本比之 PSTN 大幅降低，今天的 NGN 语音效果以及成熟到能够取代 PSTN ； 并且可以提供大量的 PSTN 所不能够提供的业务，比如视频电话，比如广域 centrex 群…
- #5 对增值业务的支持日益显出力不从心； 对多媒体业务实现困难、运营维护管理要求高； 投资收益正在下降，形成了增量不增收的局面； 固网的先天缺陷，导致 PSTN 无法和移动通讯竞争。 在运营商中，竞争在不断的增加 VoIP 语音业务对传统话务量风流严重 移动通讯在快速的增长，对固网市场形成取代之势 基于 INTERNET 的数据业务以井喷式的发展，成为运营商新的利润增长点 增值业务的发展成为运营商竞争的焦点 这是世界性大趋势，不是靠一两招就能化解的固有风险，小灵通解决不了长远大局， 转型是唯一出路。 因此国内外的运营商都在考虑发展数据业务，希望能够分担语音业务收入下降的风险。 在运营商中，竞争在不断的增加 VoIP 语音业务对传统话务量风流严重 移动通讯在快速的增长，对固网市场形成取代之势 基于 INTERNET 的数据业务以井喷式的发展，成为运营商新的利润增长点 增值业务的发展成为运营商竞争的焦点
- #10 HLR: host location register BAC: broadband access control
- #14 What is the router server? Or application server? Do you want to include the T200 or others?
- #15 Softswitch system elements list
- #17 NGN protocols include: SIGTRAN, MGCP, H.248, H.323, SIP and ISUP. SIGTRAN protocol group is used when ss is interconnected with PSTN, over which the ISUP protocol is borne. MGCP and H.248 protocols are used for interconnection with various MGs. H.323 and SIP protocols are used for interconnection among SoftSwitch devices, and meanwhile, H.323 can also be used for interworking with H.323 media terminal, while SIP can be used for interworking with SIP terminal.
- #24 IETF---Internet Engineering Task Force
- #27 Shall the title say: Network Solutions -- Class 4 Alternative/Replacement?
- #29 See Slide 22
- #32 应用，组网，维护，商务配置
- #34 Wireless access(3.5G BWA product, WLAN) NGN interworking with PLMN(GSM,CDMA), PCS
- #35 Softswitch system Dual homing( Disaster Recover) ◆ MSG and Softswitch are Dual Homing & Dual Route mode ◆ Two Softswitches are active/standby mode ◆ There are Heartbeat Check & Data Synchronization between two Softswitches ◆ TG and Softswitch support load share to guarantee network security ◆ All equipments support redundancy backup ◆ Main boards and power are redundancy configuration ◆ MSG supports dual homing, when active softswitch occurs disaster or accident, MSG connects with standby softswitch
- #41 Show company’s image through concise and characterized RBT
- #43 将用户号码独立出来，不再与具体设备紧密联系，将承担路由标识的功能交给了物理号码，使得放号变得非常灵活。 可以针对本地网内包括固网、 PCS 网络的用户，进行号码资源统筹规划，用户拨打电话使用的号码 DN 与业务网络、局归属没有直接关系，同一号首的不同号码可以在 PCS 网、固网以及软交换、 3G 网中任意使用。 充分利用号码资源，减少号段资源利用不充分的问题，可以有效缓解号码资源紧张的问题。 可以灵活地为用户提供个性号码，而不是用户被动选号，提升服务质量。 对于用户来说，移机、使用小灵通或者将来使用 3G ，将不必面临改号的烦恼。 统一放号带来的业务 统一放号可以为运营商优化号码分配、节约号码资源，解决 NGN 、 PSTN 网用户和 PHS 用户转网需要，同时还可为客户提供个性化服务，例如： 个性化号码 个人号码携带 移机不改号 移动办公
- #45 With many years experiences on network installation, test and commissioning, ZTE engineering teams can provide customers with comprehensive Project Implementation services including site survey, network planning and design, on-site supervision, project management, infrastructure construction, system debugging, on-site training project acceptance implementation, etc. We have Captured our expertise in a Flexible Portfolio of Turnkey Services As one of the key telecom vendors in China and important worldwide telecom vendors, ZTE can not only provide operators telecom equipment such as switch, GSM, CDMA, transmission equipment, but also provide I&C services for these telecom products.
