1. NGINX Plus R19
New Features & Highlights
1

2. MORE INFORMATION AT NGINX.COM
Agenda
• Introducing NGINX and F5 Networks
• New features in NGINX Plus R19
- Monitoring and observability
- Dry-run mode for rate limiting
- Dynamic bandwidth limiting
• Summary and Q&A
2
Liam Crilly
Director, Product
Management, NGINX
l.crilly@f5.com
@liamcrilly

3. 3
“... when I started NGINX,
I focused on a very specific
problem – how to handle more
customers per a single server.”
- Igor Sysoev, NGINX creator and founder

4. Introducing NGINX
4
2004
• NGINX 0.1
2007
• “Viable”
2011
• NGINX, Inc.
• NGINX 1.0
2013
• NGINX Plus R1
2018
• NGINX Unit 1.0
• Controller 1.0
2019
• Controller 2.0
(API mgmt.)
• NGINX Plus
R19
• Acquired by F5
Networks

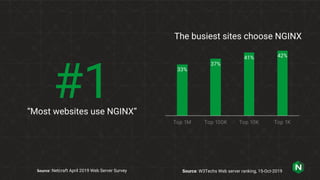

5. Source: W3Techs Web server ranking, 15-Oct-2019
#1“Most websites use NGINX”
The busiest sites choose NGINX
33%
37%
41% 42%
Top 1M Top 100K Top 10K Top 1K
Source: Netcraft April 2019 Web Server Survey

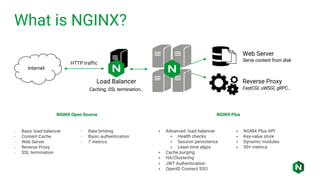

7. What is NGINX?
Internet
Web Server
Serve content from disk
Reverse Proxy
FastCGI, uWSGI, gRPC…
Load Balancer
Caching, SSL termination…
HTTP traffic
- Basic load balancer
- Content Cache
- Web Server
- Reverse Proxy
- SSL termination
- Rate limiting
- Basic authentication
- 7 metrics
NGINX Open Source NGINX Plus
+ Advanced load balancer
+ Health checks
+ Session persistence
+ Least time algos
+ Cache purging
+ HA/Clustering
+ JWT Authentication
+ OpenID Connect SSO
+ NGINX Plus API
+ Key-value store
+ Dynamic modules
+ 90+ metrics

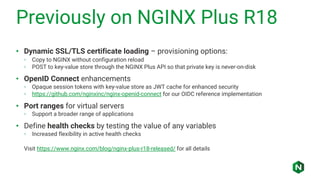

8. Previously on NGINX Plus R18
• Dynamic SSL/TLS certificate loading – provisioning options:
◦ Copy to NGINX without configuration reload
◦ POST to key-value store through the NGINX Plus API so that private key is never-on-disk
• OpenID Connect enhancements
◦ Opaque session tokens with key-value store as JWT cache for enhanced security
◦ https://github.com/nginxinc/nginx-openid-connect for our OIDC reference implementation
• Port ranges for virtual servers
◦ Support a broader range of applications
• Define health checks by testing the value of any variables
◦ Increased flexibility in active health checks
Visit https://www.nginx.com/blog/nginx-plus-r18-released/ for all details

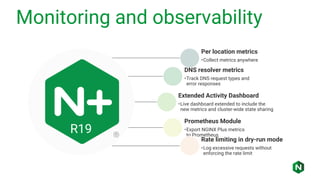

10. Monitoring and observability
R19
Per location metrics
•Collect metrics anywhere
DNS resolver metrics
•Track DNS request types and
error responses
Extended Activity Dashboard
•Live dashboard extended to include the
new metrics and cluster-wide state sharing
Prometheus Module
•Export NGINX Plus metrics
to Prometheus
Rate limiting in dry-run mode
•Log excessive requests without
enforcing the rate limit

11. Per-location metrics
11
• Just use status_zone
anywhere!
• Differentiate multiple apps
on same hostname
• Debug complex rewrites (did
I get here?)
• API endpoint
/api/5/http/location_zones
• Appears under “HTTP Zones”
in dashboard
server {
listen 80;
server_name www.example.com;
status_zone www.example.com; # Collect metrics
location / {
root /var/docroot/www.example.com;
}
location /admin/ {
status_zone www_admin; # Collect metrics
if ($is_args) {
status_zone www_admin_query; # Conditional
}
proxy_pass http://my_backend;
}
}
NGINX Plus

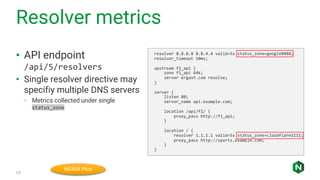

13. Resolver metrics
13
• API endpoint
/api/5/resolvers
• Single resolver directive may
specifiy multiple DNS servers
◦ Metrics collected under single
status_zone
resolver 8.8.8.8 8.8.4.4 valid=5s status_zone=google8888;
resolver_timeout 10ms;
upstream f1_api {
zone f1_api 64k;
server ergast.com resolve;
}
server {
listen 80;
server_name api.example.com;
location /api/f1/ {
proxy_pass http://f1_api;
}
location / {
resolver 1.1.1.1 valid=5s status_zone=cloudflare1111;
proxy_pass http://sports.example.com;
}
}
NGINX Plus

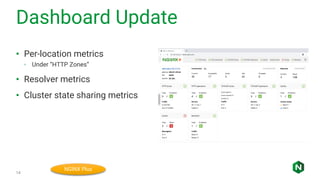

14. Dashboard Update
14
• Per-location metrics
◦ Under “HTTP Zones”
• Resolver metrics
• Cluster state sharing metrics
NGINX Plus

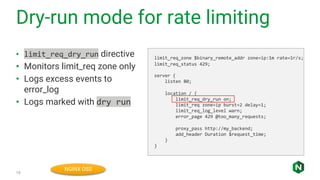

15. Dry-run mode for rate limiting
15
• limit_req_dry_run directive
• Monitors limit_req zone only
• Logs excess events to
error_log
• Logs marked with dry run
limit_req_zone $binary_remote_addr zone=ip:1m rate=1r/s;
limit_req_status 429;
server {
listen 80;
location / {
limit_req_dry_run on;
limit_req zone=ip burst=2 delay=1;
limit_req_log_level warn;
error_page 429 @too_many_requests;
proxy_pass http://my_backend;
add_header Duration $request_time;
}
}
NGINX OSS

17. Prometheus Module
17
• Export all NGINX Plus
metrics in Prometheus
format
• JavaScript module converts
JSON to ”prom” text/plain
format load_module modules/ngx_http_js_module.so;
http {
js_include /usr/share/nginx-plus-module-prometheus/main.js;
server {
location = /metrics {
js_content prometheus_metrics;
}
}
}
NGINX Plus
$ … install nginx-plus-module-prometheus

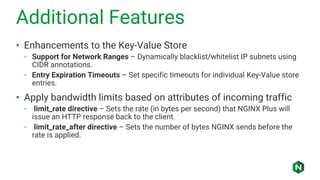

19. Additional Features
• Enhancements to the Key-Value Store
◦ Support for Network Ranges – Dynamically blacklist/whitelist IP subnets using
CIDR annotations.
◦ Entry Expiration Timeouts – Set specific timeouts for individual Key-Value store
entries.
• Apply bandwidth limits based on attributes of incoming traffic
◦ limit_rate directive – Sets the rate (in bytes per second) that NGINX Plus will
issue an HTTP response back to the client.
◦ limit_rate_after directive – Sets the number of bytes NGINX sends before the
rate is applied.

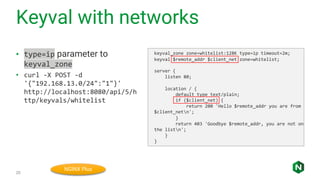

20. Keyval with networks
20
• type=ip parameter to
keyval_zone
• curl -X POST -d
'{"192.168.13.0/24":"1"}'
http://localhost:8080/api/5/h
ttp/keyvals/whitelist
keyval_zone zone=whitelist:128K type=ip timeout=2m;
keyval $remote_addr $client_net zone=whitelist;
server {
listen 80;
location / {
default_type text/plain;
if ($client_net) {
return 200 'Hello $remote_addr you are from
$client_netn';
}
return 403 'Goodbye $remote_addr, you are not on
the listn';
}
}
NGINX Plus

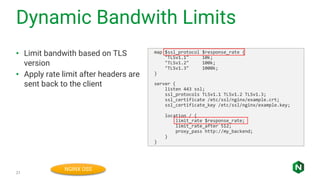

21. Dynamic Bandwith Limits
21
• Limit bandwith based on TLS
version
• Apply rate limit after headers are
sent back to the client
map $ssl_protocol $response_rate {
"TLSv1.1" 10k;
"TLSv1.2" 100k;
"TLSv1.3" 1000k;
}
server {
listen 443 ssl;
ssl_protocols TLSv1.1 TLSv1.2 TLSv1.3;
ssl_certificate /etc/ssl/nginx/example.crt;
ssl_certificate_key /etc/ssl/nginx/example.key;
location / {
limit_rate $response_rate;
limit_rate_after 512;
proxy_pass http://my_backend;
}
}
NGINX OSS

23. Summary
• Per-location metrics
• Resolver metrics
• Dashboard updated with new metrics, and zone_sync
• Prometheus module
• Dry-run mode for rate limiting
• CIDR notation for keyval (type=ip)
• Per-entry timeout for keyval
• Variables support for bandwidth limiting

24. nginx.com | @nginxnginx.com | @nginx
Q&A
