- 1. Next Generation MobileBroadband @ M-ICT Era 19 Nov 201519 Nov 2015

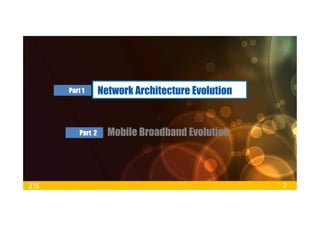

- 2. 2 Part 1 Part 2 NetworkArchitecture Evolution Mobile Broadband Evolution

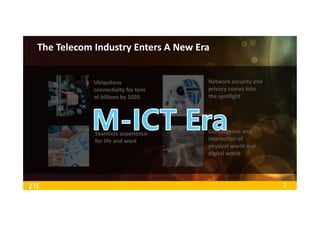

- 3. 3 Seamless experience for lifeand work Network security and privacy comes into the spotlight Ubiquitous connectivity for tens of billions by 2020 Convergence and interaction of physical world and digital world The Telecom Industry Enters A New Era

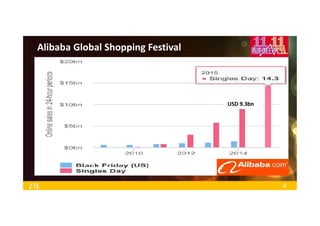

- 4. 4 Alibaba Global ShoppingFestival USD 9.3bn
- 5. 5 Ubiquitious Connectivity for M-ICT Fixedand Mobile Convergence Cloud Services Big Data Policy & RegulationSDN and NFV Network & Business Transformation: Discover Value From Information
- 6. 6 ZTE M-ICT Strategy Becomea Distinguished Global Leader in the M-ICT Era Enrich people’s life Help Government and Enterprise improving efficiency and upgrading Help operators transforming and creating value from data traffic

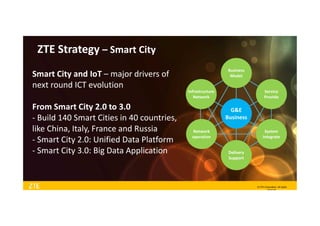

- 7. © ZTE Corporation.All rights reserved. Smart City and IoT – major drivers of next round ICT evolution From Smart City 2.0 to 3.0 - Build 140 Smart Cities in 40 countries, like China, Italy, France and Russia - Smart City 2.0: Unified Data Platform - Smart City 3.0: Big Data Application Infrastructure Network Service Provide System Integrate Network operation G&E Business Delivery Support Business Model ZTE Strategy – Smart City
- 8. 8 Public Safety Big dataanalysis on social relations, intelligent video analysis Wireless Charging Wireless charging solution for automobiles reduces cost Rail Transit LTE-R supports various railway wireless services and speed up to 500 km/h ATG Broadband Air to ground broadband provides wireless network services for passengers Innovation on Enterprise Solutions
- 9. 9 SDN&NFV Enabling NetworkArchitecture Evolution SDNSDN NFVNFV • Connectivity at layers 1/2/3 • Flow Control • Network Virtualization • COTS for Central Controller • Generic Packet Forwarder • Initial Application: DC, Backhaul • Network Functions decoupled from hardware • Operate on top of physical or virtual networks • COTS hardware • Initial Application: Core Networks (e.g. IMS, EPC), VAS, etc SDN + NFV • Optimized Solution • Difficult to migrate initially • Most Likely Initial Application: GI LAN, vEPC, vBRAS

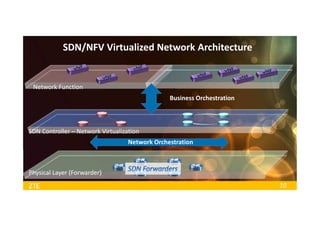

- 10. 10 SDN/NFV Virtualized NetworkArchitecture SDN Controller – Network Virtualization Network Function Physical Layer (Forwarder) Network Orchestration Business Orchestration

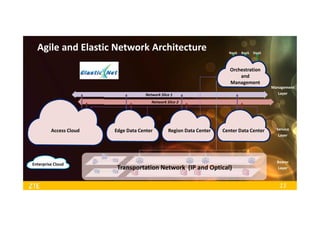

- 11. 11 NFVI SDNC CMP3 Service Chain MANO CMP5 CMP2 CMP4 CMP1 TC/TF CMP7CMP6 NFVISDNC CMPb Service Chain MANO CMPd CMPa CMPc … CMPfCMPe TC/TF NFVI SDNC CMPii Service Chain MANOCMPi… CMPivCMPiii TC/TF Agile and Elastic Network Architecture Network Slice 1Network Slice 1 Enterprise CloudEnterprise Cloud Network Slice 2Network Slice 2 Bearer Layer Service Layer Management Layer SDNC NSO OSS BSS Big Data Capability Open Platform(iTOP) NaaS BaaS DaaS RRU/PicoRRU BBU Pool MANO Agt MANO Agt MANO SDNCCMPCMP CMP Backhaul Core IP NetworkMetropolitan IP Network Metropolitan Optical Fiber Network Trunk optical Fiber networkAccess Edge Data Center Region Data Center Center Data Center Orchestration and Management Access Cloud Transportation Network (IP and Optical)

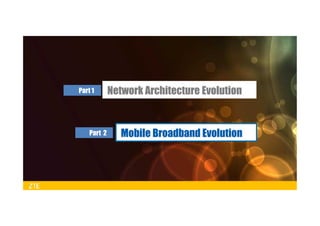

- 12. Part 1 Part 2 NetworkArchitecture Evolution Mobile Broadband Evolution

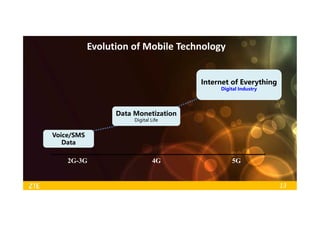

- 13. 13 Evolution of MobileTechnology 2G-3G 4G 5G Voice/SMS Data Voice/SMS Data Internet of Everything Digital Industry Internet of Everything Digital Industry Data Monetization Digital Life Data Monetization Digital Life

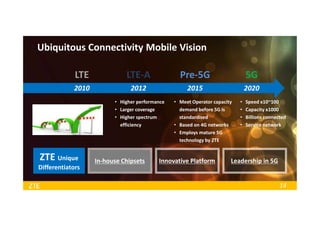

- 14. 14 Ubiquitous Connectivity MobileVision ZTE Unique Differentiators LTE-A 5GPre-5GLTE 2012 202020152010 • Meet Operator capacity demand before 5G is standardised • Based on 4G networks • Employs mature 5G technology by ZTE • Higher performance • Larger coverage • Higher spectrum efficiency • Speed x10~100 • Capacity x1000 • Billions connected • Service network In-house Chipsets Innovative Platform Leadership in 5G
- 15. 15 Innovations Backed ByIn-house End To End Chipsets Capacity: • 3.6T bps switching on one Chip, One Chip up to 10M IPv4 FIB or 2M IPv6 FIB Technology: • 16nm/14nm Integrations: • High integrated OLT Chip, L1 to L3 integrated RAN Chip Multi-Mode: • Multi-Mode RAN and PON Access Network Bearer Network Core Network ZTE… Software define Services Security Low Power Cost Down FMC720+ 20+ years IC Design R&D, Chipsets (fixed, wireless and terminal)

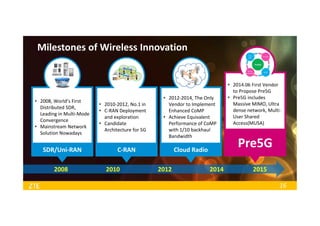

- 16. 16 Milestones of WirelessInnovation • 2008, World’s First Distributed SDR, Leading in Multi-Mode Convergence • Mainstream Network Solution Nowadays SDR/Uni-RAN • 2012-2014, The Only Vendor to Implement Enhanced CoMP • Achieve Equivalent Performance of CoMP with 1/10 backhaul Bandwidth Cloud Radio UE X2 X2 • 2010-2012, No.1 in • C-RAN Deployment and exploration • Candidate Architecture for 5G C-RAN 2008 2010 2012 2014 • 2014.06 First Vendor to Propose Pre5G • Pre5G includes Massive MIMO, Ultra dense network, Multi- User Shared Access(MUSA) Pre5G 2015

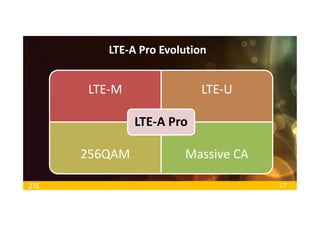

- 17. 17 LTE-A Pro Evolution LTE-MLTE-MLTE-ULTE-U 256QAM256QAM Massive CAMassive CA LTE-A ProLTE-A Pro

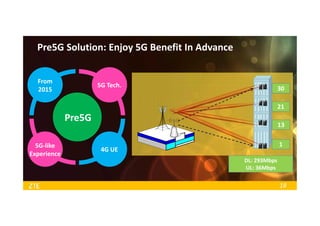

- 18. 18 Pre5G Solution: Enjoy5G Benefit In Advance Pre5G 5G Tech. From 2015 5G-like Experience 4G UE 3D-MIMO 11 1313 3030 2121 DL: 293Mbps UL: 36Mbps DL: 293Mbps UL: 36Mbps

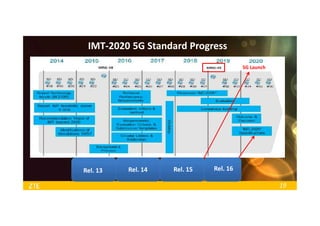

- 19. 19 IMT-2020 5G StandardProgress Rel. 13 Rel. 14 Rel. 15 Rel. 16 5G Launch

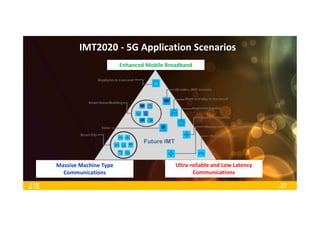

- 20. 20 IMT2020 - 5GApplication Scenarios Enhanced Mobile Broadband Massive Machine Type Communications Ultra-reliable and Low Latency Communications
- 21. 21 Massive MIMO UDN Ultra Dense Networking MUSA Multi-User Shared Access Focuson Practical 5G Technologies and Lead 5G Commercial Progress Build Flexible & Efficient Network and Devote to Technical Enabler of M-ICT SLA Soft Link Adapter SDA Soft Defined Air interface SNA Soft Network Architecture High Performance Flexible Network ZTE Innovation on 5G

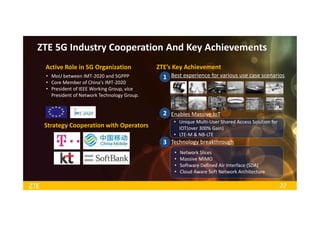

- 22. 22 ZTE 5G IndustryCooperation And Key Achievements Active Role in 5G Organization • MoU between IMT-2020 and 5GPPP • Core Member of China's IMT-2020 • President of IEEE Working Group, vice President of Network Technology Group. Strategy Cooperation with Operators • Network Slices • Massive MIMO • Software Defined Air Interface (SDA) • Cloud Aware Soft Network Architecture ZTE’s Key Achievement Best experience for various use case scenarios Enables Massive IoT 1 2 3 • Unique Multi-User Shared Access Solution for IOT(over 300% Gain) • LTE-M & NB-LTE Technology breakthrough
