NEXT GENERATION
802.11ac SOLUTION
INCREASES WI-FI
CAPACITY
VERY HIGH THROUGHPUT IN 5 GHz BAND

2. TOP 10 MOBILE TECHNOLOGIES
for 2012 and 2013 - Gartner
"Given the current constraints of legacy 802.11 standards
and the increased speed, capacity, coverage and battery
life that 802.11ac offers, this next generation of Wi-Fi is
poised for rapid growth across all product segments“
- Gartner
Expect most infrastructure vendors to ship 802.11ac Access
Points in 2013
Expect laptops, tablets and smartphones to start shipping
with 802.11ac in 2013

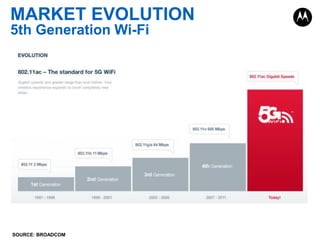

3. MARKET EVOLUTION
5th Generation Wi-Fi
SOURCE: BROADCOM

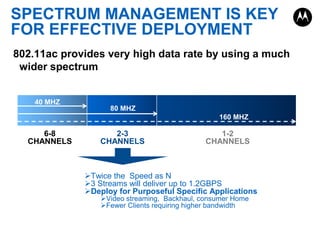

4. SPECTRUM MANAGEMENT IS KEY
FOR EFFECTIVE DEPLOYMENT
802.11ac provides very high data rate by using a much
wider spectrum
40 MHZ
80 MHZ
160 MHZ
6-8
CHANNELS
2-3
CHANNELS
1-2
CHANNELS
Twice the Speed as N
3 Streams will deliver up to 1.2GBPS
Deploy for Purposeful Specific Applications
Video streaming, Backhaul, consumer Home
Fewer Clients requiring higher bandwidth

5. TABLETS
~200/400 MBPS
SINGLE SPATIAL STREAM
~400/800 MBPS
DUAL SPATIAL STREAMS
SLAPTOPS
SMARTPHONES
MOBILE DEVICE OUTLOOK
~0.6/1.2 GBPS
THREE SPATIAL STREAMS

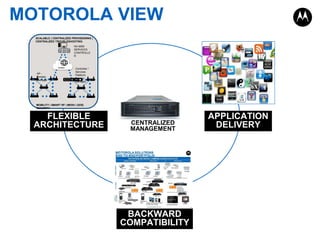

6. MOTOROLA VIEW
SCALABLE | CENTRALIZED PROVISIONING |
CENTRALIZED TROUBLESHOOTING
NX 9500
SERVICES
CONTROLLE
R
FLEXIBILI
TY
INTERNET
AP Domain
Manager
Controller /
Services
PlatformDomain
Manager
MOBILITY | SMART RF | MESH | QOS|
SECURITY
FLEXIBLE
ARCHITECTURE
CENTRALIZED
MANAGEMENT
ANALYTICS
BACKWARD
COMPATIBILITY
APPLICATION
DELIVERY

7. MOTOROLA SOLUTIONS
COMPREHENSIVE END-TO-END PORTFOLIO
ENTERPRISE NETWORK COMMUNICATIONS PORTFOLIO
ACCESS POINTS
CURRENT PORTFOLIO
AP 7131
AP 6511
AP 6532
AP 8132
AP 7161
AP 6521
ES 6510
AP 6522
AP 622
PLATFORMS
NEW IN 2013
AP 7161
VMM
AP 6562
.11ac modular
.11ac fixed
configuration
.11ac
outdoor
NX 9510
NX 9500
RFS 7000
NX 6500
WiNG 5.5,
Hierarchical
Management
Content Caching
RFS 6000
NX 4500
RFS 4000
VERTICAL
SOLUTIONS
NEW IN 2012
URC 1,6, 1.7, 2.0
URC 1.5
EWB100
EWP2100 &
3100
WSM
Radio Link
EWP2200 &
3200
MOBILE EXTENSION CLIENT
for MCs, iOS, Android
CC 2200/4200/4600
MK3000

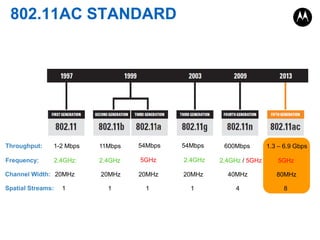

8. 802.11AC STANDARD
1.3 – 6.9 Gbps
Throughput:
1-2 Mbps
11Mbps
54Mbps
54Mbps
Frequency:
2.4GHz:
2.4GHz
5GHz
2.4GHz
20MHz
20MHz
20MHz
40MHz
80MHz
1
1
1
4
8
Channel Width: 20MHz
Spatial Streams:
1
600Mbps
2.4GHz / 5GHz
5GHz

9. INTRODUCING 802.11ac –
SOLVING THE WLAN
CAPACITY BOTTLENECK
802.11ac
802.11n
1GBPS ON WIRELESS
Cosmetic
AP-8222-67030-xx
Features:
•
•
•
•
3x3:3 802.11ac at 5GHz
3x3:3 802.11n at 2.4GHz
1 Ethernet port
Aesthetic enclosure
Modular
AP-8232-67040-xx
Features:
•
•
•
•
3x3:3 802.11ac at 5GHz
3x3:3 802.11n at 2.4GHz
2 Ethernet ports
Modular Architecture
Ruggedized
AP-8263-67S40-xx
Features:
•
•
•
•
3x3:3 802.11ac at 5GHz
3x3:3 802.11n at 2.4GHz
2 Ethernet ports
IP67 Enclosure

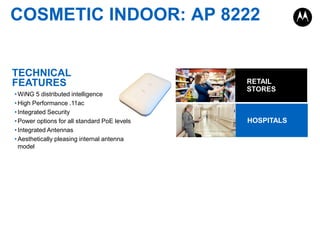

10. COSMETIC INDOOR: AP 8222
TECHNICAL
FEATURES
• WiNG 5 distributed intelligence
• High Performance .11ac
• Integrated Security
• Power options for all standard PoE levels
• Integrated Antennas
• Aesthetically pleasing internal antenna
model
RETAIL
STORES
HOSPITALS

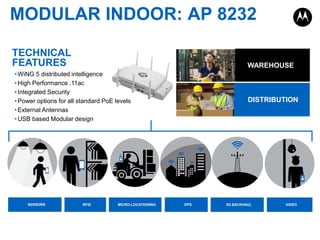

11. MODULAR INDOOR: AP 8232
HOSPITALS
TECHNICAL
FEATURES
WAREHOUSE
• WiNG 5 distributed intelligence
• High Performance .11ac
• Integrated Security
• Power options for all standard PoE levels
• External Antennas
• USB based Modular design
SENSORS
RFID
MICRO-LOCATIONING
DISTRIBUTION
GPS
3G BACKHAUL
VIDEO

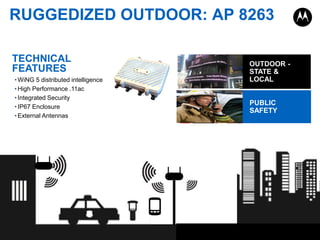

12. RUGGEDIZED OUTDOOR: AP 8263
HOSPITALS
TECHNICAL
FEATURES
• WiNG 5 distributed intelligence
• High Performance .11ac
• Integrated Security
• IP67 Enclosure
• External Antennas
MOTOROLA SOLUTIONS CONFIDENTIAL RESTRICTED
OUTDOOR STATE &
LOCAL
PUBLIC
SAFETY

13. 802.11AC NETWORK IMPACT
• Completely backward compatible for all PoE standards
• Eliminates need for costly infrastructure upgrades
• Controllers already scaled for 802.11 throughputs
• 40Gbps data plane already designed to be 11ac ready
• Optimizing Video distribution to prepare for increase in video
capable devices

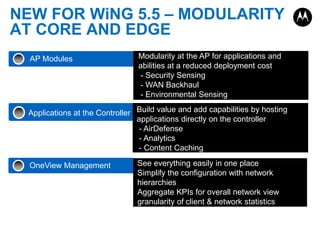

14. NEW FOR WiNG 5.5 – MODULARITY
AT CORE AND EDGE
AP Modules
Modularity at the AP for applications and
abilities at a reduced deployment cost
- Security Sensing
- WAN Backhaul
- Environmental Sensing
Applications at the Controller Build value and add capabilities by hosting
applications directly on the controller
- AirDefense
- Analytics
- Content Caching
OneView Management
See everything easily in one place
Simplify the configuration with network
hierarchies
Aggregate KPIs for overall network view
granularity of client & network statistics

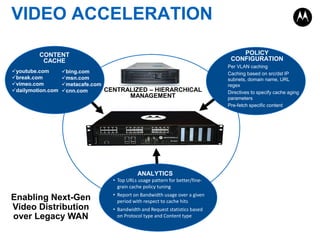

15. VIDEO ACCELERATION
POLICY
CONFIGURATION
CONTENT
CACHE
youtube.com
break.com
vimeo.com
dailymotion.com
bing.com
msn.com
metacafe.com
CENTRALIZED – HIERARCHICAL
cnn.com
MANAGEMENT
ANALYTICS
• Top URLs usage pattern for better/finegrain cache policy tuning
Enabling Next-Gen
Video Distribution
over Legacy WAN
• Report on Bandwidth usage over a given
period with respect to cache hits
• Bandwidth and Request statistics based
on Protocol type and Content type
- Per VLAN caching
- Caching based on src/dst IP
subnets, domain name, URL
regex
- Directives to specify cache aging
parameters
- Pre-fetch specific content

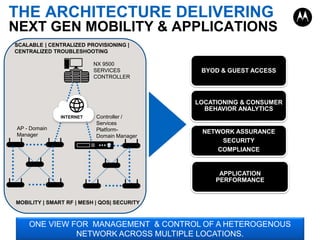

16. THE ARCHITECTURE DELIVERING
NEXT GEN MOBILITY & APPLICATIONS
SCALABLE | CENTRALIZED PROVISIONING |
CENTRALIZED TROUBLESHOOTING
NX 9500
SERVICES
CONTROLLER
BYOD & GUEST ACCESS
LOCATIONING & CONSUMER
BEHAVIOR ANALYTICS
INTERNET
AP - Domain
Manager
Controller /
Services
PlatformDomain Manager
NETWORK ASSURANCE
SECURITY
COMPLIANCE
APPLICATION
PERFORMANCE
MOBILITY | SMART RF | MESH | QOS| SECURITY
ONE VIEW FOR MANAGEMENT & CONTROL OF A HETEROGENOUS
NETWORK ACROSS MULTIPLE LOCATIONS.

17. LAUNCH AND
ANNOUNCEMENT
• Announcement at Interop on May 6th
- Press and Analyst Briefings
• Announcement specific information on mot.com
- AP specification, white paper, etc.
• Complete launch planned for June end
• Expected FCS: June for WinG 5.5 & July for Access
Point

18. KEY TAKEAWAYS
• Establishes leadership in WLAN: one of the first to
announce 802.11ac products
• Establish solution leadership: when and where to
deploy 802.11ac
• Reinforces architecture flexibility: deployment
flexibility, AP modularity, controller based applications,
intelligence at the edge
• Industry’s most comprehensive Access Point portfolio
• Simplified management with one click full view of
complete mobile network
