1. Access Point Snapshot
Vertical Market Product Selector
Retail Hospitality Healthcare Warehouse/Manufacturing
SITE SURVIVABLE ACCESS POINTS — Remains operational with or without a connection to the controller
Full Service Access Points — Premium access points with the most features and highest bandwidth; multi-function access points capable of providing many services including WAN backhaul, rogue intrusion detection,
high speed Mesh and more; reduces infrastructure cost and complexity; MIMO options – 3x3:3 and 3x3:2; ideal for large enterprises and device dense environments.
AP 8232
Dual-radio; indoor;
802.11ac/n
Veryhighspeedconnectivityandcapacityforvideo;integrated
security and location services; secure BYOD; voice and video
transport; optional modules for Green Operations; video
surveillance and analytics; dedicated 24x7 WIPS for PCI
Very high speed connectivity and capacity targeted
for conference room; auditoriums; venues; integrated
security and location services
Very high speed connectivity and capacity for large
hospitals for imaging and video apps; optional
modules for 24x7 WIPS for HIPAA; patient and guest
Wi-Fi access with secure BYOD, voice and video
AP 8132
Dual-radio;
indoor; 802.11n
High speed connectivity for guest access; optional
modules for green ops, video surveillance and analytics,
24x7 WIPS for PCI, secure BYOD, voice and video
High speed connectivity and capacity for
conference room; auditoriums; venues;
rogue detection and termination
High speed connectivity and capacity for large
hospitals for imaging and video apps; optional
tri-radio module for 24x7 WIPS for HIPAA
Harsh environments requiring multi-function infrastructure
with added video surveillance; temperature sensing
and video streaming for process optimization
AP 7181
Dual-radio;
outdoor; 802.11n
High powered dual-radio for covering large
geographical areas; VMM 7161 can be used for mobility
AP 7161
Tri-radio;
outdoor; 802.11n
High speed connectivity and capacity for outdoor
deployment in resorts; rogue detection and termination
Quick deploy large Mesh networks disaster
management for patient services
Ruggedized for harsh outdoor deployments;
dual and tri-radio modules for 24x7 WIPS
outdoor environments
High Performance Access Points — Mid-tier access points with the most features and highest bandwidth; multi-function access points capable of providing many services, reducing infrastructure cost and complexity;
high capacity plus the flexibility to manage APs with or without a controller; MIMO options – 2x3 and 2x2; ideal for small- to mid-size businesses and large enterprises with less dense environments.
AP 8222
Dual-radio; indoor;
802.11ac/n
Very high capacity and high speed guest connectivity
for video applications; integrated security and location
based services; aesthetically appealing
Very high speed connectivity and capacity for
conference room; auditoriums; venues; integrated
security and location services; aesthetically appealing
Very high speed connectivity and capacity for large
hospitals for imaging and video apps; integrated
security and location services; patient and guest
Wi-Fi access; secure BYOD; voice and video transport
AP 6562
Dual-radio;
outdoor; 802.11n
Parking lot associate and guest connectivity; integrated
security and location services; outdoor security or location
sensing; flexible antenna options internal or external
Outdoor guest access or associate connectivity;
integrated security and location services; flexible
antenna options internal or external
Outdoor guest or staff connectivity; integrated security
and location services; flexible antenna options internal
or external; ideal for 3G/4G and carrier offload in venues
Outdoor access and Mesh backhaul
AP 6532
Dual-radio;
indoor; 802.11n
In-store Wi-Fi; secure BYOD; voice and video;
24x7 WIPS for PCI with concurrent 2.4GHz and 5GHz
access; location based services
Any indoor access; hallways guest and staff
connectivity for voice and video; secure roaming
for employees and guests
Indoor access, guest or staff connectivity; secure BYOD;
voice and video; location-based services; integrated
security with concurrent 2.4GHz and 5GHz access
AP 6522
Dual-radio;
indoor; 802.11n
In-store Wi-Fi; secure BYOD voice and video;
24x7 WIPS for PCI with concurrent 2.4GHz access;
client bridge
Indoor access; secure roaming for employees and
guests; guest and staff connectivity for voice and video
Indoor access; guest or staff connectivity; secure BYOD;
voice and video; concurrent 2.4GHz access and security
for HIPAA; ideal for 3G/4G carrier offload in venues
Both band access for data and voice
Purpose Built Access Points — Built to meet the needs of specific vertical markets; MIMO options – 2x2
AP 6521
Single radio;
indoor; 802.11n
Small site single band access; overlay 24x7
WIPS sensor for PCI; client bridge
Small hotels or cafés Clinics and pharmacies Small sites for shipping and receiving
AP 6511
Single radio;
indoor; 802.11n
In-room guest Wi-Fi In-room patient and guest Wi-Fi
DEPENDENT ACCESS POINTS — Value tier; fully dependent upon a controller; MIMO options – 2x3 and 2x2; suitable for medium to large enterprises
AP 650/AP 622
Dual-radio;
indoor; 802.11n
Controller based deployment for in-store Wi-Fi;
secure BYOD, voice and video; 24x7 WIPS for PCI;
location-based services
Large hotels for controller based deployments for
guest Wi-Fi and staff operations
Controller based large hospitals for guest or staff
communications; integrated security with concurrent
2.4GHz and 5GHz access
Controller based large distribution centers for data
AP 650/AP 621
Single radio;
indoor; 802.11n
Overlay security and location sensor functionality;
high-performance single band access
Controller based large hotels for single band access

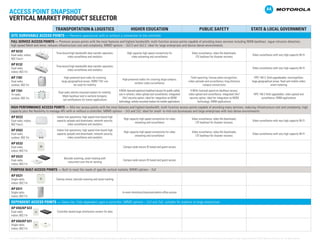

2. Transportation & Logistics Higher Education Public Safety State & Local Government
SITE SURVIVABLE ACCESS POINTS — Remains operational with or without a connection to the controller
Full Service Access Points — Premium access points with the most features and highest bandwidth; multi-function access points capable of providing many services including WAN backhaul, rogue intrusion detection,
high speed Mesh and more; reduces infrastructure cost and complexity; MIMO options – 3x3:3 and 3x3:2; ideal for large enterprises and device dense environments.
AP 8232
Dual-radio; indoor;
802.11ac/n
Time-bound high bandwidth data transfer operation;
video surveillance and analytics
High capacity high speed connectivity for
video streaming and surveillance
Video surveillance; video file downloads;
LTE backhaul for disaster recovery
Video surveillance with very high capacity Wi-Fi
AP 8132
Dual-radio;
indoor; 802.11n
Time-bound high bandwidth data transfer operation;
video surveillance and analytics
Video surveillance with very high capacity Wi-Fi
AP 7181
Dual-radio;
outdoor; 802.11n
High powered dual-radio for covering
large geographical areas; VMM 7161 can
be used for mobility
High powered radios for covering large campus;
outdoor video surveillance
Field reporting; license plate recognition;
video uploads and surveillance; long distance
campus connections
FIPS 140-2; field upgradeable; municipalities;
large geographical areas; fixed and mobile video;
smart metering
AP 7161
Tri-radio;
outdoor; 802.11n
Dual-radio vehicle-mounted modem for mobility;
Mesh backhaul and in-vechicle hotspots;
rail certifications for transit applications
4.9GHz licensed spectrum backhaul access for public safety
use in schools; video upload and surveillance; integrated
24x7 security option; ideal for integration as M2M
technology; vehicle mounted modem for mobile applications
4.9GHz licensed spectrum backhaul access;
video upload and surveillance; integrated 24x7
security option; ideal for integration as M2M
technology; VMM applications
FIPS 140-2 field upgradable; video upload and
surveillance; VMM applications
High Performance Access Points — Mid-tier access points with the most features and highest bandwidth; multi-function access points capable of providing many services, reducing infrastructure cost and complexity; high
capacity plus the flexibility to manage APs with or without a controller; MIMO options – 2x3 and 2x2; ideal for small- to mid-size businesses and large enterprises with less dense environments.
AP 8222
Dual-radio; indoor;
802.11ac/n
Indoor hub operations; high speed time bound high
capacity uploads and downloads; network security;
video surveillance and analytics
High capacity high speed connectivity for video
streaming and surveillance
Video surveillance; video file downloads;
LTE backhaul for disaster recovery
Video surveillance with very high capacity Wi-Fi
AP 6562
Dual-radio;
outdoor; 802.11n
Indoor hub operations; high speed time bound high
capacity uploads and downloads; network security;
video surveillance and analytics
High capacity high speed connectivity for video
streaming and surveillance
Video surveillance; video file downloads;
LTE backhaul for disaster recovery
Video surveillance with very high capacity Wi-Fi
AP 6532
Dual-radio;
indoor; 802.11n
Campus-wide secure ID based and guest access
AP 6522
Dual-radio;
indoor; 802.11n
Barcode scanning, asset tracking with
concurrent over the air sensing
Campus-wide secure ID based and guest access
Purpose Built Access Points — Built to meet the needs of specific vertical markets; MIMO options – 2x2
AP 6521
Single radio;
indoor; 802.11n
Overlay sensor, barcode scanning and asset tracking
AP 6511
Single radio;
indoor; 802.11n
In-room dormitory/classroom/admin office access
DEPENDENT ACCESS POINTS — Value tier; fully dependent upon a controller; MIMO options – 2x3 and 2x2; suitable for medium to large enterprises
AP 650/AP 622
Dual-radio;
indoor; 802.11n
Controller based large distribution centers for data
AP 650/AP 621
Single radio;
indoor; 802.11n
Part number: SN-APVERTCHART. Printed in USA 08/13. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. ©2013 Motorola Solutions, Inc. All rights reserved.
