1. New Views on your History
with git replace
Christian Couder, Murex
chriscool@tuxfamily.org
OSDC.fr 2013
October 5, 2013

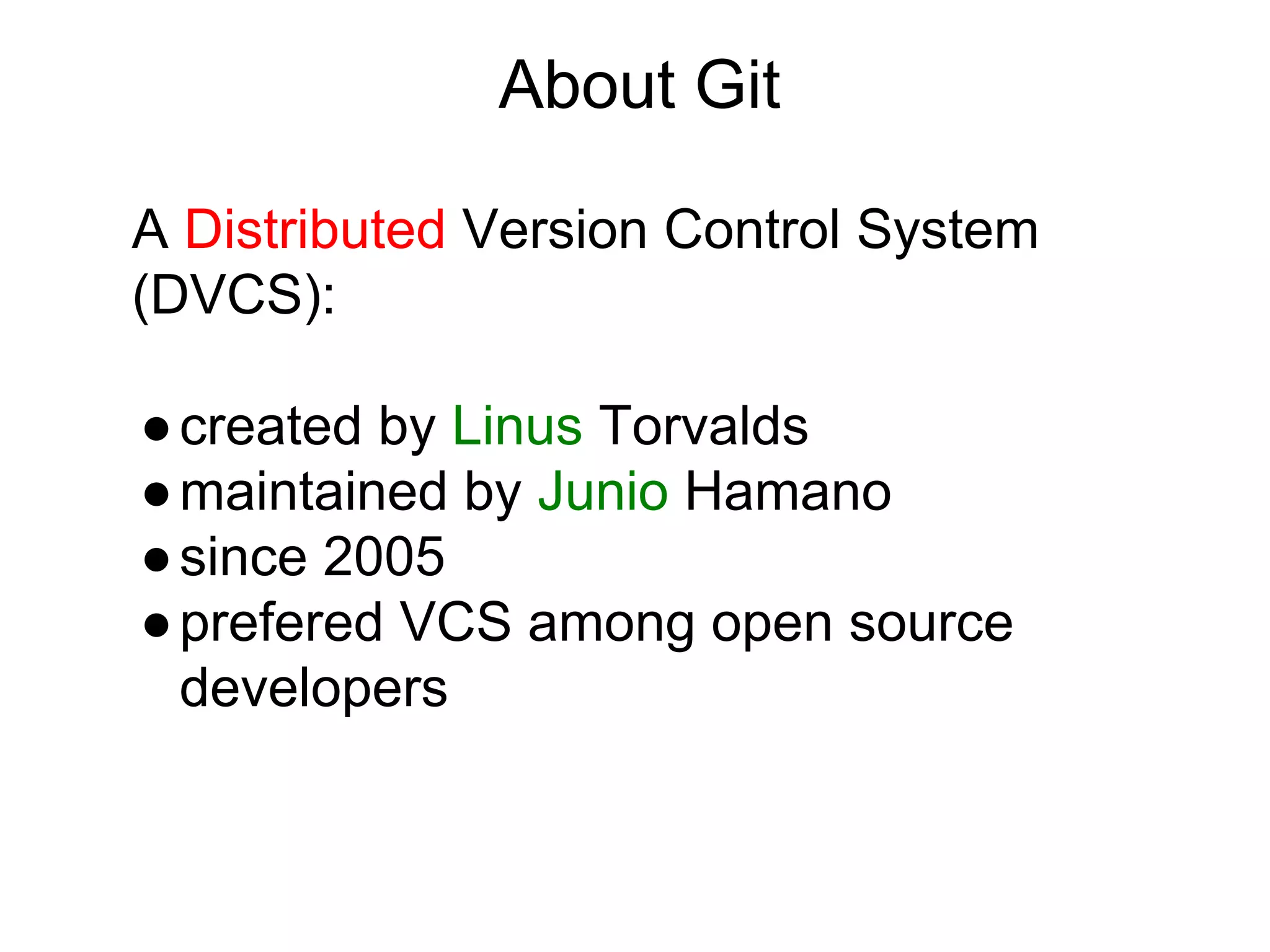

2. About Git
A Distributed Version Control System
(DVCS):
● created by Linus Torvalds
● maintained by Junio Hamano
● since 2005
● prefered VCS among open source
developers

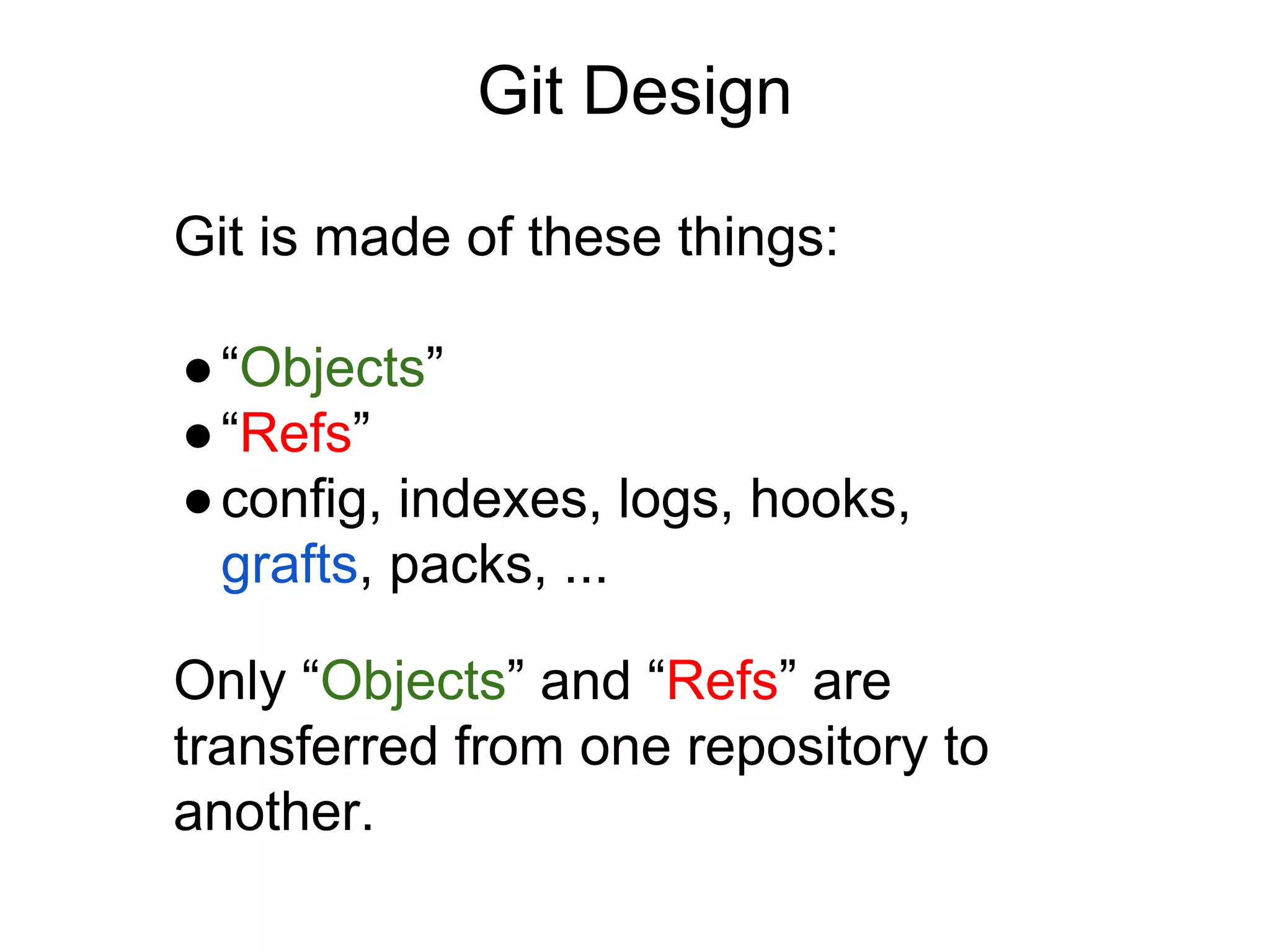

3. Git Design
Git is made of these things:
● “Objects”
● “Refs”
● config, indexes, logs, hooks,
grafts, packs, ...
Only “Objects” and “Refs” are
transferred from one repository to
another.

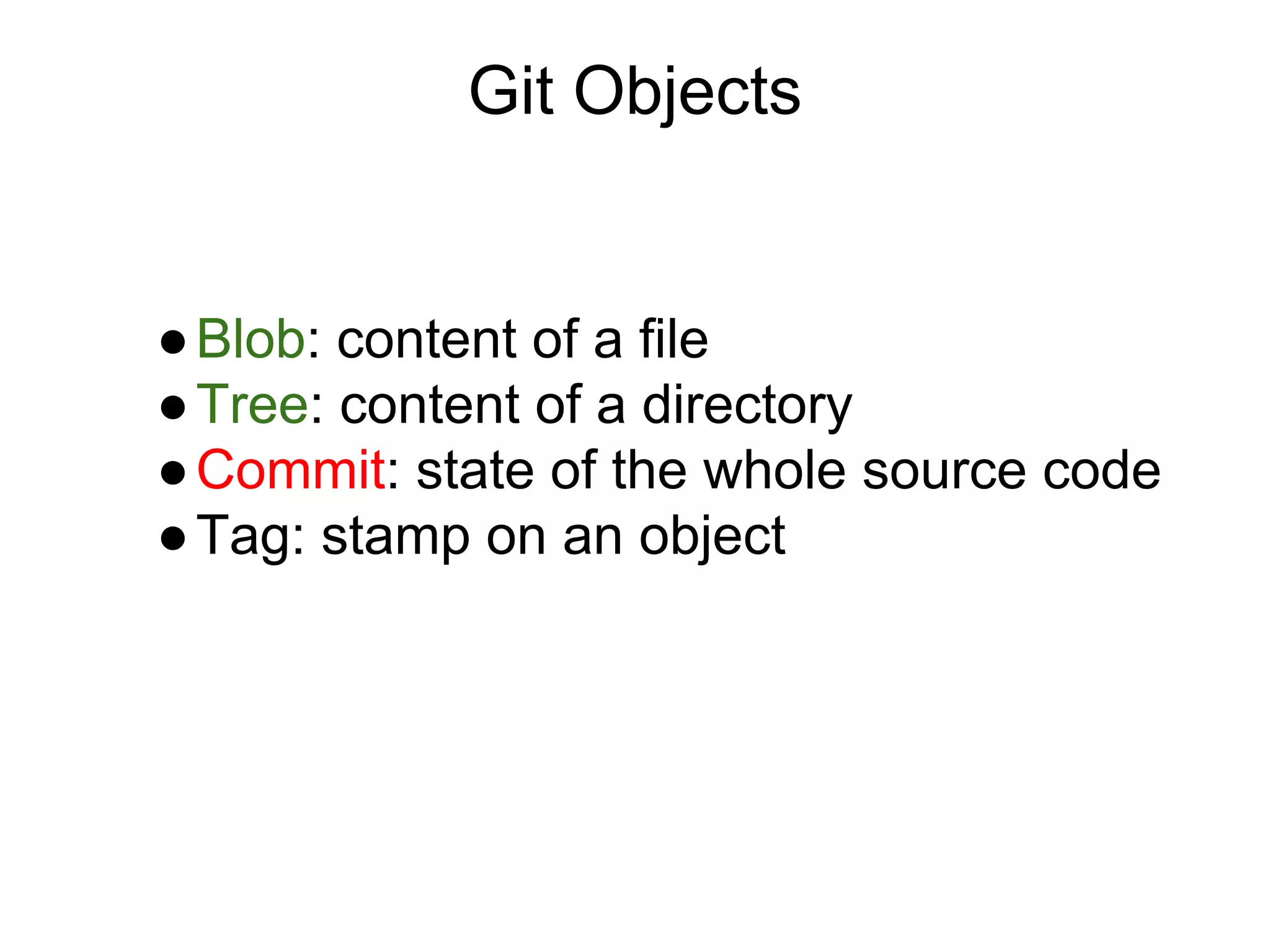

4. Git Objects
● Blob: content of a file
● Tree: content of a directory
● Commit: state of the whole source code
● Tag: stamp on an object

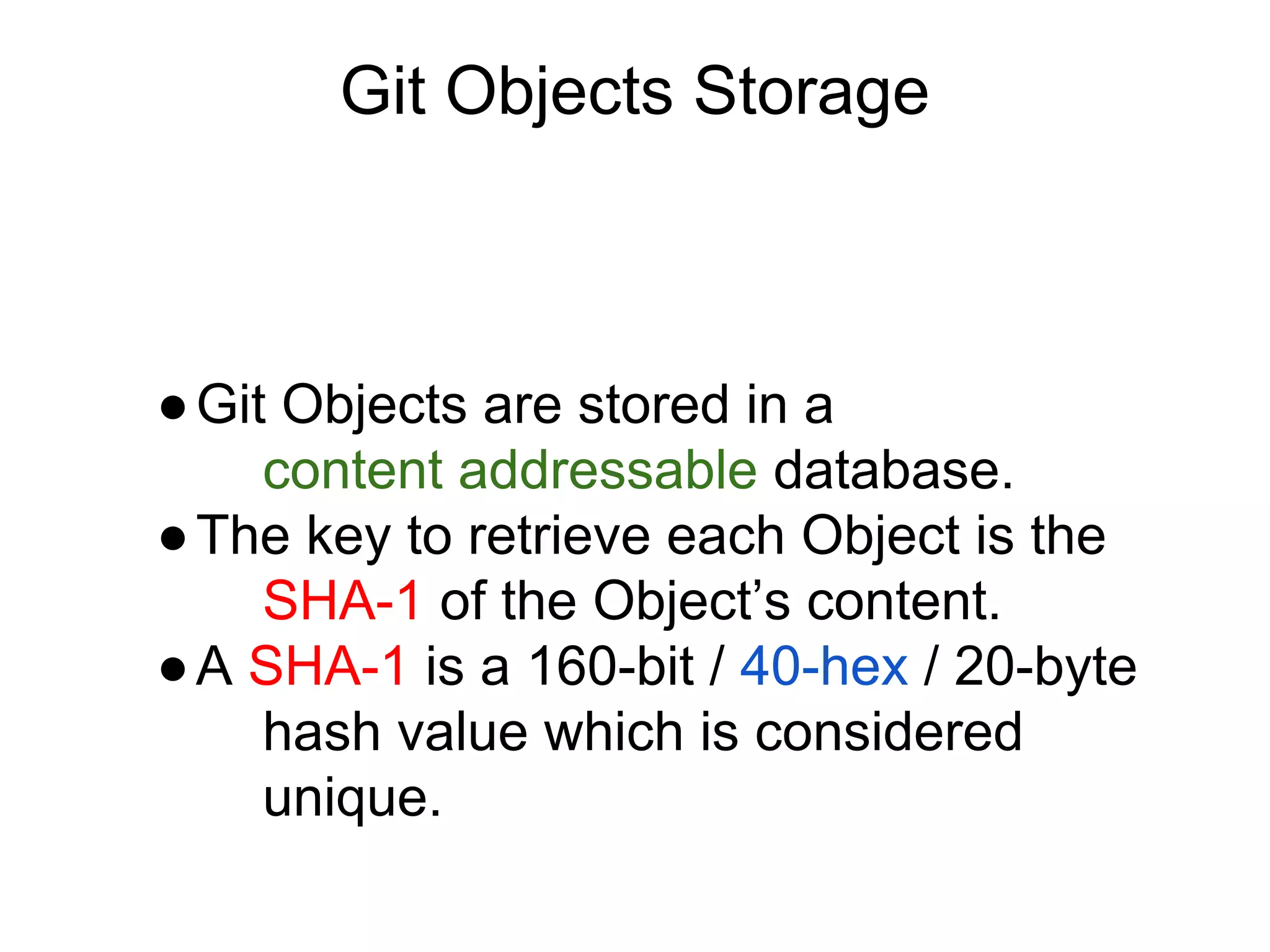

5. Git Objects Storage
● Git Objects are stored in a
content addressable database.
● The key to retrieve each Object is the
SHA-1 of the Object’s content.
● A SHA-1 is a 160-bit / 40-hex / 20-byte
hash value which is considered
unique.

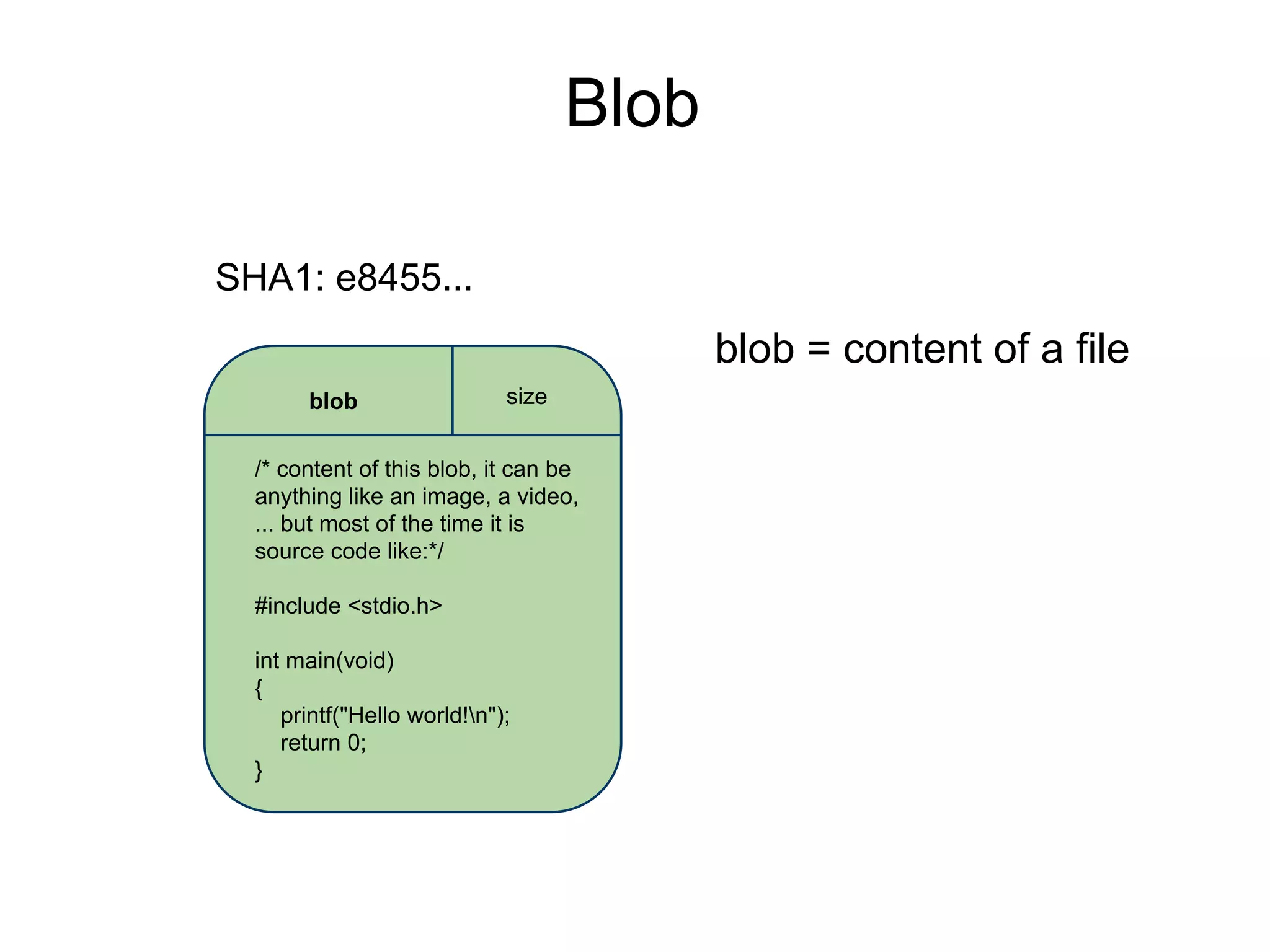

6. Blob
SHA1: e8455...
blob = content of a file
blob
size
/* content of this blob, it can be
anything like an image, a video,
... but most of the time it is
source code like:*/
#include <stdio.h>
int main(void)
{
printf("Hello world!n");
return 0;
}

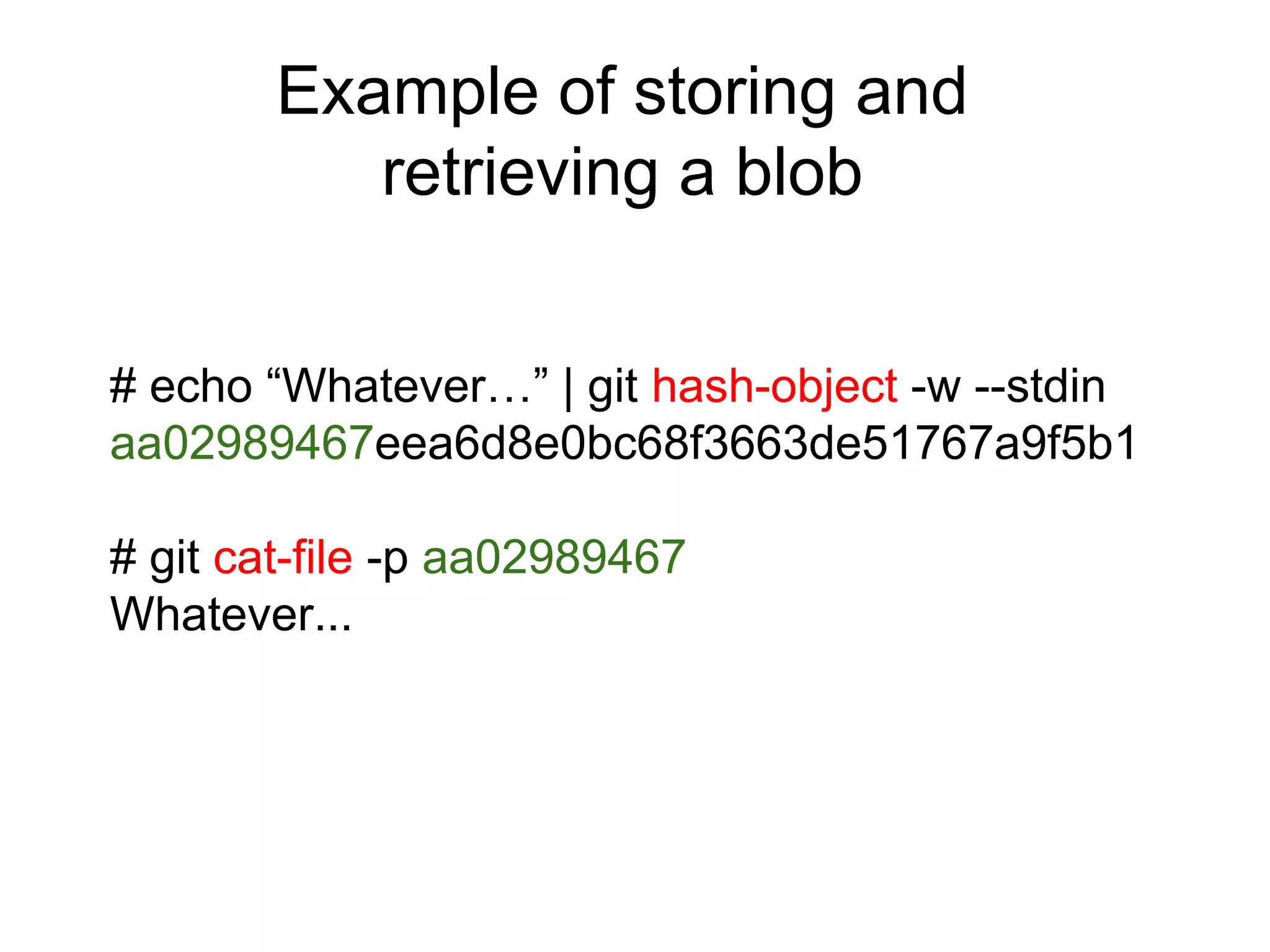

7. Example of storing and
retrieving a blob
# echo “Whatever…” | git hash-object -w --stdin
aa02989467eea6d8e0bc68f3663de51767a9f5b1
# git cat-file -p aa02989467
Whatever...

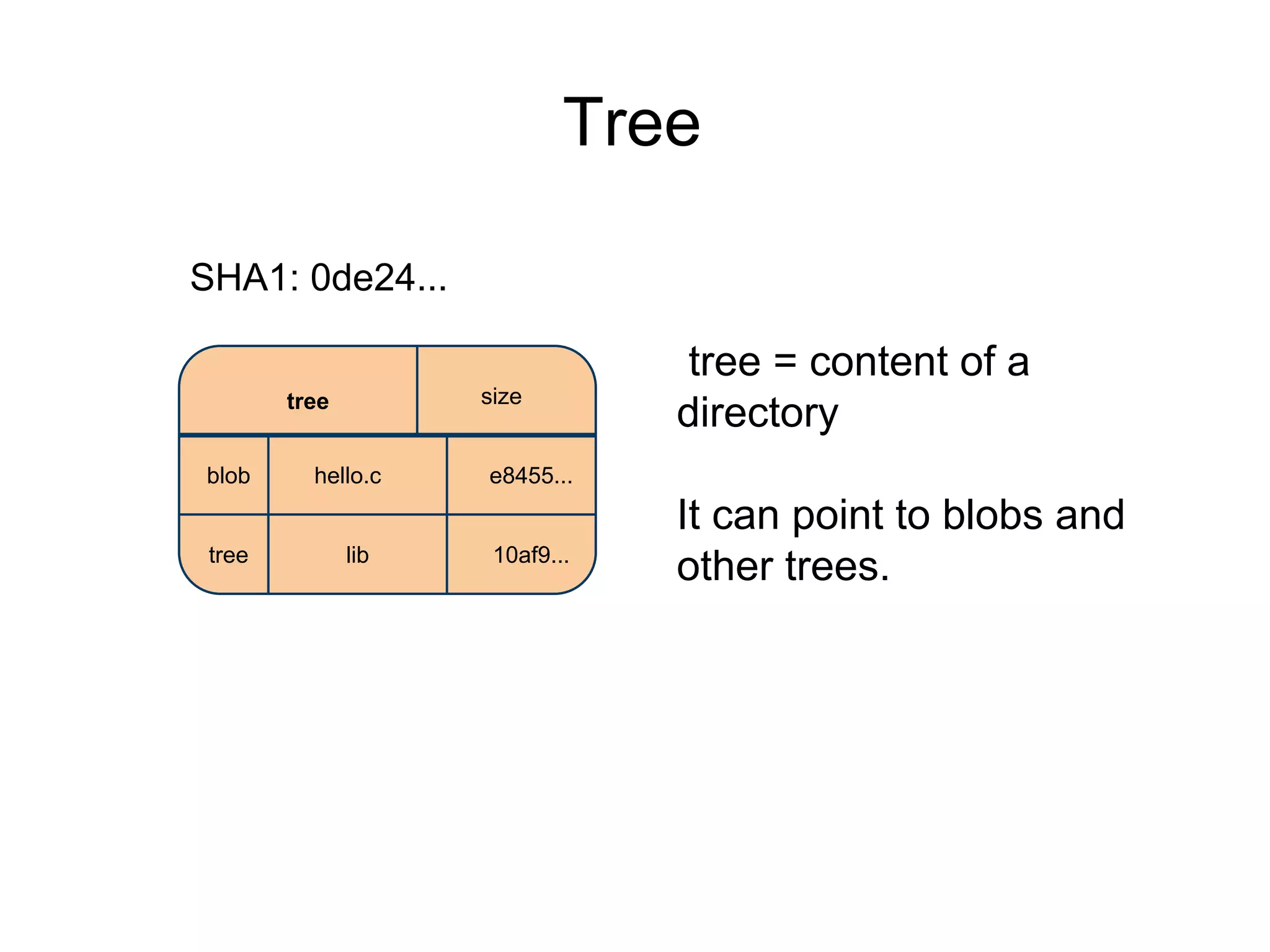

8. Tree
SHA1: 0de24...
size
tree
blob
tree
hello.c
lib
tree = content of a
directory
e8455...
10af9...
It can point to blobs and
other trees.

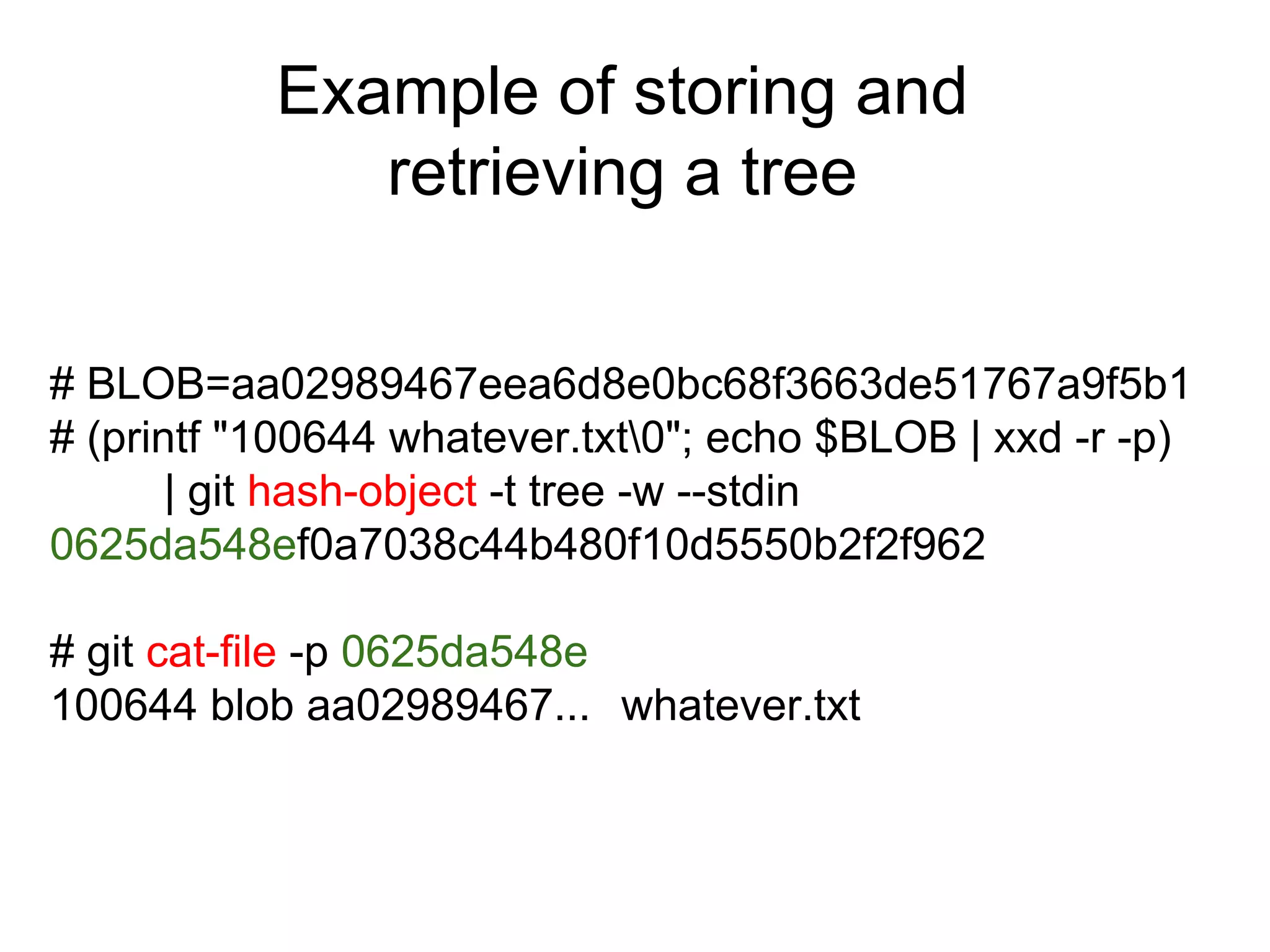

9. Example of storing and
retrieving a tree
# BLOB=aa02989467eea6d8e0bc68f3663de51767a9f5b1
# (printf "100644 whatever.txt0"; echo $BLOB | xxd -r -p)
| git hash-object -t tree -w --stdin
0625da548ef0a7038c44b480f10d5550b2f2f962
# git cat-file -p 0625da548e
100644 blob aa02989467... whatever.txt

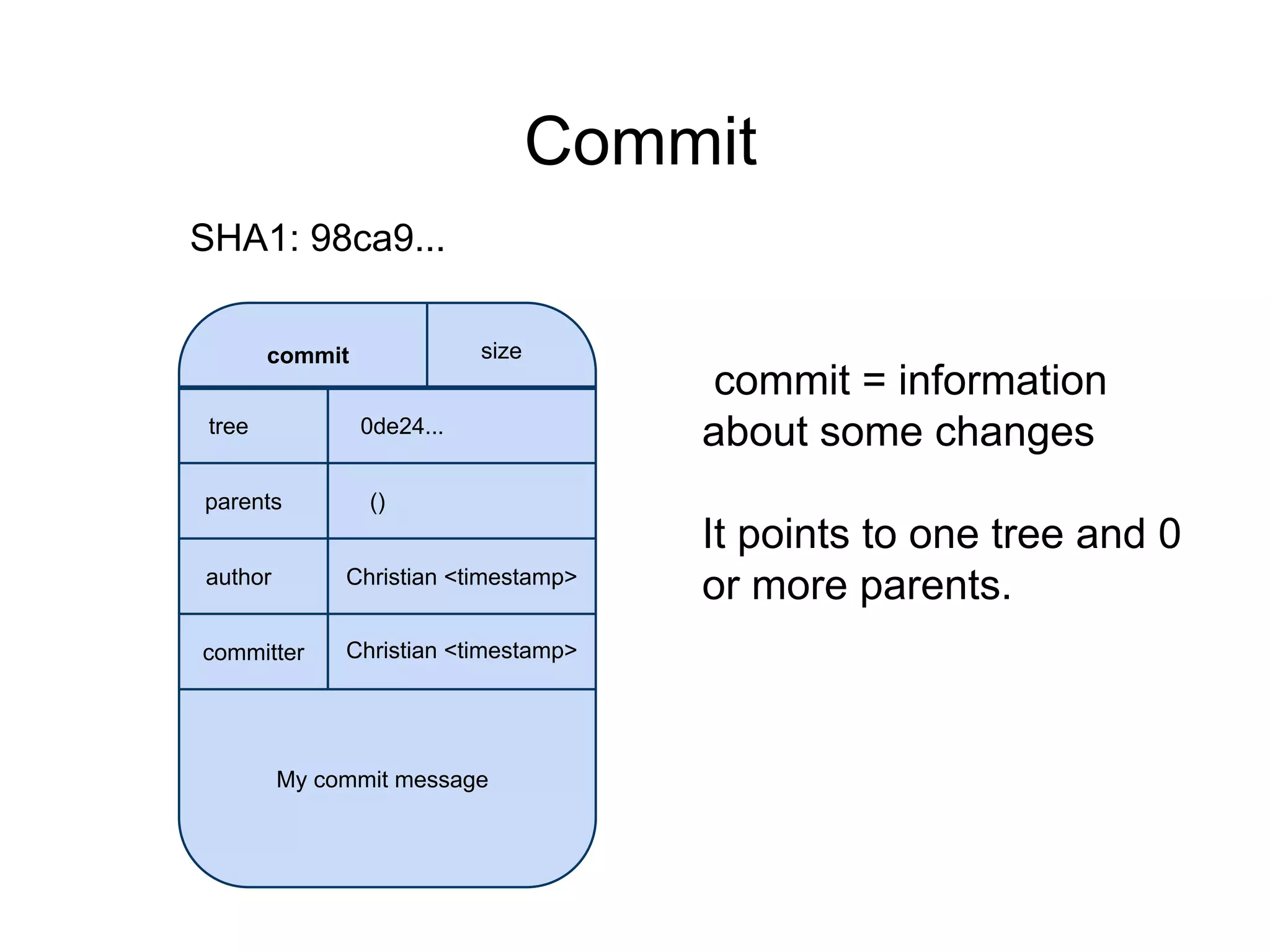

10. Commit
SHA1: 98ca9...
size
commit
tree
0de24...
parents
commit = information
about some changes
()
author
Christian <timestamp>
committer
Christian <timestamp>
My commit message
It points to one tree and 0
or more parents.

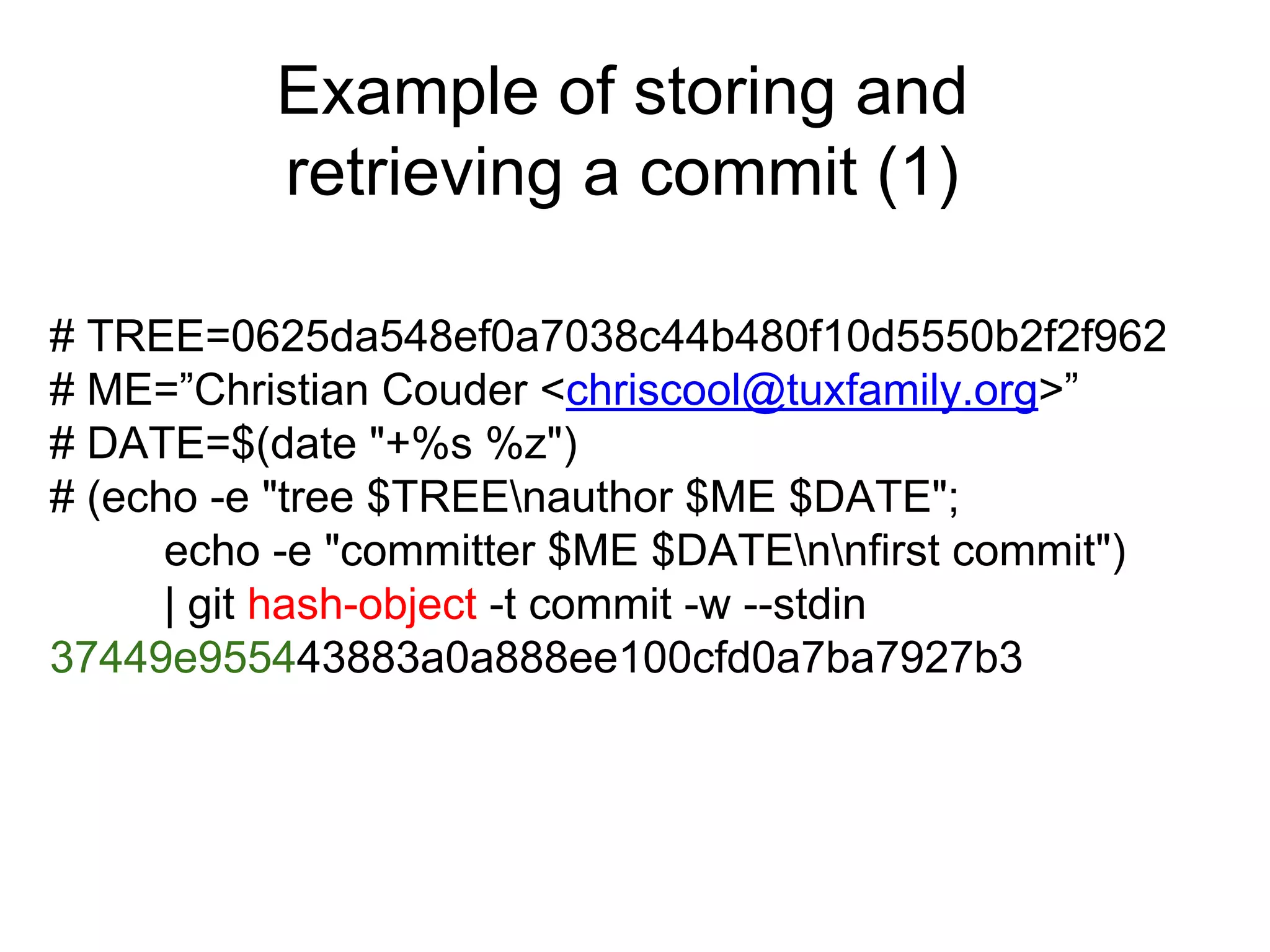

11. Example of storing and
retrieving a commit (1)
# TREE=0625da548ef0a7038c44b480f10d5550b2f2f962
# ME=”Christian Couder <chriscool@tuxfamily.org>”
# DATE=$(date "+%s %z")
# (echo -e "tree $TREEnauthor $ME $DATE";
echo -e "committer $ME $DATEnnfirst commit")
| git hash-object -t commit -w --stdin
37449e955443883a0a888ee100cfd0a7ba7927b3

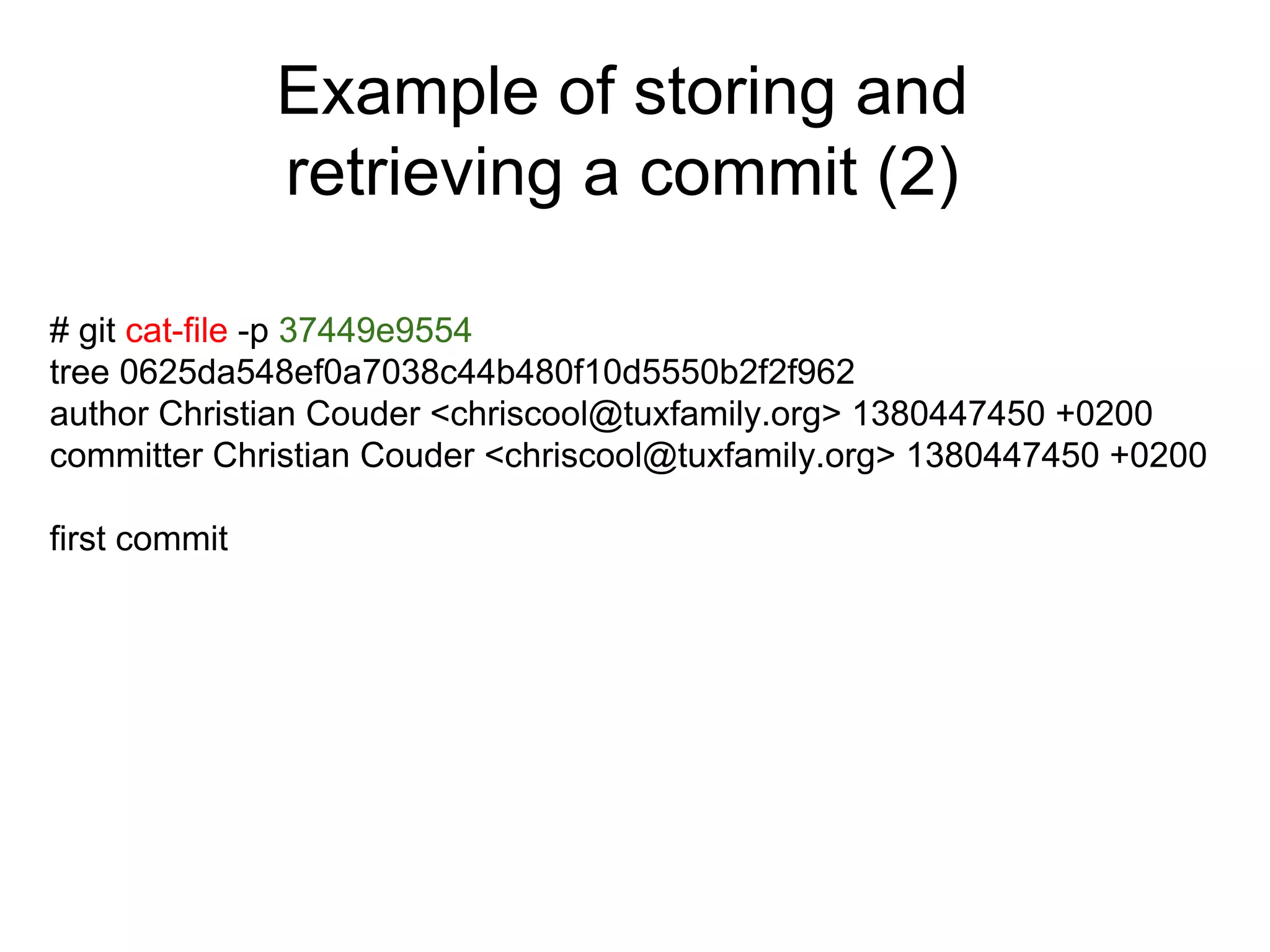

12. Example of storing and
retrieving a commit (2)
# git cat-file -p 37449e9554
tree 0625da548ef0a7038c44b480f10d5550b2f2f962
author Christian Couder <chriscool@tuxfamily.org> 1380447450 +0200
committer Christian Couder <chriscool@tuxfamily.org> 1380447450 +0200
first commit

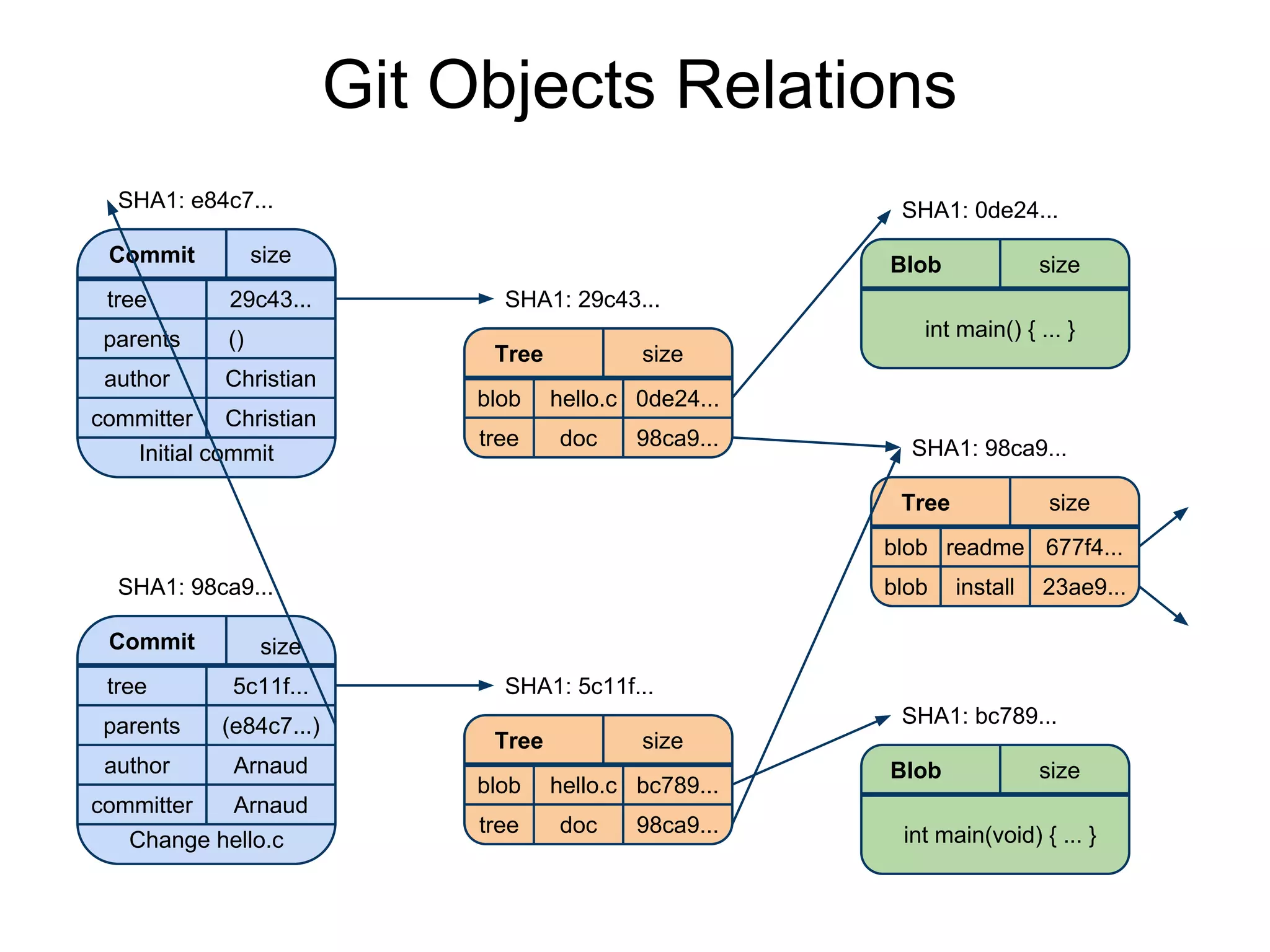

13. Git Objects Relations
SHA1: e84c7...
Commit
SHA1: 0de24...
size
tree
29c43...
parents
()
author
Christian
committer
Christian
Blob
size
SHA1: 29c43...
int main() { ... }
Tree
Initial commit
blob
tree
size
hello.c 0de24...
doc
98ca9...
SHA1: 98ca9...
Tree
size
blob readme 677f4...
blob
SHA1: 98ca9...
Commit
tree
install
23ae9...
size
5c11f...
parents
(e84c7...)
author
Arnaud
committer
Arnaud
Change hello.c
SHA1: 5c11f...
SHA1: bc789...
Tree
blob
tree
size
hello.c bc789...
doc
98ca9...
Blob
size
int main(void) { ... }

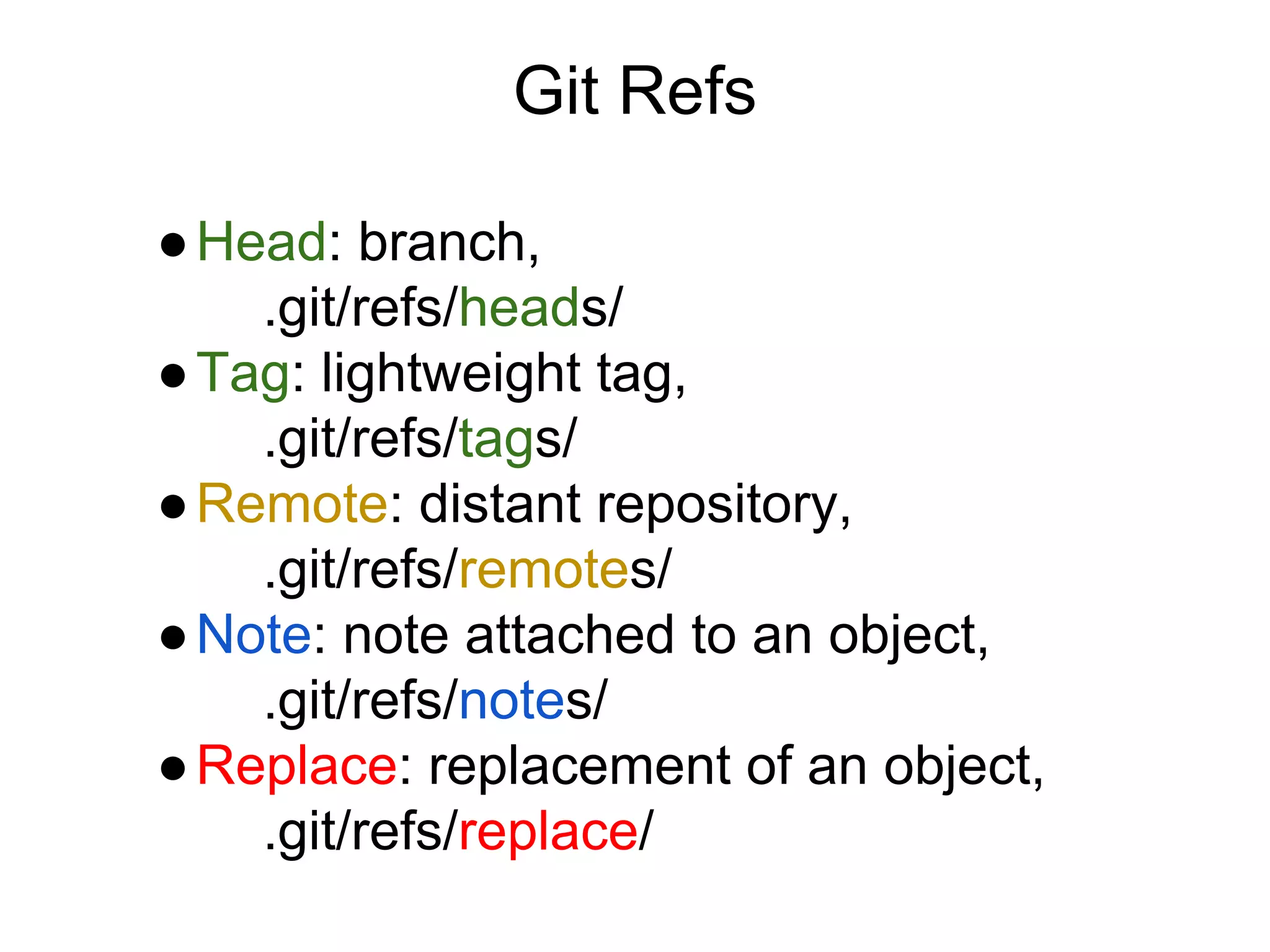

14. Git Refs
● Head: branch,
.git/refs/heads/
● Tag: lightweight tag,
.git/refs/tags/
● Remote: distant repository,
.git/refs/remotes/
● Note: note attached to an object,
.git/refs/notes/
● Replace: replacement of an object,
.git/refs/replace/

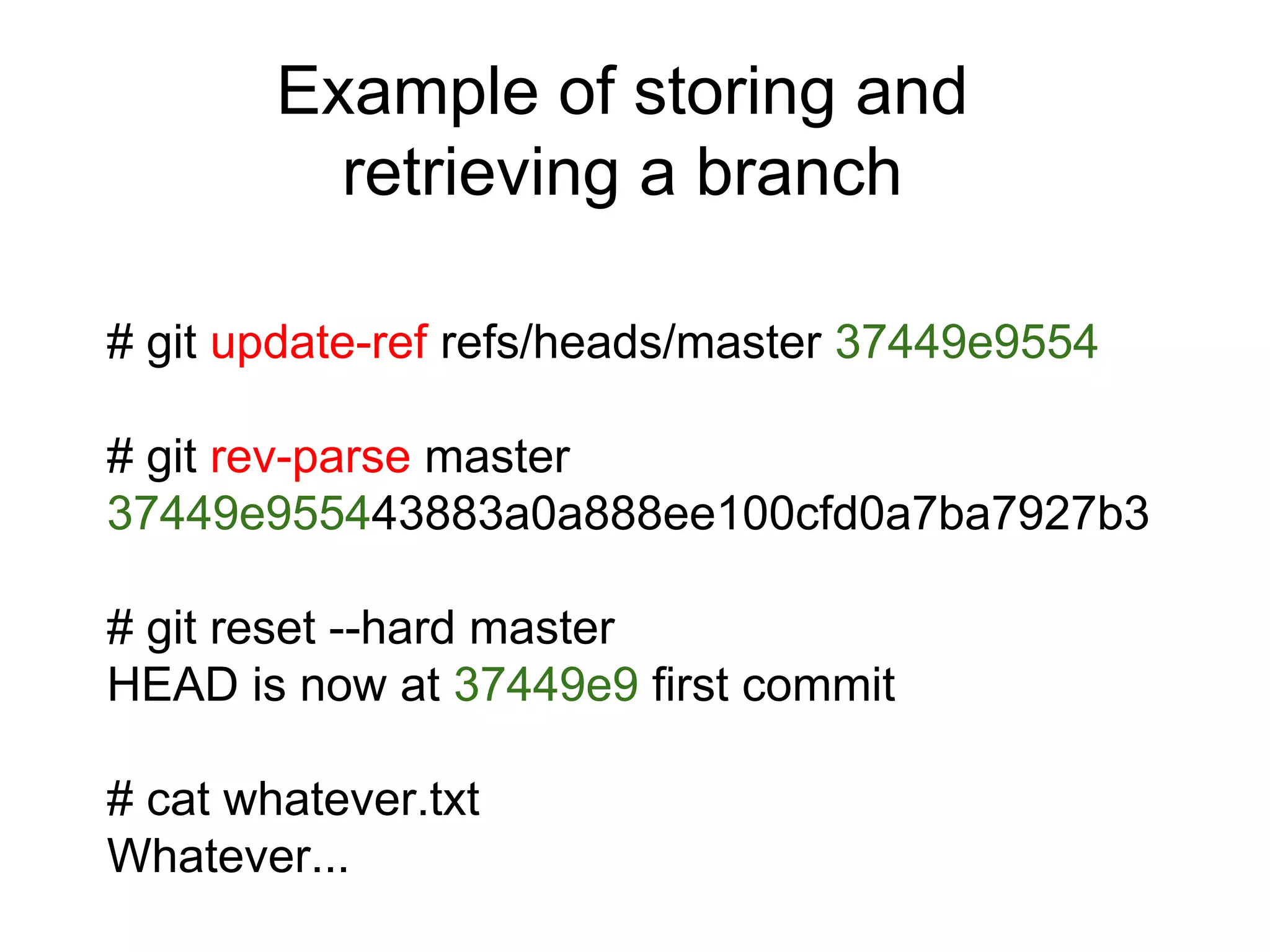

15. Example of storing and
retrieving a branch
# git update-ref refs/heads/master 37449e9554
# git rev-parse master
37449e955443883a0a888ee100cfd0a7ba7927b3
# git reset --hard master
HEAD is now at 37449e9 first commit
# cat whatever.txt
Whatever...

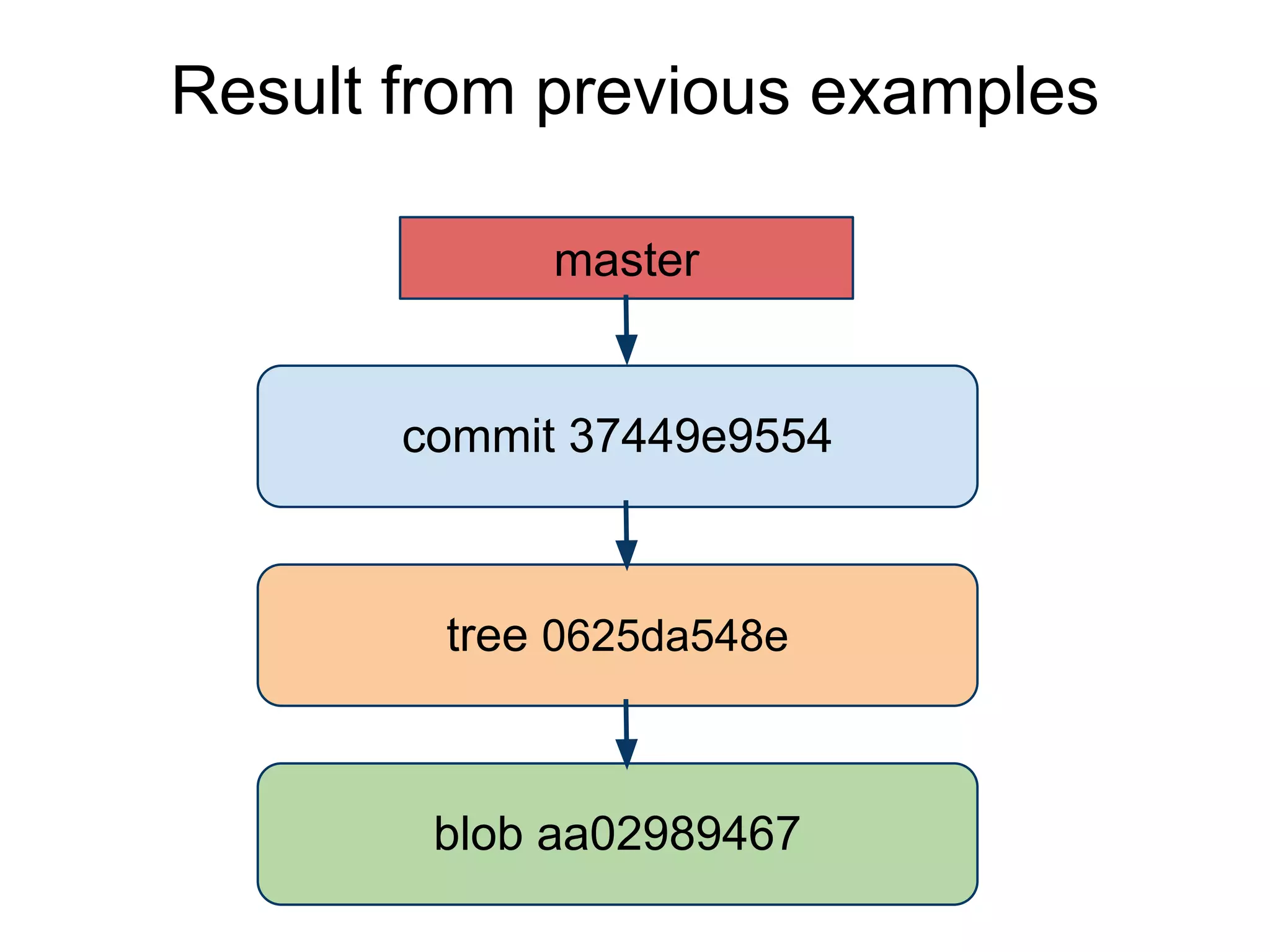

16. Result from previous examples
master
commit 37449e9554
tree 0625da548e
blob aa02989467

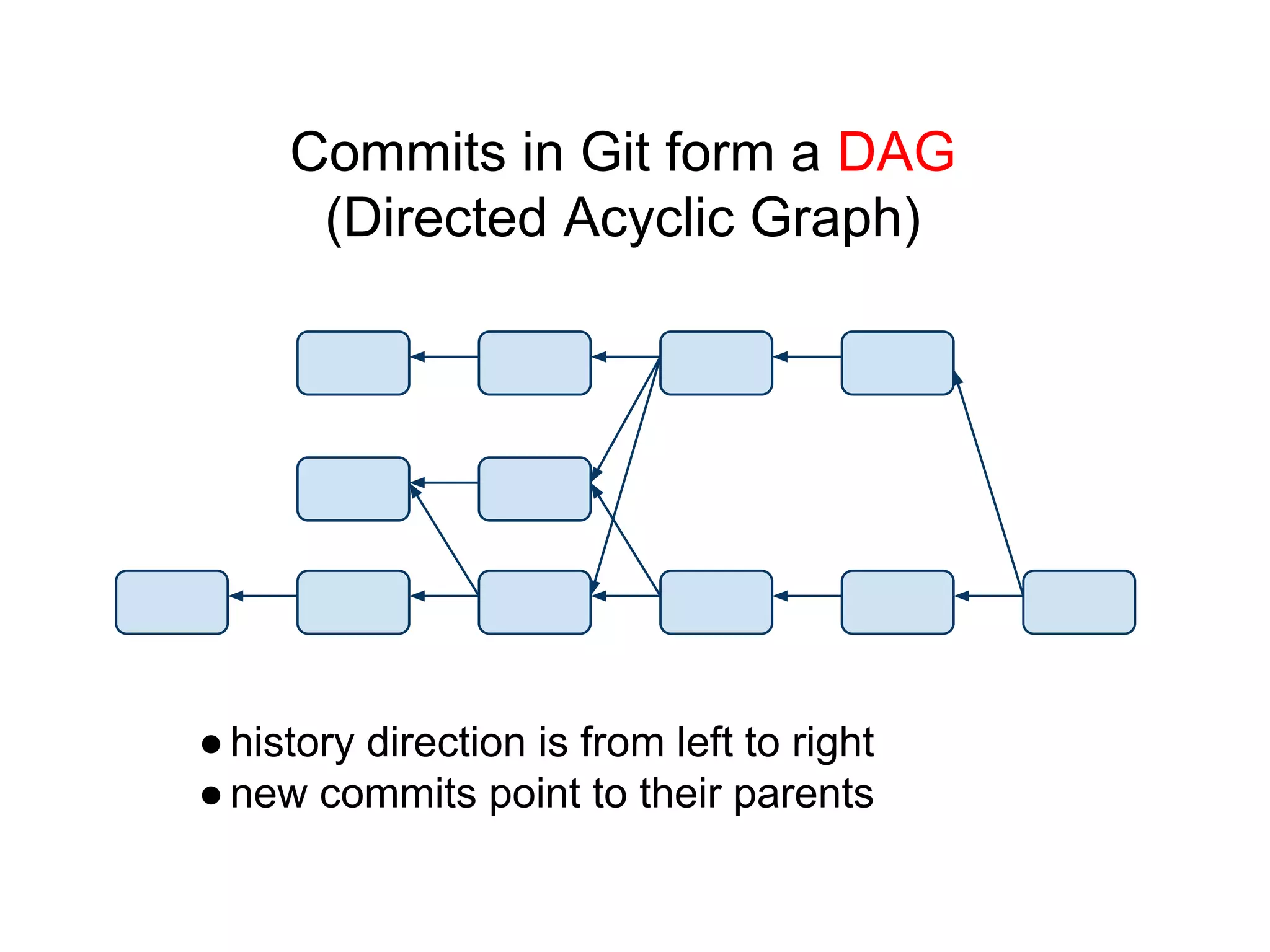

17. Commits in Git form a DAG
(Directed Acyclic Graph)
● history direction is from left to right
● new commits point to their parents

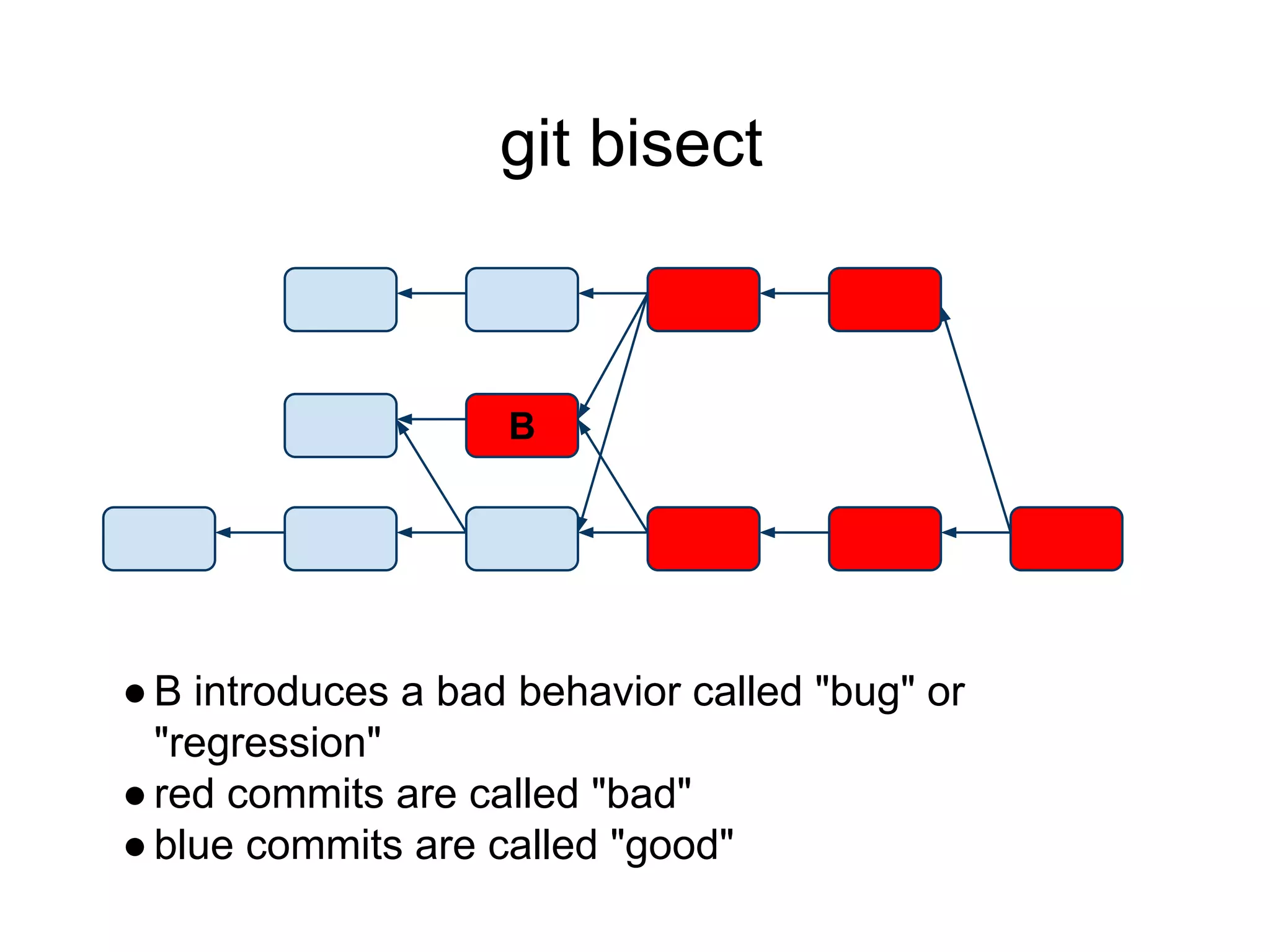

18. git bisect
B
● B introduces a bad behavior called "bug" or
"regression"
● red commits are called "bad"
● blue commits are called "good"

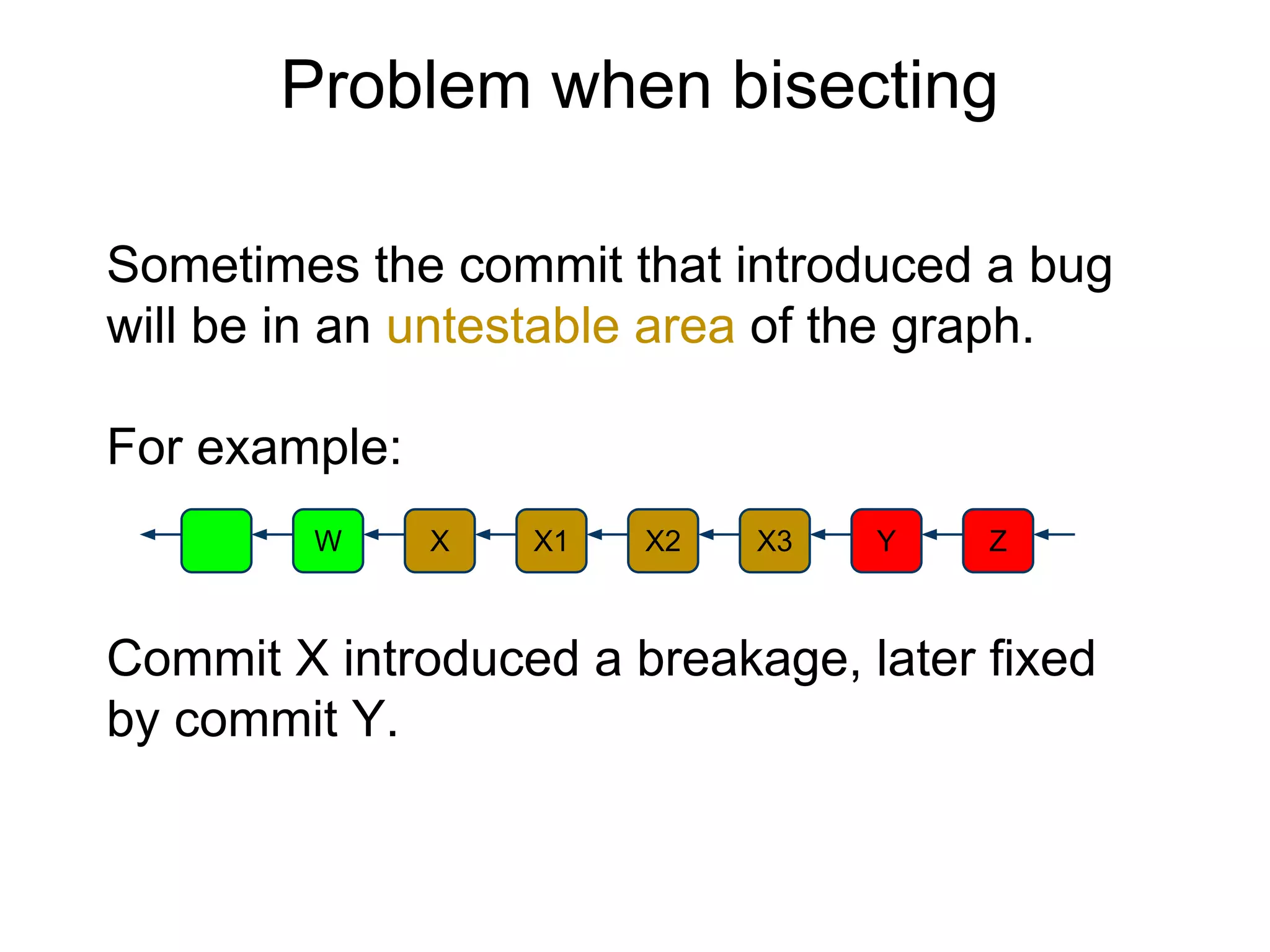

19. Problem when bisecting
Sometimes the commit that introduced a bug
will be in an untestable area of the graph.
For example:
W
X
X1
X2
X3
Y
Z
Commit X introduced a breakage, later fixed
by commit Y.

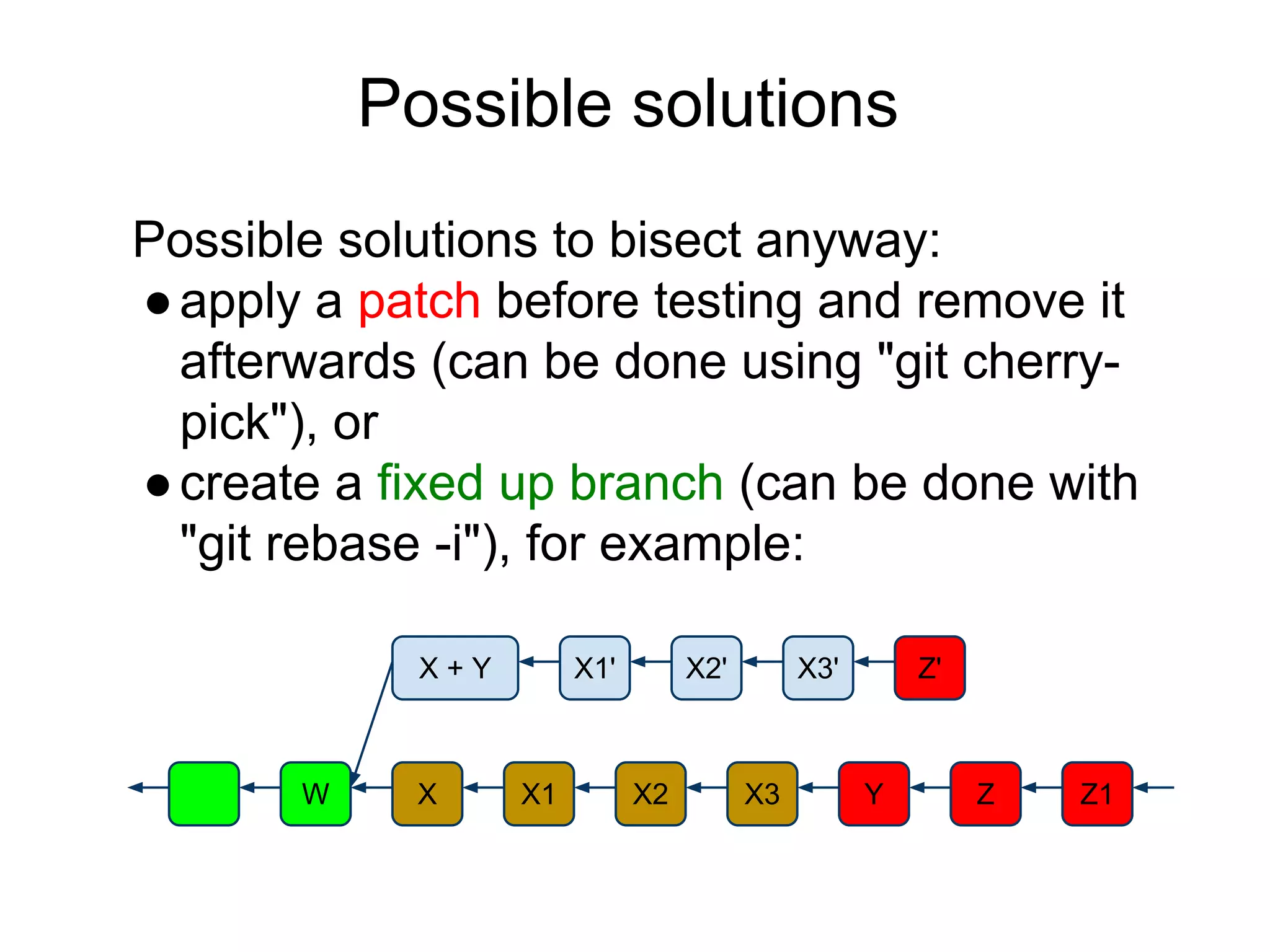

20. Possible solutions
Possible solutions to bisect anyway:
● apply a patch before testing and remove it
afterwards (can be done using "git cherrypick"), or
● create a fixed up branch (can be done with
"git rebase -i"), for example:
X+Y
W
X
X1'
X1
X2'
X2
X3'
X3
Z'
Y
Z
Z1

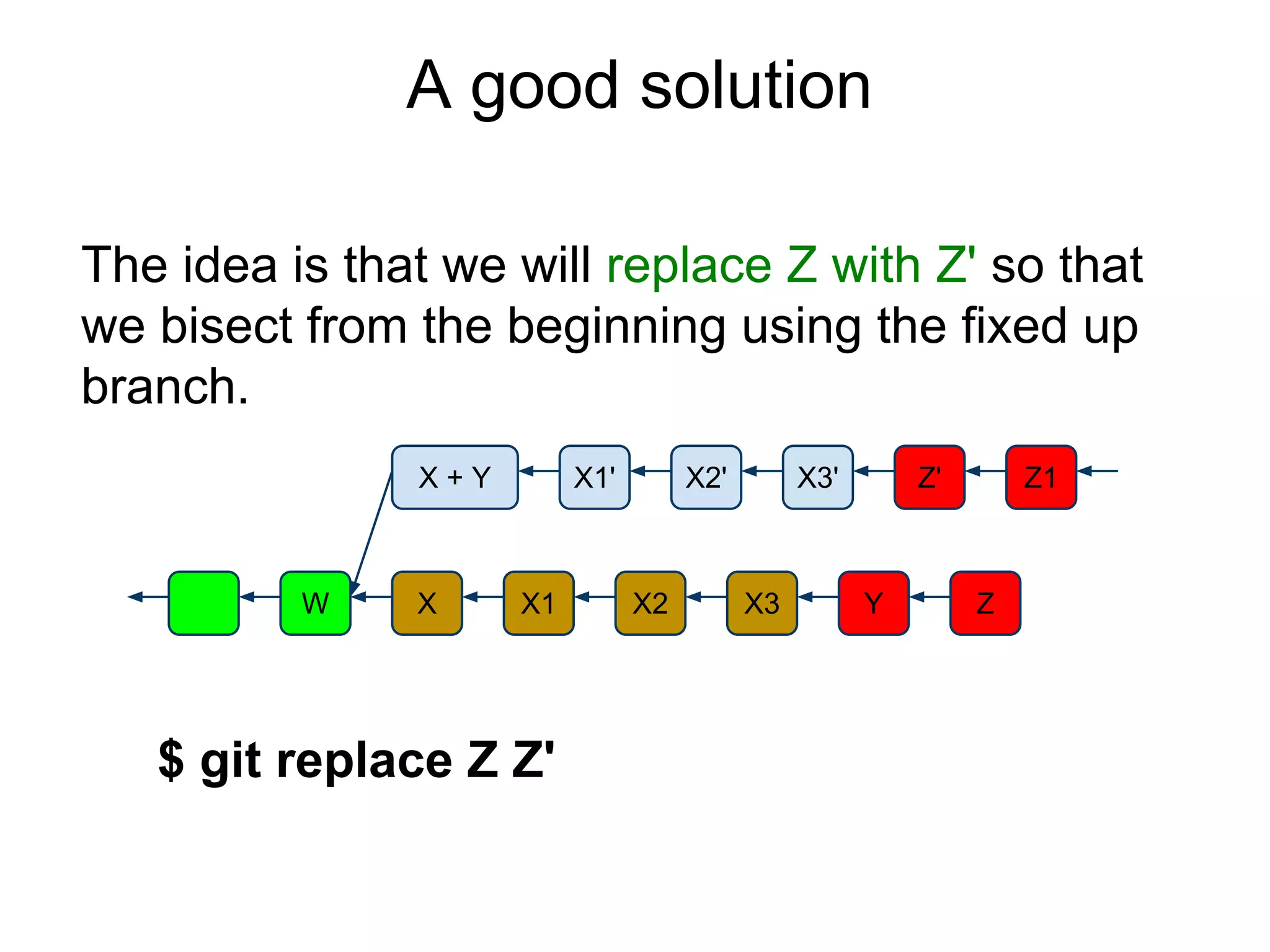

21. A good solution
The idea is that we will replace Z with Z' so that
we bisect from the beginning using the fixed up
branch.
X+Y
W
X
X1'
X1
$ git replace Z Z'
X2'
X2
X3'
X3
Z'
Y
Z1
Z

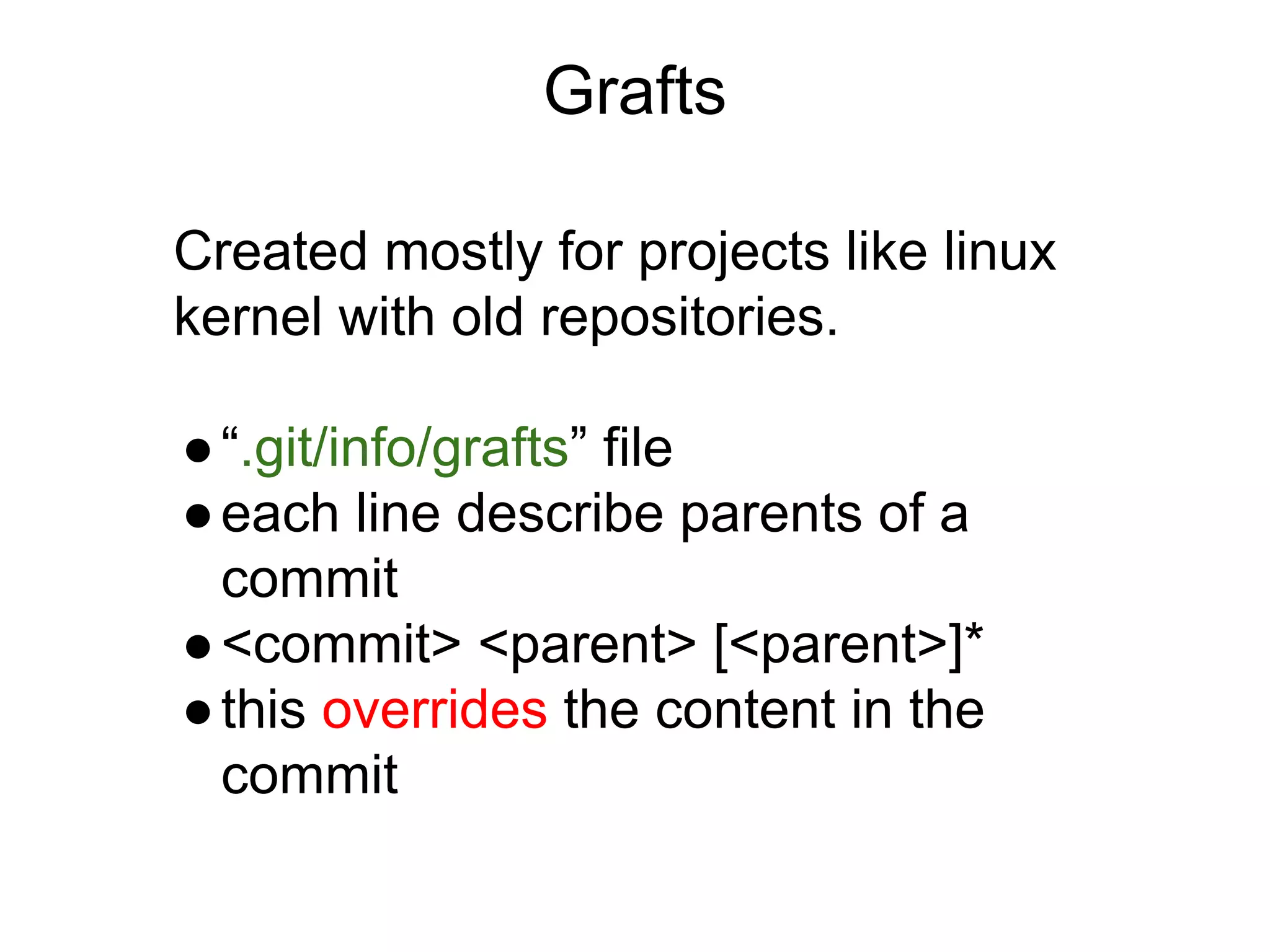

22. Grafts
Created mostly for projects like linux
kernel with old repositories.
● “.git/info/grafts” file
● each line describe parents of a
commit
● <commit> <parent> [<parent>]*
● this overrides the content in the
commit

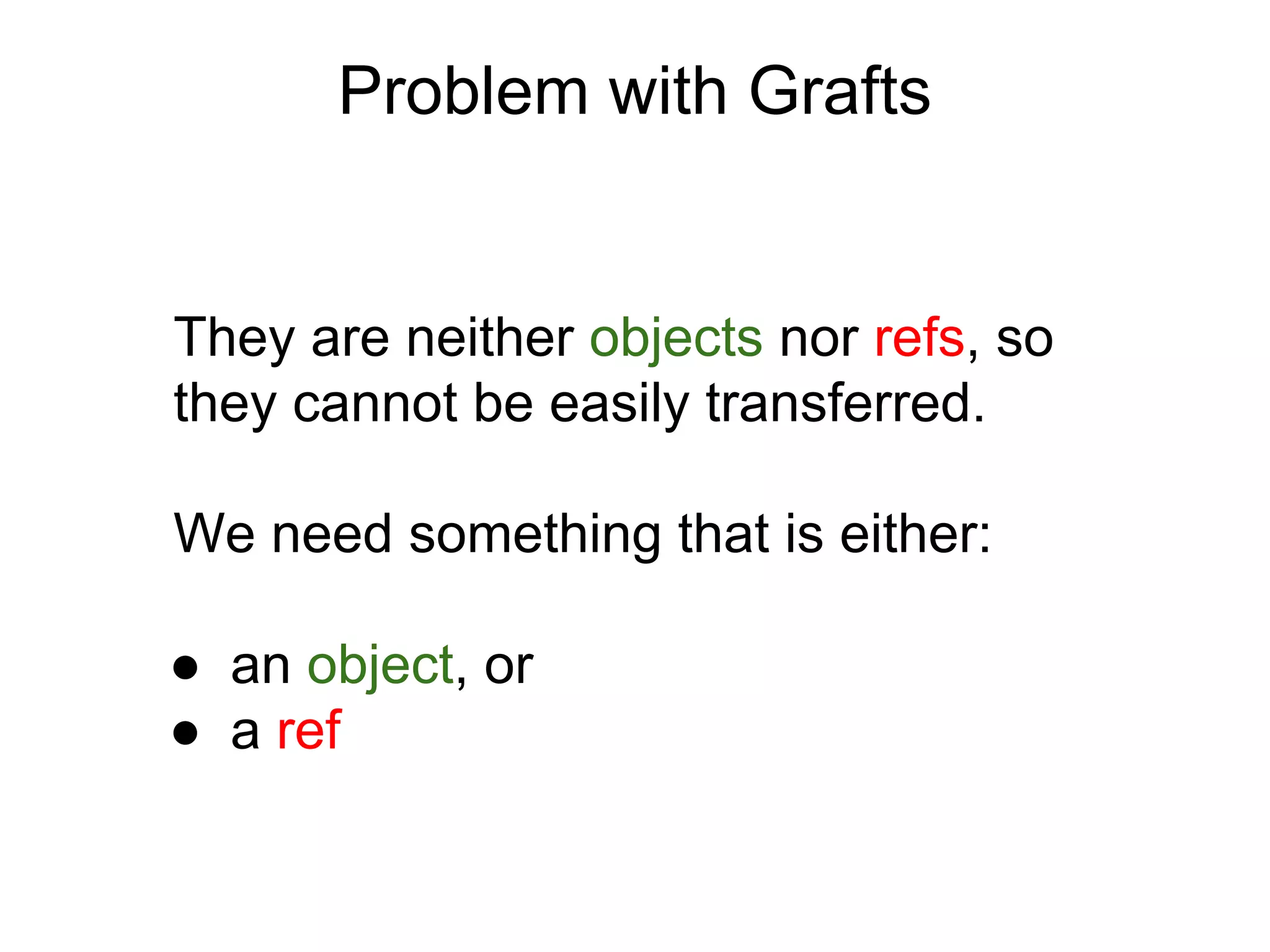

23. Problem with Grafts
They are neither objects nor refs, so
they cannot be easily transferred.
We need something that is either:
● an object, or
● a ref

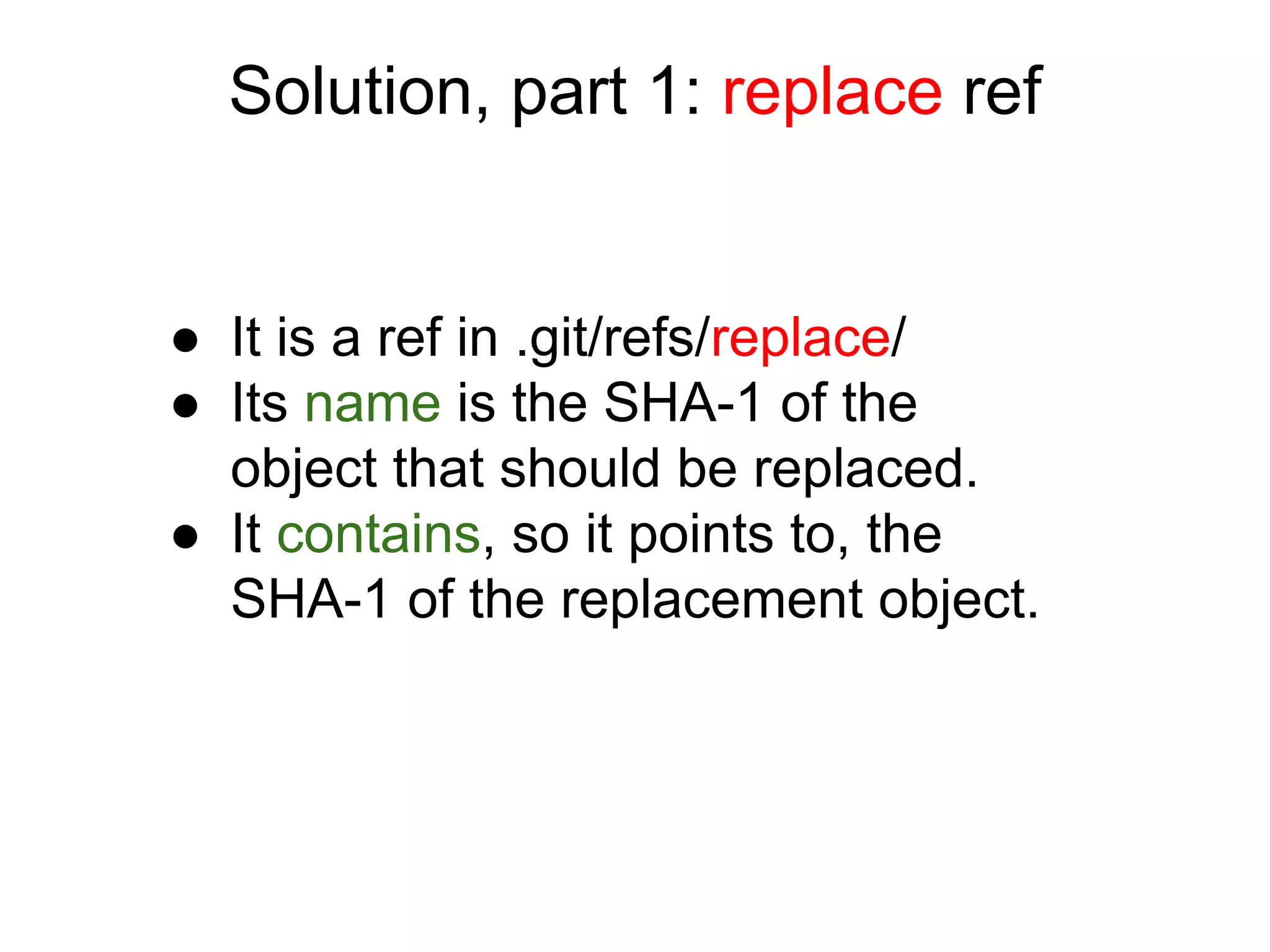

24. Solution, part 1: replace ref
● It is a ref in .git/refs/replace/
● Its name is the SHA-1 of the
object that should be replaced.
● It contains, so it points to, the
SHA-1 of the replacement object.

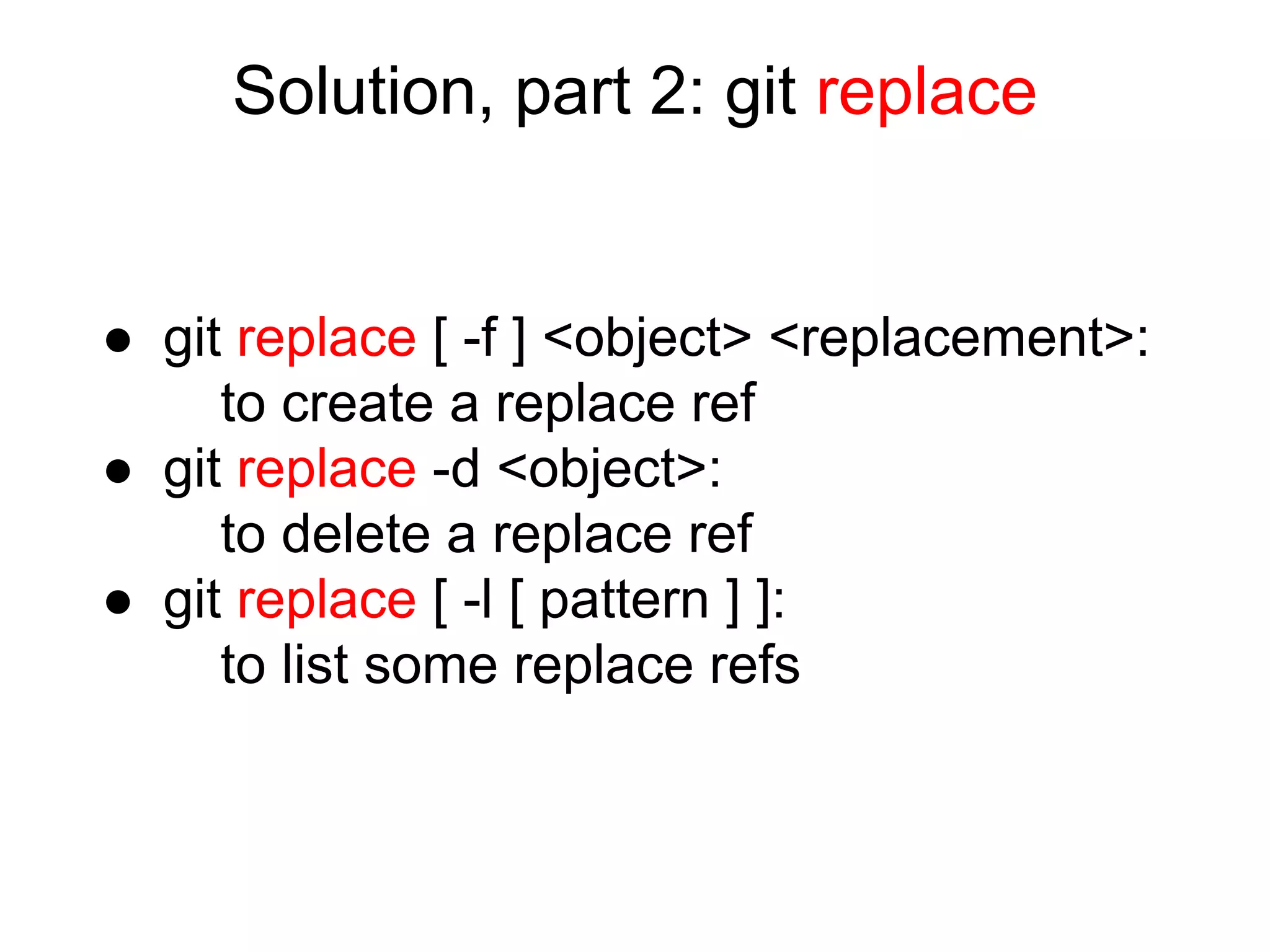

25. Solution, part 2: git replace
● git replace [ -f ] <object> <replacement>:
to create a replace ref
● git replace -d <object>:
to delete a replace ref
● git replace [ -l [ pattern ] ]:
to list some replace refs

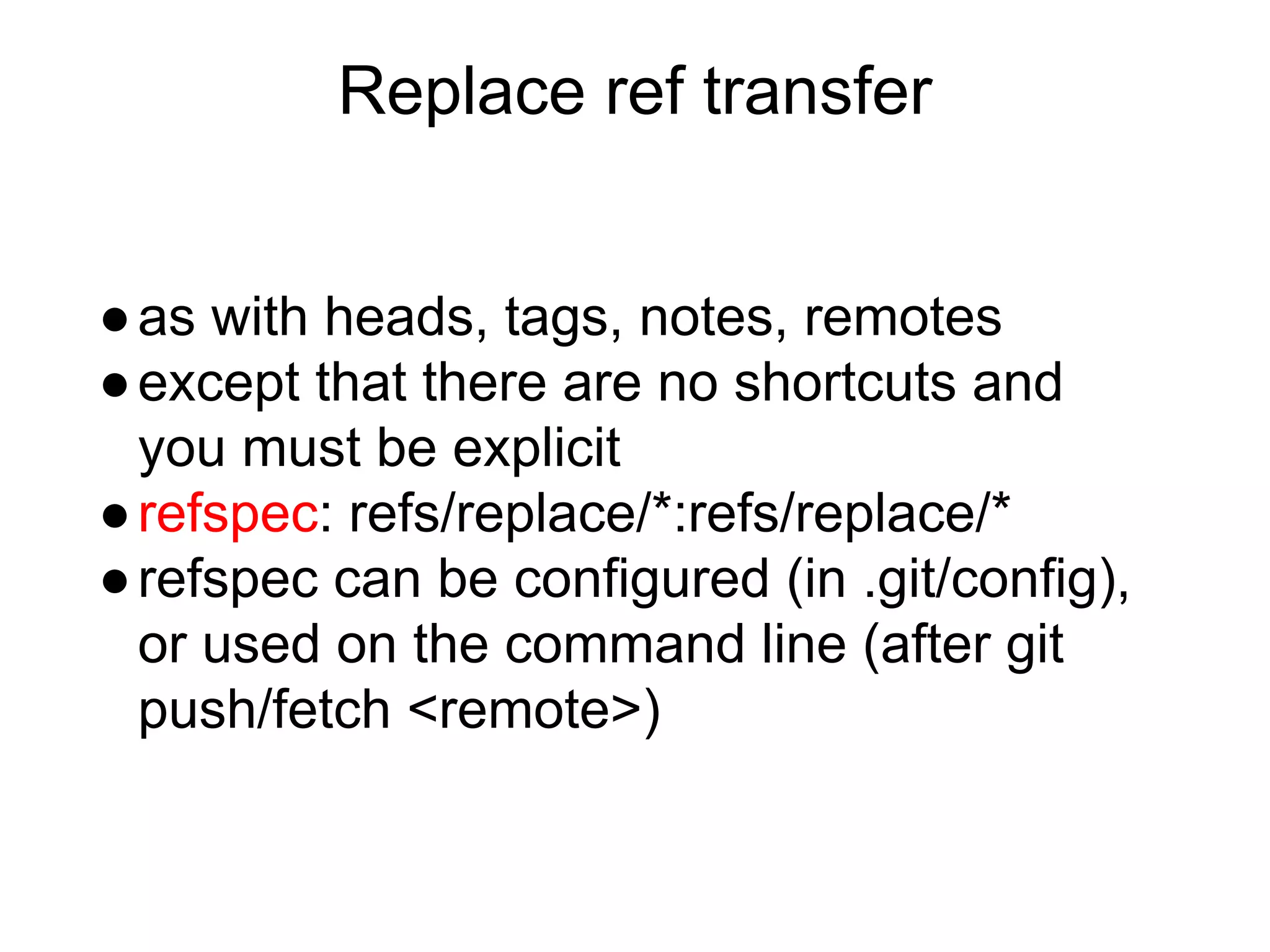

26. Replace ref transfer
● as with heads, tags, notes, remotes
● except that there are no shortcuts and
you must be explicit
● refspec: refs/replace/*:refs/replace/*
● refspec can be configured (in .git/config),
or used on the command line (after git
push/fetch <remote>)

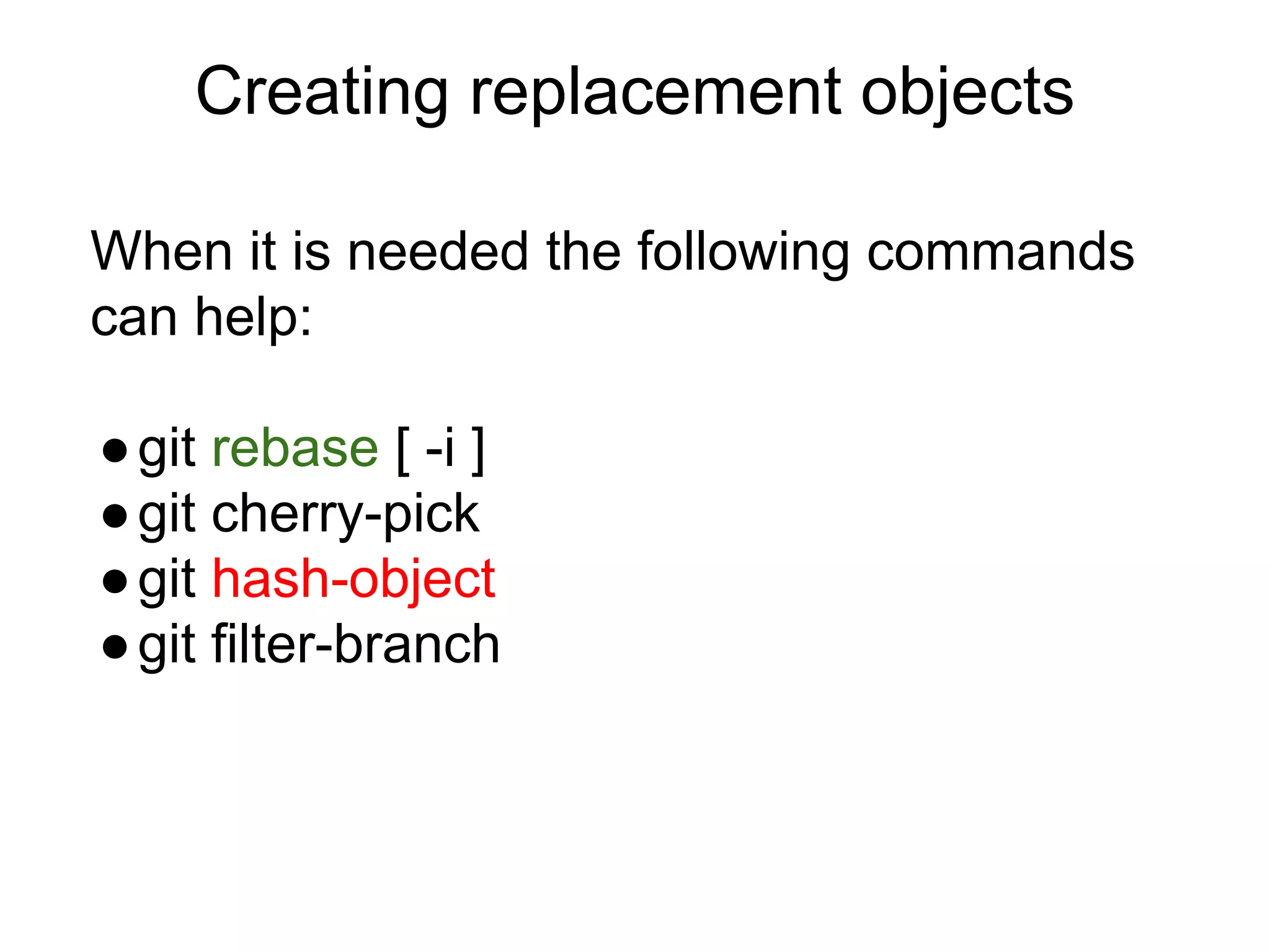

27. Creating replacement objects
When it is needed the following commands
can help:
● git rebase [ -i ]
● git cherry-pick
● git hash-object
● git filter-branch

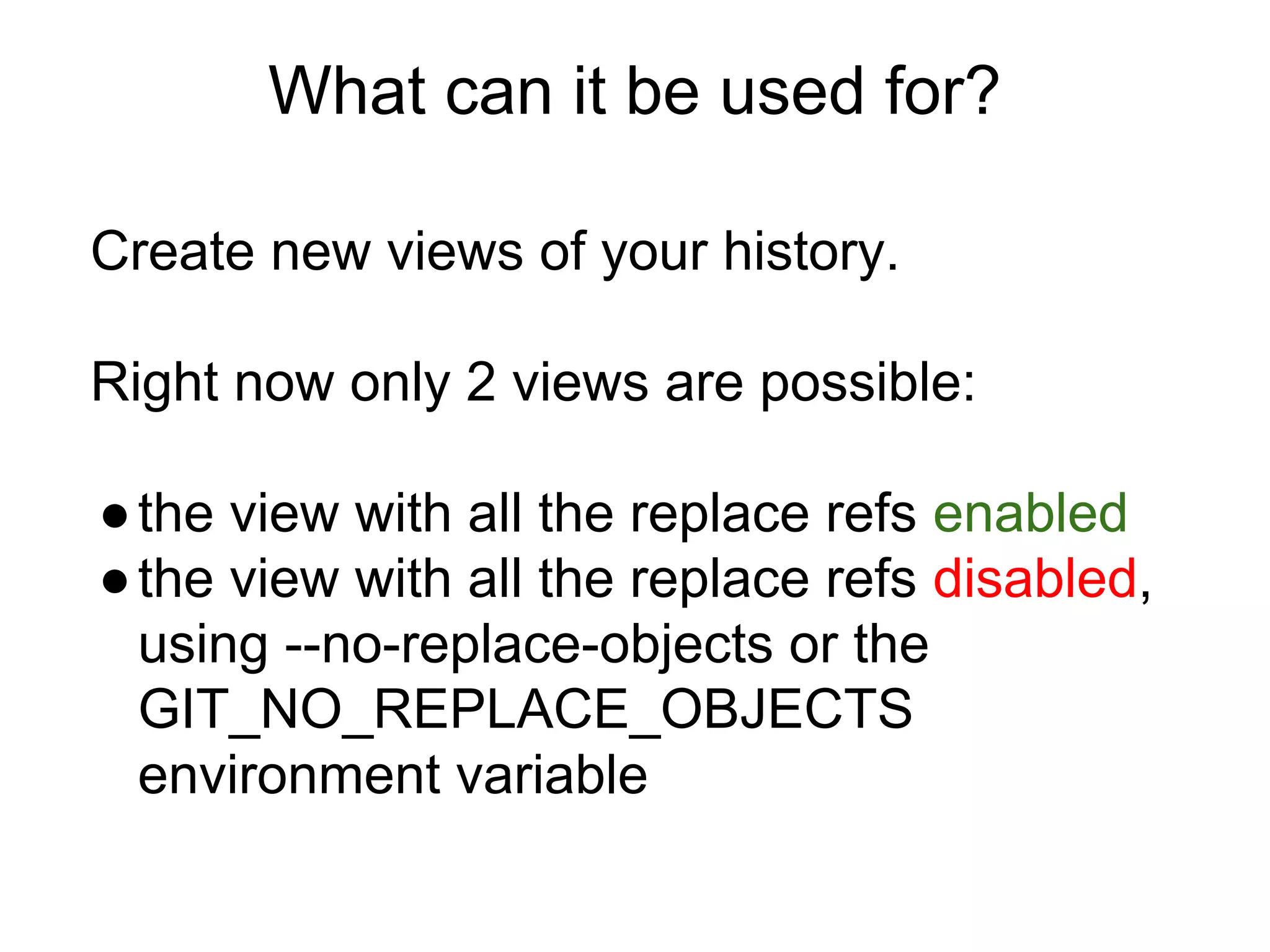

28. What can it be used for?
Create new views of your history.
Right now only 2 views are possible:
● the view with all the replace refs enabled
● the view with all the replace refs disabled,
using --no-replace-objects or the
GIT_NO_REPLACE_OBJECTS
environment variable

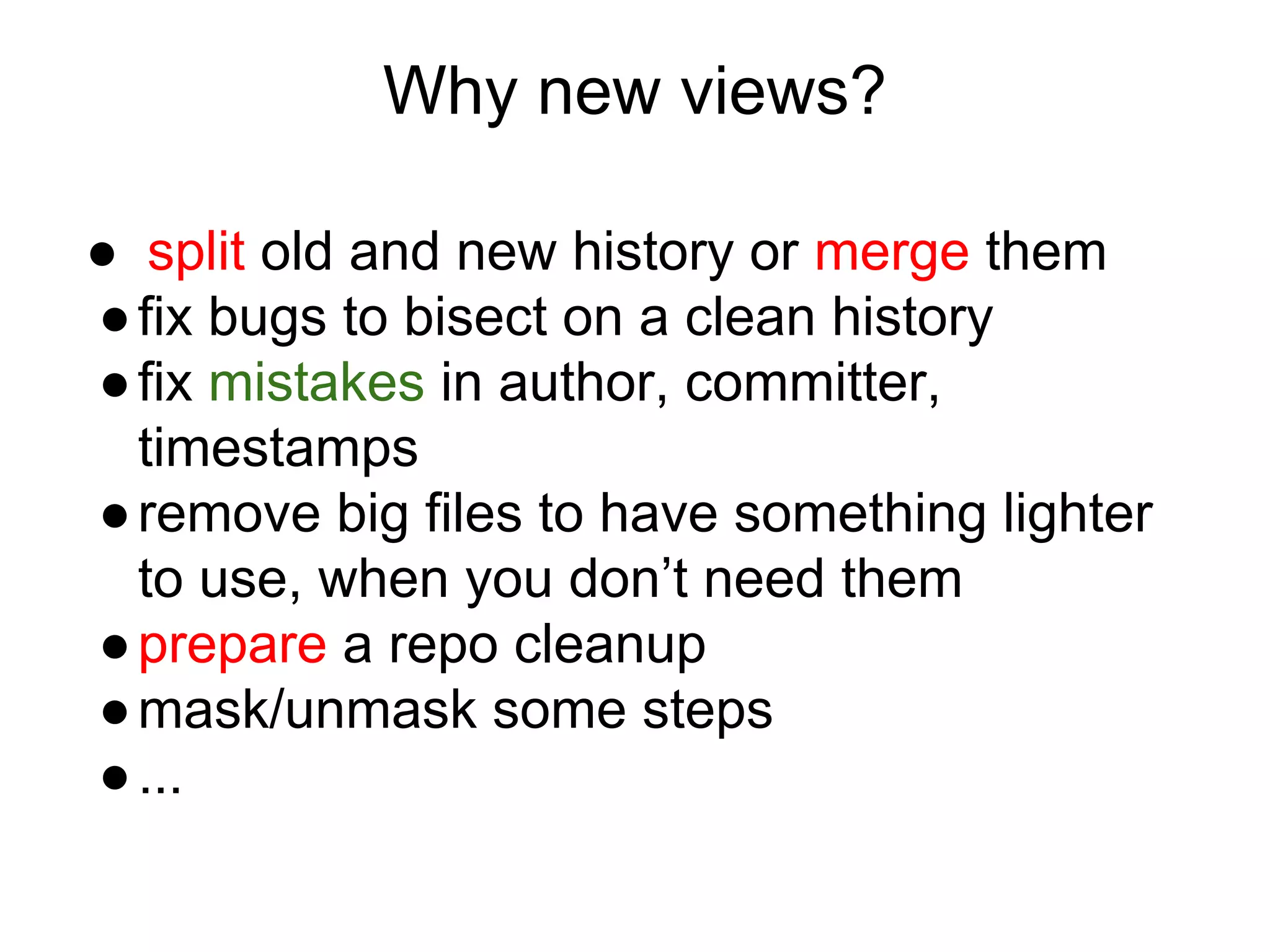

29. Why new views?
● split old and new history or merge them
● fix bugs to bisect on a clean history
● fix mistakes in author, committer,
timestamps
● remove big files to have something lighter
to use, when you don’t need them
● prepare a repo cleanup
● mask/unmask some steps
● ...

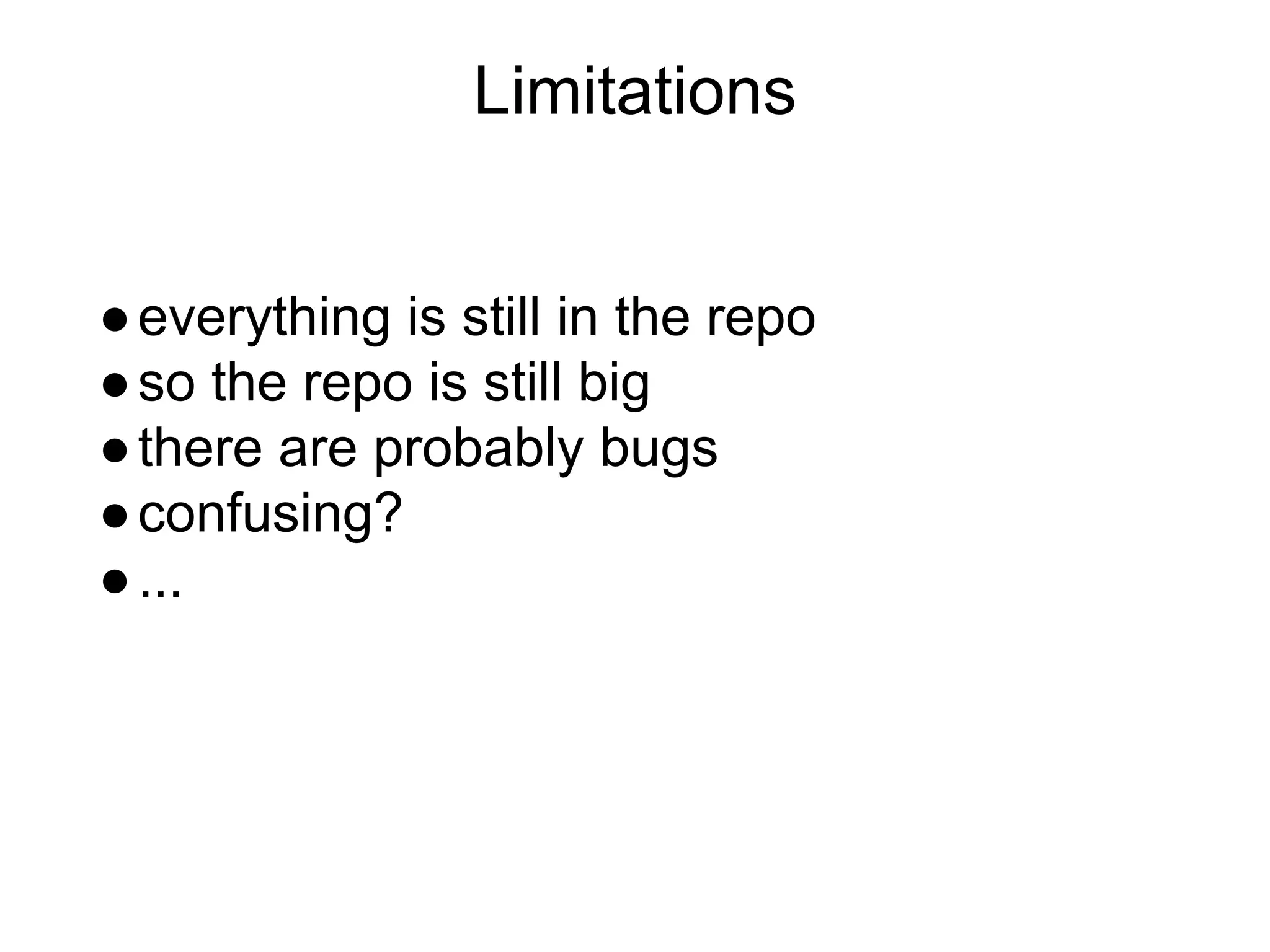

30. Limitations
● everything is still in the repo
● so the repo is still big
● there are probably bugs
● confusing?
● ...

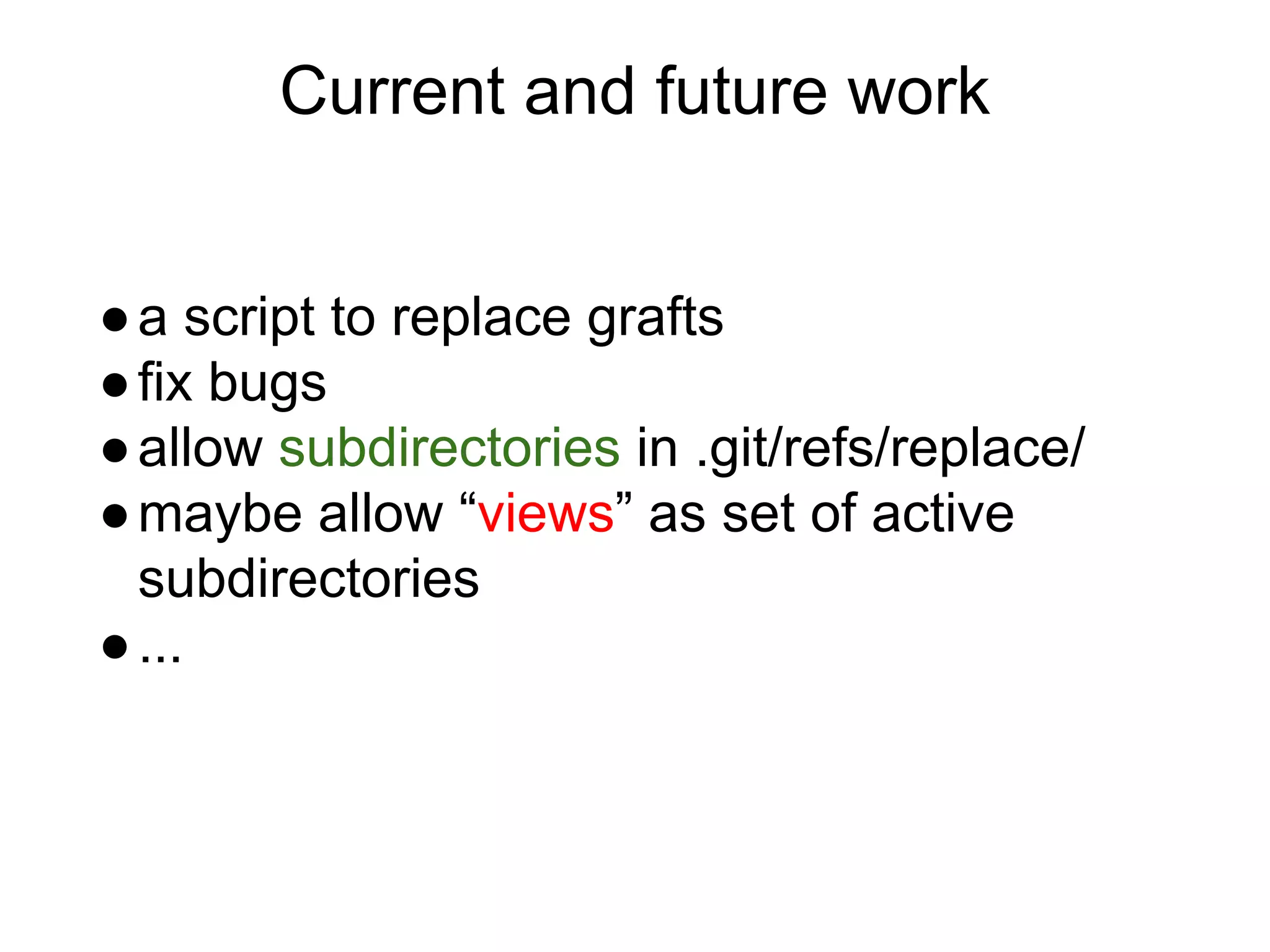

31. Current and future work
● a script to replace grafts
● fix bugs
● allow subdirectories in .git/refs/replace/
● maybe allow “views” as set of active
subdirectories
● ...

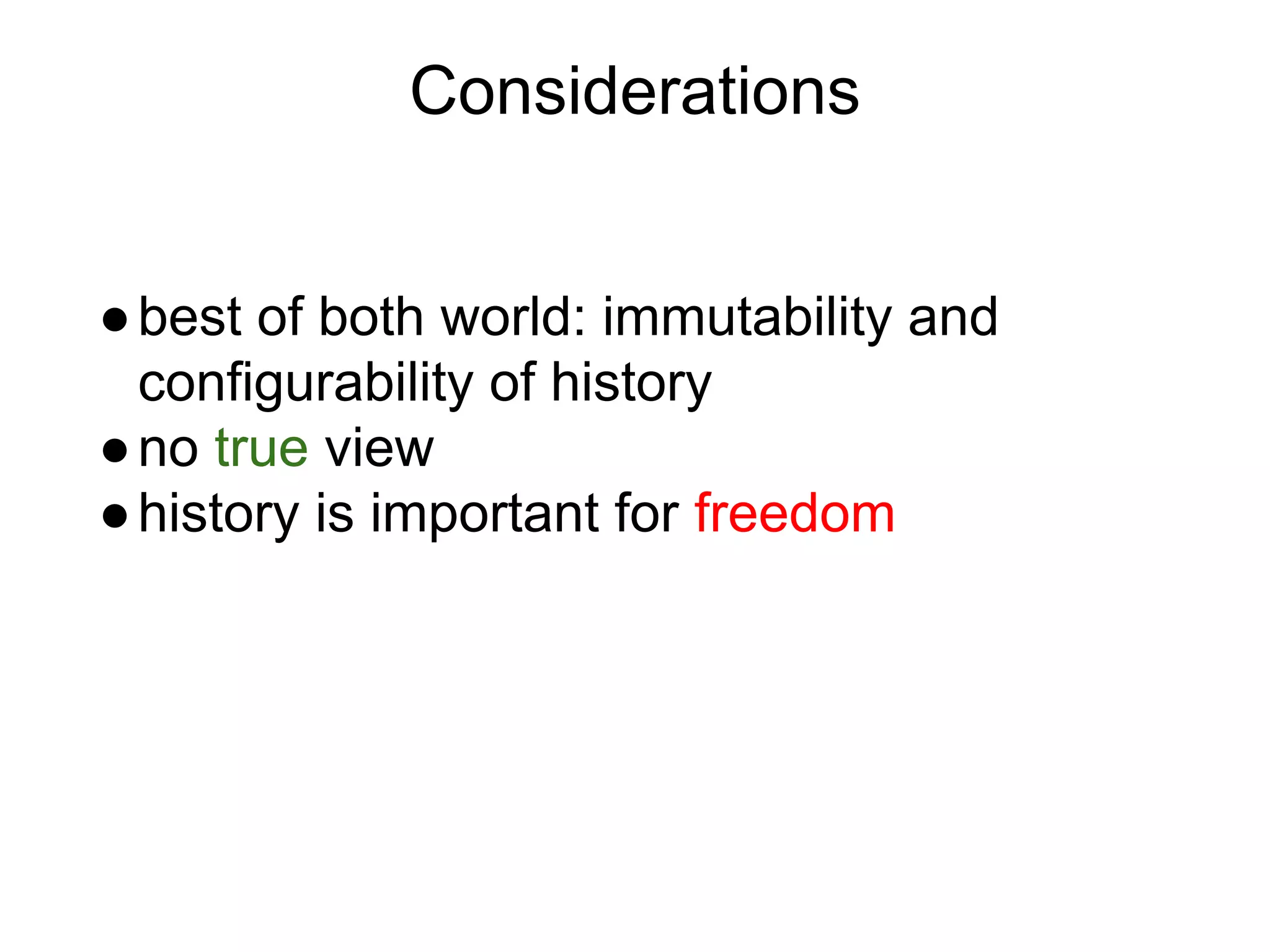

32. Considerations
● best of both world: immutability and
configurability of history
● no true view
● history is important for freedom

33. Many thanks to:
● Junio Hamano (comments, help, discussions,
reviews, improvements),
● Ingo Molnar,
● Linus Torvalds,
● many other great people in the Git and Linux
communities, especially: Andreas Ericsson,
Johannes Schindelin, H. Peter Anvin, Daniel
Barkalow, Bill Lear, John Hawley, ...
● OSDC/OWF organizers and attendants,
● Murex the company I am working for.

34. Questions ?
