- Git is a distributed version control system created by Linus Torvalds and maintained by Junio Hamano since 2005. It uses a test framework called Sharness, developed by Junio Hamano and extracted by Mathias Lafeldt, that helps ensure Git remains stable. - IPFS is a new peer-to-peer hypermedia protocol designed to make the web faster, safer, and more open. Like Git and BitTorrent, IPFS is content-addressed, with content addressed by a cryptographic hash. It uses the Go programming language and has a command line interface. - The author began using Sharness to write black box tests for IPFS in October 2014 when the project was still

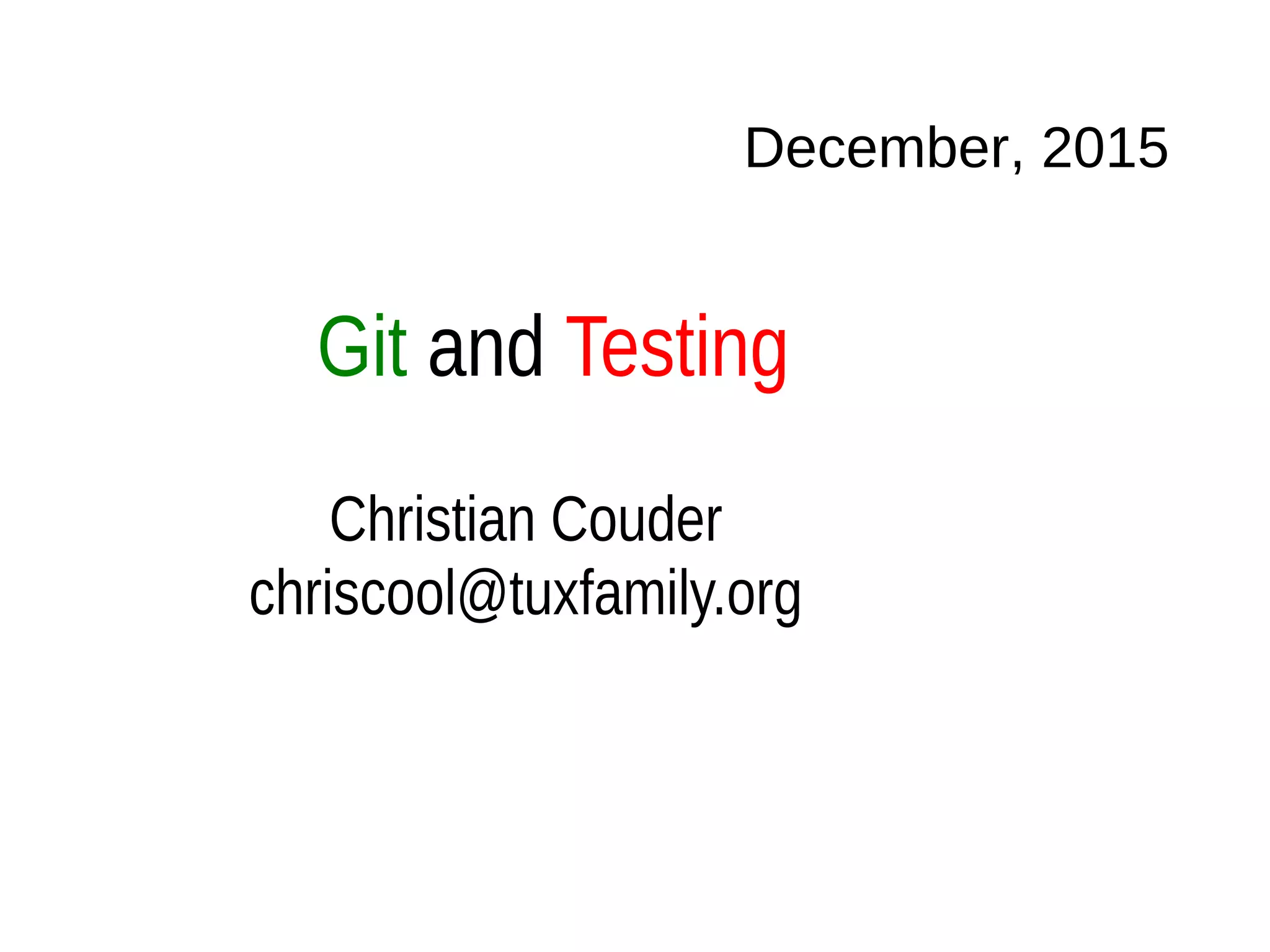

1. Git and Testing
December, 2015
Christian Couder
chriscool@tuxfamily.org

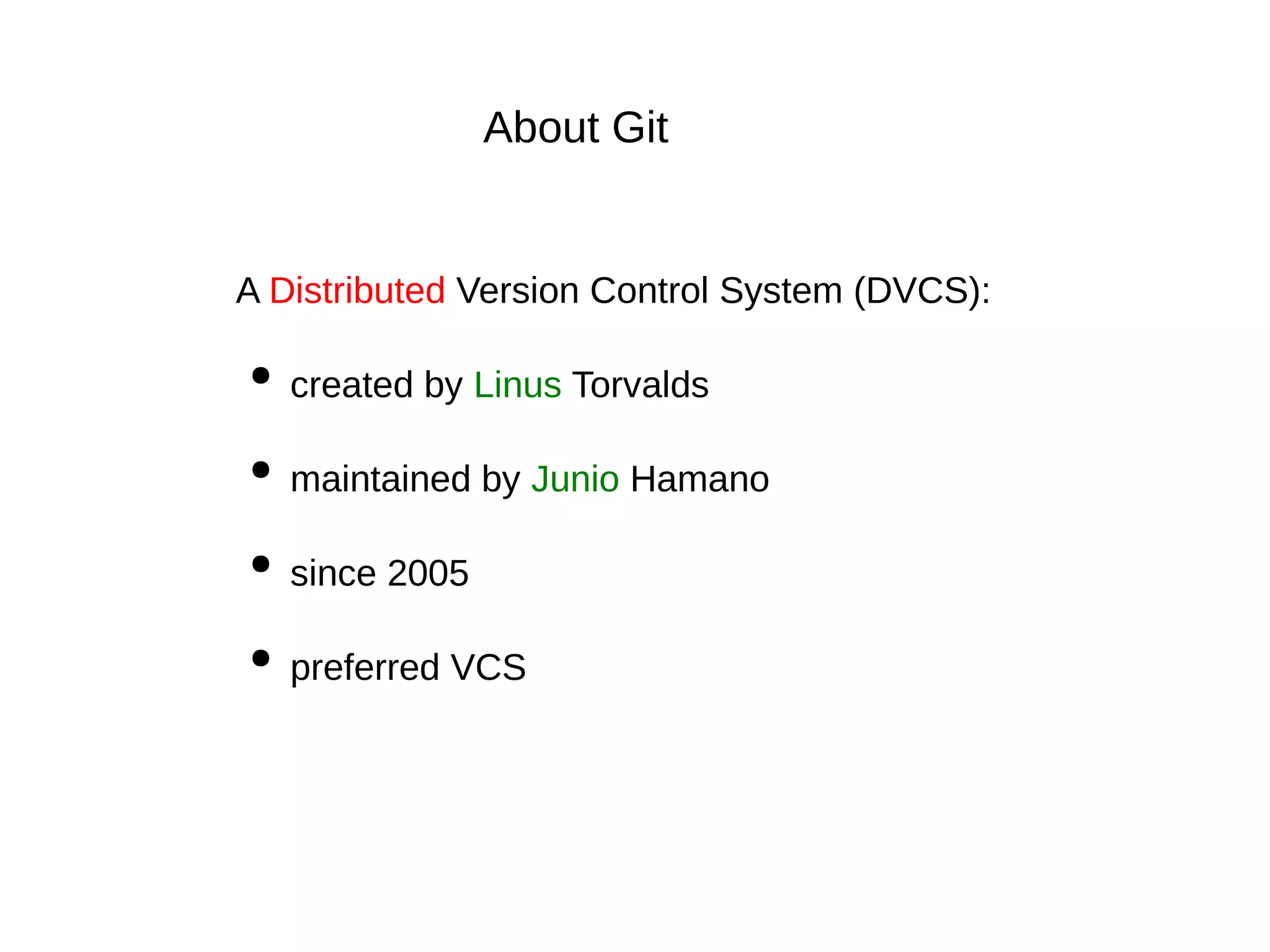

2. A Distributed Version Control System (DVCS):
● created by Linus Torvalds
● maintained by Junio Hamano
● since 2005
● preferred VCS
About Git

3. ● started developing Git in 2006
● worked especially on git bisect
● independent consultant
● started working on IPFS in 2014
About myself

4. ● “The Permanent Web”, see http://ipfs.io/
● Content addressed, versioned, peer to peer
filesystem
● Like: Web + Git + BitTorrent
● Alpha software written using the Go language
● Has a Command Line Interface
About IPFS (1)

5. ● In “http://example.com/foo/bar.png“,
“example.com” is translated into an IP address
like 10.20.30.40 which is a location; the Web is
location addressed
● In “/ipns/example.com/foo/bar.png”,
“example.com” is translated into a hash of some
content like QmW98pJrc6FZ6; IPFS is content
addressed
About IPFS (2)

6. ● Pre-alpha software
● No black box tests, only some unit tests
● Heavy development
● A lot of regressions
=> Really needed black box tests
IPFS in October 2014 (last year)

7. ● 10 years ago Junio Hamano created the Git test
framework
● Developed in shell (POSIX /bin/sh compatible)
● Extracted 4 years ago by Mathias Lafeldt into a
separate project called Sharness
● It's the reason why Git has always been very
stable
Sharness

8. #!/bin/sh
test_description=”Sharness example”
. sharness/sharness.sh
test_expect_success “Testing echo” '
echo Hello world >actual &&
grep Hello actual
'
test_done
Sharness example (1)

9. $ ./example.t
ok 1 - Testing echo
# passed all 1 test(s)
1..1
Sharness example (2)

10. Sharness feature: prerequisites
Some tests will be launched only if some condition is
satisfied, for example:
test "$TEST_EXPENSIVE" = 1 &&
test_set_prereq EXPENSIVE
and then:
test_expect_success EXPENSIVE,FUSE “Name” '
...expensive code using fuse...'

11. Sharness feature: result aggregation

12. Other Sharness features
● Easily extensible with your own test functions
● Many options: verbose output, stop immediately if a test
fails, ...
● Many builtin functions: test_expect_failure, test_pause,
test_must_fail,...
● Output in the “test anything” protocol, so compatibility with
other tools

13. ● Now IPFS has around 24 Sharness test scripts
● That means around 300 tests
● Run automatically on each commit of each pull
request
● On MacOS and Linux
● Using Travis CI and CircleCI
IPFS Sharness Tests now

14. ● Add both unit tests and black box tests
● Avoid breaking backward compatibility even for
pre-alpha software
Avoid Regressions (1)

15. ● Regressions still happen sometimes as tests
don't cover everything
=> git bisect
● Each commit must compile and pass tests
=> GIT_EDITOR=true git rebase -i --exec “make
test” master
Avoid Regressions (2)

16. Commits in Git form a DAG
(Directed Acyclic Graph)
●
history direction is from left to right
●
new commits point to their parents

17. First Bad Commit
B
●
B introduces a bad behavior called "bug" or "regression"
●
red commits are called "bad"
●
blue commits are called "good"

18. Idea:
● help find a first bad commit
● use a binary search algorithm for efficiency if
possible
Benefits:
● manually verifying the source code changes
from only one commit is relatively easy
● the commit gives extra information: commit
message, author, ...
Git bisect

19. 2 ways to do it:
$ git bisect start
$ git bisect bad [<BAD>]
$ git bisect good [<GOOD>...]
or
$ git bisect start <BAD> <GOOD> [<GOOD>...]
where <BAD> and <GOOD> can be resolved to
commits
Starting a bisection and bounding it

20. (toy example with the linux kernel)
$ git bisect start v2.6.27 v2.6.25
Bisecting: 10928 revisions left to test
after this (roughly 14 steps)
[2ec65f8b89ea003c27ff7723525a2ee335a2b393]
x86: clean up using max_low_pfn on 32-bit
$
=> the commit you should test has been
checked out
Starting example

21. 1.test the current commit
2.tell "git bisect" whether it is good or bad, for example:
$ git bisect bad
Bisecting: 5480 revisions left to test
after this (roughly 13 steps)
[66c0b394f08fd89236515c1c84485ea712a157be]
KVM: kill file->f_count abuse in kvm
repeat step 1. and 2. until the first bad
commit is found...
Driving a bisection manually

22. $ git bisect bad
2ddcca36c8bcfa251724fe342c8327451988be0d is the
first bad commit
commit 2ddcca36c8bcfa251724fe342c8327451988be0d
Author: Linus Torvalds <torvalds@linux-
foundation.org>
Date: Sat May 3 11:59:44 2008 -0700
Linux 2.6.26-rc1
:100644 100644
5cf8258195331a4dbdddff08b8d68642638eea57
4492984efc09ab72ff6219a7bc21fb6a957c4cd5 M
Makefile
First bad commit found

23. When the first bad commit is found:
● you can check it out and tinker with it, or
● you can use "git bisect reset", like that:
$ git bisect reset
Checking out files: 100% (21549/21549),
done.
Previous HEAD position was 2ddcca3... Linux
2.6.26-rc1
Switched to branch 'master'
to go back to the branch you were in before
you started bisecting
End of bisection

24. At each bisection step a script or command will be
launched to tell if the current commit is good or bad.
Syntax:
$ git bisect run COMMAND [ARG...]
Example to bisect a broken build:
$ git bisect run make
Driving a bisection automatically

25. $ git bisect start v2.6.27 v2.6.25
Bisecting: 10928 revisions left to test after
this (roughly 14 steps)
[2ec65f8b89ea003c27ff7723525a2ee335a2b393] x86:
clean up using max_low_pfn on 32-bit
$
$ git bisect run grep '^SUBLEVEL = 25' Makefile
running grep ^SUBLEVEL = 25 Makefile
Bisecting: 5480 revisions left to test after
this (roughly 13 steps)
[66c0b394f08fd89236515c1c84485ea712a157be] KVM:
kill file->f_count abuse in kvm
running grep ^SUBLEVEL = 25 Makefile
Automatic bisect example (1)

26. SUBLEVEL = 25
Bisecting: 2740 revisions left to test after
this (roughly 12 steps)
[671294719628f1671faefd4882764886f8ad08cb]
V4L/DVB(7879): Adding cx18 Support for mxl5005s
...
...
running grep ^SUBLEVEL = 25 Makefile
Bisecting: 0 revisions left to test after this
(roughly 0 steps)
[2ddcca36c8bcfa251724fe342c8327451988be0d] Linux
2.6.26-rc1
running grep ^SUBLEVEL = 25 Makefile
Automatic bisect example (2)

27. 2ddcca36c8bcfa251724fe342c8327451988be0d is the
first bad commit
commit 2ddcca36c8bcfa251724fe342c8327451988be0d
Author: Linus Torvalds <torvalds@linux-
foundation.org>
Date: Sat May 3 11:59:44 2008 -0700
Linux 2.6.26-rc1
:100644 100644
5cf8258195331a4dbdddff08b8d68642638eea57
4492984efc09ab72ff6219a7bc21fb6a957c4cd5 M
Makefile
bisect run success
Automatic bisect example (3)

28. 0 => good
1-124 and 126-127 => bad
125 => skip
128-255 => stop
"skip": mark commit as "untestable",
"git bisect" will choose another commit to be
tested
"stop": bisection is stopped immediately,
useful to abort bisection in abnormal situations
Run script and exit code

29. Problem when bisecting
Sometimes the commit that introduced a bug will be in an
untestable area of the graph.
For example:
X X1 X2 X3W Y Z
Commit X introduced a breakage, later fixed by commit Y.

30. There are only 'skip'ped commits left to test.
The first bad commit could be any of:
15722f2fa328eaba97022898a305ffc8172db6b1
78e86cf3e850bd755bb71831f42e200626fbd1e0
e15b73ad3db9b48d7d1ade32f8cd23a751fe0ace
070eab2303024706f2924822bfec8b9847e4ac1b
We cannot bisect more!
Possible end of bisection

31. Possible solutions
Possible solutions to bisect anyway:
●
apply a patch before testing and remove it afterwards (can
be done using "git cherry-pick"), or
●
create a fixed up branch (can be done with "git rebase -i"),
for example:
X X1 X2 X3W Y Z
X + Y X1' X2' X3' Z'
Z1

32. A good solution
X X1 X2 X3W Y Z
X + Y X1' X2' X3' Z' Z1
The idea is that we will replace Z with Z' so that we bisect from the
beginning using the fixed up branch.
$ git replace Z Z'

33. ● ./example.t
● vi t0040-add-and-cat.sh
● TEST_EXPENSIVE=1 ./t0040-add-and-cat.sh -v
● cd test/sharness && make
● git rebase -i --exec “make test” master
● git bisect run ./test_script.sh
Demos

34. ● https://github.com/mlafeldt/sharness
● https://github.com/chriscool/sharnessify
● http://git-scm.com
● http://ipfs.io
Links

35. Conclusion
● Black box tests with Sharness are quite easy and very useful
● Check every commit, not just every pull request
● Use git bisect, automate it if possible

36. Many thanks to:
● Junio Hamano, Linus Torvalds,
● Juan Benet, Jeromy Johnson, Mathias Lafeldt
● many other great people in the IPFS, Git and Linux communities
● LinuxCon organizers and attendants,
● SoftAtHome, the company I am working for.

37. Questions?
