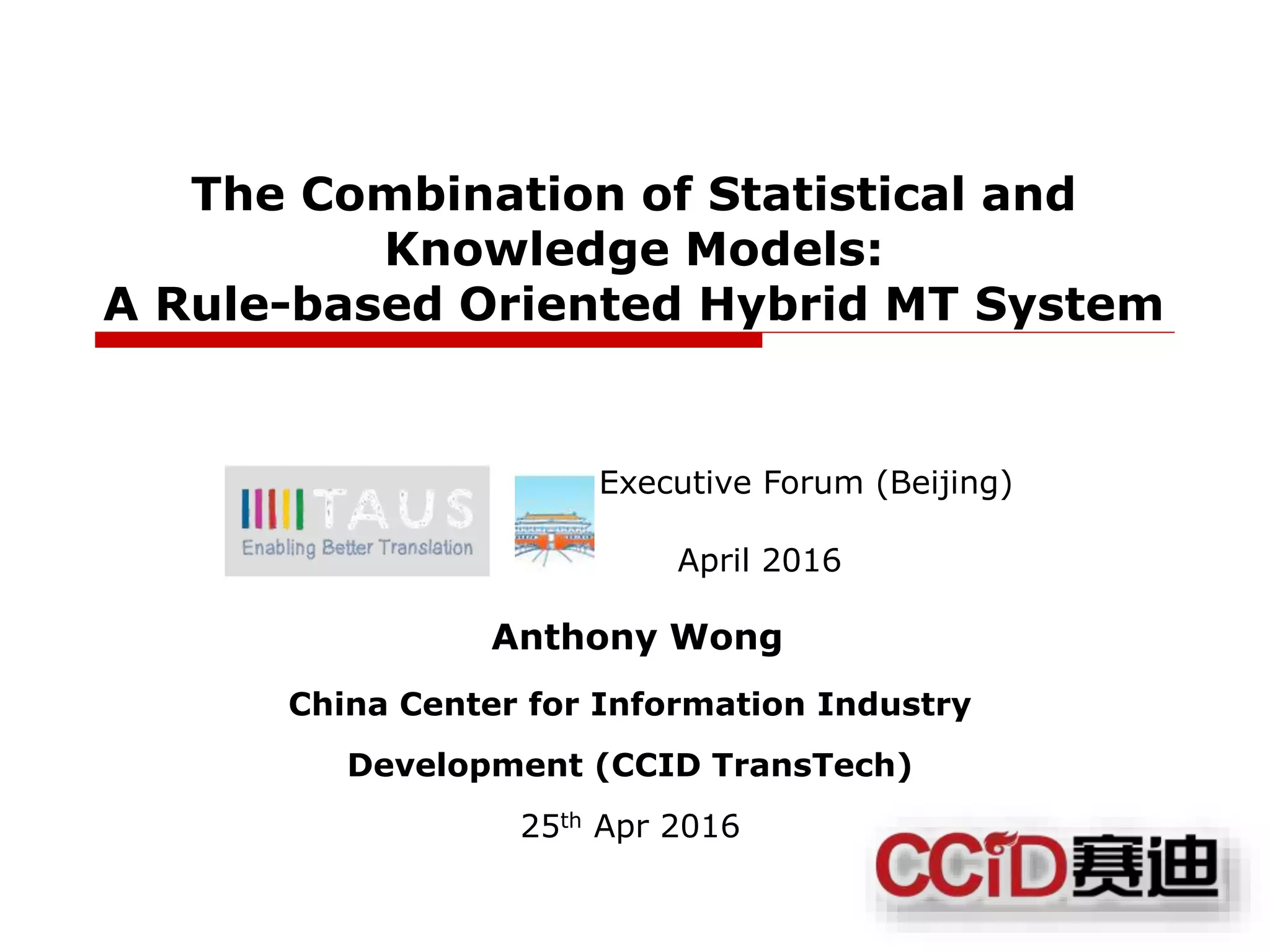

New Development in MT Technology and Services, by Anthony Wong, CCID TransTech

1
The Combination of Statistical and
Knowledge Models:
A Rule-based Oriented Hybrid MT System
Executive Forum (Beijing)
April 2016
Anthony Wong
China Center for Information Industry
Development (CCID TransTech)
25th Apr 2016

2

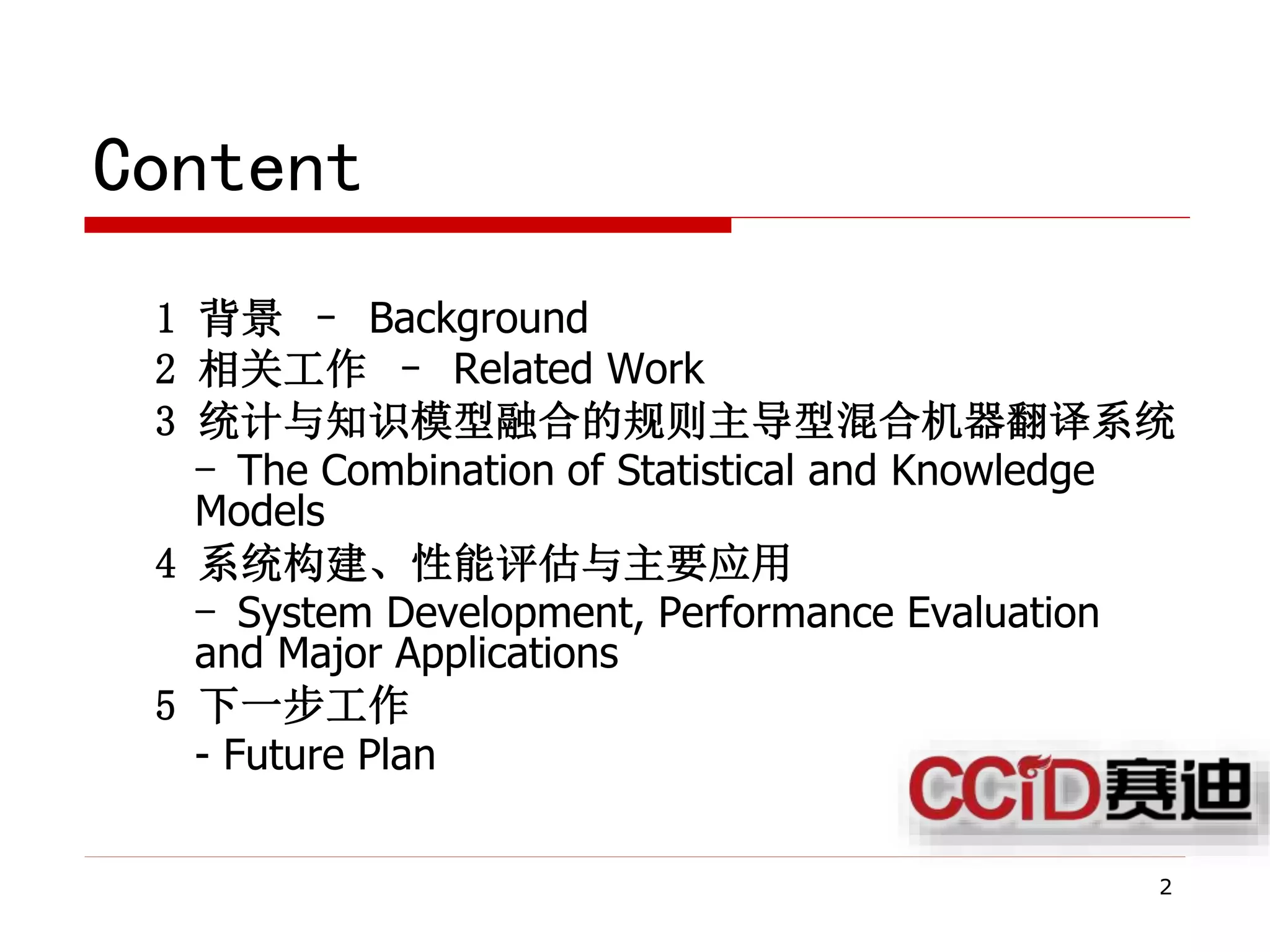

Content
1 背景 – Background
2 相关工作 – Related Work
3 统计与知识模型融合的规则主导型混合机器翻译系统
- The Combination of Statistical and Knowledge
Models
4 系统构建、性能评估与主要应用
- System Development, Performance Evaluation
and Major Applications
5 下一步工作
- Future Plan

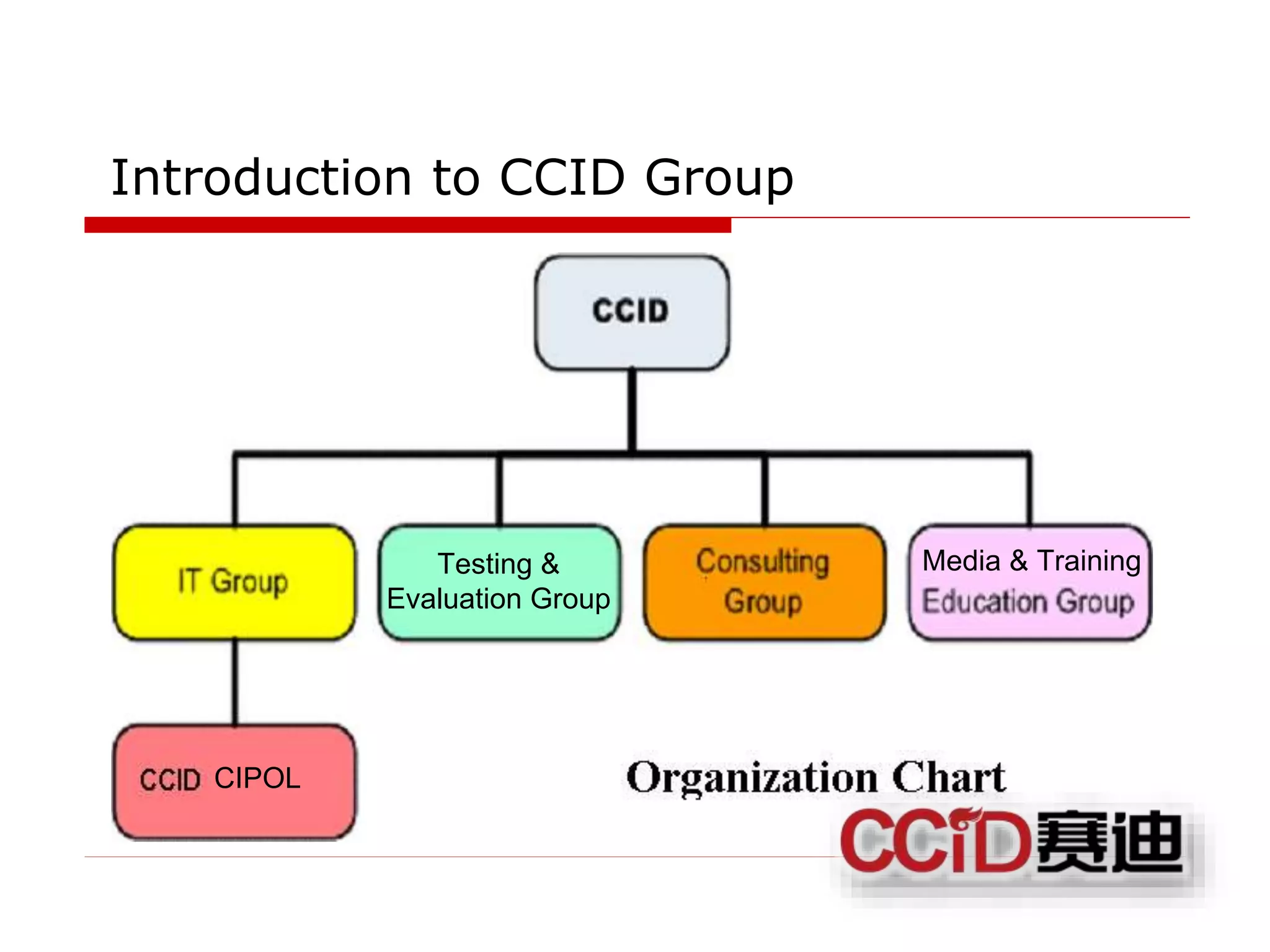

Introduction to CCID Group
Testing &
Evaluation Group
Media & Training
CIPOL

4

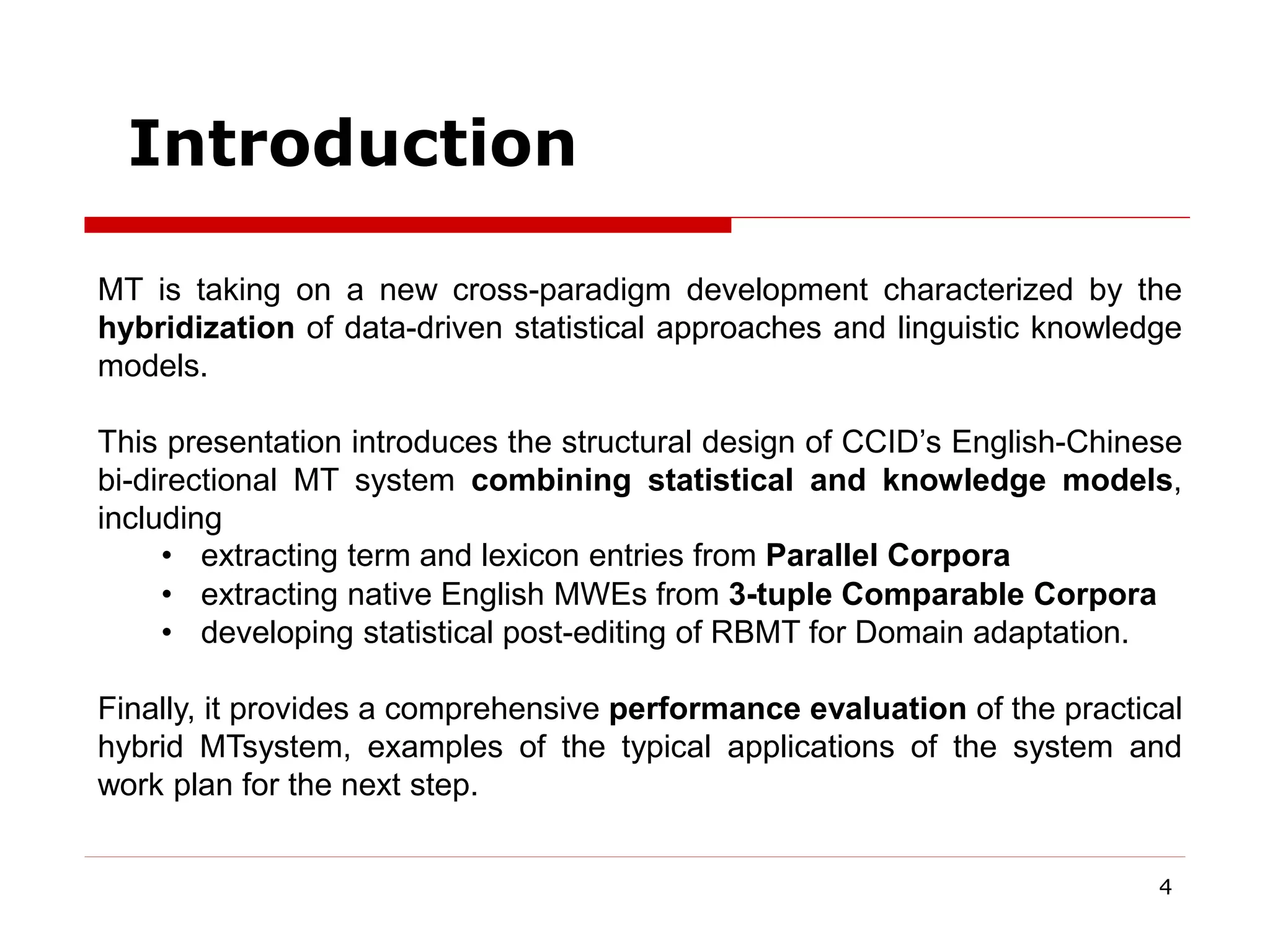

MT is taking on a new cross-paradigm development characterized by the
hybridization of data-driven statistical approaches and linguistic knowledge
models.
This presentation introduces the structural design of CCID’s English-Chinese
bi-directional MT system combining statistical and knowledge models,
including
• extracting term and lexicon entries from Parallel Corpora
• extracting native English MWEs from 3-tuple Comparable Corpora
• developing statistical post-editing of RBMT for Domain adaptation.
Finally, it provides a comprehensive performance evaluation of the practical
hybrid MTsystem, examples of the typical applications of the system and
work plan for the next step.
Introduction

5

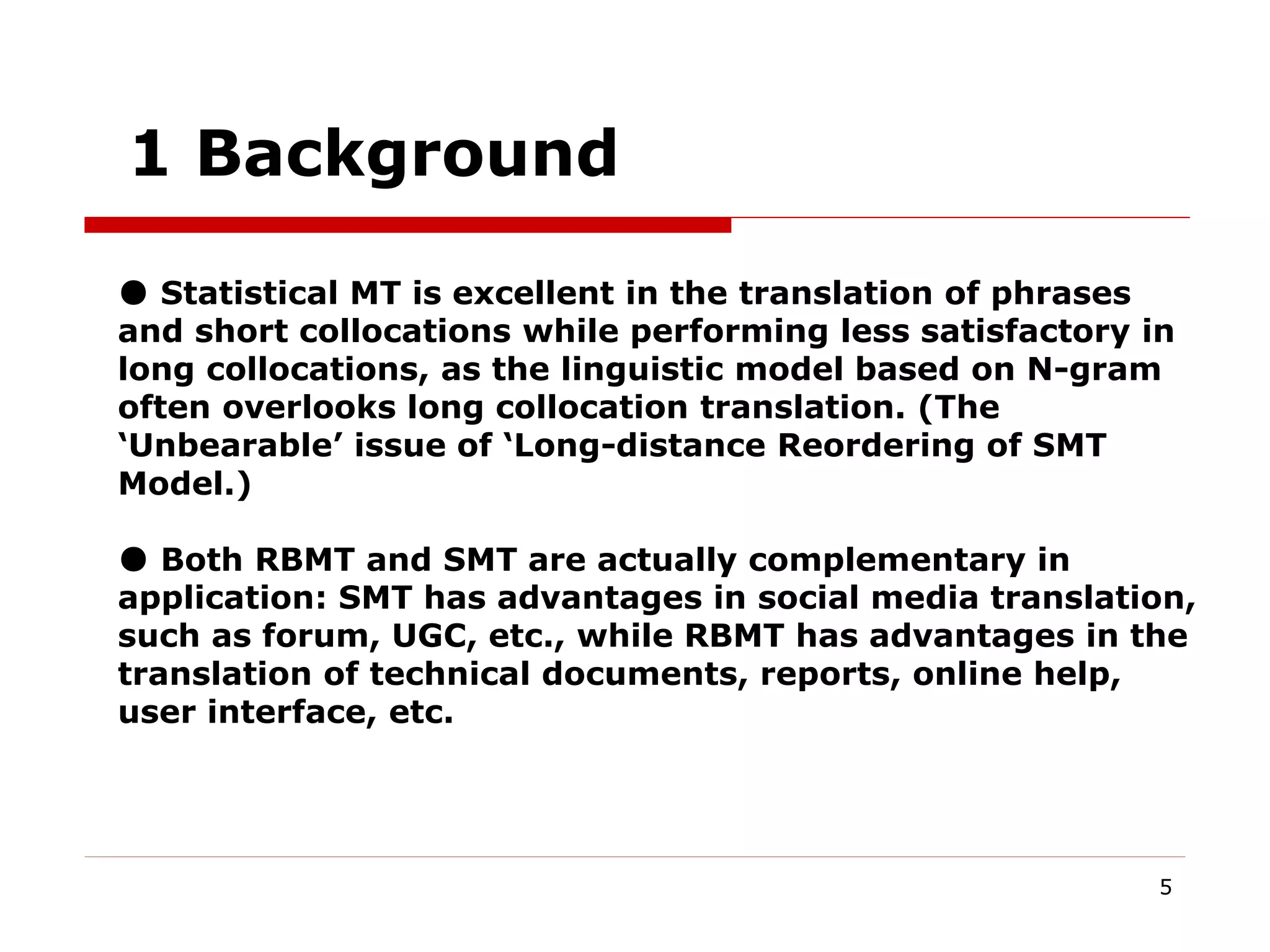

1 Background
● Statistical MT is excellent in the translation of phrases
and short collocations while performing less satisfactory in
long collocations, as the linguistic model based on N-gram
often overlooks long collocation translation. (The
‘Unbearable’ issue of ‘Long-distance Reordering of SMT
Model.)
● Both RBMT and SMT are actually complementary in
application: SMT has advantages in social media translation,
such as forum, UGC, etc., while RBMT has advantages in the
translation of technical documents, reports, online help,
user interface, etc.

6

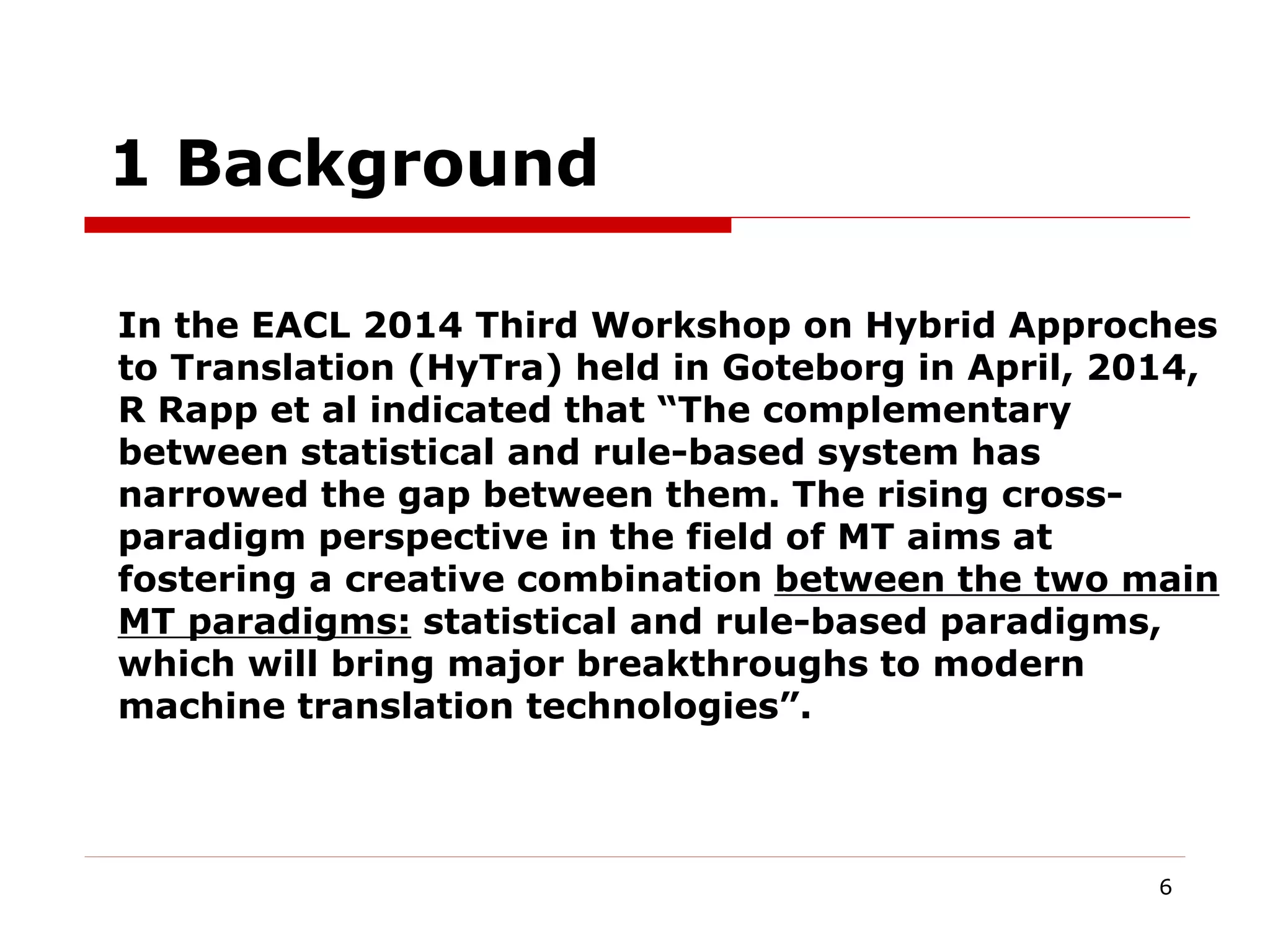

1 Background
In the EACL 2014 Third Workshop on Hybrid Approches
to Translation (HyTra) held in Goteborg in April, 2014,
R Rapp et al indicated that “The complementary
between statistical and rule-based system has
narrowed the gap between them. The rising cross-
paradigm perspective in the field of MT aims at
fostering a creative combination between the two main
MT paradigms: statistical and rule-based paradigms,
which will bring major breakthroughs to modern
machine translation technologies”.

7

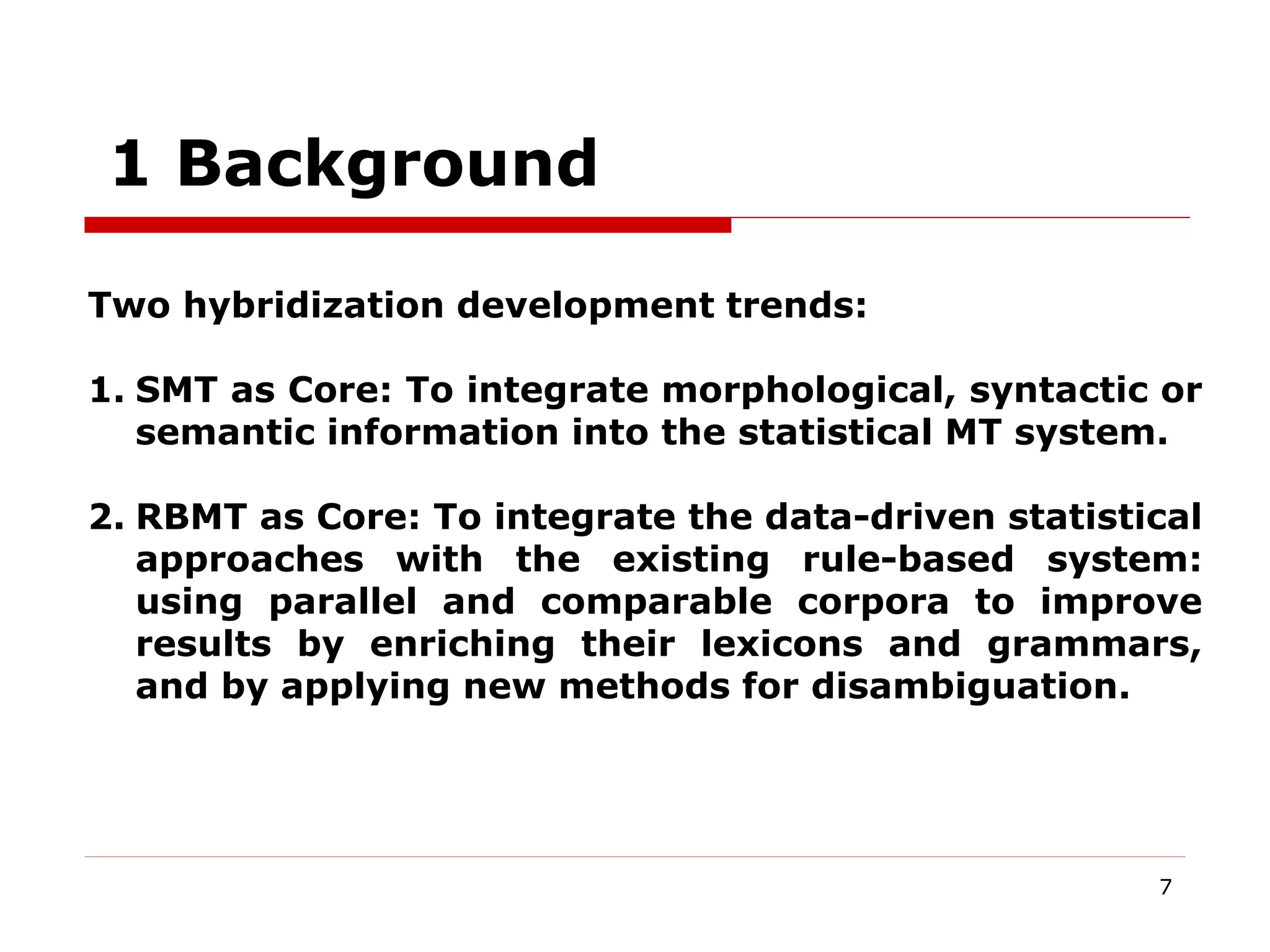

1 Background
Two hybridization development trends:
1. SMT as Core: To integrate morphological, syntactic or
semantic information into the statistical MT system.
2. RBMT as Core: To integrate the data-driven statistical
approaches with the existing rule-based system:
using parallel and comparable corpora to improve
results by enriching their lexicons and grammars,
and by applying new methods for disambiguation.

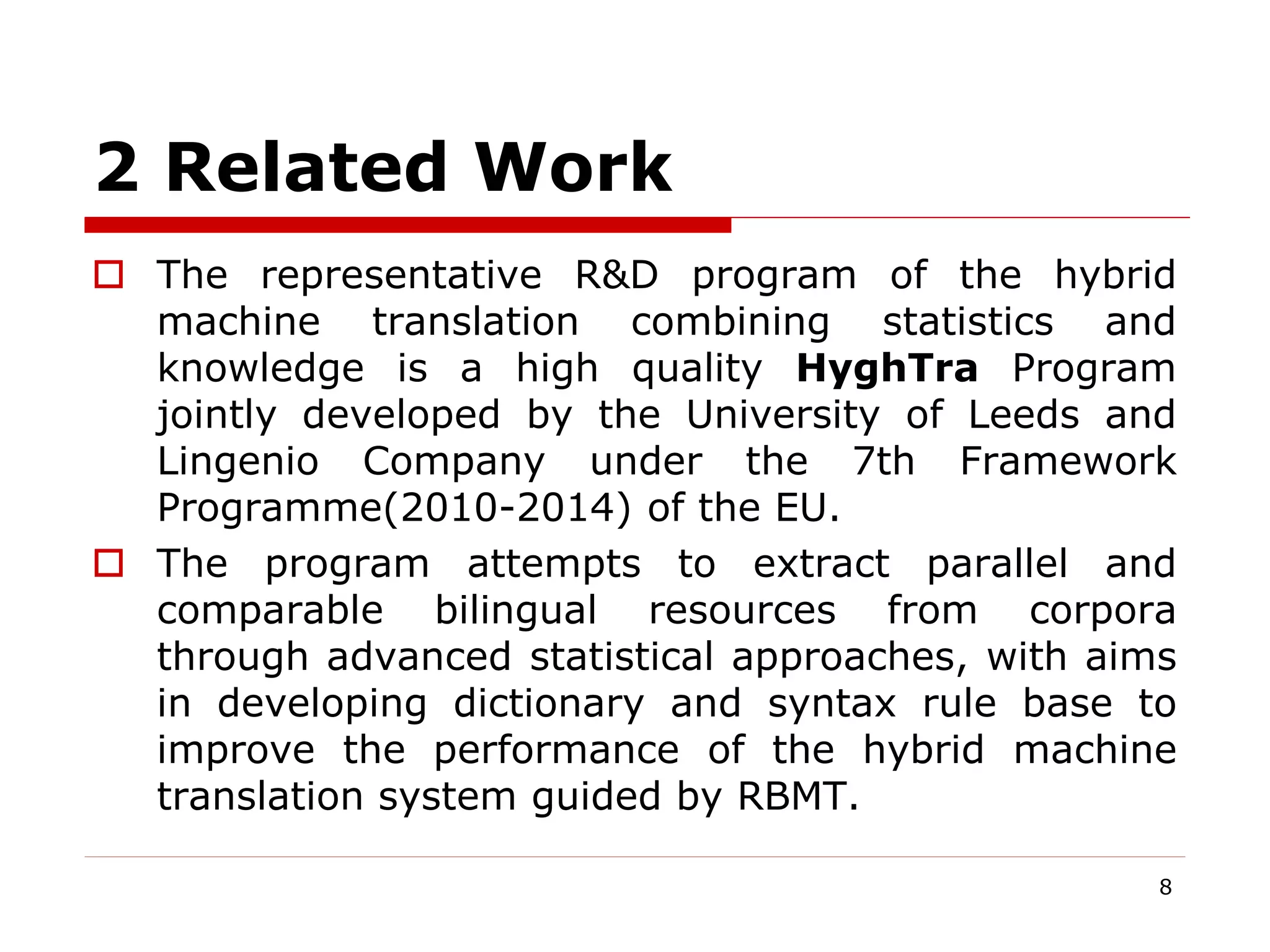

2 Related Work
 The representative R&D program of the hybrid
machine translation combining statistics and
knowledge is a high quality HyghTra Program
jointly developed by the University of Leeds and
Lingenio Company under the 7th Framework
Programme(2010-2014) of the EU.
 The program attempts to extract parallel and
comparable bilingual resources from corpora
through advanced statistical approaches, with aims
in developing dictionary and syntax rule base to
improve the performance of the hybrid machine
translation system guided by RBMT.
8

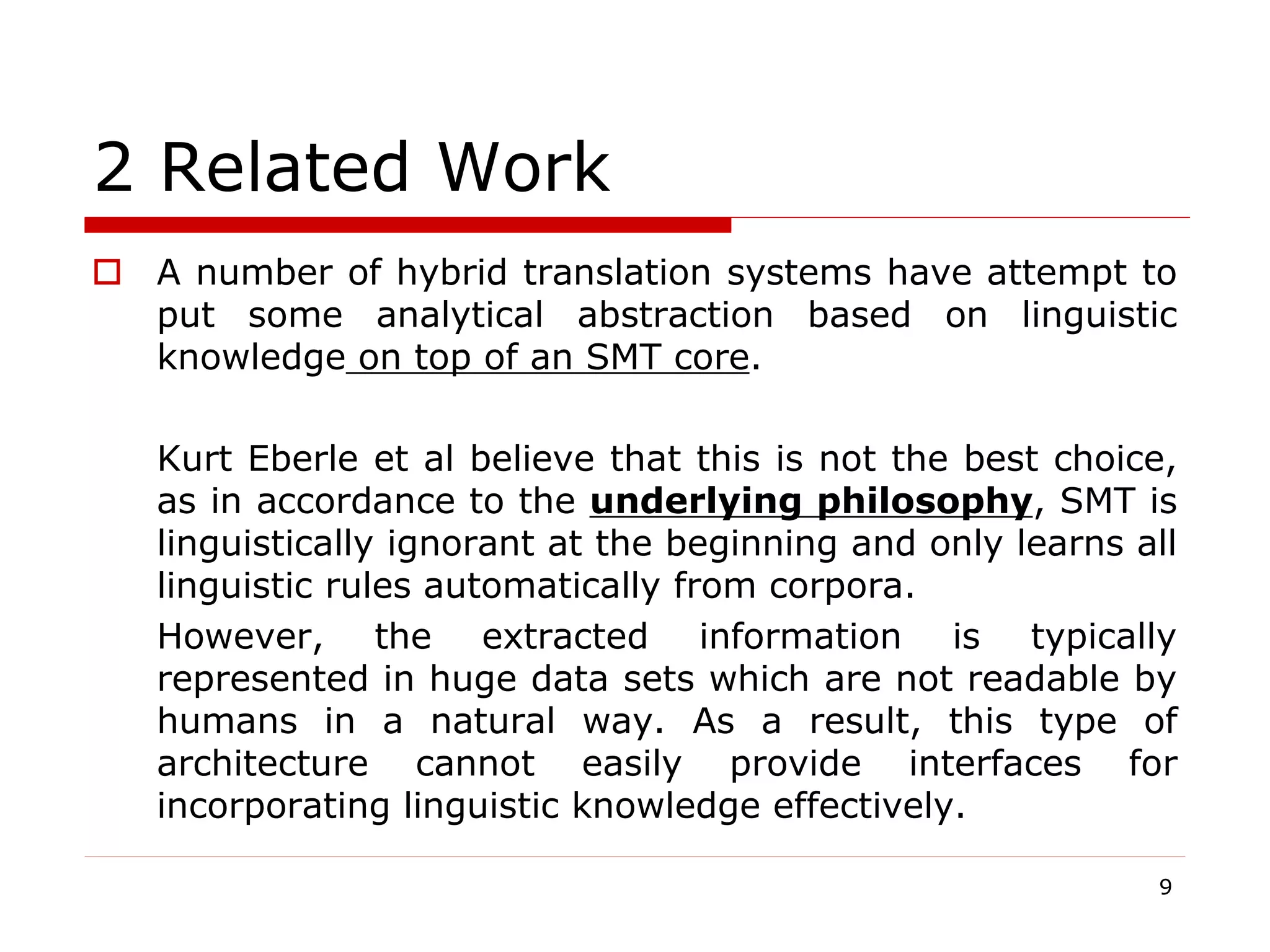

2 Related Work
 A number of hybrid translation systems have attempt to
put some analytical abstraction based on linguistic
knowledge on top of an SMT core.
Kurt Eberle et al believe that this is not the best choice,
as in accordance to the underlying philosophy, SMT is
linguistically ignorant at the beginning and only learns all
linguistic rules automatically from corpora.
However, the extracted information is typically
represented in huge data sets which are not readable by
humans in a natural way. As a result, this type of
architecture cannot easily provide interfaces for
incorporating linguistic knowledge effectively.
9

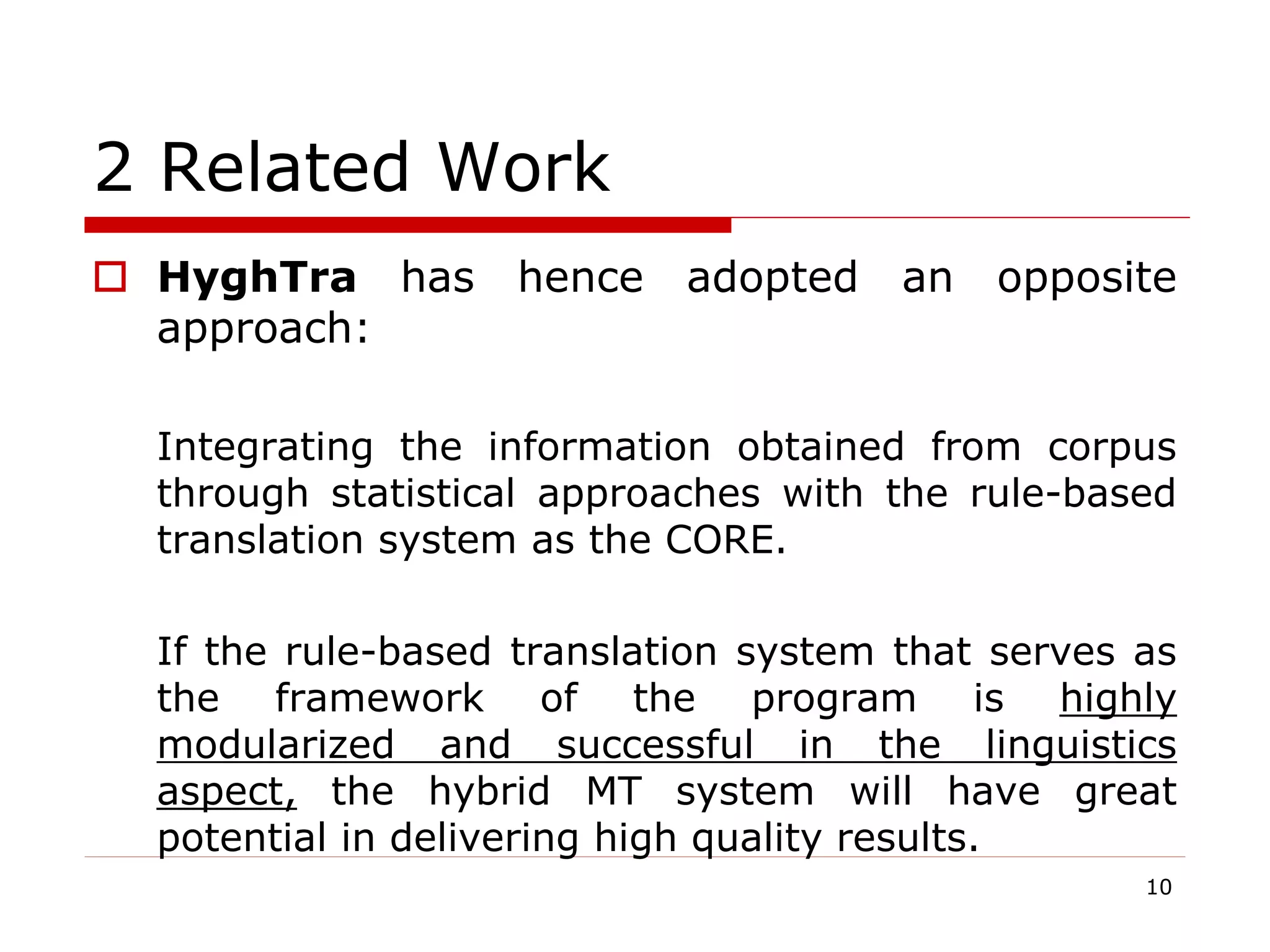

2 Related Work
 HyghTra has hence adopted an opposite
approach:
Integrating the information obtained from corpus
through statistical approaches with the rule-based
translation system as the CORE.
If the rule-based translation system that serves as
the framework of the program is highly
modularized and successful in the linguistics
aspect, the hybrid MT system will have great
potential in delivering high quality results.
10

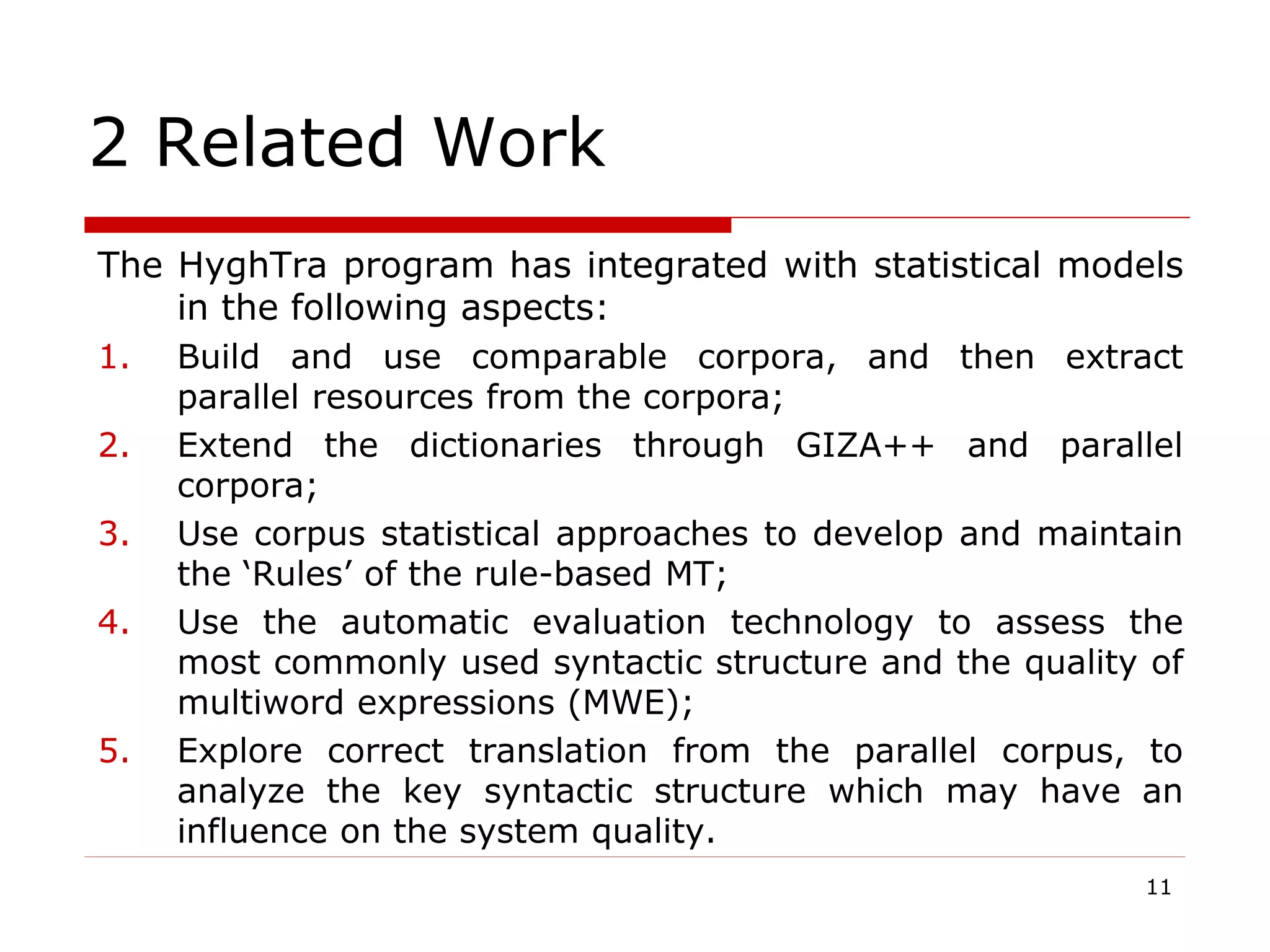

2 Related Work
The HyghTra program has integrated with statistical models
in the following aspects:
1. Build and use comparable corpora, and then extract
parallel resources from the corpora;
2. Extend the dictionaries through GIZA++ and parallel
corpora;
3. Use corpus statistical approaches to develop and maintain
the ‘Rules’ of the rule-based MT;
4. Use the automatic evaluation technology to assess the
most commonly used syntactic structure and the quality of
multiword expressions (MWE);
5. Explore correct translation from the parallel corpus, to
analyze the key syntactic structure which may have an
influence on the system quality.
11

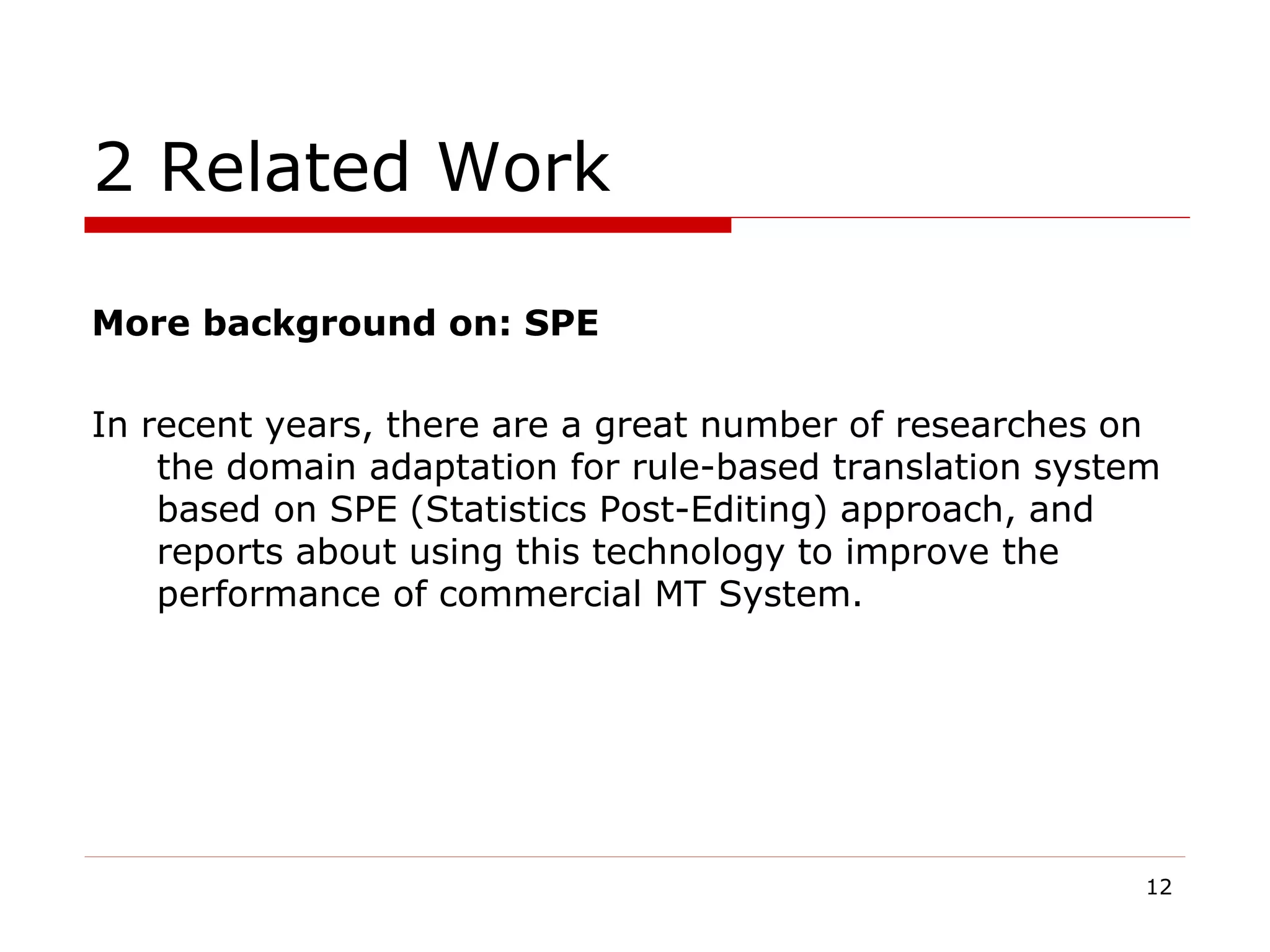

2 Related Work
More background on: SPE
In recent years, there are a great number of researches on
the domain adaptation for rule-based translation system
based on SPE (Statistics Post-Editing) approach, and
reports about using this technology to improve the
performance of commercial MT System.
12

2 Related Work

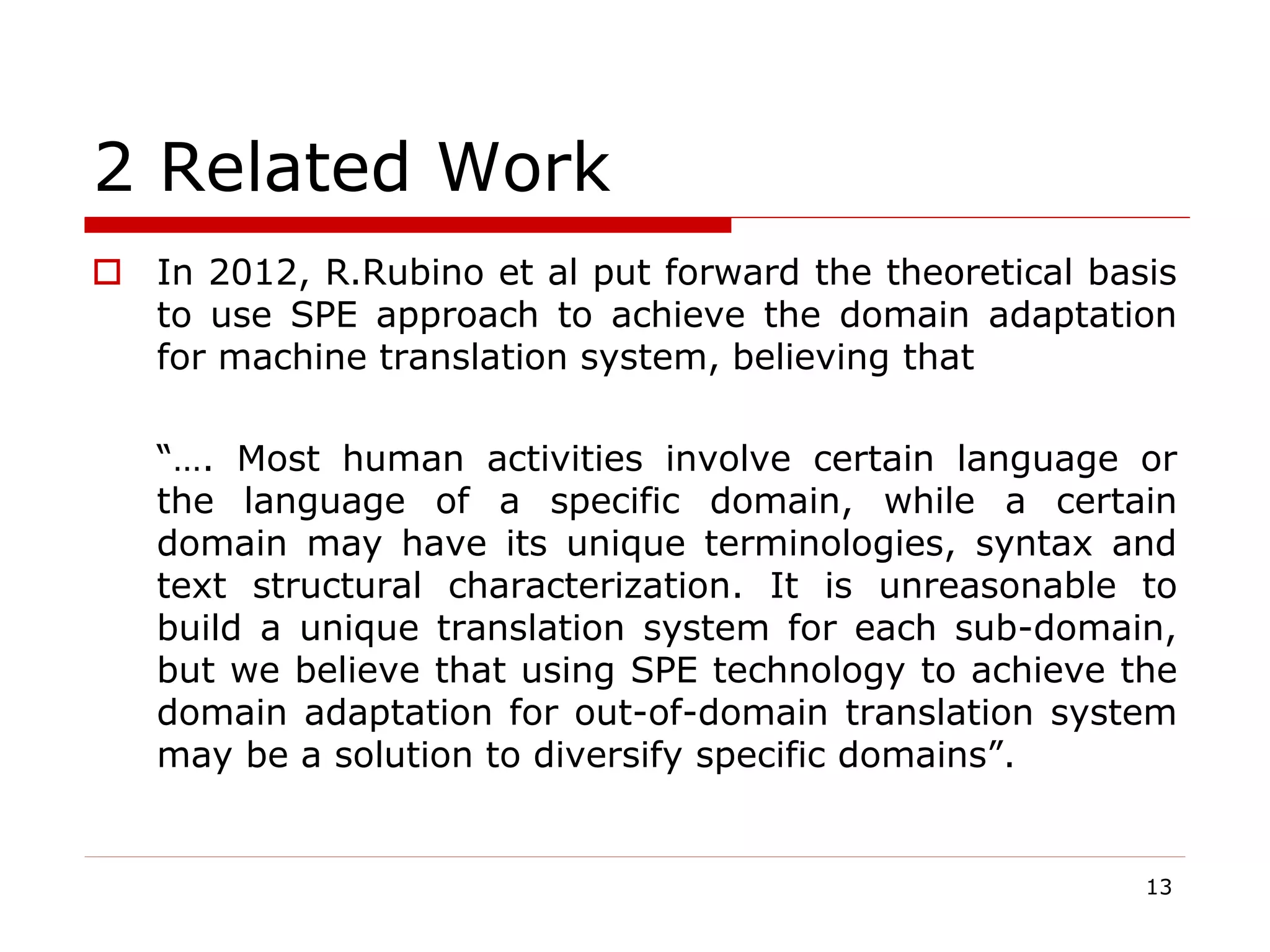

 In 2012, R.Rubino et al put forward the theoretical basis
to use SPE approach to achieve the domain adaptation
for machine translation system, believing that
“…. Most human activities involve certain language or
the language of a specific domain, while a certain
domain may have its unique terminologies, syntax and
text structural characterization. It is unreasonable to
build a unique translation system for each sub-domain,
but we believe that using SPE technology to achieve the
domain adaptation for out-of-domain translation system
may be a solution to diversify specific domains”.
13

2 Related Work

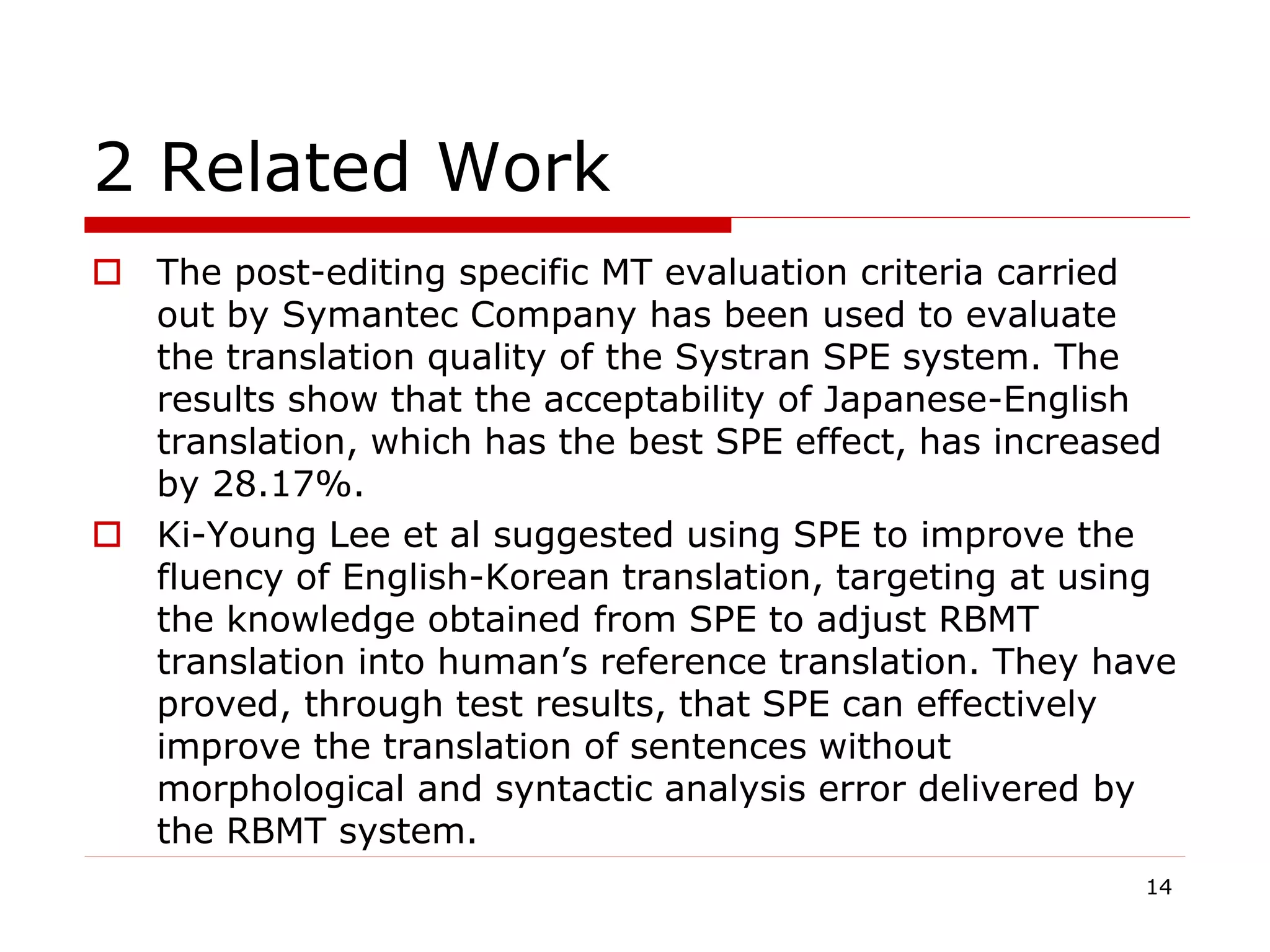

 The post-editing specific MT evaluation criteria carried
out by Symantec Company has been used to evaluate
the translation quality of the Systran SPE system. The
results show that the acceptability of Japanese-English
translation, which has the best SPE effect, has increased
by 28.17%.
 Ki-Young Lee et al suggested using SPE to improve the
fluency of English-Korean translation, targeting at using
the knowledge obtained from SPE to adjust RBMT
translation into human’s reference translation. They have
proved, through test results, that SPE can effectively
improve the translation of sentences without
morphological and syntactic analysis error delivered by
the RBMT system.
14

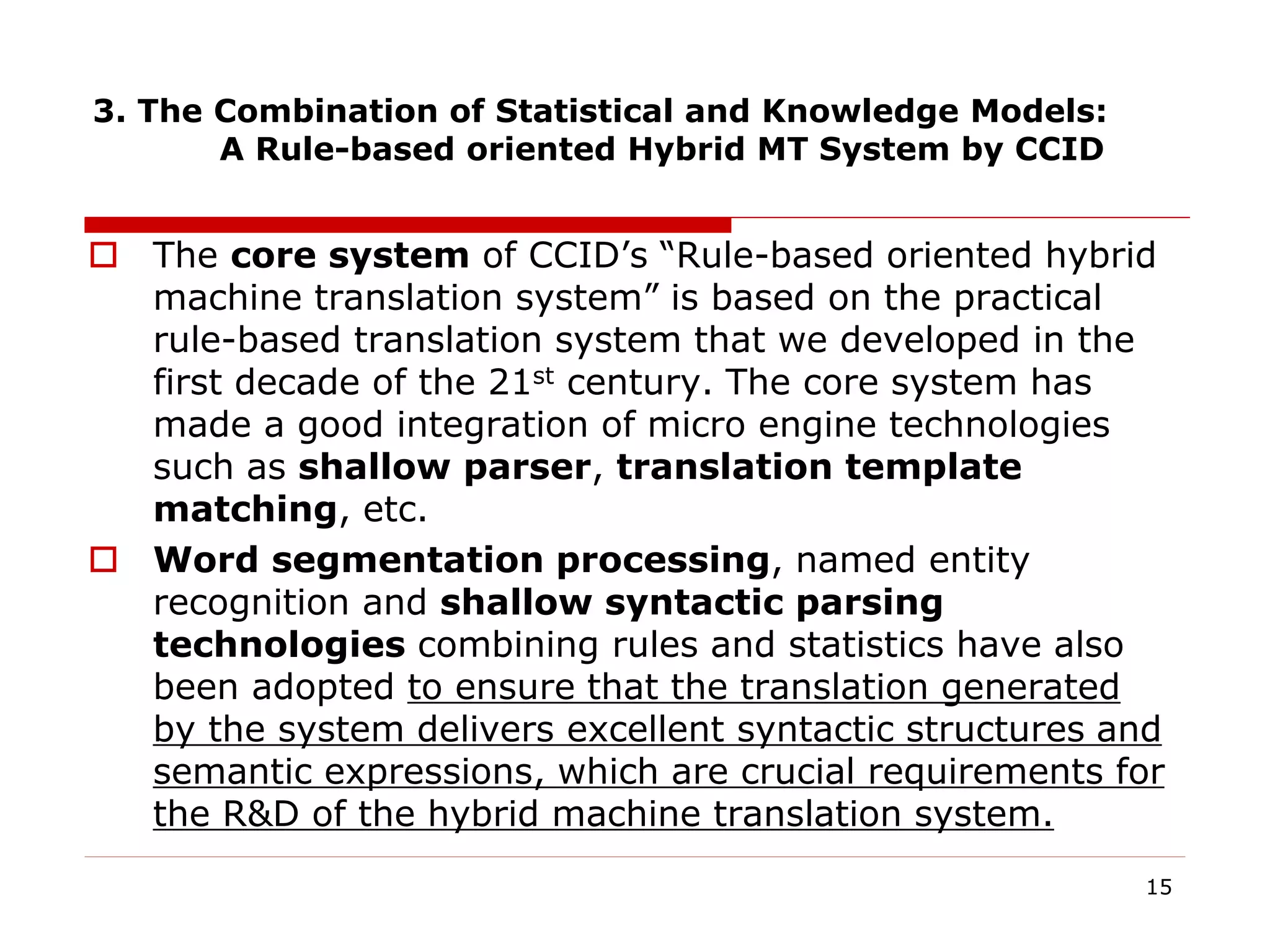

3. The Combination of Statistical and Knowledge Models:
A Rule-based oriented Hybrid MT System by CCID
 The core system of CCID’s “Rule-based oriented hybrid
machine translation system” is based on the practical
rule-based translation system that we developed in the
first decade of the 21st century. The core system has
made a good integration of micro engine technologies
such as shallow parser, translation template
matching, etc.
 Word segmentation processing, named entity
recognition and shallow syntactic parsing
technologies combining rules and statistics have also
been adopted to ensure that the translation generated
by the system delivers excellent syntactic structures and
semantic expressions, which are crucial requirements for
the R&D of the hybrid machine translation system.
15

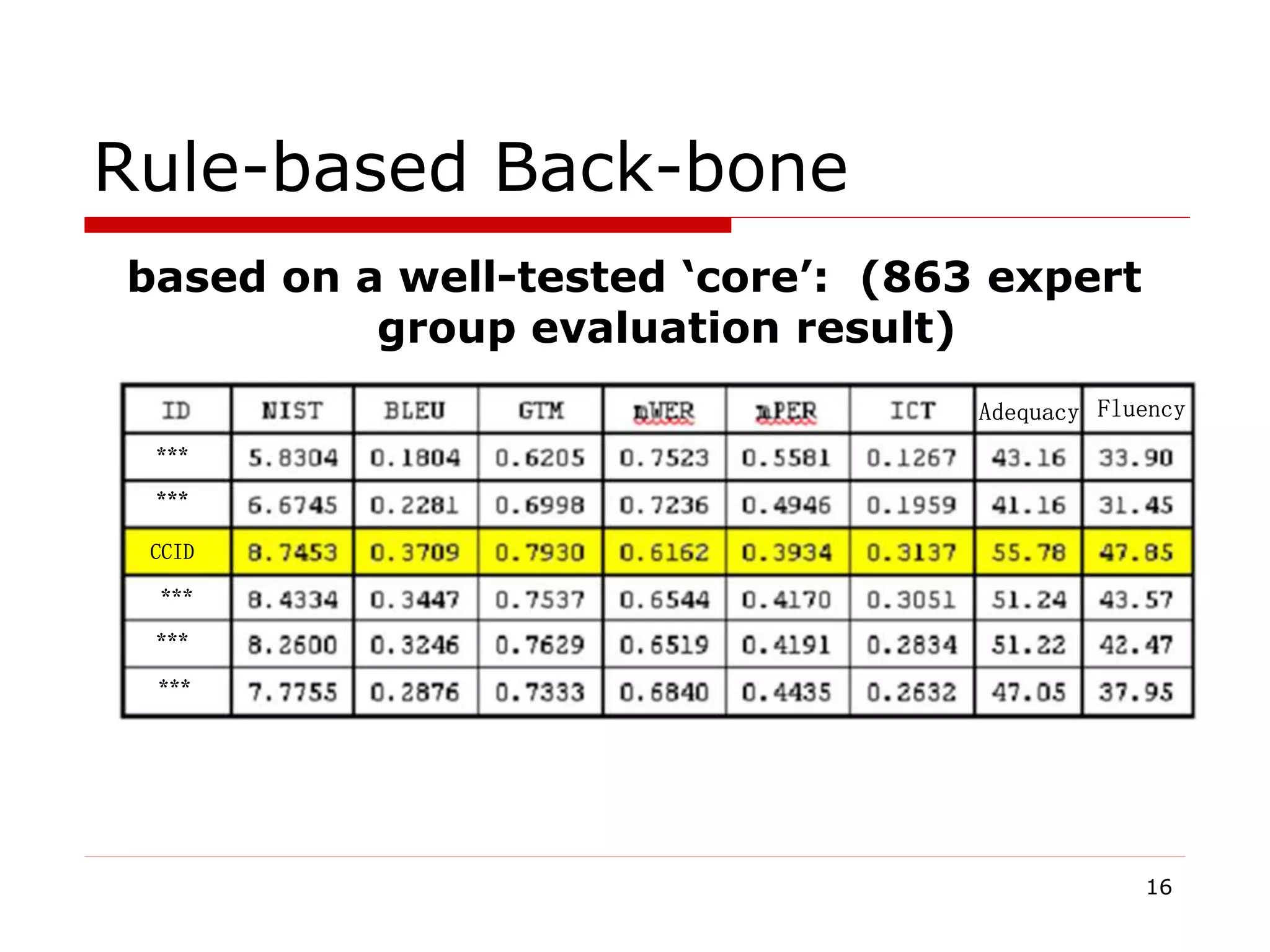

Rule-based Back-bone
based on a well-tested ‘core’: (863 expert
group evaluation result)
16
Adequacy Fluency
CCID
***
***
***
***
***

A Rule-based oriented Hybrid MT System

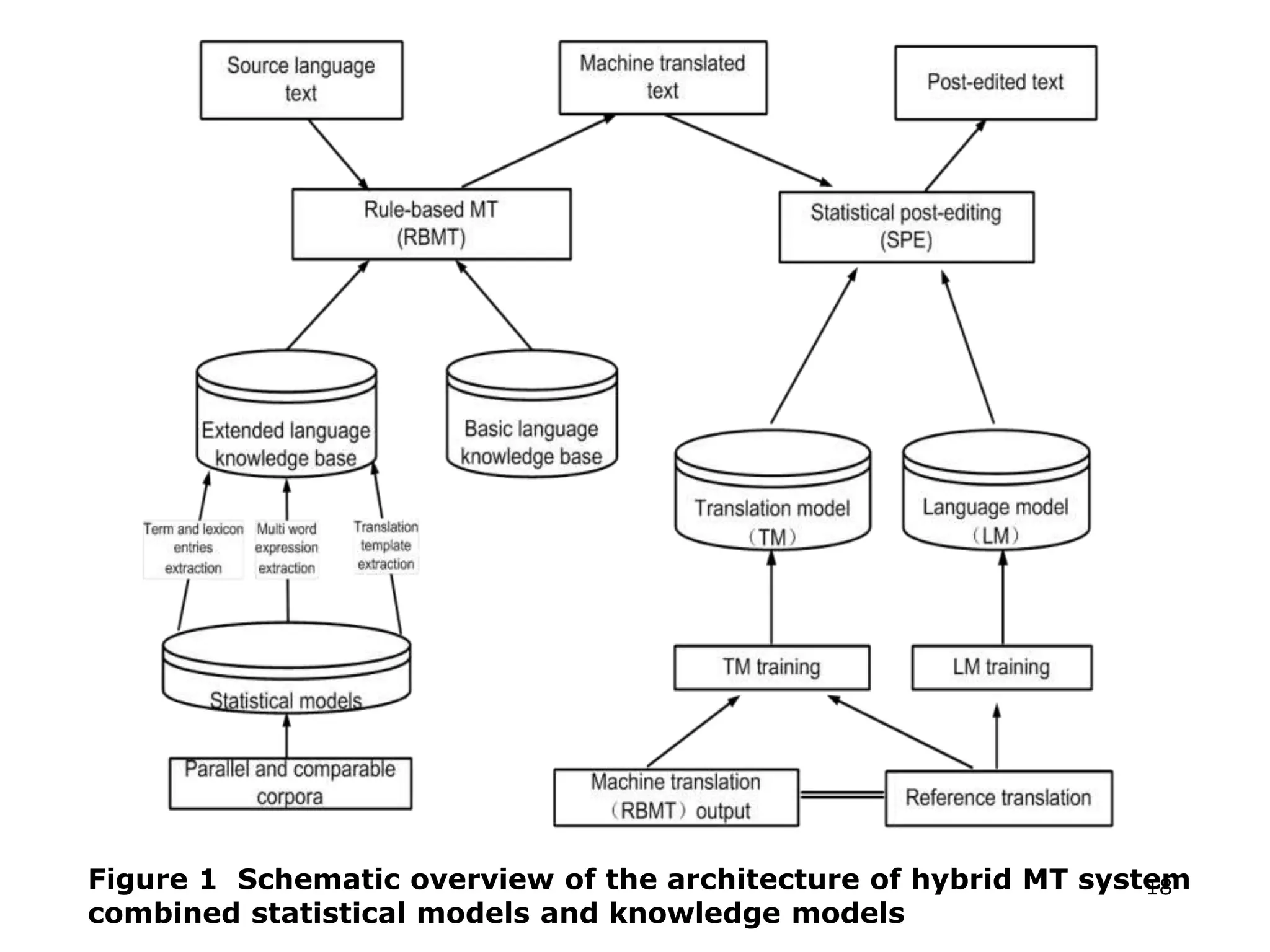

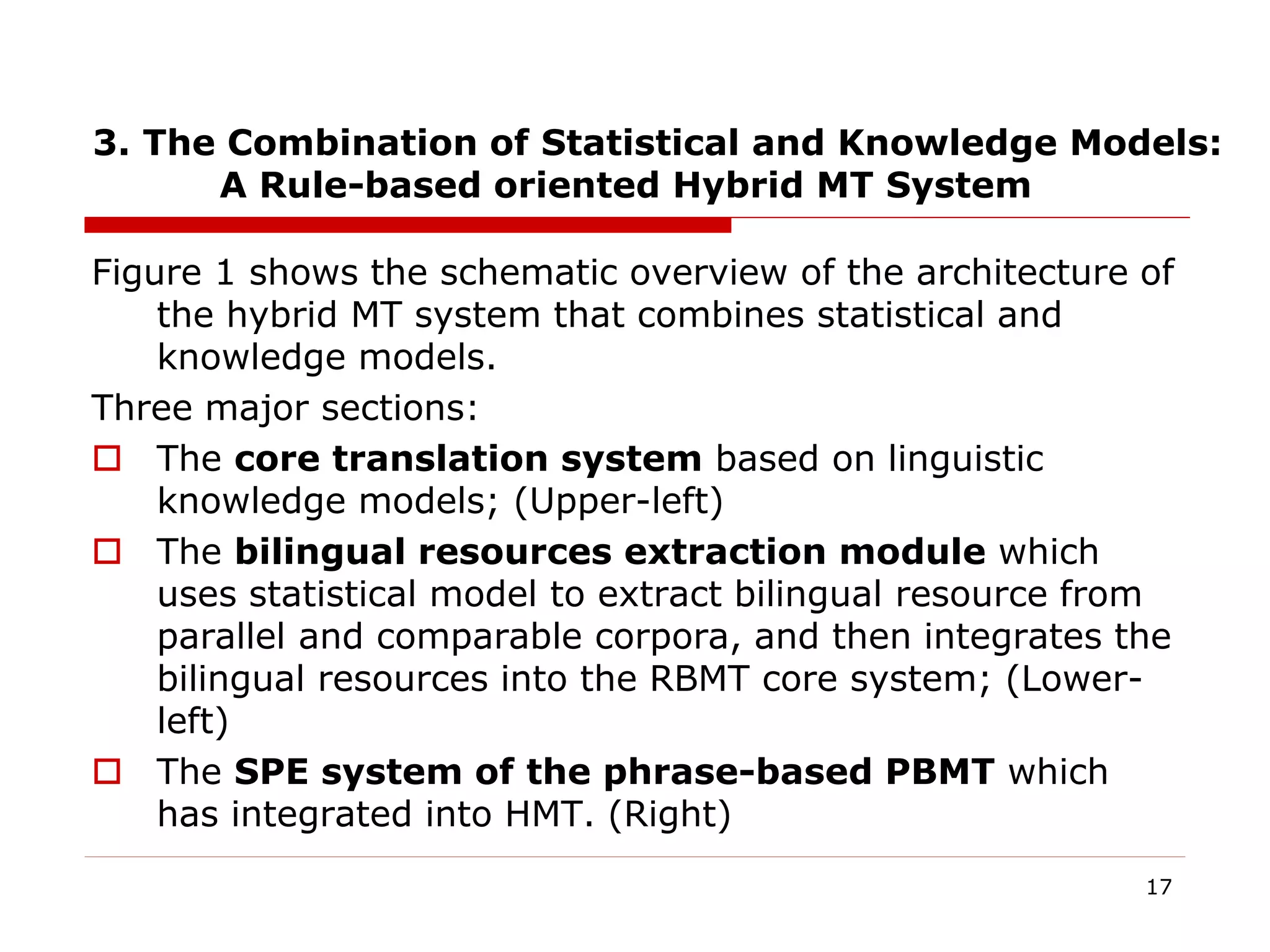

Figure 1 shows the schematic overview of the architecture of
the hybrid MT system that combines statistical and
knowledge models.
Three major sections:
 The core translation system based on linguistic
knowledge models; (Upper-left)
 The bilingual resources extraction module which
uses statistical model to extract bilingual resource from
parallel and comparable corpora, and then integrates the
bilingual resources into the RBMT core system; (Lower-
left)
 The SPE system of the phrase-based PBMT which
has integrated into HMT. (Right)
17

18Figure 1 Schematic overview of the architecture of hybrid MT system
combined statistical models and knowledge models

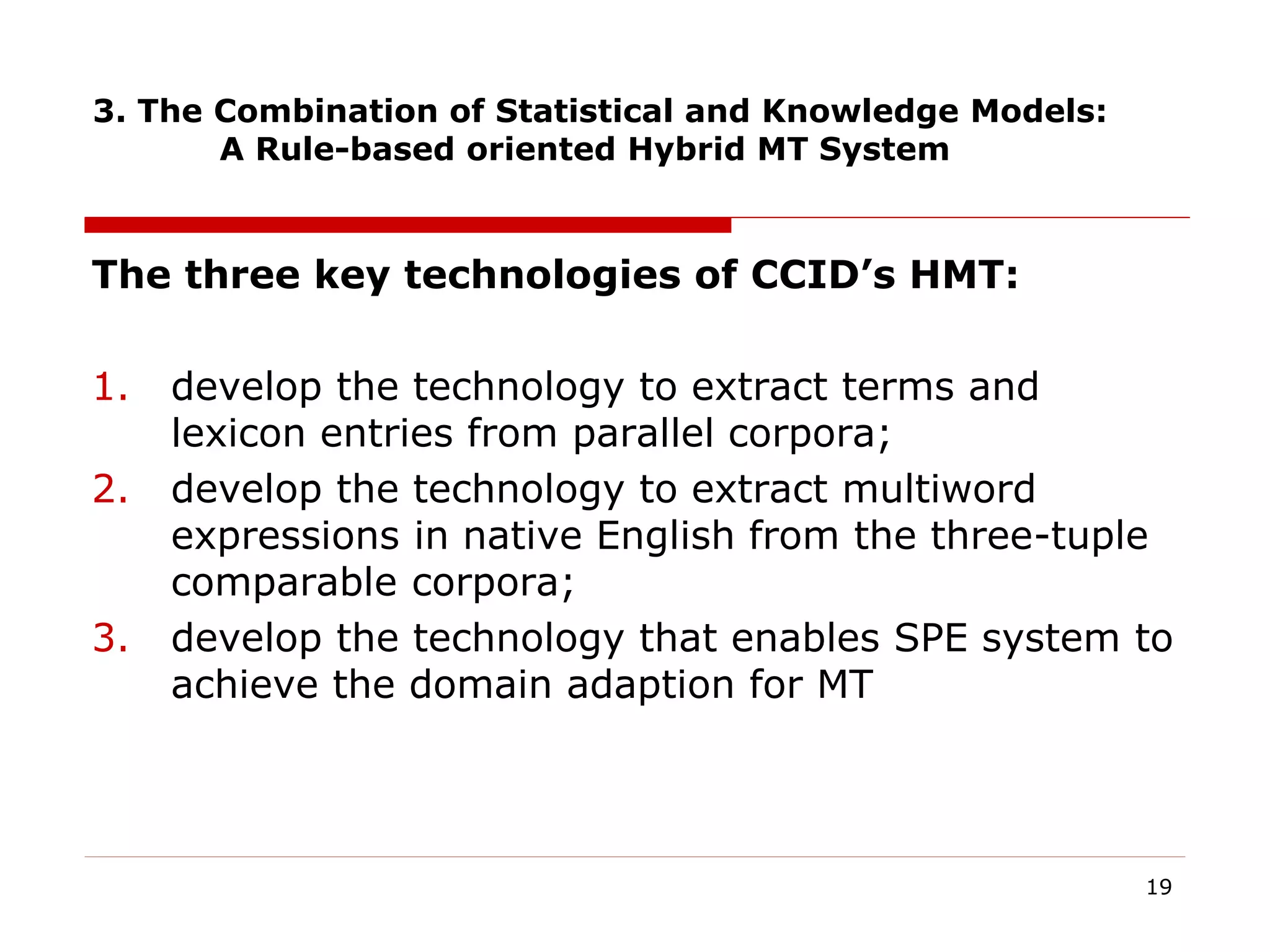

The three key technologies of CCID’s HMT:
1. develop the technology to extract terms and
lexicon entries from parallel corpora;
2. develop the technology to extract multiword
expressions in native English from the three-tuple
comparable corpora;
3. develop the technology that enables SPE system to
achieve the domain adaption for MT
19

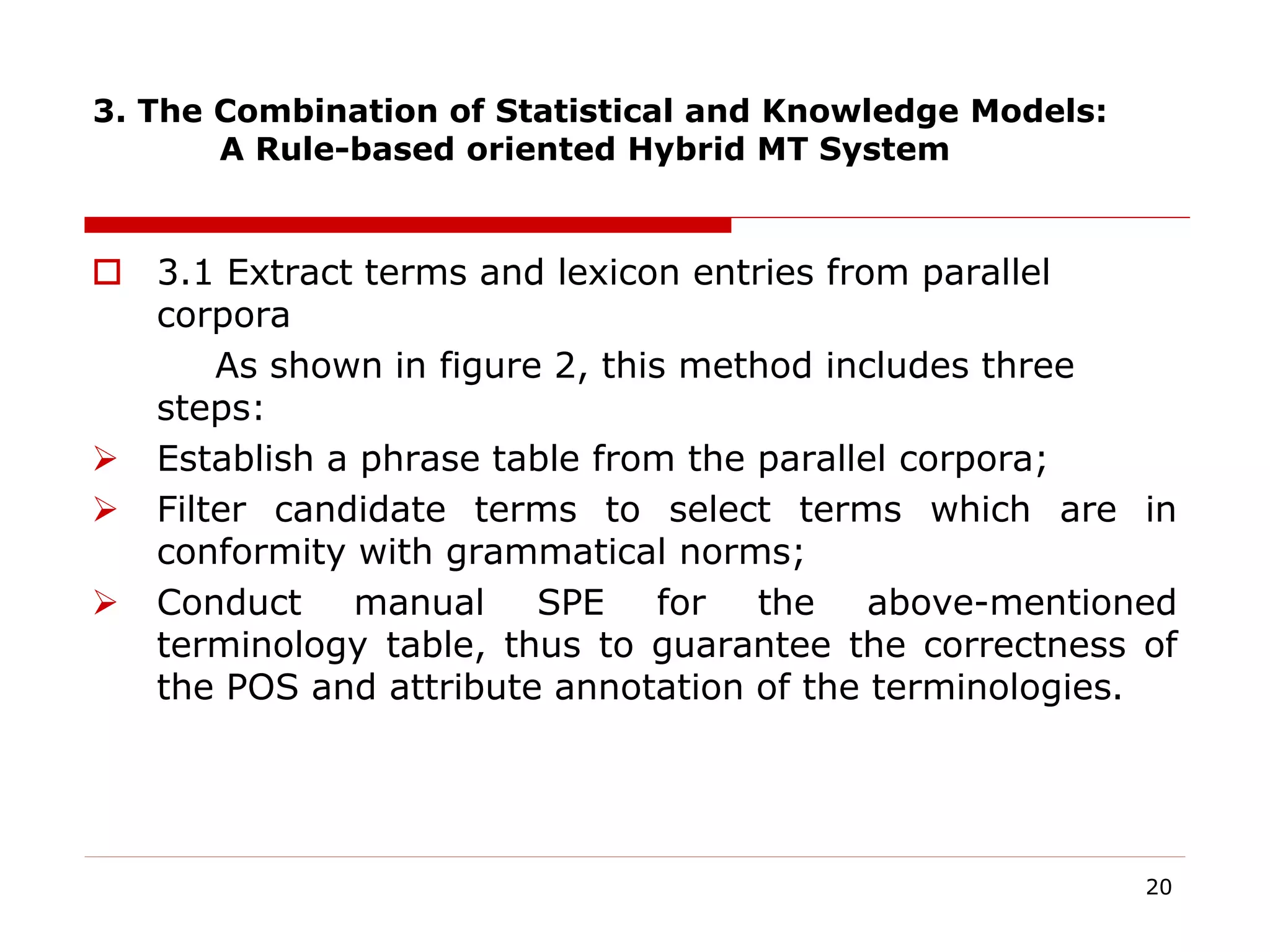

 3.1 Extract terms and lexicon entries from parallel
corpora
As shown in figure 2, this method includes three
steps:
 Establish a phrase table from the parallel corpora;
 Filter candidate terms to select terms which are in
conformity with grammatical norms;
 Conduct manual SPE for the above-mentioned
terminology table, thus to guarantee the correctness of
the POS and attribute annotation of the terminologies.
20

21

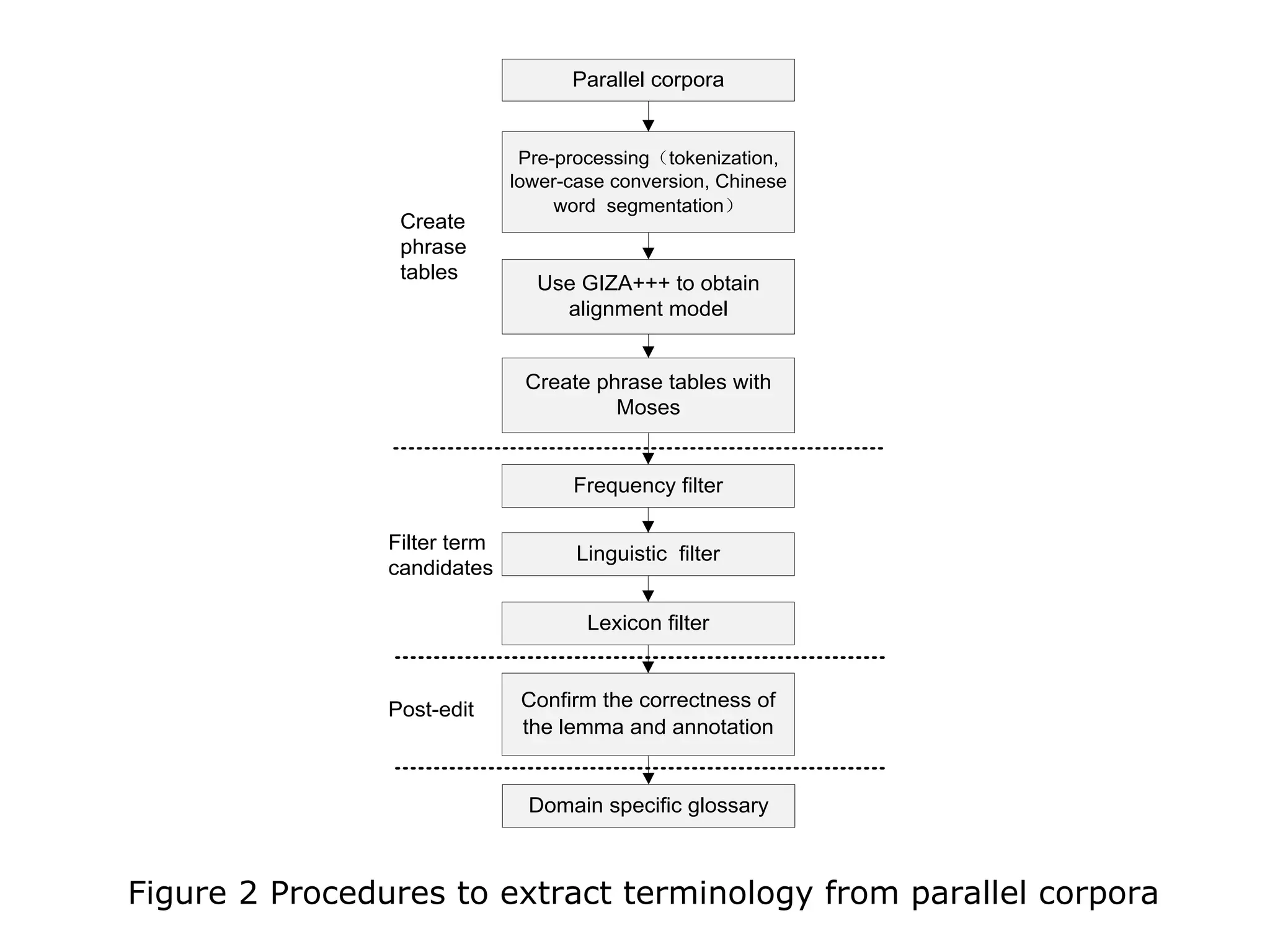

Parallel corpora
Pre-processing（tokenization,
lower-case conversion, Chinese
word segmentation）
Use GIZA+++ to obtain
alignment model
Create phrase tables with
Moses
Frequency filter
Linguistic filter
Lexicon filter
Confirm the correctness of
the lemma and annotation
Create
phrase
tables
Filter term
candidates
Post-edit
Domain specific glossary
Figure 2 Procedures to extract terminology from parallel corpora

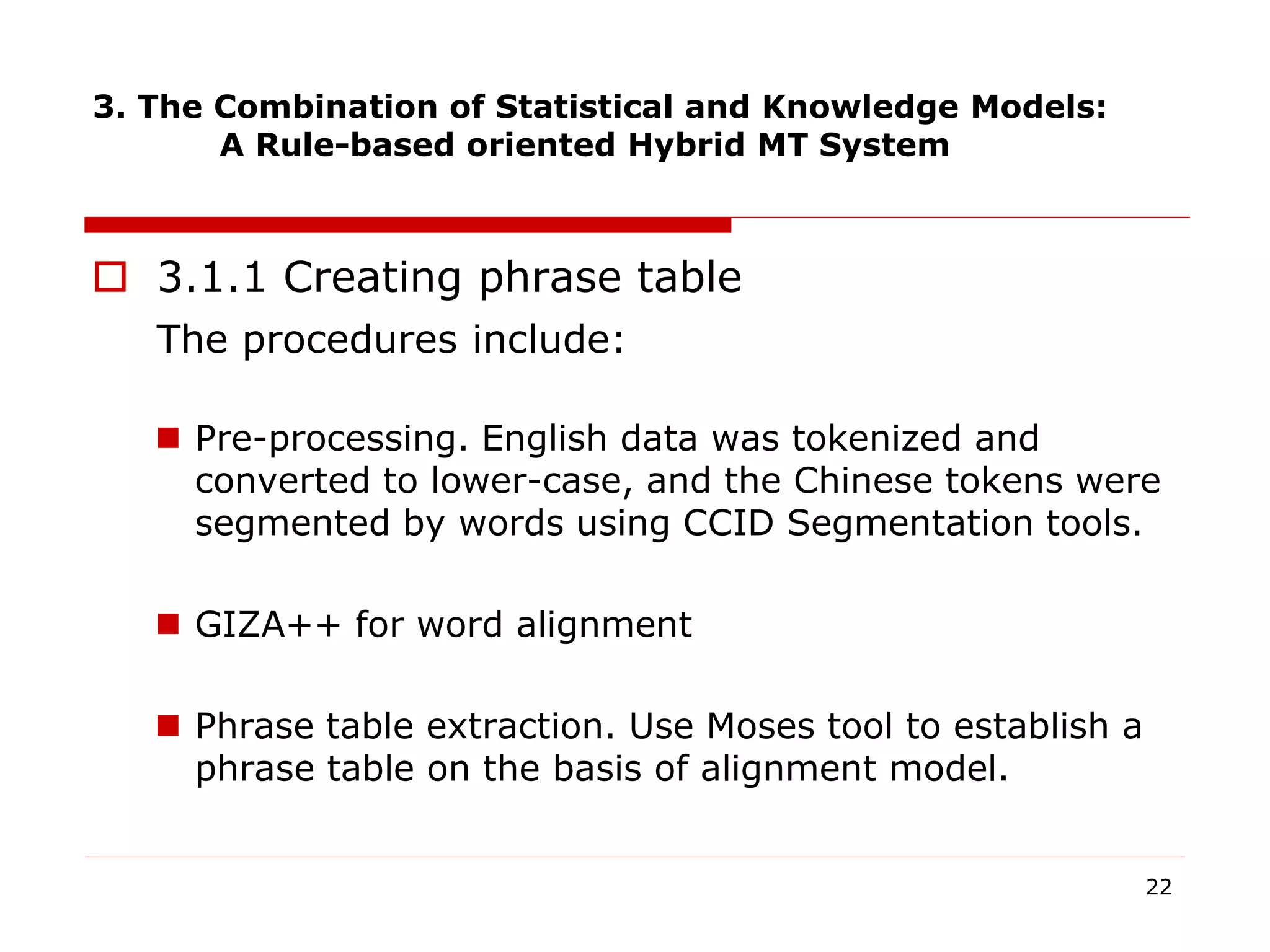

 3.1.1 Creating phrase table
The procedures include:
 Pre-processing. English data was tokenized and
converted to lower-case, and the Chinese tokens were
segmented by words using CCID Segmentation tools.
 GIZA++ for word alignment
 Phrase table extraction. Use Moses tool to establish a
phrase table on the basis of alignment model.
22

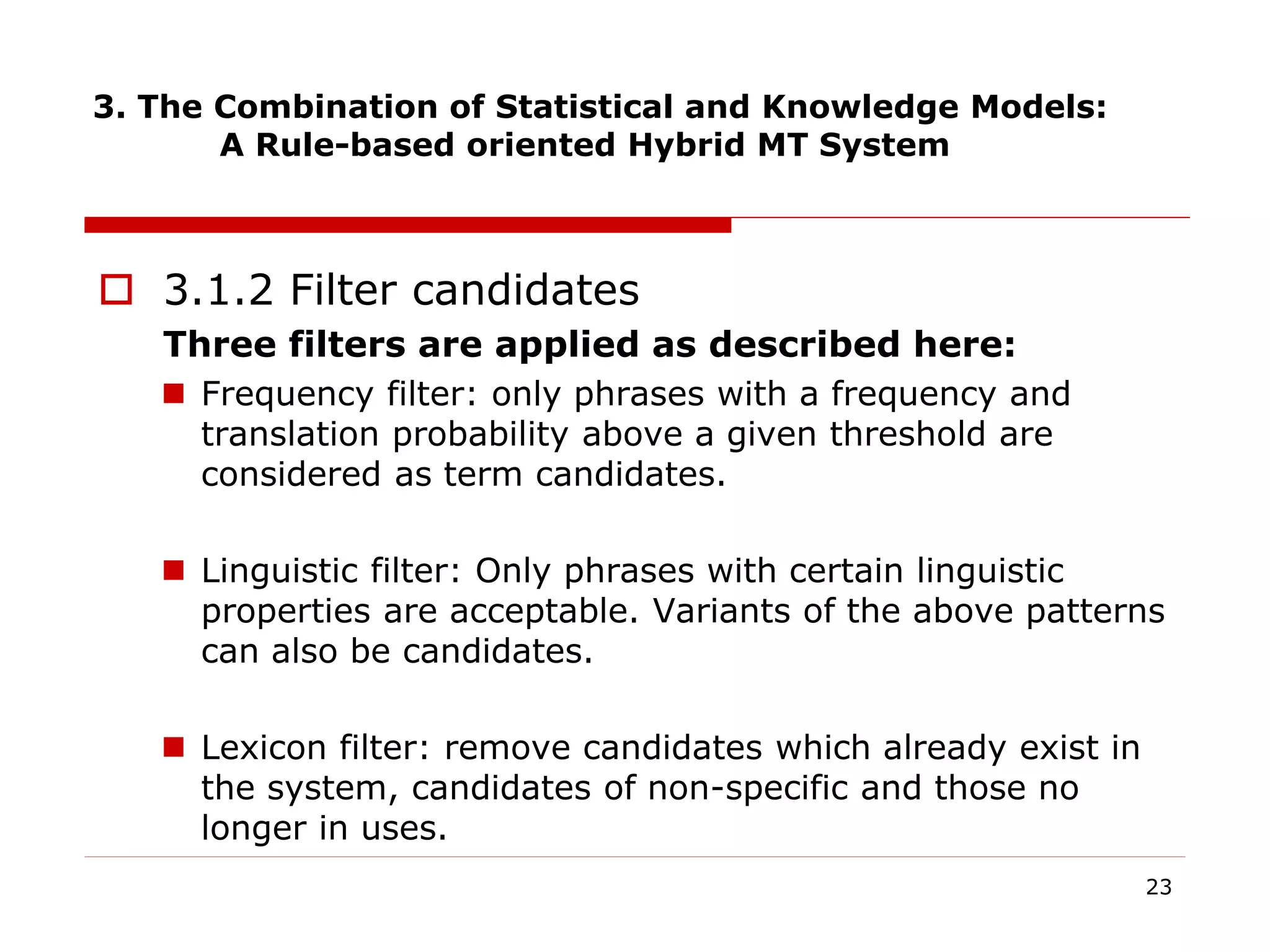

 3.1.2 Filter candidates
Three filters are applied as described here:
 Frequency filter: only phrases with a frequency and
translation probability above a given threshold are
considered as term candidates.
 Linguistic filter: Only phrases with certain linguistic
properties are acceptable. Variants of the above patterns
can also be candidates.
 Lexicon filter: remove candidates which already exist in
the system, candidates of non-specific and those no
longer in uses.
23

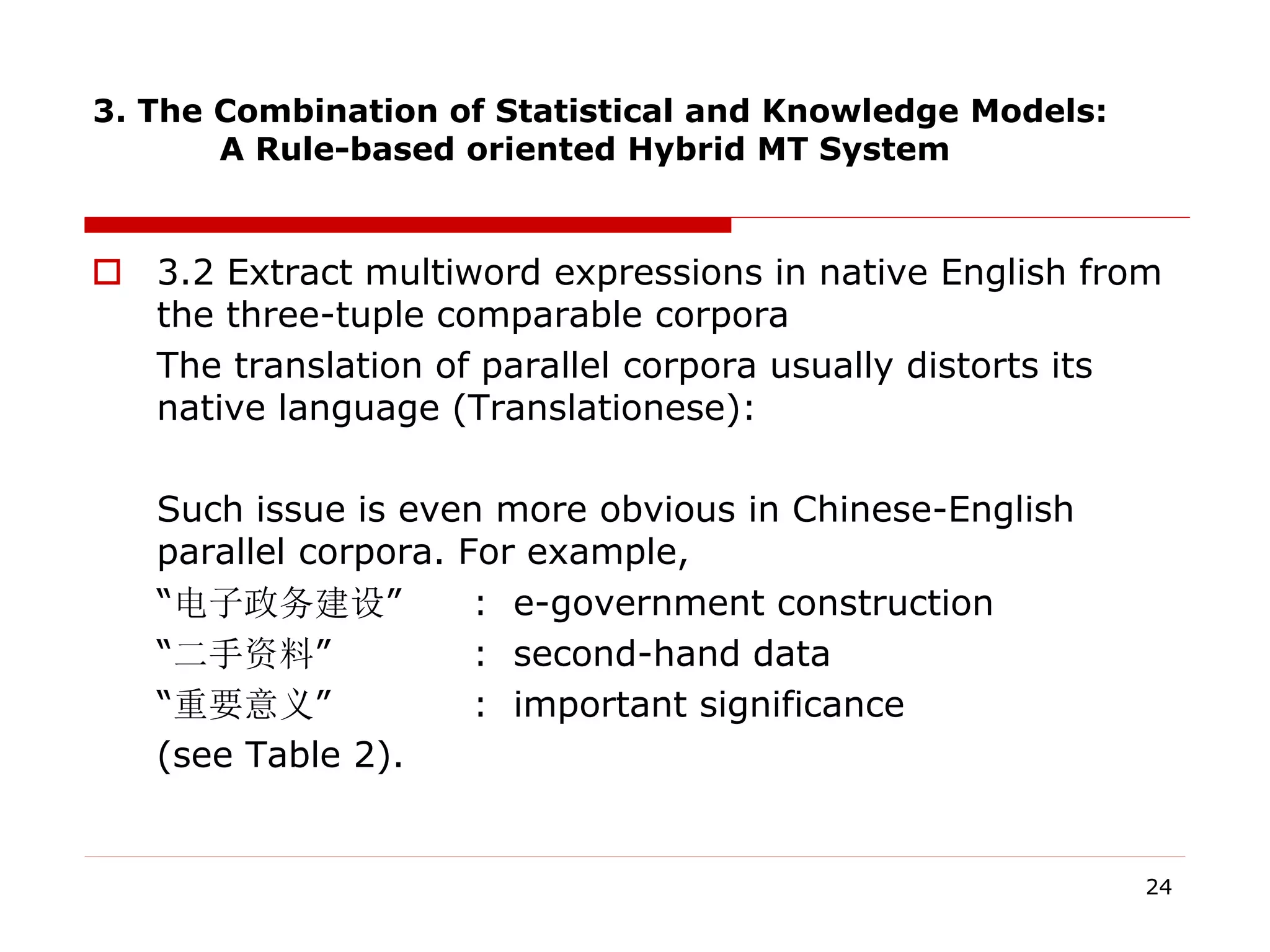

 3.2 Extract multiword expressions in native English from
the three-tuple comparable corpora
The translation of parallel corpora usually distorts its
native language (Translationese):
Such issue is even more obvious in Chinese-English
parallel corpora. For example,
“电子政务建设” : e-government construction
“二手资料” : second-hand data
“重要意义” : important significance

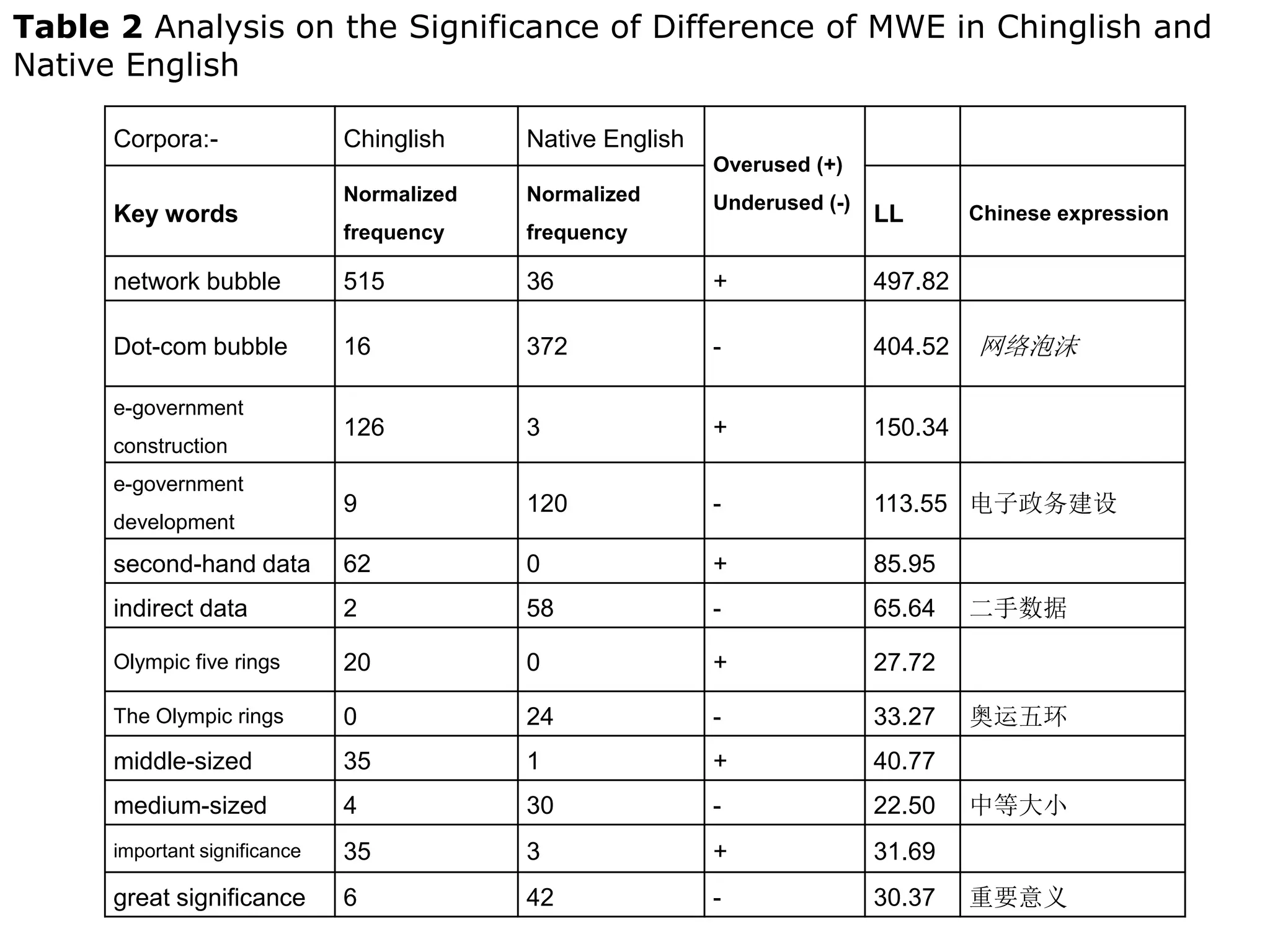

(see Table 2).
24

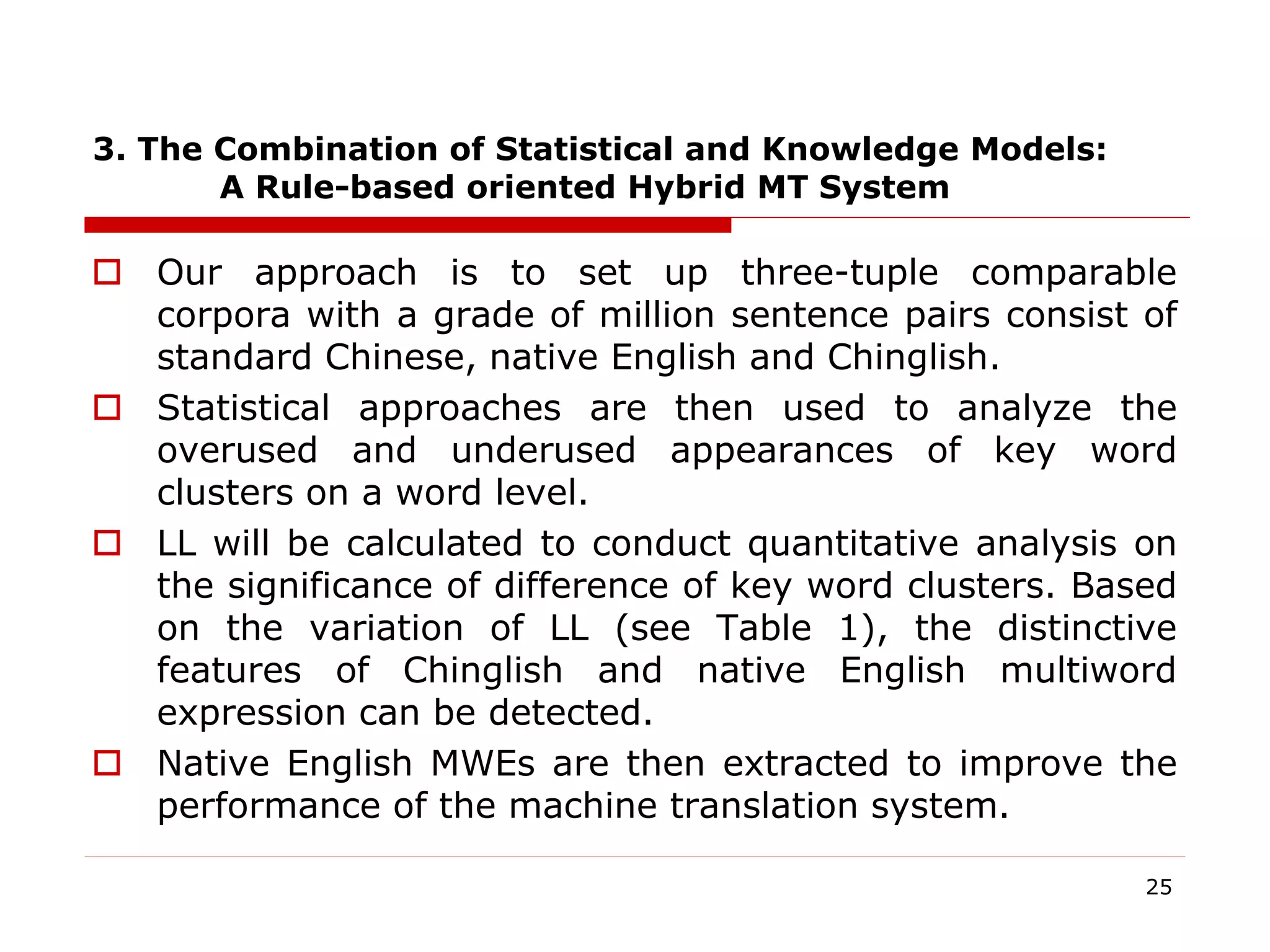

 Our approach is to set up three-tuple comparable
corpora with a grade of million sentence pairs consist of
standard Chinese, native English and Chinglish.
 Statistical approaches are then used to analyze the
overused and underused appearances of key word
clusters on a word level.
 LL will be calculated to conduct quantitative analysis on
the significance of difference of key word clusters. Based
on the variation of LL (see Table 1), the distinctive
features of Chinglish and native English multiword
expression can be detected.
 Native English MWEs are then extracted to improve the
performance of the machine translation system.
25

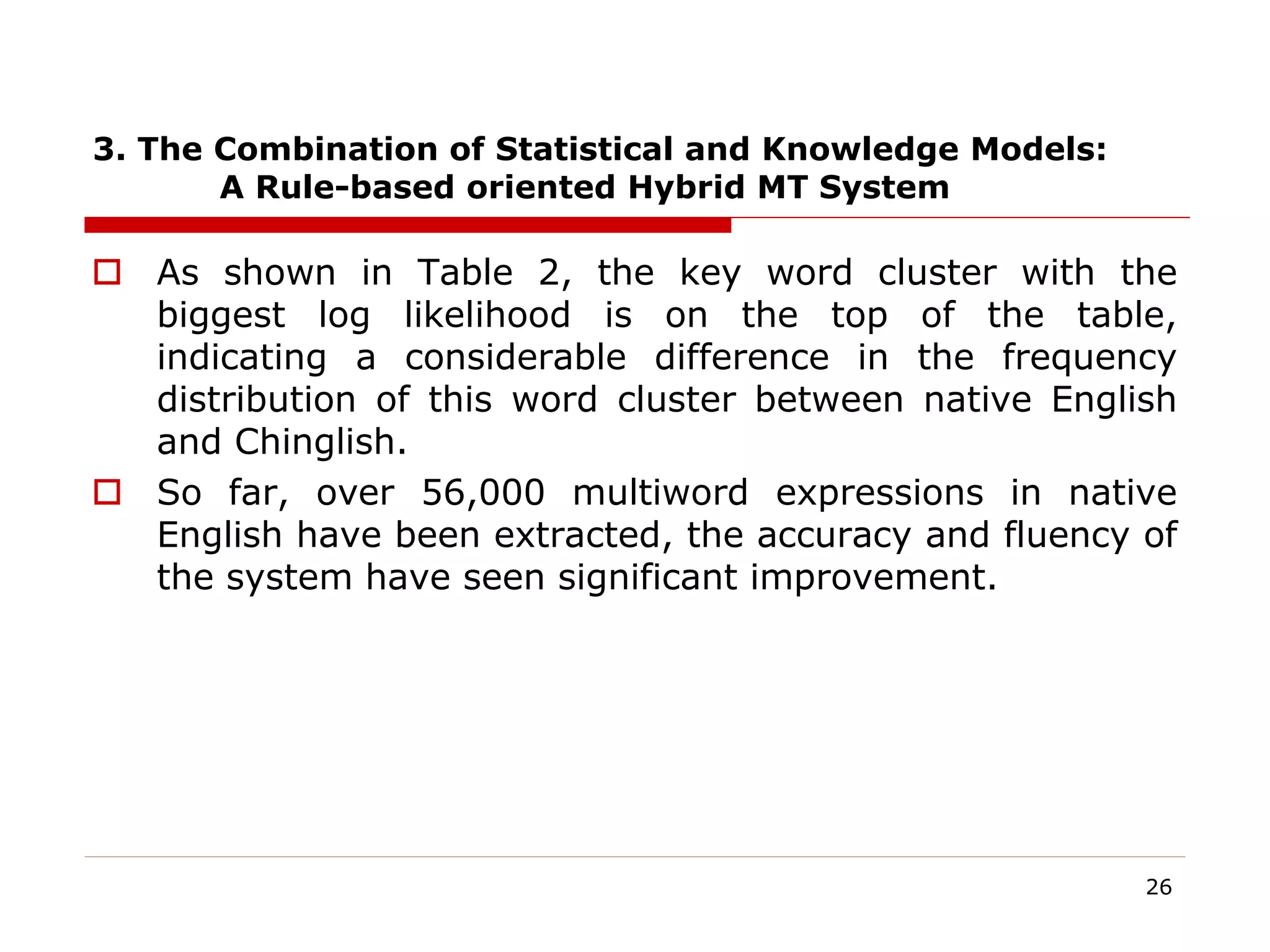

 As shown in Table 2, the key word cluster with the
biggest log likelihood is on the top of the table,
indicating a considerable difference in the frequency
distribution of this word cluster between native English
and Chinglish.
 So far, over 56,000 multiword expressions in native
English have been extracted, the accuracy and fluency of
the system have seen significant improvement.
26

27
Table 2 Analysis on the Significance of Difference of MWE in Chinglish and
Native English
Corpora:- Chinglish Native English
Overused (+)
Underused (-)
Key words
Normalized
frequency
Normalized
frequency
LL Chinese expression
network bubble 515 36 + 497.82
Dot-com bubble 16 372 - 404.52 网络泡沫
e-government
construction
126 3 + 150.34
e-government
development
9 120 - 113.55 电子政务建设
second-hand data 62 0 + 85.95
indirect data 2 58 - 65.64 二手数据
Olympic five rings 20 0 + 27.72
The Olympic rings 0 24 - 33.27 奥运五环
middle-sized 35 1 + 40.77
medium-sized 4 30 - 22.50 中等大小
important significance 35 3 + 31.69
great significance 6 42 - 30.37 重要意义

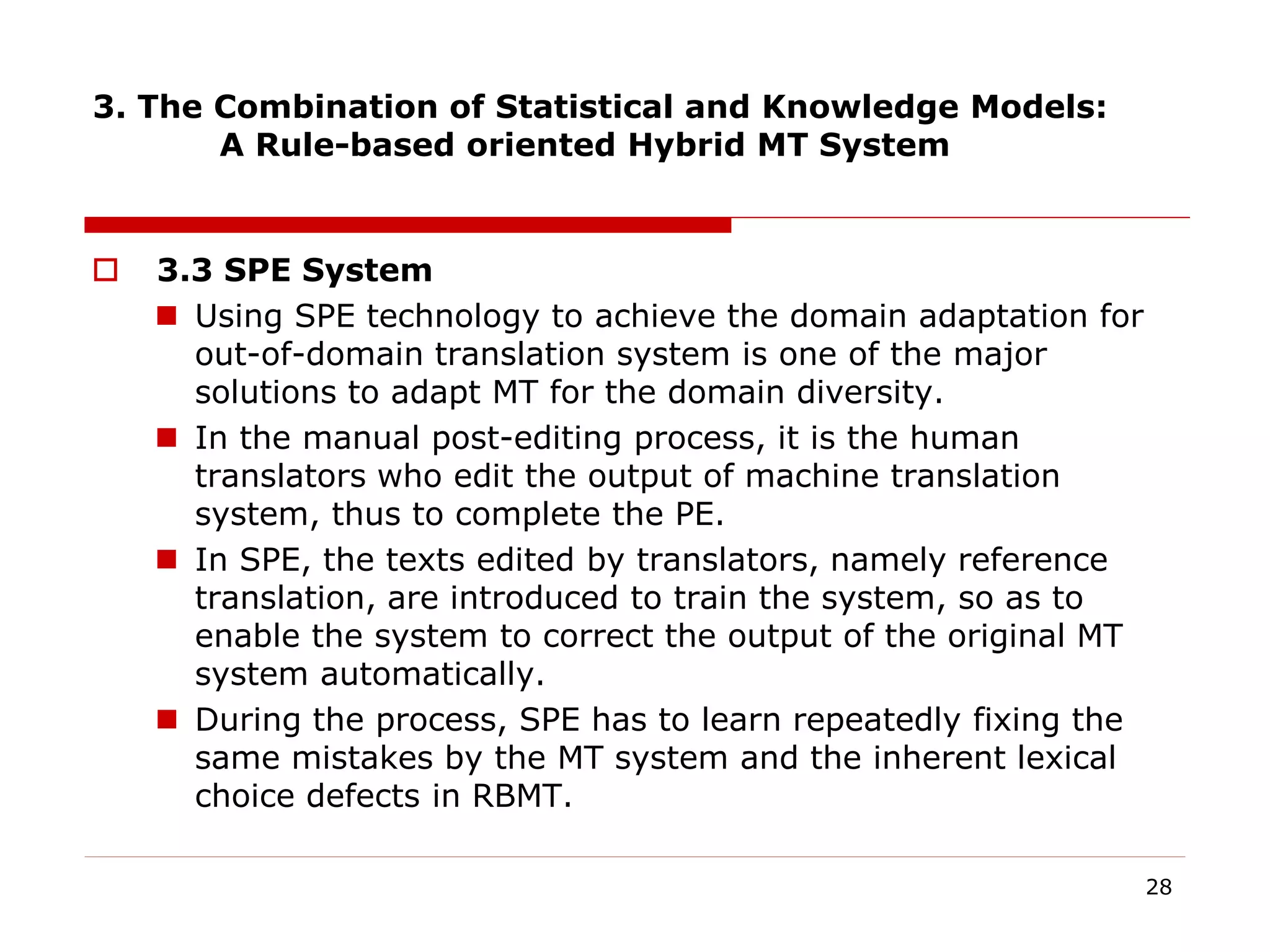

 3.3 SPE System
 Using SPE technology to achieve the domain adaptation for
out-of-domain translation system is one of the major
solutions to adapt MT for the domain diversity.
 In the manual post-editing process, it is the human
translators who edit the output of machine translation
system, thus to complete the PE.
 In SPE, the texts edited by translators, namely reference
translation, are introduced to train the system, so as to
enable the system to correct the output of the original MT
system automatically.
 During the process, SPE has to learn repeatedly fixing the
same mistakes by the MT system and the inherent lexical
choice defects in RBMT.
28

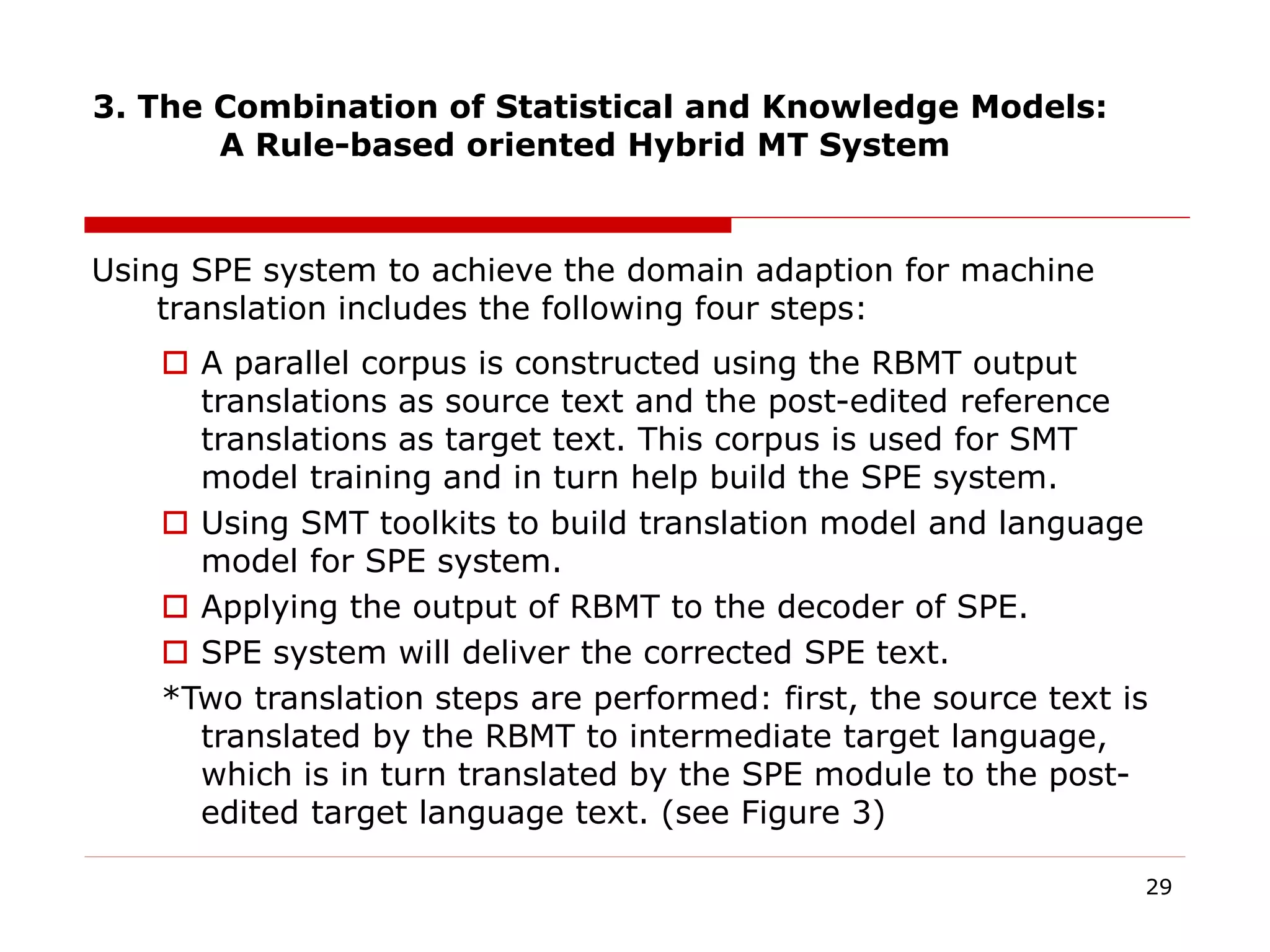

Using SPE system to achieve the domain adaption for machine
translation includes the following four steps:
29
 A parallel corpus is constructed using the RBMT output
translations as source text and the post-edited reference
translations as target text. This corpus is used for SMT
model training and in turn help build the SPE system.
 Using SMT toolkits to build translation model and language
model for SPE system.
 Applying the output of RBMT to the decoder of SPE.
 SPE system will deliver the corrected SPE text.
*Two translation steps are performed: first, the source text is
translated by the RBMT to intermediate target language,
which is in turn translated by the SPE module to the post-
edited target language text. (see Figure 3)

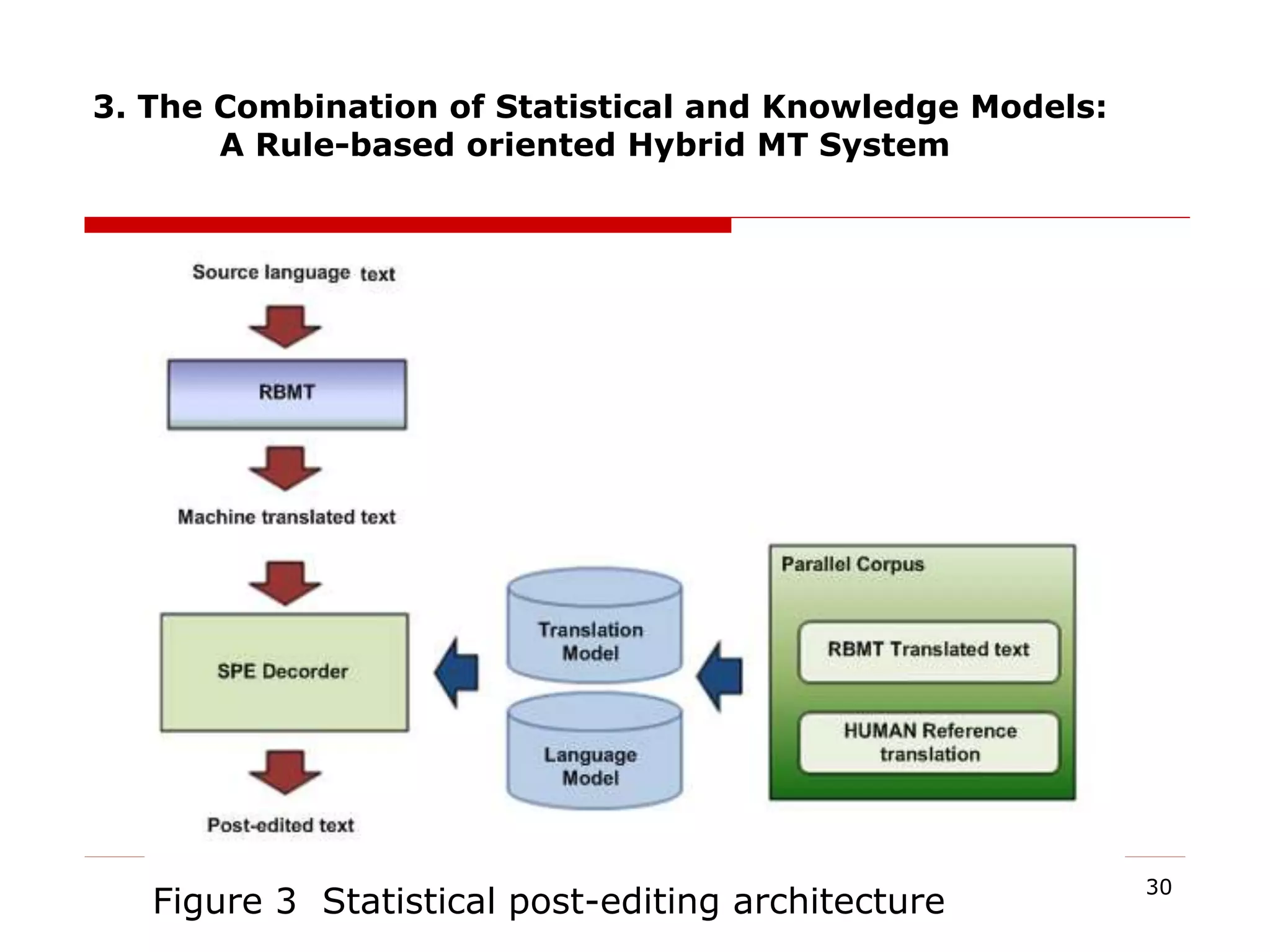

Figure 3 Statistical post-editing architecture
30

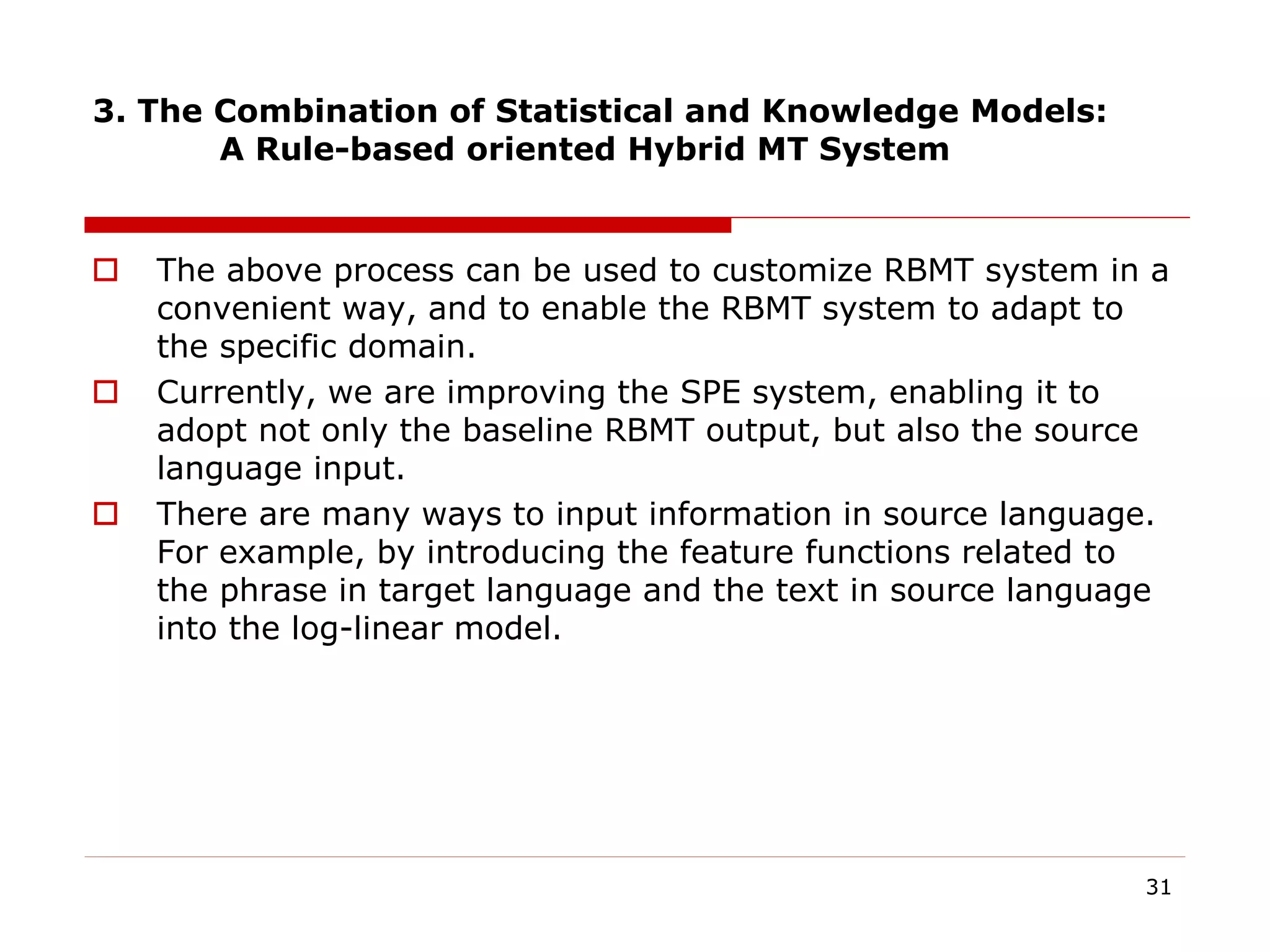

 The above process can be used to customize RBMT system in a
convenient way, and to enable the RBMT system to adapt to
the specific domain.
 Currently, we are improving the SPE system, enabling it to
adopt not only the baseline RBMT output, but also the source
language input.
 There are many ways to input information in source language.
For example, by introducing the feature functions related to
the phrase in target language and the text in source language
into the log-linear model.
31

4. System Development , Performance
Evaluation and Major Applications

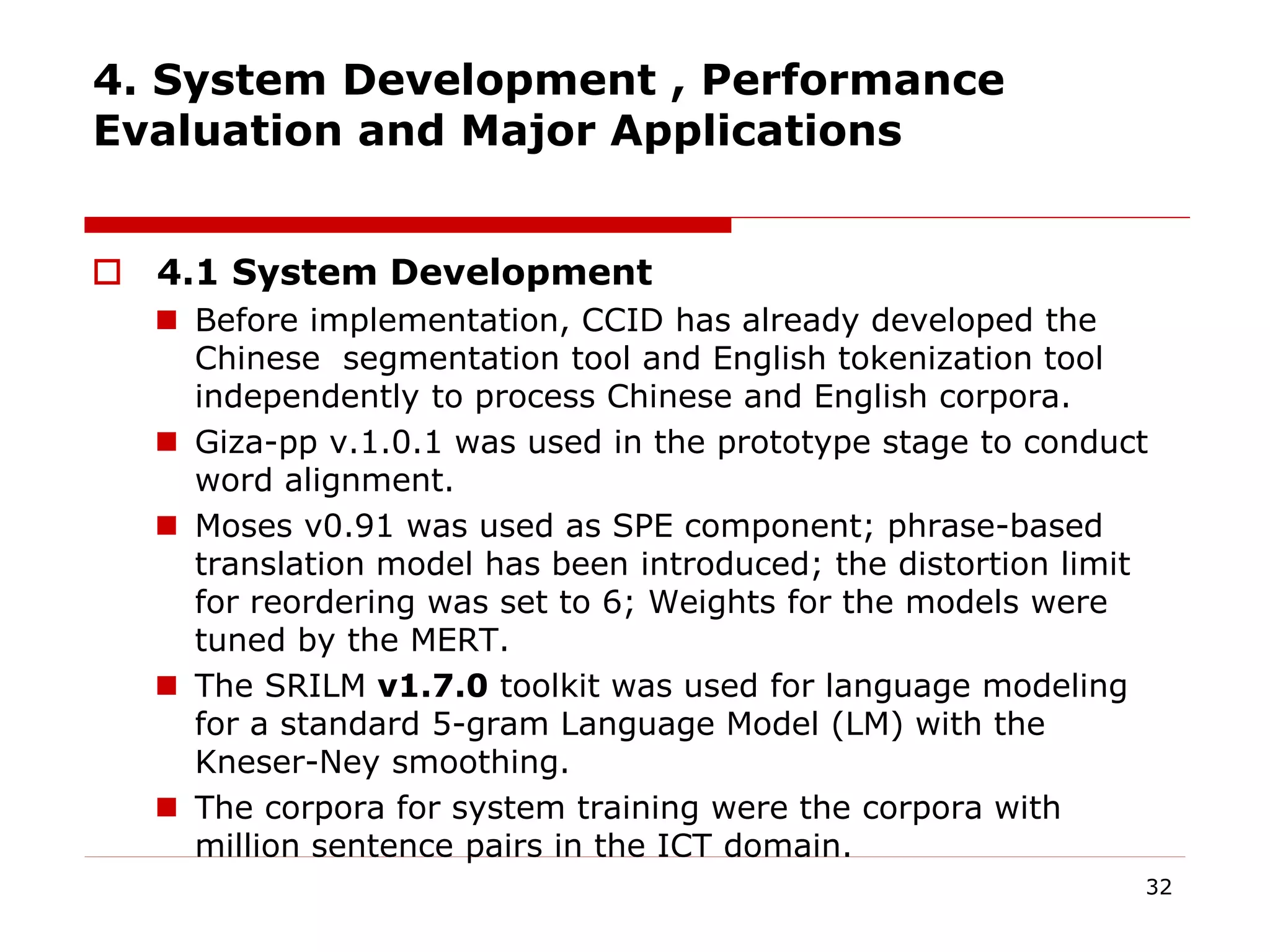

 4.1 System Development
 Before implementation, CCID has already developed the
Chinese segmentation tool and English tokenization tool
independently to process Chinese and English corpora.
 Giza-pp v.1.0.1 was used in the prototype stage to conduct
word alignment.
 Moses v0.91 was used as SPE component; phrase-based
translation model has been introduced; the distortion limit
for reordering was set to 6; Weights for the models were
tuned by the MERT.
 The SRILM v1.7.0 toolkit was used for language modeling
for a standard 5-gram Language Model (LM) with the
Kneser-Ney smoothing.
 The corpora for system training were the corpora with
million sentence pairs in the ICT domain.
32

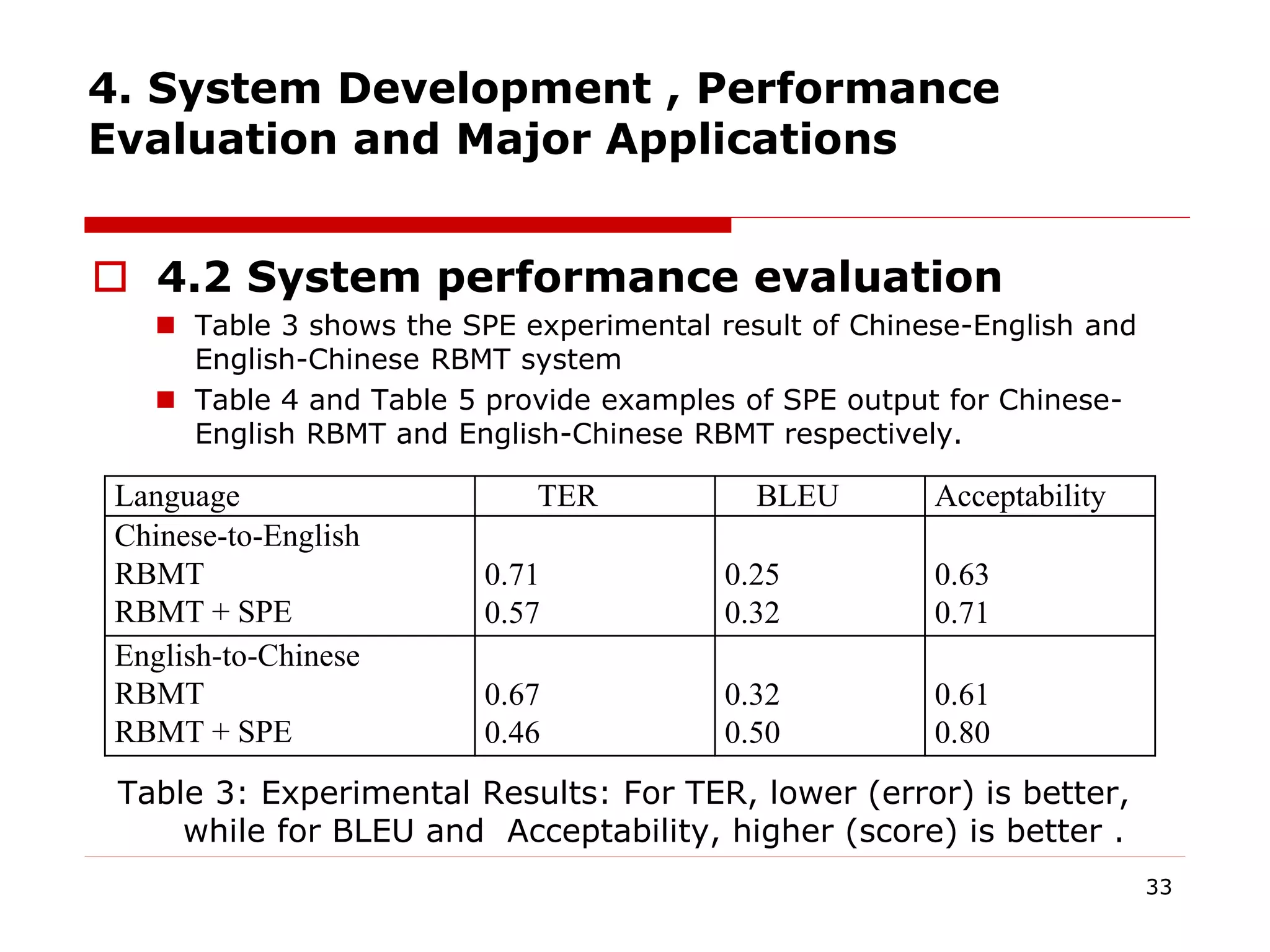

 4.2 System performance evaluation
 Table 3 shows the SPE experimental result of Chinese-English and
English-Chinese RBMT system
 Table 4 and Table 5 provide examples of SPE output for Chinese-
English RBMT and English-Chinese RBMT respectively.
33
Language TER BLEU Acceptability
Chinese-to-English
RBMT
RBMT + SPE
0.71
0.57
0.25
0.32
0.63
0.71
English-to-Chinese
RBMT
RBMT + SPE
0.67
0.46
0.32
0.50
0.61
0.80
Table 3: Experimental Results: For TER, lower (error) is better,
while for BLEU and Acceptability, higher (score) is better .

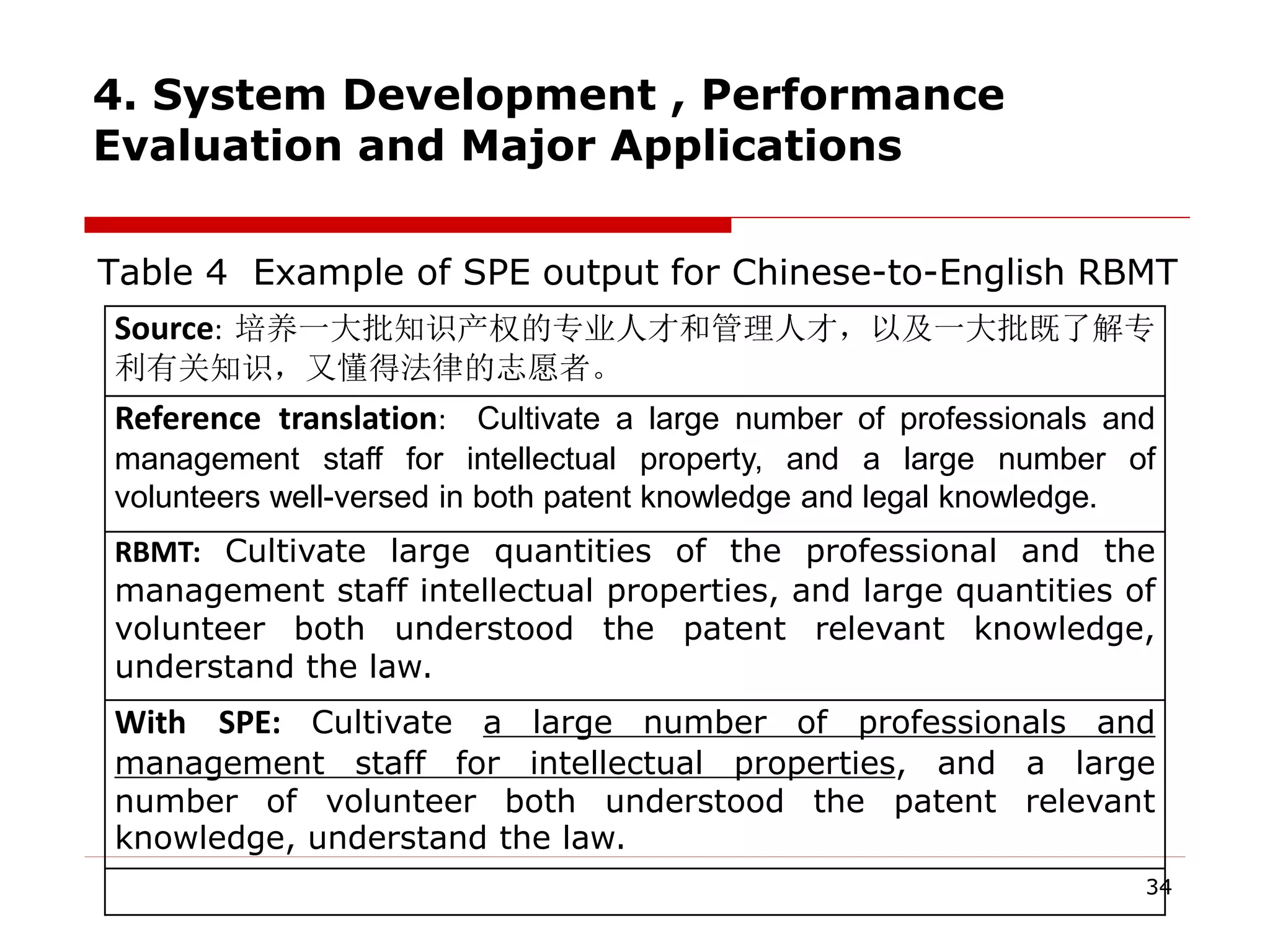

Table 4 Example of SPE output for Chinese-to-English RBMT
34
Source: 培养一大批知识产权的专业人才和管理人才，以及一大批既了解专
利有关知识，又懂得法律的志愿者。
Reference translation: Cultivate a large number of professionals and
management staff for intellectual property, and a large number of
volunteers well-versed in both patent knowledge and legal knowledge.
RBMT: Cultivate large quantities of the professional and the
management staff intellectual properties, and large quantities of
volunteer both understood the patent relevant knowledge,
understand the law.
With SPE: Cultivate a large number of professionals and
management staff for intellectual properties, and a large
number of volunteer both understood the patent relevant
knowledge, understand the law.

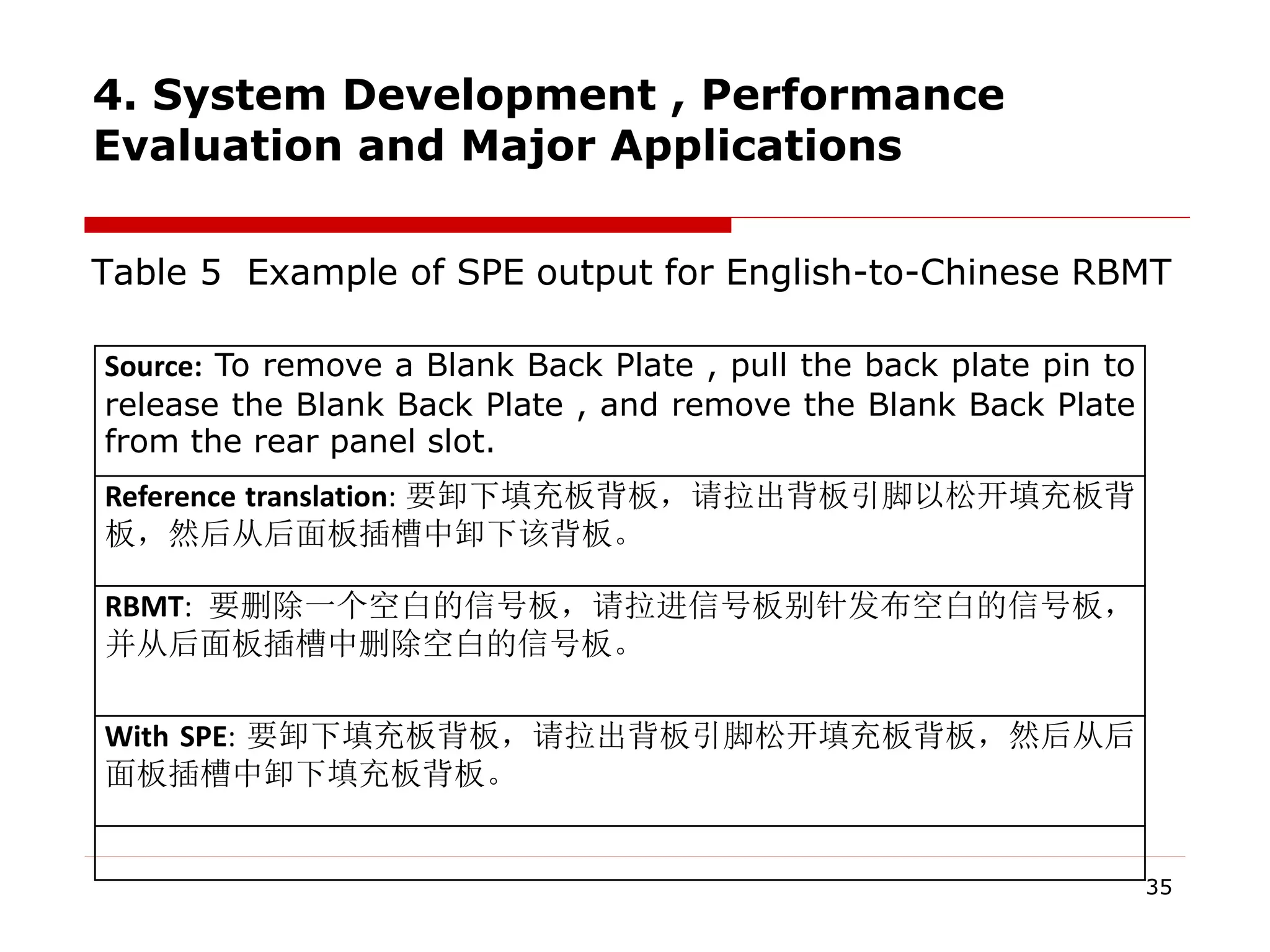

Table 5 Example of SPE output for English-to-Chinese RBMT
35
Source: To remove a Blank Back Plate , pull the back plate pin to
release the Blank Back Plate , and remove the Blank Back Plate
from the rear panel slot.
Reference translation: 要卸下填充板背板，请拉出背板引脚以松开填充板背
板，然后从后面板插槽中卸下该背板。
RBMT: 要删除一个空白的信号板，请拉进信号板别针发布空白的信号板，
并从后面板插槽中删除空白的信号板。
With SPE: 要卸下填充板背板，请拉出背板引脚松开填充板背板，然后从后
面板插槽中卸下填充板背板。

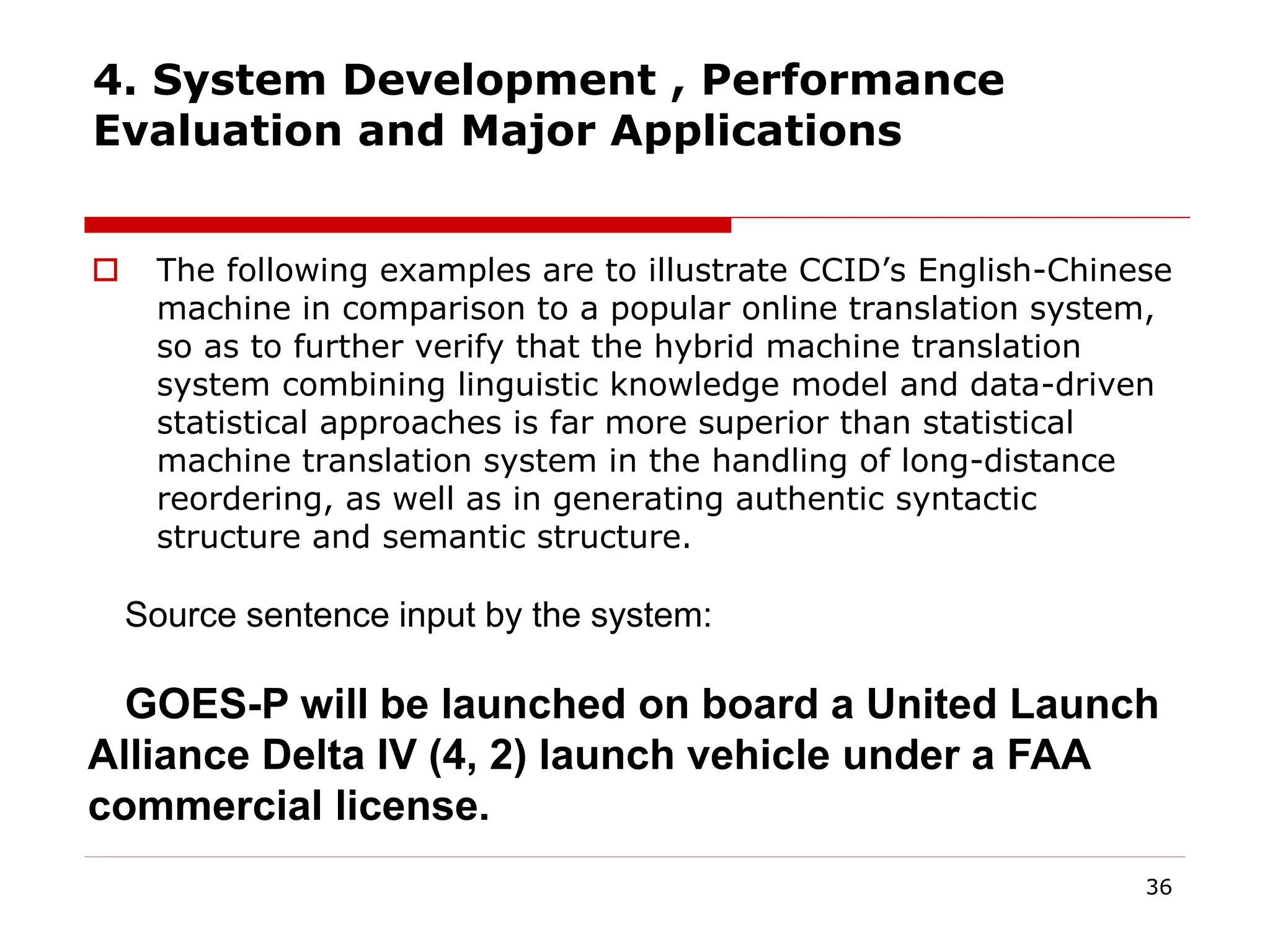

 The following examples are to illustrate CCID’s English-Chinese
machine in comparison to a popular online translation system,
so as to further verify that the hybrid machine translation
system combining linguistic knowledge model and data-driven
statistical approaches is far more superior than statistical
machine translation system in the handling of long-distance
reordering, as well as in generating authentic syntactic
structure and semantic structure.
36
Source sentence input by the system:
GOES-P will be launched on board a United Launch
Alliance Delta IV (4, 2) launch vehicle under a FAA
commercial license.

4. System Setup , Performance Evaluation
and Major Applications

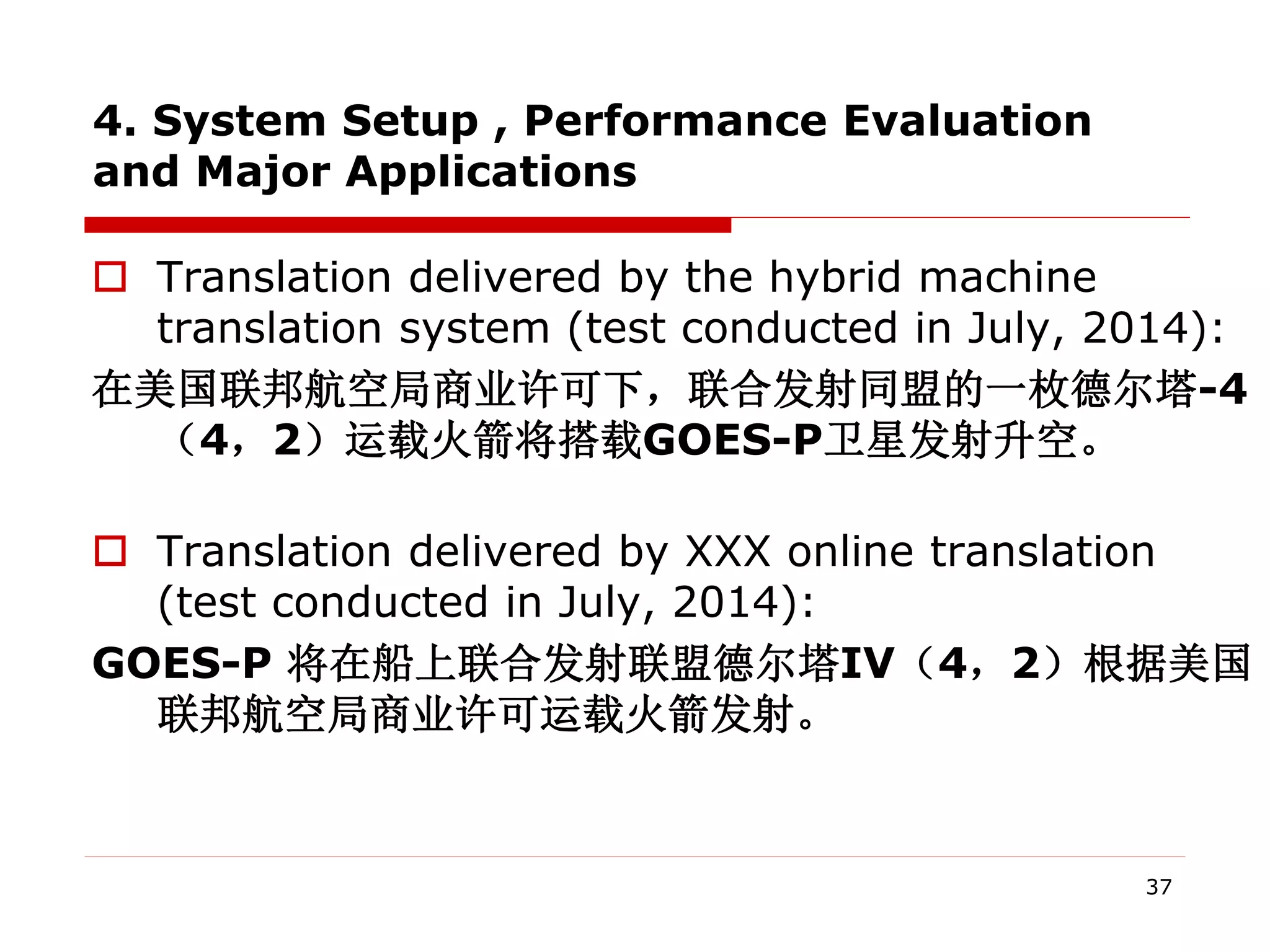

 Translation delivered by the hybrid machine
translation system (test conducted in July, 2014):
在美国联邦航空局商业许可下，联合发射同盟的一枚德尔塔-4
（4，2）运载火箭将搭载GOES-P卫星发射升空。
 Translation delivered by XXX online translation
(test conducted in July, 2014):
GOES-P 将在船上联合发射联盟德尔塔IV（4，2）根据美国
联邦航空局商业许可运载火箭发射。
37

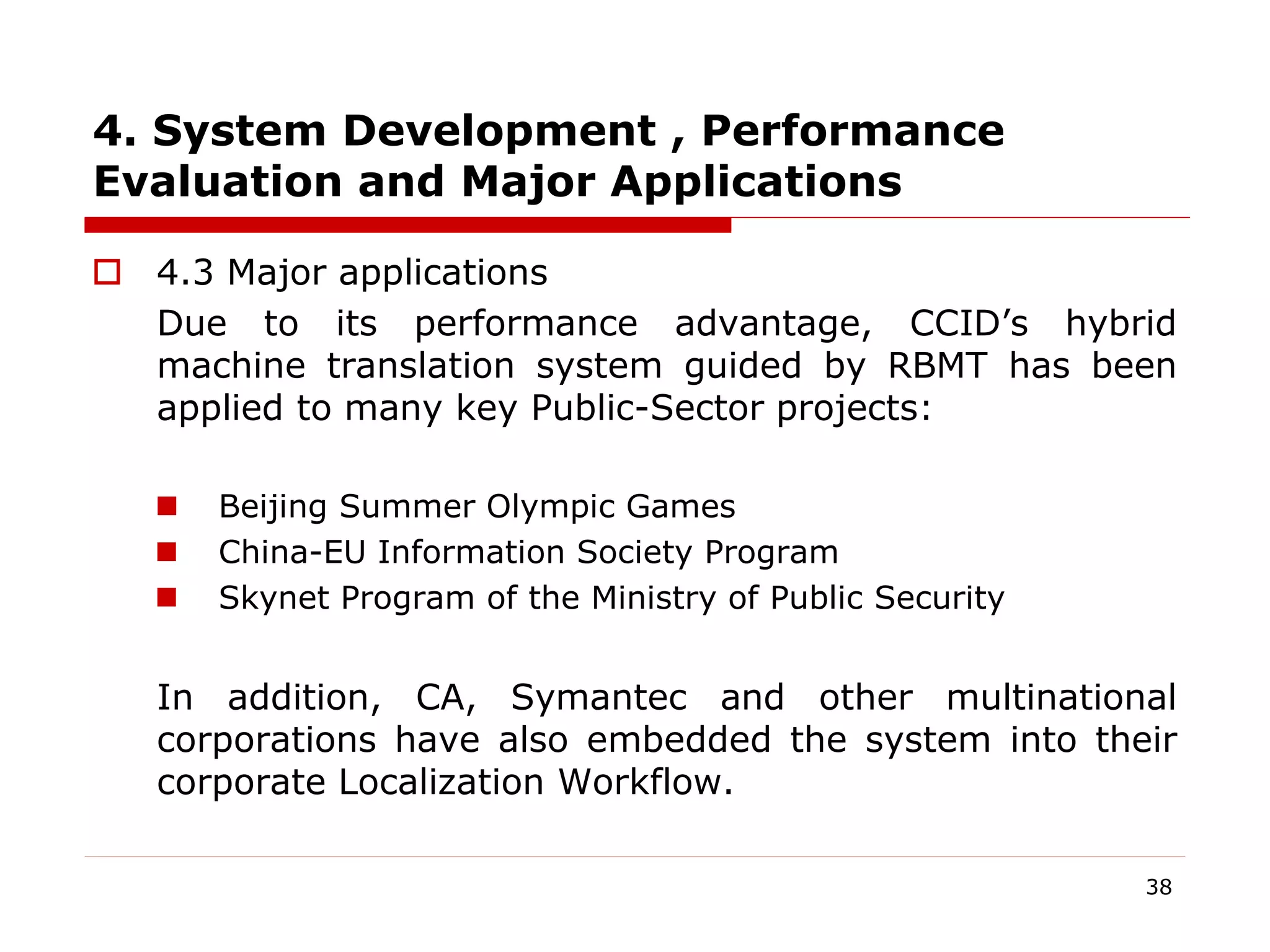

 4.3 Major applications
Due to its performance advantage, CCID’s hybrid
machine translation system guided by RBMT has been
applied to many key Public-Sector projects:
 Beijing Summer Olympic Games
 China-EU Information Society Program
 Skynet Program of the Ministry of Public Security
In addition, CA, Symantec and other multinational
corporations have also embedded the system into their
corporate Localization Workflow.
38

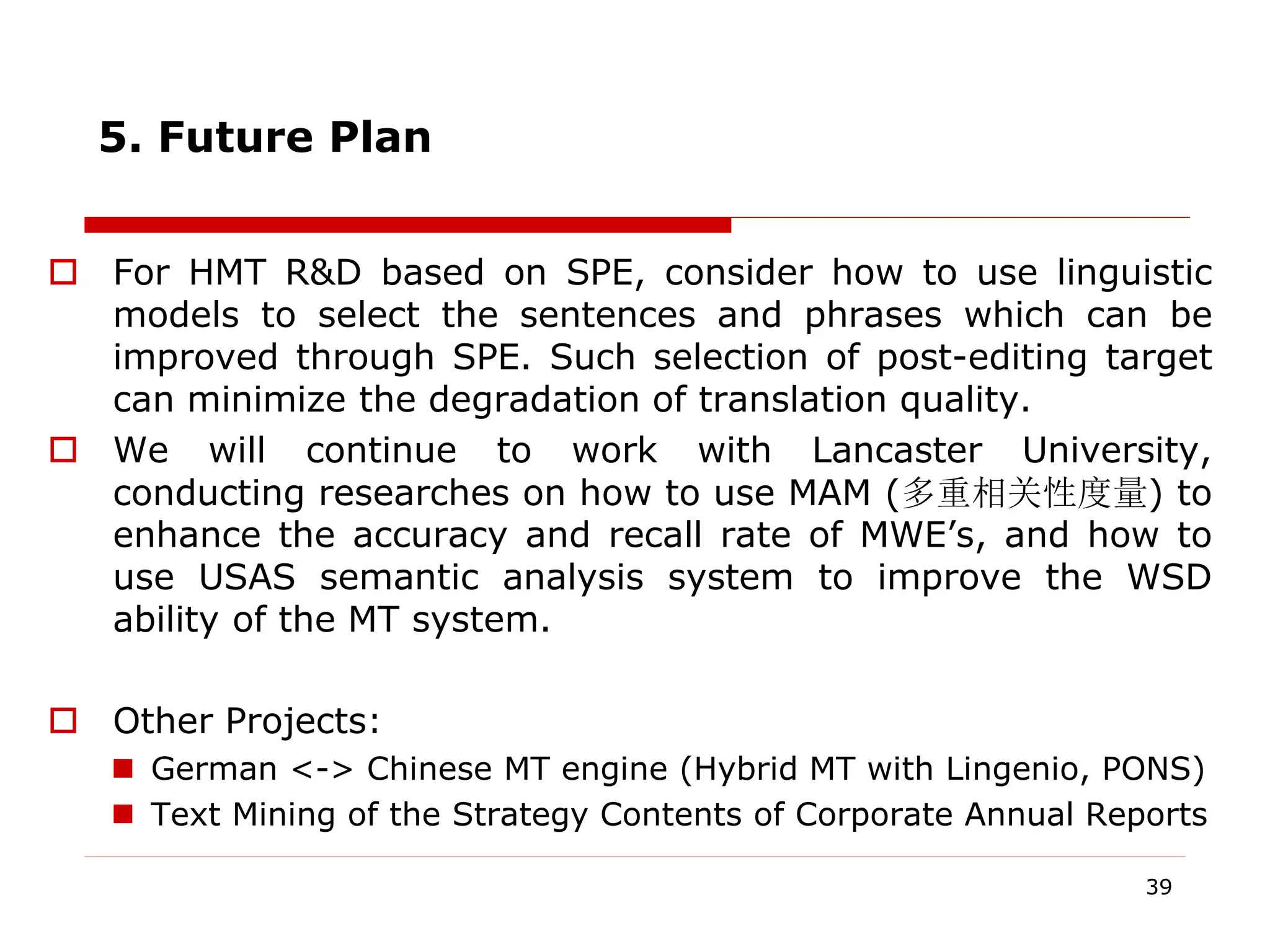

5. Future Plan
 For HMT R&D based on SPE, consider how to use linguistic
models to select the sentences and phrases which can be
improved through SPE. Such selection of post-editing target
can minimize the degradation of translation quality.
 We will continue to work with Lancaster University,
conducting researches on how to use MAM (多重相关性度量) to
enhance the accuracy and recall rate of MWE’s, and how to
use USAS semantic analysis system to improve the WSD
ability of the MT system.
 Other Projects:
 German <-> Chinese MT engine (Hybrid MT with Lingenio, PONS)
 Text Mining of the Strategy Contents of Corporate Annual Reports
39

New Development in MT Technology and Services, by Anthony Wong, CCID TransTech

More Related Content

Similar to New Development in MT Technology and Services, by Anthony Wong, CCID TransTech

More from TAUS - The Language Data Network

Recently uploaded

New Development in MT Technology and Services, by Anthony Wong, CCID TransTech

Editor's Notes
