This document discusses graph sampling algorithms and their application to machine learning problems using large network data. It proposes a weighted vertex-induced snowball sampling (WVISS) algorithm that selects an initial sample of vertices based on external information and topology, then adds connected vertices and edges. WVISS is found to provide more precise estimates than competing methods. The document shows WVISS achieving higher accuracy than other algorithms in a recommendation system task using a simulated product co-purchases graph, requiring only half the sample size to reach 50% accuracy. Real-world graphs often combine scale-free and small-world properties, making them difficult to model. The efficiency of sampling strategies depends on the graph structure and properties.

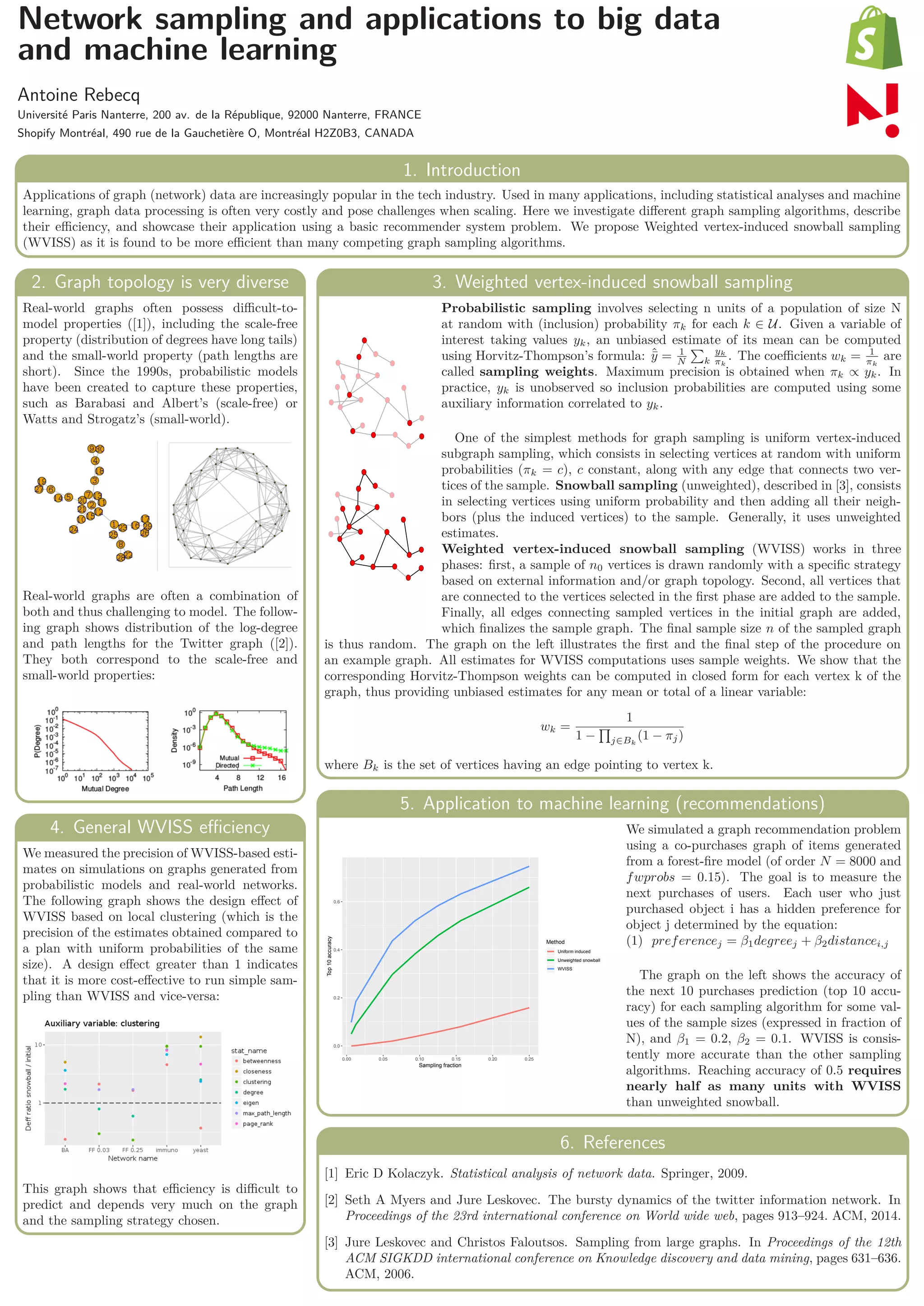

1. Network sampling and applications to big data
and machine learning
Antoine Rebecq
Université Paris Nanterre, 200 av. de la République, 92000 Nanterre, FRANCE
Shopify Montréal, 490 rue de la Gauchetière O, Montréal H2Z0B3, CANADA
1. Introduction
Applications of graph (network) data are increasingly popular in the tech industry. Used in many applications, including statistical analyses and machine
learning, graph data processing is often very costly and pose challenges when scaling. Here we investigate different graph sampling algorithms, describe
their efficiency, and showcase their application using a basic recommender system problem. We propose Weighted vertex-induced snowball sampling
(WVISS) as it is found to be more efficient than many competing graph sampling algorithms.
2. Graph topology is very diverse
Real-world graphs often possess difficult-to-
model properties ([1]), including the scale-free
property (distribution of degrees have long tails)
and the small-world property (path lengths are
short). Since the 1990s, probabilistic models
have been created to capture these properties,
such as Barabasi and Albert’s (scale-free) or
Watts and Strogatz’s (small-world).
Real-world graphs are often a combination of
both and thus challenging to model. The follow-
ing graph shows distribution of the log-degree
and path lengths for the Twitter graph ([2]).
They both correspond to the scale-free and
small-world properties:
4. General WVISS efficiency
We measured the precision of WVISS-based esti-
mates on simulations on graphs generated from
probabilistic models and real-world networks.
The following graph shows the design effect of
WVISS based on local clustering (which is the
precision of the estimates obtained compared to
a plan with uniform probabilities of the same
size). A design effect greater than 1 indicates
that it is more cost-effective to run simple sam-
pling than WVISS and vice-versa:
This graph shows that efficiency is difficult to
predict and depends very much on the graph
and the sampling strategy chosen.
3. Weighted vertex-induced snowball sampling
Probabilistic sampling involves selecting n units of a population of size N
at random with (inclusion) probability πk for each k ∈ U. Given a variable of
interest taking values yk, an unbiased estimate of its mean can be computed
using Horvitz-Thompson’s formula: ˆ¯y = 1
N k
yk
πk
. The coefficients wk = 1
πk
are
called sampling weights. Maximum precision is obtained when πk ∝ yk. In
practice, yk is unobserved so inclusion probabilities are computed using some
auxiliary information correlated to yk.
One of the simplest methods for graph sampling is uniform vertex-induced
subgraph sampling, which consists in selecting vertices at random with uniform
probabilities (πk = c), c constant, along with any edge that connects two ver-
tices of the sample. Snowball sampling (unweighted), described in [3], consists
in selecting vertices using uniform probability and then adding all their neigh-
bors (plus the induced vertices) to the sample. Generally, it uses unweighted
estimates.
Weighted vertex-induced snowball sampling (WVISS) works in three
phases: first, a sample of n0 vertices is drawn randomly with a specific strategy
based on external information and/or graph topology. Second, all vertices that
are connected to the vertices selected in the first phase are added to the sample.
Finally, all edges connecting sampled vertices in the initial graph are added,
which finalizes the sample graph. The final sample size n of the sampled graph
is thus random. The graph on the left illustrates the first and the final step of the procedure on
an example graph. All estimates for WVISS computations uses sample weights. We show that the
corresponding Horvitz-Thompson weights can be computed in closed form for each vertex k of the
graph, thus providing unbiased estimates for any mean or total of a linear variable:
wk =
1
1 − j∈Bk
(1 − πj)
where Bk is the set of vertices having an edge pointing to vertex k.
5. Application to machine learning (recommendations)
0.0
0.2
0.4
0.6
0.00 0.05 0.10 0.15 0.20 0.25
Sampling fraction
Top10accuracy
Method
Uniform induced
Unweighted snowball
WVISS
We simulated a graph recommendation problem
using a co-purchases graph of items generated
from a forest-fire model (of order N = 8000 and
fwprobs = 0.15). The goal is to measure the
next purchases of users. Each user who just
purchased object i has a hidden preference for
object j determined by the equation:
(1) preferencej = β1degreej + β2distancei,j
The graph on the left shows the accuracy of
the next 10 purchases prediction (top 10 accu-
racy) for each sampling algorithm for some val-
ues of the sample sizes (expressed in fraction of
N), and β1 = 0.2, β2 = 0.1. WVISS is consis-
tently more accurate than the other sampling
algorithms. Reaching accuracy of 0.5 requires
nearly half as many units with WVISS
than unweighted snowball.
6. References
[1] Eric D Kolaczyk. Statistical analysis of network data. Springer, 2009.
[2] Seth A Myers and Jure Leskovec. The bursty dynamics of the twitter information network. In
Proceedings of the 23rd international conference on World wide web, pages 913–924. ACM, 2014.
[3] Jure Leskovec and Christos Faloutsos. Sampling from large graphs. In Proceedings of the 12th
ACM SIGKDD international conference on Knowledge discovery and data mining, pages 631–636.
ACM, 2006.
