The document outlines a project cooperation between Mount Hope Housing Co., Inc. and several partner organizations to set up an ADSL capable router and Ethernet network connecting Grace Baptist Church, Mid Bronx Desperados, Job Resource Center, and Mount Hope Housing. The network will use a Cisco 1720 router and 2950XL switch with three VLANs for production, internet/VPN access, and site resources. A 512Kb ADSL connection and fractional T1 connection will provide internet access over a point-to-point VPN.

1. Created by: Henry Nunez

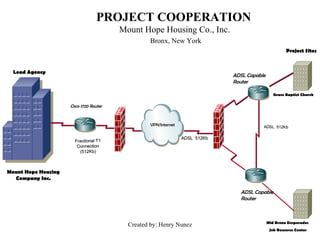

PROJECT COOPERATION
Mount Hope Housing Co., Inc.
Bronx, New York
ADSL CapableADSL Capable
RouterRouter
Grace Baptist Church
Mid Bronx Desperados
Job Resource Center
Mount Hope Housing
Company Inc.
Lead Agency
VPN/Internet
Project Sites
ADSL 512KbADSL 512Kb
Fractional T1Fractional T1
ConnectionConnection
(512Kb)(512Kb)
ADSL 512KbADSL 512Kb
Cisco 1720 RouterCisco 1720 Router
ADSL CapableADSL Capable
RouterRouter

2. Created by: Henry Nunez
PROJECT COOPERATION

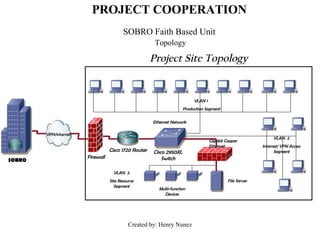

SOBRO Faith Based Unit
Topology
SOBRO
Ethernet NetworkEthernet Network
Project Site Topology
Cisco 1720 RouterCisco 1720 Router Cisco 2950XLCisco 2950XL
SwitchSwitch
File ServerFile Server
Multi-functionMulti-function
DevicesDevices
FirewallFirewall
VLAN 1VLAN 1
Production SegmentProduction Segment
VPN/Internet
VLAN 2VLAN 2
Internet/ VPN AccessInternet/ VPN Access
SegmentSegment
VLAN 3VLAN 3
Site ResourceSite Resource
SegmentSegment
Gigabit CopperGigabit Copper
EthernetEthernet

3. Created by: Henry Nunez
PROJECT COOPERATION
Mount Hope Housing Co., Inc.

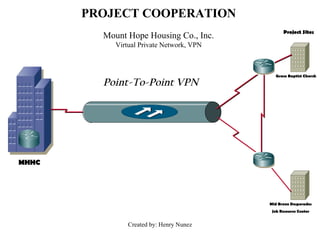

Virtual Private Network, VPN
Point-To-Point VPN
MHHCMHHC
Grace Baptist Church
Mid Bronx Desperados
Job Resource Center
Project Sites

4. Created by: D'Jvonne David

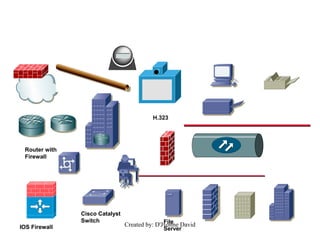

Router with
Firewall
IOS Firewall
H.323
File
Server
Cisco Catalyst
Switch
