- 1. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. Avoiding Silos in Container Networking Patrick.lynchehaun@nuagenetworks.net @nuagenetworks

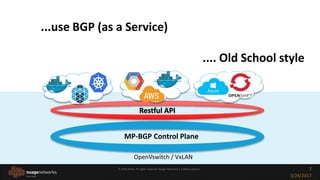

- 2. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. ...use BGP (as a Service) .... Old School style 3/24/2017 2 Restful API MP-BGP Control Plane OpenVswitch / VxLAN

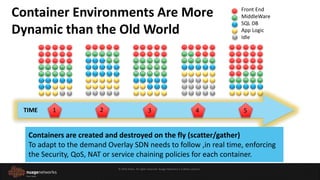

- 3. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. TIME Front End MiddleWare SQL DB App Logic Idle 1 2 3 4 5 Container Environments Are More Dynamic than the Old World Containers are created and destroyed on the fly (scatter/gather) To adapt to the demand Overlay SDN needs to follow ,in real time, enforcing the Security, QoS, NAT or service chaining policies for each container.

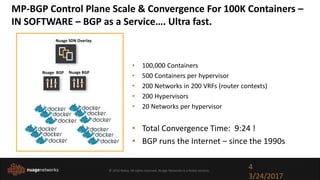

- 4. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. MP-BGP Control Plane Scale & Convergence For 100K Containers – IN SOFTWARE – BGP as a Service…. Ultra fast. 3/24/2017 4 • 100,000 Containers • 500 Containers per hypervisor • 200 Networks in 200 VRFs (router contexts) • 200 Hypervisors • 20 Networks per hypervisor • Total Convergence Time: 9:24 ! • BGP runs the Internet – since the 1990s Nuage BGP Nuage SDN Overlay Nuage BGP
- 5. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. Challenges With Container Networking …the real world 5 Integration Complex Deployments Security Cloud • App Isolation • Micro-segmentation • Monitoring & Visibility • Connect containers to VMs and bare metal servers • DC GW Integration • Public breakout • Integration with Container Orchestration workflows • Mesos, Docker, Kubernetes, OpenShift – CNM/CNI V M C B M • Private Cloud • Public Cloud • Hybrid Cloud
- 6. Copyright 2013 Alcatel-Lucent. All rights reserved. CONFIDENTIAL - SOLELY FOR AUTHORIZED PERSONS HAVING A NEED TO KNOW PROPRIETARY – USE PURSUANT TO COMPANY INSTRUCTION Nuage Networks OVERLAY NETWORKS DOCKER AND AND MORE & POLICIES

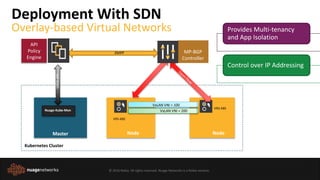

- 7. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. Overlay-based Virtual Networks Deployment With SDN Master Node Node VSDKAPI XMPP VRS-K8S Nuage-Kube-Mon Kubernetes Cluster MP-BGP Controller VxLAN VNI = 100 VxLAN VNI = 200 API Policy Engine Provides Multi-tenancy and App Isolation Control over IP Addressing VRS-K8S

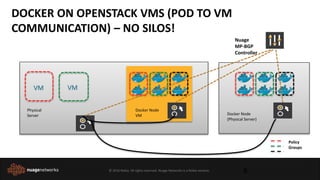

- 8. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. DOCKER ON OPENSTACK VMS (POD TO VM COMMUNICATION) – NO SILOS! 8 Physical Server Docker Node VM Docker Node (Physical Server) Nuage MP-BGP Controller VMVM Policy Groups
- 9. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. 10 Virtual Routing & Switching MP-BGP Controller API Virtual Service Directory VPN Connection VPC Container Multi-Cloud Deployments Cloud VM SDN-WAN SDN-WAN IPSec Tunnel
- 10. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. X 3/24/2017 11

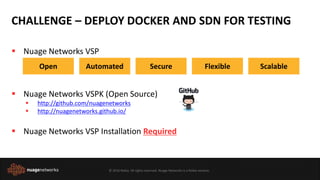

- 11. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. Nuage Networks VSP Nuage Networks VSPK (Open Source) http://github.com/nuagenetworks http://nuagenetworks.github.io/ Nuage Networks VSP Installation Required Open Automated Secure Flexible Scalable CHALLENGE – DEPLOY DOCKER AND SDN FOR TESTING

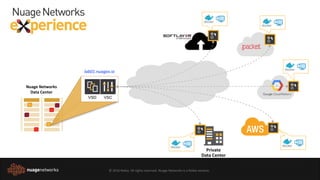

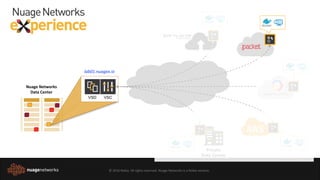

- 12. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. Nuage Networks Data Center VSD VSC lab01.nuagex.io Private Data Center
- 13. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. 1. 2. 3. Create a free account @ nuagex.io Auto Deploy Management & Control elements of the Nuage Networks VSP Auto Install VRS on host machine(s) Instantiate VM or container based workloads and Run your test workload(s) Connected workloads in less than 5 minutes! Login Deploy Run
- 14. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. LAUNCH DATE nuagex.io
- 15. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. Nuage Networks Data Center VSD VSC lab01.nuagex.io Private Data Center
- 16. © 2016 Nokia. All rights reserved. Nuage Networks is a Nokia venture. THANK YOU FOR HOSTING
Editor's Notes
- Application Security Application Isolation Micro-segmentation Monitoring and Visibility (VSS) CI/CD Workflow and orchestration Integration with Container Orchestration (K8S, Mesos) workflows Advanced application deployments Connect Containers, VMs & bare metal servers Externalize public services using VSG Micro-Services monitoring Visualize micro-service flows Monitor micro-services load and response times
- This is a high level view of of a VSP deployment with Kubernetes. The integration requirements 2 components. 1. kube-mon – that runs on the K8s master/masters (HA deployments) 2. k8s plugin – that runs on all of the k8s nodes (could be baremetal or virtual) The next slide has more details on this.
