1. IMAGE GUIDED
SURGERY
Dr.Ramendra singh

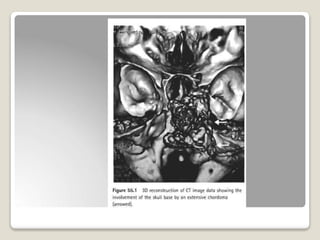

3. NAVIGATION
⚫Developed due to advances in computer
science,digital scanning and image
processing.
Important part of




neurosurgery
otorhinolaryngology
maxillofacial
orthopaedics

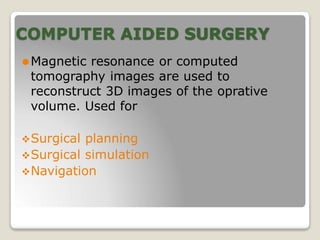

4. COMPUTER AIDED SURGERY
⚫Magnetic resonance or computed
tomography images are used to
reconstruct 3D images of the oprative
volume. Used for
Surgical planning
Surgical simulation
Navigation

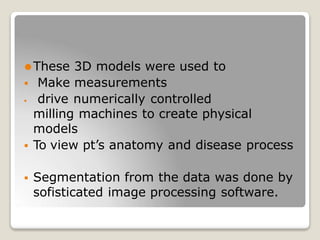

5. ⚫These 3D models were used to
 Make measurements
 drive numerically controlled
milling machines to create physical
models
 To view pt’s anatomy and disease process
 Segmentation from the data was done by
sofisticated image processing software.

6. ⚫In OT
, images were presented as 2D slices
within 3 orthogonal plane of spaces.
⚫Surgical tool was developed to enable the
localization of anatomical features to
confirm the precise position of a pointer
within the operative field.

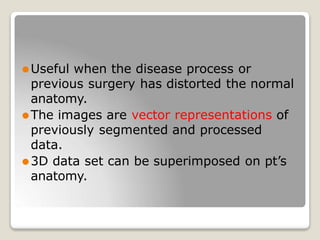

7. ⚫Useful when the disease process or
previous surgery has distorted the normal
anatomy.
⚫The images are vector representations of
previously segmented and processed
data.
⚫3D data set can be superimposed on pt’s
anatomy.

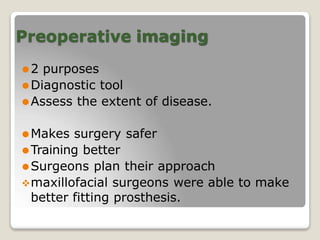

9. Preoperative imaging
⚫2 purposes
⚫Diagnostic tool
⚫Assess the extent of disease.
⚫Makes surgery safer
⚫Training better
⚫Surgeons plan their approach
maxillofacial surgeons were able to make
better fitting prosthesis.

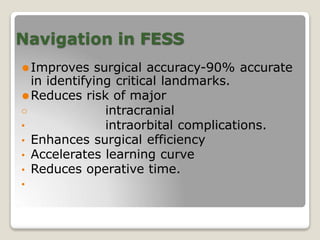

10. Navigation in FESS
⚫Improves surgical accuracy-90% accurate
in identifying critical landmarks.
⚫Reduces risk of major
intracranial
o
• intraorbital complications.
• Enhances surgical efficiency
• Accelerates learning curve
• Reduces operative time.
•

11. IMAGE RECONSTRUCTION
⚫3D data from 2D sections are created
using highly complex algorithms that are
specific to the particular scanner and
scanning protocol.
⚫Slices concept
⚫Pixels and voxels
⚫Volume averaging

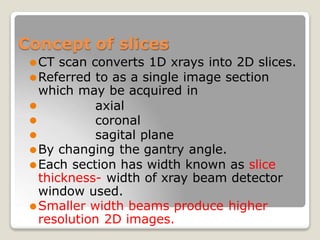

12. Concept of slices
⚫CT scan converts 1D xrays into 2D slices.
⚫Referred to as a single image section
which may be acquired in
axial
coronal
⚫
⚫
⚫ sagital plane
⚫By changing the gantry angle.
⚫Each section has width known as slice
thickness- width of xray beam detector
window used.
⚫Smaller width beams produce higher
resolution 2D images.

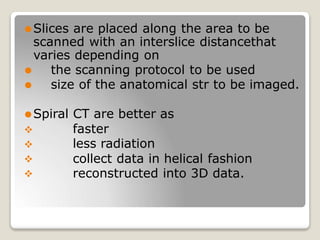

13. ⚫Slices are placed along the area to be
scanned with an interslice distancethat
varies depending on
⚫ the scanning protocol to be used
⚫ size of the anatomical str to be imaged.
⚫Spiral CT are better as




faster
less radiation
collect data in helical fashion
reconstructed into 3D data.

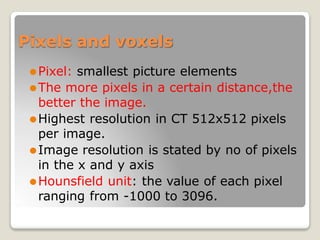

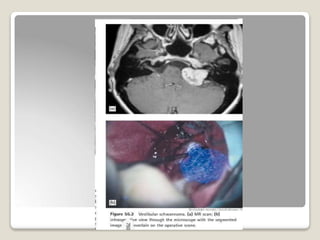

15. Pixels and voxels
⚫Pixel: smallest picture elements
⚫The more pixels in a certain distance,the
better the image.
⚫Highest resolution in CT 512x512 pixels
per image.
⚫Image resolution is stated by no of pixels
in the x and y axis
⚫Hounsfield unit: the value of each pixel
ranging from -1000 to 3096.

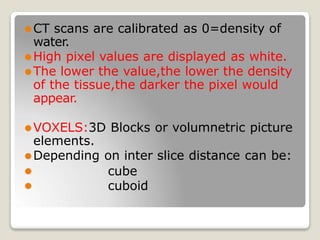

16. ⚫CT scans are calibrated as 0=density of
water.
⚫High pixel values are displayed as white.
⚫The lower the value,the lower the density
of the tissue,the darker the pixel would
appear.
⚫VOXELS:3D Blocks or volumnetric picture
elements.
⚫Depending on inter slice distance can be:
⚫
⚫
cube
cuboid

17. VOLUME AVERAGING
⚫Partial volume averaging:
⚫ if a str falls partially within a pixel,the
true value of the str will be assigned a
value less than the normal value of the
str.
⚫Major problem in delineating where the
edge of a str should lie within a given
image.
⚫Overcome by complex algorithms

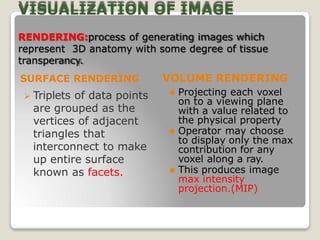

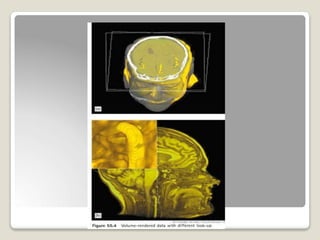

19. VISUALIZATION OF IMAGE
RENDERING:process of generating images which
represent 3D anatomy with some degree of tissue
transperancy.
VOLUME RENDERING
SURFACE RENDERING
 Triplets of data points
are grouped as the
vertices of adjacent
triangles that
interconnect to make
up entire surface
known as facets.
⚫ Projecting each voxel
on to a viewing plane
with a value related to
the physical property
⚫ Operator may choose
to display only the max
contribution for any
voxel along a ray.
⚫ This produces image
max intensity
projection.(MIP)

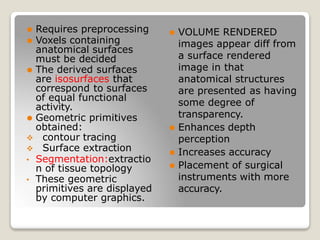

20. ⚫ Requires preprocessing
⚫ Voxels containing
anatomical surfaces
must be decided
⚫ The derived surfaces
are isosurfaces that
correspond to surfaces
of equal functional
activity.
⚫ Geometric primitives
obtained:
 contour tracing
 Surface extraction
• Segmentation:extractio
n of tissue topology
• These geometric
primitives are displayed
by computer graphics.
⚫ VOLUME RENDERED
images appear diff from
a surface rendered
image in that
anatomical structures
are presented as having
some degree of
transparency.
⚫ Enhances depth
perception
⚫ Increases accuracy
⚫ Placement of surgical
instruments with more
accuracy.

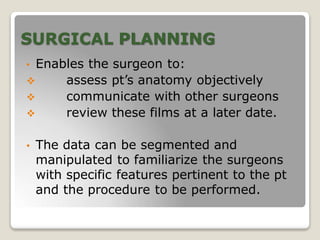

21. SURGICAL PLANNING
• Enables the surgeon to:
 assess pt’s anatomy objectively
 communicate with other surgeons
 review these films at a later date.
• The data can be segmented and
manipulated to familiarize the surgeons
with specific features pertinent to the pt
and the procedure to be performed.

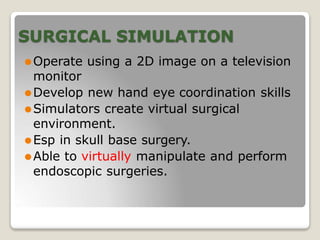

22. SURGICAL SIMULATION
⚫Operate using a 2D image on a television
monitor
⚫Develop new hand eye coordination skills
⚫Simulators create virtual surgical
environment.
⚫Esp in skull base surgery.
⚫Able to virtually manipulate and perform
endoscopic surgeries.

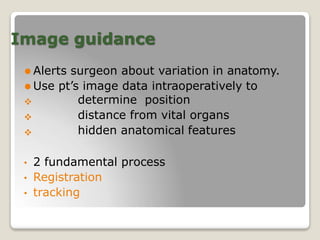

23. Image guidance
⚫ Alerts surgeon about variation in anatomy.
⚫ Use pt’s image data intraoperatively to



determine position
distance from vital organs
hidden anatomical features
• 2 fundamental process
• Registration
• tracking

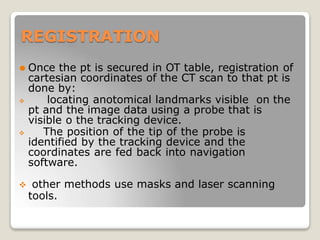

24. REGISTRATION
⚫ Once the pt is secured in OT table, registration of
cartesian coordinates of the CT scan to that pt is
done by:
 locating anotomical landmarks visible on the
pt and the image data using a probe that is
visible o the tracking device.
 The position of the tip of the probe is
identified by the tracking device and the
coordinates are fed back into navigation
software.
 other methods use masks and laser scanning
tools.

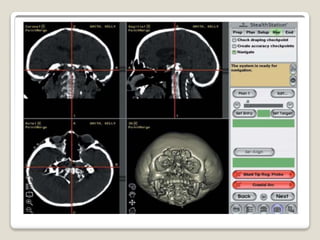

26. 


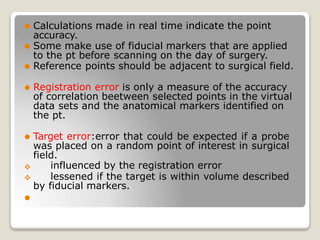

⚫ Calculations made in real time indicate the point
accuracy.
⚫ Some make use of fiducial markers that are applied
to the pt before scanning on the day of surgery.
⚫ Reference points should be adjacent to surgical field.
⚫ Registration error is only a measure of the accuracy
of correlation beetween selected points in the virtual
data sets and the anatomical markers identified on
the pt.
⚫ Target error:error that could be expected if a probe
was placed on a random point of interest in surgical
field.
influenced by the registration error
lessened if the target is within volume described
by fiducial markers.
⚫

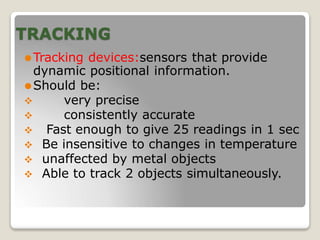

27. TRACKING
⚫Tracking devices:sensors that provide
dynamic positional information.
⚫Should be:
 very precise
 consistently accurate
 Fast enough to give 25 readings in 1 sec
 Be insensitive to changes in temperature
 unaffected by metal objects
 Able to track 2 objects simultaneously.

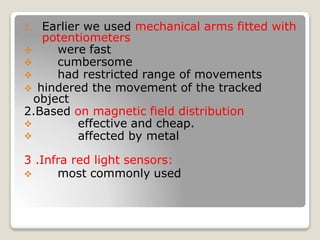

29. 1. Earlier we used mechanical arms fitted with
potentiometers
 were fast
 cumbersome
 had restricted range of movements
 hindered the movement of the tracked
object
2.Based on magnetic field distribution


effective and cheap.
affected by metal

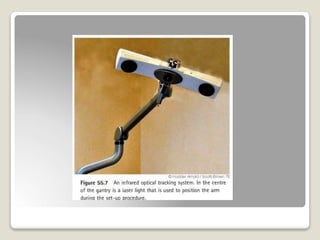

3 .Infra red light sensors:
 most commonly used

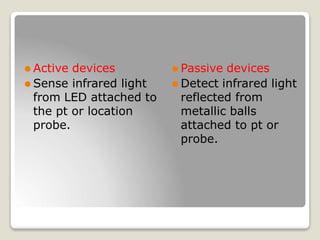

30. ⚫ Active devices
⚫ Sense infrared light
from LED attached to
the pt or location
probe.
⚫ Passive devices
⚫ Detect infrared light
reflected from
metallic balls
attached to pt or
probe.

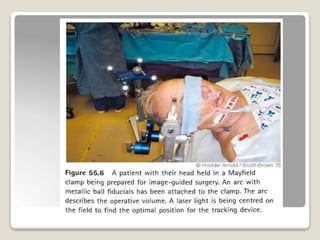

32. ⚫ To detect changes in pt’s position ,arches with LED an be
fitted to Mayfield clamp.
⚫ Accuracy of 2-5 mm .
4. Inertial trackers:
⚫ provide one rate of change of rotational measurement
only.
⚫ Not accurate for slow position changes.
5. Based on ultrasound signals:
• achieve greater accuracy.
• susceptible to changes in temperature and air currents.
• long lag times
• Interference from echoes and noises.

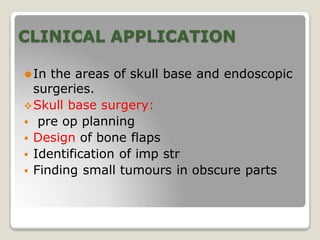

33. CLINICAL APPLICATION
⚫In the areas of skull base and endoscopic
surgeries.
Skull base surgery:
 pre op planning
 Design of bone flaps
 Identification of imp str
 Finding small tumours in obscure parts

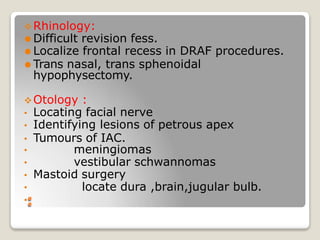

34. Rhinology:
⚫ Difficult revision fess.
⚫ Localize frontal recess in DRAF procedures.
⚫ Trans nasal, trans sphenoidal
hypophysectomy.
Otology :
• Locating facial nerve
• Identifying lesions of petrous apex
• Tumours of IAC.
• meningiomas
• vestibular schwannomas
• Mastoid surgery
• locate dura ,brain,jugular bulb.
•:
