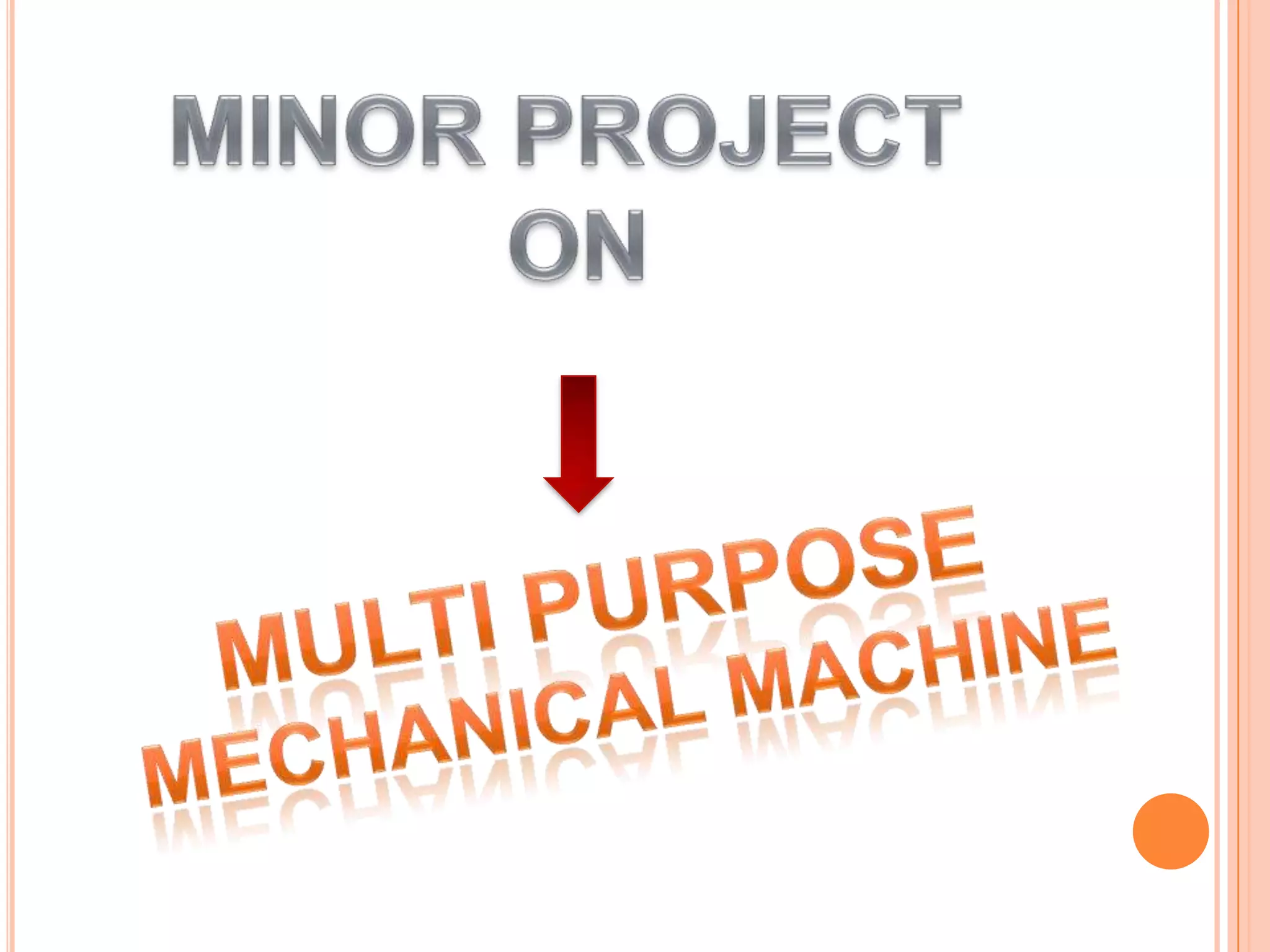

2. MULTI PURPOSE MECHANICAL
MACHINE
BY
Jitendra Jha(090210119111)
Gautam Parmar(090210119096)
Vijay Kumar Mer (090210119047)
Kumhar Sawarmal(100213119004)
Guided By
Prof. H.N.Jani
G.E.C Bhavnagar
6. DRILLING
Drilling is the operation of producing circular hole in
the work-piece by using a rotating cutter called
DRILL.
It is the simplest and accurate machine used in
production shop.
The work piece is held stationary ie. Clamped in
position and the drill rotates to make a hole.
7. CUTTING
A hacksaw is a fine-tooth saw with a blade
held under tension in a frame, used
for cutting materials such as metal or plastics.
Hand-held hacksaws consist of a metal arch
with a handle, usually a pistol grip, with pins
for attaching a narrow disposable blade.
The blade can be mounted with the teeth
facing toward or away from the handle,
resulting in cutting action on either the push
or pull stroke.
8. SHAPING
The shaping machine is used to machine flat metal
surfaces especially where a large amount of metal
has to be removed.
The reciprocating motion of the mechanism inside
the shaping machine can be seen in the diagram. As
the disc rotates the top of the machine moves
forwards and backwards, pushing a cutting tool. The
cutting tool removes the metal from work which is
carefully bolted down.
9. Objectives of project:
The following are the main objective of project.
Project work enables a student to work as a group. This is a
very mush important in engineering fields.
A student can developed his mind towards engineering field
and they come to know various manufacturing techniques and
processes.
A student can develop good knowledge about various
machines and equipment's used for manufacturing of various
parts.
Each can develop his ability to plan a work and take
appropriate decision.
12. Advantage
1.Multi operations are performed at one time
2.Our machine is used Return stroke (whit worth)
3.The return stroke of shaper machine is utilized as cutting
operation
4.All operation is performed by only one motor
5.Size is compact therefore it require less space
6.Time saving
7.Less man power is required
8. Low manufacturing & maintenance cost
