The document outlines schema and validation in MongoDB as essential for data management, emphasizing the structure of data and rules to maintain consistency. It discusses flexible schema models, validation levels (strict and moderate), and the implementation methods for validating data integrity. Additionally, it covers CRUD operations in MongoDB using Node.js, detailing the process for creating, reading, updating, and deleting documents.

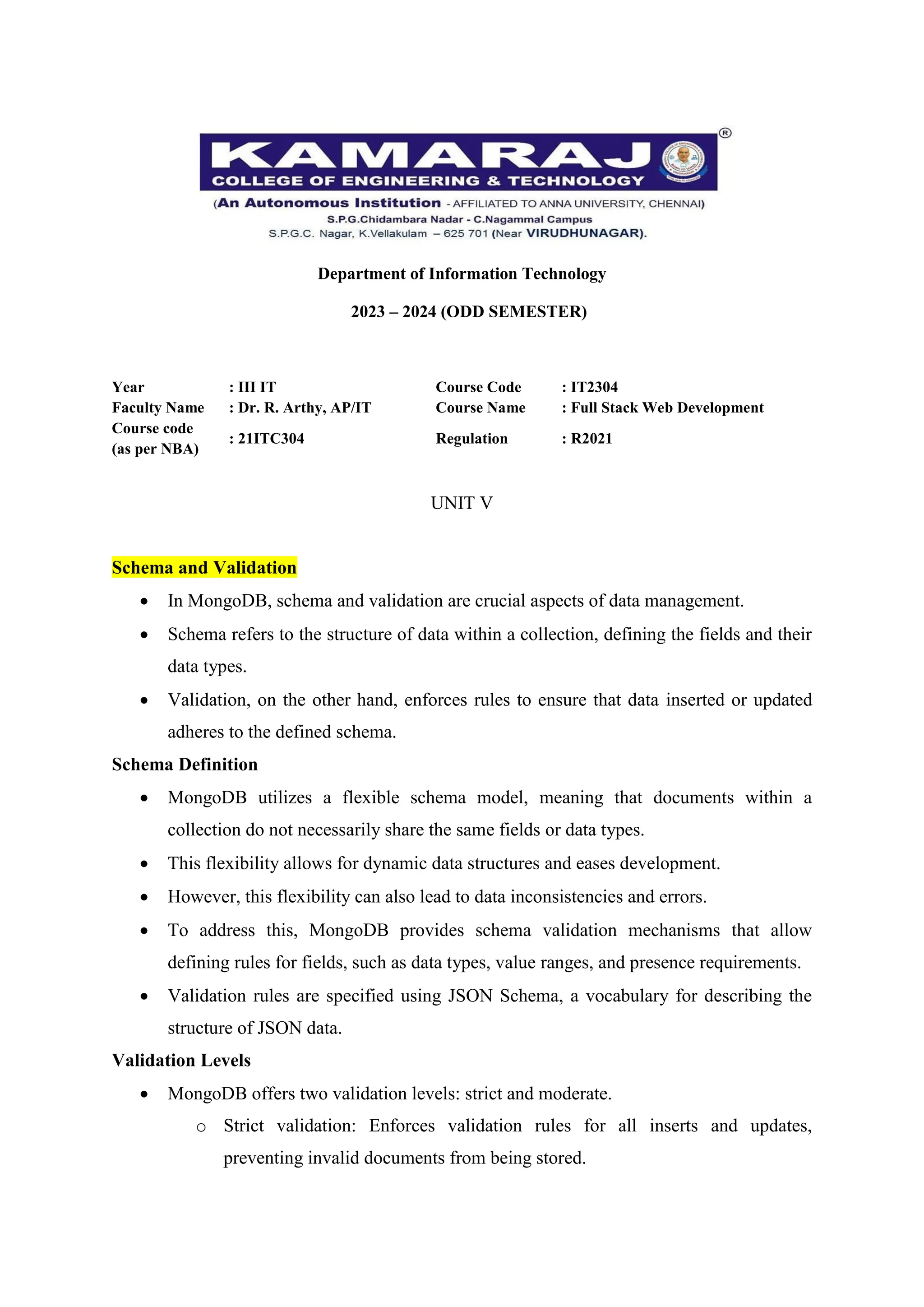

1. Department of Information Technology
2023 – 2024 (ODD SEMESTER)
Year : III IT Course Code : IT2304
Faculty Name : Dr. R. Arthy, AP/IT Course Name : Full Stack Web Development
Course code
(as per NBA)
: 21ITC304 Regulation : R2021
UNIT V
Schema and Validation
 In MongoDB, schema and validation are crucial aspects of data management.
 Schema refers to the structure of data within a collection, defining the fields and their
data types.
 Validation, on the other hand, enforces rules to ensure that data inserted or updated
adheres to the defined schema.
Schema Definition
 MongoDB utilizes a flexible schema model, meaning that documents within a
collection do not necessarily share the same fields or data types.
 This flexibility allows for dynamic data structures and eases development.
 However, this flexibility can also lead to data inconsistencies and errors.
 To address this, MongoDB provides schema validation mechanisms that allow
defining rules for fields, such as data types, value ranges, and presence requirements.
 Validation rules are specified using JSON Schema, a vocabulary for describing the
structure of JSON data.
Validation Levels
 MongoDB offers two validation levels: strict and moderate.
o Strict validation: Enforces validation rules for all inserts and updates,
preventing invalid documents from being stored.

2. o Moderate validation: Applies validation rules only for new documents and
existing valid documents. Existing invalid documents remain unchanged.
Validation Implementation
 Schema validation can be implemented using various methods:
o Using db.createCollection(): During collection creation, the validator option
can be used to define validation rules.
o Using collMod command: For existing collections, the validator option can be
added to the collMod command to introduce validation rules.
o Using MongoDB Atlas: MongoDB Atlas provides a user interface for defining
and managing schema validation rules.
Benefits of Schema Validation
 Data Integrity: Enforces data consistency and prevents invalid or unexpected data
from being stored.
 Data Quality: Improves data quality by ensuring that data adheres to the defined
structure and constraints.
 Error Prevention: Reduces errors caused by invalid data, improving application
reliability and stability.
 Data Understanding: Provides a clear understanding of the expected data structure,
facilitating code development and maintenance.
Example: For Scheme
const MongoClient = require('mongodb').MongoClient;
const url = 'mongodb://localhost:27017';
const dbName = 'myDatabase';
const collectionName = 'users';
const schema = {
bsonType: 'object',
required: ['name', 'email'],
properties: {
name: {
bsonType: 'string',
minLength: 3,
maxLength: 50,

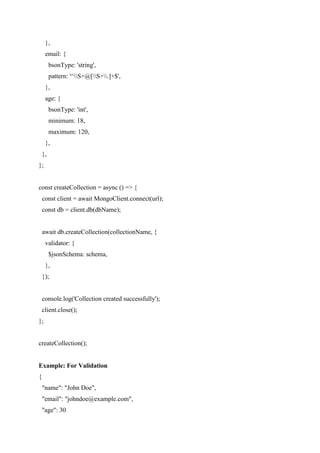

3. },
email: {
bsonType: 'string',
pattern: '^S+@[S+.]+$',
},
age: {
bsonType: 'int',
minimum: 18,
maximum: 120,
},
},
};
const createCollection = async () => {
const client = await MongoClient.connect(url);
const db = client.db(dbName);
await db.createCollection(collectionName, {
validator: {
$jsonSchema: schema,
},
});
console.log('Collection created successfully');
client.close();
};
createCollection();
Example: For Validation
{
"name": "John Doe",
"email": "johndoe@example.com",
"age": 30

4. }

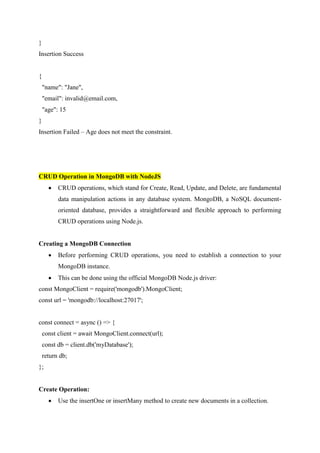

Insertion Success
{
"name": "Jane",
"email": invalid@email.com,
"age": 15
}
Insertion Failed – Age does not meet the constraint.
CRUD Operation in MongoDB with NodeJS
 CRUD operations, which stand for Create, Read, Update, and Delete, are fundamental
data manipulation actions in any database system. MongoDB, a NoSQL document-
oriented database, provides a straightforward and flexible approach to performing
CRUD operations using Node.js.
Creating a MongoDB Connection
 Before performing CRUD operations, you need to establish a connection to your
MongoDB instance.
 This can be done using the official MongoDB Node.js driver:
const MongoClient = require('mongodb').MongoClient;
const url = 'mongodb://localhost:27017';
const connect = async () => {
const client = await MongoClient.connect(url);
const db = client.db('myDatabase');
return db;
};
Create Operation:
 Use the insertOne or insertMany method to create new documents in a collection.

5. const express = require("express");
const app = express();
app.use(express.static('public'));
app.use(express.urlencoded({ extended: true }));
app.get('/', (req, res) => {
res.sendFile(__dirname + '/index.html');
});
app.post('/add', (req, res) => {
const document = {name: req.body.name1, age: req.body.age1};
res.send(createDocument(db, collectionName, document))
});
async function createDocument(db, collectionName, document) {
const collection = db.collection(collectionName);
const result = await collection.insertOne(document);
console.log(`Document created with the _id: ${result.insertedId}`);
}
Read Operation:
 Use the find method to read data from a collection.
app.post('/read', (req, res) => {
const document = {name: req.body.name1};
res.send(findDocument(db, collectionName, document))
});
async function findDocuments(db, collectionName, query) {
const collection = db.collection(collectionName);
const result = await collection.find(query).toArray();
console.log('Found documents:', result);
}

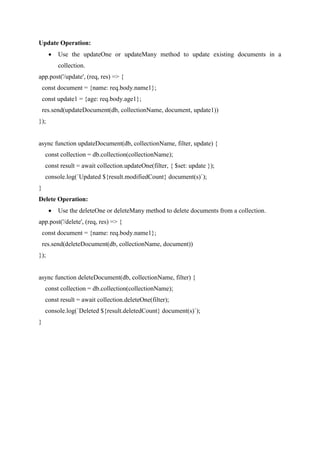

6. Update Operation:
 Use the updateOne or updateMany method to update existing documents in a
collection.
app.post('/update', (req, res) => {
const document = {name: req.body.name1};
const update1 = {age: req.body.age1};
res.send(updateDocument(db, collectionName, document, update1))
});
async function updateDocument(db, collectionName, filter, update) {
const collection = db.collection(collectionName);
const result = await collection.updateOne(filter, { $set: update });
console.log(`Updated ${result.modifiedCount} document(s)`);
}
Delete Operation:
 Use the deleteOne or deleteMany method to delete documents from a collection.
app.post('/delete', (req, res) => {
const document = {name: req.body.name1};
res.send(deleteDocument(db, collectionName, document))
});
async function deleteDocument(db, collectionName, filter) {
const collection = db.collection(collectionName);
const result = await collection.deleteOne(filter);
console.log(`Deleted ${result.deletedCount} document(s)`);
}
