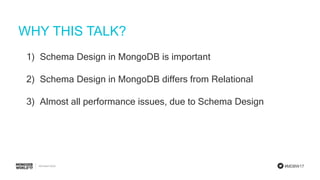

WHY THIS TALK?
1) Schema Design in MongoDB is important
2) Schema Design in MongoDB differs from Relational
3) Almost all performance issues, due to Schema Design

3. #MDBW17

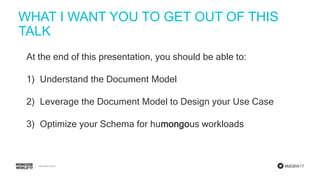

WHAT I WANT YOU TO GET OUT OF THIS
TALK
At the end of this presentation, you should be able to:
1) Understand the Document Model
2) Leverage the Document Model to Design your Use Case
3) Optimize your Schema for humongous workloads

4. HIGH LEVEL
SCHEMA DESIGN

5. #MDBW17
RELATIONAL SCHEMA DESIGN
https://iedei.files.wordpress.com/2012/04/mercedes-f1-car-disassembled.jpeg

6. #MDBW17
MONGODB SCHEMA DESIGN
http://www.northlodge.org/f1/2002/bar/bar-2002-01-honda-02.jpg

7. How MongoDB
Stores Data

8. #MDBW17
MONGODB USES JSON DOCUMENTS
JSON is a widely used standard
• JSON is fast, lean, flexible
• JSON is supported by almost all languages and tools
• JSON is used for modern communication & data exchange
MongoDB stores BSON (Binary JSON)

9. #MDBW17

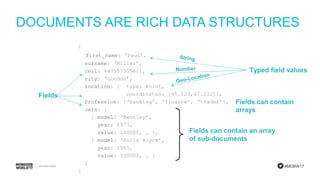

DOCUMENTS ARE RICH DATA STRUCTURES
{
first_name: ‘Paul’,
surname: ‘Miller’,
cell: 447557505611,
city: ‘London’,
location: { type: Point,
coordinates: [45.123,47.232]},
Profession: [‘banking’, ‘finance’, ‘trader’],
cars: [
{ model: ‘Bentley’,
year: 1973,
value: 100000, … },
{ model: ‘Rolls Royce’,
year: 1965,
value: 330000, … }
]
}
Fields can contain an array
of sub-documents
Typed field values
Fields can contain
arrays
Fields

10. Schema Design

11. #MDBW17

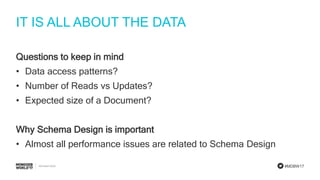

IT IS ALL ABOUT THE DATA
Questions to keep in mind
• Data access patterns?
• Number of Reads vs Updates?
• Expected size of a Document?
Why Schema Design is important
• Almost all performance issues are related to Schema Design

12. #MDBW17

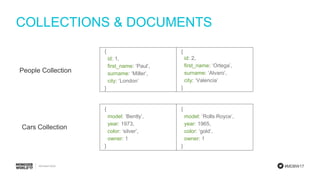

COLLECTIONS & DOCUMENTS
People Collection
{
id: 1,
first_name: ‘Paul’,
surname: ‘Miller’,
city: ‘London’
}
{
model: ‘Bently’,
year: 1973,
color: ‘silver’,
owner: 1
}
{
model: ‘Rolls Royce’,
year: 1965,
color: ‘gold‘,
owner: 1
}
{
id: 2,
first_name: ‘Ortega’,
surname: ‘Alvaro’,
city: ‘Valencia’
}
Cars Collection

13. #MDBW17
EMBEDDING DOCUMENTS
{
id: 1,
first_name: ‘Paul’,
surname: ‘Miller’,
city: ‘London’
}
{
model: ‘Bently’,
year: 1973,
color: ‘silver’,
owner: 1
}
{
model: ‘Rolls Royce’,
year: 1965,
color: ‘gold‘,
owner: 1
}
People Collection Car Collection

14. #MDBW17
EMBEDDING DOCUMENTS
{
id: 1,
first_name: ‘Paul’,
surname: ‘Miller’,
city: ‘London’
}
{
model: ‘Bently’,
year: 1973,
color: ‘silver’,
owner: 1
}
{
model: ‘Rolls Royce’,
year: 1965,
color: ‘gold‘,
owner: 1
}
{
first_name: ‘Paul’,
surname: ‘Miller’,
city: ‘London’,
cars: [
{
model: ‘Bently’,
year: 1973,
color: ‘silver’
},
{
model: ‘Rolls Royce’,
year: 1965,
color: ‘gold’
}
]
}
People Collection People CollectionCar Collection

15. #MDBW17

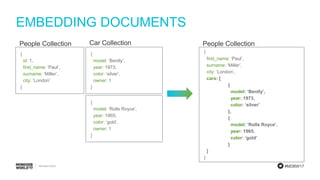

EMBEDDING DOCUMENTS
{
id: 1,
first_name: ‘Paul’,
surname: ‘Miller’,
city: ‘London’
}
{
model: ‘Bently’,
year: 1973,
color: ‘silver’,
owner: 1
}
{
model: ‘Rolls Royce’,
year: 1965,
color: ‘gold‘,
owner: 1
}
{
first_name: ‘Paul’,
surname: ‘Miller’,
city: ‘London’,
cars: [
{
model: ‘Bently’,
year: 1973,
color: ‘silver’
},
{
model: ‘Rolls Royce’,
year: 1965,
color: ‘gold’
}
]
}
People Collection People CollectionCar Collection

16. #MDBW17
WHICH CARS BELONG TO PAUL?
HOW FAST CAN YOU ANSWER THIS?
{
first_name: ‘Paul’,
surname: ‘Miller’,
city: ‘London’,
cars: [
{
model: ‘Bently’,
year: 1973,
color: ‘silver’
},
{
model: ‘Rolls Royce’,
year: 1965,
color: ‘gold’
}
]
}

17. WHY DEVELOPERS
LOVE MONGODB

18. #MDBW17
DOCUMENTS == OBJECTS

19. #MDBW17
DEVELOPMENT – BEFORE MONGODB
{ CODE } DB SCHEMAXML CONFIG
APPLICATION RELATIONAL DATABASE
OBJECT RELATIONAL
MAPPING

20. #MDBW17

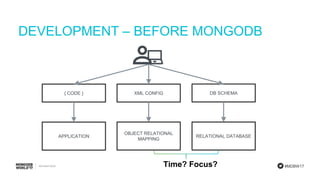

DEVELOPMENT – BEFORE MONGODB
{ CODE } DB SCHEMAXML CONFIG
APPLICATION RELATIONAL DATABASE
OBJECT RELATIONAL
MAPPING
Time? Focus?

21. #MDBW17
DEVELOPMENT – WITH MONGODB
{ CODE }
Agility
APPLICATION

22. INTERNET OF
THINGS USE CASES

23. #MDBW17

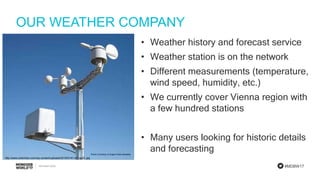

OUR WEATHER COMPANY
• Weather history and forecast service
• Weather station is on the network
• Different measurements (temperature,
wind speed, humidity, etc.)
• We currently cover Vienna region with
a few hundred stations
• Many users looking for historic details
and forecasting
http://www.switchdoc.com/wp-content/uploads/2015/01/41-tvY-gqZL.jpg

24. #MDBW17
DATA MODELLING FOR TIME SERIES
http://www.switchdoc.com/wp-content/uploads/2015/01/41-tvY-gqZL.jpg
{
sensor_id : 520124,
date : ISODate(“2017-02-25T17:00:00.000Z”),
temperature : 9,
humidity : 60
}
{
sensor_id : 520124,
date : ISODate(“2017-02-25T17:01:00.000Z”),
temperature : 10,
humidity : 60
}
{
sensor_id : 520124,
date : ISODate(“2017-02-25T17:02:00.000Z”),
temperature : 10,
humidity : 59
}

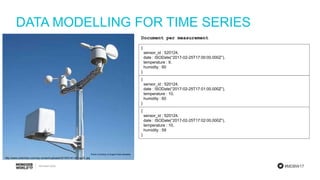

Document per measurement

25. #MDBW17

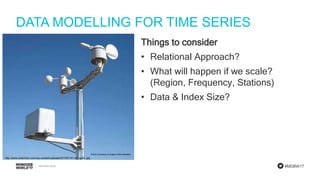

DATA MODELLING FOR TIME SERIES
http://www.switchdoc.com/wp-content/uploads/2015/01/41-tvY-gqZL.jpg
Things to consider
• Relational Approach?
• What will happen if we scale?
(Region, Frequency, Stations)
• Data & Index Size?

26. #MDBW17
DATA MODELLING FOR TIME SERIES
http://www.switchdoc.com/wp-content/uploads/2015/01/41-tvY-gqZL.jpg
{
sensor_id : 520124,
measurements : [
{
date : ISODate(“2017-02-25T17:13:00.000Z”),
temperature : 9,
humidity : 60
},
{
date : ISODate(“2017-02-25T17:13:05.000Z”),
temperature : 15,
humidity : 55
}, … ],
Bucketing

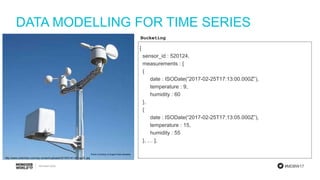

27. #MDBW17
DATA MODELLING FOR TIME SERIES
http://www.switchdoc.com/wp-content/uploads/2015/01/41-tvY-gqZL.jpg

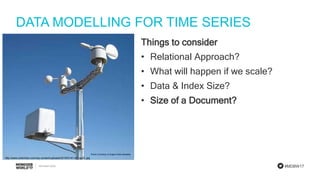

Things to consider
• Relational Approach?
• What will happen if we scale?
• Data & Index Size?
• Size of a Document?

28. #MDBW17
DATA MODELLING FOR TIME SERIES
http://www.switchdoc.com/wp-content/uploads/2015/01/41-tvY-gqZL.jpg
{
sensor_id : 520124,
measurements : [
{
date : ISODate(“2017-02-25T17:13:00.000Z”),
temperature : 9,
humidity : 60
},
{
date : ISODate(“2017-02-25T17:13:05.000Z”),
temperature : 15,
humidity : 55
}, … ],
txCount : 100,

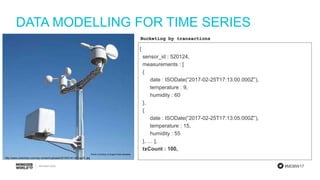

Bucketing by transactions

29. #MDBW17
DATA MODELLING FOR TIME SERIES
http://www.switchdoc.com/wp-content/uploads/2015/01/41-tvY-gqZL.jpg
Things to consider
• Relational Approach?
• What will happen if we scale?
• Data & Index Size?
• Size of a Document?
• How will user access the data?

30. #MDBW17
DATA MODELLING FOR TIME SERIES
http://www.switchdoc.com/wp-content/uploads/2015/01/41-tvY-gqZL.jpg
{
sensor_id : 520124,
start_date : ISODate(“2017-02-25T17:00:00.000Z”),
end_date : ISODate(“2017-02-25T18:00:00.000Z”),
measurements : [
{
date : ISODate(“2017-02-25T17:13:00.000Z”),
temperature : 9,
humidity : 60
},
{
date : ISODate(“2017-02-25T17:13:05.000Z”),
temperature : 15,
humidity : 55
}, … ],
txCount : 100,
Bucketing by time and transactions

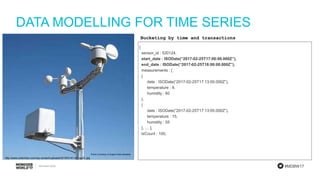

31. #MDBW17

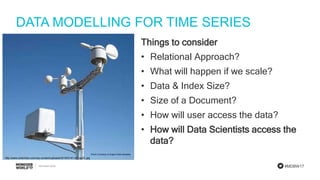

DATA MODELLING FOR TIME SERIES
http://www.switchdoc.com/wp-content/uploads/2015/01/41-tvY-gqZL.jpg
Things to consider
• Relational Approach?
• What will happen if we scale?
• Data & Index Size?
• Size of a Document?

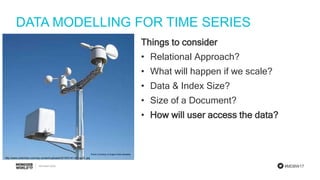

• How will user access the data?
• How will Data Scientists access the
data?

32. #MDBW17
DATA MODELLING FOR TIME SERIES
http://www.switchdoc.com/wp-content/uploads/2015/01/41-tvY-gqZL.jpg
{
sensor_id : 520124,
start_date : ISODate(“2017-02-25T17:00:00.000Z”),
end_date : ISODate(“2017-02-25T18:00:00.000Z”),
measurements : [
{
date : ISODate(“2017-02-25T17:13:00.000Z”),
temperature : 9,
humidity : 60
},
{
date : ISODate(“2017-02-25T17:13:05.000Z”),
temperature : 15,
humidity : 55
}, … ],
txCount : 100,
sum_temperature : 1600,
sum_humidity : 5700
}

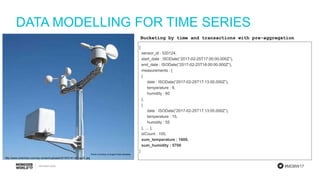

Bucketing by time and transactions with pre-aggregation

33. #MDBW17

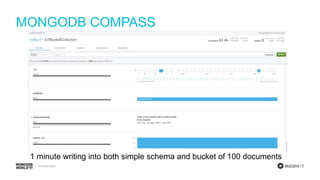

MONGODB COMPASS
1 minute writing into both simple schema and bucket of 100 documents

34. #MDBW17

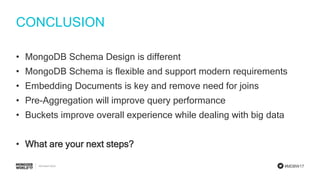

CONCLUSION
• MongoDB Schema Design is different
• MongoDB Schema is flexible and support modern requirements
• Embedding Documents is key and remove need for joins
• Pre-Aggregation will improve query performance
• Buckets improve overall experience while dealing with big data
• What are your next steps?
