2. From SQL to NoSQL—
Changing Your Mindset
@Lauren_Schaefer, Developer Advocate,
MongoDB

3. Parks and Recreation, Season 6, Episode 14

7. Parks and Recreation, Season 6, Episode 14

8. Lauren Schaefer
Developer Advocate, MongoDB
@Lauren_Schaefer

9. From SQL to NoSQL—
Changing Your Mindset

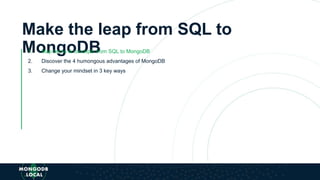

10. Make the leap from SQL to
MongoDB1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways

11. Make the leap from SQL to
MongoDB1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways

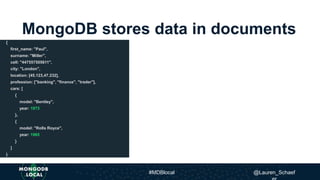

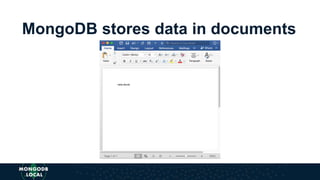

12. MongoDB stores data in documents

13. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
#MDBlocal @Lauren_Schaef

14. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
#MDBlocal @Lauren_Schaef

15. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
#MDBlocal @Lauren_Schaef

16. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
#MDBlocal @Lauren_Schaef

17. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
#MDBlocal @Lauren_Schaef

18. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
#MDBlocal @Lauren_Schaef

19. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
#MDBlocal @Lauren_Schaef

20. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
#MDBlocal @Lauren_Schaef

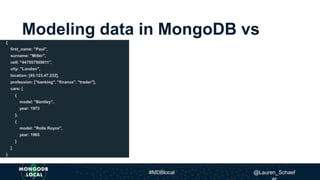

21. Modeling data in MongoDB vs
SQL
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
#MDBlocal @Lauren_Schaef

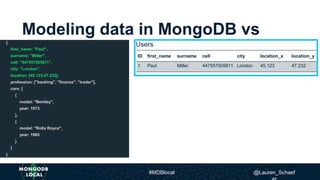

22. Modeling data in MongoDB vs
SQL
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
Users
#MDBlocal @Lauren_Schaef

23. Modeling data in MongoDB vs
SQL
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
Users
ID user_id profession
10 1 banking
11 1 finance
12 1 trader
Professions
#MDBlocal @Lauren_Schaef

24. Modeling data in MongoDB vs
SQL
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
ID user_id profession
10 1 banking
11 1 finance
12 1 trader
Professions
ID user_id model year
20 1 Bentley 1973
21 1 Rolls Royce 1965
Cars
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
Users
#MDBlocal @Lauren_Schaef

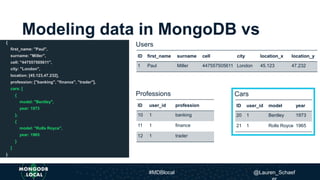

25. Modeling data in MongoDB vs
SQL
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
ID user_id profession
10 1 banking
11 1 finance
12 1 trader
Professions
ID user_id model year
20 1 Bentley 1973
21 1 Rolls Royce 1965
Cars
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
Users
#MDBlocal @Lauren_Schaef

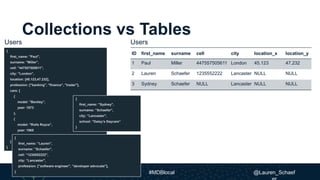

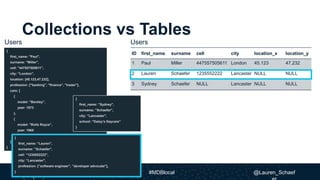

26. Collections vs Tables
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
{
first_name: ”Lauren",
surname: ”Schaefer",
cell: ”1235552222",
city: ”Lancaster",
profession: [”software engineer", ”developer advocate"],
}
{
first_name: ”Sydney",
surname: ”Schaefer",
city: ”Lancaster",
school: ”Daisy’s Daycare”
}
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
2 Lauren Schaefer 1235552222 Lancaster NULL NULL
3 Sydney Schaefer NULL Lancaster NULL NULL
UsersUsers
#MDBlocal @Lauren_Schaef

27. ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
2 Lauren Schaefer 1235552222 Lancaster NULL NULL
3 Sydney Schaefer NULL Lancaster NULL NULL
Collections vs Tables
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
{
first_name: ”Lauren",
surname: ”Schaefer",
cell: ”1235552222",
city: ”Lancaster",
profession: [”software engineer", ”developer advocate"],
}
{
first_name: ”Sydney",
surname: ”Schaefer",
city: ”Lancaster",
school: ”Daisy’s Daycare”
}
UsersUsers
#MDBlocal @Lauren_Schaef

28. Collections vs Tables
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
2 Lauren Schaefer 1235552222 Lancaster NULL NULL
3 Sydney Schaefer NULL Lancaster NULL NULL
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
{
first_name: ”Lauren",
surname: ”Schaefer",
cell: ”1235552222",
city: ”Lancaster",
profession: [”software engineer", ”developer advocate"],
}
{
first_name: ”Sydney",
surname: ”Schaefer",
city: ”Lancaster",
school: ”Daisy’s Daycare”
}
UsersUsers
#MDBlocal @Lauren_Schaef

29. Schemaless
database
#MDBlocal @Lauren_Schaef

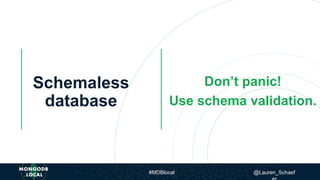

30. Schemaless
database
Don’t panic!
Use schema validation.
#MDBlocal @Lauren_Schaef

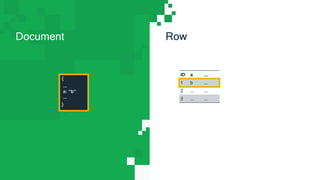

31. Document Row
{
...
a: “b”
...
}
ID a ...
1 b ...
2 ... ...
3 ... ...

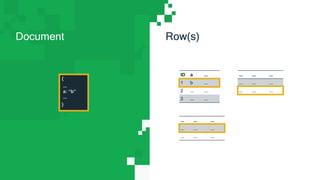

32. Document Row(s)
{
...
a: “b”
...
}
ID a ...
1 b ...
2 ... ...
3 ... ...
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...

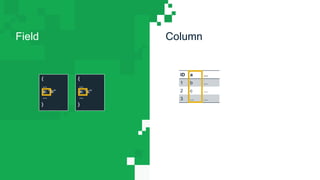

33. Field Column
ID a ...
1 b ...
2 c ...
3 ... ...
{
...
a: “b”
...
}
{
...
a: “c”
...
}

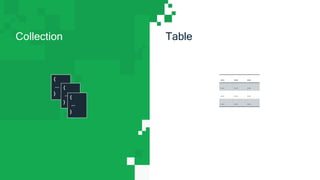

34. Collection Table
{
...
}
... ... ...
... ... ...
... ... ...
... ... ...
{
...
}
{
...
}

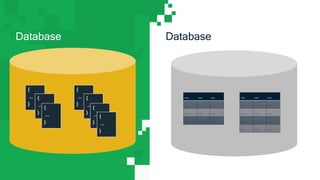

35. Database Database
... ... ...
... ... ...
... ... ...
... ... ...
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...

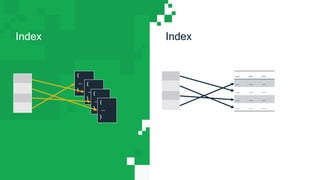

36. Index Index
{
...
}
{
...
}
{
...
}
{
...
}
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...

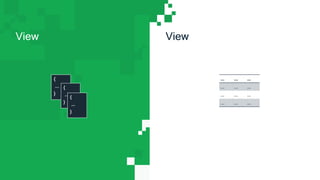

37. View View
{
...
}
... ... ...
... ... ...
... ... ...
... ... ...
{
...
}
{
...
}

38. Embedding Join
{
...
a: “b”,
...
c: {
d: “e”
...
},
...
}
ID a ...
1 b ...
2 ... ...
3 ... ...
... d ...
1 e ...
... ... ...

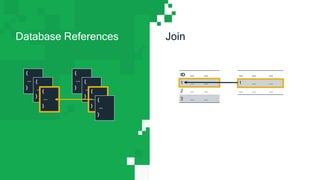

39. Database References Join
ID ... ...
1 ... ...
2 ... ...
3 ... ...
... ... ...
1 ... ...
... ... ...
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}

40. $lookup
(Aggregation Pipeline)
Left Outer Join
ID ... ...
1 ... ...
2 ... ...
3 ... ...
... ... ...
1 ... ...
4 ... ...
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}

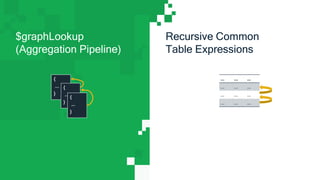

41. $graphLookup
(Aggregation Pipeline)
Recursive Common
Table Expressions
{
...
}
... ... ...
... ... ...
... ... ...
... ... ...
{
...
}
{
...
}

42. Multi-Document ACID
Transaction
Multi-Record ACID
Transaction
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...

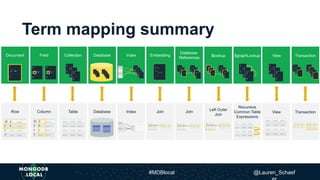

43. Term mapping summary
x
Row Column Table Database Index Join Join
Left Outer
Join
Recursive
Common Table
Expressions
View Transaction
Document Field Collection Database Index Embedding
Database
References
$lookup $graphLookup View Transaction
#MDBlocal @Lauren_Schaef

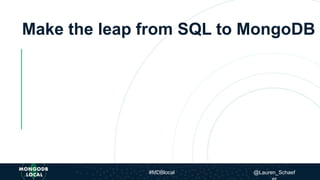

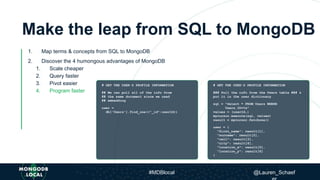

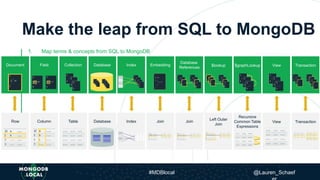

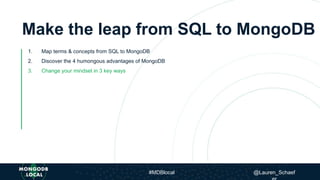

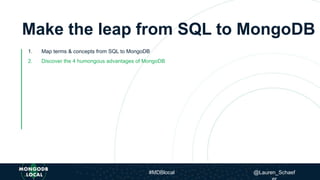

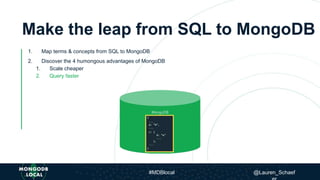

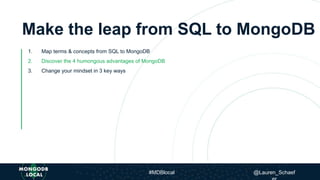

44. Make the leap from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways
#MDBlocal @Lauren_Schaef

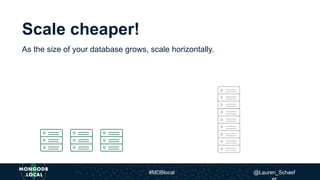

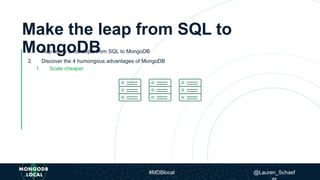

47. Scale cheaper!
As the size of your database grows, scale horizontally.
#MDBlocal @Lauren_Schaef

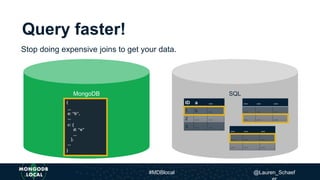

48. SQLMongoDB
Query faster!
Stop doing expensive joins to get your data.
ID a ...
1 b ...
2 ... ...
3 ... ...
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...
{
...
a: “b”,
...
c: {
d: “e”
...
},
...
}
#MDBlocal @Lauren_Schaef

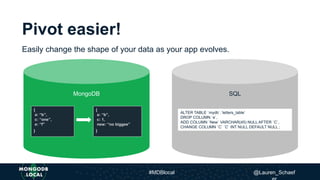

49. SQLMongoDB
Pivot easier!
Easily change the shape of your data as your app evolves.
{
a: “b”,
c: “one”,
e: “f”
}
{
a: “b”,
c: 1,
new: “no biggee”
}
ALTER TABLE `mydb`.`letters_table`
DROP COLUMN `e`,
ADD COLUMN `New` VARCHAR(45) NULL AFTER `C`,
CHANGE COLUMN `C` `C` INT NULL DEFAULT NULL ;
#MDBlocal @Lauren_Schaef

50. Program faster!
Documents map to data structures in most popular languages.
Update Your Profile
#MDBlocal @Lauren_Schaef

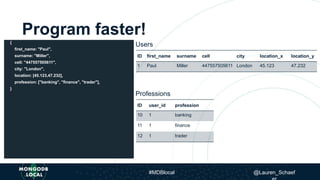

51. Program faster!
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
}
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
Users
ID user_id profession
10 1 banking
11 1 finance
12 1 trader
Professions
#MDBlocal @Lauren_Schaef

52. Program faster!
import pymongo
from pymongo import MongoClient
# CONNECT TO THE DB
client = MongoClient()
client =
pymongo.MongoClient("mongodb+srv://
username:password@cluster0nsdia.
mongodb.net/test?retryWrites=true")
db = client.fabapp
# THE ID OF THE USER WHOSE PROFILE WE
# WILL BE RETRIEVING AND UPDATING
userId = 1
import mysql.connector
# CONNECT TO THE DB
mydb = mysql.connector.connect(
host="localhost",
user=”username",
passwd=”password",
database=”fabapp”
)
mycursor = mydb.cursor()
# THE ID OF THE USER WHOSE PROFILE WE
# WILL BE RETRIEVING AND UPDATING
userId = 1

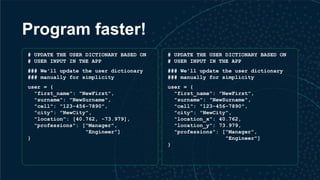

53. Program faster!
# GET THE USER'S PROFILE INFORMATION
## We can pull all of the info from
## the same document since we used
## embedding
user =
db['Users'].find_one({"_id":userId})
# GET THE USER'S PROFILE INFORMATION
### Pull the info from the Users table
### & put it in the user dictionary
sql = "Select * FROM Users WHERE
Users.ID=%s”
values = (userId,)
mycursor.execute(sql, values)
result = mycursor.fetchone()
user = {
"first_name": result[1],
"surname": result[2],
"cell": result[3],
"city": result[4],
"location_x": result[5],
"location_y": result[6]
}
### Pull the info from the Professions
### table & put it in the user dict.
sql = "Select * FROM Professions WHERE
Professions.user_id=%s”
values = (userId,)
mycursor.execute(sql, values)
results = mycursor.fetchall()
professions = []
for result in results:
professions.append(result[2])
user["professions"] = professions

54. Program faster!
# UPDATE THE USER DICTIONARY BASED ON
# USER INPUT IN THE APP
### We'll update the user dictionary
### manually for simplicity
user = {
"first_name": "NewFirst",
"surname": "NewSurname",
"cell": "123-456-7890",
"city": "NewCity",
"location": [40.762, -73.979],
"professions": ["Manager",
"Engineer"]
}
# UPDATE THE USER DICTIONARY BASED ON
# USER INPUT IN THE APP
### We'll update the user dictionary
### manually for simplicity
user = {
"first_name": "NewFirst",
"surname": "NewSurname",
"cell": "123-456-7890",
"city": "NewCity",
"location_x": 40.762,
"location_y": 73.979,
"professions": ["Manager",
"Engineer"]
}

55. Program faster!
# UPDATE THE USER'S PROFILE IN THE DB
### Since the user's data is stored in
### a single document, we only have to
### make one update
result = db['Users'].update_one(
{"_id": userId}, {"$set": user})
# UPDATE THE USER'S PROFILE IN THE DB
### First update what is stored in the
### Users table
sql = "UPDATE Users SET first_name=%s,
surname=%s, cell=%s, city=%s,
location_x=%s, location_y=%s
WHERE (ID=%s)"
values = (
user["first_name"],
user["surname"],
user["cell"],
user["city"],
user["location_x"],
user["location_y"],
userId)
mycursor.execute(sql, values)
mydb.commit()
### Delete existing records in
### Professions table and add new ones
sql = "DELETE FROM Professions WHERE
user_id=%s”
values = (userId,)
mycursor.execute(sql, values)
mydb.commit()
if(len(user["professions"]) > 0):
sql = "INSERT INTO Professions
(user_id,profession) VALUES
(%s, %s)”
values = []
for profession in user["professions"]:
values.append((userId, profession))
mycursor.executemany(sql,values)
mydb.commit()

56. Program faster!
30 lines of code 73 lines of code

57. Make the leap from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways
#MDBlocal @Lauren_Schaef

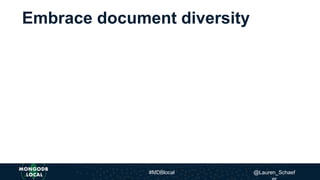

60. Embrace document diversity
#MDBlocal @Lauren_Schaef

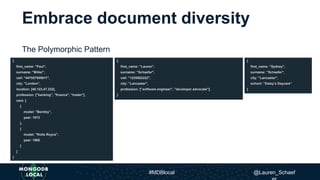

61. Embrace document diversity
The Polymorphic Pattern
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
{
first_name: ”Lauren",
surname: ”Schaefer",
cell: ”1235552222",
city: ”Lancaster",
profession: [”software engineer", ”developer advocate"],
}
{
first_name: ”Sydney",
surname: ”Schaefer",
city: ”Lancaster",
school: ”Daisy’s Daycare”
}
#MDBlocal @Lauren_Schaef

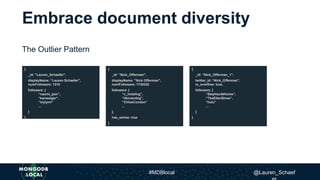

62. Embrace document diversity
The Outlier Pattern
{
_id: ”Lauren_Schaefer",
displayName: ”Lauren Schaefer",
numFollowers: 1310
followers: [
“naomi_pen”,
“kenwalger”,
“mylynn”
...
]
}
{
_id: ”Nick_Offerman",
displayName: ”Nick Offerman",
numFollowers: 1730332
followers: [
“c_hotaling”,
“IAmJerdog”,
“ChloeCondon”
...
],
has_extras: true
}
{
_id: ”Nick_Offerman_1",
twitter_id: “Nick_Offerman”,
is_overflow: true,
followers: [
“StephenAtHome”,
“TheEllenShow”,
“hulu”
...
]
}
#MDBlocal @Lauren_Schaef

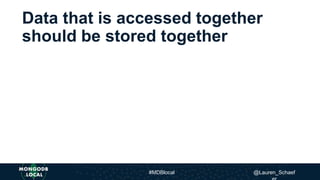

63. Data that is accessed together
should be stored together
#MDBlocal @Lauren_Schaef

64. Data that is accessed together
should be stored together
#MDBlocal @Lauren_Schaef

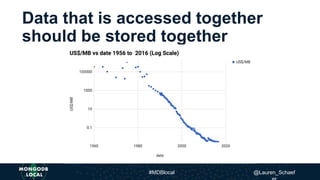

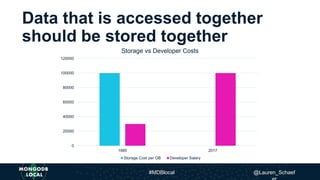

65. 0
20000
40000
60000
80000
100000
120000
1985 2017
Storage vs Developer Costs
Storage Cost per GB Developer Salary
Data that is accessed together
should be stored together
#MDBlocal @Lauren_Schaef

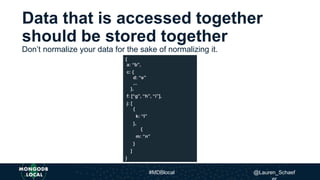

66. Don’t normalize your data for the sake of normalizing it.
{
a: “b”,
c: {
d: “e”
...
},
f: [“g”, “h”, “i”],
j: [
{
k: “l”
},
{
m: “n”
}
]
}
Data that is accessed together
should be stored together
#MDBlocal @Lauren_Schaef

67. Tread carefully with transactions
Relying on transactions is a bad design smell.
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
#MDBlocal @Lauren_Schaef

68. Make the leap from SQL to MongoDB
#MDBlocal @Lauren_Schaef

69. Make the leap from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
x
Row Column Table Database Index Join Join
Left Outer
Join
Recursive
Common Table
Expressions
View Transaction
Document Field Collection Database Index Embedding
Database
References
$lookup $graphLookup View Transaction
#MDBlocal @Lauren_Schaef

70. Make the leap from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
#MDBlocal @Lauren_Schaef

71. Make the leap from SQL to
MongoDB1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
1. Scale cheaper
#MDBlocal @Lauren_Schaef

72. Make the leap from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
1. Scale cheaper
2. Query faster
#MDBlocal @Lauren_Schaef

73. Make the leap from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
1. Scale cheaper
2. Query faster
3. Pivot easier
#MDBlocal @Lauren_Schaef

74. Make the leap from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
1. Scale cheaper
2. Query faster
3. Pivot easier
4. Program faster
# GET THE USER'S PROFILE INFORMATION
## We can pull all of the info from
## the same document since we used
## embedding
user =
db['Users'].find_one({"_id":userId})
# GET THE USER'S PROFILE INFORMATION
### Pull the info from the Users table ### &
put it in the user dictionary
sql = "Select * FROM Users WHERE
Users.ID=%s”
values = (userId,)
mycursor.execute(sql, values)
result = mycursor.fetchone()
user = {
"first_name": result[1],
"surname": result[2],
"cell": result[3],
"city": result[4],
"location_x": result[5],
"location_y": result[6]
}
#MDBlocal @Lauren_Schaef

75. Make the leap from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways
#MDBlocal @Lauren_Schaef

76. Make the leap from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways
1. Embrace document diversity
#MDBlocal @Lauren_Schaef

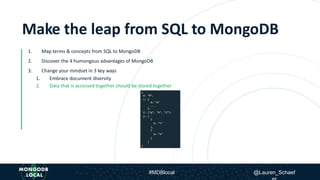

77. Make the leap from SQL to
MongoDB1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways
1. Embrace document diversity
2. Data that is accessed together should be stored together
Make the leap from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways
1. Embrace document diversity
2. Data that is accessed together should be stored together
#MDBlocal @Lauren_Schaef

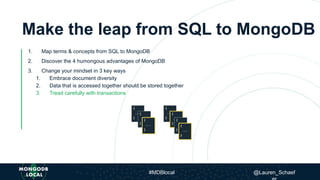

78. Make the leap from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways
1. Embrace document diversity
2. Data that is accessed together should be stored together
3. Tread carefully with transactions
#MDBlocal @Lauren_Schaef

79. Don’t be Ron Swanson
(in this particular case)
#MDBlocal @Lauren_Schaef

80. Change your mindset &
get the full value of MongoDB
Don’t be Ron Swanson
#MDBlocal @Lauren_Schaef

81. Additional resources on data
modeling patterns
• Advanced Schema Design Patterns (webinar)
• Building with Patterns: A Summary (blog series)
• M320: Data Modeling (MongoDB University Course – brand new!)
#MDBlocal @Lauren_Schaef

82. Additional resources
• The MongoDB Docs
• JSON Schema Validation – Locking down your model the smart way
• JSON Schema Validation - Checking Your Arrays
• M121: The MongoDB Aggregation Framework
#MDBlocal @Lauren_Schaef

83. Don’t be Ron Swanson
(in this particular case)
Change your mindset and get the
full value of MongoDB
Change your mindset &
get the full value of MongoDB
Get the slides on my Twitter
page: @Lauren_Schaefer
#MDBlocal @Lauren_Schaef

84. Thank You!
