1. Citrix Cloud Solutions
Claudio Mascaro, BCD-Sintrag AG, Switzerland
Daniel Künzli, Citrix Systems GmbH, Switzerland

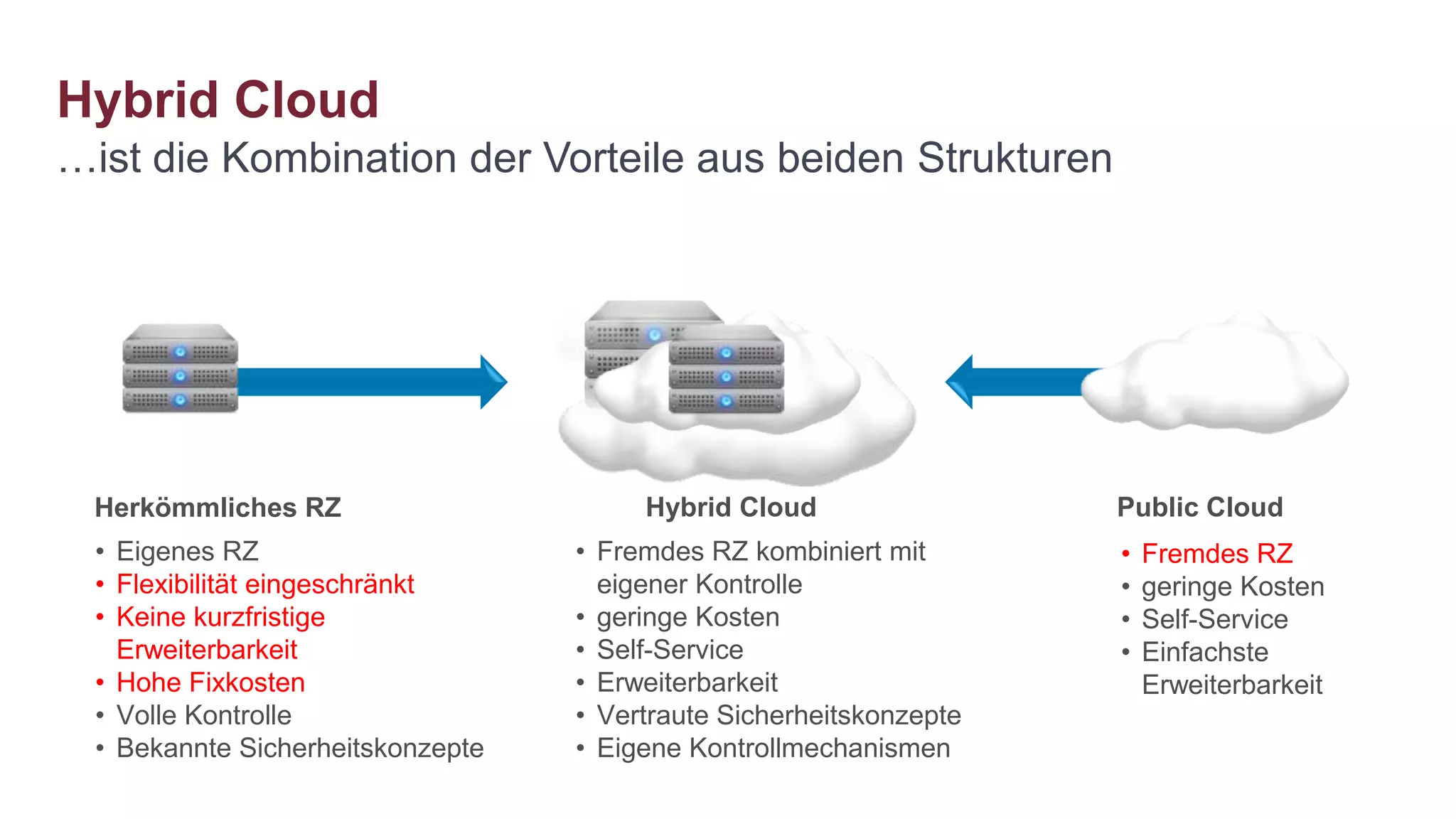

2. Hybrid Cloud
…ist die Kombination der Vorteile aus beiden Strukturen
Herkömmliches RZ Hybrid Cloud Public Cloud
• Eigenes RZ • Fremdes RZ kombiniert mit • Fremdes RZ
• Flexibilität eingeschränkt eigener Kontrolle • geringe Kosten
• Keine kurzfristige • geringe Kosten • Self-Service
Erweiterbarkeit • Self-Service • Einfachste
• Hohe Fixkosten • Erweiterbarkeit Erweiterbarkeit
• Volle Kontrolle • Vertraute Sicherheitskonzepte
• Bekannte Sicherheitskonzepte • Eigene Kontrollmechanismen

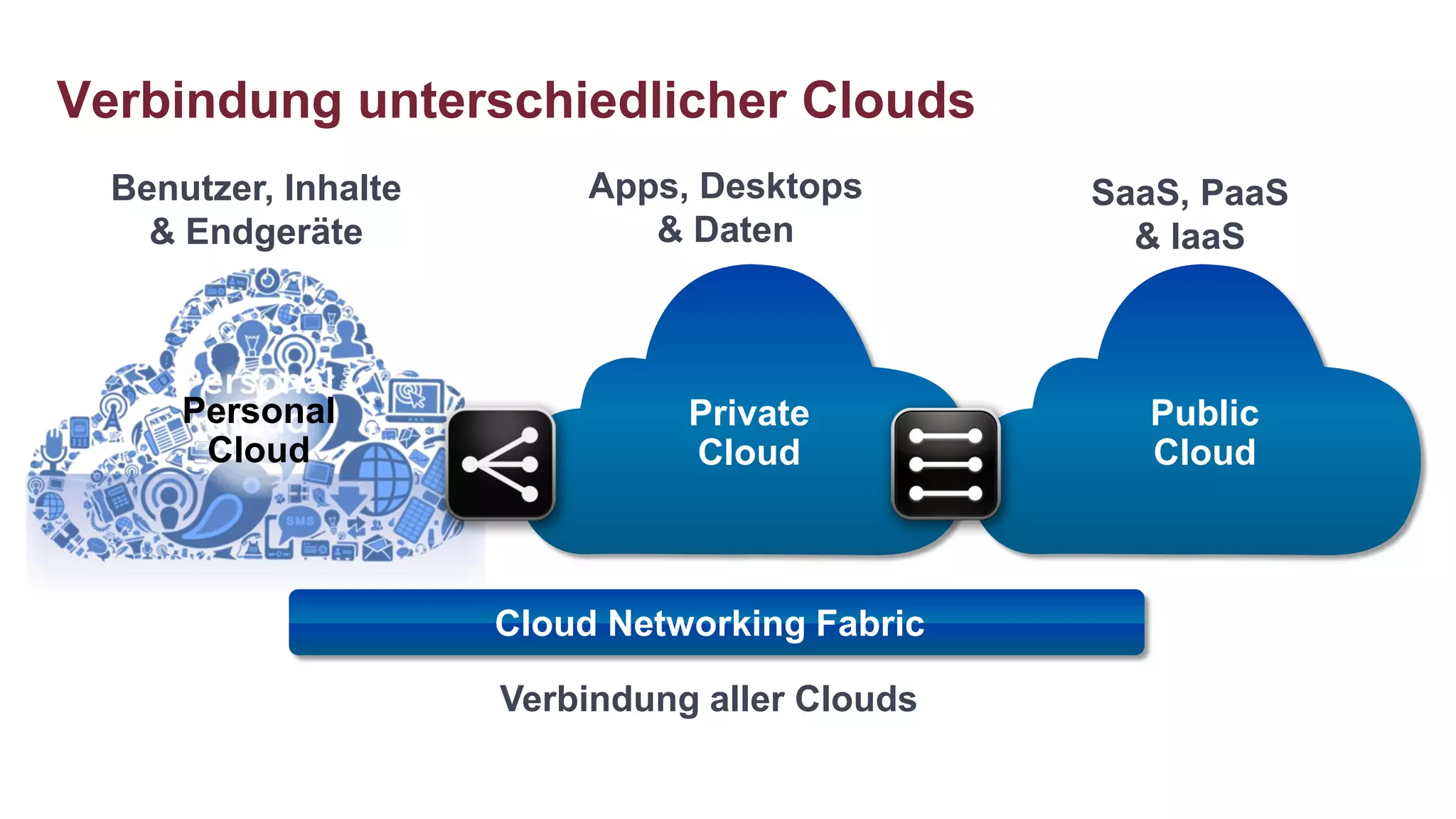

3. Verbindung unterschiedlicher Clouds
Benutzer, Inhalte Apps, Desktops SaaS, PaaS
& Endgeräte & Daten & IaaS
Personal Private Public
Cloud Cloud Cloud
Cloud Networking Fabric
Verbindung aller Clouds

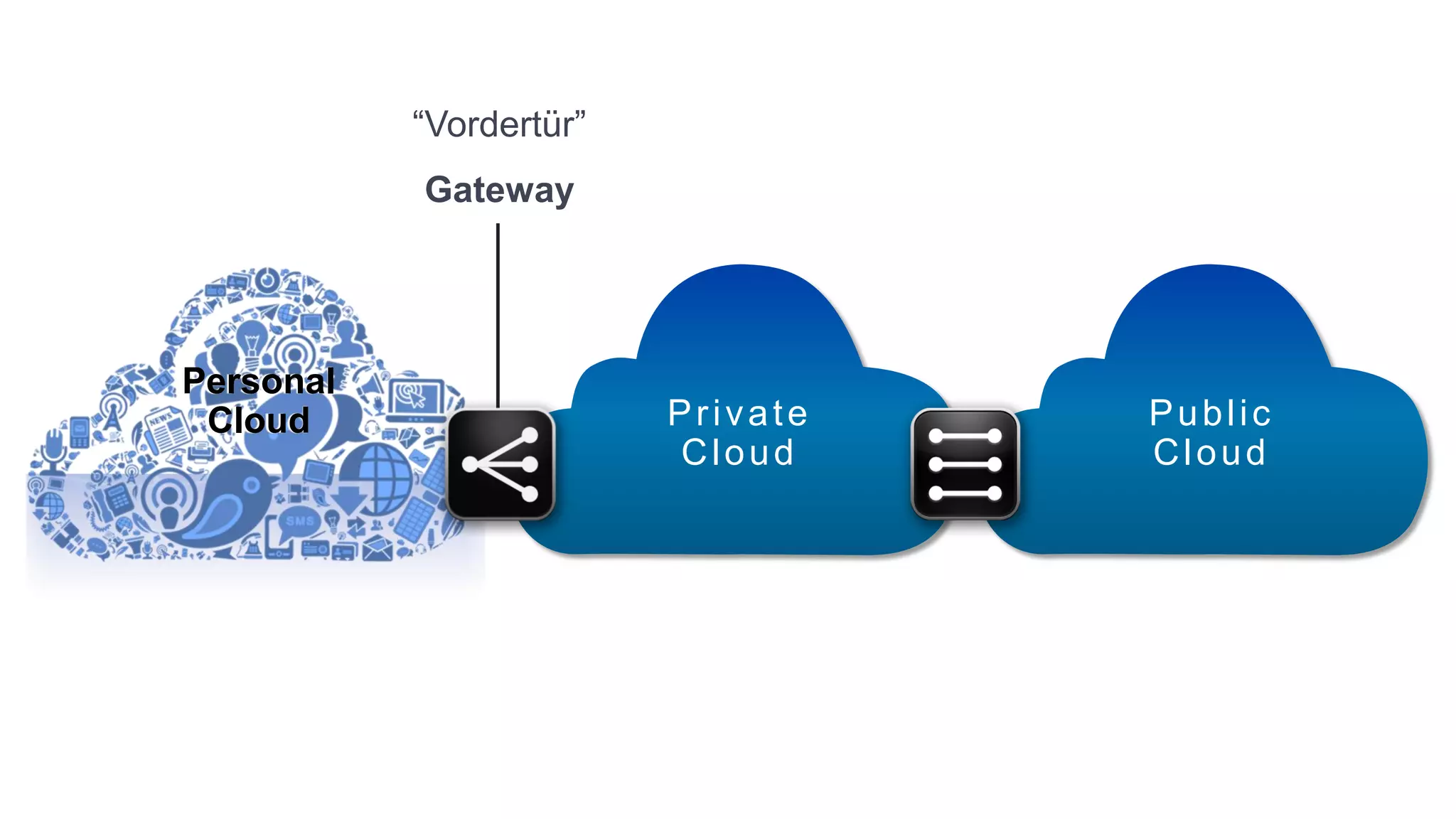

4. “Vordertür”
Gateway
Personal
Cloud Private Public
Cloud Cloud

5. Aggregate, orchestrate & deliver apps & data to any device

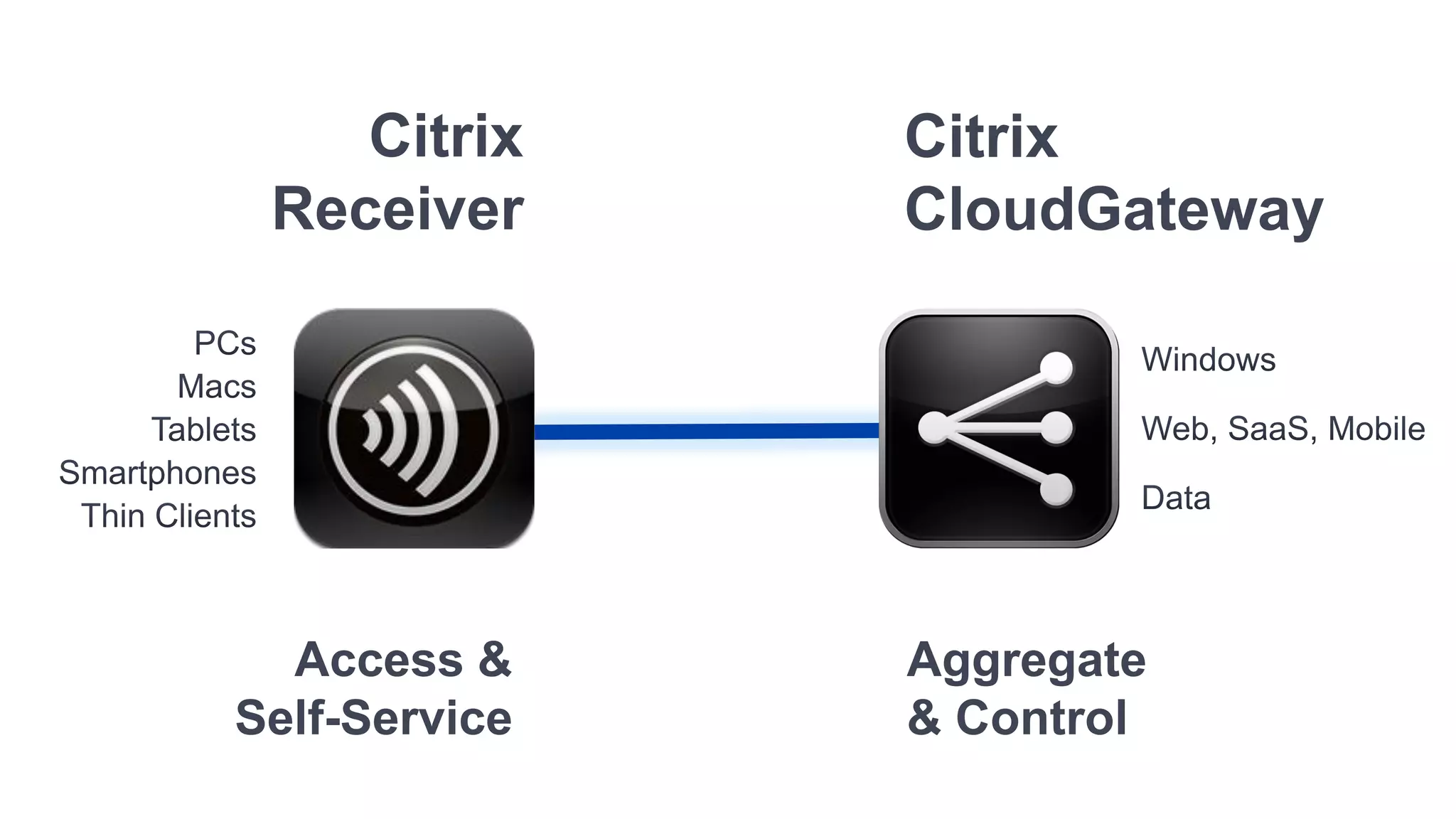

6. Citrix Citrix
Receiver CloudGateway
Access & Aggregate
Self-Service & Control

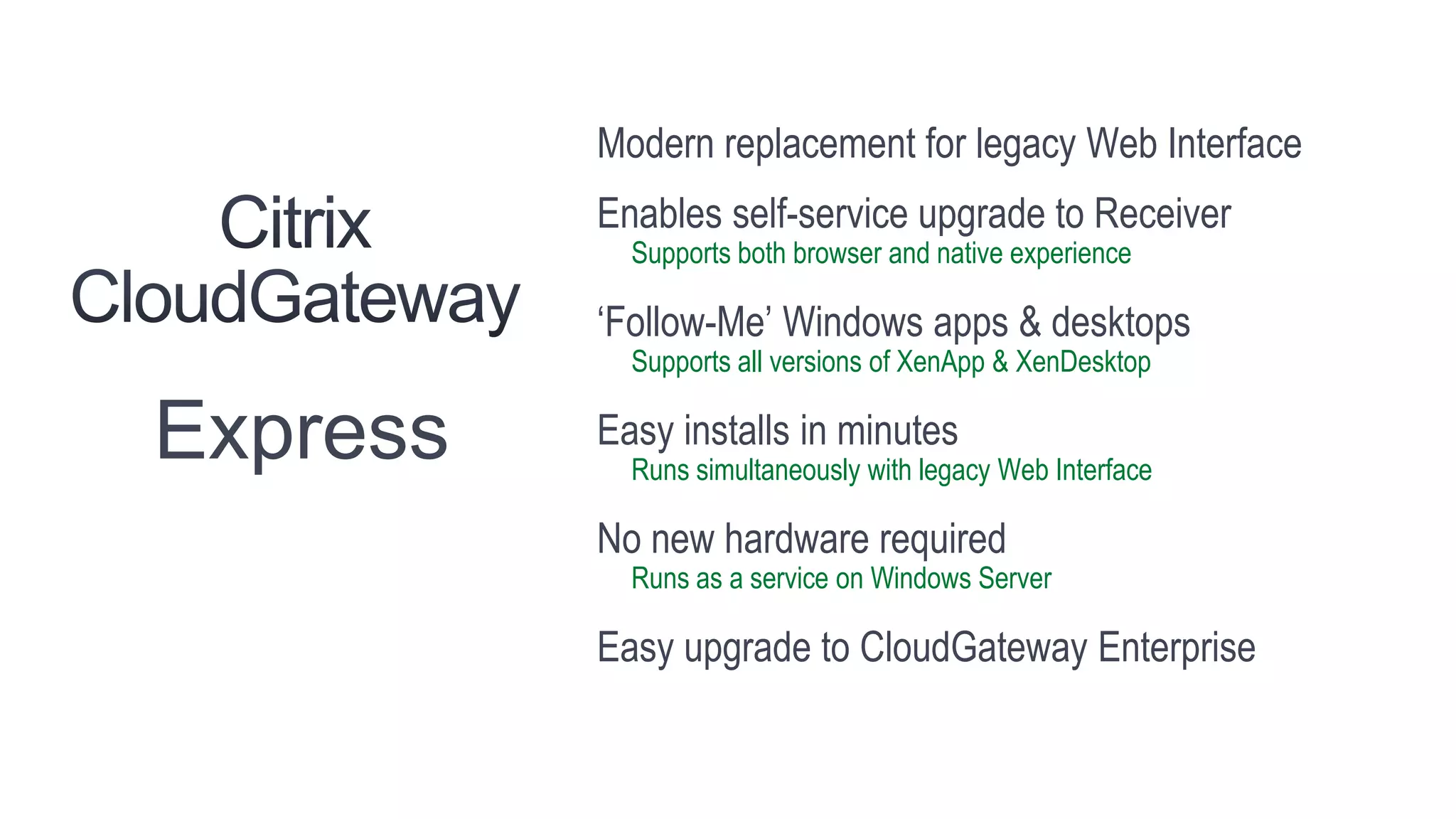

8. Modern replacement for legacy Web Interface
Enables self-service upgrade to Receiver
Supports both browser and native experience
‘Follow-Me’ Windows apps & desktops
Supports all versions of XenApp & XenDesktop
Express Easy installs in minutes
Runs simultaneously with legacy Web Interface
No new hardware required
Runs as a service on Windows Server
Easy upgrade to CloudGateway Enterprise

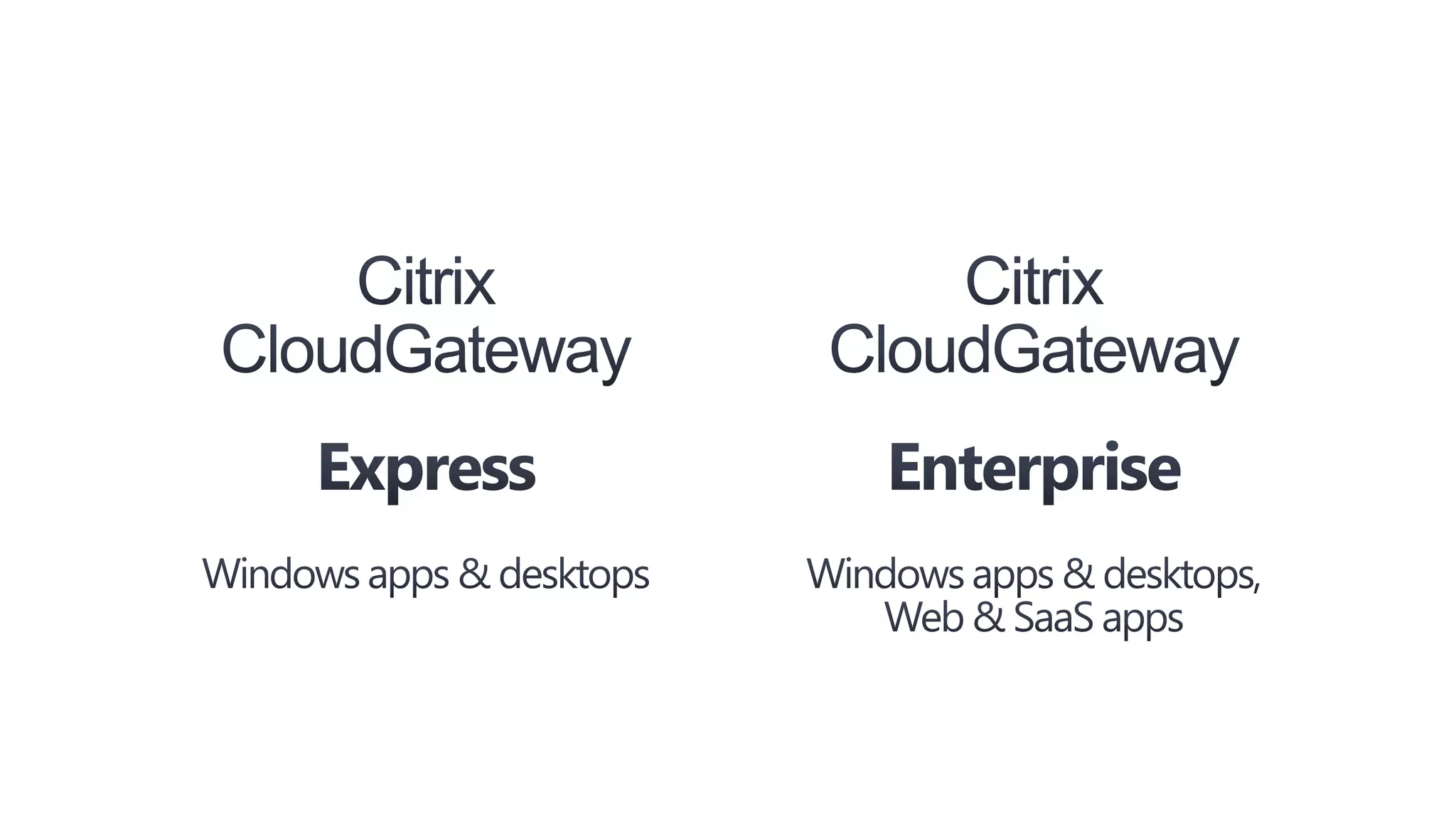

9. Express
FREE!
for all XenApp & XenDesktop customers

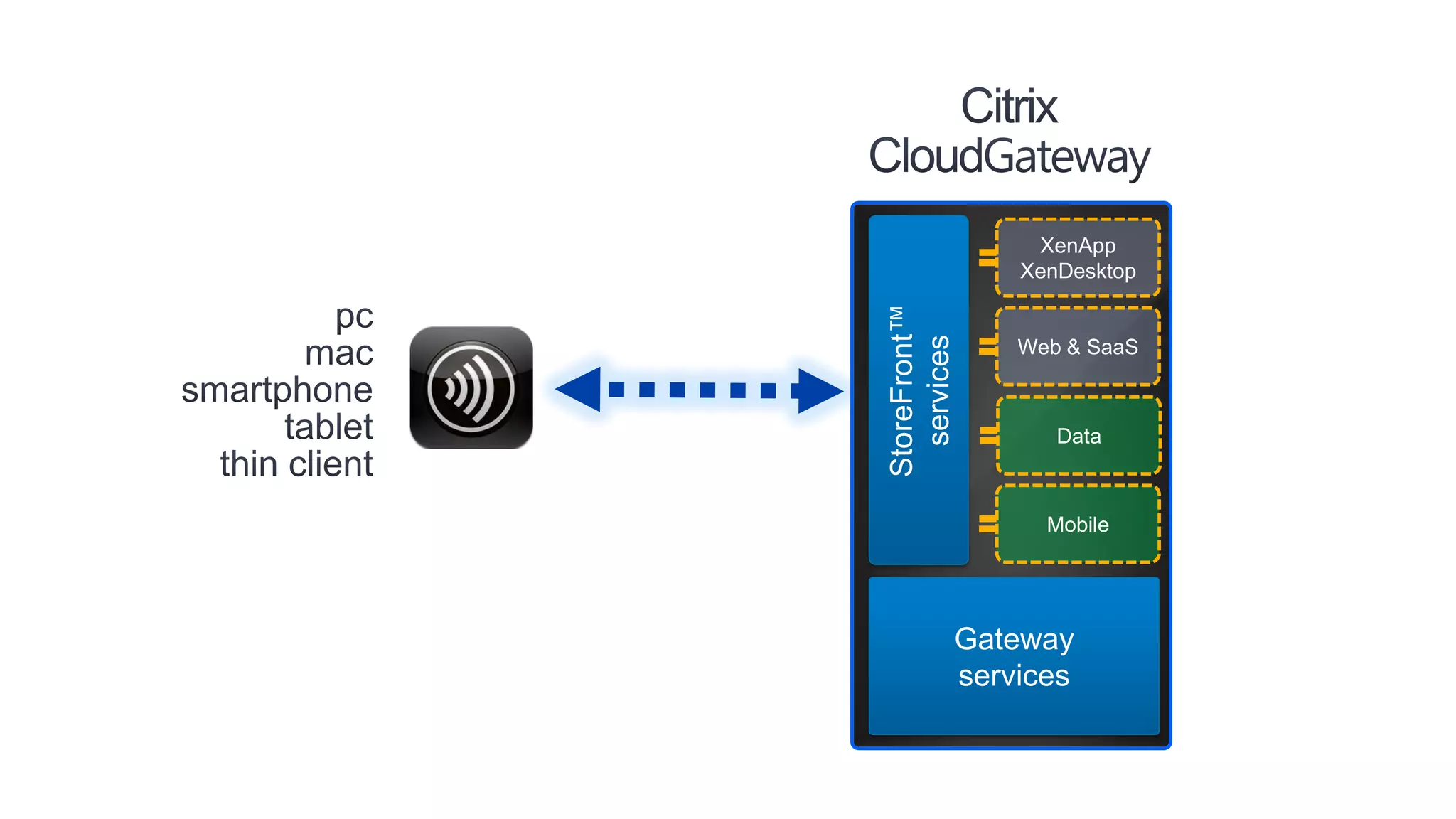

10. CloudGateway Components

11. XenApp
XenDesktop
StoreFront™
services
Web & SaaS
Data
Mobile
Gateway
services

12. StoreFront services
Browser desktops
StoreFront apps
services SaaS
data
mobile
Native Receivers

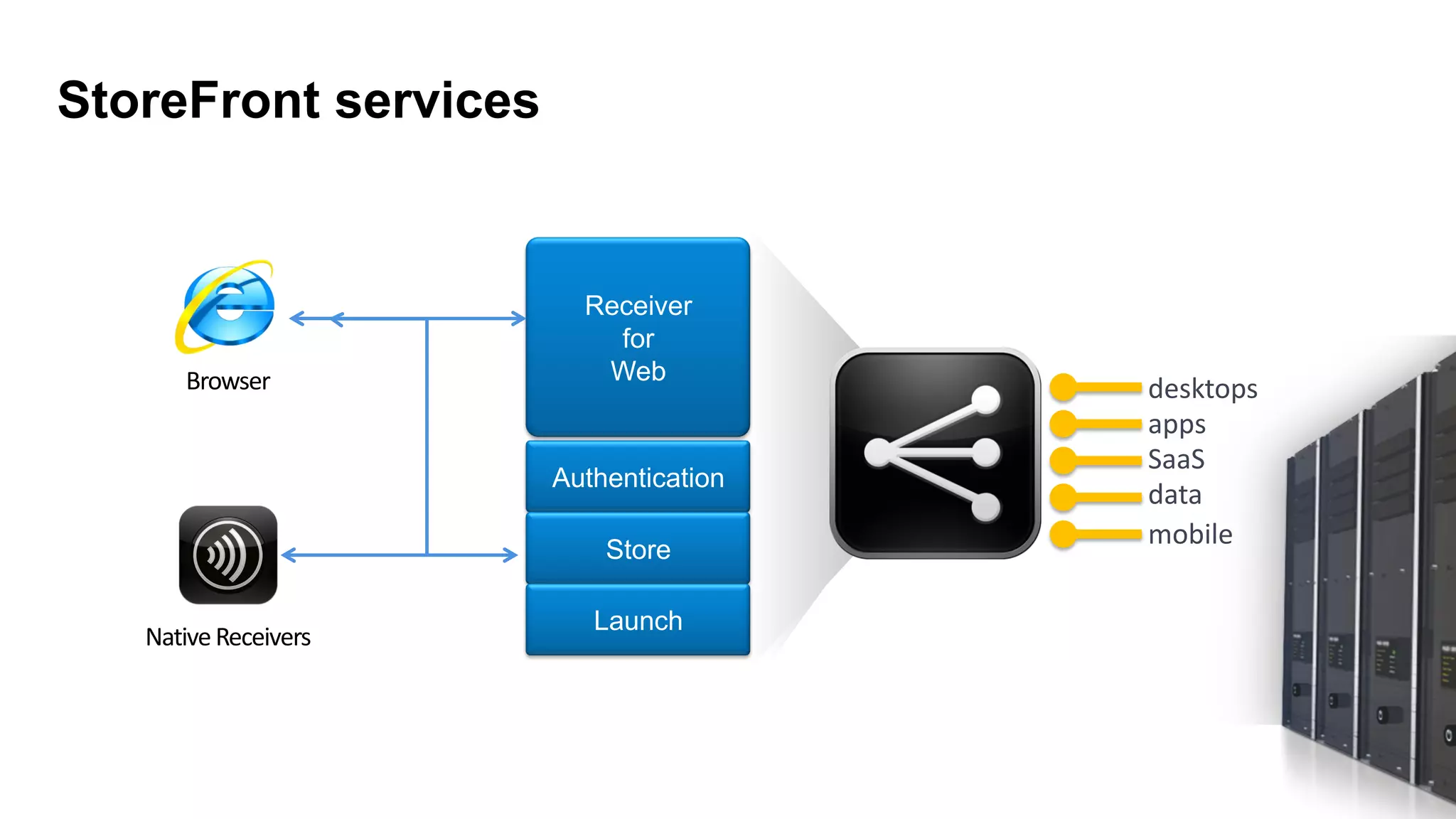

13. StoreFront services
Receiver
for
Browser Web
desktops
apps
SaaS
Authentication
data
mobile
Store
Launch
Native Receivers

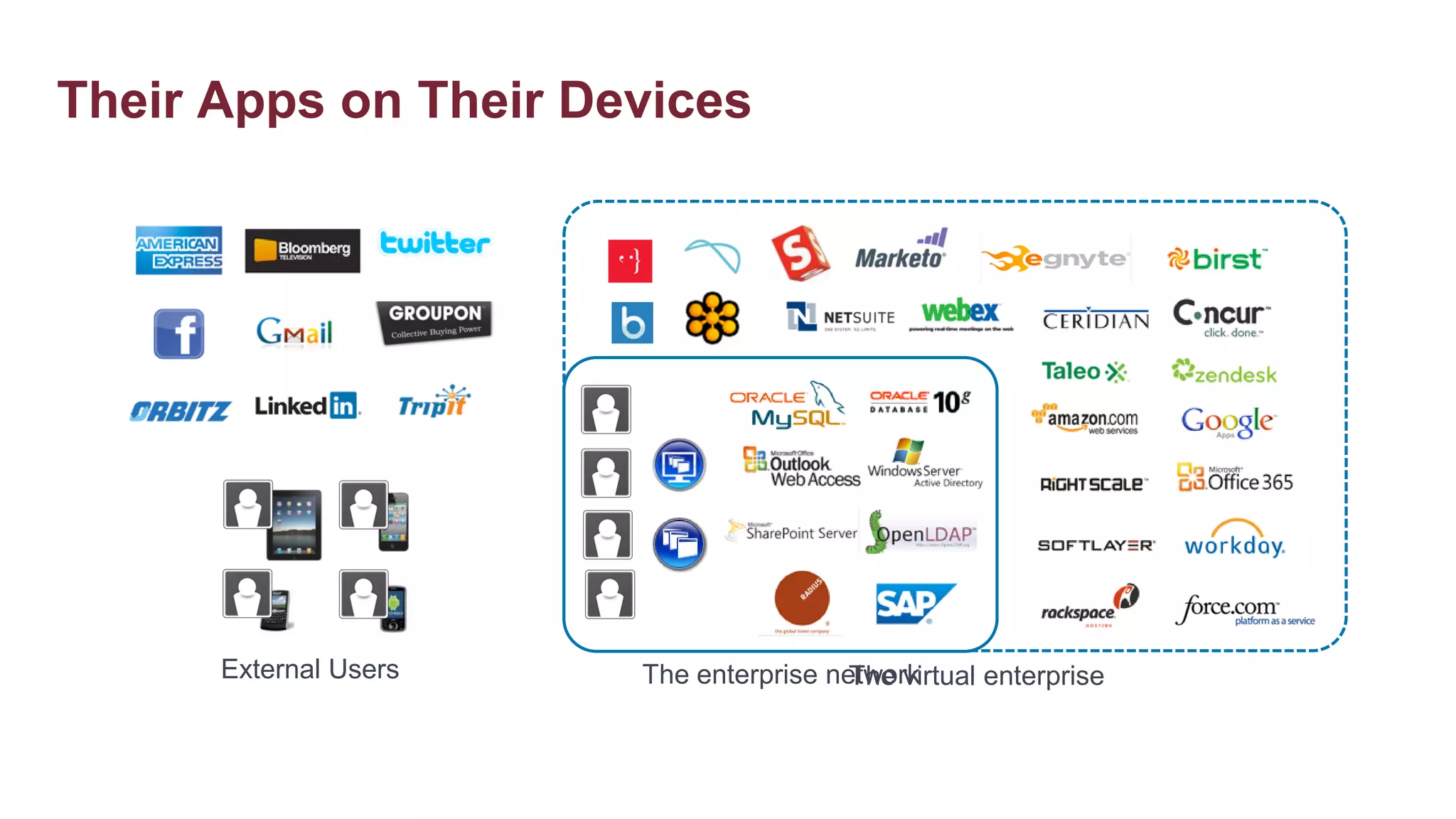

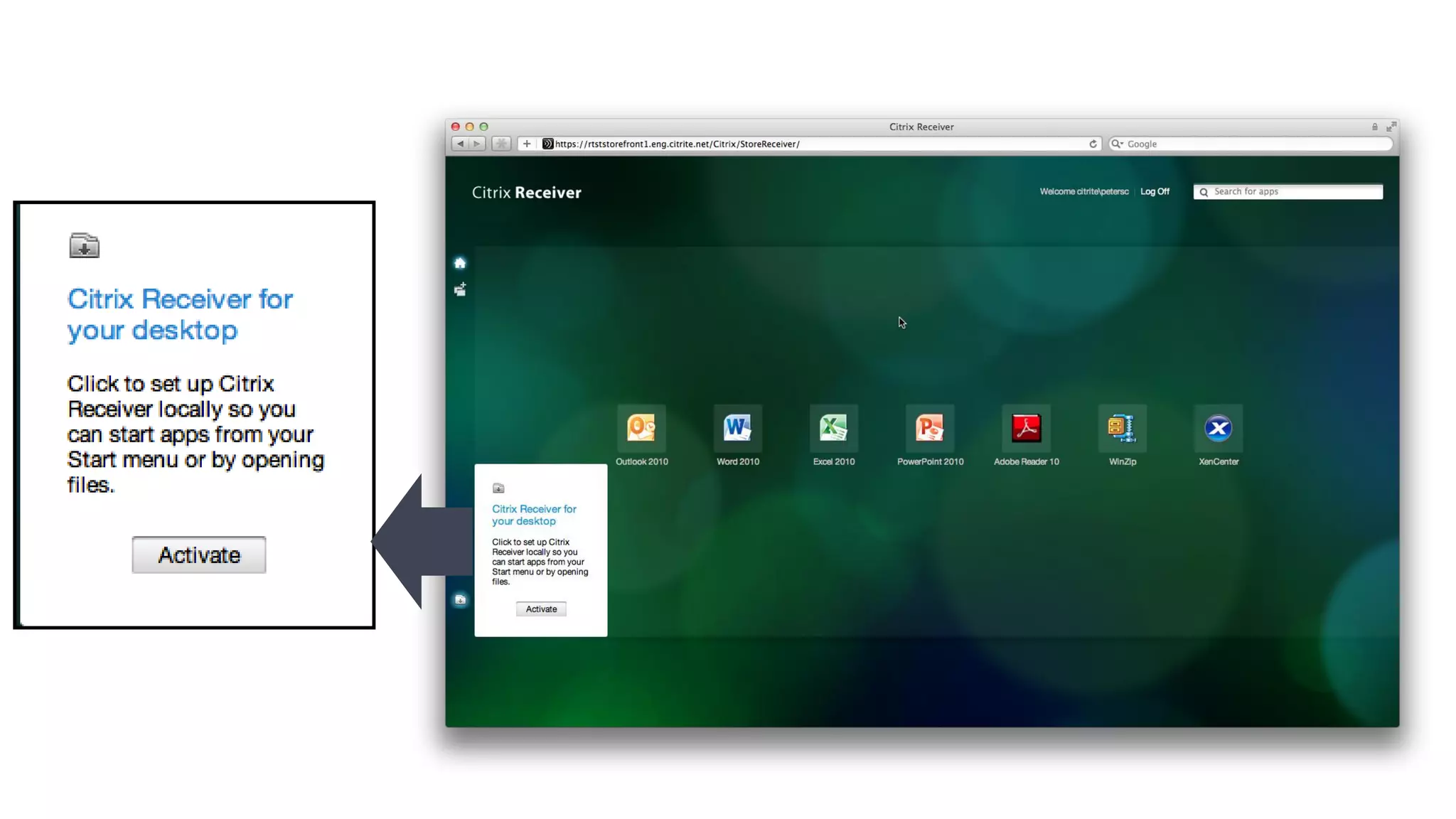

15. Their Apps on Their Devices
External Users The enterprise network
The virtual enterprise

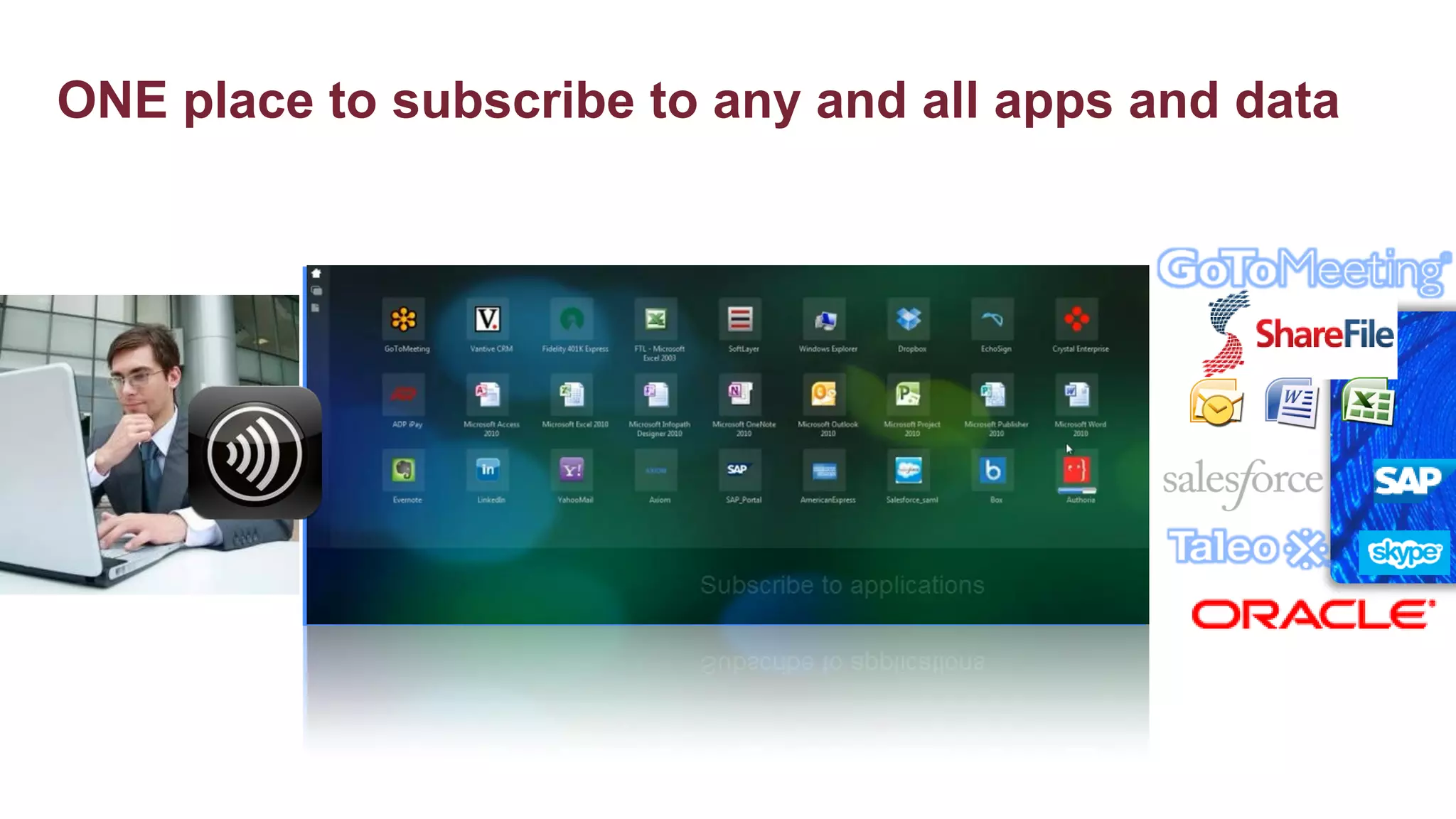

16. ONE place to subscribe to any and all apps and data

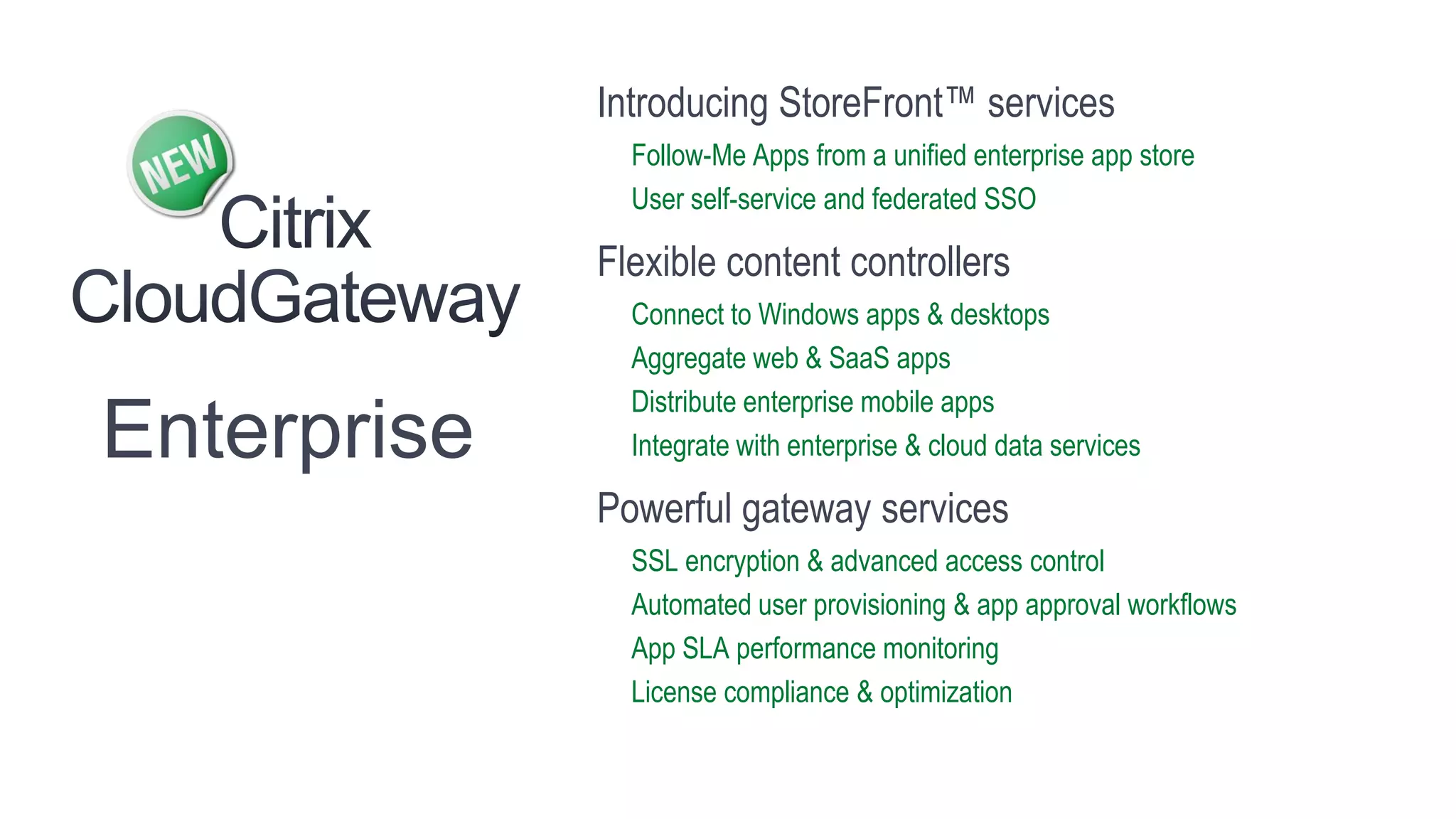

17. Introducing StoreFront™ services
Follow-Me Apps from a unified enterprise app store
User self-service and federated SSO
Flexible content controllers
Connect to Windows apps & desktops
Aggregate web & SaaS apps
Distribute enterprise mobile apps
Enterprise Integrate with enterprise & cloud data services
Powerful gateway services
SSL encryption & advanced access control
Automated user provisioning & app approval workflows
App SLA performance monitoring
License compliance & optimization

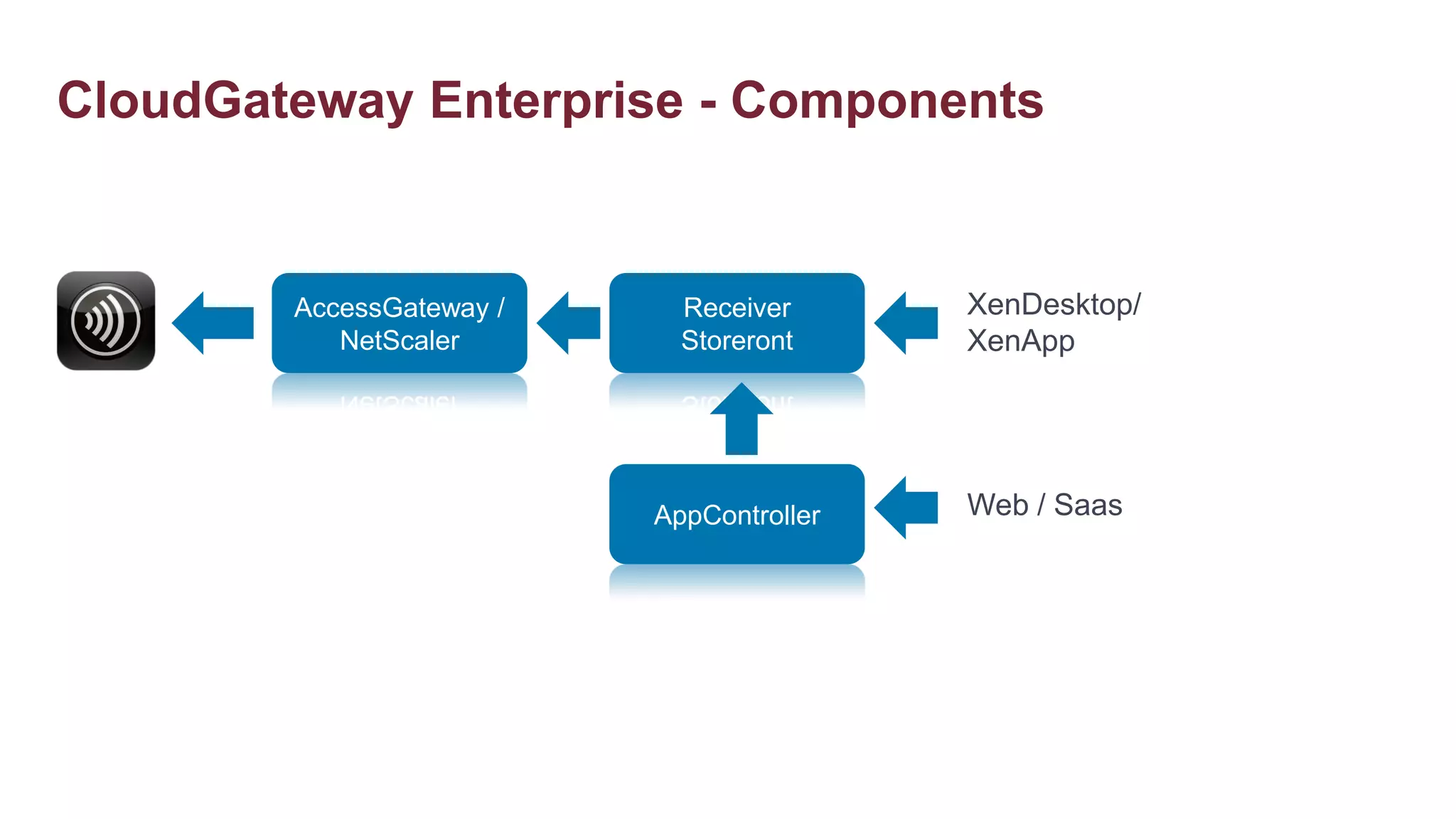

18. CloudGateway Enterprise - Components
AccessGateway / Receiver XenDesktop/
NetScaler Storeront XenApp
AppController Web / Saas

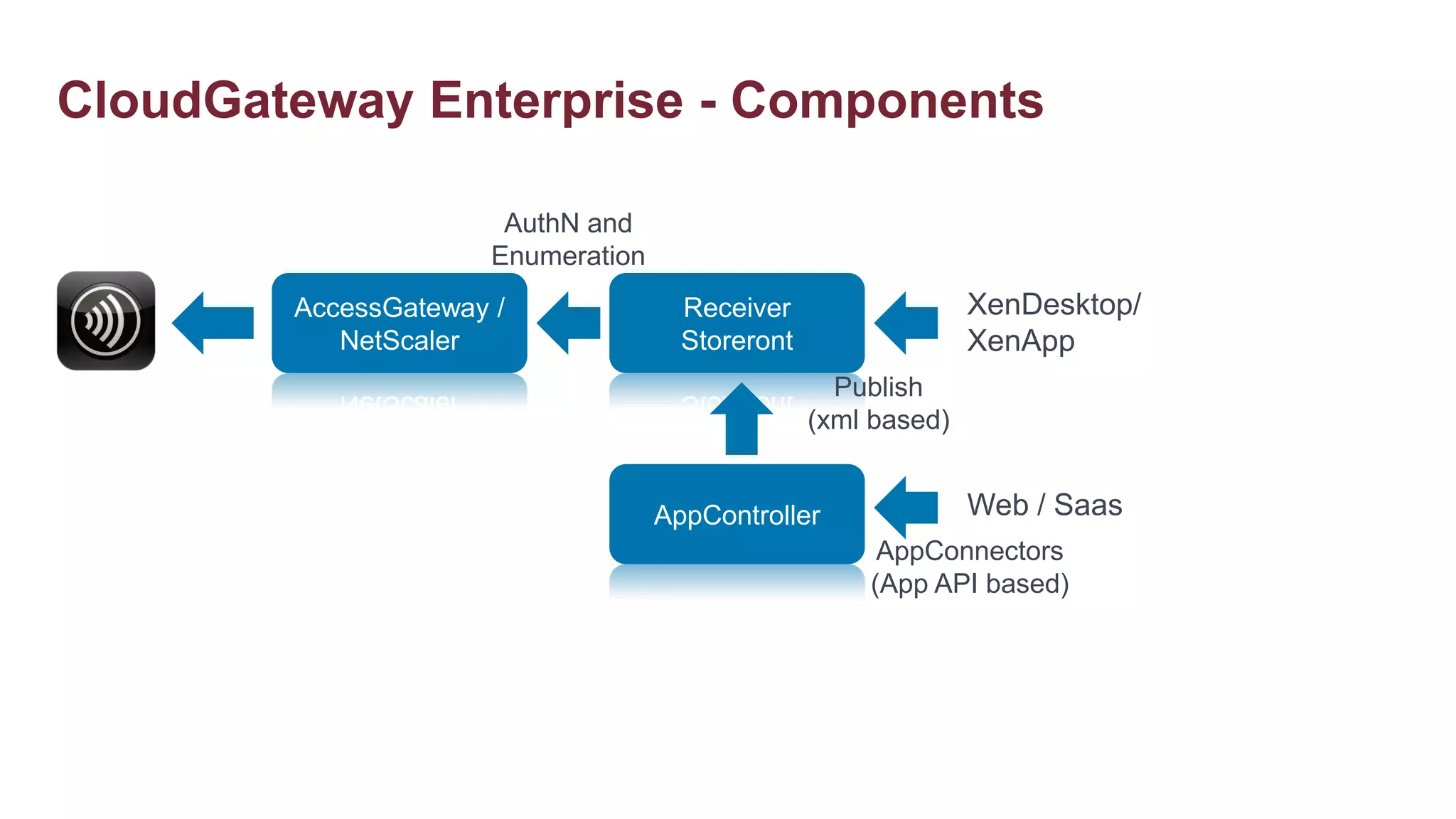

19. CloudGateway Enterprise - Components
AuthN and
Enumeration
AccessGateway / Receiver XenDesktop/
NetScaler Storeront XenApp
Publish
(xml based)
AppController Web / Saas
AppConnectors
(App API based)

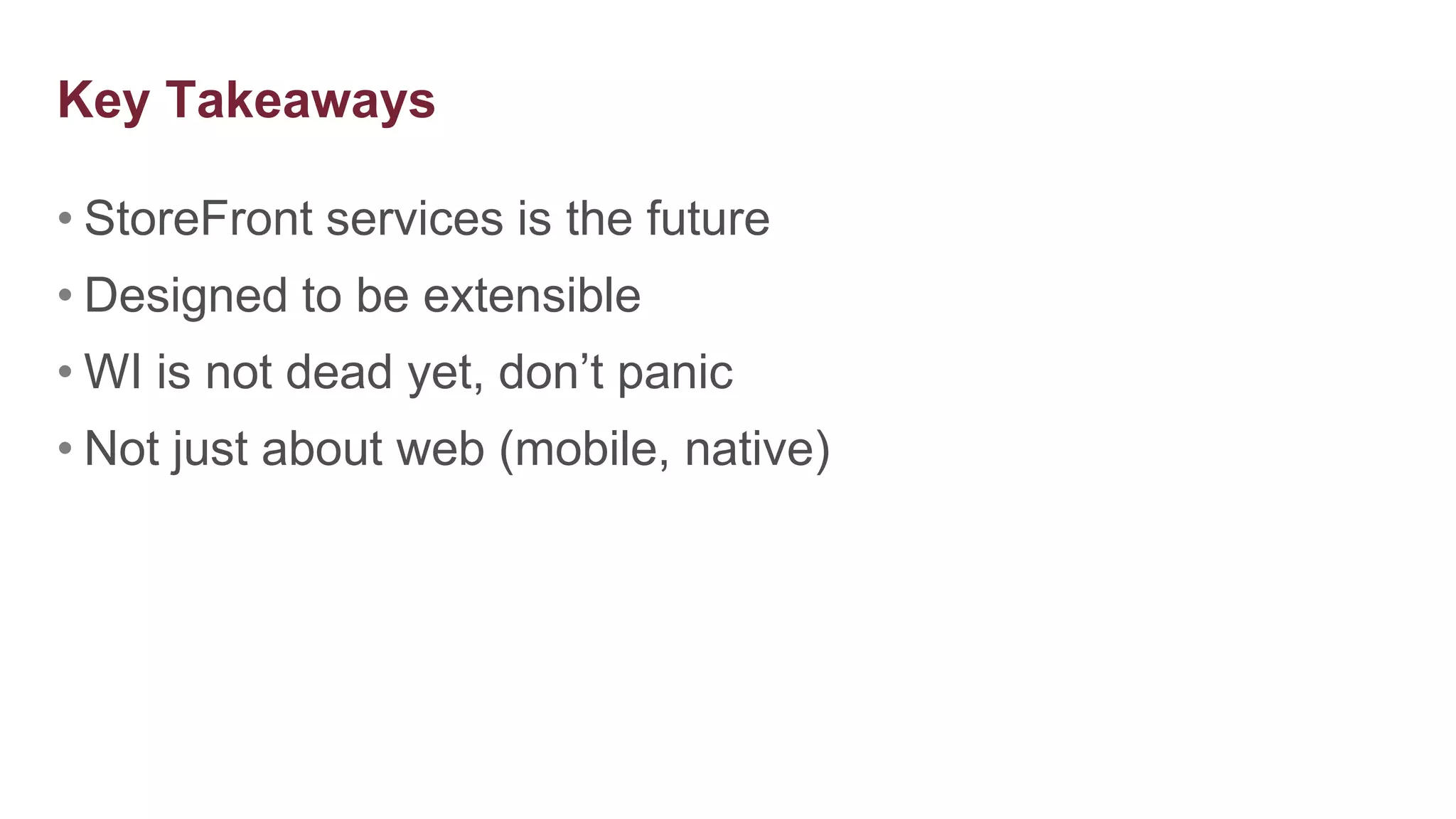

20. Key Takeaways
• StoreFront services is the future
• Designed to be extensible
• WI is not dead yet, don’t panic
• Not just about web (mobile, native)

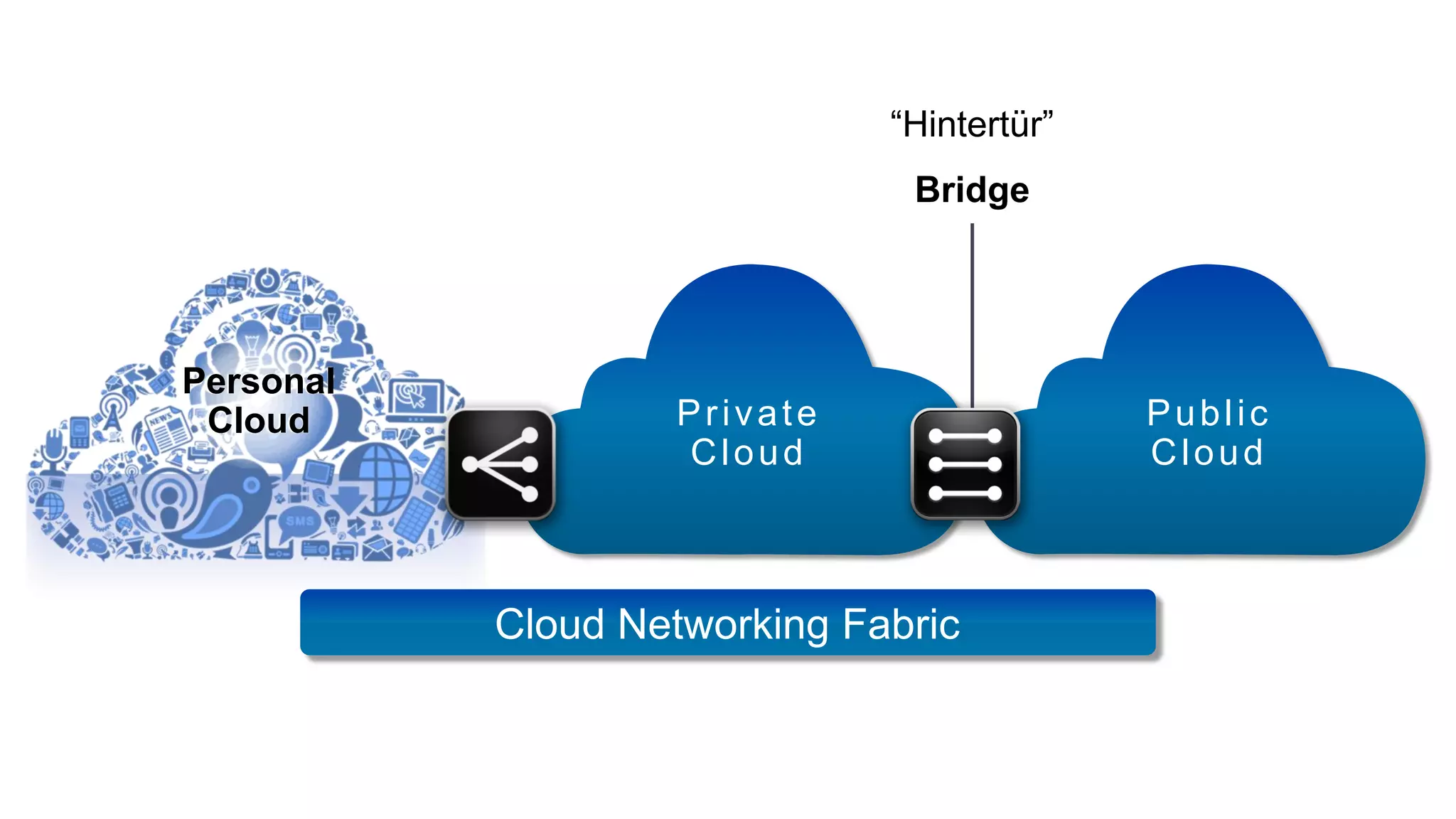

21. “Hintertür”
Bridge
Personal
Cloud Private Public
Cloud Cloud
Cloud Networking Fabric

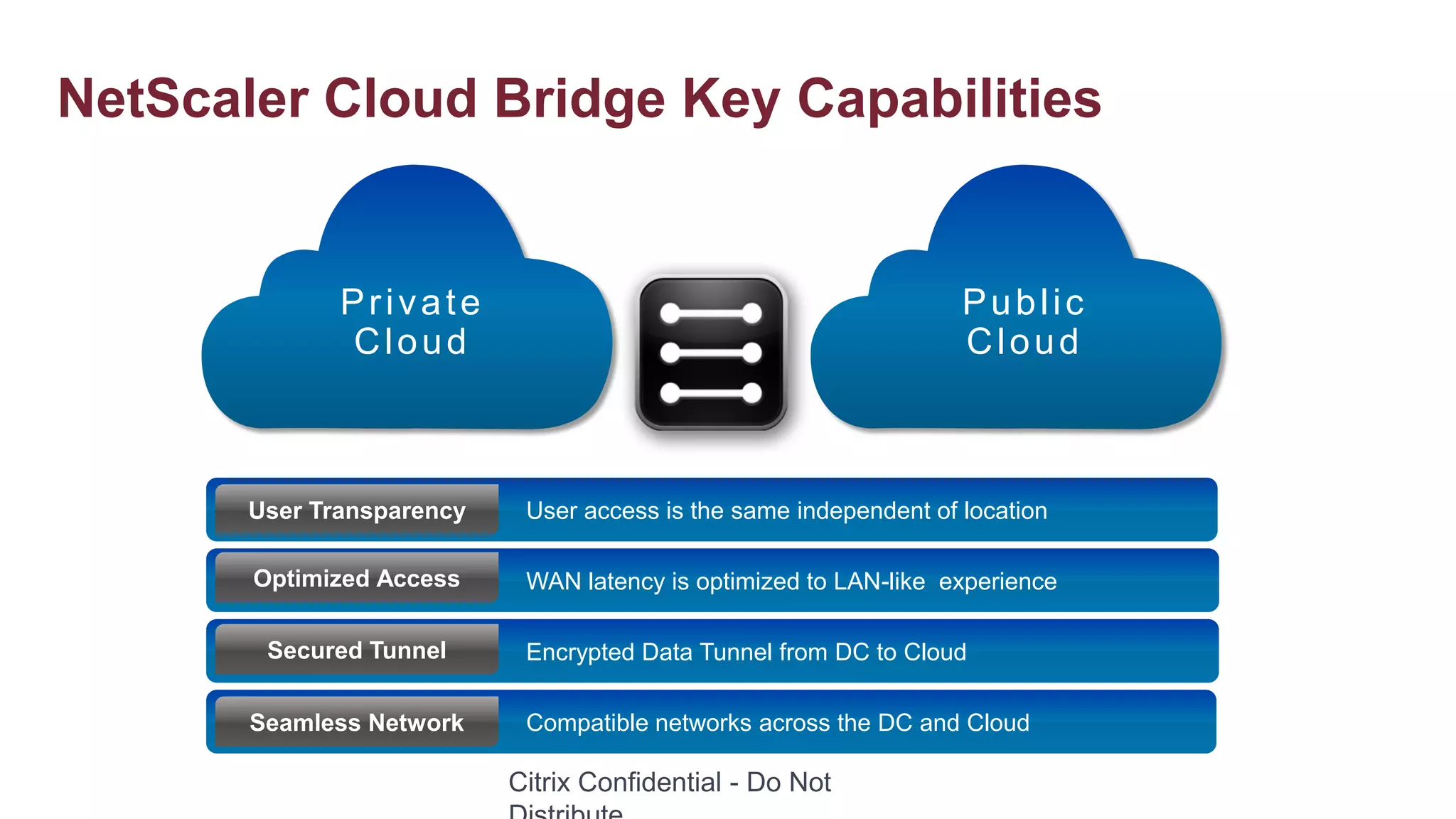

23. NetScaler Cloud Bridge Key Capabilities
Private Public
Cloud Cloud
User Transparency User access is the same independent of location
Optimized Access WAN latency is optimized to LAN-like experience
Secured Tunnel Encrypted Data Tunnel from DC to Cloud
Seamless Network Compatible networks across the DC and Cloud
Citrix Confidential - Do Not

24. Connects your datacenter to any cloud
with full transparency, security and performance

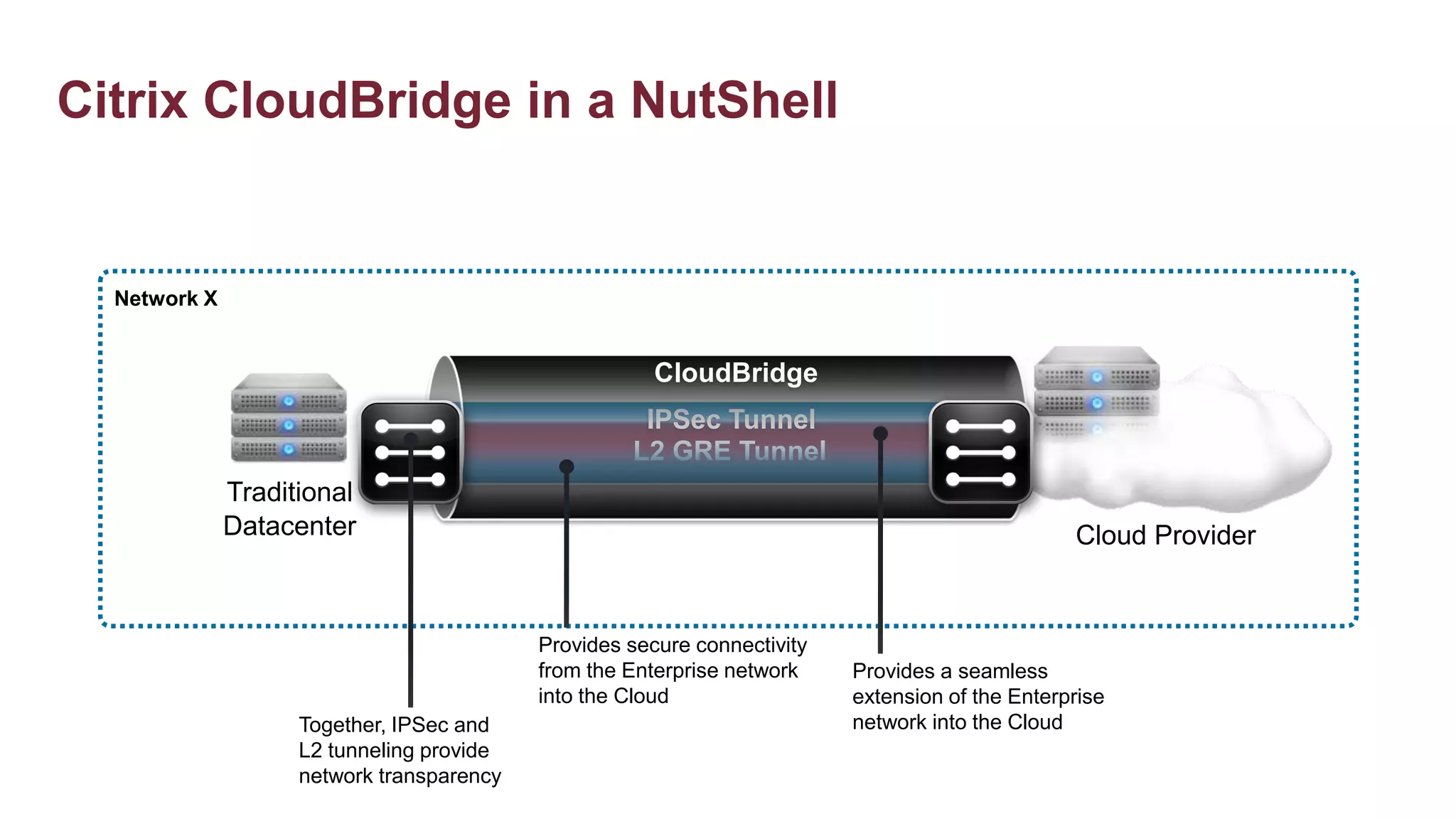

25. Citrix CloudBridge in a NutShell
Network X
CloudBridge
IPSec Tunnel
L2 GRE Tunnel
Traditional
Datacenter Cloud Provider
Provides secure connectivity
from the Enterprise network Provides a seamless
into the Cloud extension of the Enterprise
Together, IPSec and network into the Cloud
L2 tunneling provide
network transparency

26. Use-Case Examples

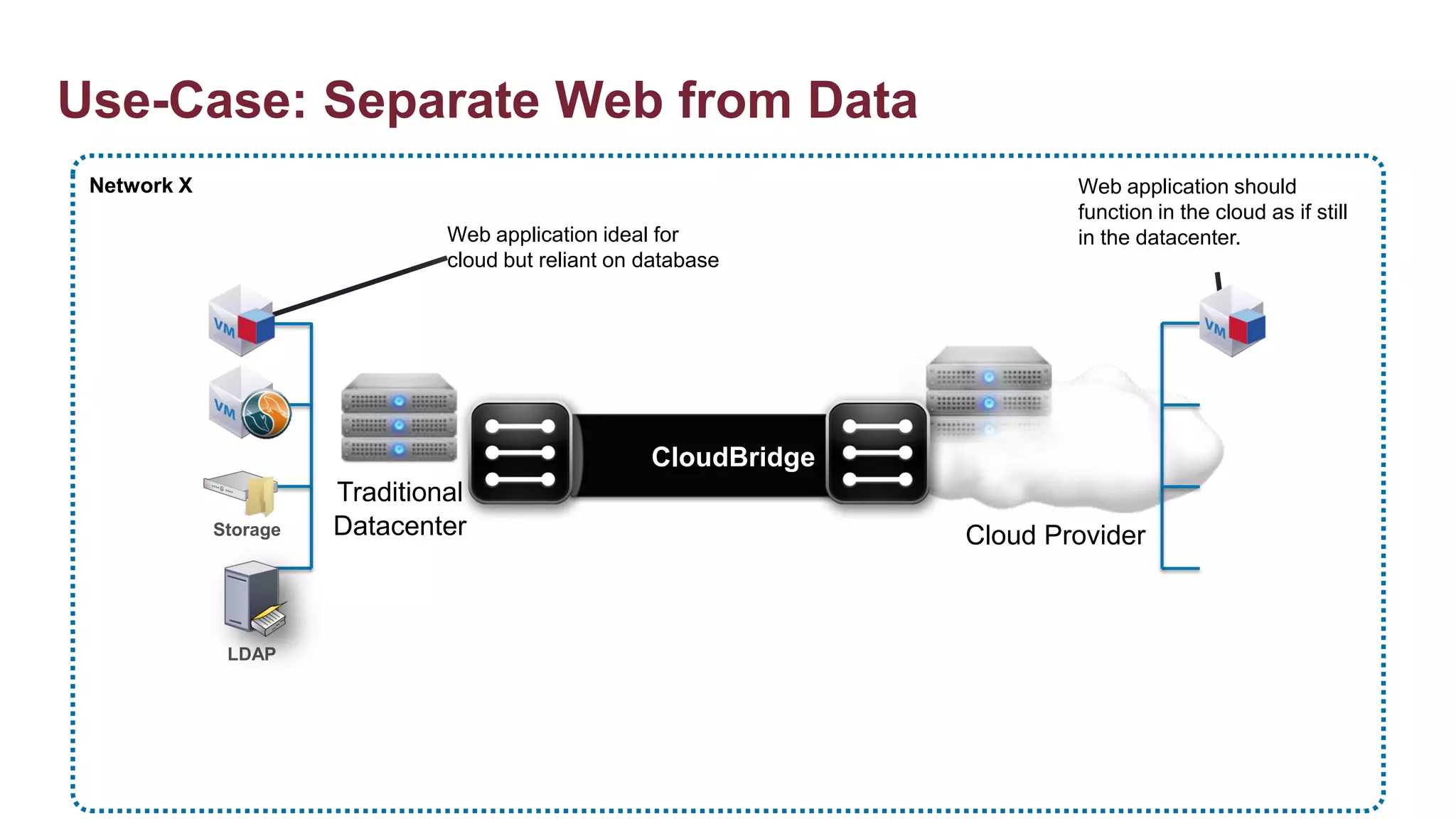

27. Use-Case: Separate Web from Data
Network X Web application should
function in the cloud as if still
Web application ideal for in the datacenter.
cloud but reliant on database
CloudBridge
Traditional
Storage Datacenter Cloud Provider
LDAP

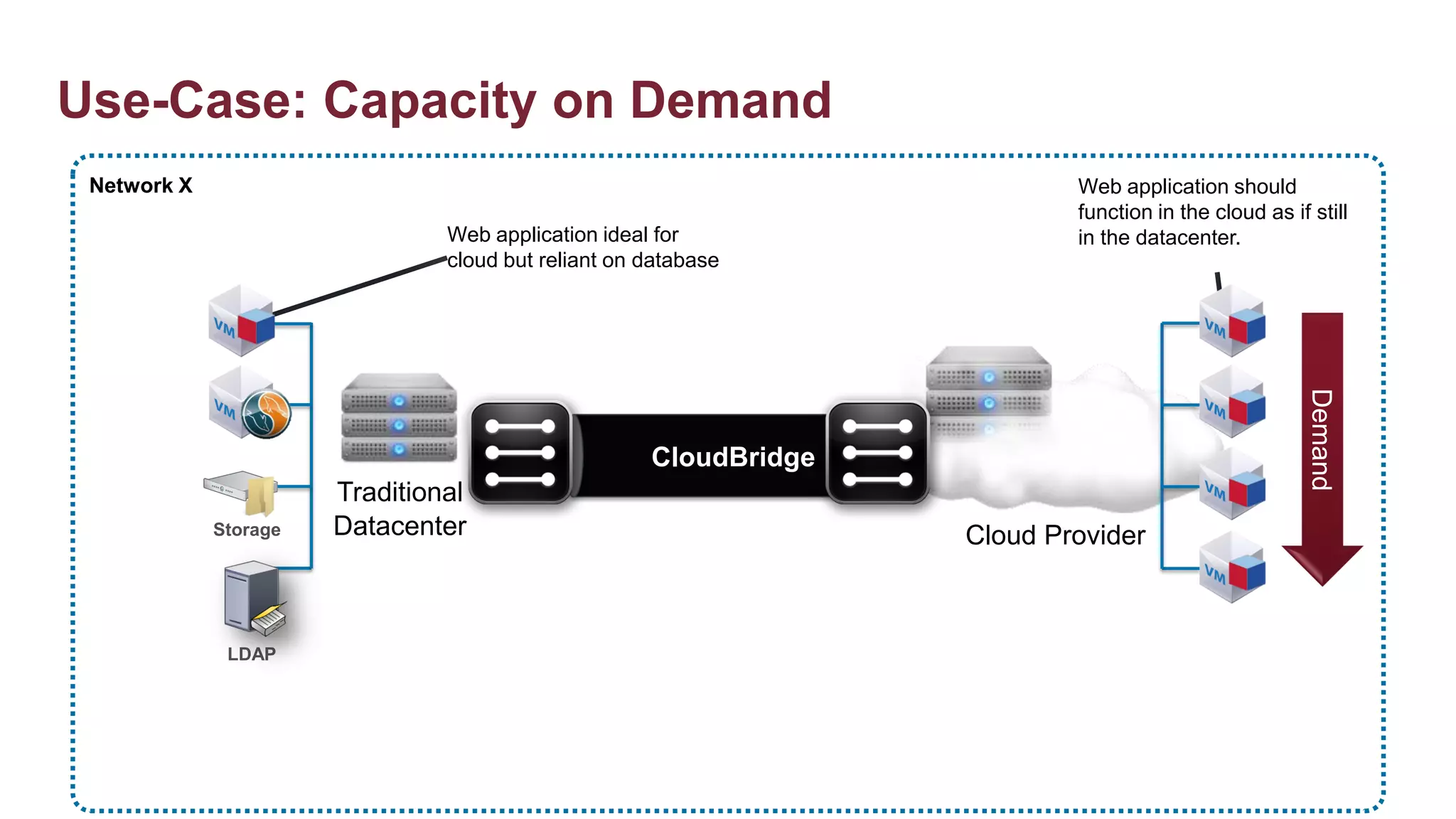

28. Use-Case: Capacity on Demand
Network X Web application should
function in the cloud as if still
Web application ideal for in the datacenter.
cloud but reliant on database
Demand
CloudBridge
Traditional
Storage Datacenter Cloud Provider
LDAP

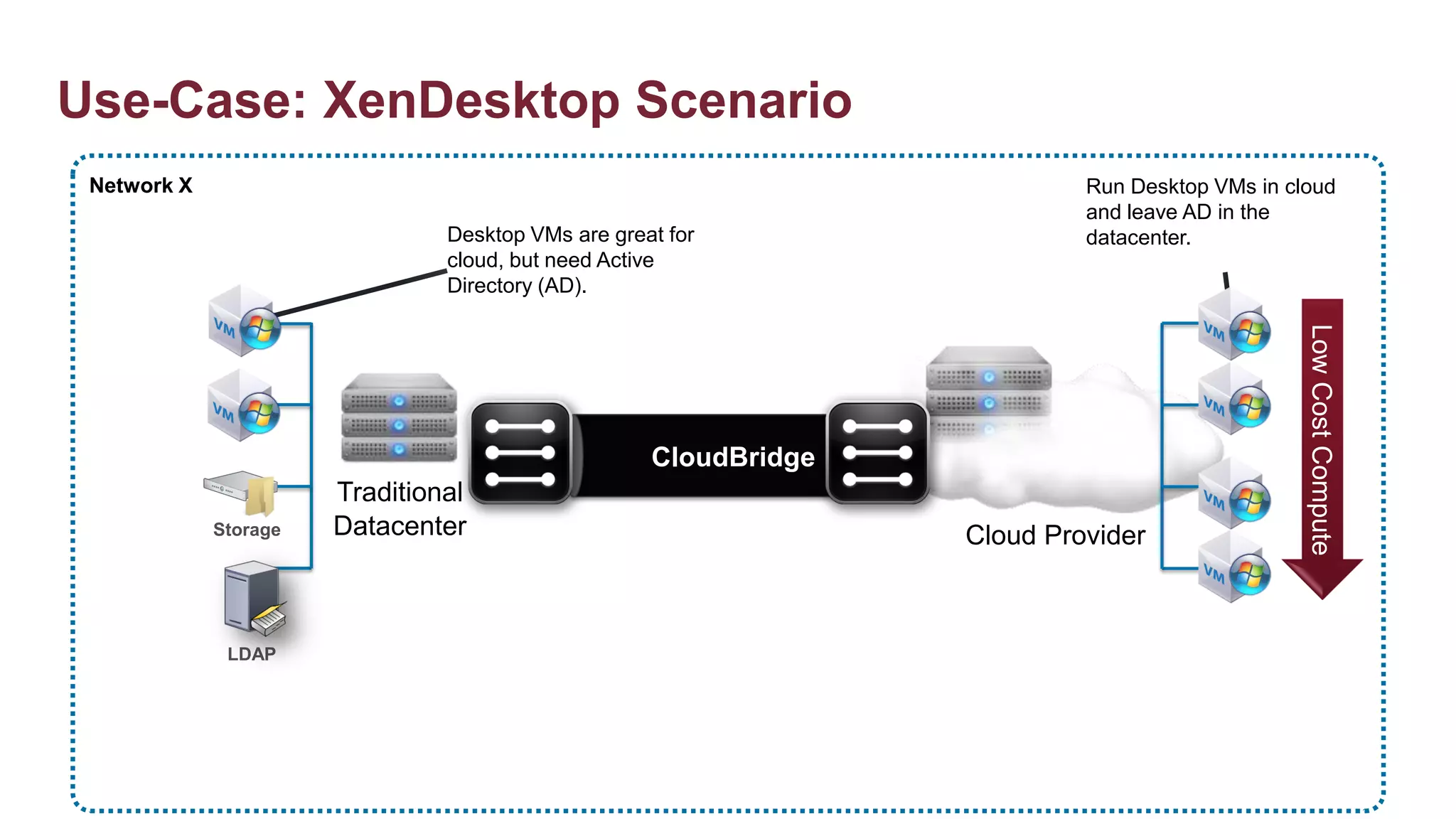

29. Use-Case: XenDesktop Scenario
Network X Run Desktop VMs in cloud
and leave AD in the
Desktop VMs are great for datacenter.
cloud, but need Active
Directory (AD).
Low Cost Compute
CloudBridge
Traditional
Storage Datacenter Cloud Provider
LDAP

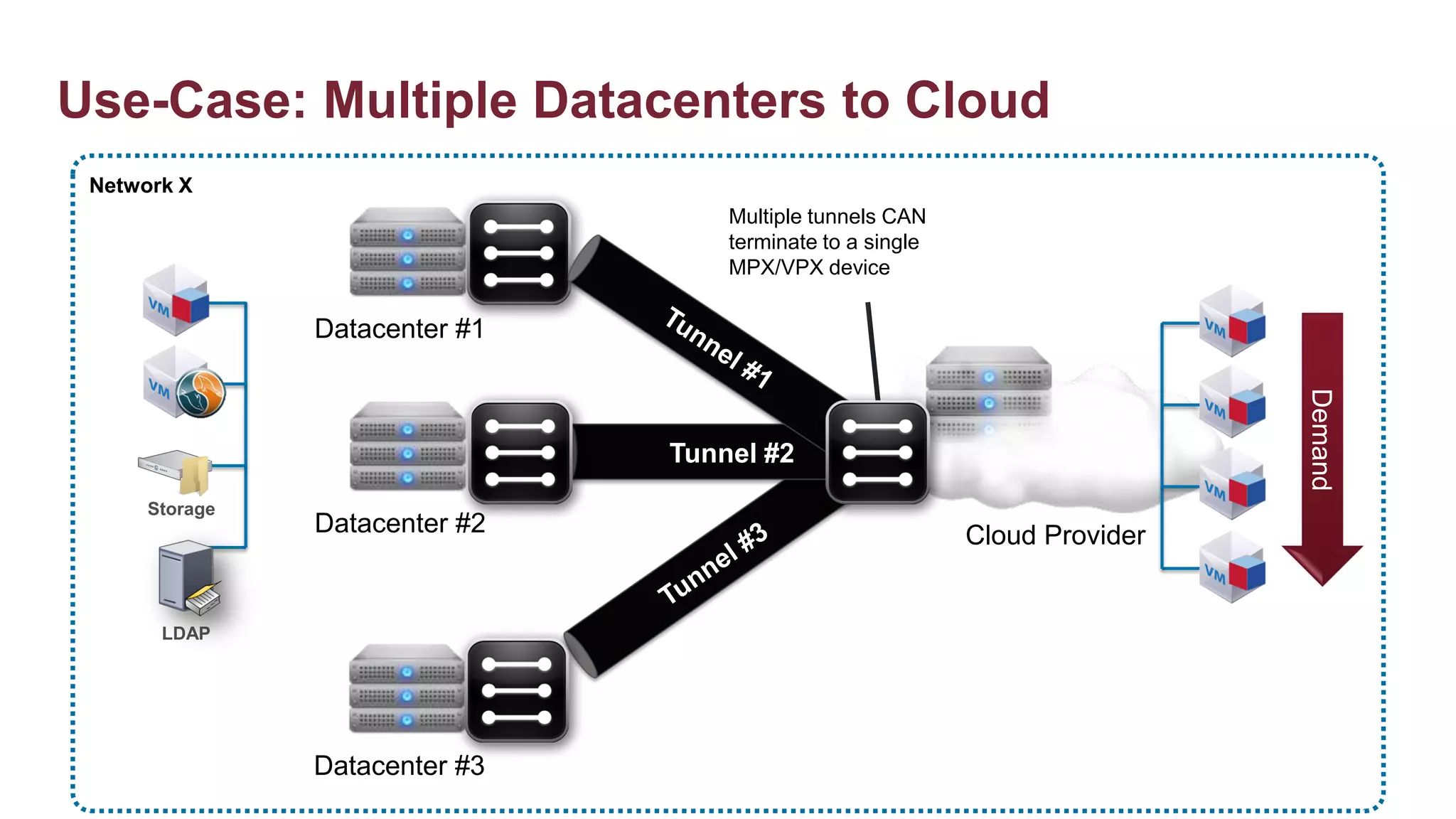

30. Use-Case: Multiple Datacenters to Cloud
Network X
Multiple tunnels CAN
terminate to a single
MPX/VPX device
Datacenter #1
Demand
Tunnel #2
Storage
Datacenter #2 Cloud Provider
LDAP
Datacenter #3

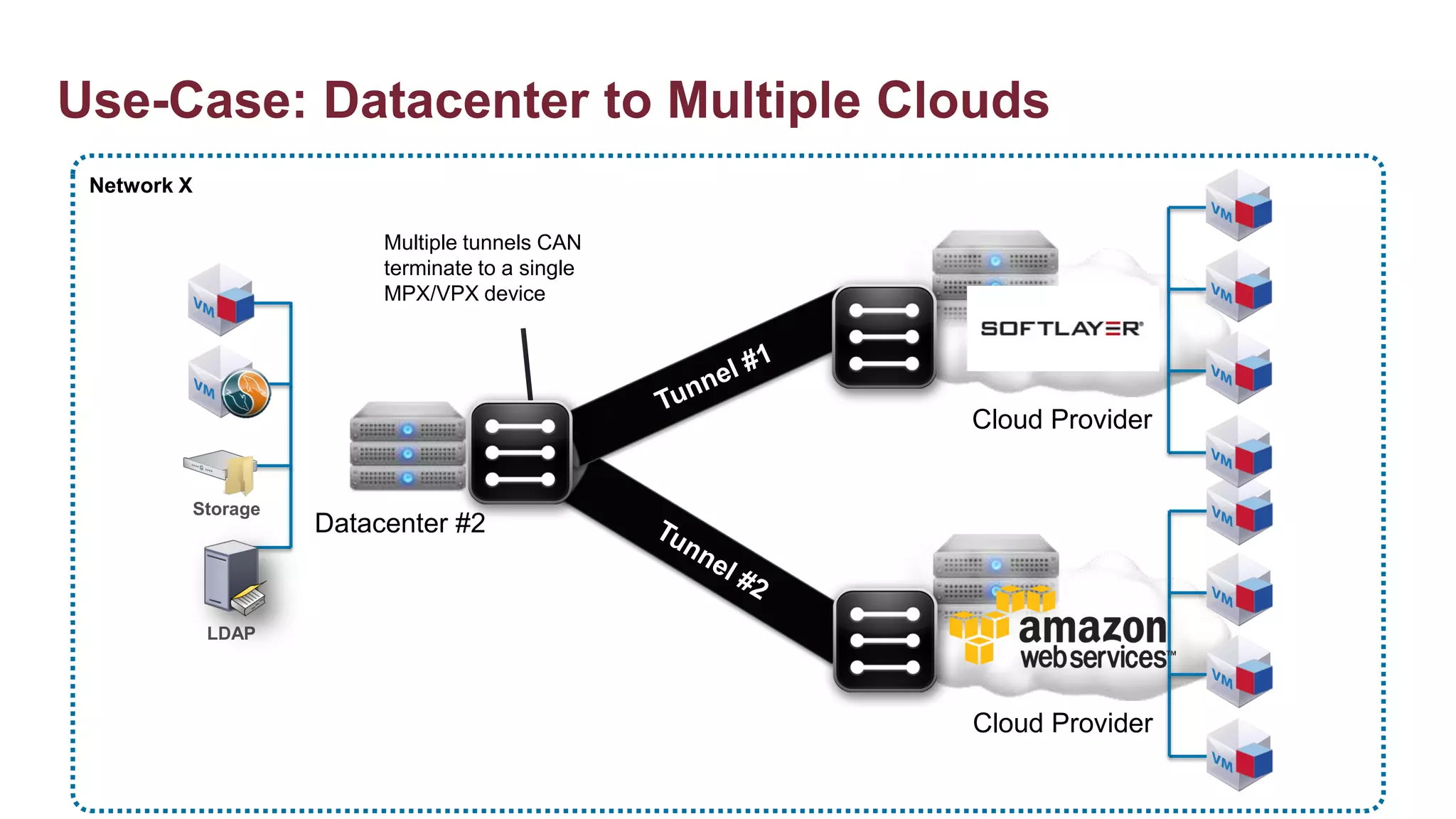

31. Use-Case: Datacenter to Multiple Clouds
Network X
Multiple tunnels CAN
terminate to a single
MPX/VPX device
Cloud Provider
Storage
Datacenter #2
LDAP
Cloud Provider

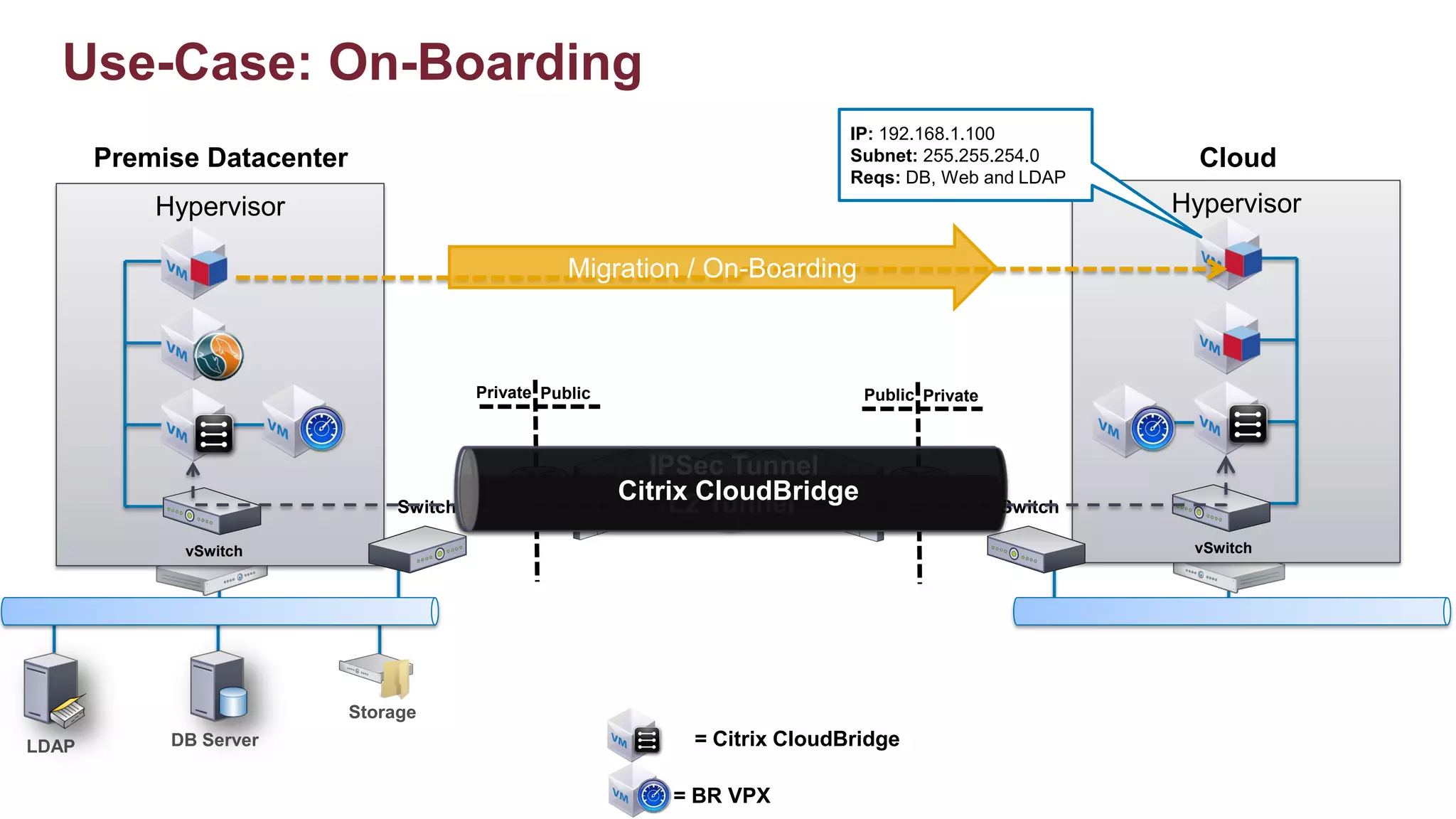

32. Use-Case: On-Boarding
IP: 192.168.1.100
Premise Datacenter Subnet: 255.255.254.0 Cloud
Reqs: DB, Web and LDAP
Hypervisor Hypervisor
Migration / On-Boarding
Private Public Public Private
IPSec Tunnel
Switch
Citrix CloudBridge
L2 Tunnel Switch
vSwitch vSwitch
Storage
LDAP DB Server = Citrix CloudBridge
= BR VPX

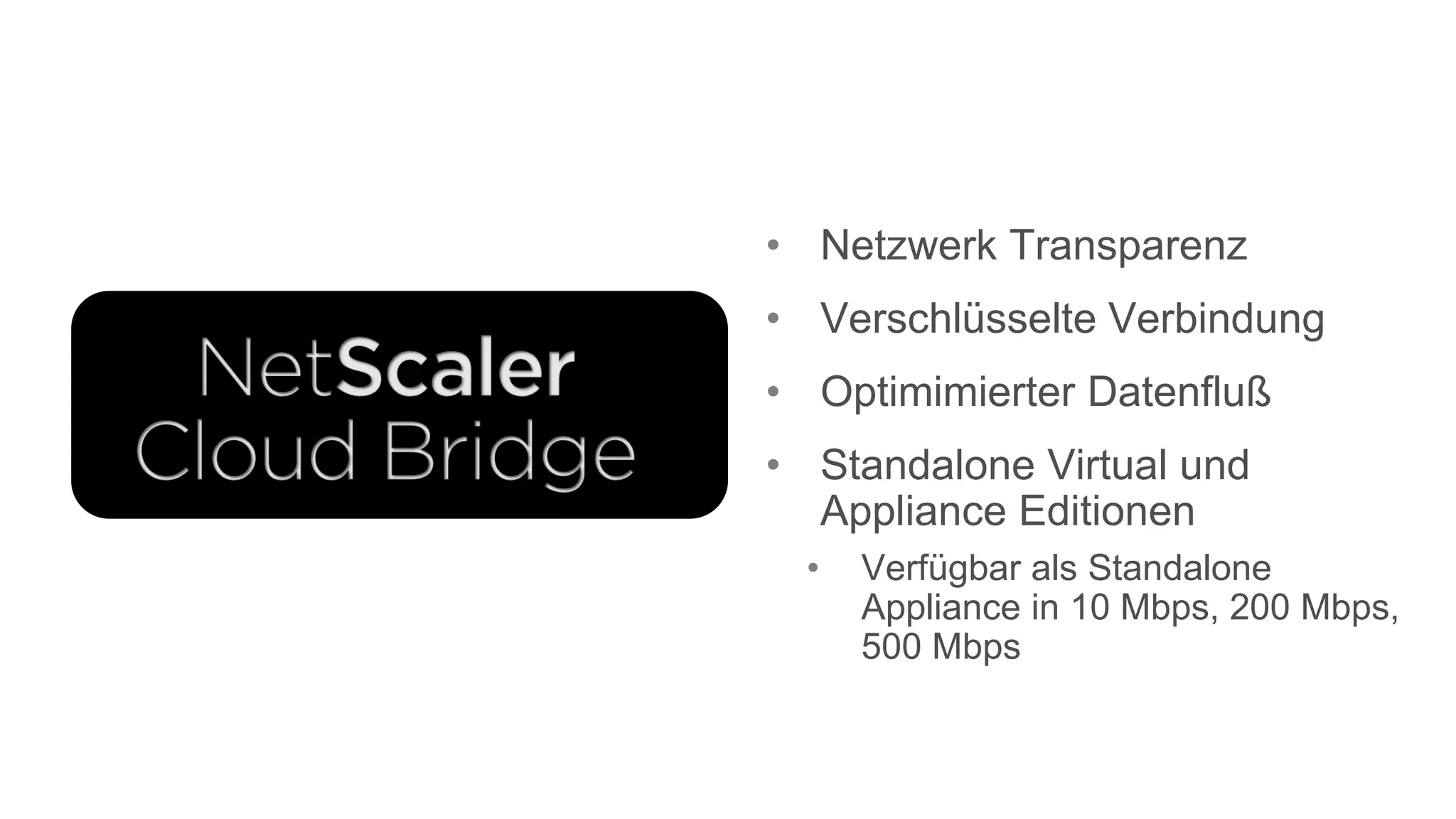

33. • Netzwerk Transparenz
• Verschlüsselte Verbindung
• Optimimierter Datenfluß
• Standalone Virtual und
Appliance Editionen
• Verfügbar als Standalone
Appliance in 10 Mbps, 200 Mbps,
500 Mbps

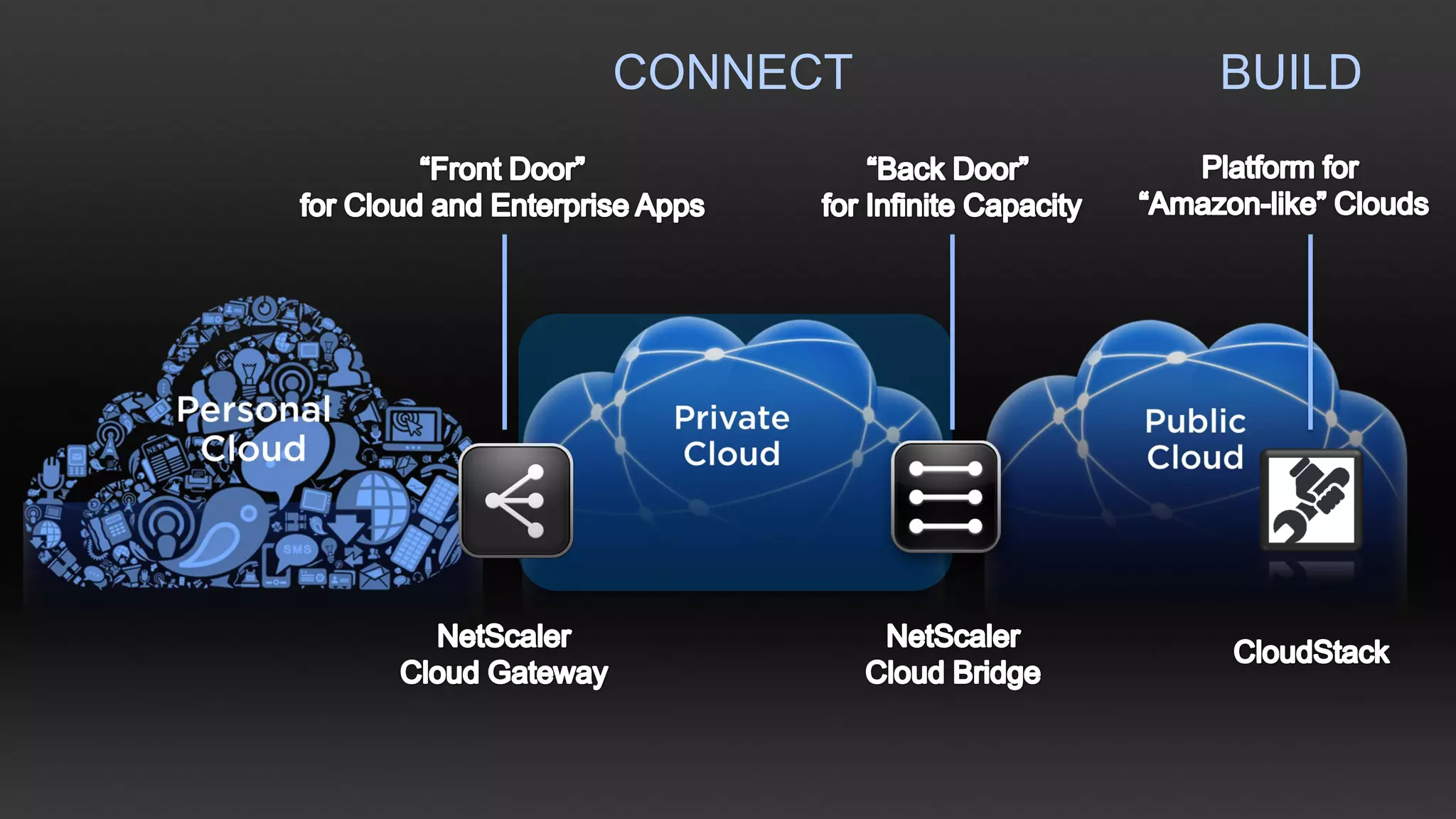

34. CONNECT BUILD
