The ML-CSA 4500 is a plug-and-play 4G/3G/2G cell signal amplifier that boosts uplink and downlink signal strength by up to 15dB for M2M devices like routers, modems, and gateways. It has a patented passive bypass feature that allows the device to remain online even if the amplifier detects a fault or power outage. The amplifier is designed exclusively for direct connect M2M applications in industries like security, utilities and more to ensure real-time monitoring and control.

1. ML-CSA 4500
4G 5-Band M2M Cell Signal Amplifier
The ML-CSA 4500 4G LTE Cell Signal Amplifier is a “Plug & Play” device that connects in-line with any
M2M cell-enabled router, modem, module, or gateway. It enhances downlink and boosts UPLINK cell
signal strength by up to 15dB to lock in data connec ons. Premier Uplink Connec vity
is essen al for M2M devices to connect to the cell tower for real- me monitoring & control.
Got questions? Reach us at sales@multi-link.net
or call 800.535.4651 or visit www.multi-link.net
The ONLY 4G M2M cell signal amplifier you'll ever need...
Boosts signal strength for ALL cell carriers.
4G LTE with 3G & 2G Fall-Back
Railway
Vending
Security
Utility /
SCADA
Cell
Gateway
Fleet
15 dB Auto Gain
& Oscillation Control
Cellular
Alarm
The ML-CSA 4500 Cell Signal Amplifier is superior to other cell amps & hi-gain antennas:
• Works with all North American Carriers
• 4G LTE with 3G & 2G Fall-Back
• 5-Band Signal Amplification
• Patented Passive Bypass Technology
• Patented Auto-gain and Oscillation Control
• Power-over-Coax Capability
• Variable Power Input Range: 8.0 - 32.0 VDC
• Designed Exclusively for Direct Connect M2M Applications
• Plug & Play
• *NOT made for Cell Phones
4G/3G/2G
All Carriers
"From the Makers of The Stick and ACP Series 2.0"

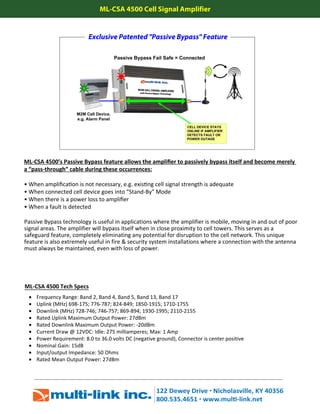

2. ML-CSA 4500’s Passive Bypass feature allows the amplifier to passively bypass itself and become merely
a “pass-through” cable during these occurrences:
• When amplifica on is not necessary, e.g. exis ng cell signal strength is adequate
• When connected cell device goes into “Stand-By” Mode
• When there is a power loss to amplifier
• When a fault is detected
M2M Cell Device,
e.g. Alarm Panel
Passive Bypass Fail Safe = Connected
CELL DEVICE STAYS
ONLINE IF AMPLIFIER
DETECTS FAULT OR
POWER OUTAGE
Exclusive Patented "Passive Bypass" Feature
ML-CSA 4500 Cell Signal Amplifier
• Frequency Range: Band 2, Band 4, Band 5, Band 13, Band 17
• Uplink (MHz) 698-175; 776-787; 824-849; 1850-1915; 1710-1755
• Downlink (MHz) 728-746; 746-757; 869-894; 1930-1995; 2110-2155
• Rated Uplink Maximum Output Power: 27dBm
• Rated Downlink Maximum Output Power: -20dBm
• Current Draw @ 12VDC: Idle: 275 milliamperes; Max: 1 Amp
• Power Requirement: 8.0 to 36.0 volts DC (negative ground), Connector is center positive
• Nominal Gain: 15dB
• Input/output Impedance: 50 Ohms
• Rated Mean Output Power: 27dBm
Passive Bypass technology is useful in applications where the amplifier is mobile, moving in and out of poor
signal areas. The amplifier will bypass itself when in close proximity to cell towers. This serves as a
safeguard feature, completely eliminating any potential for disruption to the cell network. This unique
feature is also extremely useful in fire & security system installations where a connection with the antenna
must always be maintained, even with loss of power.
ML-CSA 4500 Tech Specs
