Multi link product line for utility market

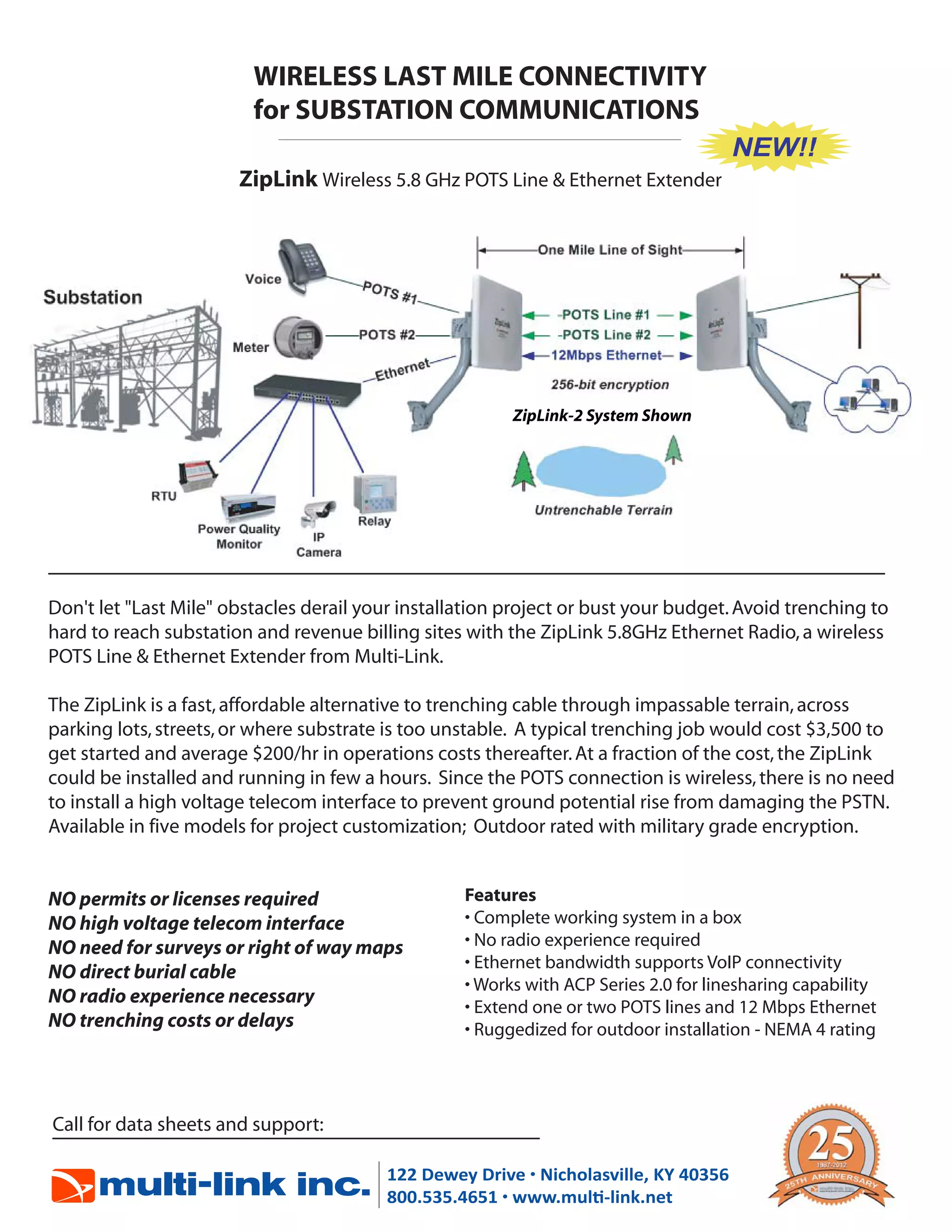

- 1. ZipLink Wireless 5.8GHz POTS Line & Ethernet Extender Features • Complete working system in a box • No radio experience required • Ethernet bandwidth supports VoIP connectivity • Works with ACP Series 2.0 for linesharing capability • Extend one or two POTS lines and 12 Mbps Ethernet • Ruggedized for outdoor installation - NEMA 4 rating Call for data sheets and support: NEW!! WIRELESS LAST MILE CONNECTIVITY for SUBSTATION COMMUNICATIONS Don't let "Last Mile" obstacles derail your installation project or bust your budget.Avoid trenching to hard to reach substation and revenue billing sites with the ZipLink 5.8GHz Ethernet Radio,a wireless POTS Line & Ethernet Extender from Multi-Link. The ZipLink is a fast,affordable alternative to trenching cable through impassable terrain,across parking lots,streets,or where substrate is too unstable. A typical trenching job would cost $3,500 to get started and average $200/hr in operations costs thereafter.At a fraction of the cost,the ZipLink could be installed and running in few a hours. Since the POTS connection is wireless,there is no need to install a high voltage telecom interface to prevent ground potential rise from damaging the PSTN. Available in five models for project customization; Outdoor rated with military grade encryption. NO permits or licenses required NO high voltage telecom interface NO need for surveys or right of way maps NO direct burial cable NO radio experience necessary NO trenching costs or delays 122 Dewey Drive • Nicholasville, KY 40356 800.535.4651 • www.multi-link.net ZipLink-2 System Shown
- 2. INDUSTRIAL WIRELESS PHONELINE& ETHERNET EXTENDER WIRELESSLASTMILECONNECTIVITY RUGGEDIZED HI-SPEED ETHERNET EXTENDER ZipLink-Xtreme/200 200Mbps Wireless Ethernet Extender ZipLink Wireless 5.8 GHz Phoneline & Ethernet Extender ZipLink is a fast,affordable,wireless alternative to trenching cables through impassable terrain. Phone and Ethernet connections are extended up to a mile by an 256-bit AES encrypted direct sequence radio signal. The newest ZipLink wireless Ethernet extender has all the features and benefits of the ZipLink but with more range,speed,and ruggedness.The ZipLink-X200 extends 200Mbps of bandwidth up to three miles line of sight in conditions ranging from -40°F to 145°F. Features • Complete working system in a box • No radio experience required • Ethernet bandwidth supports VoIP connectivity • PBX compatible • Extend one or two POTS lines and 12 Mbps Ethernet • Ruggedized for outdoor installation - NEMA 4 rating Communication Protocols Supported: Ethernet Analog phone line (1 and 2 line models) Dial-up modems Voice over Internet Protocol Fax Benefits • Saves money by eliminating costly trenching • Fast Installation -- Hours not days • No permits or licenses required • No need for surveys or right of way maps Manufactured by: ZipLink System includes: • MASTER and REMOTE end radios; Pre-configured as working pair • 2 x power adapters (POE injectors for Ethernet models) • 2 x 100 ft.of outdoor Cat 3 cable (Cat 5e for Ethernet models) • 2 x wall pole mount and brackets & all hardware Required tools: Drill/ Phillips head screwdriver,Fishline,RJ11 crimper, 10mm nut driver Specifications: Radio Range:3 Miles / 5 kilometers Over the air data rate: 200Mbps Operating Temperature:-40F to +145F (-40C to +60C) Power Required:19W maximum,10W typical Radio Type:5.8 GHz DSSS,License Free Encryption:256 Bit WPA-PSK (AES) Radio Power:+40 dBm (adjustable) Radio Sensitivity:-82 dBm @ 10-5 BER Outdoor Unit Size:12”x 12”x 3.5” System Shipping Weight:23 lbs Don’t Trench it...ZIP it! From Zero to 200 Mbps in seconds! 122 Dewey Drive • Nicholasville, KY 40356 800.535.4651 • www.mul -link.net Manufacturer Part # Description List UPC Multi-Link, Inc. ZipLink-1 1 Phoneline &12 Mbps Ethernet Extender $1995 757317917070 Multi-Link, Inc. ZipLink-2 2 Phoneline &12 Mbps Ethernet Extender $2895 757317917087 Multi-Link, Inc. ZipLink-E Rugged 40 Mbps Ethernet Extender 1mi $1195 757317917100 Multi-Link, Inc. ZipLink-X Rugged 80 Mbps Ethernet Extender 3mi $1995 757317917094 Multi-Link, Inc. ZipLink-X200 Rugged 200 Mbps Ethernet Extender 3mi $2495 757317917209 NEW!

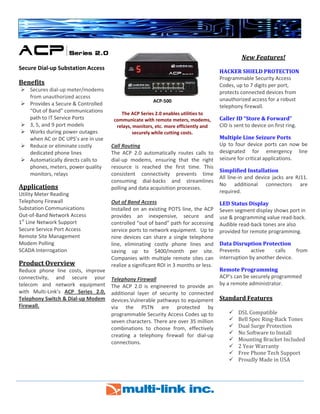

- 3. Secure Dial‐up Substation Access Benefits Secures dial‐up meter/modems from unauthorized access Provides a Secure & Controlled “Out of Band” communications path to IT Service Ports 3, 5, and 9 port models Works during power outages when AC or DC UPS’s are in use Reduce or eliminate costly dedicated phone lines Automatically directs calls to phones, meters, power quality monitors, relays Applications Utility Meter Reading Telephony Firewall Substation Communications Out‐of‐Band Network Access 1st Line Network Support Secure Service Port Access Remote Site Management Modem Polling SCADA Interrogation Product Overview Reduce phone line costs, improve connectivity, and secure your telecom and network equipment with Multi‐Link’s ACP Series 2.0, Telephony Switch & Dial‐up Modem Firewall. ACP‐500 The ACP Series 2.0 enables utilities to communicate with remote meters, modems, relays, monitors, etc. more efficiently and securely while cutting costs. Call Routing The ACP 2.0 automatically routes calls to dial‐up modems, ensuring that the right resource is reached the first time. This consistent connectivity prevents time consuming dial‐backs and streamlines polling and data acquisition processes. Out of Band Access Installed on an existing POTS line, the ACP provides an inexpensive, secure and controlled “out of band” path for accessing service ports to network equipment. Up to nine devices can share a single telephone line, eliminating costly phone lines and saving up to $400/month per site. Companies with multiple remote sites can realize a significant ROI in 3 months or less. Telephony Firewall The ACP 2.0 is engineered to provide an additional layer of security to connected devices.Vulnerable pathways to equipment via the PSTN are protected by programmable Security Access Codes up to seven characters. There are over 35 million combinations to choose from, effectively creating a telephony firewall for dial‐up connections. New Features! HACKER SHIELD PROTECTION Programmable Security Access Codes, up to 7 digits per port, protects connected devices from unauthorized access for a robust telephony firewall. Caller ID “Store & Forward” CID is sent to device on first ring. Multiple Line Seizure Ports Up to four device ports can now be designated for emergency line seizure for critical applications. Simplified Installation All line‐in and device jacks are RJ11. No additional connectors are required. LED Status Display Seven segment display shows port in use & programming value read‐back. Audible read‐back tones are also provided for remote programming. Data Disruption Protection Prevents active calls from interruption by another device. Remote Programming ACP’s can be securely programmed by a remote administrator. Standard Features DSL Compatible Bell Spec Ring‐Back Tones Dual Surge Protection No Software to Install Mounting Bracket Included 2 Year Warranty Free Phone Tech Support Proudly Made in USA

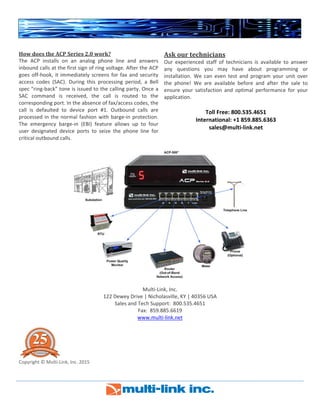

- 4. How does the ACP Series 2.0 work? The ACP installs on an analog phone line and answers inbound calls at the first sign of ring voltage. After the ACP goes off‐hook, it immediately screens for fax and security access codes (SAC). During this processing period, a Bell spec “ring‐back” tone is issued to the calling party. Once a SAC command is received, the call is routed to the corresponding port. In the absence of fax/access codes, the call is defaulted to device port #1. Outbound calls are processed in the normal fashion with barge‐in protection. The emergency barge‐in (EBI) feature allows up to four user designated device ports to seize the phone line for critical outbound calls. Ask our technicians Our experienced staff of technicians is available to answer any questions you may have about programming or installation. We can even test and program your unit over the phone! We are available before and after the sale to ensure your satisfaction and optimal performance for your application. Toll Free: 800.535.4651 International: +1 859.885.6363 sales@multi‐link.net Multi‐Link, Inc. 122 Dewey Drive | Nicholasville, KY | 40356 USA Sales and Tech Support: 800.535.4651 Fax: 859.885.6619 www.multi‐link.net Copyright © Multi‐Link, Inc. 2015
