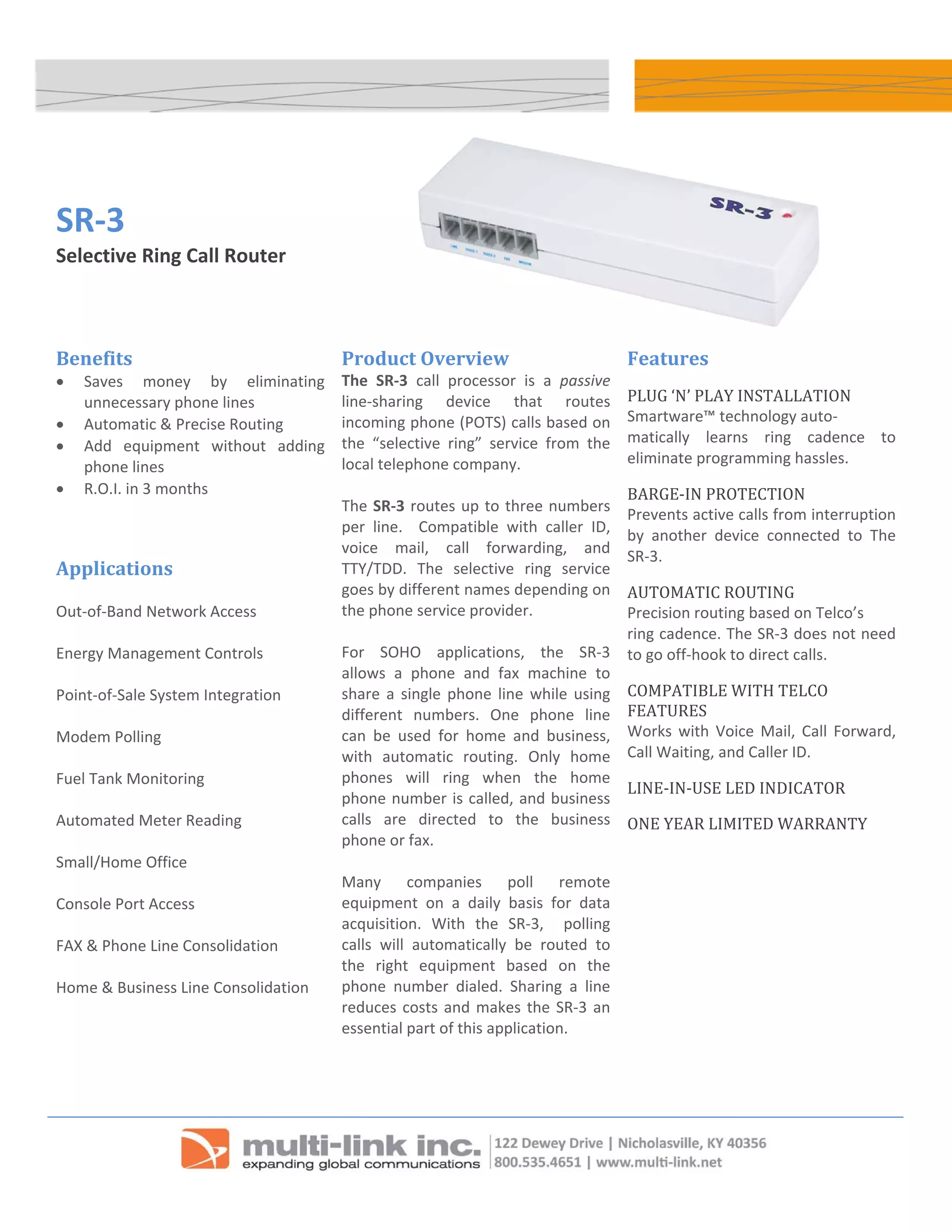

1. SR‐3
Selective Ring Call Router
Benefits Product Overview Features
• Saves money by eliminating The SR‐3 call processor is a passive
unnecessary phone lines line‐sharing device that routes PLUG ‘N’ PLAY INSTALLATION
• Automatic & Precise Routing incoming phone (POTS) calls based on Smartware™ technology auto‐
matically learns ring cadence to
• Add equipment without adding the “selective ring” service from the
local telephone company. eliminate programming hassles.
phone lines
• R.O.I. in 3 months
BARGE‐IN PROTECTION
The SR‐3 routes up to three numbers
Prevents active calls from interruption
per line. Compatible with caller ID,
by another device connected to The
voice mail, call forwarding, and
SR‐3.
Applications TTY/TDD. The selective ring service
goes by different names depending on AUTOMATIC ROUTING
Out‐of‐Band Network Access the phone service provider. Precision routing based on Telco’s
ring cadence. The SR‐3 does not need
Energy Management Controls For SOHO applications, the SR‐3 to go off‐hook to direct calls.
allows a phone and fax machine to
Point‐of‐Sale System Integration share a single phone line while using COMPATIBLE WITH TELCO
different numbers. One phone line FEATURES
Modem Polling can be used for home and business, Works with Voice Mail, Call Forward,
with automatic routing. Only home Call Waiting, and Caller ID.
Fuel Tank Monitoring phones will ring when the home
LINE‐IN‐USE LED INDICATOR
phone number is called, and business
Automated Meter Reading calls are directed to the business ONE YEAR LIMITED WARRANTY
phone or fax.
Small/Home Office
Many companies poll remote
Console Port Access equipment on a daily basis for data
acquisition. With the SR‐3, polling
FAX & Phone Line Consolidation calls will automatically be routed to
the right equipment based on the
Home & Business Line Consolidation phone number dialed. Sharing a line
reduces costs and makes the SR‐3 an
essential part of this application.
