M2M CELL SIGNAL AMPLIFIERS AND NETWORK ACCESS DEVICES
1. M2M CELL SIGNAL AMPLIFIERS
PATENTEDCELLSIGNALAMPLIFIACTION
ML-CSA 3550 UL
3G Cell Signal Amplifier (UL 1610 Listed)
ML-CSA 3500
3G Cell Signal Amplifier with Patented Bypass Technology
The ML-CSA 3500 3G Cell Signal Amplifier is an ancillary
“Plug & Play”device that connects in-line with any cell-
enabled router, modem, module, or gateway.
ML-CSA 3500 boosts UPLINK cell signal strength by
up to 15dB to lock in your connection with
cell towers.
Passive Bypass Technology is a fail-safe feature that
is designed to allow the cell signal amplifier to
bypass itself during loss of power, when a fault
is detected, or when amplification is not needed.
Vital for applications that are mission-critical for
security & liability reasons, e.g. burglar & security alarm systems.
Features
• Plug & Play Direct Connect Device
• Patented Passive Bypass Technology
• Patented Auto Gain & Oscillation Control
• Variable Input Power Range: +8.0 to 36.0 VDC
• FCC & IC Certified and Carrier Pre-Approved
Benefits
• One model for both Fixed & Mobile applications
• Safeguard features completely eliminate any potential for disruption to the cell network
•“PASSIVE BYPASS”technology keeps cell devices connected in vital applications
• Easily connect devices“in-line”for fast deployment
Manufactured by:
Specifications:
• Frequency Range: Cellular 850 (824MHz – 894MHz), PCS 1900 (1850MHz – 1990MHz)
• 20dB BW: 850 UL: 39MHz, 1900 UL: 115MHz
• Rated Uplink Maximum Output Power: Cellular 850; 27dBm, PCS 1900; 27dBm
• Rated Downlink Maximum Output Power: Cellular 850; -20dBm, PCS 1900; -20dBm
• Current Draw at idle 9.5 -29 at VDC: – 277.5 milliampres
• Power Requirement: 9.5 to 29.0 volts DC (negative ground), Connector is center positive
• Nominal Gain: Cellular 850: 15dB, PCS 1900: 15dB
• Input/output Impedance: 50 Ohms
• Rated Mean Output Power: 27dBm
• Operating Temperature: -20C to +50C
• Storage Temperature: -30C to +70C
• Relative Humidity – Storage: 5 to 90%
Give your cell signal a BOOST!
122 Dewey Drive • Nicholasville, KY 40356
800.535.4651 • www.mul -link.net
ML-CSA 3500 Plug & Play Kit Includes
ML-CSA 3500 15dB Cell Signal Amplifier
Mag-Mount 2dBi Outdoor Antenna
AC Power Adapter Cable
Hardwire DC Power Adapter
SMA to SMA Cable Connector
User Guide
The ML-CSA 3550 UL Cell Signal Amplifier has all
the features and benefits of the ML-CSA 3500.
In addition, this equipment is certified and in compliance
with the UL 1610 Standard. UL 1610 is the UL Standard for
Central Station Burglar Alarm Units.
*Important: In order to be compliant, the
ML-CSA 3550 UL Amplifier must be installed in
a Type 1 UL-Listed Metal Cabinet.
(Minimum 7” x 12”x 3.”)
Manufacturer MFR Part # Description List Price UPC
Multi-Link, Inc. ML-CSA 3500 3G Cell Signal Amplifier $325 757317035002
Multi-Link, Inc. ML-CSA 3550UL 3G Cell Signal Amp UL1610 $349 757317035507

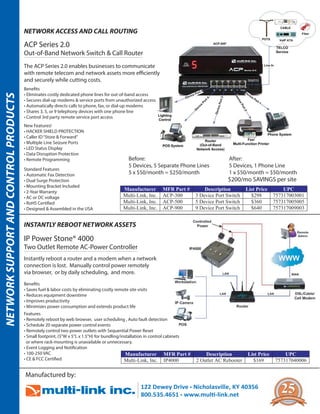

2. NETWORK ACCESS AND CALL ROUTING
NETWORKSUPPORTANDCONTROLPRODUCTS
ACP Series 2.0
Out-of-Band Network Switch & Call Router
The ACP Series 2.0 enables businesses to communicate
with remote telecom and network assets more efficiently
and securely while cutting costs.
New Features!
• HACKER SHIELD PROTECTION
• Caller ID“Store & Forward”
• Multiple Line Seizure Ports
• LED Status Display
• Data Disruption Protection
• Remote Programming
Standard Features
• Automatic Fax Detection
• Dual Surge Protection
• Mounting Bracket Included
• 2-Year Warranty
• AC or DC voltage
• RoHS Certified
• Designed & Assembled in the USA
Benefits
• Eliminates costly dedicated phone lines for out-of-band access
• Secures dial-up modems & service ports from unauthorized access
• Automatically directs calls to phone, fax, or dial-up modems
• Shares 3, 5, or 9 telephony devices with one phone line
• Control 3rd party remote service port access
Manufactured by:
Manufacturer MFR Part # Description List Price UPC
Multi-Link, Inc. IP4000 2 Outlet AC Rebooter $169 757317040006
Before:
5 Devices, 5 Separate Phone Lines
5 x $50/month = $250/month
After:
5 Devices, 1 Phone Line
1 x $50/month = $50/month
$200/mo SAVINGS per site
Manufacturer MFR Part # Description List Price UPC
Multi-Link, Inc. ACP-300 3 Device Port Switch $298 757317003001
Multi-Link, Inc. ACP-500 5 Device Port Switch $360 757317005005
Multi-Link, Inc. ACP-900 9 Device Port Switch $640 757317009003
122 Dewey Drive • Nicholasville, KY 40356
800.535.4651 • www.mul -link.net
INSTANTLY REBOOT NETWORK ASSETS
IP Power Stone® 4000
Two Outlet Remote AC-Power Controller
Instantly reboot a router and a modem when a network
connection is lost. Manually control power remotely
via browser, or by daily scheduling, and more.
Benefits
• Saves fuel & labor costs by eliminating costly remote site visits
• Reduces equipment downtime
• Improves productivity
• Minimizes power consumption and extends product life
Features
• Remotely reboot by web browser, user scheduling , Auto fault detection
• Schedule 20 separate power control events
• Remotely control two power outlets with Sequential Power Reset
• Small footprint, (5"W x 5"L x 1.5"H) for bundling/installation in control cabinets
or where rack-mounting is unavailable or unnecessary.
• Event Logging and Notification
• 100-250 VAC
• CE & FCC Certified
3. REMOTE POWER CONTROL BY PHONE
REMOTEREBOOTANDPOWERCONTROLPRODUCTS
SECURE POWER CONTROL BY SMS MESSAGING
Powertxt Duo | SMS Power Controller
The Power Stone®
Call Activated AC-Power Controller
The Power Stone is a phone call-activated AC power
controller used to reboot and power up/down
remote equipment.
Powertxt Duo® SMS Power Controller allows quick and easy remote
power control of two connected devices through the GSM (mobile)
network. Commands are sent via SMS messaging and can be used to
control one or both power outlets in tandem or individually.
Features
• Manual or Automatic Operation
• Non-Volatile Memory
• Passcode Protected
• 120VAC / 15A Rating
• Audible Status Read-back
• 1 Year Warranty
• RoHS Certified
• Designed & Assembled in the USA
Benefits
• Saves fuel & labor costs by eliminating costly remote site visits
• Secure out-of-band power control
• Instant power loss/restore notification
• User friendly for fast deployment
Features
• Remote power control by SMS (text) commands
• Control one or two devices together or independently
• No IP network interface = No hacking
• Easy set up (<5 min); *Requires AT&T SIM card
• Password protected & only responds to authorized users
• Instant Power Loss/Restore Notification
• Works on North American GSM Network (3G)
Manufactured by:
Benefits
• Saves Fuel & Labor Costs - Pays for itself with one saved truck roll!
• Reduces Downtime - One phone call can correct problem equipment in minutes
• Protects Equipment - Leave equipment“off”until needed. Reduces power
consumption and hacker exposure
• Installs on Existing Phone Line for Out-of-Band AC power reset
Applications
Routers - DSL Modems - Automated Teller Machines
Internet Kiosks - Network Equipment - Digital Video Recorders
Voicemail Systems - Out-of-Band Network Management
Manufacturer MFR Part # Description List Price UPC
Multi-Link, Inc. PST59102 Phone Call AC Rebooter $165 757317591027
122 Dewey Drive • Nicholasville, KY 40356
800.535.4651 • www.multi-link.net
Pays for itself with
one saved truck roll!
SMS
Manufacturer MFR Part # Description List Price
Multi-Link, Inc. PTD-2 2 Outlet SMS Power Controller $389
4. ACTIVE CALL ROUTING
COMMERCIALGRADELINESHARINGDEVICES
PASSIVE CALL ROUTING
SR-3
Selective Ring Call Router
The Stick®
Automatic Phone/Fax/Modem Switch
The Stick automatically screens and routes all
incoming voice, fax, and modem calls to the
right equipment every time so there is no
need for multiple costly phone lines.
The SR-3 call processor is a passive line-sharing device
that routes incoming phone calls based on the
“selective ring”service from the local telephone company.
Features
• Automatic Fax Detection
• Data Disruption Protection
• Bell Spec Ring-back
• User Programmable Security Access Codes
• Non-Volatile Memory
• DSL & CID Compatible
• 1-Year Warranty
• RoHS Certified
• Designed & Assembled in the USA
Benefits
• Reduces or eliminates costly dedicated phone lines
• Secures dial-up modems from unauthorized access
• Automatically directs calls to phone, fax, or dial-up modems
• 3 Month R.O.I.
Benefits
• Saves money by eliminating unnecessary phone lines
• Automatic & Precise Routing
• Add equipment without adding phone lines
• 3 Month R.O.I.
Features
•“Smartware™”technology for Plug and Play Installation
• Compatible with TELCO call package features: Voice Mail, Call Forwarding, Call Waiting, and Caller ID.
• Barge-in protection
• Automatic Routing
• 1-Year Warranty
• RoHS Certified
• Designed & Assembled in the USA
Manufactured by:
Manufacturer MFR Part # Description List Price UPC
Multi-Link, Inc. SR-3 Selective Ring Call Router $139 757317403474
Stick Lock Box
16-gauge metal mounting bracket
Protect device connections &
Prevent tampering with jacks.
Manufacturer MFR Part # Description List Price UPC
Multi-Link, Inc. STK29112 Automatic Call Processor $155 757317291125
Multi-Link, Inc. STKLOKBOX Security Bracket for Stick $24 757317515658
122 Dewey Drive • Nicholasville, KY 40356
800.535.4651 • www.mul -link.net
Add Equipment without
Adding Phone Lines!
5. INDUSTRIAL WIRELESS PHONELINE & ETHERNET EXTENDER
WIRELESSLASTMILECONNECTIVITY
RUGGEDIZED HI-SPEED ETHERNET EXTENDER
ZipLink-Xtreme/200
200Mbps Wireless Ethernet Extender
ZipLink
Wireless 5.8 GHz Phoneline & Ethernet Extender
ZipLink is a fast, affordable, wireless alternative
to trenching cables through impassable terrain.
Phone and Ethernet connections are extended
up to a mile by a Full Duplex, 256-bit
AES encrypted radio signal.
The newest ZipLink wireless Ethernet extender has all
the features and benefits of the ZipLink but with
more range, speed, and ruggedness. The ZipLink-X200
extends 200Mbps of Full Duplex Ethernet bandwidth
up to three miles in extreme outdoor conditions.
Features
• Complete working system in a box
• No radio experience required
• Ethernet bandwidth supports VoIP connectivity
• PBX compatible
• Extend one or two POTS lines and 12 Mbps Ethernet
• Ruggedized for outdoor installation - NEMA 4 rating
Communication Protocols Supported:
• Ethernet
• Analog phone line (1 and 2 line models)
• Dial-up modems
• Voice over Internet Protocol
• Fax
Benefits
• Saves money by eliminating costly trenching
• Fast Installation -- Hours not days
• No permits or licenses required
• No need for surveys or right of way maps
Manufactured by:
ZipLink System includes:
• MASTER and REMOTE end radios; Pre-configured as working pair
• 2 x power adapters (POE injectors for Ethernet models)
• 2 x 100 ft. of outdoor Cat 3 cable (Cat 5e for Ethernet models)
• 2 x wall pole mount and brackets & all hardware
Required tools:
Drill/ Phillips head screwdriver, Fishline, RJ11 crimper,
10mm nut driver
Specifications:
Radio Range: 3 Miles / 5 kilometers
Over the air data rate: 200Mbps
Operating Temperature: -40F to +145F (-40C to +60C)
Power Required: 19W maximum, 10W typical
Radio Type: 5.8 GHz DSSS, License Free
Encryption: 256 Bit WPA-PSK (AES)
Radio Power: +40 dBm (adjustable)
Radio Sensitivity: -82 dBm @ 10-5
BER
Outdoor Unit Size: 12”x 12”x 3.5”
System Shipping Weight: 23 lbs
When WIRES won’t work!
From Zero to
200 Mbps in seconds!
Manufacturer Part # Description List UPC
Multi-Link, Inc. ZipLink-1 1 Phoneline &12 Mbps Ethernet Extender $1995 757317917070
Multi-Link, Inc. ZipLink-2 2 Phoneline &12 Mbps Ethernet Extender $2895 757317917087
Multi-Link, Inc. ZipLink-E Rugged 40 Mbps Ethernet Extender 1mi $1195 757317917100
Multi-Link, Inc. ZipLink-X Rugged 80 Mbps Ethernet Extender 3mi $1995 757317917094
Multi-Link, Inc. ZipLink-X200 Rugged 200 Mbps Ethernet Extender 3mi $2495 757317917209
NEW!
122 Dewey Drive • Nicholasville, KY 40356
800.535.4651 • www.mul -link.net
