The document describes Miniflex FTTH cabling system, a pre-terminated fiber optic solution for faster, easier, and simpler fiber-to-the-home installations. The system addresses challenges like lack of skilled technicians, organization, and time through fully pre-terminated drop cables, hardware, and boxes. It allows one technician to complete installations in a fraction of the normal time needed. Over 250,000 installations using the system have shown a 20% reduction in operating expenses for network operators.

1. Miniflex FTTH
Cabling System
Pre-terminated solutions for faster, easier, simpler
Fiber-To-The-Home' installs.
© Marc Duchesne, on behalf of Belden PPC, December 2017

2. That’s why we’re here today !

3. 1. The Problem(s)

4. Lack of skilled technicians

5. Lack of organisation

6. Lack of care

7. 100%of the population to get
100-Mbps
by
2022
On top : Lack of time !

8. 2. The Solution

9. Enters Miniflex™
source : http://www.ppc-online.com/fiber-cable-solutions-for-fttx

10. Miniflex Cabling System Target area

11. Miniflex Cabling System Fit

12. Miniflex Cabling System : Concept
100% SPLICE-LESS FTTH INSTALLS

13. Miniflex Cabling System : Concept
1 TECHNICIAN

14. Miniflex Cabling System : Cables
PRE-TERMINATED OPTICAL CABLES

15. Miniflex Cabling System : Hardware
PRE-TERMINATED BOXES

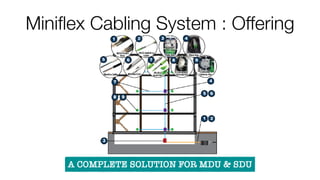

16. Miniflex Cabling System : Offering
A COMPLETE SOLUTION FOR MDU & SDU

17. The Miniflex cable : The key of the system
LIGHT, COMPACT, ROBUST

18. The Miniflex Cabling System : Value Proposition
+ cheaper for the
network operator
+ efficient for
the installer
+ faster for the
customer
TIME-SAVING FOR EVERYONE

19. 3. The Outcome

20. Miniflex Cabling System by the facts
• Less time to deploy the cables
• Easily add connections on-demand
• More connections can be done per day
• Existing cables can be easily removed and replaced

21. Miniflex Cabling System by the plus
• Electricians can do the job, meaning more manpower
• Pre-terminated boxes offer more ports in less space
• Sealed hardware means higher quality of installations
• Structured cabling reduces network’s downtimes

22. Miniflex Cabling System by the numbers
• 1 OSP technician instead of 2
• 15 minutes per subscriber drop instead of 2 hours
• 2-weeks training for a novice instead of 12
• 250k FTTx installs to date show OPEX reduced by 20%

23. • +33 681 330 960 • marc.duchesne@me.com •
Let’s discuss !
_Marc Duchesne

25. backup slides

26. © 2016 PPC – A Belden Brand | www.ppc-online.com 26© 2015 Belden Inc. | belden.com | @BeldenInc 5

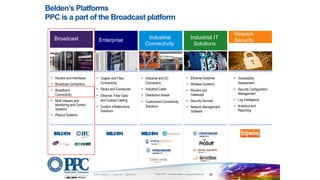

Belden’s Platforms
PPC is a part of the Broadcast platform
EnterpriseBroadcast Industrial
Connectivity
Industrial IT
Solutions
Network
Security
• Industrial and I/O
Connectors
• Industrial Cable
• Distribution Boxes
• Customized Connectivity
Solutions
• Ethernet Switches
• Wireless Systems
• Routers and
Gateways
• Security Devices
• Network Management
Software
• Copper and Fiber
Connectivity
• Racks and Enclosures
• Ethernet, Fiber Optic
and Coaxial Cabling
• Custom Infrastructure
Solutions
• Routers and Interfaces
• Broadcast Connectors
• Broadband
Connectivity
• Multi-Viewers and
Monitoring and Control
Systems
• Playout Systems
• Vulnerability
Assessment
• Security Configuration
Management
• Log Intelligence
• Analytics and
Reporting

27. © 2016 PPC – A Belden Brand | www.ppc-online.com 27
m2fx - acquired by PPC Broadband in 2016
❑ 20-year old UK company
❑ Pioneer of splice-less FTTx products
❑ Over 150,000 FTTx installations to date
❑ Worldwide leader in fiber protection
❑ Serve automotive, datacom, and telco markets
❑ 100,000km of cable and duct installed worldwide
❑ Approved at BT, Audi, Orange, and many other telco’s

28. © 2016 PPC – A Belden Brand | www.ppc-online.com 28

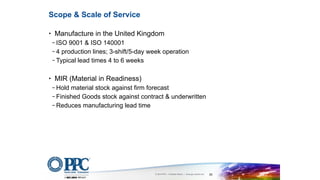

• Manufacture in the United Kingdom
− ISO 9001 & ISO 140001
− 4 production lines; 3-shift/5-day week operation
− Typical lead times 4 to 6 weeks
• MIR (Material in Readiness)
− Hold material stock against firm forecast
− Finished Goods stock against contract & underwritten
− Reduces manufacturing lead time
Scope & Scale of Service

29. © 2016 PPC – A Belden Brand | www.ppc-online.com 29
• Miniflex cable
− Push <100m / Pull <250m / Blow <1km
− Staple, Clip or Glue to walls and ceilings
− Simple Slack Storage approach
− Miniflex Technology [Crush, Kink, Bend & Impact protection]
• Miniflex Microduct & TuffDuct
• ADSS
PPC Products for FTTP

30. © 2016 PPC – A Belden Brand | www.ppc-online.com 30
PPC QuikPush Cable
Balistix
Connector
Plug & Play
❑ Pushable fiber with a snap-on connector
❑ Lightweight and very durable at less than 8g/m
❑ Completely removes fusion splicing during the installation
❑ Industry leading crush performance of >1,400N
❑ World’s only hand-pushable fiber up to 100m distance

31. © 2016 PPC – A Belden Brand | www.ppc-online.com 31
Miniflex Pushable Connectors
❑ Drop Cable
▪ 3mm Miniflex cable with or without
pushable SC connector
▪ 2mm Miniflex cable with or without
pushable LC connector
▪ As above but the customer wall plate
integrated

32. © 2016 PPC – A Belden Brand | www.ppc-online.com 32
PPC MDU Cable & Ducts Solutions
❑ Industry leading crush performance of >2,000N
❑ 10x bend radius give ultimate flexibility and strength
❑ Pre-installed with pull cord for improved installation
❑ Features ultra low friction DVC technology
❑ Existing blown fibre duct 5/3.5mm as well as others
❑ Class-leading pushing and blowing ability
INDOOR
OUTDOOR
BURY

33. © 2016 PPC – A Belden Brand | www.ppc-online.com 33
• ADSS variants from both 4F to 48F
− Small diameter: up to 12F in 6mm & up to 48F in 7mm
− Light weight – supported by existing poles & hardware
− Increased Tensile Strength <3,000N
− Better loading capabilities (<80 metre spans)
− Standard install practice / tools and hardware – see eBook
− Easy to strip – loose bundles with no gel or buffering
ADSS Cable
http://www.ppc-online.com/aerial-cable-and-duct-for-fttx

34. © 2016 PPC – A Belden Brand | www.ppc-online.com 34
• Pre-terminated aerial drop cable
− Aerial version of QuikPush
− SC format Connector with 0.2 dB IL / 60 dB RL
− Seals in Gland Seals
− Passes through Blown Fibre Connectors
− Easy Strip and Slack Storage
− IP68 ‘Hardened Connector’ Compatible (SENKO IP Series)
QuikDrop
LC format available in Q1 2018

35. © 2016 PPC – A Belden Brand | www.ppc-online.com 35
Small Customer Terminal
QP-SCT
These units allow for a 100% splice-less FTTH installations
Includes
• SC/APC Adaptor
• Laser Warning Sticker
• Screws & Fixings
• Cable (Zip) Ties
• Allows for 100% splice-less FTTH applications
• Stores up to 1m of 3mm Miniflex cable or 2m of
the 2mm Miniflex cable
• IP55 protection from dust & water
• Supplied with SC or LC duplex adaptor
• Large cable entry port for PPC Miniflex cable or
Microduct
• Ordering code is 10-1327 (10pc pack)

36. © 2016 PPC – A Belden Brand | www.ppc-online.com 36
Includes
• SC/APC Adaptor
• Laser Warning Sticker
• Screws & Fixings
• Cable Clips
• Cable (Zip) Ties
• Stores up to 8m of 3mm
Miniflex cable or 15m of the
2mm Miniflex cable
• Capacity for 2 drop cables per
closure
• Easy installation using
removable wall mount plate
• Ordering code is 10-1328 (10pc
pack)
Medium Customer Terminal
http://www.ppc-online.com/quikpush-customer-terminal-medium-fiber-enclosure

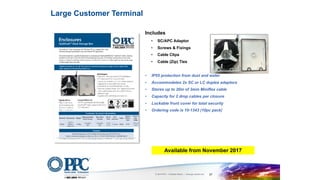

37. © 2016 PPC – A Belden Brand | www.ppc-online.com 37
Includes
• SC/APC Adaptor
• Screws & Fixings
• Cable Clips
• Cable (Zip) Ties
• IP55 protection from dust and water
• Accommodates 2x SC or LC duplex adaptors
• Stores up to 20m of 3mm Miniflex cable
• Capacity for 2 drop cables per closure
• Lockable front cover for total security
• Ordering code is 10-1343 (10pc pack)
Large Customer Terminal
Available from November 2017

38. © 2016 PPC – A Belden Brand | www.ppc-online.com 38
Small Distribution Box
(PON)
Small Distribution Box
(P2P)
Includes
• SC/APC 1:8 Splitter
• SC/APC Adaptors
• Lock
• Screws & Fixings
• Cable Clips
• Cable (Zip) Ties
• IP54 protection
• 12x SC or LC duplex adaptors
• Stores up to 25m of 3mm Miniflex
cable
• PON (1:8 splitter) ordering code
10-1335
Includes
• 12x SC/APC Pigtails
• SC/APC Adaptors
• Lock
• Screws & Fixings
• Cable Clips
• Cable (Zip) Ties
• Capacity for 12 drop cables per
closure
• P2P (12x pigtails) ordering code
10-1336
• http://www.ppc-online.com/quikpush-small-distribution-box

39. © 2016 PPC – A Belden Brand | www.ppc-online.com 39
Medium Distribution Box
(PON)
Medium Distribution Box
(P2P)
Includes
• SC/APC 1:8 Splitter
• SC/APC Adaptors
• Lock
• Screws & Fixings
• Cable Clips
• Cable (Zip) Ties
• 12x SC or LC duplex adaptors
• Stores up to 80m of 3mm Miniflex cable
• IP55 protection
• PON (1:8 splitter) ordering code 10-1341
Includes
• 12x SC/APC Pigtails
• SC/APC Adaptors
• Lock
• Screws & Fixings
• Cable Clips
• Cable (Zip) Ties
• Capacity for 12 drop cables
• P2P (12x pigtails) ordering code
10-1342
• http://www.ppc-online.com/quikpush-
medium-distribution-box
