1. Nir Laufer , Director Product Line Management
ITSF 2015
Phase Delivery over PTP Unaware Networks

2. © 2014 ADVA Optical Networking. All rights reserved. Confidential.2
Phase Delivery Challenges in Brownfield Deployments
• Existing network introduce high level of asymmetry and PDV
• The asymmetry and PDV varies over time
• Existing networks include different transport technologies
• Upgrading/forklifting the existing NE to Sync-E/BC is very costly
Do we really need frequency and phase in the core network?

3. © 2014 ADVA Optical Networking. All rights reserved. Confidential.3

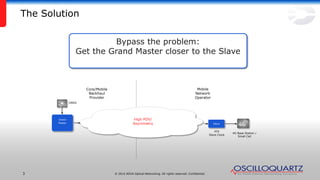

Bypass the problem:
Get the Grand Master closer to the Slave
Core/Mobile
Backhaul
Provider
Mobile
Network
Operator
High PDV/
Asymmetry
PTP
Slave Clock
Slave
4G Base Station /
Small Cell
Grand
Master
GNSS
The Solution

4. © 2014 ADVA Optical Networking. All rights reserved. Confidential.4
Grand
Master
GNSS
Core/Mobile
Backhaul
Provider
Mobile
Network
Operator
High PDV/
Asymmetry
PTP
Slave Clock
Slave
4G Base Station /
Small Cell
Packet-Based
Backhaul Network
Grand
Master
GNSS

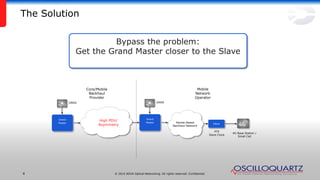

Bypass the problem:
Get the Grand Master closer to the Slave
The Solution

5. © 2014 ADVA Optical Networking. All rights reserved. Confidential.5

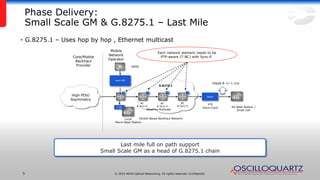

Phase Delivery:
Small Scale GM & G.8275.1 – Last Mile
• G.8275.1 – Uses hop by hop , Ethernet multicast
mini-GM
Local
Macro Base Station
GNSS
T-SC
Core/Mobile
Backhaul
Provider
Mobile
Network
Operator
High PDV/
Asymmetry
Packet-Based Backhaul Network
PTP
Slave Clock
Slave
Each network element needs to be
PTP-aware (T-BC) with Sync-E
BC
& Sync-E
BC
& Sync-E
BC
& Sync-E 4G Base Station /
Small Cell
16ppb & +/-1.1us
Ethernet Multicast
G.8275.1
Last mile full on path support
Small Scale GM as a head of G.8275.1 chain

6. © 2014 ADVA Optical Networking. All rights reserved. Confidential.6

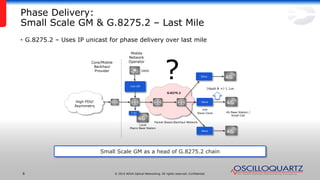

Phase Delivery:
Small Scale GM & G.8275.2 – Last Mile
• G.8275.2 – Uses IP unicast for phase delivery over last mile
mini-GM
Local
Macro Base Station
GNSS
T-SC
Core/Mobile
Backhaul
Provider
Mobile
Network
Operator
High PDV/
Asymmetry
Packet-Based Backhaul Network
PTP
Slave Clock
Slave
4G Base Station /
Small Cell
16ppb & +/-1.1us
G.8275.2
Small Scale GM as a head of G.8275.2 chain
? Slave
Slave

7. © 2014 ADVA Optical Networking. All rights reserved. Confidential.7
PDV of a single NE
• Single congestion point
Two types of traffic loads have been considered:
• Case A: The size of the data traffic packets was variable,
from 64 bytes to 1518 bytes
• Case B: All the data traffic packets have a 1518 bytes fixed
size
Source - France Télécom Orange

8. © 2014 ADVA Optical Networking. All rights reserved. Confidential.8
PDV of a single NE – Case A
1Gbps, variable size data traffic:
Source - France Télécom Orange

9. © 2014 ADVA Optical Networking. All rights reserved. Confidential.9
PDV of a single NE – Case B
1Gbps, 1518 bytes data traffic:
:
Source - France Télécom Orange

10. © 2014 ADVA Optical Networking. All rights reserved. Confidential.10

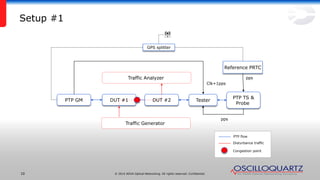

Setup #1
Tester
Traffic Analyzer
DUT #1 DUT #2
PTP flow
Disturbance traffic
PTP GM
PTP TS &
Probe
Clk+1pps
pps
Reference PRTC
GPS splitter
pps
Traffic Generator
Congestion point

11. © 2014 ADVA Optical Networking. All rights reserved. Confidential.11

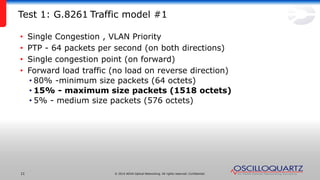

Test 1: G.8261 Traffic model #1
• Single Congestion , VLAN Priority
• PTP - 64 packets per second (on both directions)
• Single congestion point (on forward)
• Forward load traffic (no load on reverse direction)
• 80% -minimum size packets (64 octets)
• 15% - maximum size packets (1518 octets)
• 5% - medium size packets (576 octets)

12. © 2014 ADVA Optical Networking. All rights reserved. Confidential.12
Test #1 - Forward & Reverse Filtered Packet TIE (Tester)
• Window size – 200 sec , 0.3%
100%
90%
80%70%60%50%40%30%20%10%
800400TIE(nsec)

13. © 2014 ADVA Optical Networking. All rights reserved. Confidential.13
Test #1 – Probe Measured Forward Delay
• Window size – 5sec , Lucky packet
10%-100% 100%-10%
25265
TE(nsec)
26505

14. © 2014 ADVA Optical Networking. All rights reserved. Confidential.14

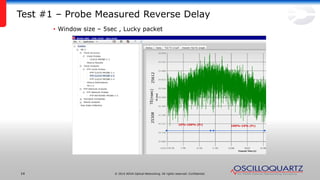

Test #1 – Probe Measured Reverse Delay
• Window size – 5sec , Lucky packet
10%-100% (Fr) 100%-10% (Fr)
25308TE(nsec)25612

15. © 2014 ADVA Optical Networking. All rights reserved. Confidential.15
Test #1 – Probe Measured Asymmetry
• Window size – 5sec , Lucky packet
10%-100% 100%-10%
-370
TE(nsec)
296

16. © 2014 ADVA Optical Networking. All rights reserved. Confidential.16

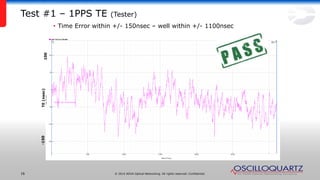

Test #1 – 1PPS TE (Tester)
• Time Error within +/- 150nsec – well within +/- 1100nsec
-150
100
TE(nsec)

17. © 2014 ADVA Optical Networking. All rights reserved. Confidential.17

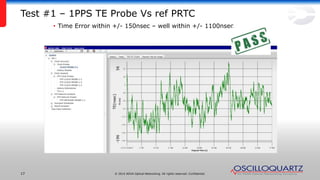

Test #1 – 1PPS TE Probe Vs ref PRTC
• Time Error within +/- 150nsec – well within +/- 1100nsec
-196
TE(nsec)
56

18. © 2014 ADVA Optical Networking. All rights reserved. Confidential.18

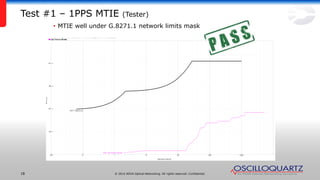

Test #1 – 1PPS MTIE (Tester)
• MTIE well under G.8271.1 network limits mask

19. © 2014 ADVA Optical Networking. All rights reserved. Confidential.19

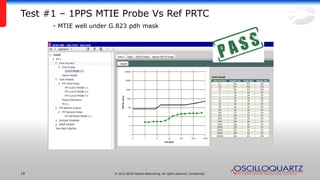

Test #1 – 1PPS MTIE Probe Vs Ref PRTC
• MTIE well under G.823 pdh mask

20. © 2014 ADVA Optical Networking. All rights reserved. Confidential.20
• Single Congestion , VLAN Priority
• PTP - 64 packets per second (on both directions)
• Single congestion point (on forward)
• Forward load traffic (no load on reverse direction)
• 30% -minimum size packets (64 octets)
• 60% - maximum size packets (1518 octets)
• 10% - medium size packets (576 octets)
Test 2: G.8261 Traffic model #2

21. © 2014 ADVA Optical Networking. All rights reserved. Confidential.21

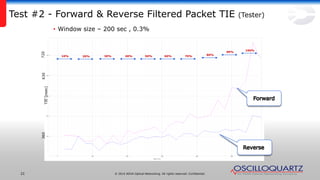

Test #2 - Forward & Reverse Filtered Packet TIE (Tester)
• Window size – 200 sec , 0.3%
100%
90%
80%70%60%50%40%30%20%10%
630720
TIE(nsec)
360

22. © 2014 ADVA Optical Networking. All rights reserved. Confidential.22
Test #2 – 1PPS TE (Tester)
• Time Error within +/- 200nsec – well within +/- 1100nsec
60
TE(nsec)-180

23. © 2014 ADVA Optical Networking. All rights reserved. Confidential.23
Test #2 – 1PPS MTIE (Tester)
• MTIE well under G.8271.1 network limits mask

24. © 2014 ADVA Optical Networking. All rights reserved. Confidential.24

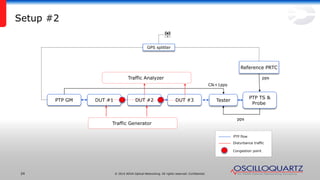

Setup #2
Tester
Traffic Analyzer
DUT #1 DUT #2
PTP flow
Disturbance traffic
PTP GM
PTP TS &
Probe
Clk+1pps
pps
Reference PRTC
GPS splitter
pps
Traffic Generator
Congestion point
DUT #3

25. © 2014 ADVA Optical Networking. All rights reserved. Confidential.25

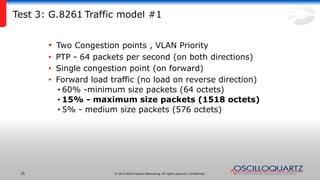

Test 3: G.8261 Traffic model #1
• Two Congestion points , VLAN Priority
• PTP - 64 packets per second (on both directions)
• Single congestion point (on forward)
• Forward load traffic (no load on reverse direction)
• 60% -minimum size packets (64 octets)
• 15% - maximum size packets (1518 octets)
• 5% - medium size packets (576 octets)

26. © 2014 ADVA Optical Networking. All rights reserved. Confidential.26

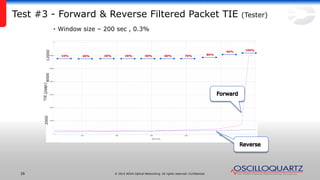

Test #3 - Forward & Reverse Filtered Packet TIE (Tester)
• Window size – 200 sec , 0.3%
100%
90%
80%70%60%50%40%30%20%10%
200012000
TIE(nsec)
8000

27. © 2014 ADVA Optical Networking. All rights reserved. Confidential.27

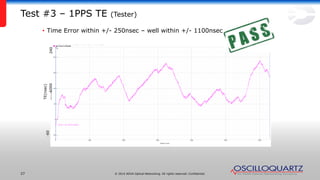

Test #3 – 1PPS TE (Tester)
• Time Error within +/- 250nsec – well within +/- 1100nsec
-60
240
TE(nsec)
6000

28. © 2014 ADVA Optical Networking. All rights reserved. Confidential.28

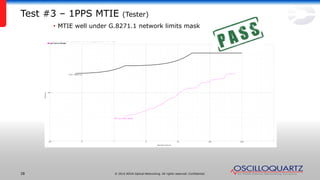

Test #3 – 1PPS MTIE (Tester)
• MTIE well under G.8271.1 network limits mask

29. © 2014 ADVA Optical Networking. All rights reserved. Confidential.29

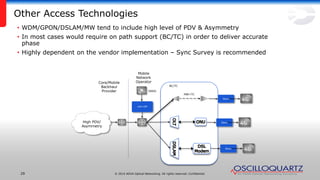

Other Access Technologies
• WDM/GPON/DSLAM/MW tend to include high level of PDV & Asymmetry
• In most cases would require on path support (BC/TC) in order to deliver accurate
phase
• Highly dependent on the vendor implementation – Sync Survey is recommended
mini-GM
GNSS
Core/Mobile
Backhaul
Provider
Mobile
Network
Operator
High PDV/
Asymmetry
Slave
MW+TC
Slave
Slave
BC/TC

30. © 2014 ADVA Optical Networking. All rights reserved. Confidential.30

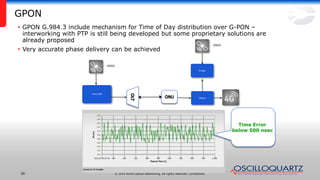

GPON
• GPON G.984.3 include mechanism for Time of Day distribution over G-PON –
interworking with PTP is still being developed but some proprietary solutions are
already proposed
• Very accurate phase delivery can be achieved
mini-GM
GNSS
Slave
Probe
Time Error
below 500 nsec
GNSS

31. © 2014 ADVA Optical Networking. All rights reserved. Confidential.31

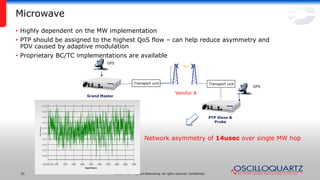

Microwave
• Highly dependent on the MW implementation
• PTP should be assigned to the highest QoS flow – can help reduce asymmetry and
PDV caused by adaptive modulation
• Proprietary BC/TC implementations are available
GPS
Transport unit Transport unit
PTP Slave &
Probe
Grand Master
GPS
Network asymmetry of 14usec over single MW hop
Vendor A

32. © 2014 ADVA Optical Networking. All rights reserved. Confidential.32

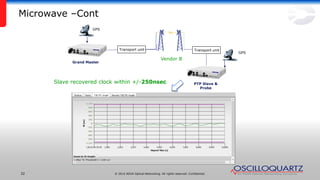

Microwave –Cont
GPS
Transport unit Transport unit
PTP Slave &
Probe
Grand Master
GPS
Vendor B
Slave recovered clock within +/-250nsec

33. © 2014 ADVA Optical Networking. All rights reserved. Confidential.33

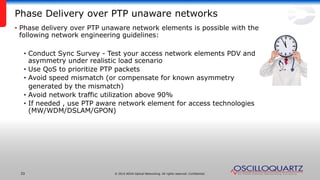

Phase Delivery over PTP unaware networks
• Phase delivery over PTP unaware network elements is possible with the
following network engineering guidelines:
• Conduct Sync Survey - Test your access network elements PDV and
asymmetry under realistic load scenario
• Use QoS to prioritize PTP packets
• Avoid speed mismatch (or compensate for known asymmetry
generated by the mismatch)
• Avoid network traffic utilization above 90%
• If needed , use PTP aware network element for access technologies
(MW/WDM/DSLAM/GPON)

34. Nlaufer@advaoptical.com
Questions? Thank you!
