The document contains specifications for various types of transformers produced by Millenium Transformers. It includes tables listing technical specifications such as measurements, weights, power ratings, and dimensions for their single phase isolation transformers, three phase isolation transformers, and toroidal transformers in various voltage/amperage configurations. Contact information is provided at the end for inquiries.

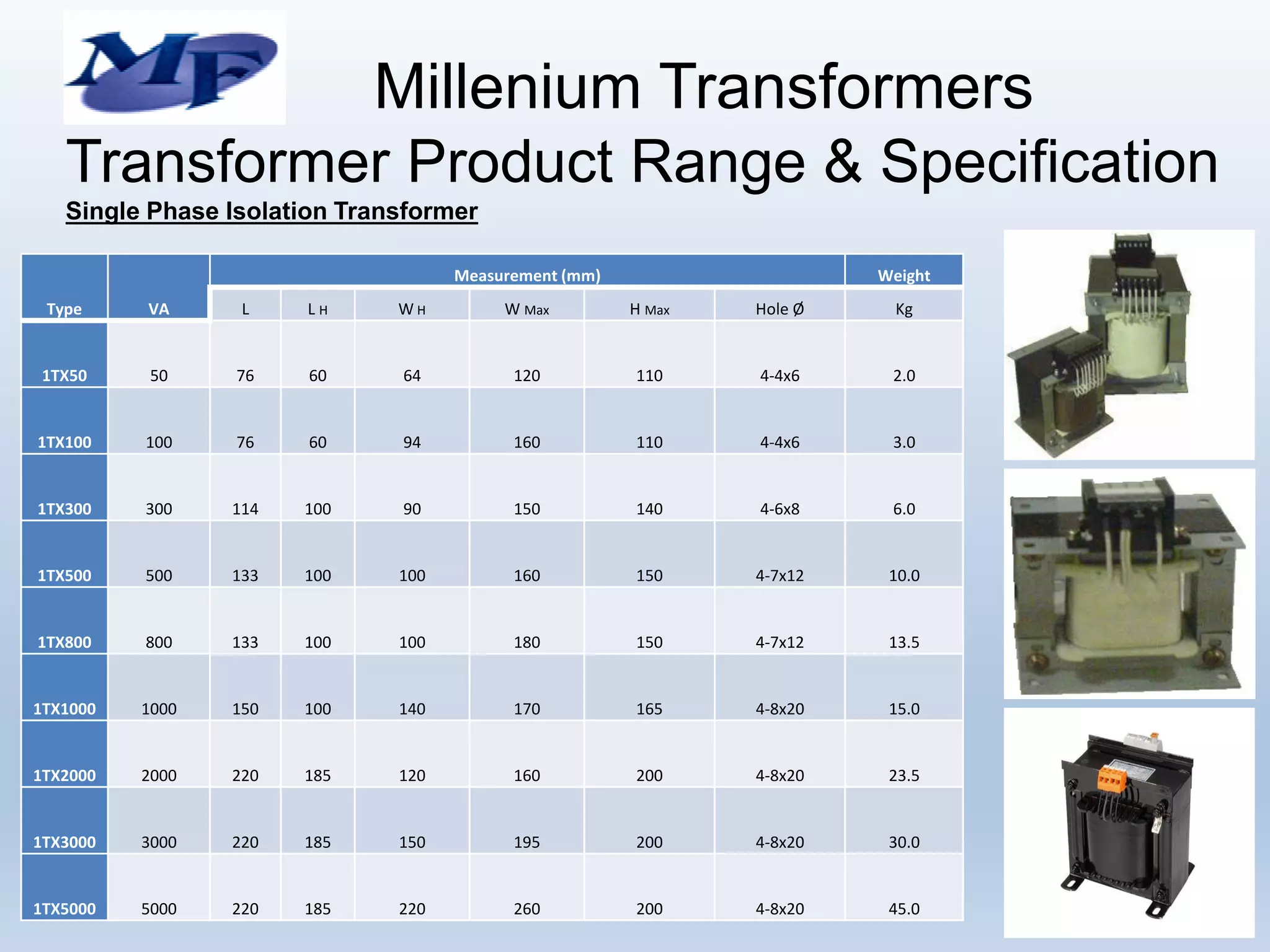

1. Type VA
Measurement (mm) Weight
L L H W H W Max H Max Hole Ø Kg
1TX50 50 76 60 64 120 110 4-4x6 2.0
1TX100 100 76 60 94 160 110 4-4x6 3.0
1TX300 300 114 100 90 150 140 4-6x8 6.0
1TX500 500 133 100 100 160 150 4-7x12 10.0
1TX800 800 133 100 100 180 150 4-7x12 13.5
1TX1000 1000 150 100 140 170 165 4-8x20 15.0
1TX2000 2000 220 185 120 160 200 4-8x20 23.5
1TX3000 3000 220 185 150 195 200 4-8x20 30.0
1TX5000 5000 220 185 220 260 200 4-8x20 45.0
Transformer Product Range & Specification
Single Phase Isolation Transformer
Millenium Transformers

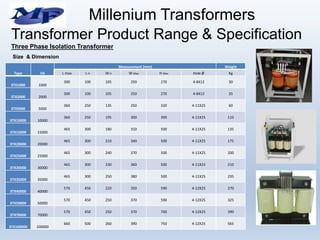

2. Type VA
Measurement (mm) Weight
L max L H W H W Max H Max Hole Ø Kg
3TX1000 1000
300 100 105 250 270 4-8X12 30
3TX2000 2000
300 100 105 250 270 4-8X12 35
3TX5000 5000
360 250 135 250 320 4-11X25 60
3TX10000 10000
360 250 195 300 390 4-11X25 110
3TX15000 15000
465 300 180 310 500 4-11X25 135
3TX20000 20000
465 300 210 340 500 4-11X25 175
3TX25000 25000
465 300 240 370 500 4-11X25 200
3TX30000 30000
465 300 230 360 500 4-11X25 210
3TX35000 35000
465 300 250 380 500 4-11X25 235
3TX40000 40000
570 450 220 350 590 4-12X25 270
3TX50000 50000
570 450 250 370 590 4-12X25 325
3TX70000 70000
570 450 250 370 700 4-12X25 390
3TX100000 100000
660 500 260 390 750 4-12X25 565
Transformer Product Range & Specification
Three Phase Isolation Transformer
Size & Dimension
Millenium Transformers

3. TOROIDAL TRANSFORMER
above 5Kva to 10Kva, please contact us for assistance.
Power VA Core Loss W
Core Loss (typical) Dimensions mm Weight
T=20°C W T-120°C W O.D Ø Height Kg
5 0.16 0.6 0.8 51 27 0.1
10 0.14 1.1 1.6 58 29 0.3
15 0.21 1.8 2.5 60 31 0.3
20 0.26 2.4 3.3 60 36 0.4
30 0.26 3.6 5 70 32 0.5
50 0.39 4.7 6.6 70 44 0.7
80 0.65 8.4 11.8 80 45 1
120 0.76 9.9 13.9 92 45 1.3
160 1 14.9 20.8 92 58 1.5
225 1.3 15.2 21.3 112 48 2.1
250 1.3 15.7 22 95 69 2.3
300 1.7 16.1 22.5 115 58 2.5
375 2.1 20 28 115 68 3
500 2.5 22.1 31 135 60 3.9
625 3.1 27.9 42 160 48 4.6
800 3.8 30 42 160 60 5.5
1000 4.8 30.7 43 200 72 6.9
1300 5.9 44.3 62 200 65 8.8
1600 7.3 45 63 200 75 10.5
1900 8.8 47.1 66 200 85 12
2200 10.3 55.3 76 205 90 13.5
2500 11.7 59.3 83 205 105 16.6
2800 13.3 68 95 245 80 16
3200 15.6 70 97 245 90 18.6
3700 17.8 73 102 245 100 21.2
4400 16.8 84 116 275 95 24.5
5000 22.4 87 120 275 105 28
Millenium Transformers

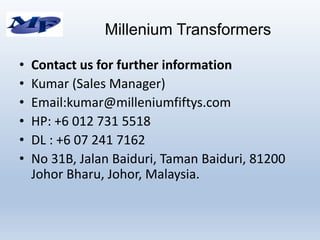

4. • Contact us for further information
• Kumar (Sales Manager)
• Email:kumar@milleniumfiftys.com
• HP: +6 012 731 5518
• DL : +6 07 241 7162
• No 31B, Jalan Baiduri, Taman Baiduri, 81200
Johor Bharu, Johor, Malaysia.
Millenium Transformers
