This document provides specifications for the Size 23 "P" Series planetary gearheads from Applied Motion Products. It includes details on gearhead construction, available input and output ratios ranging from 3:1 to 100:1, maximum torque and efficiency ratings. Tables list torque and backlash specs for single and double stage gearheads along with bearing life estimates under different load and speed conditions.

1. PLANETARY
GEARHEADS
8
APPLIED
MOTION
PRODUCTS
“L”
0.275 1.250
0.062
0.275
3/16 X .50
KEYWAY
0.731
0.100 2.250
TYP
2.231 TYP
Ø3.050
Ø.1.500/.1498
45°
Ø.6250/.6245
Ø1.501/1.503
10 – 24 UNC 2B
4X .65 DEEP
EQ SPACED ON
A Ø2.625 BC
Ø.218 4X THRU
EQ SPACED ON
A Ø2.625 BC
.281

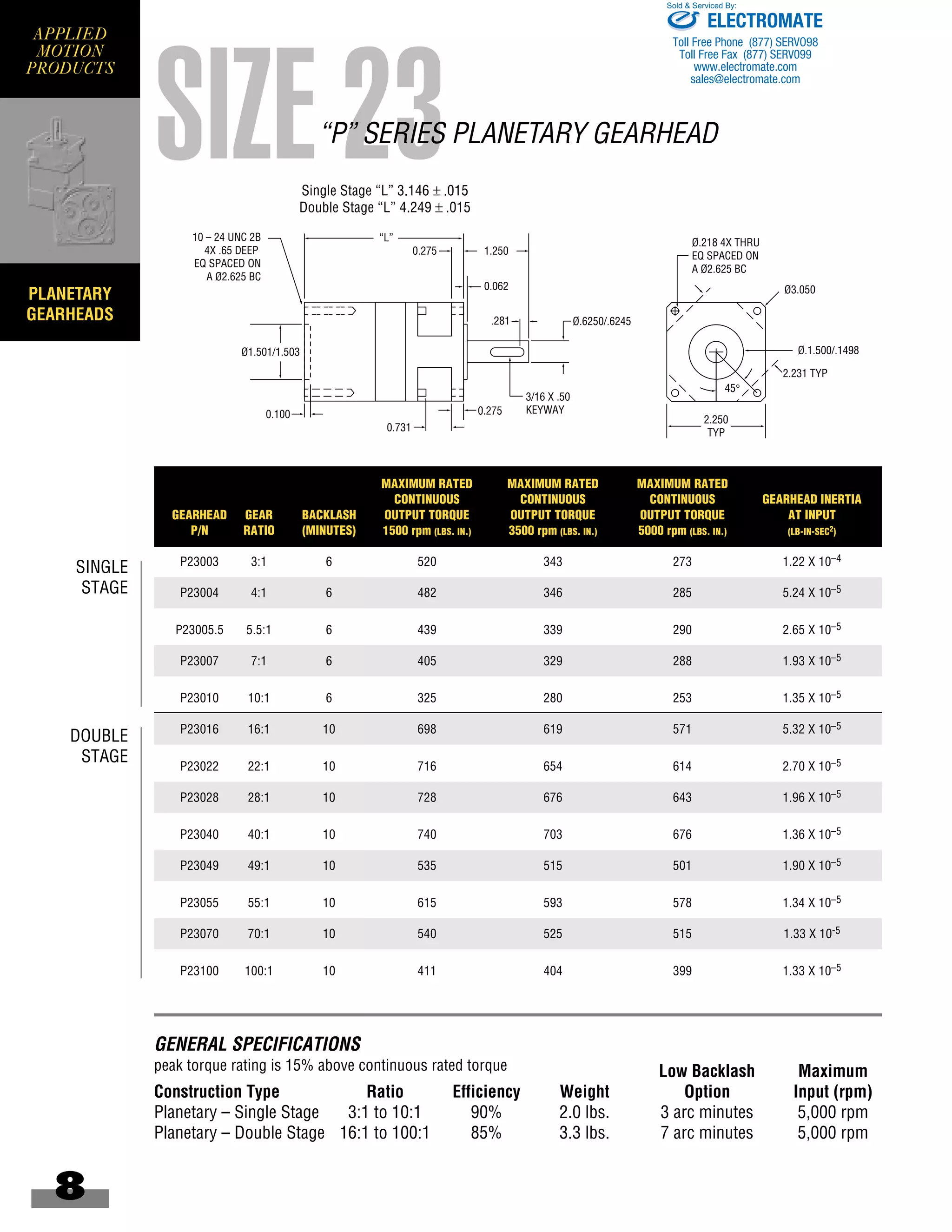

SIZE 23“P” SERIES PLANETARY GEARHEAD
Single Stage “L” 3.146 ± .015
Double Stage “L” 4.249 ± .015
GENERAL SPECIFICATIONS
peak torque rating is 15% above continuous rated torque Low Backlash Maximum
Construction Type Ratio Efficiency Weight Option Input (rpm)
Planetary – Single Stage 3:1 to 10:1 90% 2.0 lbs. 3 arc minutes 5,000 rpm
Planetary – Double Stage 16:1 to 100:1 85% 3.3 lbs. 7 arc minutes 5,000 rpm
SINGLE
STAGE
DOUBLE
STAGE
MAXIMUM RATED MAXIMUM RATED MAXIMUM RATED
CONTINUOUS CONTINUOUS CONTINUOUS GEARHEAD INERTIA
GEARHEAD GEAR BACKLASH OUTPUT TORQUE OUTPUT TORQUE OUTPUT TORQUE AT INPUT
P/N RATIO (MINUTES) 1500 rpm (LBS. IN.) 3500 rpm (LBS. IN.) 5000 rpm (LBS. IN.) (LB-IN-SEC2)
P23003 3:1 6 520 343 273 1.22 X 10–4
P23004 4:1 6 482 346 285 5.24 X 10–5
P23005.5 5.5:1 6 439 339 290 2.65 X 10–5
P23007 7:1 6 405 329 288 1.93 X 10–5
P23010 10:1 6 325 280 253 1.35 X 10–5
P23016 16:1 10 698 619 571 5.32 X 10–5
P23022 22:1 10 716 654 614 2.70 X 10–5
P23028 28:1 10 728 676 643 1.96 X 10–5
P23040 40:1 10 740 703 676 1.36 X 10–5
P23049 49:1 10 535 515 501 1.90 X 10–5
P23055 55:1 10 615 593 578 1.34 X 10–5
P23070 70:1 10 540 525 515 1.33 X 10-5
P23100 100:1 10 411 404 399 1.33 X 10–5
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

2. PLANETARY
GEARHEADS
9
APPLIED
MOTION
PRODUCTS

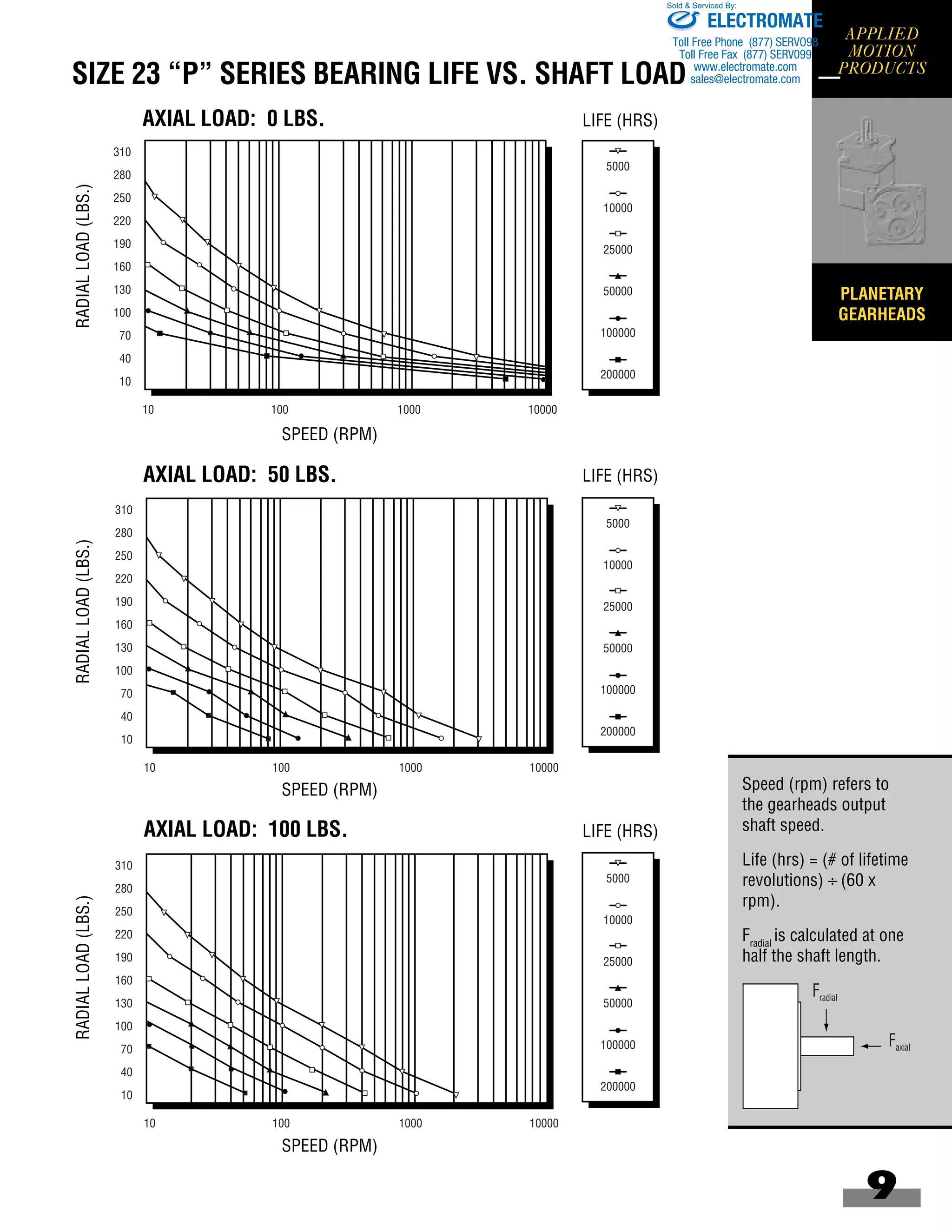

SIZE 23 “P” SERIES BEARING LIFE VS. SHAFT LOAD
AXIAL LOAD: 100 LBS.
SPEED (RPM)
RADIALLOAD(LBS.)
LIFE (HRS)
AXIAL LOAD: 50 LBS.
SPEED (RPM)
RADIALLOAD(LBS.)
LIFE (HRS)
SPEED (RPM)
RADIALLOAD(LBS.)
AXIAL LOAD: 0 LBS. LIFE (HRS)
5000
10000
25000
50000
100000
200000
5000
10000
25000
50000
100000
200000
5000
10000
25000
50000
100000
200000
310
280
250
220
190
160
130
100
70
40
10
10 100 1000 10000
310
280
250
220
190
160
130
100
70
40
10
10 100 1000 10000
310
280
250
220
190
160
130
100
70
40
10
10 100 1000 10000
Fradial
Faxial
Speed (rpm) refers to
the gearheads output
shaft speed.
Life (hrs) = (# of lifetime
revolutions) ÷ (60 x
rpm).
Fradial
is calculated at one
half the shaft length.
