1. Designed by Manoj D. Harsule
Lecturer in Electronics &
Communication Dept.
G.H. Raisoni Polytechnic,
Amravati, Maharashtra, India
Microcontroller Basics Directives

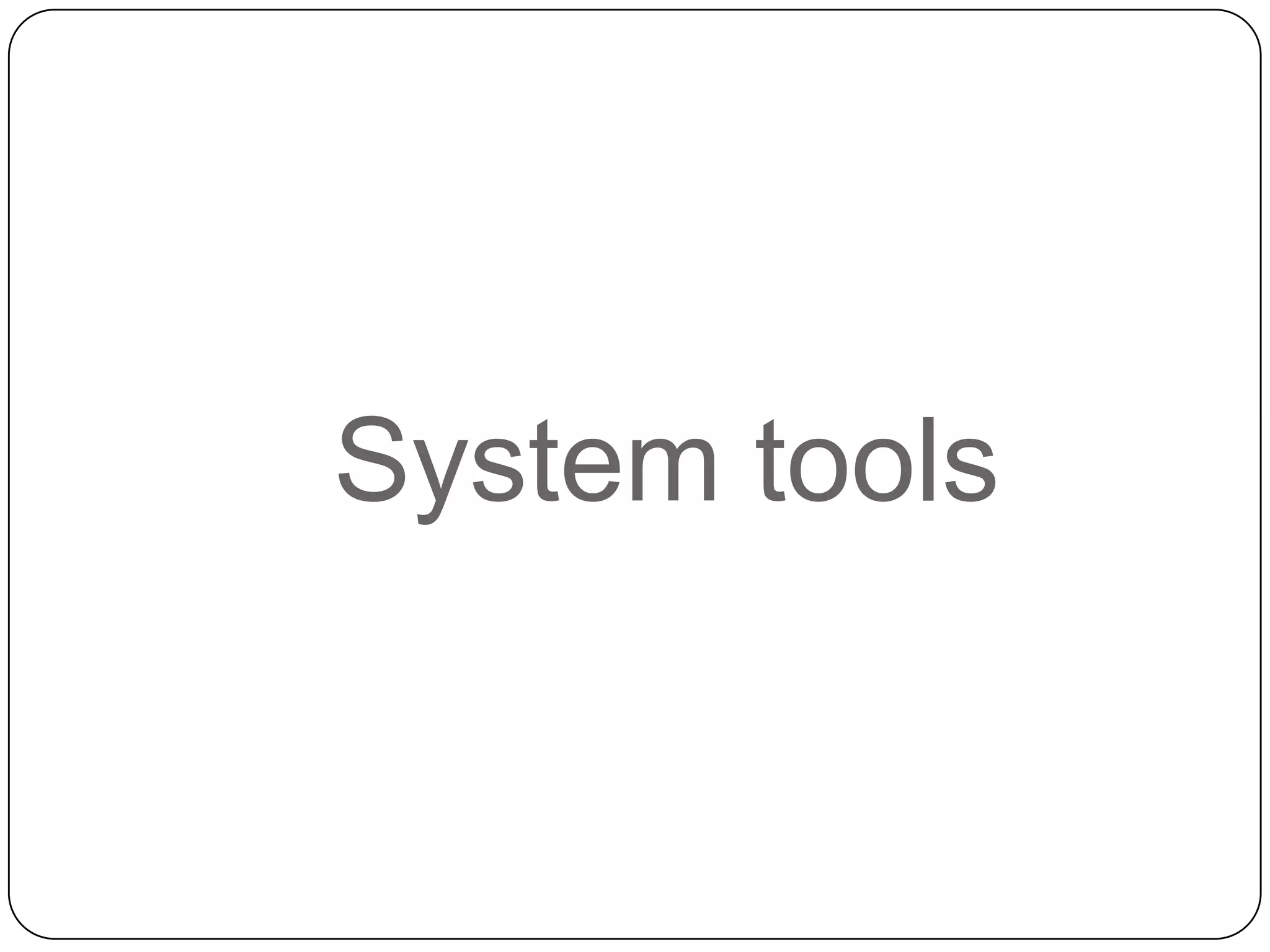

2. System tools

3. Editor
Construct ALP
Type using Editor
Called as source program
Extension .asm

4. Assembler
ALP to machine code
Extension .obj or .lst

5. Linker
Combines more than one
Converts to single
executable

6. Simulator
Run 8051 program without
using 8051 kit
If not needed use Hex
Converter
Extension must be .hex

7. Data Types
 Sbit- special function reg.
 Address- 80 H to FF H
 Bit:- addressable RAM
 00 H to 7FH

8. Byte data type
Addressable byte by byte
No 16 bit word

9. Directives are commands of
assembly language itself and
have no influence on the
operation of the microcontroller
8051 DIRECTIVES

10. EQU directive
 The EQU directive is used to replace a number
by a symbol.
 Syntax: Name EQU Constant
 For example:
 MAXIMUM EQU 99 After using this directive,
every appearance of the label “MAXIMUM” in the
program will be interpreted by the assembler as
the number 99 (MAXIMUM = 99). Symbols may
be defined this way only once in the program. The
EQU directive is mostly used at the beginning of
the program therefore.

11. SET directive
 The SET directive is also used to
replace a number by a symbol. The
significant difference compared to the
EQU directive is that the SET directive
can be used an unlimited number of
times:
 SPEED SET 45SPEED SET 46SPEED
SET 57

12. BIT directive
 The BIT directive is used to replace a bit address
by a symbol. The bit address must be in the
range of 0 to 255 (00 H to FF H).
 Syntax: Name BIT 8051 bit
 For example:
 TRANSMIT BIT PSW.7; Transmit bit (the seventh
bit in PSW register); is assigned the name
“TRANSMIT”OUTPUT BIT 6 ;Bit at address 06 is
assigned the name “OUTPUT”RELAY BIT 81 ;Bit
at address 81 (Port 0)is assigned the name
;”RELAY”

13. CODE directive
 The CODE directive is used to assign a
symbol to a program memory address.
Since the maximum capacity of program
memory is 64K, the address must be in
the range of 0 to 65535(0000 H to FFFF
H).
 Syntax: Name CODE code address
 For example:
 RESET CODE 0 ;Memory location 00h
called “RESET”TABLE CODE 1024

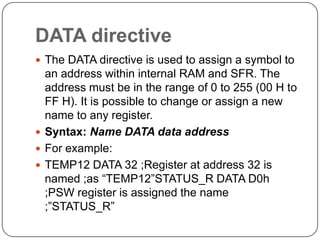

14. DATA directive
 The DATA directive is used to assign a symbol to
an address within internal RAM and SFR. The
address must be in the range of 0 to 255 (00 H to
FF H). It is possible to change or assign a new
name to any register.
 Syntax: Name DATA data address
 For example:
 TEMP12 DATA 32 ;Register at address 32 is
named ;as “TEMP12”STATUS_R DATA D0h
;PSW register is assigned the name
;”STATUS_R”

15. IDATA directive
 The IDATA directive is used to change or
assign a new name to an indirectly addressed
register. It is an address of entire internal
RAM.
 Syntax: Name IDATA idata address
 For example:
 TEMP22 IDATA 32 ;Register whose address
is in register ;at address 32 is named as
“TEMP22”TEMP33 IDATA T_ADR ;Register
whose address is in ;register T_ADR is
named as “TEMP33”

16. XDATA directive
 The XDATA directive is used to assign a
name to registers within external
(additional) RAM memory. The
addresses of these registers cannot be
larger than 65535 (0000 h to FFFF H).
 Syntax: Name XDATA xdata address
 For example:
 TABLE_1 XDATA 2048 ;Register stored
in external; memory at address 2048 is
named; as “TABLE_1”

17. ORG directive : Origin
 The ORG directive is used to specify a
location in program memory where the
program following directive is to be placed.
 Syntax: ORG address
 Address can be given in either in hex or
decimal.
 For example:
 BEGINNING ORG 100 ... ...ORG
1000hTABLE ... ...This program starts
at location 100. The table containing data is to
be stored at location 1024 (1000h).

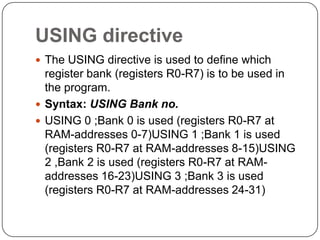

18. USING directive
 The USING directive is used to define which
register bank (registers R0-R7) is to be used in
the program.
 Syntax: USING Bank no.
 USING 0 ;Bank 0 is used (registers R0-R7 at
RAM-addresses 0-7)USING 1 ;Bank 1 is used
(registers R0-R7 at RAM-addresses 8-15)USING
2 ,Bank 2 is used (registers R0-R7 at RAM-
addresses 16-23)USING 3 ;Bank 3 is used
(registers R0-R7 at RAM-addresses 24-31)

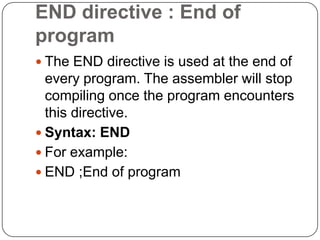

19. END directive : End of
program
 The END directive is used at the end of
every program. The assembler will stop
compiling once the program encounters
this directive.
 Syntax: END
 For example:
 END ;End of program

20. DB directive
 The DB directive is used for writing specified
value into program memory. If several
values are specified, then they are
separated by a comma. If ASCII array is
specified, it should be enclosed within single
quotation marks.
 For example:CSEG DB 22,33,’Alarm’,44 If
this directive is preceeded by a lable, then
the label will point to the first element of the
array. It is the number 22 in this example.
