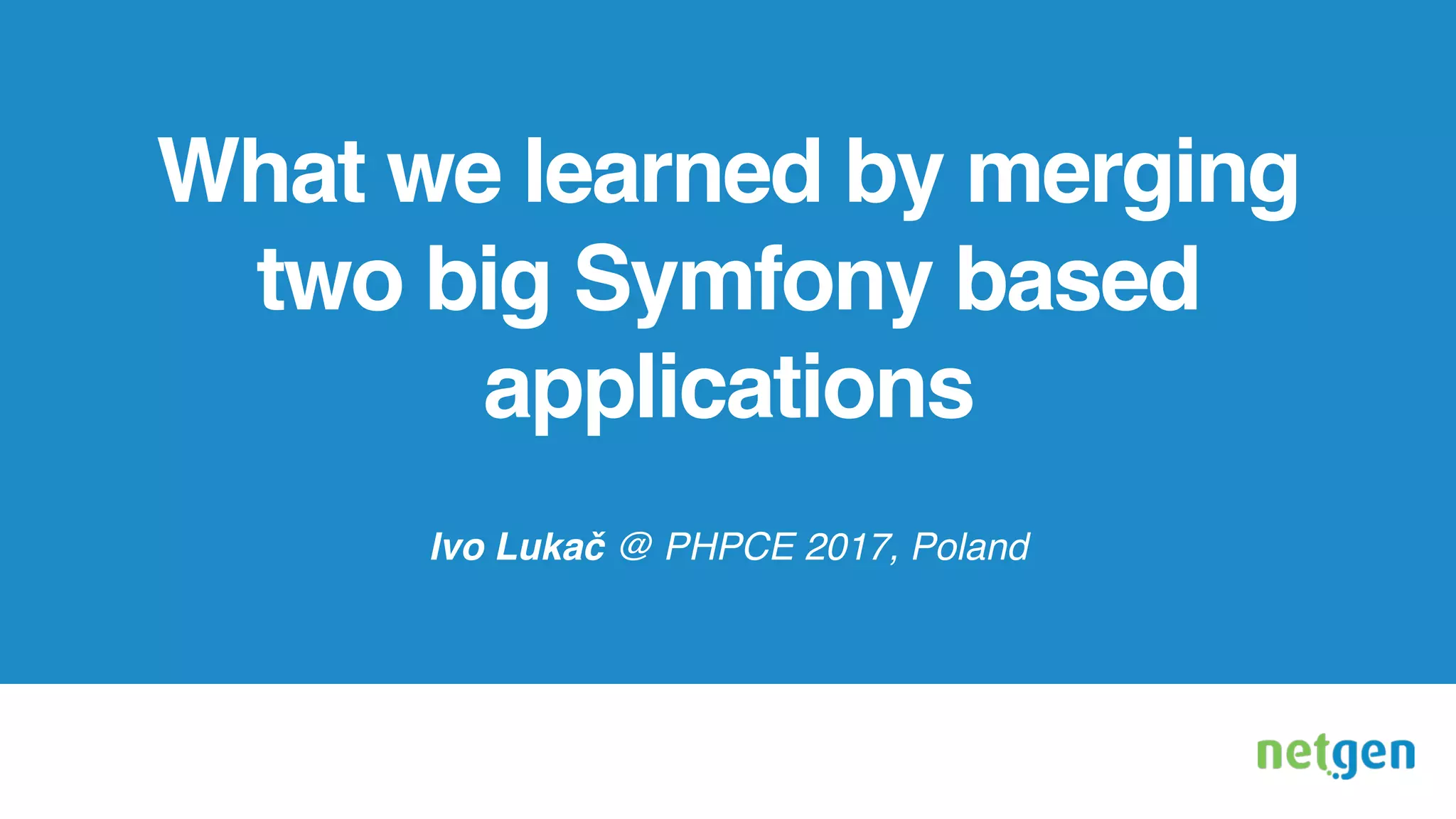

What we learned by merging two big Symfony based applications: eZ Publish / eZ Platform with Sylius eCommerce

1. What we learned by merging
two big Symfony based
applications
Ivo Lukač @ PHPCE 2017, Poland

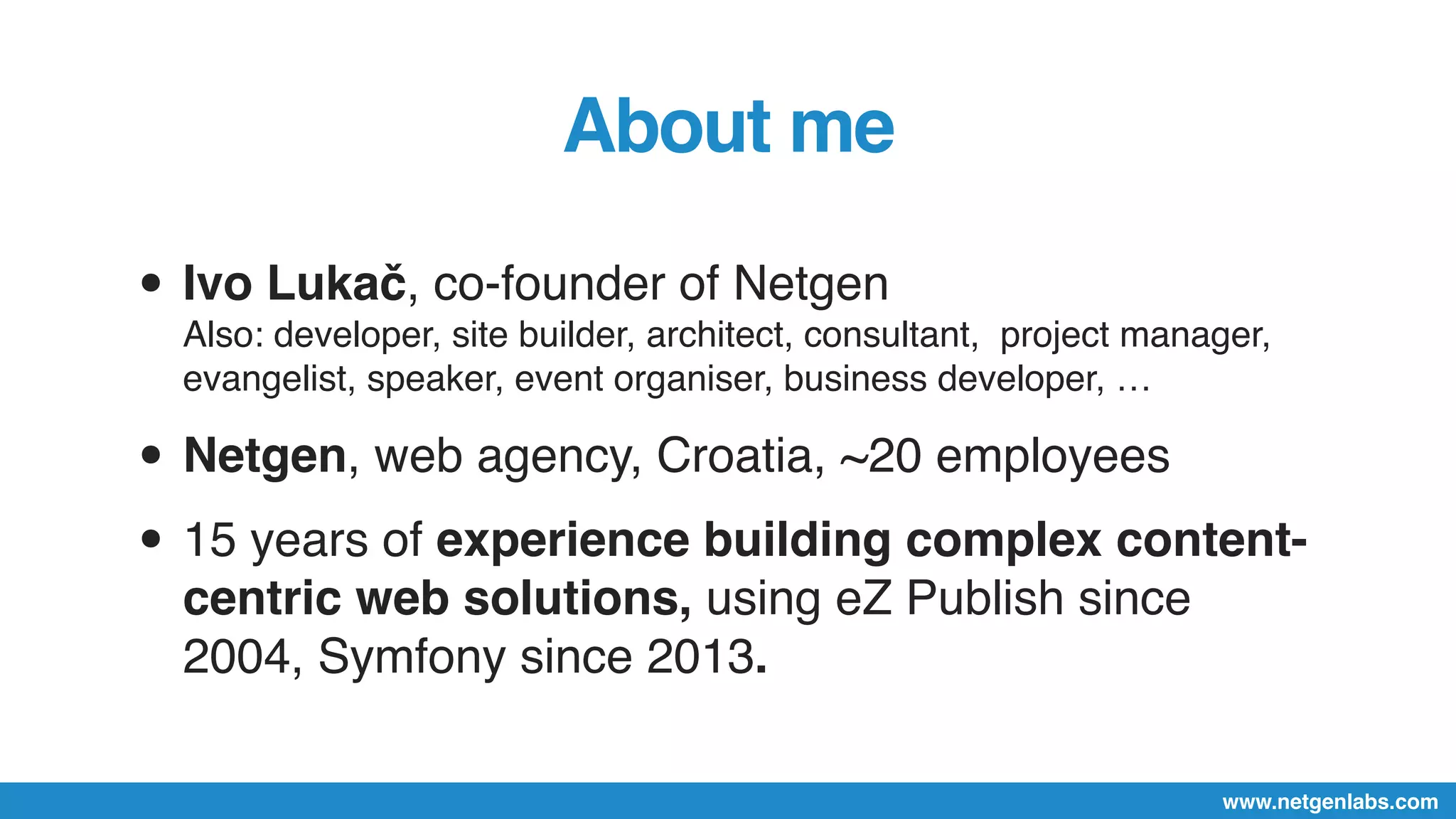

2. www.netgenlabs.com
• Ivo Lukač, co-founder of Netgen
Also: developer, site builder, architect, consultant, project manager,
evangelist, speaker, event organiser, business developer, …
• Netgen, web agency, Croatia, ~20 employees
• 15 years of experience building complex content-
centric web solutions, using eZ Publish since
2004, Symfony since 2013.
About me

3. www.netgenlabs.com

4. www.netgenlabs.com
Web Summer Camp

5. www.netgenlabs.com
HOW THIS STORY
STARTED

6. www.netgenlabs.com
• Clients are demanding better mixing of content and
commerce features
• Our stack:
• Content managed with eZ Publish / eZ Platform
• eCommerce features implemented with Sylius
CMS + eCommerce

7. www.netgenlabs.com
• eZ Publish CMS open-sourced in 1999 by eZ Systems
from Norway
• Complete refactoring started in 2011
• eZ Platform, the new generation based on Symfony,
released in 2015
• Flexible and customisable content model still the key
feature

8. www.netgenlabs.com
• Sylius - modern eCommerce based on Symfony2,
founded in 2011 by Paweł Jędrzejewski
• Modern coding standards, SOA, independent
components as bundles, IoC, BDD
• Version 1.0 stable released in 2017

9. www.netgenlabs.com

10. www.netgenlabs.com
INTEGRATION NEEDED

11. www.netgenlabs.com
Loose integration
• A usual approach for integrating 2 or more systems
is by establishing remote connections via
standard protocols (e.g. http)
• Remote systems are treated as black boxes and
completely independent
• Lastest buzzwords: “microservices” and “serverless”

12. www.netgenlabs.com
Symfony - common denominator
• Both eZ and Sylius use Symfony full stack as their
baseline, they have the same:
database access, template engine, service container,
logging, events, caching, security, mailing, assets,
environment configuration, translation, …

13. www.netgenlabs.com
Tight integration
• If 2 systems are built on the same framework and
use a lot of the same components - there is a
possibility to tightly integrate them on the same
application instance
• Suggesting new buzzword: “coupling decoupled”

14. www.netgenlabs.com
In 2015 we got a
suitable project.
Our partner Locastic
helped with Sylius
knowhow
First integration was
based on:
- eZ Publish 2014.11
- Sylius 0.14
- Symfony 2.5

15. www.netgenlabs.com

16. www.netgenlabs.com
Repos
• github.com/netgen/ezpublish-community-sylius
Symfony application with merged Sylius and eZ
Publish
• github.com/netgen/NetgenEzSyliusBundle
provides features that glue eZ and Sylius together

17. www.netgenlabs.com
In the meanwhile
• eZ Platform v1 was released, Sylius v1 was released, so
we are at the moment working on the new integration:
• ezplatform-sylius - new app repo
• ezpublish-community-sylius - deprecated
• NetgenEzSyliusBundle - master branch to be tagged as
version 2

18. www.netgenlabs.com
NetgenEzSyliusBundle - the glue
• Field type for linking Sylius products inside eZ Platform
content objects (translatable, sortable, removable)
• Replacing Sylius product routes with related eZ
Platform content routes
• User provider(s)
• Authentication success handler

19. www.netgenlabs.com
Working as expected?
• Twig template extend feature makes it easy to
integrate front side templates
• Database configuration can use the same
parameters
• Dependency injection and service container make it
trivial to use “the other system’s” features

20. www.netgenlabs.com
LETS TALK ABOUT
CHALLENGES

21. www.netgenlabs.com
1. Composing
2. Routing
3. Authentication
4. Authorization
5. Admin interface
Main challenges

22. www.netgenlabs.com
1. Composing
• Even if both systems are full stack Symfony it is possible to
run into problems during composing the app. Remember
we are talking about merging 2 big apps with many
dependencies
• Some dependencies could conflict (e.g. Doctrine)
• Fix choices:
- wait for the next release (create PRs to speed this up)
- some composer magic could help

23. www.netgenlabs.com
1. Composing
• It could happen that both systems support different Symfony
versions (Sylius 1.0 beta dropped support for Symfony 2
while eZ was still not working with Symfony 3)
• Fix choices:
- basically nothing, just waiting
- Sylius created a temporary BC branch:
"sylius/sylius": "dev-revert-symfony3-updated as 1.0"

24. www.netgenlabs.com
2. Routing
• If any of the systems doesn’t use the system router,
they should support the Chain router well (we had a
related bug in Sylius needed to be solved)
• One side should be prefixed:
sylius:
resource: "sylius_routing.yml"
prefix: %ez_sylius.shop_path_prefix%

25. www.netgenlabs.com
2. Routing
• As we were showing product with eZ URL, a custom
slug for Sylius product was implemented which used
eZ URL generator:
netgen_ez_sylius:
routing:
generate_url_aliases: true

26. www.netgenlabs.com
3. Authentication
• Authenticating users separately should work
• Sylius 0.* used FOSUserBundle,
• Sylius 1.* uses custom user providers (plural !!!)
• eZ uses custom user provider

27. www.netgenlabs.com
3. SSO Authentication
• For SSO a security event listener is needed for
authenticating the user with both providers
• eZ Publish used the user class directly (not the
interface) so we couldn’t pass the Sylius user class:
we created a PR to be able to do this eventually

28. www.netgenlabs.com
4. Authorisation
• For authorisation to work a user object from one system
needs to be connected (treated as same) to the related
user object in another system
• If possible avoid the need for authorisation on both sides.
• For example, in our first project we need to connect the
admin users from both system but the site users didn’t
have to be authorised on eZ, only on Sylius

29. www.netgenlabs.com
4. Connecting related users
• To allow manual connecting of users we
implemented a script:
ezsylius:user:connect <sylius-user-type>
<sylius-user-email> <ez-user-login>
• Of course, a post update/create user event support
would be a nicer solution

30. www.netgenlabs.com
4. Trouble with Sylius 1.*
• For Sylius 1.* lot of refactoring was done with lot of
BC brakes. One of the things was the user
management part: admin users and normal users
got completely separated.
• Our authentication and authorisation needed to be
done from scratch - we implemented a composite
user provider to handle all providers

31. www.netgenlabs.com
5. User interface
• If authentication and admin users authorisation is
working there is a chance to even merge the admin
interface
• In most cases probably not a straight forward to do
due to different UI frontend architectures. We needed
to do a PR to Sylius and also use bundle inheritance

34. www.netgenlabs.com
Pros
• With both systems working on the same instance the
possibility to mesh up things are much bigger
• Provides a single admin interface
• Problems could be spotted earlier, while in
development

35. www.netgenlabs.com
Cons
• Complexity, good expertise on both systems needed
• Depending on 2 roadmaps instead of 1
• Might be performance issues, at least when doing
composer update, due to lot of dependencies

36. www.netgenlabs.com
What we learned?
• A lot about Symfony and Composer :)
• To appreciate good roadmaps, semantic
versioning, extensible code
• Symfony does a lot of lifting, with Flex it might be
even more

37. www.netgenlabs.com
If you need something similar
• Have expertise on Symfony and both systems you
want to merge
• Check if both roadmaps and release cycles are
aligned
• Check if PRs are merged in reasonable time
• Check what licensing you need to apply

38. www.netgenlabs.com
Conclusion
• Tightly integrating 2 systems is probably an overkill
in lot of situations
• Could be worth the effort if you need:
• access to all underlaying features
• a single UI
• SSO and complex authorisation
